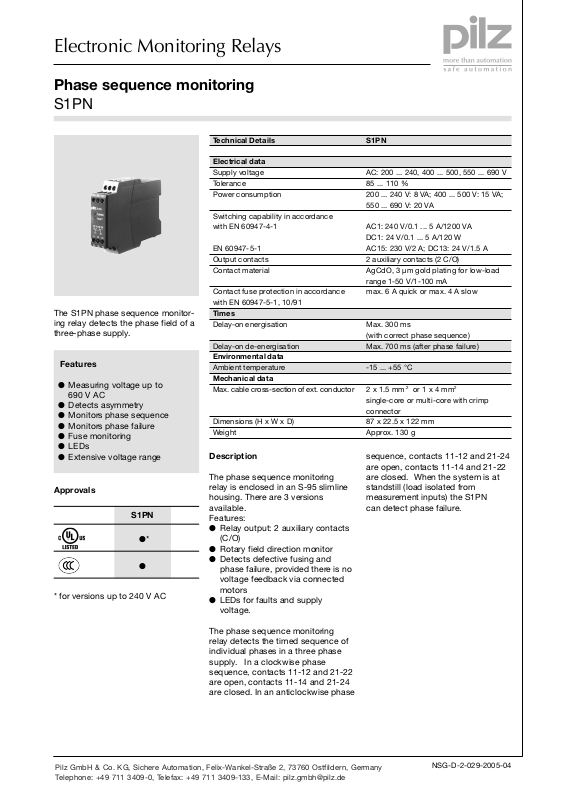

Electronic Monitoring Relays
Phase sequence monitoring
S1PN
Technical Details S1PN
Electrical data
Supply voltage AC: 200 ... 240, 400 ... 500, 550 ... 690 V
Tolerance 85 ... 110 %
Power consumption 200 ... 240 V: 8 VA; 400 ... 500 V: 15 VA;
Switching capability in accordance
with EN 60947-4-1 AC1: 240 V/0.1 ... 5 A/1200 VA
EN 60947-5-1 AC15: 230 V/2 A; DC13: 24 V/1.5 A
Output contacts 2 auxiliary contacts (2 C/O)
Contact material AgCdO, 3 µm gold plating for low-load
Contact fuse protection in accordance max. 6 A quick or max. 4 A slow
with EN 60947-5-1, 10/91
The S1PN phase sequence monitoring relay detects the phase field of a
three-phase supply.
Features
● Measuring voltage up to
690 V AC
● Detects asymmetry
● Monitors phase sequence
● Monitors phase failure
● Fuse monitoring
● LEDs
● Extensive voltage range
Approvals
S1PN
●*
●
* for versions up to 240 V AC
Times
Delay-on energisation Max. 300 ms
Delay-on de-energisation Max. 700 ms (after phase failure)
Environmental data
Ambient temperature -15 ... +55 °C
Mechanical data
Max. cable cross-section of ext. conductor 2 x 1.5 mm 2 or 1 x 4 mm
Dimensions (H x W x D) 87 x 22.5 x 122 mm
Weight Approx. 130 g
Description
The phase sequence monitoring
relay is enclosed in an S-95 slimline
housing. There are 3 versions
available.
Features:
● Relay output: 2 auxiliary contacts
(C/O)
● Rotary field direction monitor
● Detects defective fusing and
phase failure, provided there is no
voltage feedback via connected
motors
● LEDs for faults and supply
voltage.
550 ... 690 V: 20 VA
DC1: 24 V/0.1 ... 5 A/120 W
range 1-50 V/1-100 mA
(with correct phase sequence)
2
single-core or multi-core with crimp
connector
sequence, contacts 11-12 and 21-24
are open, contacts 11-14 and 21-22
are closed. When the system is at
standstill (load isolated from
measurement inputs) the S1PN
can detect phase failure.
1
The phase sequence monitoring
relay detects the timed sequence of
individual phases in a three phase
supply. In a clockwise phase
sequence, contacts 11-12 and 21-22
are open, contacts 11-14 and 21-24
are closed. In an anticlockwise phase
Pilz GmbH & Co. KG, Sichere Automation, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: pilz.gmbh@pilz.de
NSG-D-2-029-2005-04
Electronic Monitoring Relays
Phase sequence monitoring
S1PN
Internal wiring diagram
L1
L2
L3
~
=
Connection example
Power Fault
L1
L3
L2
K1
12 14
11
22 24
21
Monitoring phase failure and phase sequence
L1
L2
L3
1L1
U
B
L1 L2 L3
S1PN
11 12
14
21
22 24
S1
S2
1
F2
K2
M1
UVW
M 3 AC
K2
K2
1L2
PE
H1
0V
c
Max. cable cross section 4 mm2, on larger
separate fusing may be required!
Pilz GmbH & Co. KG, Sichere Automation, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: pilz.gmbh@pilz.de
NSG-D-2-029-2005-04
Electronic Monitoring Relays
Phase sequence monitoring
S1PN
General Details
Unless stated otherwise in the technical details for the specific unit.
Electrical data
AC frequency range 50 ... 60 Hz
DC residual ripple 160 %
Contact material AgCdO
Continuous duty 100 %
Environmental data
EMC EN 50081-1, 01/92; EN 50082-2, 03/95
Vibration in accordance
with EN 60068-2-6, 04/95 Frequency: 10 ... 55 Hz,
Climatic suitability IEC 60068-2-3, 1969
Airgap creepage DIN VDE 0110-1 (04/97), 4 kV/3
Ambient temperature -10 ... +55 °C
Storage temperature -40 ... +85 °C
Mechanical data
Torque setting for connection terminals 0.6 Nm (screws)
Mounting position Any
Housing material Thermoplastic Noryl SE 100
Protection types Mounting: IP 54
1
Amplitude: 0.35 mm
Housing: IP 40
Terminals: IP 20
Order references key
UB Supply voltage
UMMeasuring voltage
Order references
Type UB/U
S1PN 200-240 V 890 200
S1PN 400-500 V 890 210
S1PN 550-690 V 890 220
M
Order no.
Pilz GmbH & Co. KG, Sichere Automation, Felix-Wankel-Straße 2, 73760 Ostfildern, Germany
Telephone: +49 711 3409-0, Telefax: +49 711 3409-133, E-Mail: pilz.gmbh@pilz.de
NSG-D-2-029-2005-04
