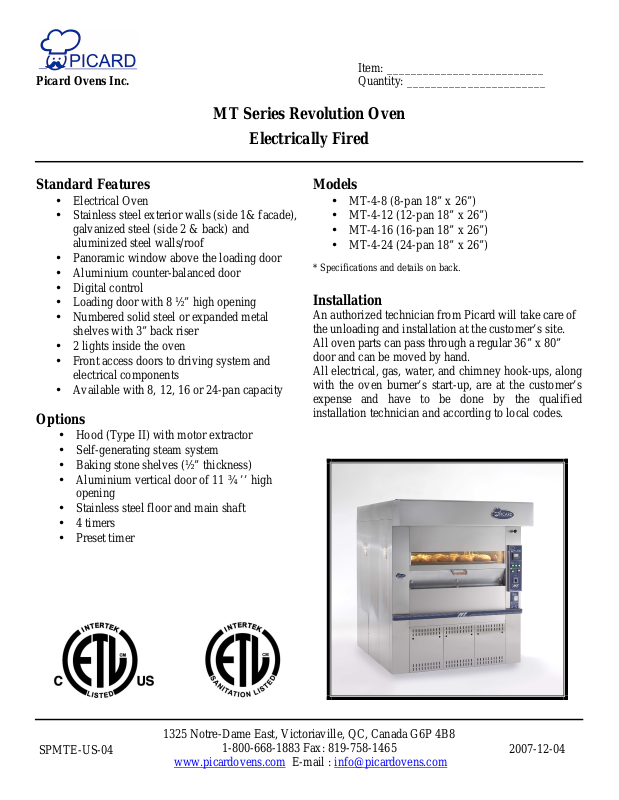

Item: __________________________
Picard Ovens Inc. Quantity: _______________________
MT Series Revolution Oven
Electrically Fired
Standard Features
• Electrical Oven
• Stainless steel exterior walls (side 1& facade),
galvanized steel (side 2 & back) and
aluminized steel walls/roof
• Panoramic window above the loading door
• Aluminium counter-balanced door
• Digital control
• Loading door with 8 ½” high opening
• Numbered solid steel or expanded metal
shelves with 3” back riser
• 2 lights inside the oven
• Front access doors to driving system and
electrical components
• Available with 8, 12, 16 or 24-pan capacity
Options
• Hood (Type II) with motor extractor
• Self-generating steam system
• Baking stone shelves (½” thickness)
• Aluminium vertical door of 11 ¾ ’’ high
opening
• Stainless steel floor and main shaft
• 4 timers
• Preset timer
Models
• MT-4-8 (8-pan 18” x 26”)
• MT-4-12 (12-pan 18” x 26”)
• MT-4-16 (16-pan 18” x 26”)
• MT-4-24 (24-pan 18” x 26”)
* Specifications and details on back.
Installation
An authorized technician from Picard will take care of
the unloading and installation at the customer’s site.
All oven parts can pass through a regular 36” x 80”
door and can be moved by hand.
All electrical, gas, water, and chimney hook-ups, along
with the oven burner’s start-up, are at the customer’s
expense and have to be done by the qualified
installation technician and according to local codes.
SPMTE-US-04
1325 Notre-Dame East, Victoriaville, QC, Canada G6P 4B8
1-800-668-1883 Fax: 819-758-1465
www.picardovens.com E-mail : [email protected]
2007-12-04
Page 2
RECOMMENDED MINIMAL CLEARANCES
MT Series Revolution Oven Electrically Fired
(1) H
ood
(option) add 4 amps
. (2) Steam
(option) add
500 lbs.
120 V
Door
MT-8-16
MT-4-12
MT-8-24
ELECTRICAL SPECIFICATIONS
ELECTRICAL SPECIFICATIONS WITH STEAM SYSTEM OPTION
BAKING CAPACITIES
* Continuous product development is a Picard policy. Therefore, we reserve the right to change specifications and/or design without prior notice.
Primary electrical connection
208-240V ou 460V
Secondary electrical
connection
Picard Ovens Inc.
Hood
Type II
Hood vent
Ø 6’’
Water connection
1/4’’ NPT
(Steam option)
Model
MT-4-8
Model
MT-4-8 27 000 75A 13A
MT-8-16 27 000 75A 19A
MT-4-12 36 000 100A 13A
MT-8-24 36 000 100A 19A
Model
MT-4-8 36 000 100A 13A
MT-8-16 36 000 100A 19A
MT-4-12 45 000 125A 13A
MT-8-24 45 000 125A 19A
Model Qty Size 5 oz Pans (18’’ x 26’’) 1 lb 1.5 lb 9’’ 8’’ 10’’ 12’’ 14’’ 16’’ 18’’
MT-4-8 4 26“ X 36 ½“ 120 8 60 48 36 44 24 16 12 8 8
MT-8-16 8 26“ X 36 ½“ 240 16 120 96 72 88 48 32 24 16 16
MT-4-12 4 26“ X 54 ½“ 200 12 80 64 56 64 32 32 16 12 12
MT-8-24 8 26“ X 54 ½“ 400 24 160 128 112 128 64 64 32 24 24
Expedition weight 2
2 300 lbs
3 000 lbs
Floor to ceiling Sides and Back to Wall Floor
96” 0” Approved for combustible surface
208-240V/3PH/60Hz
Power (Watts) Amperes
208-240V/3PH/60Hz
Power (Watts) Amperes
Trays Bagels Breads Pies Pizzas
(Primary)
120V/1PH/60Hz
(Primary)
120V/1PH/60Hz
Amperes (1)
Amperes (1)
(Secondary)
(Secondary)
OR
MT-4-8 27 000 34A 13A
MT-8-16 27 000 34A 19A
MT-4-12 36 000 46A 13A
MT-8-24 36 000 46A 19A
OR
MT-4-8 36 000 46A 13A
MT-8-16 36 000 46A 19A
MT-4-12 45 000 57A 13A
MT-8-24 45 000 57A 19A
MT-4-8 56 3/16’’ [1427.16]
MT-8-16 56 3/16’’ [1427.16]
MT-4-12 74 3/16’’ [1883.59]
MT-8-24 74 3/16’’ [1883.59]
Model
Model
460V/3PH/60Hz
Power (Watts) Amperes
460V/3PH/60Hz
Power (Watts) Amperes
(Primary)
(Primary)
120V/1PH/60Hz
120V/1PH/60Hz
(Secondary)
Amperes (1)
(Secondary)
Amperes (1)
SPMTE-US-04
1325 Notre-Dame East, Victoriaville, QC, Canada G6P 4B8
1-800-668-1883 Fax : 819-758-1465
2007-12-04
