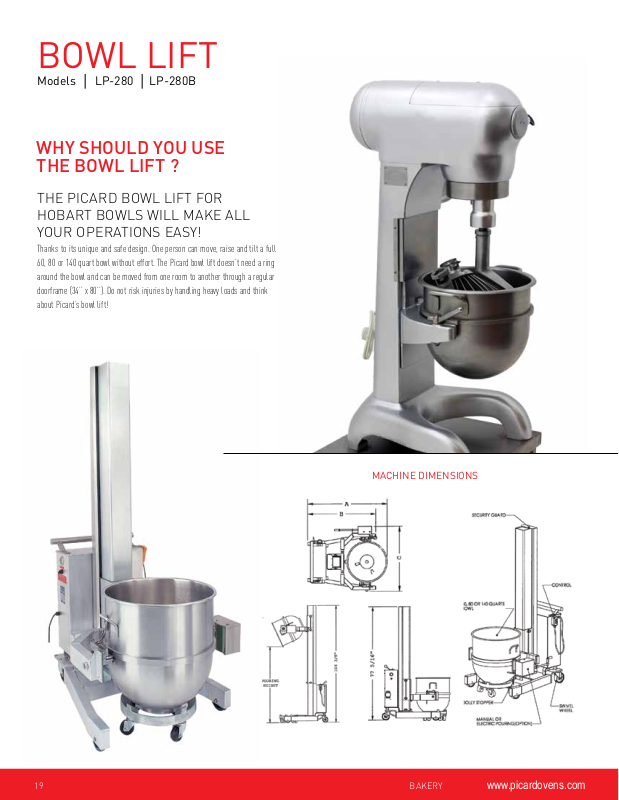

BOWL LIFT
Models │ LP-280 │ LP-280B
Why should you usE
thE boWl lift ?
the Picard Bowl liFt For
hoBart Bowls will make all
your oPerations easy!
Thanks to its unique and safe design. One person can move, raise and tilt a full
60, 80 or 140 quart bowl without effort. The Picard bowl lift doesn’t need a ring
around the bowl and can be moved from one room to another through a regular
doorframe (34’’ x 80’’). Do not risk injuries by handling heavy loads and think
about Picard’s bowl lift!

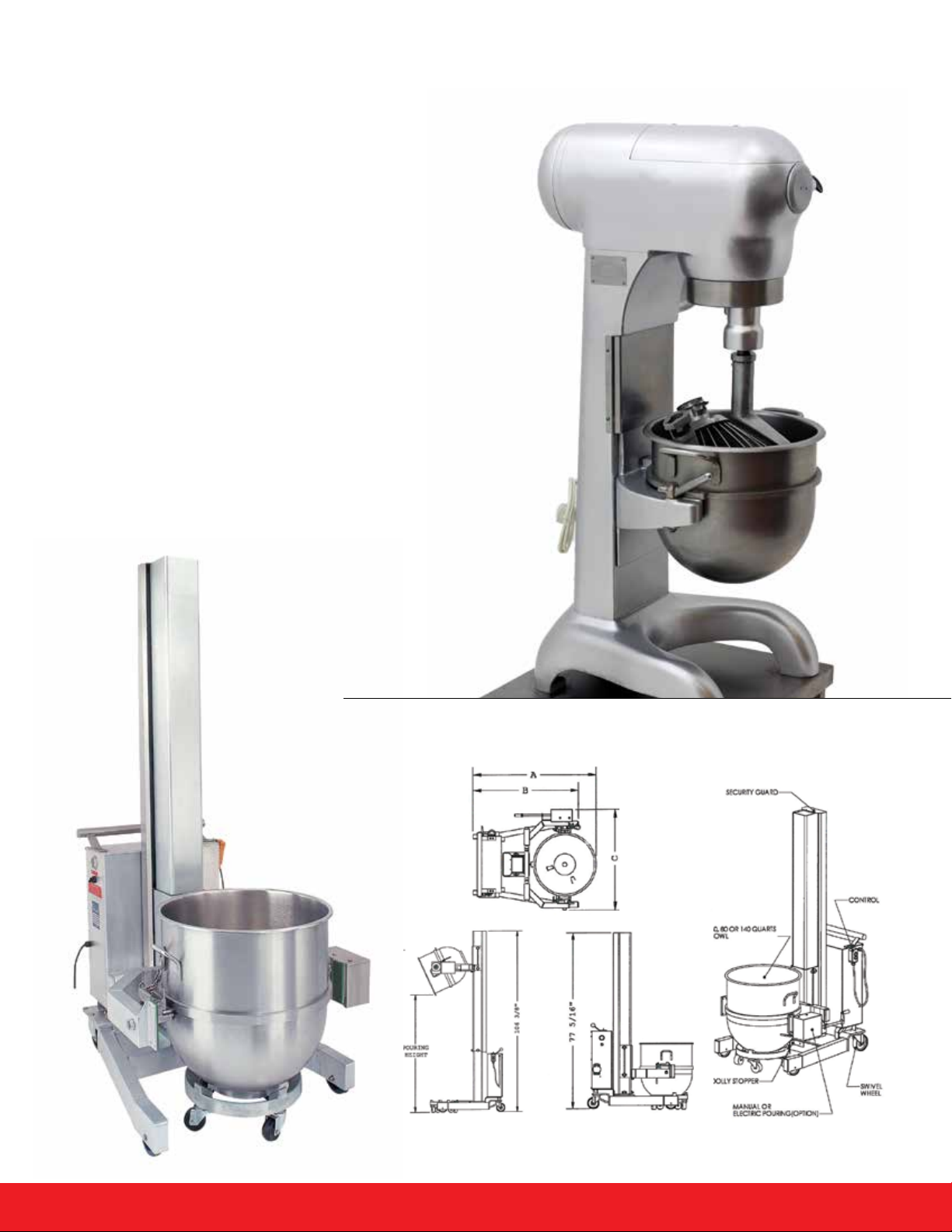

MACHINE DIMENSIONS
19
BAKERY
www.picardovens.com
Page 2
BOWL LIFT
Models │ LP-280 │ LP-280B
1.Mixer Bowl 2. To the Bowl lift 4. Lift Bowl 8’’ form
3. Positioning 5. Slightly tilt the
floor and lock it using
the two safety hooks
seen on each side of
the bowl holder (first
safety device)
Basic Features
• Stainless steel and aluminum construction (Rust Free)
• Used for (standard of Legacy) Hobart bowls of 60, 80 & 140 quarts)
• Telescoping post from 78’’ to 107’’ height
• Two safety devices: safety snap hooks and locking mechanism on the tilting device
• On swivel wheels with locking mechanism
• 400 pounds load capacity
• Can pour up to 76 inches
• Safe hydraulic power system
• Mobile, hand-held control box
iF mobility iS eSSential
• Rechargeable 12-volt battery
• Long lasting: it can lift 50 to 60 times before reloading
• Built-in battery charger
• Charge indicator lets you know when to recharge (model LP-280-B)
bowl in order to lock
it (second safety
device)
Model A B C
All models
Model Cordless
LP-280
LP-280B
Model Width Depth Height Weight
All models
Model Quarts Pouring Height Load capacity
HL600
HL800
HL1400
6. Lift the bowl to
desired height
7. Incline the bowl to
the required angle
8. Keep the bowl tilled
when lowering so the
second safety device
remains locked
52 15/16” 46 1/4” 40 15/16”
Electrical
specifications
Battery
No 120V / 1PH / 60HZ / 16A
No 220V / 1PH / 60HZ / 8A
Yes 120V / 1PH / 60HZ / 2A 12V sealing battery
Yes 220V / 1PH / 60HZ / 16A 12V sealing battery
40” 48” 85” 500 lbs (227kg)
60 76” 400 lbs (180kg) max.
80 74”
140 72”
N/A
N/A
iF mobility iS not eSSential
• Model without battery using direct 110-volt power 5 amperes (model LP-280)
• Load capacity: 400 pounds
• Maximum dumping height: 76’’ (60-quart bowl) 74’’ (80-quart bowl)
and 72’’ (140-quart bowl)
• Will fit 60, 80 and 140-quart Hobart bowls
• Simple manual adjustment to change bowl size
• A person alone can use the lift
• Mounted on solid 5-inch wheels
BAKERY
www.picardovens.com
oPtional Features
• Electrical tilting device
*Bowl and Bowl dolly are not included
installation
This equipment is shipped fully assembled in one piece and ready to be operated. It can
easily pass through a standard door 36’’ x 80’’.
