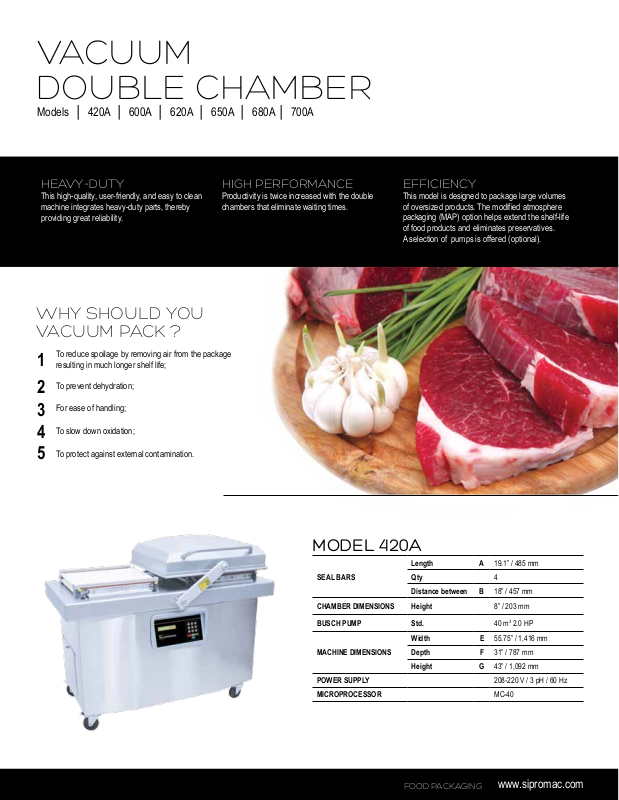

Page 1
VACuuM
dOuBLE ChAMBER
Models │ 420A │ 600A │ 620A │ 650A │ 680A │ 700A
hEAVy-duTy
This high-quality, user-friendly, and easy to clean
machine integrates heavy-duty parts, thereby
providing great reliability.
Why shOuLd yOu
VACuuM PACk ?
To reduce spoilage by removing air from the package
1
resulting in much longer shelf life;
To prevent dehydration;
2
For ease of handling;
3
To slow down oxidation;
4
To protect against external contamination.
5
hIgh PERFORMAnCE
Productivity is twice increased with the double
chambers that eliminate waiting times.
EFFICIEnCy
This model is designed to package large volumes
of oversized products. The modified atmosphere
packaging (MAP) option helps extend the shelf-life
of food products and eliminates preservatives.
A selection of pumps is offered (optional).
Model 420a
Length A 19.1” / 485 mm
SEAL BARS
CHAMBER DIMENSIONS Height 8” / 203 mm
BUSCH PUMP Std. 40 m
MACHINE DIMENSIONS
POWER SUPPLY 208-220 V / 3 pH / 60 Hz
MICROPROCESSOR MC-40
Qty 4
Distance between B 18” / 457 mm
3
2.0 HP
Width E 55.75” / 1,416 mm
Depth F 31” / 787 mm
Height G 43” / 1,092 mm
FOOD PACKAGING
www.sipromac.com
Page 2
VACuuM dOuBLE ChAMBER
Models │ 420A │ 600A │ 620A │ 650A │ 680A │ 700A
Models 600a, 620a and 650a
SEAL BARS
CHAMBER
DIMENSIONS
BUSCH PUMP Std. 100 m
MACHINE
DIMENSIONS
POWER SUPPLY
MICROPROCESSOR MC-40 MC-40 MC-40
600A 620A 650A
Length A 26” / 660 mm 26” / 660 mm 33.5” / 855 mm
Qty 4 4 4
Distance
between
Height 8” / 203 mm 8” / 203 mm 8” / 203 mm
Width E 68” / 1,727 mm 68” / 1,727 mm 85” / 2,159 mm
Depth F 36” / 914 mm 39.5” / 1,003 mm 49” / 1,245 mm
Height G 47” / 1,194 mm 47” / 1,194 mm 47” / 1,194 mm
B 22.5” / 572 mm 28” / 711 mm 31” / 787 mm
3
5.0 HP 100 m3 5.0 HP 165 m3 7.5 HP
208-220 V / 3 pH
/ 60 Hz
208-220 V / 3 pH
/ 60 Hz
208-220 V / 3 pH
/ 60 Hz
Models 680a and 700a
680A 700A
Length A 33.5” / 855 mm 33.5” / 855 mm
SEAL BARS
CHAMBER
DIMENSIONS
BUSCH PUMP Std. 165 m
MACHINE
DIMENSIONS
POWER SUPPLY
MICROPROCESSOR MC-40 MC-40
Qty 4 4
Distance
between
Height 8” / 203 mm 8” / 203 mm
Width E 85” / 2,159 mm 85” / 2,159 mm
Depth F 49” / 1,245 mm 45” / 1,145 mm
Height G 47” / 1,194 mm 51” / 1,295 mm
B 31” / 787 mm 31” / 787 mm
3
7.5 HP 165 m3 7.5 HP
208-220 V / 3 pH
/ 60 Hz
208-220 V / 3 pH
/ 60 Hz
FOOD PACKAGING
www.sipromac.com
Page 3
VACuuM dOuBLE ChAMBER
Models │ 420A │ 600A │ 620A │ 650A │ 680A │ 700A
2 sEAL BARs / ChAMBER
BAsIC FEATuREs
• Double chamber
• Stainless steel construction
• Twin seal element – Double seam band
• Vacuum sensor - Vacuum level controlled in percentage
directly with Microprocessor
• Filler plates
• Wheels (stainless steel) – 420A, 600A, 620A, 650A
• Legs (stainless steel) – adjustable 680A, 700A
• Rear panel
• Crate
• Certification; ETL listed C & US (CSA & UL)
MC-40
OPTIOnAL FEATuREs
• Electric cut-off - Two wire seal system which outside wire cuts off excessive part of bag
• Bi-active seal - Sealing from top and bottom for thick pouches and aluminum bags
(except model 420A)
• Gas injection system (MAP) - For fragile products, presentation and extending shelf life
• Air regulator – Regulated air pressure in the seal bars bladders with compressed air
(not included) (except model 400)
• Adjustable venting system - Controlled decompression of the vacuum chamber
• 12” (305 mm) chamber lid (except model 420A)
• Vacuum pump sizes
• Rear conveyor (model 700A)
• Inclined stainless steel filler plates for liquid (except model 700A)
• Silencer
• Other voltages available
• Heated control box for microprocessor
• Service kit for standard maintenance
All features are subject to change without notice.
