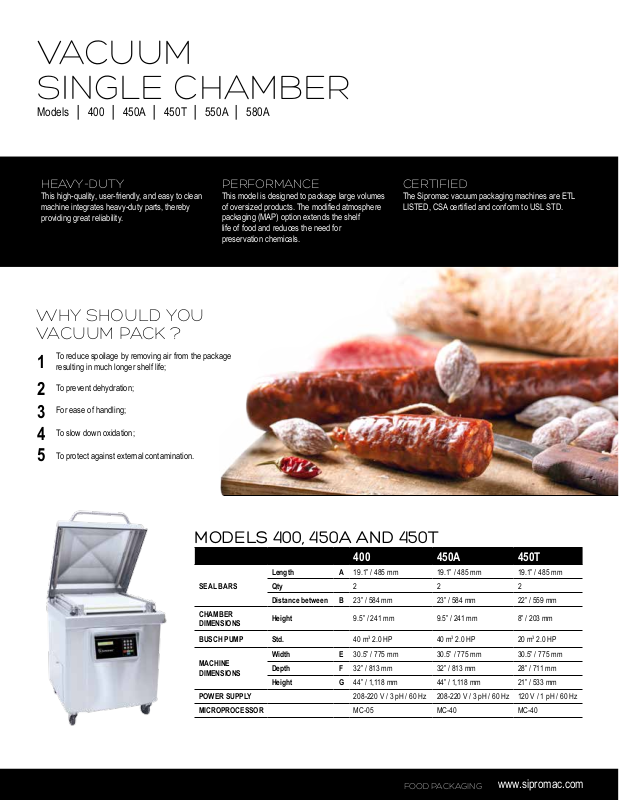

Page 1
VACuuM
sIngLE ChAMBER
Models │ 400 │ 450A │ 450T │ 550A │ 580A
hEAVy-duTy
This high-quality, user-friendly, and easy to clean
machine integrates heavy-duty parts, thereby
providing great reliability.
Why shOuLd yOu
VACuuM PACk ?
To reduce spoilage by removing air from the package
1
resulting in much longer shelf life;
To prevent dehydration;
2
For ease of handling;
3
To slow down oxidation;
4
To protect against external contamination.
5
PERFORMAnCE
This model is designed to package large volumes
of oversized products. The modified atmosphere
packaging (MAP) option extends the shelf
life of food and reduces the need for
preservation chemicals.
CERTIFIEd
The Sipromac vacuum packaging machines are ETL
LISTED, CSA certified and conform to USL STD.
Models 400, 450a and 450T
400 450A 450T
Length A 19.1” / 485 mm 19.1” / 485 mm 19.1” / 485 mm
SEAL BARS
CHAMBER
DIMENSIONS
BUSCH PUMP Std. 40 m
MACHINE
DIMENSIONS
POWER SUPPLY 208-220 V / 3 pH / 60 Hz 208-220 V / 3 pH / 60 Hz 120 V / 1 pH / 60 Hz
MICROPROCESSOR MC-05 MC-40 MC-40
Qty 2 2 2
Distance between B 23” / 584 mm 23” / 584 mm 22” / 559 mm
Height 9.5” / 241 mm 9.5” / 241 mm 8” / 203 mm
3
2.0 HP 40 m3 2.0 HP 20 m3 2.0 HP
Width E 30.5” / 775 mm 30.5” / 775 mm 30.5” / 775 mm
Depth F 32” / 813 mm 32” / 813 mm 28” / 711 mm
Height G 44” / 1,118 mm 44” / 1,118 mm 21” / 533 mm
FOOD PACKAGING
www.sipromac.com
Page 2
VACuuM sIngLE ChAMBER
Models │ 400 │ 450A │ 450T │ 550A │ 580A
Models 550a and 580a
SEAL BARS
CHAMBER
DIMENSIONS
BUSCH PUMP Std. 63 m
MACHINE
DIMENSIONS
POWER SUPPLY 208-220 V / 3 pH / 60 Hz 208-220 V / 3 pH / 60 Hz
MICROPROCESSOR MC-40 MC-40
550A 580A
Length A 26.0” / 660 mm 33.5” / 855 mm
Qty 2 2
Distance between B 23.25” / 591 mm 36.75” / 933 mm
Height 8” / 203 mm 8” / 203 mm
3
3.0 HP 165 m3 7.5 HP
Width E 31” / 787 mm 45.25” / 1,153 mm
Depth F 36” / 914 mm 46.5” / 1,183 mm
Height G 47” / 1,194 mm 43.75” / 1,113 mm
2 sEAL BARs MC-05
BAsIC FEATuREs
• Single chamber
• Stainless steel construction
• Twin seal element – Double seam band
• Vacuum sensor - Vacuum level controlled in percentage directly
with Microprocessor (except model 400)
• Filler plates
• Cover latch
• Wheels (stainless steel)
• Rear panel
• Crate
• Certification; ETL listed C & US (CSA & UL) (except model 400)
MC-40
OPTIOnAL FEATuREs
• Electric cut-off - Two wire seal system which outside wire cuts off excessive part of bag
• Bi-active seal - Sealing from top and bottom for thick pouches and aluminum bags on
models 550A and 580A
• Gas injection system (MAP) - For fragile products, presentation and extending shelf life
(except model 400)
• Air regulator – Regulated air pressure in the seal bars bladders with compressed air
(not included) (except model 400)
• Adjustable venting system - Controlled decompression of the vacuum chamber
• 12” (305 mm) chamber lid on models 550A and 580A
• Vacuum pump sizes
• Inclined stainless steel filler plates for liquid
• Silencer
• Other voltages available
• Heated control box for microprocessor
• Service kit for standard maintenance
All features are subject to change without notice.
FOOD PACKAGING
www.sipromac.com
