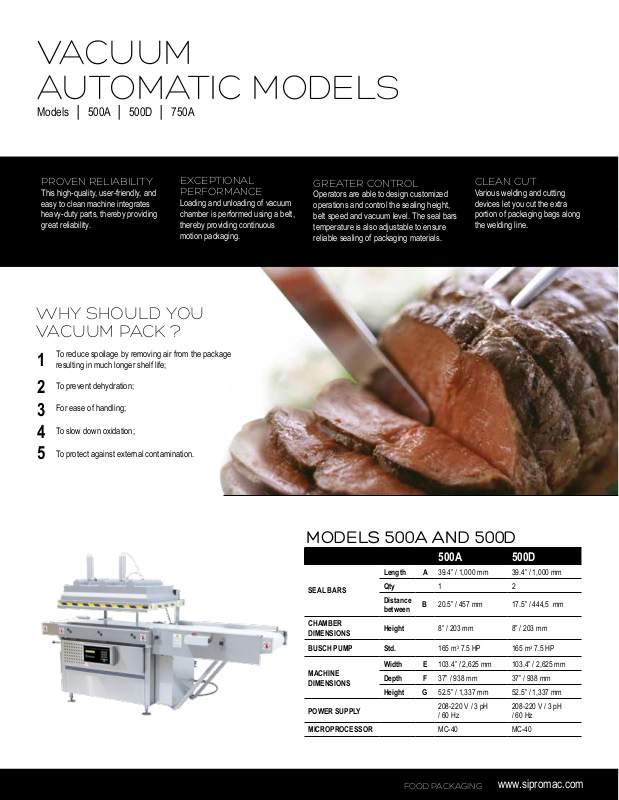

VACuuM
AuTOMATIC MOdELs
Models │ 500A │ 500D │ 750A
PROVEn RELIABILITy
This high-quality, user-friendly, and
easy to clean machine integrates
heavy-duty parts, thereby providing
great reliability.
ExCEPTIOnAL
PERFORMAnCE
Loading and unloading of vacuum
chamber is performed using a belt,
thereby providing continuous
motion packaging.
Why shOuLd yOu
VACuuM PACk ?
To reduce spoilage by removing air from the package
1
resulting in much longer shelf life;
To prevent dehydration;
2
For ease of handling;
3
To slow down oxidation;
4
To protect against external contamination.
5
gREATER COnTROL
Operators are able to design customized
operations and control the sealing height,
belt speed and vacuum level. The seal bars
temperature is also adjustable to ensure
reliable sealing of packaging materials.
CLEAn CuT
Various welding and cutting
devices let you cut the extra
portion of packaging bags along
the welding line.
Models 500a and 500d
500A 500D
Length A 39.4” / 1,000 mm 39.4” / 1,000 mm
SEAL BARS
CHAMBER
DIMENSIONS
BUSCH PUMP Std. 165 m
MACHINE
DIMENSIONS
POWER SUPPLY
MICROPROCESSOR MC-40 MC-40
Qty 1 2
Distance
between
Height 8” / 203 mm 8” / 203 mm
Width E 103.4” / 2,625 mm 103.4” / 2,625 mm
Depth F 37” / 938 mm 37” / 938 mm
Height G 52.5” / 1,337 mm 52.5” / 1,337 mm
B 20.5” / 457 mm 17.5” / 444,5 mm
3
7.5 HP 165 m3 7.5 HP
208-220 V / 3 pH
/ 60 Hz
FOOD PACKAGING
208-220 V / 3 pH
/ 60 Hz
www.sipromac.com
Page 2
VACuuM AuTOMATIC MOdELs
Models │ 500A │ 500D │ 750A
Model 750a
Length A 39.4” / 1,000 mm
SEAL BARS
CHAMBER
DIMENSIONS
BUSCH PUMP Std. / Option Option
MACHINE
DIMENSIONS
POWER SUPPLY 208-220 V / 3 pH / 60 Hz
MICROPROCESSOR Touch Screen
Qty 2
Distance between B 35” / 889 mm
Height 8” / 203 mm
Width E 116” / 2,950 mm
Depth F 78.5” / 1,991 mm
Height G 82” / 2,086 mm
BAsIC FEATuREs
Models 500A and 500D
• Automatic belted chamber
• Stainless steel construction
• Automatic function with security
• Twin seal element – Double
seam band
• Seal bar height
(manually controlled)
• Vacuum sensor - Vacuum level
controlled in percentage directly
with Microprocessor
• Single lever belt release
for easy cleaning
• Air pressure sealing
• Remotely located start
and stop button
• Legs (stainless steel)
• Rear panel
• Crate
• Certification CSA
Model 750A
• Automatic belted chamber
• Stainless steel construction
• Bi-active seal - Sealing from top
and bottom for thick pouches and
aluminum bags (model 750A)
• Seal bar height
(electronically controlled)
• Water cooled seal bars
• Single or double operator mode
• Automatic quick belt slackening
for ease of cleaning
• Belt movement by AC drive
• Pneumatic bag guides
• Legs (stainless steel)
• Heated control box for
microprocessor
• Rear panel
• Crate
• Certification CSA
2 sEAL BARs / ChAMBER
OPTIOnAL FEATuREs
Models 500A and 500D
• Electric cut-off - Two wire seal system
which outside wire cuts off excessive
part of bag
• Bi-active seal - Sealing from top and
bottom for thick pouches and aluminum
bags (except model 420A)
• Adjustable venting system - Controlled
decompression of the vacuum chamber
• 12” (305 mm) chamber lid
(except model 420A)
• Vacuum pump sizes
• Rear conveyor (model 700A)
• Silencer
• Other voltages available
• Heated control box for microprocessor
• Service kit for standard maintenance
MC-40
Model 750A
• Cut-off perforation
• Bag waste suction unit
• Seal bars flush to table system
• Vacuum pump sizes
• Vacuum booster
• Silencer
• Other voltages available
• Service kit for standard maintenance
• 12” (305 mm) chamber lid
All features are subject to change without notice.
