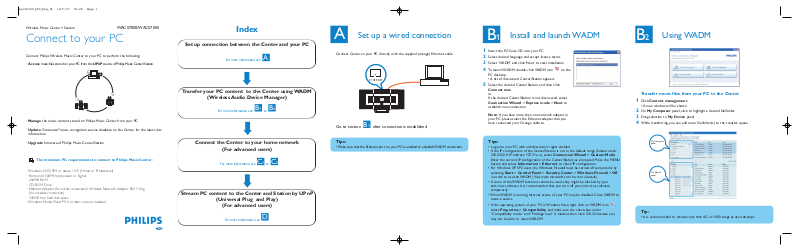

Philips WACS7000/51 Quick Installation Guide

Install and launch WADM

Tips:

• Log onto your PC with administrator's rights enabled.

• If the IP configuration of the Center/Station is not in the default range (Subnet mask:

255.255.0.0; IP address: 172.31.x.x), select Connection Wizard > Custom Mode. Enter the current IP configuration of the Center/Station as prompted. Press the MENU button and select Information > Ethernet to check IP configuration.

• For Windows XP SP2 users, the Windows Firewall must be turned off temporarily by selecting Start > Control Panel > Security Center > Windows Firewall > Off in order to use the WADM (Visit www.microsoft.com for more details).

• If some of the WADM functions cannot be used, they might be blocked by your anti-virus software. It is recommended that you turn off your anti-virus software temporarily.

• When WADM is running, Internet access of your PC may be disabled. Close WADM to restore access.

• If the operating system of your PC is Windows Vista, right click on WADM icon , select Properties > Compatibility, and make sure the check-box under “Compatibility mode” and “Privilege level” is marked, then click OK. Otherwise you may not be able to launch WADM .

1 Insert the PC Suite CD into your PC 2 Select desired language and accept license terms 3 Select ‘WADM’ and click ‘Next’ to start installation

4 To launch WADM, double click WADM icon on the

PC desktop.

• A list of discovered Center/Station appears

5 Select the desired Center/Station, and then click

Connect now

or If the desired Center/Station is not discovered, select Connection Wizard > Express mode > Next to establish new connection

Note: If you have more than one network adapter in your PC, please select the Ethernet adapter that you have connected your Orange cable to.

Using WADM

Transfer music files from your PC to the Center

1 Click Content management

• A new window will be shown.

2 On My Computer panel, click to highlight a desired file/folder 3 Drag selection to My Device panel 4 While transferring, you can add more file/folder(s) to the transfer queue

Wireless Music Center + Station

WACS7000/WACS7005

Connect to your PC

Set up a wired connection

Connect Philips Wireless Music Center to your PC to perform the following:

• Access music files stored on your PC from the UPnP source of Philips Music Center/Station.

• Manage the music content stored on Philips Music Center from your PC

• Update Gracenote

music recognition service database on the Center for the latest disc

information

• Upgrade firmware of Philips Music Center/Station

The minimum PC requirements to connect to Philips Music Center:

✓

• Windows 2000 SP4 or above / XP (Home or Professional)

• Pentium III 500MHz processor or higher

• 256MB RAM

• CD-ROM Drive

• Ethernet Adapter (for wired connection)/ Wireless Network Adaptor 802.11 b/g

(for wireless connection)

• 500MB free hard disk space

• Windows Media Player

9.0 or later versions installed

Index

Set up connection between the Center and your PC

For more information, see

Transfer your PC content to the Center using WADM

(Wireless Audio Device Manager)

For more information, see to

Stream PC content to the Center and Station by UPnP

(Universal Plug and Play)

(For advanced users)

For more information, see

Connect Center to your PC directly with the supplied (orange) Ethernet cable

ETHERNET

Go to section after connection is established

Tips:

• Make sure that the Ethernet port on your PC is enabled to establish WADM connection.

Connect the Center to your home network

(For advanced users)

For more information, see to

Tip:

• It is recommended to transfer less than 4G or 1000 songs at each attempt.

My Computer panel

My Device panel

Eng

wacs7000_CPC_Eng_51 18/7/07 15:28 Page 1

1 To connect the Center to the wireless network:

• Press the MENU button

• Select Settings > Network > Wireless > (Select desired network - SSID) > (Use the 1-way remote control to input the encryption key) > Press OK > Select Automatic > Apply Settings > Ye s

At this point, connection between the Station(s) and the Center will be lost.The connection will only be

recovered after the Station(s) are connected to the network

2 To connect the Station(s) to the network

Option 1: Direct connection of the Station(s) to the wireless network

• On the Station, repeat the same steps above

Option 2: Connection of the Station(s) to network via the Center

• On the Center, select HD source, then press the MENU button, then select Station Mgnt > Add New Station.Press STOP when all the Stations are discovered

• On the Station, press the MENU button, then select Installation Mode

REC

PROGRAM

INCR.SURR.

SLEEP

MUSIC BROADCAST

SMART EQ

MUSIC FOLLOWS ME

DIM RDS/NEWS

SCROLL VOL

VIEW

mno

wxyz

pqrs

tuv

MARK/UNMARK

DBB

SEARCHCD/MP3-CD HD SOURCE

REPEAT SHUFFLE

abc

SAME GENRE SAME ARTIST

jkl4ghi

PC Access Point Center Station

Using UPnP

Using WADM

Backup the music library of the Center to your PC

1 Click Backup content 2 Follow the screen instructions to backup the music

library of the Center to your PC. Backup files are named with current date

Tips:

• Make sure that you have adequate space to store the backup files.

• Do not delete the backup file using Windows Explorer. If the backup file is accidently deleted, please search for the file named YOURMAC.inx using Windows Explorer search tool and then delete it.You can only perform backup after that.

About Device Configuration

In the sub-menu of Device configuration, you can view System information, manage the Network settings,

upgrade Firmware, update CD Database and view connection of the device with the external network.

Restore backup files on your PC to the Center

1 Click Restore content 2 Click to highlight the file to be restored, and then click

Open

Tip:

• After changing network settings with WADM, press and hold STANDBY-ON to switch the Center to ECO Power (power-saving mode) to refresh IP update.

1 Insert the PC suite CD into your PC. 2 Click “Install Philips Media Manager” to start the

installation of PMM.

3 Follow the on-screen instructions for the

installation.

4 To launch PMM, double click the icon on the PC

desktop.

5 The first time you launch PMM, click Add Music >

Add Files or Folders to specify music folders on

your PC

6 On WACS7000, press SOURCE to enter UPnP

mode. If you have successfully connected WACS7000 to the home network where your PC is also connected to, you should be able to see the Music Server on the screen of WACS7000

Tips:

• UPnP device may not necessarily be a PC but any content serving device.

• If UPnP device is not detected after 5 minutes, switching the UPnP device off and on again might re-establish a faster connection.

3141 075 22411

www.philips.com

Eng

Need help?

Online

Go to www.philips.com/support

Gracenote is a registered trademark of Gracenote. The Gracenote logo and logotype, and the “Powered by Gracenote” logo are trademarks of Gracenote.

Tips:

• For some wired routers, a “Cross Link” Ethernet cable should be used instead of the normal “Straight” Orange cable provided in the box.

• If your home network is connected to Internet, you should be able to use Gracenote online queries after successfully connecting WACS7000 to your home wireless network. For details, please refer to section 12 of the User Manual.

LAN

To edit track information

1 On the device window, click to highlight the desired

track

2 Right click on your mouse. Click Track info

Tips:

• To select more than one file, press and hold <Ctrl> on your PC keyboard, and click the desired files.

• To playback tracks, double click on the track to start playing.

• Click “Title” or “Ar tist” to sort the music files by track name or by Artist

• In case the edited ID3 tags are not shown on WADM, go to File > Refresh Content to refresh the WADM. Otherwise, restart WADM.

• Always press and hold STANDBY-ON to switch the Center to ECO

POWER (power-saving mode) before removing its power plug.

Using WADM

Connect the Center directly to the Access Point with the supplied (orange) Ethernet cable

Tips:

• You can only input the WEP or WPA keys by using the 1-way remote control. Do not use 2-way remote control.

• Check that the wireless network adaptor of your PC is enabled.

• Position the Center closer to your wireless Access Point.

• Make sure that DHCP is enabled on your wireless Access Point. If it is not available, choose Static and key in IP configuration

• For multi-station users, please delete all Stations from the Center before adding them again in option 2.

• If you want to return to the original Ad-Hoc mode of the Center/Station connection from the Infrastructure mode, please reset the Center to its default settings (see section 14 of the User Manual)

• In case you experience trouble setting up your WACS7000 with your home wireless network after you are done with the steps described above, please refer to section 15 on Troubleshooting of the User Manual.

Connecting to home wired network

Connecting to home wireless network

1-way remote control

wacs7000_CPC_Eng_51 18/7/07 15:29 Page 6
