Video Cassette Recorder

Service Service

Service

VR602/

STOP/EJECT

PLAY

STATUS/

EXIT

STANDBY

VR602/75

REW

RECORD

CHANNEL

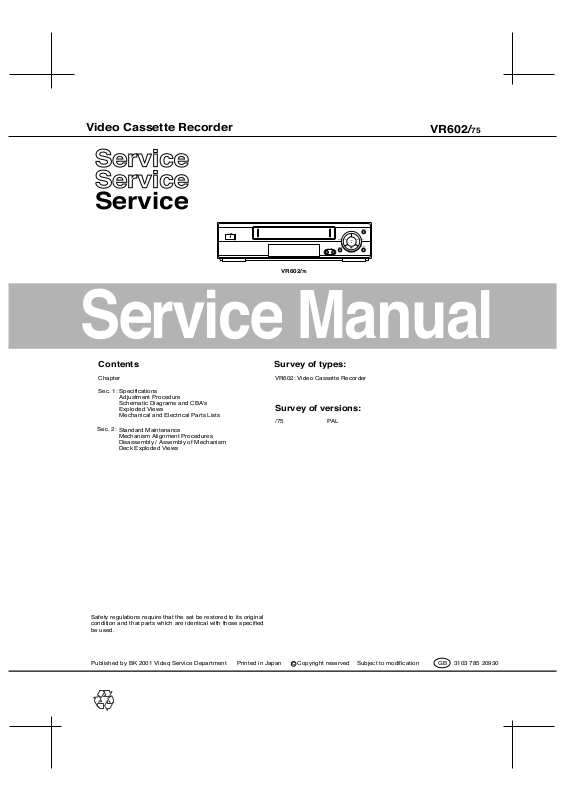

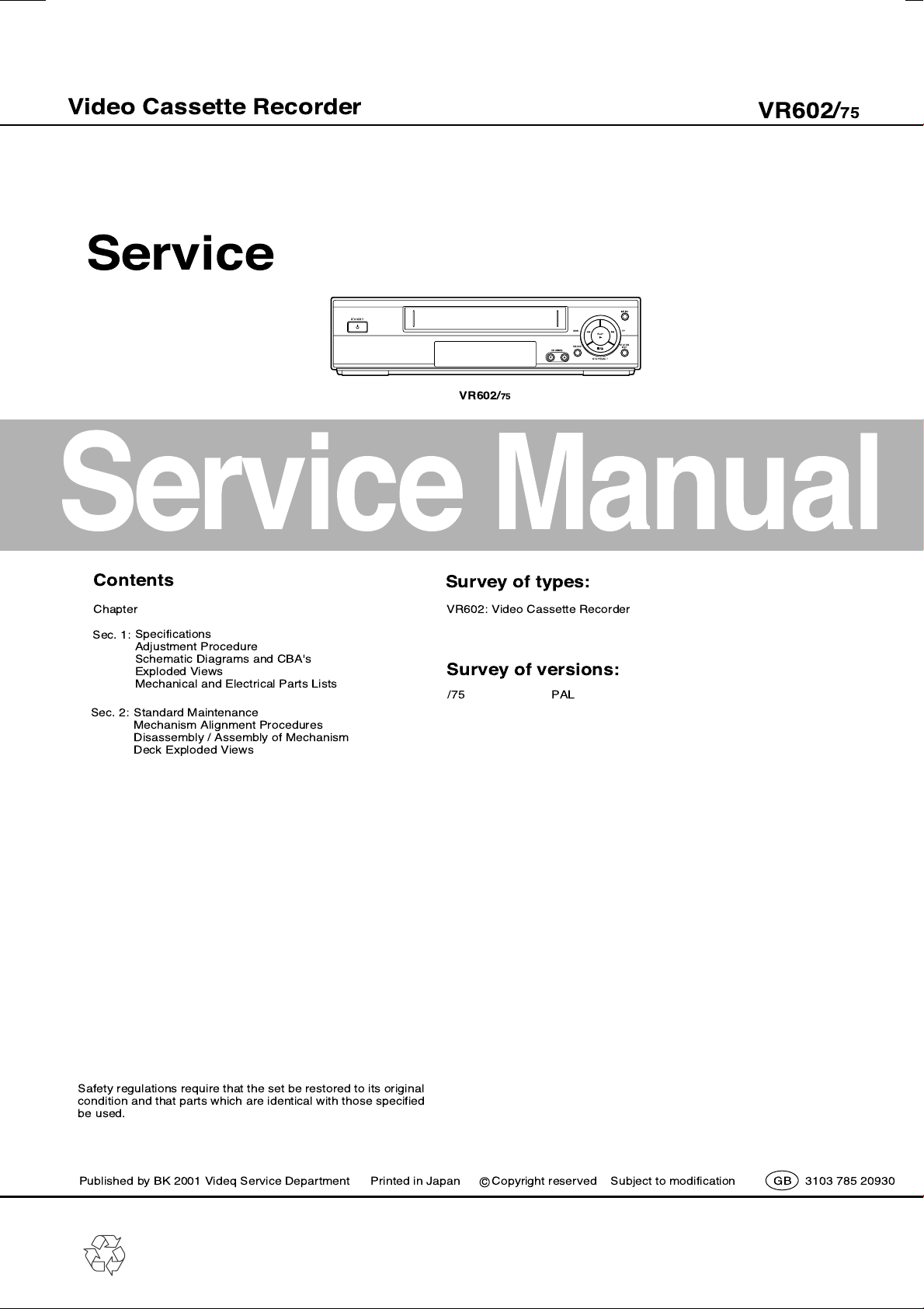

Service Manual

Contents

Chapter

Specifications

Sec. 1:

Adjustment Procedure Schematic Diagrams and CBA's Exploded Views Mechanical and Electrical Parts Lists

Sec. 2:

Standard Maintenance Mechanism Alignment Procedures Disassembly / Assembly of Mechanism Deck Exploded Views

Survey of types:

VR602: Video Cassette Recorder

Survey of versions:

/75 PAL

Safety regulations require that the set be restored to its original condition and that parts which are identical with those specified be used.

Published by BK 2001 Videq Service Department Printed in Japan c Copyright reserved Subject to modification GB 3103 785 20930

Page 2

MAIN SECTION

VIDEO CASSETTE RECORDER

Sec. 1: Main Section

● Specifications

● Adjustment Procedures

● Schematic Diagrams and CBA’s

● Exploded Views

● Mechanical and Electrical Parts Lists

TABLE OF CONTENTS

SPECIFICATIONS ........................................................................................................................................ 1-1-1

IMPORTANT SAFETY PRECAUTIONS ........................................................................................................ 1-2-1

STANDARD NOTES FOR SERVICING ......................................................................................................... 1-3-1

FUNCTION INDICATOR SYMBOLS ............................................................................................................. 1-4-1

PREPARATION FOR SERVICING................................................................................................................. 1-5-1

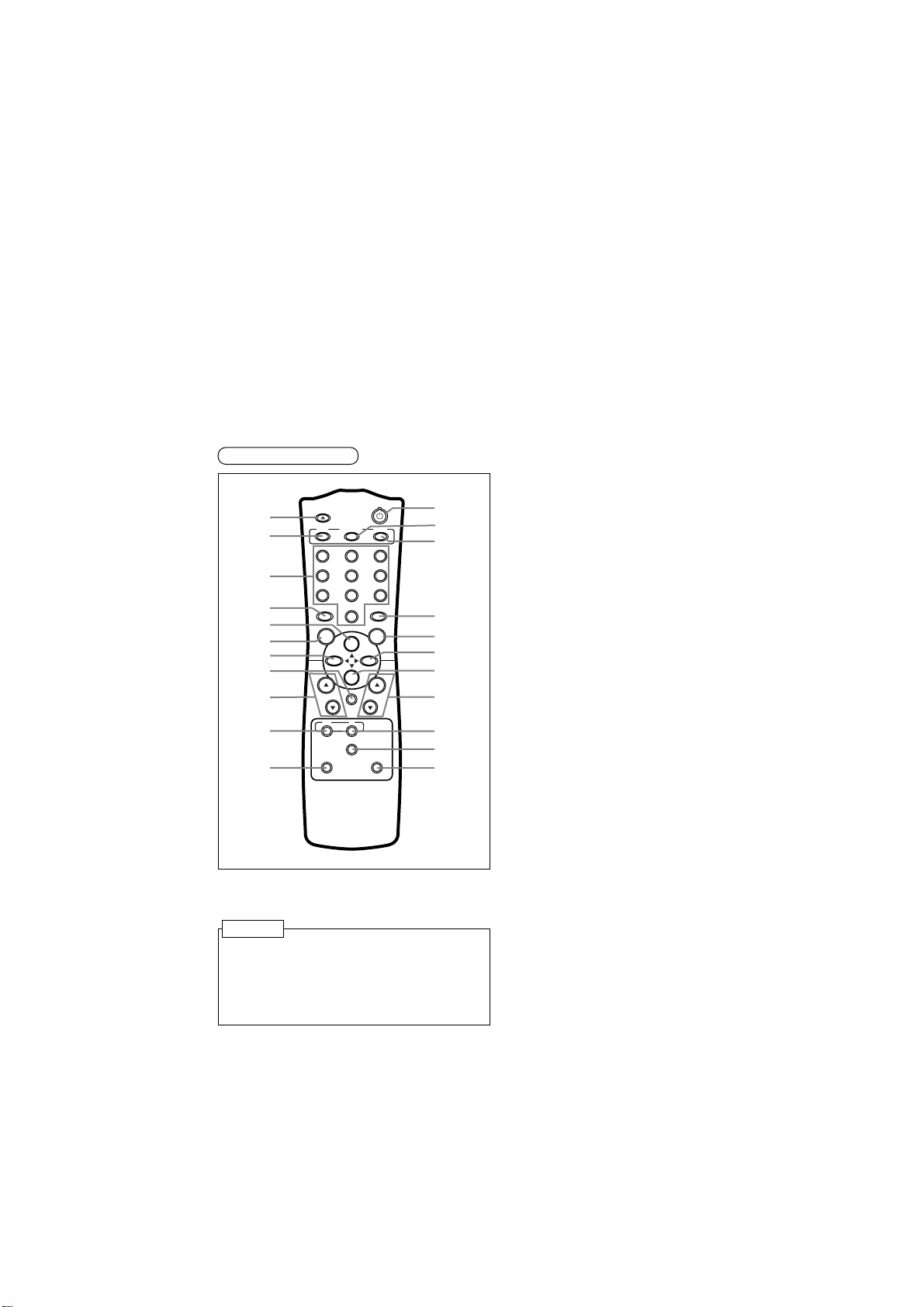

OPERATING CONTROLS AND FUNCTIONS .............................................................................................. 1-6-1

SIGNAL NAME ABBREVIATIONS.................................................................................................................. 1-7-1

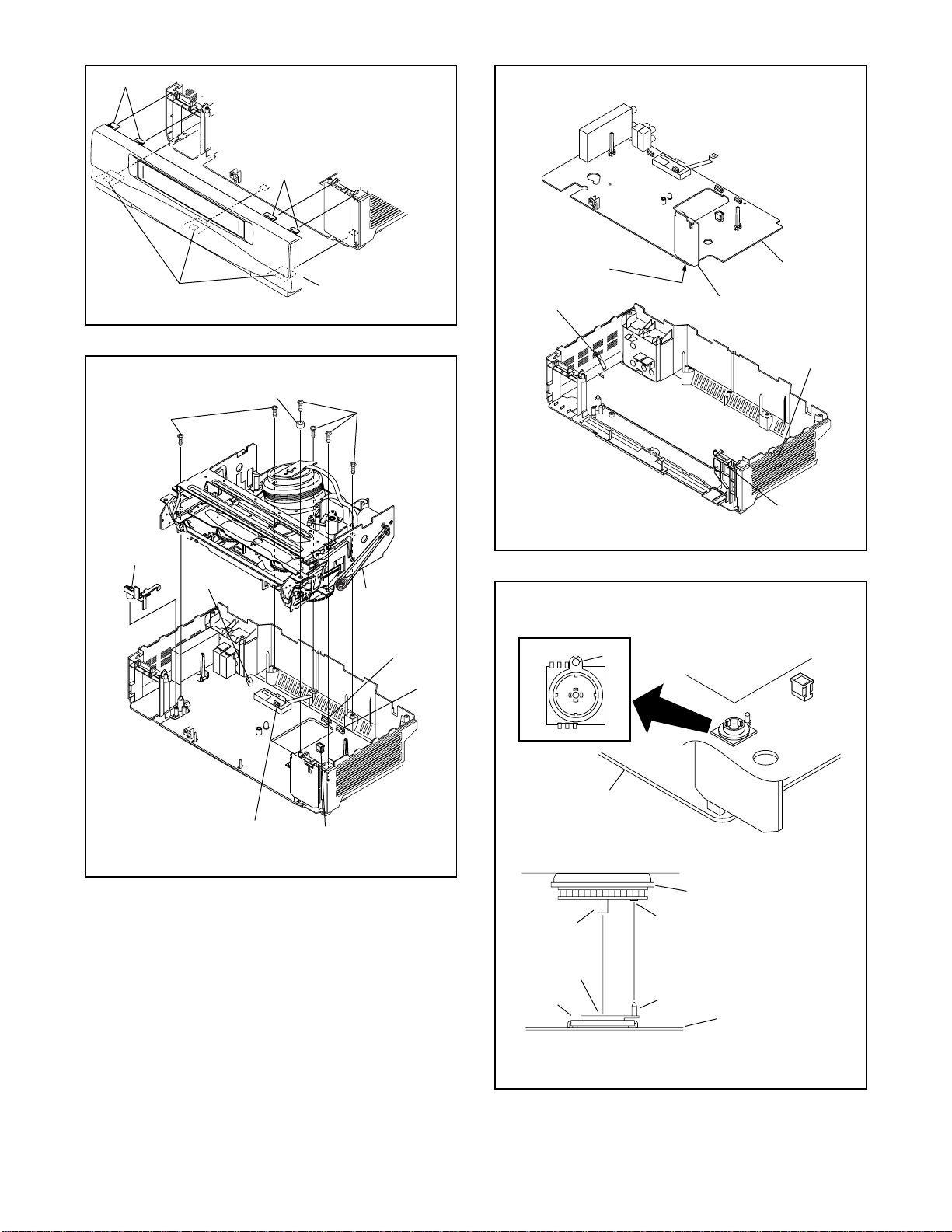

CABINET DISASSEMBLY INSTRUCTIONS.................................................................................................. 1-8-1

ELECTRICAL ADJUSTMENT INSTRUCTIONS............................................................................................. 1-9-1

ADJUSTMENT POINTS AND TEST POINTS............................................................................................. 1-9-2

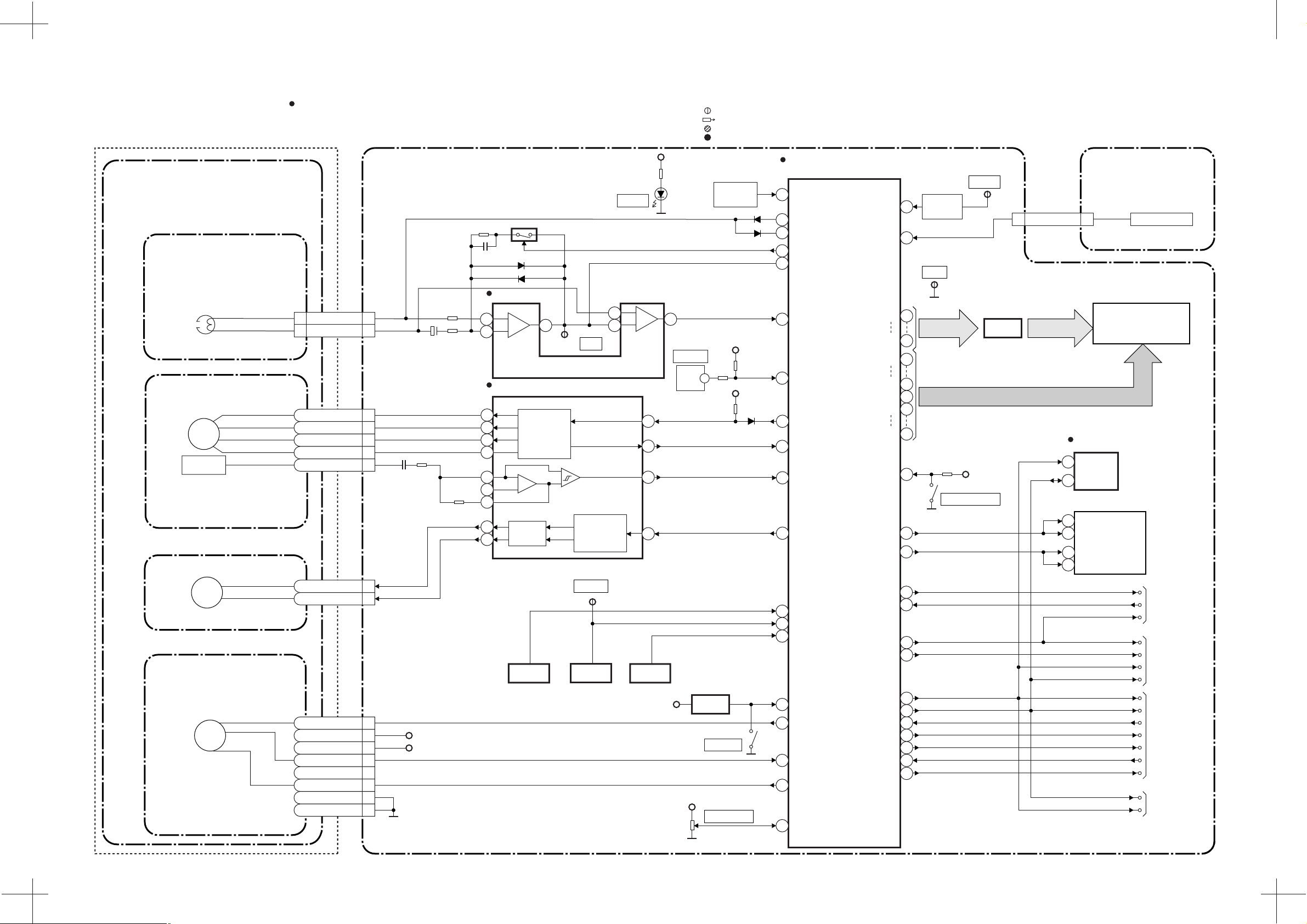

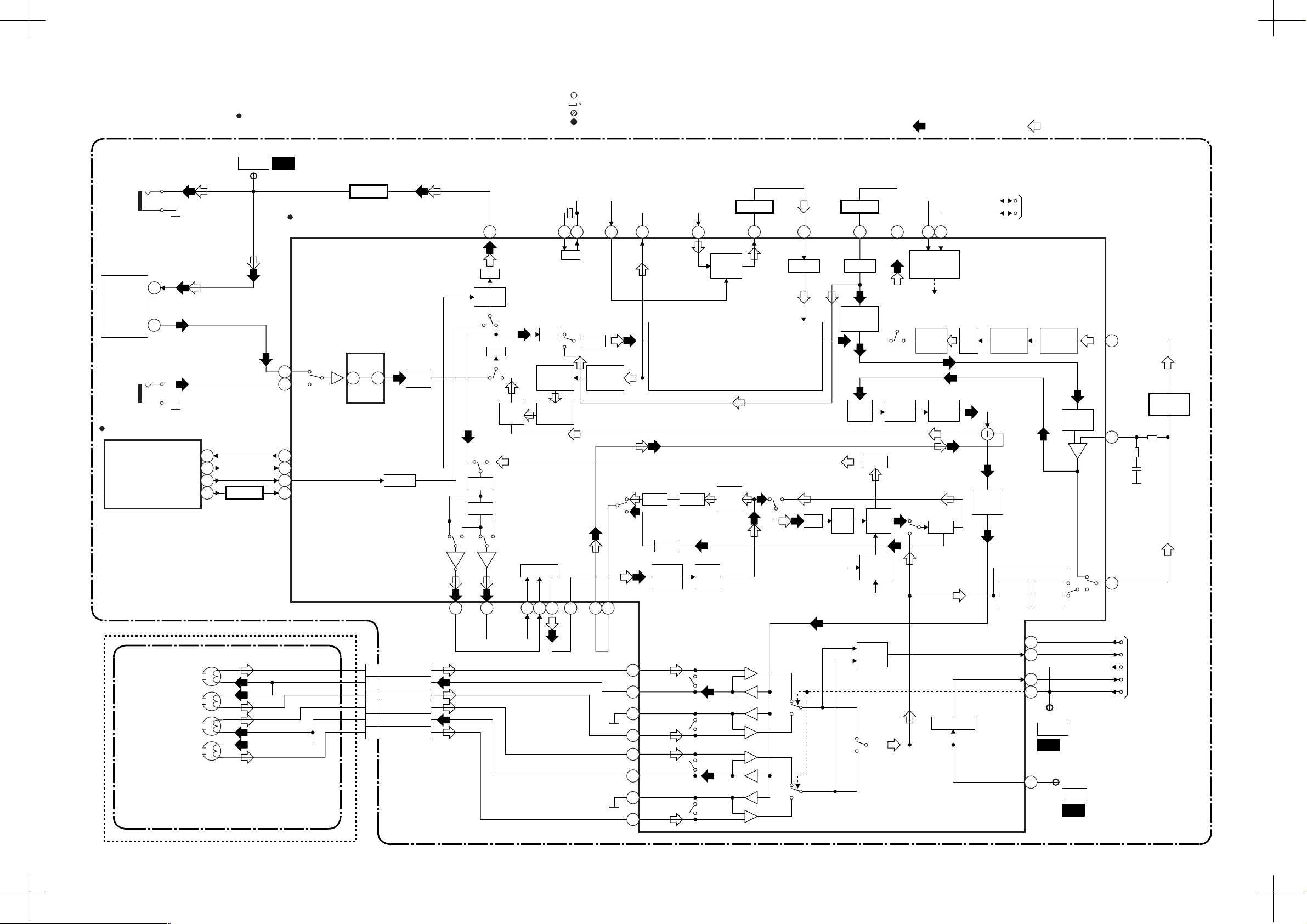

BLOCK DIAGRAMS ....................................................................................................................................... 1-10-1

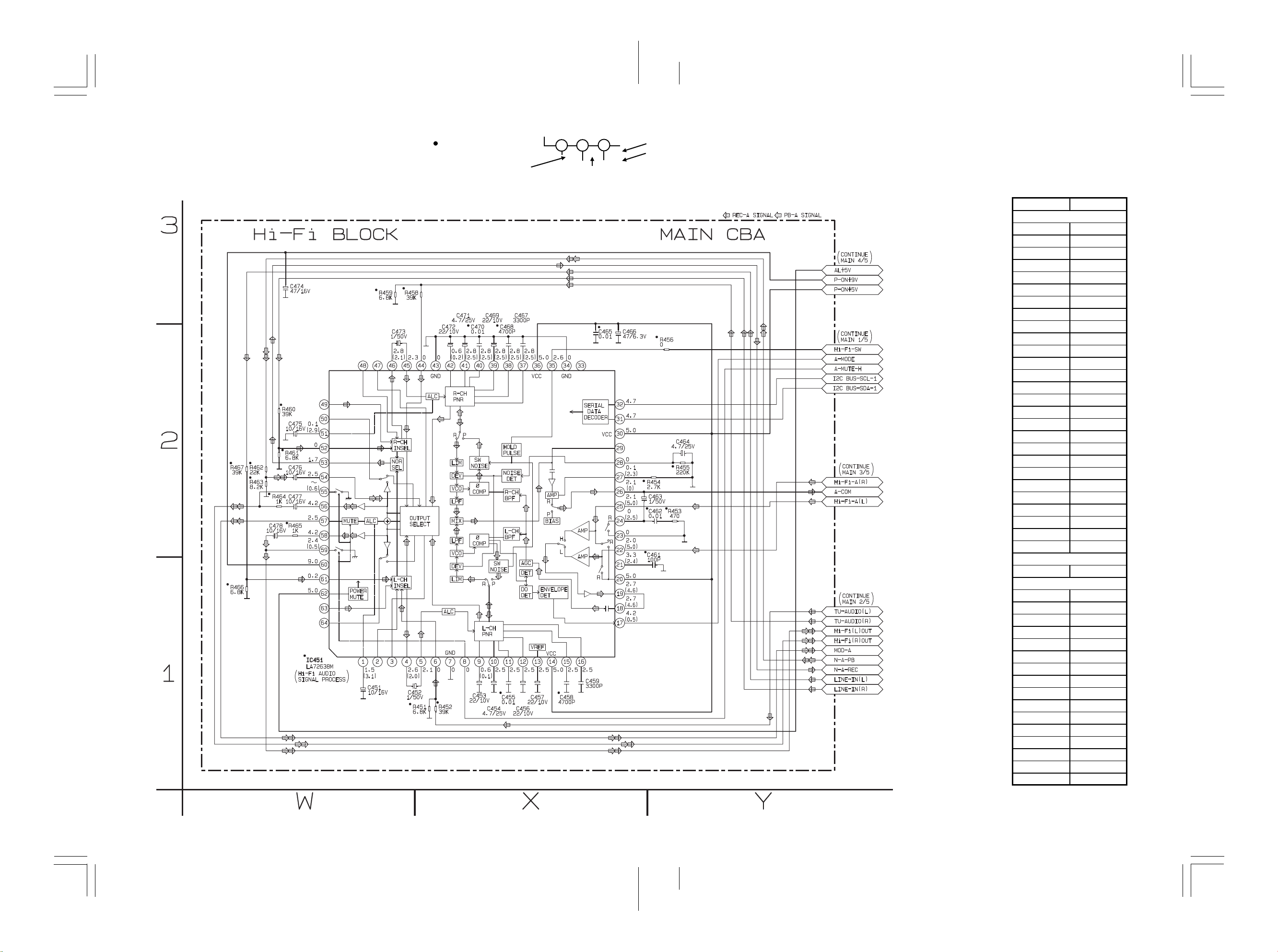

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS .................................................................................1-11-1

MAIN 1/5 SCHEMATIC DIAGRAM PARTS LOCATION GUIDE .................................................................1-11-2

MAIN 1/5 SCHEMATIC DIAGRAM .............................................................................................................1-11-3

MAIN 2/5 SCHEMATIC DIAGRAM .............................................................................................................1-11-6

MAIN 2/5 SCHEMATIC DIAGRAM PARTS LOCATION GUIDE .................................................................1-11-9

MAIN 3/5 SCHEMATIC DIAGRAM PARTS LOCATION GUIDE .................................................................1-11-10

MAIN 3/5 SCHEMATIC DIAGRAM .............................................................................................................1-11-11

MAIN 4/5 SCHEMATIC DIAGRAM .............................................................................................................1-11-14

MAIN 5/5 SCHEMATIC DIAGRAM .............................................................................................................1-11-17

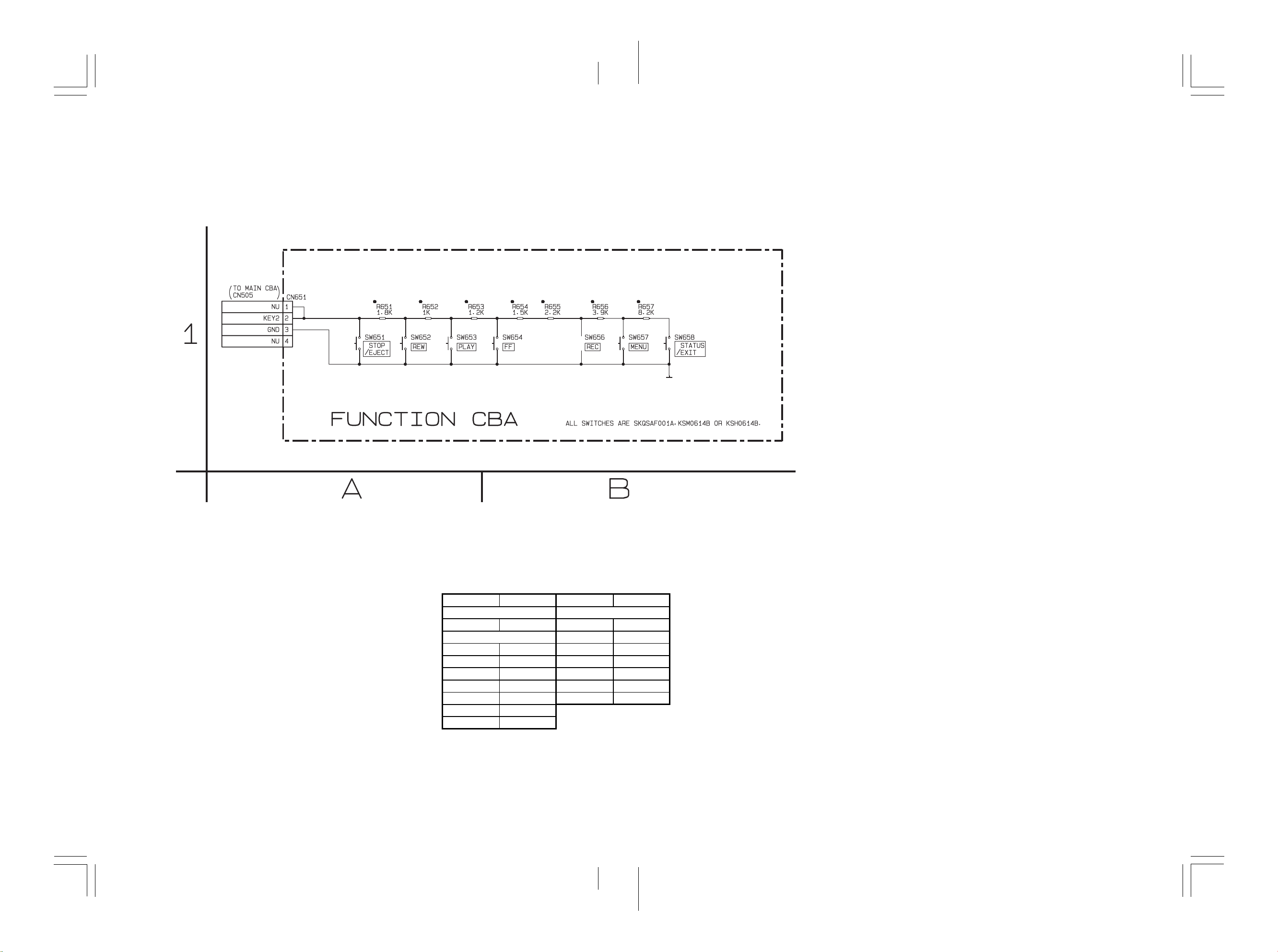

FUNCTION SCHEMATIC DIAGRAM ..........................................................................................................1-11-19

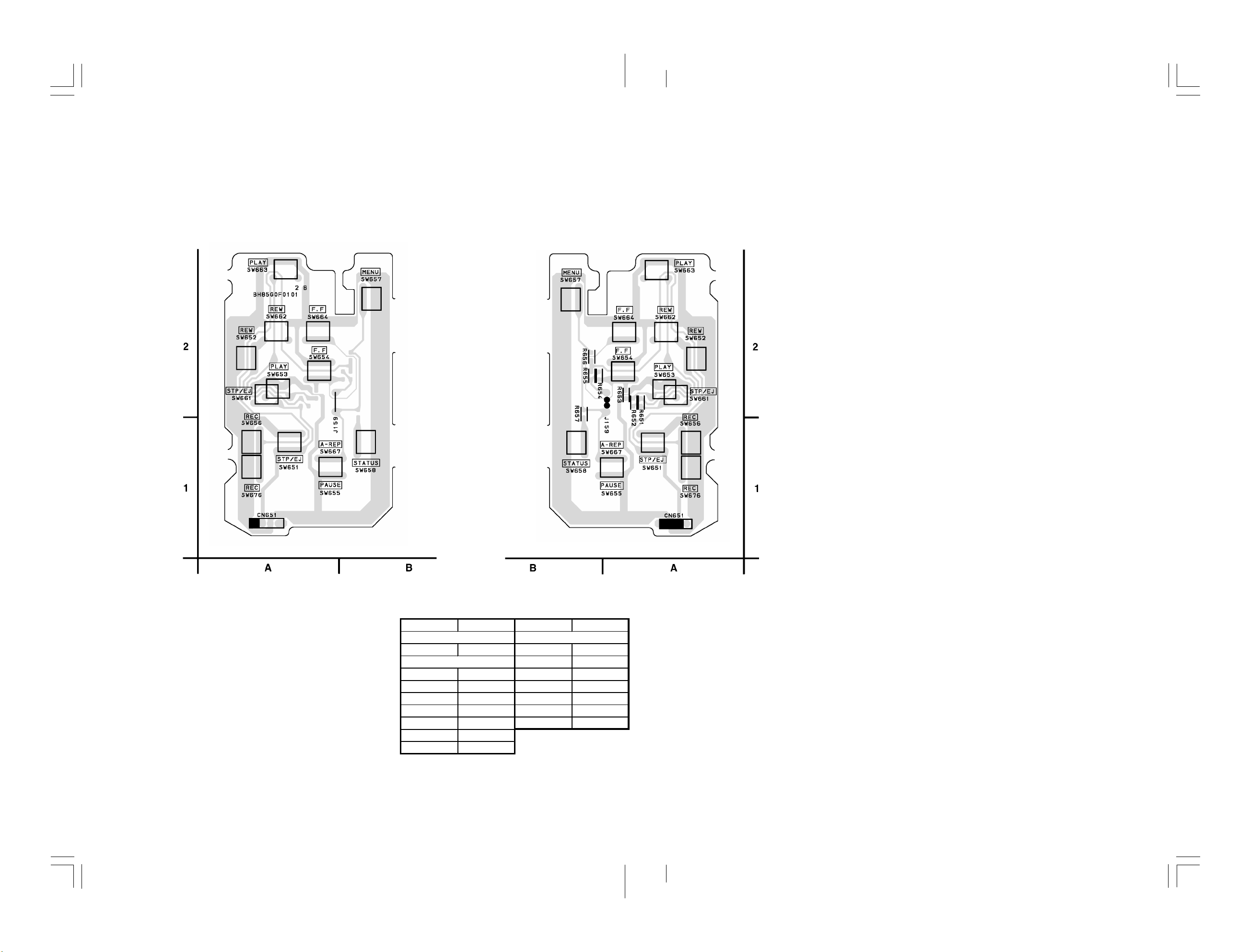

FUNCTION CBA TOP VIEW / BOTTOM VIEW (BH85G0F01012-B) ........................................................1-11-21

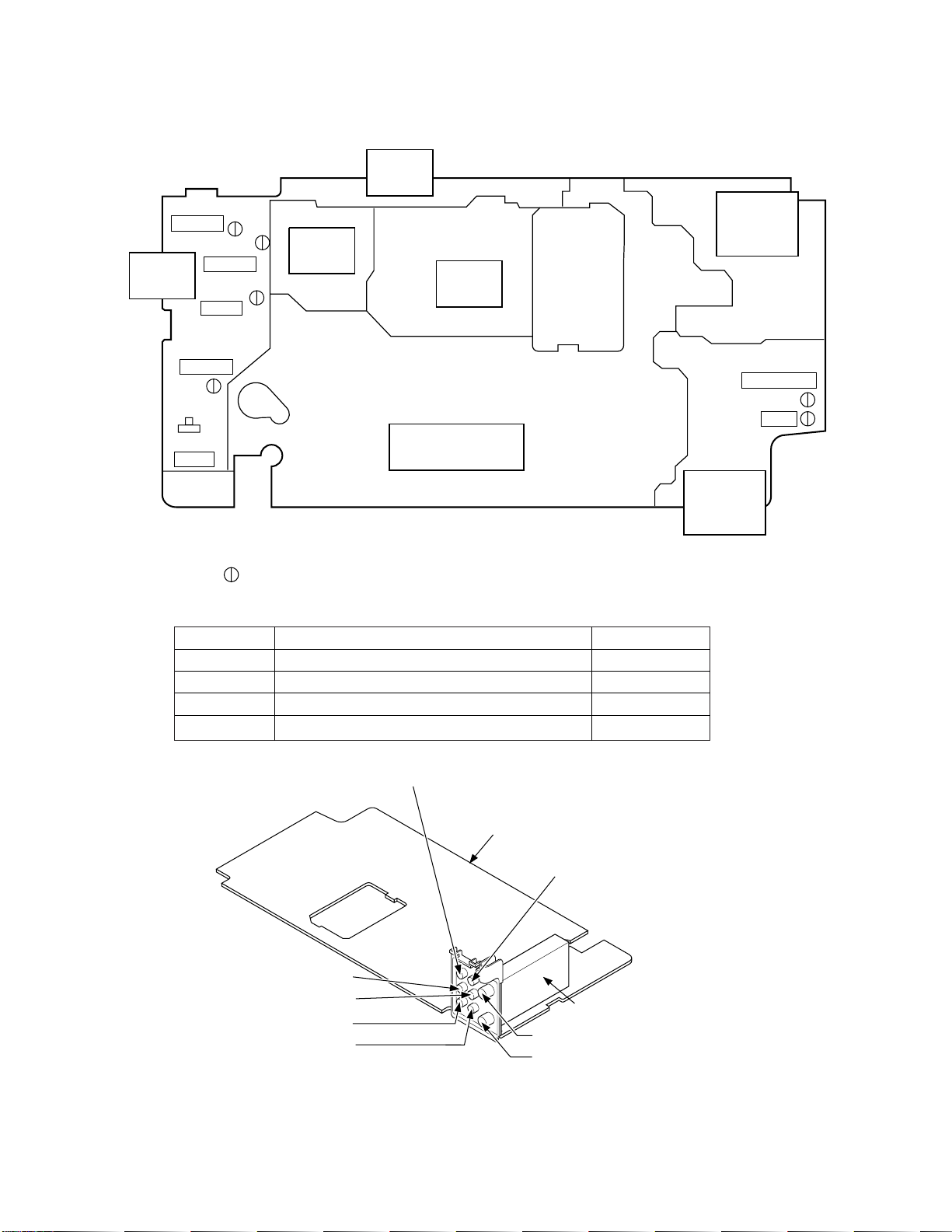

MAIN CBA PARTS LOCATION GUIDE ......................................................................................................1-11-23

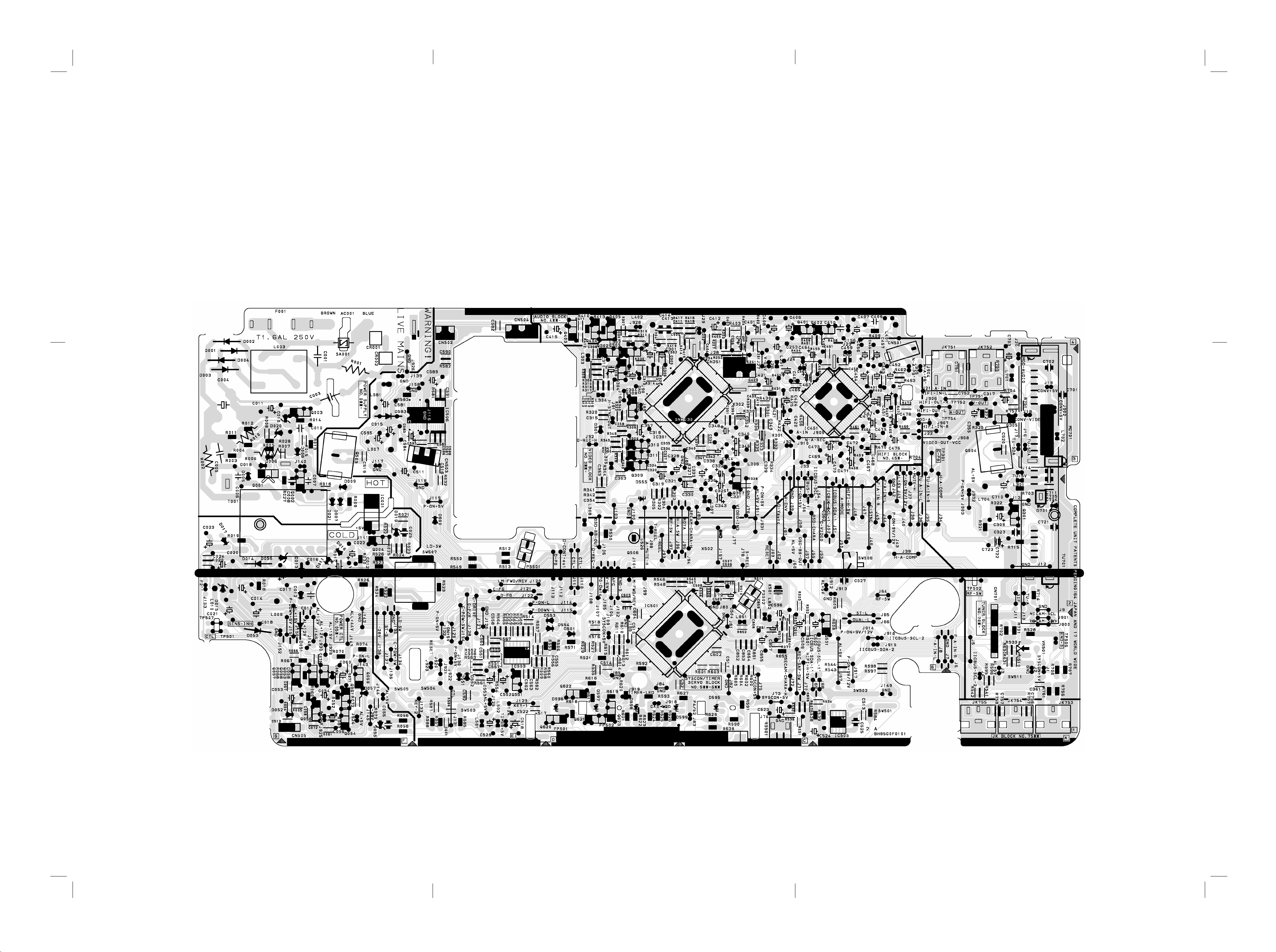

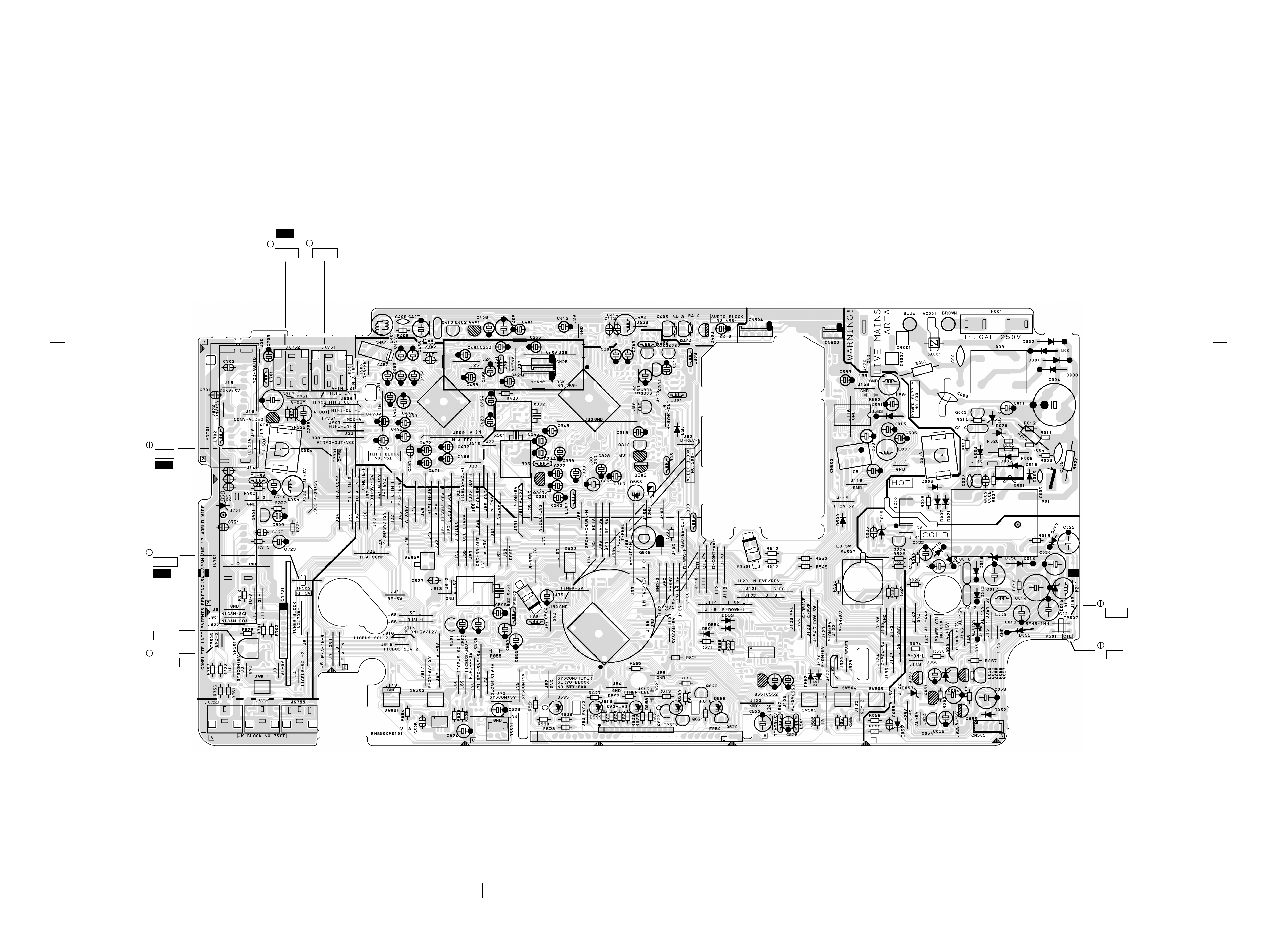

MAIN CBA TOP VIEW (BH85G0F01012-A) ..............................................................................................1-11-25

MAIN CBA BOTTOM VIEW (BH85G0F01012-A) .......................................................................................1-11-28

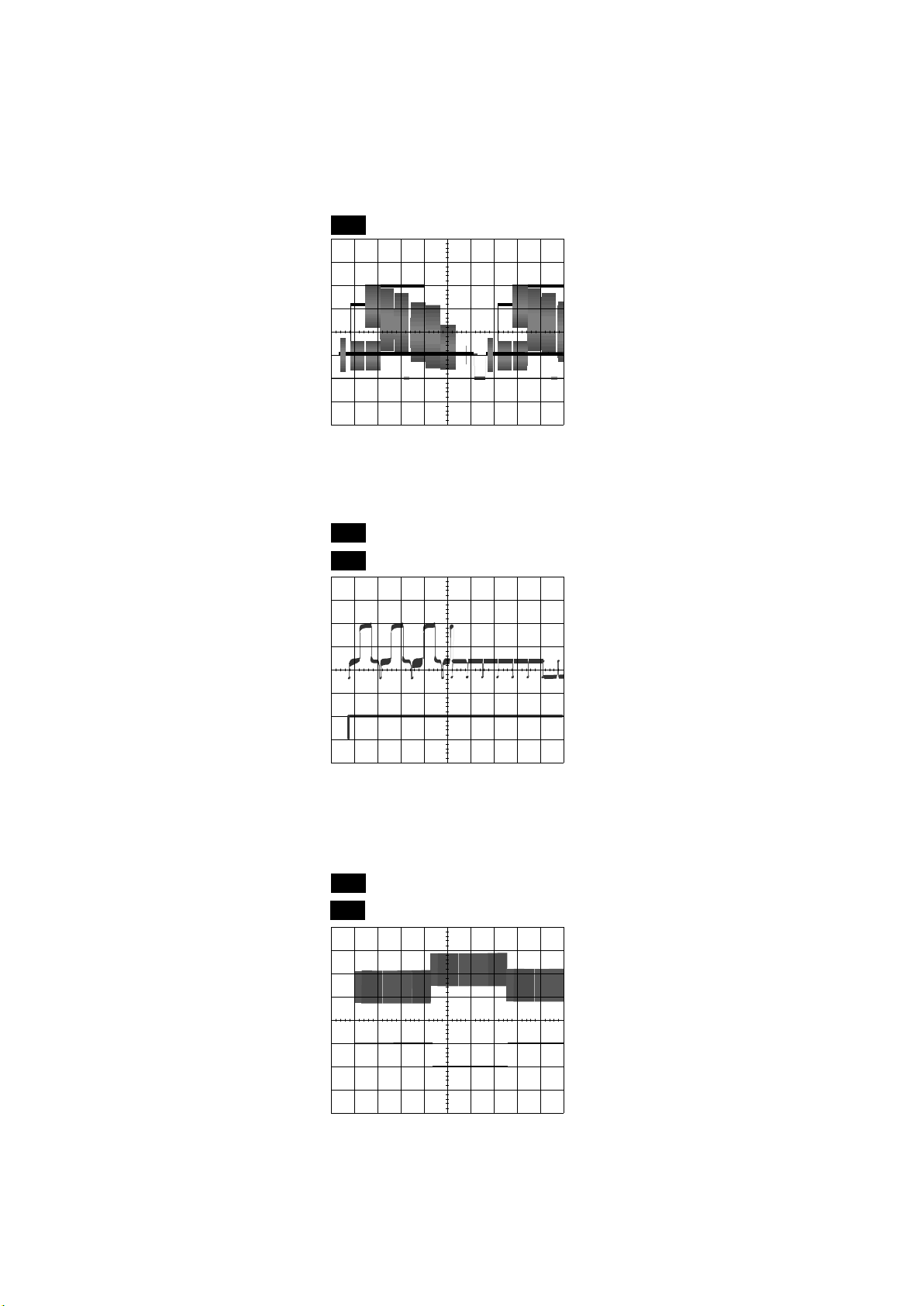

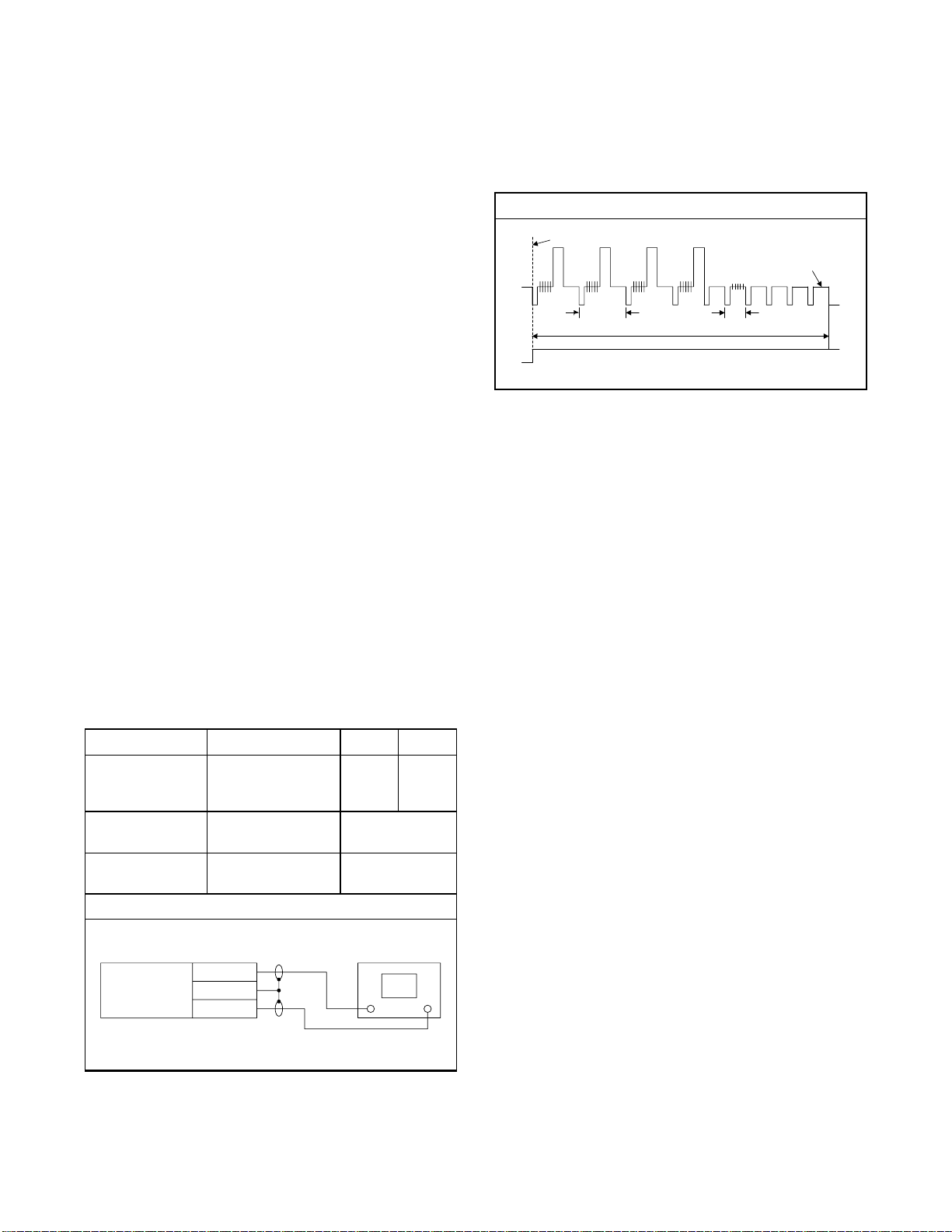

WAVEFORMS................................................................................................................................................. 1-12-1

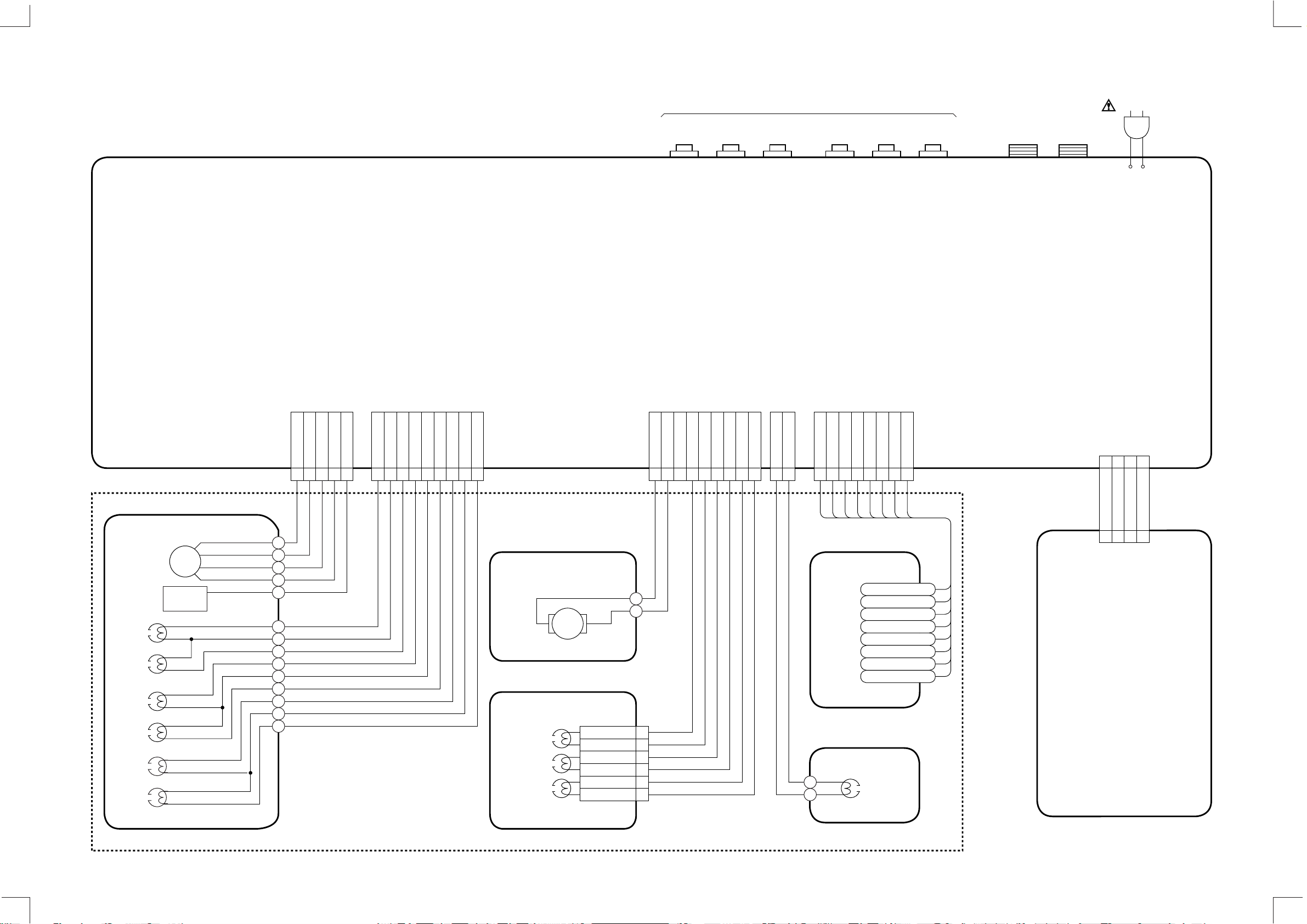

WIRING DIAGRAMS ...................................................................................................................................... 1-13-1

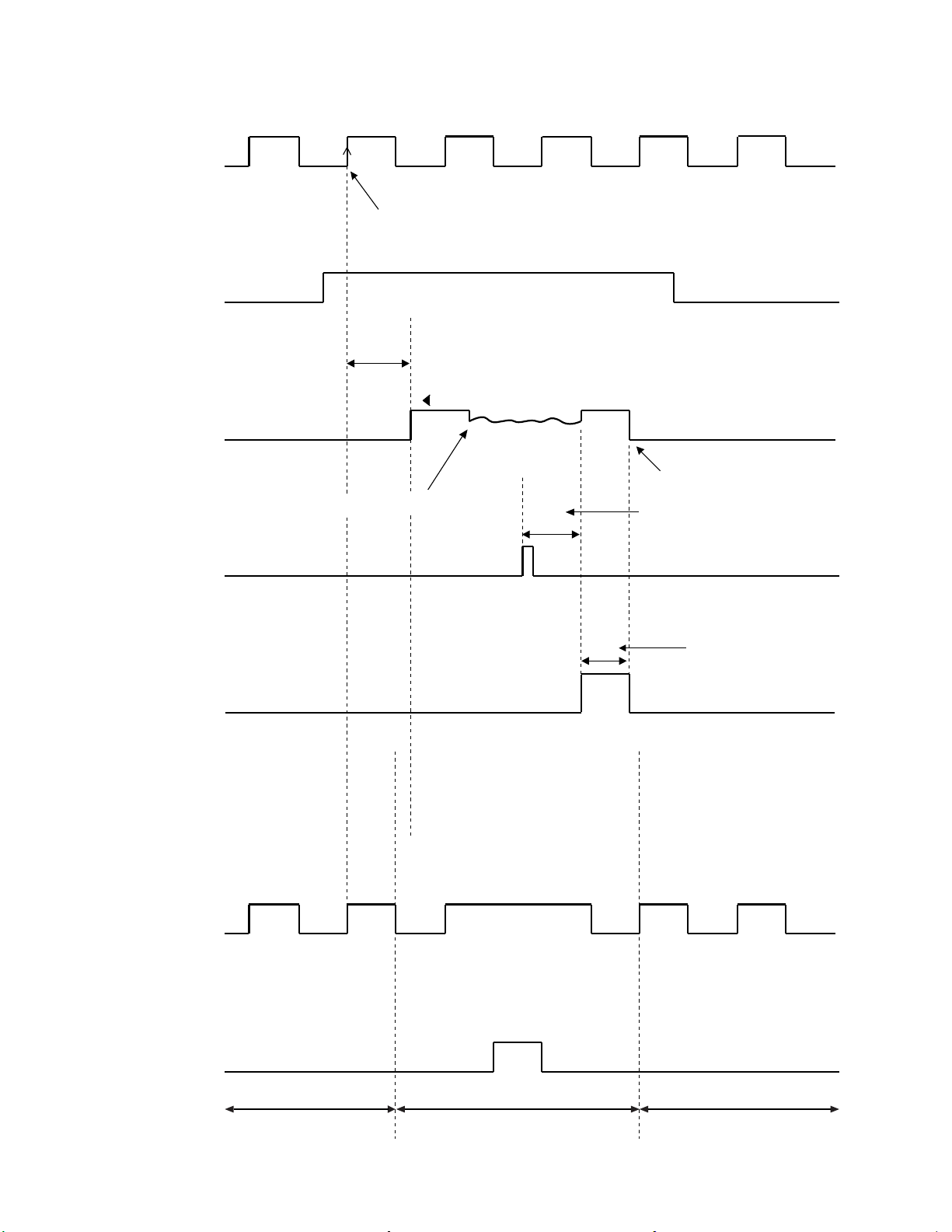

SYSTEM CONTROL TIMING CHARTS ......................................................................................................... 1-14-1

IC PIN FUNCTION DESCRIPTIONS.............................................................................................................. 1-15-1

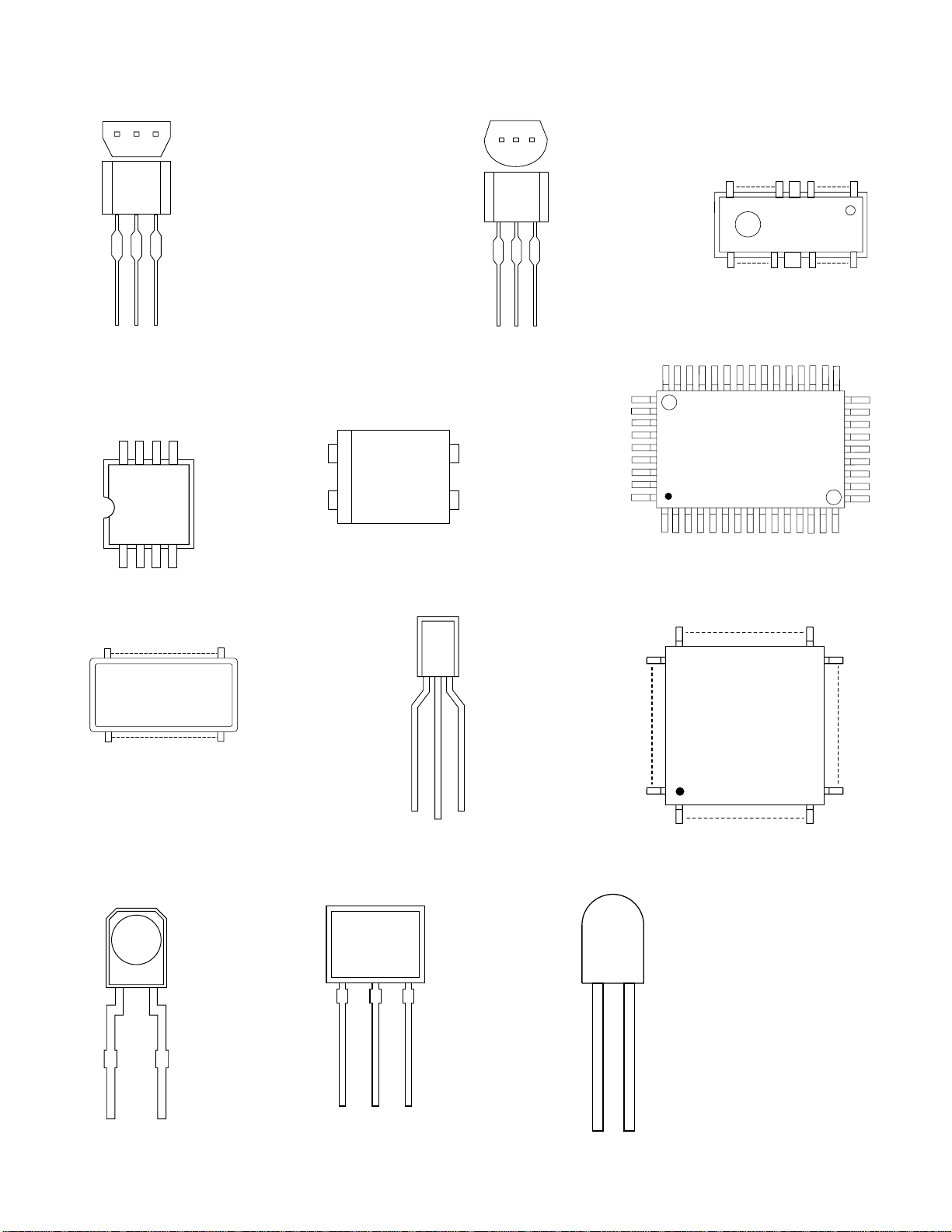

LEAD IDENTIFICATIONS............................................................................................................................... 1-16-1

ELECTRICAL PARTS LIST ............................................................................................................................ 1-17-1

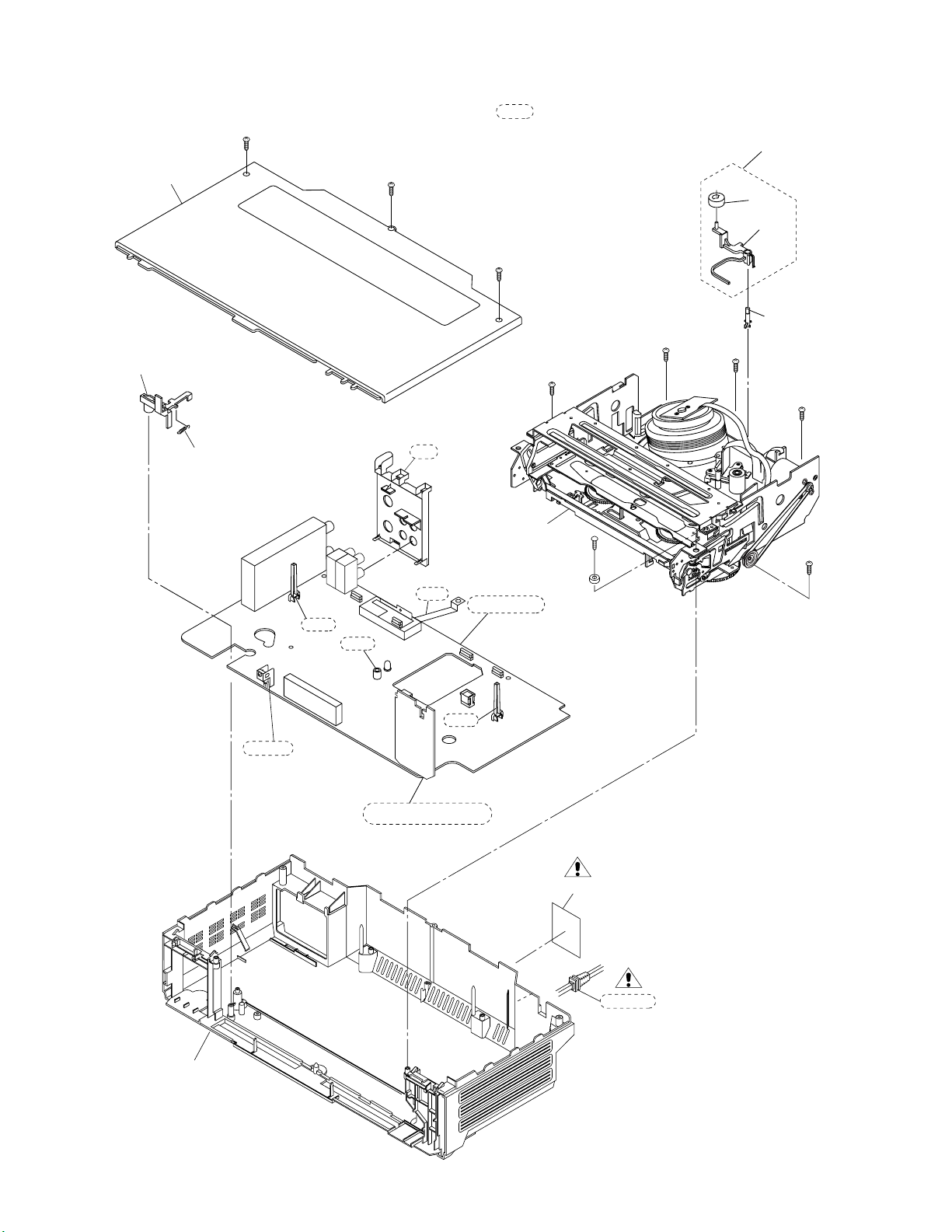

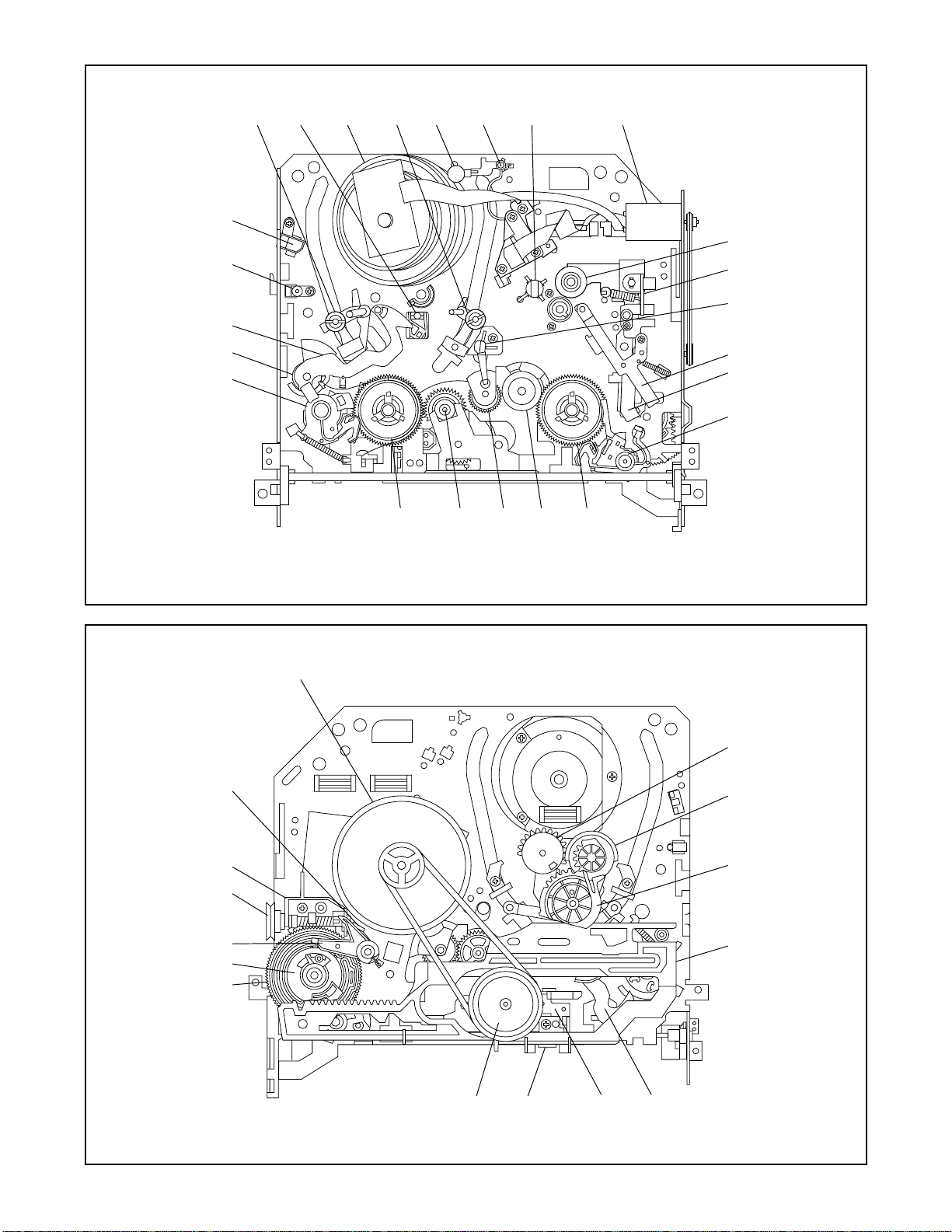

EXPLODED VIEWS........................................................................................................................................ 1-18-1

SET MECHANICAL PARTS LIST ................................................................................................................... 1-19-1

H89F1CV

Page 3

SPECIFICATIONS

Description Unit Minimum Nominal Maximum Remark

1. Video

1-1. Video Output (PB) Vp-p 0.8 1.0 1.2 FL6A 1-2. Video Output (R/P) Vp-p 0.8 1.0 1.2 1-3. Video S/N Y (R/P)

1-4. Video Color S/N AM (R/P) dB 37 41 SP Mode 1-5. Video Color S/N PM (R/P) dB 30 36 SP Mode 1-6. Resolution (PB) Line 230 245 SP Mode

2. Servo

2-1. Jitter Low µsec 0.07 0.12 SP Mode 2-2. Wow & Flutter % 0.3 0.5 SP Mode

3. Normal Audio

3-1. Output (PB) dBV -9 -6 -3 SP Mode 3-2. Output (R/P) dBV -9 -6 -1.5 SP Mode 3-3. S/N (R/P) dB 36 41 SP Mode 3-4. Distortion (R/P) % 1.0 4.0 SP Mode 3-5. Freq. resp (R/P) at 200Hz dB -11 -4 SP Mode (-20dB ref. 1kHz) at 8kHz dB -14 -4 SP Mode

4. Tuner

4-1. Video output Vp-p 0.8 1.0 1.2 E-E Mode 4-2. Video S/N dB 39 42 E-E Mode 4-3. Audio output dB -10 -6 -2 E-E Mode 4-4. Audio S/N dB 40 46 E-E Mode

5. Hi-Fi Audio

5-1. Output dBV -12 -8 -4 SP Mode 5-2. Dynamic Range dB 70 85 SP Mode 5-3. Freq. resp (6dB B.W) Hz 20 ~ 20K SP Mode

dB 40 45

SP Mode, W/O Burst

Note: Nominal specs represent the design specs. All units should be able to approximate these – some will exceed and some may drop slightly below these specs. Limit specs represent the absolute worst condition that still might be considered acceptable; In no case should a unit fail to meet limit specs.

1-1-1 V79F1SP

Page 4

IMPORTANT SAFETY PRECAUTIONS

Product Safety Notice

Some electrical and mechanical parts have special safety-related characteristics which are often not evident from visual inspection, nor can the protection they give necessarily be obtained by replacing them with components rated for higher voltage, wattage, etc. Parts that have special safety characteristics are identified by a ! on schematics and in parts lists. Use of a substitute replacement that does not have the same safety characteristics as the recommended replacement part might create shock, fire, and/or other hazards. The Product’s Safety is under review continuously and new instructions are issued whenever appropriate. Prior to shipment from the factory, our products are carefully inspected to confirm with the recognized product safety and electrical codes of the countries in which they are to be sold. However, in order to maintain such compliance, it is equally important to implement the following precautions when a set is being serviced.

Precautions during Servicing

A.Parts identified by the ! symbol are critical for

safety. Replace only with part number specified.

B.In addition to safety, other parts and assemblies are

specified for conformance with regulations applying to spurious radiation. These must also be replaced only with specified replacements.

Examples: RF converters, RF cables, noise blocking capacitors, and noise blocking filters, etc.

C.Use specified internal wiring. Note especially:

1) Wires covered with PVC tubing

2) Double insulated wires

3) High voltage leads

D.Use specified insulating materials for hazardous live

parts. Note especially:

1) Insulation tape

2) PVC tubing

3) Spacers

4) Insulators for transistors

E.When replacing AC primary side components

(transformers, power cord, etc.), wrap ends of wires securely about the terminals before soldering.

F. Observe that the wires do not contact heat produc-

ing parts (heatsinks, oxide metal film resistors, fusible resistors, etc.).

G.Check that replaced wires do not contact sharp

edges or pointed parts.

H.When a power cord has been replaced, check that

5 - 6 kg of force in any direction will not loosen it.

I.Also check areas surrounding repaired locations.

J.Use care that foreign objects (screws, solder drop-

lets, etc.) do not remain inside the set.

K.Crimp type wire connector

The power transformer uses crimp type connectors which connect the power cord and the primary side of the transformer. When replacing the transformer, follow these steps carefully and precisely to prevent shock hazards.

Replacement procedure

1)Remove the old connector by cutting the wires at a point close to the connector.

Important: Do not re-use a connector. (Discard it.)

2)Strip about 15 mm of the insulation from the ends of the wires. If the wires are stranded, twist the strands to avoid frayed conductors.

3)Align the lengths of the wires to be connected. Insert the wires fully into the connector.

4)Use a crimping tool to crimp the metal sleeve at its center. Be sure to crimp fully to the complete closure of the tool.

L.When connecting or disconnecting the internal con-

nectors, first, disconnect the AC plug from the AC outlet.

1-2-1 SFTY_07

Page 5

Safety Check after Servicing

Examine the area surrounding the repaired location for damage or deterioration. Observe that screws, parts, and wires have been returned to their original positions. Afterwards, do the following tests and confirm the specified values to verify compliance with safety standards.

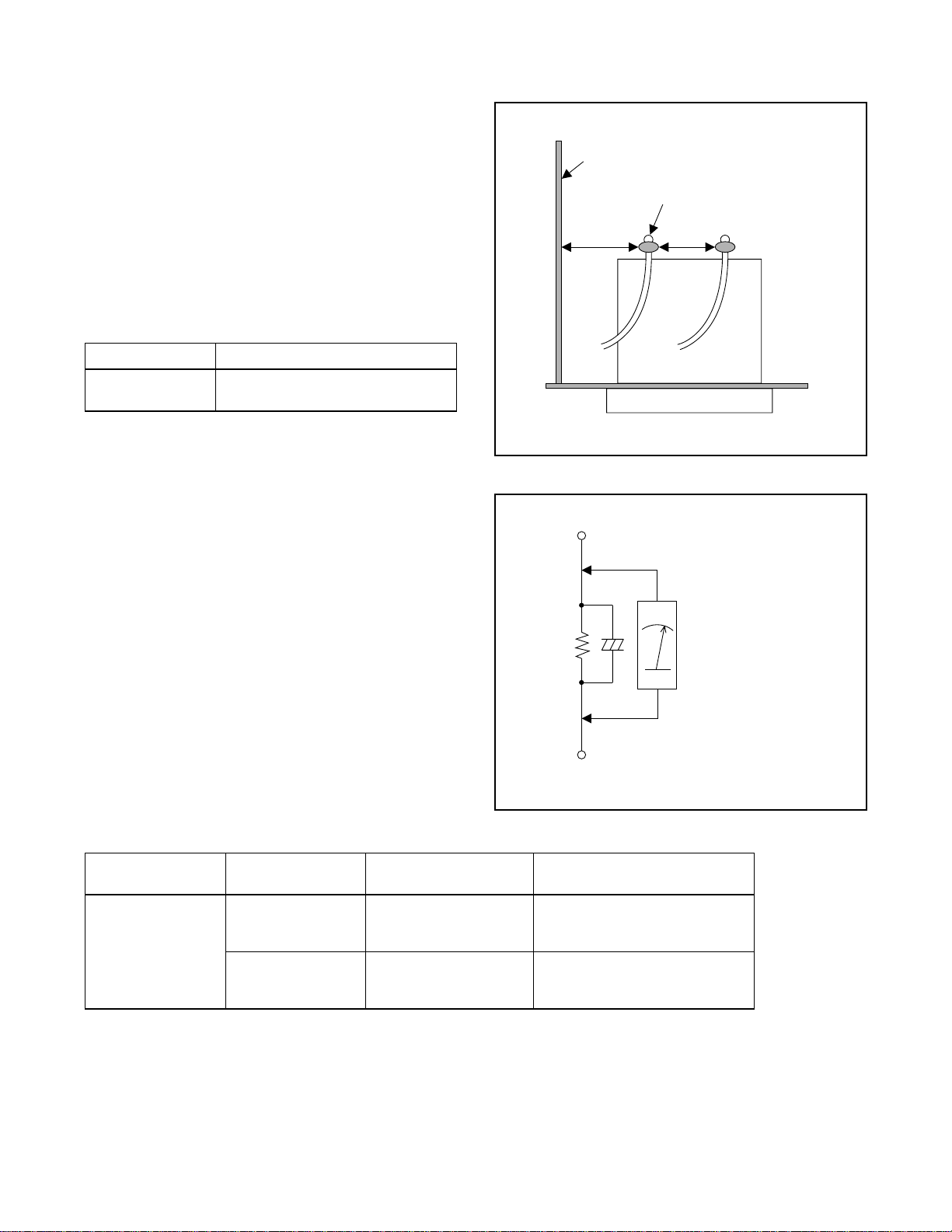

1. Clearance Distance

When replacing primary circuit components, confirm specified clearance distance (d) and (d’) between soldered terminals, and between terminals and surrounding metallic parts. (See Fig. 1)

Table 1 : Ratings for selected area

AC Line Voltage Clearance Distance (d) (d’)

240 V

≥ 3mm(d)

≥ 6 mm(d’)

Chassis or Secondary Conductor

Primary Circuit Terminals

dd'

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

2. Leakage Current Test

Confirm the specified (or lower) leakage current between B (earth ground, power cord plug prongs) and externally exposed accessible parts (RF terminals, antenna terminals, video and audio input and output terminals, microphone jacks, earphone jacks, etc.) is lower than or equal to the specified value in the table below.

Measuring Method (Power ON) :

Insert load Z between B (earth ground, power cord plug prongs) and exposed accessible parts. Use an AC voltmeter to measure across the terminals of load Z. See Fig. 2 and the following table.

Table 2 : Leakage current ratings for selected areas

AC Line Voltage Load Z Leakage Current (i)

240 V

2kΩ RES.

Connected in

parallel

50kΩ RES.

Connected in

parallel

i≤0.7mA AC Peak

i≤2mA DC

i≤0.7mA AC Peak

i≤2mA DC

Exposed Accessible Part

One side of

Power Cord Plug Prongs

One side of power cord plug

prongs (B) to:

RF or

Antenna terminals

A/V Input, Output

AC Voltmeter (High Impedance)

Fig. 1

Fig. 2

Note: This table is unofficial and for reference only. Be sure to confirm the precise values.

1-2-2 SFTY_07

Page 6

STANDARD NOTES FOR SERVICING

Circuit Board Indications

a.The output pin of the 3 pin Regulator ICs is indicated

as shown.

Top View

Out

b.For other ICs, pin 1 and every fifth pin are indicated

as shown.

Input

Bottom View

Pin 1

c.The 1st pin of every male connector is indicated as

shown.

Pin 1

Instructions for Connectors

1.When you connect or disconnect the FFC (Flexible Foil Connector) cable, be sure to first disconnect the AC cord.

2.FFC (Flexible Foil Connector) cable should be inserted parallel into the connector, not at an angle.

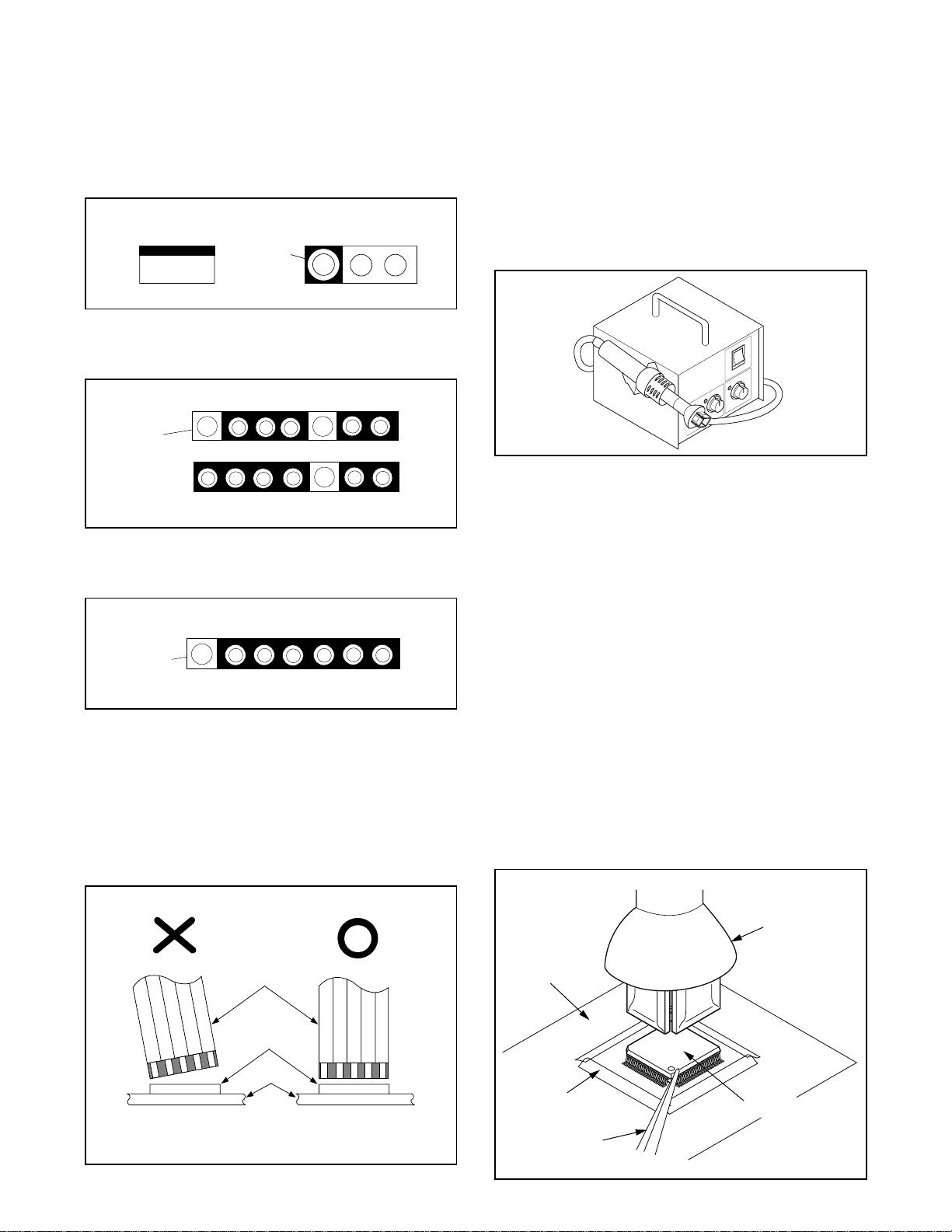

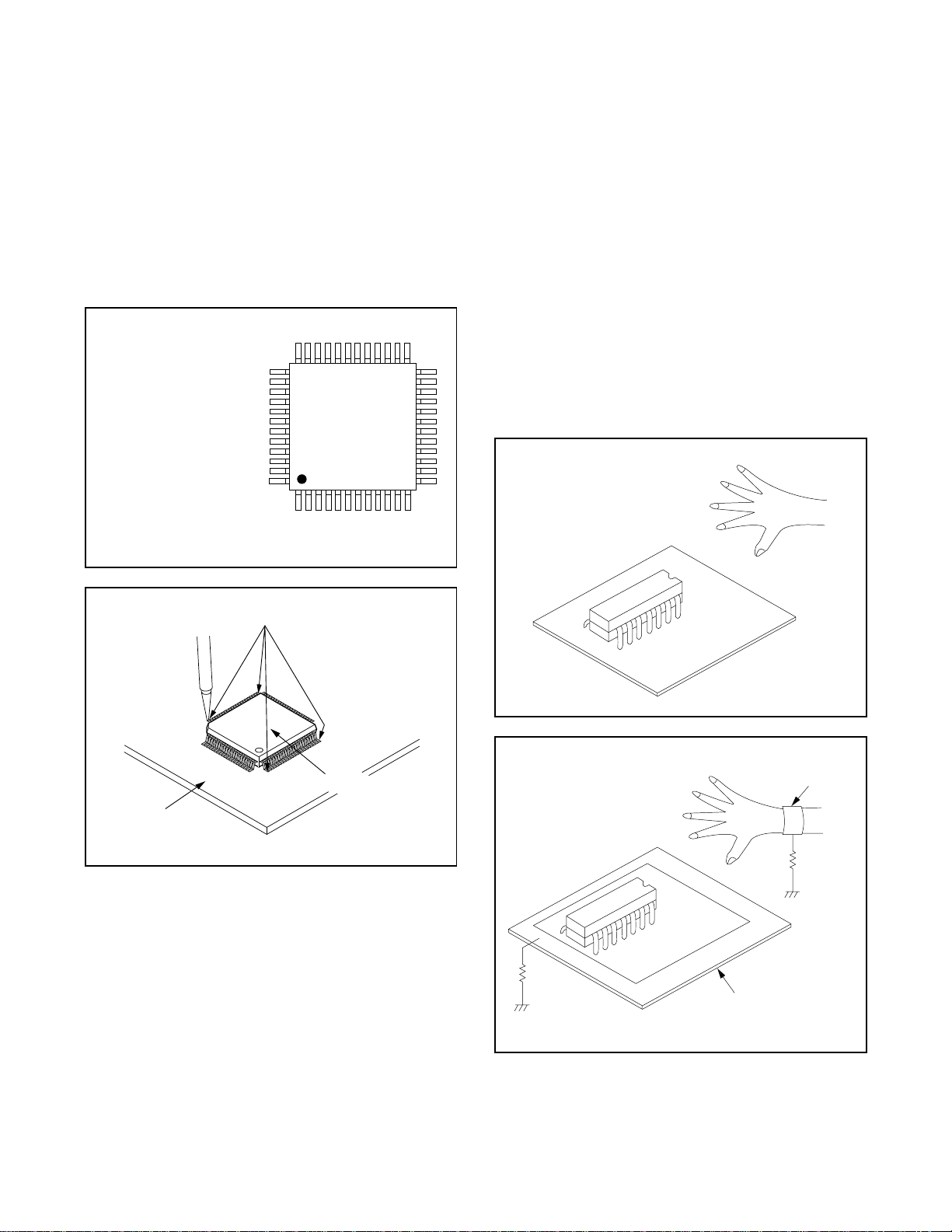

How to Remove / Install Flat Pack-IC

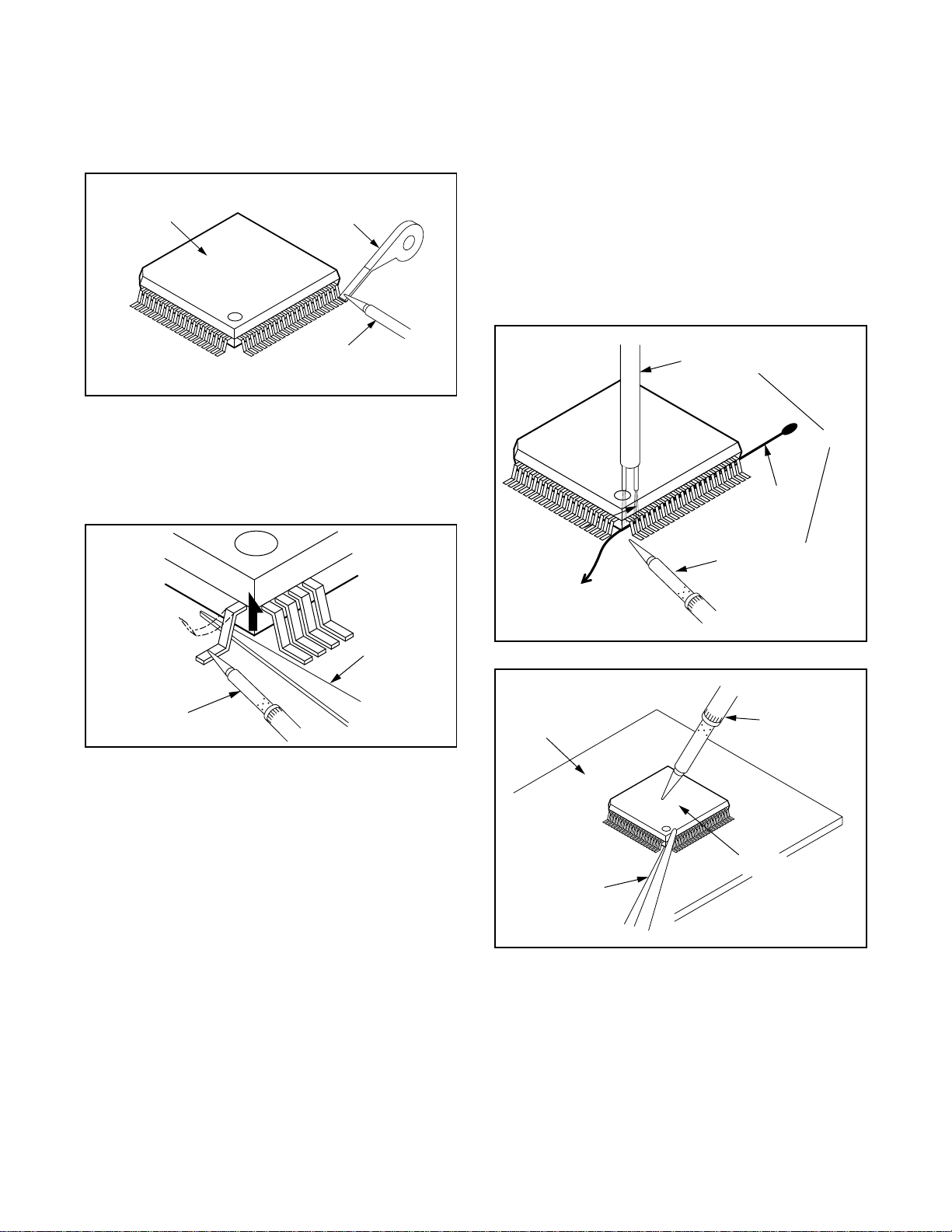

1. Removal

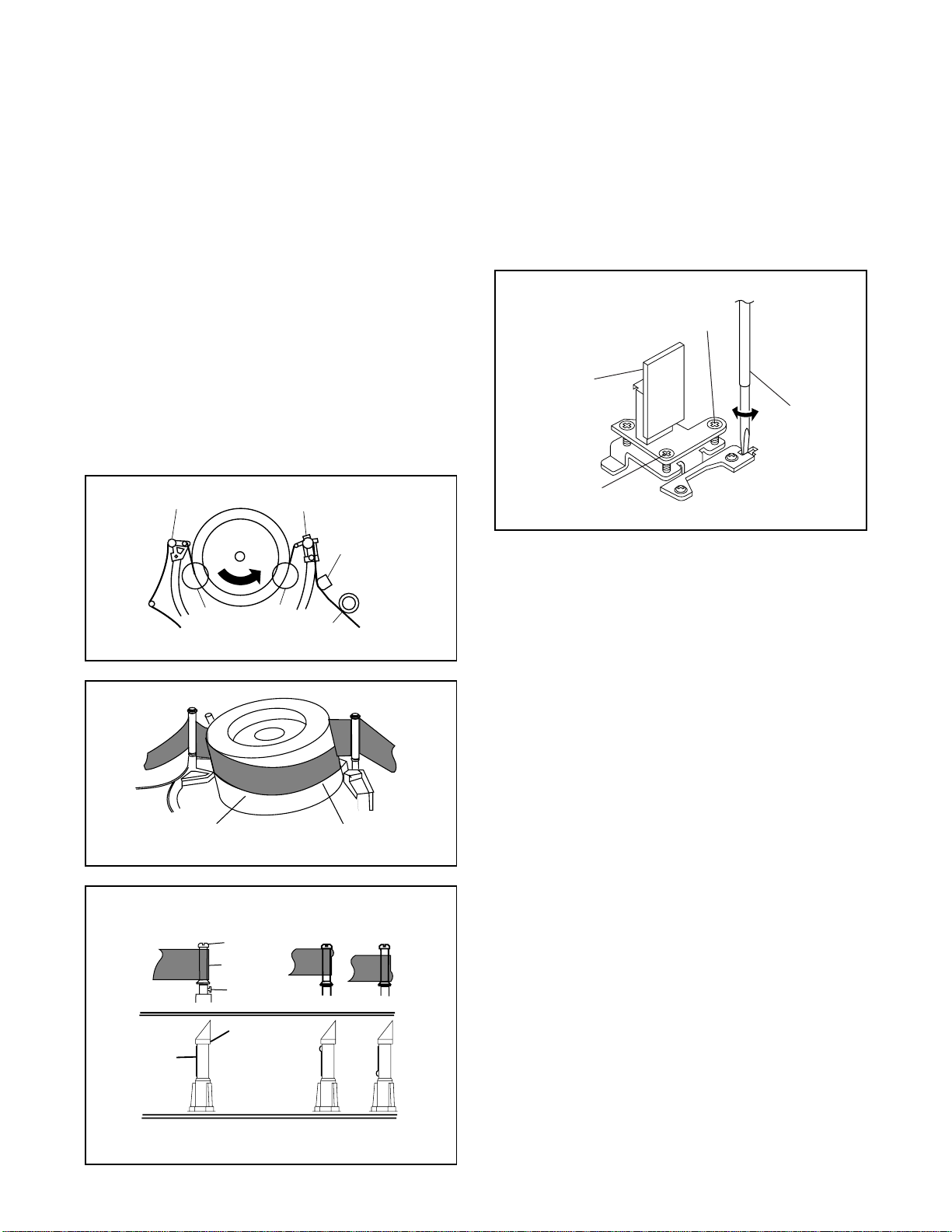

With Hot-Air Flat Pack-IC Desoldering Machine:

(1)Prepare the hot-air flat pack-IC desoldering ma-

chine, then apply hot air to the Flat Pack-IC (about 5 to 6 seconds). (Fig. S-1-1)

Fig. S-1-1

(2)Remove the flat pack-IC with tweezers while apply-

ing the hot air.

(3)Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

(4)Release the flat pack-IC from the CBA using tweez-

ers. (Fig. S-1-6)

Caution:

1.Do not supply hot air to the chip parts around the flat pack-IC for over 6 seconds because damage to the chip parts may occur. Put masking tape around the flat pack-IC to protect other parts from damage. (Fig. S-1-2)

2.The flat pack-IC on the CBA is affixed with glue, so be careful not to break or damage the foil of each pin or the solder lands under the IC when removing it.

FFC Cable

Connector

CBA

* Be careful to avoid a short circuit.

Hot-air Flat Pack-IC Desoldering

CBA

Masking Tape

Tweezers

1-3-1 NOTE_1

Machine

Flat Pack-IC

Fig. S-1-2

Page 7

With Soldering Iron:

(1)Using desoldering braid, remove the solder from all

pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

(4)Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

(5)Release the flat pack-IC from the CBA using tweez-

ers. (Fig. S-1-6)

Flat Pack-IC

Desoldering Braid

Soldering Iron

Fig. S-1-3

(2)Lift each lead of the flat pack-IC upward one by one,

using a sharp pin or wire to which solder will not adhere (iron wire). When heating the pins, use a fine tip soldering iron or a hot air desoldering machine. (Fig. S-1-4)

Sharp Pin

Note:

When using a soldering iron, care must be taken to ensure that the flat pack-IC is not being held by glue. When the flat pack-IC is removed from the CBA, handle it gently because it may be damaged if force is applied.

Hot Air Blower

Iron Wire

Soldering Iron

To Solid Mounting Point

Fig. S-1-5

Fine Tip

Fig. S-1-4

Soldering Iron

(3)Bottom of the flat pack-IC is fixed with glue to the

CBA; when removing entire flat pack-IC, first apply soldering iron to center of the flat pack-IC and heat up. Then remove (glue will be melted). (Fig. S-1-6)

(4)Release the flat pack-IC from the CBA using tweez-

ers. (Fig. S-1-6)

With Iron Wire:

(1)Using desoldering braid, remove the solder from all

pins of the flat pack-IC. When you use solder flux which is applied to all pins of the flat pack-IC, you can remove it easily. (Fig. S-1-3)

(2) Affix the wire to a workbench or solid mounting point,

as shown in Fig. S-1-5.

(3)While heating the pins using a fine tip soldering iron

or hot air blower, pull up the wire as the solder melts so as to lift the IC leads from the CBA contact pads as shown in Fig. S-1-5.

CBA

Tweezers

Fine Tip Soldeing Iron

Flat Pack-IC

Fig. S-1-6

1-3-2 NOTE_1

Page 8

2. Installation

(1)Using desoldering braid, remove the solder from the

foil of each pin of the flat pack-IC on the CBA so you can install a replacement flat pack-IC more easily.

(2)The " ● " mark on the flat pack-IC indicates pin 1.

(See Fig. S-1-7.) Be sure this mark matches the 1 on the PCB when positioning for installation. Then pre- solder the four corners of the flat pack-IC. (See Fig. S-1-8.)

(3)Solder all pins of the flat pack-IC. Be sure that none

of the pins have solder bridges.

Example :

Pin 1 of the Flat Pack-IC is indicated by a " ● " mark.

Fig. S-1-7

Instructions for Handling Semiconductors

Electrostatic breakdown of the semiconductors may occur due to a potential difference caused by electrostatic charge during unpacking or repair work.

1. Ground for Human Body

Be sure to wear a grounding band (1MΩ) that is properly grounded to remove any static electricity that may be charged on the body.

2. Ground for Workbench

Be sure to place a conductive sheet or copper plate with proper grounding (1MΩ) on the workbench or other surface, where the semiconductors are to be placed. Because the static electricity charge on clothing will not escape through the body grounding band, be careful to avoid contacting semiconductors with your clothing.

< Incorrect >

CBA

Presolder

Flat Pack-IC

CBA

< Correct >

Grounding Band

Fig. S-1-8

1MΩ

CBA

1MΩ

Conductive Sheet or Copper Plate

1-3-3 NOTE_1

Page 9

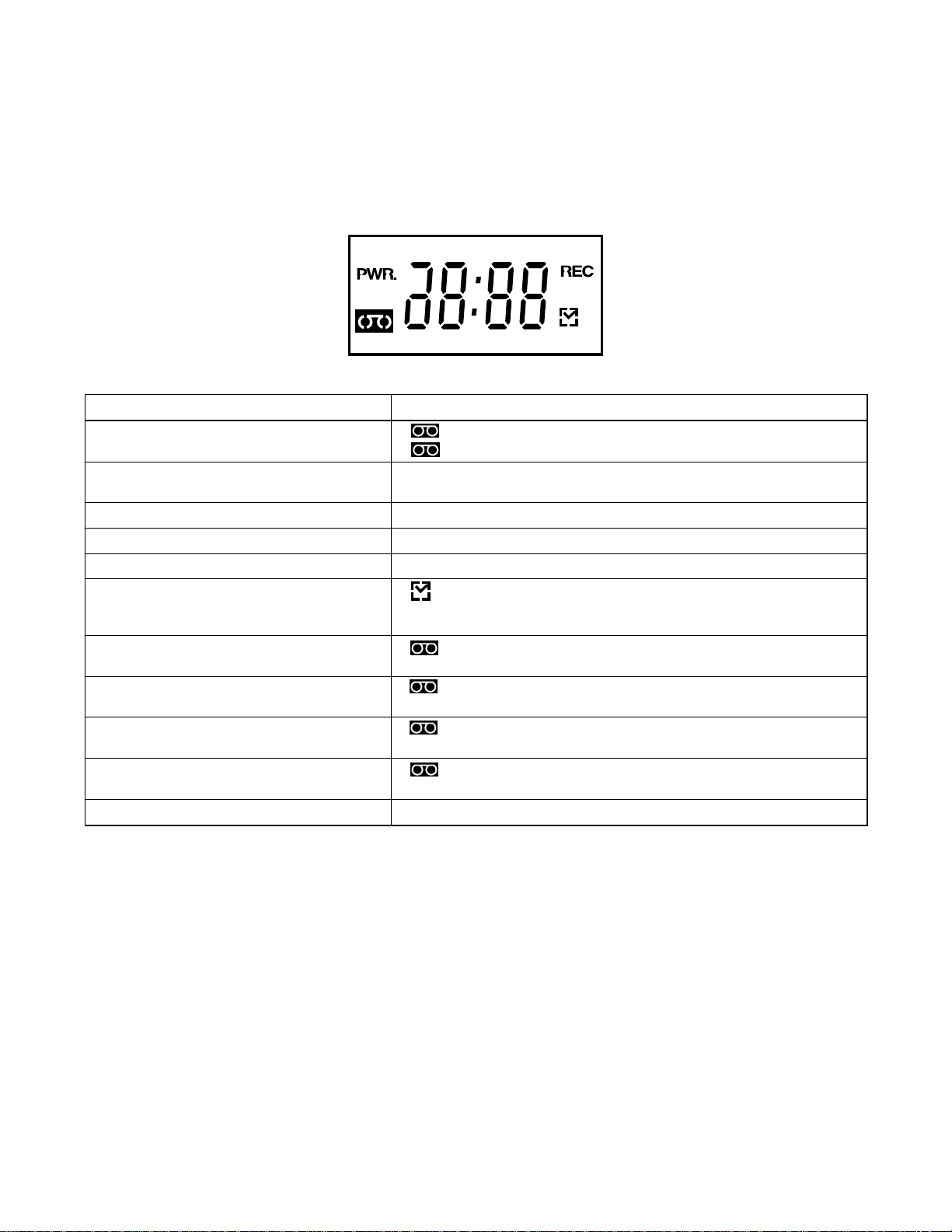

FUNCTION INDICATOR SYMBOL

Note:

The following symbols will appear on the indicator panel to indicate the current mode or operation of the VCR. On-Screen modes will also be momentarily displayed on the TV screen when you press the operation buttons.

Display panel

" H "= LED Light on, " L "= LED Light off

LED MODE INDICATOR ACTIVE

CASSETTE "IN" CASSETTE "OUT"

CLOCK " 88:88 "

POWER ON " PWR. " ON REC " REC " ON REC PAUSE " REC " Blinks at 0.8Hz interval T-REC, OTR " " ON

When reel and capstan mechanism is not functioning correctly

When tape loading mechanism is not functioning correctly

When cassette loading mechanism is not functioning correctly

When the drum is not working properly " "

S-INH condition All modes Blinks at 0.8Hz interval

" " " "

" PM "

" " " 1 "

" " " 2 "

" " " 3 "

" 4 "

ON OFF

ON ON/OFF

(T-REC OFF, T-REC incomplete Blinks at 0.8Hz interval)

Blinks at 0.8Hz interval

1-4-1 H89F1FIS

Page 10

PREPARATION FOR SERVICING

How to Enter the Service Mode

About Optical Sensors

Caution:

An optical sensor system is used for the Tape Start and End Sensors on this equipment. Carefully read and follow the instructions below. Otherwise the unit may operate erratically.

What to do for preparation

Insert a tape into the Deck Mechanism Assembly and press the PLAY button. The tape will be loaded into the Deck Mechanism Assembly. Make sure the power is on, connect TP507 (SENSOR INHIBITION) to GND. This will stop the function of Tape Start Sensor, Tape End Sensor and Reel Sensors. (If these TPs are connected before plugging in the unit, the function of the sensors will stay valid.) See Fig. 1.

Note: Because the Tape End Sensors are inactive, do not run a tape all the way to the start or the end of the tape to avoid tape damage.

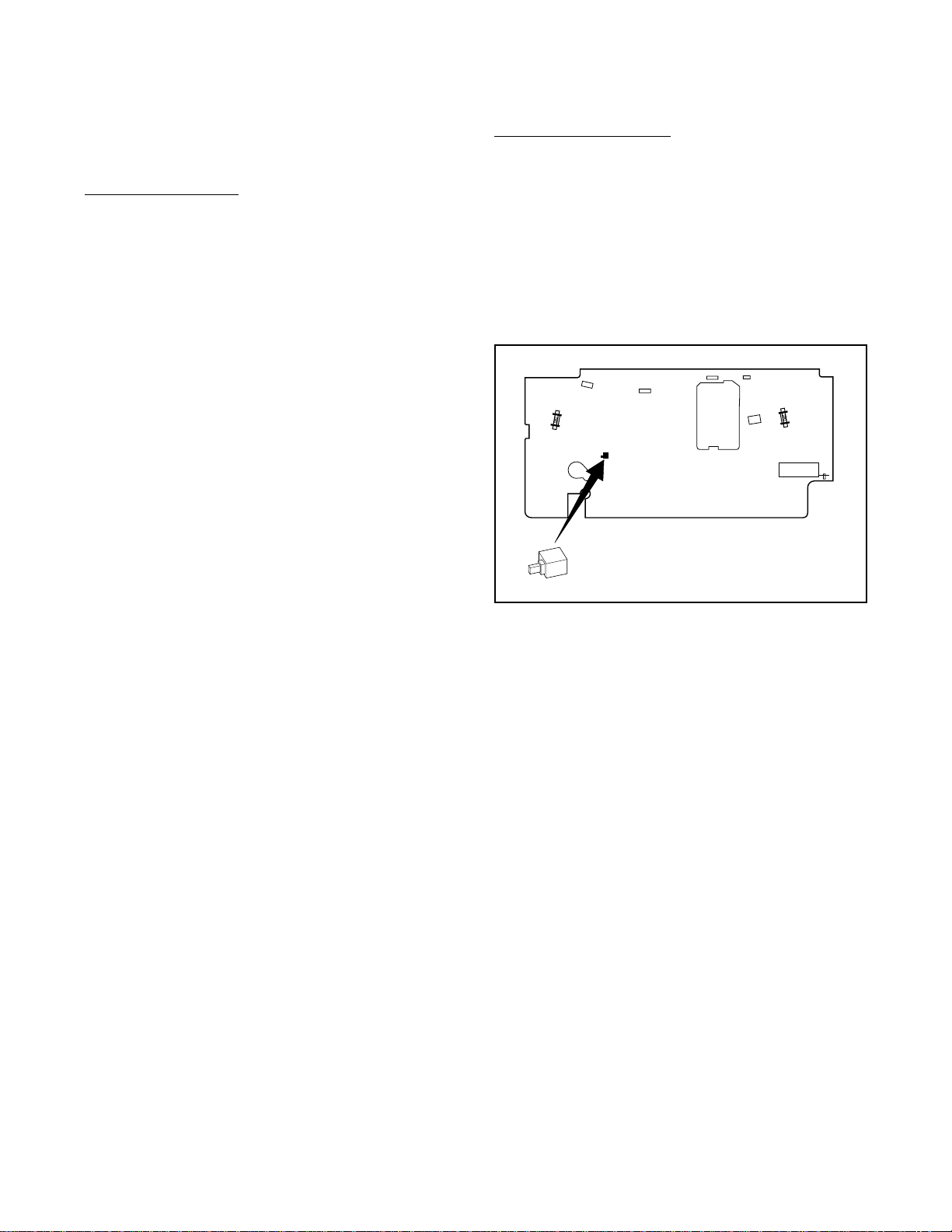

About REC-Safety Switch

Caution:

The REC-Safety Switch is directly mounted on the Main CBA. When the Deck Mechanism Assembly is removed from the Main CBA for servicing, this switch does not work automatically.

What to do for preparation

In order to record, press the Rec button while pushing REC-SAFETY SW on the Main CBA. See Fig. 1.

CN501

Q504

(REC-SAFETY SW)

CN251

SW506

CN504

CN502

Q503

CN503

TP507

S-INH

Fig. 1

1-5-1 H87F0PFS

Page 11

1-6-1 H89F1IB

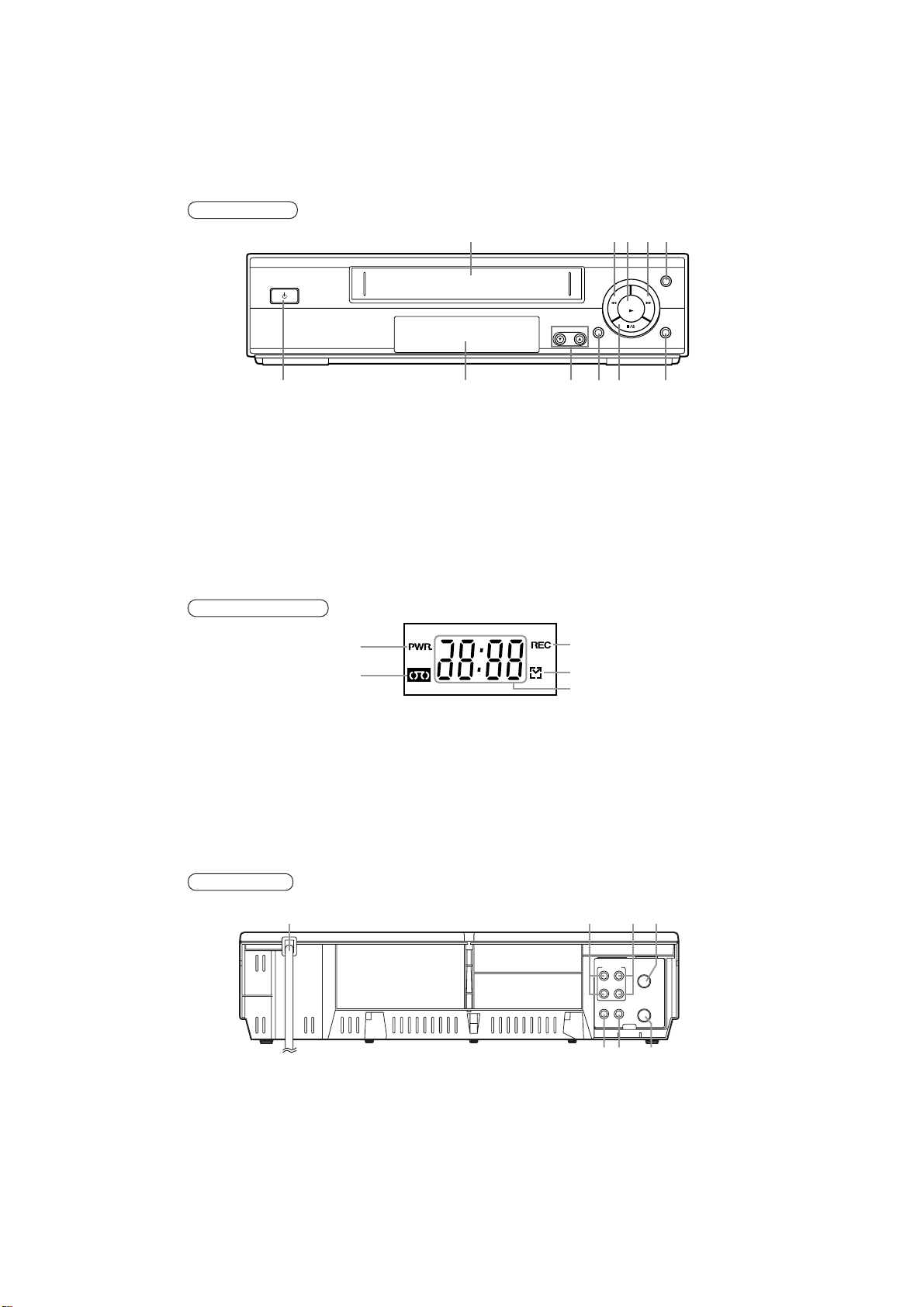

Front Panel

STOP/EJECT

REW

RECORD

CHANNEL

STATUS/

EXIT

STANDBY

PLAY

68 791011

1243 5

11. Cassette compartment

12. REW button

13. PLAY button

14. FF button

15. MENU button

16. STATUS/EXIT button

17. STOP/EJECT button

18. RECORD button

19. CHANNEL (K/L) buttons

10. Display window (See below.)

11. STANDBY button

Display window

14 15

12. PWR. (Power) indicator

13. TAPE IN indicator

14. REC indicator

15. w (Timer) indicator

16. CLOCK indicator

Rear Panel

AUDIO

VIDEO

AERIAL

RF OUT

OUT IN

OUT

17 18 19 20

21 22 23

17. AC power cord

18. AUDIO OUT jack

19. AUDIO IN jack

20. AERIAL terminal

21. VIDEO OUT jack

22. VIDEO IN jack

23. RF OUT terminal

OPERATING CONTROLS AND FUNCTIONS

Page 12

1-6-2 H89F1IB

Remote Control

1 2 3

4 5 6

7 8

VCR TV

SPEED

SLOWAUDIO SELECT

STANDBY

EJECT

MENU STATUS/EXIT CLEAR

MEMORY ALT.CH

REC /OTR

PAUSE /STILL

PLAY

STOP

REW

F.FW D

CH. VOL.

MUTE

1 2

4 5

6 7

12 13 14

15 16

17 18

20 21 22

11. EJECT button

12. MENU button

13. NUMBER buttons

14. MEMORY button

15. PLAY button

16. REC/OTR button

17. REW button

18. MUTE button

19. CH(annel) buttons

10. VCR button

11. AUDIO SELECT button

12. STANDBY button

13. STATUS/EXIT button

14. CLEAR button

15. ALT.CH. button

16. PAUSE/STILL button

17. F.FWD button

18. STOP button

19. VOL(ume) buttons

20. TV button

21. SPEED button

22. SLOW button

You can use this remote control to operate some of PHILIPS TVs. Press [VCR] before pressing VCR feature buttons; press [TV] before pressing TV feature buttons if you have a PHILIPS TV.

NOTE

Page 13

SIGNAL NAME ABBREVIATIONS

Signal Name Description

AFC

A-COM Audio Head Common A-IN Line Audio In A-OUT Audio Out Signal A-MODE Hi-Fi Tape Detection Signal A-MUTE Audio Mute Control Signal

A-PB/REC

AE-H Audio Erase Head AFC Auto Frequency Control Signal

AL+12V

AL+44V

AL+5V

AVcc

CLKSEL Clock Select (GND) C-CONT Capstan Motor Control Signal

C-FG

C-F/R

C-ROTA

C-SYNC

D-FG

D-PG Drum Motor Pulse Generator D-REC-H Delayed Record Control

D-V SYNC

END-S Tape End Position Detect Signal FE-H GND Ground for Full Erase Head

FF/REW-L

FLDVcc FLDVcc FLDVp GND H-A-COMP Head Amp Comparator Signal H-A-SW Video Head Amp Switching Pulse HiFi-H-SW HiFi Audio Head Switching Pulse Hi-Fi-A (R) Hi-Fi Audio Head (R)

Automatic Frequency Control Signal

Normal Audio Play Back/Record Signal

Always +12V with AC Plug Connected

Always +44V with AC Plug Connected

Always +5V with AC Plug Connected

A/D Converter Power Input/ Standard Voltage Input

Capstan Motor Rotation Detection Pulse

Capstan Motor FWD/REV Control Signal

Control Phase Rotary Changeover Signal

Composite Synchronized Pulse V-Sync+H-Sync

Drum Motor Rotation Detection Pulse

Dummy Vertical Synchronized Pulse

CTL Amp Gain Switching Signal (FF/REW="L")

Signal Name Description

Hi-Fi-A (L) Hi-Fi Audio Head (L) Hi-Fi-COM Hi-Fi Audio Head Common HLF LPF Connected Terminal (Slicer) IIC BUS-SCL IIC BUS Control Clock IIC BUS-SDA IIC BUS Control Data KEY-1 Key Scan Input Signal 1 KEY-2 Key Scan Input Signal 2 LINE-IN (L) Line Audio In (L) Rear LINE-IN (R) Line Audio In (R) Rear

LD-SW

LM-FWD/REV Loading Motor Control Signal MAIN CLOCK Main Clock Input 17.734476 MHz MOD-A Modulator Audio Output Signal N-A-PB Normal Audio Playback N-A-REC Normal Audio Recording

IN Clock Input for letter size

OSC

OUT Clock Output for letter size

OSC OSD-CHARA-

OUT OSD-BB-OUT Composite Video Signal Output PB-CTL Playback Control Signal PG-

DELAY POWER

SAFETY P-DOWN-L Power Voltage Down Detector P-ON+44V +44V at Power-On Signal P-ON+5V +5V at Power-On Signal P-ON+9V +9V at Power-On Signal P-ON-L Power-On Low Signal REC-CTL(+) Record Control Signal(+) REC-CTL(-) Record Control Signal(-)

REC-SAF-SW

REMOCON-IN Remote Control Sensor RESET System Reset Signal (Reset= "L") RF-SW Head Switching Pulse

STILL/ SLOW-L

Deck Mode Position Detector Signal

Character Output (Superimposed)

Video Head Switching Pulse Signal Adjusted Voltage

P-ON Power Detection Input Signal

Recording Safety SW Detect (With Record tab="L"/ With out Record tab="H")

Still/Slow Circuit Change Over "L"Signal (Still/Slow Mode ="L," Other ="Hi-Z")

1-7-1 H89F1SNA

Page 14

Signal Name Description

ST-S

TIMER+5V +5V at Timer TIMER LED "TIMER" LED Signal Output TU-AUDIO Tuner Audio Input Signal TU-VIDEO Tuner Video Input Signal

TU-SW-1

TU-SW-2

T-REEL Take Up Reel Rotation Signal V-ENV Video Envelope Signal V-IN Video Input Signal V-OUT Video Output Signal

VHOLD

Vss Vss(GND)

4.43MHZ 4.43MHZ Clock Signal

Tape Start Position Detector Signal

Tuner System Control Signal Output

Condenser Connected Terminal (Slicer)

1-7-2 H89F1SNA

Page 15

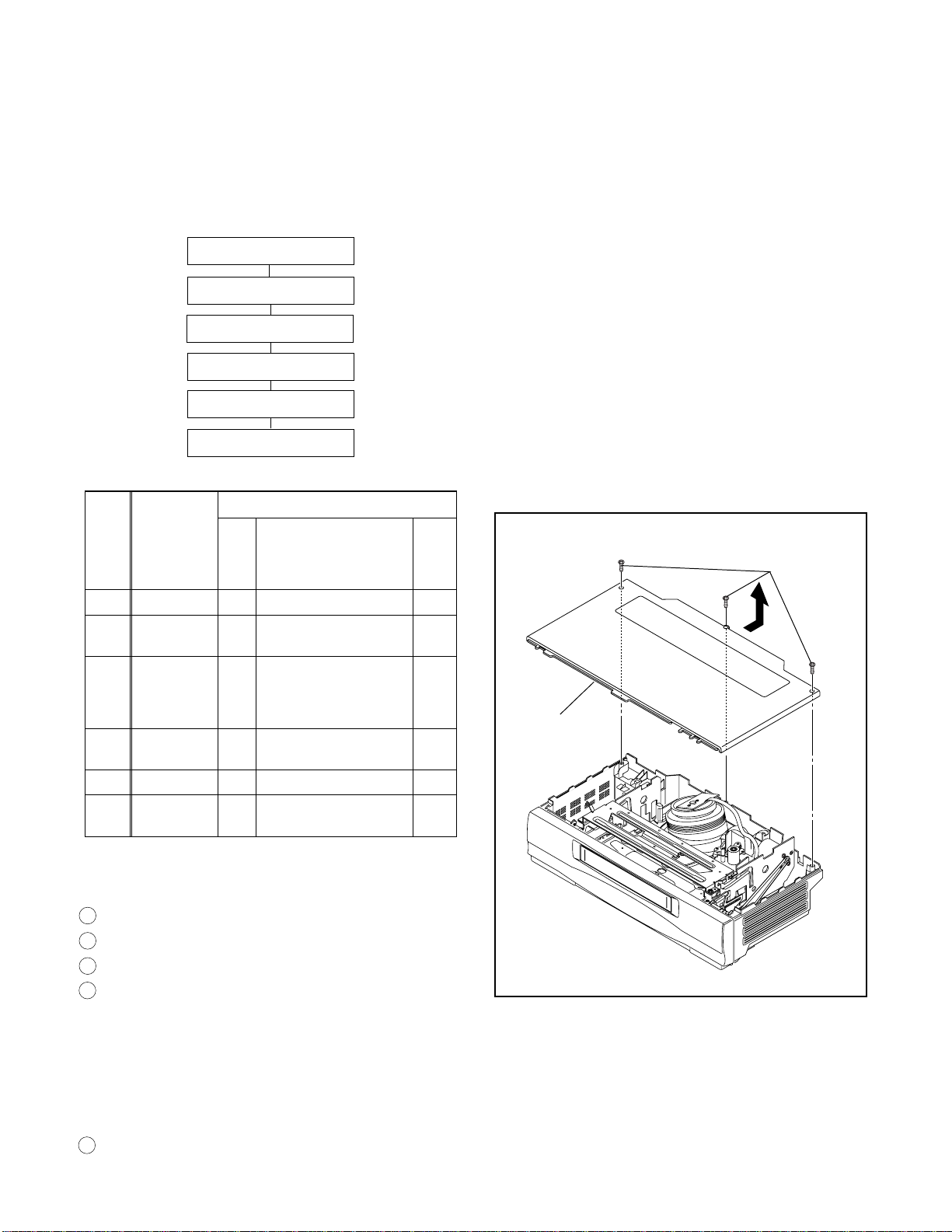

CABINET DISASSEMBLY INSTRUCTIONS

1. Disassembly Flowchart

This flowchart indicates the disassembly steps to gain access to item(s) to be serviced. When reassembling, follow the steps in reverse order. Bend, route, and dress the cables as they were originally.

[1] Top Case

[2] Front Assembly

[3] Deck Assembly

[4] REC Arm Assembly

[5] Main CBA

[6] Function CBA

Disassembly Method

REMOVAL

ID/

LOC.

No.

[1] Top Case 1 3(S-1) -

[2]

[3]

[4]

[5] Main CBA 4 *(L-3), *2(L-4) -

[6]

↓

➀

PART

Front Assembly

Deck Assembly

REC Arm Assembly

Function CBA

↓

➁

REMOVE/

Fig.

*UNHOOK/UNLOCK/ RELEASE/UNPLUG/

No.

DESOLDER

2 *3(L-1), *4(L-2)

3 6(S-2), Spacer

*(CN251, CN501, CN502, CN503, CN504)

3 ----------

4 Desolder

↓

➂

↓

➃

Note

1, 2

↓

➄

Reference Notes

CAUTION: Locking Tabs (L-1) and (L-2) are fragile. Be careful not to break them.

1. Remove six Screws (S-2) and the spacer. Then slowly lift the Deck Assembly up. Lifting Deck Assembly disconnects five Connectors (CN251 CN501, CN502, CN503, CN504). (Fig. 3)

2. Before installing the Deck Assembly, be sure to place the pin of LD-SW on Main CBA as shown in Fig. 5. Then, install the Deck Assembly while aligning the hole of Cam Gear with the pin of LD-SW, the shaft of Cam Gear with the hole of LD-SW as shown in Fig. 5.

3. After removing the Main CBA, desolder from bottom of the Main CBA as shown in Fig. 4 to remove the Function CBA.

(S-1)

[1]Top Case

1 : Identification (location) No. of parts in the figures 2 : Name of the part 3 : Figure Number for reference 4 : Identification of parts to be removed, unhooked, un-

locked, released, unplugged, unclamped, or desoldered. P=Spring, L=Locking Tab, S=Screw, CN=Connector *=Unhook, Unlock, Release, Unplug, or Desolder e.g. 2(S-2) = two Screws (S-2), 2(L-2) = two Locking Tabs (L-2)

5 :Refer to "Reference Notes."

Fig. 1

1-8-1 H89F1DC

Page 16

(L-2)

(S-2)

[4]REC Arm Assembly

(L-1)

CN501

Spacer

[2]Front Assembly

Fig. 2

(S-2)

[3]Deck Assembly

CN504

CN502

Desolder from bottom

(L-4)

[5]Main C.B.A.

[6]Function C.B.A.

(L-4)

(L-3)

Fig. 4

CN251

CN503

Fig. 3

[5]Main C.B.A.

[4]Deck Assembly

Shaft

Hole

LD-SW

SW507 LD-SW

Cam Gear

Hole

[5]Main C.B.A.

Fig. 5

1-8-2 H89F1DC

Page 17

ELECTRICAL ADJUSTMENT INSTRUCTIONS

General Note: "CBA" is an abbreviation for "Circuit Board Assembly."

NOTE:

1.Electrical adjustments are required after replacing circuit components and certain mechanical parts. It is important to do these adjustments only after all repairs and replacements have been completed. Also, do not attempt these adjustments unless the proper equipment is available.

2.To perform these alignment / confirmation procedures, make sure that the tracking control is set in the center position: Press either "▼" or "▲" button on the remote control unit first, then the "PLAY" button (Front Panel only).

CH1

CH2

Figure 1

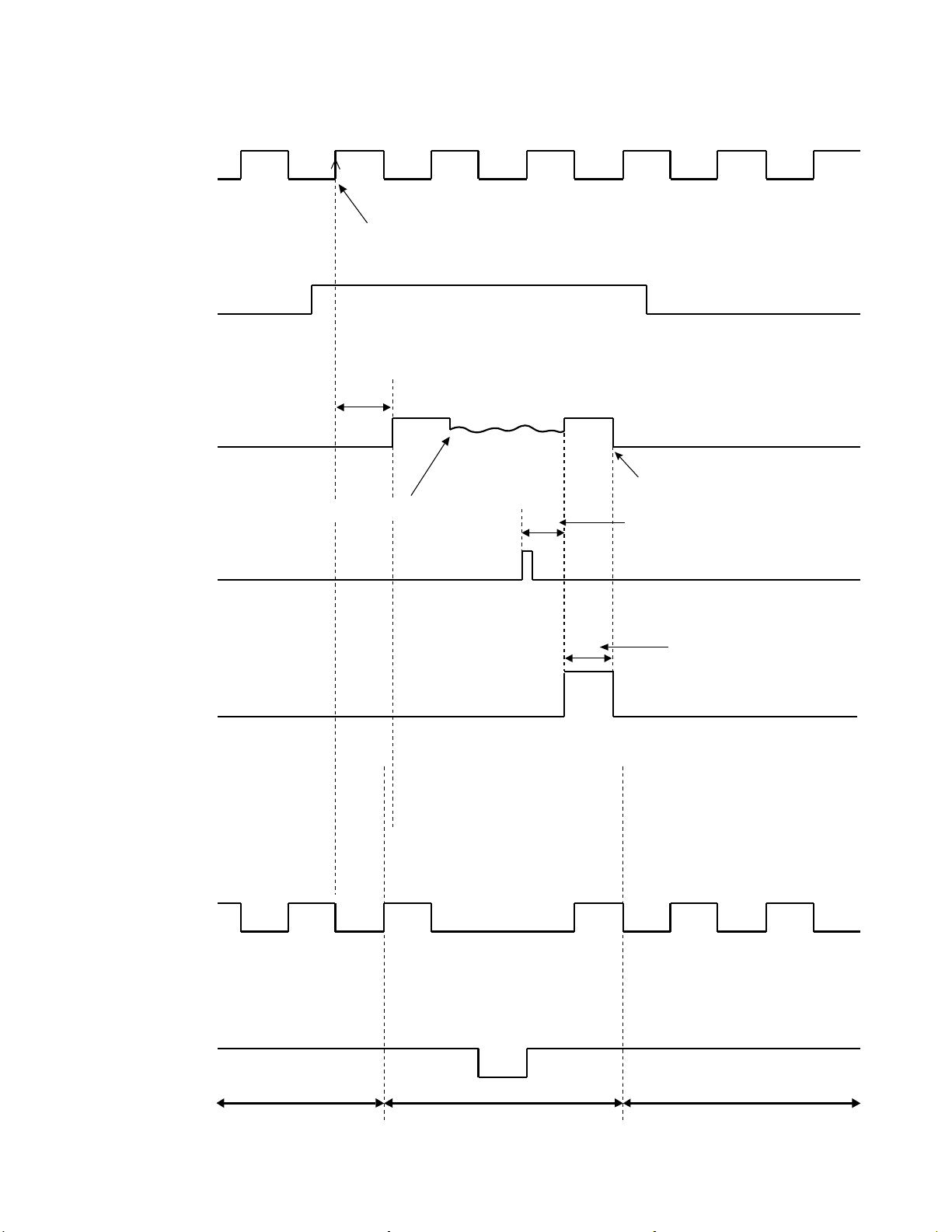

EXT. Syncronize Trigger Point

1.0H

Switching Pulse

6.5H

V-Sync

0.5H

Test Equipment Required

1.Oscilloscope: Dual-trace with 10:1 probe, V-Range:

0.001~50V/Div., F-Range: DC~AC-20MHz

2.Alignment Tape (4822 395 10283)

Head Switching Position Adjustment

Purpose:

To determine the Head Switching point during playback.

Symptom of Misadjustment:

May cause Head Switching noise or vertical jitter in the picture.

Test Point Adj. Point Mode Input

TP751(V-OUT)

TP502(RF-SW)

GND

Tape

4822 395 10283 Oscilloscope

Connections of Measurement Equipment

VR501

(Switching Point)

(MAIN CBA)

Measurement

Equipment

PLAY

(SP)

6.5H±1H

(412.7µs±60µs)

----

Spec.

Reference Notes:

Play back the Alignment tape and adjust VR501 so that the V-sync front edge of the CH1 video output waveform is at the 6.5H(412.7µs) delayed position from the rising edge of the CH2 head switching pulse waveform.

Main CBA

Oscilloscope TP751 GND TP502

CH1 CH2 Trig. (+)

1-9-1 H87F0EA

Page 18

Adjustment Points and Test points

Main CBA Top View

AUDIO BLOCK

TP751 V-OUT

Hi-Fi BLOCK

TUNER BLOCK

TP752 A-OUT

TP301 C-PB

POWER SUPPLY BLOCK

VIDEO BLOCK

TP502 RF-SW

VR501 SW-P

SYSCON/TIMER SERVO BLOCK

TEST POINT INFORMATION

: Indicates a test point with a jumper wire across a hole in the PCB.

TEST POINTS NOT USED IN ELECTRICAL ADJUSTMENTS

Test Point

TP301 TP502 TP501 TP507

Mechanical Alignment Procedures Mechanical Alignment Procedures Mechanical Alignment Procedures Preparation for Servicing

Used in: Page No.

Audio Out (L)

TP507 SENS-INH

TP501 CTL

POWER CTL BLOCK

2-3-3, 2-3-4 2-3-3, 2-3-4

2-3-3 1-5-1

Audio Out (R)

Audio In (R)

Video Out

Video In

Main CBA

Audio In (L)

Tuner Unit

Antenna In Antenna Out

1-9-2 H89F1EA

Page 19

Servo/System Control Block Diagram BLOCK DIAGRAMS

(DECK ASSEMBLY)

AC HEAD ASSEMBLY

CONTROL HEAD

" " = SMD

CN287

5 8CTL(+) 6 9CTL(-)

CN504

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR. (CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER HOLES OF THE PCB. (WIRE IS SOLDERED DIRECTLY.)

MAIN CBA

Q551

IC503

(1/3)

TP501

CTL

13 12

AL+5V

D555 S-LED

TEST POINT INFORMATION

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB. :USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE. :USED TO INDICATE A TEST POINT WITH NO TEST PIN. :USED TO INDICATE A TEST POINT WITH A TEST PIN.

RS501

REMOTE SENSOR

SW507 LD-SW

AL+5V

IC501

(SERVO/SYSTEM CONTROL)

REMOCON

KEY-1

REC-CTL(+)

REC-CTL(-)

FF/REW-L

STILL/SLOW-L65

PB-CTL

KEY-2

TP507 S-INH

KEY

SWITCH

TP501

GND

2 2KEY-2

Q620~Q623

DRIVE

GRID

FUNCTION CBA

CN651CN505

KEY SWITCH

FP502

LED DISPLAY

CYLINDER ASSEMBLY

DRUM MOTOR

PG SENSOR

LOADING MOTOR ASSEMBLY

LOADING MOTOR

CAPSTAN MOTOR

AL+12V

FG-GND

CN502 1D-W 2D-V 3D-U 4D-COM 5PG-IN

CN504 1LD-M(-) 2LD-M(+)

CN503

1C-F/R 2P-ON+5V 3 4C-FG 5NU 6C-DRIVE 7 8CM-GND

P-ON+5V AL+12V

25 24 22 21

16 15 17

4 2

IC506

(DRUM /LOADING MOTOR DRIVE)

DRUM MOTOR DRIVE

DRIVE

Q503

ST-S

LOADING MOTOR CONTROL

TP506

END-S

Q504

END-S

Q506

T-REEL

TIMER+5V

RESET

AL+5V

Q501

SW508

RESET

VR501 SW-POINT

P-ON+5V

LD-SW74

D-CONT56

D-FG

D-PG

LM-

FWD/REV

ST-S

75 68

END-S T-REEL

RESET

C-F/R

C-FG

C-CONT

PG-DELAY

REC-SAF-SW 25

I2C BUS SCL-2

I2C BUS SDA-2

Hi-Fi-SW

A-MODE

A-MUTE-H

D-REC-H

I2C BUS SCL-1

I2C BUS SDA-1

V-ENV

C-ROTA

RF-SW

H-A-COMP

H-A-SW

g 92

18 48

60 62

70 15 17 14 16

SEGMENT

IC505

(MEMORY)

SCL

AL+5V

SW506

REC-SAFETY

SDA

TU701

SCL

SDA

Hi-Fi-SW A-MODE

A-MUTE-H

D-REC-H

I2C BUS SCL-1

I2C BUS SDA-1

I2C BUS SCL-1

I2C BUS SDA-1

V-ENV

C-ROTA

RF-SW

H-A-COMP

H-A-SW

I2C BUS SDA-1

I2C BUS SCL-1

TO Hi-Fi AUDIO BLOCK

TO AUDIO BLOCK

TO VIDEO BLOCK

TO JACK BLOCK

1-10-1 1-10-2 H89F1BLS

Page 20

Video Block Diagram

" " = SMD

JK751 V-OUT

TP751

V-OUT

WF1

IC301

(Y/C PROCESS)

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR. (CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER HOLES OF THE PCB. (WIRE IS SOLDERED DIRECTLY.)

Q305

BUFFER

29 67 66 49

TEST POINT INFORMATION

MAIN CBA

X302

4.43MHz

Q307

BUFFER

46 41

Q304

BUFFER

REC-VIDEO SIGNAL PB-VIDEO SIGNAL MODE: SP/REC

I2C BUS SDA-1

I2C BUS SCL-1

TO SERVO/SYSTEM CONTROL BLOCK

21 24 2320

TU701

VIDEO

TU-VIDEO

JK752 V-IN

IC501

OSD-CHARA-OUT

OSD-BB-OUT

36 38

C-SYNC C-SYNC

21 31 30

BUFFER

28 26 25 27

D-V SYNCD-V SYNC

Q308

32 31

CLAMP

AGC

AMP

CHARA

INS.

B/B

R P

BPF

D.E.

FBC

R P

VXO

R/P

Y/C MIX

C-COMB COMB

1/2

NOISE

CANCELMDE EMPA

PIC-CTL

ANR

Y-LPF

72715759 54 52 51 61

KIL

AMP

CCD 1H

DELAY

DOC YNR Y/C COMB

MAPBPF

KILL B.D.

CCD

LPF

R P

CLAMP

ACC

B-UP

AMP

4.43MHz

CLAMP

DETAIL

ENH

W/D CLIP

CONV

629KHz

BPF

MAIN

CONV

SUB

R P

MOD

SERIAL

DECORDER

V/I

CONV

REC

FM-EQ

C-LPF

SUB

LPF

REC FM

AGC

DEMOD.

PB FM

AGC

DOUBLE

LIMIT

FM-EQ

EMPHA

Q302, Q303

PEAKING AMP

(DECK ASSEMBLY)

CYLINDER ASSEMBLY

VIDEO (R)-1 HEAD

VIDEO (L)-1 HEAD

VIDEO (L)-2 HEAD

VIDEO (R)-2 HEAD

C-ROTA

H-A-COMP

H-A-SW

V-ENV

RF-SW

TP301

C-PB

TO SERVO/SYSTEM CONTROL BLOCK

CN251

V(R)-1 V-COM V(L)-1 V(L)-2 V-COM V(R)-2

COMP

OUT

C-ROTA

10 94

93 11

R L

ENV DET

TP502

RF-SW

WF2

WF5

1-10-3 1-10-4 H89F1BLV

Page 21

Audio Block Diagram

" " = SMD

TO Hi-Fi AUDIO BLOCK

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR. (CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER HOLES OF THE PCB. (WIRE IS SOLDERED DIRECTLY.)

N-A-PB N-A-REC

TEST POINT INFORMATION

PB-AUDIO SIGNAL REC-AUDIO SIGNAL Mode : SP/REC

MAIN CBA

IC301

(AUDIO PROCESS) 76

(DECK ASSEMBLY)

ACE HEAD ASSEMBLY

AUDIO HEAD

AUDIO ERASE HEAD

FE HEAD

FULL ERASE HEAD

CN287 A-PB/REC 4 A-COM 3 AE-H 1 AE-H/FE-H 2

CN504 7 A-PB/REC 6 A-COM 4 AE-H 5 FE-H

CN501 1 FE-H 2 FE-H-GND

Q402

BIAS OSC

P-ON+5V

Q404 (PB=ON)

Q403

Q405 (PB=ON)

Q401

SWITCHING D-REC-OFF

P-ON+5V

4 3

PB-ON

EQ AMP

SP/LP-ON

AUTO BIAS

ALC

100

REC AMP

LINE AMP

MUTE

SERIAL

DECODER

23 24

I2C BUS-SDA-1 I2C BUS-SCL-1

A-MUTE-H

D-REC-H

TO SERVO/SYSTEM CONTROL BLOCK

1-10-5 1-10-6 H89F1BLA

Page 22

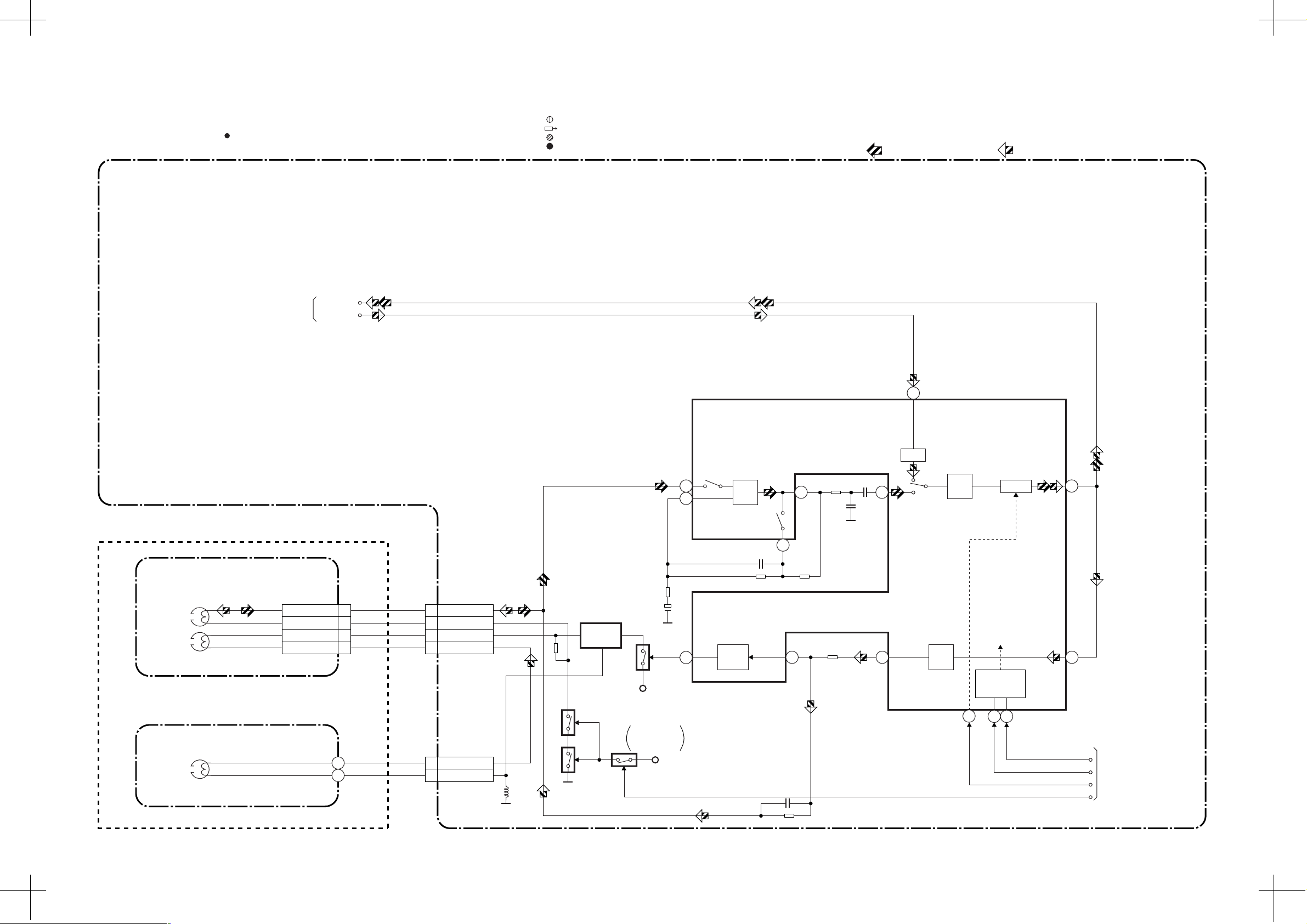

Hi-Fi Audio Block Diagram

A-IN(R)

A-IN(L)

TU701

JK752

AUDIO

" " = SMD

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR. (CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER HOLES OF THE PCB. (WIRE IS SOLDERED DIRECTLY.)

IC451(MTS/ SAP/ Hi-Fi AUDIO PROCESS/ Hi-Fi HEAD AMP)

52 44

R-CH INSEL

46 45

ALC

R-CH PNR

TEST POINT INFORMATION

SW NOISE

LIM DEV

MAIN CBA

COMP

VCO

LPF

R-CH BPF

OUTPUT SELECT

ALC MUTE

OD DET

SERIAL DATA DECODER

ENV DET

REC-AUDIO SIGNALPB-AUDIO SIGNAL Mode : SP/REC

31 32

58 57 56

I2C BUS-SDA-1

I2C BUS-SCL-1

A-MUTE-H

Hi-Fi-SW

A-MODE

TP754 A-OUT(L)

TO SERVO/ SYSTEM CONTROL BLOCK

JK751

A-OUT(L)

A-OUT(R)

TO AUDIO BLOCK

N-A-REC

N-A-PB

NOR SW

LIM DEV

L-CH

INSEL

4 5

ALC

L-CH PNR

NOISE

HOLD PULSE

NOISE DET

VCO

COMP

MIX

LPF

COMP AMP

L-CH BPF

AGC

AGC DET

BIAS

18 19

Hi-Fi-A(R) 7 Hi-Fi-COM 8 Hi-Fi-A(L) 9

CN251

TU701

AUDIO

Hi-Fi AUDIO (R) HEAD

Hi-Fi AUDIO (L) HEAD

CYLINDER ASSEMBLY

H89F1BLH1-10-7 1-10-8

Page 23

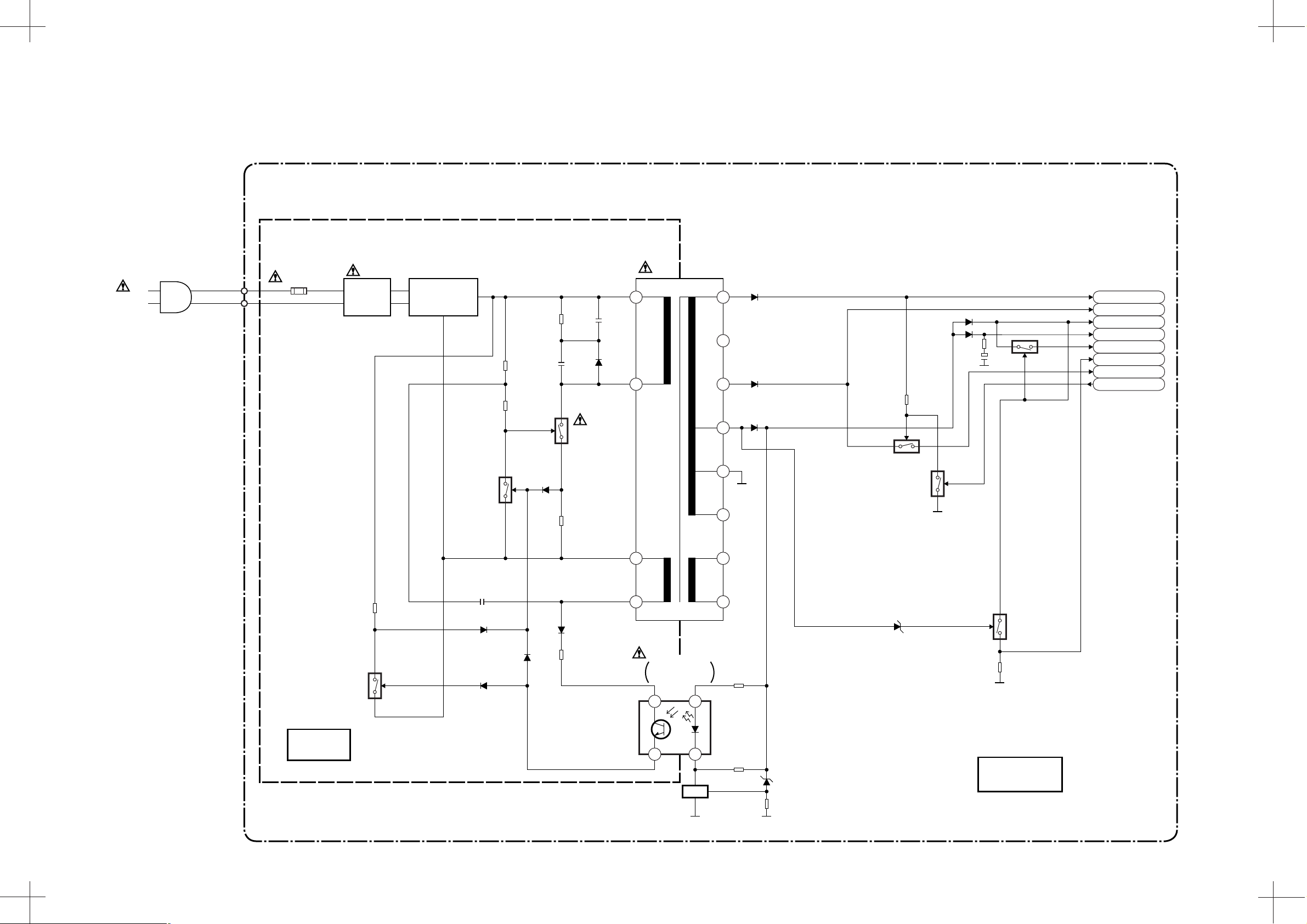

Power Supply Block Diagram

AC001

NOTE : The voltage for parts in hot circuit is measured using hot GND as a common terminal.

HOT CIRCUIT. BE CAREFUL.

F001 T1.6AL/250V

L003

LINE FILTER

D001 - D004

BRIDGE RECTIFIER

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE T1.6AL/250V FUSE.

T001

Q001

CAUTION !

Fixed voltage (or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F001) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

MAIN CBA

AL+44V AL+12V AL+5V

Q054

TIMER+5V P-ON+5V P-DOWN-L P-ON+9V P-ON-L

HOT

Q003

Q002

IC001

ERROR VOLTAGE DET

Q053

Q059

Q056

Q004

(SHUNT REGULATOR)

REG

COLD

H89F1BLP1-10-9 1-10-10

Page 24

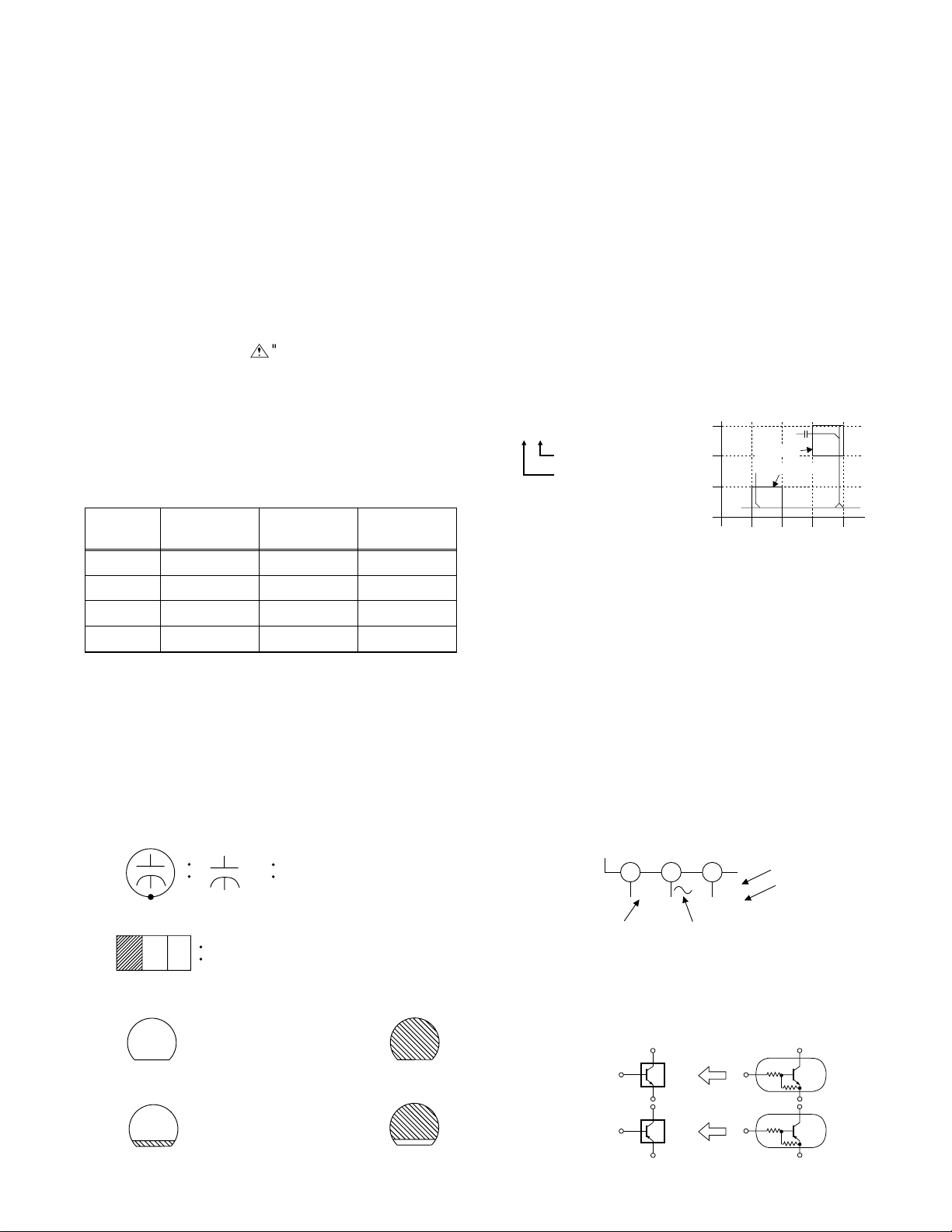

SCHEMATIC DIAGRAMS / CBA’S AND TEST POINTS

Standard Notes WARNING

Many electrical and mechanical parts in this chassis have special characteristics. These characteristics often pass unnoticed and the protection afforded by them cannot necessarily be obtained by using replacement components rated for higher voltage, wattage, etc. Replacement parts that have these special safety characteristics are identified in this manual and its supplements; electrical components having such features are identified by the mark " !" in the schematic diagram and the parts list. Before replacing any of these components, read the parts list in this manual carefully. The use of substitute replacement parts that do not have the same safety characteristics as specified in the parts list may create shock, fire, or other hazards.

Capacitor Temperature Markings

Mark

Capacity

change rate

(B) ±10% 20°C –25~+85°C (F) +30 -80% 20°C –25~+85°C

(SR) ±15% 20°C –25~+85°C

(Y) ±22.5% 20°C –25~+85°C

Capacitors and transistors are represented by the following symbols.

< PCB Symbols >

(Top View) (Bottom View)

(Bottom View)

Transistor or Digital Transistor

E C B

(Top View)

NPN Transistor

Standard

temperature

Electrolytic Capacitor

Temperature

range

(Top View)

Notes:

1. Do not use the part number shown on these drawings for ordering. The correct part number is shown in the parts list, and may be slightly different or amended since these drawings were prepared.

2. To maintain original function and reliability of repaired units, use only original replacement parts which are listed with their part numbers in the parts list section of the service manual.

3. Prefix symbol "CN" means "connector" (can disconnect and reconnect). Prefix symbol "CL" means "wire-solder holes of the PCB" (wire is soldered directly).

4. How to read converged lines. 1-D3

Distinction Area Line Number (1 to 3 digits)

Examples: (1). "1-D3" means that line number "1" goes to

area "D3." (2). "1-B1" means that line number "1" goes to

area "B1."

5. All resistance values are indicated in ohms

(K=10

, M=106).

6. Resistor wattages are 1/4W or 1/6W unless otherwise specified.

7. All capacitance values are indicated in µF

−6

(P=10

µF).

8. All voltages are DC voltages unless otherwise specified.

9. Voltage indications for PLAY and REC modes on the schematics are as shown below.

(Unit: Volt)

The same voltage for both PLAY & REC modes.

5.0

< Schematic Diagram Symbols >

PNP Transistor

AREA D3

5.0 (2.5)

Indicates that the voltage is not consistent here.

Digital Transistor

AREA B1

1-D3

ABCD

PLAY mode REC mode

1-B1

E C B

(Top View)

NPN Digital Transistor

E C B

(Top View)

PNP Digital Transistor

E C B

U21_PAL_PC 1-11-1 SC_08

Page 25

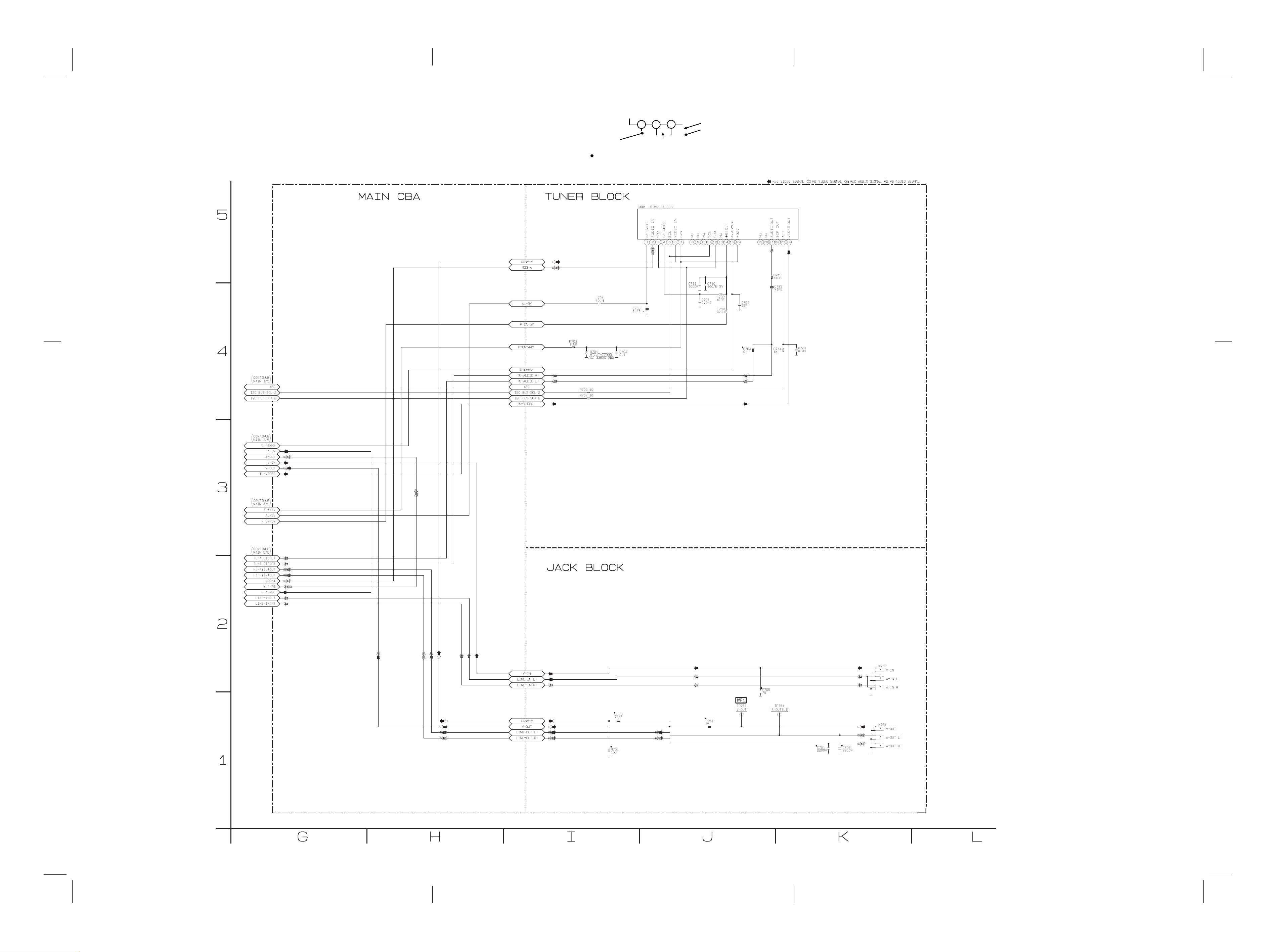

Main 1/5 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position Ref No. Position

CAPACITORS C502 E-2 CN502 F-5 R522 A-3 R584 A-4 C503 F-2 CN503 F-4 R523 A-4 R585 A-4 C504 F-2 CN504 F-5 R524 A-3 R586 A-4 C505 E-2 CN505 A-3 R525 A-4 R587 A-4 C506 E-3 R526 A-3 R588 A-4 C507E-3D501D-5R527B-3R595C-1 C508E-3D551D-4R528B-3R601C-1 C509 F-2 D552 D-4 R529 D-4 R603 C-1 C514 C-4 D553 D-4 R530 A-3 R604 C-1 C515 C-4 D554 D-4 R531 B-2 R606 D-1 C516 F-4 D555 A-3 R532 A-2 R616 C-4 C518B-3D583E-4R533A-2R617C-4 C519 B-2 R534 C-1 R618 B-4 C520 A-2 IC501 D-3 R535 B-4 R619 B-5 C522 B-1 IC503 D-5 R536 C-1 R620 B-3 C526 B-3 IC505 B-1 R538 C-1 R621 B-3 C551 D-4 IC506 E-5 R539 C-1 R622 B-3 C552 E-4 R542 C-1 R623 B-3 C553 D-4 L501 B-4 R543 C-1 R624 B-2 C554 C-4 L502 A-1 R544 C-1 R625 B-2 C555 D-4 L581 E-4 R545 E-4 R626 B-2 C557 D-4 L851 E-2 R548 E-4 R627 B-2 C558 C-4 L852 E-2 R549 F-4 R628 B-2 C559 E-5 R550 F-4 R629 B-2 C562 D-4 Q501 F-2 R551 D-4 R851 E-1 C563 C-4 Q503 B-2 R552 D-4 R852 E-2 C581 E-4 Q504 A-2 R553 E-4 R854 E-2 C583 E-4 Q506 B-3 R554 C-4 R855 D-1 C584 F-4 Q551 D-4 R555 D-4 C585 F-4 Q620 C-4 R556 D-4 SW504 A-4 C586 F-4 Q621 C-5 R557 D-4 SW505 A-4 C587 F-4 Q622 C-4 R558 D-4 SW506 A-2 C588 F-4 Q623 B-5 R559 D-4 SW507 A-3 C589 F-5 R560 C-4 SW511 A-4 C590 F-5 R501 F-2 R561 D-5 C591 F-5 R502 F-2 R562 D-4 VR501 A-2 C602 D-1 R503 F-2 R563 D-4 C603 D-4 R504 F-2 R566 E-5 X501 E-2 C604 C-4 R506 E-3 R567 C-4 X502 E-3 C852E-2R508E-3R568E-5 C853 E-1 R513 B-3 R571 C-4 RS501 B-2 C855E-1R514E-5R575E-2 C857 E-2 R515 D-4 R576 F-1 TP501 E-5 C858 E-2 R516 C-4 R577 F-1 TP502 D-1 C859 E-2 R517 C-4 R581 F-5 TP506 A-3

CONNECTORS

CN501 F-4 R521 B-3 R583 E-5

DIODES

ICS

COILS

TRANSISTORS

RESISTORS

R518 C-4 R582 F-5 TP507 A-3

RESISTORS

RESISTORSCONNECTORS

SWITCHES

VARIABLE RESISTORS

CRYSTAL OSCILLATORS

MISCELLANEOUS

TEST POINTS

1-11-2

Page 26

IC501 KEY VOLTAGE CHART

KEY 1 (72PIN) KEY 2 (73 PIN)

0.00 ~ 0.51V POWER STOP/EJECT

0.51 ~ 0.92V ------------------------ REW

0.92 ~ 1.27V ------------------------ PLAY

1.27 ~ 1.61V CH DOWN FF

1.61 ~ 1.98V CH UP ------------------------

1.98 ~ 2.39V S-INH REC

2.39 ~ 2.90V ------------------------ MENU

2.90 ~ 3.60V ------------------------ STATUS/EXIT

3.60 ~ 4.30V ------------------------ ------------------------

4.30 ~ 5.00V KEY OFF KEY OFF

Pin No. Voltage

Main 1/5 Schematic Diagram

MODE: SP/REC

THE SAME VOLTAGE FOR BOTH PLAY & REC MODES.

“ “ = SMD

5.0

(2.5)

INDICATES THAT THE VOLTAGE IS NOT CONSISTENT HERE.

PLAY MODE REC MODE

PWR.

REC

VCR PM

1-11-3

1-11-4 1-11-5 H89F1SCM1

Page 27

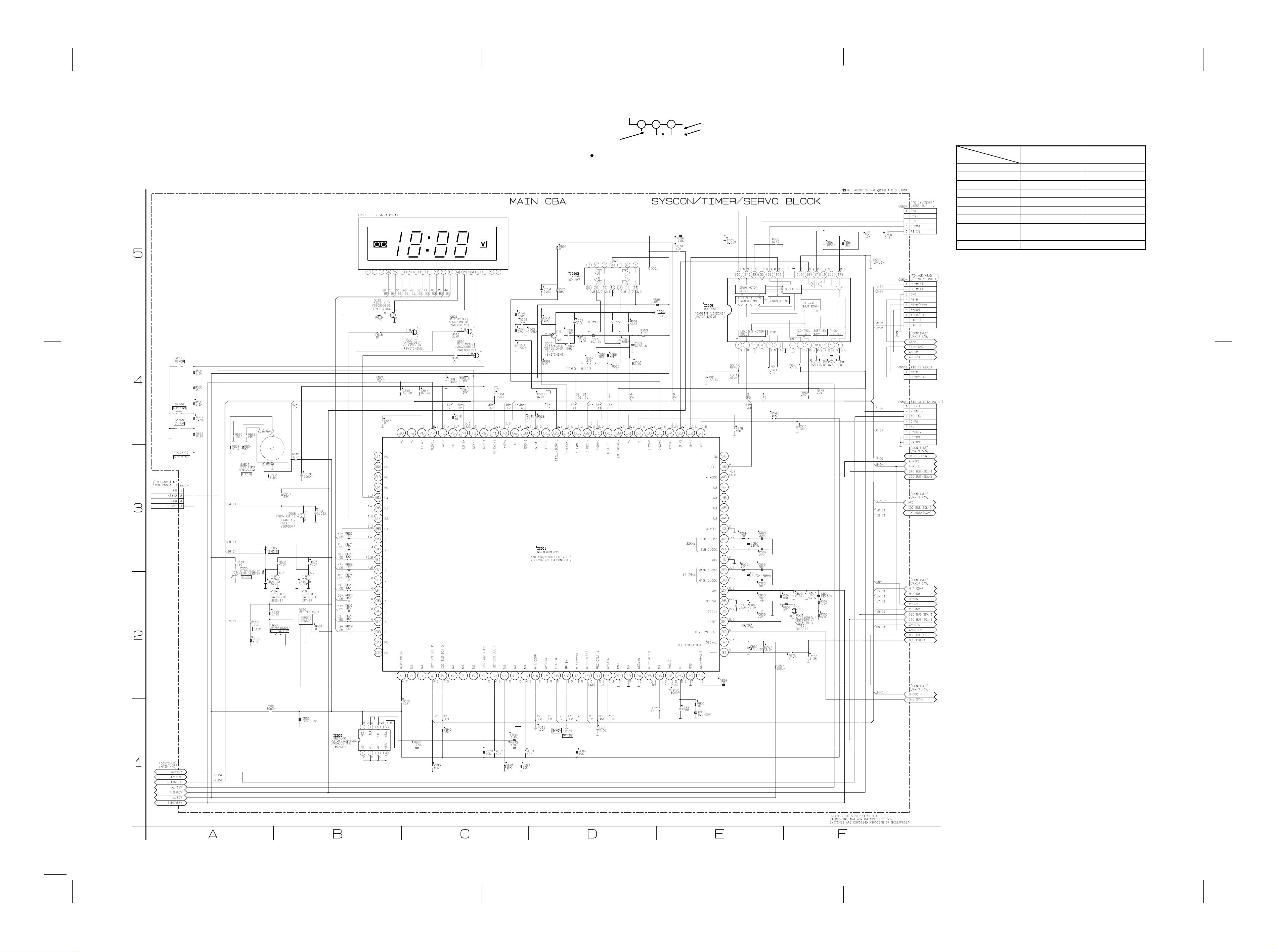

Main 2/5 Schematic Diagram

MODE: SP/REC

THE SAME VOLTAGE FOR BOTH PLAY & REC MODES.

“ “ = SMD

5.0

(2.5)

INDICATES THAT THE VOLTAGE IS NOT CONSISTENT HERE.

PLAY MODE REC MODE

1-11-6

1-11-7

1-11-8

H89F1SCM2

Page 28

MAIN 2/5 Schematic Diagram Parts Location Guide

Ref No. Position

CAPACITORS C701 J-4 C703 J-4 C704 I-4 C705 J-4 C710 J-4 C711 J-4 C721 K-4 C723 J-4 C751 K-1 C752 K-1

DIODES

D701 I-4

ICS L701 I-4 L702 J-4 L704 J-4

RESISTORS R703 I-4 R704 J-4 R706 I-4 R707 I-4 R714 K-4 R715 J-5 R751 I-1 R752 I-1 R754 J-1 R755 J-2

MISCELLANEOUS JK751 K-1 JK752 K-2

TEST POINTS TP751 J-1 TP754 K-1 TU701 I-5

1-11-9

Page 29

MAIN 3/5 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position Ref No. Position

CAPACITORS CAPACITORS COILS RESISTORS C253 M-3 C344 O-4 L307 M-2 R323 P-1 C255 N-2 C345 O-3 L308 M-1 R324 O-2 C256 N-2 C346 O-3 L401 N-1 R325 P-2 C301 O-1 C348 O-3 R327 P-2 C302 O-2 C349 O-3 Q301 P-4 R328 P-3 C303 O-2 C351 O-3 Q302 O-1 R329 O-1 C304 N-1 C352 O-3 Q303 O-1 R330 O-1 C305 O-1 C355 P-2 Q304 O-1 R332 O-4 C306 O-1 C362 P-1 Q305 P-1 R334 O-4 C307 O-1 C401 N-2 Q307 P-3 R335 O-3 C308 O-1 C402 M-2 Q308 P-1 R336 O-3 C309 P-4 C403 N-2 Q401 M-2 R340 P-1 C310 O-1 C404 N-2 Q402 M-1 R344 P-1 C311 O-1 C405 N-2 Q403 N-1 R372 P-2 C312 P-1 C406 N-2 Q404 M-1 R401 M-2 C313 P-1 C407 M-2 Q405 M-1 R402 M-2 C314 O-1 C409 M-2 R403 M-2 C315 P-1 C410 M-1 R253 N-2 R404 M-2 C317 Q-1 C411 N-1 R256 N-2 R405 N-2 C318 P-2 C412 N-1 R257 N-2 R406 N-2 C319 P-3 C413 N-2 R302 O-1 R408 N-2 C320 P-2 C414 N-1 R303 N-2 R409 M-2 C321 P-2 C415 N-1 R304 O-2 R410 M-1 C323 P-2 C416 N-3 R305 N-1 R411 M-1 C324 P-2 C420 N-3 R306 O-1 R412 M-1 C326 P-2 C421 N-3 R307 O-1 R414 N-2 C327 P-2 C423 N-4 R308 O-1 R415 N-2 C328 P-2 C424 M-4 R309 O-1 R416 N-2 C330 P-3 R310 O-1 R417 N-1 C331 P-3 CN251 M-4 R311 O-1 R418 N-1 C332 P-3 R312 O-1 R419 N-2 C333 P-3 D301 P-1 R313 O-2 R420 N-2 C334 P-3 R314 O-2 R421 N-4 C335 P-3 IC301 N-2 R315 O-1 R422 N-4 C336 P-3 R316 O-1 R425 N-3 C337 P-3 L251 M-3 R317 O-1 C338 P-3 L301 P-4 R318 P-1 X302 O-3 C339 P-3 L302 O-1 R319 O-1 C340 P-3 L303 O-1 R320 P-1 TP301 N-3 C341 O-4 L304 O-1 R321 P-4 C342 O-4 L306 P-3 R322 P-4

CONNECTORS

DIODES

ICS

COILS

TRANSISTORS

RESISTORS

CRYSTAL OSCILLATORS

TEST POINTS

1-11-10

Page 30

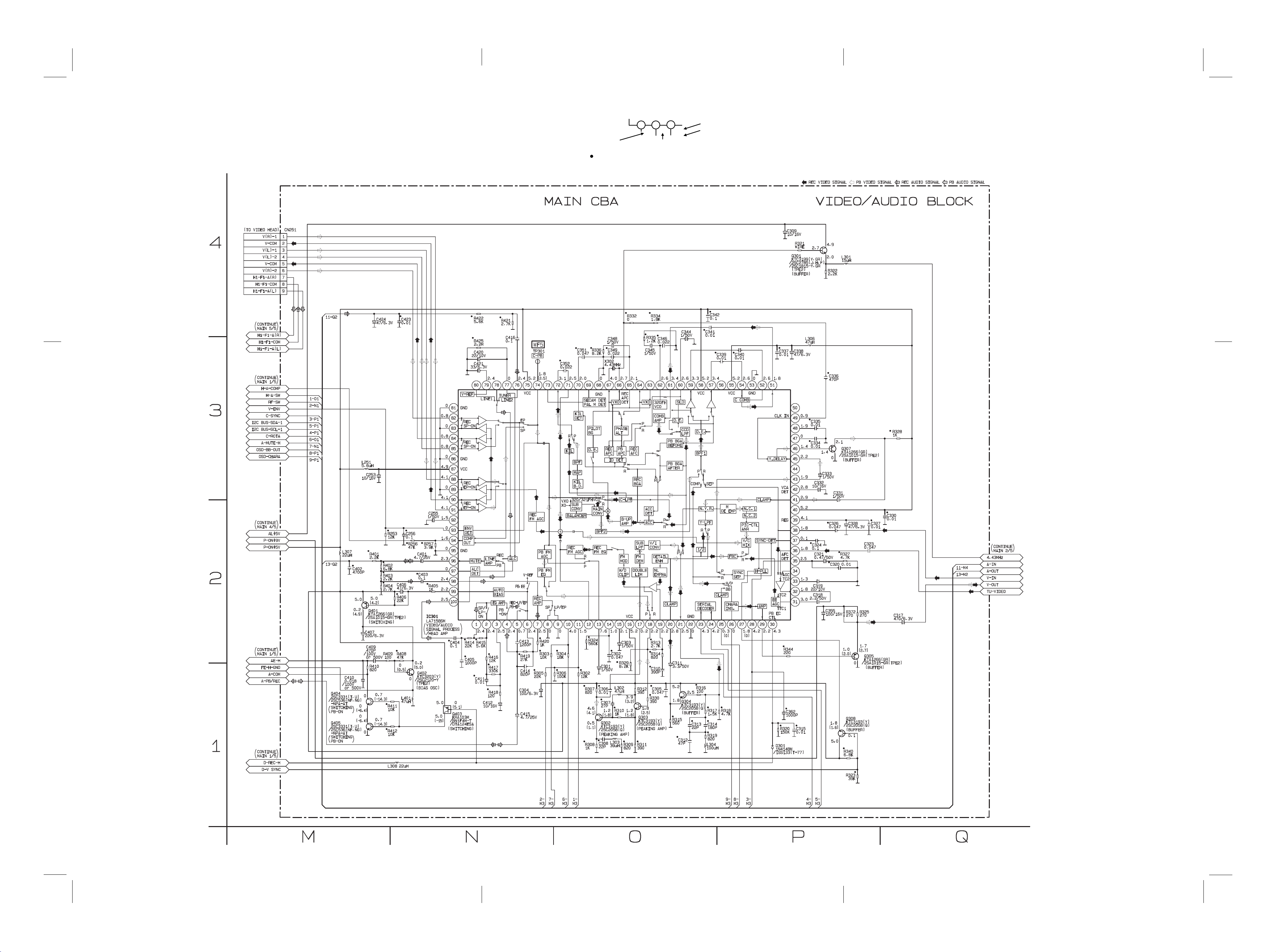

Main 3/5 Schematic Diagram

MODE: SP/REC

THE SAME VOLTAGE FOR BOTH PLAY & REC MODES.

“ “ = SMD

5.0

(2.5)

INDICATES THAT THE VOLTAGE IS NOT CONSISTENT HERE.

PLAY MODE REC MODE

1-11-11

1-11-12

1-11-13 H89F1SCM3

Page 31

Main 4/5 Schematic Diagram

NOTE : THE VOLTAGE FOR PARTS IN HOT CIRCUIT IS MEASURED USING HOT GND AS A COMMON TERMINAL.

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.

CAUTION !

MODE: SP/REC

THE SAME VOLTAGE FOR BOTH PLAY & REC MODES.

“ “ = SMD

5.0

(2.5)

INDICATES THAT THE VOLTAGE IS NOT CONSISTENT HERE.

PLAY MODE REC MODE

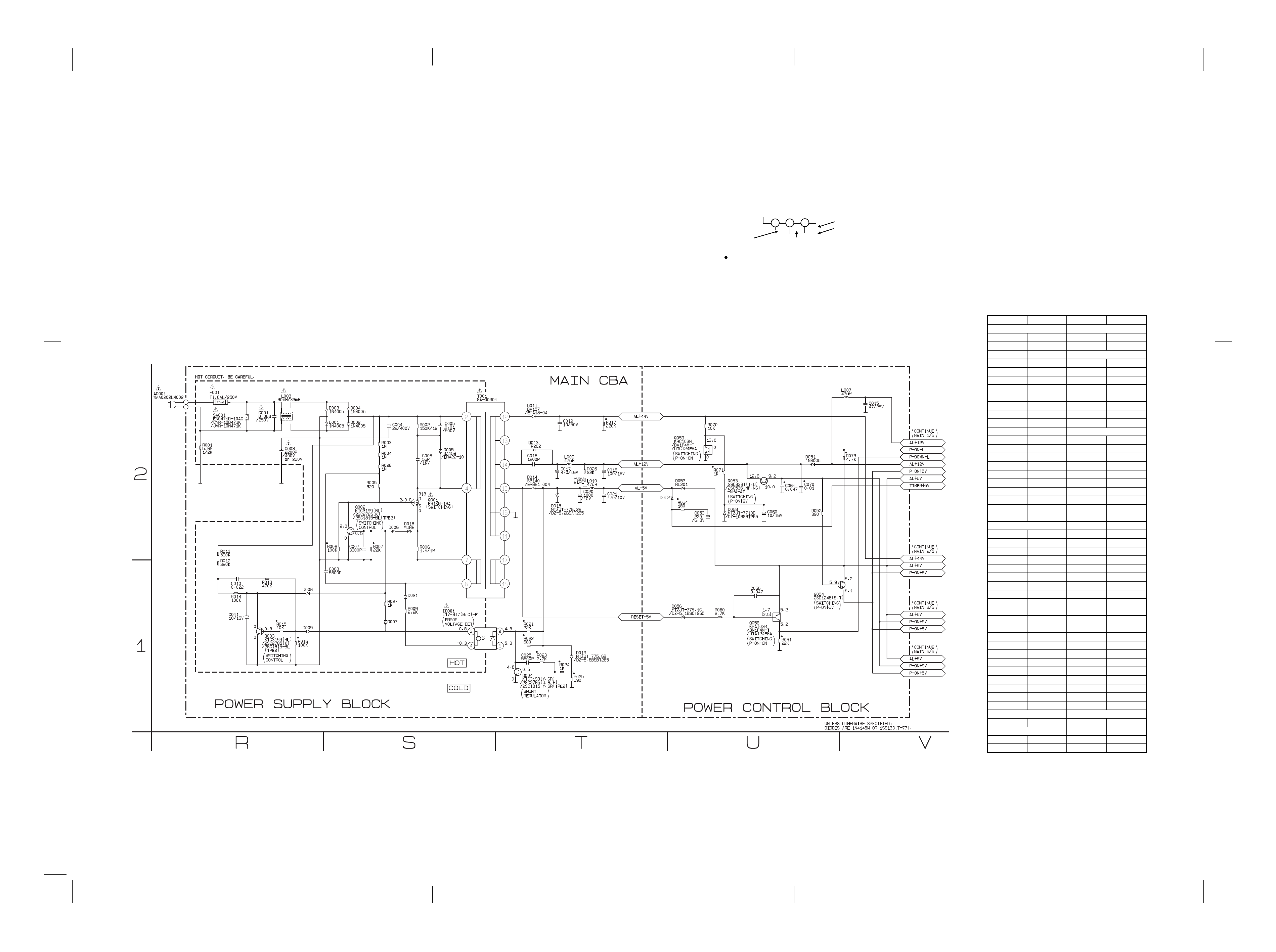

MAIN 4/5 Schemati c Diagram Parts Location Gui de

Ref No. Position Ref No. Position

CAPACITORS

COILS C001 R-2 L009 T-2 C003 R-2 L010 T-2 C004 S-2

TRANSISTORS C005 S-2 Q001 S-2 C006 S-2 Q002 S-2 C007 S-2 Q003 R-1 C008 S-1 Q004 T-1 C010 R-1 Q053 U-2 C011 R-1 Q054 U-1 C012 T-2 Q056 U-1 C015 V-2 Q059 U-2 C016 T-2

RESISTORS C017 T-2 R001 R-2 C018 T-2 R002 S-2 C020 T-2 R003 S-2 C021 T-2 R004 S-2 C025 T-1 R005 S-2 C053 U-1 R006 S-2 C056 U-1 R007 S-2 C060 U-2 R008 S-2 C061 U-2 R009 S-1 C070 U-2 R011 R-2

DIODES

R012 R-1 D001S-2R013R-1 D002S-2R014R-1 D003S-2R015R-1 D004S-2R016R-1 D005 S-2 R017 T-2 D006 S-2 R021 T-1 D007 S-1 R022 T-1 D008 R-1 R023 T-1 D009 R-1 R024 T-1 D011 T-2 R025 T-1 D013 T-2 R026 T-2 D014 T-2 R027 S-1 D015 T-2 R028 S-2 D018 S-2 R030 T-2 D019 T-1 R052 U-2 D021S-1R054U-2 D051 U-2 R060 U-1 D052 U-2 R061 U-1 D053 U-2 R070 U-2 D056 U-1 R071 U-2 D058 U-2 R073 V-2

ICS

MISCELLANEOUS

IC001 S-1 AC001 R-2

COILS

F001 R-2

L003 R-2 SA001 R-2 L007 U-2 T001 S-2

1-11-14

1-11-15

1-11-16

H89F1SCM4

Page 32

Main 5/5 Schematic Diagram

MAIN 5/5 Schematic Diagram Parts Location Guide

Ref No. Position

C451 W-1 C452 W-1 C453 X-1 C454 X-1 C455 X-1 C456 X-1 C457 X-1 C458 X-1 C459 X-1 C461 Y-2 C462 Y-2 C463 Y-2 C464 Y-2 C465 X-2 C466 X-2 C467 X-3 C468 X-2 C469 X-3 C470 X-2 C471 X-3 C472 X-2 C473 W-2 C474 W-3 C475 W-2 C476 W-2 C477 W-2 C478 W-2

IC451 W-1

R451 X-1 R452 X-1 R453 Y-2 R454 Y-2 R455 Y-2 R456 Y-2 R458 W-3 R459 W-3 R460 W-2 R461 W-2 R462 W-2 R463 W-2 R464 W-2 R465 W-2 R466 W-1 R467 W-2

RESISTORS

CAPACITORS

ICS

1-11-17

“ “ = SMD

MODE: SP/REC

THE SAME VOLTAGE FOR BOTH PLAY & REC MODES.

5.0

(2.5) INDICATES THAT THE VOLTAGE IS NOT CONSISTENT HERE.

PLAY MODE REC MODE

1-11-18

H89F1SCM5

Page 33

Function Schematic Diagram

Function Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position

CONNECTORS SWITCHES

CN651 A-1 SW651 A-1

RESISTORS R651 A-1 SW653 A-1 R652 A-1 SW654 B-1 R653 A-1 SW656 B-1 R654 B-1 SW657 B-1 R655 B-1 SW658 B-1 R656 B-1 R657 B-1

SW652 A-1

1-11-19 1-11-20 H89F1SCF

Page 34

Function CBA Top View Function CBA Bottom View

BH85G0F01012-B

Function CBA Parts Location Guide

Ref No. Position Ref No. Position

CONNECTORS

CN651 A-1 SW651 A-1

RESISTORS R651 A-2 SW653 A-2 R652 A-2 SW654 A-2 R653 A-2 SW656 A-1 R654 B-2 SW657 B-2 R655 B-2 SW658 B-1 R656 B-2 R657 B-2

SWITCHES

SW652 A-2

1-11-21 1-11-22

Page 35

Main CBA Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position Ref No. Position

R014 F-3 R372 A-3 R528 A-1 R622 D-1 R015 F-3 R401 C-4 R529

Ｄ-1

R623 D-1 R016 F-2 R402 C-4 R530 D-2 R624 D-1 R017 F-2 R403 C-4 R531 C-1 R625 D-1 R021 F-2 R404 C-4 R532 C-1 R626 D-1 R022 F-2 R405 C-4 R533 A-1 R627 C-1 R023 F-2 R406 C-4 R534 B-1 R628 C-1 R024 F-2 R408 B-4 R535 D-1 R629 C-1 R025 F-2 R409 B-4 R536 C-1 R703 A-2 R026 F-2 R410 D-4 R538 C-1 R704 B-3 R027 F-2 R411 D-4 R539 B-1 R706 A-1 R028 G-3 R412 D-4 R542 A-1 R707 A-1 R030 F-2 R414 C-4 R543 B-1 R714 A-2 R052 F-1 R415 C-3 R544 B-1 R715 A-2 R054 F-1 R416 C-4 R545 C-2 R751 A-3 R060 F-1 R417 D-4 R548 D-2 R752 A-3 R061 F-1 R418 C-4 R549 E-2 R754 A-3 R070 F-1 R419 D-4 R550 E-2 R755 A-3 R071 F-1 R420 D-4 R551 E-1 R851 C-1 R073 F-1 R421 C-3 R552 E-1 R852 C-1 R253 C-4 R422 C-3 R553 D-1 R854 C-1 R256 C-4 R425 C-3 R554 E-1 R855 C-1 R257 C-4 R451 B-3 R555 E-1 R302 D-2 R452 B-3 R556 D-1 SW504 E-1 R303 D-2 R453 C-3 R557 E-1 SW505 F-1 R304 D-2 R454 C-3 R558 E-1 SW506 B-2 R305 D-2 R455 C-3 R559 E-1 SW507 E-2 R306 D-3 R456 C-3 R560 D-1 SW511 A-1 R307 D-4 R458 B-3 R561 E-1 R308 D-3 R459 B-3 R562 E-1 VR501 A-1 R309 D-3 R460 B-3 R563 E-1 R310 D-4 R461 B-3 R566 D-1 X302 C-3 R311 D-4 R462 B-3 R567 E-1 X501 C-2 R312 D-3 R463 B-3 R568 E-1 X502 C-2 R313 D-3 R464 B-3 R571 D-1 R314 D-3 R465 B-3 R575 C-1 AC001 F-4 R315 D-3 R466 B-3 R576 C-1 F001 F-4 R316 D-3 R467 B-3 R577 C-1 JK751 A-4 R317 D-3 R501 C-1 R581 E-3 JK752 A-4 R318 D-3 R502 C-2 R582 E-3 RS501 C-1 R319 D-3 R503 C-2 R583 F-3 SA001 F-3 R320 D-3 R504 C-1 R584 B-1 T001 G-2 R321 A-2 R506 C-2 R585 E-1 TU701 A-2 R322 A-2 R508 C-2 R586 E-1 R323 D-3 R513 E-2 R587 E-1 TP301 B-3 R324 D-4 R514 E-1 R588 E-1 TP501 G-1 R325 A-3 R515 D-2 R595 A-1 TP502 A-2 R327 C-3 R516 D-1 R601 C-1 TP506 A-1 R328 C-2 R517 E-1 R603 C-1 TP507 G-1 R329 D-3 R518 D-1 R604 C-1 TP751 A-3 R330 D-3 R521 D-1 R606 C-1 TP754 A-3 R332 C-3 R522 F-2 R616 D-1 R334 C-3 R523 E-2 R617 D-1 R335 C-3 R524 F-2 R618 D-1 R336 C-3 R525 F-2 R619 D-1 R340 D-3 R526 F-2 R620 D-1 R344 D-3 R527 D-1 R621 D-1

RESISTORSRESISTORSRESISTORS RESISTORS

MISCELLANEOUS

VARIABLE RESISTORS

TEST POINTS

Ref No. Position Ref No. Position Ref No. Position Ref No. Position Ref No. Position

CAPACITORS CAPACITORS CAPACITORS COILS C001 F-3 C337 C-3 C475 B-3 C857 C-1 L303 D-3 C003 F-3 C338 C-3 C476 B-3 C858 C-1 L304 D-3 C004 G-3 C339 C-3 C477 B-3 C859 C-2 L306 C-3 C005 G-3 C340 C-3 C478 B-3 L307 C-2 C006 G-2 C341 C-3 C502 B-1 CN251 C-3 L308 D- 2 C007 F-2 C342 C-3 C503 C-2 CN501 B-4 L401 B-4 C008 F-2 C344 C-3 C504 C-2 CN502 E-4 L501 E-1 C010 F-3 C345 C-3 C505 C-2 CN503 E-3 L502 E-1 C011 G-3 C346 C-3 C506 C-2 CN504 E-4 L581 F-3 C012 F-2 C348 C-3 C507 C-2 CN505 F-1 L701 A-3 C015 F-3 C349 C-3 C508 C-2 L702 A-3 C016 F-2 C351 C-3 C509 C-1 D001 G-3 L704 A-2 C017 F-2 C352 C-3 C514 D-1 D002 G-4 L851 C-1 C018 G-1 C355 A-3 C515 D-1 D003 G-3 L852 C-2 C020 G-2 C362 B-2 C516 E-3 D004 G-3 C021 G-2 C401 C-4 C517 C-1 D005 G-3 Q001 G-2 C025 F-2 C402 B-4 C518 E-1 D006 G-3 Q002 F-2 C053 G-1 C403 C-4 C519 F-3 D007 F-2 Q003 F-3 C056 F-1 C404 C-4 C520 A-3 D008 F-3 Q004 F- 2 C060 F-1 C405 D-4 C522 E-1 D009 F-2 Q053 F- 1 C061 F-1 C406 C-4 C526 D-2 D011 F-2 Q054 F-1 C070 F-1 C407 B-4 C551 E-1 D013 F-2 Q056 F-1 C253 C-4 C409 B-4 C552 E-1 D014 G-2 Q059 F-1 C255 C-4 C410 B-4 C553 E-1 D015 G-2 Q301 A-2 C256 C-4 C411 D-4 C554 E-1 D018 G-3 Q302 D-4 C301 D-3 C412 C-4 C555 D-1 D019 F-2 Q303 D-4 C302 D-3 C413 D-4 C557 E-1 D021 F-2 Q304 D-3 C303 D-3 C414 D-4 C558 E-1 D051 F-1 Q305 A-3 C304 D-3 C415 D-4 C559 E-1 D052 G-1 Q307 C-2 C305 D-3 C416 C-3 C562 E-1 D053 G-1 Q308 D-3 C306 D-3 C420 C-3 C563 E-1 D056 G-2 Q401 C-4 C307 D-4 C421 C-3 C581 F-3 D058 F-1 Q402 B- 4 C308 D-4 C423 C-3 C583 F-3 D301 D-3 Q403 D-4 C309 A-2 C424 C-3 C584 F-3 D501 D-1 Q404 D-4 C310 D-3 C451 B-3 C585 E-3 D551 E-1 Q405 D-4 C311 D-3 C452 B-3 C586 E-3 D552 E-1 Q501 B-1 C312 D-3 C453 B-3 C587 E-3 D553 D-1 Q503 F-3 C313 D-3 C454 B-3 C588 E-3 D554 D-1 Q504 A-3 C314 D-3 C455 B-4 C589 E-3 D555 D-2 Q506 D-2 C315 D-3 C456 B-3 C590 E-3 D583 F-3 Q551 E-1 C317 A-3 C457 B-4 C591 E-3 D701 A-2 Q620 D-1 C318 D-3 C458 B-3 C602 C-1 Q621 D-1 C319 D-2 C459 B-4 C603 D-2 IC001 F-2 Q622 D-1 C320 D-3 C461 B-4 C604 D-2 IC301 D-3 Q623 D-1 C321 D-2 C462 C-3 C701 A-3 IC451 C-3 C323 A-2 C463 C-3 C703 A-4 IC501 D-2 R001 F-3 C324 D-3 C464 C-4 C704 A-2 IC503 E-1 R002 G-3 C326 C-2 C465 C-3 C705 A-2 IC505 B-1 R003 G-3 C327 D-3 C466 C-3 C710 A-2 IC506 E-3 R004 G-3 C328 D-3 C467 B-3 C711 A-2 R005 G-3 C330 C-2 C468 B-3 C721 A-2 L003 G-3 R006 G-3 C331 C-2 C469 B-3 C723 A-2 L007 F-3 R007 G-3 C332 C-3 C470 B-3 C751 A-3 L009 G-1 R008 G-3 C333 C-3 C471 B-3 C752 A-3 L010 G-2 R009 F-2 C334 D-3 C472 B-3 C852 C-1 L251 C-3 R011 G-3 C335 D-3 C473 B-3 C853 C-1 L301 A-2 R012 G-3 C336 C-3 C474 B-3 C855 C-1 L302 D-4 R013 F-3

1-11-23

CAPACITORS

CONNECTORS

DIODES

TRANSISTORS

SWITCHES

CRYSTAL OSCILLATORS

ICS

RESISTORS

COILS

1-11-24

Page 36

Main CBA Top View

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED. ALSO , IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT SLOWLY , WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY CIRCUIT , A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

WF1

TP751 V-OUT

TP752

A-OUT

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.

CAUTION !

NOTE : THE VOLTAGE FOR PARTS IN HOT CIRCUIT IS MEASURED USING HOT GND AS A COMMON TERMINAL.

TP301

C-PB

WF5

TP502

RF-SW

WF2

VR501

SW-P

TP506

END-S

TP507

S-INH

TP501

CTL

1-11-25 1-11-26 1-11-27

BH85G0F01012-A

Page 37

Main CBA Bottom View

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD, REPLACE ONLY WITH THE SAME TYPE FUSE.

CAUTION !

NOTE : THE VOLTAGE FOR PARTS IN HOT CIRCUIT IS MEASURED USING HOT GND AS A COMMON TERMINAL.

1-11-28 1-11-29 1-11-30

BH85G0F01012-A

Page 38

WAVEFORMS

WF1

WF2

(TP751 of Main CBA)

V-OUT E-E

10usec 50mV x 10

UPPER

(TP751 of Main CBA)

LOWER

(TP302 of Main CBA)

V-OUT 0.1V x 10

RF-SW 0.5V x 10

50usec

WF5

UPPER

(TP301 of Main CBA)

WF2

LOWER

(TP302 of Main CBA)

C-PB 10mV x 10

RF-SW 0.5V x 10

5msec

1-12-1 U22WFP

Page 39

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR. (CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER HOLES OF THE PCB. (WIRE IS SOLDERED DIRECTLY.)

WIRING DIAGRAM

VIDEO OUT

MAIN CBA (BH85G0F01012A)

AUDIO OUT (R)

AUDIO OUT (L)

REAR

VIDEO IN

AUDIO IN (R)

AUDIO IN (L)

ANT-IN

AC CORD

ANT-OUT

CYLINDER ASSEMBLY

DRUM MOTOR

VIDEO (R)-1 HEAD

VIDEO (L)-1 HEAD

VIDEO (L)-2 HEAD

VIDEO (R)-2 HEAD

Hi-Fi AUDIO (R)HEAD

Hi-Fi AUDIO (L)HEAD

PG SENSOR

CN502

D-W1

CN501CN504CN251 CN503

CN505

D-COM4

D-U3

D-V2

PG-IN 5

V(R)-11

V-COM2V(L)-2

3 V(L)-1

V(R)-2

5 V-COM

Hi-Fi-A(R)7

8 Hi-Fi-COM

Hi-Fi-A(L) 9

LOADING MOTOR

LD-M(-)1

LD-M(+) 2

GND3

AE-H4

AE-H/ FE-H5

A-COM6

A-PB/REC7

CTL(+)8CTL(-)

FE-H1

FE-H GND2

1 C-F/R

CAPSTAN MOTOR

C-FG

P-ON+5V

AL+12V4NU5

CM-GND8

FG-GND

C-DRIVE 6

NU 11

KEY-2 22

CN651

GND 33

KEY-1 44

ASSEMBLY

C-F/R

P-ON+5V

LOADING MOTOR

AL+12V

C-FG

C-DRIVE

FG-GND

CM-GND

FUNCTION CBA (BH85G0F01012B)

AC HEAD ASSEMBLY

CN287

AUDIO

ERASE HEAD

AUDIO HEAD

CONTROL

HEAD

AE-H

AE-H/FE-H

A-COM

A-PB/REC

CTL(+)

CTL(-)

1 2 3 4 5 6

FE HEAD

FULL ERASE HEAD

1-13-1

DECK ASSEMBLY

1-13-2

H89F1WI

Page 40

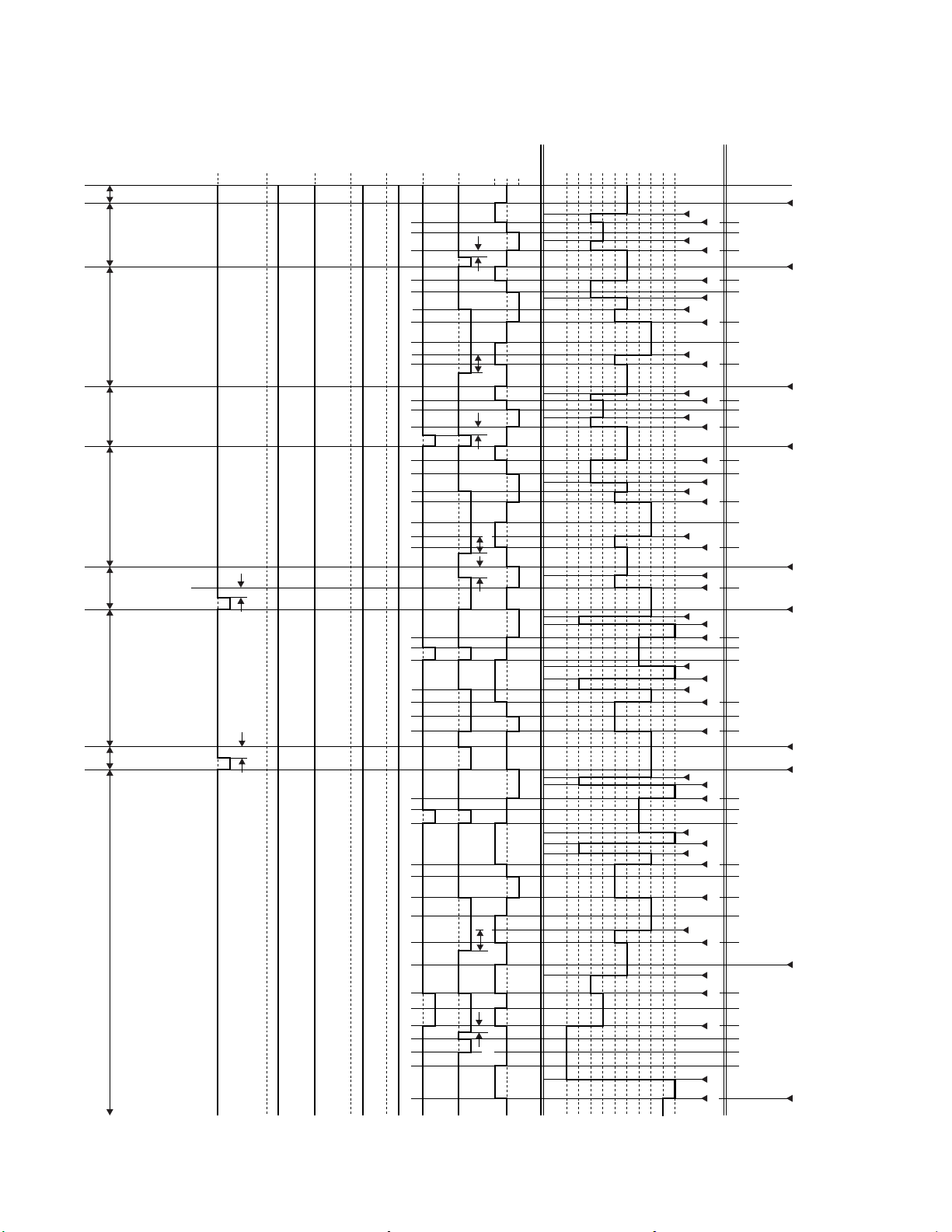

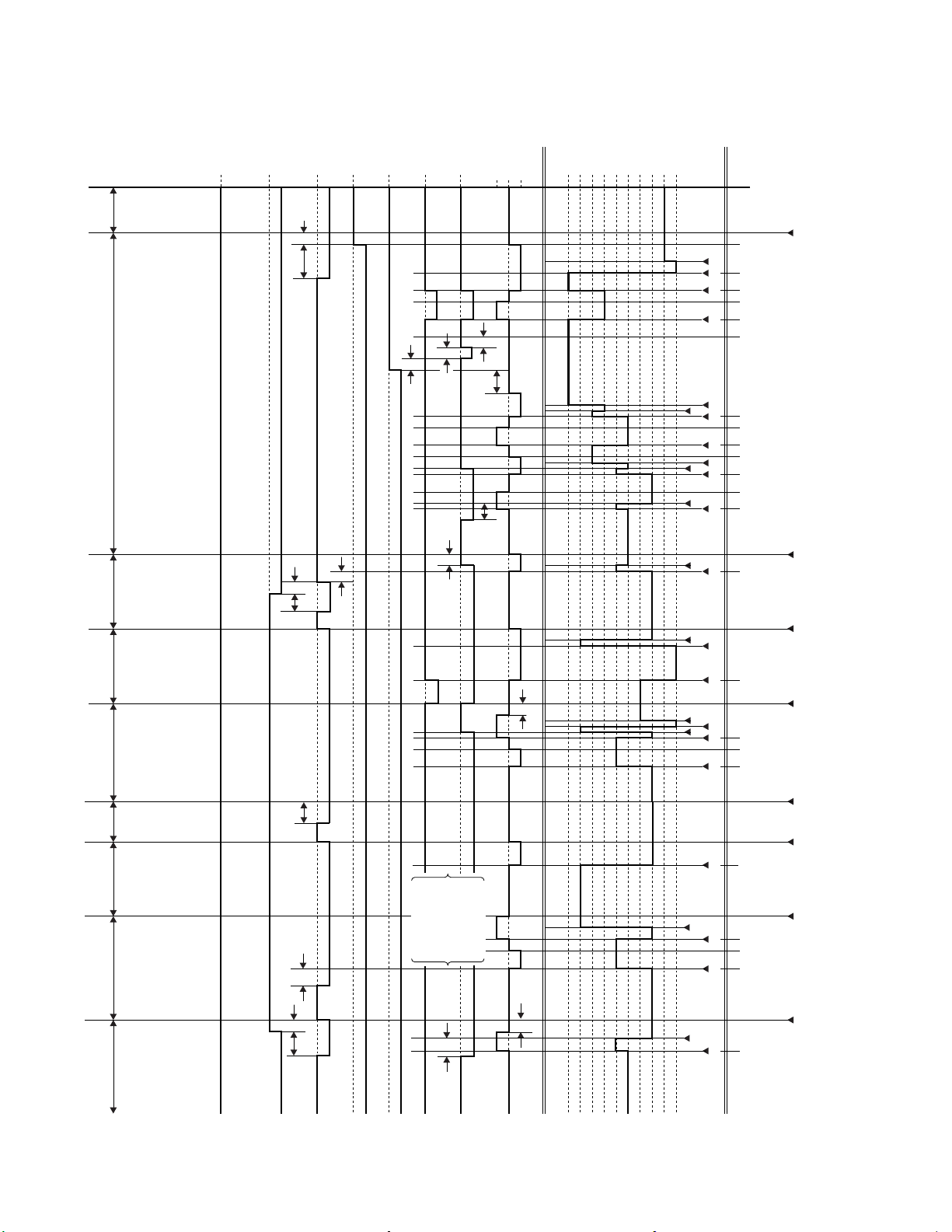

SYSTEM CONTROL TIMING CHARTS

Mode SW : LD-SW

LD-SW Position detection

A/D Input voltage Limit

(Calculated voltage)

3.76V~4.50V (4.12V)

4.51V~5.00V (5.00V)

0.00V~0.25V (0.00V)

1.06V~1.50V (1.21V)

0.66V~1.05V (0.91V)

1.99V~2.60V (2.17V)

1.51V~1.98V (1.80V)

3.20V~3.75V (3.40V)

0.26V~0.65V (0.44V)

4.51V~5.00V (5.00V)

2.61V~3.19V (2.97V)

Symbol

Note:

EJ RS : Loading FWD (LM-FWD "H", LM-REV "L") RS EJ : Loading REV (LM-FWD "L", LM-REV "H") Stop (A) = Loading Stop (B) = Unloading

Note :

Symbol Loading Status

EJ Eject CL Eject ~ REW Reel SB REW Reel ~ Stop(B)

TL Stop(B) ~ Brake Cancel FB Brake Cancel SF ~ Stop(A) AU Stop(A) ~ Play / REC

AL Play / REC ~ Still / Slow SS Still / Slow ~ Capstan Reversal

GC Capstan Reversal ~ RS (REW Search)

RS RS (REW Search)

1-14-1 H89F1TI

Page 41

13 RF-SW

F-AD (Internal Signal)

The first rise of RF-SW after a rise in F-AD signal

5 C-DRIVE

37 PB CTL

10 C-F/R

"L" "L"

"H"

Acceleration Detection (T1)

"Z"

"H"

Stop detection (T2)

Slow Tracking Value

Reversal Limit Value

11 H-A-SW

12 ROTA

STILL FRAME ADVANCE STILL

Fig. 1

1-14-2 H89F1TI

Page 42

13 RF-SW

F-AD (Internal Signal)

The first rise of RF-SW after a rise in F-AD signal

5 C-DRIVE

37 PB CTL

10 C-F/R

"H"

"L" "L"

Acceleration Detection (T1)

"Z"

"H"

Stop detection (T2)

Slow Tracking Value

Reversal Limit Value

11 H-A-SW

12 ROTA

STILL STILL

FRAME ADVANCE

Fig. 2

1-14-3 H89F1TI

Page 43

LM-FWD "M"

/REV

62 D-REC-H

DISPLAY

D-PB-L

60 A-MUTE-H

C-DRIVE

66 C-F/R

DRUM

ROTATION

61 P-ON

CL/GC

74 LD-SW

PIN NO.

1. EJECT (POWER OFF) -> CASSETTE IN (POWER ON) -> STOP(B) -> STOP(A) -> PLAY -> RS -> FS -> PLAY -> STILL -> PLAY -> STOP(A)

POWER

-OFF

STOP

PLAY RS

2.5S(4H)0.2S

0.8S

1.5S(2H)

0.2S

0.3S

0.2S

"Z"

0.2S

1.2S

0.4S

AU AU

CLEJ SB TL SB

EJECT

CASS.LOAD

LD-FWD

0.2S LD-REV

0.7S

LD-FWD

0.2S LD-REV

0.2S LD-FWD

0.5S LD-REV

STOP(A)

LD-FWD

PLAY

ST-S,/ END-S "OFF"

PLAY

LD-FWD

GC AL

AL AU

RS AL AL AL SFSS

LD-REV

AU AUSF FB SF SF ALAL

0.2S LD-FWD

PLAY

LD-FWD

STILL(SLOW)

LD-REV

0.2S LD-FWD

PLAY

LD-REV

STOP(A)

0.3S

1.0S

STILL(SLOW)PLAY STOPPLAY

Refer to STILL/

SLOW TIMING

CHART Fig. 1, 2.

0.5S

0.2S

1.2S

0.4S

0.3S

REW

PLAY

PAUSE (SLOW)

PLAY

STOP /EJECT

Fig. 3

1-14-4 H89F1TI

Page 44

LM-FWD "M"

/REV

62 D-REC-H

DISPLAY

D-PB-L

60 A-MUTE-H

C-DRIVE

66 C-F/R

DRUM

ROTATION

61 P-ON

74 LD-SW

CL/GC

PIN NO.

2. STOP(A) -> FF -> STOP(A) -> REW -> STOP(A) -> REC -> PAUSE -> PAUSE or REC -> STOP(A) -> EJECT

STOP

STOPFF

REW STOP

REC

RECREC PAUSE STOP

0.1S

1.2S

"Z"

0.2S

0.4S

0.2S

0.4S

0.2S

AU AU

AU FB FB AU

GC AL AU

SF FBTL AL

SF SF

SF SF SF AUAL ALFBSF

AU AU

GCRS AL AL SF FB TL SB CL EJRS SS

STOP(A) LD-REV

0.2S LD-FWD

FF LD-REV

2.0S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-REV

0.2S LD-FWD

REW LD-REV

2.0S

LD-FWD

0.5S

LD-REV

STOP(A)

LD-FWD

REC

LD-FWD

0.2S

2.0S Short REV

LD-REV

0.2S LD-FWD REC PAUSE

REC

LD-FWD

0.2S

1.3S

LD-REV

STOP /EJECT

REW

STOP /EJECT

REC

PAUSE

REC or PAUSE

STOP /EJECT

0.2S LD-FWD

0.4S

0.1S

0.5S

LD-REV

STOP(A)

LD-REV

0.2S LD-REV

0.5S

0.2S

0.5S

CASS. UNLD

EJECT

STOP /EJECT

ST-S,/ END-S "ON"

Fig. 4

1-14-5 H89F1TI

Page 45

IC PIN FUNCTION

IC501 ( SERVO / SYSTEM CONTROL IC )

"H" ≥ 4.5V, "L" ≤ 1.0V

IN/

No.

OUT

1IN

2 – N.U. Not Used – 3 – N.U. Not Used –

4OUT

IN/

OUT

6 – N.U. Not Used –

7OUT

8OUT

IN/

OUT

10 OUT

11 – N.U. Not Used – 12 – N.U. Not Used – 13 – N.U. Not Used –

14 IN

15 OUT C-ROTA

16 OUT H-A-SW

17 OUT RF-SW

18 OUT

19 OUT

20 OUT

21 IN C-SYNC

22 – GND GND – 23 – N.U. Not Used – 24 – OSDVss OSDVss –

Signal

Name

REMO CON-IN

IIC BUSSCL-2

IIC BUSSDA-2

TUSW-1

TUSW-2

IIC BUSSDA-1

IIC BUSSCL-1

H-ACOMP

HiFi-H-SWHiFi Audio Head

REC-CTL (+)

REC-CTL (-)

Function

Remote Control Sensor

IIC BUS Control Clock

IIC BUS Control Data

Tuner System Control Signal Output

IIC BUS Control Data

IIC BUS Control Clock

Head Amp Comparator Signal

Color Phase Rotary Changeover Signal

Video Head Amp Switching Pulse

Video Head Switching Pulse

Switching Pulse Record Control

Signal (+) Record Control

Signal (-) Composite

Synchronized Pulse

Active

Level

H/L

PULSE

IN/

No.

OUT

25 IN

26 – N.U. Not Used –

27 IN VHOLD

28 – HLF

29 – GND GND –

30 OUT

31 OUT

32 – OSDVcc OSDVcc –

33 OUT

34 IN RESET

35 IN OSC

36 OUT OSC

37 – Vcc Vcc –

38 IN

39 OUT

40 – Vss Vss(GND) –

41 IN

42 OUT

43 IN CLKSEL Clock Select (GND) L 44 – N.U. Not Used – 45 – N.U. Not Used – 46 – N.U. Not Used – 47 – N.U. Not Used –

48 IN A-MODE

49 IN T-REEL

Signal

Name

REC-SAF

-SW

OSD-BBOUT

OSDCHARAOUT

D-V SYNCOUT

OUT

MAIN CLOCK

SUB CLOCK

Function

Recording Safety SW Detect (With Record tab="L"/ With out Record tab="H")

Condenser Connected Terminal (Slicer)

LPF Connected Terminal (Slicer)

Composite Video Signal Output (Blue Back)

Character Output (Superimposed)

Dummy V-sync Output

System Reset Signal (Reset= "L")

Clock Input for letter size

Clock Output for letter size

Main Clock Input

17.734476 MHz

Main Clock Output –

Sub Clock 32 kHz –

Hi-Fi Tape Detection Signal

Take Up Reel Rotation Signal

Active

Level

H/Hi-z

PULSE

–

1-15-1 H89F1PIN

Page 46

IN/

No.

OUT

50 – N.U. Not Used –

51 IN C-FG

52 IN D-FG

53 IN D-PG

54 IN PB-CTL

55 OUT C-CONT

56 OUT D-CONT

57 – N.U. Not Used – 58 – N.U. Not Used –

59 OUT

60 OUT

61 OUT P-ON-L

62 OUT

63 IN

64 OUT

65 OUT

66 OUT C-F/R

67 IN

68 IN END-S

69 IN AFC

70 IN V-ENV

71 IN

Signal

Name

LM-FWD/ REV

A-MUTE-HAudio Mute Control

D-REC-H Delayed Record

P-DOWN

-L

FF/REWL

STILL/ SLOW-L

POWSAF

PGDELAY

Function

Capstan Motor Rotation Detection Pulse

Drum Motor Rotation Detection Pulse

Drum Motor Pulse Generator

Playback Control Signal

Capstan Motor Control Signal

Drum Motor Control Signal

Loading Motor Control Signal

Signal Power On Signal at

Low

Signal Power Voltage

Down Detector Signal

CTL Amp Gain Switching Signal (FF/REW="L")

Still/Slow Circuit Change Over "L"Signal (Still/Slow Mode ="L," Other ="Hi-Z")

Capstan Motor FWD/REV Control Signal

P-ON Power Detection Input Signal

Tape End Position Detect Signal

Automatic Frequency Control Signal

Video Envelope Comparator Signal

Video Head Switching Pulse Signal Adjusted Voltage

Active

Level

PULSE

PWM

H/Z/L

H/L

A/D

IN/

No.

OUT

72 IN KEY-1

73 IN KEY-2

74 IN LD-SW

75 IN ST-S

76 – AVcc

77 – FLDVcc FLDVcc – 78 – FLDVp GND – 79 – N.U. Not Used – 80 – N.U. Not Used – 81 – N.U. Not Used – 82 – N.U. Not Used – 83 – N.U. Not Used – 84 – N.U. Not Used – 85 OUT G4 Display Digit H/L 86 OUT G3 Display Digit H/L 87 OUT G2 Display Digit H/L 88 OUT G1 Display Digit H/L 89 OUT j Display Segment H/L 90 OUT i Display Segment H/L 91 OUT h Display Segment H/L 92 OUT g Display Segment H/L 93 OUT e Display Segment H/L 94 OUT d Display Segment H/L 95 OUT c Display Segment H/L 96 OUT b Display Segment H/L 97 OUT a Display Segment H/L 98 OUT f Display Segment H/L 99 – N.U. Not Used –

100 – N.U. Not Used –

Notes:

Abbreviation for Active Level:

PWM ---------------------- Pulse Wide Modulation A/D ------------------------ Analog - Digital Converter

Signal

Name

Function

Key Scan Input Signal 1

Key Scan Input Signal 2

Deck Mode Position Detector Signal

Tape Start Position Detector Signal

A/D Converter Power Input/ Standard Voltage Input

Active

Level

A/D

–

1-15-2 H89F1PIN

Page 47

LEAD IDENTIFICATIONS

E C B

BR24C02F-W AT24C02N-10SC M24C02-MN6

BN1F4M-T BA1F4M-T KTA1266(GR) KTC3193(Y) KTC3199(Y,GR,BL) 2SC2785(J.H.F.K) 2SC2058(Q) KRA103M KRC103M DTC124ESA 2SA1015-GR(TPE2) DTA124ESA

2SD1246(S,T) KTA1267(Y.GR) 2SA1175(J.H.F)

LTV-817(B.C)-F

E C B

2SC1815-Y(TPE2) 2SC1815-GR(TPE2) 2SC3331(T,U) 2SC2120-Y(TPE2) KTC3203(Y) 2SC1815-BL(TPE2)

100

BD6655FP

LA71586M QSZAB0RMB059

LM324D

ST-304L-(A,B,C,D)

E C

2SC536NF(NG)-NPA-AT

E C B

FS1KM-18A

S D G

PT204-6B-12

E C

LA72638M

Note:

A: Anode K: Cathode E: Emitter C: Collector B: Base R: Reference S:

Source

G: Gate D: Drain

1-16-1 H89F1LE

Page 48

ELECTRICAL PARTS LIST

For not coded parts please use PHILIPS standard components. The standard Sparepart Catalogue can be ordered with Service Code 3103 785 20930.

NOTE:

1. Tolerance of Capacitors and Resistors are noted with the following symbols.

C.....±0.25% D.....±0.5% F.....±1%

G.....±2% J......±5% K.....±10%

M.....±20% N.....±30% Z.....+80/-20%

Pos. Description Service Code



CAPACITORS

 C001 METALLIZED FILM CAP. 0.068µF/250V K 9965 000 06521  C003 SAFETY CAP. 2200pF/250V 9965 000 06522  C004 ELCAP 22µF/ 400V M(L.Z) 9965 000 06566  C005 CAP B K 0.01µF/500V 4822 126 14142  C006 CAP SL K 56pF/1KV 4822 126 14141

C007 CAP(AX) X K 3300pF/16V C009 CAP(AX) X K 5600pF/16V C010 FILM CAP.(P) 0.022µF/50V J C011 ELCAP 10µF/16V M C013 ELCAP 10µF/50V M H7 C015 ELCAP 47µF/25V M H7 C016 FILM CAP.(P) 0.0012µF/50V J C018 ELCAP 470µF/16V M C020 ELCAP 1000µF/10V M C021 ELCAP 470µF/10V M C053 ELCAP 220µF/6.3V M C253 ELCAP 10µF/16V M H7 C256 CHIP CAP F Z 0.1µF/25V C302 CHIP CAP B K 0.047µF/25V C303 ELCAP 1µF/50V M H7 C306 CHIP CAP B K 0.01µF/50V C307 CHIP CAP CG J 27pF/50V C310 CHIP CAP CH J 390pF/50V C311 ELCAP 3.3µF/50V M H7 C312 CHIP CAP CG J 47pF/50V C313 CHIP CAP CH J 22pF/50V C314 CHIP CAP CH J 180pF/50V C315 CHIP CAP CH J 100pF/50V C317 ELCAP 470µF/6.3V M C318 ELCAP 2.2µF/50V M H7 C321 ELCAP 0.47µF/50V M H7 C324 CHIP CAP F Z 0.1µF/25V C326 CHIP CAP B K 0.047µF/50V C330 CHIP CAP B K 0.01µF/50V C336 CHIP CAP CG J 470pF/50V C349 CHIP CAP B K 0.047µF/25V C352 CHIP CAP B K 0.022µF/50V C355 ELCAP 100µF/16V M C358 CHIP CAP CH J 470pF/50V C362 CHIP CAP B K 1000pF/50V

Pos. Description Service Code



C392 ELCAP 470µF/6.3V M C402 CHIP CAP B K 4700pF/50V C404 CHIP CAP F Z 0.1µF/50V C405 ELCAP 33µF/6.3V M H7 C409 CAP B K 470pF/100V C410 FILM CAP.(P) 0.018µF/100V J C411 CHIP CAP B K 1000pF/50V C413 CAP(AX) X K 1200pF/16V C414 CAP(AX) B J 820pF/50V C415 ELCAP 4.7µF/25V M H7 C424 CAP B K 470pF/500V C430 CHIP CAP F Z 0.1µF/50V C452 ELCAP 0.1µF/50V M H7 C461 CHIP CAP CH J 100pF/50V C466 ELCAP 47µF/6.3V M H7 C474 ELCAP 47µF/16V M H7 C503 CHIP CAP B K 0.022µF/25V C504 ELCAP 100µF/6.3V M H7 C505 CHIP CAP CG D 10pF/50V C506 CHIP CAP CG D 10pF/50V C509 ELCAP 22µF/16V M H7 C514 CHIP CAP B K 0.022µF/25V C516 CHIP CAP CG J 100pF/50V C518 CHIP CAP B K 2200pF/50V C522 ELCAP 220µF/6.3V M C529 ELCAP 22µF/10V M H7 C532 CHIP CAP CG J 100pF/50V C556 CHIP CAP CG J 220pF/50V C557 CHIP CAP CG J 330pF/50V C590 CHIP CAP FZ Z 0.1µF/50V C701 CAP(AX) F Z 0.047µF/16V C702 ELCAP 100µF/6.3V M C703 CHIP CAP B K 0.022µF/50V C704 CAP(AX) F Z 0.1µF/50V C705 CAP(AX) SL J 56pF/50V C710 ELCAP 100µF/6.3V M C711 CAP(AX) B J 1000pF/50V C721 CAP(AX) EP050Y103M-A-B C723 ELCAP 1µF/50V M C751 CHIP CAP B K 4700pF/50V C853 CHIP CAP CH J 180pF/50V C858 CHIP CAP CG J 18pF/50V C859 CHIP CAP CG J 22pF/50V

CONNECTORS

CN252 FE CONNECTOR, TOP 4P 04FE-BT-VK-N 9965 000 05244 CN501 CABLE CONNECTOR, 2P TMC-E02X-A1 4822 265 10994 CN502 FE CONNECTOR, TOP 5P 05FE-BT-VK-N 4822 267 10954 CN503 CONNECTOR, 8P TMC-J08P-A2 9965 000 08620 CN504 FE CONNECTOR, TOP 9P 09FE-BT-VK-N 9965 000 05246 CN505 CONNECTOR BASE 4P TUC-P04P-B1 9965 000 05247 CN651 CONNECTOR 4P TUC-P04X-B1 9965 000 05261

DIODES

D004 RECTIFIER DIODE 1N4005 4822 130 31933 D005 RECTIFIER DIODE BA159 5322 130 34979 D010 ZENER DIODE MTZJT-7733D 4822 130 81729 D012 RECTIFIER DIODE FR202 4822 130 83883 D013 FAST RECOVERY DIODE ERA18-04 4822 130 10933

20010601 1-17-1 H89F1EL

Page 49

Pos. Description Service Code



D015 ZENER DIODE MTZJT-778.2A 9965 000 05248 D016 SCHOTTKY BARRIER DIODE SB140 5322 130 81917 D019 ZENER DIODE DZ-5.6BSBT265 9965 000 08622 D029 SWITCHING DIODE 1SS133(T-77) 4822 130 32778 D051 RECTIFIER DIODE ERA22-10 4822 130 81244 D052 ZENER DIODE DZ-10BSBT265 9965 000 09283 D053 RECTIFIER DIODE RL201 9965 000 09393 D057 ZENER DIODE DZ-5.1BSCT265 9965 000 09182 D553 SWITCHING DIODE 1N4148M 4822 130 30621 D555 LED SIR-563ST3F Q 9965 000 05648 D595 LED(RED) LT6311G-41 4822 130 11652 D598 LED(GREEN) LT6321-41 4822 130 11649 D599 LED(RED) LTL-4211N 4822 130 82978 D701 ZENER DIODE DZ-33BSDT265 9965 000 09183 RS501 REMOTE RECEIVER PIC-37042LU 9965 000 08668

LED EXCLUSIVE(A) 9965 000 09184 LED EXCLUSIVE(B) 9965 000 09185 LED EXCLUSIVE(C) 9965 000 09186

ICs

 IC001 PHOTOCOUPLER LTV-817C-F 9965 000 09187

IC301 IC:Y/C/A LA71586M 9965 000 08650 IC451 LA72638M 4822 209 17559 IC501 MICROCONTROLLER 16BIT

M37765MAA1M3GP IC503 IC:OP-AMP. LM324D 5322 209 83125 IC505 IC(EEPROM) M24C02-MN6 9965 000 09190 IC506 IC BD6655FP 9965 000 08626

9965 000 09188

COILS

 L003 LINE FILTER 33MH SA-01021 9965 000 09297

L251 INDUCTOR 5.6µH-K-26T 9965 000 08652 L301 INDUCTOR 100µH-K-26T 4822 157 10649 L302 INDUCTOR 47µH-K-26T 4822 157 11509 L303 INDUCTOR 39µH-K-26T 4822 157 10325 L304 CHOKE COIL 47µH-K 9965 000 05627 L306 INDUCTOR 47µH-K-5FT 9965 000 05705 L307 INDUCTOR 22µH-K-5FT 4822 157 10318 L308 INDUCTOR 22µH-K-26T 4822 157 10347 L701 INDUCTOR 10µH-K-26T 4822 157 10889 L851 INDUCTOR 1.8µH-K-26T 9965 000 08629

TRANSISTORS

FP502 LED DISPLAY LFU-4421-2001A 9965 000 09307 Q001 FET FS1KM-18A 9965 000 06568 Q002 TRANSISTOR 2SC2785(K) 4822 130 11692 Q003 TRANSISTOR 2SC1815-BL(TPE2) 4822 130 41319 Q029 TRANSISTOR KTC3199(BL) 4822 130 10923 Q031 TRANSISTOR 2SC2785(J) 4822 130 11647 Q052 TRANSISTOR BA1F4M-T 9965 000 05389 Q053 TRANSISTOR 2SC536NG-NPA-AT 9965 000 09287 Q054 TRANSISTOR 2SD1246(S) 9965 000 09389 Q055 TRANSISTOR 2SC536NF-NPA-AT 9965 000 05370 Q056 TRANSISTOR 2SC2120-Y(TPE2) 4822 130 42292 Q060 TRANSISTOR DTA124ESA 9965 000 05645 Q301 TRANSISTOR KTC3199(Y) 4822 130 10103 Q302 TRANSISTOR KTC3193(Y) 4822 130 10102 Q307 TRANSISTOR 2SA1015-GR(TPE2) 4822 130 11101 Q390 TRANSISTOR 2SC2785(F) 9965 000 05643 Q404 TRANSISTOR 2SC3331(T) 4822 130 10097 Q422 TRANSISTOR KTC3203(Y) 4822 130 42292 Q425 TRANSISTOR KRA103M 4822 130 10145 Q503 PHOTO TRANSISTOR ST-304L-C 9965 000 05647 Q504 PHOTO TRANSISTOR ST-304L-D 9965 000 09191

Pos. Description Service Code



Q506 PHOTO TRANSISTOR PT204-6B-12 9965 000 08630 Q620 TRANSISTOR 2SC2058(Q) 9965 000 05387

 T001 PULSE TRANS SA-00901 9965 000 09203

RESISTORS

R001 CARBON RES. 1/2W K 5.6M Ω 9965 000 08653 R002 METAL OXIDE FILM RES. 1W J 150k Ω 9965 000 08654 R003 CARBON RES. 1/4W J 1M Ω R006 METAL OXIDE FILM RES. 1W J 1.5 Ω R007 CHIP RES.(1608) 1/10W J 22k Ω R008 CHIP RES.(1608) 1/16W J 100k Ω R011 METAL OXIDE FILM RES. 1W J 150k Ω 9965 000 08635 R013 CARBON RES. 1/6W J 470k Ω R014 CARBON RES. 1/6W J 100k Ω R015 CHIP RES.(1608) 1/10W J 10k Ω R017 CHIP RES.(1608) 1/16W J 220k Ω R019 CHIP RES.(1608) 1/10W J 220k Ω R021 CHIP RES.(1608) 1/16W J 22k Ω R022 CHIP RES.(1608) 1/16W J 680 Ω R024 CHIP RES.(1608) 1/10W J 1k Ω R026 CARBON RES. 1/4W J 22k Ω R033 CHIP RES.(1608) 1/10W J 390 Ω R038 CHIP RES.(1608) 1/10W J 330 Ω R039 CARBON RES. 1/4W J 0.47 Ω R052 CARBON RES. 1/6W J 470 Ω R054 CHIP RES.(1608) 1/10W J 180 Ω R057 CARBON RES. 1/4W J 470 Ω R058 CHIP RES.(1608) 1/16W J 180 Ω R070 CARBON RES. 1/6W J 10k Ω R071 CARBON RES. 1/4W J 2.7k Ω R072 CHIP RES.(1608) 1/10W J 1.5k Ω R073 CARBON RES. 1/4W J 10k Ω R254 CHIP RES.(1608) 1/10W J 1.8k Ω R257 CHIP RES.(1608) 1/10W J 2.7k Ω R301 CHIP RES.(1608) 1/10W J 560k Ω R303 CHIP RES.(1608) 1/10W J 47k Ω R304 CHIP RES.(1608) 1/16W J 18k Ω R306 CHIP RES.(1608) 1/10W J 18k Ω R307 CHIP RES.(1608) 1/10W J 820 Ω R308 CHIP RES.(1608) 1/16W J 270 Ω R311 CHIP RES.(1608) 1/10W J 390 Ω R313 CHIP RES.(1608) 1/10W J 100k Ω R314 CHIP RES.(1608) 1/16W J 820 Ω R315 CHIP RES.(1608) 1/10W J 560 Ω R316 CHIP RES.(1608) 1/16W J 100 Ω R318 CHIP RES.(1608) 1/10W J 4.7k Ω R320 CHIP RES.(1608) 1/10W J 150k Ω R321 CHIP RES.(1608) 1/16W J 2.2k Ω R322 CARBON RES. 1/4W J 2.2k Ω R323 CHIP RES.(1608) 1/10W J 39k Ω R325 CARBON RES. 1/4W J 270 Ω R327 CHIP RES.(1608) 1/10W J 4.7k Ω R329 CHIP RES.(1608) 1/10W J 8.2k Ω R330 CHIP RES.(1608) 1/16W J 390 Ω R334 CHIP RES.(1608) 1/16W J 1.8k Ω R335 CHIP RES.(1608) 1/10W J 1.2k Ω R336 CHIP RES.(1608) 1/10W J 8.2k Ω R340 CHIP RES.(1608) 1/10W J 6.8k Ω R342 CHIP RES.(1608) 1/16W J 4.7k Ω R343 CARBON RES. 1/6W J 1.8k Ω R372 CARBON RES. 1/4W J 1k Ω

20010601 1-17-2 H89F1EL

Page 50

Pos. Description Service Code



R396 CHIP RES.(1608) 1/10W J 220 Ω R401 CHIP RES.(1608) 1/10W J 27k Ω R402 CHIP RES.(1608) 1/16W J 6.8k Ω R405 CHIP RES.(1608) 1/16W J 27k Ω R406 CHIP RES.(1608) 1/10W J 22k Ω R407 CHIP RES.(1608) 1/10W J 2.2M Ω R408 CHIP RES.(1608) 1/10W J 6.8k Ω R409 CHIP RES.(1608) 1/10W J 3.3k Ω R410 CARBON RES. 1/4W J 820 Ω R411 CHIP RES.(1608) 1/10W J 1.8k Ω R415 CHIP RES.(1608) 1/10W J 12k Ω R416 CHIP RES.(1608) 1/10W J 12k Ω R417 CHIP RES.(1608) 1/10W J 150 Ω R418 CHIP RES.(1608) 1/10W J 18k Ω R420 CHIP RES.(1608) 1/10W J 1k Ω R421 CHIP RES.(1608) 1/10W J 3.3k Ω R422 CHIP RES.(1608) 1/10W J 5.6k Ω R424 CARBON RES. 1/6W J 47k Ω R425 CARBON RES. 1/4W J 100 Ω R426 CARBON RES. 1/6W J 820 Ω R430 CHIP RES.(1608) 1/10W 0 Ω R431 CHIP RES.(1608) 1/16W J 3.3k Ω R452 CHIP RES.(1608) 1/16W J 39k Ω R458 CHIP RES.(1608) 1/16W J 2.7k Ω R460 CHIP RES.(1608) 1/10W J 39k Ω R463 CHIP RES.(1608) 1/16W J 8.2k Ω R501 CHIP RES.(1608) 1/10W J 820 Ω R502 CHIP RES.(1608) 1/10W J 2.2k Ω R503 CHIP RES.(1608) 1/16W J 47 Ω R504 CHIP RES.(1608) 1/10W J 100k Ω R506 CHIP RES.(1608) 1/10W J 220 Ω R508 CHIP RES.(1608) 1/16W J 330k Ω R513 CARBON RES. 1/4W J 33k Ω R518 CHIP RES.(1608) 1/16W J 10k Ω R521 CARBON RES. 1/4W G 4.7k Ω R522 CARBON RES. 1/4W G 1.5k Ω R523 CARBON RES. 1/4W G 22k Ω R524 CARBON RES. 1/4W G 470 Ω R525 CARBON RES. 1/4W G 10k Ω R526 CARBON RES. 1/4W G 3.6k Ω R527 CHIP RES.(1608) 1/10W J 470k Ω R530 CARBON RES. 1/4W J 180 Ω R533 CHIP RES.(1608) 1/16W J 470k Ω R543 CHIP RES.(1608) 1/16W 0 Ω R544 CHIP RES.(1608) 1/10W J 470 Ω R546 CHIP RES.(1608) 1/10W J 47k Ω R549 CARBON RES. 1/4W J 47k Ω R551 CHIP RES.(1608) 1/10W J 560k Ω R553 CARBON RES. 1/6W J 4.7k Ω R557 CHIP RES.(1608) 1/10W J 270 Ω R558 CHIP RES.(1608) 1/10W J 56k Ω R559 CHIP RES.(1608) 1/10W J 330k Ω R563 CHIP RES.(1608) 1/10W J 68k Ω R568 CHIP RES.(1608) 1/10W J 220k Ω R571 CARBON RES. 1/6W J 68k Ω R577 CHIP RES.(1608) 1/16W J 1.2k Ω R581 CHIP RES.(1608) 1/10W J 68k Ω R584 CARBON RES. 1/4W J 1.8k Ω R587 CHIP RES.(1608) 1/16W J 1.5k Ω R590 CARBON RES. 1/6W J 330 Ω R593 CARBON RES. 1/6W J 220 Ω

Pos. Description Service Code



R619 CARBON RES. 1/4W J 3.9k Ω R624 CARBON RES. 1/4W J 330 Ω R645 CARBON RES. 1/6W J 3.9k Ω R652 CHIP RES.(1608) 1/16W J 1k Ω R653 CARBON RES. 1/6W J 1.2k Ω R655 CHIP RES.(1608) 1/10W J 2.2k Ω R656 CHIP RES.(1608) 1/16W J 3.9k Ω R701 CHIP RES.(1608) 1/10W J 100 Ω R704 CHIP RES.(1608) 1/10W 0 Ω R751 CHIP RES.(1608) 1/16W J 75 Ω R752 CHIP RES.(1608) 1/10W J 150 Ω R754 CHIP RES.(1608) 1/10W J 75 Ω R755 CHIP RES.(1608) 1/10W J 75 Ω R853 CHIP RES.(1608) 1/10W J 1.5k Ω R854 CHIP RES.(1608) 1/10W J 330 Ω TP302 PCB JUMPER D0.6-P10.0 TP502 PCB JUMPER D0.6-P11.0 TP507 PCB JUMPER D0.6-P6.5 TP751 PCB JUMPER D0.6-P18.5 TP752 PCB JUMPER D0.6-P7.5 VR501 CARBON P.O.T. 100k Ω B 9965 000 05260

SWITCHES

SW506 PUSH SWITCH SPPB610301 4822 276 13777 SW507 ROTARY MODE SWITCH R8100212 9965 000 09194 SW511 TACT SWITCH KSM0614B 4822 276 13954 SW512 TACT SWITCH SKQSAF001A 4822 276 14127 SW651 TACT SWITCH KSH0614B 9965 000 08565

MISCELLANEOUS

2B8 BUSH, LED(F) H3700UD 9965 000 08566

 AC001 AC CORD PS8B1S4IH0A-067 9965 000 09204  F001 FUSE T1.6AL/250V 4822 070 31602

JK751 RCA JACK JPJ4811-01-324 9965 000 09291 JK752 RCA JACK MSP-293V3-324 4822 265 11656 TU701 TUNER UNIT TMDG1-602B 9965 000 06570

 SA001 SURGE ABSORBER CNR-10D471K 9965 000 08602  SURGE ABSORBER ENC471D-10AC  SURGE ABSORBER JVR-10N471K

X302 X'TAL 4.433619MHz 4822 242 10695 X501 X'TAL 17.734475MHz 9965 000 08647 X502 X'TAL 32.768kHz(20PPM) 9965 000 09200

20010601 1-17-3 H89F1EL

Page 51

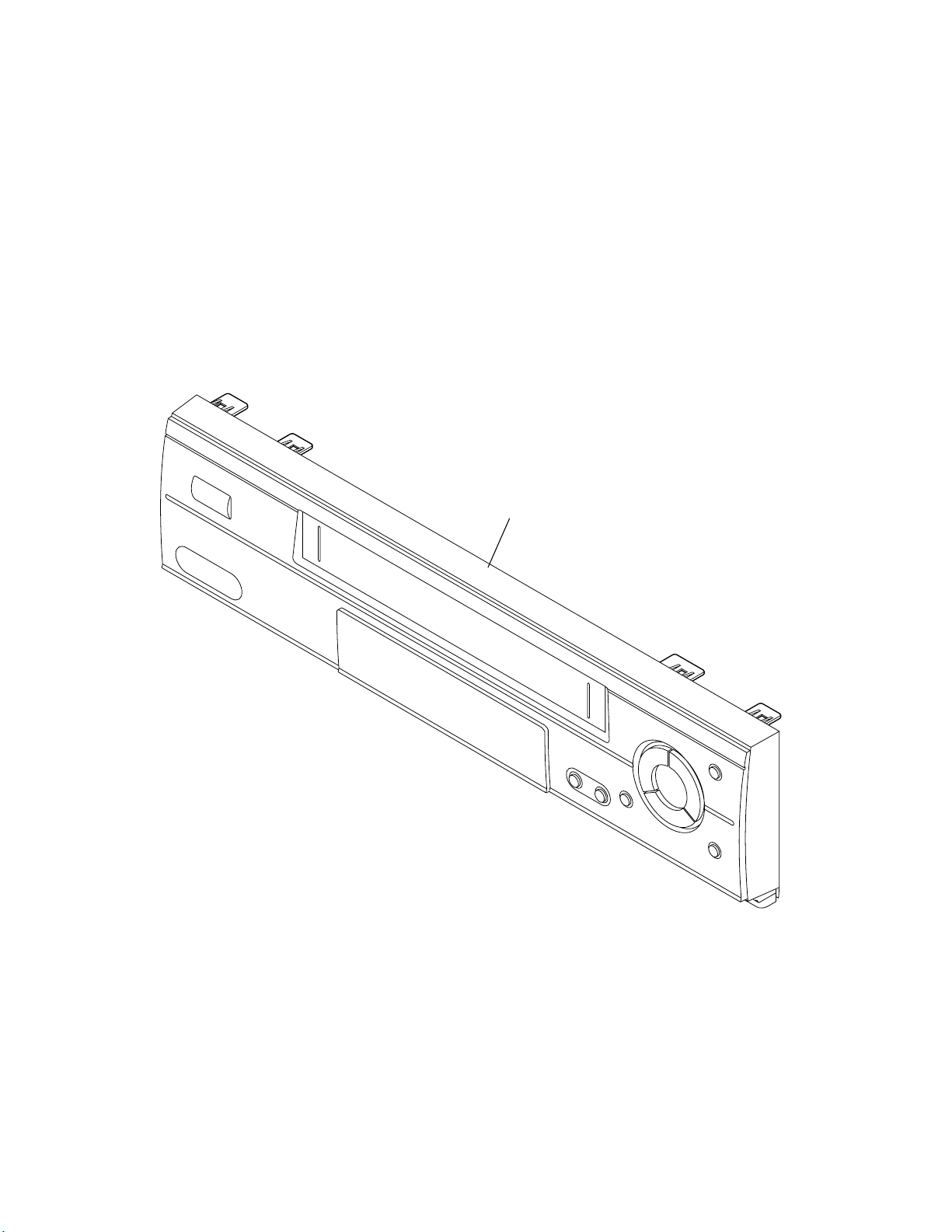

Front Panel

EXPLODED VIEWS

A1X

1-18-1 H77F0FEX

Page 52

Cabinet

2B43

2B44

2L011

See Electrical Parts List for parts with this mark.

Some Ref. Numbers are not in sequence.

2L021

1B1

2L022

B529

B360 B359

B361

2L021

RS501

2B3

2B34

2B8

FUNCTION CBA

2B45

MAIN CBA

2B3

A10

AC001

1-18-2 H89F1CEX

Page 53

Packing

Some Ref. Numbers are not in sequence.

X26

X20

X3 X2

Unit

A14

1-18-3 H87F1PEX

Page 54

SET MECHANICAL PARTS LIST

For not coded parts please use PHILIPS standard components. The standard Sparepart Catalogue can be ordered with Service Code 3103 785 20930.

 Pos. Description Service Code

2B43 REC ARM H7700UD 9965 000 08596 2B44 REC ARM SPRING MK6 9965 000 08597 2L011 SCREW, P-TIGHT 3X10 BIND HEAD+ 4822 502 14666 2L021 SCREW, P-TIGHT M3X10 WASHER

2L022 SCREW, P-TIGHT 3X12 WASHER HEAD+ 9965 000 08646 A1X FRONT ASSEMBLY H89F1AD 9965 000 09304 A2 CASE, TOP H85G0PD PHILIPS ASIA 9965 000 08590 A3 CHASSIS H87F1AD 9965 000 09202 B359 CLEANER LEVER MK10 9965 000 08449 B360 CLEANER ROLLER MK9 9965 000 06561 B361 CL POST MK10 9965 000 08450 B529 CLEANER ASS. MK10 9965 000 08504 1B1 DECK ASSEMBLY CZD006/VM1360 2B45 SPACER H7700UD

X1 REMOTE CONTROL UNIT 364/CRC005 9965 000 09306 X3 RF CORD PAL 1.0M 4822 320 50377 X4 ACCESSORY BAG H3600UD T=0.03 9965 000 09199

 X20 OWNER'S MANUAL(ENGLISH) H89F1AD 9965 000 09310

HEAD+

ACCESSORIES

4822 502 30752

20010601 1-19-1 H89F1CA

Page 55

DECK MECHANISM SECTION

VIDEO CASSETTE RECORDER

Sec. 2: Deck Mechanism Section

● Standard Maintenance

● Mechanism Alignment Procedures

● Disassembly / Assembly of Mechanism

● Deck Exploded Views

● Deck Parts List

TABLE OF CONTENTS

STANDARD MAINTENANCE ........................................................................................................................... 2-1-1

SERVICE FIXTURE AND TOOLS ..................................................................................................................... 2-2-1

MECHANICAL ALIGNMENT PROCEDURES ................................................................................................... 2-3-1

DISASSEMBLY / ASSEMBLY PROCEDURES OF DECK MECHANISM ......................................................... 2-4-1

ALIGNMENT PROCEDURES OF MECHANISM .............................................................................................. 2-4-9

DECK EXPLODED VIEWS................................................................................................................................ 2-5-1

DECK PARTS LIST............................................................................................................................................ 2-6-1

H89F1CV

Page 56

STANDARD MAINTENANCE

Service Schedule of Components

H: Hours ❍: Check ●: Change

Deck Periodic Service Schedule

Ref. No. Part Name 1,000 H 2,000 H 3,000 H 4,000 H

B2 Cylinder Assembly ❍●❍● B3 Loading Motor Assembly ●

B8 Pulley Assembly ●● B27 Tension Lever Sub Assembly ●● B31 AC Head Assembly ●

B573, B574 Reel (S), Reel (T) ●

B37 Capstan Motor ●● B52 Cap Belt ●●

*B73 FE Head ● B133 Idler Assembly ●● B410 Pinch Arm (A) Assembly ●● B414 M Brake S Assembly ●● B416 M Brake T Assembly ●● B525 LDG Belt ●●

Notes:

1. Clean all parts for the tape transport (Upper Drum with Video Head / Pinch Roller / Audio Control Head / Full Erase Head) using 90% Isopropyl Alcohol.

2. After cleaning the parts, do all DECK ADJUSTMENTS.

3. For the reference numbers listed above, refer to Deck Exploded Views.

* B73 ------ VCR Model only

2-1-1 MENT_03

Page 57

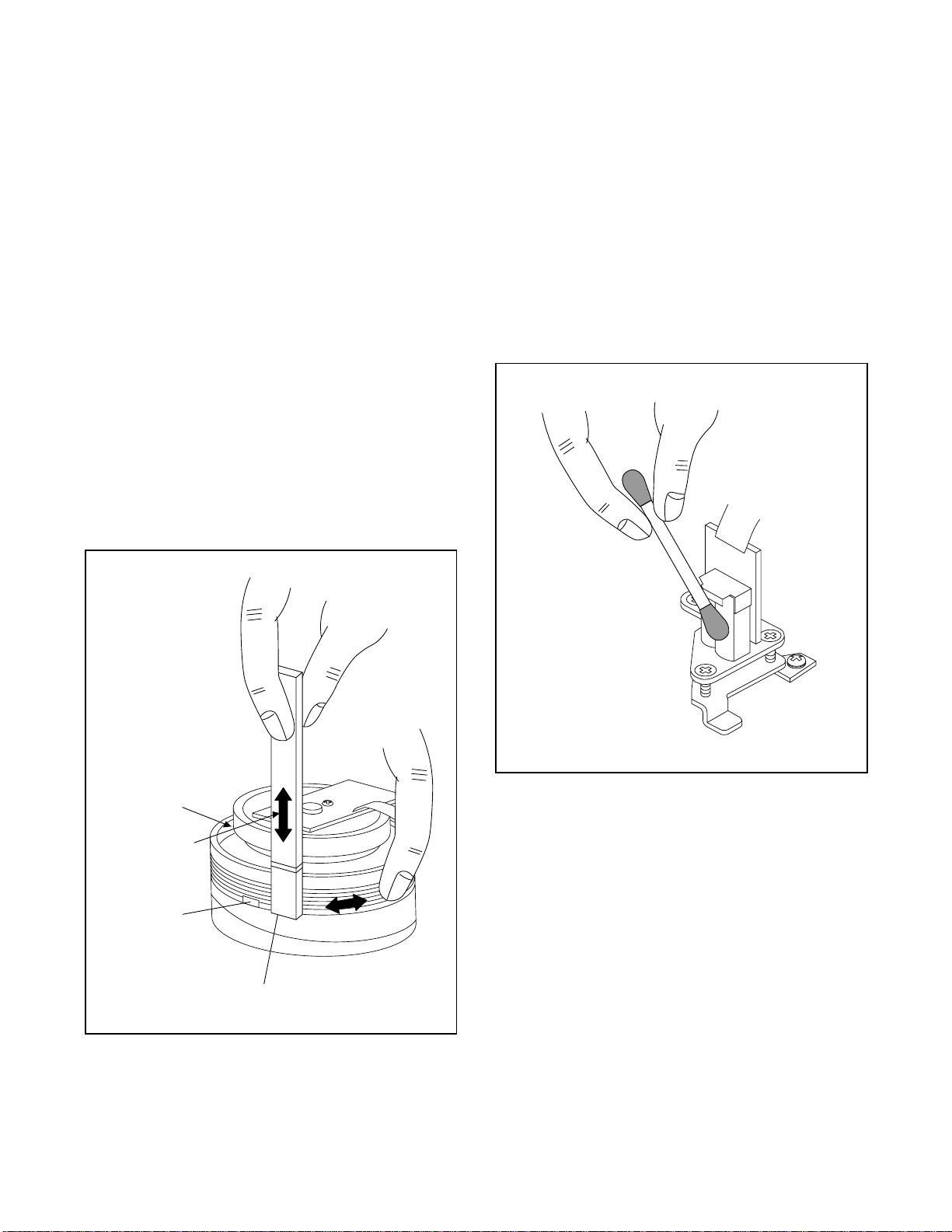

Cleaning

Cleaning of Video Head

Clean the head with a head cleaning stick or chamois cloth.

Procedure

1.Remove the top cabinet.

2. Put on a glove (thin type) to avoid touching the upper and lower drum with your bare hand.

3.Put a few drops of 90% Isopropyl alcohol on the head cleaning stick or on the chamois cloth and, by slightly pressing it against the head tip, turn the upper drum to the right and to the left.

Notes:

1.The video head surface is made of very hard material, but since it is very thin, avoid cleaning it vertically.

2.Wait for the cleaned part to dry thoroughly before operating the unit.

3.Do not reuse a stained head cleaning stick or a stained chamois cloth.

Cleaning of Audio Control Head

Clean the head with a cotton swab.

Procedure

1.Remove the top cabinet.

2.Dip the cotton swab in 90% isopropyl alcohol and clean the audio control head. Be careful not to damage the upper drum and other tape running parts.

Notes:

1.Avoid cleaning the audio control head vertically.

2.Wait for the cleaned part to dry thoroughly before operating the unit or damage may occur.

A/C Head

Upper Cylinder

Do Not !

Video Head

Cleaning Stick

2-1-2 MENT_03

Page 58

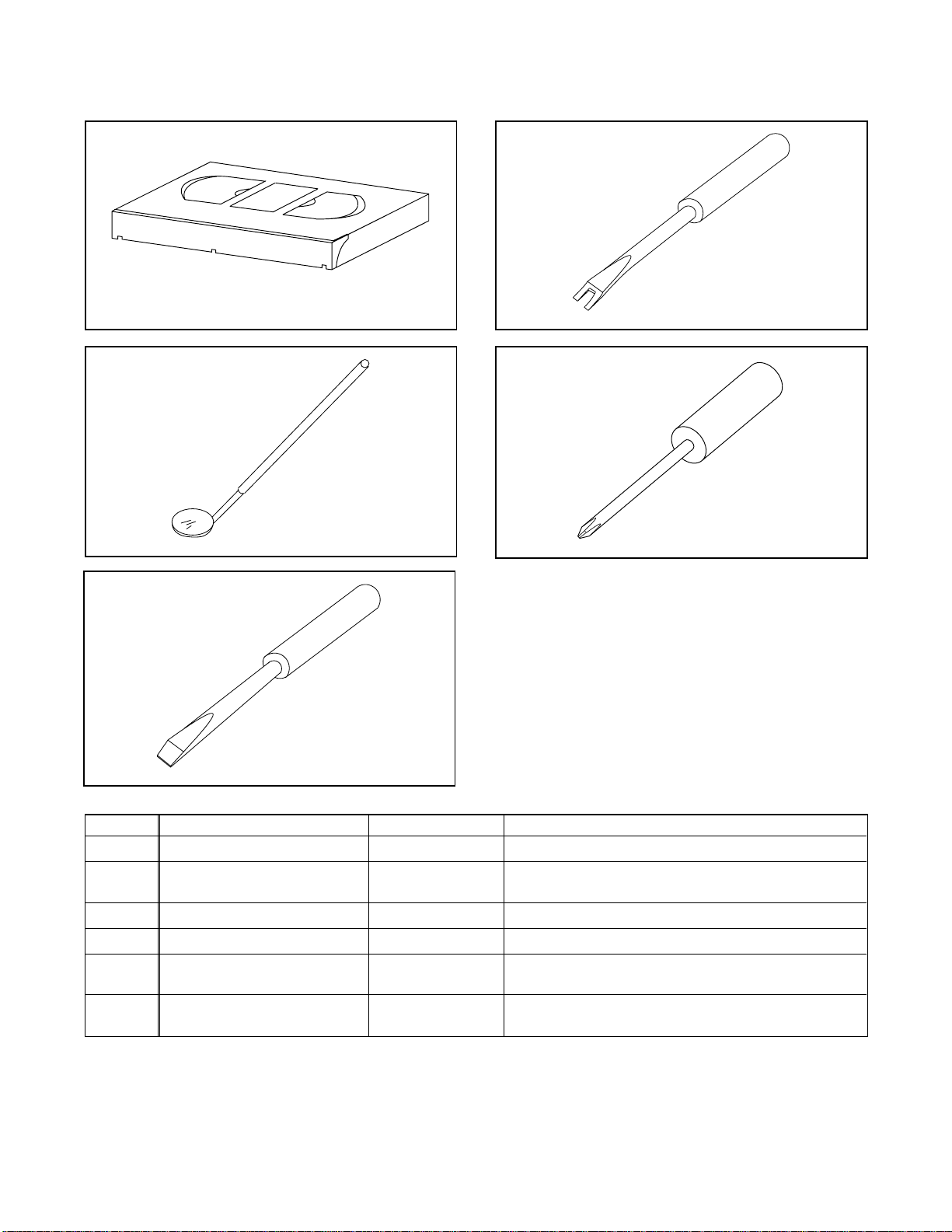

SERVICE FIXTURE AND TOOLS

J-1-1, J-1-2

J-3

J-2

J-4

J-5

Ref. No. Name Part No. Adjustment

J-1-1 Alignment Tape 4822 395 10283 Electrical Adjustments J-1-2 Alignment Tape 4822 395 10057 Azimuth and X Value Adjustment of Audio Control

J-2 Guide Roller Adj.Screwdriver 4822 395 10208 Guide Roller J-3 Mirror 4822 380 10108 Tape Transportation Check J-4 Azimuth Adj.Screwdriver + Available

Locally

J-5 X Value Adj.Screwdriver - Available

Locally

2-2-1 H85F0FIX

Head / Adjustment of Envelope Waveform

A/C Head Height

X Value

Page 59

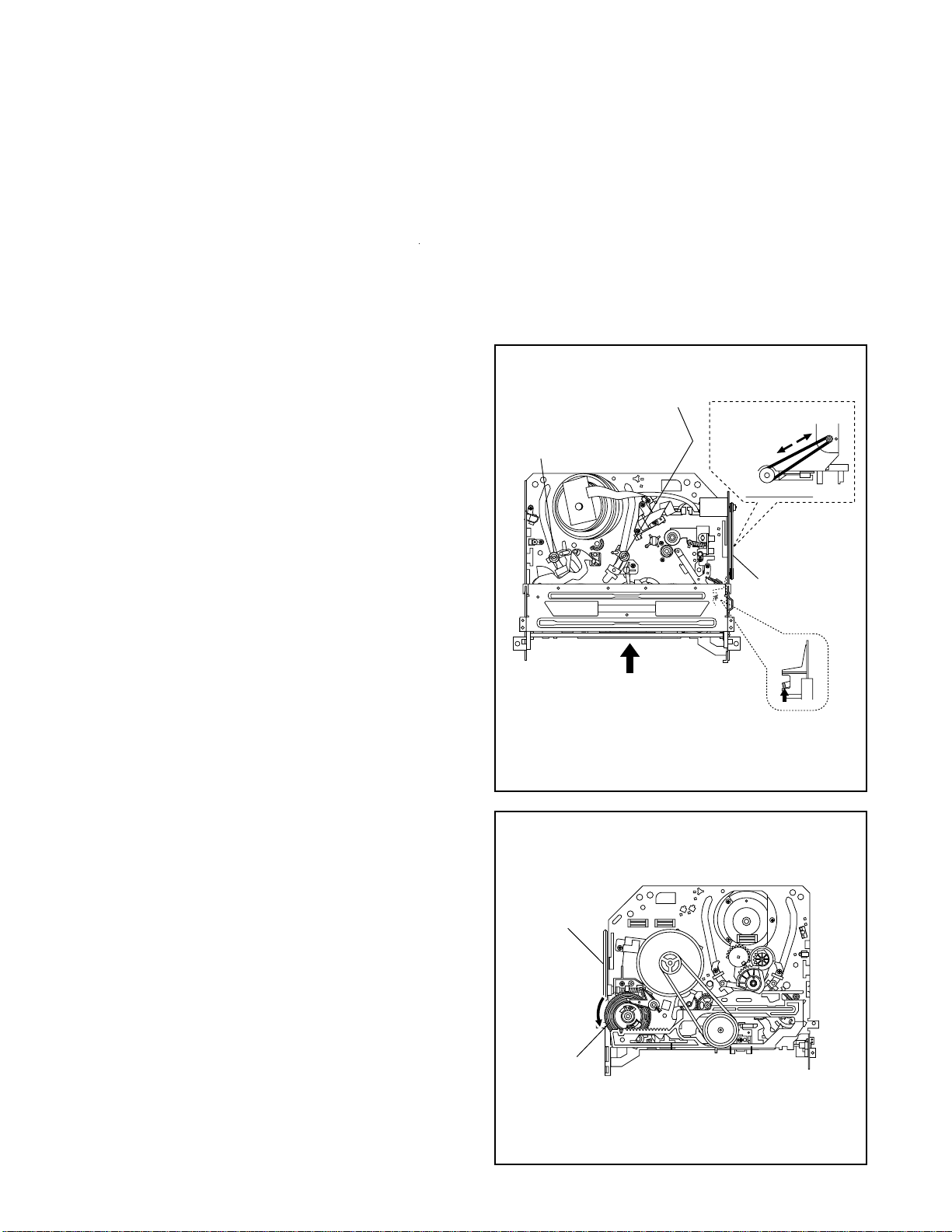

MECHANICAL ALIGNMENT PROCEDURES

Explanation of alignment for the tape to correctly run starts on the next page. Refer to the information below on this page if a tape gets stuck, for example, in the mechanism due to some electrical trouble of the unit.

Service Information

A. Method for Manual Tape Loading/Unloading

To load a cassette tape manually:

1. Disconnect the AC plug.

2. Remove the Top Case and Front Assembly.

3. Insert a cassette tape. Though the tape will not be automatically loaded, make sure that the cassette tape is all the way in at the inlet of the Cassette Holder. To confirm this, lightly push the cassette tape further in and see if the tape comes back out, by a spring motion, just as much as you have pushed in.

4. Turn the LDG Belt in the appropriate direction shown in Fig. M1 for a minute or two to complete this task.

To unload a cassette tape manually:

1. Disconnect the AC plug.

2. Remove the Top Case and Front Assembly.

3. Make sure that the Moving guide preparations are in the Eject Position.

4. Turn the LDG Belt in the appropriate direction shown in Fig. M1 until the Moving guide preparations come to the Eject Position. Stop turning when the preparations begin clicking or can not be moved further. However, the tape will be left wound around the cylinder.

5. Turn the LDG Belt in the appropriate direction continuously, and the cassette tape will be ejected. Allow a minute or two to complete this task.

B. Method to place the Cassette Holder in the tape-

loaded position without a cassette tape

1. Disconnect the AC Plug.

2. Remove the Top Case and Front Assembly.

3. Turn the LDG Belt in the appropriate direction shown in Fig. M1. Release the locking tabs shown in Fig. M1 and continue turning the LDG Belt until the Cassette Holder comes to the tapeloaded position. Allow a minute or two to complete this task.

Top View

Moving guide T preparation (Eject Position)

Moving guide S preparation (Eject Position)

Push the tape to load it.

Push the locking tab gently to unlock when loading without a cassette.

UNLOAD /EJECT

LOAD

Side View

LDG Belt

Fig. M1

Bottom View

LDG Belt (B)

UNLOAD /EJECT

Cam Gear

Fig. M2

2-3-1 H87F0MA

Page 60

1. Tape Interchangeability Alignment

Note: To do these alignment procedures, make sure that the

Tracking Control Circuit is set to the center position every time a tape is loaded or unloaded. (Refer to page 2-3-4, procedure 1-C, step 2.)

Equipment required:

Dual Trace Oscilloscope VHS Alignment Tape (4822 395 10057) Guide Roller Adj. Screwdriver X-Value Adj. Screwdriver

Note: Before starting this Mechanical Alignment, do all Electrical Adjustment procedures.

Flowchart of Alignment for tape traveling

Loading (Use a blank tape.)

Adjust the height of the Guide Rollers (Supply side and take-up side). (Use a blank tape.) (pg. 2-3-3)

1-A

Check to see that the tape is not creasing and that there is no slack on the supply and take-up side Guide Rollers. (Use a blank tape.)

Adjust the X Value for maximum envelope. (pg. 2-3-3) (Use Alignment Tape.)

Adjust the envelope. (pg. 2-3-4)

Check the envelope.

Adjust the Audio Section. (Azimuth Alignment) (pg. 2-3-4)

Check the audio output.

Check the following:

1. X Value (pg. 2-3-3)

2. Envelope (pg. 2-3-4)

1-A

1-B

1-C

1-D

1-B, 1-C

Not good

Do the final tape-traveling test to see that the tape runs normally in play mode without creasing or slacking.

Completion

Adjust the X value and envelope.

1-B, 1-C

1-A

2-3-2 H87F0MA

Page 61

1-A. Preliminary/Final Checking and Alignment of Tape Path

Purpose:

To make sure that the tape path is well stabilized.

Symptom of Misalignment:

If the tape path is unstable, the tape will be damaged. Note: Do not use an Alignment Tape for this procedure.

If the unit is not correctly aligned, the tape may be damaged.

1. Play back a blank cassette tape and check to see that the tape runs without creasing at Guide Rollers [2] and [3], and at points A and B on the lead surface. (Refer to Fig M3 and M4.)

2. If creasing is apparent, align the height of the guide rollers by turning the top of Guide Rollers [2] and [3] with a Guide Roller Adj. Screwdriver. (Refer to Fig. M3 and M5.) Note: Beneath each Guide Roller, there is a small screw. (Refer to Fig. M5.) This screw works

Guide Roller [2]

Guide Roller [3]

to apply adequate torque to the shaft of each Guide Roller so that the Guide Roller turns properly. Even when adjusting the height of the Guide Roller(s), do not touch these two small screws.

3. Check to see that the tape runs without creasing at Take-up Guide Post [4] or without snaking between Guide Roller [3] and AC Head. (Fig. M3 and M5)

4. If creasing or snaking is apparent, adjust the Tilt Adj. Screw of the AC Head. (Fig. M6)

Azimuth Adj. Screw

AC Head

X-Value Adj. Screwdriver

Tilt Adj. Screw

Fig. M6

Take-up Guide Post [4]

Lead Surface of Cylinder

Correct

Guide Roller

Tape

Small Screw

Take-up Guide

Tape

Post

AC Head

1-B. X Value Alignment

Purpose:

Fig. M3

Tape

Fig. M4

Incorrect

To align the Horizontal Position of the Audio/Control/Erase Head.

Symptom of Misalignment:

If the Horizontal Position of the Audio/Control/Erase Head is not properly aligned, maximum envelope cannot be obtained at the Neutral position of the Tracking Control Circuit.

1. Connect the oscilloscope to TP301 (C-PB) and TP501 (CTL) on the Main CBA. Use TP502 (RFSW) as a trigger.

2. Play back the Gray Scale of the Alignment Tape (4822 395 10057) and confirm that the PB FM signal is present.

3. Set the Tracking Control Circuit to the center position by pressing CH UP button then " PLAY " button on the VCP. (Refer to note on bottom of page 2-3-4.)

4. Use the X-Value Adj. Screwdriver so that the PB FM signal at TP301 (C-PB) is maximum. (Fig. M6)

5. Press CH UP button on the VCR until the CTL waveform has shifted by approx. +2msec. Make sure that the envelope is simply attenuated (shrinks in height) during this process so that you will know the envelope has been at its peak.

Fig. M5

2-3-3 H87F0MA

Page 62

6. Press CH DOWN button on the VCR until the CTL waveform has shifted from its original position (not the position achieved in step 5, but the position of CTL waveform in step 4) by approximately

-2msec. Make sure that the envelope is simply attenuated (shrinks in height) once CTL waveform passes its original position and is further brought in the minus direction.

7. Set the Tracking Control Circuit to the center position by pressing CH UP button and then " PLAY " button.

1-C. Checking/Adjustment of Envelope Waveform

Purpose:

To achieve a satisfactory picture and precise tracking.

Symptom of Misalignment:

If the envelope output is poor, noise will appear in the picture. The tracking will then lose precision and the playback picture will be distorted by any slight variation of the Tracking Control Circuit.

1. Connect the oscilloscope to TP301 (C-PB) on the Main CBA. Use TP502 (RF-SW) as a trigger.

2. Play back the Gray Scale on the Alignment Tape (4822 395 10057). Set the Tracking Control Circuit to the center position by pressing CH UP button and then " PLAY " button on the VCR. Adjust the height of Guide Rollers [2] and [3] (Fig. M3, Page 2-3-3) watching the oscilloscope display so that the envelope becomes as flat as possible. To do this adjustment, turn the top of the Guide Roller with the Guide Roller Adj. Screwdriver.

3. If the envelope is as shown in Fig. M7, adjust the height of Guide Roller [2] (Refer to Fig. M3) so that the waveform looks like the one shown in Fig. M9.

4. If the envelope is as shown in Fig. M8, adjust the height of Guide Roller [3] (Refer to Fig. M3) so that the waveform looks like the one shown in Fig. M9.

5. When Guide Rollers [2] and [3] (Refer to Fig.M3) are aligned properly, there is no envelope drop either at the beginning or end of track as shown in Fig. M9.

Note: Upon completion of the adjustment of Guide Rollers [2] and [3] (Refer to Fig. M3), check the X Value by pushing the CH UP or DOWN buttons alternately, to check the symmetry of the envelope. Check the number of pushes to ensure center position. The number of pushes CH UP button to achieve 1/2 level of envelope should match the number of pushes CH DOWN button from center. If required, redo the "X Value Alignment."

1-D. Azimuth Alignment of Audio/Control/ Erase Head

Purpose:

To correct the Azimuth alignment so that the Audio/Control/Erase Head meets tape tracks properly.

Symptom of Misalignment:

If the position of the Audio/Control/Erase Head is not properly aligned, the Audio S/N Ratio or Frequency Response will be poor.

1. Connect the oscilloscope to the audio output jack on the rear side of the deck.

2. Play back the alignment tape (4822 395 10057) and confirm that the audio signal output level is 6kHz.

3. Adjust Azimuth Adj. Screw so that the output level on the AC Voltmeter or the waveform on the oscilloscope is at maximum. (Fig. M6)

Dropping envelope level at the beginning of track.

Fig. M7

Dropping envelope level at the end of track.

Fig. M8

Envelope is adjusted properly. (No envelope drop)

Fig. M9

2-3-4 H87F0MA

Page 63

DISASSEMBLY/ASSEMBLY PROCEDURES

OF DECK MECHANISM

Before following the procedures described below, be sure to remove the deck assembly from the cabinet. (Refer to CABINET DISASSEMBLY INSTRUCTIONS on page 1-8-1.)

All the following procedures, including those for adjustment and replacement of parts, should be done in Eject mode; see the positions of [44] and [45] in Fig. DM1 on page 2-4-3. When reassembling, follow the steps in reverse order.

STEP

/LOC.

START-

ING

No.

[1] [1] Top Plate T DM3 2(S-1), *2(L-1) [2] [1] Cassette Holder Assembly T DM4 (S-19) [3] [2] Slider L T DM5 (S-2) [4] [2] Slider R T DM5 (S-3) [5] [4] Lock Lever T DM5 (S-4), *(P-1) [6] [2] Cassette Plate T DM5

[7] [7] Cylinder Assembly T DM1, DM6

[8] [8] Loading Motor Assembly T DM1, DM7

[9] [1] Tape Guide Assembly T DM1, DM8 *(P-2), (C-8) [10] [1] Door Opener B T DM1, DM8 (S-8), *(L-2) [11] [10] Pinch Arm (B) Assembly T DM1, DM8 *(P-3) [12] [11] Pinch Arm (A) Assembly T DM1, DM8 [13] [13] FE Head T DM1, DM9 (S-9) [14] [14] First Post Assembly T DM1, DM9 (S-10) [15] [15] Prism T DM1, DM9 (S-11) [16] [16] Standard Post T DM1, DM9 *(L-4) [17] [1] Slider Shaft T DM10 (S-12), *(L-7) [18] [17] C Drive Lever L T DM10 [19] [17] C Drive Lever R T DM10 [20] [12] Capstan Motor B DM2, DM11 3(S-14), Cap Belt [21] [21] FF Arm Holder B DM2, DM12 (S-15) [22] [21] Clutch Assembly B DM2, DM12 (C-1) [23] [21] FF Arm B DM2, DM12 [24] [24] Cam Holder B DM2, DM13 (C-2) [25] [24] F Brake Assembly B DM2, DM13 [26] [26] Cam Gear (B) B DM2, DM13 (C-3), *(P-4) [27] [27] Mode Gear B DM2, DM14 (C-4) [28] [27] Mode Lever B DM2, DM14 (C-5) [29] [28] Cam Gear (A) B DM2, DM14 [30] [29] Pully Assembly B DM2, DM14 [31] [30] Worm Holder B DM2, DM14 (S-16) [32] [28] Sensor Gear B DM1, DM15 (C-6) [33] [28] Idler Assembly B DM1, DM15 [34] [28] BT Arm B DM2, DM15 *(P-5)

No.

PART

Fig. No.

REMOVAL INSTALLATION

REMOVE/*UNHOOK/ UNLOCK/RELEASE/ UNPLUG/DESOLDER

3(S-5), Connector

2(S-6), (S-7), LDG Belt, ACH Connector AN(9P) and 9B

ADJUSTMENT

CONDITION

2-4-1 V79F1DA

Page 64

STEP /LOC. No.

STARTING No.

[35] [28] Loading Arm S Assembly B DM2, DM15

[36] [35] Loading Arm T Assembly B DM2, DM15

[37] [28] M Brake T Assembly T DM1, DM16 *(P-6) [38] [38] M Brake S Assembly T DM1, DM16 *(P-7)

[39] [38]

[40] [39] T Lever Holder T DM1, DM16 *(L-5) [41] [2] M Gear T DM1, DM16 (C-7) [42] [37] Reel T T DM1, DM16 [43] [39] Reel S T DM1, DM16

[44] [43]

[45] [36]

[46] [20] TG Post Assembly T DM1, DM17 *(L-3)

[47] [29] Rack Assembly R DM18

[48] [47] F Door Opener A R DM18 *(P-9) [49] [49] Cleaner Lever Assembly T DM1,DM6 [50] [49] CL Post T DM1,DM6 *(L-6)

↓

➀

➁

Tension Lever Sub Assembly

Moving Guide S Preparation

Moving Guide T Preparation

↓

PART

↓

➂

Fig. No.

T DM1, DM16

T DM1, DM17

↓

➃

↓

➄

REMOVAL INSTALLATION

REMOVE/*UNHOOK/ UNLOCK/RELEASE/ UNPLUG/DESOLDER

*(P-8), (C-9)

(S-17), Slide Holder S

(S-18), Slide Holder T

↓

➅

ADJUSTMENT

CONDITION

(+) Refer to Alignment Sec. Pg. 2-4-9

(+) Refer to Alignment Sec. Pg. 2-4-10

↓

➆

1 : Follow steps in sequence. When reassembling, follow the steps in reverse order.

These numbers are also used as Identification (location) No. of parts in the figures. 2 : Indicates the part to start disassembling with in order to disassemble the part in column (1). 3 : Name of the part 4 : Location of the part: T=Top B=Bottom R=Right L=Left 5 : Figure Number 6 : Identification of parts to be removed, unhooked, unlocked, released, unplugged, unclamped, or desoldered.

P=Spring, W=Washer, C=Cut Washer, S=Screw, *=Unhook, Unlock, Release, Unplug, or Desolder

e.g., 2(L-2) = two Locking Tabs (L-2). 7 : Adjustment Information for Installation

(+): Refer to Deck Exploded Views for lubrication.

2-4-2 V79F1DA

Page 65

Top View

[13]

[14]

[39]

[16] [45][44] [46]

[7] [49] [50] [8]

[12]

[10]

[15]

[40]

[38]

Bottom View

[25]

[9] [11]

[37]

[33][43] [32] [41] [42]

Fig. DM1

[20]

[36]

[35]

[31]

[30]

[24] [26] [29]

[27]

[28]

[21]

[23] [34][22]

Fig. DM2

2-4-3 V79F1DA

Page 66

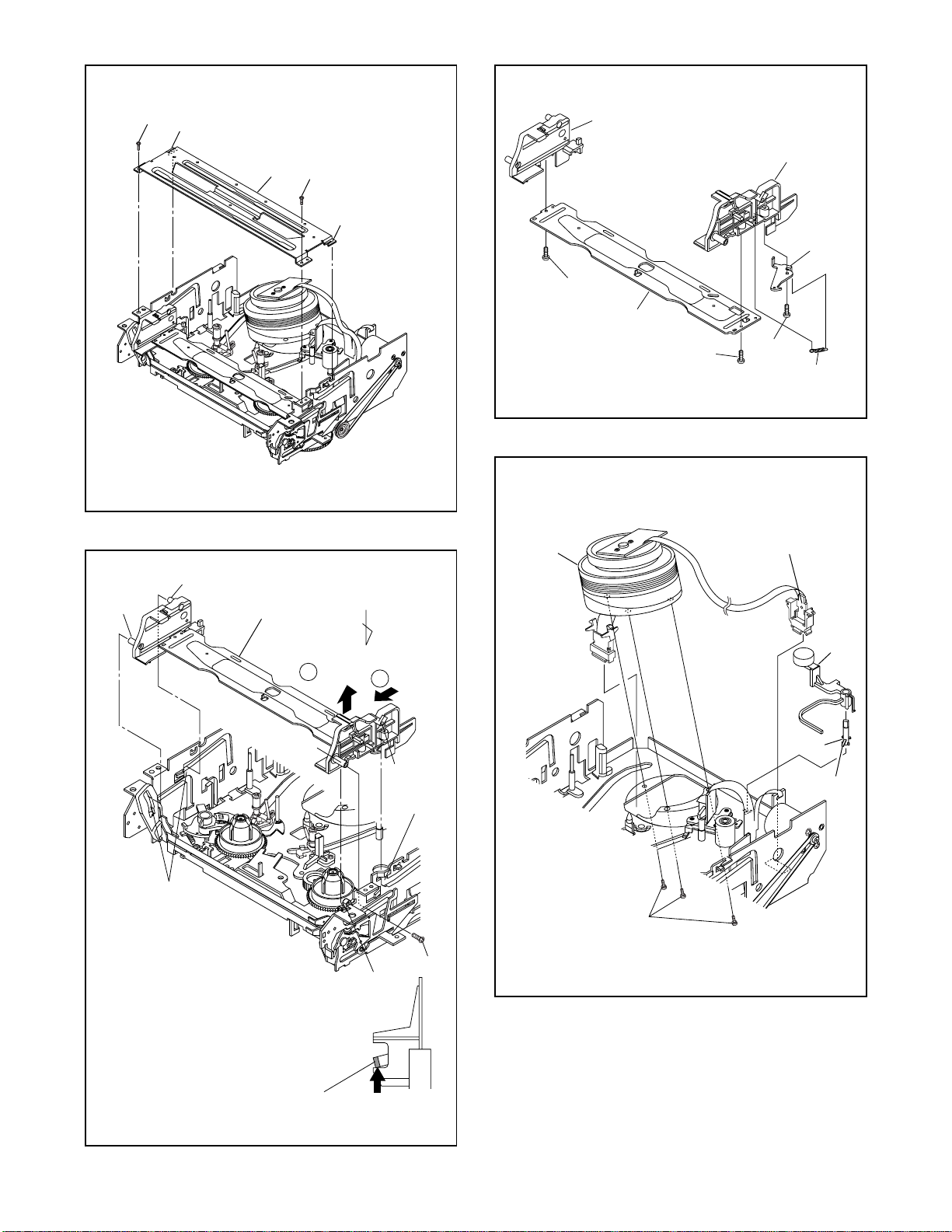

(S-1)

(L-1)

[1]

[3]

[4]

(S-1)

(L-1)

[5]

(S-2)

[6]

Pin C

Pin D

[2]

Pin A

Pull up

Fig. DM3

Slide

Pin B

Slot A

[7]

(S-3)

(S-4)

(P-1)

Fig. DM5

Connector

[49]

[50]

(L-6)

Slots

First, while pushing the locking tab as shown in the right, slide and pull up the right side on [2] to release Pin A and Pin B from the slots A. Then, remove Pin C and Pin D on [2] from the slots B as shown.

Locking tab

(S-19)

Slot A

View for A

Fig. DM4

(S-5)

Fig. DM6

2-4-4 V79F1DA

Page 67

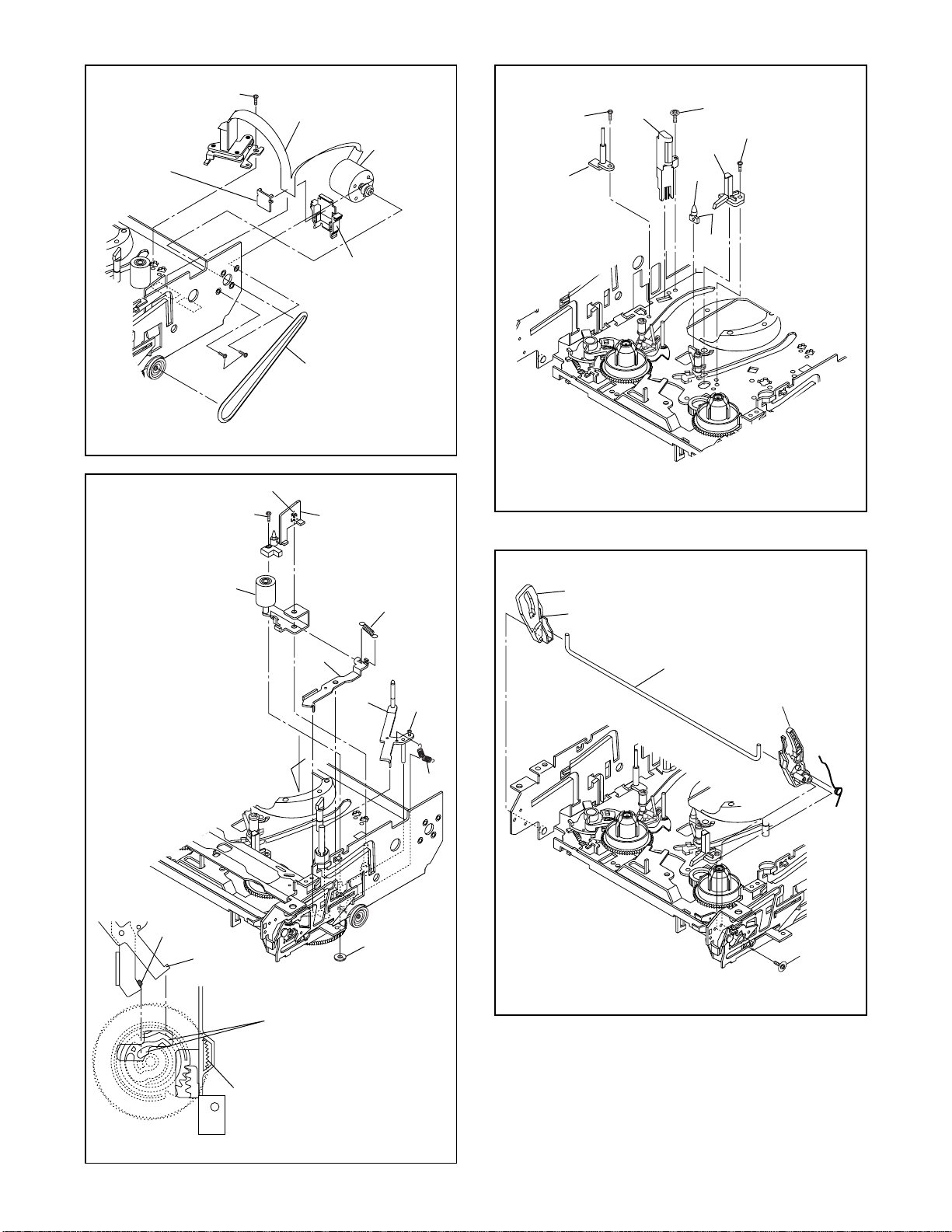

ACH Connector B (9P)

(S-7)

FFC Cable

ACH Connector AN (9P)

[8]

(S-10)

[14]

[13]

(S-9)

(S-11)

[15]

[16]

(L-4)

(S-6)

[12]

(S-8)

(L-2)

LDG Belt

Fig. DM7

Fig. DM9

[10]

(P-3)

[11]

[9]

Adj. Screw

(P-2)

[18]

(L-7)

After removing the Screw (S-12), while pressing the Locking Tab (L-7), remove [17].

[17]

[19]

Pin of [11]

View for A

Pin of [9]

[29]

(C-8)

Grooves of [29]

When reassembling [9] and [11], confirm that pin of [9] and pin of [11] are in the grooves of [29] as shown.

Fig. DM8

(S-12)

Fig. DM10

2-4-5 V79F1DA

Page 68

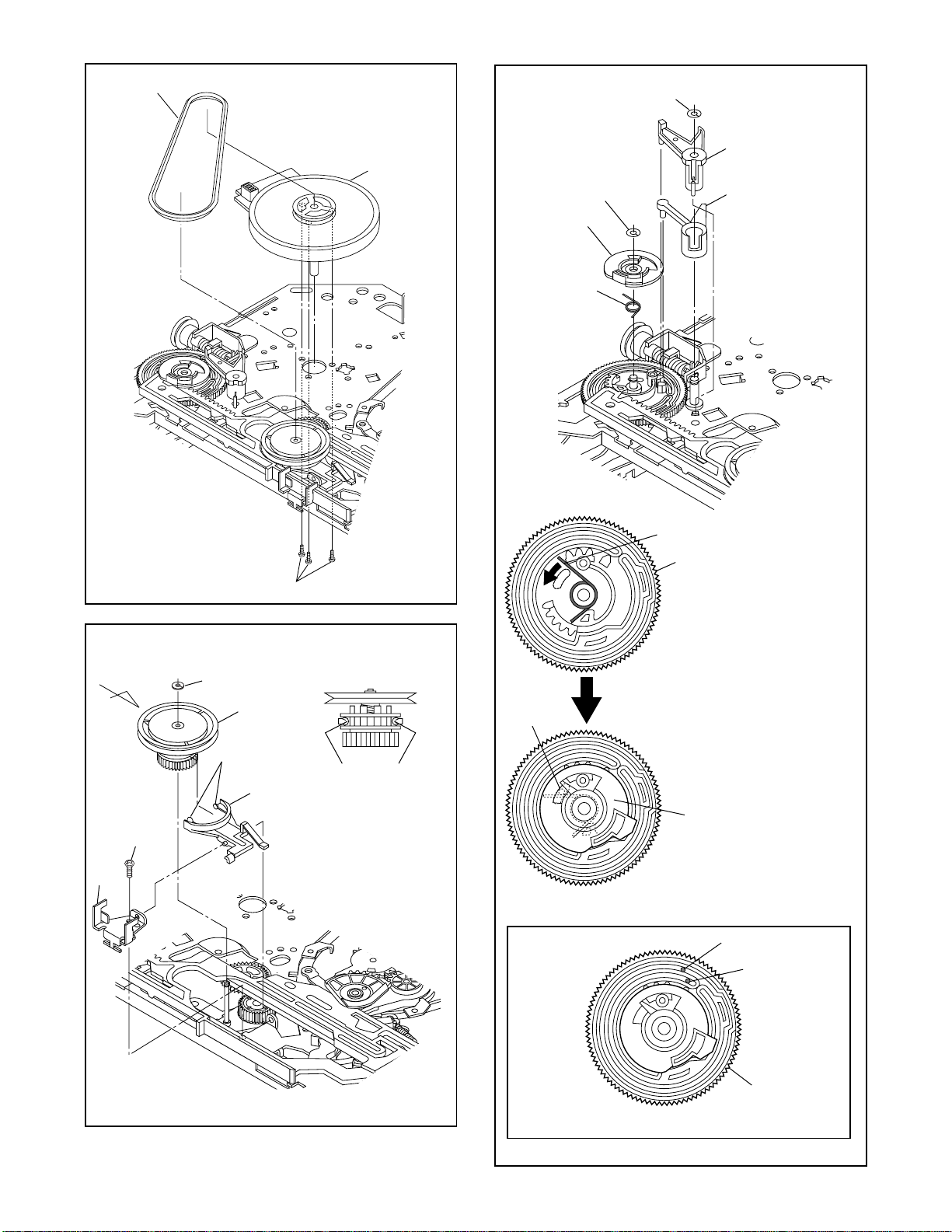

Cap Belt

[20]

[26]

(P-4)

(C-3)

(C-2)

[24]

[25]

(P-4)

[21]

(S-15)

(C-1)

Portions A

(S-14)

Portions A on [23] must be set in the slot on [22] as shown.

[22]

[23]

Fig. DM11

Portions A

View for A

Pin on bottom of [26]

[29]

When installing [26], install the spring (P-4) to [29] as shown in the left figure, and then install [26] while pressing the spring (P-4) to the direction of the arrow in the left figure and confriming that the position of the spring (P-4) is placed as shown in the left figure.

[26]

Top View

Pin on [25]

Pin on [24]

Fig. DM12

[29]

Position of pins on [24] and [25]

Fig. DM13

2-4-6 V79F1DA

Page 69

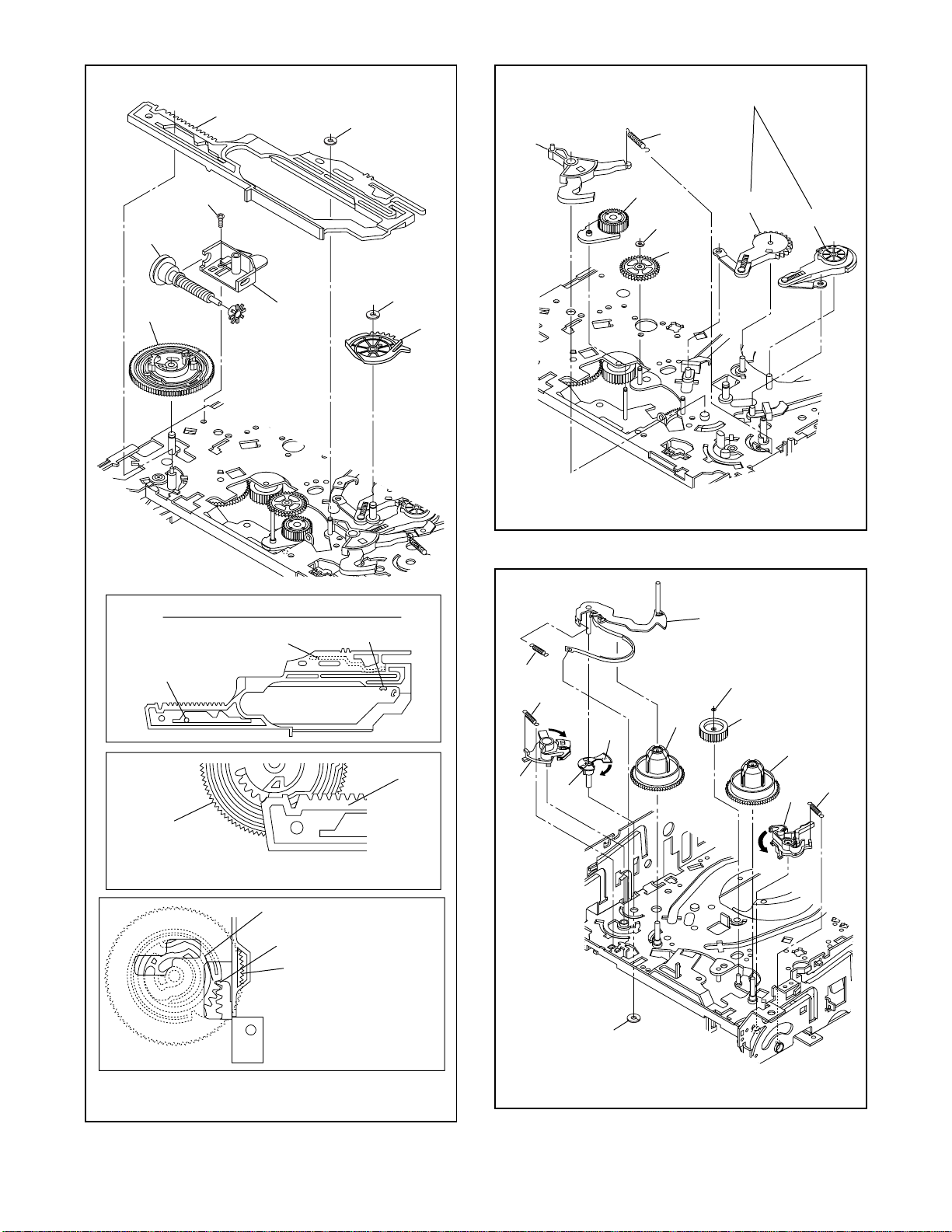

[28]

(C-5)

[34]

Refer to the Alignment Section, Page 2-4-9.

(P-5)

(S-16)

[30]

[29]

Position of Mode Lever when installed

Pin of [34]

[31]

Pin of [38]

(C-4)

[27]

[33]

(C-6)

[32]

[36]

[35]

Fig. DM15

[39]

Pin of [37]

Bottom View

[29]

Top View

Align [28] and [29] as shown.

First groove on [29]

First tooth on [47]

[29]

When reassembling [29], meet the first groove on [29] to the first tooth on [47] as shown.

[28]

Fig. DM14

(P-8)

[38]

(P-7)

turn

[40]

(L-5)

turn

(C-9)

[43]

(C-7)

[41]

turn

Fig. DM16

[42]

[37]

(P-6)

2-4-7 V79F1DA

Page 70

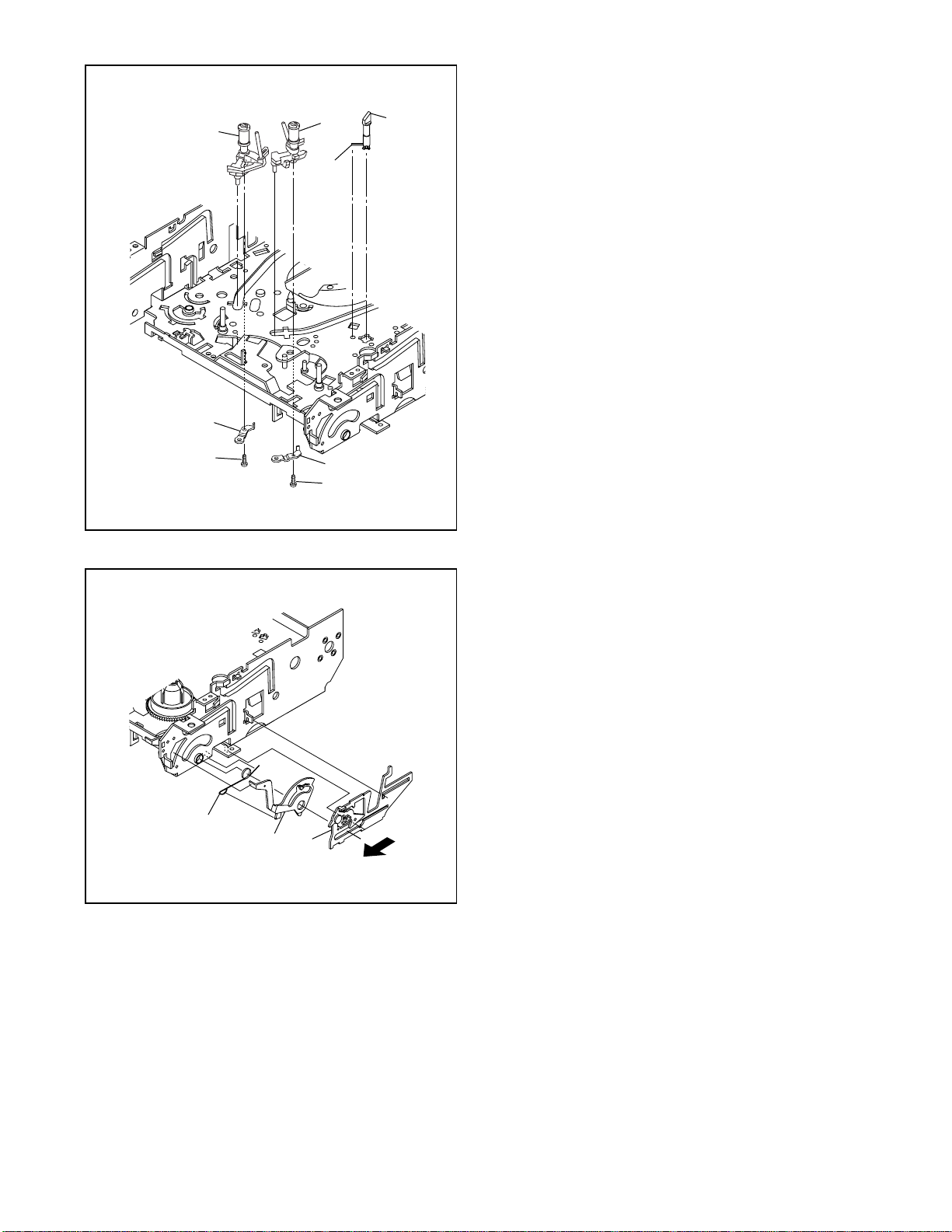

[44]

Slide Holder S

[45]

(L-3)

[46]

(S-17)

(P-9)

[48]

Slide Holder T

(S-18)

Fig. DM17

[47]

Slide

Fig. DM18

2-4-8 V79F1DA

Page 71

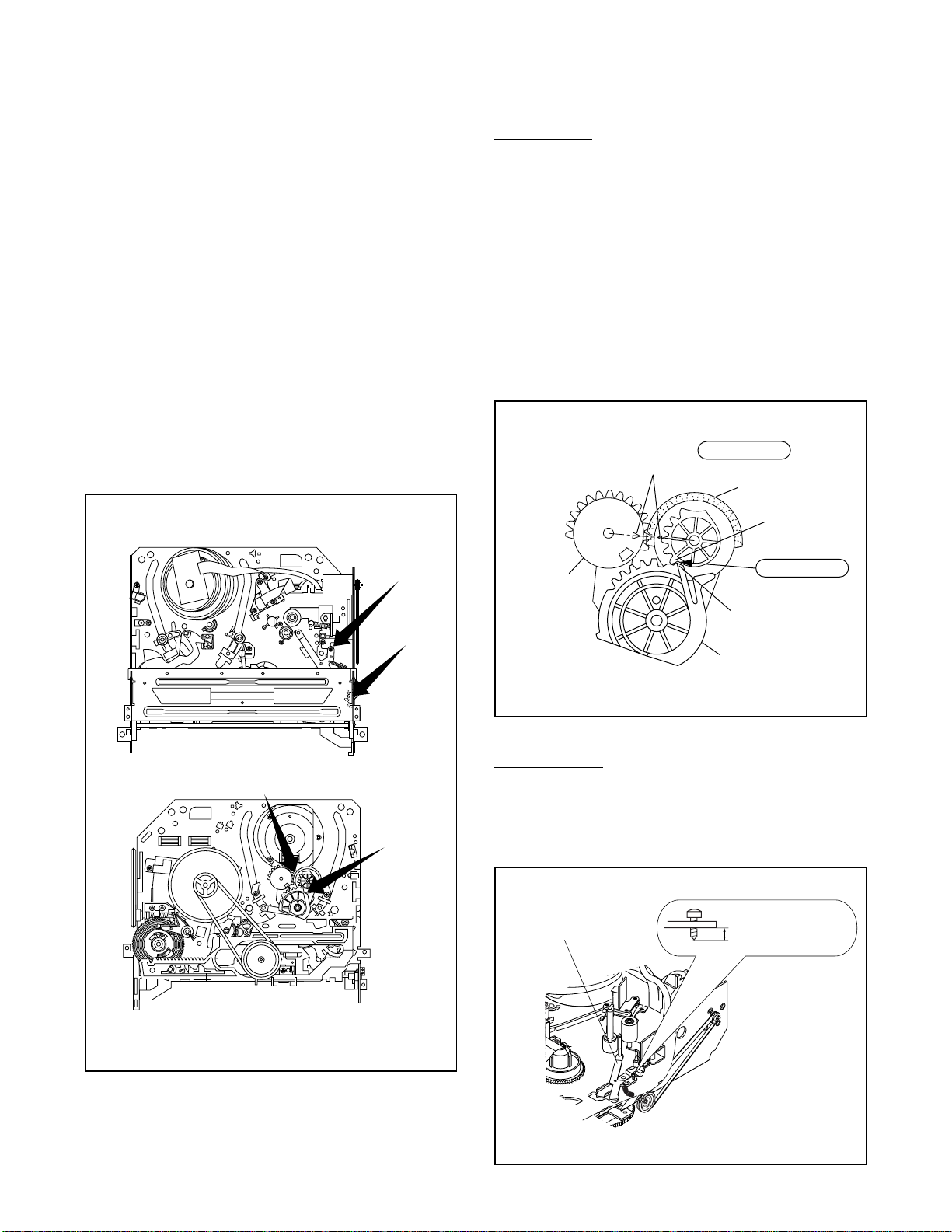

ALIGNMENT PROCEDURES OF MECHANISM

The following procedures describe how to align the individual gears and levers that make up the tape loading/unloading mechanism. Since information about the state of the mechanism is provided to the System Control Circuit only through the Mode Switch, it is essential that the correct relationship between individual gears and levers be maintained.

All alignments are to be performed with the mechanism in Eject mode, in the sequence given. Each

procedure assumes that all previous procedures have been completed.

IMPORTANT:

If any one of these alignments is not performed

properly, even if off by only one tooth, the unit will

unload or stop and it may result in damage to the

mechanical or electrical parts.

Alignment points in Eject Position

Top View

Alignment [a]

Alignment 3

Alignment 1

Loading Arm, S and T Assembly

Install Loading Arm S and T Assembly so that their

triangle marks point to each other as shown in Fig. AL2.

Alignment 2

Mode Gear

Keeping the two triangles pointing at each other, in-

stall the Loading Arm T Assembly so that the last tooth of the gear meets the most inside teeth of the Mode Gear. See Fig. AL2.

Alignment 1

Triangle Marks

Loading Arm T Assembly

Loading Arm S Assembly

Last Tooth

Alignment 2

Most inside teeth of Mode Gear

Mode Gear

Bottom View

Alignment [a] can be done independently of any other alignment.

Alignment 1

Alignment 2

Fig. AL1

Fig. AL2

Alignment [a]

Tape Guide Assembly

Measurement of the screw must be as specified in Fig. AL3.

Tape Guide Assembly

Screw

3.25 – 0.1 mm

0.128 – 0.004 inch

This alignment can be done independently of any other alignment.

Fig. AL3

2-4-9 H75A3APM

Page 72

Alignment 3

Cam Gear (A), Rack Assembly

Install the Rack Assembly so that the first tooth on

the gear of the Rack Assembly meets the first

groove on the Cam Gear (A) as shown in Fig.

AL4.

Top View

First groove on the Cam Gear (A)

Cam Gear (A)

Alignment 3

First tooth

Gear on Rack Assembly

Fig. AL4

2-4-10 H75A3APM

Page 73

DECK EXPLODED VIEWS

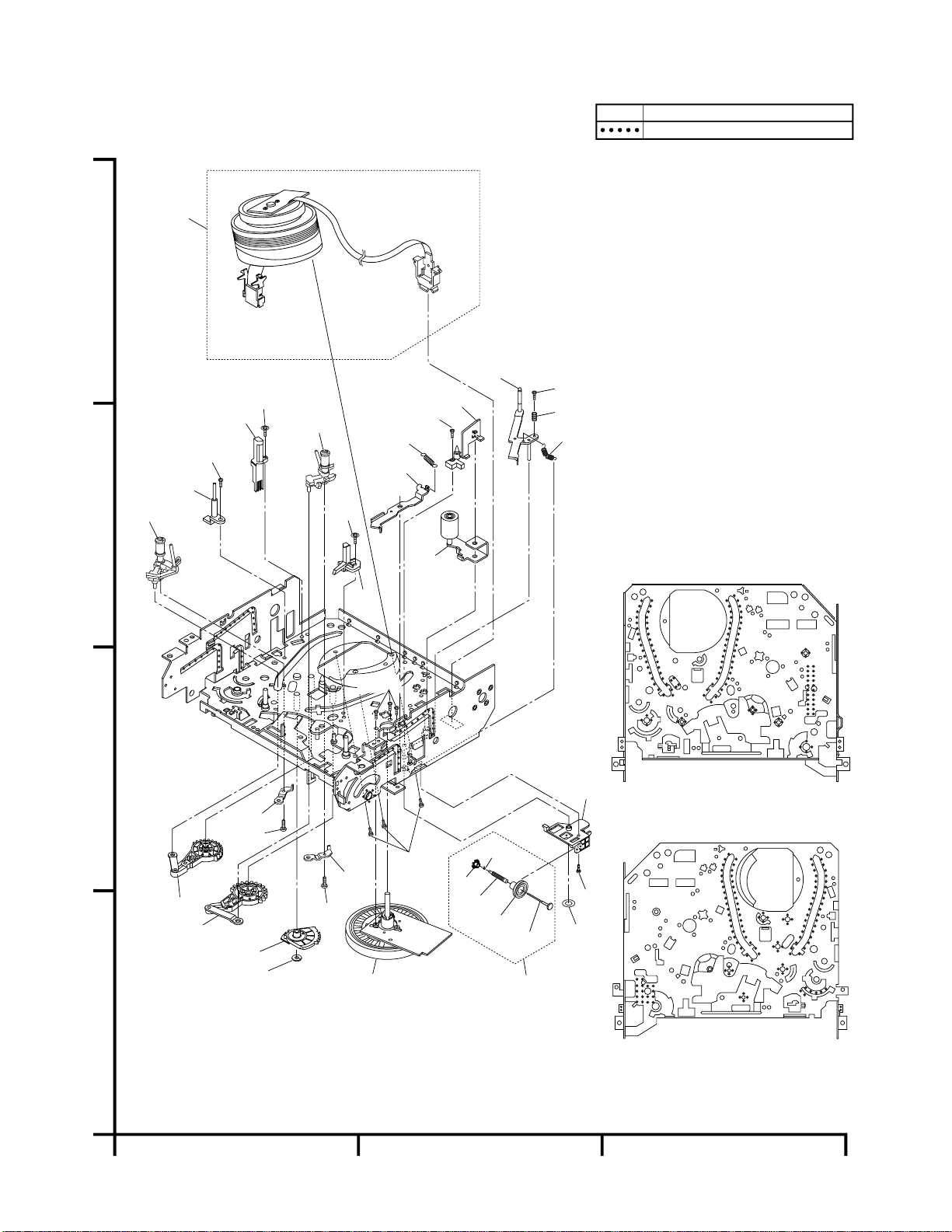

Deck Mechanism View 1

L1191

B73

L1463

B523

B10

L1053

B411

B567

L1471

B410

B494

B35

Mark Description

Floil G-374G

L1460 B552

B550

(Blue grease)

B74

L1051

Chassis Assembly Top View (Grease Point)

B12

B11

B576

L1482

B492

B571

L1482

B577

B37

L1450

B426

B121

B560

B126

B122

B501

L1466

B510

Some Ref. Numbers are not in sequence.

ABC

Chassis Assembly Bottom View (Grease Point)

2-5-1 V79F1DEX

Page 74

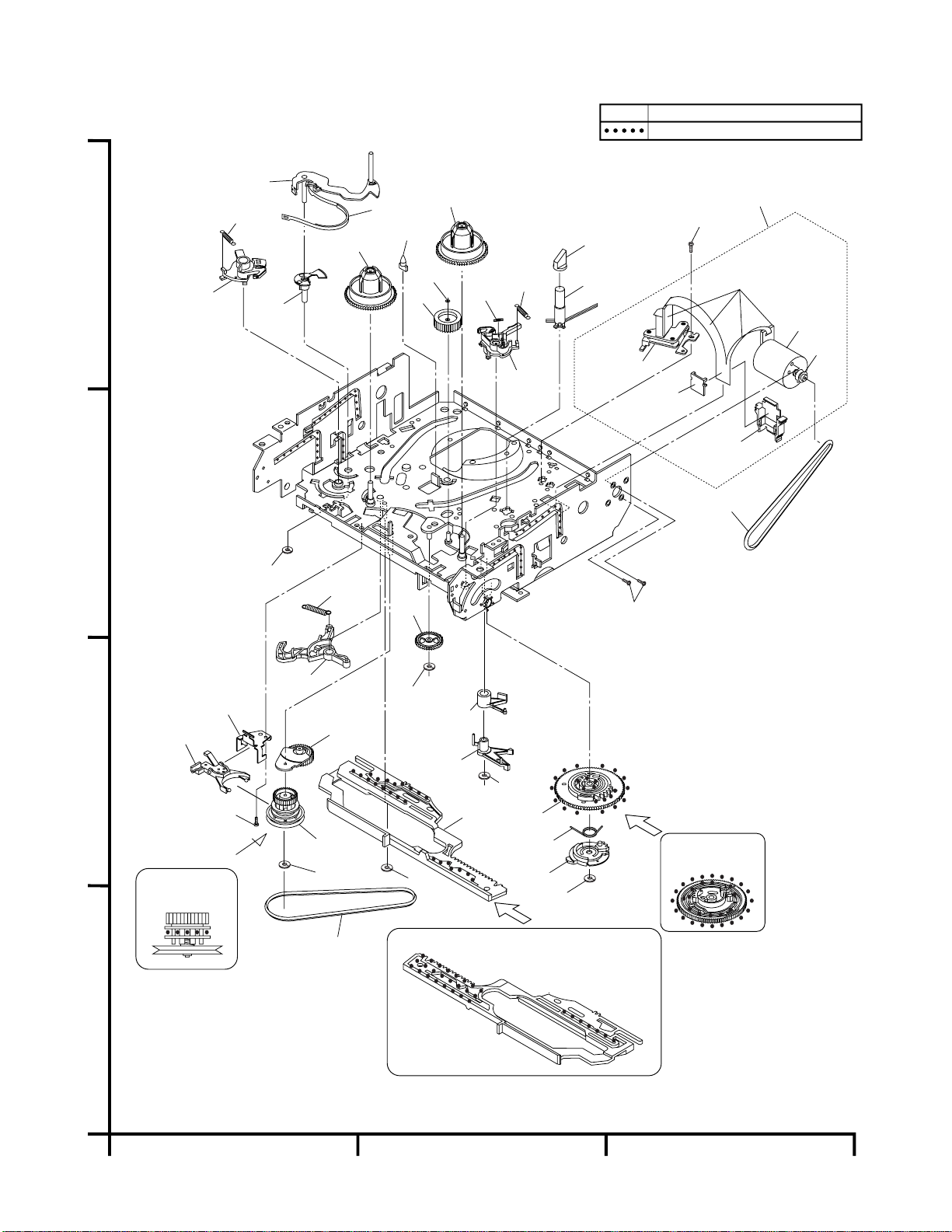

Deck Mechanism View 2

B27

B508

B414

B499

B573

B487

B556

B564

B574

B518

B521

B520

B416

Mark Description

Floil G-374G

L1406

B148

B524 (Motor

B522

B31

B404

PCB Ass y)

B403

(Blue grease)

B558

B557

B512

B417

B565

B568

B566

B551

B133

L1469

B559

View for A

(Grease point)

B516

B52

B572

B507

B86

B569

B505

B491

B488

B570

B502

B513

Bottom Side (Grease point)

L1151

B525

Bottom Side (Grease point)

Some Ref. Numbers are not in sequence.

DEF

2-5-2 V79F1DEX

Page 75

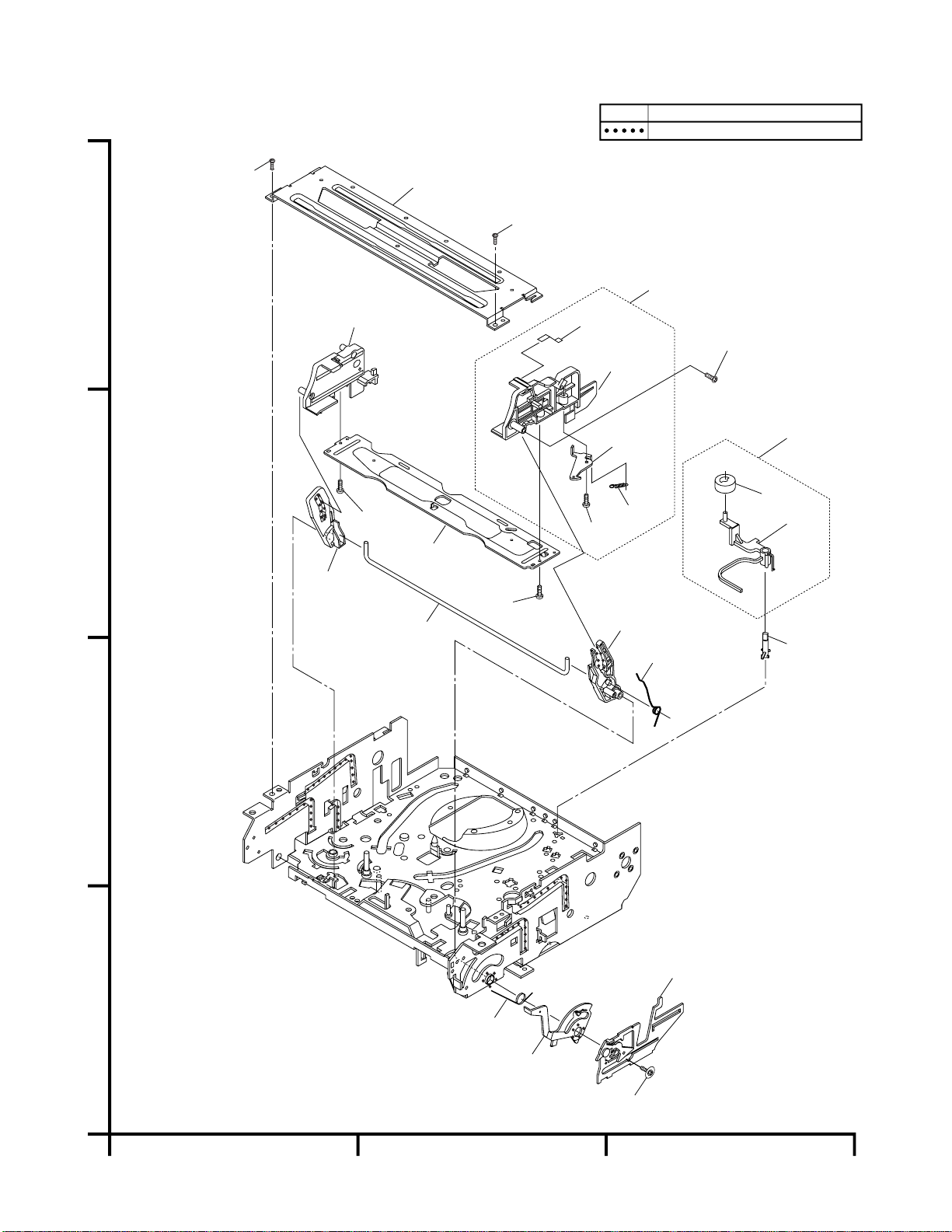

Deck Mechanism View 3

Mark Description

Floil G-374G

(Blue grease)

L1321

B347

L1321

B472

B355

B562

L1341

B482

L1341

B563

B319

B354

L1461

B483

B425

B300

B313

L1483

B529

B360

B359

B361

B555

B561

B303

Some Ref. Numbers are not in sequence.

B514

GH I

2-5-3 V79F1DEX

Page 76

DECK PARTS LIST

For not coded parts please use PHILIPS standard components. The standard Sparepart Catalogue can be ordered with Service Code 3103 785 20930.

 Pos. Description Service Code

B10 MOVING GUIDE T PREPARATION MK10 9965 000 08431 B11 LOADING ARM T ASSEMBLY MK10 9965 000 08432 B12 LOADING ARM S ASSEMBLY MK10 9965 000 08433 B121 WORM MK10 9965 000 08434 B122 WORM SHAFT MK10 9965 000 08435 B126 PULLEY MK10 9965 000 08436 B133 IDLER ASSEMBLY MK10 9965 000 08437 B148 TG CAP MK6 4822 462 11189 B2 CYLINDER ASSEMBLY MK10 PAL 4HD H 9965 000 09308 B27 TENSION LEVER SUB ASSEMBLY MK10 9965 000 08439 B3 LOADING MOTOR ASSEMBLY MK10 9965 000 08440 B300 C DRIVE LEVER R MK10 9965 000 08441 B303 F DOOR OPENER A MK10 9965 000 08442 B31 AC HEAD ASSEMBLY MK10 9965 000 08603 B313 C.DRIVE SPRING MK10 9965 000 08444 B319 CASSETTE SPRING MK9 9965 000 05288 B347 GUIDE HOLDER MK10 9965 000 08445 B35 TAPE GUIDE ASSEMBLY MK10 9965 000 08446 B354 SLIDER R MK10 9965 000 08447 B355 SLIDER L MK10 9965 000 08448 B37 CAPSTAN MOTOR 288/CCM002 9965 000 08451 B403 ACH CONNECTOR AN(9P) MK9 9965 000 05298 B404 ACH CONNECTOR 9B MK10 9965 000 08640 B410 PINCH ARM(A) ASSEMBLY MK10 9965 000 08452 B411 PINCH SPRING MK10 9965 000 08453 B414 M BRAKE S ASSEMBLY MK10 9965 000 08454 B416 M BRAKE T ASSEMBLY MK10 9965 000 08455 B417 TENSION SPG B MK10 9965 000 08456 B425 LOCK LEVER SPRING MK10 9965 000 08457 B426 KICK PULLEY MK10 9965 000 08458 B472 SLIDER R ASSEMBLY MK10 9965 000 08459 B482 CASSETTE PLATE MK10 9965 000 08460 B483 LOCK LEVER MK10 9965 000 08461 B487 BAND BRAKE MK10 9965 000 08462 B488 MODE LEVER MK10 9965 000 08463 B491 CAM GEAR(A) MK10 9965 000 08464 B492 MODE GEAR MK10 9965 000 08465 B494 DOOR OPENER B MK10 9965 000 08466 B499 T LEVER HOLDER MK10 9965 000 08467 B501 WORM HOLDER MK10 9965 000 08468 B502 CAM GEAR(B) MK10 9965 000 08469 B505 P.S.W F 6*2.55*0.5 4822 532 13158 B507 REEL WASHER MK9 5*2.1*0.5 9965 000 05342 B508 S BRAKE SPRING MK10 9965 000 08470 B513 PSCW(752605) MK10 9965 000 08471 B514 SCREW RACK MK10 9965 000 08641 B518 P.S.W CUT 1.6X4.0X0.5T 4822 532 13159 B52 CAP BELT MK10 9965 000 08593 B520 T BRAKE SPRING MK10 9965 000 08481 B521 SOFT SPRING MK10 9965 000 08482 B522 TG POST ASSEMBLY MK10 9965 000 08483

 Pos. Description Service Code

B523 FIRST POST ASSEMBLY MK9 9965 000 05346 B524 MOTOR PCB ASSEMBLY(M) MK10 9965 000 08502 B525 LDG BELT MK10 9965 000 08503 B550 TAPE GUIDE ARM SPRING MK6 9965 000 08511 B551 FF ARM MK10 9965 000 08512 B552 ADJUST SPRING MK10 9965 000 08513 B555 RACK ASSEMBLY MK10 9965 000 08517 B556 STANDARD POST MK9 9965 000 08518 B557 MOTOR PULLEY U5 9965 000 08519 B558 LOADING MOTOR M31E-1 R14 7215 9965 000 08520 B559 CLUTCH ASSEMBLY MK10 9965 000 08521 B560 KICK SPRING MK10 9965 000 08522 B561 F DOOR SPRING MK10 9965 000 08523 B562 C DRIVE LEVER L MK10 9965 000 08524 B563 SLIDER SHAFT MK10 9965 000 08525 B564 M GEAR MK10 9965 000 09315 B565 SENSOR GEAR MK10 9965 000 08530 B566 FF ARM HOLDER MK10 9965 000 08531 B567 PINCH ARM(B) MK10 9965 000 08544 B568 BT ARM MK10 9965 000 08545 B569 CAM HOLDER MK10 9965 000 08546 B570 CAM RACK SPG MK10 9965 000 08550 B573 REEL S MK10 9965 000 08551 B574 REEL T MK10 9965 000 08552 B576 SLIDE HOLDER(S) MK10 9965 000 08553 B577 SLIDE HOLDER(T) MK10 9965 000 08554 B73 FE HEAD ASSEMBLY MK10 9965 000 09193 B74 PRISM MK10 9965 000 08555 B8 PULLEY ASSEMBLY MK10 9965 000 08559 B86 F BRAKE ASSEMBLY MK10 9965 000 09290 B9 MOVING GUIDE S PREPARATION MK10 9965 000 08560 L1051 SCREW, B-TIGHT M2.6X6 PAN HEAD+ 9965 000 05359 L1053 SCREW, S-TIGHT M2.6X8 WASHER HEAD+ 9965 000 05375 L1151 SCREW, SEMS M2.6X4 PAN + 9965 000 08642 L1321 SCREW, S-TIGHT M3X6 BIND HEAD+ 4822 502 14009 L1341 SCREW, P-TIGHT M2.6X6 BIND HEAD+ 4822 502 14669 L1406 AC HEAD SCREW MK9 9965 000 08643 L1450 SCREW, SEMS M2.6X5 PAN HEAD+ 4822 502 14671 L1460 SCREW M2.6X6 PAN HEAD + 9965 000 08644 L1461 SCREW, P-TIGHT M2.6X6 WASHER HEAD+ 4822 502 30471 L1463 SCREW, S-TIGHT M2.6X4 BIND HEAD+ 9965 000 05362 L1466 SCREW, S-TIGHT M2.6X6 BIND HEAD+ 9965 000 05364 L1469 SCREW, S-TIGHT M2.6X6 PAN HEAD + 4822 502 30471 L1482 SCREW, B-TIGHT M2.3X4 BIND HEAD+ 9965 000 08645 L1483 SCREW, P-TIGHT M2.6X8 BIND HEAD+ 4822 502 13821 L1483 SCREW PRISM MK7 4822 502 14597

20010601 2-6-1 H89F1DPL
