Philips VR401BMG99, VR601BMG99 User Manual

VCR

Video Cassette Recorder

Video Cassette Recorder

Owner’s Manual

Owner’s Manual

VR401BMG
VR601BMG

Once your purchase is registered, you’re eligible to receive all the privileges of owning this prod­uct. So complete and return the Warranty Registration Card enclosed with your purchase at
once. And take advantage of these important benefits.

MAC5097

Return your Warranty Registration Card today to

ensure you receive all the

benefits

you’re entitled to.

Warranty
Verification

Registering your product within
10 days confirms your right to
maximum protection under the
terms and conditions of your
warranty.

Owner
Confirmation

Your completed Warranty
Registration Card serves as
verification of ownership in the
event of product theft or loss.

Model
Registration

Returning your Warranty
Registration Card right away
guarantees you’ll receive all
the information and special
offers which you qualify for
as the owner of your model.

Congratulations on your purchase, and
welcome to the “family!”

Dear Magnavox product owner:

Thank you for your confidence in this product. You’ve selected one
of the best-built, best-backed products available today. And we’ll do
everything in our power to keep you happy with your purchase for
many years to come.
As a member of the Magnavox “family,” you’re entitled to protection
by one of the most comprehensive warranties and outstanding ser­vice networks in the industry.
What’s more, your purchase guarantees you’ll receive all the infor­mation and special offers for which you qualify, plus easy access to
accessories from our convenient home shopping network.
And most importantly, you can count on our uncompromising com­mitment to your total satisfaction.
All of this is our way of saying welcome - and thanks for investing in
a Magnavox product.

P.S. Remember, to get the most from your product,

you must return your Warranty Registration
Card within 10 days. So please mail it to us
right now!

R

E

G

I

S

T

R

A

T

I

O

N

N

E

E

D

E

D

W

I

T

H

I

N

1

0

D

A

Y

S

Hurry!

Know these

safetysymbols

This “bolt of lightning”

indicates uninsulated
material within your unit may
cause an electrical shock. For
the safety of everyone in your
household, please do not
remove product covering.

The “exclamation point”
calls attention to features

for which you should read
the enclosed literature closely
to prevent operating and
maintenance problems.

WARNING: TO PREVENT
FIRE OR SHOCK HAZARD,
DO NOT EXPOSE THIS
EQUIPMENT TO RAIN OR
MOISTURE.

CAUTION: To prevent elec­tric shock, match wide blade
of plug to wide slot, fully
insert.

ATTENTION: Pour éviter
les choc électriques, intro­duire la lame la plus large de la
fiche dans la borne correspon­dante de la prise et pousser
jusqu’au fond.

CAUTION

RISK OF ELECTRIC SHOCK

DO NOT OPEN

CAUTION: TO REDUCE THE RISK OF ELECTRIC SHOCK, DO NOT

REMOVE COVER (OR BACK). NO USER-SERVICEABLE PARTS

INSIDE. REFER SERVICING TO QUALIFIED SERVICE PERSONNEL.

t

s

For Customer Use

Below, enter your product’s model number and serial number, which are located on the rear of the cabinet.
Keep this information for future reference.

Model No. ______________________________________ Serial No. ____________________________

Introduction 3

Features

• Automatic Channel Setup

• Automatic Head Cleaner

• Automatic Operation Features

• Automatic Tracking Adjustment

• Blue Background

• Daylight-Savings Time

• Display Panel

• Front Panel Menu Access

• Hi-Fi Stereo Sound System (VR601BMG only)

• High Quality (HQ) System

• MTS (Multi-Channel Television Sound) System
(VR601BMG only)

• 19 micron head

• On-Screen Displays in English or Spanish

• One-Touch Recording

• Real-Time Counter

• Repeat Play

• S-VHS Quasi Play Back (SQPB)

• Special Effects Playback: Forward and Reverse
Searching; Still; Slow Motion

• Time Search

• Timer Recording

Safety Precautions

Warning: To prevent fire or shock hazard, do not expose
this equipment to rain or moisture.
Federal Communications Commission Warning: Any unau­thorized changes or modifications to this equipment void
the user’s authority to operate it.

This VCR is equipped with a High Quality (HQ) system and is com­patible with existing Video Home System (VHS) equipment.
Philips Consumer Electronics Company recommends that you use
only video cassette tapes which are labeled with the mark.
The use of other tapes may result in poor picture quality and exces­sive deposits on the video heads, which may not be covered by the
warranty if damage occurs.
The 19 micron head provides a better picture when you view tapes
recorded in slow speed (SLP).

Note to the Cable TV System Installer: This reminder is pro­vided to call the Cable TV system installer’s attention to Article 820­40 of the National Electrical Code, which provides guidelines for
proper grounding – in particular, specifying that the cable ground
shall be connected to the grounding system of the building, as close
to the point of cable entry as possible.

Declaration of Conformity

Model Number: VR401BMG/VR601BMG
Trade Name: Magnavox
Responsible Party: Philips Consumer Electronics

P.O. Box 14810
Knoxville, TN 37914
[phone]

As an ENERGY STAR®Partner, Philips Consumer Electronics
Company has determined that this product meets the
ENERGY STAR®guidelines for energy efficiency. ENERGY STAR

®

is a U.S. registered mark.
Using products with the ENERGY STAR®label can save energy. Saving
energy reduces air pollution and lowers utility bills.

Copyright 2000 Philips Consumer Electronics Company. All rights reserved.

Welcome to your VCR owner’s manual.

This manual describes the VR401BMG and the VR601BMG. The VR401BMG is a monaural (single sound
source) system, while the VR601BMG is a stereo system. Otherwise, the two models are exactly the same.
In this manual, the VR601BMG is illustrated. (The VR401BMG has single AUDIO IN/OUT jacks. Otherwise,
the VR401BMG looks exactly like the VR601BMG.)
This manual has seven sections: Setting Up Your VCR; Description of Controls; Basic Operations; Recording;
Playing; Additional Features; and Information You May Need. The instructions explain all of the VCR’s fea­tures, which are listed below. You cannot hurt your VCR by trying the features! So read on – and relax.

• Your new product, its packaging,
and this manual contain materials
that can be recycled and reused.
Specialized companies can recycle
your product to increase the
amount of reusable materials and
to minimize the amount that needs
to be properly disposed.
Your product uses batteries that
should not be thrown away when
depleted but should be disposed of
as small chemical waste.
Please find out about the local regu­lations on disposal of your old prod­uct, batteries, manual, and packag­ing whenever you replace existing
equipment.

Helpful Hint

4 Table of Contents

Setting Up Your VCR

Introduction . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .3

Table of Contents . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .4

Before Using Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .5

Hookups Without a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . .6-7

Hookups With a Cable Box/Direct Broadcast System . . . . . . . . . . . . . . . . . . . . . . . . .8-9

Hookups With a Stereo TV . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .10

Turning on Your VCR . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .11

Automatic Channel Setup . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .12-14

Setting the Clock . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .15

Daylight-Savings Time . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .16

Language Selection . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .17

Description of Controls

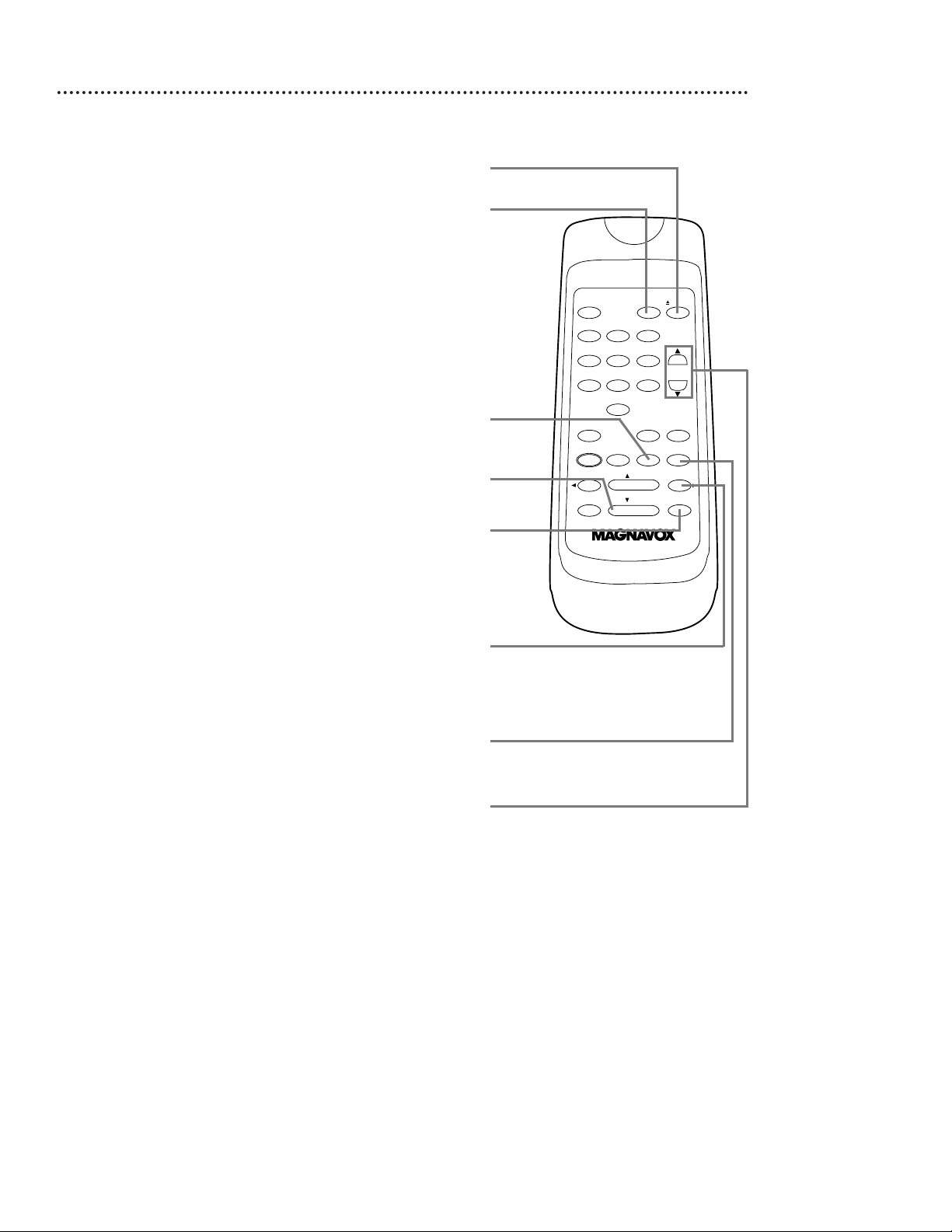

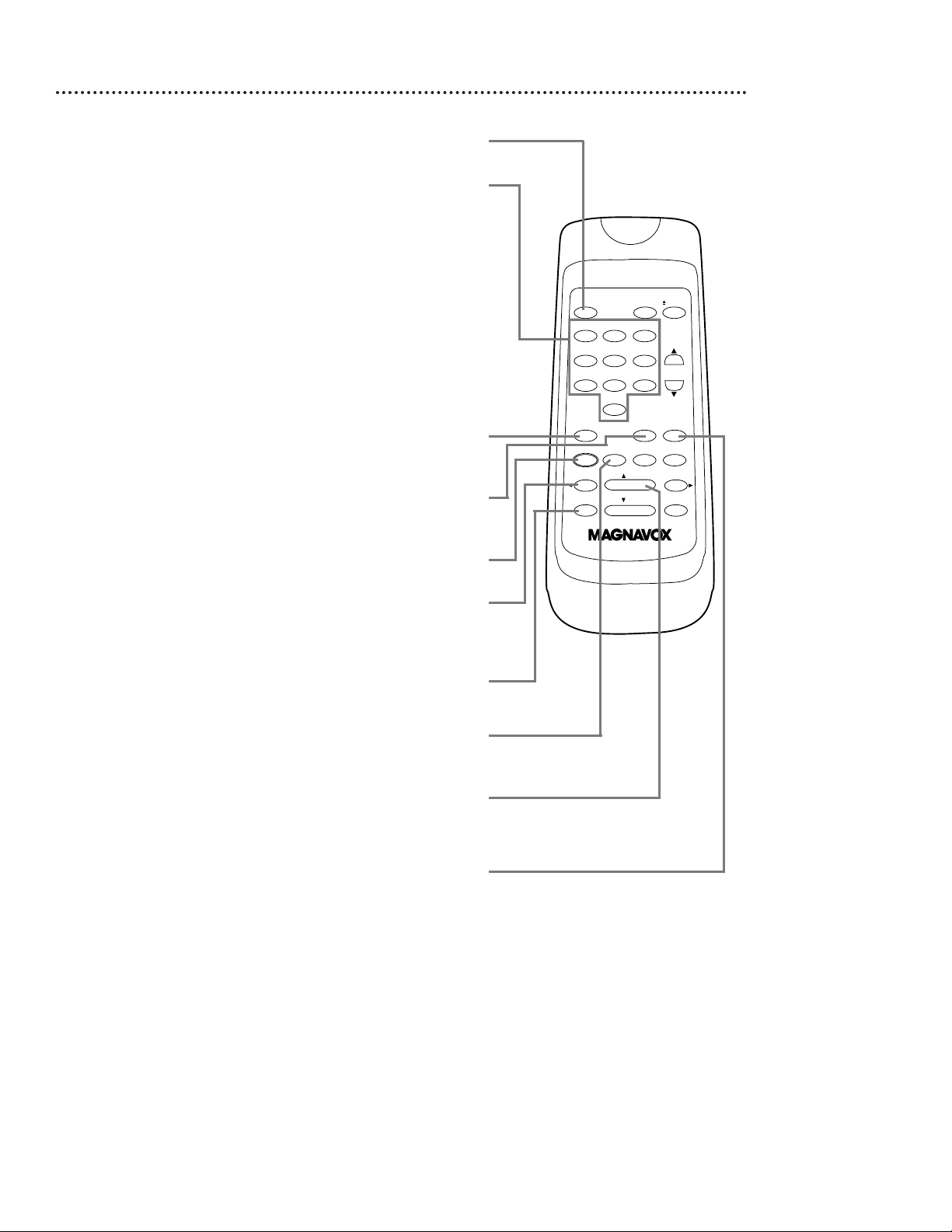

Remote Control Buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .18-19

On-Screen Status Displays . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .20

VCR Display Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .21

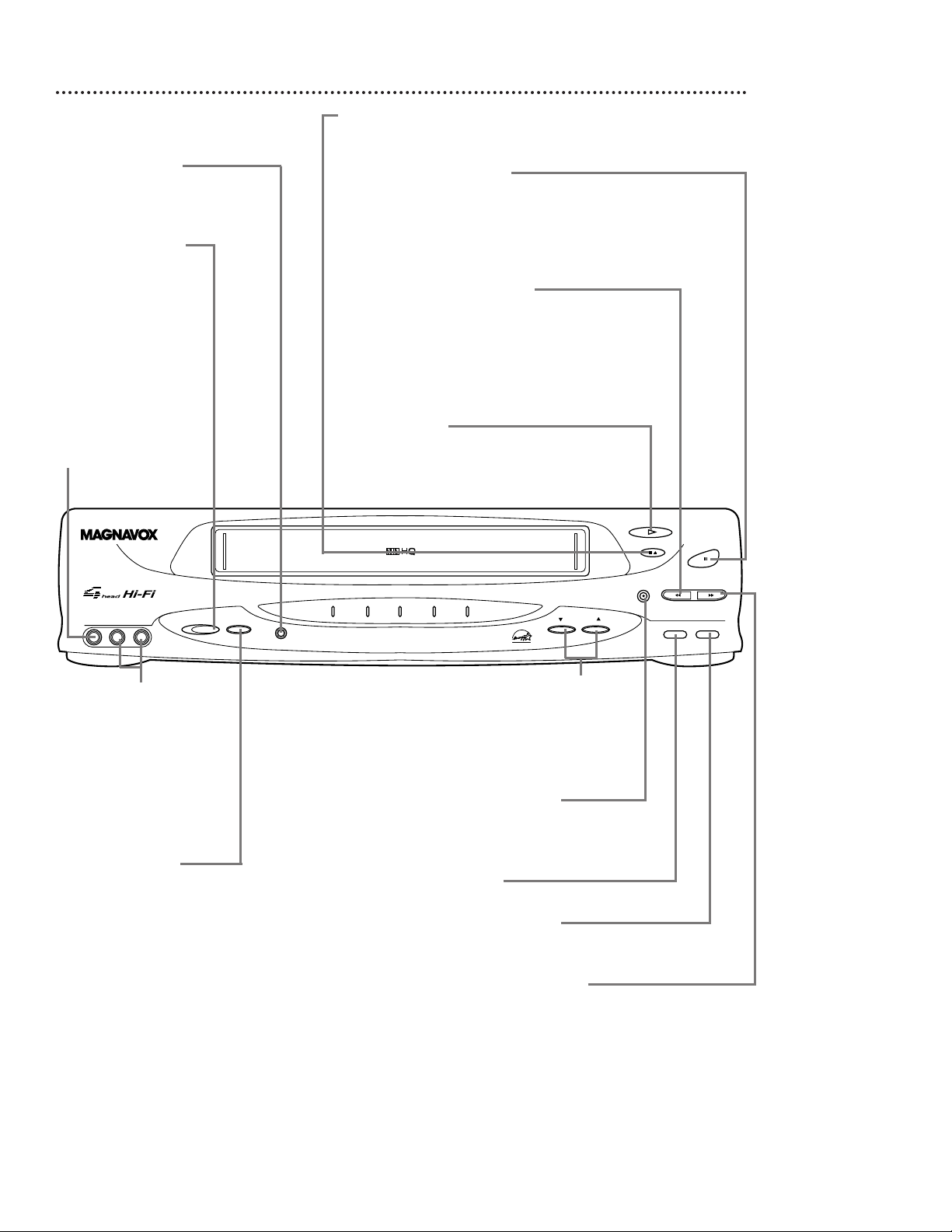

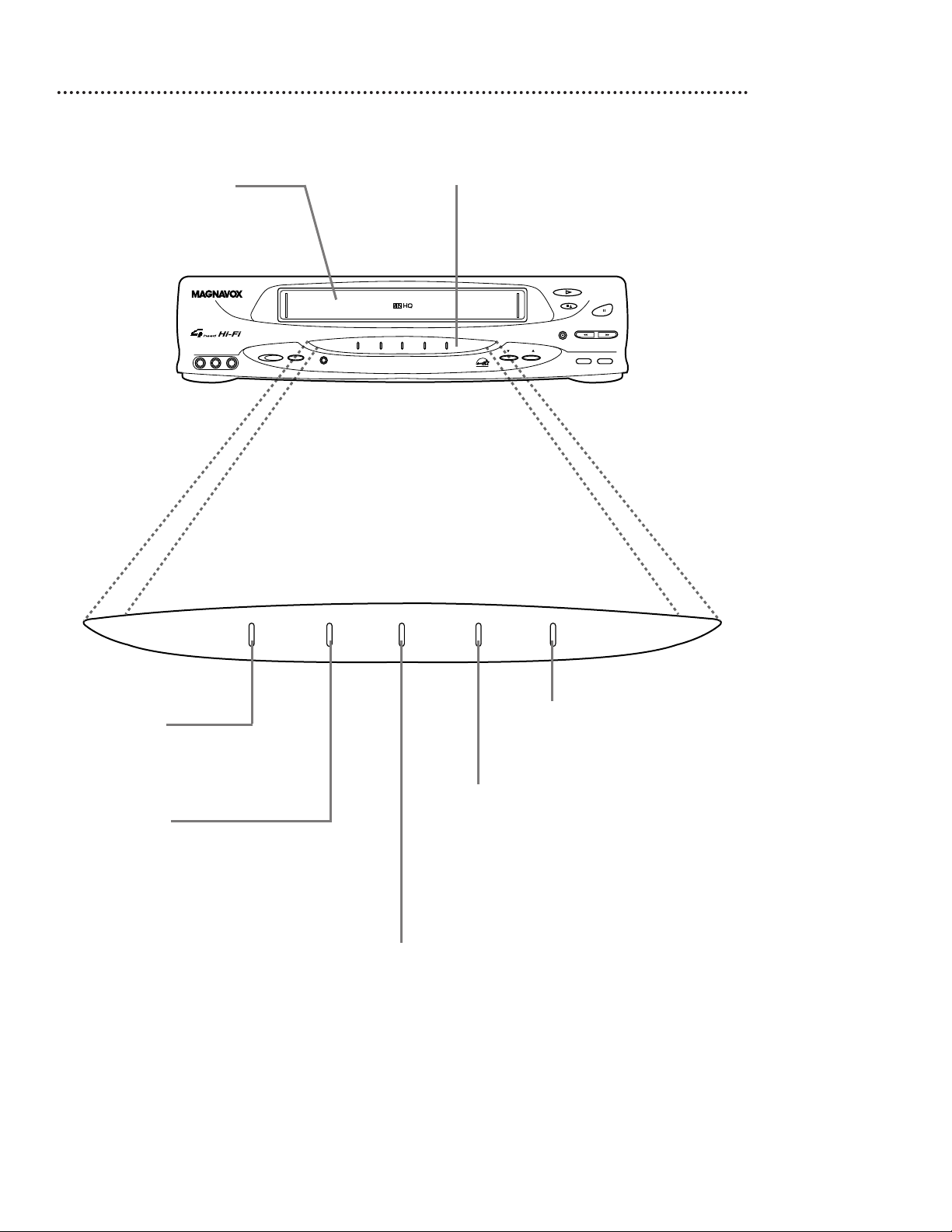

Front Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .22

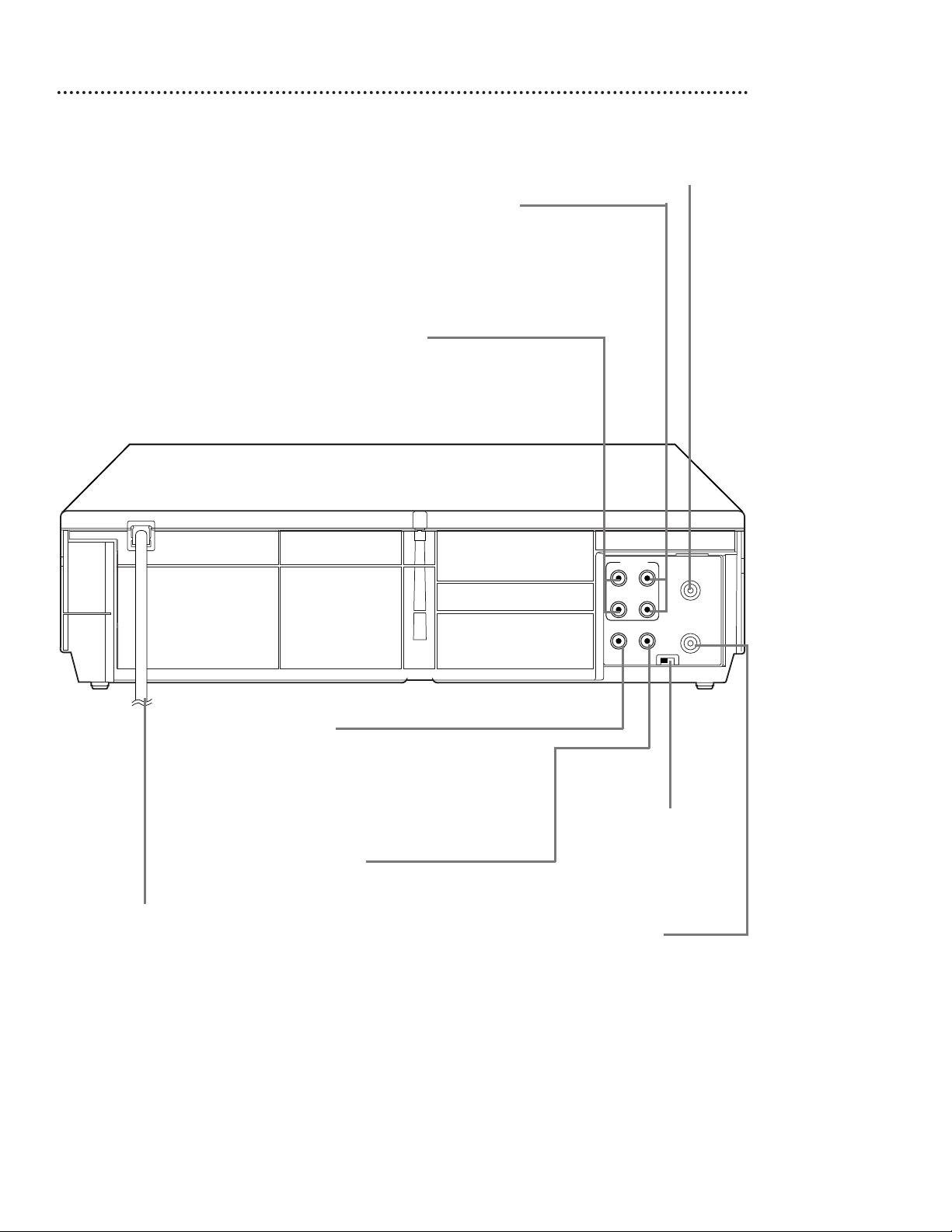

Rear Panel . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .23

Basic Operations

Playing . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .24

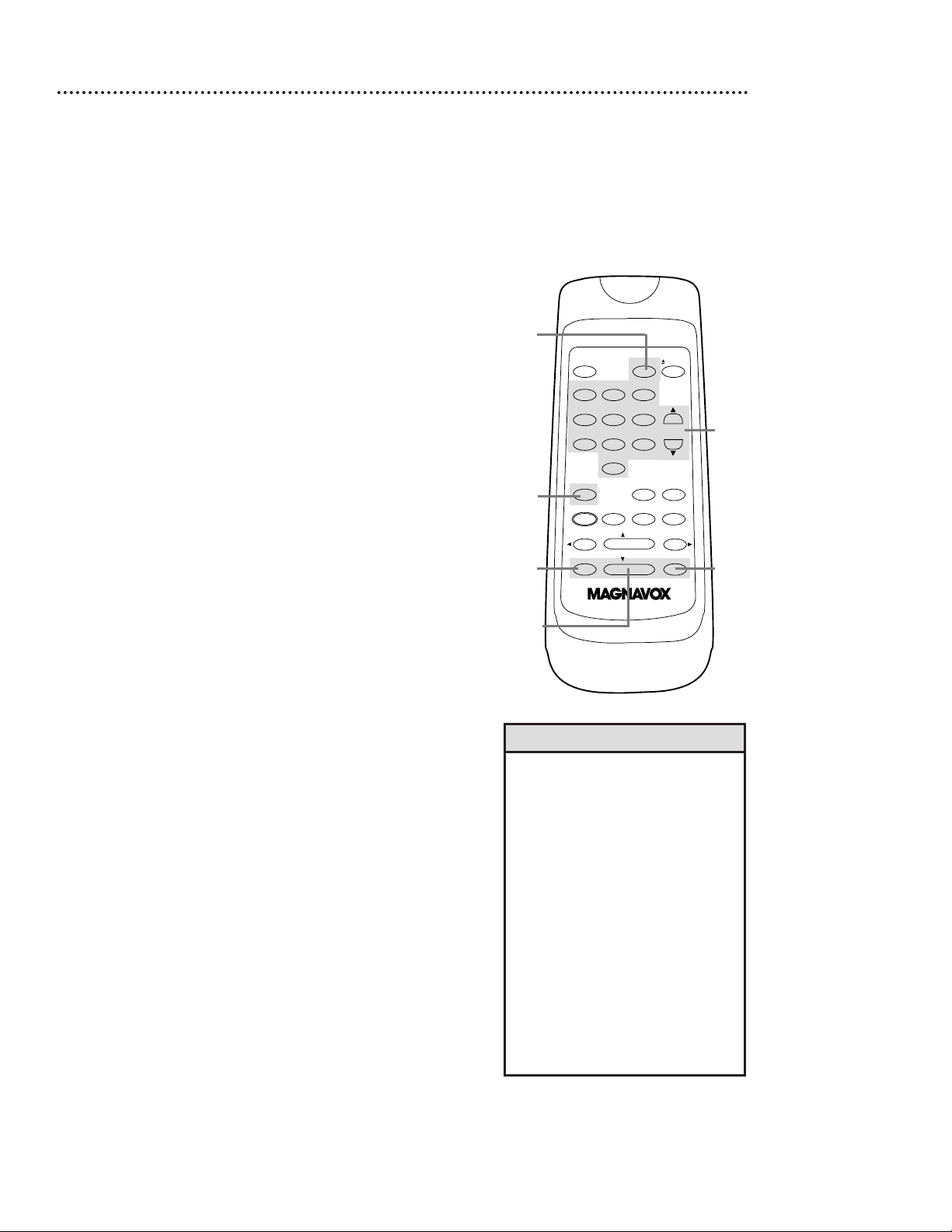

Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .25

Recording

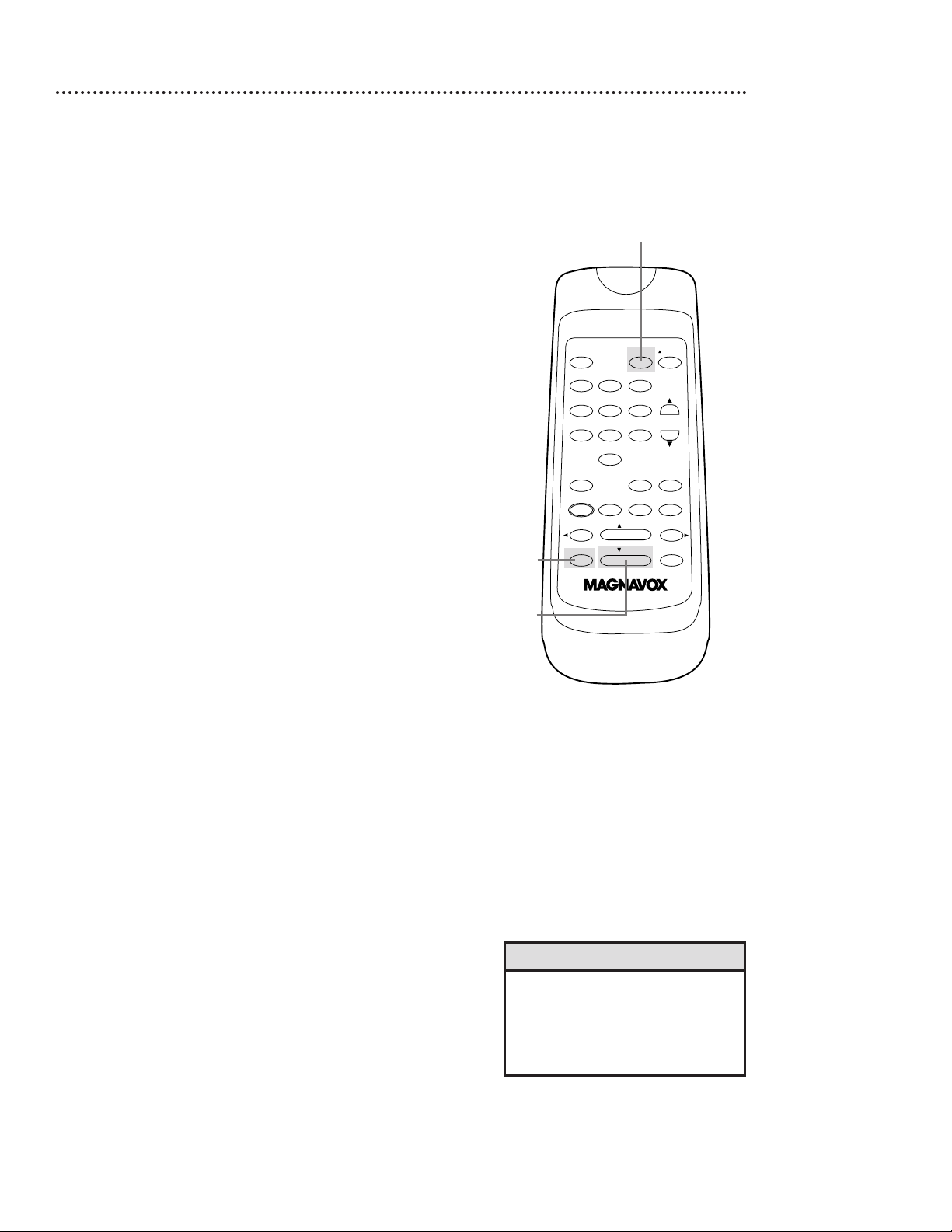

Recording One Channel/Watching Another . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .26

One-Touch Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .27

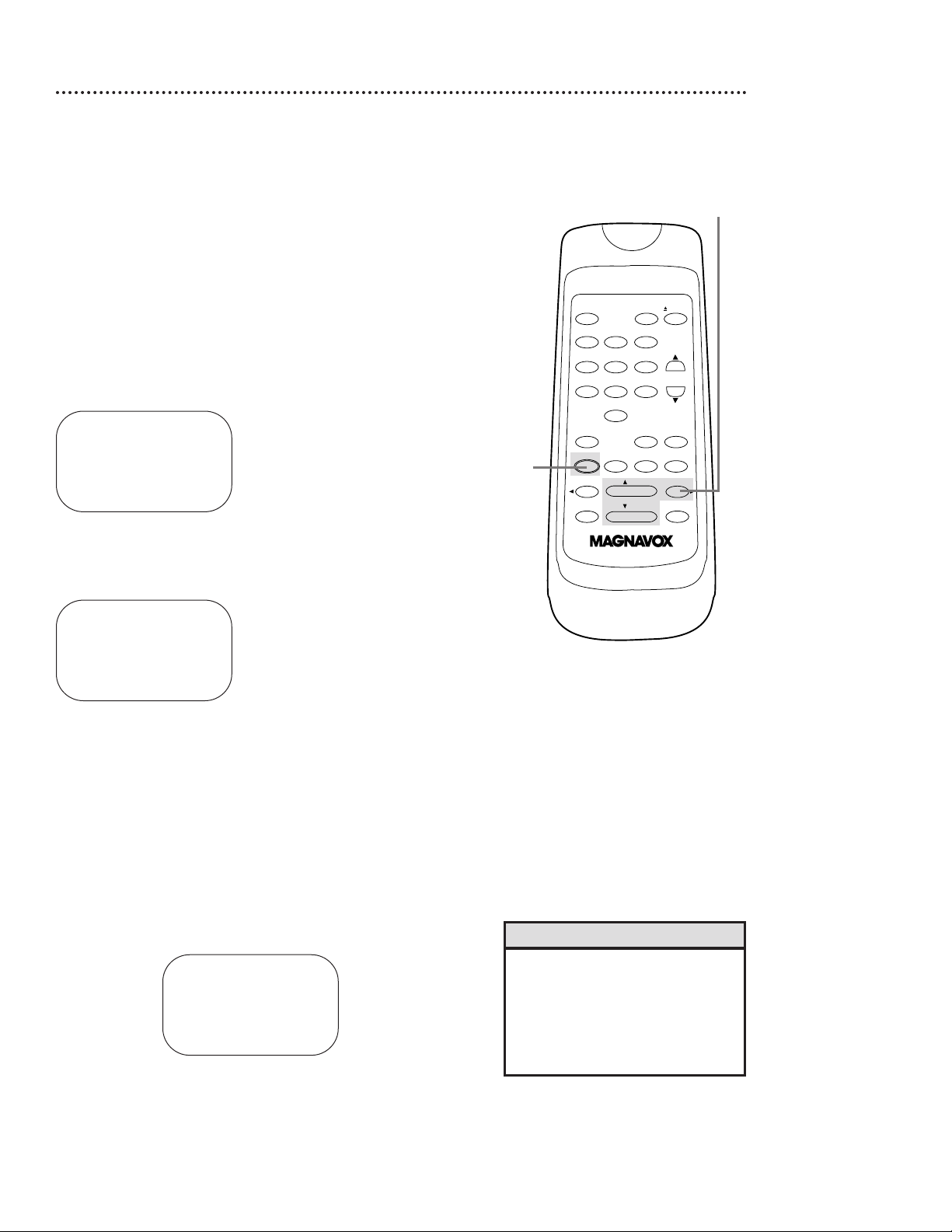

Timer Recording . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .28-31

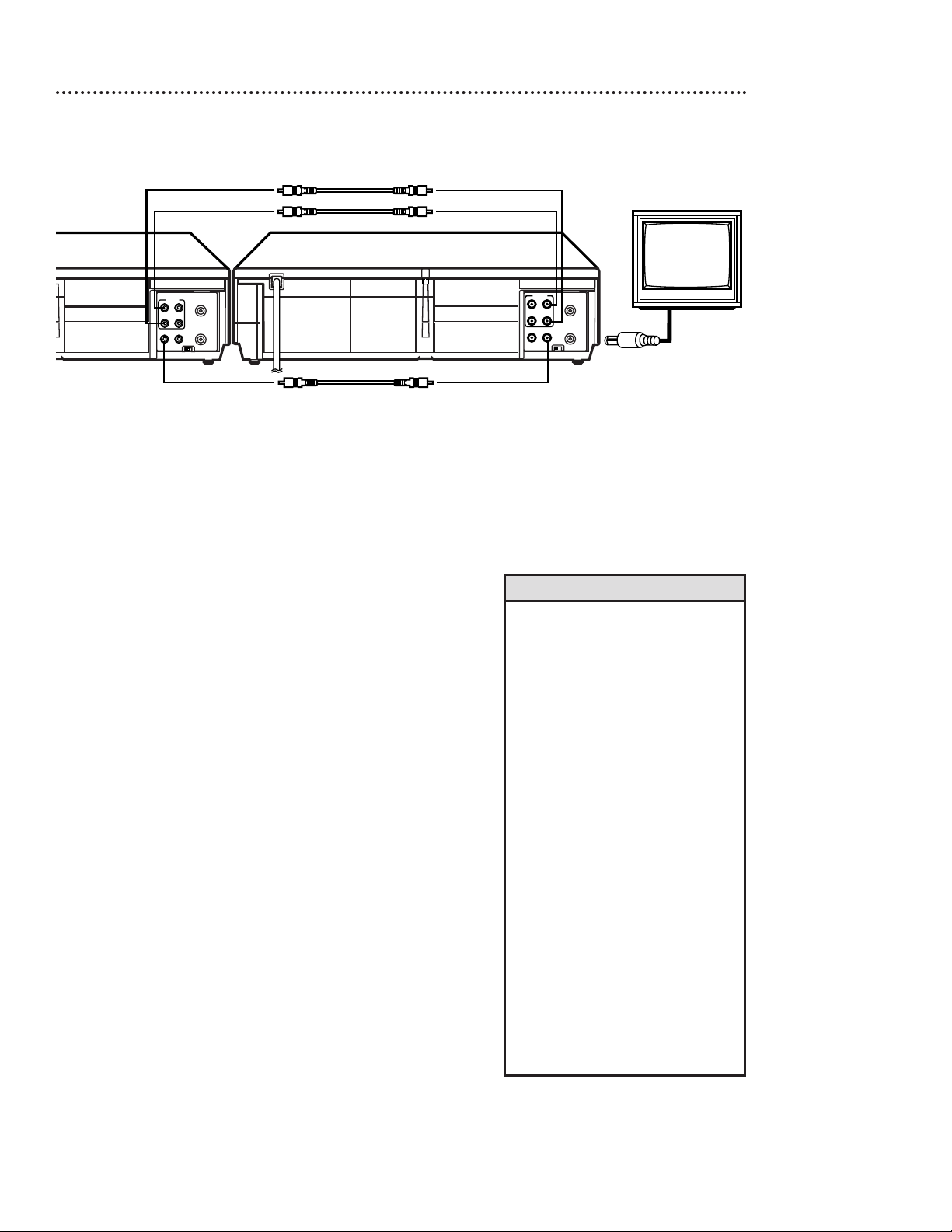

Rerecording (Tape Duplication) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .32

Playing

Repeat Play . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .33

Real-Time Counter Memory . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .34

Time Search . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .35

Special Effects Playback . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .36

Automatic Operation Features . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .37

Additional Features

Multi-Channel Television Sound System (VR601BMG only) . . . . . . . . . . . . . . . . . . .38-39

Hi-Fi Stereo Sound System (VR601BMG only) . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .40

Blue Background . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .41

Information You May Need

Helpful Hints . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .42-43

Glossary . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .44

Specifications . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .45

Limited Warranty . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .46

Index . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .47

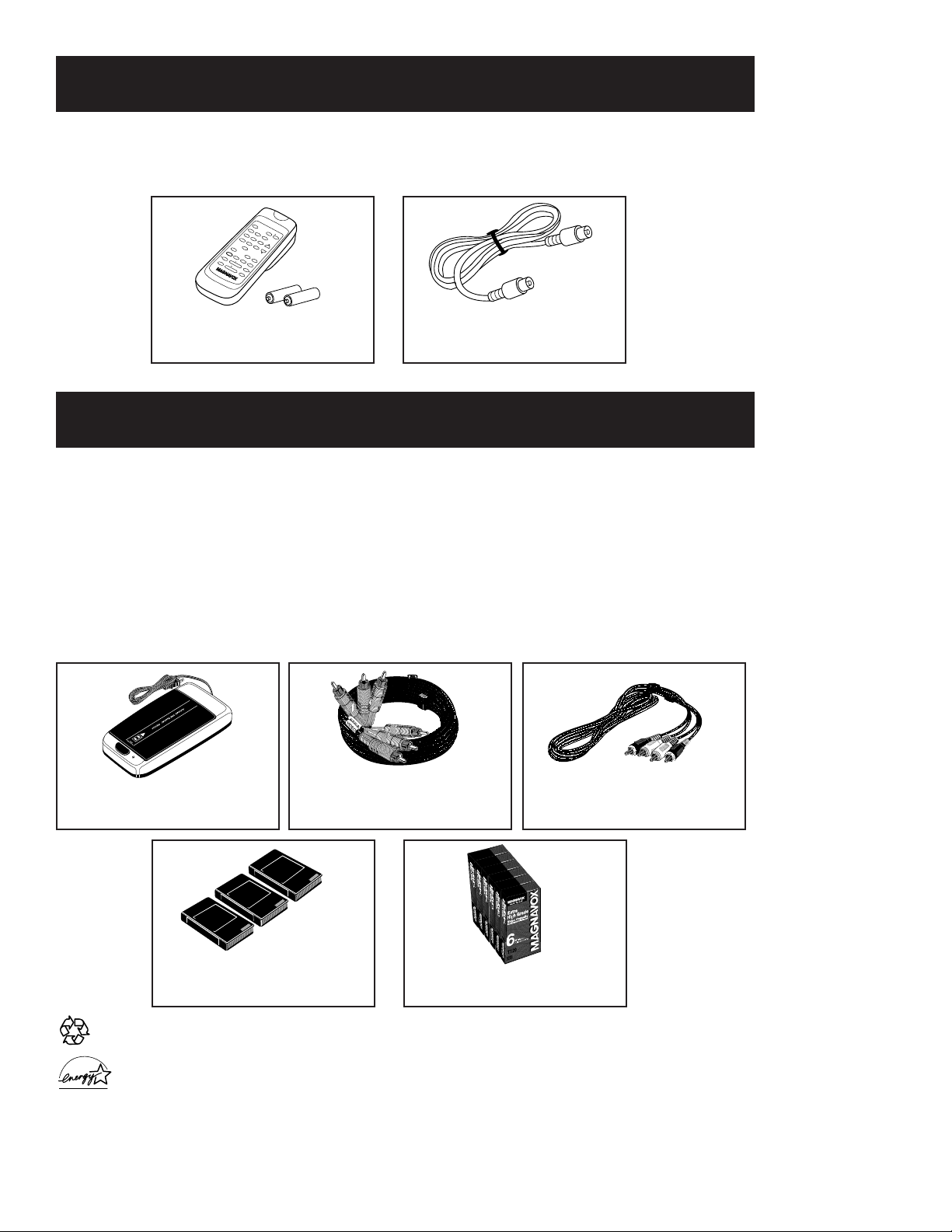

Accessories . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .48

● Use only tapes with the mark.

● Remove any light adhesive stick-on notes from the video cas-

sette tape before putting the tape in the VCR. Removable
labels can jam the VCR.

● Periodic maintenance is required to maintain your VCR’s excel-

lent performance. This VCR has an Automatic Head Cleaner.
However, the video heads will require replacement eventually.
Only an authorized service center should perform this service.

Before Using Your VCR 5

Putting Batteries in the Remote Control

1

Remove the battery compartment lid on the bottom of the

remote control by sliding it in the direction of the arrow.

2

Place two AA batteries inside the battery compartment

with their +and –ends aligned as indicated.

3

Replace the battery compartment lid.

VCR maintenance

Video cassette tapes have record tabs to ensure that recordings
are not accidentally erased.

1

To prevent recording, break off the tab with a screwdriver.

2

To allow recording, cover the hole with cellophane tape.

Recording Prevention

1
2

1
2

3

• Do not mix alkaline and man­ganese batteries.

• Do not mix old and new batteries.

Helpful Hints

CH3CH4

OUT

IN

ANT

AUDIO

R

L

VIDEO

OUT

IN

INOUT

OR

CH3

CH4

OUT

IN

ANT

AUDIO

R

L

VIDEO

OUT

IN

IN

OUT

75V
ANT /

CABLE

OR

75

ANT /

CABLE

6 Hookups Without a Cable Box/Direct Broadcast System

The basic VCR/TV connection – antenna/cable to VCR to TV – is shown below. If you have a
Cable Box or a Direct Broadcast System, please see pages eight-nine. If you have a Stereo
TV, please see page 10. After you hook up the VCR, go to page 11 to turn on the VCR.
(The VR601BMG is illustrated here. The VR401BMG has single AUDIO IN/OUT jacks.)

ANTENNA IN

Jack

(on back of TV)

Cable

(75 ohm)

Back of VCR

Antenna

Indoor/Outdoor

(300 ohm)

1

Disconnect the antenna or cable from your TV.

2

Connect the antenna or cable to the ANT(enna) IN Jack of your VCR.

Cable

(75 ohm)

Antenna

Indoor/Outdoor

(300 ohm)

CH3CH4

OUT

IN

ANT

AUDIO

R

L

VIDEO

OUT

IN

INOUT

CH 4

or

CH 3

CH3

CH4

OUT

IN

ANT

CH3 / CH4

Switch

CH3 CH4

AUDIO

R

L

VIDEO

OUT

IN

IN

OUT

CH3CH4

OUT

IN

ANT

AUDIO

R

L

VIDEO

OUT

IN

INOUT

75V
ANT /

CABLE

75

ANT /

CABLE

CH3

CH4

OUT

IN

ANT

AUDIO

R

L

VIDEO

OUT

IN

IN

OUT

RF coaxial cable

Antenna
or Cable

3

Connect the RF coaxial cable (supplied) to the OUT Jack on the back of the
VCR and to the ANTENNA IN Jack on the TV. (You may use either a snap-on

type (supplied) or screw-on type of coaxial cable, whichever you prefer.)

5

Set the CH3/CH4 switch on the back of the VCR to CH3 or CH4, whichever

channel is not used or least used in your area. Set the TV to the same channel. For
example, when playing a tape, if the CH3/CH4 switch is set to CH3, the TV should be on
channel 03.

Hookups Without a Cable Box/Direct Broadcast System (cont’d) 7

ANTENNA IN Jack

(on back of TV)

example only

4

Plug in the TV and the VCR.

6

You are ready to turn on the VCR. Please go to page 11 before turning on the
VCR.

8 Hookups With a Cable Box/Direct Broadcast System

There are two ways to connect your Cable Box/DBS to the VCR. With this connection:

● You may view any channel.

● You must select channels at the Cable Box/DBS. Channels cannot be changed at the VCR.

● You may not view a channel other than the one you are recording.

● You may not program channels at the VCR.

● You can only program a timer recording for one channel at a time. Set the TV and the VCR to the Cable

Box/DBS output channel (channel 03 or 04); set the CH3/CH4 switch to the same channel. Set your Cable
Box/DBS to the channel you want to record. When you enter the channel you want to record in a timer
recording, select channel 03 or 04 (the Cable Box/DBS output channel). (This is step 5 on page 29.) Leave the
Cable Box/DBS on for a timer recording.

AUDIO

R

L

VIDEO

OUT

IN

IN

OUT

CH3 CH4

OUT

IN

ANT

OUT

IN

75

ANT /

CABLE

TV’s

ANTENNA IN

Jack

Cable Box/DBS

VCR

Recording/Viewing Any Channel

Connections

1

With the VCR on and in VCR position (the VCR/TV light will appear on the dis­play panel), use the CHANNEL o/p buttons to set the VCR to the

Cable Box/DBS output channel (channel 03 or 04). Set the CH3/CH4
switch to the same channel.

2

Set the TV to the same channel to which you set the VCR.

3

Select the channel you want to view/record at the Cable Box/DBS.

1

Connect a Cable signal to the IN Jack on the Cable Box/DBS.

2

Use an RF coaxial cable (supplied) to connect the OUT Jack on the Cable
Box/DBS to the ANT(enna) IN Jack on the VCR.

3

Use a second RF coaxial cable to connect the OUT Jack on the VCR to the
TV’s ANTENNA IN Jack.

1

2

3

Cable
Signal

RF coaxial

cable

RF coaxial

cable

Hookups With a Cable Box/Direct Broadcast System (cont’d) 9

R

L

VIDEO

IN

OUT

IN

OUT

AUDIO

CH3CH4

OUT

IN

ANT

IN

OUT

75

ANT /

CABLE

With this connection:

● You may watch one channel while recording another.

● You may not record scrambled channels.

Recording One Channel/Watching Another

1

Put the Cable Box/DBS on the same channel as the
VCR’s CH3/CH4 switch. Set the TV to the Cable
Box/DBS output channel (03 or 04).

Then, with the VCR in VCR position (the VCR/TV light will
appear on the display panel), use the CHANNEL o/p but-

tons to select the channel you want to record at the
VCR. Start the recording.

2

Press the VCR/TV button once to put the VCR in TV
position. (The VCR/TV light will disappear.)

3

Select the channel you want to watch at the Cable
Box/DBS.

TV’s ANTENNA

IN Jack

Cable Box/DBS

VCR

• When you play a tape, make sure
the Cable Box/DBS is set to the
same channel as the CH3/CH4
switch on the VCR. Set the TV to
the Cable Box/DBS output channel
(03 or 04).

Helpful Hint

1

Connect a Cable signal to the VCR’s ANT(enna) IN Jack.

2

Use an RF coaxial cable (supplied) to connect the OUT Jack on
the VCR to the IN Jack on the Cable Box/DBS.

3

Use a second RF coaxial cable to connect the OUT Jack on the
Cable Box/DBS to the ANTENNA IN Jack on the TV.

1

2

3

Connections

Cable
Signal

RF coaxial

cable

RF coaxial

cable

10 Hookups with a Stereo TV

● Audio and Video cables are not supplied.

1

Connect the antenna or cable to the ANT(enna) IN Jack on the back of the VCR.

2

Connect a video cable to the yellow VIDEO OUT Jack on the back of the VCR. Then, connect
the other end of the video cable to the VIDEO IN Jack on your TV.

3

VR601BMG: Connect a stereo audio cable to the red and white AUDIO OUT Jacks on the back
of the VCR, matching cable colors to the jack colors. Then, connect the other end of the audio
cable to the AUDIO IN Jacks on your TV, again matching cable colors to the jack colors.

VR401BMG: Connect an audio cable to the white AUDIO OUT Jack on the back of the VCR.
Then, connect the other end of the audio cable to the AUDIO IN Jack on your TV.

(If your TV has Right and Left AUDIO IN Jacks, you must use a “Y” splitter audio cable as illustrated to deliver
audio to the TV’s right and left channels.) This hookup will not give you stereo sound. To get stereo sound, use
the connections on pages six - seven and select the channel to be viewed at the TV (with the VCR turned off).

4

Turn on your TV, making sure it is in Line Input mode. Please refer to your TV owner’s manual for details.

CH3CH4

OUT

IN

ANT

AUDIO

R

L

VIDEO

OUT

IN

INOUT

antenna or

cable to

ANT(enna)

IN Jack

Video Cable

Stereo Audio Cable

VIDEO (yellow) and

AUDIO (red and white)

OUT Jacks

Audio and Video

IN Jacks on TV

1

2

3

VR601BMG

VIDEO

IN

OUT

CH3CH4

AUDIO

OUT

IN

ANT

antenna or

cable to

ANT(enna)

IN Jack

Video Cable

Audio Cable

VIDEO (yellow) and

AUDIO (white) OUT Jacks

Audio and Video

IN Jacks on TV

1

2

3

VR401BMG

1

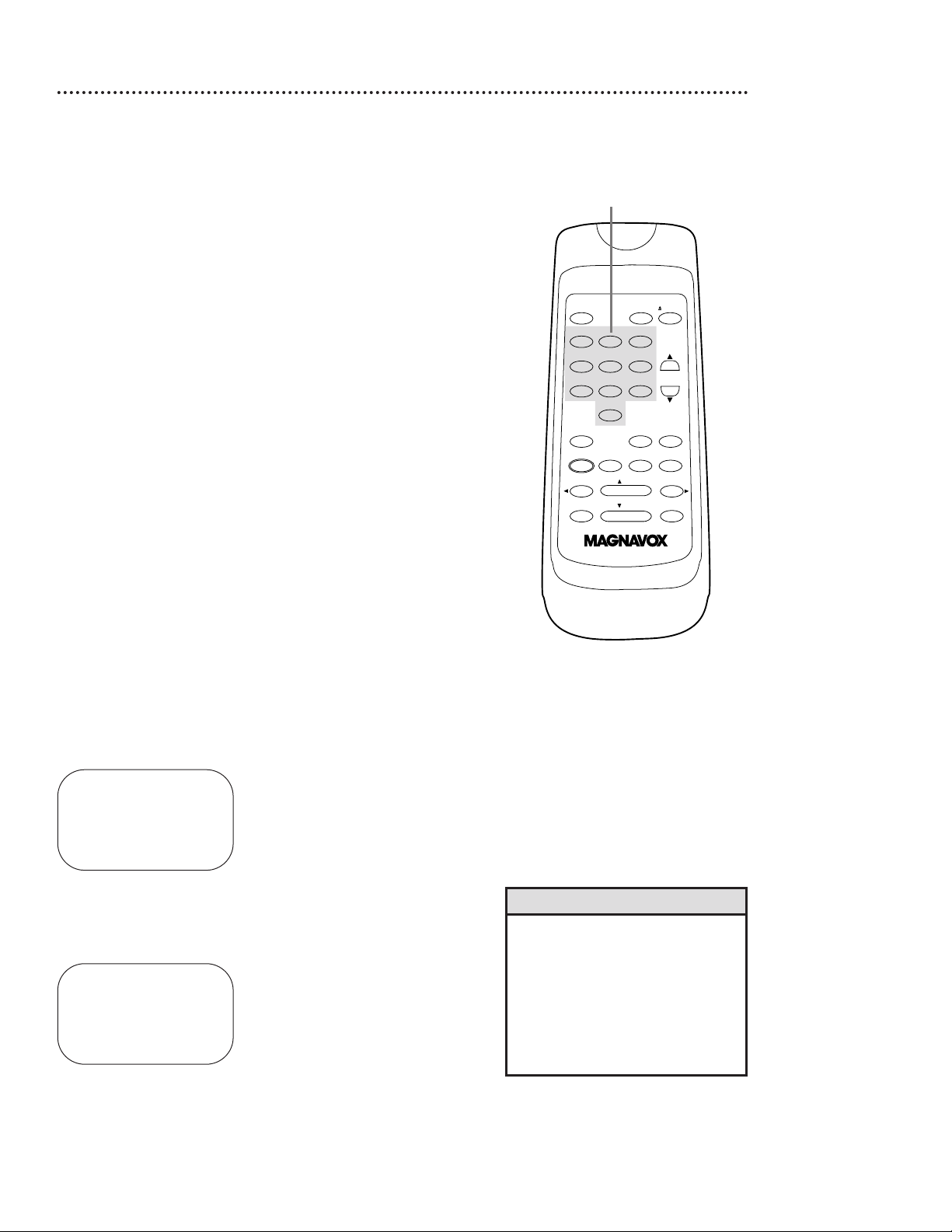

Press the POWER button. The VCR/TV light and the POWER

light will appear on the display panel.

2

Turn on the TV. Set it to the same channel as the
CH3/CH4 switch on the back of the VCR. The display shown

below will appear. (If the display does not appear, check your
hookups, then follow the steps on page 12 to set up channels and
page 17 to select a language.)

3

Within 60 seconds, press the PLAY/o button or the
STOP/p button to select English or Spanish on-screen
displays and menus.

4

Press the MENU button. The display shown below will appear.

SELECT op

→ENGLISH ON

ESPAÑOL

MAKE SELECTION OR
PUSH MENU TO CONTINUE

Turning on Your VCR 11

5

Within 60 seconds, press the CHANNEL o button to
begin automatic channel programming. AUTO CH PRO-

GRAMMING IN PROCESS PLEASE WAIT will appear on the
screen. The VCR will memorize all available channels. When all
channels are memorized, CHANNELS ARE SET will appear on the
screen briefly, then TV programming will appear.
Now, when you press the CHANNEL o/p buttons, you’ll only
scan through channels that you receive.

• To skip this feature and play a tape
immediately, insert a tape with its
record tab removed. Or, to skip step
3, press the MENU button. All on­screen displays will be inEnglish. To
skip step 5, press the STOP/p but­ton. Channels will not be pro­grammed, and CHANNELS NOT
SETwill appear on the screen.

• If you try to program channels
when there is no antenna or cable
connected to the VCR, programming
will appear to take place, but even­tually a NOTV SIGNALSmessage
will appear. Connect an antenna or
cable to the VCR’s ANT(enna) IN
Jack and press the CHANNEL o
button again. You may need to fol­low the steps on page 12

• You may need to repeat the steps
on this page if a power failure
occurs.

Helpful Hints

Before turning on your VCR, make sure batteries are in the
remote control and the VCR and TV are connected correctly.

● You can not program channels if you are using a Cable Box or

a Direct Broadcast System.

2

Turn on the TV.

CONNECT ANTENNA OR CABLE
TO VCR

THEN . . .

PUSH CH UP KEY

OR . . .

FOR PLAY ONLY – PUSH STOP

1

3

4

5

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

0

CHANNEL

MEMORY

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

/STOP

TIME SEARCH

SPEED

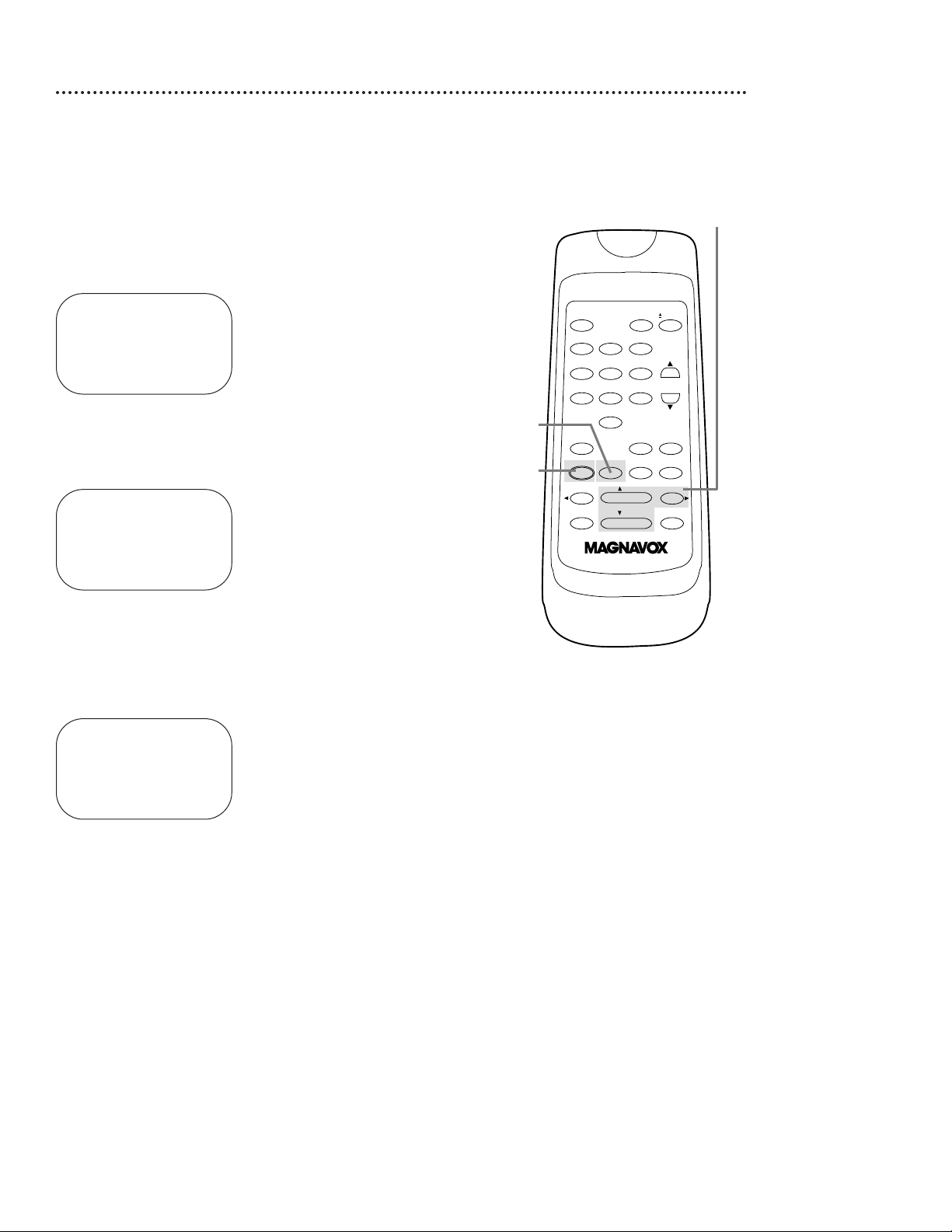

12 Automatic Channel Setup

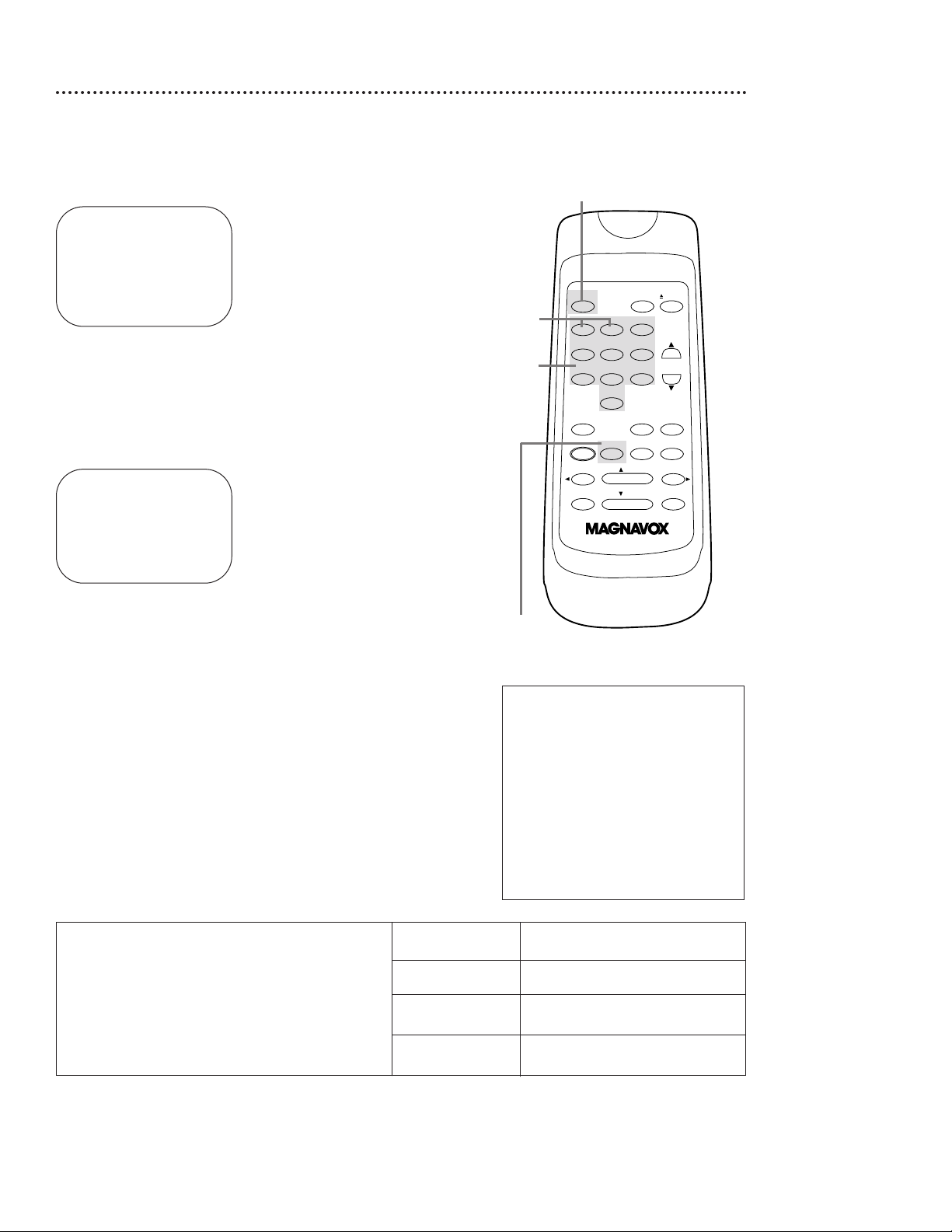

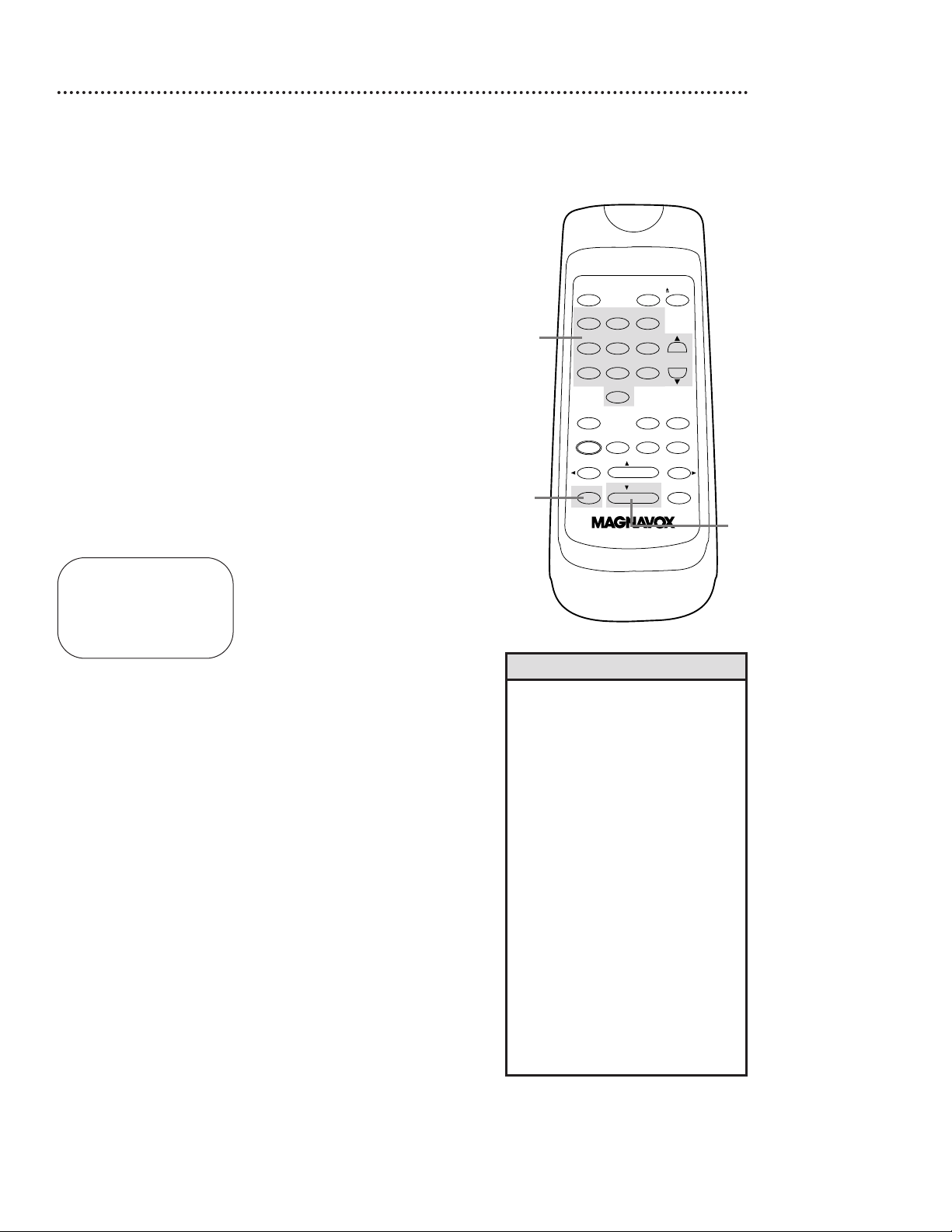

1

Press the MENU button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP
TUNER SET UP
SET CLOCK

TO END PUSH EXIT

• You can not enter the TUNER SET
UP menu when you are in Line
Input mode (channel 001 or 002).
When you select channel 001 or
002, AV REAR or AV FRONT will
appear on the screen briefly.

• You can not program channels if
you are using a Cable Box or DBS.

• If you have an antenna, channels 2­69 will be available. If you have a
cable connection, channels 1-125
will be available.

Helpful Hints

Although your VCR may automatically memorize the channels you
receive when you turn it on for the first time, this function lets
you set up the channels again.

2

Press the PLAY/o button or the STOP/p button to select
TUNER SET UP, then press the F.FWD/B button.

SELECT op CHOOSE B
→AUTO PROGRAMMING

ADD/DELETE CH
CH MEMORY REVIEW
TV STEREO ON
2ND AUDIO

TO END PUSH EXIT

3

Press the PLAY/o button or the STOP/p button to select
AUTO PROGRAMMING, then press the F.FWD/B but­ton. The VCR distinguishes between TV channels and cable chan-

nels, and the VCR will memorize all the channels you receive.

4

Wait for a few minutes while the VCR sets up the chan­nels. When this is complete, CHANNELS ARE SET will appear on

the screen. Then the programming of the lowest channel number
placed in the VCR’s memory will appear on the screen. Now
when you press the CHANNEL o/p buttons, you will scan only
through channels you receive.

2-3

1

VR601BMG only

AUTO CH PROGRAMMING

IN PROCESS

PLEASE WAIT

START FINISH

TIME SEARCH

CHANNEL

MEMORY

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

0

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

/STOP

Automatic Channel Setup (cont’d) 13

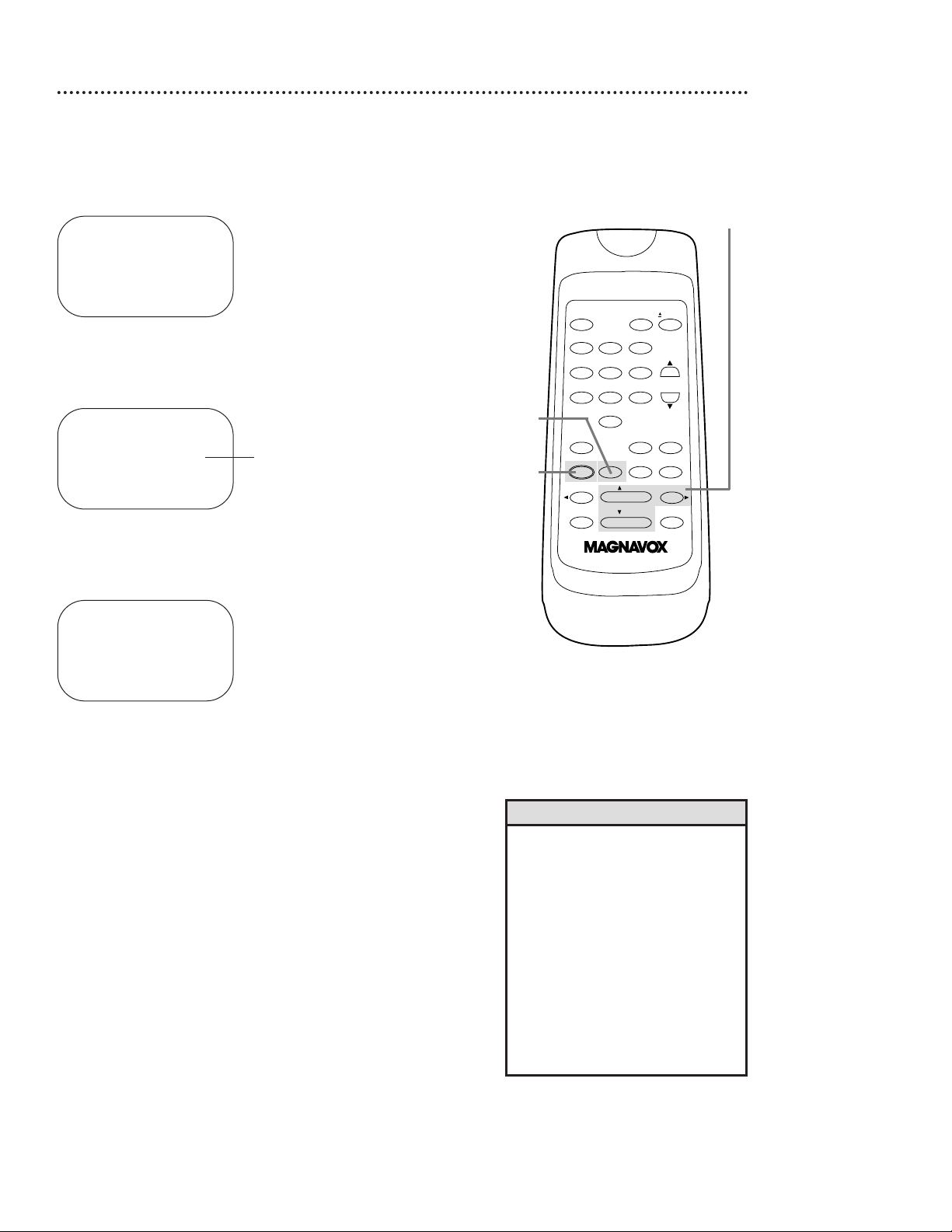

Adding/Deleting Channels

1

Press the MENU button.

SELECT op ADD/DELETE B

124 DELETED
125 DELETED

1 → DELETED
2 ADDED
3 ADDED

TO END PUSH EXIT

2

Press the PLAY/o button or the STOP/p button to select
TUNER SET UP, then press the F.FWD/B button.

3

Press the PLAY/o button or the STOP/p button to select
ADD/DELETE CH, then press the F.FWD/B button.

4

Press the PLAY/o button or the STOP/p button until the
channel number you want to add or delete appears beside
the arrow.

SELECT op ADD/DELETE B

16 DELETED
17 ADDED
18 → ADDED
19 ADDED
20 ADDED

TO END PUSH EXIT

5

Press the F.FWD/B button to select ADDED or DELET­ED. Repeat steps 4 and 5 until you have added or deleted all the

channels you wanted to add or delete.

6

Press the STATUS/EXIT button.

2-5

6
1

NOTE: If you have an antenna, channel numbers 2-69 will appear on
the ADD/DELETE CH menu. If you have a cable connection, channels
1-125 will be available.

TIME SEARCH

/STOP

CHANNEL

MEMORY

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

0

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

14 Automatic Channel Setup (cont’d)

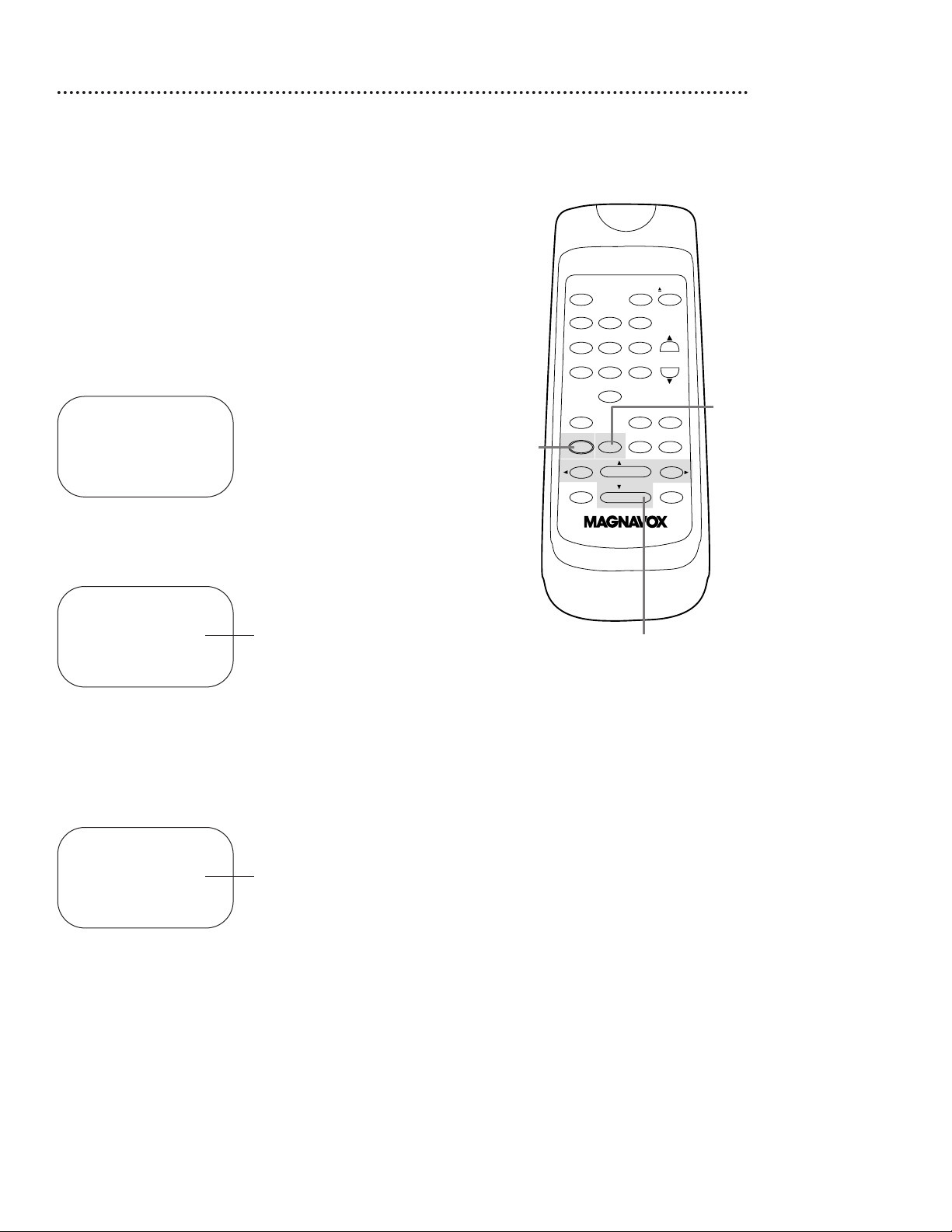

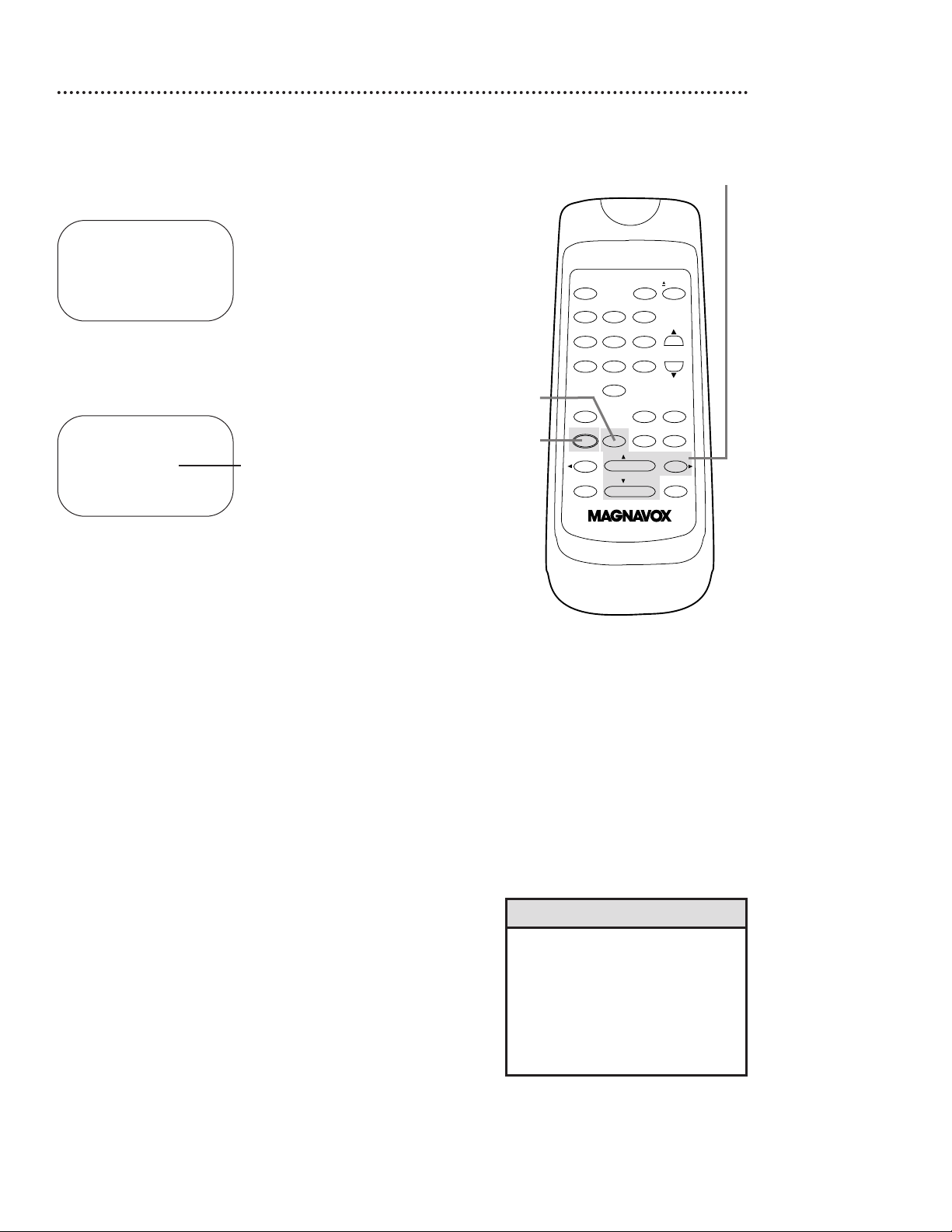

Reviewing Memorized Channels

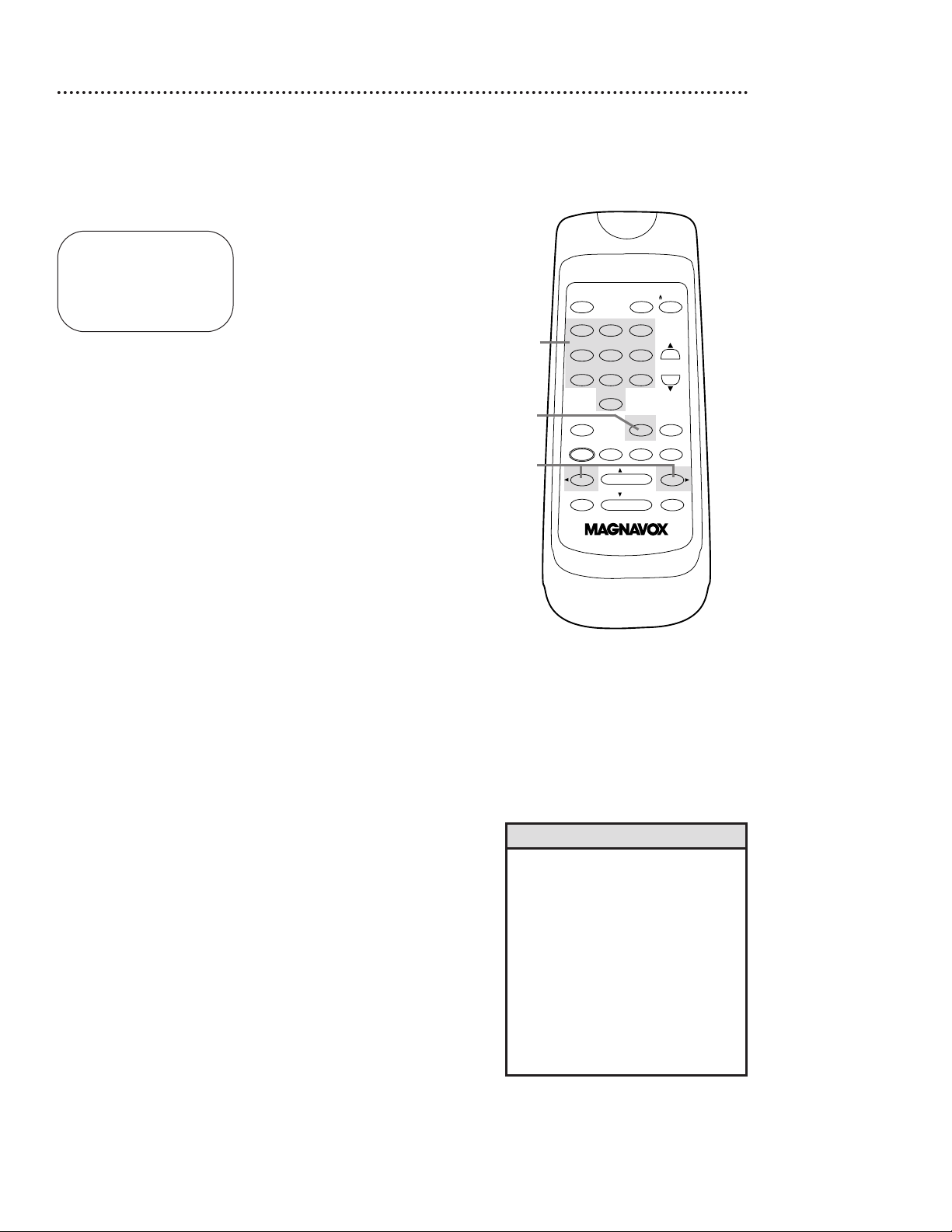

3

Press the PLAY/o button or the STOP/ p button to select
CH MEMORY REVIEW, then press the F.FWD/B button. A

list of programmed channels will appear on the screen.

● If all the programmed channels don’t fit on the screen, press the

F.FWD/B button to see the remaining channels. Then press the
REWIND/s button to return to the first screen of channels.

● If you do not press any buttons within 10 seconds, you will either

go to the next screen of channels or you will return to the previ­ous menu.

4

Press the STATUS/EXIT button once or twice to exit.

1

Press the MENU button.

SELECT op CHOOSE B

→PROGRAM

VCR SET UP
TUNER SET UP
SET CLOCK

TO END PUSH EXIT

2

Press the PLAY/o button or the STOP/p button to select
TUNER SET UP, then press the F.FWD/B button.

SELECT op CHOOSE B
→AUTO PROGRAMMING

ADD/DELETE CH
CH MEMORY REVIEW
TV STEREO ON
2ND AUDIO

TO END PUSH EXIT

2-3

4
1

VR601BMG only

TIME SEARCH

/STOP

CHANNEL

MEMORY

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

0

SPEED

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

TIME 02 :15 PM

MONTH – – / – – / – –

TO CORRECT PUSH CLEAR
TO END PUSH EXIT

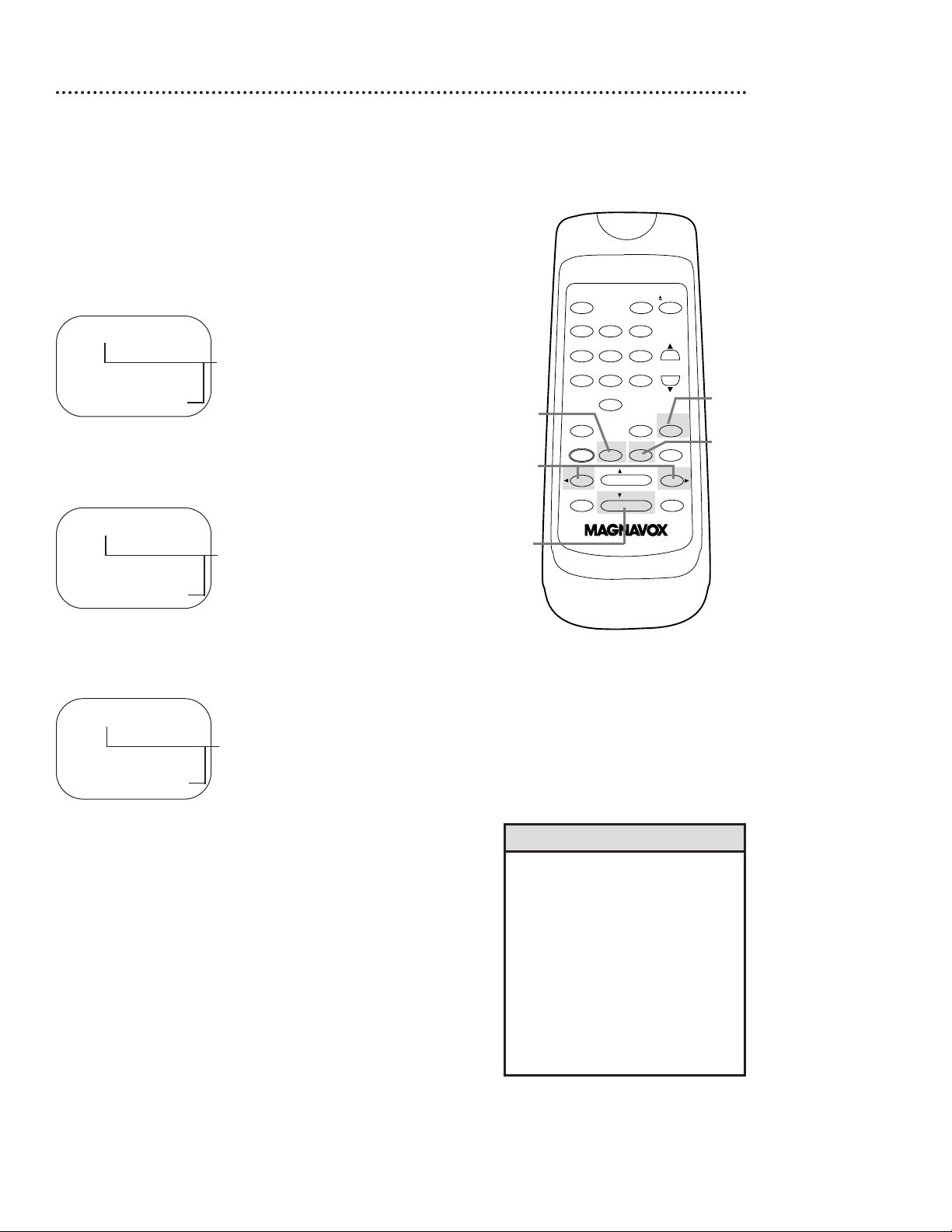

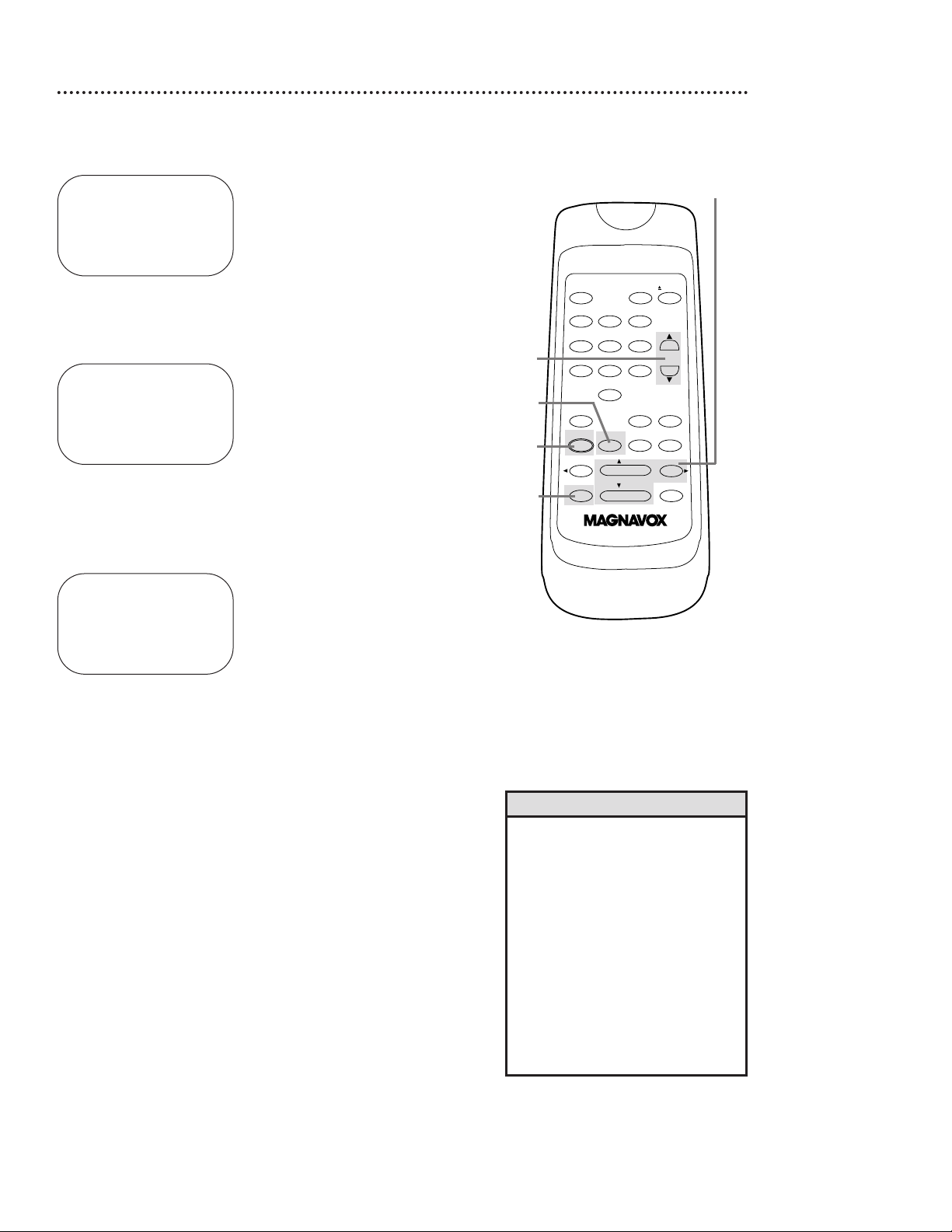

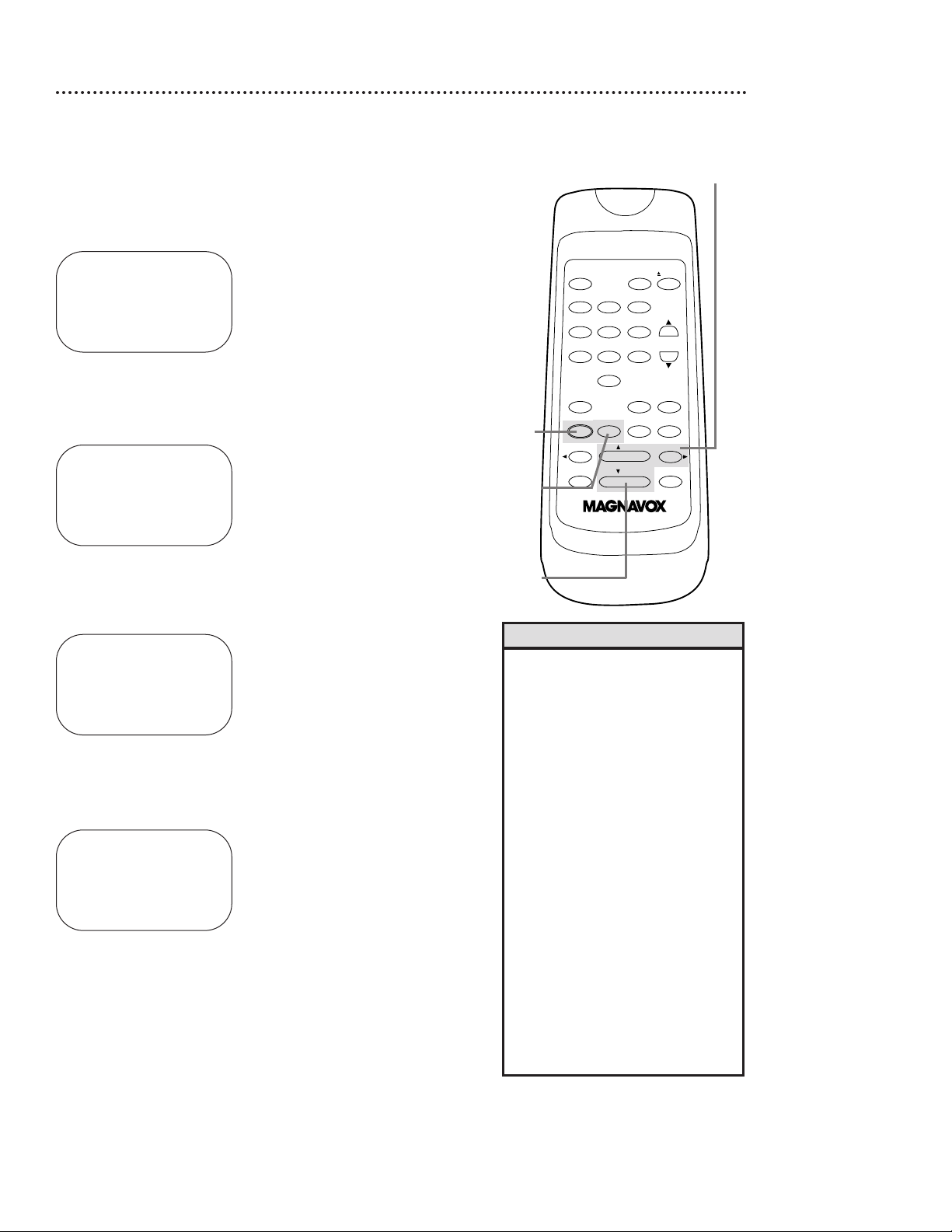

Setting the Clock 15

Follow the steps below to set your VCR’s clock. Make sure:

● The VCR is on and the VCR/TV light appears on the display

panel. (If it does not, press the VCR/TV button once.)

● You make each entry within 60 seconds of the previous entry.

4

Press two Number buttons for the hour(s) and two
Number buttons for the minute(s). Then press 1 for AM
or 2 for PM. For example, for 2:15 PM, press 02, 15, 2.

5

Press two Number buttons for the month, two Number
buttons for the day, and two Number buttons for the
year. For example, for July 1, 2000, press 07, 01, 00. The day of

the week will appear automatically.

TIME 02 :15 PM
DATE 07 / 01 / 00

SAT.

TO CORRECT PUSH CLEAR
TO END PUSH EXIT

6

Press the STATUS/EXIT button.

• Enter a 0 before a single-digit number.

• Entries that do not match the VCR’s
clock or calendar will cause a question
mark to appear on the screen.

• To make corrections, press the CLEAR
button until the space for the number
you want to correct is flashing. Then
enter the correct number.

• To see the current time on the TV
screen, press the STATUS/EXIT but­ton. Details are on page 20.

• Power failures that last for more than
one minute can cause you to lose your
clock setting.

Helpful Hints

1

Press the MENU button.

2

Press the PLAY/o button or the STOP/p button to select
SET CLOCK, then press the F.FWD/B button.

3

Press the PLAY/o button or the STOP/p button to select
SET CLOCK, then press the F.FWD/B button.

2-3

6

4-5

1

TIME – – :– –
DATE – – / – – / – –

TO END PUSH EXIT

POWER EJECTVCR/TV

1 2 3

4 5 6

7 8 9

0

CHANNEL

MEMORY

STATUS/EXIT CLEAR SLOWMENU

REWIND /PLAY F.FWD

REC/OTR PAUSE/STILL

/STOP

TIME SEARCH

SPEED
