Philips VR550 Service Manual

Download

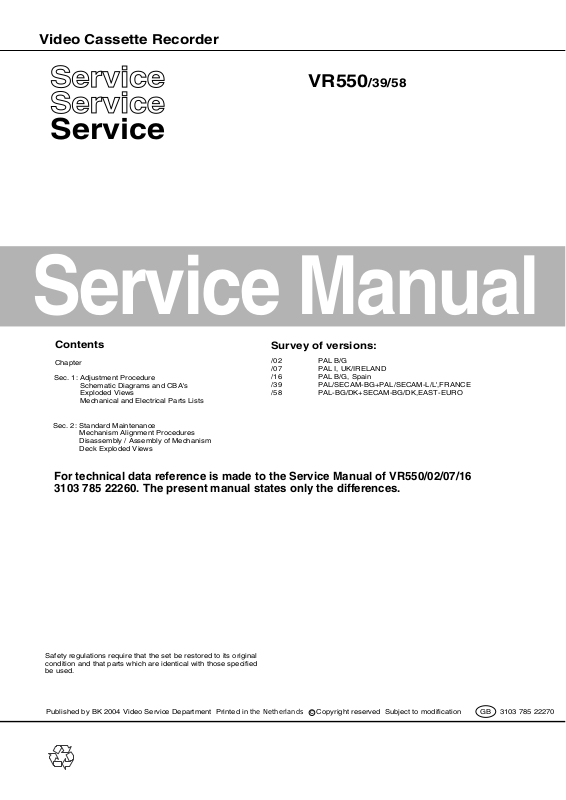

Page 1

Video Cassette Recorder

Service

VR550

/39/58

Service

Service Manual

Contents

Chapter

Adjustment Procedure

Sec. 1:

Schematic Diagrams and CBA's Exploded Views Mechanical and Electrical Parts Lists

Survey of versions:

/02 PAL B/G /07 PAL I, UK/IRELAND /16 PAL B/G, Spain /39 PAL/SECAM-BG+PAL/SECAM-L/L',FRANCE /58 PAL-BG/DK+SECAM-BG/DK,EAST-EURO

Sec. 2:

Standard Maintenance Mechanism Alignment Procedures Disassembly / Assembly of Mechanism Deck Exploded Views

For technical data reference is made to the Service Manual of VR550/02/07/16 3103 785 22260. The present manual states only the differences.

Safety regulations require that the set be restored to its original condition and that parts which are identical with those specified be used.

Published by BK 2004 Video Service Department

Printed in the Netherlands c

Page 2

OPERATING CONTROLS AND FUNCTIONS

[ VR550/ (39, 58) ]

The remote control

REC STANDBY/ON

1 2 3

4 5 6

7 8 9

PLAYSTATUS/EXIT CLEAR

REW FWD

STOP

TV-PROG.TV-VOL

STILL

SLOW SYSTEM

INDEXMUTE

TURBO

TIMER

AUDIO

Buttons for VCR feature only

To record the TV channel selected at this moment.

REC

STANDBY/ON

0..9

Press to select channels at VCR.

P–P

slow motion playback, press to adjust the tracking.

STATUS/EXIT

status display. To exit on-screen menus.

CLEAR

recording (TIMER). To reset the elapsed time counter in the playback, recording or stop mode.

STILL

step. (except for during fast forwarding and fast rewinding)

INDEX

or next recording on the cassette.

SLOW

AUDIO

TURBO TIMER

TURBO TIMER.

SYSTEM

FWD

at high speed. During playback, press to fast forward the tape while the picture stays on the screen. To store or confirm entry in the menu.

REW

high speed. During playback, press to rewind the tape while the picture stays on the screen.To return the cursor in the menu.

PLAY

STOP

To switch off or on, interrupt menu function.

To select the programme number. During normal or

To access or remove the VCR’s on-screen

To delete last entry. To clear a programmed

To stop the tape and play back a picture step by

In combination with

/ :to search for previous

To view the picture in slow motion.

To change stereo sound and 2nd language.

To programme a recording with the function

To change the Video (Colour) System.

To call up main menu of VCR.

When tape playback is stopped, press to fast forward the tape

When tape playback is stopped, press to rewind the tape at

To play back a tape, select an item in the menu of VCR.

To stop the tape, select an item in the menu of VCR.

Buttons with TV feature

MUTE

To eliminate the TV’s sound. Press again to restore the volume.

TV-VOL

TV-PROG.

TV-VOL

TV-PROG.

–

To adjust the TV’s volume.

–

To select a programme number on the TV.

You can use this remote control to operate

some functions of Philips TVs.

1-5-3 HG473IB

Page 3

Front of your VCR

STANDBY/ON PROGRAMME RECORD STOP/EJECT REW PLAY FWD

STANDBY/ON

To switch off or on, interrupt menu function.

PROGRAMME-PROGRAMME+

To select the programme number. During

normal or slow motion playback, press to adjust the tracking.

RECORD

To record the TV channel selected at this moment.

When tape playback is stopped, press to fast forward the tape at high

FWD.

speed. During playback, press to fast forward the tape while the picture stays on the screen.

When tape playback is stopped, press to rewind the tape at high speed.

REW.

During playback, press to rewind the tape while the picture stays on the screen.

To play back a tape.

PLAY

STOP/EJECT

To stop the tape and eject the cassette.

Back of your VCR

AV 2 (DECODER) AV 1 (TV)

AERIAL

RF OUT

)

AV2(DECODER

AV1(TV

AERIAL

RF OUT

To connect a satellite receiver, decoder, video recorder, etc.

)

To connect the TV.

To connect the aerial cable.

To connect the TV.

1-5-4 HG473IB

Page 4

SIGNAL NAME ABBREVIATIONS

[ VR550/ (39, 58) ]

Signal Name Function

16P SCART 16Pin Control Signal

4.43MHz 4.43MHz Clock

8POUT-1

8POUT-2

A-COM Audio Head Common

A-IN Audio Signal Input

A-MODE Hi-Fi Tape Detection Signal

A-MUTE-H

A-OUT Audio Signal Output

A-PB/REC

AE-H Audio Erase Head

AFC

AGC IF AGC Comparator Signal

AL+12V

AL+12V/+20.5V

AL+15V

AL+44V

AL+5V

AL+9V

AMPC CTL AMP Connected Terminal

AMPVcc AMPVcc

AMPVREF IN V-Ref for CTL AMP

AMPVREF OUT V-Ref for CTL AMP

AVc c

C-CONT Capstan Motor Control Signal

C-F/R

SCART 1 8Pin Output Control Signal

SCART 2 8Pin Output Control Signal

Audio Mute Control Signal (Mute = “H”)

Normal Audio Play Back/Record Signal

Automatic Frequency Control Signal

Always +12V with AC Plug Connected

Always +12V/+20.5V with AC Plug Connected

Always +15V with AC Plug Connected

Always +9V with AC Plug Connected

Always +5V with AC Plug Connected

Always +9V with AC Plug Connected

A/D Converter Power Input/ Standard Voltage Input

Capstan Motor FWD/REV Control Signal (FWD=”L”/ REV=”H”)

Signal Name Function

C-ROTA

C-SYNC Composite Synchronized Pulse

CLKSEL Clock Select (GND)

CTL (+)

CTL (-)

CTLAMPout To Monitor for CTL AMP Output

D-CONT Drum Motor Control Signal

D-PFG Drum Motor Pulse Generator

D-REC-H Delayed Record Signal

D-V-SYNC Dummy V-sync Output

DRV-CLK

DRV-DATA

DRV-STB

END-S Tape End Position Detect Signal

FE-H Full Erase Head

FSC-IN [4.43MHz]

FTV-IN

H-A-COMP Head Amp Comparator Signal

H-A-SW

Hi-Fi-A Hi-Fi Audio Head

Hi-Fi-COM Hi-Fi Audio Head Common

Hi-Fi-H-SW

HLF LPF Connected Terminal (Slicer)

IIC-BUS SCL

IIC-BUS SDA

JK1-8P-OUT

KEY-1 Key Scan Input Signal 1

KEY-2 Key Scan Input Signal 2

Color Phase Rotary Changeover SIgnal

Playback/Record Control Signal (+)

Playback/Record Control Signal (-)

LED Clock Driver IC Control Clock

LED Clock Driver IC Control Data

LED Clock Driver IC Chip Select Signal

4.43MHz Clock Input

Comparator Input of Video Signal for Follow TV

Video Head Amp Switching Pulse

Hi-Fi Audio Head Switching Pulse

C BUS Control Clock

C BUS Control Data

SCART 8Pin Output Control Signal

C-FG

C-POW-SW Capstan Power Switching Pulse

Capstan Motor Rotation Detection Pulse

LD-SW

LINE-MUTE Audio Mute Control Signal

1-6-3 HG473SNA

Deck Mode Position Detector Signal

Page 5

Signal Name Function

LM-FWD/REV Loading Motor Control Signal

LP LP

MOD-A Modulator Audio Output Signal

N-A-PB Normal Audio Playback

N-A-REC Normal Audio Recording

OSCin Clock Input for letter size

OSCout Clock Output for letter size

OSD-V-IN OSD Video Signal Input

OSD-V-OUT OSD Video Signal Output

OSDVcc OSDVcc

OSDVss OSDVss

P-DOWN-L

P-ON+15V +15V at Power-On Signal

P-ON+44V +44V at Power-On Signal

P-ON+5V +5V at Power-On Signal

P-ON-H Power On Signal at High

P80/C P80/C Terminal

Power Voltage Down Detector Signal

Signal Name Function

TRICK-H

TU-AUDIO Tuner Audio Input Signal

TU-VIDEO Tuner Video Input Signal

V(L) Video L Head

V(R) Video R Head

V-COM Video Head Common

V-ENV

V-IN Video Signal Input

V-OUT Video Signal Output

Vcc Vcc

VIDEO Video Signal

Vss Vss(GND)

X-IN Main Clock Input

X-OUT Main Clock Input

XC-IN Sub Clock

XC-OUT Sub Clock

Special Playback = “H” in SECAM Mode

Video Envelope Comparator Signal

PB-H-OUT Playback Signal Output at High

PG-DELAY

POW-SAF

REC-SAF-SW

REMOCON-IN Remote Control Sensor

RESET System Reset Signal (Reset=”L”)

RESET+5V +5V at System Reset Signal

RF-SW Video Head Switching Pulse

RGBTHROUGH

S-REEL Supply Reel Rotation Signal

SC2-IN

SECAM-C-IN SECAM Chroma Signal Input

SECAM-FMOUT

Video Head Switching Pulse Signal Adjusted Voltage

P-ON Power Detection Input Signal

Recording Safety SW Detect (With Record tab="L"/With out Record tab="H")

SCART 2 RGB Through Control Signal

Input Signal from Pin 8 of SCART2

SECAM FM Signal Output

SECAM-H SECAM Mode at High

SIF

ST-S

T-REEL Take Up Reel Rotation Signal

TIMER+5V +5V at Timer

Tuner Audio Intermediate Frequency Signal

Tape Start Position Detector Signal

1-6-4 HG473SNA

Page 6

[ VR550/ (39, 58) ]

BLOCK DIAGRAMS

Servo/System Control Block Diagram

Model Mark

VR550/39

Comparison Chart of

VR550/58

Models & Marks

LED DISPLAY

FP562

SDA

SCL

SDA

SCL

TU701(TUNER UNIT)

SDA

SCL

IC503 (MEMORY)

AUDIO BLOCK

A-MUTE-H

IIC-BUS SCL

IIC-BUS SDA

FROM/TO

Hi-Fi AUDIO

BLOCK

A-MODE

Hi-Fi-H-SW

IIC-BUS SCL

IIC-BUS SDA

LINE-MUTE

IIC-BUS SCL

IIC-BUS SDA

RF-SW

D-REC-H

C-ROTA

D-V-SYNC

FROM/TO

VIDEO BLOCK

V-ENV

H-A-SW

H-A-COMP

C-SYNC

TRICK-H

SECAM-H

KEY

TP507

SENS-INH

KEY

SWITCH

KEY- 2

KEY- 1REMOCON-IN

REMOTE

RS501

LD-SW

SENSOR

S-LED

D502

LD-SW

AL+5V

IC501

(SERVO/SYSTEM CONTROL)

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.

:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.

:USED TO INDICATE A TEST POINT WITH NO TEST PIN.

:USED TO INDICATE A TEST POINT WITH A TEST PIN.

TEST POINT INFORMATION

AL+5V

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

SW507

SWITCH

ST-S

CTL(+)

CTL(-)

957610480

232221

D1D2D3

DRV-DATA

IC561

(LED DISPLAY)

686970

DRV-DATA

S-REEL

T-REEL

END-S

Q501

PS503

Q503

DRV-STB

DRV-CLK

DRV-STB

DRV-CLK

RESET

TIMER+5V

S-REEL

T-REEL

P-ON+5V

161413e12

bcd

P-ON+5V

Q771,

IC771

(COMPARATOR)

Q772

FTV-IN

2 64

AND

H-A-SW

D-V-SYNC

H-A-COMP

AL+12V/+20.5V

P-ON+5V

V-ENV

C-SYNC

TRICK-H

SECAM-H

P-ON-H

C-POW-SW

P-DOWN-L

P-ON-H

C-POW-SW

P-DOWN-L

FROM/TO

POWER

SUPPLY

BLOCK

A-MUTE-H

REC-SAF-SW

PG-DELAY

VR501

SW-POINT

AL+5V

SW506

REC-SAFETY

AL+5V

A-MODE

Hi-Fi-H-SW

LINE-MUTE

IIC-BUS SCL

IIC-BUS SDA

LM-FWD/REV

D-CONT

D-PFG

P-ON+15V

AL+12V

CL502

P-ON+15V11AL+12V(2)10GND9D-PFG8D-CONT7LM-FWD/REV

GND5C-CONT4C-F/R3C-FG2P-ON+5V1AL+12V/+20.5V

RF-SW

D-REC-H

C-CONT

C-F/R

C-ROTA

C-FG

183316

" " = SMD

MAIN CBA

ST-S

Q504

Q505

SENSOR CBA

END-S

TP506

END-S

SENSOR CBA

(DECK ASSEMBLY)

V-IN1

TU-VIDEO

FROM

VIDEO

BLOCK

CL504

2 CTL(+)

1 CTL(-)

CONTROL

AC HEAD ASSEMBLY

HEAD

1-9-6

SENSOR

CYLINDER ASSEMBLY CAPSTAN MOTOR

DRUM

MOTOR

CAPSTAN

MOTOR

HG473BLS

Page 7

Video Block Diagram

VIDEO (L)-1

HEAD

VIDEO (R)-1

HEAD

VIDEO (R)-2

HEAD

VIDEO (L)-2

HEAD

Model Mark

VR550/39

Comparison Chart of

VR550/58

Models & Marks

REC-VIDEO SIGNAL PB-VIDEO SIGNAL MODE: SP/REC

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.

:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.

:USED TO INDICATE A TEST POINT WITH NO TEST PIN.

:USED TO INDICATE A TEST POINT WITH A TEST PIN.

IIC-BUS SDA

IIC-BUS SCL

FROM

SERVO/SYSTEM

CONTROL BLOCK

CYLINDER ASSEMBLY

FROM/TO SERVO/SYSTEM

H-A-SW

C-ROTA

D-V-SYNC

H-A-SW

D-V-SYNC

C-ROTA/RF-SW

RPRP

Y/C

MIX

FBC

CONTROL BLOCK

V-ENV

C-SYNC

TRICK-H

V-ENV

C-SYNC

H-A-COMP

SECAM-H

AGC VXO

H-A-COMP

PAL/SECAM

IC370 (PAL/SECAM DECTECTOR)

171418216

PB-H OUT

C-PB

TP301

252928 44

X301

4.433619MHz

58 59

DETECTOR

WF2

(DECK ASSEMBLY)

123

456

RF-SW

TP502

AGC

1/2

D-REC-H

RF-SW

CHROMINANCE

SIGNAL

D-REC-H

PROCESS

V(L)-1

V(L)-2

CL253

V(R)-1

969593

SERIAL

DECORDER

Y. DELAY

LUMINANCE

7978

69684643

V-COM

HEAD

AMP

SIGNAL

PROCESS

V(R)-2

V-COM

AGC

BYPASS

908988

HEAD

CHARA.

INS.

WF1

AMP

REC FM

CCD 1H DELAY

TEST POINT INFORMATION

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

" " = SMD

IC501 (OSD)

MAIN CBA

COLOR

-IN

OSD

CHARACTER

MIX

IC301

(Y/C SIGNAL PROCESS)

BUFFER

Q351

TU-VIDEO

V-IN1TO

SERVO/SYSTEM

CONTROL BLOCK

FRT

IN1

IN2

TUNER

485052

VIDEO IN

VIDEO OUT

TU701(TUNER UNIT)

1-9-7

IN2

FRT

MUTE

PB/EE

IN1

MUTE

TUNER

PB/EE

WF3

JACK CBA

J23

V-OUT

CL151

CL101

JK101

CL152

V-OUT1

V-OUT2

V-IN1

CL102

Q101

Q102

BUFFER

JK102

V-OUT1

V-IN1

V-OUT2

V-IN2 3

V-IN2

HG473BLV

Page 8

Audio Block Diagram

Mode : SP/REC

PB-AUDIO SIGNAL REC-AUDIO SIGNAL

TO SERVO/SYSTEM

SERIAL

DECODER

AUDIO HD-SW

CONTROL

68 69

MUTE

LINE

AMP

ALC

DET

IN1

1513 17

TUNER IN2

INV

ATT

REC-ON

REC

AMP

100

CONTROL BLOCK

A-MUTE-H

IIC-BUS SCL

IIC-BUS SDA

MAIN CBA

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.

:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.

:USED TO INDICATE A TEST POINT WITH NO TEST PIN.

:USED TO INDICATE A TEST POINT WITH A TEST PIN.

TEST POINT INFORMATION

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

" " = SMD

N-A-PB

N-A-REC

TO Hi-Fi

AUDIO BLOCK

IC301

(AUDIO SIGNAL PROCESS)

PB-ON

AMP

SP/LP-ON

+5V

AUTO

BIAS

Q401

CL504

BIAS

Q402

3 A-PB/REC

4 A-COM

6 AE-H

Q406

OSC

5 AE-H/FE-H

Q403

CL501

+5V

Q405

2 FE-H

(PB=ON)

1 FE-H-GND

FE HEAD

ACE HEAD ASSEMBLY

AUDI O

HEAD

AUDI O

ERASE

HEAD

FULL

ERASE

HEAD

1-9-8

(DECK ASSEMBLY)

HG473BLA

Page 9

Hi-Fi Audio Block Diagram

TU701

SIF OUT

(TUNER UNIT)

AUDIO OUT

AUDIO IN

FROM/TO

SERVO/SYSTEM

CONTROL BLOCK

Hi-Fi

CYLINDER

ASSEMBLY

AUDIO

(R) HEAD

Hi-Fi

AUDIO

(L) HEAD

REC-AUDIO SIGNALPB-AUDIO SIGNAL Mode : SP/REC

MAIN CBA

:INDICATES A TEST POINT WITH A JUMPER WIRE ACROSS A HOLE IN THE PCB.

:USED TO INDICATE A TEST POINT WITH A COMPONENT LEAD ON FOIL SIDE.

:USED TO INDICATE A TEST POINT WITH NO TEST PIN.

:USED TO INDICATE A TEST POINT WITH A TEST PIN.

TEST POINT INFORMATION

CN701

SIF 2

CN1

AFV CBA

TU-AUDIO(R) 4

CN701 C N1

TU-AUDIO 1

IF SIGNAL

PROCESS

TU-AUDIO(L) 5

7374727677

MUTE-ON

VCO MUTE

OUTPUT

SELECT

MUTE-ON

A-MODE

IIC-BUS SCL

IIC-BUS SDA

Q451

LOGIC

R-CH

BPF

NOISE

COMP

NOISE

PPR

R-CH

PNR

LINE-MUTE

MUTE

ENV

DET

VCO

LIM DEV

Hi-Fi-H-SW

HOLD

PULSE

LPF

(DECK ASSEMBLY)

LPF

MIX V/I

VCO

LIM DEV

L-CH

DET

PNR

CL253

Hi-Fi-A(R) 7

242627

Hi-Fi-COM 8

LIM

L-CH

COMP

Hi-Fi-A(L) 9

34 33

BPF

NOISE

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

" " = SMD

CL151

A-IN1(R)

CL101

JACK CBA

JK101

A-IN1(R)

A-OUT1(R)

A-IN1(L) 7

A-IN1(L)

A-OUT1(R)

A-OUT1(L) 11

JK102

A-OUT1(L)

CL152

A-IN2(R)

CL102

A-IN2(R)

A-OUT2(R)

A-IN2(L) 8

A-OUT2(R)

A-IN2(L)

A-OUT2(L) 11

A-OUT2(L)

(Hi-Fi AUDIO SIGNAL PROCESS)

IC451

Model Mark

VR550/39

Comparison Chart of

VR550/58

Models & Marks

ALC

L-CH

6108

INSEL

ALC

N-A-REC

N-A-PB

TO AUDIO BLOCK

61 71

R-CH

INSEL

5256545060

1-9-9

HG473BLH

Page 10

Power Supply Block Diagram

P-ON+44V

P-ON+15V12P-ON-H

AL+12V/+20.5V

AL+9V

AL+12V

C-POW-SW

AL+5V

TIMER+5V

P-ON+5V

P-DOWN-L

Q053

MAIN CBA

CAUTION !

Fixed voltage (or Auto voltage selectable ) power supply circuit is used in this unit.

If Main Fuse (F001) is blown, check to see that all components in the power supply

circuit are not defective before you connect the AC plug to the AC power supply.

Otherwise it may cause some components in the power supply circuit to fail.

Q051

T001

CAUTION

FOR CONTINUED PROTECTION AGAINST FIRE HAZARD,

REPLACE ONLY WITH THE SAME TYPE T1.6AL/250V FUSE.

Q052

Q057

Q058

Q055

Q001

Q054

Q059

Q056

SHUNT

REGULATOR

Q004

IC001

ERROR

VOLTAGE DET

COLD

D001 - D004

L003

F001

HOT CIRCUIT. BE CAREFUL.

NOTE :

The voltage for parts in hot circuit is measured using

hot GND as a common terminal.

BRIDGE

RECTIFIER

LINE

FILTER

T1.6A L 250V

AC001

1-9-10

Q002

Q003

HOT

HG473BLP

Page 11

[ VR550/ (39, 58) ]

MAIN 1/7 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position

CAPACITORS C501 B-1 C862 D-3 R522 E-4 C502 B-1 R523 B-4 C506 C-1 CL501 A-2 R524 B-4 C508 E-2 CL502 F-4 R525 B-3 C510 E-2 CL504 A-2 R526 A-2 C511 E-2 R527 A-2 C512 E-2 D501 E-4 R528 B-1 C513 E-2 D502 A-1 R529 A-1 C514 E-2 D552 E-3 R530 E-1 C515 E-2 D553 E-2 R531 E-1 C516 E-2 R533 D-1 C517 E-4 IC501 C-3 R551 E-3 C518 E-4 IC503 A-4 R552 E-3 C519 B-4 R553 E-2 C520 A-3 L501 A-1 R555 C-1 C521 A-2 L851 D-3 R557 C-1 C522 A-2 R558 C-1 C523 A-2 Q501 E-2 R615 D-1 C524 A-2 Q503 D-1 R621 A-3 C526 A-2 Q551 E-3 R622 A-3 C527 B-2 Q552 E-3 R851 D-3 C528 A-2 R852 D-3 C530 B-2 R501 B-1 R853 D-4 C531 B-1 R502 B-2 C532 A-3 R503 C-2 SW506 D-1 C533 A-3 R504 B-1 C535 E-1 R505 B-1 VR501 B-1 C563E-4R506C-1 C564 E-4 R509 D-1 X501 D-2 C567 F-4 R510 C-4 X502 D-2 C851E-3E511E-2 C852 E-3 R51 3 E-2 PS503 E-1 C853 D-3 R514 E-2 RS501 B-2 C854E-3R516D-2 C855 D-3 R517 D-3 TP501 A-2 C856 D-4 R518 F-3 TP502 C-1 C858 D-4 R520 E-4 C859 D-4 R521 E-4

CAPACITORS

CONNECTORS

DIODES

ICS

COILS

TRANSISTORS

RESISTORS

SWITCH

VARIABLE RESISTOR

CRYSTAL OSCILLATORS

MISCELLANEOUS

TEST POINTS

1-10-31

Page 12

Main 1/7 Schematic Diagram

Comparison Chart of Models and Marks

MODEL MARK

VR550/39 D VR550/58 E

0.00 ~ 0.51V POWER

0.51 ~ 0.92V CH DOWN

0.92 ~ 1.27V CH UP PLAY

1.27 ~ 1.61V ----------------

1.61 ~ 1.98V ---------------- --------------

1.98 ~ 2.39V REC/O TR --------------

2.39 ~ 2.90V ---------------- --------------

2.90 ~ 3.60V SE NS-INH --------------

3.60 ~ 4.30V ---------------- --------------

4.30 ~ 5.00V K EY OFF KEY OF F

Pin No. Voltage

KEY 1 (7 PIN) KEY 2 (8 PIN)

“ “ = SMD

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

5.0

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

IC501 KEY VOLTAGE CHART

STOP/EJECT REW

1-10-32 1-10-33

HG473SCM1

Page 13

Main 2/7 & Sensor Schematic Diagrams

D1 D2 D3 D4

FP562 MATRIX CHART

Comparison Chart of Models and Marks

MODEL MARK

VR550/39 D VR550/58 E

D1 D2 D3 D4

“ “ = SMD

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

5.0

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

1-10-34

1-10-35

HG473SCM2

Page 14

MAIN 2/7 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position

CAPACITORS RESISTORS C538 K-4 R539 K-3 C540 J-3 R540 K-4 C561 J-3 R541 K-4 C562 G-3 R542 J-2 C701 H-2 R543 J-2 C702 I-2 R544 K-2 C704 G-2 R545 K-2 C706 H-1 R546 K-2 C708 G-1 R547 J-2 C716 G-1 R548 K-2 C717 G-1 R549 K-2

CONNECTORS

CL505 K-2 R701 G-2

CN701 K-1 R702 G-1

DIODE

D701 G-2 R706 G-1

IC561 J-4

COILS L561 G-3 SW502 J-2 L562 G-3 SW503 K-2 L701 I-2 SW505 K-2 L703 H-2 SW507 J-3 L704 H-1 SW509 J-2

TRANSISTORS Q504 L-4 SW511 K-2 Q505 L-4 SW512 K-2

RESISTORS

R534 J-3 FP562 H-4 R535 J-3 TU701 H-2 R536 J-3 R537 J-3 TP506 K-4 R538 K-3 TP507 K-2

R566 J-4

R703 G-1

R707 I-1

SWITCHES

SW501 J-2

SW510 K-2

MISCELLANEOUS

TEST POINTS

1-10-36

Page 15

MAIN 3/7 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position Ref No. Position

CAPACITORS CAPACITORS RESISTORSTRANSISTORS C251 N-3 C347 O-4 Q402 N-1 R402 N-2 C252 N-3 C351 N-4 Q403 N-1 R403 N-2 C253 N-3 C352 M-4 Q405 M-1 R404 M-2 C254 N-3 C401 N-2 Q406 N-1 R407 M-1 C302 P-1 C402 N-1 Q771 R-1 R408 N-2 C303 P-1 C403 M-2 Q772 R-1 R409 N-2 C304 P-2 C404 M-1 R411 N-2 C305 P-1 C411 O-1 R251 N-3 R412 O-2 C307 P-2 C412 O-2 R252 N-3 R413 O-2 C308 P-1 C414 O-1 R301 P-1 R414 O-1 C309 P-1 C415 O-1 R302 P-1 R415 O-1 C310 Q-2 C416 O-2 R303 Q-2 R416 O-1 C311 Q-2 C417 O-1 R304 Q-2 R417 O-1 C312 Q-2 C418 O-1 R305 Q-2 R418 N-1 C313 Q-2 C419 O-1 R307 P-4 R421 O-1 C314 Q-3 C421 O-2 R308 P-4 R422 O-1 C315 Q-3 C422 O-1 R309 P-4 R425 O-1 C316 Q-3 C424 O-2 R310 O-4 R426 O-1 C317 Q-3 C425 O-1 R311 O-4 R429 O-1 C318 Q-3 C428 O-1 R312 N-4 R430 O-1 C319 Q-3 C430 P-1 R313 N-4 R431 P-1 C320 Q-3 C771 Q-2 R315 O-4 R771 Q-1 C321 Q-3 C772 R-1 R316 O-4 R772 Q-1 C322 Q-3 C773 R-2 R317 O-4 R773 Q-1 C323 Q-3 C774 R-2 R318 O-4 R774 Q-1 C324 Q-3 C775 Q-2 R319 N-4 R775 Q-1 C325 Q-4 C776 Q-2 R320 O-4 R776 R-1 C326 Q-4 C777 Q-2 R321 Q-4 R777 R-1 C327 P-4 C778 Q-2 R323 Q-3 R778 Q-2 C330 P-4 R324 N-3 R779 Q-2 C332 P-4 CL253 M-3 R325 Q-3 R780 Q-2 C333 P-4 R326 Q-3 R781 Q-2 C334 P-4 D301 N-4 R330 Q-3 R782 R-2 C335 P-4 R331 Q-2 R783 Q-2 C336 O-4 IC301 N-2 R332 P-4 R784 Q-2 C337 O-4 IC771 Q-1 R334 Q-3 R785 Q-2 C338 O-4 R351 N-4 R786 Q-2 C339 O-4 L251 N-3 R352 N-4 R787 Q-1 C340 O-4 L301 O-4 R355 N-4 C341 O-4 L403 N-1 R357 M-4 X301 P-2 C342 O-4 R358 N-4 C343 O-4 Q351 N-4 R360 M-4 TP301 M-3 C345 Q-3 Q352 N-3 R361 N-3 C346 P-4 Q401 N-2 R401 N-2

CONNECTOR

DIODE

ICS

COILS

RESISTORS

CRYSTAL OSCILLATOR

TEST POINTTRANSISTORS

1-10-37

Page 16

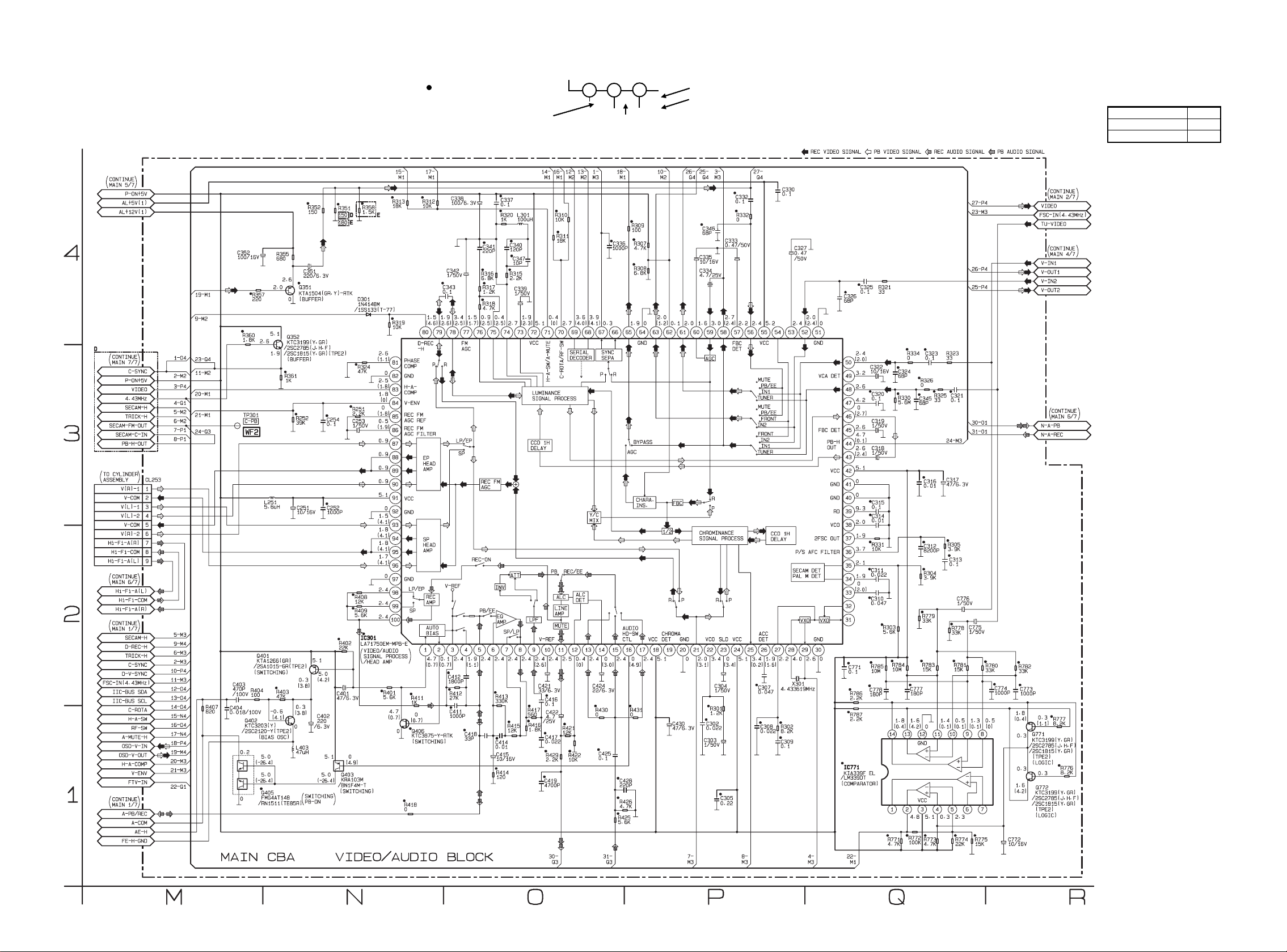

Main 3/7 Schematic Diagram

Comparison Chart of Models and Marks

MODEL MARK

VR550/39 D VR550/58 E

“ “ = SMD

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

5.0

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

1-10-38

1-10-39

HG473SCM3

Page 17

Main 4/7 & Jack Schematic Diagrams

“ “ = SMD

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

5.0

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

1-10-40

1-10-41

HG473SCM4

Page 18

MAIN 4/7 Schematic Diagram Parts Location Guide

Ref No. Position

CAPACITORS C157 T-3 C158 U-3

CONNECTORS CL151 U-3 CL152 U-2

DIODES D153 U-3 D154 U-3 D155 U-2 D156 U-1

TRANSISTOR

Q153 U-2

RESISTOR

R158 U-2

TEST POINT

J23 S-3

JACK Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position

CAPACITORS C101 W-4 Q101 V-3 C102 W-4 Q102 V-1 C103 W-3 C104 W-3 R101 W-4 C105 W-3 R103 W-4 C107 W-2 R104 W-3 C108 W-2 R106 W-3 C109 V-2 R108 W-3 C110 W-2 R109 W-2 C111 V-2 R110 W-2 C112 W-2 R112 W-2 C113 W-2 R113 V-2 C115 V-4 R115 W-2 C116 W-3 R116 W-2 C117 W-1 R117 W-2

CONNECTORS

CL101 V-3 R119 W-1 CL102 V-2 R120 V-4

DIODES D101 W-2 R125 V-1 D102 W-1 R126 V-1 D103 W-1 R127 W-1 D104 W-1 R128 V-3 D105 W-2 D106 W-3 JK101 X-4

COILS

L101 X-2 L102 X-1

TRANSISTORS

RESISTORS

R118 W-1

R123 V-3

MISCELLANEOUS

JK102 X-2

1-10-42

Page 19

MAIN 5/7 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position

CAPACITORS C002 Y-3 D023 AA-1 R009 Z-1 C003 Y-2 D051 BB-2 R011 Y-1 C004 Z-3 D052 CC-3 R012 Y-1 C005 Z-3 D053 BB-2 R013 Z-1 C006 Z-2 D055 BB-2 R014 Y-1 C007 Z-2 D056 AA-2 R015 Z-1 C008 Y-1 D057 BB-2 R016 Z-1 C010 Y-1 D058 CC-2 R017 AA-3 C011 Y-1 R018 AA-2 C012 AA-3 IC001 Z-1 R021 AA-1 C014 AA-2 R022 AA-1 C015 CC-3 J902 AA-1 R023 AA-1 C017 AA-2 L001 Y-3 R024 AA-1 C018 AA-2 L002 Y-3 R025 AA-1 C020 AA-2 L003 Y-3 R026 AA-2 C021 AA-2 L009 AA-2 R027 Z-1 C025 AA-1 L010 AA-2 R028 Z-2 C026 BB-2 L012 BB-2 R030 AA-1 C053 BB-1 R031 AA-1 C056 BB-1 Q001 Z-2 R032 AA-1 C057 BB-1 Q002 Z-2 R053 CC-2 C060 BB-2 Q003 Y-1 R 054 BB-2 C061 CC-2 Q004 AA-1 R 058 BB-2

DIODES

D001 Y-3 Q052 BB-3 R 061 BB-1 D002 Z-3 Q053 BB-2 R062 BB-2 D003 Y-3 Q054 CC-2 R063 BB-2 D004 Z-3 Q055 BB-2 R064 BB-2 D005 Z-2 Q056 BB-1 R065 BB-2 D006 Z-2 Q057 BB-3 R066 BB-3 D007 Z-1 Q058 CC-3 R067 BB-3 D008 Z-1 Q059 BB-1 R068 BB-3 D009 Z-1 R071 CC-3 D011 AA-3 R001 Y-2 R073 BB-1 D012 AA-3 R002 Z-3 D013 AA-2 R003 Z-3 AC001 Y-3 D014 AA-2 R004 Z-3 F001 Y-3 D015 AA-2 R005 Z-2 SA001 Y-3 D018 Z-2 R006 Z-2 T001 Z-3 D019 AA-1 R007 Z-2 D021 Z-1 R008 Y-2

DIODES RESISTORS

COILS

TRANSISTORS

Q051 BB-3 R060 BB-1

RESISTORS

MISCELLANEOUS

1-10-43

Page 20

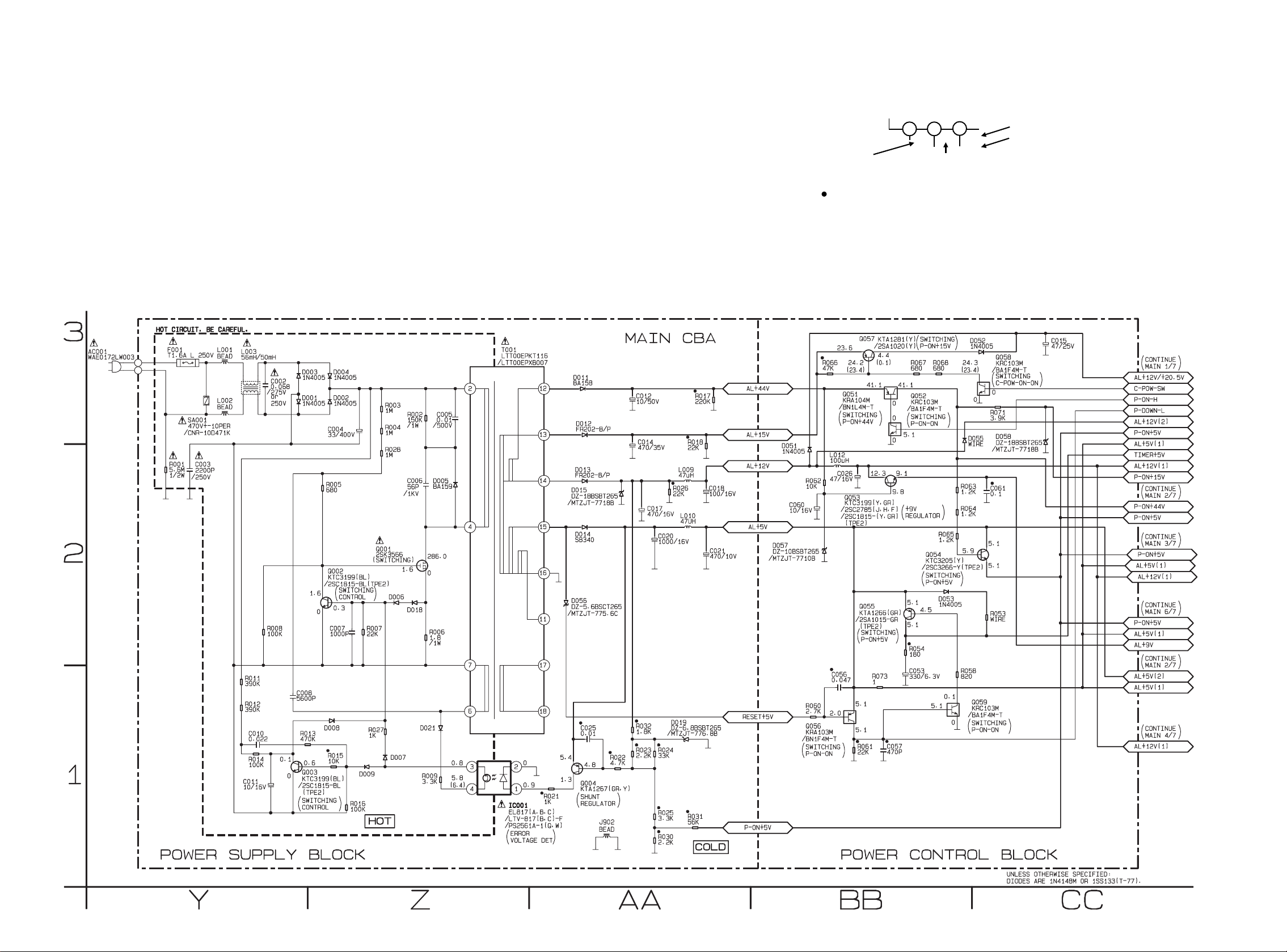

Main 5/7 Schematic Diagram

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

NOTE :

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

Fixed voltage ( or Auto voltage selectable ) power supply circuit is used in this unit. If Main Fuse (F001) is blown, check to see that all components in the power supply circuit are not defective before you connect the AC plug to the AC power supply. Otherwise it may cause some components in the power supply circuit to fail.

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

“ “ = SMD

5.0

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

1-10-44

1-10-45 HG473SCM5

Page 21

Main 6/7 Schematic Diagram

Comparison Chart of Models and Marks

MODEL MARK

VR550/39 D VR550/58 E

MAIN 6/7 Schematic Diagram Parts Location Guide

Ref No. Position Ref No. Position

C451 EE-1 IC451 DD-2 C452 EE-2 C453 EE-2 L451 GG-3 C454 FF-2 L452 GG-2 C455 FF-2 C456 FF-2 Q451 GG-2 C457 FF-2 C458 FF-2 R451 EE-2 C459 FF-2 R452 EE-2 C460 FF-2 R453 EE-1 C461 FF-2 R454 EE-1 C462 GG-2 R457 EE-1 C463 GG-2 R458 EE-1 C464 GG-3 R459 EE-1 C465 FF-3 R460 GG-2 C466 GG-3 R461 GG-2 C467 FF-4 R462 FF-3 C468 FF-4 R463 EE-4 C469 FF-4 R464 EE-4 C470 FF-4 R465 EE-4 C471 FF-4 R466 EE-4 C472 FF-4 R467 EE-4 C473 FF-4 R469 DD-4 C474 EE-4 R471 DD-4 C475 EE-4 R472 DD-3 C476 DD-3 R473 DD-3 C477 DD-3 R474 EE-4 C478 DD-3 R475 DD-3 C479 DD-3 R476 DD-2 C480 DD-3 R477 DD-2 C481 DD-3 R478 DD-2 C482 DD-2 R479 DD-2 C483 DD-2 R480 DD-2 C484 DD-2 R481 DD-2 C485 DD-2 C486 FF-3

TRANSISTOR

RESISTORS

CAPACITORS

COILS

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

“ “ = SMD

5.0

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

1-10-46 1-10-47 HG473SCM6

Page 22

Main 7/7 Schematic Diagram ( D )

Comparison Chart of Models and Marks

MODEL MARK

VR550/39 D VR550/58 E

MAIN 7/7 Schematic Diagram Parts Location Guide

Ref No. Position

C370 II-1 C371 II-1 C372 II-1 C373 II-1 C374 JJ-1 C375 JJ-1 C376 JJ-1 C377 JJ-2 C378 JJ-2 C379 II-2 C381 JJ-2 C382 II-2 C383 II-2 C384 HH-2

D370 HH-1

IC370 HH-2

L370 JJ-2

R370 II-1 R371 II-2 R372 HH-2

CAPACITORS

DIODE

COIL

RESISTORS

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

“ “ = SMD

5.0

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

1-10-48

1-10-49

HG473SCM7

Page 23

Main CBA Top View

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

NOTE :

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

Sensor CBA Top View

BHF300F01011A

BHF300F01011B

BECAUSE A HOT CHASSIS GROUND IS PRESENT IN THE POWER SUPPLY CIRCUIT , AN ISOLATION TRANSFORMER MUST BE USED. ALSO , IN ORDER TO HAVE THE ABILITY TO INCREASE THE INPUT SLOWLY , WHEN TROUBLESHOOTING THIS TYPE POWER SUPPLY CIRCUIT , A VARIABLE ISOLATION TRANSFORMER IS REQUIRED.

WF1

J23

V-OUT

WF2

TP502

RF-SW

VR501

SW-P

TP507

S-INH

TP501

CTL

WF3

TP301

C-PB

1-10-50

1-10-51

BHG470F01012A

Page 24

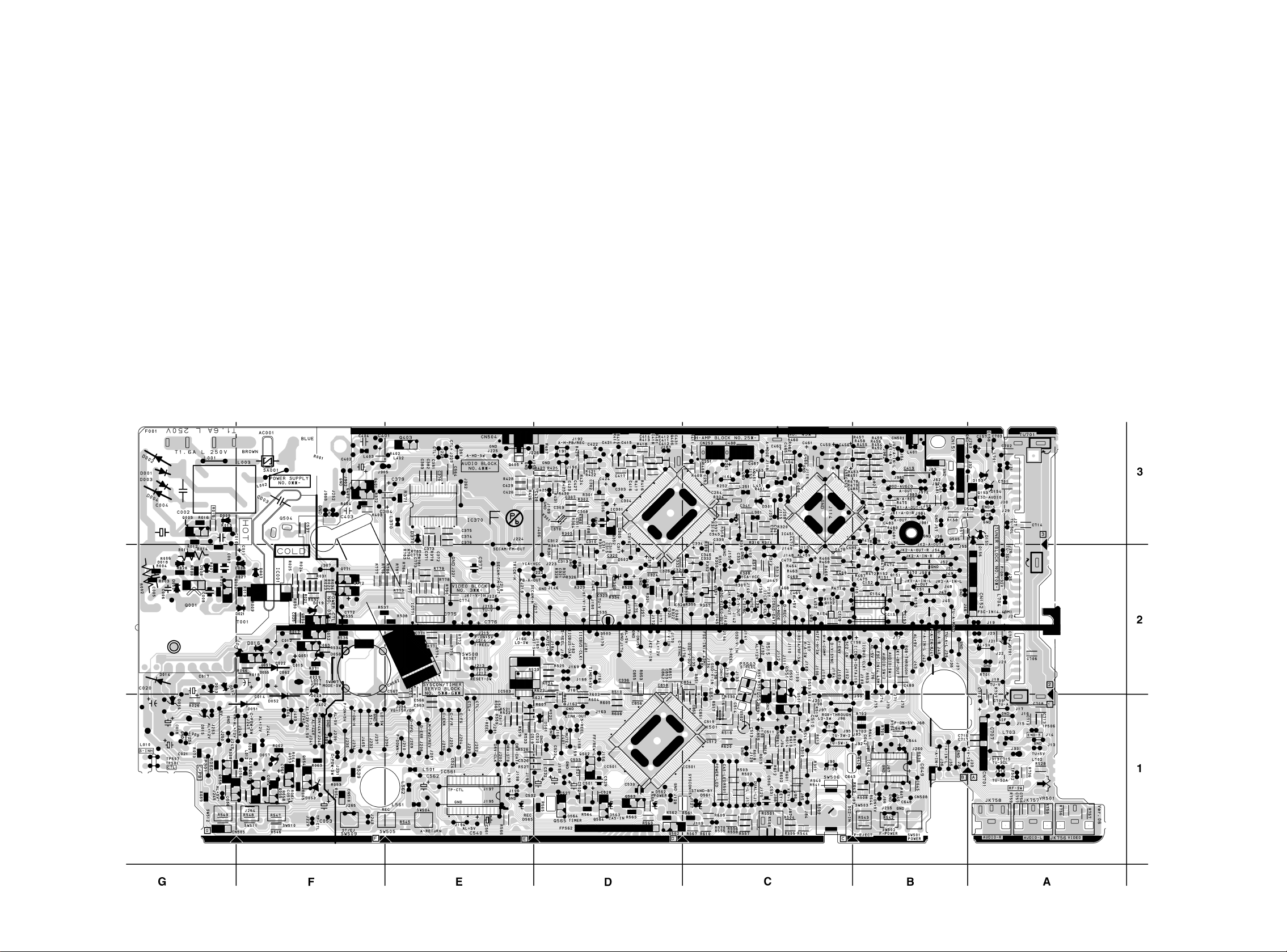

Main CBA Bottom View

CAUTION !

For continued protection against fire hazard, replace only with the same type fuse.

NOTE :

The voltage for parts in hot circuit is measured using hot GND as a common terminal.

CAUTION !

1-10-52 1-10-53

BHG470F01012A

Page 25

Main CBA Parts Location Guide

Ref No. Position Ref No. Position Ref No. Position Ref No. Position

R005 G-2 R325 D-2 R479 C-3 R772 E-2 R006 G-2 R326 D-2 R480 B-3 R773 E-2 R007 G-2 R330 D-2 R481 B-3 R774 E-2 R008 G-2 R331 D-2 R501 C-1 R775 E-2 R009 F-2 R332 D-2 R502 C-1 R776 F-2 R011 G-2 R334 D-2 R503 C-1 R777 F-2 R012 G-3 R351 C-2 R504 C-1 R778 E-2 R013 G-3 R352 C-2 R505 C-1 R779 E-2 R014 G-2 R355 C-2 R506 C-1 R780 E-2 R015 G-3 R357 C-2 R509 C-1 R781 E-2 R016 G-3 R358 C-2 R510 D-2 R782 E-2 R017 F-2 R360 D-3 E511 C-1 R783 E-2 R018 F-2 R361 D-2 R513 C-1 R784 E-2 R021 F-2 R370 E-2 R514 C-1 R785 E-2 R022 F-2

R371 E-3

R516 C-1 R786 E-2

R023 F-2

R372 F-3

R517 C-1 R787 E-2 R024 F-2 R401 D-3 R518 C-2 R851 C-2 R025 F-2 R402 F-3 R520 E-1 R852 D-2 R026 G-1 R403 F-3 R521 E-1 R853 D-2 R027 F-2 R404 F-3 R522 E-1 R028 G-2 R407 D-3 R523 D-2 SW501 B-1 R030 F-2 R408 C-3 R524 E-2 SW502 B-1 R031 F-2 R409 C-3 R525 D-2 SW503 B-1 R032 F-2 R411 C-3 R526 E-1 SW505 E-1 R053 F-1 R412 D-3 R527 E-1 SW506 C-1 R054 F-1 R413 D-3 R528 A-1 SW507 F-2 R058 F-1 R414 D-3 R529 D-2 SW509 F-1 R060 G-1 R415 D-3 R530 C-2 SW510 F-1 R061 F-1 R416 D-3 R531 C-1 SW511 F-1 R062 F-1 R417 D-3 R533 E-1 SW512 G-1 R063 F-1 R418 D-3 R534 F-2 R064 F-1 R421 D-3 R535 F-2 VR501 A-1 R065 F-1 R422 D-3 R536 F-2 R066 F-2 R425 E-3 R537 F-2 X301 D-3 R067 F-1 R426 E-3 R538 E-2 X501 C-1 R068 F-1 R429 D-3 R539 F-1 X502 C-1 R071 F-2 R430 D-3 R540 C-1 R073 G-1 R431 D-3 R541 C-1 AC001 F-3 R158 B-3 R451 C-3 R542 B-1 F001 G-3 R251 C-3 R452 B-3 R543 B-1 FP562 D-1 R252 C-3 R453 C-3 R544 C-1 PS503 C-2 R301 D-3 R454 B-3 R545 E-1 RS501 C-1 R302 D-3 R457 B-3 R546 F-1 SA001 F-3 R303 D-3 R458 B-3 R547 F-1 T001 F-2 R304 D-3 R459 B-3 R548 F-1 TU701 A-3 R305 D-2 R460 C-3 R549 G-1 R307 C-2 R461 C-3 R551 C-2 J23 A-2 R308 C-2 R462 C-3 R552 C-2 TP301 G-1 R309 C-3 R463 C-2 R553 B-2 TP501 G-1 R310 C-1 R464 C-2 R555 C-1 TP502 A-1 R311 C-1 R465 C-2 R557 C-1 TP506 A-1 R312 C-2 R466 C-2 R558 C-1 TP507 G-1 R313 C-2 R467 B-2 R566 E-1 R315 C-3 R469 C-2 R615 C-1 R316 C-3 R471 C-2 R621 D-1 R317 C-3 R472 B-2 R622 D-2 R318 C-3 R473 B-2 R701 A-2 R319 C-3 R474 B-2 R702 B-1 R320 C-3 R475 B-3 R703 B-1 R321 D-2 R476 B-3 R706 A-1 R323 D-2 R477 B-3 R707 A-2 R324 C-3 R478 C-3 R771 E-2

TEST POINTS

SWITCHES

VARIABLE RESISTOR

CRYSTAL OSCILLATORS

MISCELLANEOUS

RESISTORS RESISTORSRESISTORS RESISTORS

Ref No. Position Ref No. Position Ref No. Position Ref No. Position Ref No. Position

CAPACITORS CAPACITORSCAPACITORS C002 G-3 C339 C-3 C471 C-2 C776 E-2 IC451 C-3 C003 F-3 C340 C-3 C472 C-3 C777 E-2 IC501 D-1 C004 G-3 C341 C-3 C473 C-2 C778 E-2 IC503 E-2 C005 G-2 C342 C-3 C474 C-2 C851 C-1 IC561 E-1 C006 G-2 C343 C-3 C475 B-2 C852 C-1 IC771 E-2 C007G-2C345D-2C476C-2C853D-2 C008 G-2 C346 C-2 C477 B-2 C854 C-2 J902 F-3 C010 G-3 C347 C-3 C478 B-2 C855 D-2 L001 G-3 C011 F-2 C351 C-2 C479 B-2 C856 D-1 L002 F-3 C012 F-2 C352 D-2 C480 C-2 C858 D-2 L003 F-3 C014 F-1 C015 F-2 C017 G-2 C018 G-1 C020 G-2 C021 G-1 C025 F-2 C026 F-1 C053 F-1 C056 G-1 C057 G-1 C060 F-1 C061 F-1 C157 A-3 C158 A-3 C401 E-3 C514 C-1 D003 G-3 L704 A-2 C251 C-3 C402 F-3 C515 C-1 D004 G-3 L851 C-1 C252 C-3 C403 F-3 C516 C-1 D005 G-2 C253 C-3 C404 F-3 C517 E-1 D006 G-2 Q001 G-2 C254 C-3 C411 D-3 C518 E-1 D007 F-2 Q002 G-2 C302 D-3 C412 D-3 C519 E-1 D008 F-2 Q003 G-2 C303 D-3 C414 D-3 C520 D-1 D009 G-3 Q004 F-2 C304 D-3 C415 D-3 C521 D-1 D011 F-2 Q051 F-2 C305 D-3 C416 D-3 C522 D-1 D012 G-2 Q052 F-2 C307 D-3 C417 D-3 C523 D-1 D013 G-2 Q053 F-1 C308 D-3 C418 D-3 C524 D-1 D014 G-2 Q054 F-1 C309 D-3 C419 B-3 C526 E-1 D015 G-1 Q055 F-1 C310 D-3 C421 D-3 C527 D-1 D018 G-2 Q056 G-1 C311 D-3 C422 D-3 C528 D-1 D019 F-2 Q057 F-2 C312 D-3 C424 D-3 C530 D-1 D021 F-2 Q058 G-1 C313 D-2 C425 E-3 C531 C-1 D023 F-2 Q059 F-1 C314 D-2 C428 D-3 C532 E-1 D051 F-1 Q153 A-3 C315 D-2 C430 C-3 C533 D-1 D052 F-1 Q351 C-2 C316 D-3 C451 B-2 C535 D-2 D053 F-1 Q352 D-3 C317 D-2 C452 C-3 C538 B-3 D055 F-2 Q401 F-3 C318 D-2 C453 C-3 C540 E-1 D056 G-2 Q402 F-3 C319 D-2 C454 C-3 C561 E-1 D057 F-1 Q403 E-3 C320 D-2 C455 C-3 C562 E-1 D058 F-2 Q405 E-3 C321 D-2 C456 C-3 C563 E-1 D153 A-3 Q406 D-3 C322 D-2 C457 C-3 C564 E-3 D154 A-3 Q451 C-3 C323 D-2 C458 C-3 C567 E-2 D155 A-3 Q501 C-1 C324 D-2 C459 C-3 C701 A-3 D156 A-2 Q503 D-2 C325 D-2 C460 C-3 C702 A-3 D301 C-3 Q504 F-3 C326 D-2 C461 C-3 C704 A-2 D370 E-3 Q505 B-3 C327 D-2 C462 C-3 C706 A-2 D501 D-1 Q551 C-2 C330 D-2 C463 C-3 C708 A-1 D502 D-2 Q552 C-1 C332 C-2 C464 C-3 C716 A-1 D552 C-2 Q771 F-2 C333 C-2 C465 C-3 C717 A-1 D553 C-2 Q772 F-2 C334 C-3 C466 C-2 C771 E-2 D701 A-2 C335 C-2 C467 C-2 C772 F-2 R001 F-3 C336 D-2 C468 C-2 C773 E-2 IC001 F-2 R002 G-2 C337 C-3 C469 C-2 C774 E-2 IC301 D-3 R003 G-2 C338 C-3 C470 C-2 C775 E-2 IC370 E-3 R004 G-2

C370 D-3 C371 E-2 C372 E-2 C373 E-2 C374 E-3 C375 E-3 C376 E-3 C377 E-2 C378 E-3 C379 E-3 C381 E-3 C382 E-3 C383 E-3 C384 E-3

C481 B-3 C859 C-1 L009 G-1 C482 B-3 C862 D-2 L010 G-1 C483 B-3 L012 F-1 C484 B-3 CL151 B-3 L251 C-3 C485 C-3 CL152 A-2 L301 C-3 C486 C-3 CL253 C-3 L370 E-3 C501 D-1 CL501 B-3 L403 F-3 C502 D-1 CL502 E-2 L451 C-3 C506 C-1 CL504 E-3 L452 C-2 C508 C-1 CL505 G-1 L501 E-1 C510 C-1 CN701 A-1 L561 E-1 C511 C-1 L562 E-1 C512 C-1 D001 G-3 L701 A-3 C513 C-1 D002 G-3 L703 A-1

1-10-54 1-10-55

CAPACITORS ICS

COILS

CONNECTORS

DIODES

TRANSISTORS

RESISTORS

ICS

Page 26

Jack CBA Top View

Jack CBA Parts Location Guide

Ref No. Position Ref No. Position

C101 B-1 Q101 C-1 C102 B-1 Q102 B-1 C103 C-1 C104 C-1 R101 B-1 C105 C-1 R103 B-1 C107 B-1 R104 B-1 C108 B-1 R106 C-1 C109 A-1 R108 C-1 C110 A-1 R109 C-1 C111 A-1 R110 A-1 C112 A-1 R112 A-1 C113 A-1 R113 A-1 C115 C-1 R115 A-1 C116 C-1 R116 A-1 C117 B-1 R117 A-1

R118 B-1 CL101 C-1 R119 B-1 CL102 B-1 R120 C-1

R123 C-1

D101 C-1 R125 B-1 D102 A-1 R126 B-1 D103 B-1 R127 B-1 D104 A-1 R128 C-1 D105 C-1 D106 C-1 JK101 B-1

JK102 A-1 L101 C-1 L102 B-1

MISCELLANEOUS

COILS

RESISTORS

CAPACITORS TRANSISTORS

DIODES

CONNECTORS

Jack CBA Bottom View

1-10-56

1-10-57

BHG470F01012C

Page 27

AFV Schematic Diagram

Comparison Chart of Models and Marks

MODEL MARK

VR550/39 D VR550/58 E

AFV Schemati c Diagram Parts Location Guide

Ref No. Position

C1 A-1 C4 A-1 C5 B-1 C6 A-1 C7 A-1

C8 B-1 C11 C-2 C12 C-2 C13 B-2 C14 A-2 C15 A-2 C16 A-2 C17 A-2 C19 A-2 C20 A-2 C21 A-1 C22 A-2 C23 A-1 C24 B-2

CN1 C-1

D2 B-2

IC1 A-1

L1 A-1

L2 A-2

L3 A-1

L4 C-2

R1 B-1

R2 A-1

R4 B-2

R5 A-1

R6 A-1

R7 A-1

X1 B-1

CRYSTAL OSCILLATOR

CAPACITORS

COILS

CONNECTOR

DIODE

RESISTORS

1-10-58

1-10-59

MODE: SP/REC

THE SAME VOLTAGE FOR

BOTH PLAY & REC MODES.

“ “ = SMD

5.0

(2.5)

INDICATES THAT THE VOLTAGE

IS NOT CONSISTENT HERE.

PLAY MODE

REC MODE

HG473SCAFV

Page 28

AFV CBA Top View

AFV CBA Parts Location Guide

Ref No. Position

C1 A-2 C4 A-2 C5 A-2 C6 A-2 C7 A-2

C8 A-2 C11 A-2 C12 A-2 C13 B-1 C14 A-1 C15 B-1 C16 B-1 C17 B-1 C19 A-1 C20 A-1 C21 A-1 C22 A-1 C23 A-1 C24 B-2

CN1 B-1

D2 B-2

IC1 B-2

L1 A-1 L2 B-1 L3 A-2 L4 A-2

R1 A-2

R2 A-2

R4 B-2

R5 A-1

R6 B-2

R7 A-2

X1 B-2

CONNECTOR

CAPACITORS

DIODE

COILS

CRYSTAL OSCILLATOR

RESISTORS

1-10-60

AFV CBA Bottom View

1-10-61

BHC400F01093

Page 29

[ VR550/ (39, 58) ]

WIRING DIAGRAM

AC CORD

123456789

1 TU-AUDIO

CN701 CN1

ANT-IN ANT-OUT

SIF 2

3 GND

AFV CBA

TU-AUDIO(R) 4

(BHC400F01093)

TU-AUDIO(L)5

IIC-BUS SCL8

IIC-BUS SDA9

P-ON+5V

P-ON+5V 6

123456789

JK101,102

123456789

JW002

AL+12V(1)

GND

JK1-8P-OUT

A-OUT1(R)

1 V-OUT1

3 V-IN1

CL151 CL101

1011121314151617181920

JACK CBA

(BHG470F01012C)

A-IN1(R)

A-IN1(L)7

16P8

GND

123456789

JW001

A-OUT1(L)11

1 V-OUT2

CL152 CL102

GND 2

3 V-IN2

16P 4

GND5

A-OUT2(R) 6

A-IN2(L)8

SC2-IN 7

A-IN2(R)9

GND

A-OUT2(L)

SENSOR CBA

(BHF300F01011A,B)

CL504

CTL(+)2

CTL(-) 1

MAIN CBA

(BHG470F01012A)

A-COM4

AE-H6AE-H/FE-H5

A-PB/REC3

FE-H2

CL501

FE-H GND1

CL502

P-ON+5V

1 AL+12V/+20.5V

3 C-FG

C-F/R 4

C-CONT5

GND 6

CAPSTAN

GND

D-PFG9

D-CONT8

LM-FWD/REV 7

MOTOR

P-ON+15V12

AL+12V(2)

CL253

V-COM5

V(R)-11

V(R)-26

V-COM2

V(L)-2

Hi-Fi-A(R)7

Hi-Fi-COM8

3 V(L)-1

Hi-Fi-A(L)9

CAPSTAN MOTOR

NOTE FOR WIRE CONNECTORS:

1. PREFIX SYMBOL "CN" MEANS CONNECTOR.

(CAN DISCONNECT AND RECONNECT.)

2. PREFIX SYMBOL "CL" MEANS WIRE-SOLDER

HOLES OF THE PCB.

(WIRE IS SOLDERED DIRECTLY.)

AUDIO HEAD

CONTROL HEAD

AC HEAD ASSEMBLY

(DECK ASSEMBLY)

AUDIO

ERASE HEAD

FULL

ERASE HEAD

FE HEAD

MOTOR

1-12-2

SENSOR

CYLINDER ASSEMBLY

DRUM

MOTOR

VIDEO

(R)1

HEAD

VIDEO

(L)1

HEAD

VIDEO

(L)2

HEAD

VIDEO

(R)2

HEAD

Hi-Fi AUDIO

(R) HEAD

HG473WI

Hi-Fi AUDIO

(L) HEAD

Page 30

IC PIN FUNCTION DESCRIPTIONS

[ VR550/ (39, 58) ]

Comparison Chart of Models and Marks

Model Mark

VR550/39 D

VR550/58 E

IC501( SERVO / SYSTEM CONTROL IC )

“H” ≥ 4.5V, “L” ≤ 1.0V

Mark

No.

1IN

2IN

3IN

4IN

5IN

6IN

7IN

8IN

9IN

10 IN

11 -

12 -

13 OUT

14 IN

15 OUT

IN/

OUT

Signal

Name

SC2-IN

PGDELAY

POW-SAF

END-S

AFC

V-ENV

KEY-1

KEY-2

LD-SW

ST-S

N.U. Not Used

D-VSYNC

REMOCO N-IN

C-ROTA

Function

Input Signal from Pin 8 of SCART2

Video Head Switching Pulse Signal Adjusted Voltage

P-ON Power Detection Input Signal

Tape End Position Detect Signal

Automatic Frequency Control Signal

Video Envelope Comparator Signal

Key Scan Input Signal 1

Key Scan Input Signal 2

Deck Mode Position Detector Signal

Tape Start Position Detector Signal

Dummy V-sync Output

Remote Control Sensor

Color Phase Rotary Changeover SIgnal

Active

Level

A/D

H/Hi-z

H/L

Mark

No.

16 OUT

17 IN

18 OUT

19 OUT

20 -

21 -

22 -

23 -

24 -

25 -

26 -

27 OUT

28 OUT

29 -

30 -

31 IN

32 IN

33 OUT

34 IN

35 IN

36 OUT

37 -

38 IN

39 OUT

IN/

OUT

Signal

Name

H-A-SW

H-ACOMP

RF-SW

Hi-Fi-HSW

N.U. Not Used

RGBTHROUG H

LINEMUTE

N.U. Not Used

RECSAF-SW

A-MODE

D-REC-H

RESET

XC-IN Sub Clock

XC-OUT Sub Clock

Vcc Vcc

X-IN

X-OUT

Function

Video Head Amp Switching Pulse

Head Amp Comparator Signal

Video Head Switching Pulse

Hi-Fi Audio Head Switching Pulse

SCART 2 RGB Through Control Signal

Audio Mute Control Signal

Recording Safety SW Detect (With Record tab="L"/With out Record tab="H")

Hi-Fi Tape Detection Signal

Delayed Record Signal

System Reset Signal (Reset=”L”)

Main Clock Input

Active

Level

H/L

L/H

1-14-3 HG473PIN

Page 31

Pin No.

Mark

IN/

OUT

40 -

41 -

42 -

43 IN

44 IN

45 OUT

46 -

47 -

48 IN

49 -

50 IN

51 -

52 OUT

53 -

54 -

55 -

56 -

57 -

58 IN

59 OUT

60 OUT

DIN

E-

62 -

63 -

64 IN

DOUTTRICK-H

E-

Signal

Name

Function

Vss Vss(GND)

N.U. Not Used

CLKSEL

OSCin

OSCout

Clock Select (GND)

Clock Input for letter size

Clock Output for letter size

N.U. Not Used

LP LP

FSC-IN [4.43MHz]

4.43MHz Clock Input

OSDVss OSDVss

OSD-V-IN

OSD Video Signal Input

N.U. Not Used

OSD-VOUT

OSD Video Signal Output

OSDVcc OSDVcc

LPF

HLF

Connected Te r mi n a l (Slicer)

N.U. Not Used

Composite

C-SYNC

Synchronized Pulse

SCART 1 8Pin

8POUT-1

Output Control Signal

SCART 2 8Pin

8POUT-2

Output Control Signal

SECAM-HSECAM Mode

at High

N.U. Not Used

Comparator

FTV-IN

Input of Video Signal for Follow TV

Special Playback = “H” in SECAM Mode

N.U. Not Used

Active

Level

PULSE

H/L

L/H

No.

Mark

IN/

OUT

66 OUT

67 OUT

68 OUT

69 OUT

70 OUT

71 OUT

IN/

OUT

73 -

74 -

75 -

76 OUT

77 OUT

78 OUT

79 IN

80 IN

81 OUT

82 -

83 OUT

84 -

85 -

86 IN

87 IN

88 -

89 -

Signal

Name

Function

Capstan C-POWSW

Power

Switching

Pulse

P-ON-H

DRVDATA

Power On

Signal at High

LED Clock

Driver IC

Control Data

LED Clock DRV-STB

Driver IC Chip

Select Signal

LED Clock DRV-CLK

Driver IC

Control Clock

IIC-BUS SCL

IIC-BUS SDA

C BUS

Control Clock

C BUS

Control Data

N.U. Not Used

C-CONT

D-CONT

Capstan Motor

Control Signal

Drum Motor

Control Signal

Capstan Motor

FWD/REV C-F/R

Control Signal

(FWD=”L”/

REV=”H”)

Supply Reel S-REEL

Rotation

Signal

Tak e U p Re e l T- R E E L

Rotation

Signal

LM-FWD/ REV

Loading Motor

Control Signal

N.U. Not Used

A-MUTE

Audio Mute

Control Signal

N.U. Not Used

P-DOWNL

Power Voltage

Down Detector

Signal

Capstan Motor

C-FG

Rotation

Detection

Pulse

N.U. Not Used

Active

Level

L/H

H/L

PWM

H/L

PULSE

H/L/ Hi-z

PULSE

1-14-4 HG473PIN

Page 32

Mark

No.

90 IN

91 -

92 -

93 -

96 -

97 -

98 -

99 -

100 IN

IN/

OUT

IN/

OUT

IN/

OUT

Signal

Name

D-PFG

AMPVRE F OUT

AMPVRE F IN

P80/C

CTL (-)

CTL (+)

AMPC

CTLAMP out

AMPVcc AMPVcc

AVcc

AGC

Function

Drum Motor Pulse Generator

V-Ref for CTL AMP

P80/C Te r mi n a l

Playback/ Record Control Signal (-)

Playback/ Record Control Signal (+)

CTL AMP Connected Te r mi n a l

To Monitor for CTL AMP Output

A/D Converter Power Input/ Standard Voltage Input

IF AGC Comparator Signal

Active

Level

PULSE

H/L

PULSE

A/D

Notes:

Abbreviation for Active Level:

PWM -----Pulse Wide Modulation A/D--------Analog - Digital Converter

1-14-5 HG473PIN

Page 33

[ VR550/ (39, 58) ]

LEAD IDENTIFICATIONS

E C B

BR24L02F-WE2 CAT24WC02JI

RN1511(TE85R) FMG4A T148

C1 C2

2SC2785(F,H,J) BA1F4M-T BN1F4M-T BN1L4M-T KRA103M KRA104M KRC103M KTA1266(GR) KTA1281(Y) KTC3199(BL,GR,Y)

EL817A EL817B EL817C LTV-817B-F LTV-817C-F PS2561A-1(Q,W)

FA1F4M-T1B KRC103S RTK KTA1504GR-RTK KTA1504Y-RTK KTC3875Y-RTK

KIA339F EL LM339DT

PT6958-FN-TP

LA71750EM-MPB-E QSZAC0RMB188

E C B

2SA1015-GR(TPE2) 2SA1020(Y) 2SC1815-BL(TPE2) 2SC1815-GR(TPE2) 2SC1815-Y(TPE2) 2SC2120-Y(TPE2) 2SC3266-Y(TPE2) KTA1267(GR,Y) KTC3203(Y) KTC3205(Y)

LA70100M-TRM

2SK3566

G D S

B1 E B2

MID-32A22F PT204-6B-12

LA72648M-MPB-E

MSP3417G-QG-B8 MSP3417G-QG-B8-V3

100

Note:

A: Anode K: Cathode E: Emitter C: Collector B: Base R: Reference

S: Source G: Gate

D: Drain

1-15-2 HG473LE

Page 34

PRODUCT SAFETY NOTE: Products marked with a h

have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don't degrade the safety of the product through improper servicing.

NOTES:

Parts that not assigned part numbers (-----------) are not available. Tolerance of Capacitors and Resistors are noted with the following symbols.

C…..±0.25% D…..±0.5% F…..±1% G…..±2% J…..±5% K…..±10% M…..±20% N…..±30% Z…..+80/-20%

ELECTRICAL PARTS LIST

Pos.

C002 C003 C004 4822 124 80025 ELECTROLYTIC CAP. 33UF/400V M(L.Z) 1 1 C005 4822 126 14142 CERAMIC CAP. B K 0.01UF/500V 1 1 C006 4822 126 14141 CERAMIC CAP. SL K 56PF/1KV 1 1 C007 CERAMIC CAP.(AX) B K 1000PF/50V 1 1 C008 CERAMIC CAP.(AX) X K 5600PF/16V 1 1 C010 FILM CAP.(P) 0.022UF/50V J 1 1 C011 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C012 ELECTROLYTIC CAP. 10UF/50V M H7 1 1 C014 ELECTROLYTIC CAP. 470UF/35V M 1 1 C017 ELECTROLYTIC CAP. 470UF/16V M 1 1 C018 ELECTROLYTIC CAP. 100UF/16V M 1 1 C020 ELECTROLYTIC CAP. 1000UF/16V M 1 1 C021 ELECTROLYTIC CAP. 470UF/10V M 1 1 C025 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C026 ELECTROLYTIC CAP. 47UF/16V M H7 1 1 C053 ELECTROLYTIC CAP. 330UF/6.3V M H7 1 1 C056 CHIP CERAMIC CAP.(1608) B K 0.047UF/50V 1 1 C057 CHIP CERAMIC CAP.(1608) CH J 470PF/50V 1 1 C060 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C061 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C157 ELECTROLYTIC CAP. 1UF/50V M H7 1 1 C158 CHIP CERAMIC CAP. B K 1000PF/50V 1 1 C251 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C252 CHIP CERAMIC CAP. B K 1000PF/50V 1 1 C253 ELECTROLYTIC CAP. 1UF/50V M H7 1 1

12 NC Description

MCV CBA Consists of the following MAIN CBA(MCV-A) 1 1 JACK CBA(MCV-C) 1 1 SENSOR CBA 1 1 SENSOR CBA 1 1 MAIN CBA(MCV-A) 1 1 AFV CBA 1 1 CAPACITORS

9965 000 06521 METALLIZED FILM CAP. 0.068UF/250V K 1 1

9965 000 23354 SAFTY CAP. 2200PF/250V 1 1

VR550/39

VR550/58

1-16-9

Page 35

ELECTRICAL PARTS LIST

Pos.

C254 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C302 CHIP CERAMIC CAP.(1608) B K 0.022UF/50V 1 1 C303 ELECTROLYTIC CAP. 1UF/50V M H7 1 1 C304 ELECTROLYTIC CAP. 1UF/50V M H7 1 1 C305 CHIP CERAMIC CAP. F Z 0.22UF/16V 1 1 C307 CHIP CERAMIC CAP.(1608) B K 0.047UF/50V 1 1 C308 CHIP CERAMIC CAP.(1608) B K 0.022UF/50V 1 1 C309 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C310 CHIP CERAMIC CAP.(1608) B K 0.047UF/50V 1 1 C311 CHIP CERAMIC CAP.(1608) B K 0.022UF/50V 1 1 C312 CHIP CERAMIC CAP. B K 8200PF/50V 1 1 C313 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C314 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C315 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C316 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C317 ELECTROLYTIC CAP. 47UF/6.3V M H7 1 1 C318 ELECTROLYTIC CAP. 1UF/50V M H7 1 1 C319 ELECTROLYTIC CAP. 1UF/50V M H7 1 1 C320 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C321 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C322 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C323 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C324 CHIP CERAMIC CAP. CH J 68PF/50V 1 1 C325 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C326 CHIP CERAMIC CAP. CH J 68PF/50V 1 1 C327 ELECTROLYTIC CAP. 0.47UF/50V M H7 1 1 C330 CERAMIC CAP.(AX) F Z 0.1UF/50V 1 1 C332 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C333 ELECTROLYTIC CAP. 0.47UF/50V M H7 1 1 C334 ELECTROLYTIC CAP. 4.7UF/25V M NP H7 1 1 C335 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C336 CHIP CERAMIC CAP.(1608) CH J 1000PF/50V 1 1 C337 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C338 ELECTROLYTIC CAP. 100UF/6.3V H7 1 1 C339 ELECTROLYTIC CAP. 1UF/50V M H7 1 1 C340 CHIP CERAMIC CAP. CH J 120PF/50V 1 1 C341 CHIP CERAMIC CAP. CH J 220PF/50V 1 1 C342 ELECTROLYTIC CAP. 1UF/50V M H7 1 1 C343 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C345 CHIP CERAMIC CAP. CH J 68PF/50V 1 1 C346 CHIP CERAMIC CAP. CH J 68PF/50V 1 1 C347 CHIP CERAMIC CAP. CH D 10PF/50V 1 1 C351 ELECTROLYTIC CAP. 220UF/6.3V M H7 1 1 C352 ELECTROLYTIC CAP. 100UF/16V M H7 1 1 C370 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 C371 CHIP CERAMIC CAP.(1608) B K 0.022UF/50V 1 C372 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 C373 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 C374 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 C375 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 C376 CHIP CERAMIC CAP.(1608) B K 0.022UF/50V 1 C377 CERAMIC CAP.(AX) Y M 0.01UF/16V 1 C378 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 C379 ELECTROLYTIC CAP. 0.47UF/50V M H7 1 C381 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 C382 CHIP CERAMIC CAP. B K 2200PF/50V 1 C383 CHIP CERAMIC CAP. B K 2200PF/50V 1 C384 ELECTROLYTIC CAP. 2.2UF/50V M H7 1

12 NC Description

VR550/39

VR550/58

1-16-10

Page 36

ELECTRICAL PARTS LIST

Pos.

C401 ELECTROLYTIC CAP. 47UF/6.3V M H7 1 1 C402 ELECTROLYTIC CAP. 220UF/6.3V M H7 1 1 C403 CERAMIC CAP. B K 470PF/100V 1 1 C404 FILM CAP.(P) 0.018UF/100V J 1 1 C411 CHIP CERAMIC CAP. B K 1000PF/50V 1 1 C412 CHIP CERAMIC CAP. B K 1800PF/50V 1 1 C414 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C415 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C416 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C417 CHIP CERAMIC CAP.(1608) B K 0.022UF/50V 1 1 C418 CHIP CERAMIC CAP.(1608) CH J 33PF/50V 1 1 C419 CHIP CERAMIC CAP.(1608) B K 4700PF/50V 1 1 C421 ELECTROLYTIC CAP. 33UF/6.3V M H7 1 1 C422 ELECTROLYTIC CAP. 4.7UF/25V M H7 1 1 C424 ELECTROLYTIC CAP. 22UF/6.3V M H7 1 1 C425 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C428 CHIP CERAMIC CAP. CH J 220PF/50V 1 1 C430 ELECTROLYTIC CAP. 47UF/6.3V M H7 1 1 C451 ELECTROLYTIC CAP. 47UF/16V M H7 1 1 C452 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C453 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C454 ELECTROLYTIC CAP. 22UF/10V M H7 1 1 C455 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C456 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C457 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C458 ELECTROLYTIC CAP. 4.7UF/25V M H7 1 1 C459 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C460 CHIP CERAMIC CAP.(1608) B K 4700PF/50V 1 1 C461 ELECTROLYTIC CAP. 22UF/10V M H7 1 1 C462 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C463 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C464 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C465 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C466 ELECTROLYTIC CAP. 220UF/6.3V M H7 1 1 C467 ELECTROLYTIC CAP. 22UF/10V M H7 1 1 C468 CHIP CERAMIC CAP.(1608) B K 4700PF/50V 1 1 C469 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C470 ELECTROLYTIC CAP. 4.7UF/25V M H7 1 1 C471 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C472 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C473 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C474 ELECTROLYTIC CAP. 22UF/6.3V M H7 1 1 C475 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C476 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C477 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C478 ELECTROLYTIC CAP. 4.7UF/25V M H7 1 1 C479 ELECTROLYTIC CAP. 4.7UF/25V M H7 1 1 C480 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C481 ELECTROLYTIC CAP. 4.7UF/25V M H7 1 C482 ELECTROLYTIC CAP. 4.7UF/25V M H7 1 1 C483 ELECTROLYTIC CAP. 4.7UF/25V M H7 1 1 C484 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C485 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C486 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C501 ELECTROLYTIC CAP. 220UF/6.3V M H7 1 1 C502 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C506 CERAMIC CAP.(AX) B K 100PF/50V 1 1 C508 ELECTROLYTIC CAP. 1UF/50V M H7 1 1

12 NC Description

VR550/39

VR550/58

1-16-11

Page 37

ELECTRICAL PARTS LIST

Pos.

C510 ELECTROLYTIC CAP. 22UF/10V M H7 1 1 C511 ELECTROLYTIC CAP. 100UF/6.3V H7 1 1 C512 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C513 CHIP CERAMIC CAP.(1608) CH J 22PF/50V 1 1 C514 CHIP CERAMIC CAP.(1608) CH J 22PF/50V 1 1 C515 CHIP CERAMIC CAP. CH J 18PF/50V 1 1 C516 CHIP CERAMIC CAP. CH J 18PF/50V 1 1 C517 CHIP CERAMIC CAP.(1608) B K 4700PF/50V 1 1 C518 CHIP CERAMIC CAP.(1608) B K 0.047UF/50V 1 1 C519 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C520 CHIP CERAMIC CAP.(1608) CH J 100PF/50V 1 1 C521 CHIP CERAMIC CAP. CH J 560PF/50V 1 1 C522 ELECTROLYTIC CAP. 22UF/6.3V M H7 1 1 C523 CHIP CERAMIC CAP. B K 1000PF/50V 1 1 C524 CHIP CERAMIC CAP. CH J 330PF/50V 1 1 C526 CHIP CERAMIC CAP.(1608) B K 4700PF/50V 1 1 C527 ELECTROLYTIC CAP. 22UF/6.3V M H7 1 1 C528 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C530 CERAMIC CAP.(AX) F Z 0.022UF/25V 1 1 C531 CERAMIC CAP.(AX) Y M 0.01UF/16V 1 1 C532 ELECTROLYTIC CAP. 22UF/6.3V M H7 1 1 C533 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C535 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C538 CHIP CERAMIC CAP.(1608) B K 0.022UF/50V 1 1 C540 ELECTROLYTIC CAP. 470UF/6.3V M 1 1 C561 CHIP CERAMIC CAP.(1608) B K 0.022UF/50V 1 1 C562 ELECTROLYTIC CAP. 330UF/6.3V M H7 1 1 C563 CHIP CERAMIC CAP.(1608) B K 0.1UF/25V 1 1 C564 CHIP CERAMIC CAP.(1608) CH J 100PF/50V 1 1 C701 CHIP CERAMIC CAP.(1608) B K 0.047UF/50V 1 C702 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C704 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C706 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C708 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C716 CHIP CERAMIC CAP. F Z 0.22UF/16V 1 1 C717 CHIP CERAMIC CAP. F Z 0.22UF/16V 1 1 C771 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C772 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C773 CHIP CERAMIC CAP. B K 1000PF/50V 1 1 C774 CHIP CERAMIC CAP. B K 1000PF/50V 1 1 C775 ELECTROLYTIC CAP. 1UF/50V M H7 1 1 C776 ELECTROLYTIC CAP. 1UF/50V M H7 1 1 C777 CHIP CERAMIC CAP. CH J 180PF/50V 1 1 C778 CHIP CERAMIC CAP. CH J 180PF/50V 1 1 C851 CHIP CERAMIC CAP.(1608) CH J 22PF/50V 1 1 C852 CHIP CERAMIC CAP.(1608) CH J 22PF/50V 1 1 C853 CHIP CERAMIC CAP.(1608) B K 4700PF/50V 1 1 C854 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C855 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C856 CHIP CERAMIC CAP. CH J 180PF/50V 1 1 C858 CHIP CERAMIC CAP. CH J 560PF/50V 1 1 C859 ELECTROLYTIC CAP. 47UF/6.3V M H7 1 1 C862 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 CN701 9965 000 23394 AFV PCB ASSEMBLY CPU2900/G473 1 CN701 9965 000 23385 AFV PCB ASSEMBLY CPU2900/G471 1

D001 4822 130 31933 RECTIFIER DIODE 1N4005 1 1 D002 4822 130 31933 RECTIFIER DIODE 1N4005 1 1

12 NC Description

DIODES

VR550/39

VR550/58

1-16-12

Page 38

ELECTRICAL PARTS LIST

Pos.

D003 4822 130 31933 RECTIFIER DIODE 1N4005 1 1 D004 4822 130 31933 RECTIFIER DIODE 1N4005 1 1 D005 5322 130 34979 RECTIFIER DIODE BA159 1 1 D006 4822 130 30621 SWITCHING DIODE 1N4148M 1 1 D007 4822 130 30621 SWITCHING DIODE 1N4148M 1 1 D008 4822 130 30621 SWITCHING DIODE 1N4148M 1 1 D009 4822 130 30621 SWITCHING DIODE 1N4148M 1 1 D011 4822 130 11654 RECTIFIER DIODE BA158 1 1 D012 4822 130 83883 RECTIFIER DIODE FR202-B/P 1 1 D013 4822 130 83883 RECTIFIER DIODE FR202-B/P 1 1 D014 4822 130 32715 SCHOTTKY BARRIER DIODE SB340 1 1 D015 9965 000 23356 ZENER DIODE DZ-18BSBT265 1 1 D018 4822 130 30621 SWITCHING DIODE 1N4148M 1 1 D019 9965 000 14881 ZENER DIODE DZ-6.8BSBT265 1 1 D021 4822 130 30621 SWITCHING DIODE 1N4148M 1 1 D051 4822 130 31933 RECTIFIER DIODE 1N4005 1 1 D052 4822 130 31933 RECTIFIER DIODE 1N4005 1 1 D053 4822 130 31933 RECTIFIER DIODE 1N4005 1 1 D055 PCB JUMPER D0.6-P10.0 1 1 D056 9965 000 08649 ZENER DIODE DZ-5.6BSCT265 1 1 D057 9965 000 09283 ZENER DIODE DZ-10BSBT265 1 1 D058 9965 000 23356 ZENER DIODE DZ-18BSBT265 1 1 D153 9965 000 12178 ZENER DIODE DZ-11BSAT265 1 1 D154 9965 000 12178 ZENER DIODE DZ-11BSAT265 1 1 D155 9965 000 12178 ZENER DIODE DZ-11BSAT265 1 1 D156 9965 000 12178 ZENER DIODE DZ-11BSAT265 1 1 D301 4822 130 30621 SWITCHING DIODE 1N4148M 1 1 D370 4822 130 30621 SWITCHING DIODE 1N4148M 1 D501 4822 130 30621 SWITCHING DIODE 1N4148M 1 1 D502 9965 000 05250 LED SIR-563ST3F P 1 1 D552 4822 130 10094 ZENER DIODE MTZJT-777.5A 1 1 D553 4822 130 30621 SWITCHING DIODE 1N4148M 1 1 D701 9965 000 09183 ZENER DIODE DZ-33BSDT265 1 1

IC001 IC301 9965 000 12180 IC:Y/C/A LA71750EM-MPB-E 1 1 IC370 9965 000 12255 IC:SECAM LA70100M-TRM 1 IC451 9965 000 16618 IC:HIFI LA72648M-MPB-E 1 1 IC501 9965 000 23358 SYSCON IC M3776AMCA-AB4GP 1 1 IC503 9965 000 16620 IC:EEPROM CAT24WC02JI 1 1 IC561 9965 000 12183 IC:LED DRIVER PT6958-FN-TP 1 1 IC771 9965 000 12184 IC:COMPARATOR KIA339F EL 1 1

L001 4822 526 10685 BEAD CORE B16 RH 3.5X10X1.3 1 1 L002 4822 526 10685 BEAD CORE B16 RH 3.5X10X1.3 1 1 L003 L009 9965 000 05627 CHOKE COIL 47UH-K 1 1 L010 9965 000 05627 CHOKE COIL 47UH-K 1 1 L012 9965 000 13681 INDUCTOR 100UH-J-5FT 1 1 L251 9965 000 08652 INDUCTOR 5.6UH-K-26T 1 1 L301 4822 157 10649 INDUCTOR(100UH K) LAP02TA101K 1 1 L370 4822 157 10332 PCB JUMPER D0.6-P5.0 1 L403 9965 000 05705 INDUCTOR 47UH-K-5FT 1 1 L451 9965 000 05705 INDUCTOR 47UH-K-5FT 1 1 L452 9965 000 16621 INDUCTOR 27UH-K-5FT 1 1 L501 4822 157 10649 INDUCTOR(100UH K) LAP02TA101K 1 1 L561 9965 000 05704 INDUCTOR 68UH-K-26T 1 1 L562 4822 157 63316 INDUCTOR 56UH-K-26T 1 1

12 NC Description

IC’s

4822 130 11655 PHOTOCOUPLER LTV-817B-F 1 1

COILS

9965 000 13005 LINE FILTER 56MH TLF14CB5630R2 1 1

VR550/39

VR550/58

1-16-13

Page 39

ELECTRICAL PARTS LIST

Pos.

L701 4822 157 10332 PCB JUMPER D0.6-P5.0 1 1 L704 4822 157 11511 INDUCTOR 15UH-K-26T 1 L851 9965 000 08629 INDUCTOR 1.8UH-K-26T 1 1

Q001 9965 000 17186 FET 2SK3566 1 1 Q002 4822 130 10923 TRANSISTOR KTC3199(BL) 1 1 Q003 4822 130 10923 TRANSISTOR KTC3199(BL) 1 1 Q004 4822 130 10462 TRANSISTOR KTA1267(GR) 1 1 Q051 4822 130 42292 RES. BUILT-IN TRANSISTOR KRA104M 1 1 Q052 9965 000 23377 RES. BUILT-IN TRANSISTOR KRC103M 1 1 Q053 4822 130 10103 TRANSISTOR KTC3199(Y) 1 1 Q054 9965 000 11122 TRANSISTOR KTC3205(Y) 1 1 Q055 4822 130 42959 TRANSISTOR KTA1266(GR) 1 1 Q056 4822 130 10145 RES. BUILT-IN TRANSISTOR KRA103M 1 1 Q057 9965 000 12190 TRANSISTOR KTA1281(Y) 1 1 Q058 9965 000 23377 RES. BUILT-IN TRANSISTOR KRC103M 1 1 Q059 9965 000 23377 RES. BUILT-IN TRANSISTOR KRC103M 1 1 Q153 4822 130 10103 TRANSISTOR KTC3199(Y) 1 1 Q351 9965 000 16622 CHIP TRANSISTOR KTA1504GR-RTK 1 1 Q352 4822 130 10103 TRANSISTOR KTC3199(Y) 1 1 Q401 4822 130 42959 TRANSISTOR KTA1266(GR) 1 1 Q402 4822 130 42292 TRANSISTOR KTC3203(Y) 1 1 Q403 4822 130 10145 RES. BUILT-IN TRANSISTOR KRA103M 1 1 Q405 9965 000 16623 CHIP TRANSISTOR FMG4A T148 1 1 Q406 9965 000 13683 CHIP TRANSISTOR KTC3875Y-RTK 1 1 Q451 9965 000 16624 CHIP TRANSISTOR KRC103S RTK 1 1 Q501 4822 130 10923 TRANSISTOR KTC3199(BL) 1 1 Q503 9965 000 08630 PHOTO TRANSISTOR PT204-6B-12 1 1 Q551 4822 130 10923 TRANSISTOR KTC3199(BL) 1 1 Q552 9965 000 23377 RES. BUILT-IN TRANSISTOR KRC103M 1 1 Q771 4822 130 10103 TRANSISTOR KTC3199(Y) 1 1 Q772 4822 130 10103 TRANSISTOR KTC3199(Y) 1 1

R001 9965 000 08653 CARBON RES. 1/2W K 5.6M OHM 1 1 R002 9965 000 08635 METAL OXIDE FILM RES. 1W J 150K OHM 1 1 R003 CARBON RES. 1/4W J 1M OHM 1 1 R004 CARBON RES. 1/4W J 1M OHM 1 1 R005 CARBON RES. 1/6W G 680 OHM 1 1 R006 9965 000 08633 METAL OXIDE FILM RES. 1W J 1.8 OHM 1 1 R007 CARBON RES. 1/6W J 22K OHM 1 1 R008 CARBON RES. 1/6W J 100K OHM 1 1 R009 CARBON RES. 1/6W G 3.3K OHM 1 1 R011 CARBON RES. 1/4W J 390K OHM 1 1 R012 CARBON RES. 1/4W J 390K OHM 1 1 R013 CARBON RES. 1/6W J 470K OHM 1 1 R014 CARBON RES. 1/6W J 100K OHM 1 1 R015 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R016 CARBON RES. 1/6W J 100K OHM 1 1 R017 CHIP RES.(1608) 1/10W J 220K OHM 1 1 R018 CHIP RES.(1608) 1/10W J 22K OHM 1 1 R021 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 R022 CHIP RES.(1608) 1/10W J 4.7K OHM 1 1 R023 CHIP RES.(1608) 1/10W F 2.2K OHM 1 1 R024 CHIP RES.(1608) 1/10W J 33K OHM 1 1 R025 CHIP RES.(1608) 1/10W F 3.3K OHM 1 1 R026 CHIP RES.(1608) 1/10W J 22K OHM 1 1 R027 CARBON RES. 1/6W J 1K OHM 1 1 R028 CARBON RES. 1/4W J 1M OHM 1 1

12 NC Description

TRANSISTORS

RESISTORS

VR550/39

VR550/58

1-16-14

Page 40

ELECTRICAL PARTS LIST

Pos.

R030 CHIP RES.(1608) 1/10W F 2.2K OHM 1 1 R031 CHIP RES.(1608) 1/10W J 56K OHM 1 1 R032 CHIP RES.(1608) 1/10W J 1.8K OHM 1 1 R053 4822 157 10332 PCB JUMPER D0.6-P5.0 1 1 R054 CHIP RES.(1608) 1/10W J 180 OHM 1 1 R058 CARBON RES. 1/6W J 820 OHM 1 1 R060 CARBON RES. 1/6W J 2.7K OHM 1 1 R061 CHIP RES.(1608) 1/10W J 22K OHM 1 1 R062 CARBON RES. 1/6W J 10K OHM 1 1 R063 CARBON RES. 1/4W J 1.2K OHM 1 1 R064 CARBON RES. 1/4W J 1.2K OHM 1 1 R065 CARBON RES. 1/4W J 1.2K OHM 1 1 R066 CHIP RES.(1608) 1/10W J 47K OHM 1 1 R067 CARBON RES. 1/4W J 680 OHM 1 1 R068 CARBON RES. 1/4W J 680 OHM 1 1 R071 CARBON RES. 1/6W J 3.9K OHM 1 1 R073 CARBON RES. 1/6W J 1 OHM 1 1 R158 CHIP RES.(1608) 1/10W J 6.8K OHM 1 1 R251 CHIP RES.(1608) 1/10W J 2.7K OHM 1 1 R252 CHIP RES.(1608) 1/10W J 39K OHM 1 1 R301 CHIP RES.(1608) 1/10W J 1.2K OHM 1 1 R302 CHIP RES.(1608) 1/10W J 8.2K OHM 1 1 R303 CHIP RES.(1608) 1/10W J 5.6K OHM 1 1 R304 CHIP RES.(1608) 1/10W J 3.9K OHM 1 1 R305 CHIP RES.(1608) 1/10W J 3.9K OHM 1 1 R307 CHIP RES.(1608) 1/10W J 4.7K OHM 1 1 R308 CHIP RES.(1608) 1/10W J 6.8K OHM 1 1 R309 CHIP RES.(1608) 1/10W J 100 OHM 1 1 R310 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R311 CHIP RES.(1608) 1/10W J 18K OHM 1 1 R312 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R313 CHIP RES.(1608) 1/10W J 18K OHM 1 1 R315 CHIP RES.(1608) 1/10W J 2.2K OHM 1 1 R316 CHIP RES.(1608) 1/10W J 6.8K OHM 1 1 R317 CHIP RES.(1608) 1/10W J 1.2K OHM 1 1 R318 CHIP RES.(1608) 1/10W J 4.7K OHM 1 1 R319 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R320 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 R321 CARBON RES. 1/6W J 33 OHM 1 1 R323 CARBON RES. 1/6W J 33 OHM 1 1 R324 CHIP RES.(1608) 1/10W J 47K OHM 1 1 R325 CHIP RES.(1608) 1/10W J 33 OHM 1 1 R326 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 1 R330 CHIP RES.(1608) 1/10W J 5.6M OHM 1 1 R331 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R332 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 1 R334 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 1 R351 CHIP RES.(1608) 1/10W J 150 OHM 1 R352 CHIP RES.(1608) 1/10W J 150 OHM 1 1 R355 CARBON RES. 1/4W J 680 OHM 1 1 R357 CHIP RES.(1608) 1/10W J 220 OHM 1 1 R358 CHIP RES.(1608) 1/10W J 1.5K OHM 1 R360 CHIP RES.(1608) 1/10W J 1.8K OHM 1 1 R361 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 R370 CHIP RES.(1608) 1/10W J 2.7K OHM 1 R371 CARBON RES. 1/6W J 5.6K OHM 1 R372 CHIP RES.(1608) 1/10W J 3.9K OHM 1 R401 CHIP RES.(1608) 1/10W J 5.6K OHM 1 1

12 NC Description

VR550/39

VR550/58

1-16-15

Page 41

ELECTRICAL PARTS LIST

Pos.

R402 CHIP RES.(1608) 1/10W J 22K OHM 1 1 R403 CHIP RES.(1608) 1/10W J 47K OHM 1 1 R404 CARBON RES. 1/6W J 100 OHM 1 1 R407 CARBON RES. 1/4W J 820 OHM 1 1 R408 CHIP RES.(1608) 1/10W J 12K OHM 1 1 R409 CHIP RES.(1608) 1/10W J 5.6K OHM 1 1 R411 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 R412 CHIP RES.(1608) 1/10W J 27K OHM 1 1 R413 CHIP RES.(1608) 1/10W J 330K OHM 1 1 R414 CHIP RES.(1608) 1/10W J 120 OHM 1 1 R415 CHIP RES.(1608) 1/10W J 12K OHM 1 1 R416 CHIP RES.(1608) 1/10W J 1.8K OHM 1 1 R417 CHIP RES.(1608) 1/10W J 560 OHM 1 1 R418 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 1 R421 CHIP RES.(1608) 1/10W J 12K OHM 1 1 R422 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R425 CHIP RES.(1608) 1/10W J 5.6K OHM 1 1 R426 CHIP RES.(1608) 1/10W J 4.7K OHM 1 1 R429 CHIP RES.(1608) 1/10W J 2.2K OHM 1 1 R430 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 1 R431 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 1 R451 CHIP RES.(1608) 1/10W J 8.2K OHM 1 1 R452 CHIP RES.(1608) 1/10W J 39K OHM 1 1 R453 CHIP RES.(1608) 1/10W J 5.6K OHM 1 1 R454 CHIP RES.(1608) 1/10W J 39K OHM 1 1 R457 CHIP RES.(1608) 1/10W J 5.6K OHM 1 1 R458 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 1 R459 CHIP RES.(1608) 1/10W J 39K OHM 1 1 R460 CHIP RES.(1608) 1/10W J 470 OHM 1 1 R461 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R462 CHIP RES.(1608) 1/10W J 2.7K OHM 1 1 R463 CHIP RES.(1608) 1/10W J 8.2K OHM 1 1 R464 CHIP RES.(1608) 1/10W J 39K OHM 1 1 R465 CHIP RES.(1608) 1/10W J 8.2K OHM 1 1 R466 CHIP RES.(1608) 1/10W J 5.6K OHM 1 1 R467 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 1 R469 CHIP RES.(1608) 1/10W J 5.6K OHM 1 1 R471 CHIP RES.(1608) 1/10W J 39K OHM 1 1 R472 CHIP RES.(1608) 1/10W J 150 OHM 1 1 R473 CHIP RES.(1608) 1/10W J 150 OHM 1 1 R474 CHIP RES.(1608) 1/10W J 39K OHM 1 1 R475 CHIP RES.(1608) 1/10W J 10K OHM 1 R476 CHIP RES.(1608) 1/10W J 33 OHM 1 1 R477 CHIP RES.(1608) 1/10W J 33 OHM 1 1 R478 CHIP RES.(1608) 1/10W J 22K OHM 1 1 R479 CHIP RES.(1608) 1/10W J 6.8K OHM 1 1 R480 CHIP RES.(1608) 1/10W J 100 OHM 1 1 R481 CHIP RES.(1608) 1/10W J 100 OHM 1 1 R501 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 R502 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 R503 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 R504 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R505 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R506 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R509 CHIP RES.(1608) 1/10W J 4.7K OHM 1 1 R510 CHIP RES.(1608) 1/10W J 10K OHM 1 R511 CHIP RES.(1608) 1/10W J 100K OHM 1 1 R513 CHIP RES.(1608) 1/10W J 2.2K OHM 1 1

12 NC Description

VR550/39

VR550/58

1-16-16

Page 42

ELECTRICAL PARTS LIST

Pos.

R514 CHIP RES.(1608) 1/10W J 820 OHM 1 1 R516 CHIP RES.(1608) 1/10W J 330K OHM 1 1 R517 CHIP RES.(1608) 1/10W J 560 OHM 1 1 R518 CHIP RES.(1608) 1/10W J 470 OHM 1 1 R520 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R521 CHIP RES.(1608) 1/10W J 220K OHM 1 1 R522 CHIP RES.(1608) 1/10W J 39K OHM 1 1 R523 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R524 CHIP RES.(1608) 1/10W J 5.6K OHM 1 1 R525 CHIP RES.(1608) 1/10W J 1.5K OHM 1 1 R526 CHIP RES.(1608) 1/10W J 1.8K OHM 1 1 R527 CHIP RES.(1608) 1/10W J 680 OHM 1 1 R528 CHIP RES.(1608) 1/10W J 18K OHM 1 1 R529 CARBON RES. 1/4W J 270 OHM 1 1 R530 CHIP RES.(1608) 1/10W J 180 OHM 1 1 R531 CHIP RES.(1608) 1/10W J 68K OHM 1 1 R533 CHIP RES.(1608) 1/10W J 33K OHM 1 1 R534 CARBON RES. 1/6W G 3.6K OHM 1 1 R535 CARBON RES. 1/6W G 10K OHM 1 1 R536 CARBON RES. 1/6W G 470 OHM 1 1 R537 CARBON RES. 1/6W G 22K OHM 1 1 R538 CARBON RES. 1/6W G 1.5K OHM 1 1 R539 CARBON RES. 1/6W G 4.7K OHM 1 1 R540 CHIP RES.(1608) 1/10W J 390K OHM 1 1 R541 CHIP RES.(1608) 1/10W J 390K OHM 1 1 R542 CHIP RES.(1608) 1/10W J 1.8K OHM 1 1 R543 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 R544 CHIP RES.(1608) 1/10W J 2.7K OHM 1 1 R545 CHIP RES.(1608) 1/10W J 2.2K OHM 1 1 R546 CHIP RES.(1608) 1/10W J 12K OHM 1 1 R547 CHIP RES.(1608) 1/10W J 1.8K OHM 1 1 R548 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 R549 CHIP RES.(1608) 1/10W J 1.2K OHM 1 1 R551 CHIP RES.(1608) 1/10W J 100 OHM 1 1 R552 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R555 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R557 CHIP RES.(1608) 1/10W J 10K OHM 1 R558 CHIP RES.(1608) 1/10W J 10K OHM 1 R566 CHIP RES.(1608) 1/10W J 56K OHM 1 1 R615 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R621 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R622 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R701 CARBON RES. 1/6W J 1.8K OHM 1 1 R702 CARBON RES. 1/6W J 1K OHM 1 1 R703 CARBON RES. 1/6W J 1K OHM 1 1 R706 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 R707 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 R771 CHIP RES.(1608) 1/10W J 4.7K OHM 1 1 R772 CHIP RES.(1608) 1/10W J 100K OHM 1 1 R773 CHIP RES.(1608) 1/10W J 4.7K OHM 1 1 R774 CHIP RES.(1608) 1/10W J 22K OHM 1 1 R775 CHIP RES.(1608) 1/10W J 15K OHM 1 1 R776 CHIP RES.(1608) 1/10W J 8.2K OHM 1 1 R777 CHIP RES.(1608) 1/10W J 8.2K OHM 1 1 R778 CHIP RES.(1608) 1/10W J 33K OHM 1 1 R779 CHIP RES.(1608) 1/10W J 33K OHM 1 1 R780 CHIP RES.(1608) 1/10W J 33K OHM 1 1 R781 CHIP RES.(1608) 1/10W J 15K OHM 1 1

12 NC Description

VR550/39

VR550/58

1-16-17

Page 43

ELECTRICAL PARTS LIST

Pos.

R782 CHIP RES.(1608) 1/10W J 33K OHM 1 1 R783 CHIP RES.(1608) 1/10W J 15K OHM 1 1 R784 CHIP RES.(1608) 1/10W J 10M OHM 1 1 R785 CHIP RES.(1608) 1/10W J 10M OHM 1 1 R786 CHIP RES.(1608) 1/10W J 2.2K OHM 1 1 R787 CHIP RES.(1608) 1/10W J 2.2K OHM 1 1 R851 CHIP RES.(1608) 1/10W J 1.5K OHM 1 1 R852 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 R853 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 RS501 9965 000 12191 REMOTE RECEIVER MIM-93M9DKF 1 1

SW501 4822 276 13954 TACT SWITCH KSM0614B 1 1 SW502 4822 276 13954 TACT SWITCH KSM0614B 1 1 SW503 4822 276 13954 TACT SWITCH KSM0614B 1 1 SW505 4822 276 13954 TACT SWITCH KSM0614B 1 1 SW506 9965 000 16625 LEAF SWITCH MXS01830MVP0 1 1 SW507 9965 000 23359 ROTARY MODE SWITCH SSS-53MD 1 1 SW509 4822 276 13954 TACT SWITCH KSM0614B 1 1 SW510 4822 276 13954 TACT SWITCH KSM0614B 1 1 SW511 4822 276 13954 TACT SWITCH KSM0614B 1 1 SW512 4822 276 13954 TACT SWITCH KSM0614B 1 1

2B7 9965 000 23353 SHIELD ASSEMBLY HG470ED 1 1 2B8 9965 000 08566 BUSH, LED(F) H3700UD 1 1 2B46 9965 000 12173 ROHM HOLDER H7770JD 1 1 AC001 F001 FH001 4822 256 10461 FUSE HOLDER MSF-015 1 1 FH002 4822 256 10461 FUSE HOLDER MSF-015 1 1 FP562 9965 000 23357 LED DISPLAY LFU-4421-2003A 1 1 J902 4822 526 10685 BEAD CORE B16 RH 3.5X10X1.3 1 1 JW001 9965 000 13795 FLAT CABLE, 11P AWG26#2651/P1.25/150 1 1 JW002 9965 000 13795 FLAT CABLE, 11P AWG26#2651/P1.25/150 1 1 PS503 9965 000 12189 PHOTO INTERRUPTER RPI-302C70 1 1 SA001 T001 TP301 PCB JUMPER D0.6-P10.0 1 1 TP501 PCB JUMPER D0.6-P6.0 1 1 TP502 4822 157 10332 PCB JUMPER D0.6-P5.0 1 1 TP506 4822 157 10332 PCB JUMPER D0.6-P5.0 1 1 TP507 PCB JUMPER D0.6-P6.0 1 1 TU701 9965 000 23395 TUNER UNIT TMDZ2-761A 1 TU701 9965 000 23391 TUNER UNIT TMDG2-861A 1 VR501 9965 000 05260 CARBON P.O.T. 100K OHM B 1 1 X301 9965 000 05629 X’TAL 4.433619MHZ 1 1 X501 9965 000 12194 X’TAL 12.000MHZ 1 1 X502 9965 000 12288 X’TAL 32.768KHZ(20PPM) 1 1

C101 CHIP CERAMIC CAP. B K 2200PF/50V 1 1 C102 CHIP CERAMIC CAP. B K 2200PF/50V 1 1 C103 CHIP CERAMIC CAP.(1608) CH J 470PF/50V 1 1 C104 CHIP CERAMIC CAP.(1608) CH J 470PF/50V 1 1 C105 CHIP CERAMIC CAP.(1608) F Z 0.1UF/50V 1 1 C107 ELECTROLYTIC CAP. 1UF/50V M H7 1 1 C108 CHIP CERAMIC CAP. B K 1000PF/50V 1 1 C109 CHIP CERAMIC CAP. B K 2200PF/50V 1 1 C110 CHIP CERAMIC CAP. B K 2200PF/50V 1 1

12 NC Description

SWITCHES

MISCELLANEOUS

9965 000 08666 AC CORD PE8B2CG1H0A-057 1 1

4822 070 31602 FUSE T1.6AL/250V 1 1

9965 000 08602 SURGE ABSORBER CNR-10D471K 1 1

9965 000 23360 SWITCHING TRANSFORMER 3733-S01 1 1

JACK CBA(MCV-C) CAPACITORS

VR550/39

VR550/58

1-16-18

Page 44

ELECTRICAL PARTS LIST

Pos.

C111 CHIP CERAMIC CAP.(1608) CH J 470PF/50V 1 1 C112 CHIP CERAMIC CAP.(1608) CH J 470PF/50V 1 1 C113 CHIP CERAMIC CAP. B K 2200PF/50V 1 1 C115 ELECTROLYTIC CAP. 100UF/16V M H7 1 1 C116 ELECTROLYTIC CAP. 470UF/6.3V M 1 1 C117 ELECTROLYTIC CAP. 470UF/6.3V M 1 1

D101 9965 000 12178 ZENER DIODE DZ-11BSAT265 1 1 D102 9965 000 12178 ZENER DIODE DZ-11BSAT265 1 1 D103 9965 000 12178 ZENER DIODE DZ-11BSAT265 1 1 D104 9965 000 12178 ZENER DIODE DZ-11BSAT265 1 1 D105 9965 000 12178 ZENER DIODE DZ-11BSAT265 1 1 D106 9965 000 12178 ZENER DIODE DZ-11BSAT265 1 1

L101 4822 526 10685 BEAD CORE B16 RH 3.5X10X1.3 1 1 L102 4822 526 10685 BEAD CORE B16 RH 3.5X10X1.3 1 1

Q101 4822 130 42959 TRANSISTOR KTA1266(GR) 1 1 Q102 4822 130 42959 TRANSISTOR KTA1266(GR) 1 1

R101 CARBON RES. 1/4W J 820 OHM 1 1 R103 CARBON RES. 1/4W J 820 OHM 1 1 R104 CARBON RES. 1/6W J 4.7K OHM 1 1 R106 CARBON RES. 1/6W J 4.7K OHM 1 1 R108 CARBON RES. 1/4W J 68 OHM 1 1 R109 CHIP RES.(1608) 1/10W J 75 OHM 1 1 R110 CARBON RES. 1/4W J 820 OHM 1 1 R112 CARBON RES. 1/4W J 820 OHM 1 1 R113 CARBON RES. 1/6W J 4.7K OHM 1 1 R115 CARBON RES. 1/6W J 4.7K OHM 1 1 R116 CARBON RES. 1/6W J 15K OHM 1 1 R117 CHIP RES.(1608) 1/10W J 10K OHM 1 1 R118 CARBON RES. 1/4W J 68 OHM 1 1 R119 CHIP RES.(1608) 1/10W J 75 OHM 1 1 R120 CARBON RES. 1/6W J 680 OHM 1 1 R123 CHIP RES.(1608) 1/10W J 220 OHM 1 1 R125 CARBON RES. 1/6W J 680 OHM 1 1 R126 CHIP RES.(1608) 1/10W J 220 OHM 1 1 R127 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 1 R128 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 1

2L022 4822 502 30752 SCREW, P-TIGHT M3X10 WASHER HEAD+ 1 1 A5 9965 000 16629 JACK BOARD(2-21P) HE470ED 1 1 JK101 9965 000 12197 RGB CONNECTOR MRC-021V-01 1 1 JK102 9965 000 12197 RGB CONNECTOR MRC-021V-01 1 1

Q504 9965 000 08630 PHOTO TRANSISTOR PT204-6B-12 1 1 Q504 9965 000 08630 PHOTO TRANSISTOR PT204-6B-12 1 1

C1 CHIP CERAMIC CAP.(1608) F Z 0.1UF/25V 1 1 C4 CHIP CERAMIC CAP. CG J 56PF/50V 1 1 C5 CHIP CERAMIC CAP. CG J 22PF/50V 1 1 C6 CHIP CERAMIC CAP. CG J 56PF/50V 1 1 C7 CHIP CERAMIC CAP. CH C 3PF/50V 1 1 C8 CHIP CERAMIC CAP. CH C 3PF/50V 1 1 C11 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C12 ELECTROLYTIC CAP. 10UF/16V M H7 1 1

12 NC Description

DIODES

COILS

TRANSISTORS

RESISTORS

MISCELLANEOUS

SENSOR CBA

AFV CBA CAPACITORS

VR550/39

VR550/58

1-16-19

Page 45

ELECTRICAL PARTS LIST

Pos.

C13 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C14 CHIP CERAMIC CAP.(1608) B K 0.01UF/50V 1 1 C15 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C16 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C17 CHIP CERAMIC CAP.(1608) F Z 0.1UF/25V 1 1 C19 CHIP CERAMIC CAP.(1608) F Z 0.1UF/25V 1 1 C20 ELECTROLYTIC CAP. 3.3UF/50V M H7 1 1 C21 CHIP CERAMIC CAP.(1608) F Z 0.1UF/25V 1 1 C22 ELECTROLYTIC CAP. 10UF/16V M H7 1 1 C23 CHIP CERAMIC CAP. F Z 0.47UF/10V 1 C24 ELECTROLYTIC CAP. 0.22UF/50V M H7 1 1

CN1 4822 265 11267 ANGLE PIN HEADER, 9P 6029B-1-09Z003-T 1 1

D2 4822 130 30621 SWITCHING DIODE 1N4148M 1 1

IC1 9965 000 14760 IC:AUDIO PROCESSOR MSP3417G-QG-B8 1 1

L1 4822 157 10889 INDUCTOR 10UH-K-26T 1 1 L2 4822 157 10332 PCB JUMPER D0.6-P5.0 1 1 L3 4822 157 11318 INDUCTOR 18UH-K-26T 1 1 L4 4822 157 10889 INDUCTOR 10UH-K-26T 1 1

R1 9965 000 13036 CHIP RES.(1608) 1/10W J 1K OHM 1 1 R2 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 R4 9965 000 13037 CHIP RES.(1608) 1/10W J 120K OHM 1 1 R5 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 1 R6 9965 000 09942 CHIP RES.(1608) 1/10W 0 OHM 1 R7 CHIP RES.(1608) 1/10W J 1.2K OHM 1 X1 9965 000 12200 X’TAL 18.432MHZ 1 1

12 NC Description

CONNECTORS

DIODES

IC’s

COILS

RESISTORS

VR550/39

VR550/58

1-16-20

Page 46

[ VR550/ (39, 58) ]

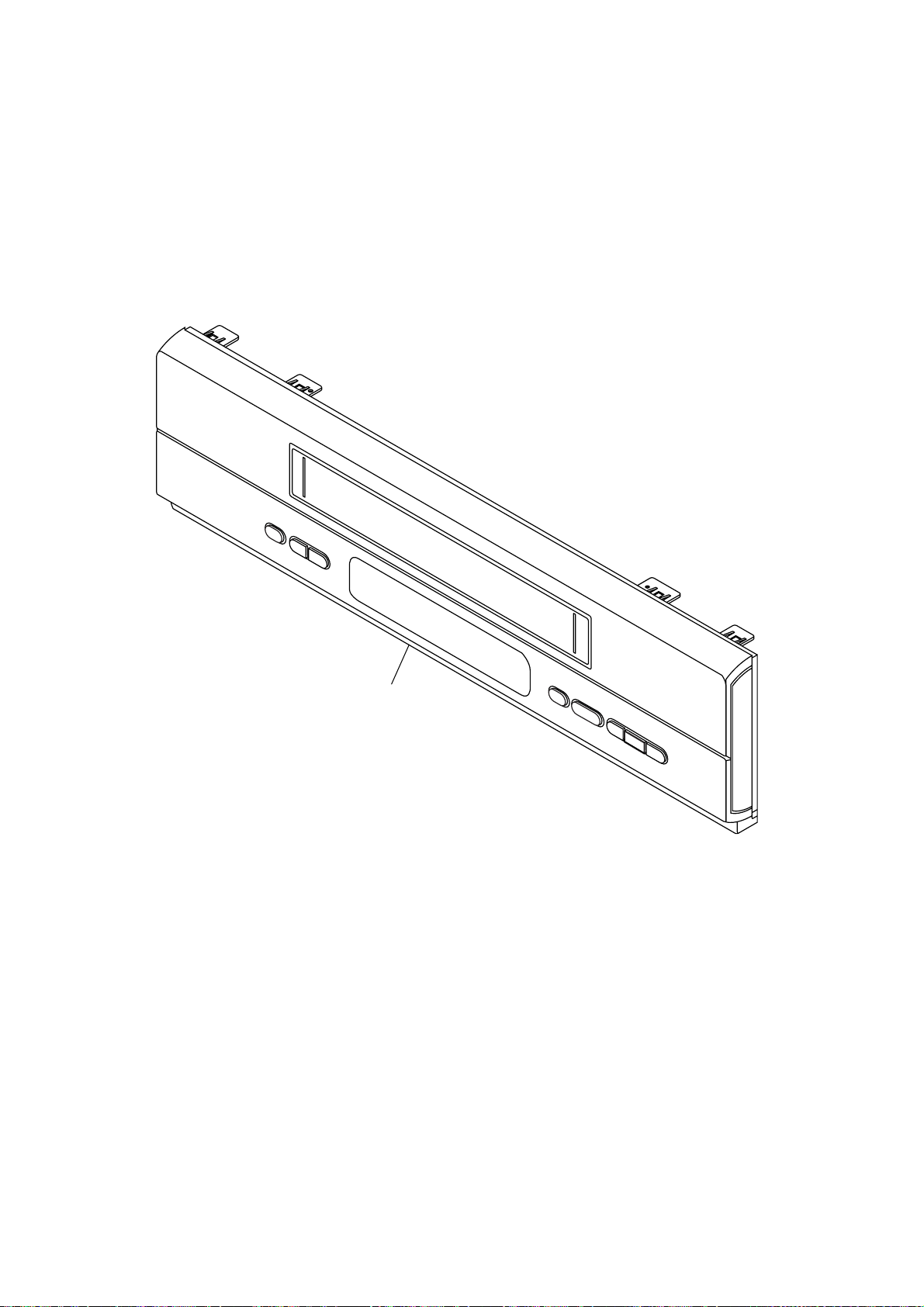

Front Panel

EXPLODED VIEWS

A1X

1-17-4 HG473FEX

Page 47

[ VR550/ (39, 58) ]

Cabinet

2L011

JACK CBA

2L022

2B9

2L022

2L011

2L012

2B9

2L011

2B18

2L021

2L011

2L021

2L042

See Electrical Parts List for parts with this mark.

Some Ref. Numbers are not in sequence.

2L021

2B5

2L051

AFV CBA

MAIN CBA

A29

2L041

SENSOR CBA

2B46

2B8

2L031

2B7

2L041

2L099

A10

2L021

1B1

A29

1-17-5 HG473CEX

Page 48

[ VR550/ (39, 58) ]

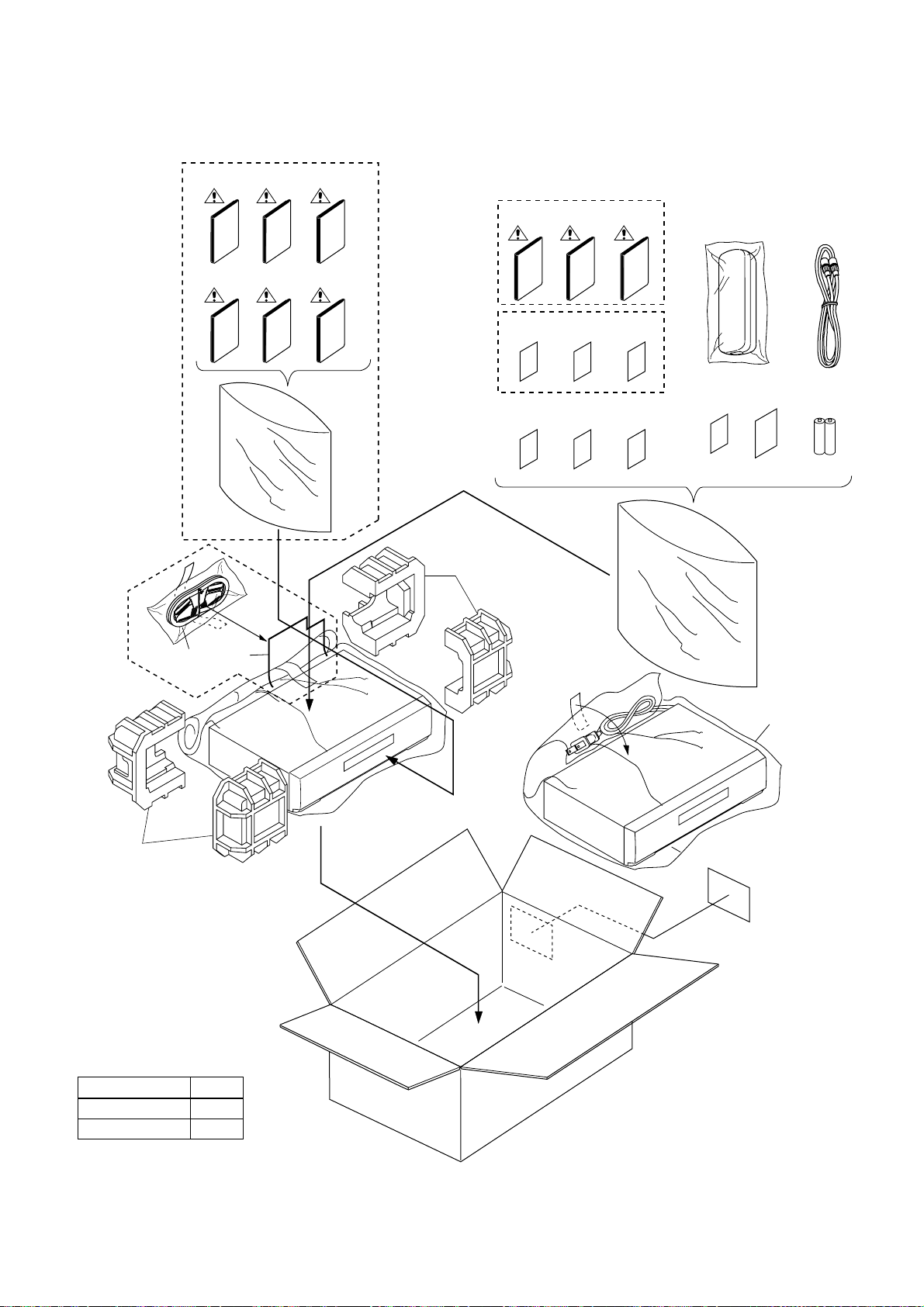

Packing

[ D ]

[ E ]

X20A X20B X20C

X20D

X20E X20F

[ D ]

[ E ]

Some Ref. Numbers are not in sequence.

X20A X20B X20C

X36FX36EX36D

X36CX36BX36A

X45

X26

Comparison Chart of Models and Marks

Model Mark

VR550/39 VR550/58

D E

Unit

A14

1-17-6 HG473PEX

Page 49

PRODUCT SAFETY NOTE: Products marked with a h

have special characteristics important to safety. Before replacing any of these components, read carefully the product safety notice in this service manual. Don’t degrade the safety of the product through improper servicing.

MECHANICAL PARTS LIST

Pos. h 12 NC Description

VR550/39

A1X 9965 000 23393 FRONT ASSEMBLY HG473FD 1 A1X 9965 000 23388 FRONT ASSEMBLY HG471BD 1 A2 9965 000 16612 CASE, TOP HE470ED 1 1 A3 9965 000 16613 CHASSIS HE470ED 1 1 A7 9965 000 16614 PANEL, BOTTOM HE470ED 1 1 A10 A10

LABEL, RATING HG473FD 1

LABEL, RATING HG474ED 1 A14 LABEL, BAR CODE HG473FD 1 A14 LABEL, BAR CODE HG474ED 1 A17 FOLLOW TV STICKER HE470ED 1 1 A29 CHASSIS FOOT H79P9JD 1 1 1B1 DECK ASSEMBLY CZD013/VM23ED 1 1 2B5 9965 000 23351 SHEILD, CYLINDER HG470ED 1 1 2B9 CUSHION HC460ED 1 1 2B18 9965 000 12400 FIBER, TOP CASE HC460ED 1 1 2L011 9965 000 16615 SCREW, P-TIGHT 3X10 BIND HEAD+ 1 1 2L012 9965 000 16615 SCREW, P-TIGHT 3X10 BIND HEAD+ 1 1 2L021 4822 502 30752 SCREW, P-TIGHT M3X10 WASHER HEAD+ 1 1 2L031 4822 502 14009 SCREW, S-TIGHT M3X6 BIND HEAD+ 1 1 2L041 4822 502 14012 P-TIGHT SCREW 3X8 BIND + 1 1 2L042 4822 502 14012 P-TIGHT SCREW 3X8 BIND + 1 1 2L051 4822 502 14018 SCREW, S-TIGHT M3X5 BIND HEAD+ 1 1 2L099 9965 000 13027 SCREW, P-TIGHT M3X8 BIND HEAD+ 1 1

PACKING S1 GIFT BOX CARTON HG470ED 1 1 S2 STYROFOAM HE470ED 1 1 S3 UNIT, BAG V4010PA 1 1 S7 21P PAD HC463FD 1 S12 ACCESSORY PAD HE470ED 1 X1 9965 000 23352 REMOTE CONTROL UNIT 364/CZF29UU 1 1 X3 4822 320 50377 RF CORD PAL 1.2M 1 1 X4 ACCESSORY BAG K8092BA 1 1 X6 9965 000 17135 21P SCART CABLE SD-0799(SG-D91050) 1

VR550/58
