Philips V710 User Manual

7" TABLET

This equipment has been test ed and found to comply with the limits for a Class B digital

FCC Statement

device,
pursuant to Part 15 of the FCC R ul es. These limits are designed to provide reasonable
protection against harmful interference in a residential installation. This equipment generates
uses and can radiate radio frequency energy and, if not installed and used in accordance with
the instructions, may cause harmful interference to radio communications. However, there is
no guarantee that interference will not occur in a particular installation. If this equipment does
cause harmful interference to radio or te l evision reception, which can be determined by turning
the equipment off and on, the user is encouraged to try to correct the interference by one or
more of the following measures:

-- Reorient or relocate the receiving antenna.

-- Increase the separation between the equipment and receiver.

-- Connect the equipment into an outlet on a circuit different from that to which the receiver is
connected.

-- Consult the dealer or an experienced radio/TV technician for help.
This device complies with part 15 of the FCC Rules. Operation is subject to the foll owing two
conditions:
(1) This device may not cause harmful interference, and (2) this device must accept any
interference received, including interference that may cause undesired operation.

1

Changes or modifications not expressly approved by the party responsible for compliance
could void the user's authority to operate the equipment.
MODEL: PHP_V710R
USER MANUAL

Preface

Thank you for buying the MID. We wish you enjoy using it.
Please read and retain all the operating instructions before operating the unit, we do not assume
any liability arising out of improper operation or incidental damages.
For better services, the content of this operation manual may be changed.
If the actual setup and usage of the unit are different from this operation manual, please view
the website of our company to i nquire about the latest product information.

2

Do not allow water or foreign objects to enter the unit.

I. Note:

1. Avoid the unit being dropped. Avoid the display been shake s eriously, or the display

will be damaged or unusual.

2. Do not use metal object to touch the device to prevent it from short circuit.

3. Please backup your data in case your important data is lost, especially bef ore you

upgrade the firmware. The company will not take charge in any loss that caused by
lost of data.

4. Do not disassemble. Do not wipe the surface of the unit by alcohol, thinner or

benzene.

5. Do not disconnect the unit while it is formatting or uploading/downloading, or the

procedures may lead to errors

6. We do not take responsibility to the flash damage caused by product broken, repair or

other reasons. Please operate strictly as per the user guide.

7. Avoid water or foreign objects enter the unit.

3

8. Do not use the unit in places that are extremely hot, cold, dusty, or humid.

9. Avoid the unit being dropped. Avoid the display been shake s eriously, or the display

will be damaged or unusual.

10. Specifications are subject to change and improvement without notice

II. Introduction of cover:

1. Power on/off

4

2. Volume+, Volume –

3. Earphone Jack

4. Reset

5. IR

6. Micro USB interface

7. Back Camera

8. TF-CARD interface

9. Loudspeaker

10. Front Camera

III. Operation Instruction

1. Basic Operation

1.1. Power on/Power off

Power on:
Press and hold the power switch for 5 seconds; the unit displays the start-up logo
and enters the working mode.
Power off:
Press and hold the power switch for 3 seconds to turn the unit off.
Sleep:

5

While the device is at working status, press the power switch, it enters the sleeping
mode, and the screen will be off then. Press the power switch again, it shift to the
normal mode. You may use this function when you don’t’ use the device temporary
to save power.

1.2. Charging

When the device prompts low battery, please charge it by provided charger.

Note:
To improve the longevity of the battery, you may charge for another 15
minutes after it prompts the battery is full.

1.3. Main menu

Click the
including the system setting, music playback, video playback, web browser and other
applications you installed in the main menu.

2. Settings

icon in the main interface, the main menu is appeared. It

6

Click “ ” in the main interface to enter the setting interface. Click the

Corresponding setting items to operate.

7

8

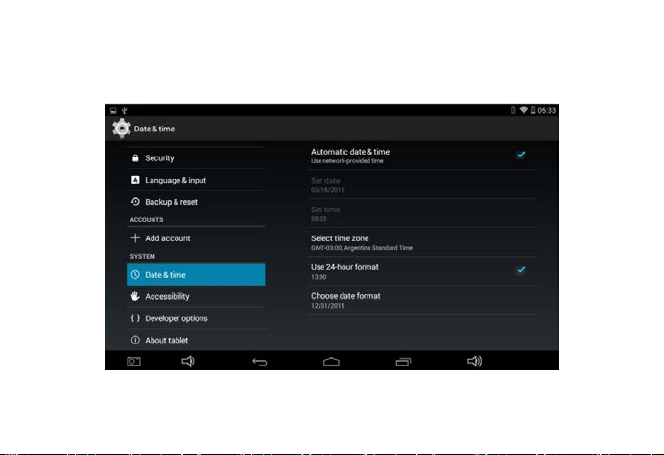

2.1．Date and Time Setting

Click “Date & Time” in the setting interface to set the date and time. You may set

The date, time zone, time, time format and date format etc. in the menu.

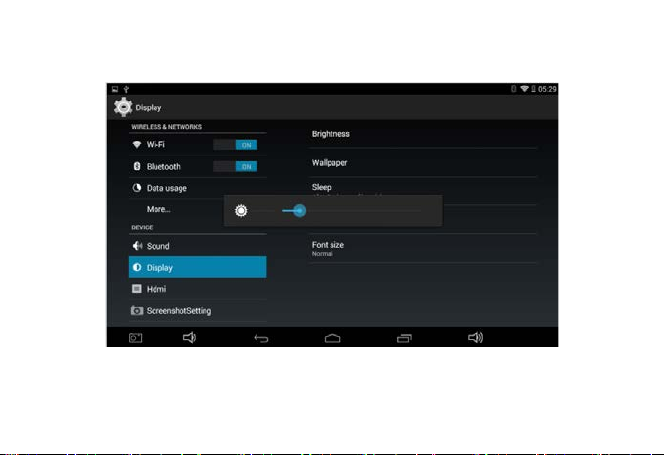

2.2. Brightness

Select “Display” in the setting interface. Click “Brightness” to enter, and slide the

9

bar to adjust the brightness.

10

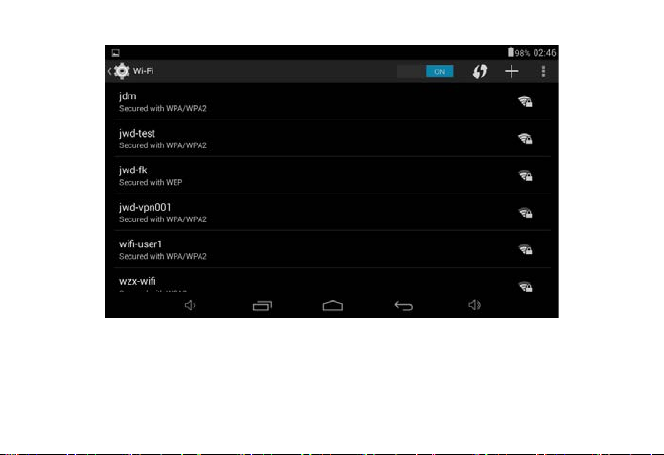

3. Wi-Fi connection

Click “Settings” in the main interface and click “Wireless & network” to enter the wireless and network setting interface. Click Wi-Fi to turn on the WIFI. Click Wi-Fi setting to set and manage wireless access.

3.2 Bluetooth

Turn on the Bluetooth，Click Bluetooth setting to set and manage Blutooth Devices
access.Click “SEARCH FOR DEVICES”,it lists the open devices.Click the name of the
devices;it pops up the setting window.choose the device ,pairing it,then you can transfer
pictures,movies,music etc with it.

3.3 Ethernet configuration

The Unit support USB-Net-Card

3.4

Click “Network Notification”, it lists the open network it s earched . Click t h e na me of th e
network; it pops up the setting window. You may connect it to WIFI according to the
prompts. You need to input the user name and password if networks are encrypted.

11

4. Explorer to install App

4.1 Install

There are many ways to install applications under Android , such as via USB, by

third party program. We introduce installation by Apps Installer here.

12

Click the “File Manager” in the main interface .

Select the APK file you want and enter the application installation interface. Click
“Install” to install the application automatically. After installation, it prompts “Open” and
“Finish”. Click “Open” to open the application. Click “Finish” to exit.

4.2 Uninstall

You may use the corresponding third party software management tool or the
installed application management software of the device to install applications.
Select “Setting/Applications/Manage applications” to select the installed
applications and check the attribute of it or uninstall it.

5. Connect to internet

5.1. After connecting with WIFI, open the browser and inpu t the web addres s, you can

browse the web then.

5.2. Click the
web page you want to open it.

To save the web page into bookmark, you may click

icon to enter the bookmark to view the b rowse history. Click the

to enter and click “add”

13

to save it.

6. Audio and video playback

6.1. Audio playback

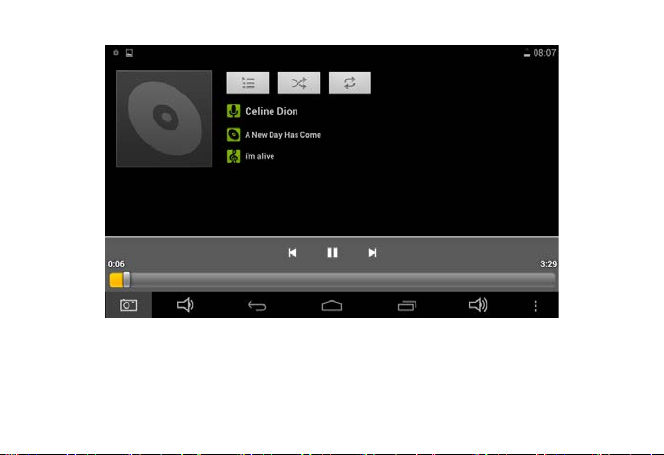

Click the “Music” in the main menu to enter the audio playback interface. It lists
the audio files in the device, and you may click the file name to play it. In the audio
playing interface, click the icons to play/pause/ increase volume/ decrease volume/ FF/
REW….

14

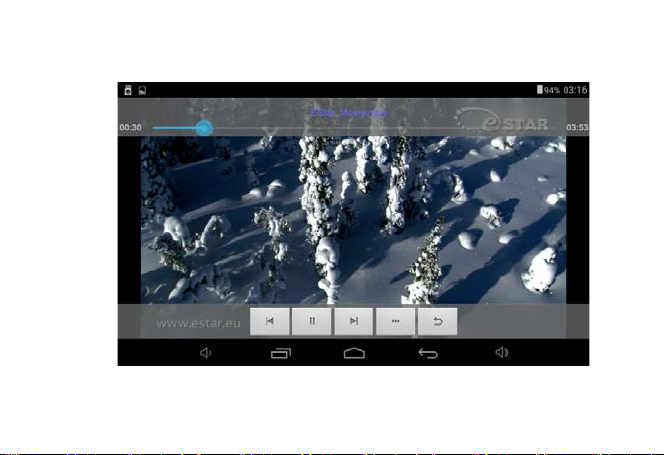

6.2. Video Playback

Click the “UHD Player” in the main menu to enter the video playback interface. It lists
the video files in the device, and you may click the file name to play it. In the video

15

playing interface, touch the screen to pop-up the operation icons and click the icons to
play/pause/ skip to next file/skip to previous file….

16

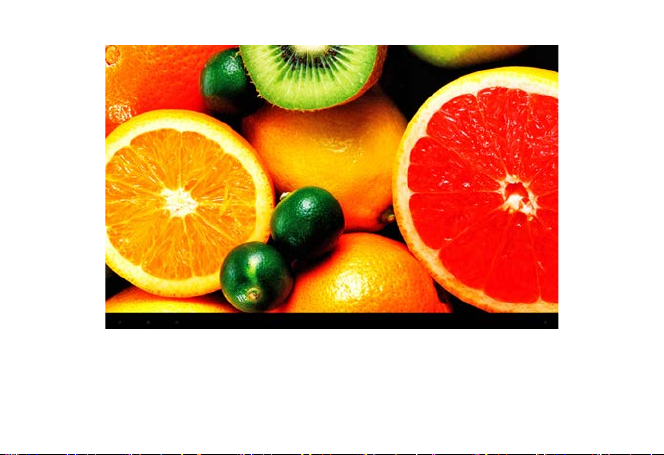

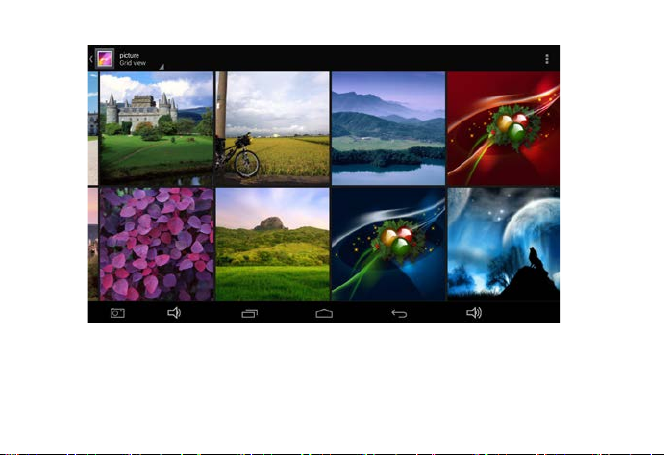

7. Picture viewing

Click “UHD Player” in the main menu to enter the picture folder list. Select and
click the folder you want to enter; it displays then clicks the thumbnail of the picture to
view it.

Touch the screen to pop-up the operation icons while viewing the picture, you may
zoom in/zoom out/ skip to next picture/skip to previous picture/ rotate/ delete the
picture…

17

18

19

Note: 3G dongle is not in the package of tablet

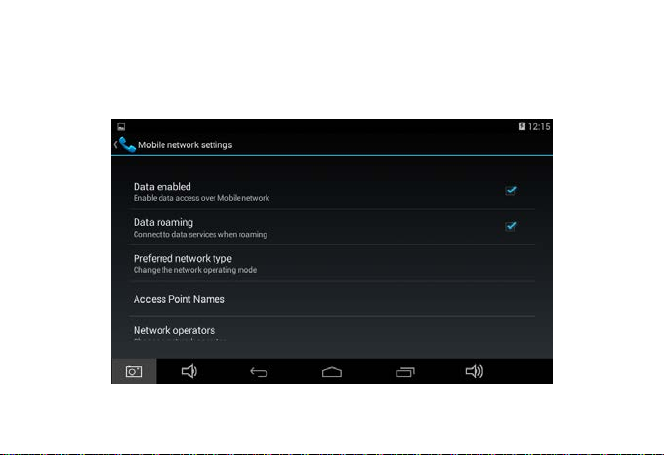

8. 3G DONGLE

Select “Access Point names”, after your 3G dongle Activates, then your 3G Dongle

will be selected automatically or you can view list of network name.

20

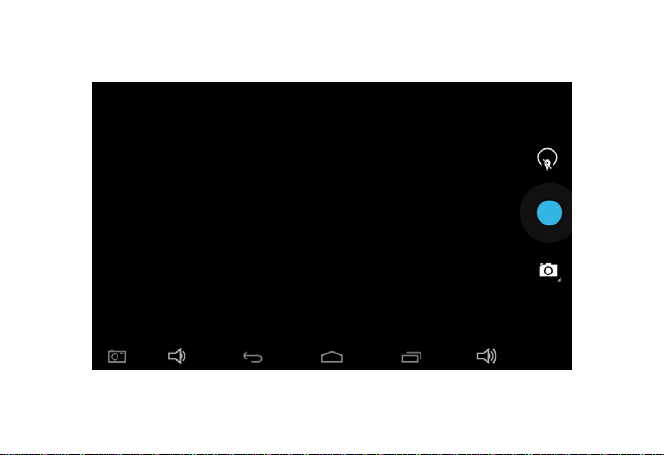

9. Camera

Click “Camera” in the main interface.

9.1 Camera

21

If the cursor is at position, the device is at Camera mode.
Click

to take picture.

Click

Click

effect.

to enter the setting interface

to set the scene mode, Picture size, Picture quality, and color

22

Click to select back or front camera.

9.2 DV

Click

If the cursor is at
Click
Click

10. Connect with external device

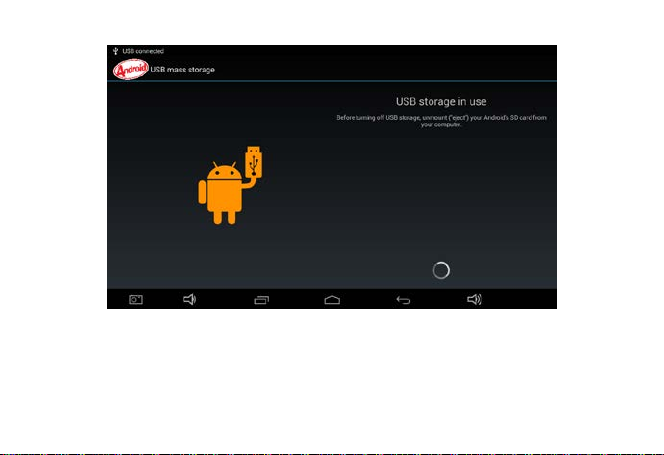

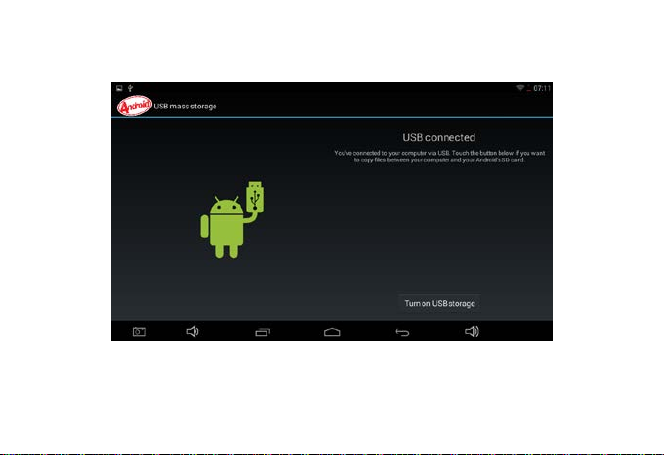

10.1. Connect with PC

Connect the device with the PC via the USB cable. The PC appears two new disk

to enter the mode select interface

position, the device is at DV mode.
to take picture.
to set the color effect or restore to default settings.

23

symbols after connected successfully. One is the TF card, and the other is the built-in
flash.

24

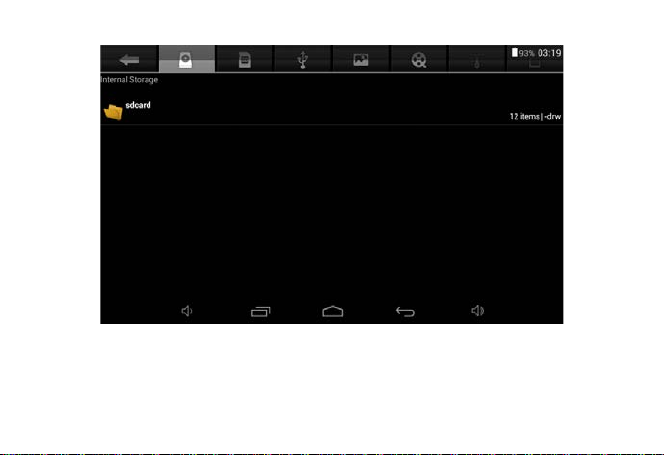

10.2. Use of OTG and USB host

It supports the movable device with FAT32 format, such as U disk and MP3.
Connect the movable device to the MID. (Note: only OTG could support USB mouse
and keyboard, USB HOST only support USB2.0 High speed device)

25

10.3. Applications

For convenient usage, we installed some third party software in the MID. For detailed
operation methods, please check the corresponding instruction. Some of the software
may be able to be used in some area because of network service.

26

Item

SC-4207

10.4. HDMI The devices support connect to HDMI displayer via HDMI cable(Plug and Play) IV. Troubleshooting

1. What if the device is abnormal during operation?

Answer: 1). Reboot the device to see if it works OK.

2). Charge the device by the charger to activate the battery. Make su re it has
power before you operate it.

3). It is suggested to upgrade the OS of the device by professional.

2. Why the standby time is so short sometimes?

Answer: the use time of the battery is all depend on the temperature and use instance. If
the temperature is too high or too low, the use time of the battery might be effected. It is
suggest using the device in normal temperature.
The using time is also affected by increased volume and frequently operation.

VI. Specifications

27

Dimension

190X108X10.5MM

Display

7” 800X480 TFT touch panel

OS

Android 4.4

Input method

Soft keypad

Capacity

4GB

External Capacity

(SD) (TF) card, up to 32GB

Audio

MP3,WMA,FLAC,APP,OGG…….(support all audio formats)

Video

mpeg4-sp,asp,divx,WMV,RMVB,H.264/1080P (support all video
formats)

E-book

Support

Bluetooth

Support BT

HDMI

Support HDMI

Wireless network

Support WIFI

Language

Multi-language

USB

USB2.0 high speed

OTG

Support

Temperature

-20℃ to 60℃

Power supply

AC 100~240V 50/60Hz; DC 5V/2A

Battery

3000mAh poly-lithium battery

Note: The pictures lis t in the manual are for reference only!
The design and the specification of the unit are subject to cha nge without notice.
