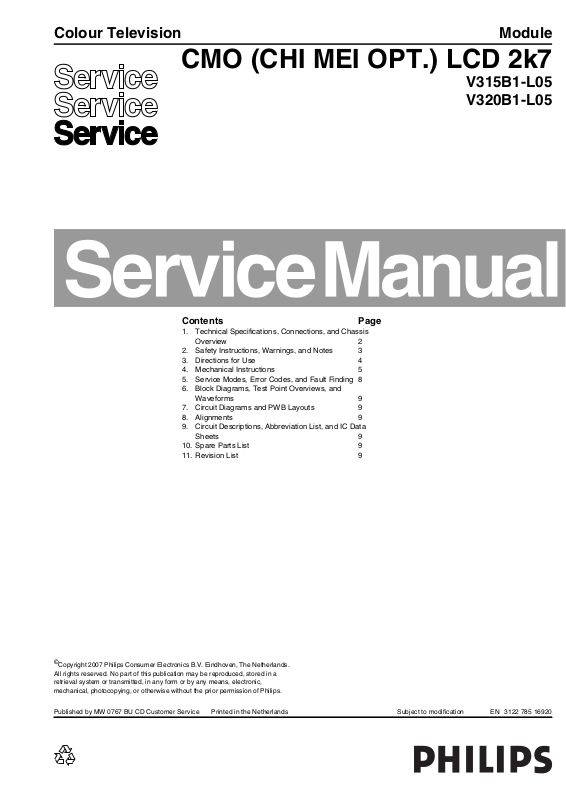

Page 1
Colour Television Module
CMO (CHI MEI OPT.) LCD 2k7
V315B1-L05
V320B1-L05
Contents Page
1. Technical Specifications, Connections, and Chassis
Overview 2
2. Safety Instructions, Warnings, and Notes 3
3. Directions for Use 4
4. Mechanical Instructions 5
5. Service Modes, Error Codes, and Fault Finding 8
6. Block Diagrams, Test Point Overviews, and
Waveforms 9
7. Circuit Diagrams and PWB Layouts 9
8. Alignments 9
9. Circuit Descriptions, Abbreviation List, and IC Data
Sheets 9
10. Spare Parts List 9
11. Revision List 9
©
Copyright 2007 Philips Consumer Electronics B.V. Eindhoven, The Netherlands.
All rights reserved. No part of this publication may be reproduced, stored in a
retrieval system or transmitted, in any form or by any means, electronic,
mechanical, photocopying, or otherwise without the prior permission of Philips.
Published by MW 0767 BU CD Customer Service Printed in the Netherlands Subject to modification EN 3122 785 16920
Page 2
EN 2 LCD CMO 2K71.
Technical Specifications, Connections, and Chassis Overview
1. Technical Specifications, Connections, and Chassis Overview
Index of this chapter:
1.1 Introduction
1.2 General
1.3 Specifications
Note:
• Specifications are indicative (subject to change).
1.1 Introduction
In this Service Manual you will find all necessary information to
perform the Board Level Repair (= board swap) scenario on
LCD panels. The LCD repair manuals are created per brand,
and they will contain all necessary information for the different
panels used in Philips flat LCD TVs.
1.2 General
CHI MEI
OPTOELECTRONICS
(a) Model Name: V320B1-L05
(b) Revision: Rev. XX, for example: A0, A1… B1, B2… or C1, C2…etc.
(c) Serial ID: X X X X X X X Y M D L N N N N
Serial ID includes the information as below:
(a) Manufactured Date: Year: 0~9, for 2000~2009
Day: 1~9, A~Y, for 1
(b) Revision Code: Cover all the change
(c) Serial No.: Manufacturing sequence of product
(d) Product Line: 1 -> Line1, 2 -> Line 2, …etc.
V320B1 -L05 Rev. XX
X X X X X X X Y M D L N N N N
Month: 1~9, A~C, for Jan. ~ Dec.
st
to 31st, exclude I ,O, and U.
Figure 1-1 CMO module label
E207943
MADE IN TAIWAN
Serial No.
Product Line
Year, Month, Date
CMO Internal Use
CMO Internal Use
Revision
CMO Internal Use
H_16920_023.eps
200407
1.3 Specifications
Below find attached the data sheets of the different LCD
panels. Click on the “model number” to open.
• Model V315B1-L05
• Model V320B1-L05
Page 3
Safety Instructions, Warnings, and Notes
2. Safety Instructions, Warnings, and Notes
EN 3LCD CMO 2K7 2.
Index of this chapter:
2.1 General
2.2 Safety Precautions
2.3 Servicing Precautions
2.1 General
Notes:
• Only authorised persons should perform servicing of this
module.
• When using/handling this unit, pay special attention to the
LCD Module: it should not be enforced into any other way
then next rules, warnings, and/or cautions.
• "Warning" indicates a hazard that may lead to death or
injury if the warning is ignored and the product is handled
incorrectly.
• "Caution" indicates a hazard that can lead to injury or
damage to property if the caution is ignored and the
product is handled incorrectly.
2.2 Safety Precautions
2.2.1 Warning
• Do not supply a voltage higher than specified to this
product. This may damage the product or can create
hazardous situations.
• Do not use this product in locations where the humidity is
extremely high, where it may be splashed with water, or
where flammable materials surround it.
• Do not install or use the product in a location that does no
satisfy specified environmental conditions. This may
damage the product or can create hazardous situations.
• If a foreign substance (such as water, metal, or liquid) gets
inside the product, immediately turn “OFF” the power.
Continuing to use the product may cause electric shock or
can create hazardous situations.
• If the product emits smoke and abnormal smell, or makes
an abnormal sound, immediately turn “OFF” the power.
Continuing to use the product may cause electric shock or
can create hazardous situations.
• Do not (dis)connect the connector while power to the
product is “ON”. It takes some time for the voltage to drop
to a sufficiently low level after the power has been turned
“OFF”. Confirm that the voltage has dropped to a safe level
before (dis)connecting the connector.
• Do not pull out or insert the power cable from/to an outlet
with wet hands. It may cause electric shock.
• If the power cable is damaged, or if the connector is loose,
do not use the product, otherwise, this can lead to
hazardous situations or may cause electric shock.
• The LCD Backlight Inverter unit uses a high voltage for the
lamps. Keep the cautions concerning electric shock and do
not touch the device circuitry handling the inverter unit. And
because the capacitors of the device circuitry may remain
charged at the moment of Power “OFF”, standing for 1
minute is required in order to discharge the device circuitry.
2.2.2 Caution
• Do not place this product in a location that is subject to
heavy vibration, or an unstable surface such as an inclined
surface. The product may fall off or fall over, causing
injuries.
• Before disconnecting cable from the product, be sure to
turn off the power. Be sure to hold the connector when
disconnecting cables. Pulling a cable with excessive force
may cause the core of the cable to be exposed or break the
cable, and this can lead to fire or electric shock.
• This product contains glass. If shock, vibration, heat or
distortion is applied to the product, the glass may be
broken.
• If glass surface of the display breaks or is scratched, do not
touched the broken pieces or the scratched with bare
hands. You may be injured.
• LCD Module requires to be handled with special care. LCD
Module is not to be touched with metal or hard materials.
Must not be stressed by heat or mechanical impact.
• There are some particular components on the rear panel of
this product. Skin contact with these components may
cause an electric shock. So, handle with care.
• While moving the product, be sure to turn off the power,
disconnect all cables and watch your step. Dropping the
product may cause injuries from electric shock. So, while
moving the product handle with care.
• When cleaning the panel is necessary, wipe it with a soft
and moistened cloth a neural detergent. Caution on
connector area. Do not use chemicals such as thinner or
benzene.
• LCD Module emits heat from the Lamp, Backlight lamp,
and component parts. Therefore, the environmental
temperature must not exceed 50 deg. C. LCD Module
Backlight Inverter system is driven by high voltage, so it
must avoid conductive materials.
• If repairing components with a lead line, high voltage or
high temperature components must be put out from a lead
line and fix.
• Do not place an object on the surface of the display. The
glass may break or be scratched.
• This product may be damaged if it is subject to excessive
stresses (such as excessive voltage, current, or
temperature). The absolute maximum ratings specify the
limits of these stresses.
• Do not cover or wrap with any covering materials while
power is applied to the product.
• This product is made from various materials such as glass,
metal, and plastic. When discarding it, be sure to contact a
purchase place.
• If a discrepancy occurs due to any arbitrary modification or
disassembly, supplier is not responsible for function,
quality or other items.
• Within the warranty period, general faults may be charged
for depending on responsibility for the faults. You handle
with care
2.3 Servicing Precautions
A colour TFT LCD Module can easily be damaged by both
electrical and mechanical stresses. Users therefore, are
requested to follow the “Servicing precautions of colour TFT
LCD Module” on the following.
2.3.1 System Assembler
• Follow the power sequence: An abnormal power
sequence may cause critical malfunction or electrical
damage.
• Prevent physical stress.
• Prevent overheat:
– High temperatures on the surface of the screen may
cause poor quality. Please use the LCD Module on the
specified temperatures.
– Low temperatures (under 10 deg. C) makes the LCD
Module respond slowly, make the Backlight worse
operated, and will shorten very much the lifetime
accordingly.
• Keep LCD Module dust-free: The LCD Module is
sensitive against dust; it can cause visual or functional
problems.
Page 4
EN 4 LCD CMO 2K73.
Directions for Use
• Do not touch TCP area: Do not touch TCP area at any
case. It can cause Driver IC cracks, film cracks, etc. The
TCP is the weakest point of the LCD Module.
• Do not pull Backlight wire: Please do not pull the
Backlight wire, as it can cause the wire to become
disconnected or damaged.
• Check the connections of the Inverter & Backlight
connectors: Incomplete connection can cause burnt in
Backlight connectors or damage the inverter.
• Handle with care:
– Please do not drop, bend, or hit the LCD Module.
– Physical stress can cause defects as broken panels.
• Keep mounting screw length and motor driver’s
torque: Strong motor driver’s torque can make a
mechanical defect on LCD Module. Please keep within the
specifications.
• Do not operate for a long time under the same pattern:
Operating the LCD Module for a long time with the same
video pattern can cause image persistence and can
eventually damage it.
• Defective panels must also be handled with care:
– To prevent making other defects, please handle the
defective LCD Module as a good one.
– Defective LCD Modules must be repaired.
• Do not stack LCD Modules: The LCD Module consists of
fragile components such as TCPs or Glasses. Stacking the
LCD Modules can cause undesired defects.
• Do not provide strong pressure at connecting: Strong
pressure can transfer the force to the TCP, which is the
weakest part of the LCD Module. It eventually can make
the TCP crack or lead to other unexpected defects.
• Let the Backlight Wire at the backside of the LCD
Module: If let the Backlight wire in front of the LCD Module,
the Backlight connector can hurt the surface of the
polariser.
• Never (dis)connect at power “ON”: The LCD Module
consists of CMOS components, which are known as weak
components against EOS. It can damage the product.
• Electro-static discharge can make damage:
– Semi-assembled product should be handled with wrist
strap.
– Earth human body when handle the LCD Module.
– Please do not touch the interface connector pin.
2.3.2 System Assembler/End User
• Keep clean the surface:
– Please wear rubber gloves when you touch the surface
of the LCD Module screen.
– Please use soft and anti-static material with n-Hexane
as cleaner.
• Be careful not to make polariser scratch:
– Surface of polariser is soft, so it’s easily scratched.
– Please do not touch, press or rub on polariser surface
with materials over HB hardness.
• Be careful with swift temperature and humidity
changes: Swift temperature and or humidity change can
make dew condensation or ice, which can cause nonconformance such as malfunctioning.
• Keep out of water:
– Water on in the LCD Module can cause electrical short
or corrosion.
– Please wipe out or dry water carefully.
• Keep the LCD Module free from corrosive gasses:
Corrosive gas can chemically damage the polariser and
the circuitry parts and eventually will cause defects.
• Keep the suitable temperature and humidity: High
temperatures and high humidity will shorten the lifetime
3. Directions for Use
Not applicable.
Page 5
4. Mechanical Instructions
Mechanical Instructions
EN 5LCD CMO 2K7 4.
Index of this chapter:
4.1 General
4.2 Models V315B1-L05 and V320B1-L05
4.2.1 Control Board
4.2.2 Inverter Board
4.1 General

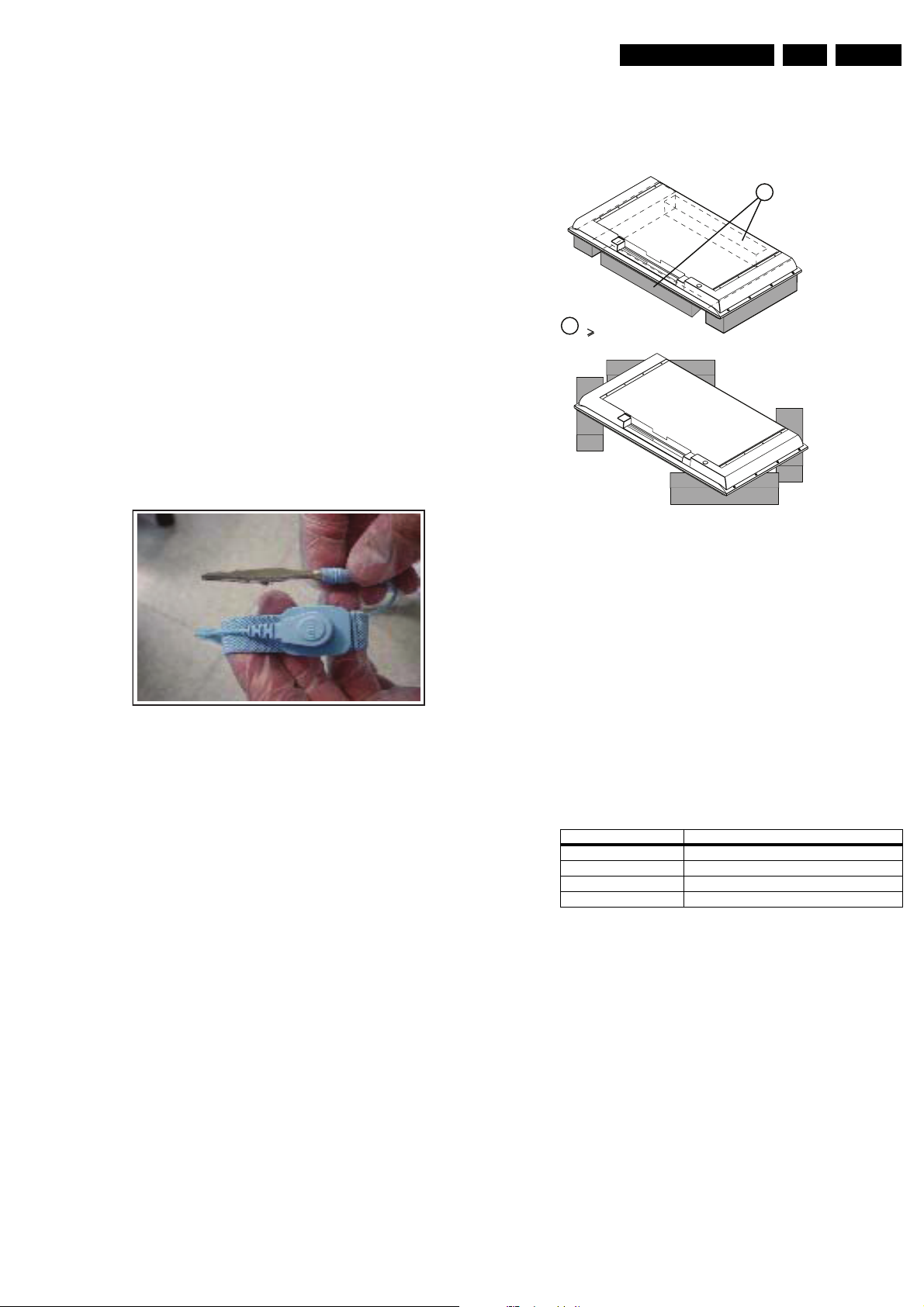

4.1.1 Warnings
• Figures can deviate due to the different module executions.
• During repair, place the set face down on a soft surface
(e.g. on foam bars as mentioned in next paragraph), in
order to prevent damaging the display.
Note: With some chassis, it is possible to measure and
replace the boards while the TV is still on its stand.
• All ICs and many other semiconductors are susceptible to
electrostatic discharges (ESD w). Careless handling
during repair can reduce life drastically. Make sure that,
during repair, you are connected with the same potential as
the mass of the set by a wristband with resistance. Keep
components and tools also at this same potential.
H_16920_001.eps
Figure 4-1 ESD wristband
• Be careful during measurements in the high voltage
section. Never pull plugs out under operation conditions,
just to prevent danger caused by electrical sparks.
• Never replace modules or other components while the unit
is switched “on”.
• Connectors “to” and “from” the Inverter Boards must be
thoroughly connected to avoid any electrical sparks during
operation.
060407
4.1.2 Foam Bars
1
Required for sets
1
42"
E_06532_018.eps
171106
Figure 4-2 Foam bars
The foam bars (order code 3122 785 90580 for two pieces) can
be used for all types and sizes of flat displays. See figure
“Foam bars” for details. Displays with a size of 42” and larger,
require four foam bars [1]. Ensure that the foam bars are
always supporting the cabinet and never only the display.
Caution: Failure to follow these guidelines can seriously
damage the display!
By laying the TV face down on the (ESD protective) foam bars,
a stable situation is created to perform measurements and
alignments. By placing a mirror under the display, you can
monitor the screen.
4.1.3 Torque Values
Table 4-1 Recommended Torque Values
Screw Type (cross head) Recommended Torque Value
M2 2.0 kg*F ± 0.1 kg*F
M2.5 3.0 kg*F ± 0.5 kg*F
M2.6 3.0 kg*F ± 0.5 kg*F
M3 6.0 kg*F ± 0.5 kg*F
Page 6
EN 6 LCD CMO 2K74.
Mechanical Instructions
4.2 Models V315B1-L05 and V320B1-L05

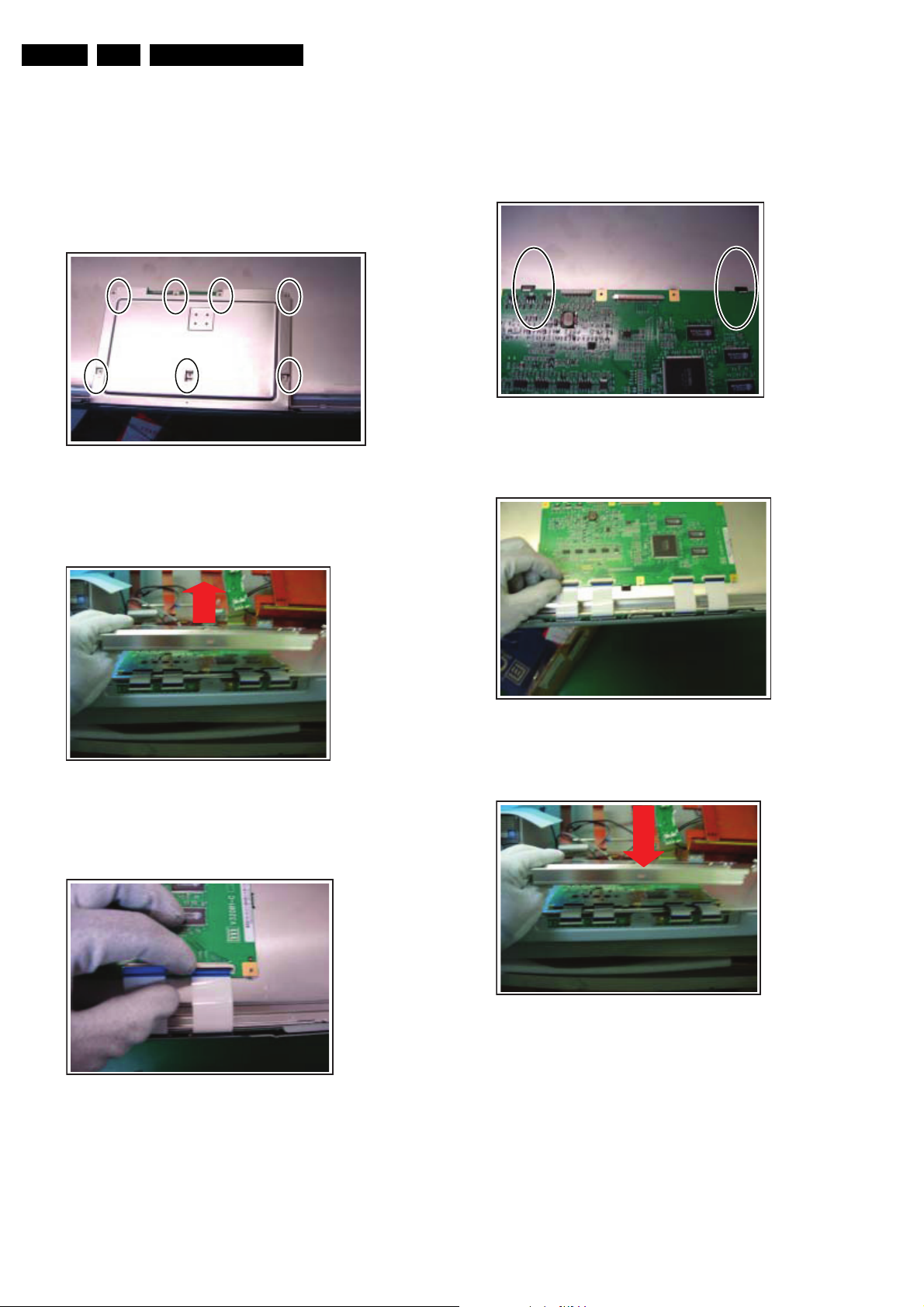

4.2.1 Control Board
Disassembly
1. Place the panel on the foam bars, and remove the screws
of the metal cover (the number of screws depends on the
model).
H_16920_016.eps
Figure 4-3 Cover screws
2. Remove the cover in the direction as shown. Be sure not to
damage the FFCs.
110407
Reassembly
1. Place the panel on the foam bars, and place the Control
Board on the panel via the alignment pins.
H_16920_020.eps
110407
Figure 4-6 Alignment pins
2. Insert and lock the FFCs into their connectors.
H_16920_017.eps
110407
Figure 4-4 Remove cover
3. Release the four FFCs from their connectors, use tweezers
if possible.
H_16920_018.eps
110407
Figure 4-5 Release FFCs
4. You can now remove the Control Board.
H_16920_021.eps
110407
Figure 4-7 FFC insertion
3. Place the metal cover in the direction shown.
H_16920_022.eps
110407
Figure 4-8 Cover placement
4. Secure the cover screws (refer to earlier figure “Cover
screws”).
Page 7
Mechanical Instructions
EN 7LCD CMO 2K7 4.

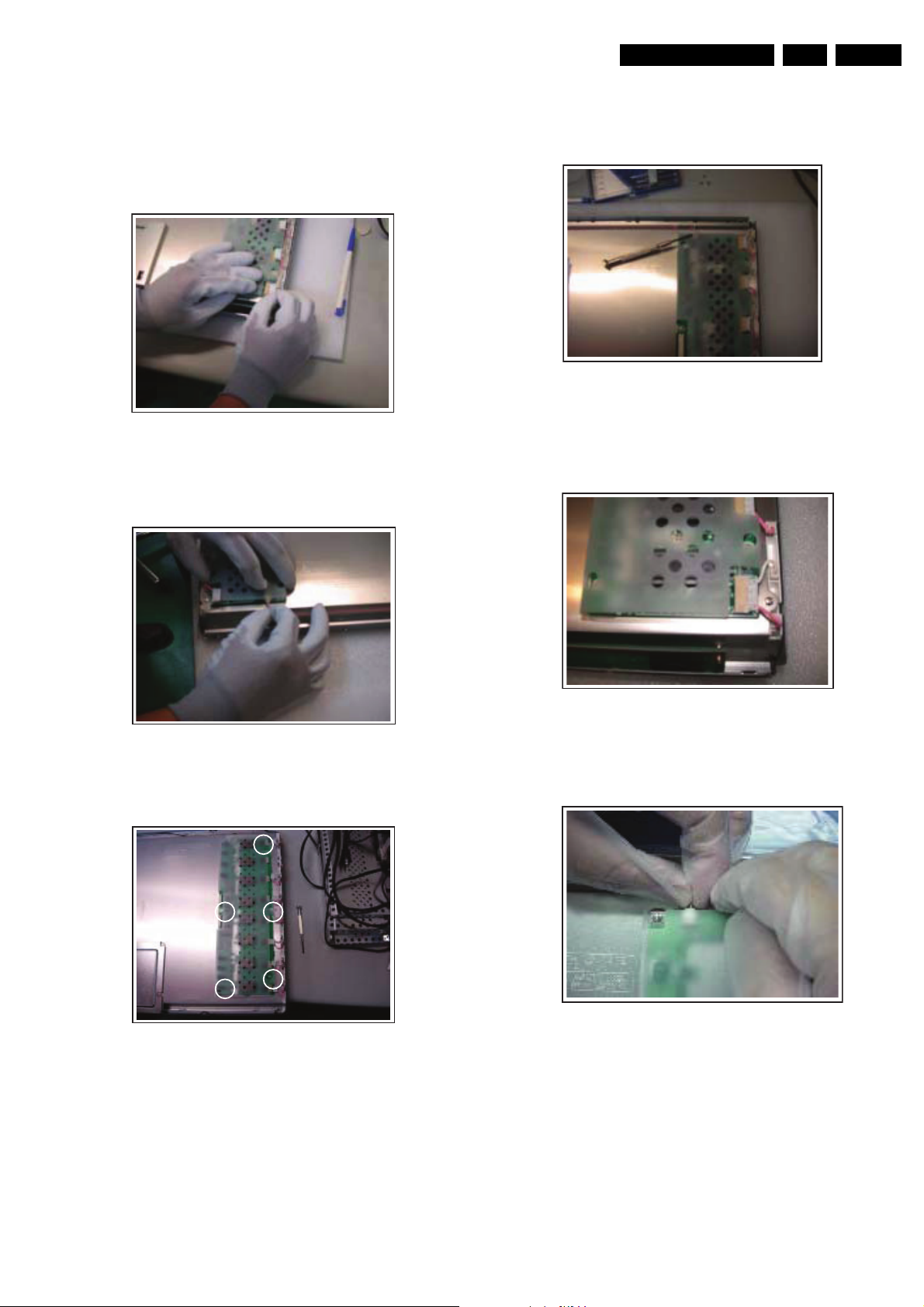

4.2.2 Inverter Board
Disassembly
1. Place the panel on the foam bars.
2. Remove the connectors attached to the inverter. Start at
the top, and be careful not to pull and drag the wires.
H_16920_002.eps
060407
Figure 4-9 Remove connectors
3. Withdraw the grounding wire from the inverter. Be careful
not to pull and drag the wire.
Reassembly
1. Place the panel on the foam bars, and place the Inverter
Board on the panel via the alignment pins.
H_16920_010.eps
060407
Figure 4-12 Alignment pins
2. Insert the connectors. Be sure to place the round spot
upwards. Important: Connectors should be well
connected, to avoid electrical sparks!
H_16920_006.eps
060407
Figure 4-10 Release grounding wire
4. Remove the five fixation screws as indicated.
H_16920_007.eps
060407
Figure 4-11 Remove fixation screws
5. Remove the Inverter Board.
H_16920_011.eps
060407
Figure 4-13 FFC insertion
3. Place the grounding wire to the Inverter Board. Check if
placed correctly.
H_16920_012.eps
060407
Figure 4-14 Grounding wire placement
Page 8
EN 8 LCD CMO 2K75.
.
0
Service Modes, Error Codes, and Fault Finding
5. Service Modes, Error Codes, and Fault Finding
Index of this chapter:
5.1 Models V315B1-L05 and V320B1-L05
5.1 Models V315B1-L05 and V320B1-L05

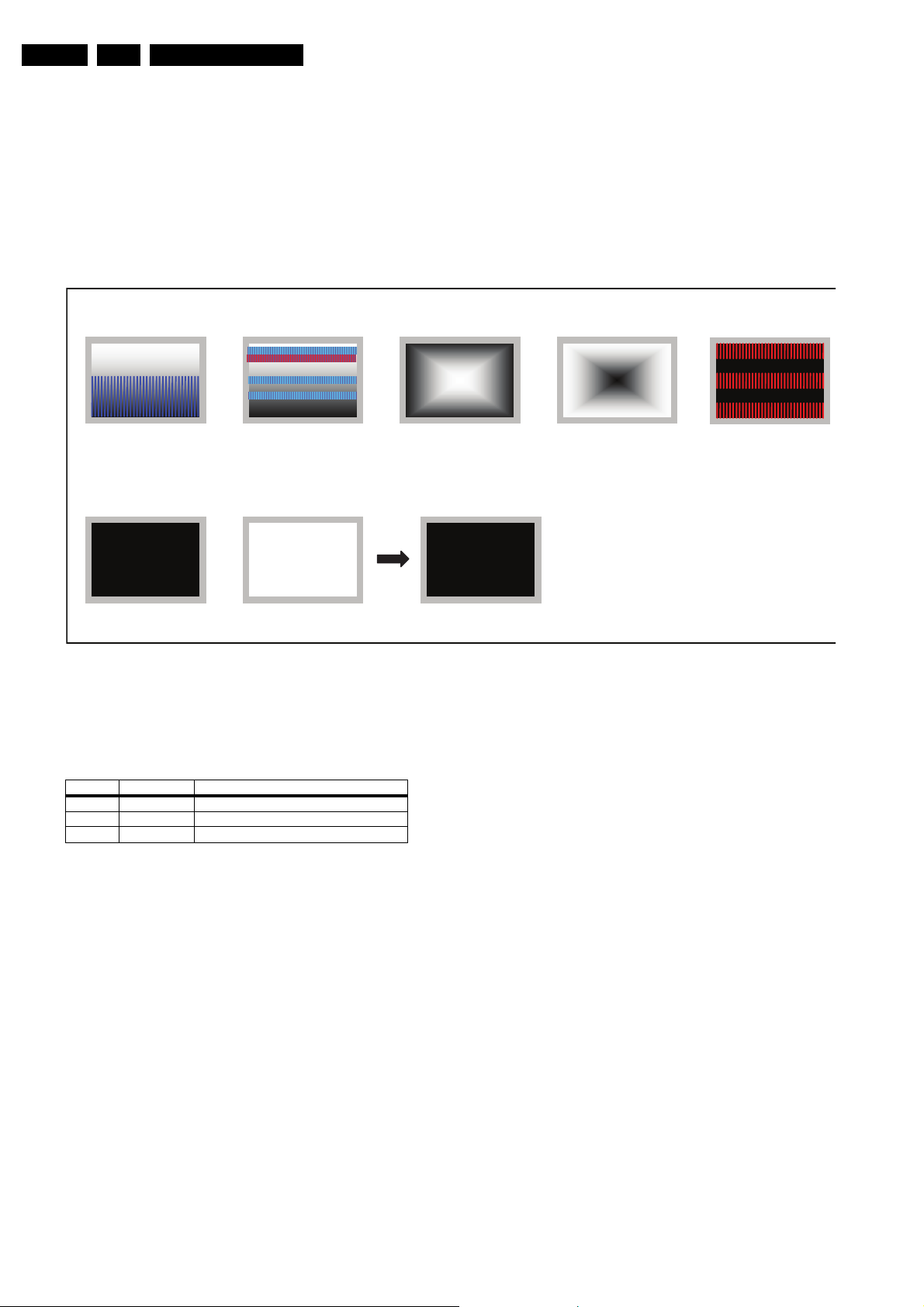

5.1.1 Fault Finding
ExchangeControl Boardʴ case 1 ~ 5 (A bnormal displayʿ No displayʿ Noise)
Case 1 Case 2 Case 3 Case 4
ExchangeInverterʴ case 6 ~ 7
Case 5
2~3 sec
Case 6 Case 7
Table 5-1 Inverter Interface Impedance (CN-1)
Pin No. Symbol Impedance
11 ADIM 172 kohm ± 10%
12 BLON 67 kohm ± 10%
13 PDIM
51 kohm ± 10%
Figure 5-1 Symptom overview
H_16920_024
01
Page 9
Block Diagrams, Test Point Overviews, and Waveforms
6. Block Diagrams, Test Point Overviews, and Waveforms
Not applicable.
7. Circuit Diagrams and PWB Layouts
Not applicable
8. Alignments
Not applicable.
9. Circuit Descriptions, Abbreviation List, and IC Data Sheets
9.1 Circuit Descriptions
EN 9LCD CMO 2K7 6.
Not applicable
9.2 Abbreviation List
AUO Acer Unipack Optronics (supplier)
CCFL Cold Cathode Fluorescent Lamp
CMO Chi Mei Optoelectronics (supplier)
COF Chip On Flex / Foil / Film
CPT Chunghwa Picture Tubes (supplier)
DC Direct Current
FET Field Effect Transistor
FFC Flat Foil Cable
FPC Flexible Printed Circuit
IC Integrated Circuit
LCD Liquid Crystal Display
LCM Liquid Crystal Module
LED Light Emitting Diode
LPL LG Philips LCD (supplier)
PCB Printed Circuit Board (same as PWB)
PSU Power Supply Unit
PWB Printed Wiring Board (same as PCB)
RGB Red, Green, Blue colour space
TCP Tape Carrier Package
9.3 IC Data Sheets
Not applicable
10. Spare Parts List
Please refer to the Philips Service website, for an actual
overview (monthly updated).
11. Revision List
Manual xxxx xxx xxxx.0
• First release.
Loading...
