EN 2 TPS14.2A LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Chapter 2: Updated table 2.1 Technical Specifications

.

• Chapter 10: Added circuit diagrams J 715G6638 IR/LED

Panel.

Manual xxxx xxx xxxx.2

• Chapter 2: Updated table 2.1 Technical Specifications added section 2.4 Connections ( for 42PFH3609/96 )

and

.

• Chapter 4: Added figures 4-3 Cable dressing (42" 3609

series), 4-6 Cable dressing (65" 5409 series) and sections

4.5 Assembly/Panel Removal (for 42PFH3609/96)

, 4.6

Assembly/Panel Removal (for 65"PFT5409 series).

• Chapter 5: Updated table 5-1 Factory mode overview section 5.2.3 Customer Service Mode (CSM)

and

.

• Chapter 7: Updated figure 7-3 Power Architecture

7-1 Connector overview cells (top view) (for 42PFH3609/96), 7-5 DC/DC converters (for 42PFH3609/96), 7-7 Front-End analogue block diagram (for 42PFH3609/96), 7-9 Front-End analogue block diagram (for 42PFH3609/96), 7-11 HDMI input configuration (for 42PFH3609/96).

• Chapter 9: Added figure Block diagram 3609 series

• Chapter 10: Added circuit diagrams A 715G6555 PSU

EMC 715G6535 MEMC Board 715G6344 TunerBox Board.

• Chapter 11: Added styling sheets 11.3 3609 series 42" and 11.6 5409 series 65"

Manual xxxx xxx xxxx.3

• Chapter 2: Updated table 2.1 Technical Specifications

• Chapter 5: Updated table 5-1 Factory mode overview

2. Technical Specs, Diversity, and Connections

, table

, and added figures 7-2 SSB layout

.

,

, B 715G6997 SSB and TU

.

Index of this chapter:

2.1 Technical Specifications

• Figures can deviate due to the different set executions.

• Specifications are indicative (subject to change).

2.2 Directions for Use

2.3 Connections ( for 32"/40"/50"/58"/65" 5x09 series )

2.4 Connections ( for 42PFH3609/96 )

2.5 Chassis Overview

2.1 Technical Specifications

For on-line product support please use the links in back to

div.Table 2-1. Here is product information available, as well as

getting started, user manuals, frequently asked questions and

Notes:

software & drivers.

Table 2-1 Described Model Numbers and Diversity

24 910 11

Mechanics

CTN

32PHT5109/56 2-1 4-1 4-7 4-8 9.1 10.1 10.7 10.10 10.12 - - 11.1 32PHT5109/98 2-1 4-1 4-7 4-8 9.1 10.1 10.7 10.10 10.12 - - 11.1 32PHT5109S/98 2-1 4-1 4-7 4-8 9.1 10.1 10.7 10.10 10.12 - - 11.1 40PFT5109/56 2-1 4-2 4-7 4-8 9.1 10.2 10.7 10.10 10.12 - - 11.2 40PFT5109/98 2-1 4-2 4-7 4-8 9.1 10.2 10.7 10.10 10.12 - - 11.2 40PFT5109S/98 2-1 4-2 4-7 4-8 9.1 10.2 10.7 10.10 10.12 - - 11.2 42PFH3609/96 2-1 4-3 4-13 4-15 9.2 10.2 10.9 10.10 10.12 - 10.13 11.3 50PFT5109/56 2-1 4-4 4-7 4-8 9.1 10.3 10.7 10.10 10.12 - - 11.4 50PFT5109/98 2-1 4-4 4-7 4-8 9.1 10.3 10.7 10.10 10.12 - - 11.4 50PFT5109S/98 2-1 4-4 4-7 4-8 9.1 10.3 10.7 10.10 10.12 - - 11.4 58PFT5309/56 2-1 4-5 4-10 4-12 9.1 10.4 & 10.5 10.7 10.11 10.12 - - 11.5 58PFT5309/98 2-1 4-5 4-10 4-12 9.1 10.4 & 10.5 10.7 10.11 10.12 - - 11.5 58PFT5309S/98 2-1 4-5 4-10 4-12 9.1 10.4 & 10.5 10.7 10.11 10.12 - - 11.5 58PFT5309S/40 2-1 4-5 4-10 4-12 9.1 10.4 & 10.5 10.7 10.11 10.12 - - 11.5 65PFT5409/56 2-1 4-6 4-16 4-17 9.1 10.6 10.7 - 10.12 10.8 - 11.6 65PFT5409/98 2-1 4-6 4-16 4-17 9.1 10.6 10.7 - 10.12 10.8 - 11.6 65PFT5409/79 2-1 4-6 4-16 4-17 9.1 10.6 10.7 - 10.12 10.8 - 11.6 65PFT5409S/98 2-1 4-6 4-16 4-17 9.1 10.6 10.7 - 10.12 10.8 - 11.6 65PFT5409S/40 2-1 4-6 4-16 4-17 9.1 10.6 10.7 - 10.12 10.8 - 11.6

Connection Overview

Wire Dressing

Rear Cover Removal

Block Diagrams Schematics

SSB Removal

Block Diagram

Power Supply

SSB

J (IR/LED)

E (Keyboard/Leading Edge)

ECM (MEMC Board)

TU(TunerBox Board)

Styling

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

2014-Sep-26

back to

div.Table

Technical Specs, Diversity, and Connections

19690_001.eps

1 2

3

4 5

6

7

8

9 10

10000_017_090121.eps

090428

19

1

18 2

10000_017_090121.eps

090428

19

1

18 2

2.3 Conne ctions ( for 32"/40"/50"/58"/65" 5x09 series )

EN 3TPS14.2A LA 2.

2.3.1 Side Connections

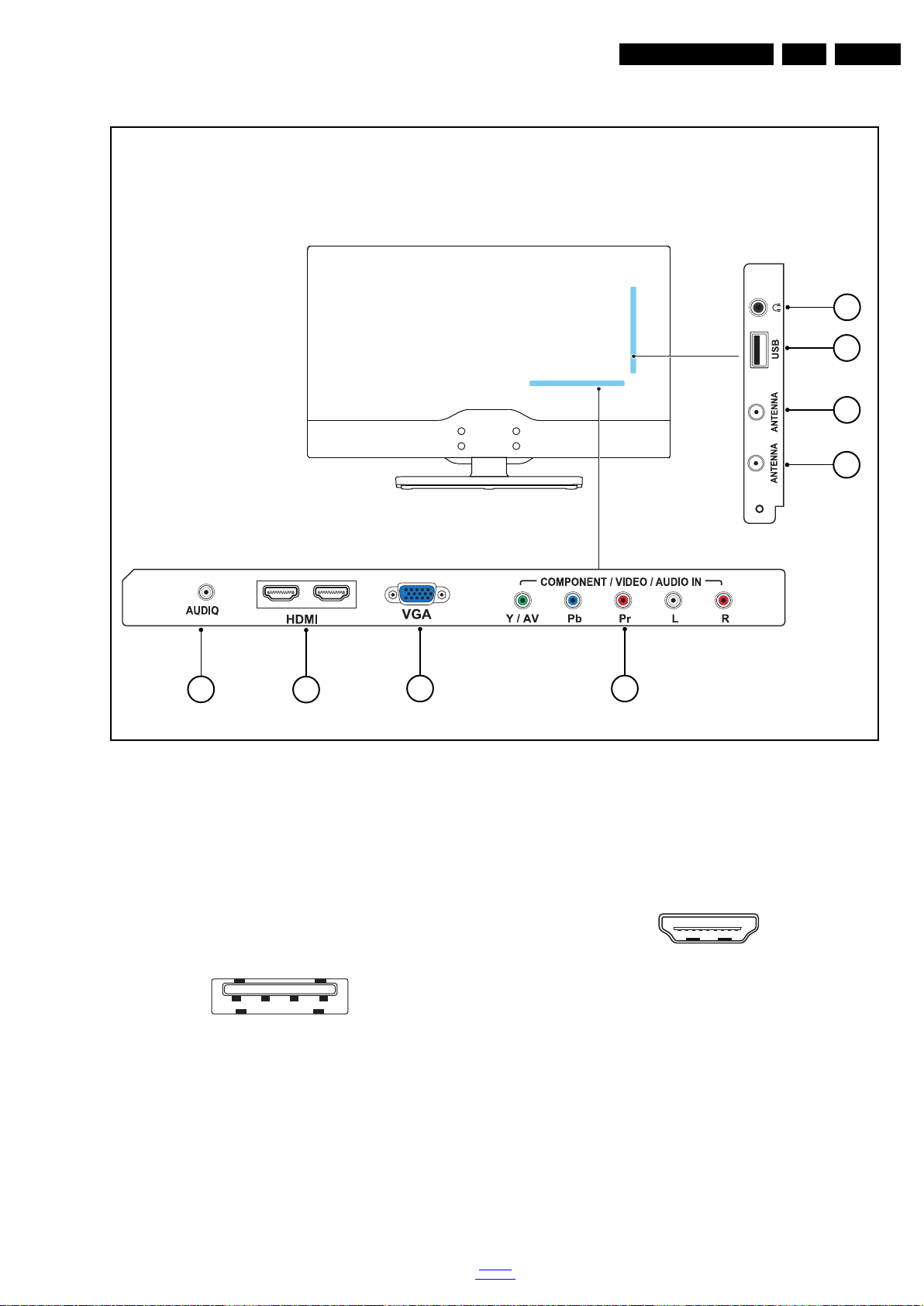

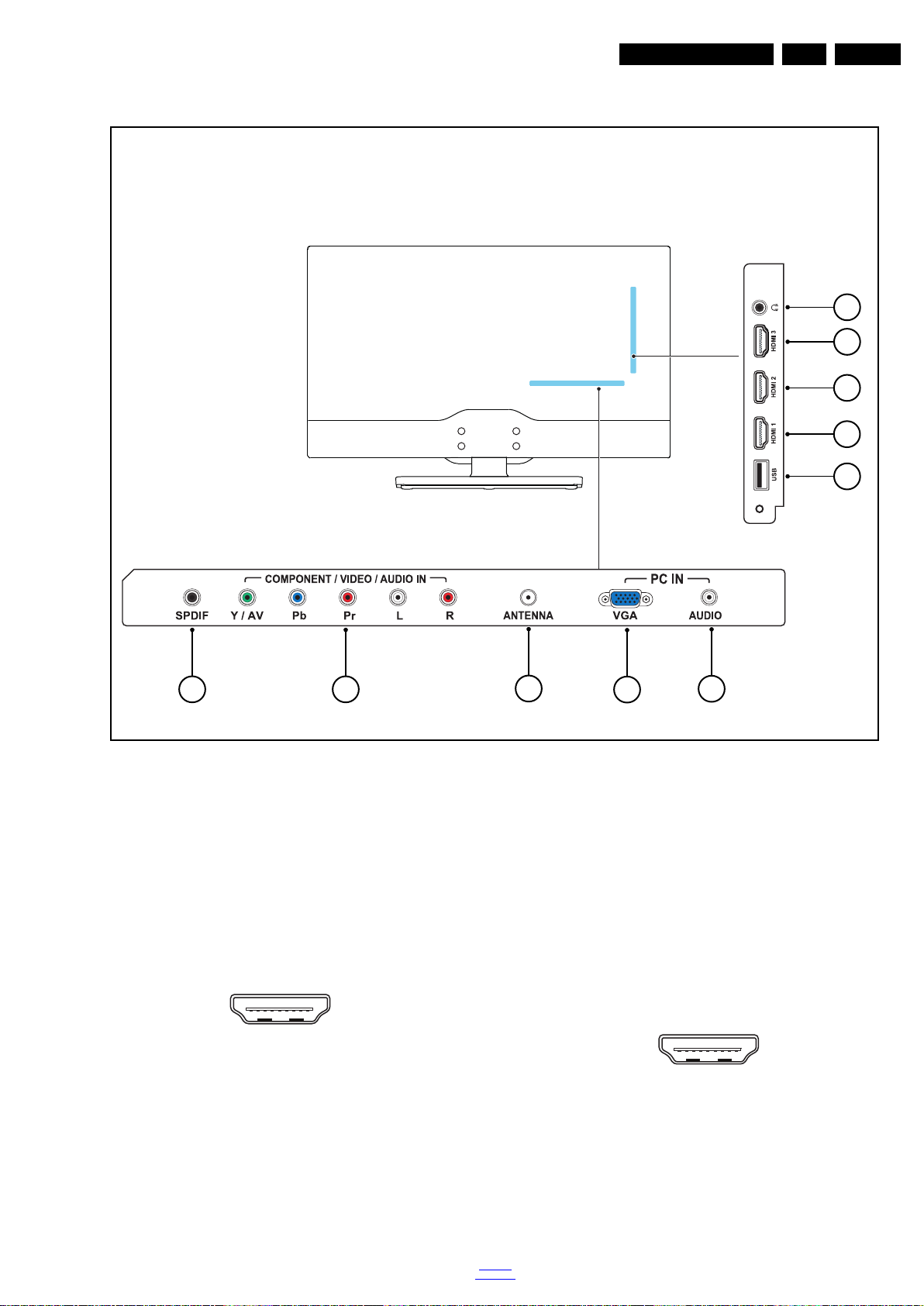

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Head phone (Output)

Bk -Head phone 80 - 600 W / 10 mW ot

2 - HDMI 3: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-2 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j

back to

div.Table

10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

3 - HDMI 2: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-3 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j

2014-Sep-26

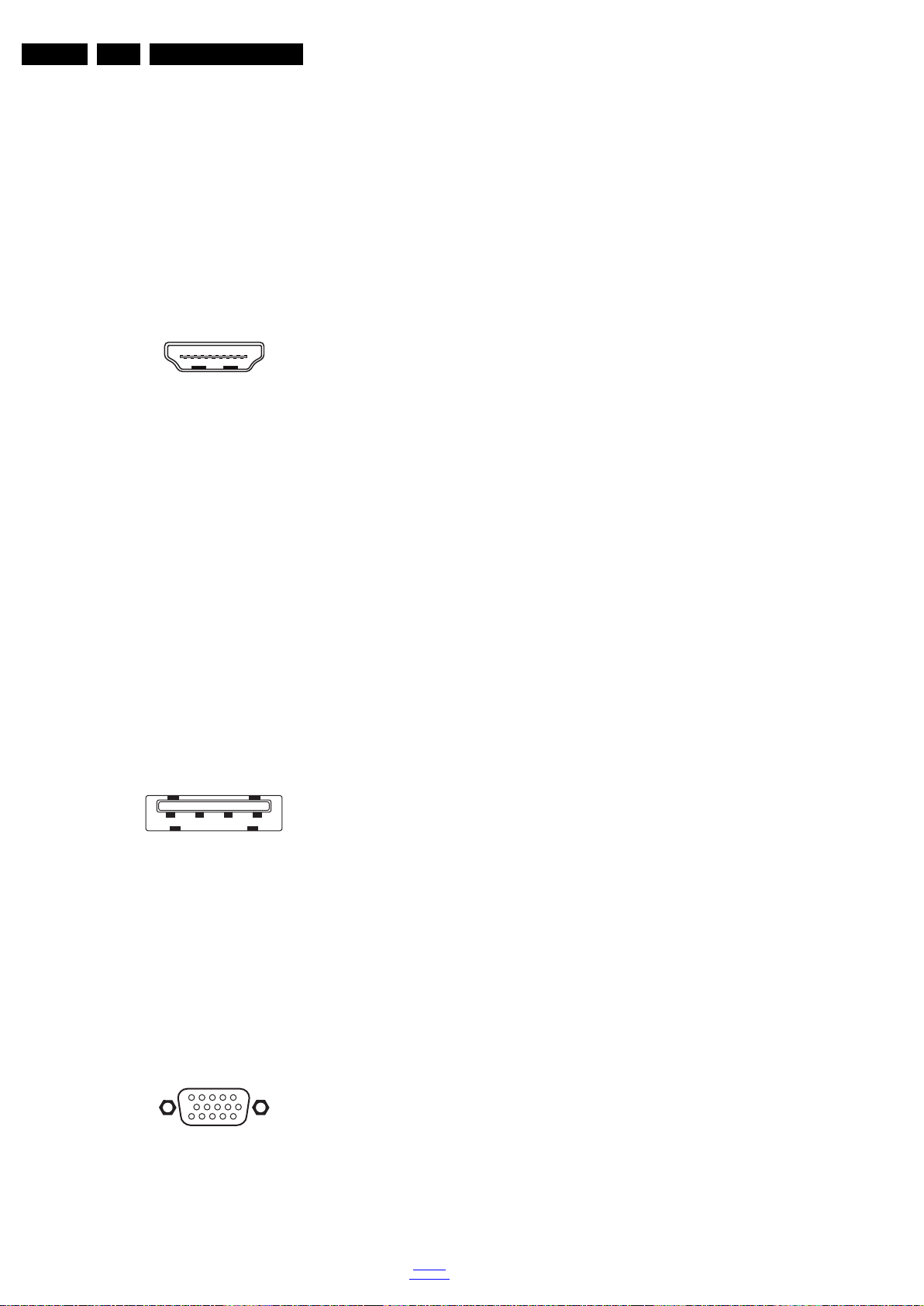

EN 4 TPS14.2A LA2.

10000_017_090121.eps

090428

19

1

18 2

1 2 3 4

10000_022_090121.eps

090121

1

6

10

11

5

15

10000_002_090121.eps

090127

Technical Specs, Diversity, and Connections

8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

4 - HDMI 1: Digital Video - In, Digital Audio with ARC In/Out

Figure 2-4 HDMI (type A) connector

1 -D2+ Data channel j 2-Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5-Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8-Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

4-n.c. 5 -Ground Gnd H 6 -Ground Red Gnd H 7 -Ground Green Gnd H 8 -Ground Blue Gnd H 9-+5V 10 - Ground Sync Gnd H

+5 V j

DC

11 - Ground Red Gnd H 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j

8 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

9 - Cinch: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V Bu -Video - Pb 0.7 V Rd -Video - Pr 0.7 V Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

10 - Cinch: Digital Audio - Out

BK - Coaxial 0.4 - 0.6V

/ 75  kq

PP

5 - USB2 2.0

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

2.3.2 Rear Connections

6 - Audio - In

Bu -Audio in 0.5 V

7 - PC IN:VGA

1 -Video Red 0.7 V 2 -Video Green 0.7 V 3 -Video Blue 0.7 V

2014-Sep-26

Figure 2-5 USB (type A)

/ 10 kW jq

RMS

Figure 2-6 VGA connector

/ 75 W j

PP

/ 75 W j

PP

/ 75 W j

PP

back to

div.Table

Technical Specs, Diversity, and Connections

19692_001.eps

1 2

3

4

5

6

7 8

1 2 3 4

10000_022_090121.eps

090121

10000_017_090121.eps

090428

19

1

18 2

2.4 Connections ( for 42PFH3609/96 )

EN 5TPS14.2A LA 2.

2.4.1 Side Connections

Figure 2-7 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1 - Head phone (Output)

Bk -Head phone 80 - 600 W / 10 mW ot

2 - USB2 2.0

Figure 2-8 USB (type A)

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

3 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

4 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

2.4.2 Rear Connections

5 - Audio - In

Bu - Audio in 0.5 V

6 - HDMI : Digital Video - In, Digital Audio with ARC - In/Out

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H 9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - ARC Audio Return Channel k 15 - DDC_SCL DDC clock j

back to

div.Table

/ 10 kW jq

RMS

Figure 2-9 HDMI (type A) connector

2014-Sep-26

EN 6 TPS14.2A LA2.

1

6

10

11

5

15

10000_002_090121.eps

090127

Technical Specs, Diversity, and Connections

16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

7 - PC IN:VGA

Figure 2-10 VGA connector

1 -Video Red 0.7 V 2 -Video Green 0.7 V 3 -Video Blue 0.7 V 4-n.c.

/ 75 W j

PP

/ 75 W j

PP

/ 75 W j

PP

2.5 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

5 -Ground Gnd H 6 -Ground Red Gnd H 7 -Ground Green Gnd H 8 -Ground Blue Gnd H 9-+5V

+5 V j

DC

10 - Ground Sync Gnd H 11 - Ground Red Gnd H 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j

8 - Cinch: Video YPbPr - In, Audio - In

Gn - Video - Y 1 V Bu - Video - Pb 0.7 V Rd -Video - Pr 0.7 V Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

/ 75 W jq

PP

/ 75 W jq

PP

/ 75 W jq

PP

/ 10 kW jq

RMS

/ 10 kW jq

RMS

2014-Sep-26

back to

div.Table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

3.1 Safety Instructions

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

back to

div.Table

-9

), or pico-farads (p 10

. Select

EN 7TPS14.2A LA 3.

-6

),

-12

).

2014-Sep-26

EN 8 TPS14.2A LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

2014-Sep-26

back to

div.Table

Precautions, Notes, and Abbreviation List

EN 9TPS14.2A LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div.Table

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

Index of this chapter:

4.1 Cable Dressing

4.2 Service Positions

4.3 Assembly/Panel Removal (for 32"/40"/50"PxT5109 series)

4.4 Assembly/Panel Removal (for 58"PFT5309 series)

4.5 Assembly/Panel Removal (for 42PFH3609/96)

4.6 Assembly/Panel Removal (for 65"PFT5409 series)

4.1 Cable Dressing

Mechanical Instructions

4.7 Set Re-assembly

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

EN 11TPS14.2A LA 4.

KEYBOARD CONTROL

(1057)

E

CN01

ECN401

A

ECN601

LOUDSPEAKER

(1184)

CN8101

MAIN POWER SUPPLY

(1054)

Figure 4-1 Cable dressing (32" 5109 series)

CN9101

ECN701

ECN402

IR/LED BOARD

J

(1056)

ECN401

CN201

CN701

CN401

ECN601

CN402

B

LOUDSPEAKER

(1184)

SSB

(1053)

CN601

19690_100.eps

back to

div.Table

2014-Sep-26

EN 12 TPS14.2A LA4.

19692_100.eps

CN701

CN104

CN401

CN9101

CN8101

CN601

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN701

ECN601

ECN104

ECN401

ECN601

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

KEYBOARD CONTROL

(1057)

E

CN01

Mechanical Instructions

KEYBOARD CONTROL

(1057)

CN8101

CN9101

ECN701

ECN601

CN402

B

SSB

(1053)

CN601

ECN401

MAIN POWER SUPPLY

A

(1054)

ECN402

ECN401

CN701

CN401

ECN601

CN01

E

LOUDSPEAKER

(1184)

IR/LED BOARD

J

(1056)

CN201

ECN601

LOUDSPEAKER

(1184)

19690_101.eps

Figure 4-2 Cable dressing (40" 5109 series)

2014-Sep-26

Figure 4-3 Cable dressing (42" 3609 series)

back to

div.Table

Mechanical Instructions

19690_102.eps

CN401

CN402

CN701

CN9301

CN8101

CN601

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN701

ECN601

ECN401

ECN402

ECN601

ECN401

ECN601

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

KEYBOARD CONTROL

(1057)

E

CN01

19690_103.eps

CN401

CN402

CN701

CN9102

CN9101

CN8101

CN8102

CN601

MAIN POWER SUPPLY

(1054)

A

IR/LED BOARD

(1056)

J

SSB

(1053)

B

ECN601

ECN402

ECN601

ECN401

ECN601

ECN401

ECN701

ECN9102

LOUDSPEAKER

(1184)

LOUDSPEAKER

(1184)

CN201

KEYBOARD CONTROL

(1057)

E

CN01

LED DRIVER

(1055)

AD

EN 13TPS14.2A LA 4.

Figure 4-4 Cable dressing (50" 5109 series)

Figure 4-5 Cable dressing (58" 5309 series)

back to

div.Table

2014-Sep-26

EN 14 TPS14.2A LA4.

Mechanical Instructions

CN9101

MAIN POWER SUPPLY

A

(1054)

KEYBOARD CONTROL

(1057)

ECN401

E

CN01

LOUDSPEAKER

(1184)

CN9301

ECN601

Figure 4-6 Cable dressing (65" 5409 series)

4.2 Se rvice Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

ECN9101

ECN701

ECN4005

LED DRIVER

AD

ECN4007

(1055)

IR/LED BOARD

(1056)

J

ECN401

ECN402

ECN601

CN701

CN401

CN4005

CN4002

CN402

SSB

B

(1053)

LOUDSPEAKER

(1184)

CN4007

CN601

19692_101.eps

4.3 Assembly/Panel Removal (for 32"/40"/50"PxT5109 series)

Instructions below apply to the 32PHT5109/98, but will be similar for other 32"/40"/50"PxT5109 series models.

4.3.1 Rear Cover

Refer to Figure 4-7 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull

out the base assy from the set. Then remove the fixation screws [2], [3] that secure the rear cover. Refer to

Figure 4-7

2. Lift the rear cover from the TV. Make sure that wires and

cables are not damaged while lifting the rear cover from the set.

2014-Sep-26

for details.

back to

div.Table

Mechanical Instructions

19690_104.eps

1

M4 × 12

M3× 8

1

2

M3 × 5

3

1

EN 15TPS14.2A LA 4.

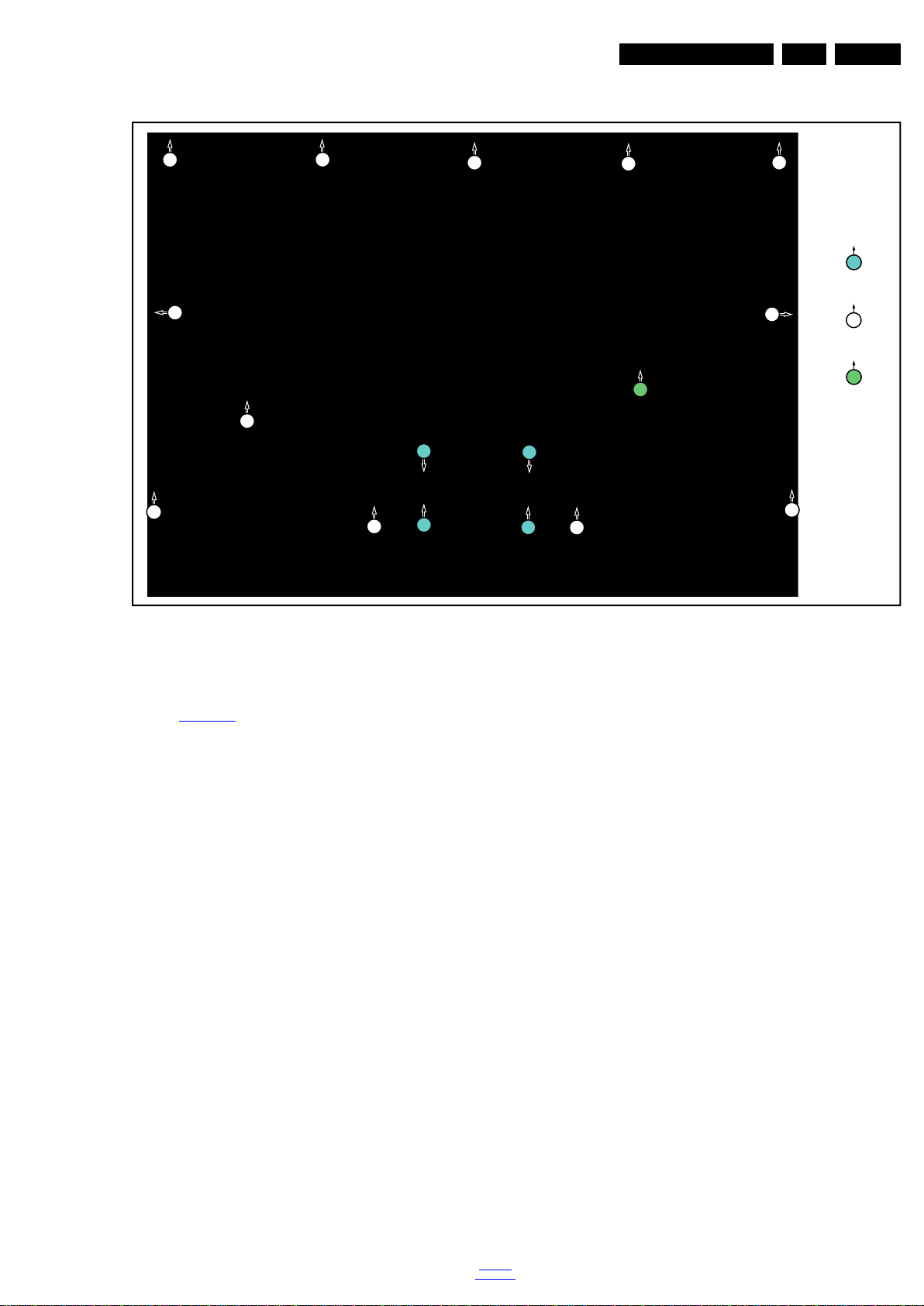

Figure 4-7 Rear cover removal

4.3.2 Keyboard Control Unit

Refer to Figure 4-8

1. Release the connector [2] from the keyboard control panel. Caution: be careful, as these are very fragile connectors!

2. Remove all the fixation screws from the keyboard control panel [1].

When defective, replace the whole unit.

for details.

back to

div.Table

2014-Sep-26

EN 16 TPS14.2A LA4.

19690_105.eps

1

2

19690_106.eps

1

2

3

2

Mechanical Instructions

Figure 4-8 Keyboard Control unit removal

4.3.3 Small Signal Board (SSB)

Refer to Figure 4-9 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors! Unplug the cable/flat foils connector.

2. Unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. Take out the SSB with I/O bracket.

5. The SSB can now be shifted away from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-9

for details.

Figure 4-9 SSB removal

4.3.4 Power Supply Unit (PSU)

2014-Sep-26

Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

back to

div.Table

Mechanical Instructions

19690_107.eps

1

2

1

2

M4 × 8

M3× 6

2

EN 17TPS14.2A LA 4.

4.3.5 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.3.6 Stand bracket removal

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Be sure to put the set in the Service Position.

1. Remove the fixation screws.

2. Take the stand bracket out.

4.3.7 IR/LED Board

1. Remove the stand bracket as described earlier.

2. Gently release the clips that hold the board and take it out from the bezel.

3. Unplug both the connectors from the IR/LED board.

When defective, replace the whole unit.

4.3.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.4 Assembly/Panel Removal (for 58"PFT5309 series)

Instructions below apply to the 58PFT5309/98, but will be similar for other 58"PFT5309 series models.

4.4.1 Rear Cover

Refer to Figure 4-10 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove the fixation screws [1] and [2] that secure the rear

cover. Refer to Figure 4-10

2. Lift the rear cover from the TV. Make sure that wires and

cables are not damaged while lifting the rear cover from the set.

for details.

4.4.2 Stand

for details.

Refer to Figure 4-11

1. Remove the fixation screws [3] that secure the stand bracket. Refer to Figure 4-11

2. Take the stand bracket out from the set.

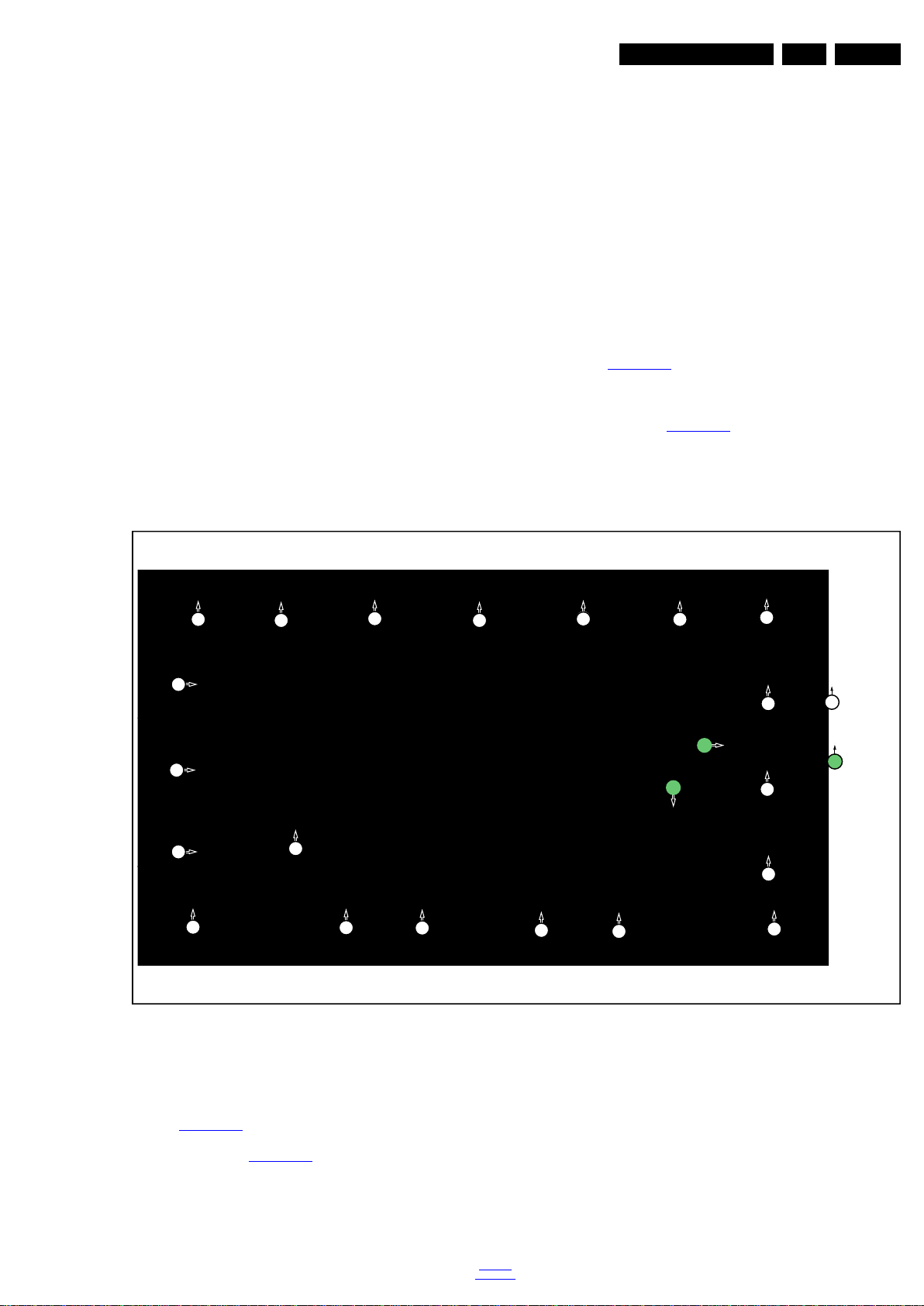

Figure 4-10 Rear cover removal

back to

div.Table

2014-Sep-26

EN 18 TPS14.2A LA4.

19690_109.eps

1

3

2

1

2

Mechanical Instructions

3

4.4.3 Small Signal Board (SSB)

Refer to Figure 4-12 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors! Unplug the cable/flat foils connector.

2. Unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. Take out the SSB with I/O bracket.

5. The SSB can now be shifted away from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-12

for details.

3

M4× 14

3

19690_108.eps

Figure 4-11 Stand removal

2014-Sep-26

4.4.4 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result

back to

div.Table

in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

Figure 4-12 SSB removal

Mechanical Instructions

19692_104.eps

1

M4 × 12

M3× 6

1

2

Q3 × 8

3

1

EN 19TPS14.2A LA 4.

4.4.5 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.4.6 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.4.7 IR/LED Board

1. Remove the stand bracket as described earlier.

2. Gently release the clips that hold the board and take it out from the bezel.

3. Unplug both the connectors from the IR/LED board.

When defective, replace the whole unit.

4.4.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.5 Assembly/Panel Removal (for 42PFH3609/96)

Instructions below apply to the 42PFH3609/96.

4.5.1 Rear Cover

Refer to Figure 4-13 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation screws [2], [3] that secure the rear cover. Refer to

Figure 4-13

2. Lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

Figure 4-13 Rear cover removal

4.5.2 Keyboard Control Unit

Refer to Figure 4-14

1. Release the connector [2] from the keyboard control panel. Caution: be careful, as these are very fragile connectors!

2. Remove all the fixation screws from the keyboard control panel [1].

When defective, replace the whole unit.

for details.

back to

div.Table

2014-Sep-26

EN 20 TPS14.2A LA4.

19692_105.eps

1

2

19692_106.eps

1

2

3

2

Mechanical Instructions

Figure 4-14 Keyboard Control unit removal

4.5.3 Small Signal Board (SSB)

Refer to Figure 4-15 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors! Unplug the cable/flat foils connector.

2. Unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. Take out the SSB with I/O bracket.

5. The SSB can now be shifted away from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-15

for details.

Figure 4-15 SSB removal

4.5.4 Power Supply Unit (PSU)

2014-Sep-26

Caution: it is mandatory to remount all different screws at their

back to

div.Table

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

Mechanical Instructions

19692_102.eps

1

M4 × 18

M4× 6

1

2

4 4

4

2

M3 × 8

Q3 × 8

3

1

EN 21TPS14.2A LA 4.

4.5.5 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.5.6 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.5.7 IR/LED Board

1. Remove the stand bracket as described earlier.

2. Gently release the clips that hold the board and take it out from the bezel.

3. Unplug both the connectors from the IR/LED board.

When defective, replace the whole unit.

4.5.8 Tuner module

1. Gently unplug the connector from the SSB.

2. Then getntly remove the module from the SSB.

When defective, replace the whole unit.

4.5.9 LCD Panel

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

7. Remove all other metal parts not belonging to the panel.

8. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.6 Assembly/Panel Removal (for 65"PFT5409 series)

Instructions below apply to the 65PFT5409/98, but will be similar for other 65"PFT5409 series models.

4.6.1 Rear Cover

Refer to Figure 4-16 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull

out the base assy from the set. Then remove the fixation screws [2], [3] and [4] that secure the rear cover. Refer to

Figure 4-16

2. Lift the rear cover from the TV. Make sure that wires and

cables are not damaged while lifting the rear cover from the set.

for details.

1. Remove the SSB as described earlier.

4.6.2 Small Signal Board (SSB)

Refer to Figure 4-17 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

for details.

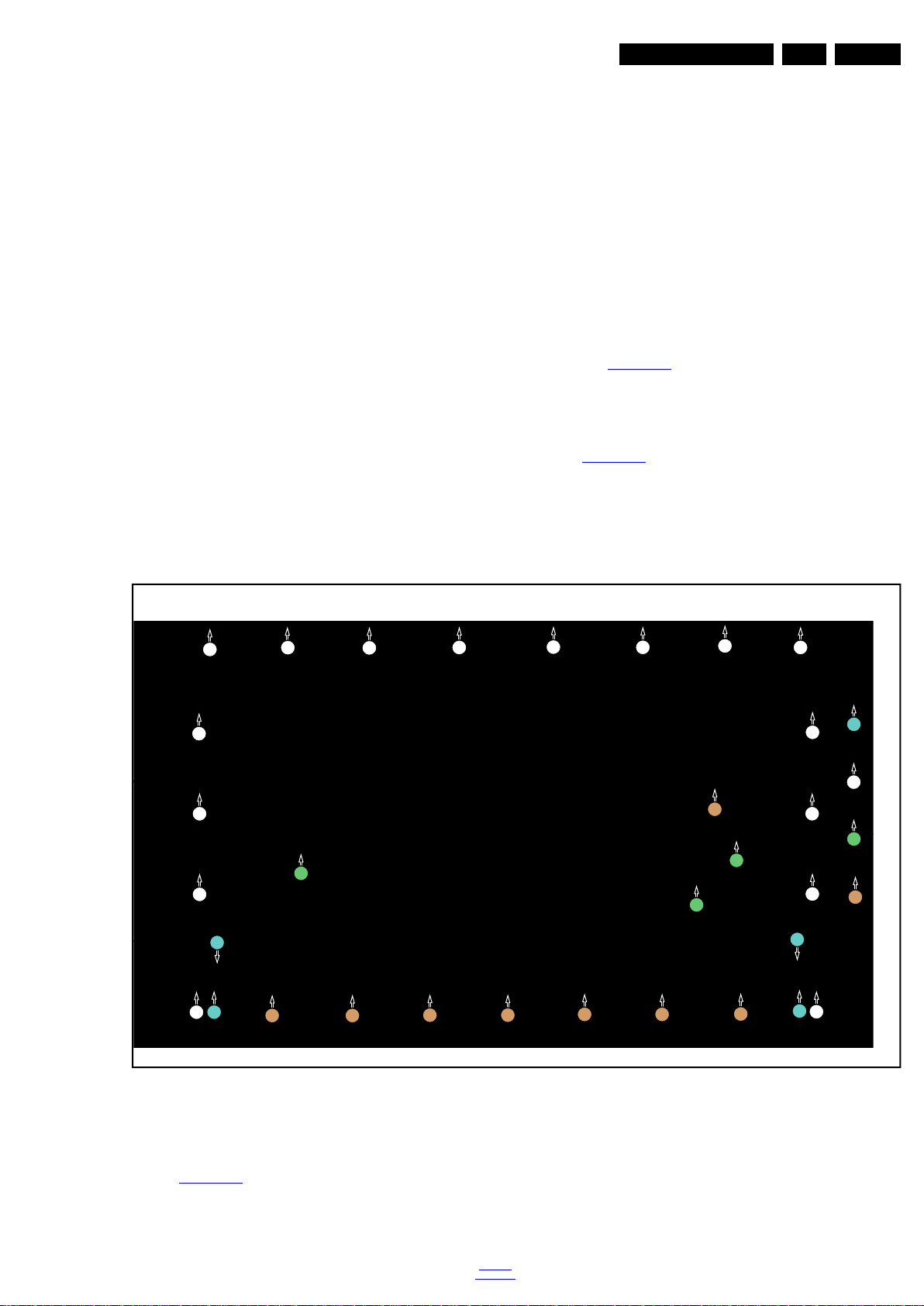

Figure 4-16 Rear cover removal

1. Release the clips from the LVDS connector that connect

2. Unplug all other connectors [2].

back to

div.Table

3. Remove all the fixation screws from the SSB [3].

4. Take out the SSB with I/O bracket.

with the SSB [1]. Caution: be careful, as these are very fragile connectors! Unplug the cable/flat foils connector.

2014-Sep-26

EN 22 TPS14.2A LA4.

19692_103.eps

1

2

3

2

Mechanical Instructions

5. The SSB can now be shifted away from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-17

for details.

Figure 4-17 SSB removal

4.6.8 MEMC Board

1. Unplug all connectors from the MEMC Board.

2. Remove all fixation screws from the MEMC Board.

3. The MEMC Board can be taken out of the set now.

4.6.9 LCD Panel

1. Unplug all the connector cables of the boards.

2. Gently take all the speakers out.

3. Lift the subframe with SSB, PSU, Keyboard, IR/LED board and MEMC Board, panel from the LCD panel and put it aside.

Warning:Cause the panels of 65" 5409 series are bolt-on panels, the panel could not release from bezel. When defective, replace the whole unit.

4.7 Set Re-assembly

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-1

Figure 4-6

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

.

to

4.6.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.6.4 Speakers

1. Gently release the tapes that secure the speaker cables.

2. Unplug the speaker connector from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.6.5 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.6.6 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.6.7 IR/LED Panel

1. Remove the stand bracket, as described earlier.

2. Remove fixation screw that secure the deco rear cover and take it out from the deco.

3. Unplug the connector from the IR/LED panel.

4. Gently release the double faced adhesive tape that pasted the panel and take it out from the deco.

When defective, replace the whole unit.

2014-Sep-26

back to

div.Table

Service Modes and Fault Finding

5. Service Modes and Fault Finding

Index of this chapter:

5.1 Test Points

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Software Upgrading

5.5 Fault Finding and Repair Tips

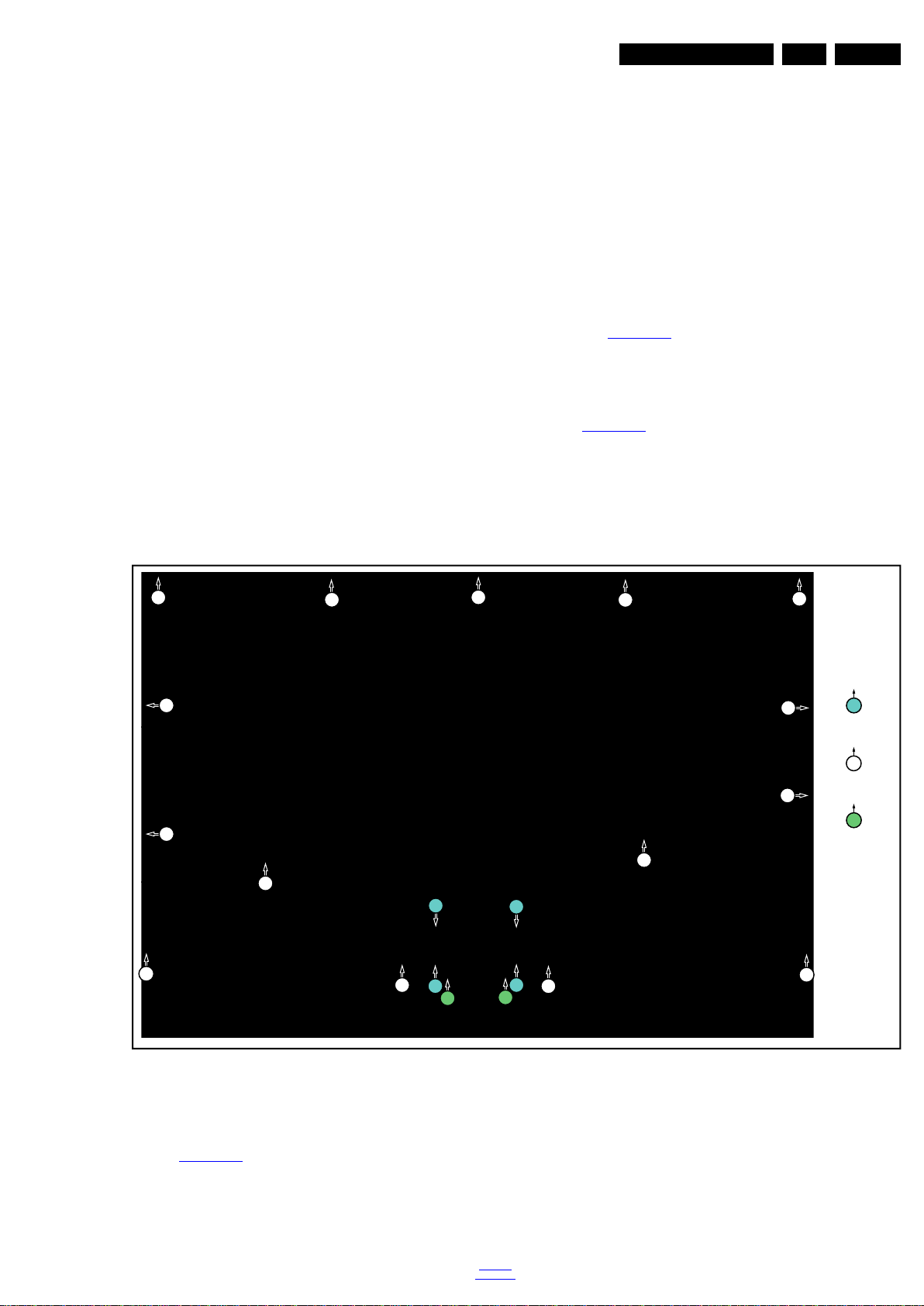

5.1 Test Points

As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into five parts:

• Factory Mode.

• Customer Service Mode (CSM).

The Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• Make alignments (e.g. White Tone), reset the error buffer (Factory Mode).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

EN 23TPS14.2A LA 5.

Software Identification, Version, and Cluster

The software ID and version will be shown in the main menu display of CSM. The screen will show: “AAAAB-X.YYY”, where:

• AAAA is the chassis name: TPS142A x.yyy.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

• X is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 1 - 99 and AA - ZZ.

- If the main version number changes, the new version number is written in the NVM.

- If the main version number changes, the default settings are loaded.

• YYY is the sub version number: this is updated with a minor change (backwards compatible with the previous versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version number is written in the NVM.

- If the NVM is refreshed, the software identification, version, and cluster will also be written to NVM.

5.2.2 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: “Menu+1999+Back/Recall”. Do not allow the display to time out between entries while keying the

5.2.1 General

Next items are applicable to all Service Modes or are general.

sequence.

After entering the Factory mode, the following items are displayed,

Table 5-1 Factory mode overview

Default value

Item Item value

0 Main-MCU Ver V0.07 V0.07 - V0.07 V2.07 V1.00 Main-MCU Version 1 Bootloader Ver V0.01 V0.01 - V0.01 V0.01 V0.01 Bootloader Version 2 Sub-MCU Ver V0.01 V0.01 - V0.01 V0.01 V0.01 SUB-MCU Version 3 EEPROM Ver V0.01 V0.01 V1.05 V0.01 V0.01 V0.01 EEPROM Version 4 Date Feb 18 2014 Feb 28 2014 Jul 24 2014 Mar 5 2014 Apr 11 2014 Jul 22 2014 Software release date 5 ModelName 32PHT5109 40PFT5109 42PFH3609 50PFT5109 58PFT5309 65PFT54 09 Model name 6 Scaler MSD8120PBM Scaler model 7 Panel Type LCA315XVN02

8 Source DTV DTV DTV VGA HDMI1 HDMI1 Input source 9 Auto Color GO Only need to do automatic correction input source of

10 W/B Pattern OFF W/B Pattern 11 SSC SSC 12 Enable ON ON - ON ON ON Enable on/off 13 LVDS Span 20.0K H z LVD Span 14 LVDS Step 3.50% LVD Step 15 ADC YPbPr(SD) ADC 16 Gain RGB ADC Gain 17 Offset RGB Offset RGB 18 ColorTemp Cool The current set of color temperature 19 Scaler Scaler model

AC7A10X & LVO315A0550 AD62T0X

LCM400J6PE1 AD0010C

LCA420HVN06 ADQAQ0X

LCM500J1PE8 ADQA50X

back to

div.Table

V580HJ1LD6 V650HP1LS6 Display mode l

Description32" 40" 42" 50" 58" 65"

effective,otherwise it is not action

2014-Sep-26

EN 24 TPS14.2A LA5.

Default value

Item Item value

20 Gain RGB RGB RGB RGB RGB RGB ADC Gain 21 Offset RGB RGB RGB RGB RGB RGB Offset RGB 22 Burn in OFF Turn on or turn off Burn in pattern 23 EEPROM Init Initial all EEPROM except the HDCP key and

24 Bcak LIT Time 00000.3Hrs

Hrs

25 Total Time 00000.3Hrs

Hrs 26 BackLight 100 Set the brightness of the backlight 27 Language English Factory Lanuguage 28RS232--OFF---RS232 29 System Reset Reset the EEPROM data except the HDCP,product

30 Exit Exit

00000.0Hrs Hrs

Service Modes and Fault Finding

- 00000.0Hrs Hrs

00000.0Hrs Hrs

Description32" 40" 42" 50" 58" 65"

product serial number Bcaklight time

Total time

serial number,the factory menu ADC data,white balance set point,Black light,language and Energy Logo.

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK” button.

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TV’s operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “Menu+456987+Back/Recall” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.3 HDCP keys Indicates the validity of the HDMI keys (or HDCP keys). In case these keys are not valid and the

2014-Sep-26

back to

div.Table

customer wants to make use of the HDMI functionality, the SSB has to be replaced.

• 1.4 NVM name Detects and displays NVM name.

• 1.5 Software Version Displays the software version.

• 1.6 RS232 Display RS232.

• 1.7 TV Region Display TV region.

• 1.8 LCD display panel 12NC NVM read/write.

• 1.9 SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 2.0 PSU 12NC NVM read/write.

Contents of CSM ( For 42PFH3609/96 )

• Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

•

Production code Displays the p

roduction code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• Software Version Displays the software version.

• PQ Version Display the software versions of the PQ.

• AQ Version Display the software versions of the AQ.

• HDCP keys Indicates the validity of the HDMI keys (or HDCP keys). In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.

• Back LIT Time Display the Backlight time.

• Total Time Display the total use time.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control transmitter.

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

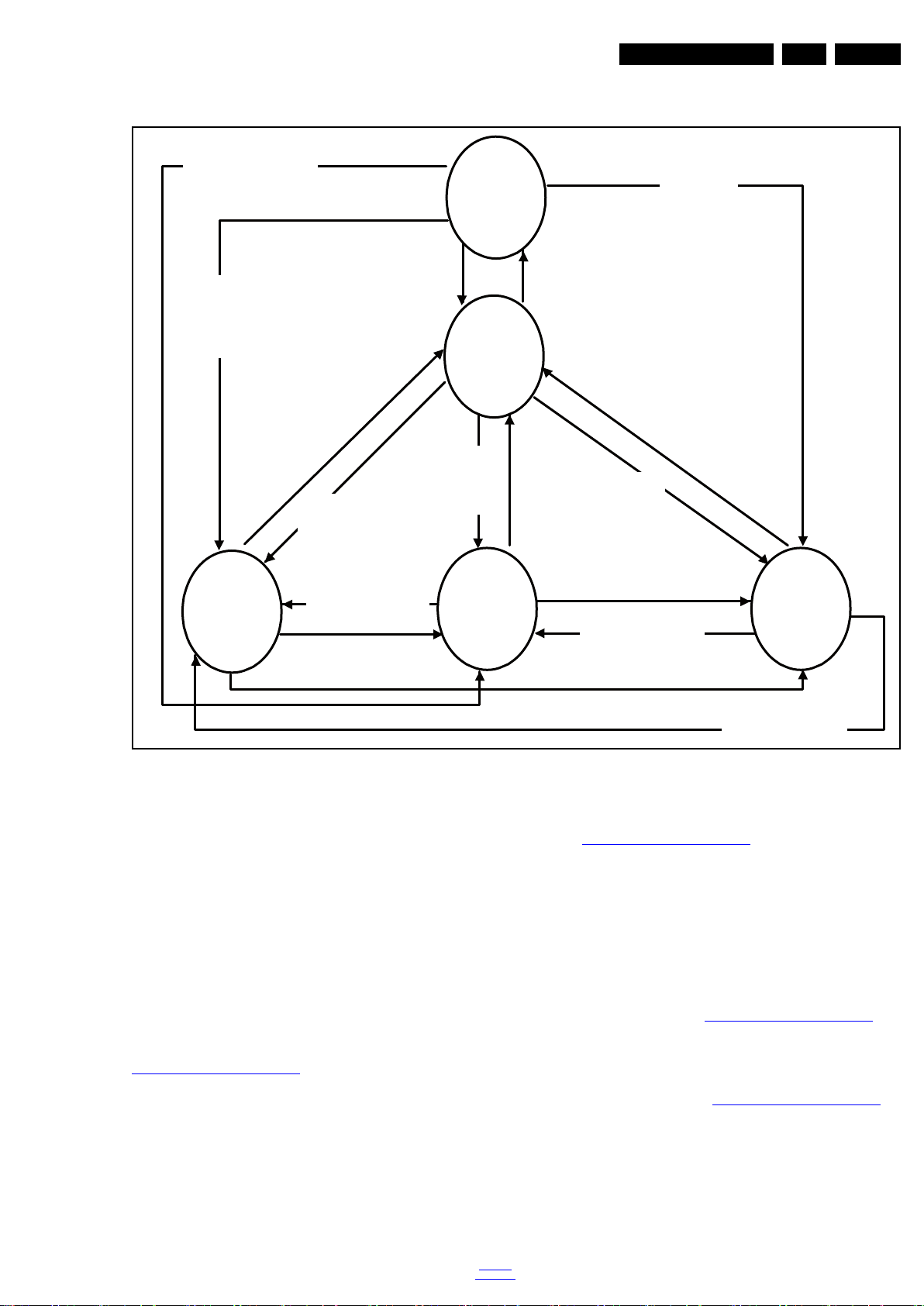

5.3 Stepwise Start-up

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

Service Modes and Fault Finding

EN 25TPS14.2A LA 5.

5.4 Software Upgrading

5.4.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.4.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

for Windows or Stufflt for Mac OS).

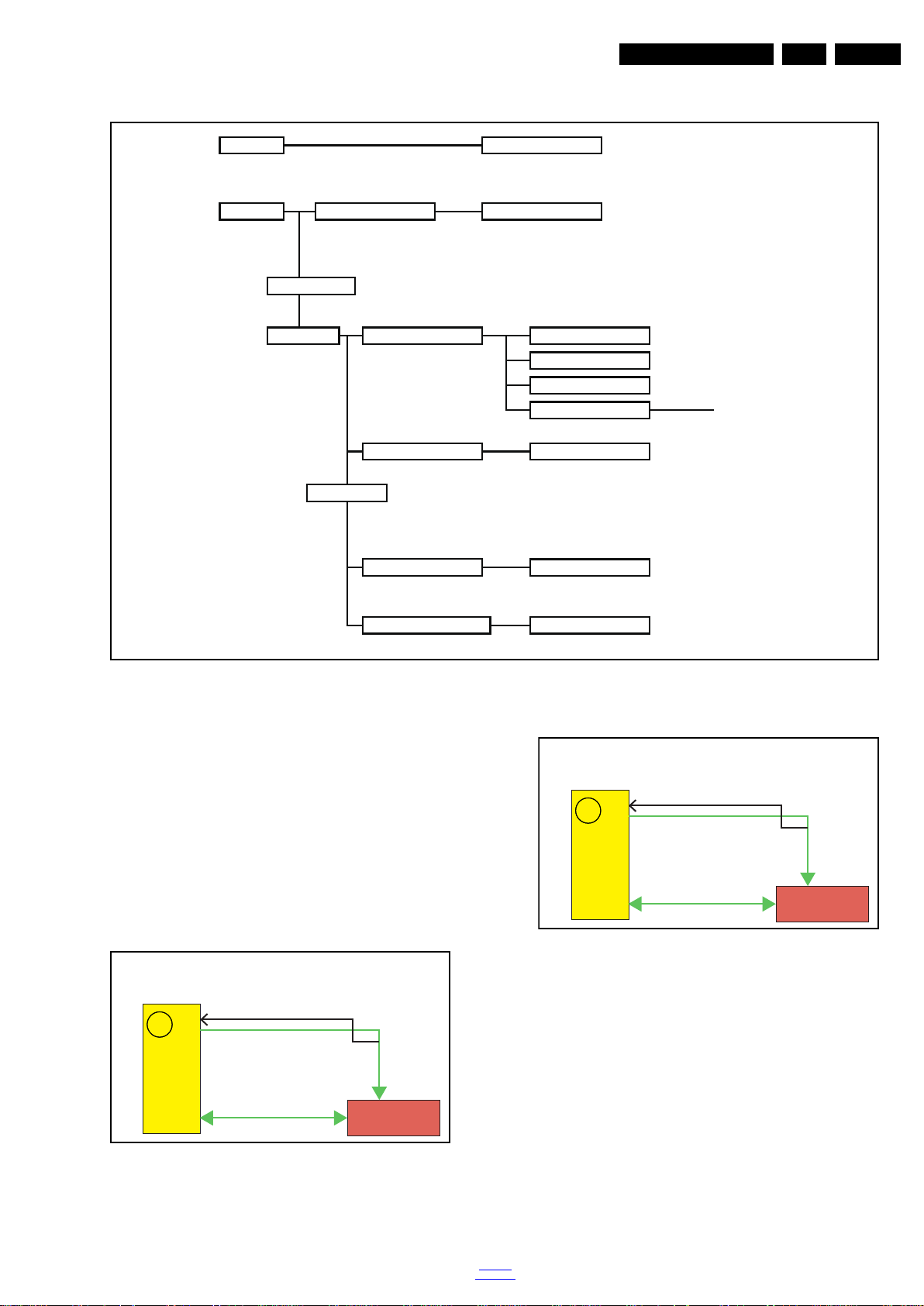

Figure 5-1 Stepwise Start-up

back to

div.Table

2. Only use software update files that can be found on the

http://www.philips.com/support

5.4.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “456987” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

5.4.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy it to the root directory of the USB flash drive.

web site.

, it is

.

2014-Sep-26

EN 26 TPS14.2A LA5.

Service Modes and Fault Finding

5.4.5 Update the TV software

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-2

. Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it. And no change the software name.

4. Select [Confirm] and press OK to start software updates. See Figure 5-2

.

5. Upgrading will now begins and the status of the updating progress will be displayed. See Figure 5-3

6. When the TV software is updated. Remove your USB flash drive, and the TV will turn on automatically.

Confirm

No

• FUS_clustername_version.zip: Contains the “autorun.bin” which is needed to upgrade the TV main software and the software download application.

• NVM_clustername_version.zip: Default NVM content. Must be programmed via ComPair.

5.4.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the

.

intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

5.5 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options are set.

5.5.1 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

19452_200_130902.eps

130902

Figure 5-2 Update the TV software [1/2]

Confirm

No

19452_201_130902.eps

130902

Figure 5-3 Update the TV software [2/2]

Note:

• Do not remove the USB flash drive during the software update.

• Do not turn off the power during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

5.5.2 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.5.3 Audio Amplifier

The Class D-IC U602 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class D-IC could break down in short time.

5.5.4 CSM

When CSM is activated and there is a USB memory stick connected to the TV, the software will dump the complete CSM content to the USB memory stick. The file (Csm.txt) will be saved in the root of the USB memory stick.

5.5.5 Loudspeakers

Make sure that the volume is set to minimum during disconnecting the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

5.5.6 Display option code

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

5.4.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs. See ComPair for further instructions.

2014-Sep-26

back to

div.Table

6. Alignments

Index of this chapter:

6.1 General Alignment Conditions

6.2 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

• Use an isolated trimmer/screwdriver to perform alignments.

> 10 M, Ci < 20 pF.

i

6.2 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB.

After a repaired SSB has been mounted in the set (set repair on board level), the type number (CTN) and production code of the TV has to be set according to the type plate of the set.

, 50/ 60  3 Hz.

AC

Alignments

EN 27TPS14.2A LA 6.

6.2.1 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code

Make sure when replacing an SSB the SSB identification codes match the replacement board.

back to

div.Table

2014-Sep-26

EN 28 TPS14.2A LA7.

7. Circuit Descriptions

Index of this chapter:

7.1 Introduction

7.2 Power Supply

7.3 DC/DC Converters

7.4 Front-End Analogue ATV reception

7.5 HDMI

7.6 Video and Audio Processing - MSD8120PBM

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

9. Block Diagrams

10. Circuit Diagrams and PWB Layouts

you will find a separate drawing for clarification.

) and circuit diagrams (see chapter

).Where necessary,

Circuit Descriptions

7.1 Introduction

The TPS14.2A LA is a new chassis launched in Asia-Pacific in

2014. The whole range is covered by MSD8150PBM. The major deltas versus its predecessor support NTSC/PAL/SECAM, with multi-media, Video out functionality.

The TPS14.2A LA chassis comes with the following stylings:

• series xxPxT5109xx

• series xxPFT5309xx

• series xxPFT5409xx

• series xxPFH3609xx

7.1.1 Implementation

Key components of this chassis are:

• SCALER MSD8120PBM EPLQFP-156

• SCALER MST7438BB EPLQFP 128(MEMC)

• TUNER China ST33WS-2-E

• TUNER-TDSH-T070F

• DEMODULATOR MSB1233D LQFP-48

• AUDIO TAS5729MDDCAR 10W TSSOP-48 for Audio Amplifier

7.1.2 TPS14.2A LA Architecture Overview

For details about the chassis block diagrams refer to chapter 9.

Block Diagrams. An overview architecture can be found in

Figure 9.1

.

2014-Sep-26

back to

div.Table

7.1.3 SSB Cell Layout

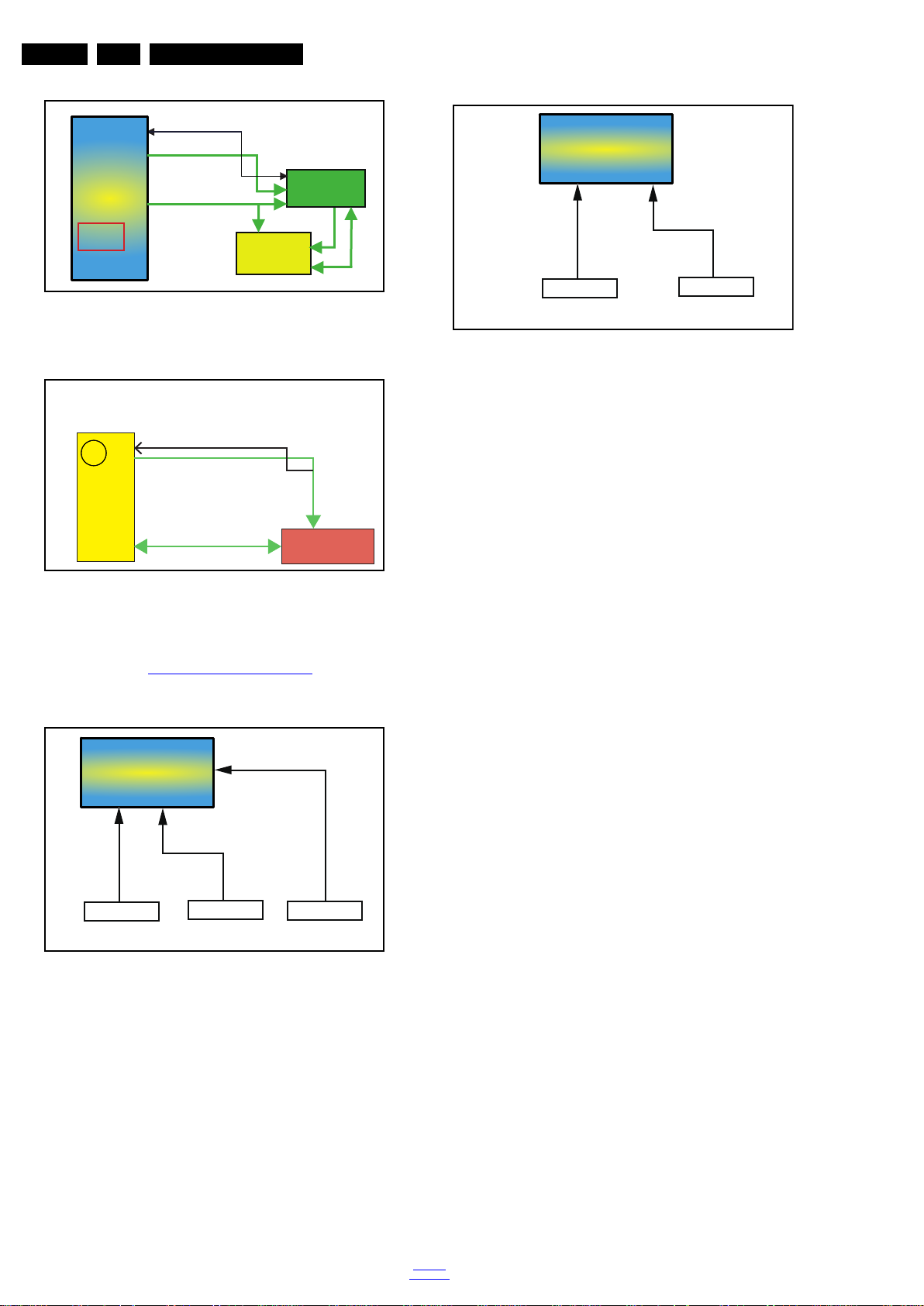

19690_200.eps

DDR

MSD8120

USB

TUNER

HDMI3

HDMI2

HDMI1

DC/DC

Headphone

Audio PC In

SPDIF OUT

ANALOG I/O

Analog Input

Circuit Descriptions

EN 29TPS14.2A LA 7.

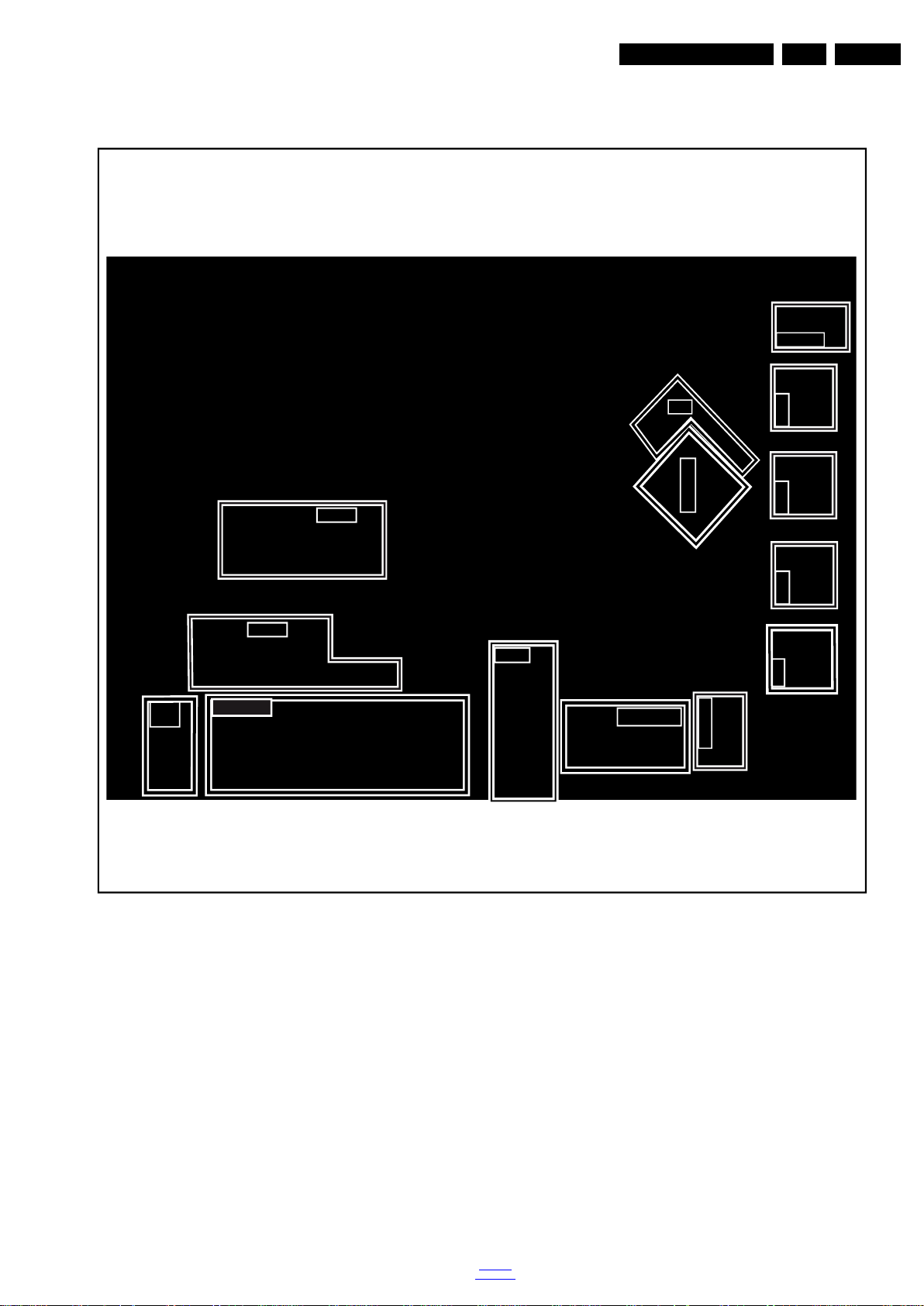

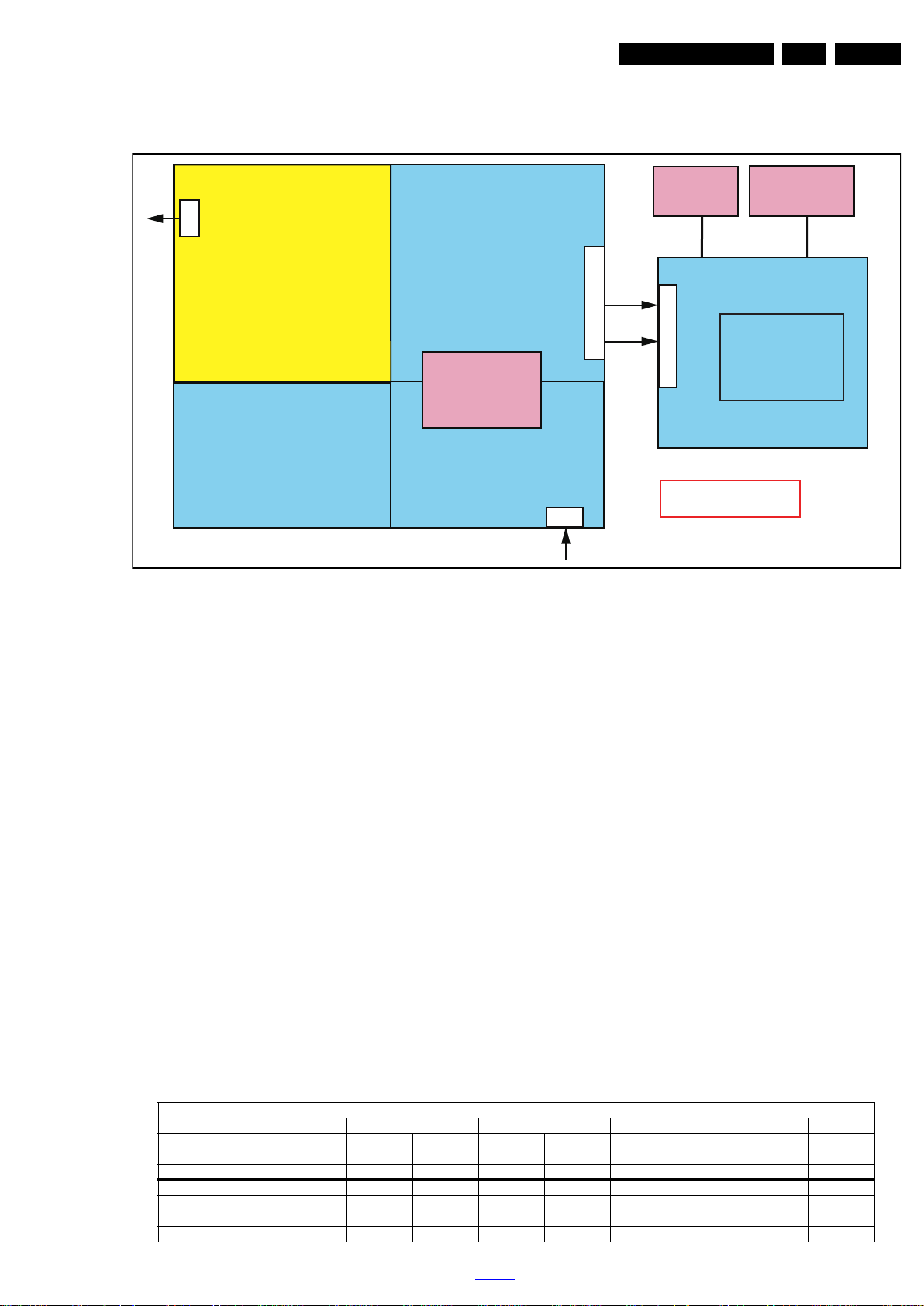

Figure 7-1 SSB layout cells (top view) (for 32"/40"/50"/58"/65" 5x09 series)

back to

div.Table

2014-Sep-26

EN 30 TPS14.2A LA7.

19692_200.eps

MSD8120

USB

HDMI2

HDMI1

DC/DC

Headphone

ANALOG I/O

Analog Input

DDR

Audio PC In

Circuit Descriptions

Figure 7-2 SSB layout cells (top view) (for 42PFH3609/96)

2014-Sep-26

back to

div.Table

7.2 Power Supply

Display power

Platform MSD8120PBM

PFC(Except 32PHT5109)

Platform power

1 power- PCB

AMP

LVDS AMP

Low stby power

Ac-input + Mains filter

BL-ON/OFF

AC IN

DIM

12V/24V

12V12V

12V-Audio

Display Interfacing

CN8101(for 715G6338P/715G6353P/715G6607P)

CN9101(for 715G6555P)

CN9901

CN701

19720_201.eps

Refer to figure Figure 7-3 for the power architecture of this platform.

Circuit Descriptions

EN 31TPS14.2A LA 7.

7.2.1 Power Supply Unit

All power supplies are a block box for Service. When defective, a new board must be ordered and defective one must be returned,unless the main fuse of the board is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the boards.

Important delta’s with the TPS14.2A LA classis platform are:

• New power architecture for LED backlight

• “Boost” signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Lamp “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

The output voltages to the chassis are:

• +4V7-STANDBY (Stand-by mode only)

• +12V (on-mode)

• +Vsnd (+12V) (audio power) (on-mode)

• +24V (bolt-on power) (on-mode)

Connector

no. CN8101 CN9904 CN8101 CN9101 CN8101 CN9301 CN8102 CN9101 CN9101 CN9301 Descr. to panel to SSB to panel to SSB to panel to SSB to panel to SSB to adapter to SSB Pin 8 14 12 14 12 14 12 16 16

1 LED1 DIM VLED_1+ DIM VLED+ DIM LED11 DIM 24VA DIM 2 LED2 ON/OFF n.c. ON/OFF n.c. ON/OFF LED22 ON/OFF 24VA ON/OFF 3 VLED+ n.c. VLED_1- PS_ON VLED_1 PS_ON LED33 PS_ON 24VA PS_ON 4 VLED+ n.c. VLED_1- 2D/3D VLED_1 2D/3D LED44 2D/3D 24VA 2D/3D

32" 42" 50" 58" 65"

Figure 7-3 Power Architecture

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

7.2.2 Diversity

The diversity in power supply units is mainly determined by the diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power board is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power board

- side-view LED with scanning: PSLS power board

- direct-view LED without 2D-dimming: PSL power board

- direct-view LED with 2D-dimming: PSDL power board.

PSL stands for Power Supply with integrated LED-drivers. PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a Power Supply for Direct-view LED backlight

with 2D-dimming.

7.2.3 Connector overview

Table 7-1 Connector overview

back to

div.Table

2014-Sep-26

EN 32 TPS14.2A LA7.

19690_202.eps

P12V

U707

+5VSB

Q101 AO4449-7A

Panel LVDS Power

U706 AZ1084D-ADJTRE1

U101 AP1117B33L-13-77

TU101 T uner

U103 MSB1233D LQFP-48

U109 APL3511CBI

U401 G690H293T73

U403 MX25L3206EM21

U401 MSD8120PBM

U701 AP1117E33L-13-77

U702 AP1117E33G-13

U703 G9141T11U SOT23

3V3-STB

+3V3TUNER

5V_SW

VCCK

for SPI Flash

for Reset IC

for

MSD8120PBM

for MSD8120PBM

for Audio Amplifer

for USB 5V

for MSD8120PBM

P12V_AUO

U601 T AS5729MDDCAR

P12V

Q101 AO4449-7A

Panel LVDS power

Q702 AQ4449-7A

Panel LVDS Power

no. CN8101 CN9904 CN8101 CN9101 CN8101 CN9301 CN8102 CN9101 CN9101 CN9301 Descr. to panel to SSB to panel to SSB to panel to SSB to panel to SSB to adapter to SSB Pin 8 14 12 14 12 14 12 16 16

5 LED3 GND n.c. GND n.c. GND LED55 GND 24VA GND 6 LED4 GND n.c. GND n.c. GND n.c. GND GND GND 7 n.c. GND n.c. GND n.c. GND n.c. GND GND GND 8 n.c. GND n.c. GND n.c. GND VLED GND GND GND 9 - +12V VLED_2- +12V_AUDIO VLED_2 +12V_AUDIO VLED +12V_AUDIO GND +12V_AUDIO 10 - +12V VLED_2- +12V_AUDIO VLED_2 +12V_AUDIO VLED +12V_AUDIO GND +12V_AUDIO 11 - +12V n.c. +12V n.c. +12V VLED +12V n.c. +12V 12 - +12V VLED_2+ +12V VLED+ +12V VLED +12V ON/OFF +12V 13 - +12V - +12V_AL - +12V - +12V n.c. +12V 14 - +12V - +12V_AL - +12V - +12V DIM +12V 15-------+5V-16-------+5V--

Circuit Descriptions

Connector 32" 42" 50" 58" 65"

7.3 DC/DC Converters

The on-board DC/DC converters deliver the following voltages (depending on set execution):

• +5V-STANDBY, permanent voltage for the Stand-by controller

• +3V3-STANDBY, power supply for LED/IR receiver and controls

• +12V, input from the power supply for the panel common (active mode)

• +12V, input from the power supply for the amplifier

• +1V5, supply voltage for DDR

• +3V3, general supply voltage

• +3.3V-TUN, supply voltage for tuner

• +3.3V, supply voltage for Headphone AMP

• +5V-USB, input intermediate supply voltage for USB Power

• +3V3 from the power supply for the scaler IC MSD8120PBM

Figures gives a graphical representation of the DC/DC converters with its current consumptions:

2014-Sep-26

Figure 7-4 DC/DC converters (for 32"/40"/50"/58"/65" 5x09 series)

back to

div.Table

Circuit Descriptions

19692_202.eps

U401 M SD8120PBM

U601 T AS5729MD

+3V3TUNER

U401 M SD8120PBM

PANEL LVDS Pow er

Q702 AO3401A

For Audio Amplifier

U403 W25Q64FVSSIG

5V_SW

U703 SY8003ADFC

For M SD8120PBM

Q704 AO3401A

DVDD3V3

For M SD8120PBM

U702 SY8104ADC

+12V

3V3_STB

VCCK

+12V_AUD

U701 AP1117E33L-13-77

For Re set IC

For SPI Flash

TU101 TUNER

DDRV

For M SD8120PBM

U401 M SD8120PBM

Q101 AO3407A

+5VSB

U101 AP1117E33L-13-77

U410 G690H293T73

U706 AZ1084CD-ADJTRG1

For TUNER 3.3V

MSD8120PBM

I2C

IF_AGC

IF

IF_AGC

ST33WS-2-E

SAWless with ATV mode

19690_203.eps

MSD8120PBM

I2C

IF_AGC

IF

IF_AGC

TDSH-T070H

SAWless with ATV mode

19692_203.eps

EN 33TPS14.2A LA 7.

7.4 Front-End Analogue ATV reception

7.4.1 Front-End Analogue Part

Figure 7-5 DC/DC converters (for 42PFH3609/96)

The Front-End for the analogue tuner consist of the following key components:

• TUNER China ST33WS-2-E

• TUNER TDSH-T070F (for 42PFH3609/96)

• SCALER MSD8120PBM EPLQFP-156

Below find a block diagram of the front-end application for analogue part.

Figure 7-6 Front-End analogue block diagram

Figure 7-7 Front-End analogue block diagram (for 42PFH3609/96)

7.4.2 Front-End DVB-T(2) reception DTV part

The Front-End for the DVB-T2 DTV part consist of the following key components:

• TUNER China ST33WS-2-E

• TUNER TDSH-T070F (for 42PFH3609/96)

• SCALER MSD8120PBM EPLQFP-156

• DEMODULATOR MSB1233D LQFP-48

Below find a block diagram of the front-end application for DTV part.

back to

div.Table

2014-Sep-26

EN 34 TPS14.2A LA7.

IF

IF-AGC

TS DATA

Int

RF_AGC

MSD8120PBM

T2 Demond MSB1233D

IF_AGC

ST33WS-2-E

I2C

I

2

C

I

2

C

19690_204.eps

19690_205.eps

MSD8120PBM

ARX

CRX

BRX

CN506

HDMI 1

CN507 HDMI 2

CN508 HDMI 3

19692_205.eps

MSD8120PBM

ARX

BRX

CN506

HDMI 1

CN507 HDMI 2

Figure 7-8 Front-End analogue block diagram

TDSH-T070H

SAWless with DVB-T mode

I2C

IF

Circuit Descriptions

Figure 7-11 HDMI input configuration (for 42PFH3609/96)

The HDMI connector has the following specifications:

• +5V detection mechanism

I2C

• Stable clock detection mechanism

• Integrated EDID

• HPD control

• Sync detection

• TMDS output control

IF_AGC

Figure 7-9 Front-End analogue block diagram (for 42PFH3609/96)

IF_AGC

MSD8120PBM

19692_204.eps

7.5 HDMI

Refer to figure 7-10 HDMI input configuration for the application.

7.6 Video and Audio Processing - MSD8120PBM

The MSD8120PBM is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

• Multi-standard digital video decoder (MPEG-2, MPEG-4)

• Digital and

• The MStarACE-6 Video processor

• Embedded Memory for optimized BOM cost

• Home Theater Sound Processor

• High Performance Micro-processor

• Transport-Stream Input for Extended DTV System

• One MHL 2.0 compliant port

• Multiple HDMI 1.4 compliant ports with ARC support

The MSD8120PBM combines front-end video processing functions, such as NTSC/PAL/SECAM Video Decoder, MPEG-2/H.264 decode, analog video decode and HDMI reception, with advanced back-end video picture improvements. It also includes next generation Motion Accurate Picture Processong. High flat panel screen resolutions and refresh rates are supported with formats including 1280 × 720 @ 60Hz and 1920 × 1080 @ 60Hz. The MSD8120PBM is a highly integrated TV SoC solution for DVB-T/ISDB-T digital television Platform. MSD8120PBM also supports an ultra low Power standby mode to meet the latest energy legislative requirements without additional hardware.

Analog TV Front-End Demodulator

Figure 7-10 HDMI input configuration

2014-Sep-26

back to

div.Table

8. IC Data Sheets

19690_300.eps

Block diagram

Pinning information

Pin 1

6 7 8 9

11 12

10

2

1

3 4 5

31 30 29 28

26 25

27

35

36

34 33 32

VDD

GND

RESETZ

VDD33

MSPI_CLK / SSPI_CSZ

GND

MSPI_DI / SSPI_DO

MSPI_DO / SSPI_DI

MSPI_CSZ / SSPI_CLK

TS_CLK

TS_D[7]

TS_D[6]

IM

IP

QP

GND

QM

IFAGC

RFAGC

AVDD_MPLL

XTAL_IN

XTAL_OUT

GND

I2CS_SCL

MSB1233D

XXXXXXXXXXX

XXXX

X

MSB1233

D

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

8.1 Diagram 10-7-8 Demod DVB-T2 B08, MSB1233D (IC U103)

IC Data Sheets

EN 35TPS14.2A LA 8.

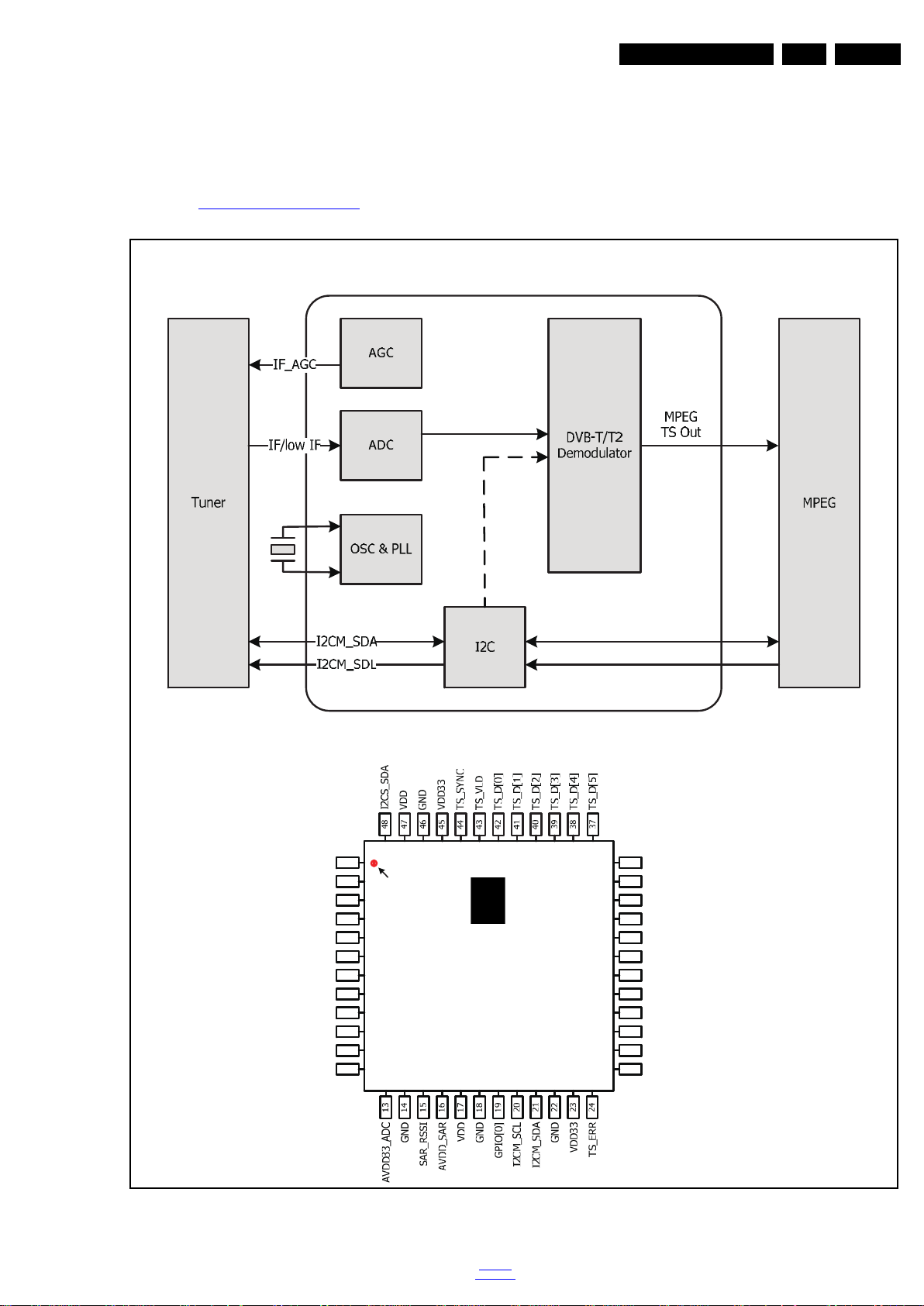

Figure 8-1 Internal block diagram and pin configuration

back to

div.Table

2014-Sep-26

EN 36 TPS14.2A LA8.

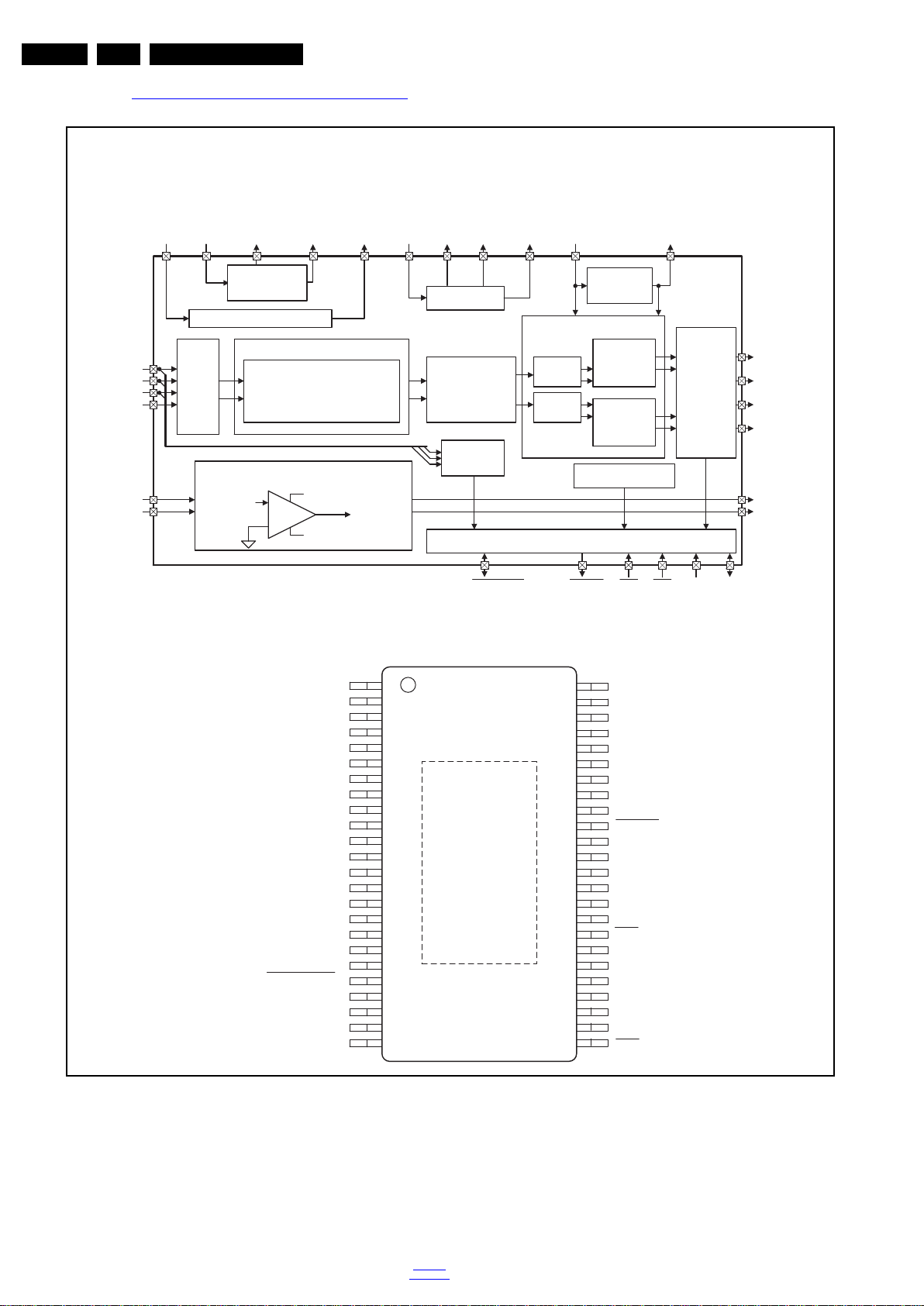

19690_301.eps

Block diagram

Pinning information

A

G

C

D

TAS5729MD

IC Data Sheets

8.2 Diagram 10-7-6 Audio Amp/Headphone Output B06, TAS5729MDDCAR (IC U601)

DVDD DRVDD GVDD_REGPVDD

MCLK

SCLK

LRCLK

SDIN

R_INA R_INB

ANA_REG1 ANA_REG2 DIG_REG

AVDD

Analog Supply

Regulators

Digital Supply Regulator

Digital Audio Processor

Serial Audio

Port

Digital Equalizer, Two-Band

AGL, Coarse/Fine Volume

Control, THD Manager, PWM

Stereo HP / Line Driver

DR_INx

-

Level Meter

DRVDD

+

DRVSS

DR_OUTx

DRVSSDR_CPDR_CN

Gate Drive

Charge Pump

PWM Power Stage

Open Loop

Digital PWM

Modulator

Clock

Monitoring

Internal Control Registers and State Machines

Gate

Drives

Gate

Drives

Regulator

Die Temp. Monitor

DR_SDI

Full Bridge

Power

Stage A

Full Bridge

Power

Stage B

PDNADR / SPK_FAULT

RST

Over-

Current

Protection

SCL

SDA

SPK_OUTA SPK_OUTB SPK_OUT SPK_OUTD

DR_OUTA DR_OUTB

PGND

SPK_OUTA

BSTRPA

PVDD TEST1 TEST2

DR_INA DR_OUTA DR_OUTB

DR_INB

DRVSS DR_CN DR_CP

DRVDD

PLL_GND

PLL_FLTM

PLL_FLTP

ANA_REG1

AVDD

DR / SPK_FAULT

MCLK

OSC_RES

OSC_GND

DIG_REG

1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16 17 18 19 20 21 22 23 24

Thermal Pad

Figure 8-2 Internal block diagram and pin configuration

48 47 46 45 44 43 42 41 40 39 38 37 36 35 34 33 32 31 30 29 28 27 26 25

SPK_OUTB BSTRPB BSTRPC SPK_OUTC PGND SPK_OUTD BSTRPD PVDD GVDD_RE DR_SDI SSTIMER ANA_REG2 AGND DGND DVDD TEST3 RST NC SCL SDA SDIN SCLK LRCLK

PDN

2014-Sep-26

back to

div.Table

9. Block Diagrams

19690_400.eps

VGA YPbPr

ATV&DTV

AV

HDMI1,2

USB

IIC

TS

IF+/-

CVBS_OUT

SPEAKER

LVDS Panel

MSD8120PBM

MSB1233D

TAS5729MDDCAR

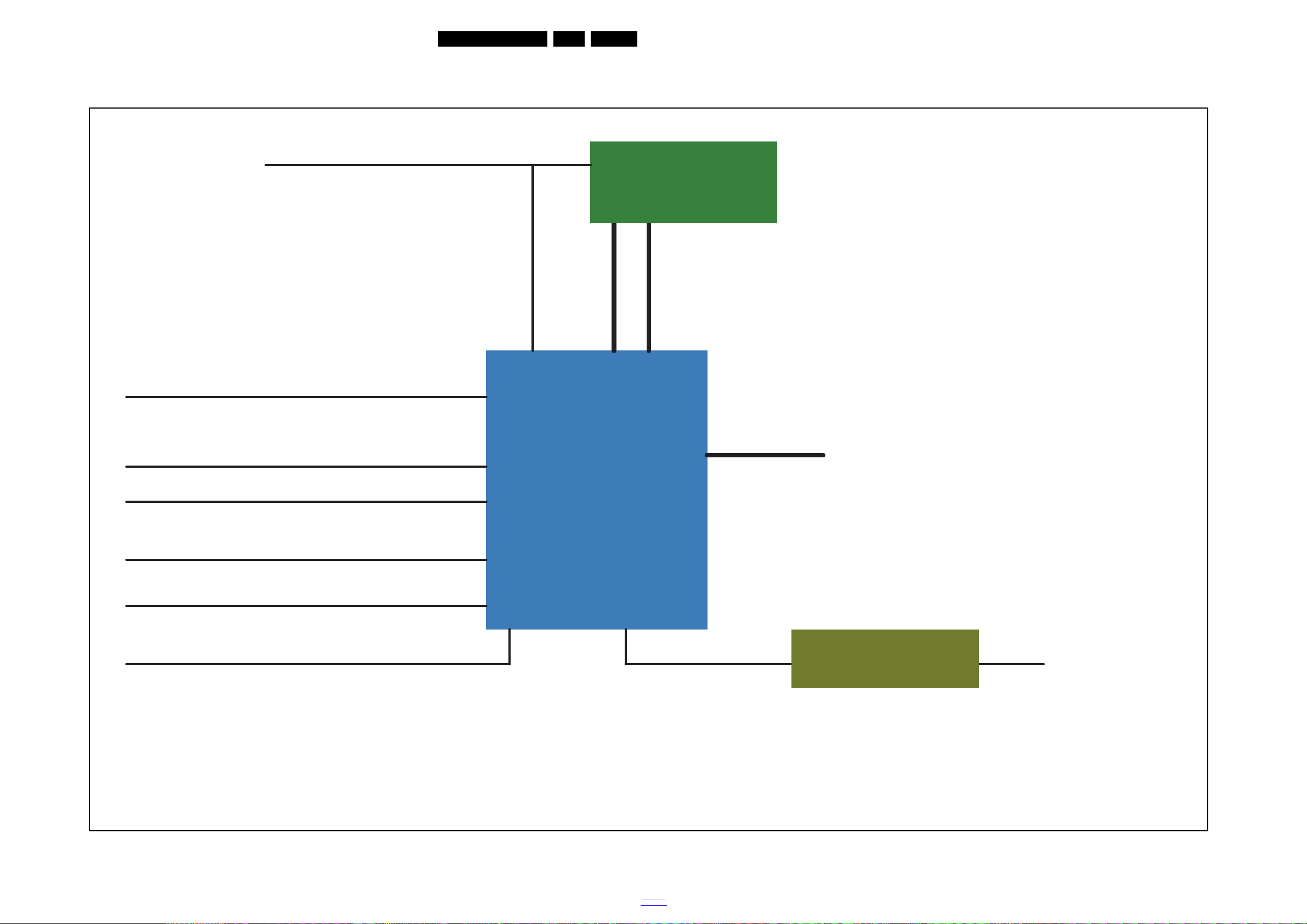

9.1 Block diagram 5x09 series

Block Diagrams

EN 37TPS14.2A LA 9.

2014-Sep-26

back to

div.table

9.2 Block diagram 3609 series

19692_400.eps

HDMI1,2

IF+/-

ATV

YPbPr

VGA

MST8120PBM

USB

TAS5729MD

SPEAKER

LVDS Panel

AV

DTV

Block Diagrams

EN 38TPS14.2A LA 9.

2014-Sep-26

back to

div.table

Circuit Diagrams and PWB Layouts

19620_500_140110.eps

140110

Power

A01 A01

2013-10-19

3

715G6197

POWER

12

NR9901

NTCR

1 2 3 4

HS9102 HEAT SINK

+

C9113

330UF 25V

+12V_AL

L9102

3.5uH

R9104

100K 1/4W

+12V

C9907

220PF 250V

1 2

D9106 SK34A

1 2

ZD9106

BZT52-B15

R9105

100K 1/4W

R9103

6.8K 1/4W

R9102

6.8K 1/4W

R9101

6.8K 1/4W

R9106

100K 1/4W

C9103

2.2NF

!

C9120

100N 50V

HOT COLD

COLD

HOT

R9111 10K 1/8W

R9132

1M 1/2W

R9107

100K 1/4W

C9903

470pF 250V

!

RV9901

680V

!

R9122

2.2K

+

C9128

330UF 25V

C9107

NC/100PF

C9904

470pF 250V

D9104

1N4148W

R9125

13K 1/8W 1%

C9108

2N2 500V

R9124

10K OHM +-5% 1/8W

12

43

IC9102

PS2561DL1-1

1

2

3

D9102 MBRF10100C T

C9104

100N 50V

C9117

220N 50V

1 2

ZD9105

BZT52-B36

1

2

4

3

L9902

18MH

1 2

ZD9104

BZT52-B36

!

R9113

220R

D9103

FR107

R9118 100R

+12VA

D9105 FR107

C9111

2N2 500V

R9109

10R 1/8W 5%

IC9103

AS431AN-E1

+

C9101

56UF 450V

+12V_audio

+12V_AL

+12V

R9112

0.24R

+12VA

+

C9118

330UF 25V

+

C9123

330UF 25V

C9115

100N 50V

R9110

22 OHM 1/8W

+

C9102

56UF 450V

SG9902

NC/DSPL-501N-A21F

2

1

3

4

+

BD9101

TS6K80-02

SG9901

NC/DSPL-501N-A21F

Q9101 TK8A65D

2 4 6 8 10 12 14

1 3 5 7

9 11 13

CN9101

CONN

R9121

1K

R9119 100R

!

C9109

10N 50V

R9120 100R

+

C9105

56UF 450V

1

2

CN9901

SOCKET

1

2

4

3

L9901

18MH

C9110

NC/47N 50V

1

2

3

D9108 MBRF10100C T

R9127

NC/ 100 OH M 1/4W

1

2

D9109

NC/SR810-05

1

2

ZD9107

NC/BZT52-B15

R9128

100KOHM +-5% 1/8W

C9906

220PF 250V

1

2

3

4

5

6

7

9

10

T9101

POWER X'FMR

1 2

D9110

NC/SR810-05

1 2 3 4

HS9101 HEAT SINK

1

2

FB9901

BEAD

1

2

D9111

NC/SR810-05

!

R9126

3.3KOHM +-1% 1/8W

R9123

100R

+

C9127

47UF 50V

DIM

+12V_audio

Panel ON/OF F

1 2

D9112

NC/SR810-05

R9129 100R

+

C9116

330UF 25V

PT

1

FB

2

CS

3

GND4OUT

5

VCC

6

HV

8

IC9101

PF6200

!

C9905

470pF 250V

C9106

470P 50V

1 2 3 4

HS9103

HEAT SINK

!

!!

!

C9901

470nF 275V

R9108

3.3 OHM 1/4W

1 2

3 4

F9901

FUSE

!

+

C9122

330UF 25V

10. Circuit Diagrams and PWB Layouts

10.1 A 715G6197 PSU

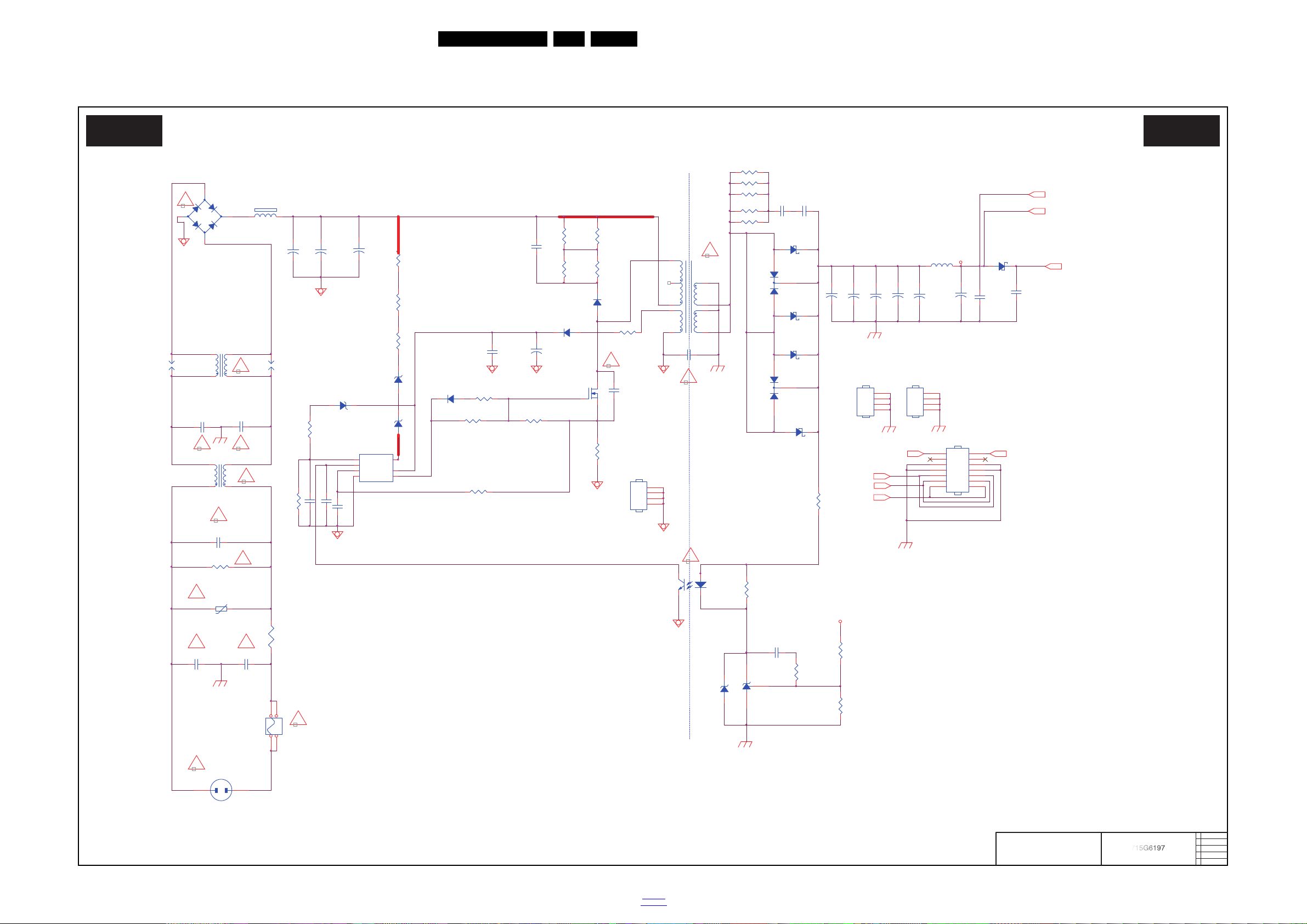

10-1-1 Power

EN 39TPS14.2A LA 10.

2014-Sep-26

back to

div.table

Circuit Diagrams and PWB Layouts

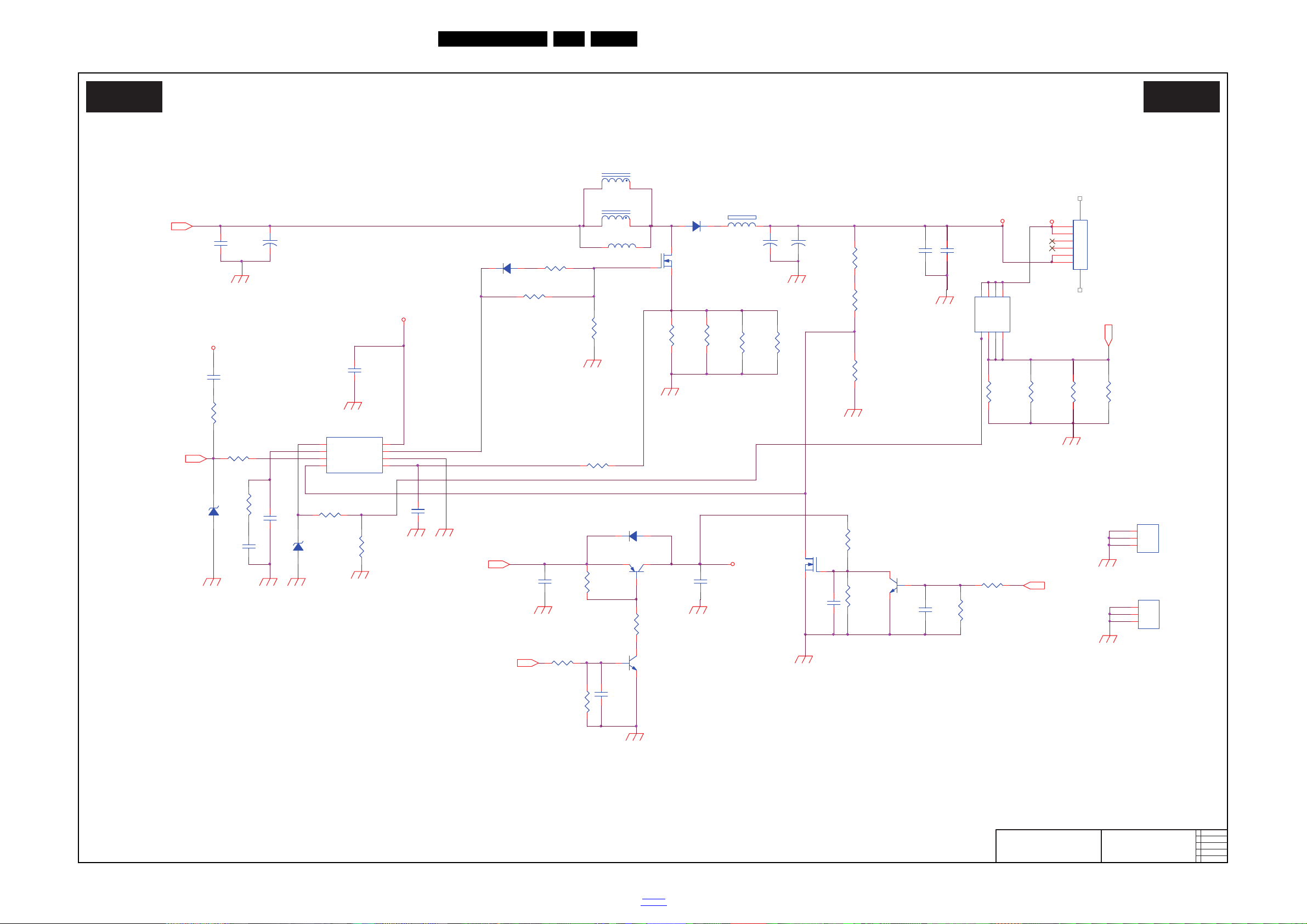

19620_501_140110.eps

140110

LED DRIVER

A02 A02

2013-10-09

3

715G6197

LED DRIVER

L8101

NC/33uH

R8128

100 OHM 1/8W

C8114

10N 50V

C8119

2.2uF 25V

C8104

2.2uF 25V

C8120

NC / 2. 2uF 25V

R8134

100K 1/8W 1%

R8125

1R 1%

Q8106

PMBT3906

R8132 51K 1/4W

R8131 15K 1% 1/8W

Q8107 PMBS3904

R8133

33K

FB

R8116

36KOHM +-1% 1/4W

R8135

36KOHM +-1% 1/4W

+

C8112

330UF 25V

DIMOUT

1

GM

2

FB

3

OVP/DIM

4

CS

5

GND

6

OUT

7

VCC

8

IC8501

PF7903BS

C8117 NC/1uF

R8129

10K OHM +-5% 1/ 8W

R8104

47 OHM

R8121

NC/100K 1% 1/4W

R8120

33K

VLED+

Q8103 2N7002

Q8105

PMBT3904

FB

R8117

6.2K OHM +-1% 1/8W

1 2

ZD8102

NC/BZT52-B22

+12V

C8111

100PF 50V

S1S2S3G

4

D8D7D6D

5

Q8101

MTB55N10Q8-0-T1-G

C8122

100N 50V

1

2

3

4

5

6

7 8

CN8101

CONN

VCC1

1 2

ZD8101

NC/BZT52-B4V7

D8103

1N4148W

2

4

L8103 33UH

R8124

1R 1%

C8121

1uF

C8123

1uF

+

C8105

330UF 35V

+

C8113

NC/330UF 35V

R8105

10K OHM

R8130

330K 1/8W 5%

R8118

10K OHM

R8108

330R 1/ 8W 5%

C8108 100N 50V

R8119

10K OHM +-5% 1/8W

C8118

NC/ 47nF 50V

R8126

1.2 OHM

R8110

0.2oH M 1% 1/4W

Q8104

P2806BD

R8123

1R 1%

GND

1

GND

2

GND

3

GND801

GND

VCC1

12.5*12

VLED-

12.5*12

DIM

C8107 100N 50V

R8111

0.2oH M 1% 1/4W

C8110

1NF

R8112

0.2oH M 1% 1/4W

VLED+

R8113

0.2oH M 1% 1/4W

R8109

10R 1/8W 5%

8

1

L8102

NC/33uH

GND

1

GND

2

GND

3

GND802

GND

Panel ON/ OF F

R8122

47K +-1% 1/4W

D8102

1N4148W

D8101 SR506

R8127

1K

1

2

FB8101

BEAD

EN 40TPS14.2A LA 10.

10-1-2 LED DRIVER

2014-Sep-26

back to

div.table

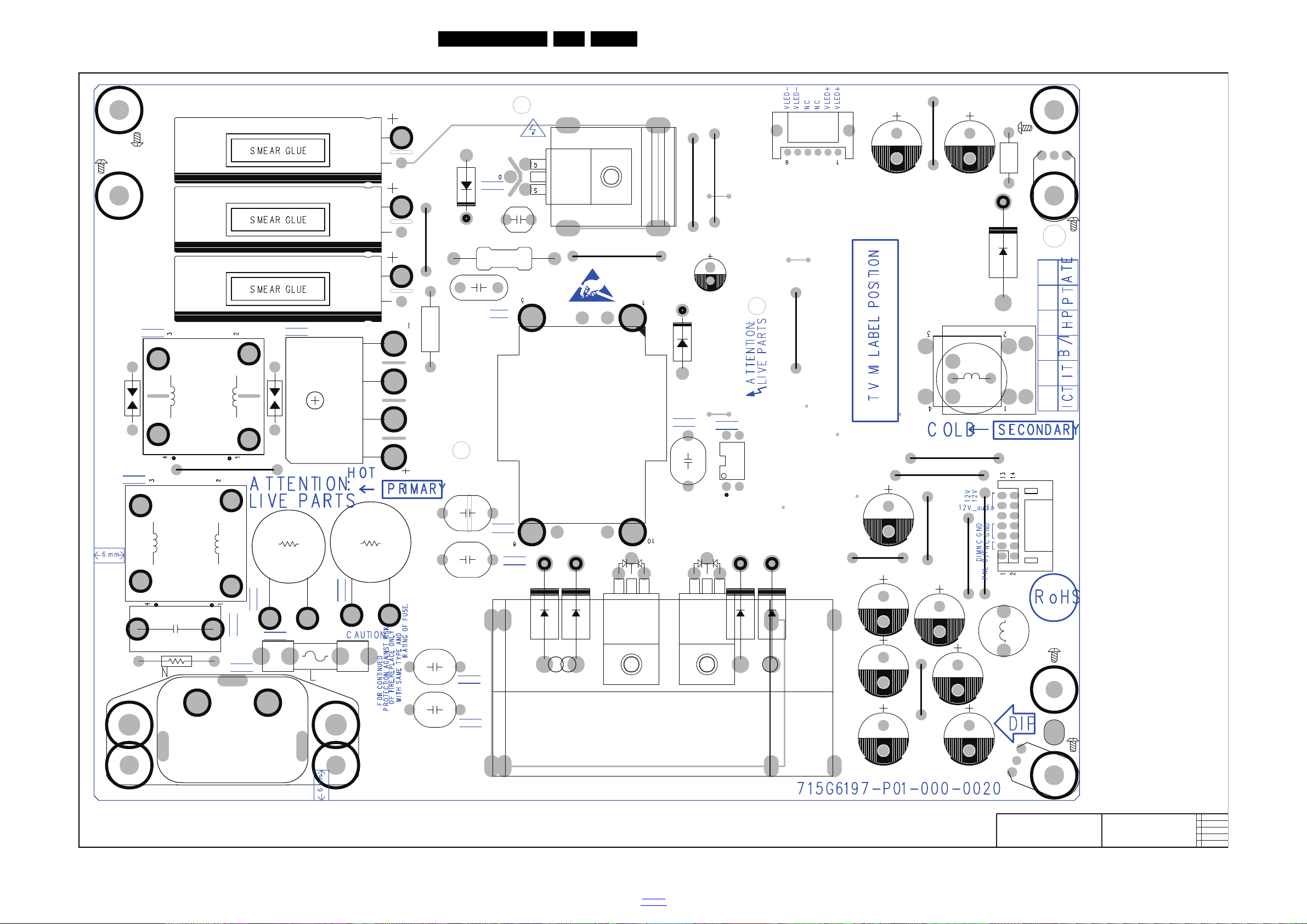

10-1-3 Power layout top

19620_522_140110.eps

140110

2013-09-06

3

715G6197

Power layout top

D8101

IC9102

L9102

J9906

J9902

J9907

J9908

J9904

J9905

J9910

J9909

J9901

J9911

J9912

J9913

D9109

D9110

D9111

D9112

J9903

C9127

J9914

D9105

C9113

C9105

D9103

C9107

C9101

C9102

C9103

R9112

T9101

H5

H7

SL1

SL2

SL3

H11

H8

SL5

H6

C8112

C9116

C9118

C9122

C9123

C9128

C9906

C9907

CN8101

CN9901

L8102

Q9101

R9132

SG9901

SG9902

HS9101

NR9901

HS9102

L8103

C9905

BD9101

F9901

L9901

L9902

GND802

GND801

M2

M1

M5

M4

M3

M6

C9903

C9904

C9901

RV9901

C8105

C8113

HS9103

FB9901

L8101

CN9101

FB8101

D9102D9108

Circuit Diagrams and PWB Layouts

EN 41TPS14.2A LA 10.

2014-Sep-26

back to

div.table

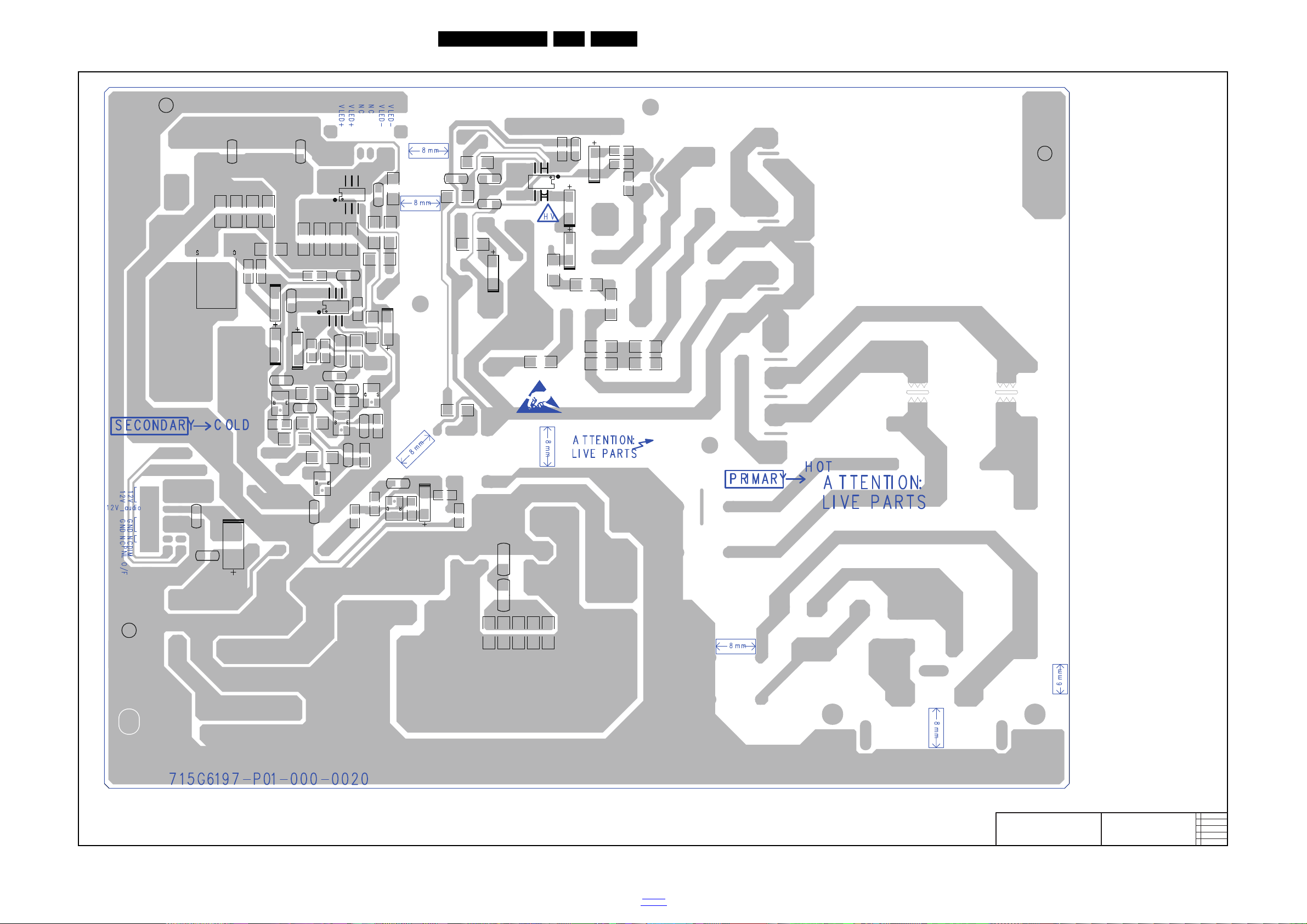

10-1-4 Power layout bottom

19620_523_140110.eps

140110

2013-09-06

3

715G6197

Power layout bottom

SG2

Q8105

Q8106

Q8107

RJ9901

RJ9902

IC8501

Q8101

RJ9903

C8118

R8112

R8113

R8116

R8118

R8120

R8123

R8124

R8125

R8126

R8127

R9107

R8121

R8122

R9129

C9115

C8121

C8123

C8117

C8119

C8120

C8122

C9106

C9117

C9120

R8117

R8119

R8128

R8129

R8130

R9128

IC9103

C8108

R8108

C8107

R8135

R8133

R8134

R8131

R8132

Q8103

C8104

C8110

C8111

R8110

R8104

R8109

R8111

R8105

R9121

R9122

R9123

C8114

R9124

R9125

C9104

R9120

R9105

R9111

C9110

C9108

C9109

C9111

R9113

R9104

R9106

R9101

R9102

R9103

R9108

R9110

R9118

R9126

R9127

R9109

R9119

SG1

Q8104

IC9101

D9106

FD5

FD6

FD7

ZD9106

D8102D8103

D9104

ZD8101

ZD8102

ZD9104ZD9105

ZD9107

Circuit Diagrams and PWB Layouts

EN 42TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10.2 A 715G6353 PSU

19610_507.eps

AC input

A01 A01

2013-11-04

4

715G6353

AC input

!

1 2 3 4

F9901

FUSE

!

C9901

1NF

C9909

330PF 250V

T5.0AH/250V

!

R9907

1MOHM +-5% 1/2W

1

2

4

3

L9903

0.25mH

2

1

3

4

-

+

BD9901

KBJ608G-FUC

R9908

NC/510K

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

IC9901 NC/CAP004DG

R9909

NC/510K

C9907 NC/47PF

VXB

C9906

470NF 275V

VXA

SG9902

DSPL-501N-A21F-NC

!

C9910

330PF 250V

!

Vsin

!

12

t

NR9901

2.5R

!

1

2

CN9901

SOCKET

!

1 2

t

NR9902

2.5R

C9905

470NF 275V

!

SG9901

DSPL-501N-A21F-NC

1 2

FB9901

BEAD

1 2

HS9102

HEAT SINK

C9903

NC / 100PF 250V

C9904

NC / 100PF 250V

12

FB9902 BEAD

1

2

4

3

L9901

14mH

1

2

4

3

L9902

14mH

VXB

VXA

RV9901

680V

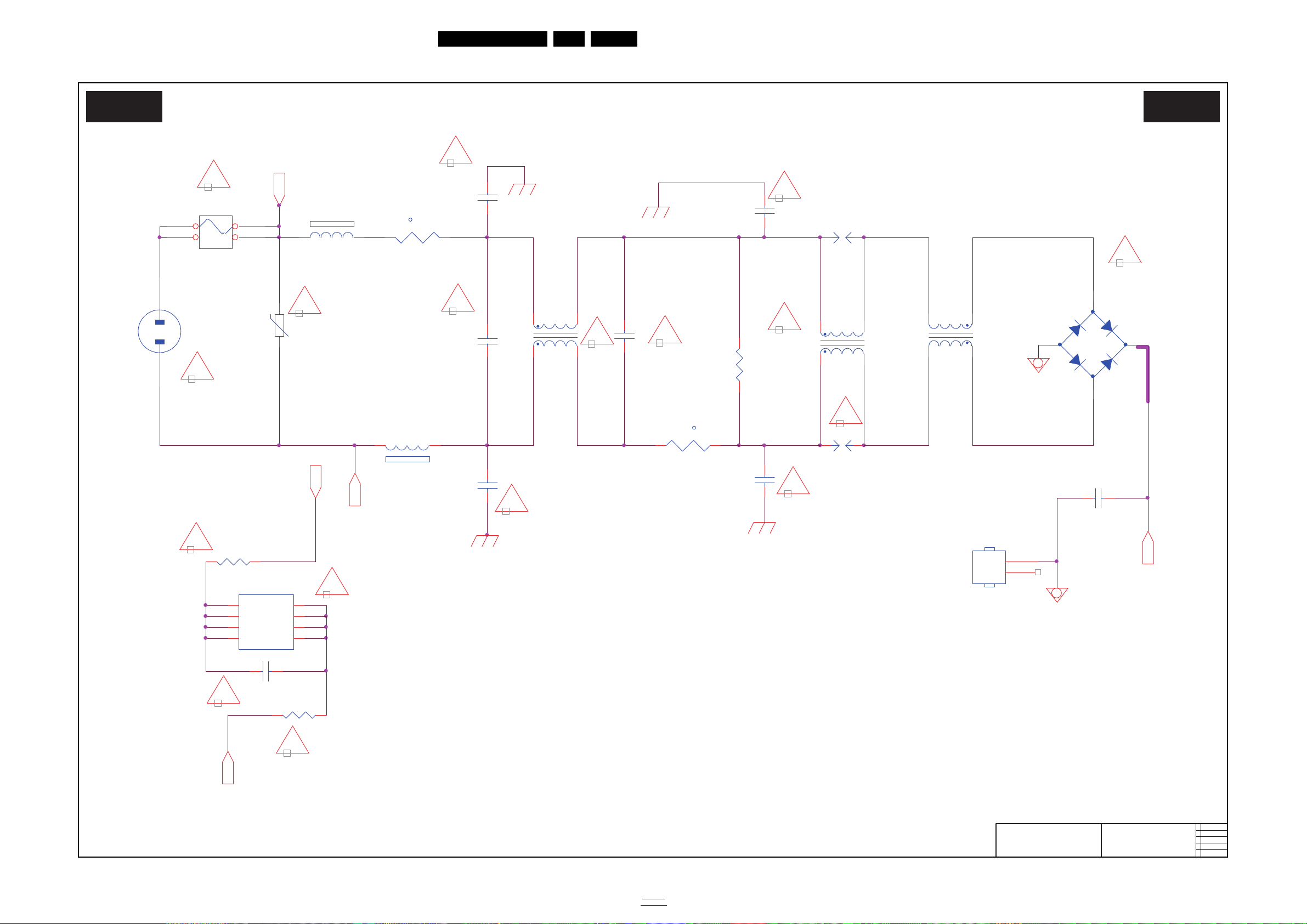

10-2-1 AC input

Circuit Diagrams and PWB Layouts

EN 43TPS14.2A LA 10.

2014-Sep-26

back to

div.table

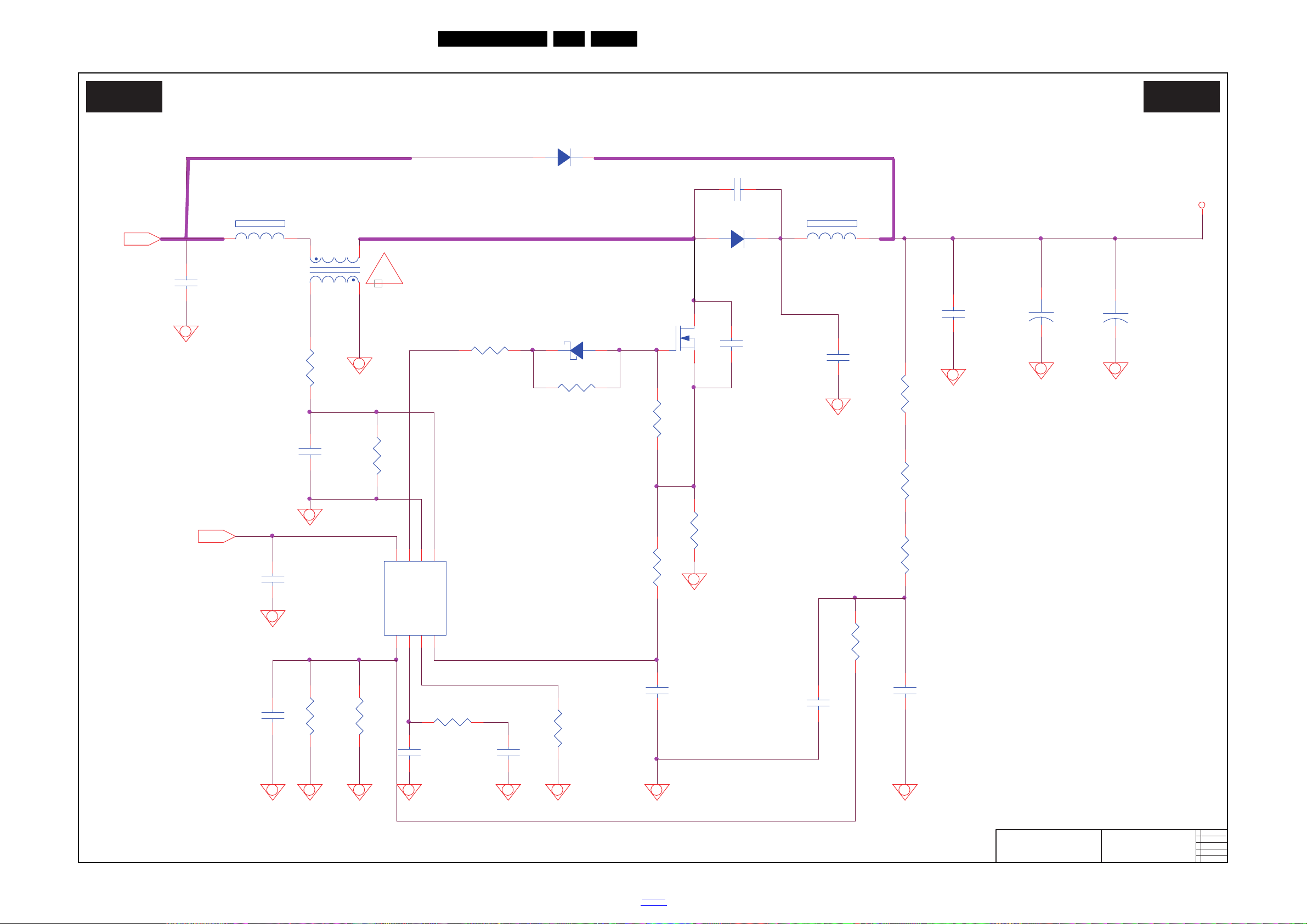

10-2-2 PFC

19610_508.eps

PFC

A02 A02

2013-11-04

4

715G6353

PFC

C9804 47P 50V

R9814

4.7K 1/ 8W

C9817

NC/47PF

Vsin

HV

R9806

10K OHM +-5% 1/8W

C9806

100N 50V

D9801

S8KC

R9823

NC

C9812 NC/100P 50V

D9802 MUR460-28

R9818

18.7K 1/8W 1%

C9811 220pF 50V

1

3

4

5

L9801

300uH

INV

1

COMP

2

RAMP

3

CS

4

ZCD

5

GND

6

OUT

7

VCC

8

IC9801

LD7591T

+

C9814 68UF 450V

C9807

470PF 50V

1 2

FB9802

BEAD

Q9801

TK 15A60U

R9815

200K 1/8W 1%

VCC_ON

+

C9815

68UF 450V

1 2

FB9803

BEAD

!

C9818

47PF

R9802

10R 1/ 8W 5%

R9803

33R 1/8W 5%

R9813 10K OH M +-5% 1/8W

R9810

470 OHM 1/4W

R9805

47K 1/4W

R9812 24K 1/8W 1%

C9808

NC / 100P 50V

C9810

0.47UF 50V

C9809 47N 50V

R9808

0.15 O MH 2W S

C9802 1NF

C9801 1UF 450V

12

D9803 RB160M

R9807 1MOHM +-1% 1/4W

R9809 750K 1%

R9804 1MOHM +-1% 1/4W

C9803 1NF

Circuit Diagrams and PWB Layouts

EN 44TPS14.2A LA 10.

2014-Sep-26

back to

div.table

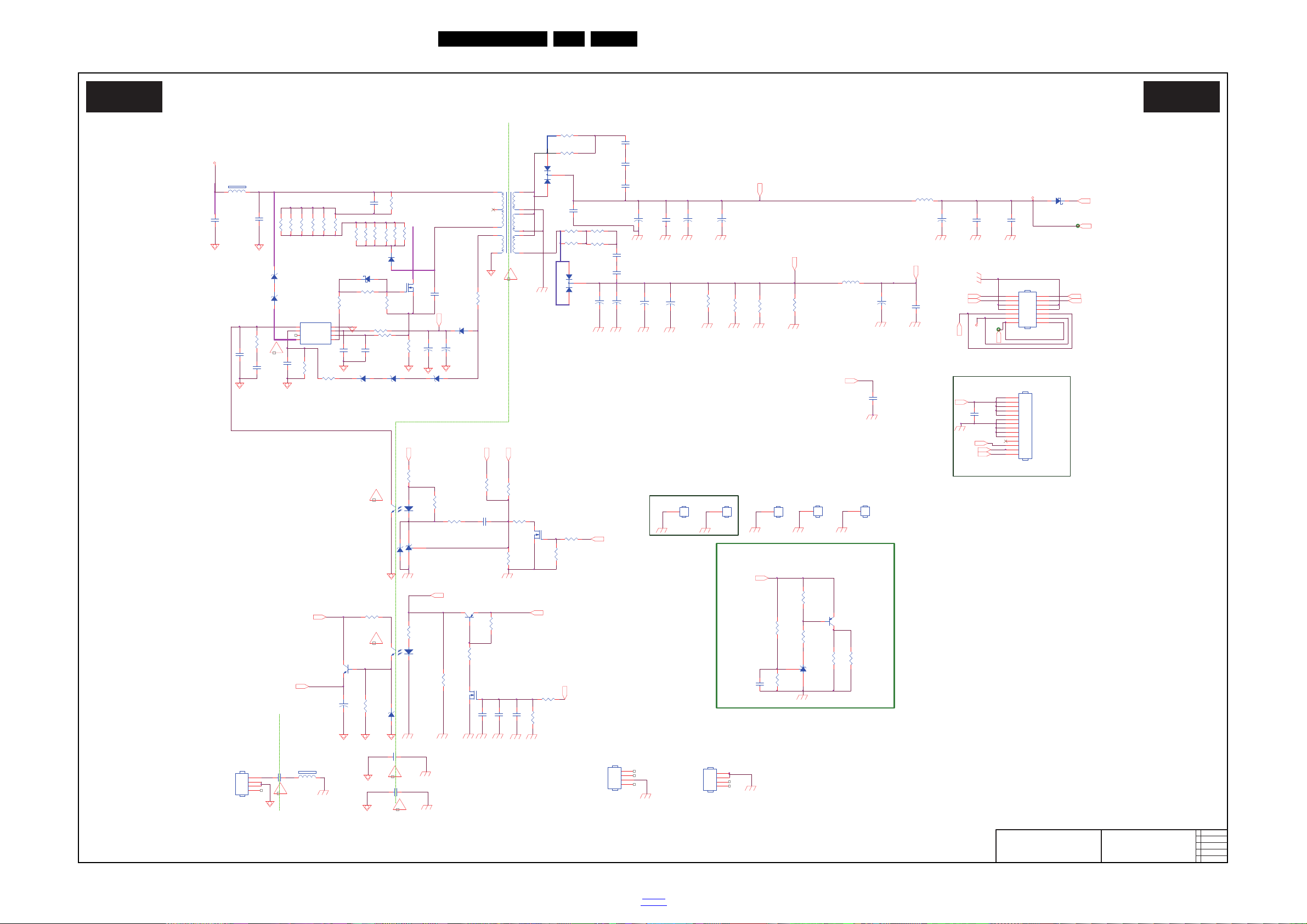

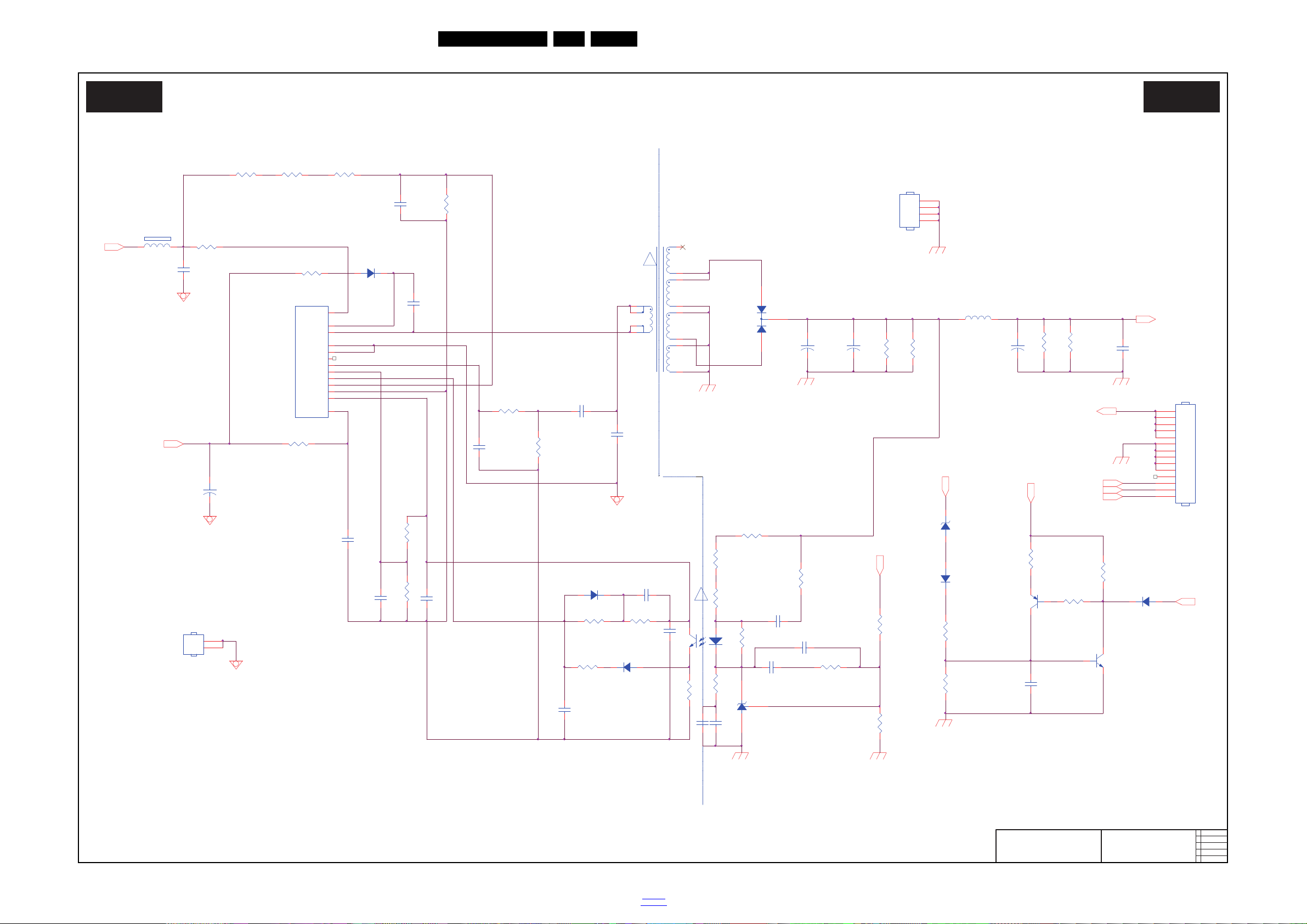

10-2-3 Main Power

19610_509.eps

Main Power

A03 A03

2013-11-04

4

715G6353

Main Power

COLD

+

C9112

10UF 50V

R9167

NC

R9168

NC

2D/3D

C9404

NC/100N 50V

1 2

3

4 5 6 7

8

9 10 11 12 13 14

CN9102

NC/CONN

+24V

ON/OFF

DIM

1 2

FB9103

BEAD

+

C9116

100UF 50V

C9913 470pF 250V

1

GND5

GND

1

GND4

GND

R9339

6.2K OHM +-1% 1/8W

C9138 1uF

+

C9137 470UF 25V

R9163

NC

L9103 3UH

Q9401

BTC4672M3

C9403

NC/100N 50V

R9113

100 OHM 1/4W

R9125 5K1 +-5% 1/8W

C9139 330P 50V-NC

C9104

2.2NF

R9149

0 OHM 1/4W

R9107 10KOHM

+

C9108

330UF 50V

R9111

0.15 OMH 2WS

D9103 PR1007

1 2

3

4

HS9103

HEAT SINK

R9408 330K 1% 1/8W

+

C9109

330UF 50V

Q9101

TK13A65U

R9129 3K 1/8W +/-1%

R9106

22 OHM 1/4W

C9103

330P 50V

1

2

3

D9106 FMEN-220A

R9104 82K 2W

10/23 эǂ

L9102 3UH

1

2

3

D9105 FMXA-2202S

+

C9110

330UF 50V

R9140

100 OHM 1/4W

+

C9136 470UF 25V

C9147

1uF

12

ZD9102

BZT52-B39

R9159

NC

R9164

0 OHM 1/4W

R9341 100K 1/8W 1%

C9105

100N 50V

R9402 2Kohm 1/4W +/-5%

R9146

100 OHM 1/4W

C9142

220P 50V

Q9403 2N7002K

C9119 47PF

R9118 NC

R9109

1K

R9162

NC

R9142

0 OHM 1/4W

R9147

NC

C9123

100N 50V

R9139

100 OHM 1/4W

12

ZD9105

BZT52-B39

R9308 10K 1/8W 1%

R9114

100 OHM 1/4W

IC9301

AS431AN-E1

1243

IC9102

EL817M(X)

12

D9102 RB160M

2 4 6

8

10 12 14

1

3

5

7

9 11 13

CN9101

CONN

R9160

NC

1

2

ZD9401

BZT52-B16

1 2

3

4

HS9105

HEAT SINK

1

2

3

4

5

7

8

9

10

11

12

T9101

POWER X'FMR

+

C9111

330UF 50V

R9105 10 OHM

R9340

10K OHM +-5% 1/8W

R9127

9.31K +-1% 1/8W

12

43

IC9401

EL817M(X)

C9118 220N 50V

R9401

2Kohm 1/4W +/-5%

R9178 10K 1/4W

R9145

100 OHM 1/4W

+

C9120

470UF 25V

1

2

ZD9104

BZT52-B30

Q9301 2N7002K

C9127

100PF 500V

R9126 1K 1/8W 1%

R9407

10K OHM

Q9305 MMBT3906 PNP

R9124

2K 1/8W 1%

R9108 47K

R9148

NC

+

C9135 470UF 25V

R9161

NC

R9128

100KOHM +-1% 1/4W

R9110

13K 1/8W 1%

+

C9402

10UF 50V

R91355.1 OHM 1/4W

C9143

220P 50V

1 2

ZD9106

BZT52-B16

1 2

3

4

HS9101

HEAT SINK

R9165

NC

C9114 1NF

+

C9107 47UF 50V

1 2

ZD9101

BZT52-B30

D9101 1N4007

C9113

10N 50V

R9166

NC

FB/OLP

1

BD

2

NC

3

ST4DRV

5

OCP

6

VCC

7

GND

8

IC9101SSC1S311

12

ZD9107

BZT52-B16

R9405

100K 1/8W 1%

R9112

10 OHM 1/4W

C9126

100PF 500V

R9307 10K OHM

C9911 1NF 250V

C9106

100N 50V

C9141

220P 50V

VCC

12V

PS_ON

+24VS

VCC

DV5

12V

DV5

12V

ON/O FF

+12V_AUDIO

DIM

+12V_AL

+24VS

!

+24V

12V

PS_ON

VCC_ON

!

HV

!

+12V

HV

C9146 1uF

2D/3D

C9144

1uF

C9405

100N 50V

!

1 2

D9104

SK54BL

1 2

FB9101

BEAD

+12V_AUDIO

+12V_AL

HOT COLD

C9140 1uF

PS_ON

R9150

NC

R9151

NC

Q9104

NC/BTB1424AM3

R9152

NC/27K 1/8W 1%

C9912 1NF 250V

R9169

NC/2K 1/8W 5%

R9156

NC/1K OHM

R9154

NC/20K 1/4W

R9153

NC/2K43 1/8W 1%

R9157

NC/1K OHM

IC9106

NC/AS431AN-E1

C9134 NC/1N 50V

+24VS

C9117 1NF

1

GND2

GND

1

GND1

GND

1

GND3

GND

HOT

C9145

1uF

Circuit Diagrams and PWB Layouts

EN 45TPS14.2A LA 10.

2014-Sep-26

back to

div.table

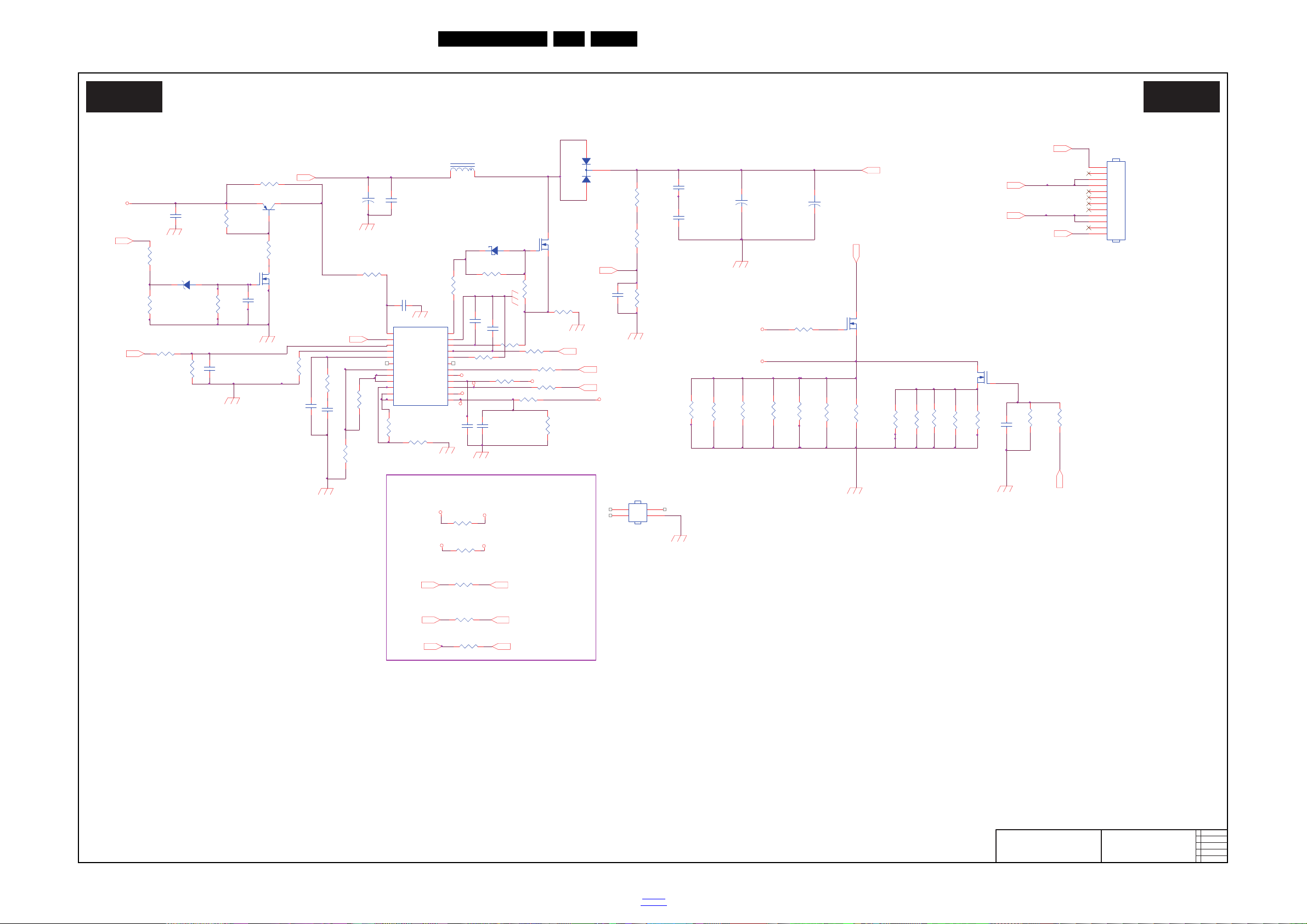

10-2-4 LED Driver for A3D

19610_510.eps

LED Driver for A3D

A04 A04

2013-11-04

4

715G6353

LED Driver for A3D

R8137

NC/20K

R8108

330K 1% 1/8W

C8131

100N 50V

R8111

150K 1/4W +/- 1%

R8141

0R05 1/ 4W

C8132

100N 50V

R8115

820K OHM

R8113

10.5K OHM 1%

R8152

0R05OHM1/8W

R8102 33 OHM

C8107

100P 50V

C8144

NC/100N 50V

R8155

200K 1/8W 1%

R8110

240KOHM

R8134

NC/4.7K 1/8W

VIN

1

OVP

2

EN

3

RT

4

COMP

5

PAR L

6

SENSE1

7

Gate1

8

FB1

9

SENSE2

10

Gate2

11

FB212SENSE3

13

Gate3

14

FB3

15

SENSE4

16

Gate4

17

FB4

18

STATU S

19

LOSC

20

DIM

21

CS

22

GND

23

DRV

24

IC8101

LD7890GS

R8133 NC/4.7K 1/8W

3

4

1 2

HS8101

HEAT SINK

Q8103 NC/2N7002K

R8104

0.1R 2W

1 2

3

4 5 6 7

8

9 10 11 12

CN8101 CONN

R8101

2.2 OHM 1/ 8W

R8143

NC/ 10K 1/ 8W 1%

R8131

33K OHM 1%

+

C8101

100UF 50V

R8135

10ohm +/-1% 1/8W

2

1

L8101

33uH

C8108 100N 50V

Q8101

EMD60N10F

C8109

1uF

C8143

100P 50V

R8146

2 OHM 1%

R8150

0R05OHM1/8W

R8112

150K 1/4W +/ -1%

R8109

100K 1/8W 1%

R8114

820K OHM

R8106 10K 1% 1/4W

R8142

NC/100KOHM

C8141

NC/100p

12

D8102

NC/SS1060FL

R8147

NC/1R 1%

C8104

220nF50V

C8133

NC/1NF

R8132

100KOHM +-5% 1/8W

R8105

470R 1%

Q8145

NC/AO3414

R8136

NC/30K OHM

C8110

0.1uF 50V

R8144

1.8R

Q8102

NC/PMBT3906

R8145

NC/1.5R

Q8143 MTBA5N10J3

R8148

0R051/8W

C8106

1uF

R8107

510 OHM

R8149

20K

C8105

220nF50V

R8103

10K 1% 1/8W

1

2

3

D8101 FME-220B

C8142

NC/100P

R8161

NC/1R 1%

VLED_1+

VLED_2-

VLED_1-

ON/OFF

DIM

VLED_1+

VLED_2+

VLED_1-

OVP_L

+24V

VLED_2-

SENSE3

S4

S3

G4

G3

FB3

R8116

240KOHM

R8162

NC/1R 1%

R8151

100K 1/8W

R8159

NC/1.2R

R8153

240K 1/8W

2D/3D

option LED 1 ch or 2 ch

R8166

NC/0R05 1/4W

VLED_1-

R8117

100K 1/8W 1%

R8158

NC/1.8R

+

C8111

82uF 100V

330K

VLED_2+

G3

S3

R8163

2 OHM 1%

R8164

2 OHM 1%

12

ZD8101

NC/BZT52-B9V1_R1_00001

VLED_1-

R8156

1.8R

VLED_2-

R8157

1.8R

+

C8112

82uF 100V

R8165

0R05 1/ 4W

VLED_1+

R8139

0R05 1/4W

VLED_2+

+24V

R8138

NC/ 10K O H M

+12V

C8114

10N 50V

Circuit Diagrams and PWB Layouts

EN 46TPS14.2A LA 10.

2014-Sep-26

back to

div.table

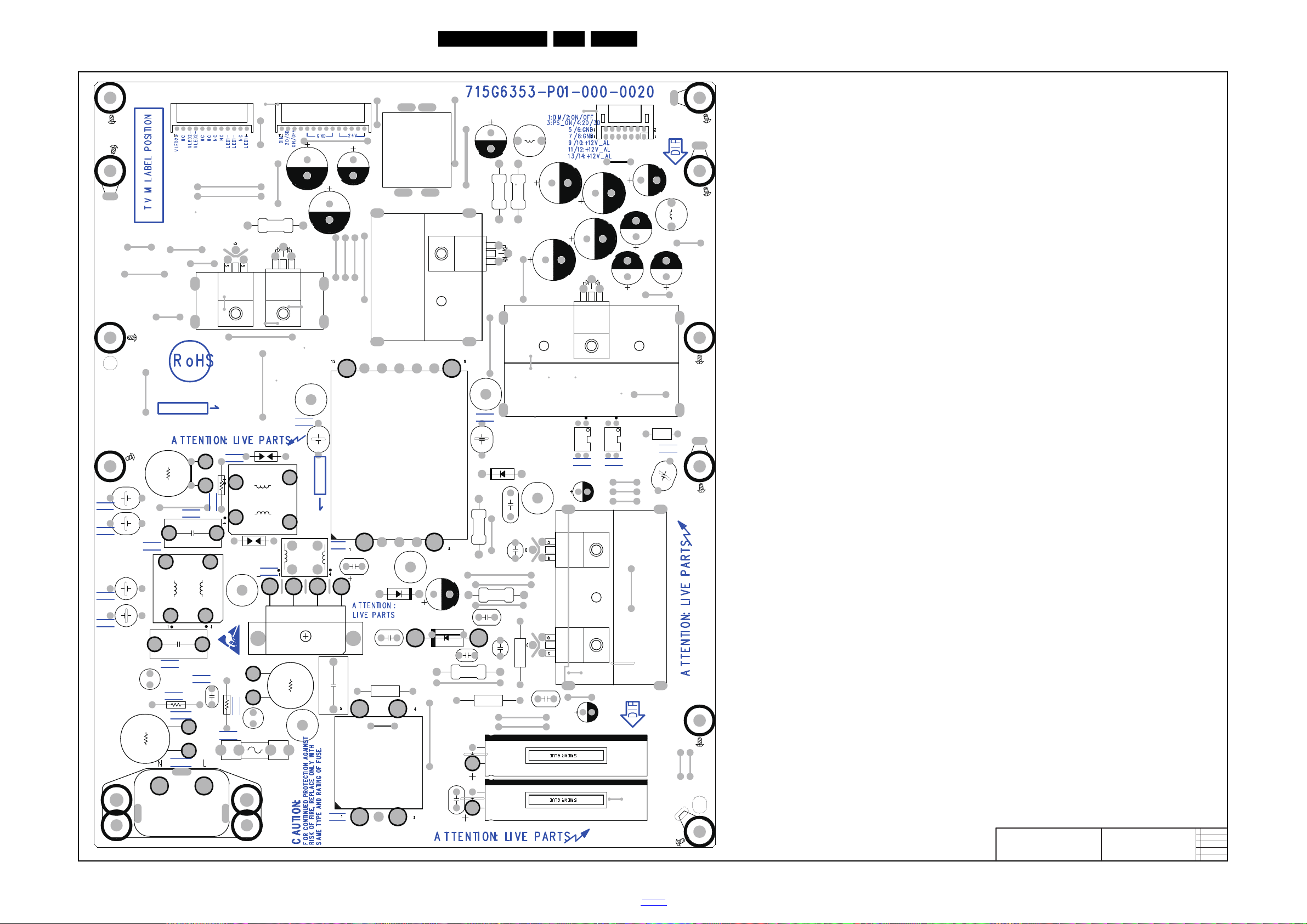

10-2-5 Power layout top

19610_511.eps

2013-11-04

4

715G6353

LAYOUT TOP

SU2

J9909

C9402

C9817

D9103

IC9401

T9101

J9907

C9907

J9901

J9908

J9910

J9920

J9902

J9916

J9918

J9915

C9112

J9917

J9904

J9912

J9903

J9906

J9921

J9914

J9919

J9905

J8813

J8810

J9911

J8812

J8806

J8804

J8811

J9913

J9922

J8814

J8815

J8807

J8808

J8809

J8803

J8805

J8817

J9923

J8816

J8818

J9924

SU7

R9156

R9157

J8801

J8802

J9925

D9101

J9927

J9926

C9104

C9108

C9109

C9110

C9111

C9116

C9117

C9802

C9803

D9105

IC9102

R8104

R9104

R9111

R9808

C9120

C9107

D9802

SU5

SU4

SU1

SU3

GND1

SLT9

SLT8

SLT10

SLT1

SLT2

SLT3

SLT4SLT5SLT6

SLT7

H1

MH18

C9135

C9136

C9137

C9801

C9903

C9904

D9106

F9901

FB9803

HS9101

L9103

NR9901

Q9101

Q9801

SG9902

CN9901

L9102

CN8101

C9905

C9906

C9815

C9814

HS9105

R9907

R9908

R9909

SG9901

HS9102

NR9902

L9903

C9114

C9901

FB9901

FB9902

CN9101

FB9101

FB9802

C9119

BD9901

MH1

MH6

MH3

MH7

MH8

MH10

MH5

L8101

MH9

MH15

HS9103

HS8101

Q8101

C8111

C8112

D8101

C9909

C9910

FB9103

C9913

MH17

CN9102

C9911

C9912

C9818

L9901

L9902

GND2

GND3

GND4

GND5

RV9901

C8101

L9801

Circuit Diagrams and PWB Layouts

EN 47TPS14.2A LA 10.

2014-Sep-26

back to

div.table

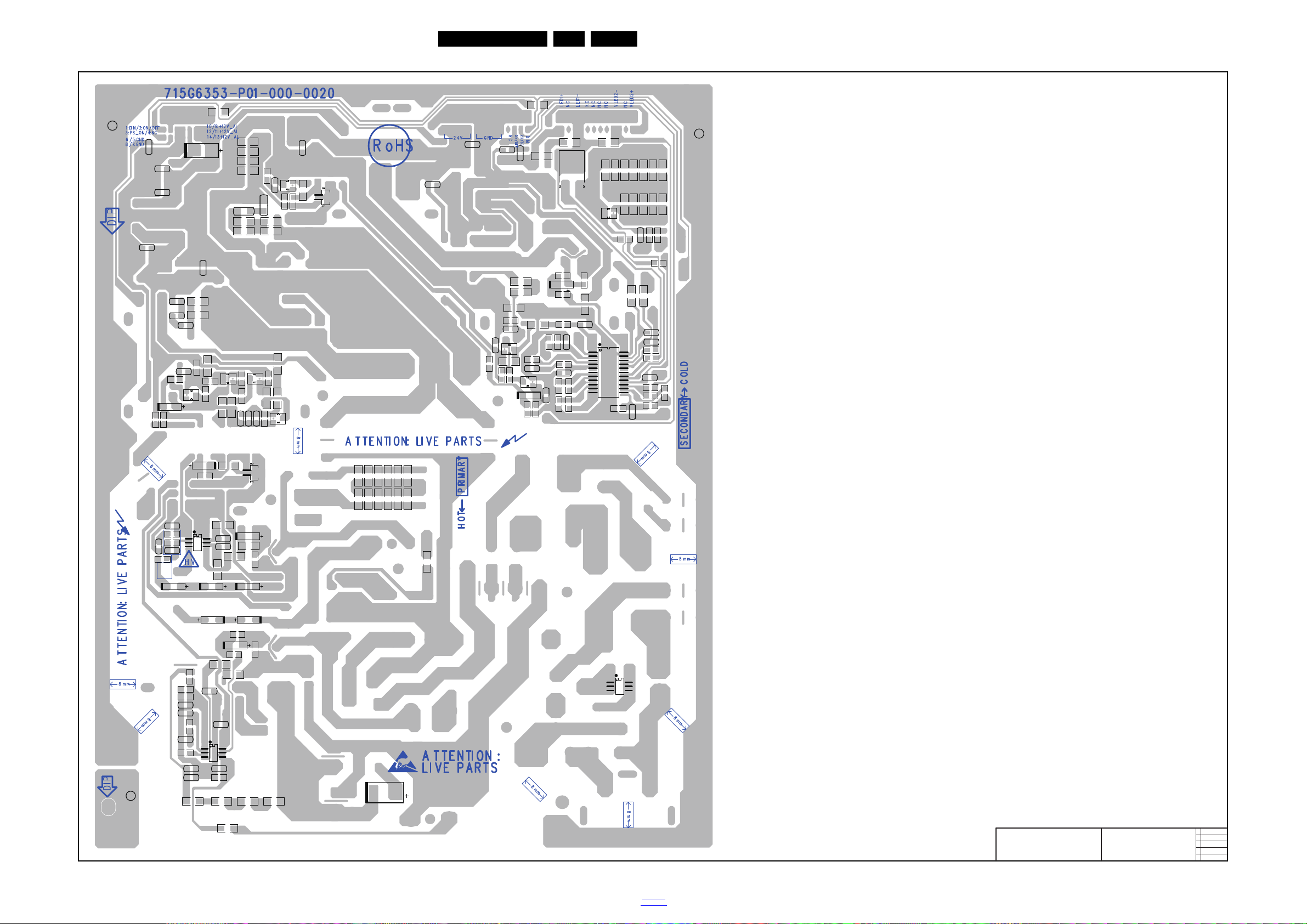

10-2-6 Power layout bottom

19610_512.eps

2013-11-04

4

715G6353

LAYOUT BOTTOM

Q9301 Q9305

Q9403

JR901

JR801

JR902

SM5

SM6

SM7

IC9101

R9339

R9340

R9405

R9408

R9818

R9823

R8131

C9106

C9118

C9138

C9139

C9141

C9142

C9143

C9147

C9403

C9804C9808

C9810

C9811

C9812

C9123

C9105

C9144

C9145

R9105

R9118

R9145

R9146

R9147

R9148

R9149

R9159

R9160

R9161

R9162

R9163

R9164

R9165

R9166

R9178

R9401

R9402

R9407

R9135

R9142

R8141

R8117

R8158

R8159

R8162

R8163

R8132

R8150

C8141

C8142

JR803

R8114

JR802

JR804

R8151

R8152

R8153

R8165

R8166

JR903

C9404

C9405

R9150

R9151

R9167

R9168

JR805

C9134

C9140

R9152

R9153

R9169

R9154

IC9106

IC9301

C9146

C8104

C8105

C8106

C8107

C8108

C8109

C8110

C8114

C8131

C8143

C8144

C9103

C9126

C9127

C9806

C9807

C9809

R8102

R8103

R8107

R8108

R8110

R8111 R8112

R8113

R8115

R8116

R8133

R8142

R8148

R8149

R9106

R9107

R9108 R9109

R9113

R9129

R9125

R9126

R9127

R9139 R9140

R9307

R9308

R9341

R9802

R9803

R9804

R9805

R9806

R9807R9809

R9810

R9812

R9813

R9814

R8143

R9114

R9128

Q8145

R9124

R9815

IC9801

IC9901

R8105

R8155

R8106

R8135

R9110

R9112

D9801

R8109

R8161

R8101

R8164

C8132

C8133

C9113

R8136

R8137

R8138

R8139

Q8102

Q9104

Q8103

R8134

Q8143

R8144

R8145

R8146

R8147

R8156

R8157

D9102

D9803

ZD9101

ZD9102

ZD9106

ZD9401

ZD9104

ZD9105ZD9107

D9104

D8102

IC8101

ZD8101

Q9401

Circuit Diagrams and PWB Layouts

EN 48TPS14.2A LA 10.

2014-Sep-26

back to

div.table

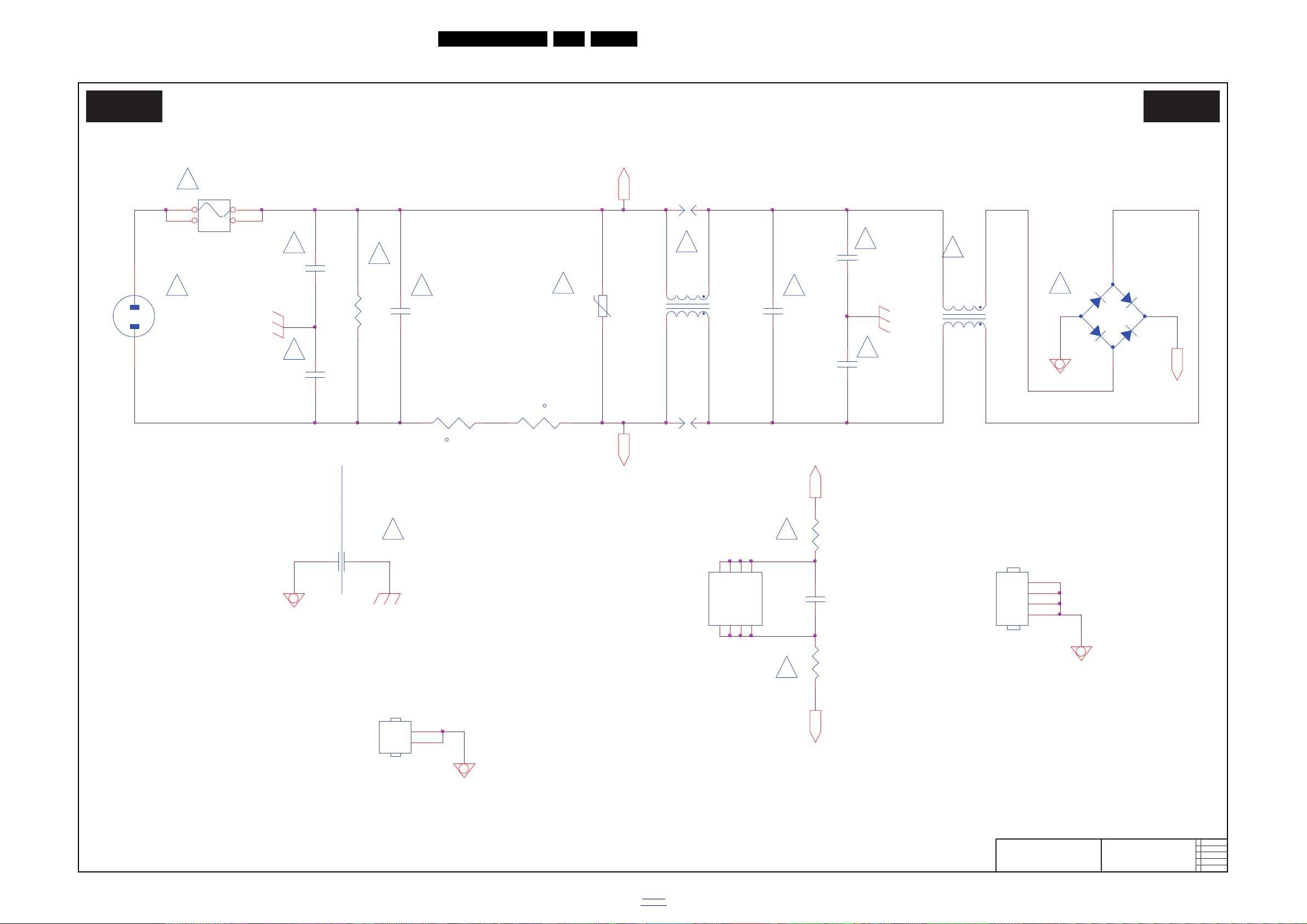

10.3 A 715G6338 PSU

19600_507.eps

AC input

A01 A01

2013-10-18

715G6338

AC input

T5AH/250V

R9902 3.9MOHM +-5% 1/2W

C9903

100PF 250V

C9904

100PF 250V

1 2

HS9902

HEAT SINK

!

SG9901

NC

SG9902

NC

RV9901

680V

1

2

CN9901

SOCKET

COLDHOT

R9901 NC

R9903 NC

!

1 2

3

4

HS9901 HEAT SINK

C9902

100NF 305V

!

1

2

4

3

L9902 12mH

C9901

100NF 305V

1 2 3 4

F9901

FUSE

!

1 2

t

NR9901

2.5R

!

C9907 470pF 250V

C9908

NC

!

1

2

4

3

L9901 12mH

!

12

t

NR9902

2.5R

!

B

Vsin

A

B

!

2

1

3

4

-

+

BD9901

TS10K80-02

NC

1

D1

2

D1

3

NC

4

NC

5

D2

6

D2

7

NC

8

IC9901

NC

C9906

470pF 250V

C9905

470pF 250V

10-3-1 AC input

Circuit Diagrams and PWB Layouts

EN 49TPS14.2A LA 10.

2014-Sep-26

back to

div.table

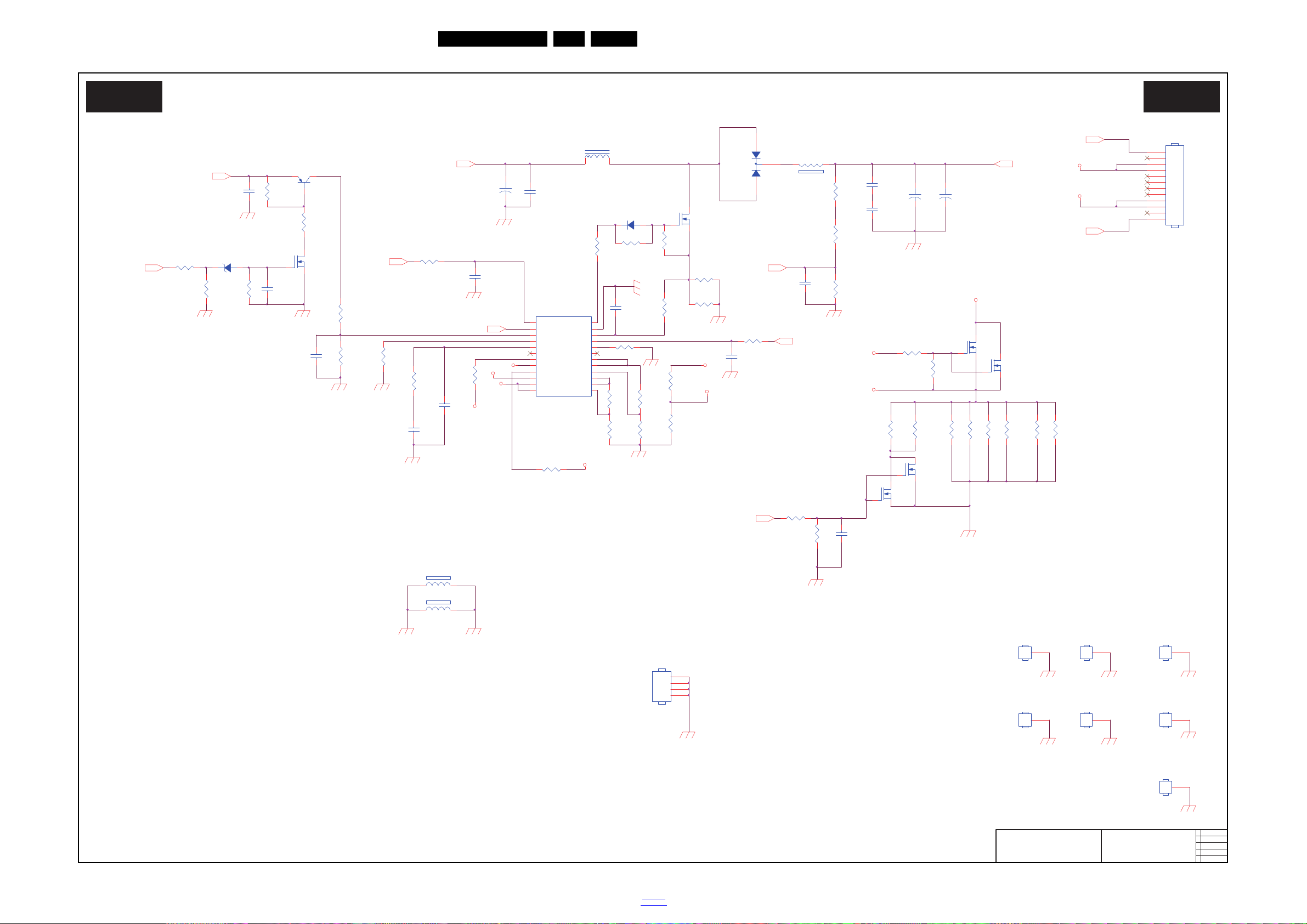

10-3-2 LED Driver

19610_501.eps

LED Driver

A02 A02

2013-10-18

715G6338

LED Driver

VLED+

R8107

510 OHM +-1 % 1/ 8W

R8121

100KOHM +- 1% 1/ 8W

C8107

1N 50V

R8124

100K 1/ 4W

S1

+

C8102

82uF 100V

G1

G2

+

C8103

82uF 100V

G1

R8148

0R051/8W

R8116 0R1 5% 2W

2

1

L8101

33uH

R8155

200K 1/8W

+36V/+24V

C8105

220nF50V

SENSE2

R8111

150K 1/4W +/- 1%

C8109

1UF 50V

C8108 100N 50V

R8106

10K 1/8W 1%

R8102 33 OHM

R8108

330K 1% 1/8W

OVP_L

R8112

150K 1/4W +/- 1%

C8110

100N 50V

R8113

10KOHM +-1% 1/8W

VLED_1

VLED_2

D8102

SS1060FL

R8135

10ohm +/ -1 % 1/8W

C8114

10N 50V

R8101

2.2 OHM 1/8W

C8104

220nF50V

R8103

10K 1% 1/8W

R8149

20K

R8145

0R68 1W 5%

R8104 0R1 5% 2W

R8105

1K 1/8W 1%

R8144

0R68 1W 5%

1 2

FB8103 BEAD

OVP_L

R8143

10K 1/8W 1%

R8142

100KOHM +-5% 1/ 8W

2D/3D

R8138

100K 1/ 8W 1%

C8144

100N 50V

R8136

20K OHM

Q8147 P5002CMG

1

GND806

GND

1

GND807

GND

DIM

1

GND801

GND

1 2

3

4

HS8101

HEAT SINK

R8147

0R68 1W 5%

R8146

0R68 1W 5%

1

GND804

GND

1

GND802

GND

C8131

1N 50V

1

GND805

GND

R8115

1M 1/8W 5%

C8106 100N 50 V

R8156

0R68 1W 5%

Q8143 MTBA5N10J3

Q8145 P5002CMG

R8157

0R68 1W 5%

R8109

100KOHM +-1% 1/8W

R8110

240K 1% 1/8W

Q8149 MTBA5N10J3

R8164

200K OHM

G2

SENSE2

12

FB8101

127R

VLED_1

1 2

3

4 5 6 7

8

9 10 11 12

CN8101

CONN

VLED_1

1 2

FB8102 BEAD

R8160

4.7R 1% R8161

4.7R 1%

R8139

10ohm 1%

C8143 100P 50V

+

C8101

330UF 5 0V

VLED+

VIN

1

OVP

2

EN

3

RT

4

COMP

5

PAR L

6

SENSE1

7

Gate1

8

FB1

9

SENSE2

10

Gate2

11

FB212SENSE3

13

Gate3

14

FB3

15

SENSE4

16

Gate4

17

FB4

18

STAT U S

19

LOSC

20

DIM

21

CS

22

GND

23

DRV

24

IC8101

LD7890GS

12

ZD8101

BZT52-B9V1_R1_00001

1

2

3

D8101 MBRF10100CT

C8132

100N 50 V

+36V/+24V

C8133

1N 50V

R8134

10K 1/4W

R8133 10K OHM +-5% 1/8W

R8137

20K OHM

ON/OFF

Q8101

P3710BTF

Q8102

PMBT3906

Q8103 2N7002K

1

GND803

GND

+12V

R8140

100K 1/ 8W 1%

R8120

240K 1% 1/8W

R8123

240K 1% 1/8W

S1

Circuit Diagrams and PWB Layouts

EN 50TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-3-3 LLC 36V

19610_502.eps

LLC 36V

A03 A03

2013-10-18

A

715G6338

LLC 36V

COLD

HOT

1 2

ZD9103 BZT52-B43

C9113

1uF

+

C9121

330UF 50V

+

C9122 NC

C9107 470pF 50V

L9102

1.1uH

R9113

91KOHM +-1% 1/8W

C9106 47pF

C9105 22nF

R9104 22K 1/8W 1%

R9137

0 OHM +-5% 1/8W C9109 4N7 50V

R9107

2.2R

C9108

1uF

D9105 UF1010G

C9104 1uF

C9102 100N 50V

R9125 1K 1/8W 1%

C9103 470NF 50V

C9125

100N 50V

R9128

2.4KOHM +-1% 1/8W

R9106 4R7 +-5% 1/ 8W

C9111 33N 50V

IC9103 AS431AN-E1

1

2

4

3

IC9102

PS2561DL1-1

R9126 4K7 1/8W 1%

+36V/+24V

R9123

100KOHM +-1% 1/8W

VCC_ON

R9120 2K4 +/-1% 1/ 8W

1 2

FB9101 BEAD

R9119 11K 1%

R9108 1K 1/8W 1%

C9101 10NF

R9121

12K 5% 1/4W

R9105

0.1R

B+

VCC

1

VREF

3

G

4

OV/U V

5

FB

6

DT/BF

7

IS

8

NC

9

S1

10

S2

11

HB

13

VCCH

14

D

16

IC9101 LCS700LG-TL

R9101

1MOHM +-1% 1/4W

R9124

2.4KOHM +-1% 1/8W

R9114

22KOHM +-1% 1/8W

R9102

1MOHM +-5% 1/2W

R9103

1MOHM +-5% 1/2W

R9127 43R 1%

C9127 1uF

C9128

1uF

1

2

3

D9104

FMEN-2308

C9117

2.2nF 50V

!

D9106

SS1060FL

C9126

2.2nF 50V

+36V/+24V

R9110

8.2K 1/4W

C9116 47nF 50V

R9109 120R 1%

R9111

150KOHM +-1% 1/ 8W

R9112

12K 1/8W

C9110

2.2U F 25V

R9115

3K 1/8W +/-1%

+

C9123

NC

1 2

HS9101

HEAT SINK

+36V/+24V

R9140 1K 1/8W 1%

OVP

+36V/+24V

Q9104 PMBS3904

C9133 100N 50V

Q9103 PMBS3906

R9139 100 OHM 1%

R9136

1K 1/8W 1%

R9138 1K 1/8W 1%

D9110

SS1060FL

D9108

SS1060FL

1 2

5 6

7

8

9

10

11

12

10

9

T9101

210uH

ON/OFF

R9122

12K 5% 1/4W

R9133

12K 5% 1/4 W

R9132

12K 5% 1/4 W

2D/3D

DIM

+12V

D9107 SS1060FL

R9129

2.4KOHM +-1% 1/8W

+

C9120

10UF 50V

1 2

3

4 5 6 7

8

9 10 11 12 13 14

CN9101 CONN

1 2

3

4

HS9109 HEAT SINK

Circuit Diagrams and PWB Layouts

EN 51TPS14.2A LA 10.

2014-Sep-26

back to

div.table

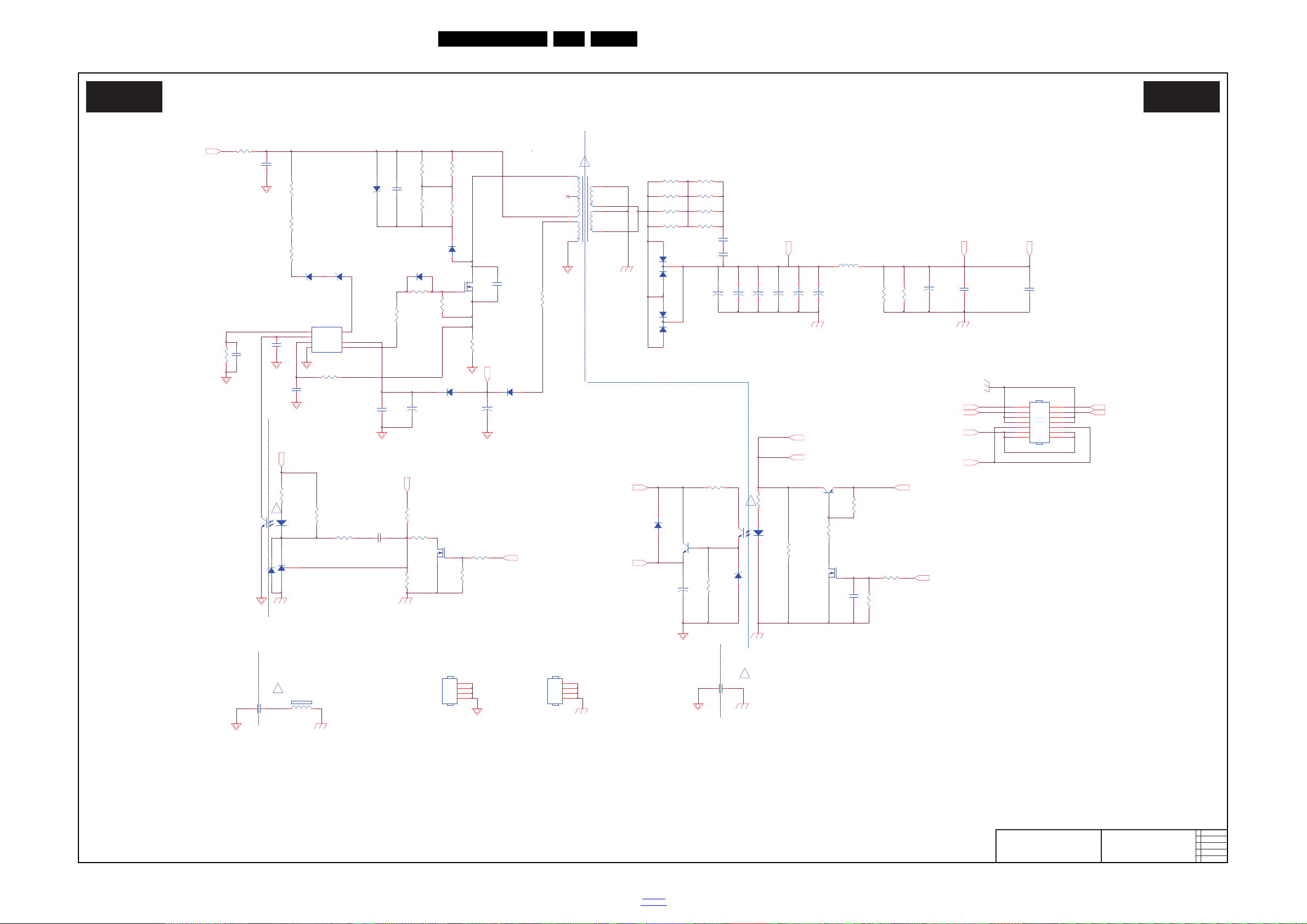

10-3-4 Main Power 12V

19610_503.eps

Main Power 12V

A04 A04

2013-10-18

A

715G6338

Main Power 12V

1 2

3

4

HS9302 HEAT SINK

1

2

ZD9303

NC/P6KE160AA0

1 2

3

4

HS9301 HEAT SINK

Q9332 PMBT3906

HOT

COLD

C9309

2N2 500V

D9301

SS1060FL

R9321

51 OHM 1/4W

R9331

10K OHM +-5% 1/ 8W

IC9342

AS431AN-E1

D9302 FR107

Q9301

TK13A65U

C9306 NC

Q9341

2N7002K

12

ZD9302

BZT52-B30

C9302 1NF

R9334 10K OHM

C9331

100N 50V

L9301 3UH

12

4

3

IC9341

PS2561DL1-1

D9303 FR107

12

ZD9301 BZT52-B30

C9310

2N2 500V

R9306

0.1R

+

C9311

470UF 2 5V

R9342 100K 1/ 8W 1%

!

R9307 100K 1/4W

1

2

3

4

5

6

7

9

10

T9301

POWER X'FMR/380GL32P133H00

+

C9320 47UF 50V

R9348

1K 1/8W 1%

1 2

ZD9340

BZT52-B16

R9333 10K 1/8W 1%

R9318 51 OHM 1/4W

R9345

6.2K OHM +-1% 1/8W

R9303

6.8K 1/4W

+

C9314 330UF25V

R9337

2Kohm 1/4W +/-5%

R9302

6.8K 1/4W

R9346 2Kohm 1/4W +/-5%

R9311

10 OHM

R9344

3.9K 1% 1/8W

R9315

470 OHM 1/4W

R9336 2Kohm 1/4W +/-5%

R9316

2.2 OHM 1/4W

R9314

0.27R

R9308 100K 1/4W

R9347

2.2KOHM +-1% 1/8W

+

C9332

10UF 5 0V

R9338

100K 1/8W 1%

R9312 51 OHM 1/4W

R9335 10K OHM +-5% 1/8W

R9332 330K 1% 1/8W

12

43

IC9331

PS2561DL1-1

C9304 1N 50V

R9341

10K OHM +-5% 1/ 8W

Q9331 2N7002K

R9301

6.8K 1/4W

C9301 10NF

C9315

100N 50V

+

C9312

470UF 25V

R9309 100K 1/4W

R9310 100K 1/4W

C9341 220N 50V

1 2

ZD9330

BZT52-B15

Q9333 BTC4672M3

C9305 470P 50V

D9331

SS1060FL

PS_ON

C9308 100N 50V

R9320 51 OHM 1/ 4W

2D/3D

+

C9313

470UF 25V

R9313 10KOHM

+

C9317

470UF 25V

+

C9318

470UF 25V

DV5

VCC

DV5

+12"V

VCC

ON/OFF

PS_ON

COLDHOT

B+

DIM

HOT COLD

OVP

R9324NCR9325

NC

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

IC9301

LD7752B

R9305

NC/100KOHM +-5% 1/8W

VCC_ON

+12V

R9326 51 OHM 1/ 4W

R9327 51 OHM 1/4W

1

2

3

D9305 FME-220B

R9343

9.53KOH M +- 1 % 1/ 8W

1 2

FB9301 BEAD

1

2

3

D9306 FME-220B

R9322 51 OHM 1/4W

R9323

51 OHM 1/4W

+

C9307

10UF 50V

D9304 FR107

+

C9321

NC/ 470U F 25V

C9303 47nF 50V

R9319

51 OHM 1/4W

C9328 470pF 250V

!

C9316 1NF 250V

!

+12V_audio

2 4 6

8

10 12 14

1

3

5 7

9 11 13

CN9301 CONN

C9319

100N 50V

Circuit Diagrams and PWB Layouts

EN 52TPS14.2A LA 10.

2014-Sep-26

back to

div.table

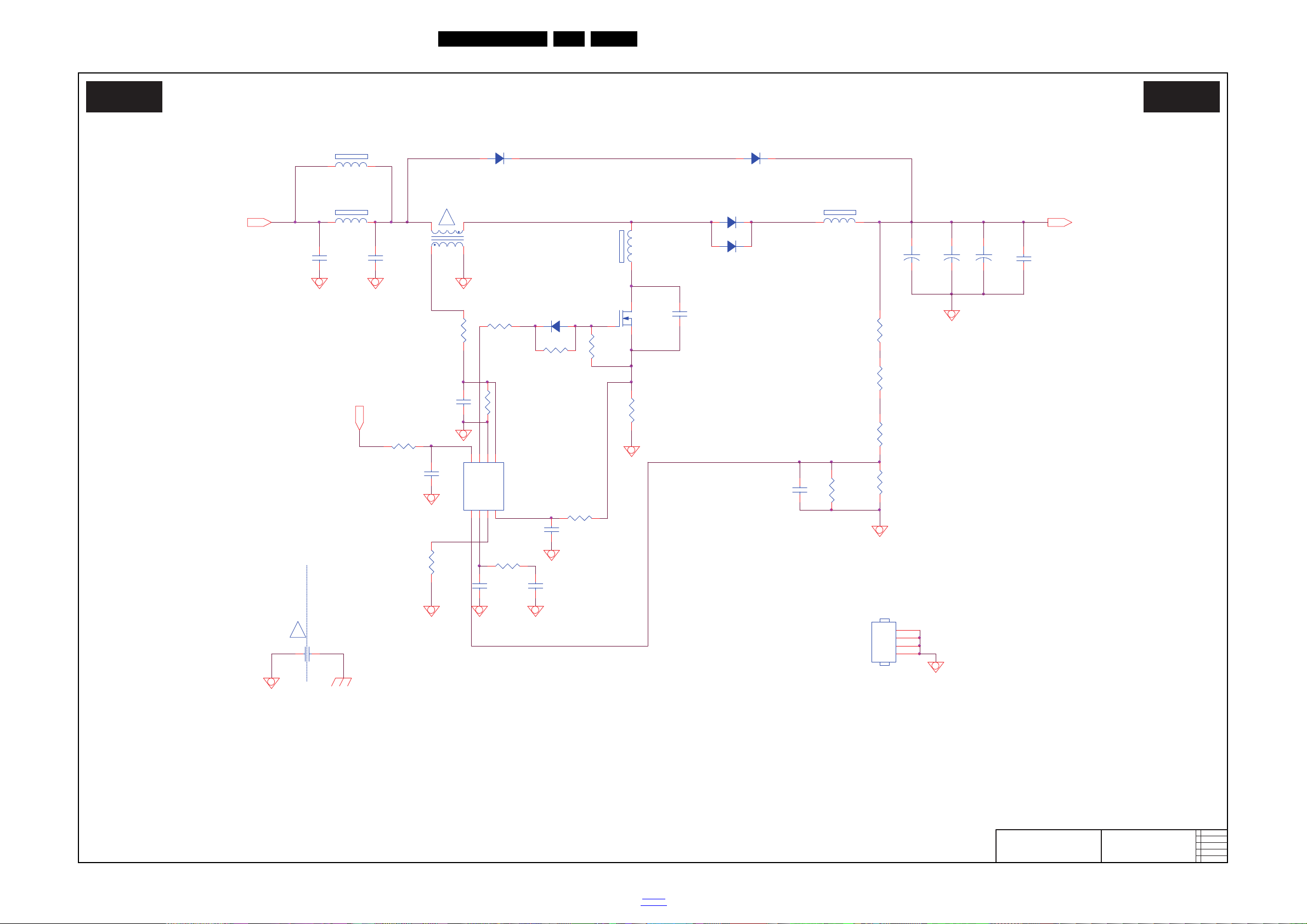

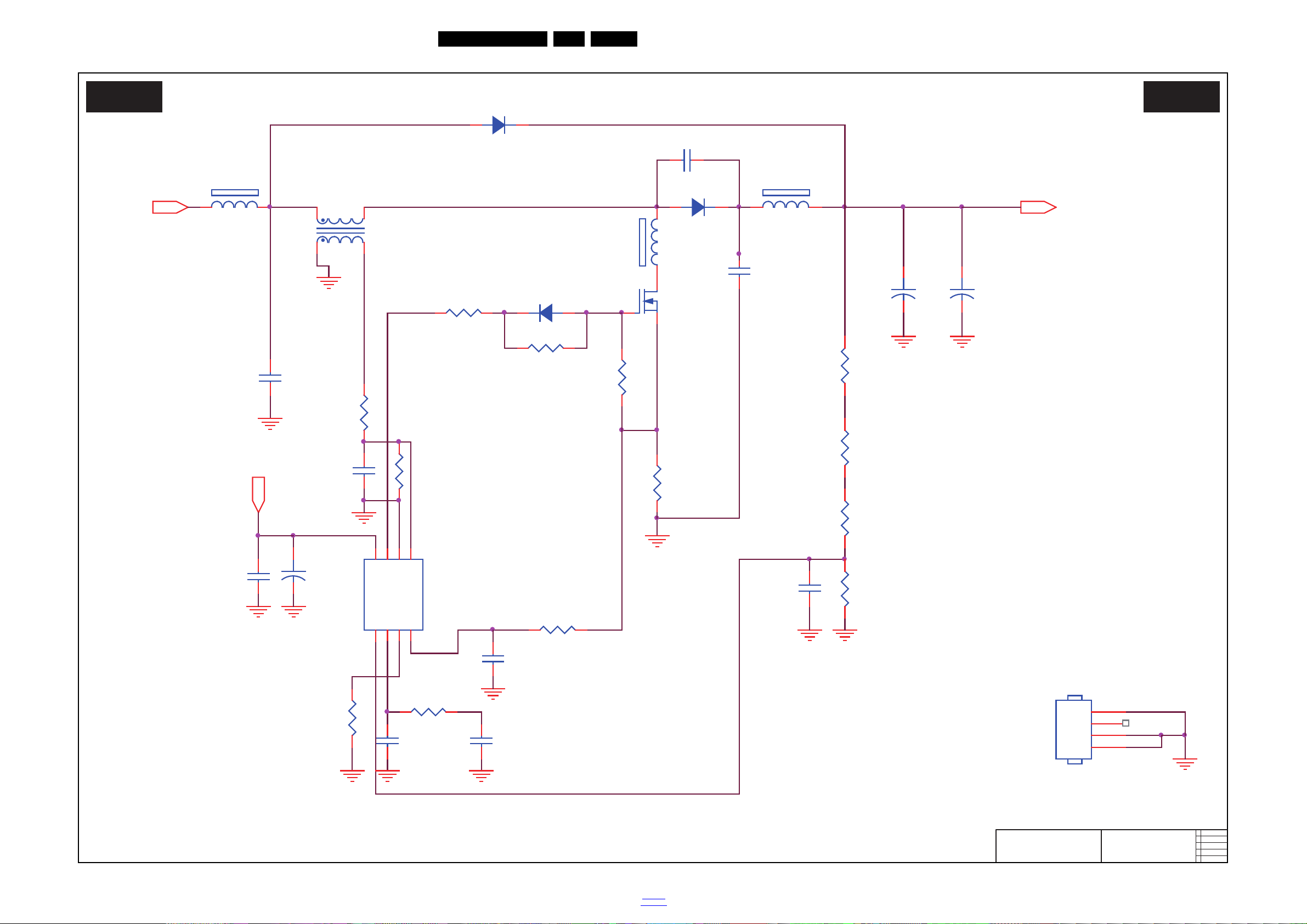

10-3-5 PFC

19610_504.eps

PFC

A05 A05

2013-10-18

A

715G6338

PFC

C9808 100PF

Vsin

!

R9815

2.2R

R9809

10K 1/8W

B+

C9803 100N 50V

+

C9812

68uF 450V

D9801 IN5408G-04

D9805 IN5408G-04

1 2

L9802 BEAD

C9815

2.2NF

INV1COMP2RAMP

3

CS

4

ZCD

5

GND

6

OUT7VCC

8

IC9801

LD7591T

C9813 1UF 450V

!

Q9801

TK16A60W

VCC_ON

HOT COLD

D9802

MUR460-28

1 2

L9803 NC

C9814 470pF 250V

R9807

10 OHM 1/8W

R9808

75 OHM 1/8W

C9807 1N 50V

1 2

3

4

HS9801 HEAT SINK

R9813

10K 1/8W

R9810

470 OHM 1/4W

R9805 20K 1/4W

R9811

0.1R

C9801 1UF 450V

D9806

NC/FMNS-1106S

3

1

4

5

L9801

240UH

R9814 NC

C9809

100P 50V

1 2

FB9802 BEAD

R9812

27K 1/8W 1%

C9806 470NF 50V

R9806

3.3KOH M +- 1 % 1/ 8W

+

C9810

68uF 450V

+

C9811

68uF 450V

C9802

47P 50V

C9805

100N 50V

R9802

1MOHM +-1% 1/4W

R9803

1MOHM +-1% 1/4W

R9801

1MOHM +-1% 1/4W

R9804

19K1 +-1% 1/8W

D9803

SS1060FL

1 2

FB9803

BEAD

Circuit Diagrams and PWB Layouts

EN 53TPS14.2A LA 10.

2014-Sep-26

back to

div.table

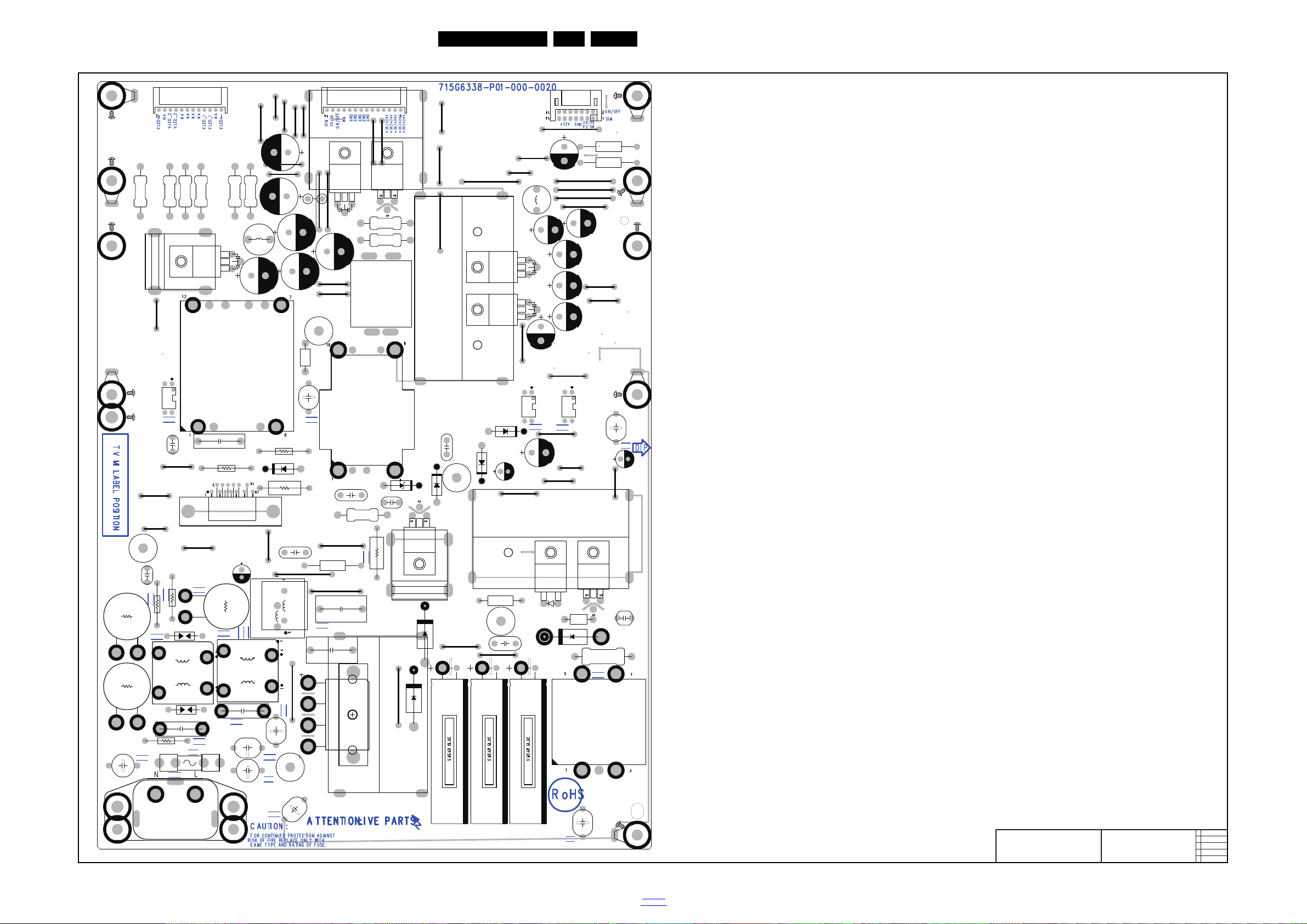

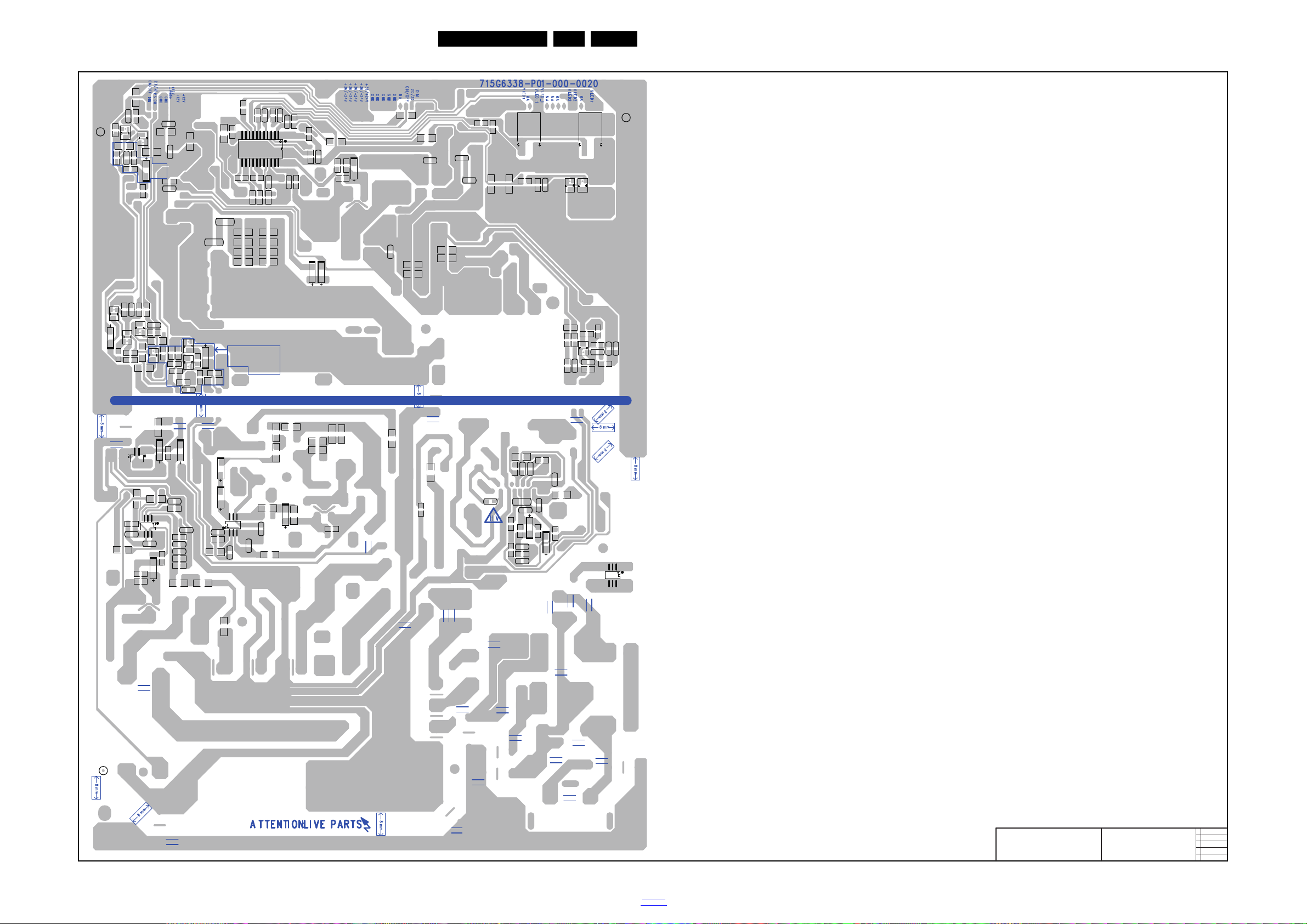

10-3-6 Power layout top

19610_505.eps

2013-10-18

A

715G6338

LAYOUT TOP

C9302

C9332

D9105

D9302

D9303

IC9102

IC9331

IC9341

R8104 R8116

R9314

T9301

ZD9303

J9128

J9120

J9130

J9134

J9143

J9144

J9127

J9124

J9138

J9125

J9129

J9111

J9136

J9122

C9120

C9307

D9304

J9115

J9119

R9103

R9102

J9103

J9104

J9121

J9102

J9137

D9802

D9801

D9805

J9140

J9133

J9145

J9135

J9117

J9109

J9110

J9141

J9107

J9131

J9139

J9118

J9108

J9113

J9114

J9126

J9105

J9123

J9132

J9148

J9142

J9146

SU2

SU5

SU4

SU1

J9147

J9101

SU3

R8144

R8145

R8146

R8147

R8156

R8157

HS1

HS2

HS3

H5

H10

H8

H7

H6

H9

H2

MH12

H11

GND1

BD9901

C8101

C9101

C9106

C9121

C9122

C9123

C9301

C9306

C9311

C9312

C9313

C9314

C9317

C9318

C9810C9811 C9812

C9907

C9908

CN8101

CN9901

D8101

D9104

D9305

D9306

F9901

FB9101

FB9802

HS9101

HS9301

HS9801

HS9901

IC9101

L8101

L9102

L9301

L9801

L9901

L9902

NR9901

NR9902

Q9301

Q9801

R9811

R9901

R9902

R9903

SG9901

SG9902

MH8

MH7

MH6

MH5

MH1

C9105

J9112

HS9109

HS9302

C9320

Q8101

MH4MH9

C8102

C8103

T9101

C9321

D9806

HS8101

MH11

RV9901

HS9902

R9105

R9306

C9814

L9803

FB9803

FB8101

C9328

MH10 MH3

C9316

C9808

C9815

L9802

FB9301

FB8102 FB8103

C9901

C9902

CN9101

C9905

C9906

C9903

C9904

CN9301

GND801

GND802 GND803 GND804

GND805

GND806GND807

C9801

C9813

Circuit Diagrams and PWB Layouts

EN 54TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-3-7 Power layout bottom

19610_506.eps

2013-10-18

A

715G6338

LAYOUT BOTTOM

C8104

C8105

C8106

C8107

C8108

C8109

C8110

C8114

C8131

C8143

C8144

C9102

C9103

C9104

C9108

C9109

C9110

C9111

C9116

C9117

C9125

C9126

C9127

C9128

C9133

C9303

C9304

C9305

C9308

C9309

C9310

C9315

C9319

C9331

C9341

C9802

C9803

C9805

C9806

C9807

C9809

R8102

R8103

R8107

R8108

R8110

R8111

R8112

R8113

R8115

R8133

R8140

R8142

R8148

R8149

R8124

R9104

R9106

R9107

R9108R9109

R9111

R9113

R9119

R9120

R9121 R9122

R9123

R9129

R9125

R9126

R9127

R9137

R9139

R9140

R9301

R9302R9303

R9305

R9307

R9308

R9309

R9310

R9311

R9312

R9313

R9315

R9316

R9318R9319 R9320

R9321

R9324

R9325

R9332

R9333

R9334

R9336

R9337

R9338

R9341

R9344

R9345

R9347

R9348

R9801

R9802R9803

R9804

R9805

R9806

R9807

R9808 R9809

R9810

R9812

R9813

R9814

JR8105

R9342

R8143

SE7

SE5

SE6

R9114

R9128

R9115

R9343

Q8145

Q8147

R8120

R8123

R9124

R9322

R9323

R9815

IC9801

IC9901

R8105

R8155

R8106

R8135

R9101

R9110

C9107

R9112

R9132 R9133

R9136

JR8100

R8109

R8121

R8161

R8160

R9335

R9346

R9138

R9331

R8101

R8164

C8132

C8133

C9113

R8136

R8137

R8138

R8139

Q8102

Q9103

Q9104

Q9332

Q8103

Q9331

Q9341

R8134

JR8102

IC9342

IC9103

Q8143

R9326

R9327

JR8106

JR8101

D8102

D9106

D9107

D9108

D9110

D9301

D9331

D9803

ZD9103

ZD9301ZD9302

ZD9330

ZD9340

IC9301

Q9333

IC8101

ZD8101

Q8149

Circuit Diagrams and PWB Layouts

EN 55TPS14.2A LA 10.

2014-Sep-26

back to

div.table

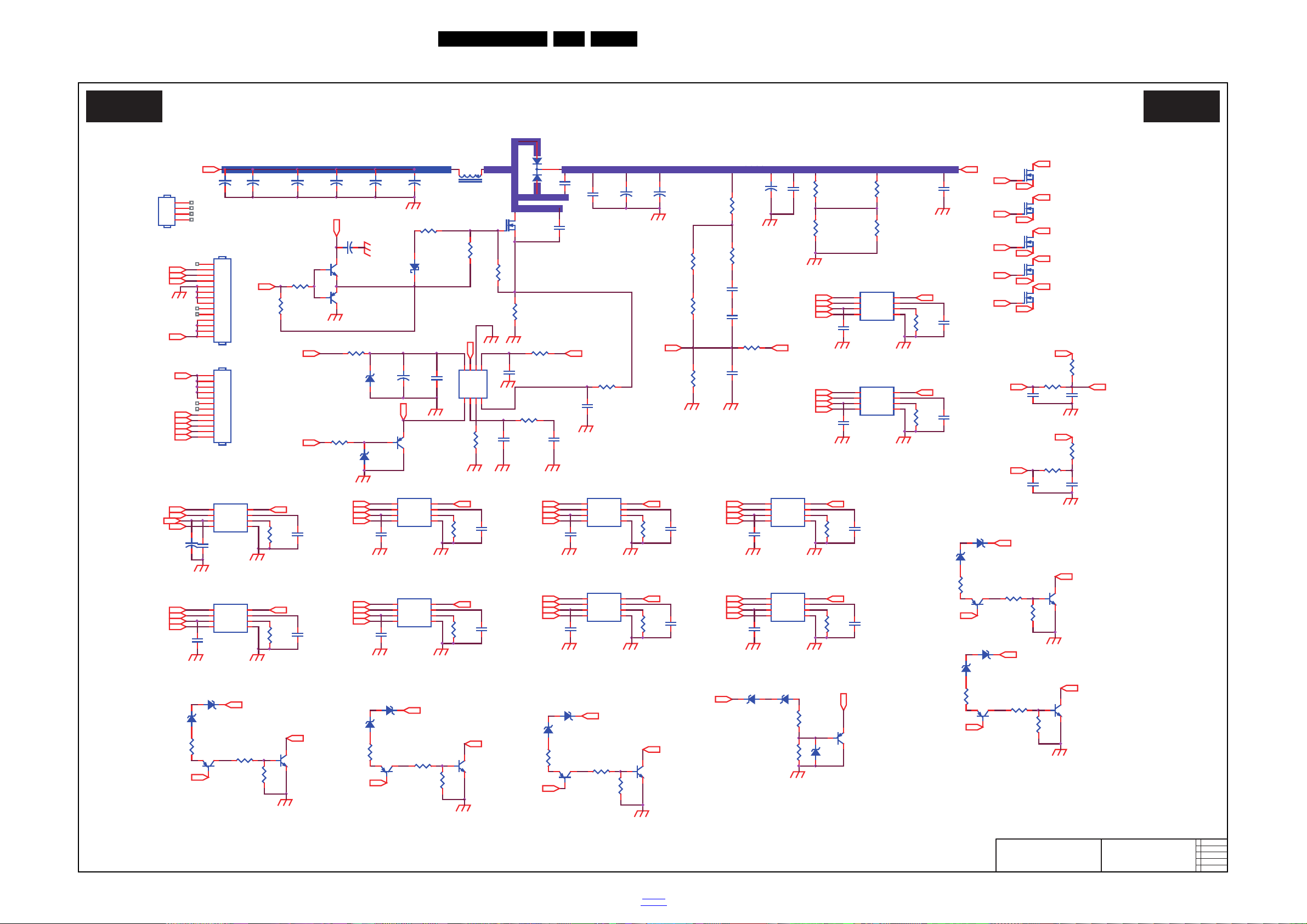

10.4 A 715G6140 PSU

19690_516.eps

LED

A01 A01

2014-04-11

715G6140

LED

+

C8206

47UF 100V

R8123

10K OHM +-5% 1/8W

R8181

14K 1/8W

R8124

18R 1/8W

+12V

R8202 820K 1%

IC8102

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

R8125

NC

IC8202

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

+

C8105

NC

VLED

R8209

NC

IC8302

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

+

C8108

120uF 220V

L8101

90uH

6

1

ON/OFF

T

ZD8204

NC

1 2

PWM

T

R8304

NC

R8105

NC

Q8303

NC

R8306

NC

+

C8112

120uF 220V

ZD8203

NC

1 2

R8305

NC

Q8304 NC

IC8402

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

HQ8101 HEAT SINK

1 2 3 4

R8308

NC

ZD8205

NC

1 2

R8309

NC

ZD8206

NC

1 2

Q8306 NC

PWM

Q8305

NC

R8307

NC

R8314

NC

ZD8209

NC

1 2

R8118

NC

R8315

NC

ZD8210

NC

1 2

Q8310 NC

PWM

Q8309

NC

R8313

NC

R8127

330K 1% 1/8W

R8311

NC

ZD8127

NC

1 2

R8312

NC

ZD8208

NC

1 2

R8182

14K 1/8W

Q8308 NC

Q8301

NC

PWM

Q8307

NC

R8310

NC

EN

Q8302 NC

IC8113 PF7900S

FB1GM2RT3CS

4

DIM

5

GND

6

OUT7VCC

8

C8120 1N 50V

R8281

14K 1/8W

C8102

1NF 500V

C8101

1NF 500V

R8282

14K 1/8W

D8102

FMX-23S

1

2

3

Q8201 AOD450

CN8102

CONN

1

2

3

4

5

6

7

8

9

10

11

12

R8381

14K 1/8W

COMP

LED2

LED22

LED33

LED3

LED44

R8382

14K 1/8W

LED4

LED55

LED5

C8103

1NF 500V

R8481

14K 1/8W

R8482

14K 1/8W

FB

C8124 100N 50V

R8581

14K 1/8W

R8582

14K 1/8W

C8282

470NF 50V

+60V

EN

C8212

NC

+

C8127

10UF 50V

C8382

470NF 50V

PWM

C8122 NC

ON/OFF

DIM

LED1

LED11

C8482

470NF 50V

+12V

L8102

3UH

VLED

Q8102

AOTF22N50

+

C8202

47UF 100V

R8237 100 OHM 1/4W

C8237

1N 50V

C8181

100N 50V

+12V

LED11

DIM

R8201

820K 1%

R8203 820K 1%

C8284

470NF 50V

C8211

NC

R8104

0 OHM +-5% 1/8W

PWM

+12VPWM

PWM

PWM PWM

PWMPWM

PWM

C8384

470NF 50V

C8182

470NF 50V

LED22

+12V

LED33

C8484

470NF 50V

+12V

LED44

+12V

LED55

+12V

LED4

LED3

LED2

C8236

1N 50V

Q8202 AOD450

Q8203 AOD450

C8184

470NF 50V

LED5

LED22

R8241

100R 1/8W 5%

Q8204 AOD450

LED33

Q8205 AOD450

C8281

100N 50V

+12V

COMP

LED44

LED55

ZD8211

BZT52-B22

12

+60V

ZD8212

BZT52-B22

12

C8146

1N 50V_NC

R8317

9.1K 1%

ZD8102

BZT52-B16_NC

1 2

R8318 2Kohm 1/4W +/-1%

ZD8214

BZT52-B5V1_R1_00001

1 2

C8383

100N 50V

COMP

+12V

R8207 51K 1/4W

EN

R8126

0R05OHM1/8W

R8205 51K 1/4W

C8240

1N 50V

C8241

1N 50V

R8240

100R 1/8W 5%

Q8312

PMBT3906

R8120

0 OHM +-5% 1/8W

+12V

EN1

C8381

100N 50V

+12V

EN

COMP

EN1

C8123

100N 50V

R8208 51K 1/4W

R8206 51K 1/4W

CN8101 CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

+

C8203

47UF 100V

+

C8204

47UF 100V

Q8103

MMBT3906

1

23

R8138 3K 1/8W 5%

ZD8101

BZT52-B4V7

1 2

LED1

R8236 100 OHM 1/4W

LED2

LED3

LED2

LED4

C8126

1N 50V

+

C8128

10UF 50V

C8183

100N 50V

EN

+12V

C8582

470NF 50V

COMP

C8147 NC

R8137 NC

PWM

EN

C8583

100N 50V

C8148 NC

C8584

470NF 50V

+60V

COMP

+12V

COMP

R8204

NC

IC8101

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

+12V

R8119

0 OHM +-5% 1/8W

IC8502

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

C8581

100N 50V

EN

LED5

PWM

IC8501

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

EN

C8283

100N 50V

+12V

COMP

ZD8202

NC

1 2

R8116

0.03R

COMP

IC8201

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

ZD8201

NC

1 2

R8302

NC

R8303

NC

+

C8201

47UF 100V

EN

+

C8205

47UF 100V

Q8104

NC

1

23

R8301

NC

Q8105 NC

D8101

NC

12

C8481

100N 50V

+12V

COMP

LED11

LED1

PWM

IC8301

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

+

C8125

120uF 220V

C8483

100N 50V

COMP

+12V

IC8401

PF7700A

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

10-4-1 LED

Circuit Diagrams and PWB Layouts

EN 56TPS14.2A LA 10.

2014-Sep-26

back to

div.table

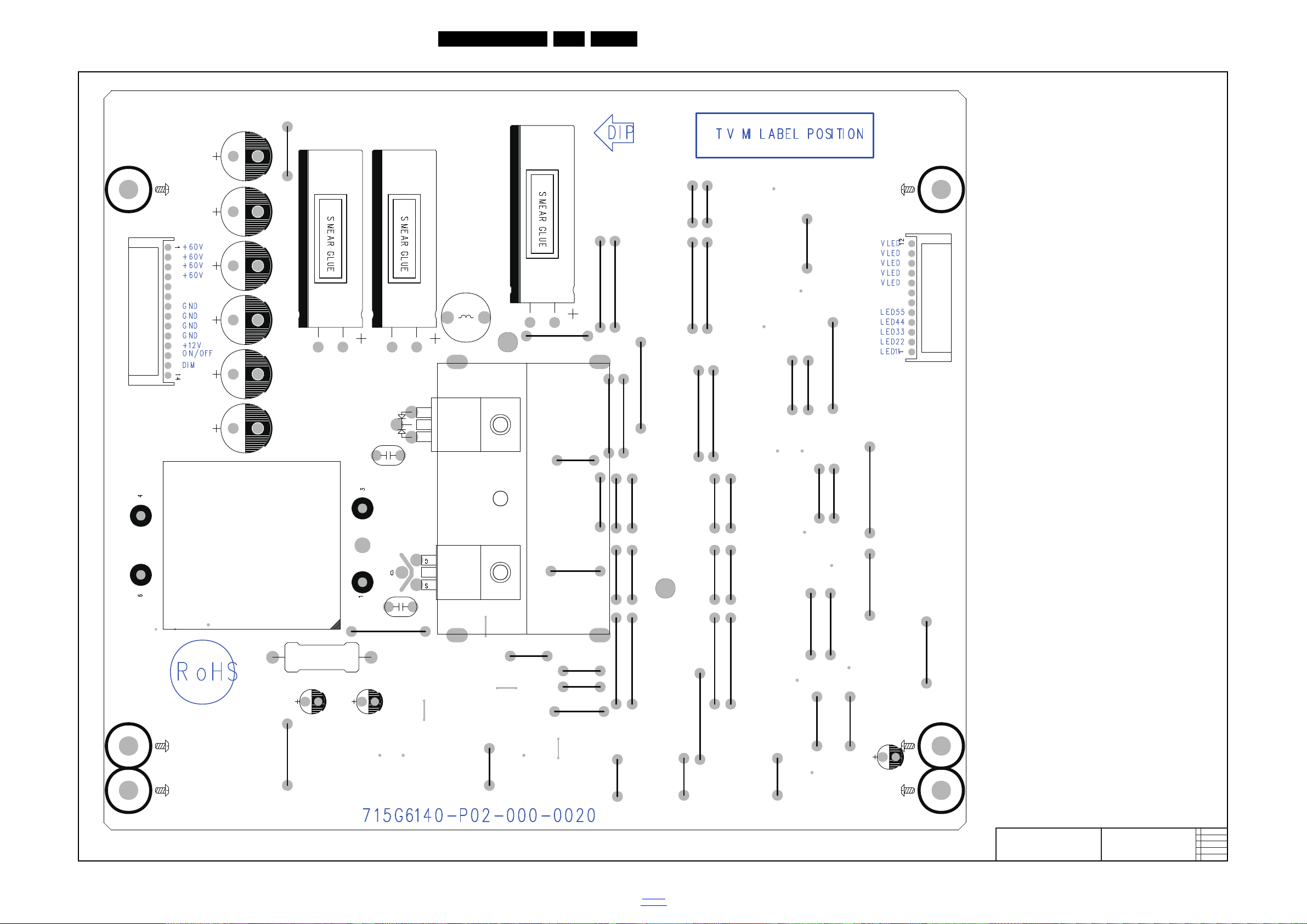

10-4-2 Power layout top

19690_517.eps

2013-03-15

A

715G6140

LAYOUT TOP

J8150

J8126

J8148

J8106

J8105

C8125

J8103

J8102

J8109

J8107

J8108

J8110

J8111 J8122

J8121

J8119

J8120

J8131

J8130

J8129

J8128

J8135

J8134

J8145

J8144

J8146

J8147

J8149

J8133

J8136

J8132

J8115

J8104

J8153

J8117

J8116

J8101

C8108C8112

J8127

J8124

J9138

J8112

J8125

J8123

J8118

J8139

J8142

J8141

J8143

J8140

J8113

J8114

J8137

J8138

Q1

Q2

C8127

C8201

C8202

C8203

C8204

C8205

C8206

C8211

C8212

CN8101

CN8102

D8102

HQ8101

L8102

R8116

MH1 MH2

MH4MH3

L8101

C8105

C8128

MH5 MH6

Q8102

Circuit Diagrams and PWB Layouts

EN 57TPS14.2A LA 10.

2014-Sep-26

back to

div.table

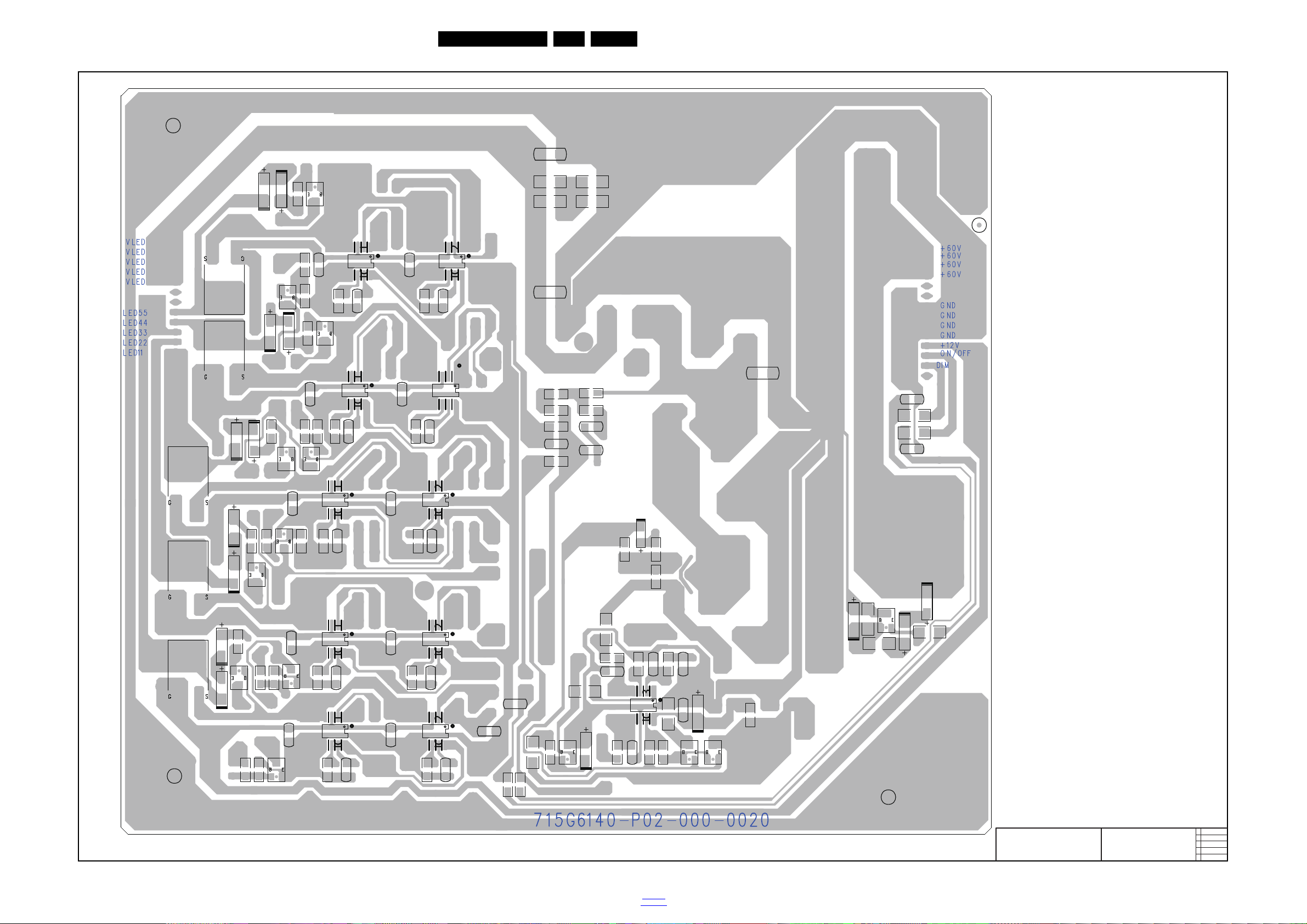

10-4-3 Power layout bottom

19690_518.eps

2013-03-21

A

715G6140

LAYOUT BOTTOM

C8101

C8102

C8103

C8120

C8122

C8123 C8124

C8126

C8146

C8147

C8148

C8181

C8182

C8183

C8184

C8240

C8236

C8237

C8281

C8282

C8283

C8284

C8241

C8381

C8382

C8383

C8384

C8481

C8482

C8483

C8484

C8581

C8582

C8583

C8584

Q8103

R8118

R8119

R8120

R8123

R8124

R8125

R8126

R8127

R8137

R8138

R8181

R8182

R8201

R8202

R8203

R8204

R8205 R8206

R8207 R8208

R8209

R8236

R8237

R8281

R8282

R8381

R8382

R8481

R8482

R8581

R8582

R8104

R8105

Q8104

Q8105

JR8102

JR8103

IC8302

IC8301

IC8202

IC8201

IC8102

IC8101

IC8502

IC8501

IC8402

IC8401

SEN5

SEN6

SEN7

IC8113

JR8104

JR8101

SEN8

R8240

R8241

R8301

R8302

R8303

R8304

R8305

R8306

R8307

R8308

R8309

R8310

R8311

R8312

R8313

R8314R8315

Q8301

Q8302

Q8303

Q8304

Q8305

Q8306

Q8307

Q8308

Q8309

Q8310

R8317

R8318

Q8312

JR8105

D8101

ZD8101

ZD8102

Q8201Q8202Q8203

Q8205Q8204

ZD8127

ZD8201

ZD8202

ZD8203 ZD8204

ZD8205 ZD8206

ZD8208

ZD8209

ZD8210

ZD8211

ZD8212

ZD8214

Circuit Diagrams and PWB Layouts

EN 58TPS14.2A LA 10.

2014-Sep-26

back to

div.table

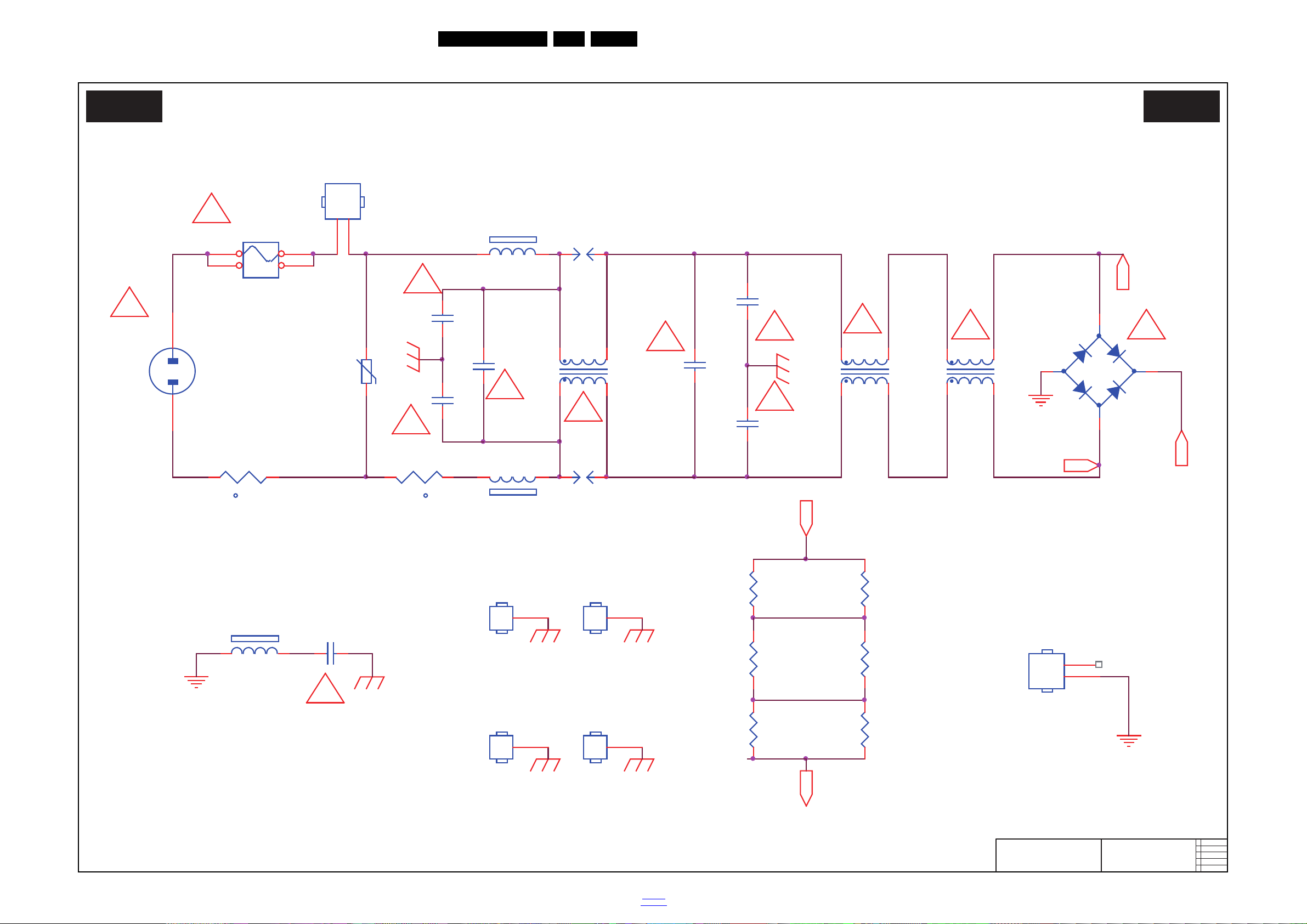

10.5 A 715G6607 PSU

19690_500.eps

AC input

A01 A01

2014-04-11

715G6607

AC input

!

C9902

100PF 250V

!

F9901

FUSE

1 2 3 4

!

t

NR9902

2.5R

1 2

L9903

0.25mH

1

2

4

3

BO

N

C9906

470NF 275V

L9902

12mH

1

2

4

3

!

+

BD9902

TS10K80-02

2

1

3

4

R9904 510K

R9905 510K

R9906 1MOHM +-5% 1/4W

R9902 510K

R9903 510K

R9901

1MOHM +-5% 1/4W

Vsin

RV9901 680V

GND2

NC

1

GND3

NC

1

GND4

NC

1

C9905

470NF 275V

GND1

NC

1

t

NR9901

2.5R

12

BO

CN9903 NC

L1N

2

FB9903

JUMPER

1 2

FB9901

BEAD

12

C9903 NC

C9904

47pF 250V

FB9902

BEAD

12

HS9901

HEAT SIN K

1 2

C9908 220PF 250V

CN9901

SOCKET

12

RV9902 NC

RV9903 NC

!

L9901

12mH

1

2

4

3

!

C9907

NC

10-5-1 AC input

Circuit Diagrams and PWB Layouts

EN 59TPS14.2A LA 10.

2014-Sep-26

back to

div.table

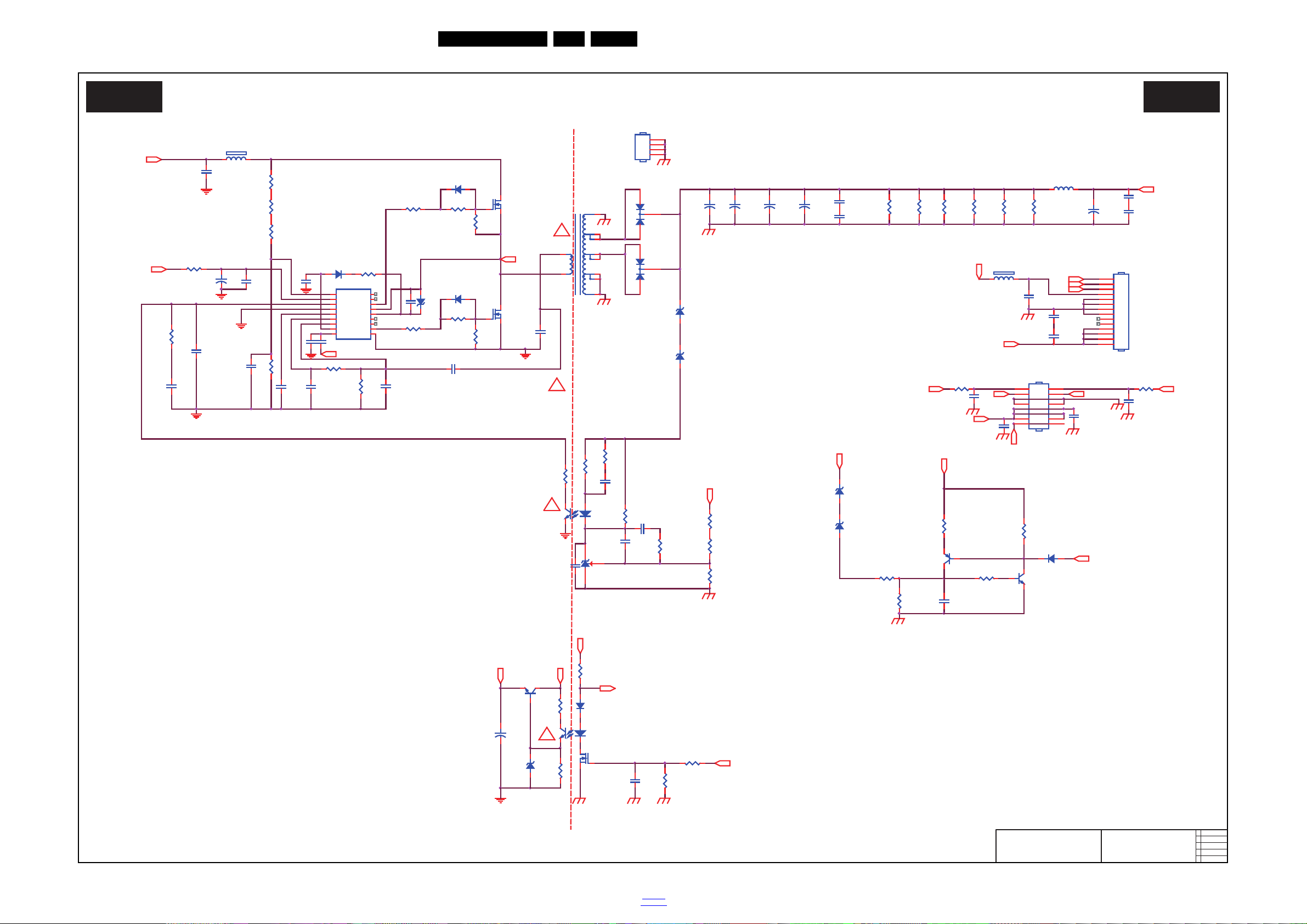

10-5-2 LLC

19690_501.eps

LLC

A02 A02

2014-04-11

715G6607

LLC

C9145

1uF

R9122 2K49 1/8W 1%

R9115

1M5 1/4W 1%

R9163

2K43 1/8W 1%

ZD9106

BZT52-B22

1 2

C9134

1uF

ZD9107

BZT52-B22

1 2

+5V

C9110

100PF1KV

R9117

470OHM +-5% 1/8W

R9103 160R 1%

C9109

220pF 50V

D9109 1N4148W

R9101

100 OHM 1/4W

R9119 10K OHM +-5% 1/8W

C9115

NC

C9137

100N 50V

+VBUS

R9105

560 OHM 1/4W

+VBUS

HS9103

HEAT SINK

1 2 3 4

FB9904

BEAD

12

+VBUS

L9103

1.1uH

Q9105 TK10A50D

CN9101

CONN

2 4 6

8 10 12 14 16

1 3 5 7 9 11 13 15

Q9106

TK10A50D

D9113

SS1060FL

D9114

SS1060FL

+12VC

R9156 10K 1/8W 1%

R9152

10K 1/8W 1%

R9149

82 OHM

R9154

82 OHM

R9134 1K OHM +-5% 1/8W

+

C9124 22UF 50V

C9139 560P 50V

C9140 5PF

C9107 NC

R9118

6.2K OHM +-1% 1/8W

Q9102 2N7002K

C9102 1N 50V

ZD9102 GDZJ15B

1 2

D9110

SS1060FL

IC9104

EL817M(X)

12

43

R9129 1K 1/4W

ZD9101

BZT52-B15

12

R9139 33K 1/4W

C9112

NC

R9114

1M5 1/4W 1%

+12V

VCC1

ZD9105

BZT52-B36

1 2

R9128 2K 1/8W 5%

VCC1

C9116 220NF 50V

R9102

10K 1/4W

R9104 NC

R9137

1K 1/8W 1%

R9133 1K 1/8W 1%

D9103

FMXA-2202S

1

2

3

R9113

1M5 1/4W 1%

C9113

0.1uF 50V

R9109

10R 1/8W 5%

+12V

PS_ON

IC9103 AS431AZTR-E1

C9143

0.1uF 50V

R9127 22K 1/8W 1%

+VBUS

ON/OFF

R9141 33K 1/4W

C9111 22nF

R9142 33K 1/4W

C9119 100N 50V

ZD9103

BZT52-B36

1 2

C9135

100N 50V

D9102 UF4007

C9101 1N 50V

For D9103, D9104.

CN9102

CONN

1

2

3

4

5

6

7

8

9

10

11

12

13

14

C9106

47P 50V

R9112

2R2 +-5% 1/8W

OVP

DIM

R9150

10ohm +/-1% 1/8W

Q9101

BTC4672M3

C9132

220NF 50V

R9151

10ohm +/-1% 1/8W

+12V

+

C9121

47UF 100V

C9130

220NF 50V

PS_ON

C9128

100N 50V

R9124 NC

+

C9127

47UF 100V

D9104 FMXA-2202S

1

2

3

+

C9114 47UF 100V

R9132

100 OHM 1/4W

C9123

100N 50V

R9143 33K 1/4W

ON/OFF

B+

R9148

36K 1/8W 1%

R9123 NC

+

C9122 10UF 50V

R9131

100 OHM 1/4W

R9130 510K 1/8W

C9133

220NF 50V

+

C9117

47UF 100V

R9116

18K 1/8W 1%

R9136 2K 1/8W 5%

DIM

VCC

60V

R9120

2.4K 1/8W

C9108

100N 50V

R9138

100K

+

C9131

47UF 100V

C9138 220NF 50V

T9101

POWER X'FMR

1

4

5 6

7 8

9 10

11

12

Q9104

LMBT3904LT1G

3D

Q9103 LMBT3906LT1G

C9129 220NF 50V

OVP

IC9102

EL817M(X)

12

43

C9144

100N 50V

IC9101 SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

C9120 10NF 1KV

FB9102

BEAD

12

3D

VBOOT

!

C9141

1uF

!

C9142

4.7uF 10V

Circuit Diagrams and PWB Layouts

EN 60TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-5-3 PFC

19690_502.eps

PFC

A03 A03

2014-01-11

A

715G6607

PFC

Vsin

HS9801

HEAT SIN K

1 2 3 4

R9806

10K 1/8W

B+

C9817 100PF

C9806

100N 50V

D9801 IN5408G-04

C9802 10NF 1KV

IC9801

LD7591T

INV1COMP2RAMP3CS

4

ZCD

5

GND

6

OUT7VCC

8

C9807 220pF 50V

R9814 2K 1/8W

Q9801 TK20A60W

VCC1

FB9803

127R

1 2

+

C9805 22UF 50V

D9802

FMNS-1106S

FB9801 BEAD

1 2

R9802

10 OHM 1/8W

R9803

33R 1/ 8W 5%

For Q9801

R9813

10K 1/8W

R9810 1K 1/8W

R9805

20K 1/4W

R9812

36K 1/8W

L9801

220uH

1

34

5

C9810

0.47U F 50V

C9809 47N 50V

R9808

0.1R

C9801 1UF 450V

+

C9811 82uF 450V

+

C9812 82uF 450V

FB9802 127R

1 2

C9804

47P 50V

D9803

SS1060FL

R9807

1M 1% 1/4W

R9809 1M 1% 1/4W

R9804

1M 1% 1/4W

C9808 47P 50V

R9811 19K1 +-1% 1/8W

Circuit Diagrams and PWB Layouts

EN 61TPS14.2A LA 10.

2014-Sep-26

back to

div.table

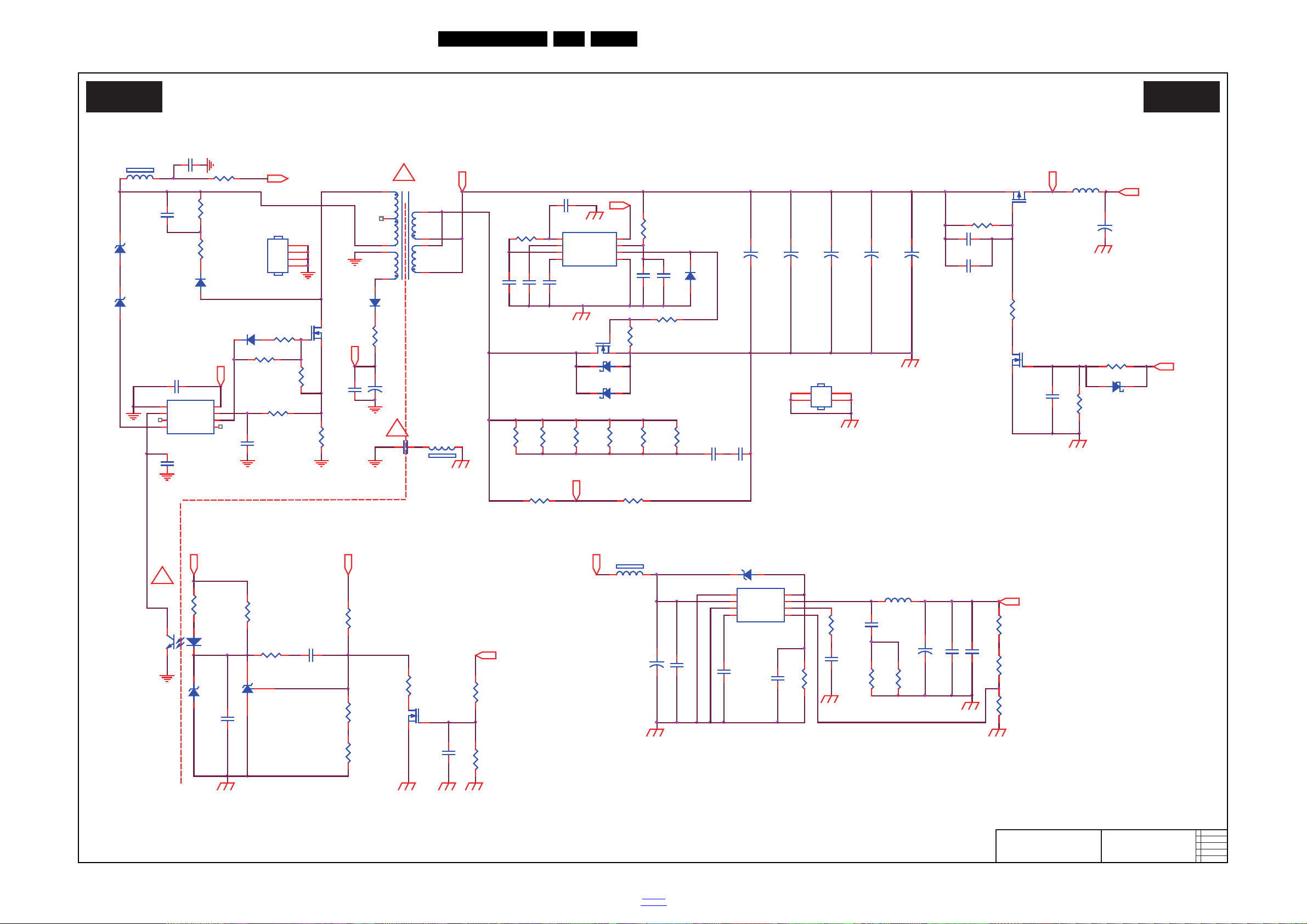

10-5-4 Standby

19690_503.eps

Standby

A04 A04

2014-04-11

A

715G6607

Standby

R9309 1 OHM 1/4W

ZD9302 BZT52-B39

1 2

C9330

NC

R9304

NC/ 100KOH M +-5% 1/8W

C9305 NC/1uF

R9314

10K OHM +-5% 1/8W

+

C9304

470UF 25V

C9302

100N 50V

ZD9303

NC

12

C9335

NC

D9304

SS1060FL

R9307

NC/ 100KOH M +-5% 1/8W

C9324 470P 50V

+

C9319

47UF 50V

C9315

100P 50V

FB9303

NC

1 2

R9313

NC/ 100 OH M 1/4W

+

C9308

470UF 25V

L9301 3UH

C9322

1N 50V

T9301

POWER X'FM R

1

2

3

5

6

7

9

10

4

C9312

1uF

R9328 4K7 +-5% 1/8W

Q9303

AOTF298L

R9340 2K2 1/8W 1%

R9330

NC

Q9302

NC

R9312

62R 1%

Q9304 NC/2N7002K

C9325 1NF 250V

HS9303

HEAT SINK

3 4

1 2

R9316

200 OHM 1/4W

R9327

1K5 +-1% 1/8W

C9329 220N 50V

C9301

10NF 1KV

FB9302

BEAD

12

R9319

200 OHM 1/ 4W

R9308

10 OHM 1/4W

D9301

SARS01-V1

R9317 NC/ 510K 1% 1/ 8W

C9321

NC/ 100N 50V

C9334

NC

R9335

NC

R9321

0.36R

R9331

NC

R9306

22R 5%

+

C9307

470UF 25V

R9315

200 OHM 1/ 4W

R9303

4R7 1/4W 5%

C9333 NC

+

C9332 NC

IC9304

EL817M(X)

12

43

C9318

0.1uF 50V

R9332 1K 1/8W 1%

C9314

100N 50V

R9318

470 OHM 1/4W

+

C9310

470UF 25V

IC9302

SP6018S8RGB

Timing

1

Pred

2

VR

3

Adj

4

GND

5

MOSG-C

6

Vdd

7

SYNC

8

IC9305 AS431AN-E1

D9303

FR107G-A0

R9301

0.1R

R9324

10K 1/4W

C9323

1N 50V

R9323

200 OHM 1/4W

IC9301

SSC2S110

GND

1

FB/OLP

2

NC

3

ST

4

NC

5

DRIVE

6

OCP

7

VCC

8

D9302

SS1060FL

D9307 MB810

12

+

C9306

470UF 25V

C9326

4.7NF 50V

+

C9328 NC

R9329 9K1 1/8W 1%

R9338 NC/1Kohm

R9310

5.1K 1/4W

C9313

1uF

IC9303

NC

PGND

1

VIN

2

AGND

3

VCC4FB

5

COMP

6

LX

7

EN

8

HS9301

HEAT SINK

1 2 3 4

L9303NC

ZD9301 BZT52-B39

1 2

R9302 82K 2W

C9338

NC/ 100N 50V

R9325

5.1K 1/4W

R9311

10R 1/8W 5%

Q9305

NC/2N7002K

R9336

NC

R9341 120R 1/8W 1%

C9316

100P 50V

R9305

22K 1%

D9306

NC

1 2

R9337

NC/ 10K OH M

R9320

200 OHM 1/4W

C9320

0.1uF 50V

C9303

2.2NF

R9333

100R 1%

+

C9309

470UF 25V

Q9301

AOTF8N65

R9334

NC

C9336

NC

C9331 NC

C9337

1uF

FB9301

BEAD

12

R9339 NC

C9327 NC

R9322

200 OHM 1/ 4W

D9305 NC

12

C9311 NC/1uF

R9342 NC/ 330K 1% 1/ 8W

B+

VCC

12VS

SYNC

VCC

+12V

12VS

PS_ON

SYNC

PS_ON

12VS

+5V

12VS

!

+12VC

ZD9304 NC

1 2

Circuit Diagrams and PWB Layouts

EN 62TPS14.2A LA 10.

2014-Sep-26

back to

div.table

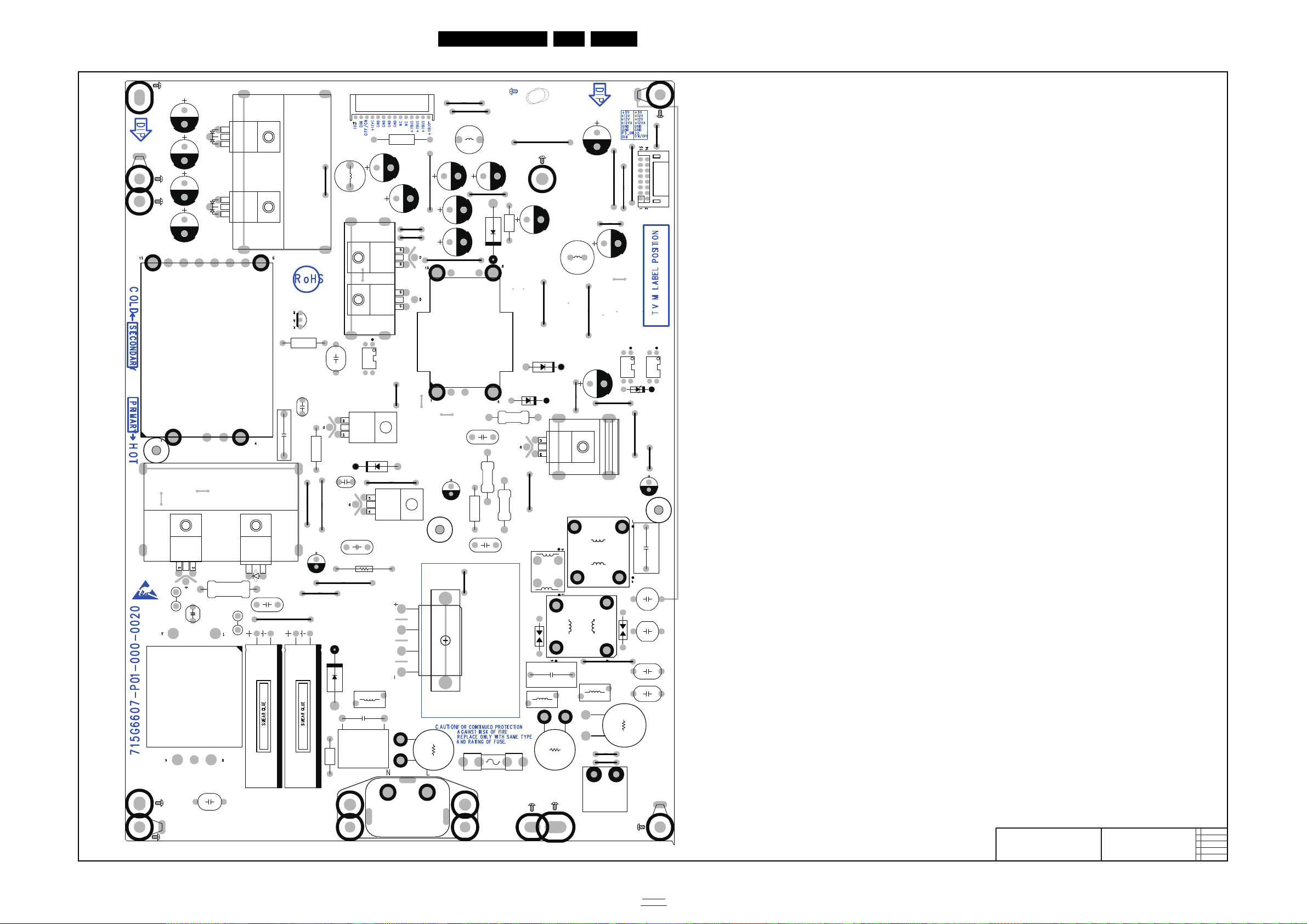

10-5-5 Power layout top

19690_504.eps

2014-02-02

A

715G6607

LAYOUT TOP

C9122

D9801

IC9102

IC9103

IC9104

IC9304

J928

J927

J903

MH2

J930

J932

J931

SU1

D9303

R9302

R9306

R9321

C9124

J915

D9305

J914

J925

J923

J919

J921

J908

J916

J909

T9101

J920

J922

J906

J910

J911

J913

J917

J918

J901

J902

J904

MH6

MH4

J907

T9301

MH1

MH7

J924

J929

SU2

SU3

J933

J926

C9805

J934

DR12

C2

C1

BD9902

C9110

C9114

C9117

C9304

C9121 C9127

C9325

C9319

C9306

C9307

C9801

C9811 C9812

C9902

C9903

C9904

C9905

C9906

C9907

C9908

CN9102

CN9903

D9103

D9802

F9901

FB9302

FB9801

FB9901

FB9902

FB9903

Q9801

R9808

RV9902

RV9903

ZD9102

MH3

L9103

NR9901

NR9902

R9301

MH12

MH9

C9111

RV9901

C9817

C9140

C9303

C9120

C9301

C9802

C9131

L9301

C9308

C9328

Q9301

Q9303

D9104

Q9105

Q9106

CN9901

C9309 C9310

C9332

FB9303

L9303Q9302

CN9101

D9301

FB9301

HS9103

HS9801

HS9301

HS9303

L9801

D9102

GND1

GND2

GND3

GND4

FB9904

FB9102

MH5

L9901

L9902

FB9802

MH10

FB9803

L9903

HS9901

Circuit Diagrams and PWB Layouts

EN 63TPS14.2A LA 10.

2014-Sep-26

back to

div.table

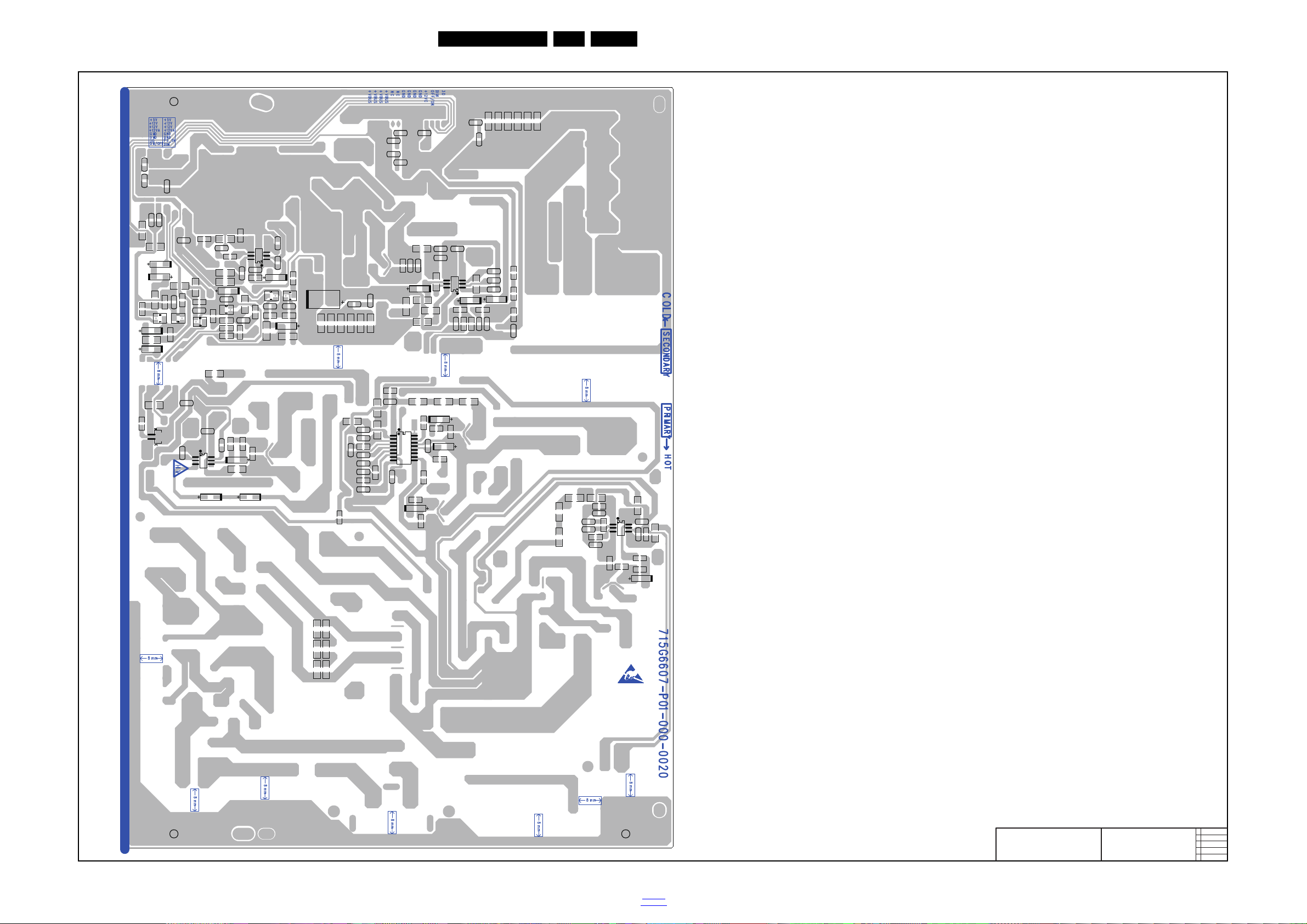

10-5-6 Power layout bottom

19690_505.eps

2014-02-20

A

715G6607

LAYOUT BOTTOM

JR905

JR906

JR903

SG5

SG6

SG7

C9101

C9102

C9106

C9107

C9108

C9109

C9112

C9113

C9115

C9116

C9119

C9123

C9128

C9129

C9130

C9132

C9133

C9134

C9135

C9137

C9138

C9139

C9141

C9142

C9143

C9144

C9338

C9322

C9323

C9329

C9326

C9320

C9324

C9318

C9337

C9321

C9312 C9316

C9315

C9314

C9302

C9804

C9806

C9807

C9808

C9809

C9810

R9103

R9104

R9109

R9112

R9116

R9117

R9118

R9119

R9120

R9122 R9127

R9128

R9130

R9133

R9134

R9136

R9137

R9148

R9149

R9150R9151

R9152

R9154

R9156

R9163

R9311

R9312

R9327

R9328

R9314

R9342

R9329

R9340

R9341

R9332

R9802

R9803

R9806

R9810

R9811

R9812

R9813

R9814

R9101

R9102

R9105

R9113R9114R9115

R9123

R9124

R9129

R9131

R9132

R9139

R9141

R9142

R9143

R9309

R9318

R9338

R9337

R9325

R9324

R9316

R9319

R9320

R9315

R9322

R9323

R9310

R9305

R9303

R9308

R9804

R9805

R9807

R9809

R9901

R9902

R9903 R9904

R9905 R9906

Q9103Q9104

Q9102

Q9305

IC9305

C9313

C9305

C9311

C9327

C9330

C9331

C9333

C9334 C9335

C9336

R9304

R9307

R9317

R9330

R9331

R9334

R9339

R9313

R9335

R9336

Q9304

R9138

JR904

IC9302

IC9801

IC9301

IC9303

JR901

JR902

R9333

C9145

Q9101

D9109

D9110

D9113

D9114

D9302

D9304

D9803

ZD9101

ZD9103

ZD9105

ZD9106

ZD9107

ZD9301ZD9302

D9306

IC9101

ZD9303

D9307

ZD9304

Circuit Diagrams and PWB Layouts

EN 64TPS14.2A LA 10.

2014-Sep-26

back to

div.table

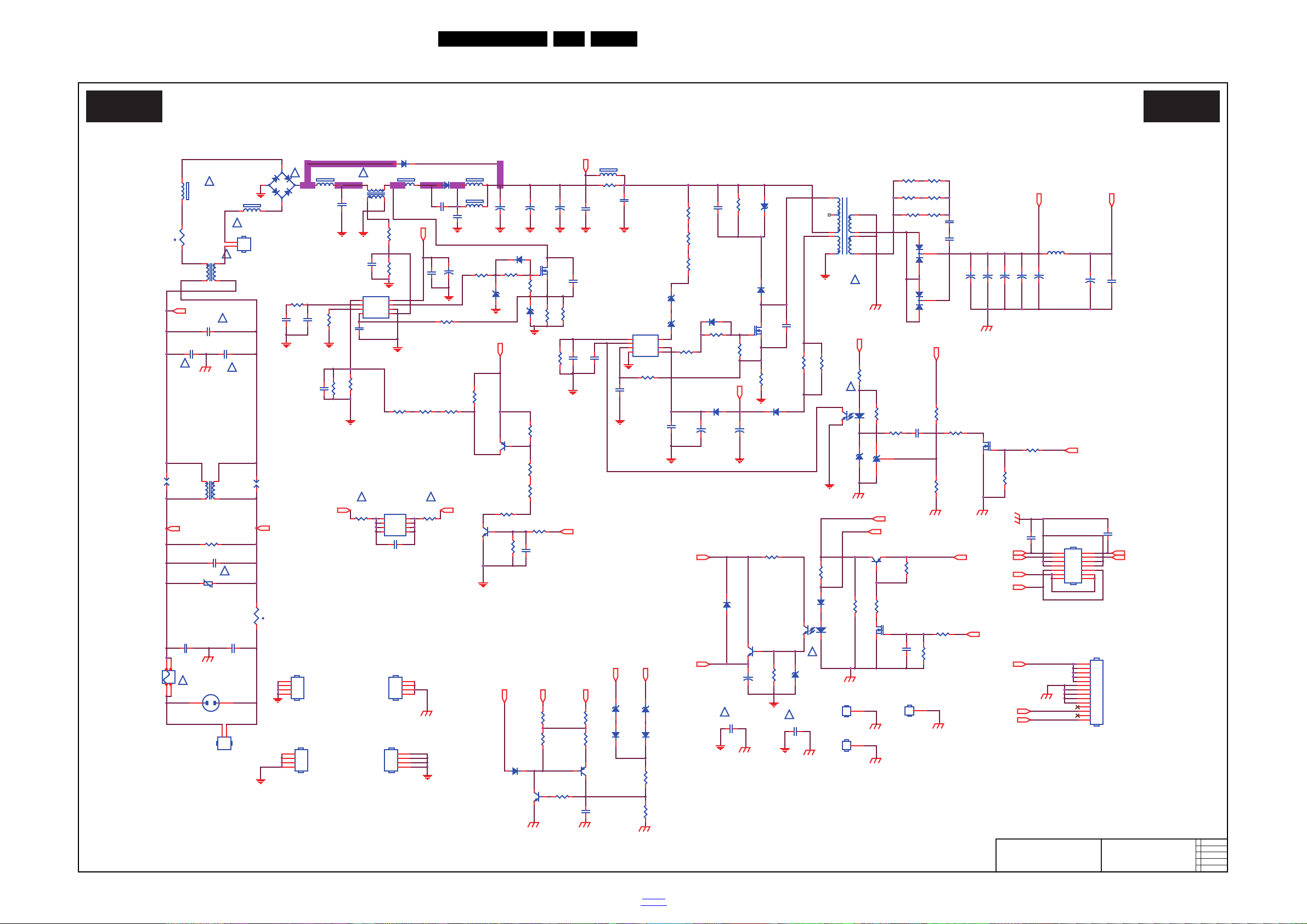

10.6 A 715G6555 PSU

19692_514.eps

A01 A01

2014-05-16

715G6555

Power circuit

!

D9310 FR107

C9956

1NF 250V

!

HS9901

HEAT SINK

1

2

3

4

F9901

FUSE

1 2

3 4

IC9801

LD7591T

INV

1

COMP

2

RAMP

3

CS4ZCD

5

GND

6

OUT

7

VCC

8

D9308

SS1060FL

C9910

470nF 275V

C9911

470nF 275V

GND3

GND

1

+12V

B1+

Q9803

PMBTA45

R9811

NC

Q9802 PBHV9050T

R9817 100KOHM +-5% 1/8W

24VA

VCC_ON

C9144 100N 50V

R9822

5K1 +-5% 1/8W

R9821

20K 1/8W 1%

R9140 1K 1/8W 1%

C9824 100N 50V

Q9103

PMBS3904

D9109 1N4148

ZD9101

GDZJ30B

1 2

R9350 1K 1/8W 1%

R9819 1MOHM +-1% 1/4W

R9351 2K 1/8W 1%

R9818 1MOHM +-1% 1/4W

Q9106 PMBT3906

ZD9102

GDZJ15B

1 2

R9820 1MOHM +-1% 1/4W

R9111

0 OHM +-5% 1/8W

R9139 100 OHM 1%

R9813

1MOHM +-1% 1/4W

R9143

NC

R9814

1MOHM +-1% 1/4W

R9812

1MOHM +-1% 1/4W

D9110 1N4148

D9111

SS1060FL

DV5

R9138

1K 1/8W 1%

+12V_audio

LLC OVP +12V

2D/3D

ON/OFF

PS_ON

CN9301 CONN

2 4 6

8

10 12 14

1

3

5 7

9 11 13

DIM

+12V

+12V_audio

!

R9901 1M 1/2W

!

! !

!

-

+

BD9901

KBJ1008G-FU

2

1

3

4

24VA

t

NR9901

2.5R

12

CN9101

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14

VCC_ON

C9330

100P 50V

C9809

0.47UF 50V

D9801

FMNS-1106S

FB9804 BEAD

1 2

R9903

NC/510k 1/2W

C9833

NC/47pF

+

C9803

68UF 450V

+

C9802

68UF 450V

C9171

1.5NF

+

C9801

68UF 450V

ON/OFF

+

C9316

470UF 25V

L9801

240uH

5

43

1

ZD9302 BZT52-B36

1 2

R9902

NC/510k 1/2W

Q9304 PMBT3906

C9309

2N2 500V

D9302

SS1060FL

R9802

10 OHM 1/8W

R9338 10K OHM

R9325

51 OHM 1/4W

IC9342

AS431AN-E1

C9302

NC

Q9301

TK13A65U

Q9302

2N7002K

C9303

2.2NF

R9341 10K 1/8W 1%

C9321 100N 50V

L9301 3UH

IC9341

EL817M(X)

12

43

D9305 FR107

ZD9301 BZT52-B36

1 2

C9310

2N2 500V

R9301

0.1R

+

C9311

470UF 25V

+

C9307 47UF 50V

R9340 10K 1/8W 1%

R9337

1K 1/8W 1%

ZD9304

BZT52-B16

1 2

R9332

6.2K OHM +-1% 1/8W

R9322 51 OHM 1/4W

R9809

2K 1/8W 1%

R9344

2Kohm 1/4W +/-5%

R9303

6.8K 1/4W

R9335 2K 1/8W 1%

R9320

51 OHM 1/4W

R9334 3K9 1/8W 1%

R9306

10R 1/8W 5%

R9343 2K 1/8W 5%

R9310

470R 1%

R9308

0.3R 2W

R9311

2R2 +-5% 1/4W

R9336 2K2 1/8W 5%

+

C9322

22UF 50V

R9323

51 OHM 1/4W

R9345

100K 1/8W 1%

R9307

51 oHM 1% 1/8W

R9342

10K OHM +-5% 1/8W

IC9302

EL817M(X)

12

43

R9339 330K 1% 1/8W

R9330

10K OHM +-5% 1/8W

R9321

51 OHM 1/4W

Q9303 2N7002K

C9304

10N 50V

R9302

6.8K 1/4W

C9301 10NF 1KV

+

C9312

470UF 25V

C9317

100N 50V

C9320 220N 50V

ZD9303

BZT52-B15

1 2

PS_ON

Q9305

BTC4672M3

D9309

SS1060FL

C9306 470P 50V

R9324 51 OHM 1/4W

C9308 100N 50V

+

C9313

470UF 25V+C9314

470UF 25V

R9309 10KOHM

+

C9315

NC

R9805 10K OHM +-5% 1/8W

VCC

DV5

CN905 NC/CONN

1

2

+

C9323

10UF 50V

+12V1

DV5

VCC

+12V1

LLC OVP

IC9301

LD7752B

CT

1

COMP

2

CS

3

GND4OUT

5

VCC

6

HV

8

R9305

NC

VCC_ON

+12V

D9306 FME-220B

1

2

3

R9333 9K53 1%

D9307 FME-220B

1

2

3

BOX

C9305 47nF 50V

!

FB9801 BEAD

1 2

FB9802

BEAD

1 2

ZD9305 NC/P6KE160AA0

12

R9808

20K 1/4W

FB9810 BEAD

1 2

C9909

47pF 250V

C9908 47pF 250V

C9907

220PF 250V

C9906

220PF 250V

R9816 NC

C9810

100P 50V

R9815 19K1 +-1% 1/8W

SG9904

NC/DSPL201M-A21F

R9331 330K 1% 1/8W

C9804

470PF1KV

R9804

0.2R

SG9905

NC/DSPL201M-A21F

FB9904

BEAD

1 2

L9901

12MH

124

3

FB9805

NC/BEAD

1 2

L9902

12MH

124

3

T9301

POWER X'FMR

1

2

3

4

5

6

7

9

10

CN901

SOCKET

1 2

!

t

NR9902

2.5R

12

C9815

1UF 450V

DIM

R9806

27K 1/8W 1%

C9806

100N 50V

C9805

47P 50V

ZD9801

BZT52-B16

1 2

Q9801

TK16A60W

ZD9802

BZT52-B16

1 2

R9807

330 OHM 1/4W

R9803

51 oHM 1% 1/8W

+

C9807

10UF 50V

R9810

10K 1/4W

C9812 NC/47pF

R9801

0.2R

C9814 1N 50V

B1+

FB9903

BEAD

12

IC9999

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

!

HS9301

HEAT SINK (Q9301)

1

2

3

4

C9955

470pF 250V

A

B

C9901 NC

CN9903

NC/CONN

L

1

N

2

R9312

NC/2.7 OHM 1/4W

D9804

SS1060FL

B

A

R9304

6.8K 1/4W

HS9302

HEAT SINK

1 2

3

4

D9802

S8KC

C9331

100P 50V

C9808 47N 50V

GND1

GND

1

D9301 FR107

HS9801

HEAT SINK

1 2

3

4

RV9901

680V

R9313

82K 2W

GND2

GND

1

10-6-1 Power circuit

Circuit Diagrams and PWB Layouts

EN 65TPS14.2A LA 10.

2014-Sep-26

back to

div.table

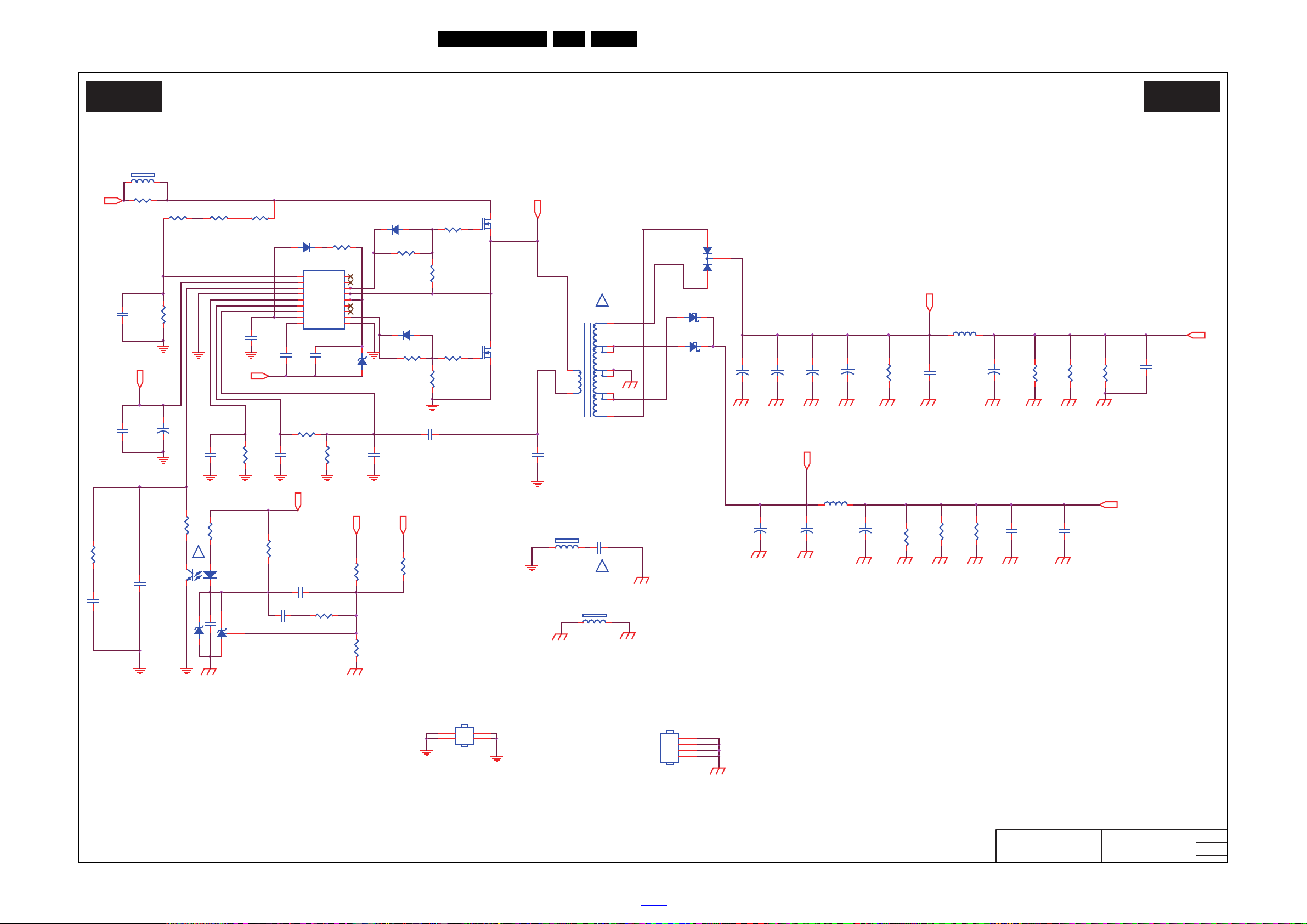

10-6-2 LLC Main Power

19616_501.eps

LLC Main Power

A02 A02

2014-05-16

C

715G6555

LLC Main Power

HS9102

HEAT SINK

3

4

1 2

R9145

20K 1/8W 1%

C9157 22nF

+

C9147 10UF 50V

R9161

19.1KOHM +-1% 1/8W

R9163 2K 1/8W 1%

C9912

470pF 250V

R9180 30KOHM +-1% 1/8W

R9175

1.5K 1/4W

R9171

5.1K 1/4W

C9170 100N 50V

D9117

SR560-MK23-C

1 2

!

C9151 1UF

C9153

1UF

R9151

10R 1/8W 5%

R9141

0.1R

+

C9164 330UF 35V

C9159

10nF

R9149

470OHM +-5% 1/8W

+

C9168 470UF 25V

+

C9163

470UF 25V

+

C9169 470UF 25V

R9172

5.1K 1/4W

R9173

5.1K 1/4W

R9153

10K 1/8W 1%

R9174

5.1K 1/4W

R9156

10K 1/8W 1%

C9152

10PF 3KV

R9176

1.5K 1/4W

R9158

6.2K OHM +-1% 1/8W

R9177

1.5K 1/4W

ZD9104

GDZJ15B

1 2

R9160

1K 1/8W 1%

R9148 NC

24V

ZD9105

GDZJ22B

1 2

R9144

1M5 1/4W 1%

R9146 2K43 1/8W 1%

C9150

2.2UF 25V

IC9106 EL817M(X)

12

43

D9113

SS1060FL

D9112

SS1060FL

L9105

5uH

R9101 200R 1/8W 1%

L9106

5uH

VBoot

B1+

C9156

100PF1KV

C9149 100N 50V

C9155 1N 50V

VBoot

D9115 FMEN-2308

1

2

3

C9165 100N 50V

IC9101

SSC9522S

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

C9154 560P 50V

R9152

47OHM +-5% 1/8W

IC9107

AS431AN-E1

R9154

47OHM +-5% 1/8W

C9146

100N 50V

R9159

3.3K +-5%1/8W

D9114

UF4007

C9145

100N 50V

C9158 NC

C9166

1uF

C9348 100N 50V

C9148

4.7uF 10V

+12V_audio

R9147

470R 1%

+

C9161 330UF 35V

C9349 100N 50V

+

C9174 330UF 35V

+

C9172 330UF 35V

+

C9160 330UF 35V

R9142

1M5 1/4W 1%

R9150

1M5 1/4W 1%

24VA

24V

R9102

10R 1/8W 5%

Q9102 TK10A60D

Q9101 TK10A60D

R9103

10R 1/8W 5%

D9118

SR560-MK23-C

1 2

FB9833

BEAD

1 2

VCC_ON

FB9803

BEAD

1 2

T9101

830uH

1

4

5 6

7

8

9 10

11

12

FB9101

NC/BEAD

1 2

+12V_audio-1

HS9303

HEAT SINK (D9115)

1

2

3

4

+12V_audio

Circuit Diagrams and PWB Layouts

EN 66TPS14.2A LA 10.

2014-Sep-26

back to

div.table

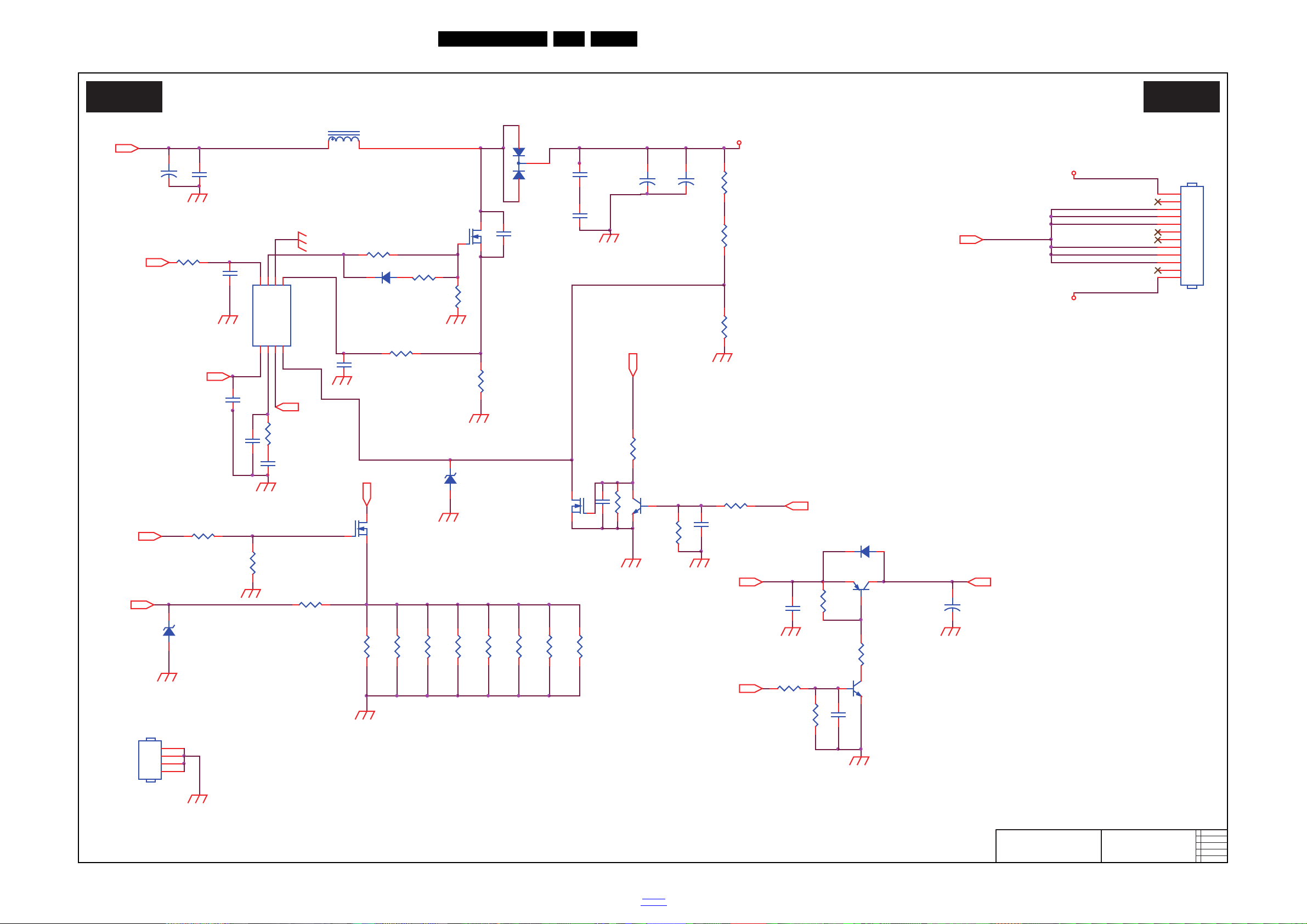

10-6-3 LED Driver

19616_502.eps

LED Driver

A03 A03

2014-05-16

C

715G6555

LED Driver

Q8102 NC/MTBA5N10J3

R8107 NC/0R1 5% 3W

LED_a

C8130

NC/47PF

R8106

NC/10K OHM +-5% 1/8W

D8101 NC/FMWN-2308

1

2

3

+

C8107

NC/82uF 100V

R8123 NC/15K 1/8W 1%

R9119 NC/30K 1/4W

R8127

NC

Q8105 NC/PMBS3904

+

C8101

NC/330UF 35V

Q8101

NC/TK12A10K3

R8114 NC/100R 1%

+

C8118

NC/82uF 100V

Q8104 NC/PMBT3904

R8122

NC/100KOHM +-5% 1/8W

R8120

NC/1.2 OHM

CN8501

CONN

1

2

3

4

5

6

7

8

9

10

11

12

C8103

NC/1uF

C8104 NC/1nF 50V

D8102 NC/1N4148W

D8103 NC/1N4148W

Q8106 NC/PMBS3906

ZD8102

NC/BZT52-B22

1 2

HS9101

NC/HEAT SINK

1 2

3

4

R8112 NC/330K +-1% 1/4W

R8115

NC/1.2 OHM

R8103 NC/10K 1/10W 5%

R8117 NC/27K 1/8W 1%

R8129

NC/1oHM 1% 1/4W

C8113 NC/0.1uF 50V

ZD8101

NC/BZT52-B4V7

1 2

R8108

NC/330R 1/8W 5%

R8125

NC/1.2 OHM

R8105

NC/2R2 +-5% 1/8W

R8113 NC/1K OHM +-5% 1/8W

C8109

NC/470NF 50V

R8111 NC/10K OHM +-5% 1/8W

IC8101

NC/PF

䠗7903BS

DIMOUT1GM2FB3OVP/DIM

4

CS

5

GND

6

OUT7VCC

8

R8109 NC/10 OHM 1/4W

Q8103

NC/2N7002 R8110 NC/100R 1%

R8101 NC/10K OHM +-5% 1/8W

R8128

NC/1oHM 1% 1/4W

R8118

NC/1.2 OHM

R8121 NC/51K +-5% 1/8W

R8124 NC/10K 1/10W 5%

C8110 NC/1NF

C8114

NC/1uF

R8104

NC/22OHM +-5% 1/8W

C8106 NC/220nF50V

R8102 NC/47KOHM +-1% 1/8W

+

C8115 NC/22UF 50V

R8126

NC/1.2 OHM

C8112

NC/1nF

R8116 NC/330K +-1% 1/4W

FB

C8105 NC/0.1uF 50V

C8111 NC/100N 50V

DIMOUT

VCC_1

DIMOUT

VCC_1

FB

LED_a

+12V

DIM

ON/OFF

24VA

VLED+

C8108

NC/220nF50V

L8102

NC/33uH

2

1

C8120

NC/100P 50V

Circuit Diagrams and PWB Layouts

EN 67TPS14.2A LA 10.

2014-Sep-26

back to

div.table

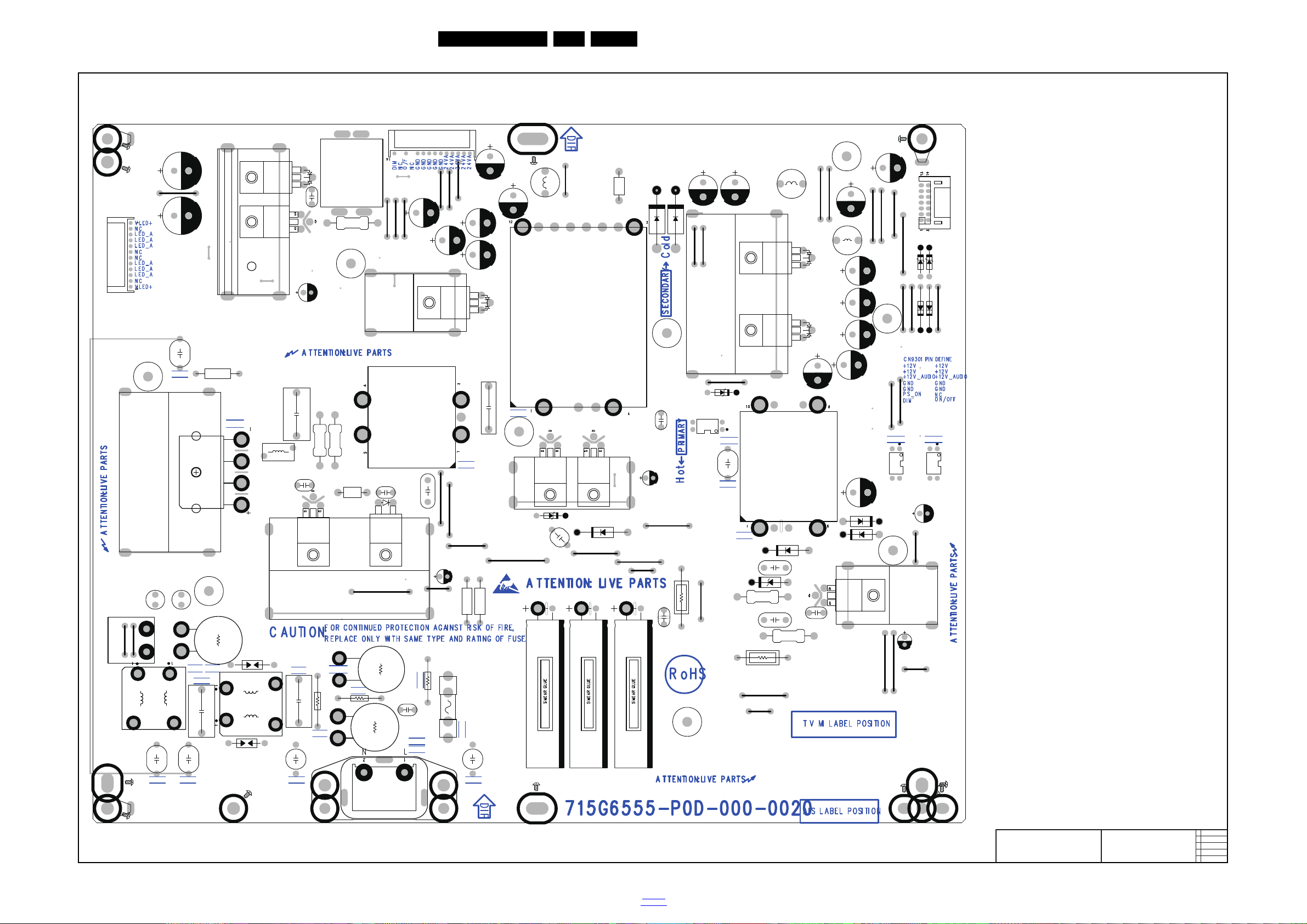

10-6-4 Power layout top

19616_503.eps

2014-05-16

C

715G6555

LAYOUT TOP

SU5

SU1

SU7

SU3

SU6

SU4

SU2

SU8

SU9

S1

S2

S3

S4

S5

C9147

C9160

C9161

C9163

C9164

C9168

C9169

C9172

C9174

C9302

C9303

C9311

C9312

C9313

C9314

C9315

C9316

C9801 C9802 C9803

C9807

C9812

C9833

C9901

CN901

CN905

D9115

D9305

D9306

D9307

D9801

F9901

FB9804

HS9102

HS9302

HS9801

HS9901

IC9106

IC9302

IC9341

L9105

L9106

L9301

L9901

L9902

NR9901

NR9902

Q9101Q9102

Q9301

R9313

R9901

ZD9101

ZD9102

ZD9104

HS9301

D9310

J924

D9114

ZD9105

J905

FB9802

FB9801

J912

J913

J903

J901

J909

J914

J917

J916

J922

J921

D9109

D9110

J918

J919

R9141

J902

J915

J934

J928

J927

J920

MH11

MH10

MH9

MH6

MH5 MH8

MH7

MH4

MH2

J929

MH12

MH1

MH3

R9301

R9308

C9322

FB9810

GND1

GND2

GND3

FB9803

T9301

T9101

RV9901

J911

J930

J907

C9157

C9152

BD9901

L9801

CN9101

HS9303

C9323

C9307

R9801

SG9904

SG9905

CN9903

L8102

C8130

CN8501

D8101

C8115

C8101

C8107

C8118

R9902

R9903

R8107

R9804

Q8101

ZD9305

FB9903

FB9904

J904

FB9101

J906

J910

J908

FB9805

J926

J923

J931

J938

J939

J940

J936

C9906

C9907

C9912

C9955

C9908

C9909

C9815

C9910

C9911

C9171

C9156

C9804

C9301

D9301

Q9801

J935

J937

J941

J942

J943

HS9101

CN9301

D9117

D9118

J925

FB9833

Circuit Diagrams and PWB Layouts

EN 68TPS14.2A LA 10.

2014-Sep-26

back to

div.table

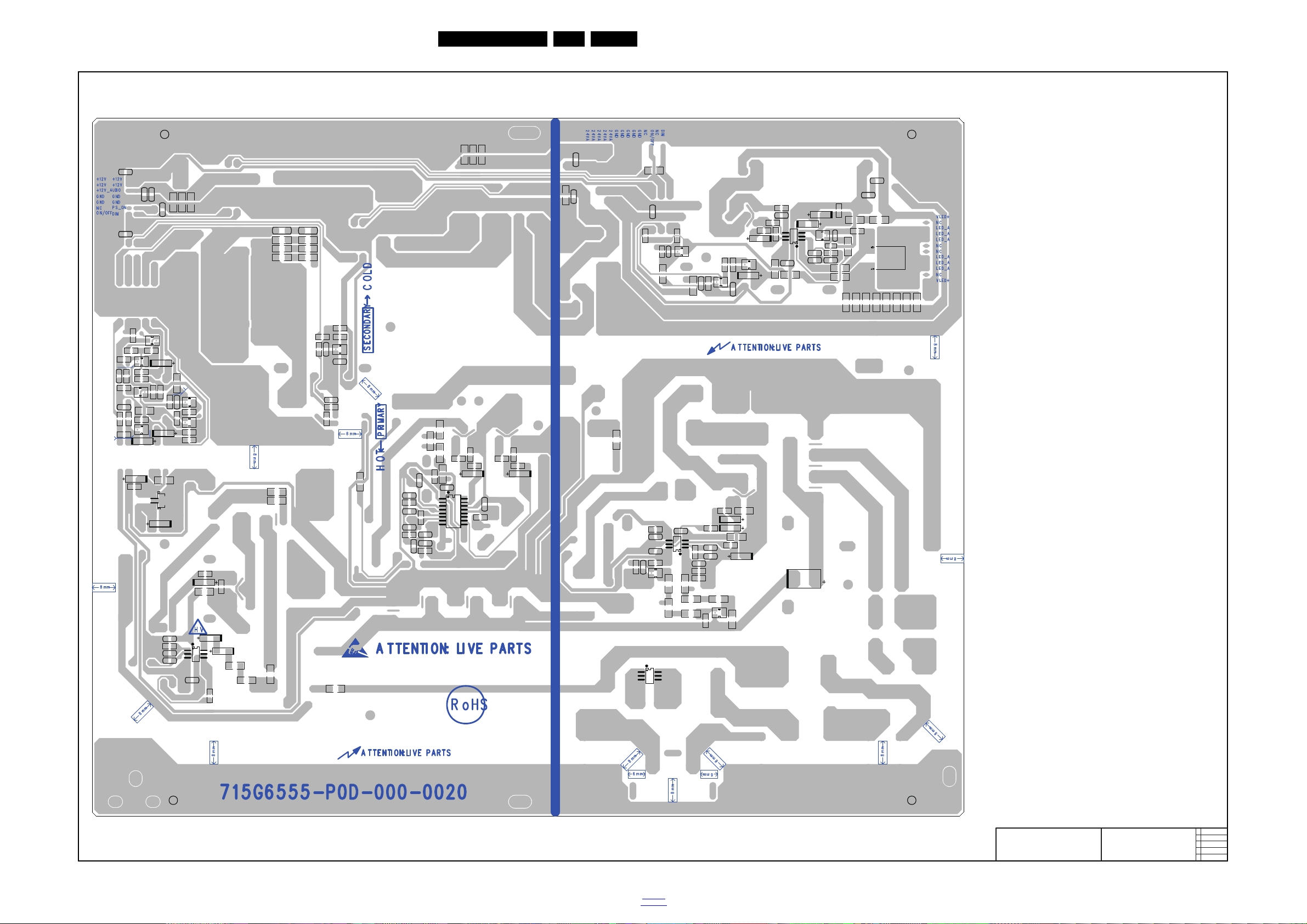

19616_504.eps

2014-05-16

C

715G6555

LAYOUT BOTTOM

C9144

C9145

C9146

C9148

C9149

C9150

C9151

C9153

C9154

C9155

C9158

C9159

C9165

C9166

C9170

C9304

C9305

C9306

C9308

C9309C9310

C9317

C9320

C9321

C9348

C9349

C9805

C9806

C9808 C9809

C9810

C9814

C9824

D9111

D9112D9113

D9302

D9308

D9309

D9804

IC9101

IC9342

Q9103

Q9106

Q9302

Q9303

Q9304

Q9305

Q9802

Q9803

R9101

R9102 R9103

R9111

R9140

R9142

R9143

R9144

R9145

R9146

R9148

R9149

R9150

R9151

R9152

R9153

R9154

R9156

R9160

R9161 R9163

R9171

R9172

R9173

R9174

R9175

R9176

R9177

R9180

R9302

R9303

R9304

R9305

R9306

R9307

R9309

R9311

R9312

R8118

R8120

R9320 R9321 R9322 R9323 R9324 R9325

R9330

R9331

R9332

R9334

R9337

R9339

R9340

R9341

R9343

R9344

R9345

R9350 R9351

R9802

R9803

R9805

R9808

R9809

R9810

R9811

R9812R9813

R9814

R9815 R9816

R9817

R9818

R9819 R9820

R9821

R9822

R8125

R8127

ZD9301

ZD9302

ZD9303

ZD9304

ZD9801

ZD9802

R9314

R9310

RJ902

R9807

R9806

RJ901

IC9999

R9336

R9335

R9138

R9139

R9342

R9333

R9338

F1F2

F3F4

IC9801

D9802

IC9301

C8104

C8112

C8103

C8105

C8106

C8108

C8109

C8110

C8111

C8113

C8114

C8120

C9330

C9331

R8103

R8124

R8101

R8102

R8104

R8105

R8106

R8108

R8111

R8113

R8117

R8121

R8122

R8123

R8109

R8112

R8115

R8116

R8126

R8128

R8129

R9119

D8102

D8103

ZD8101

ZD8102

IC8101

Q8104

Q8105

Q8106

Q8103

Q8102

IC9107

R8110

R9147

R9158

R9159

RJ903

RJ904

RJ905

R8114

10-6-5 Power layout bottom

Circuit Diagrams and PWB Layouts

EN 69TPS14.2A LA 10.

2014-Sep-26

back to

div.table

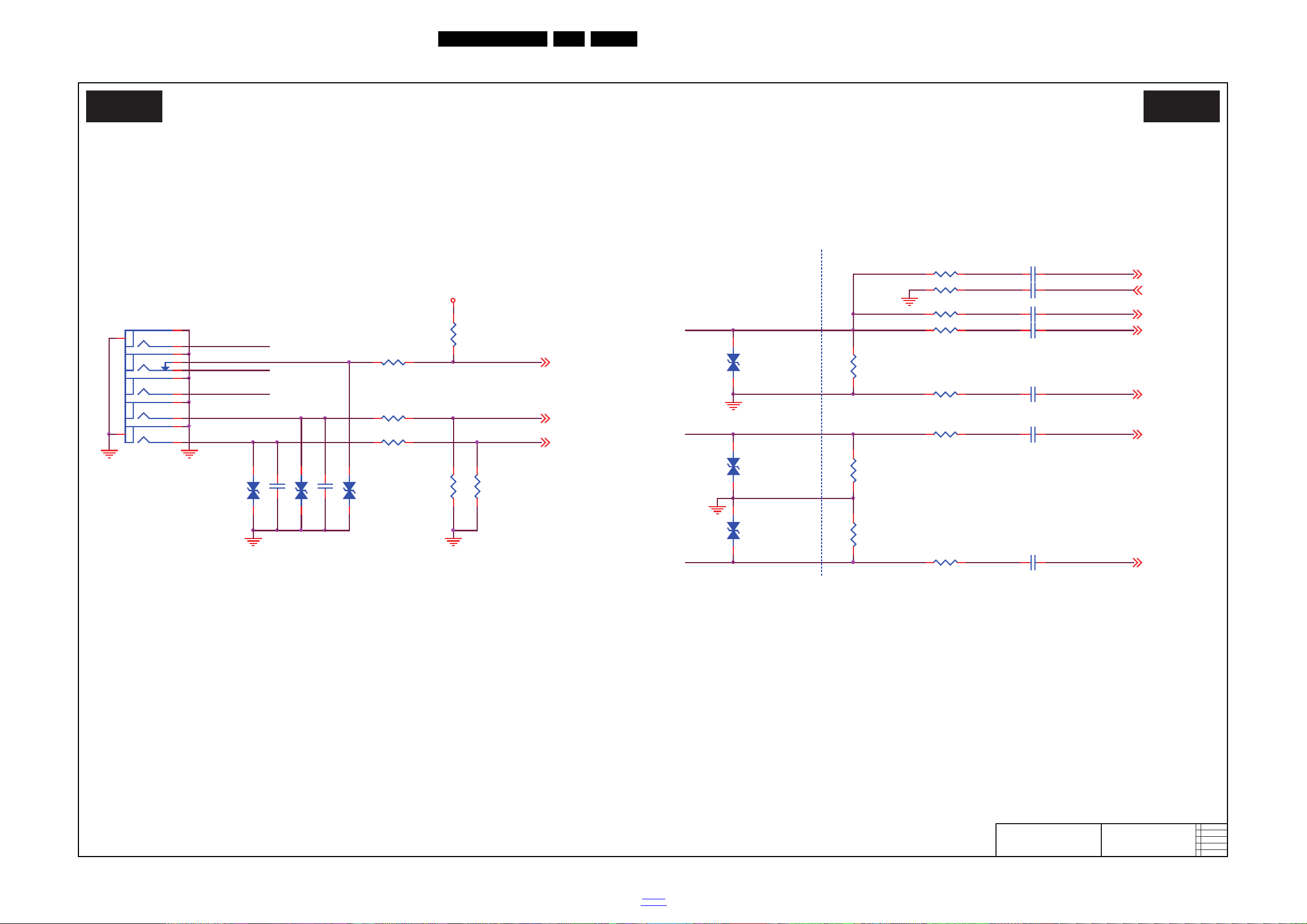

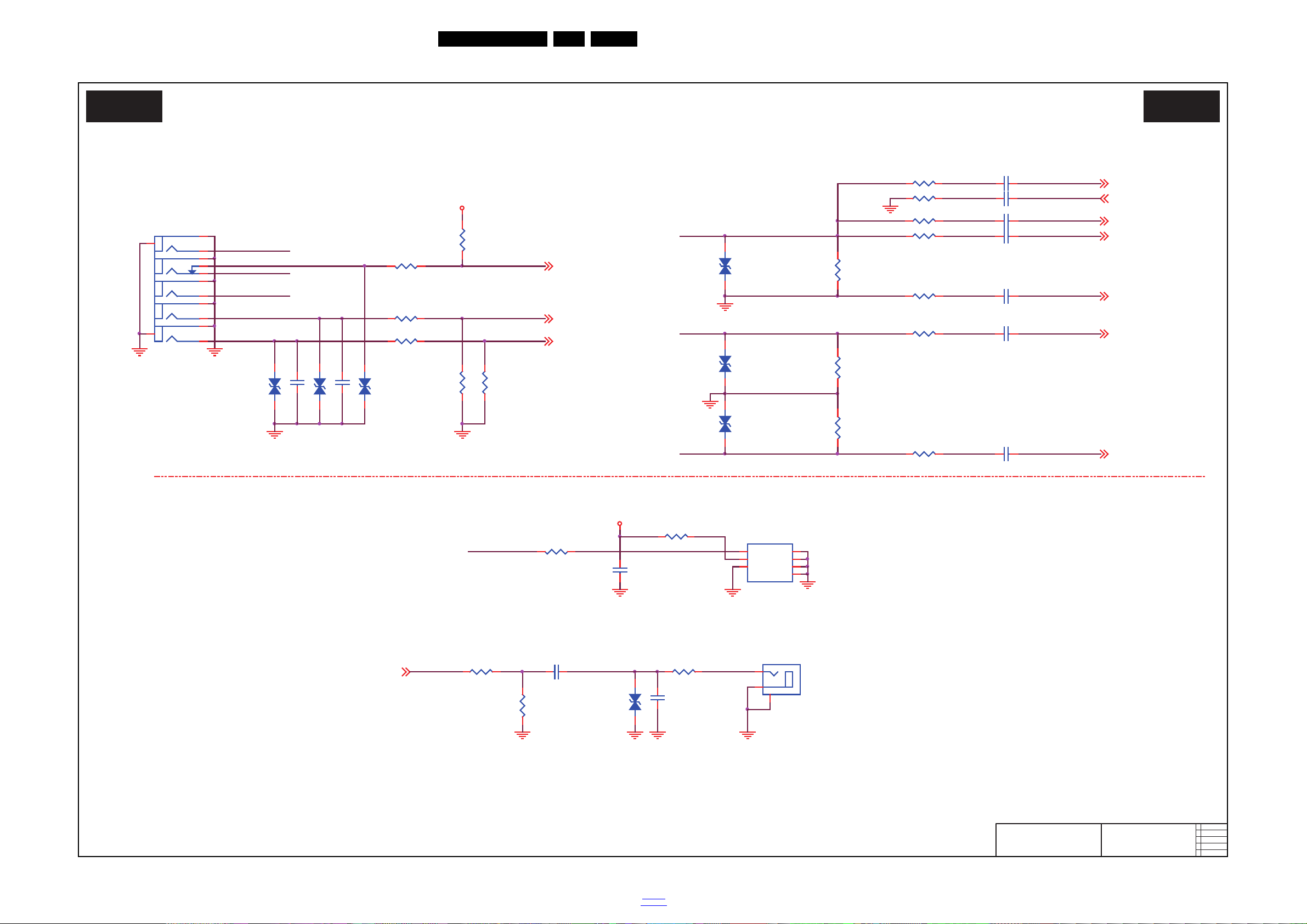

10.7 B 715G6792 SSB

19690_506.eps

AV/YPbPr/SPDIF

B01 B01

2014-04-14

715G6792

AV/YPbPr/SPDIF

Y_IN#1

PB_IN#1

PR_IN#1

YPBPR_L_IN#1

YPBPR_R_IN#1

C157 330pF 50V

PB_DET

SPDIF_OUT

088G 78G155ACL

PB_IN#1 COMP_PB

Y_IN#1

PR_IN#1

COMP_SOY COMP_Y

COMP_PR

COMP_COM

R106 100R 1/16W 5%

C110

3.3N F 50V

R112

75R 1/ 16W 1%

R116 33R 1/ 16W 5%

R119

100R 1/ 16W 5%

R111 10K 1/16W 5%

R104 33R 1/ 16W 5%

R102 150OHM 1/16W +/-5%

E

A

B

C

D

CN111

1 2

3 4

6 7

8 9

10 11

12

13

5

R103 180R 1/ 16W 5%

C113

NC

C103 47NF 16V

C108 47NF 16V

C105 47NF 16V

R181 NC

R115

75R 1/ 16W 1%

R107

75R 1/ 16W 1%

R109 10K 1/16W 5%

R113

12KOHM +-5% 1/16W

R108 68R 1/16W 5%

C104 1nF 50V

C102 47NF 16V

C101

3.3N F 50V

R114

12KOHM +-5% 1/16W

R117

NC / 33 OH M 1/16W

R110 33R 1/ 16W 5%

C114 1UF 10V

R118 180R 1/16W 5%

C107 47NF 16V

C112 47NF 16V

R105 33R 1/ 16W 5%

R101

4K7 1/16W 5%

5V_SW

COMP_PR 6

COMP_Y 6

DVDD3V3

COMP_PB 6

COMP_COM 6

COMP_SOY 6

SPDIF_OUT6

CVBS_VCOM 6

CVBS0P 6

PB_DET 6

COLAY

R182

0R05 1/ 16W

COLAY

CVBS0PAV1_IN CVBS_VCOM

YPbPr_R_In0 6

YPbPr_L_In0

YPbPr_L_In0 6

YPbPr_R_In0

CN603

NC

VIN

1

VCC

2

GND

3

TH1

4

TH2

5

TH3

6

TH4

7

A

CN604 RCA JACK

2 1

3

ZD102

NC

12

ZD103

NC

12

ZD106

NC

12

SPDIF_OUT

ZD105

NC

12

ZD104

NC

12

ZD101

NC

12

ZD107

NC

12

SPDIF

388G078G111ACL

10-7-1 AV/YPbPr/SPDIF

Circuit Diagrams and PWB Layouts

EN 70TPS14.2A LA 10.

2014-Sep-26

back to

div.table

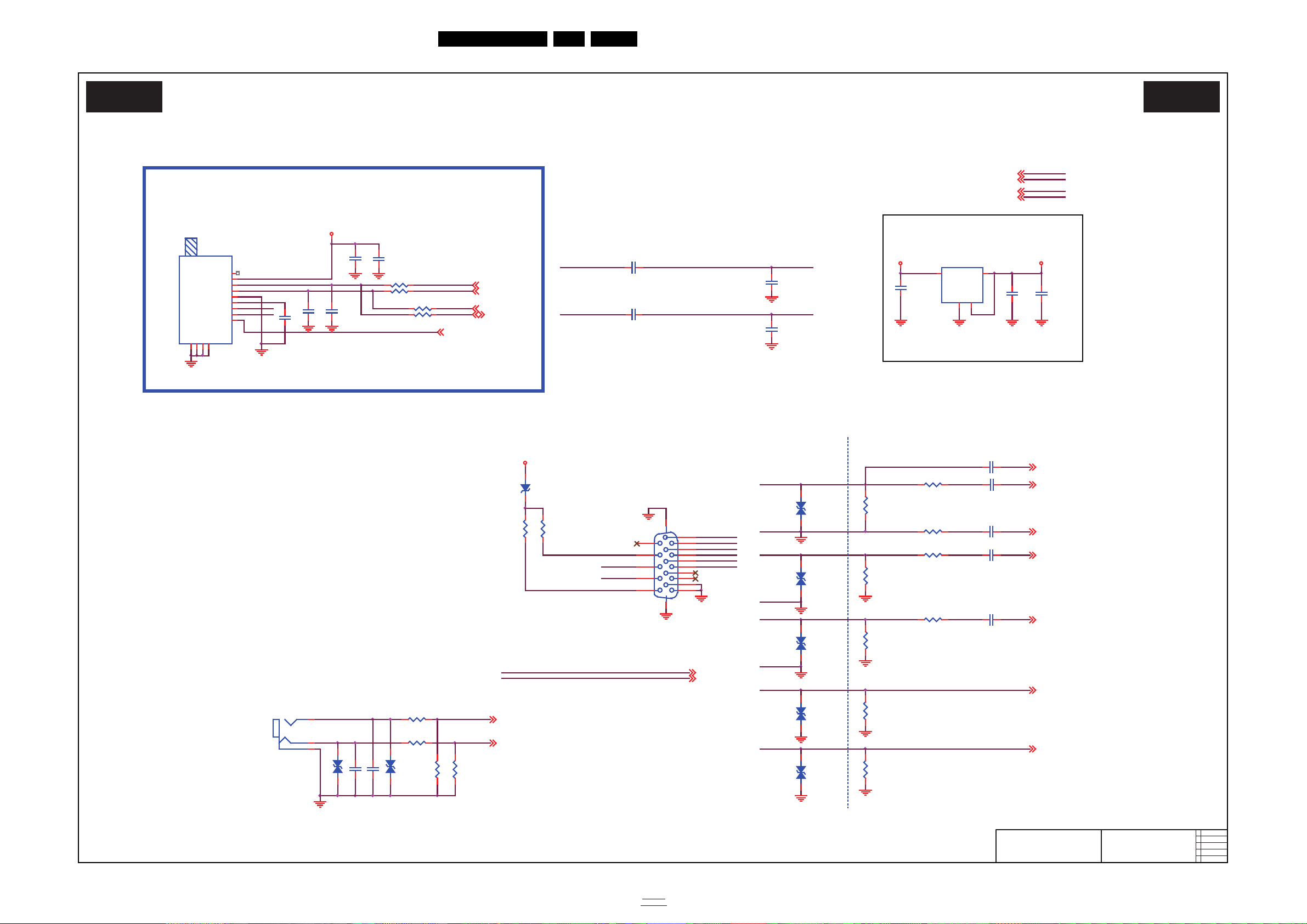

10-7-2 Tuner/VGA Input

19690_507.eps

Tuner/VGA Input

B02 B02

2014-04-14

715G6792

Tuner/VGA Input

VGA/UART

DIF1_OUT1

DIF1_OUT2

DIF210

DIF110

GRN_GND

GRN

GRNVGASDA

VSYNC#

VGAR_IN

VGASCL

BLUHSYNC#

RED_GND

BLU_GND

RED GRN_GND

088G353GFF1AXH

VGA_HS

VGA_VS

VGA_GP

HSYNC#

VGA_RP

C121 10UF 10V

BLU_GND

BLU

VGA_SOG

RED_GND

RED

VSYNC#

VGA_COM

VGA_BP

TUN_IF_AGC 10

ST33WS-2-E

VGA

TU101

ST33WS-2-E

ANT

1

3.3V

2

SCL

3

SDA

4

GND

5

GPIO1

6

IF_N

7

TH110TH211TH312TH4

13

IF_P

8

IF_AGC

9

TUN_IF+ TUN_IF-

FAT_IN-6

FAT_IN+6

VGA_L_In

VGA_R_In

R121 NC/100OHM R120 NC/100OHM

ZD108

NC

12

ZD109

NC

12

ZD110

NC

12

ZD111

NC

12

VGAL_IN

ZD114

NC

12

R146

12KOHM +-5% 1/16W

R129 33R 1/16W 5%

R140 100R 1/16W 5%

C133 1nF 50V

CN101

CONN

1 7 2 8 3 9 4 10 5

11 12 13 14 15

1716

6

C139 47NF 16V

C122

100NF 16V

R131

4K7 1/16W 5%

C127

100PF 50V

R149

10K 1/16W 5%

R133 68R 1/16W 5%

R136 33R 1/16W 5%

R135

75R 1/16W 1%

R144

10K 1/16W 5%

C182 100NF 16V

R147

12KOHM +-5% 1/16W

C137 47NF 16V

C123 1nF 50V

C128

100NF 16V

TUN_IF_AGC

CN102 CONN

1

2

3

DIF1_OUT1

U101 AP1117E33L-13-77

ADJ(GND)

1

VOUT

2

VIN

3

4

DIF1_OUT2

C189 22PF 50V

R139

75R 1/16W 1%

R130

75R 1/16W 1%

C134 47NF 16V

ZD120 BAT54

13

R132

4K7 1/16W 5%

C136 47NF 16V

DIF1_OUT2

C142

3.3NF 50V

C118

NC

DIF1_OUT1

C129

NC

C143

3.3NF 50V

R142 100R 1/16W 5%

C120 10UF 10V

R134 33R 1/16W 5%

TUNER PO W ER +3V3

R145 10K 1/16W 5%

C132 22PF 50V

I2CM_SDA 10

I2CM_SCL 10

R143 10K 1/16W 5%

C117

100NF 16V

5V_SW

+3V3TUNER

+5VSB

M_SCL 6,8,10

M_SDA 6,8,10

DDCA_DA 6 DDCA_CK 6

VGA_SOG 6

VGA_VS 6

VGA_HS 6

VGA_BP 6

VGA_GP 6

VGA_RP 6

VGA_COM 6

VGA_R_In 6

VGA_L_In 6

FAT_IN-

FAT_IN+

VGASCL DDCA_CK

DDCA_DAVGASDA

ZD112

NC

12

ZD113

NC

12

Circuit Diagrams and PWB Layouts

EN 71TPS14.2A LA 10.

2014-Sep-26

back to

div.table

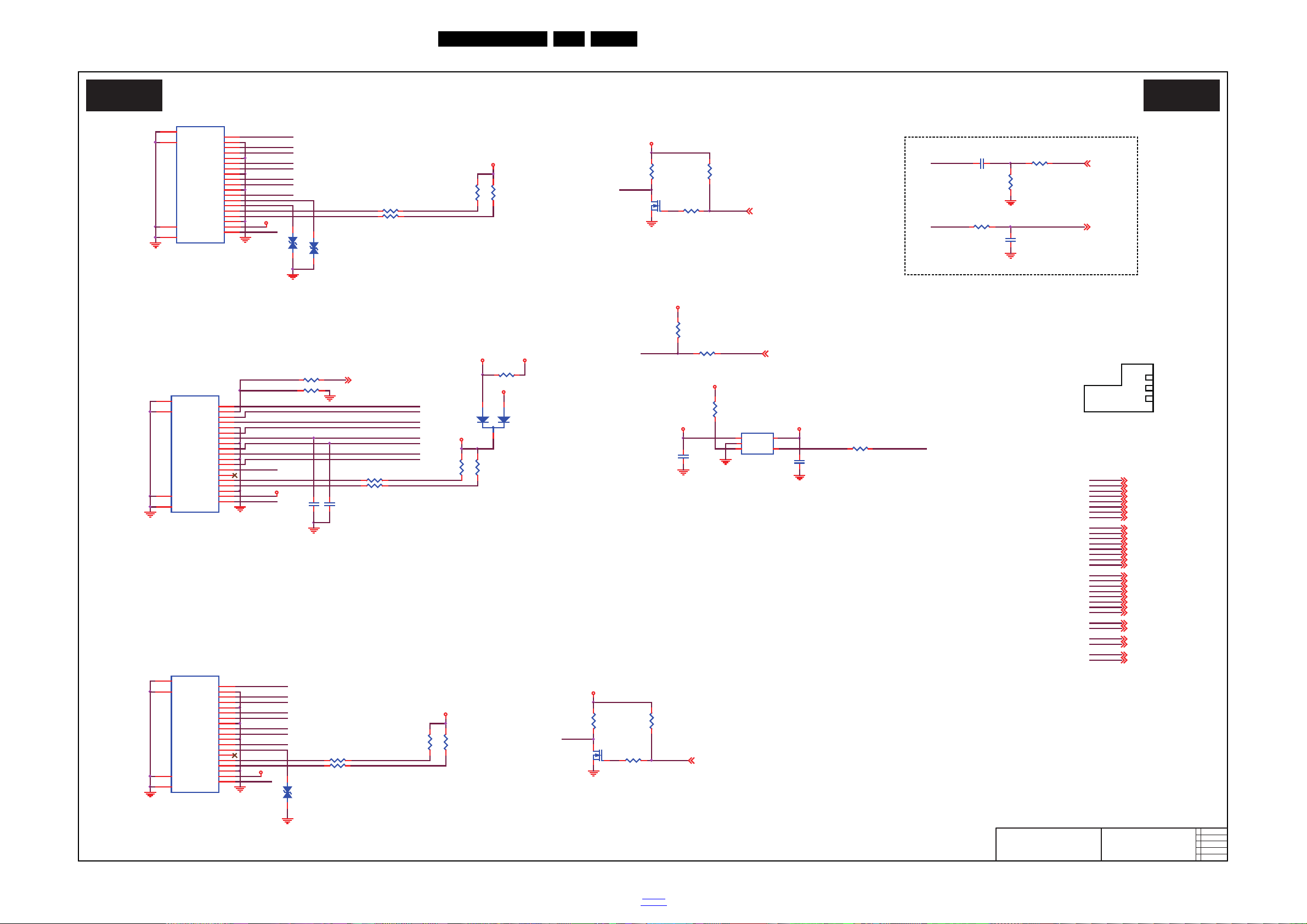

10-7-3 HDMI Inputs

19690_508.eps

HDMI Inputs

B03 B03

2014-04-14

715G6792

HDMI Inputs

HDMI_ARC

ZD518

NC

1 2

HDMI_ARC

C507 NC/ 4. 7U F 10% 10V

HDMI-CEC

HDMIB-RX2N

R558 NC / 0R 05 1/ 16W

HDMID-CLKP HDMID-CLKN

HDMI2/MHL

HDMIB-RX0P HDMIB-RX0N

MHL_CABLE-DET 6

HDMI1/ARC

HDMI3

B

HDMI2

D

A

C503

4.7PF 50V

HDMI_CEC

R506

1K 1/16W 5%

R512 4K7 1/16W 5%

R507

10K 1/16W 5%

HDMID_HPDIN

HDMID_HPDIN 6

HDMID_5V

HDMID_HPD

C508 NC/4.7UF 10% 10V

MHL_CABLE_DET

R559 NC/ 1K 1/ 16W 5%

EN_MHL_PWR

R534

NC/4K7 1/16W 5%

HDMIB_5V

+5VSB

HDMIB_5V

MHL_CABLE_DET

HDMIA-CLKP

HDMI3/DVI

HDMIA-RX1N

HDMIA_5V

HDMIA-RX0P

ZD514

NC

1 2

HDMIA_SCL

HDMIA-CLKN

R550 33 OHM 1/16W

HDMIA-RX1P

R545

10K

HDMIA-RX2N

R543

10K

HDMIA_HPD

HDMIA_5V

HDMIA-RX2P

R542

1K

HDMIA-RX0N

R544

10K

Q505 2N7002K

HDMIA_HPDIN 6

R551 33 OHM 1/16W

HDMI-CEC

HDMIA_HPDIN

HDMIA_SDA

HDMIA_5V

HDMIA_HPD

R552

4.7K 1/16W

CN507 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMID_SDA

HDMIB_5V

HDMIB-RX1N

HDMIB-RX2P

HDMIB-RX1P

HDMI-CEC

HDMIB-CLKP

HDMI-B-RX0P

HDMIB-CLKN

HDMI-B-RX0N

CN506 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMIB_SDA

HDMIB_SCL

HDMIB_HPD

U505

NC/APL3511CBI-TRG

VOUT

1

GND

2

OCB3EN

4

VIN

5

R515

NC

HDMIB_5V

C504

NC/1PF 50V

C505

NC/1PF 50V

HDMIB_HPDIN

R511 33R 1/ 16W 5%

R518 NC/300K

R533 33R 1/ 16W 5%

Q501 2N7002K

HDMID-RX2P

HDMI1/ARC

R529

47K 1/16W 5%

HDMID-RX2N

R505

NC

R508

10K 1/16W 5%

HDMID-RX1P

ZD507 LBAT54CLT1G

3

1

2

C501 1UF 10V

CN508 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

R503 0R05 1/16W

R510 33R 1/ 16W 5%

R532 33R 1/ 16W 5%

AVDD5V_MHL

HDMID-RX1N

HDMID-RX2N

HDMID-CLKN

HDMID-RX2P HDMID-RX1P

R561 10R 1/16W 5%

HDMID-RX0P HDMID-RX0N HDMID-CLKP

R517 33R 1/16W 5%

HDMIB-CLKN

HDMIB-RX2P

HDMIB-RX0P HDMIB-CLKP

HDMIB-RX0N

R501

10K 1/16W 5%

HDMIB-RX2N HDMIB-RX1P HDMIB-RX1N

R530

47K 1/16W 5%

HDMIA-RX2N

HDMIA-RX2P

HDMIA-RX0P

HDMIA-CLKN

HDMIA-CLKP

HDMIA-RX0N

HDMIA-RX1N

HDMIA-RX1P

R514 200R 1/16W 5%

HDMID_5V

HDMIB_5V

HDMIB_VCC

+5VSB

HDMI_CEC 6

HDMIB_HPDIN 6

HDMID-RX2P 6

HDMID-RX0P 6

HDMID-RX1N 6

HDMID-RX1P 6

HDMID-RX2N 6

HDMID-CLKN 6

HDMID-CLKP 6

HDMID-RX0N 6

HDMIA-RX0P 6

HDMIA-RX2N 6

HDMIA-RX2P 6

HDMID-RX1N

HDMIA-RX1N 6

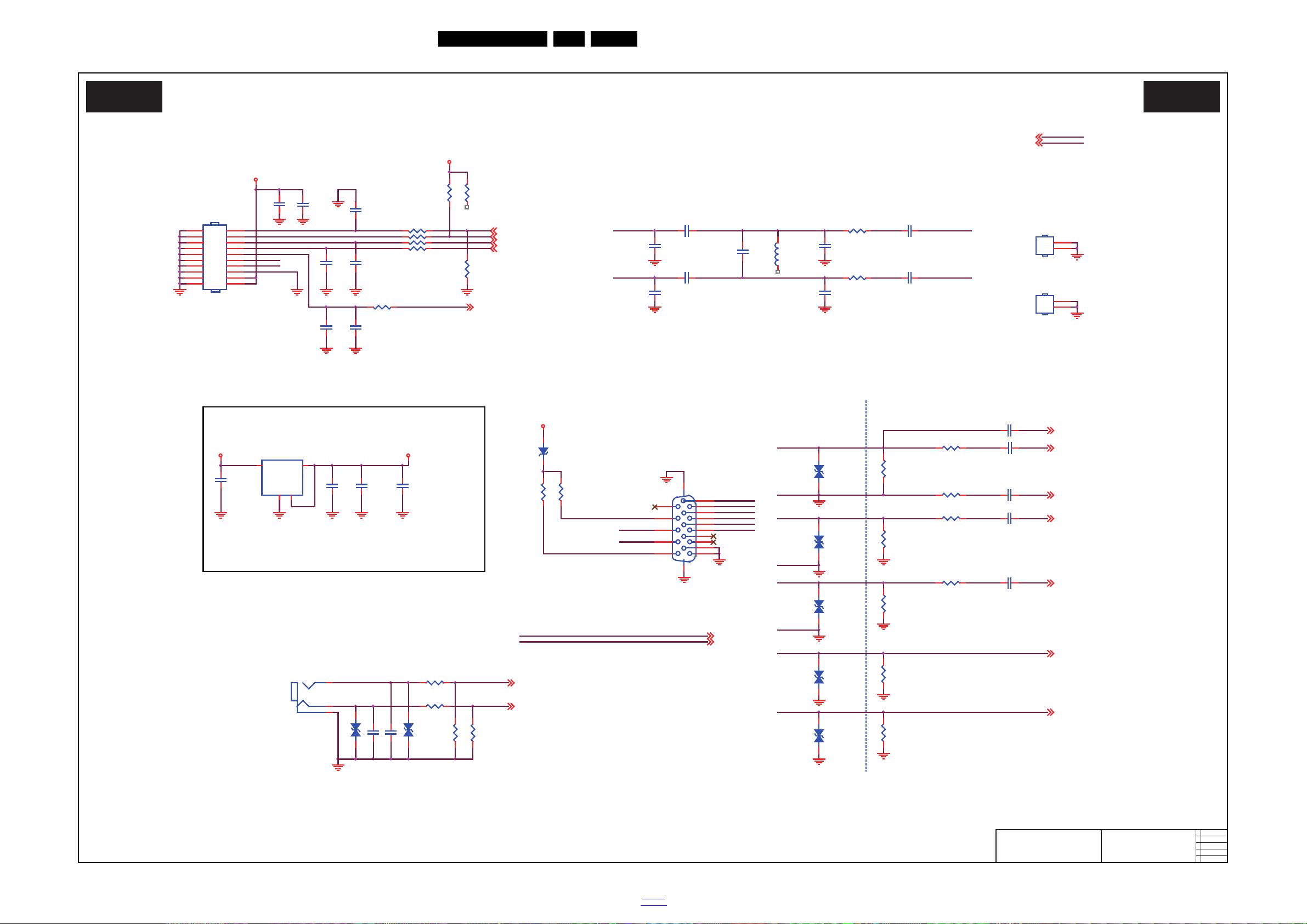

HDMIA-RX1P 6

HDMIA-RX0N 6

HDMIB-RX2P 6

HDMIA-CLKN 6

HDMIA-CLKP 6

HDMIB-RX0P 6

HDMIB-RX1P 6 HDMIB-RX1N 6

HDMIB-RX2N 6

HDMIB-CLKP 6 HDMIB-CLKN 6

HDMIB-RX0N 6

HDMIB_SCL 6

HDMID_SDA 6

HDMID_SCL 6

HDMIA_SDA 6

HDMIA_SCL 6

HDMIB_SDA 6

ARC_SPDIF 6

HDMIB_HPD

HDMID_SCL

ZD503

NC

1 2

HDMID_SDA

HDMID_SCL

HDMIB_SDA

HDMIB_SCL

HDMI-CEC

HDMIA_SDA

HDMIA_SCL

ARC_SPDIF

CEC/ARC

HDMID-RX0N

HDMID-RX0P

HDMID_HPD

Circuit Diagrams and PWB Layouts

EN 72TPS14.2A LA 10.

2014-Sep-26

back to

div.table

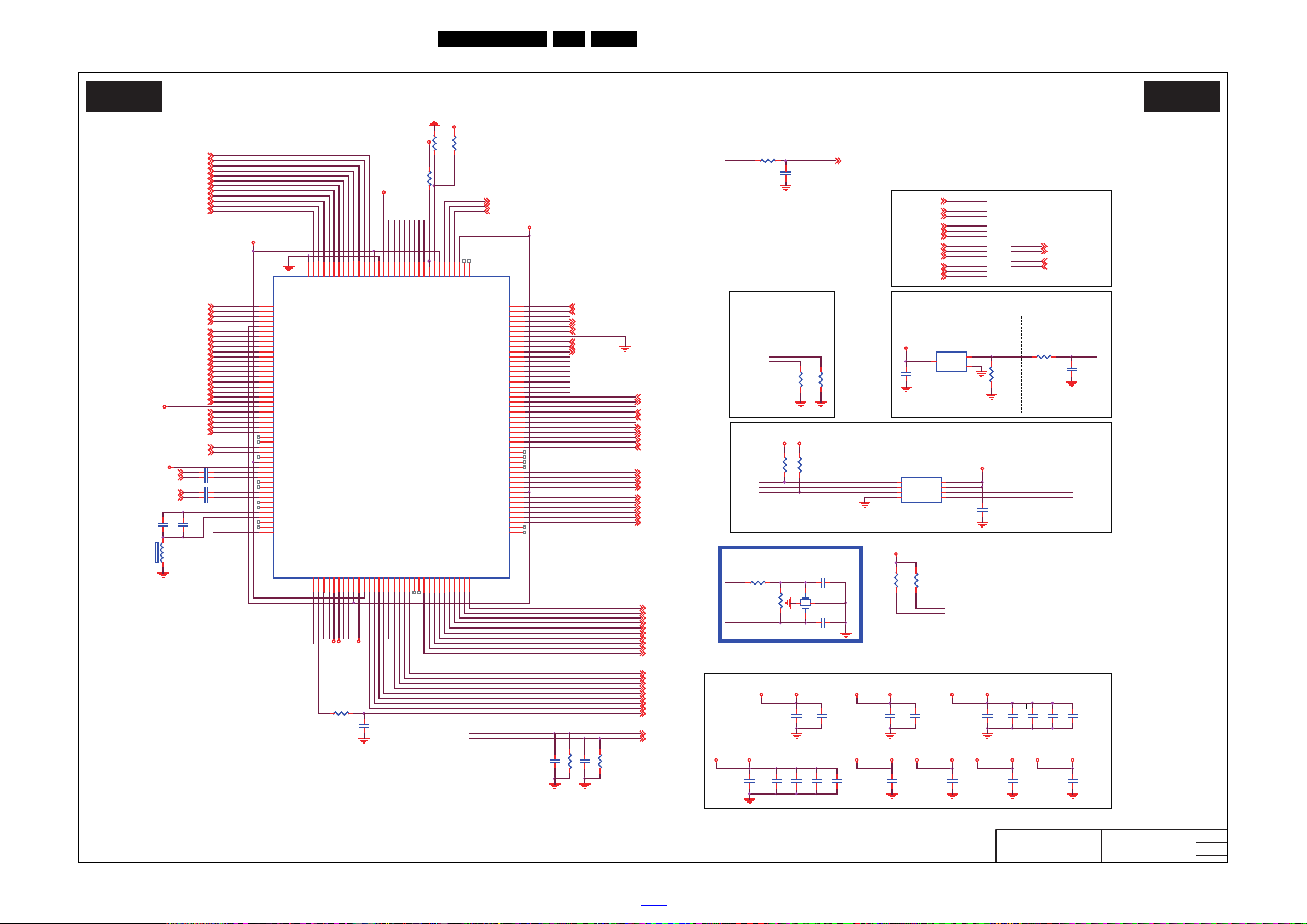

10-7-4 MSD8120_Scaler

19690_509.eps

MSD8120_Scaler

B04 B04

2014-04-14

715G6792

MSD8120_Scaler

+3V3SB

HDMID-RX2P

C402 100NF 16V

C423

100NF 16V

R450

4K7 1/16W 5%

R417

4K7 1/16W 5%

HDMID_HPDIN

HDMID_SDA

HDMID_SCL

C404

100NF 16V

R422 100R 1/16W 5%

C418

100NF 16V

BL_DIMMING

OIRI

C417

100NF 16V

HDMIB-RX0P5

SPI_CSN

C427

100NF 16V

RXEC+ 7

RXE3-

C426

100NF 16V

HDMID-RX2N5

Demod_RST 10

HDMID-RX1P

RXEC- 7

C429

100NF 16V

HDMID-CLKN5

+3V3SB

RXEC-

HDMID-RX2P5

HDMIB-CLKP

AVDD_DDR_DATAAVDD_DDR_CMDDDRV VCCK VDDCDDRV

AVDD_DMPLLAVDD_MOD

+3V3SB +3V3SB+3V3SB

AVDD_AU33

+3V3SB

AVDD3P3_VEDIO

X40 1

24MHZ

1

2 4

3

+3V3SB+3V3SB

HDMI_CEC5

ARC_SPDIF5

HDMIB_SDA5

HDMID_SCL5 HDMID_HPDIN5

HDMID_SDA5

HDMIA_SDA5

HDMIB_SCL5 HDMIB_HPDIN5 HDMIA_SCL5 HDMIA_HPDIN5

PANEL_EN 7

PWR_ON 9 SPDIF_OUT 3

FAT_IN- 4

PANEL_EN

FAT_IN+ 4

BRIGHT_ADJ

Close Scaler

RESET (H Reset)

AVDD_DADC

CHIP_CONFIG

TS_D 0 10

U403

MX25L3206EM2I-12G

CS#

1

SO/SIO1

2

WP#

3

GND4SI/SIO0

5

SCLK

6

HOLD#

7

VCC

8

TS_D 0

C433

100NF 16V

+3V3SB

AVDD_DADC

R4020R 05 OH M

M_SCL

M_SDA

BRIGHT_ADJ 9

R401NC/0R 05 OH M

AVDD_DDR_DATA

HP_DET

ORESET#

R4040R05 OHM

AVDD_DDR_DATA

SPI_WP AUDIO_RESET

AUR0 AUL0

C422 10UF 6. 3V 20%

U401

MSD8120PBM

B_ODD[0]/LVA4+

67

SOGIN1

23

BIN1P

22

GIN1M

25

GIN1P

24

CVBS0

29

CVBS1

28

AUL0

35

GIN0P

17

XOUT54XIN53AVDD3P3_DMPLL

52

AVDD_MOD

5

RIN1P

26

G_ODD[3]/LVA0-

78

GPIO7/GPIO5164B_ODD[1]/LVA4-

68

SPI_DO

111

PWM0

110

GIN0M

18

LVSYNC

95

LHSYNC

94

LDE

93

LCK

92

R_ODD[7]/LVB0-

91

R_ODD[6]/LVB0+

90

AVDD_MOD

87

GPIO2/GPIO4660GPIO3/GPIO4761GPIO5/GPIO4962GPIO6/GPIO50

63

TCON7

99

B_ODD[4]/LVACLK+71B_ODD[5]/LVACLK-72B_ODD[6]/LVA2+73B_ODD[7]/LVA2-74G_ODD[0]/LVA1+

75

G_ODD[6]/LVB3+

81

B_ODD[3]/LVA3-

70

TCON8

98

SPI_DI

112

SPI_CZ

113

SPI_CK

114

SAR0

128

SOGIN0

16

LINEOUTR3

45

LINEOUTL0

46

VRM

43

LINEOUTL3

44

IFAGC48LINEOUTR047VIFP

49

RX1N_B

1

RX1P_B

2

RX2N_B

3

RX2P_B

4

RXCN_A

6

RXCP_A

7

RX0N_A

8

RX0P_A

9

RX1N_A

10

RX1P_A

11

RX2N_A

12

RX2P_A

13

HSYNC0

14

BIN0P

15

RIN0P

19

VSYNC0

20

AVDD3P3_ADC

21

VCOM

30

CVBS_OUT1

31

VDDC

32

AVDD_AU33

33

AUR1

36

AUL1

37

AUR2

38

AUL2

39

AUR3

40

VIFM

50

VDDC57GPIO0/GPIO4458GPIO1/GPIO45

59

VDDIO_CMD

56

GPIO9/GPIO5366B_ODD[2]/LVA3+

69

GPIO8/GPIO52

65

G_ODD[1]/LVA1-76G_ODD[2]/LVA0+

77

G_ODD[4]/LVB4+

79

G_ODD[7]/LVB3-

82

R_ODD[0]/LVBC LK+

83

R_ODD[1]/LVBCLK-

84

G_ODD[5]/LVB4-

80

R_ODD[3]/LVB2-

86

R_ODD[5]/LVB1-

89

R_ODD[4]/LVB1+

88

TCON2

104

TCON1

105

TCON6

100

TCON3

103

TCON5

101

TCON4

102

HOTPLUG_A

108

TCON10

96

DDCA_DA

116

TCON9

97

PWM1

109

TCON0

106

HOTPLUG_C

107

SAR1

129

VSYNC1

27

AUR0

34

VAG

42

AUL3

41

AVDD_MOD

55

R_ODD[2]/LVB2+

85

DDCA_CK

117

TEST

118

CEC

119

IRIN

120

INT

121

DM_P0

123

DP_P0

124

RESET

122

DP_P1

126

AVDD_MOD

127

DM_P1

125

VDDC

144

GND_EFUSE

143

AVDD_5V

142

HOTPLUG_B

141

DDCDB_CL

140

DDCDB_DA

139

MHL_DET

138

DDCDA_DA

137

DDCDA_CL

136

DDCDC_DA

135

DDCDC_CL

134

GPIO10/GPIO54

133

VDDIO_DATA

132

VDDC

131

SAR2

130

RX0P_B

156

RX0N_B

155

RXCP_B

154

RXCN_B

153

RX2P_D

152

RX2N_D

151

RX1P_D

150

RX1N_D

149

RX0P_D

148

RX0N_D

147

RXCP_D

146

RXCN_D

145

E-PAD

157

ARC

115

AVDD3P3_DADC

51

LED_R

TS_CLK_S 10

AMP-AUOUTL0

TS_VLD 10

TS_CLK_S

M_SCL

TS_VLD

M_SDA

TS_SYN C 10

C410 10UF 6. 3V 20%

M_SD A 4, 8, 10

M_SC L 4,8, 10

BL_ON/OFF 9

TS_SYN C

PWM1

PWR_ON

AUR2 AUL2

C412 10UF 6. 3V 20%

C414 10UF 6. 3V 20%

PB_DET 3 HP_DET 8

LED_R 7

System XTAL

AMP-AUOUTR0

AMP-AUOUTL0

AU_SD AU_BCK

AMP-AUOUTR

C431 1nF 50V

C409

100NF 16V

R492

200K

XTALO

XTALI

C408 10UF 10V

AVDD_DMPLL

AU_MCK

FB401

60 OHM

1 2

XTALO

R428

1M 1/16W

R439

0R05 OHM

AUVRM

AU_WS

C407

15PF 50V

C406

15PF 50V

C432 1nF 50V

XTALI

R493

200K

AMP-AUOUTL

HDMIB_HPDIN

AU_SD 8

AU_WS 8

AU_MCK 8

AU_BCK 8

AMP-AUOUTR 8

AMP-AUOUTL 8

AUDIO_RESET 8

AUVAG

VDDC

SPI FLA SH

BL_ON/OFF

GPIO2

AMP-AUOUTR0

AUDIO_MUTE 8

AUDIO_MUTE

GPIO3

HDMIB_SCL HDMIB_HPDIN

HDMIB_SDA

C403 100NF 16V

AVDD_MOD

SPDIF_OUT

RXE2+ 7

RXO3+ 7

RXE1+

RXO1+ 7

RXE0- 7

RXE2-

RXE0+ 7

RXO2+

RXE2+

RXO1-

RXO2+ 7

RXO1- 7

RXO0+

RXE0RXE0+

RXO2-

RXO1+

RXO2- 7

RXO3- 7

HDMIB-RX1N5 HDMIB-RX2N5

RXO0-

RXE1-

HDMIB-RX1P HDMIB-RX2P

RXE1- 7

HDMIB-RX2P5

HDMIB-RX1P5

RXO3+

HDMIB-RX1N HDMIB-RX2N

RXE2- 7

RXO3-

RXO0- 7

RXE1+ 7

RXO0+ 7

GPIO6

C420 1UF 10V

C419 1UF 10V

C421 1UF 10V

GPIO7

C430 1UF 10V

MHL_CABLE-DET5

AVDD5V_MHL

MHL_CABLE-DET

GPIO8

SPDIF_OUT

PWR_ON

GPIO9

POWER

BL_DIMMING

R717 1K 1/16W 5%

C722 NC

LED_G 7

LED_G

HDMIA_SCL HDMIA_HPDIN

HDMIA_SDA

HDMIB_SCL

HDMIB_SDA

MHL_CABLE-DET

HDMID_SDA

HDMIA_SDA

HDMID_SCL

HDMIA_SCL

SPI_SDI

SPI_CLK

R494 1K 1/16W 5%

HDMIA-RX1N5

VGA_GP VGA_RP

HDMIA-CLKN5

HDMIA-RX0P5

VGA_BP

HDMIA-CLKN

C434 100NF 16V

HDMIA-RX0N5

HDMIA-RX2N5

VGA_COM4

HDMIA-CLKP

HDMIA-RX1P HDMIA-RX2P

VGA_COM

HDMIA-RX0P

VGA_SOG4

VGA_VS

HDMIA-RX0N

HDMIA-RX2N

HDMIA-RX1N

VGA_BP4

VGA_HS4

SPI_SDO

VGA_HS VGA_SOG

HDMIA-RX2P5

VGA_VS4

HDMIA-CLKP5

VGA_RP4

HDMIA-RX1P5

VGA_GP4

SPI_CSN

IF_AGC1 10

IF_AGC1

RXOC+ 7

RXOC-

RXOC- 7

KEY2 7 KEY1 7

RXOC+

KEY1

KEY2

YPbPr_R_In03 YPbPr_L_In03

VGA_L_In4

VGA_R_In4

COMP_PR3

COMP_Y3

COMP_PB3

COMP_COM3

COMP_PB

COMP_PR

COMP_Y

COMP_SOY

COMP_SOY3

COMP_COM

CVBS0P3 CVBS_VCOM3

CVBS_VCOM

CVBS0P

HDMIA_HPDIN

Demod_RST

HDMID-RX0P

HDMID-CLKP5

BL_DIMMING

HDMID-CLKP

PWM1

GPIO1

AVDD3P3_VEDIO

SPI_CLK

FAT_IN+ FAT_IN-

HDMID_HPDIN

HDMID-RX0N5

HDMID-RX1N

ARC_SPDIF

USB_DM 7

RXE3+

USB_DP USB_DM

USB_DP 7

HDMID-RX2N

HDMID-RX0P5

FAT_IN+

HDMIB-RX0P HDMI_CEC

ARC_SPDIF

HDMIB-CLKN5

AVDD_DDR_CMD

SPI_WP

SPI_SDI

GPIO0

C424

100NF 16V

C428

100NF 16V

HDMID-CLKN

HDMIB-CLKP5

R443

4K7 1/16W 5%

C411

100NF 16V

HDMID-RX1N5

R418

10K 1/16W 5%

DDCA_CK 4

C415

100NF 16V

AVDD_AU33

RXEC+

HDMID-RX0N

ARC_SPDIF 5

DDCA_CK

R427

100K 1/16W 5%

0603

060306030603

R449

4K7 1/16W 5%

U410 G690H293T73

GND

1

RESET

2

Vcc

3

RXE3+ 7

SPI_SDO

HDMI_CEC

R442

4K7 1/16W 5%

HDMIB-RX0N5

OIRI 7 HDMI_CEC 5

HDMID-RX1P5

DDCA_DA 4

C413

100NF 16V

RXE3- 7

FAT_IN-

HDMIB-CLKN

C425

100NF 16V

IF_AGC

HDMIB-RX0N

C416

4.7UF 6. 3V

DDCA_DA

ORESET#

Circuit Diagrams and PWB Layouts

EN 73TPS14.2A LA 10.

2014-Sep-26

back to

div.table

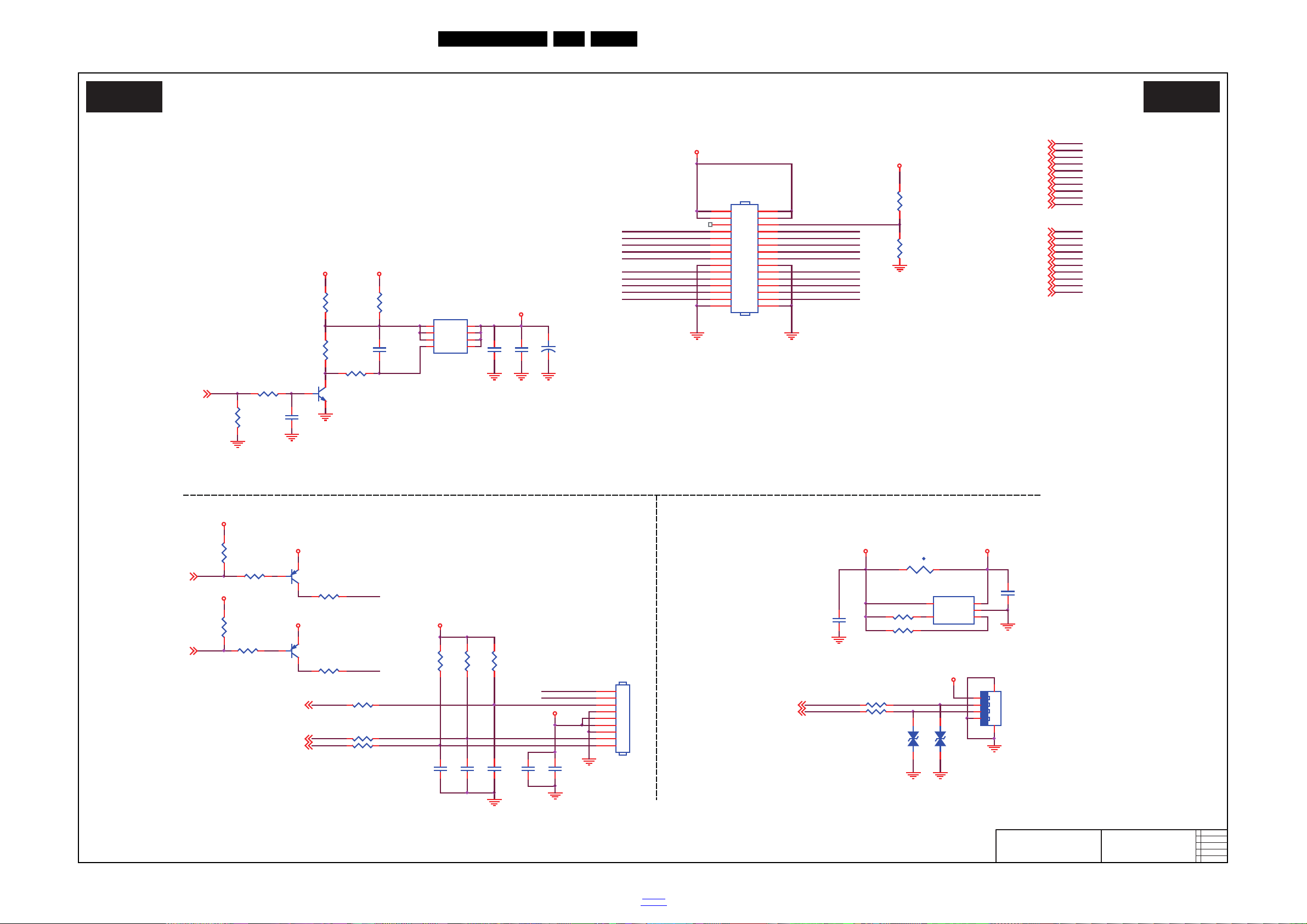

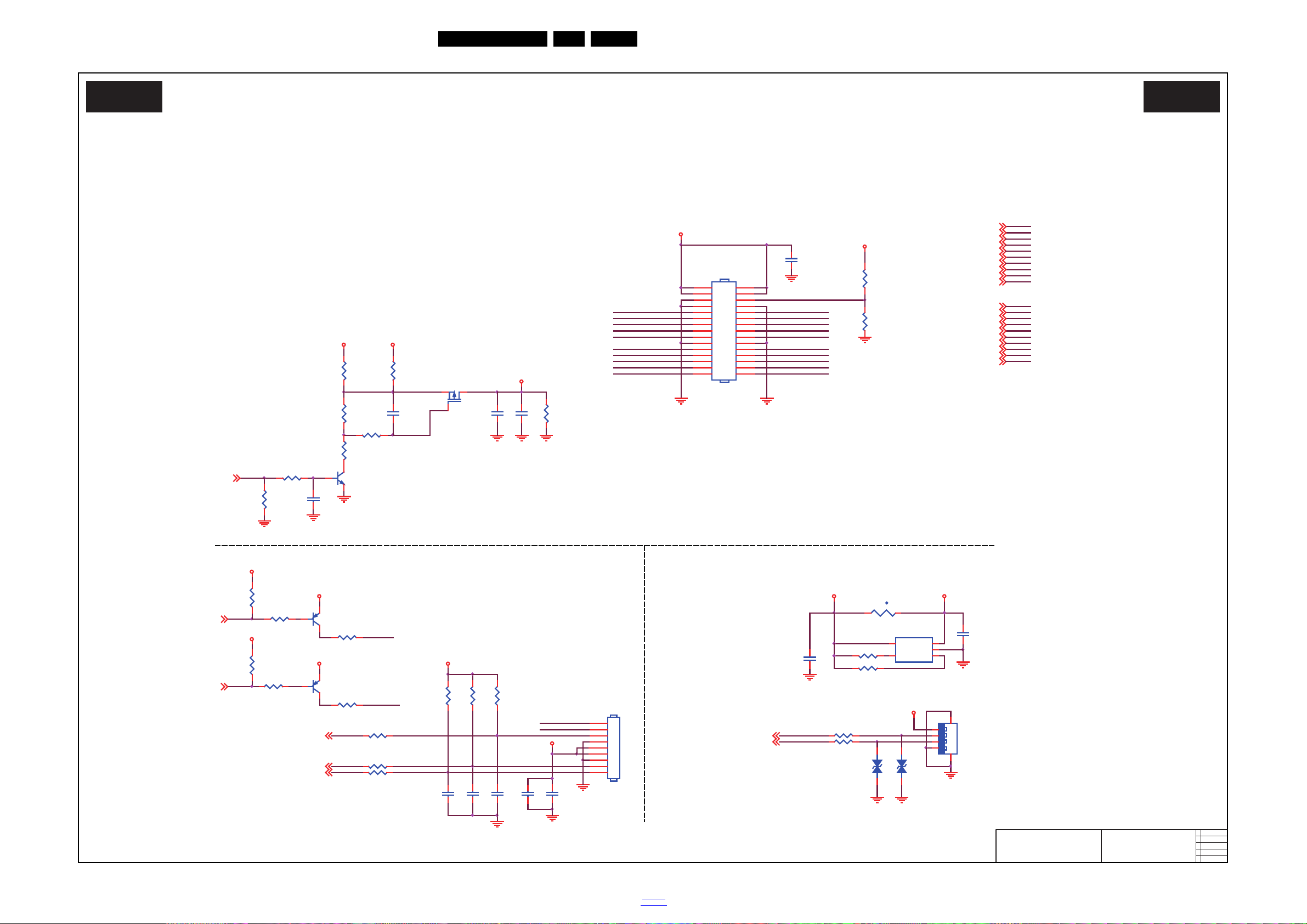

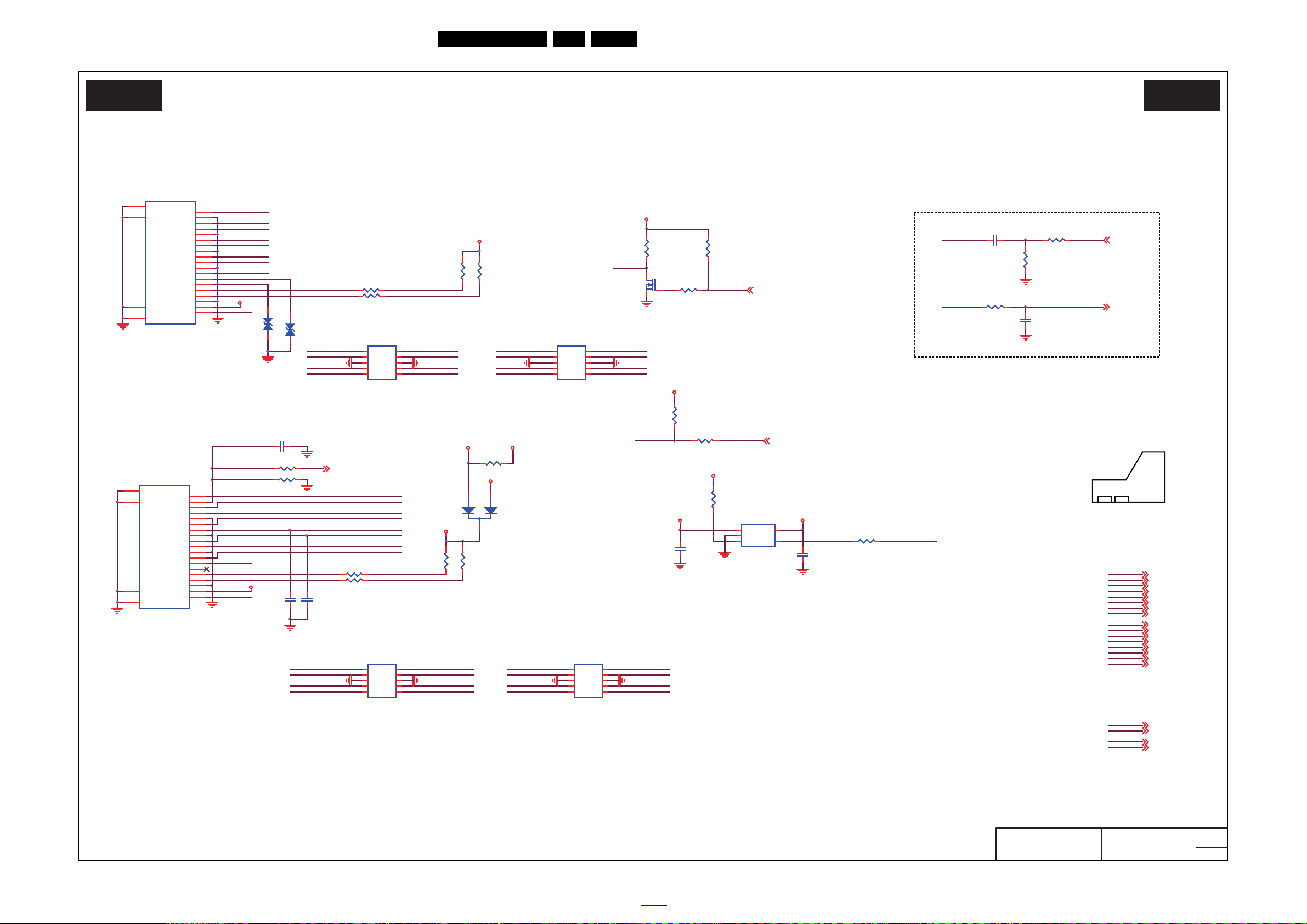

10-7-5 LVDS/USB/KEYPAD Out

19430_519_130114.eps

130114

Audio/Video IO/SPDIF

B05 B05

2012-12-15

C

715G5713

Audio/Video IO/SPDIF

Y1P

SOY0

ADCINP_DEMOD

ADCINN_DEMOD

IF BPF

VGA_R_IN

SCART1_R_IN SCART1_L_IN

GND

VGA_L_IN

AVDD33_ADAC

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

AVDD33_HPAAVDD33_AADC

Analog Power

YPBPR0_L_IN

R1047

56R 1/16W 1%

MT5580MPOI

U401J

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

C605

33pF 50V

R1043 100R 1/16W 5%

MT5580MPOI

U401C

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

R1048 100R 1/16W 5%

R1040

18R 1/16W 5%

C619 10NF 50V

C603 100NF 16V

C1034 10NF 50V

R600

240R 1/10W 5%

C1040

10UF 10V

C618

10PF 50V

R1045

56R 1/16W 1%

C620 10NF 50V

R1039 0R05 1/16W

C615 10UF 10V

C600 100NF 16V

C612 100NF 16V

R1073 75 OHM +-5% 1/16W

C601 100NF 16V

C1037

NC/10N 50V

C614 10UF 10V

C613 100NF 16V

C1036 47NF 16V

C1035

10PF 50V

C1033 1.5NF 50V

C617 10NF 50V

R1071 75 OHM +-5% 1/16W

R1050 100R 1/16W 5%

C607 1uF 10V

R1041 100R 1/16W 5%

R1042

18R 1/16W 5%

R604

51OHM 1/16W +/-5%

C606 1uF 10V

C602 100NF 16V

R1113 10R 1/16W 5%

R1088

30Kohm 1/16W +/-5%

R605 10K 1/16W 5%

R1049 100R 1/16W 5%

R601

100R 1/10W 5%

C609

10PF 50V

C622

47PF 50V

C604

100NF 16V

R603

51OHM 1/16W +/-5%

ABC

D

EF

CN112

RCA JACK

3

2

6

5

9

8

1

4

7

10

11 12

C623

47PF 50V

C611 100NF 16V

C610 100NF 16V

C1039

10UF 10V

C608 1uF 10V

C1038

NC/10N 50V

C616 10NF 50V

R1087

30Kohm 1/16W +/-5%

C621

47NF 16V

R1044

18R 1/16W 5%

YPBPR0_R_IN

R1046

56R 1/16W 1%

AVDD3V3

AVDD1V2 AVDD3V3

VGA_R_IN8 VGA_L_IN8

SCART1_L_IN8

GND2,3,4,5,7,8,9,10,11,12,13,14,15

AL0O7

SCART1_R_IN8

AR0O7

AOLRCK_D7

AOBCLK_D7 AOMCLK_D7

Y0P8

AOSDATA0_D7

PB0P8

COM08 PR0P8 VSYNC8

HSYNC8 RP8

SPDIFOUT

BP8

GP8 VGACOM8

SOG8 VGASCL8

VGASDA8 TU_FAT_IN2+14

PR1P

TU_FAT_IN2-14 OSCL212,14

CVBS3P8

OSDA212,14

IF_AGC12,14

AVDD1V2 2,9,12,13,14

SOY08

AVDD3V32,4,5,9,10,11,12,13 ARC13

Analog Power

AVDD12_DEMOD

AVDD12_RGB AVDD33_DEMOD

AVDD33_VIDEO

AVDD1V2

SPDIF_OUT

YPbPrL_INY_IN_1

YPbPrR_IN

SPDIFOUT

PB_IN_1

YPbPr & Audio IN

PR_IN_1

IF_AGC

YPbPrL_IN

---><---|>

YPBPR0_L_IN

YPBPR0_R_INYPbPrR_IN

IF_AGC

PB1P

TU_FAT_IN2+

AVDD3V3

PR_IN_1

PB_IN_1

-------><-------

YPBPR IN

PR1

PB1P

COM1

PR1P

SOY1

Y1PY1

-------><--------------><-------

PB1

Y_IN_1

CVBS1P

Video

TU_FAT_IN2-

---><---|>

SPDIF OUT

AOLRCK_D AOSDATA0_D

AOMCLK_D

AOBCLK_D

AL0O

AVSS33_HPA

AVDD33_HPA

AR0O

SPDIF_OUT

ARC

VGA_R_IN

SCART1_R_IN

SCART1_L_IN

AVDD33_AADC AVSS33_AADC

AVSS33_ADAC

AVDD33_ADAC

VGA_L_IN

VMID_AADC

AVSS33_CLN

ARC

OSDA2

OSCL2

SOG

Y0P COM0

VGASDA

CVBS_COM

PB0P

VGASCL

HSYNC

AVSS33_DEMOD

AVDD12_RGB AVSS12_RGB

VSYNC

AVSS33_VDAC_BG

AVSS33_VDAC

AVDD33_VIDEO

AVSS12_DEMOD

AVDD12_DEMOD

AVDD33_DEMOD

TU_FAT_IN2+

RP

PR0P

AVSS33_CVBS_1 AVSS33_CPUPLL

ADCINP_DEMOD ADCINN_DEMOD

TU_FAT_IN2-

GP

BP

GP

VSYNC

HSYNC

AVSS33_CVBS_2

BP

CVBS3P

VGASDA

VGASCL

VGACOM SOG

RP

VGACOM

COM0

SOY1

Y0P

PR0P

PB0P

SOY0

OSDA2

CVBS1P CVBS3P

OSCL2

Audio

COM1

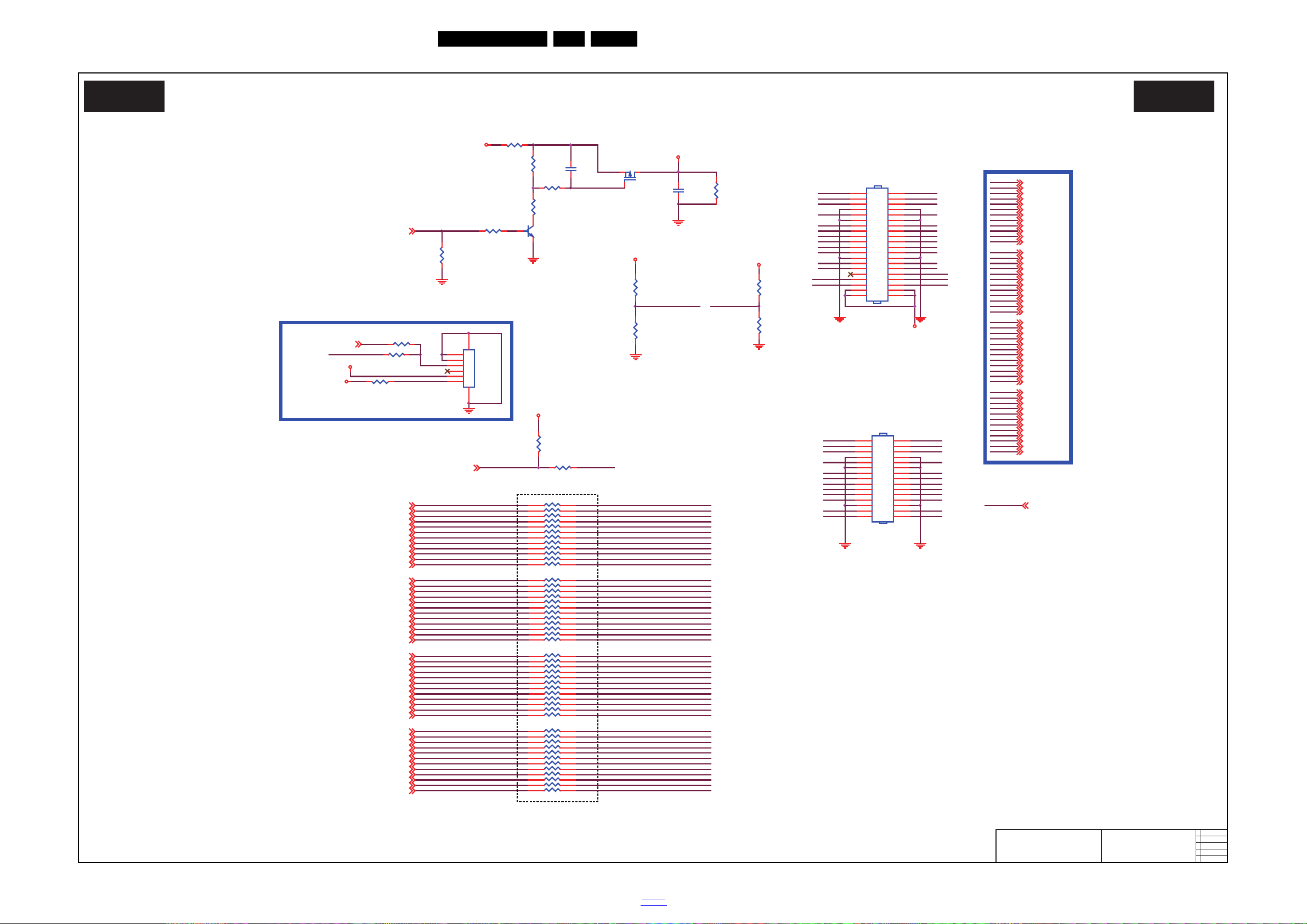

19690_510.eps

LVDS/USB/KEYPAD Out

B05 B05

2014-04-14

715G6792

LVDS/USB/KEYPAD Out

+

C140 NC/ 100U F 16V

SELLVDS

t

TH101

NC/PTCR

1 2

LED_RE

RXECRXE3-

RXE1-

RXE0RXE2-

C152 1UF 10V

C153

100NF 16V

+3V3SB

LED_GE

IR / KEY BOARD CONN. USB PORT

LED_G

R179 1K 1/16W 5%

LED_G6

+3V3SB

R177

10k

R180

1K2 OHM

Q104 MMBT3906

+3V3SB

RXEC+

RXE2+ RXE3+

RXE1+

RXE0+

RXOC+

RXO2+

RXO0+ RXO1+

RXO3+

USB 2.0

+5VSB +12V

LED_R

R172

NC

R173

0 OHM +-5% 1/8W

CN401

CONN

1 2 3 4 5 6 7 8 9

C150

4.7UF 10% 10V

R154 NC/4.7K

CN402

CONN

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

ZD121

NC

12

C158 10UF 16V

R151 4K7 1/16W 5%

C151 1UF 10V

RXO2-6

RXO0-

R168 100R 1/16W 5%

Q102 MMBT3904

RXE1-

RXO2-

RXE0+

RXO0+

RXE2-

R150

47K 1/16W 5%

1234

CN103

USB CONN

1 2 3 4

6 5

RXEC+6

C155

100NF 16V

C148

100NF 16V

RXE2-6

RXE3-6

RXE0-6

R158 5R 6 1/ 16W 5%

R162

3.9K 1%

Q103 MMBT3906

RXO1-6

C145 470NF 16V

RXOC+6

RXOC-

R155 4K7 1/16W 5%

RXO0-6

RXO2+

RXE0-

RXEC-

C154 100NF 16V

RXE1-6

RXOC+

R165 1K 1/16W 5%

R153 150K 1/16W 5%

PANEL_VCC

R159 10K 1/16W 5%

R163

10K +-1% 1/16W

RXO3-

RXE3-

Q101

AO4449 -7A/-30V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

RXO2+6

RXE2+6

DVDD3V3

RXO1-

RXE3+

R161

10K 1/16W 5%

R156

10K 1/16W 5%

RXO3-6

RXO1+6

ZD122

NC

12

R167 1K2 OHM

RXO3+6

RXEC-6

R170 1Kohm 1/16W +/-1%

R169 1Kohm 1/16W +/-1%

RXOC-6

RXE1+

C156 100PF 50V

RXE3+6

RXO0+6

RXE1+6

RXE2+

U109

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

RXE0+6

RXEC+

RXO1+

R157 5R 6 1/ 16W 5%

RXO3+

USB_DM

R164

30K OHM +-1% 1/16W

C149 NC

R160 10K 1/16W 5%

PANEL_VCC

USB_5V

5V_SW+3V3SB

+3V3SB

USB_DP6

USB_DM6

+3V3SB

PANEL_EN6

KEY26

KEY16

OIRI6

LED_R6

USB_DP

RXO0-

RXO3-

RXO2-

RXO1RXOC-

LED_RE LED_GE

KEY2_IN

KEY1_INKEY1

OIRI

KEY2

Circuit Diagrams and PWB Layouts

EN 74TPS14.2A LA 10.

2014-Sep-26

back to

div.table

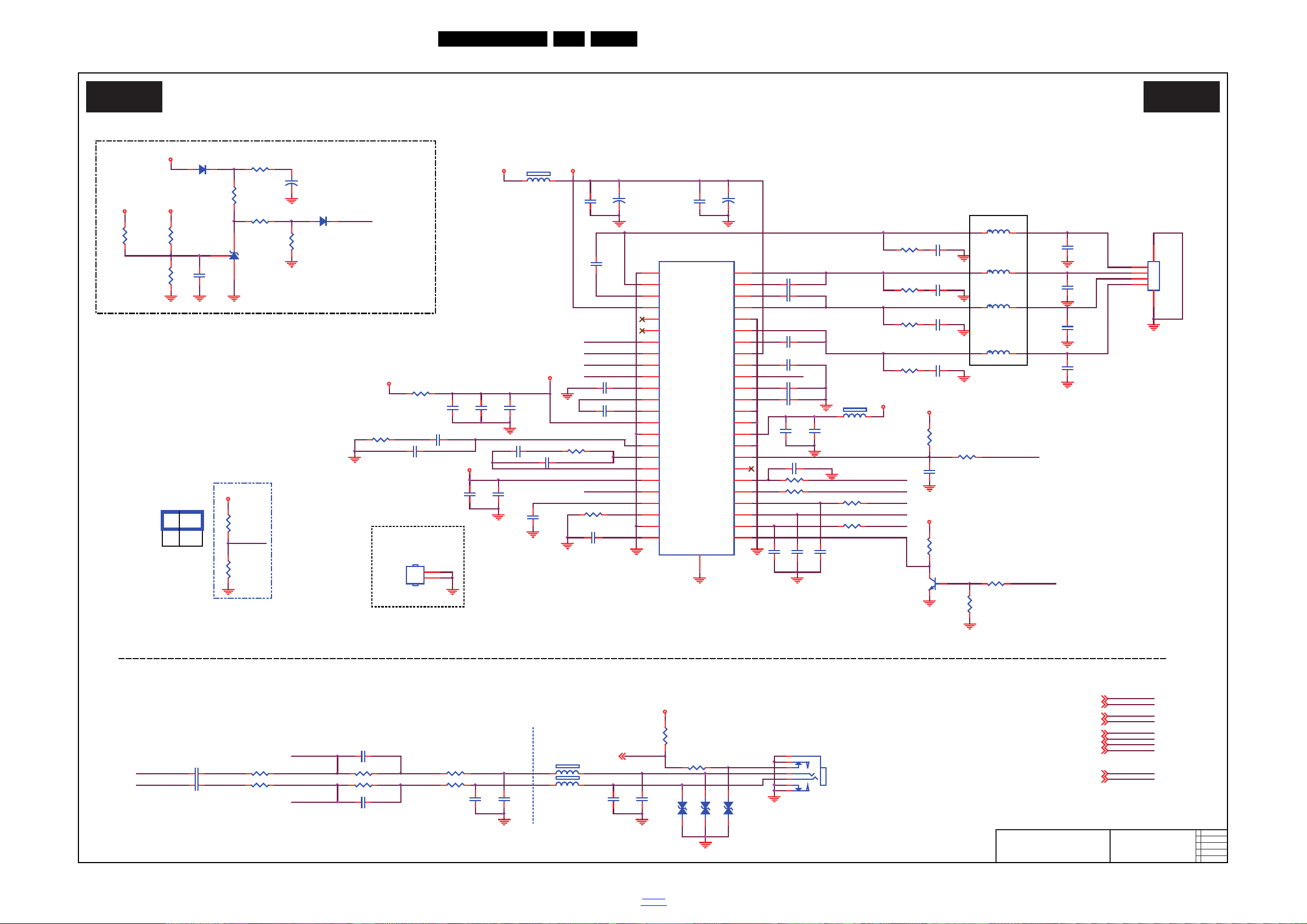

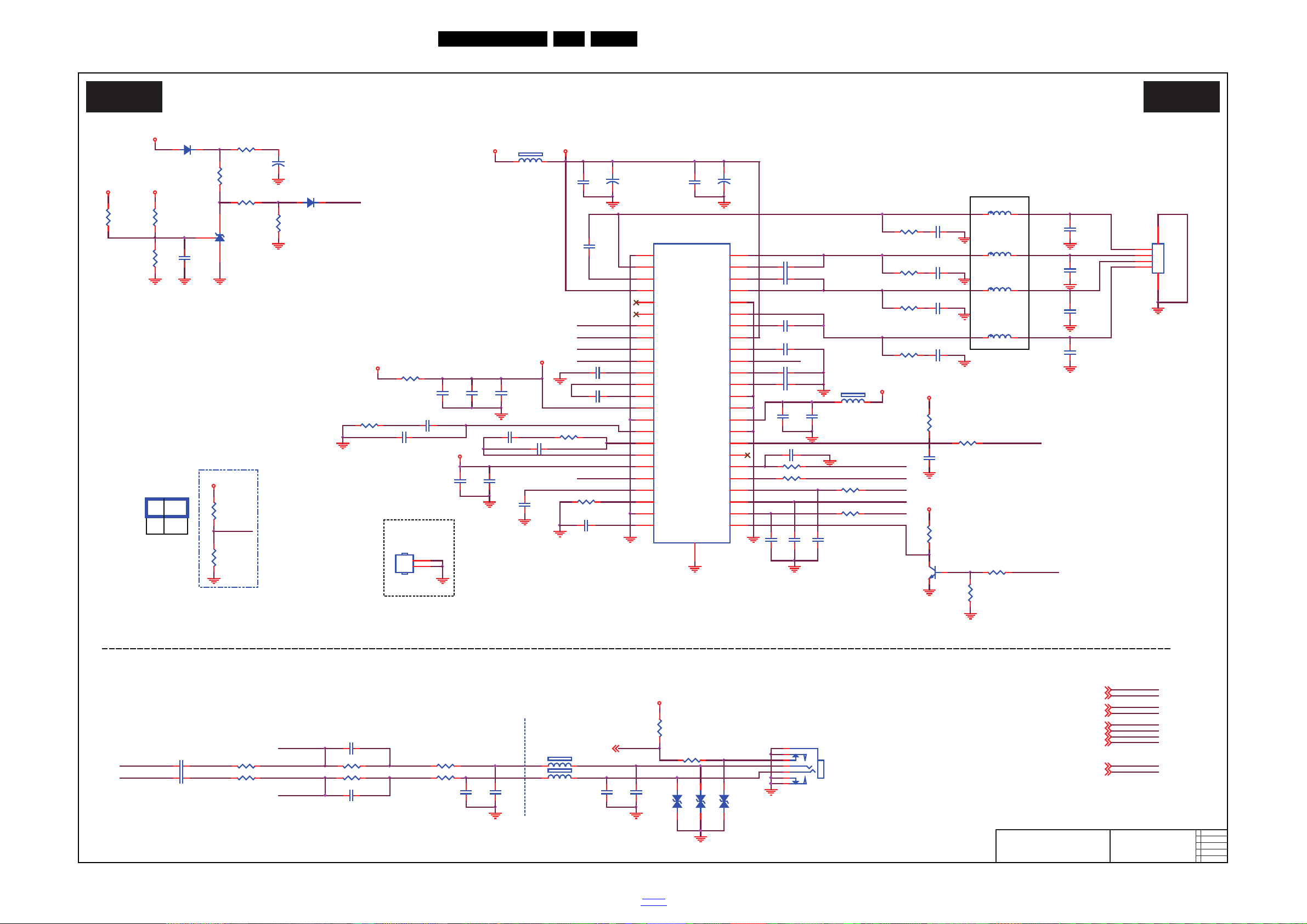

10-7-6 Audio Amp/Headphone Output

19690_511.eps

Audio Amp/Headphone Output

B06 B06

2014-04-14

715G6792

Audio Amp/Headphone Output

HS601

HEAT SINK

1 2

HPOUT_L HPOUT_R

C637 10UF 6. 3V 20%

C628 10UF 6. 3V 20%

C625 10UF 6. 3V 20%

FB602 0R05 1/10W

C643 100PF 50V

C646 100PF 50V

PD_MUTE

D602

SS1060FL

ROUT-

CN602

CONN

1 7 6 2 3 4 5

C644 2.2U F 10V

HP_DET6

DVDD3V3

HP_DET

C649 100PF 50V

C645 2.2U F 10V

FB604 300R

C650 100PF 50V

FB605 300R

R625 100OHM

R624

10K

C647 NC/100N16V

C648 NC/100N16V

R631 0R05 OH M

AMP-AUOUTL

R626 10K +-1% 1/16W

AMP-AUOUTR

R629 10K +-1% 1/16W

EAR_L EAR_R

R627 33K 1% R630 33K 1%

HPIN_L

HPIN_R

R628 0R05 OH M

AUDIO_MUTE

FB601

120R

12

AUDIO_MUTE6

+12V_AUD

AMP-AUOUTR AMP-AUOUTL

C623 100N16V

L601 22uH

R643

10K 1/16W 5%

C621 2.2nF 50V

AUDIO_MUTE

C617 1UF 25V

R612 33 OHM 1/16W R614 33 OHM 1/16W

M_SC L M_SD A

C640 22PF 50V

CN601

CONN

1

2

3

4

5 6

R653

1K 1/16W 5%

R646

3KOHM +-5% 1/16W

C604

0.1uF 50V

AMP_POWER

U603 AS431AN-E1

M_SC L4,6,10

M_SD A4,6,10

AUDIO_RESET6

R623

100K 1/16W

PD_MUTE

R649

30K OHM +-1% 1/16W

R620

10K

Q603 MMBT3904

L602 22uH

R622 10K

L603 22uH

AMP_3V3

L604 22uH

AMP_3V3

C624 1UF 10V

R617

18.2K OHM +-1% 1/16W

C601

0.1uF 50V

R607 470R 1/ 16W 1%

AUDIO_RESET

R610 33 OHM 1/16W

C619 330nF

AMP_3V3

R+

C615 330nF

R601 18R 1%

C605

330pF 50V

C630 4.7NF 50V

+

C664 100uF 35V

C629 47nF 16V

C634 22PF 50V

C610

330pF 50V

D603

1N4148WS

R602 18R 1%

AU_MCK

R645 51K 1/16W 5%

AMP-AUOUTL6

R603 18R 1%

C613

330pF 50V

R604 18R 1%

C618

330pF 50V

C638 22PF 50V

C633 4.7NF 50V

C631 47nF 16V R608 470R 1/16W 1%

R606

10K

C611 330nF

ADR

AMP_PDN

C641

22PF 50V

C642 22PF 50V

R642 100R 1/16W 5%

AMP_3V3

AU_SD6

AU_SD

DVDD3V3

C636 100N16V

AMP-AUOUTR6

AU_BCK6

AU_MCK6

AU_WS6

C620 1UF 10V

R618 33 OHM 1/16W

AU_WS

AU_SD

R616 33 OHM 1/16W

C626 1UF 10V

C639 4.7U F 10% 10V

FB603

600 OHM

1 2

RESET_AMP

U601

TAS5729MD

GND

1

OUTA

2

BSTA

3

PVDD

4

PWM1

5

PWM2

6

HPIL

7

HPOL

8

HPOR

9

HPIR

10

HPVSS

11

CN

12

AVDD_REG2

37

SSTIMER

38

HP_SD

39

GVDD_REG

40

PVDD

41

BSTD

42

OUTD

43

GND

44

OUTC

45

BSTC

46

BSTB

47

OUTB

48

GND

36

GND

35

TEST

33

DVDD

34

RESET

32

NC

31

SCL

30

SDA

29

SDIN1

28

SCLK

27

LRCLK

26

PDN

25

CP

13

HPVDD

14

GND

15

FLTM

16

FTLP

17

AVDD_REG1

18

AVDD

19

ADR

20

MCLK

21

ROSC

22

GND

23

DVDD_REG

24

E-Pad

49

R619

NC/10K

R621

10K

AMP_3V3

ADR

C635 NC/100PF 50V

C622 100N16V

M_SC L

AU_MCK

L-

C627 100N16V

HPIN_L

LOUT+

M_SD A

L+

AU_WS

AU_BCK

C607 330nF

R-

HPOUT_L

AUDIO_RESET

HPIN_R

HPOUT_R

C608 33nF 50V

C609 33nF 50V C612 33nF 50V

C616 33nF 50V

R654

NC

L+

C665 100NF 16V

R+

+

C602

100UF 35V

ZD603

NC

12

Lo

0402

+

C603

100UF 35V

0X54

0402

ZD602

MLVG0402

12

ZD601

MLVG0402

12

088G302G7B1ACL

HeadPhone / Audio Output (Side)

+12V_AUD

+12V+12V_AUD

R-

L-

Hi

0402

0X56

EAR_DET

LOUT-

AU_BCK

ROUT+

Circuit Diagrams and PWB Layouts

EN 75TPS14.2A LA 10.

2014-Sep-26

back to

div.table

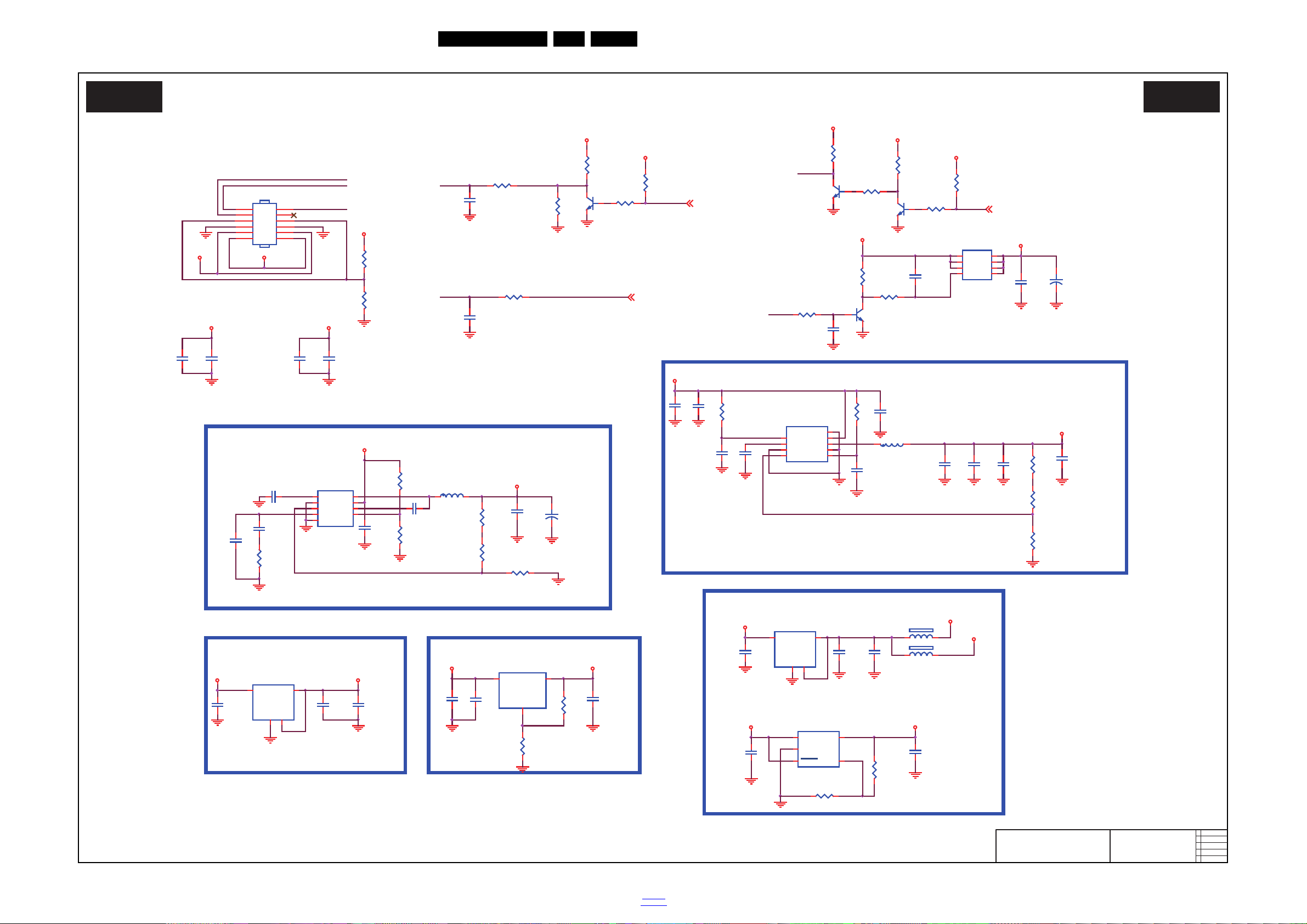

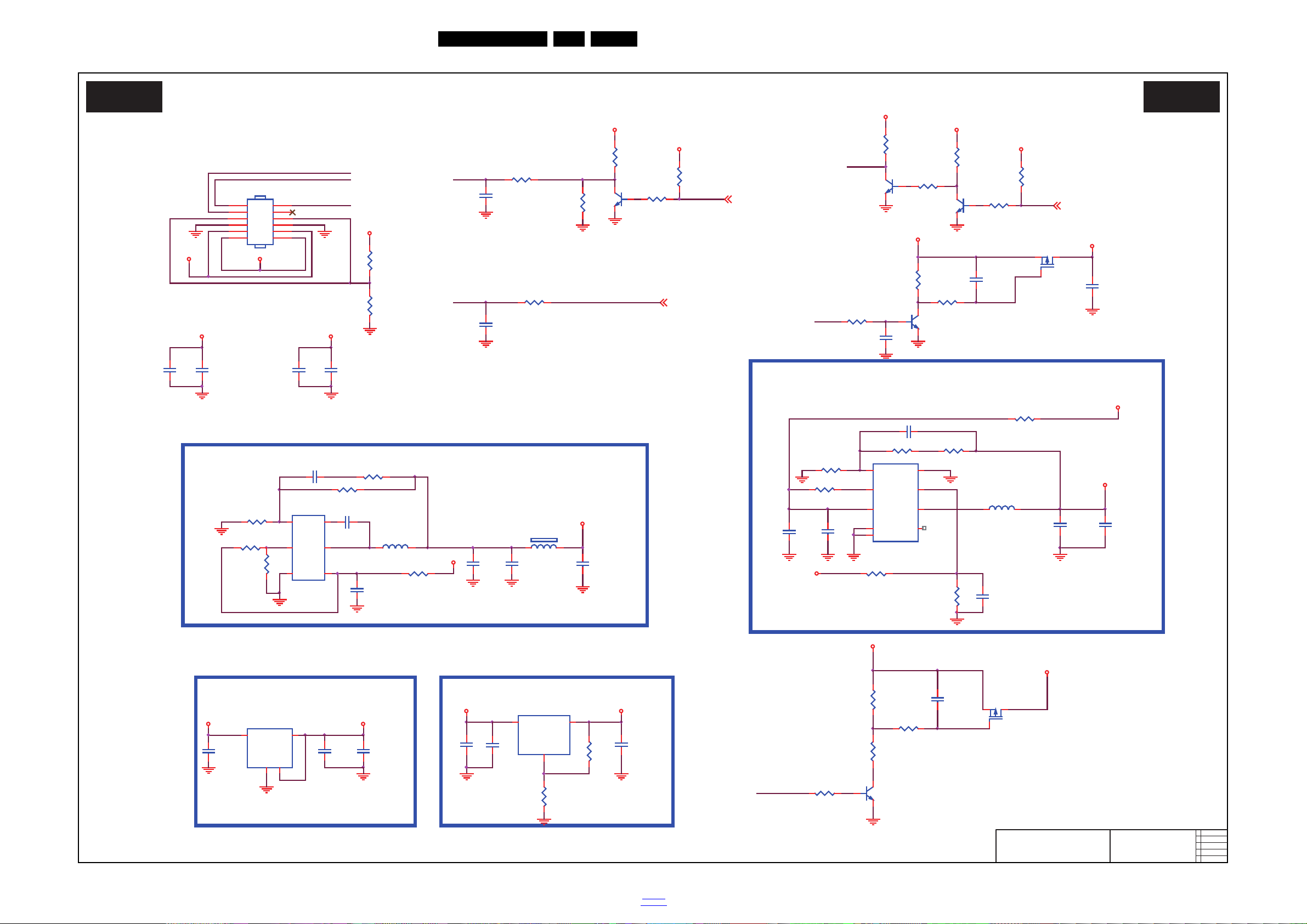

10-7-7 System Power

19690_512.eps

System Power

B07 B07

2014-04-14

715G6792

System Power

R707

4K7 1/16W 5%

BRIGHT_ADJ 6

+5VSB

+3V3SB

+5VSB +3V3SB

+12V_AUD +12V

C771 10UF 10V

+12V

C704 100PF 50V

C705

0.1uF 50V

U701 AP1117E33L-13-77

ADJ(GND)

1

VOUT

2

VIN

3

4

Core Power 1.2V

R2

R1

L703 10uH

0603

R708

4K7 1/16W 5%

1206

0603

+5VSB

R763 10K 1/10W 1%

C751 10UF 25V

U707 G5759F11U

EN

1

BS

2

IN

3

LX

4

VCC

5

GND

6

FB

7

COMP

8

E-PAD

9

DM3V3

DM1V2

12V -> 5V

DRAM Pow er 1.5V

C723

1uF 10V

U705

APW7323

VCC

1

POK

2

GND

3

FB4EN

5

PGND

6

LX

7

VIN

8

E-Pad

9

R773

NC/0 OHM +-5% 1/8W

R757

1K 1/16W 5%

C753

100NF 16V

R755

3K3 1/16W 5%

R740 2Kohm 1/16W +/-1%

C735 10UF 6. 3V 20%

DEMOD POWER

+5VSB

Q702

AO4449 -7A/-30V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

R750

750 OHM +-1% 1/10W

C772

1.5NF 50V

C758 NC

R767

20K OHM 1/16W 1%

C776

100NF 16V

FB701 120R

1 2

C739 10UF 10V

VCCK

C737 NC

R774

0 OHM +-5% 1/8W

+12V_AUD

C725 10UF 6. 3V 20%

CN701

CONN

2

4

6

8

10

12

1

3

5

7

9

11

+12V

Sta ndby Power + 3V3SB

FB702 120R

1 2

R732

15K 1/10W 1%

U703

G9141T11U

IN

1

GND

2

SHDN3SET

4

OUT

5

R730

4K7 1/16W 5%

L701

2.2uH

+3V3SB

C749 100PF 50V

R758

0R05 1/10W

R761

53K6 1/10W 1%

+5VSB

C742

100NF 16V

C736

100NF 16V

C724 10UF 10V

R731

10R 1/16W 5%

R737

1K 1/16W 5%

+3V3SB

R726 4K7 1/16W 5%

BL_ON/OFF

+

C787 100UF 16V

R1

R2

Q705 MMBT3904

DM3V3

C715 10UF 10V

R722

4K7 1/16W 5%

5V_SW

R743

8K2 1/16W +/-5%

C717 10UF 10V

BL_ON/OFF 6

PWR_ON 6

R741

10K +-1% 1/16W

Q706 MMBT3904

R742

4K7 1/16W 5%

+3V3SB

BL_ON_OFF

BRIGHT_ADJ

DVDD3V3

C701 100PF 50V

C702 1nF 50V

BL_DIM

C748

100NF 16V

BL_ON

C734

22UF 20% 6. 3V

R729

6K8 1/10W 1%

C750

4.7UF 10% 10V

U702 AP1117E33L-13-77

ADJ(GND)

1

VOUT

2

VIN

3

4

C743 100NF 16V

U706

AZ1084CD-ADJTRG1

VIN3VOUT

2

GND/ADJ

1

C744

4.7UF 10% 10V

C745 10UF 10V

DDRV

5V_SW

R745

24R 1/10W 1%

R744

120R 1/10W 1%

PS_ON

R753 4K7 1/16W 5%

PWR_ON

+

C788 220UF 16V

C720 10UF 10V

C721 100NF 16V

C726 1UF16V

R705 7K5 1/16W 5%

BL_DIM

BL_ON

PS_ON

5V_SW

MAIN POWER

C711

0.1uF 50V

+5VSB

C706 10UF 10V

C719 100NF 16V

Q701 MMBT3904

5V_SW

R706

1K 1/16W 5%

PS_ON

C710 100PF 50V

R702 100R 1/16W 5%

R704

47K 1/16W 5%

R709 4K7 1/16W 5%

C712 1UF 10V

C708

0.1uF 50V

Q703 MMBT3904

R701 100R 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 76TPS14.2A LA 10.

2014-Sep-26

back to

div.table

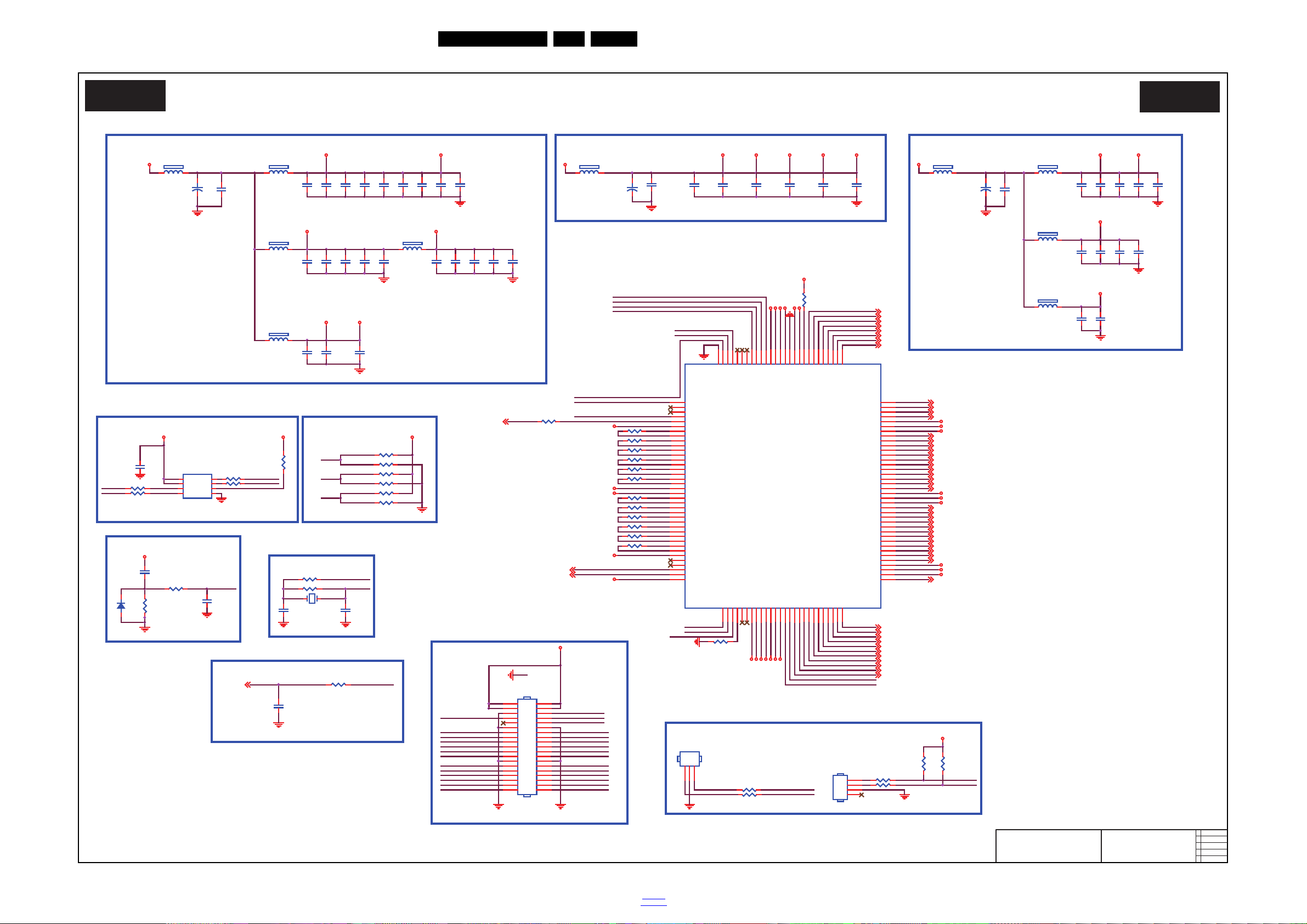

10-7-8 Demod DVB-T2

19690_513.eps

Demod DVB-T2

B08 B08

2014-04-14

715G6792

Demod DVB-T2

IF_AGC1 6

IF_AGC1

X10 1

24MHZ

1

2 4

3

C162 100N 16V

VCC3V3

R141

10K+-5%1/16W

C160

NC/12P 50V

VCC3V3

1.2V

C193

100N 16V

C192

1UF 10% 16V

C195

100N 16V

C196

10UF 6. 3V 20%

C188

100N 16V

C194

100N 16V

C130

100N 16V

C126

100N 16V

C191

100N 16V

C190

100N 16V

DM3V3

C163 100N 16V

MSPI _D O MSPI _D I

TSCLK MSPI_CSZ

Demod_RST 6

1.2V

VCC3V3

Demod_RST

R171

4K7 1/16W 5%

C185 NC/12P 50V

DATA

C186 NC/12P 50V

R166

4K7 1/16W 5%

TS_SYNC

VCC3V3

Demod_RST

R127 NC/10K+-5%1/16W

POWER

TS_CLK_S TSCLK

TSVLD

TSSYNC

TS_VLD

TSSYNC

TSVLD

SYS_SDA

Configure TS0

TS0TS_D0

I2CM_SDA

M_SC L 4,6, 8

M_SDA 4,6,8

TUN_IF_AGC

1.2V

VCC3V3VCC3V3

VCC3V3

C187 NC/12P 50V

R193 47 OHM 1/16W

TS_D 06

TS_SYNC6

TS_VLD6

I2CM_SCL

I2CM_SDA

TS_CLK_S6

R1008

100K 1/16W 5%

R1004 NC/0R05 1/16W

Q107

BC847C

Q106

1

23

+3V3TUNER

R1006

10K 1/16W 5%

R1005

100K 1/16W 5%

Demod_RST 6

IF_AGC_SW

R138

33 OHM 1/16W

MSPI_CLKMSPI_WP MSPI_DI

MSPI_DO

MSPI_CSZ

C198

100N 16V

VCC3V3

MSPI _C LK

C197 NC/10UF 6.3V 20%

Conf igure

MSPI _W P

R194 NC/10K+-5%1/16W

R195 10K+-5%1/16W

I2CM_SDA 4 I2CM_SCL 4

I2CM_SCL

I2CM_SDA

XTAL_OUT

XTAL_ I N

R188

0R05 OHM

R189

1M 1/16W

C184

22PF 50V

C183

18PF 50V

U102

MX25L2006EM1I-12G

CS#

1

SO/SIO1

2

WP#

3

GND4SI/SIO0

5

SCLK

6

HOLD#

7

VCC

8

R190 47 OHM 1/16W

IF_AGC1

U103

MSB1233D

AVDD3316NC15GND

14

MSPI_CSZ/SSPI_CLK

33

GND

46

I2CM_SCL20I2CM_SDA

21

VDD

25

VSS18VDD3323TS_ERR

24

VDD

17

RESETZ

29

GND

30

Configure/GPIO0

19

MSPI_CLK/SSPI_CSZ

28

MSPI_DI/SSPI_DO

31

IF_AGC

7

GND

26

VDD33

27

6

RFAGC/GPIO

TS_C LK

34

TS_D [7]

35

TS_D [6]

36

TS_D[5]37TS_D[4]38TS_D[3]39TS_D[2]40TS_D[1]41TS_D[0]42TS_VLD

43

TS_SYNC

44

VDD33

45

GND

22

VDD

47

I2CS_SDA

48

I2CS_SCL

1

GND

2

XTAL_ OU T

3

XTAL_ I N

4

AVDD33

5

GND

10

MSPI_DO/SSPI_DI

32

QP

8

QM

9

IP

11

IM

12

AVDD33

13

C199

100N 16V

DM1V2

C161

100N 16V

TUN_IF_AGC IF_AGC_D

R1003

100K 1/16W 5%

Q105

1

23

FB103

120R 3A

1 2

FB104

120R 3A

1 2

R191 47 OHM 1/16W

SYS_SCL

IF_AGC_D

XTAL_ I N

XTAL_ OU T

QP

QM

MSPI _W P

IP IM

VCC3V3

R192 47 OHM 1/16W

D101 NC/LL4148

Q108

BC847C

IF_AGC_SW

R1002

10K 1/16W 5%

XTAL

DIF2 4

SYS_SCL

SYS_SDA

TUN_IF_AGC 4

DIF1 4

IP

IM

TUN_IF_AGC

R1001

1K 1/16W 5%

+3V3TUNER

Circuit Diagrams and PWB Layouts

EN 77TPS14.2A LA 10.

2014-Sep-26

back to

div.table

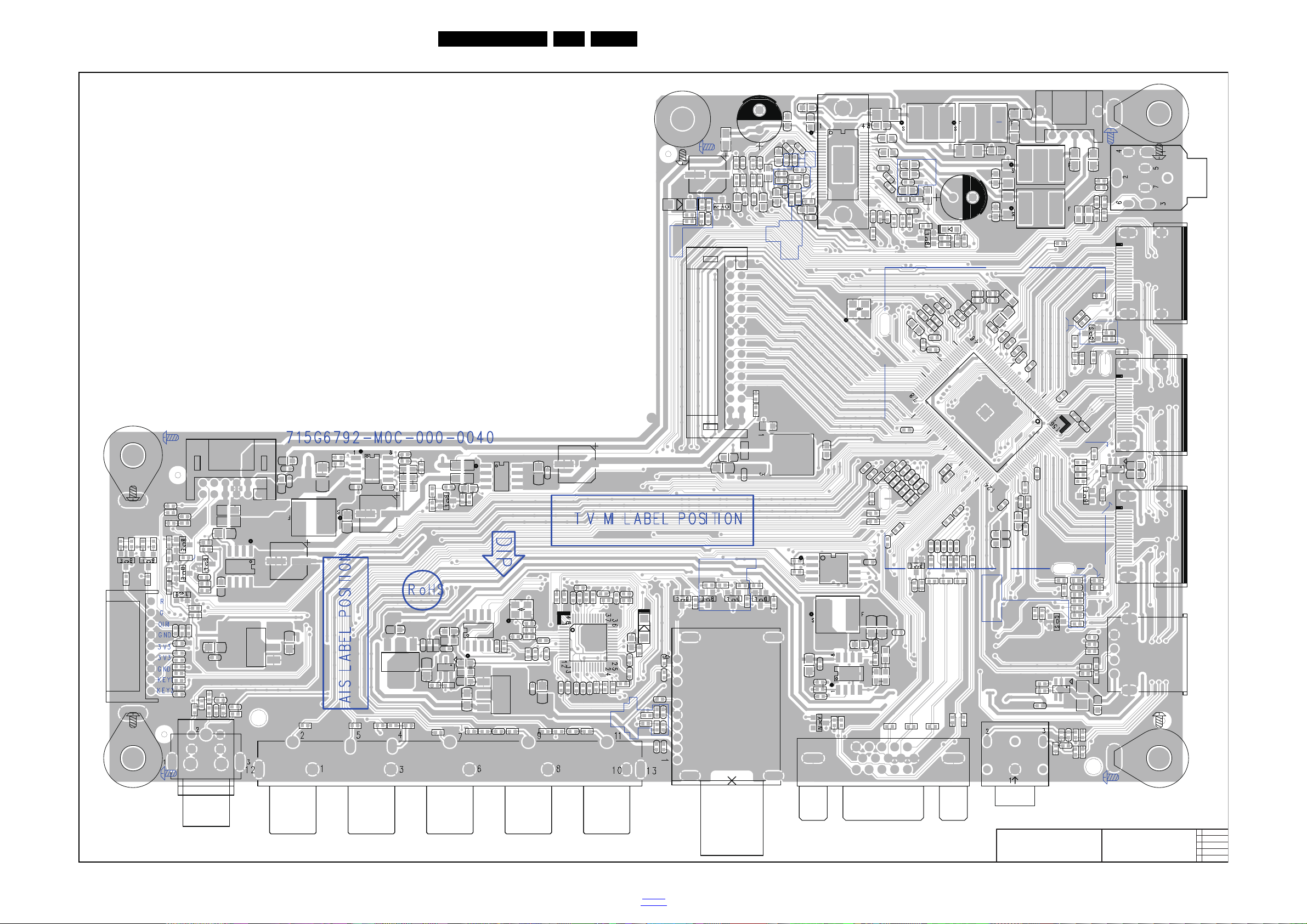

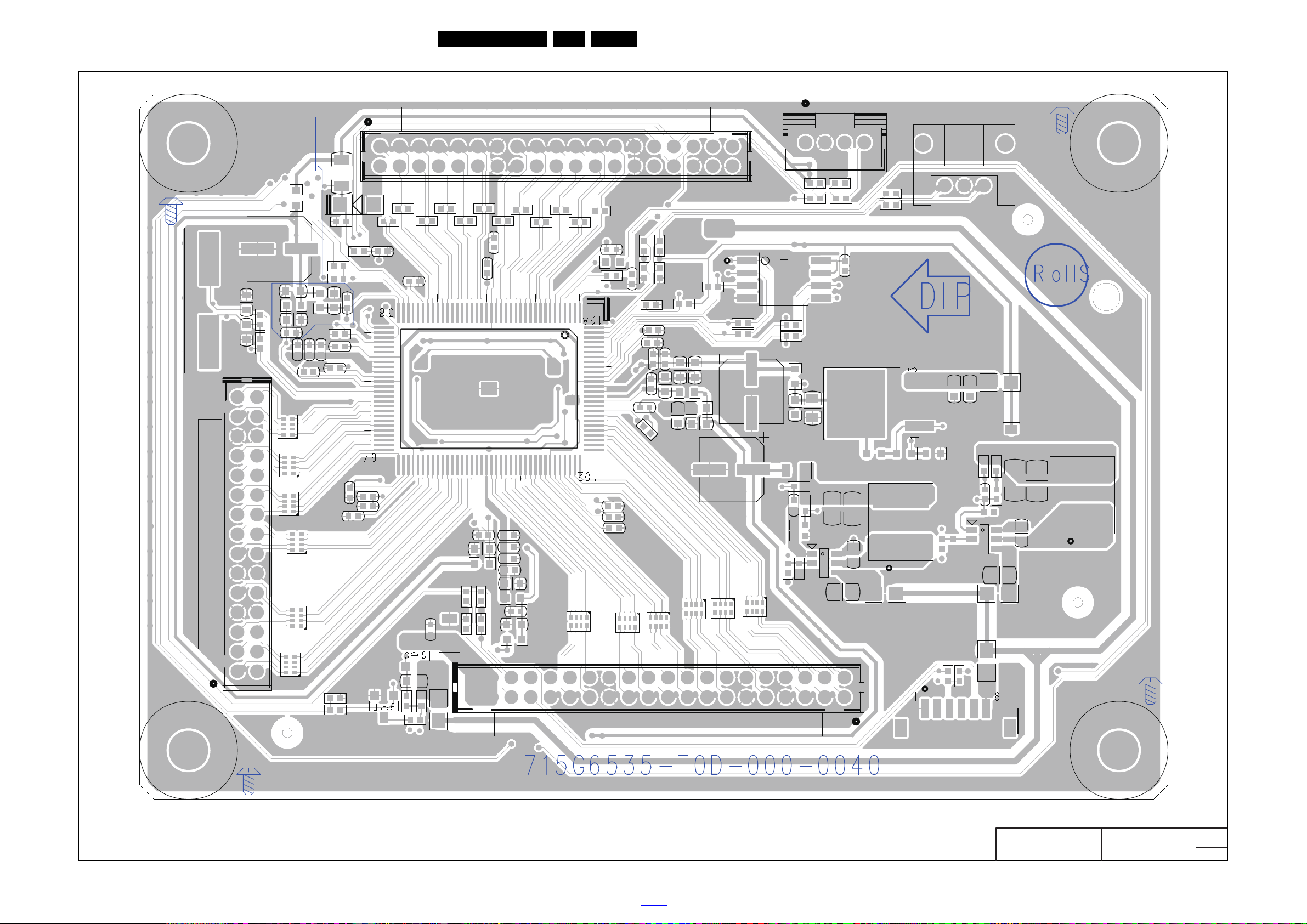

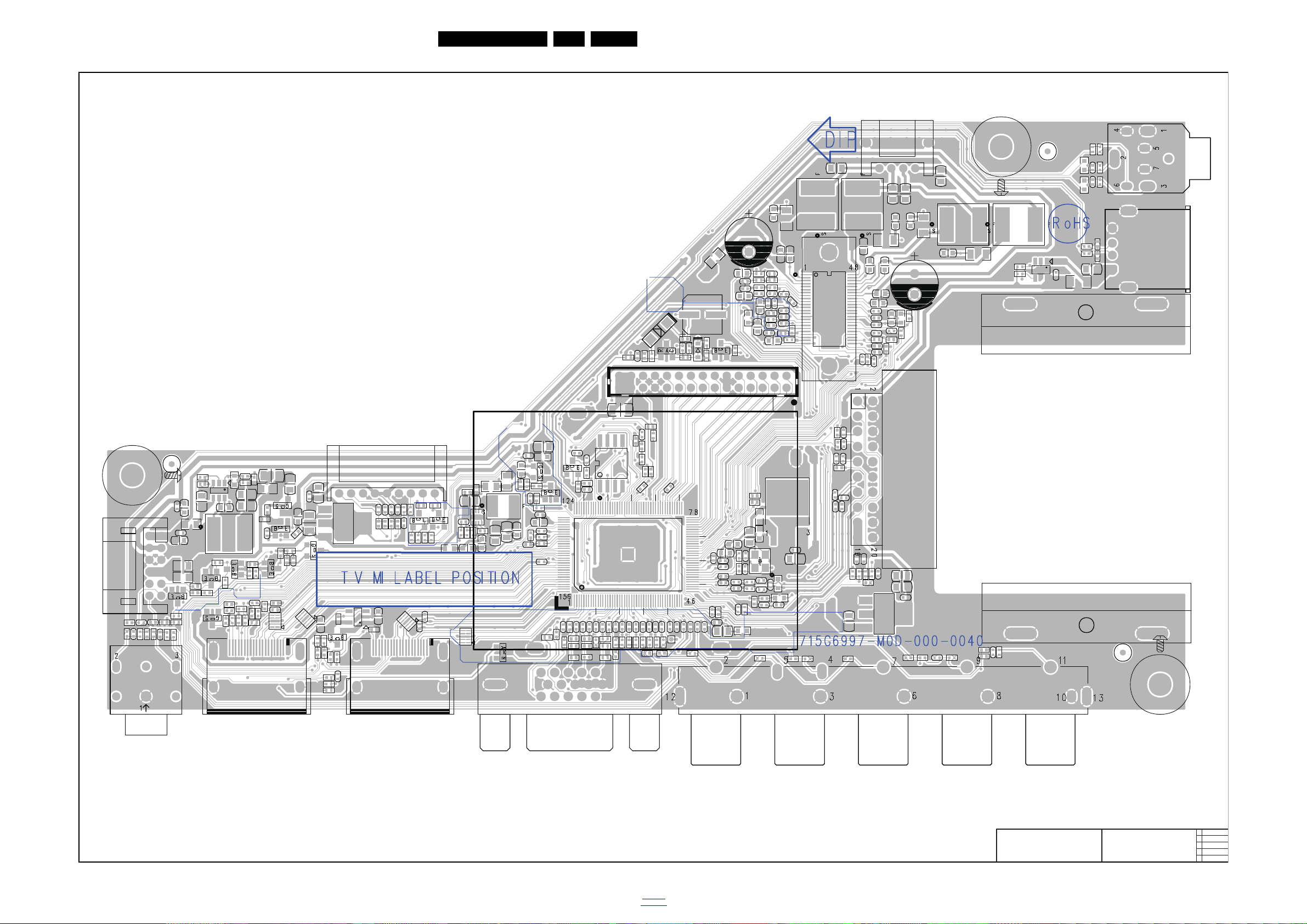

10-7-9 SSB layout top

19690_514.eps

A

715G6792

LAYOUT TOP

C120

C145

C140

C408

C601

C618

C705

C706

C708

C610

C715

C717

C724

C734

C739

C745

FB401

R729

R732

R744

R745

TH101

C664

R601

C744

C150

C196

C720

R750

C410

C412

C414

C422

C725

R773

C711

C605

C508

C726

C750

C611

C771

C751

R758 R761

R763

R774

C787

C788

D603

C158

C735

R172

R173

C192

C197

C507

X101

X401

C121

C604

C637

C625

C609

C619

C608

C617

C644

C645

C628

C613

FB602

FB603

C612

C616

C639

C607

C615

FB604

FB605

R602

R603R604

C602

C603

SCREW4

SCREW6

SCREW7

H1

H2

H3H5

SCREW20

H6

H9

C101

C102

C103

C104

C105

C107

C108

C157

C110

C112

C113

C117

C118

C122

C182

C126

C127

C128

C129

C130

C123

C132

C133

C134

C136

C137

C183

C139

C184

C185

C142

C143

C186

C148

C149

C153

C156

C404

C403

C402

C406

C407

C409

C411

C413

C415

C416

C417

C418

C423

C424

C425

C426

C427

C428

C429

C621

C622

C624

C634

C701

C702

C704

C710

C736

C742

C743

CN101

CN102

CN103

CN111

CN507

CN506

CN508

CN602

Q101

Q501

Q505

Q603

R101

R102

R103

R104

R105

R106

R107

R108

R109

R110

R111

R112

R113 R114

R115

R116

R117

R140

R118

R119

R142

R127

R129

R130

R131

R132

R133

R134

R135

R136

R138

R139

R141

R143

R144

R145

R146 R147

R149

R150

R151

R153

R154

R155R156

R157

R158

R159

R160

R161

R162

R163

R165

R166

R167

R168

R169 R170

R180

R188 R189

R417

R418

R422

R427

R439

R442

R443

R449

R450

R529

R503

R492

R505

R506

R530

R510

R511

R512

R514

R507

R517

R518

R501

R508

R532 R533

R534

R515

R542

R543

R544

R545

R550

R551

R552

R628

R614

R493

R610

R612

R624

R625

R701

R702

R704

R705

R706

R707

R708

R709

R193

R717

R722

R726

R730

R731

R737

R742

R743

U101

U109

U403

U410

U505

U701

U706

ZD120

ZD121ZD122

ZD507

SCREW13

U401

C501

C630

C189

C650

C623

C620

C648

R177

R608

R626

C431C432

ZD101

ZD102 ZD103

ZD104

ZD105

ZD106

ZD108ZD109 ZD110

ZD111

ZD112

ZD113

ZD114

ZD107

ZD518

ZD503

ZD514

R558

C748

C749

C154

C155

C719

R559

C433

R494

Q102

Q103

Q701

Q703

Q705

Q706

R753

Q104

C503

C504

C505

C636

C640

U705

CN701

L703

R179

R607

R623

D602

U603

Q702

C190

R164

R649

CN603

CN601

SCREW1

SCREW14

SCREW2

SCREW3

C151

C152

C419

C420

C421

C430

C641

C647

C649

C635

C627

C665

C712

C722

R617

L701

R561

R642

R645

R654

R653

R643

U707

D101

CN604

C114

C160

C161

C162

C163

C187

C188

C191

C193

C194

C195

C198

C199

C434

C626

C721

C723

C737

C753

C758 C772

C776

CN402

CN401

ZD602

FB103

FB104

U103

R120

R121

R171

R181

R182

R1001

R190

R191

R192

R194

R195

R428

R646

R740R741

R755

R757

R767

U702

U703

R1002

R1003

R1004

R1005

R1006

R1008

Q105

Q106 Q107 Q108

U601

C638

C642

R621

R629

C629

C631

C633

C643

C646

ZD601

ZD603

FB601

R401

R402

R404

R606

R616

R618

R619

R620

R622

R627

R630

R631

HS601

L601 L602

L603

L604

TU101

U102

ZD1ZD2

ZD3 ZD4

ZD5

FB701

FB702

Circuit Diagrams and PWB Layouts

EN 78TPS14.2A LA 10.

2014-Sep-26

back to

div.table

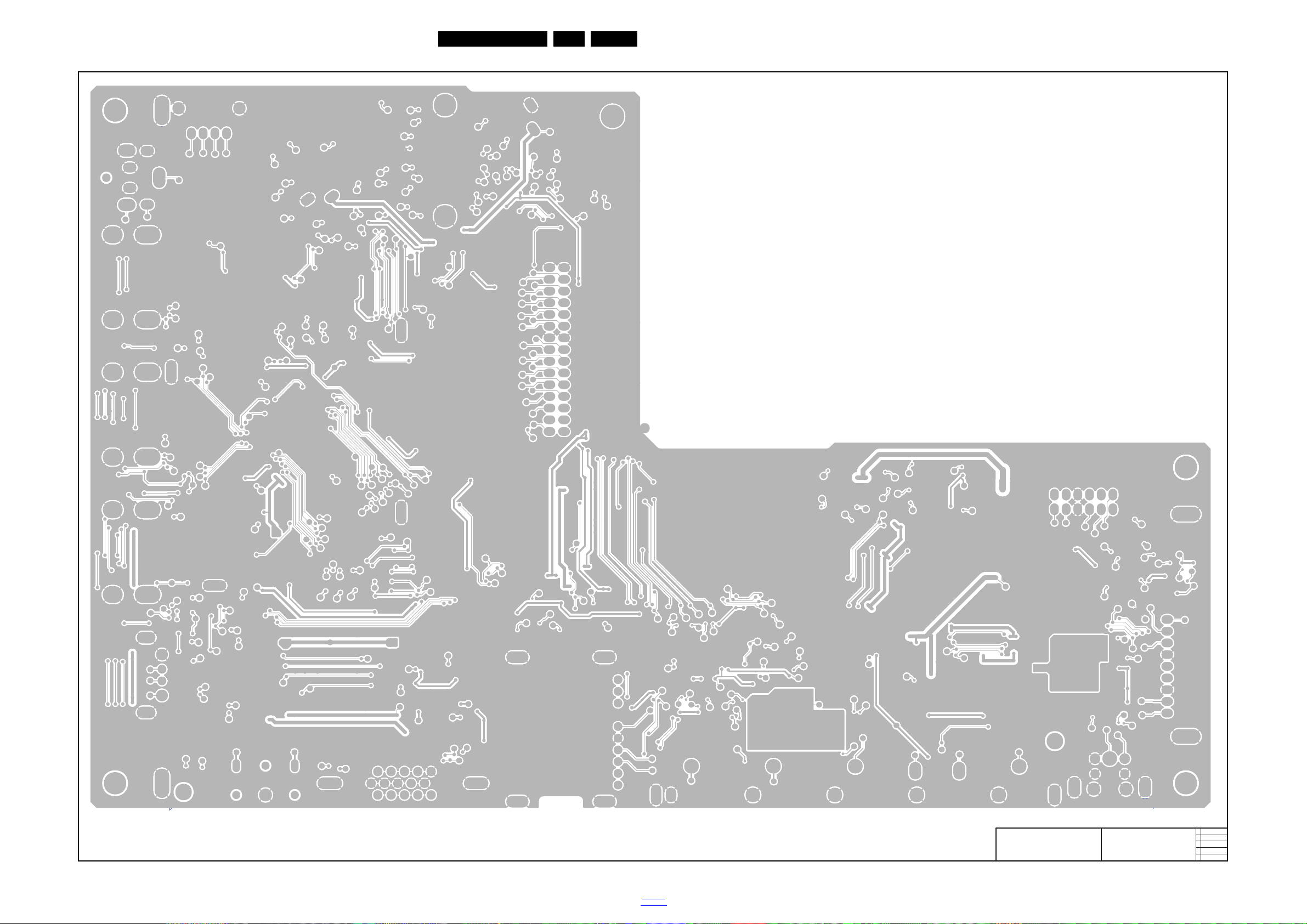

10-7-10 SSB layout bottom

19690_515.eps

2014-02-20

A

715G6792

LAYOUT BOTTOM

Circuit Diagrams and PWB Layouts

EN 79TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10.8 EMC 715G6535 MEMC Board

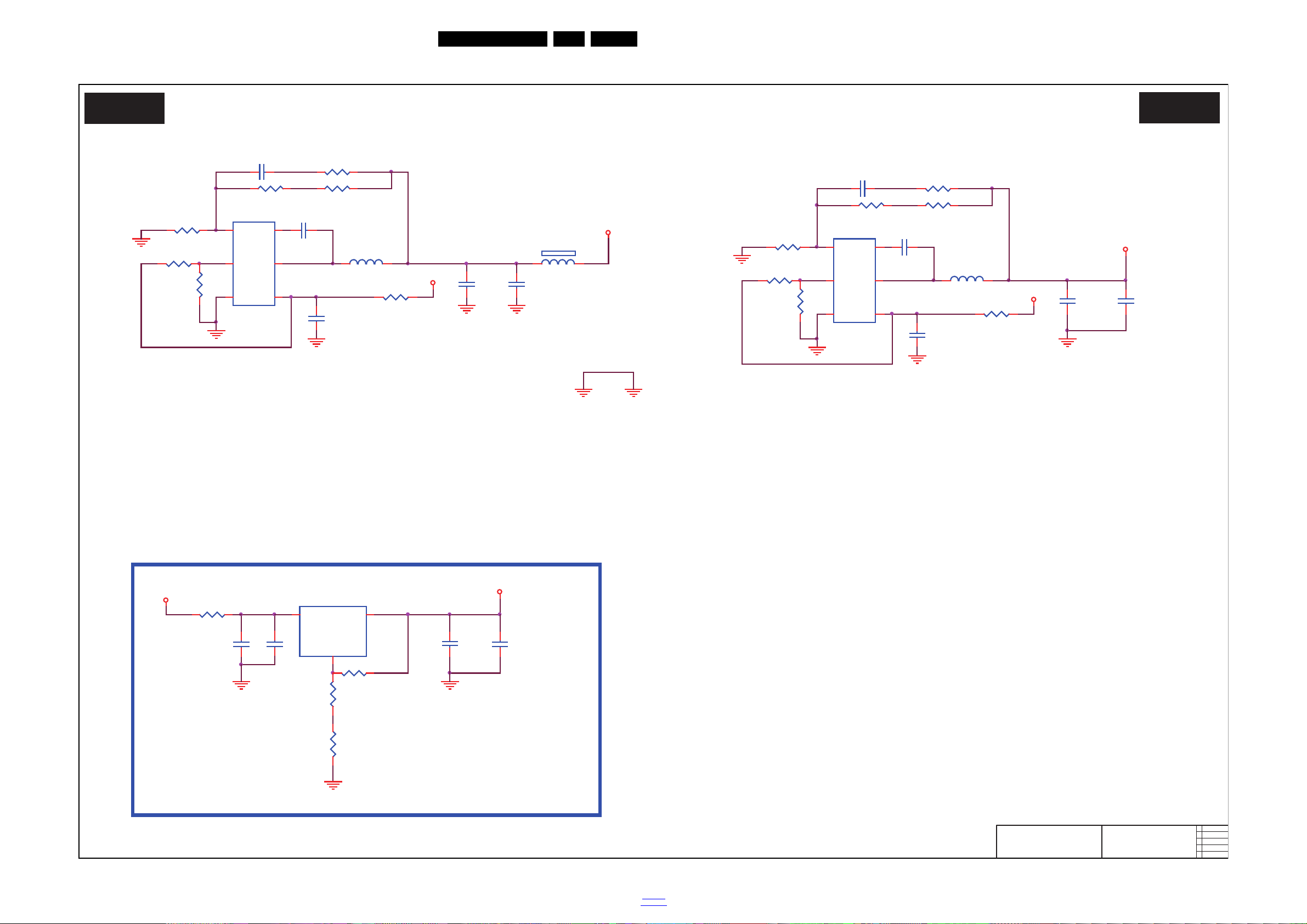

19692_509.eps

SYSTEM POWER

715G6535

2014-8-22

SYSTEM POWER

EMC01

R4007 22K 1%

R4008 4K7 1%R4074 91K 1%

DGND

C4007 22UF 6. 3V

C4008

22UF 6. 3V

DGND

R4048 10K 1%R4075 100K +-1% 1/ 16W

VCC3.3V

R4017 24R 1/ 10W 1%

C4016

1UF 10% 16V

U4004

G1084PT43U

VIN

3

VOUT

2

GND/ADJ

1

C4017 100nF 50V

R4015 220R 1/10W 1%

R4016 82 OHM +-1% 1/10W

DGND DGND

DGND

R2

R1

C4020 100nF 50V

C4018 10UF 10V

VCC1.8V

C4010 10uF 16V

U4003

SY8104ADC

LX

5

FB

1

EN

2

GND3IN

4

BS

6

DGND

L4003

4.7uH

R4013 36K 1%

C4003

22pF 50V

R40140R051/8W

R4010

100K 1/16W 5%

C4011

0.1uF 50V

DGND

R4006 0R 05 1/ 16W

P12V

VCC1.15VR4005

100K 1%

VCC3.3V

C4009 10uF 16V

U4002

SY8104ADC

LX

5

FB

1

EN

2

GND3IN

4

BS

6

DGND

L4002

4.7uH

C4002

22pF 50V

R4011 36K 1%

R4009

100K 1/16W 5%

R40120R051/8W

C4001

0.1uF 50V

DGND

R4003 0R 05 1/ 16W

C4005 22UF 10V

C4004 22UF 10V

R40490R051/8W

P12V

FB4002

0 OHM

1 2

10-8-1 System Power

Circuit Diagrams and PWB Layouts

EN 80TPS14.2A LA 10.

2014-Sep-26

back to

div.table

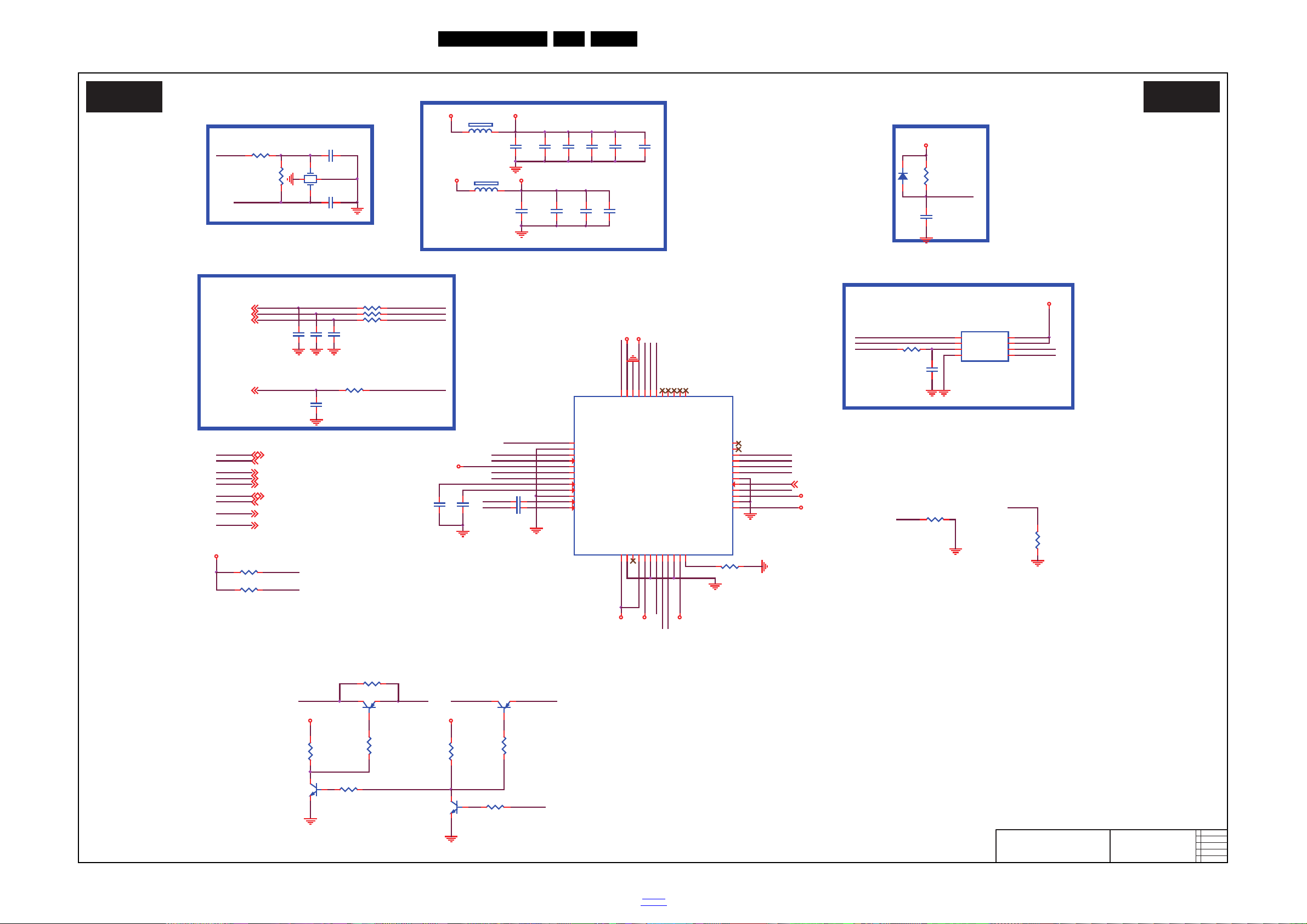

10-8-2 QFP128 (MST7438BB)

19692_510.eps

QFP128 (MST7438BB)

EMC02

2014-08-22

QFP128 (MST7438BB)

715G6535

VCC3.3V

XTAL I XTAL O

C4039

2.2UF 16V

DVDD

IRE

+

C4072 220UF 16V

AVDDIO_DATA0

AVDDIO_DATA1

SPI_WP

FB4005

1 2

C4052 100N16V

+

C4074 NC/220U F 16V

C4027 10UF

GPIO16

C4035 1UF 10V

RXO4+

R4047 0R05 OHM

GPIO31 VSYNC_LIKE_SPI1

AVDD_MOD

AVDDL_MOD

C4023 100N16V

C4036 1UF 10V

I2CS_SCL I2CS_SDA

C4066 22P 50V

LVDS INPUT

I2CS_SCL

AVDDL_PREDRV

IRE

[1.8V DDR]

C4056 NC/100N 16V

AVDDIO_CMD1

C4064 22UF 10V

AVDDIO_CMD0

AVDDIO_MCLK

R4021100OHM1/16W

R4032 NC/10K+-5%1/16W

MEMC_ PWM

C4024 100N16V

C4037 1UF 10V

[SPI Flash]

FB4010

1 2

C4026 10UF

[I2C_S Port & UART Port & PWM]

GPIO32 3D _FLAG_INVSYNC_LIKE_SPI0

C4067 27P 50V

C4057 NC/100N 16V

R4022100OHM1/16W

C4025 100N16V

C4038 100N16V

AVDD12_LVDSR X

DVDD

AVDDIO_DATA0AVDDIO_CMD0

C4032 10UF

+

C4073 220UF 16V

[Crystal]

FB4009

120R

1 2

R4037 NC/10K+-5%1/16W

C4068 NC/100N 16V

DVDD

C4028 100N16V

C4040 100N16V

A0M

A1P

A1P A1M

A1M

ACKM

A2M

A2P

ACKM

ACKP

A2P ACKP

A2M

C1M

C0M

C1M

C1P

R4025100OHM1/16W

C1P

C2M

C2P

CCKM

CCKP

UART_TX

CCKP CCKM

C2M

C4M

C4P

R4055 NC/0R05 OHM

C4M

C3M

C2P

C3P

R4056 NC/0R05 OHM

C3P C4P

D1P

C3M

D0P

UART_RX

D0P

D1P

DCKP

D4P

DCKM

C0P

D3M

D3P

D4M

D4P D4M

D3M

DCKP

C0M

C0P

D3P

I2CS_SDA

B1M

B0M

B1P

B2P

B0M

B0P

B1M

B2M

B0P

BCKP

B2M

BCKM

B2P

B4M

B4P

BCKM

B4M

B3M

BCKP

B3M

B3P

B3P B4P

A0M

A0P

PANEL_ON2

C4041 100N16V

FB4006

120R

1 2

AVDDIO_MCLK

[PWM For Backlight]

R4027100OHM1/16W

C4048

2.2UF 16V

[HW Reset]

FB4007

120R

1 2

A4P

A4M

A3M

A3M A4M

A3P A4P

A3P

VCC3.3V

AVDD_LVDSR X

C4029 1UF 6.3V

C4042 100N16V

RXE0-

RXEC-

[PWM out for 3D]

AVDDL_PREDRV

RXEC+

RXE0+

RXE3+

RXE2RXE3-

RXE1-

RXE2+

RXE1+

VDDP

R4020100OHM1/16W

RXE3-

RXEC+

RXE4+

RXE4-

RXE3+

R4030100OHM1/16W

RXO0+

RXO0-

RXE2+

RXE2-

RXE1+

RXE1-

RXE0+

RXE0-

RXEC-

FB4008

120R

1 2

GPIO18

FB4001

120R/3000mA

1 2

C4043 100N16V

C4030 100N16V

3D_FLAG_IN

D2P

VCC3.3V

GPIO0

D2P

GPIO1

R4028 10K+-5%1/16W

R4035 10K+-5%1/16W

GPIO2

R4024 10K+-5%1/16W

[Chip Config]

R4026 NC/10K+-5%1/16W

AVDD_MOD

R4036100OHM1/16W

FB4011

120R

1 2

VCC1.8V

DVDD

C4031 100N16V

R4029 10OHM1/16W

PWM4

C4049 100N16V

AVDDIO_D ATA1AVDD12_LVDSR X

C4022 100N16V

R4038100OHM1/16W

AVDD_MPLL

GPIO0 UART_TX

C4050 100N16V

R4018 39K 1/16W 1%

GPIO19

SPI_DO

SPI_CZ

SPI_DI SPI_CK

R4051 10K

R4052 10K

I2CS_SDA I2CS_SCL

R4053 100R 1/ 16W 1% R4054 100R 1/ 16W 1%

AVDD_LVDSR X

GPIO1 UART_RX

R4039100OHM1/16W

C4053 NC/2.2UF 16V

RXO4-

RXO3-

U4005

MST7438BB

PAD_C4P

70

PAD_RB0P

22

PAD_RB0N

21

PAD_RB1P

24

PAD_RB1N

23

PAD_RBCKP

28

PAD_RBCKN

27

PAD_SSPI2_CK

36

PAD_RA3P

16

PAD_D4P

55

PAD_D0M

64

PAD_D4M54PAD_XTALI

53

PAD_DIM3

5

PAD_RB2N

25

PAD_C0P

80

AVDDL_MOD

67

PAD_C3M

71

DVDD_D DR_DATA

113

DVDD

112

PAD_RA4N

17

PAD_B1P

93

PAD_B1M

92

PAD_B2P

91

PAD_B2M

90

PAD_BCKP

89

PAD_D1M62PAD_D1P

63

PAD_D0P

65

AVDD_MOD

66

AVDDL_MOD

97

PAD_CCKP

74

PAD_C2M

75

PAD_C2P

76

PAD_C1M

77

PAD_C1P

78

AVDDL_PREDRV

83

PAD_CCKM

73

DVDD

96

GND

114

AVDDIO_DATA1

115

AVDDIO_DATA0

116

PAD_GPIO[1]

128

AVDDIO_CMD046AVDDIO_CMD1

47

PAD_SPI4_DI44DVDD45DVDD50DVDD_DDR_CMD49AVDD_MPLL

51

PAD_GPIO[0]

1

PAD_DIM0

2

PAD_DIM1

3

PAD_DIM2

4

AVDD_LVDSRX

6

PAD_RA0N

7

PAD_RA0P

8

PAD_RA1N

9

PAD_RA1P

10

PAD_RA2N

11

PAD_RA2P

12

PAD_RACKN

13

PAD_RACKP

14

PAD_RA3N

15

PAD_RA4P

18

AVDD12_LVDSR X/DVDD

19

AVDD_LVDSRX

20

PAD_RB3N

29

PAD_RB3P

30

PAD_RB4N

31

PAD_RB4P

32

PAD_SSPI2_DI

37

PAD_SSPI2_DO

34

PAD_SSPI2_CZ

35

PAD_I2CS_SD A40PAD_RESET

41

PAD_XTALO52PAD_DCKM58PAD_DCKP59PAD_D2P

61

PAD_D3P

57

PAD_C4M

69

PAD_C3P

72

DVDD

68

PAD_C0M

79

AVDDL_PREDRV

81

PAD_B4M

84

PAD_B4P

85

PAD_B3M

86

AVDD_MOD

82

PAD_A2M

105

PAD_A2P

106

AVDD_MOD

98

PAD_ACKP

104

PAD_A4M

99

PAD_A4P

100

PAD_A0M

109

PAD_B0M

94

DVDD

117

PAD_B0P

95

PAD_A0P

110

PAD_A1M

107

PAD_A1P

108

E-Pad

129

PAD_RB2P

26

AVDD12_LVDSR X/DVDD

33

PAD_SPI4_CK43PAD_TESTPI N

42

PAD_D3M

56

PAD_B3P

87

VDDP3_L

118

PAD_SPI_DI

119

PAD_SPI_CK

120

PAD_SPI_CZ

121

PAD_SPI_DO

122

PAD_GPIO[6]

123

PAD_GPIO[5]

124

PAD_REXT

111

PAD_GPIO[3]

126

PAD_GPIO[2]

127

PAD_GPIO[4]

125

VDDP3_B

38

PAD_I2CS_SC L

39

PAD_A3P

102

PAD_A3M

101

PAD_ACKM

103

PAD_D2M

60

PAD_BCKM

88

AVDDIO_CMD1/AVDDIO_MCLK

48

RXOC-

RXO2+

RXO2-

RXO1+

RXO1-

RXO4+

RXO3+

RXOC+

DVDD_DDR_CMD

D0M

MEMC_ PWM

CN4003 CONN

123

IRE IRE

C4045 100N16V

R4040100OHM1/16W

VCC1.15V

VCC3.3V

R4019 33R 1/10W 5%

PWM1_OUT

C4021 10UF 6.3V 20%

R4050

NC/10K+-5%1/16W

RXE4+

C4034 100N16V

C4033

2.2UF 16V

R4031 10OHM1/16W

C4060

2.2UF 16V

C4046 100N16V

R4041100OHM1/16W

DVDD

C4051 NC/100N 16V

AVDDL_MOD AVDDL_PRED RV

DVDD_DDR_DATA

RXE4-

U4006

MX25L8006EM2I-12G

CS#

1

SO

2

W#

3

GND

4

VCC

8

HOLD#

7

SCK

6

SI

5

R4023

10K

C4063 100N16V

SPI_CK

SPI_DI

SPI_DO SPI_WP

SPI_CZ

C4047 100N16V

D2M

DVDD

R4042100OHM1/16W

PWM1_OUT2

MEMC_ PWM

IRE

PWM4

U8_RESET

P12V

RXOC+

RXO2+

GND

RXO1+

RXO0+

RXO3+

GNDGND

RXO0-

R4033 10OHM1/16W

RXO2RXO3-

RXO1RXOC-

FB4003

0 OHM

1 2

D4002 LL4148

R4044 100OHM

C4065 NC/10N 50V

R4046 10K

U8_RESET



AVDDIO_CMD1

C4058

2.2UF 16V

D1M

C4061 100N16V

IRE

C4059 100N16V

AVDD_MOD

C4054 100N16V

R4034 10OHM1/16W

VCC3.3V

GPIO2

CN4002

CONN

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

31

33

35

37

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

32

34

36

38

AVDD_MOD

AVDD_LVDSRX

AVDD_MPLL

[3.3V]

VCC3.3V

C4044

2.2UF 16V

CN4004

NC

1

2

3

4

RXO4-

VDDP

R4043 0R05 OH M R4045 1M 1/16W

X4001 24MHz

1 2

XTAL I XTAL O

C4062 100N16V

PWM5



DVDD_DDR_CMD

FB4004

1 2

DVDD

DVDD_DDR_DATA

VDDP

GPIO17

C4055 100N16V

Circuit Diagrams and PWB Layouts

EN 81TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-8-3 LVDS

19692_511.eps

LVDS

2014-08-22

LVDS

715G6535

EMC03EMC03

B0P_J B1P_J B2P_J

PWM1_OUT2

A1P_J A2P_J

A0P_J

D1M_J

D0M_J D2M_J

R4064

10K

LVDS_SEL ROTATE

B2M_J

B0M_J B1M_J

R4072

NC/0R05 OHM

R4070 NC/4.7K1/16W

VCC3_3

D0P_J D2P_J

D1P_J

A2M_J

A1M_J

A0M_J

MEMC_PW M

B0M

B0P

B1M

B1P

D4M

A1M

A1P

R4073 N C / 0R 05 OH M

A4P

A0M

A3P

A0P

A4M

DCKM

D0M D1P D1M

A3M

C4P C4M

A2P A2M

D0P

DCKP

D2P

D3P

C3P

D2M

C3M

ACKM

ACKP

D3M D4P

RP4002

0R

1 2 3 4

8 7 6 5

RP4003

0R

1 2 3 4

8 7 6 5

3D_FLAG_IN

RP4004

0R

1 2 3 4

8 7 6 5

RP4005

0R

1 2 3 4

8 7 6 5

RP4006

0R

1 2 3 4

8 7 6 5

RP4001

0R

1 2 3 4

8 7 6 5

Q4001

AO3407A

RP4007

0R

1 2 3 4

8 7 6 5

RP4008

0R

1 2 3 4

8 7 6 5

RP4009

0R

1 2 3 4

8 7 6 5

RP4010

0R

1 2 3 4

8 7 6 5

RP4011

0R

1 2 3 4

8 7 6 5

RP4012

0R

1 2 3 4

8 7 6 5

B0M

B4M

B0P B1P

B1M

B4M

D1P

B2M

B2P BCKP

BCKM

D0P

D4M

B3P B3M B4P

D1M

D0M

C0P

C2P

C1M

CCKM

C1P

C2M CCKP

C0M

D2P

D3M D4P

C1M

D3P

DCKP DCKM

C3P

D2M

C4M

C1P

CCKP

C0M

C4P

C0P

B4P

C3M

CCKM

C2M

B2M

B3M

BCKM

C2P

A4M

A1P

B3P

BCKP

A1M

A0M

A0P

B2P

A3M A4P

A3P

ACKP ACKM

A2P A2M

SYNC_OUT

BCKM_J

3D_FLAG_IN

C1P_J

C0P_J C2P_J

DCKM_J

BCKP_J

DCKP_J

CN4005

2 4 6 8 10 12 14 16 18 20 22 24 26 28 30 32 34 36 38 40

1 3 5 7

9 11 13 15 17 19 21 23 25 27 29 31 33 35 37 39

A2M

A0M

B1P

B3M

C0M

A3P A3M

B0M

A0P

B1M

C0P

B2M

B4P

B0P

ACKM

BCKM

A4M

B2P

ACKP

BCKP

A1M

C2P

B4M

C1M

C1P

ACKM_J

A4P_J

B3P

A1P

C3P_J

D3P_J

DCKP_J

C4M_J

C4P_J

DCKM_J

A4P

A2P

B4M_J

D2P_J

D3M_J

C3M_J

D2M_J

C2M

D3P

B4P_J

D4P_J

B2P_J B2M_J

B3P_J

C4P

CCKM

C1M_J C2P_J

BCKM_J

BCKP_J

C0P_J C0M_J

D0M D1P

DCKP

D4M

CCKM_J

CCKP_J

B3M_J

C2M_J

C1P_J

C3P

D4P

A1M_J

A1P_J

A0M_J

A0P_J

A4M_J

D3M

C3M

D0P

C2M_J

C0M_J C1M_J

D4M_J

B1P_J

B0M_J

B0P_J

A2M_J

A2P_J

D2P

D0P_J

D1M_J

D1P_J

B1M_J

D2M

C4M

D1M

DCKM

CCKP

For 3D shutter control

D0M_J

A3M_J

A3P_J

ACKM_J

ACKP_J

B3P_J B4P_J

GND

ACKP_J

D4M_J

D3M_J

PANEL_ON2

CN4007

CONN

2 4 6

8 10 12 14 16 18 20 22 24 26 28 30

1 3 5 7 9 11 13 15 17 19 21 23 25 27 29

CCKP_J

B3M_J B4M_J

Panel Power

D4P_J

D3P_J

A4P_J

A3P_J

CCKM_J

3D_EN

R4071

NC/ 0R 05 OH M

R4067 NC/4.7K1/16W

R4063 4.7K 1/16W

R4057 0oHM

R4069 NC/4.7K1/16W

R4062

10K

C4069 220N 25V

R4059

47K 1/16W

Q4003 MMBT3904

R4001 NC/0 OHM 1/8W

R4066 NC/4.7K1/16W

R4058

100K 1/16W 5%

R4068 NC/4.7K1/16W

C4070 100NF 16V

R4060 NC/1K 1/4W

CN4006

NC/CONN

1 2 3 4 5 6

78

PANEL_VCC

P12V

GND

VCC3_3

P12V

GND

MEMC_PW M 2

A4M_J

A3M_J

A0P 2

B1P 2

B0P 2

C2P 2

A2M 2

A3M 2

B3M 2

C0P 2

B2M 2

A1M 2

B4P 2

B0M 2

B2P 2

A4M 2

A1P 2

BCKP 2

B1M 2

A3P 2 A4P 2

A2P 2

ACKM 2

A0M 2

C1M 2

B3P 2

B4M 2

BCKM 2

C0M 2 C1P 2

ACKP 2

C4M 2

D3M 2

C4P 2

D1M 2

D0P 2

DCKP 2

D4M 2

D2M 2

D2P 2

CCKM 2

D3P 2

CCKP 2

D1P 2

C3P 2

C2M 2

D4P 2

DCKM 2

C3M 2

D0M 2

GND

PANEL_VCC

ROTATE

C3P_J C4P_J

3D_ENSYNC_OUT

MEMC_PW M LVDS_SEL

C4M_J

C3M_J

Circuit Diagrams and PWB Layouts

EN 82TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-8-4 MEMC Board layout top

19692_512.eps

A

715G6535

LAYOUT TOP

R4049

C4001

C4011

C4016

C4017

C4020

C4021

C4026

C4027

C4032

C4033

C4039

C4044

C4048

C4053

C4058

C4060

C4066 C4067

C4069

C4007

C4008

C4009

C4010

C4018

C4004

C4005

C4064

C4072

C4073

C4074

FB4001

FB4004

FB4005

FB4006

FB4007

FB4008

FB4009

FB4011

FB4002

FB4003

FB4010

R4015 R4016 R4017

R4019

R4001

R4012R4014

R4057

R4060

ZD6

ZD7

ZD8

ZD9

C4037

C4038

C4030

C4031

C4034

C4035

C4036

C4041

C4042

C4043

C4045

C4046

C4052

C4049

C4050

C4051

C4047

C4056

C4057

C4065

CN4005

R4043

R4044

R4045

U4004

ZD1

ZD2 ZD3

ZD4

D4002

CN4007

C4002

C4003

C4022

C4023

C4024

C4025

C4028

C4029

C4040

C4054 C4055

C4059

C4061

C4062

C4063

C4068

C4070

RP4001

RP4002

RP4003

RP4004

RP4005

RP4006

RP4007

RP4008

RP4009

RP4010

RP4011

RP4012

CN4003

CN4004

L4002

L4003

CN4006

U4005

R4003

R4005

R4006

R4007

R4008

R4009

R4010

R4011

R4013

R4018

R4020

R4021

R4022

R4023

R4024

R4025

R4026

R4027

R4028

R4029

R4030

R4031

R4032

R4033 R4034

R4035

R4036

R4037

R4038

R4039

R4040

R4041

R4042R4046

R4047

R4048

R4050

R4051

R4052

R4053

R4054

R4055

R4056

R4058

R4059

R4062

R4063

R4064

R4066

R4067

R4068

R4069

R4070

R4071

R4072

R4073

R4074

R4075

U4006

U4002

U4003

Q4003

Q4001

X4001

CN4002

Circuit Diagrams and PWB Layouts

EN 83TPS14.2A LA 10.

2014-Sep-26

back to

div.table

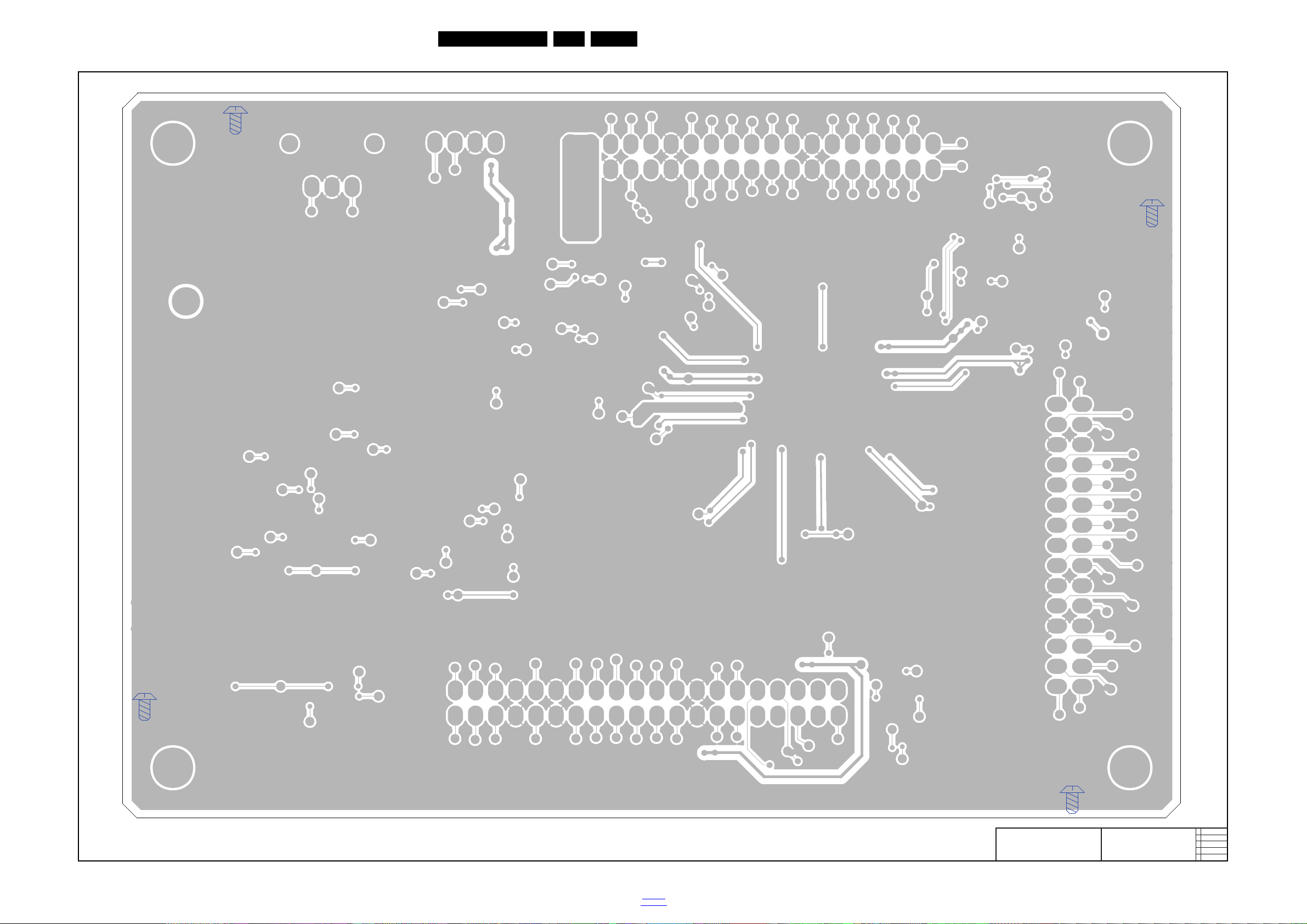

10-8-5 MEMC Board layout bottom

19692_513.eps

A

715G6535

LAYOUT BOTTOM

Circuit Diagrams and PWB Layouts

EN 84TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10.9 B 715G6997 SSB

19692_500.eps

AV/YPbPr

B01 B01

2014-07-28

715G6997

AV/YPbPr

Y_IN#1

PB_IN#1

PR_IN#1

YPBPR_L_IN#1

YPBPR_R_IN#1

PB_DET

YPbPr Video Input share with CV B S in Y

088G 78G155ACL

PB_IN#1 COMP_PB

Y_IN#1

PR_IN#1

COMP_SOY COMP_Y

COMP_PR

COMP_COM

R106 100R 1/16W 5%

C110

3.3NF 50V

R112

75R 1/ 16W 1%

R116 33R 1/ 16W 5%

R111 10K 1/16W 5%

R104 33R 1/ 16W 5%

R102 150OHM 1/16W +/-5%

E

A

B

C

D

CN111 RCA JACK

1 2

3

4 6 7

8

9 10

11

12

13

5

R103 180R 1/ 16W 5%

C103 47NF 16V

C108 47NF 16V

C105 47NF 16V

R115

75R 1/ 16W 1%

R107

75R 1/ 16W 1%

R109 10K 1/16W 5%

R113

12KOHM +-5% 1/16W

R108 68R 1/16W 5%

C104 1nF 50V

C102 47NF 16V

C101

3.3NF 50V

R114

12KOHM +-5% 1/16W

R110 33R 1/ 16W 5%

C107 47NF 16V

C112 47NF 16V

R105 33R 1/ 16W 5%

R101

4K7 1/16W 5%

COMP_PR 6

COMP_Y 6

DVDD3V3

COMP_PB 6

COMP_COM 6

COMP_SOY 6

CVBS_VCOM 6

CVBS0P 6

PB_DET 6

CVBS0PAV1_IN CVBS_VCOM

YPbPr_R_In0 6

YPbPr_L_In0

YPbPr_L_In0 6

YPbPr_R_In0

ZD102

NC

12

ZD103

NC

12

ZD106

NC

12

ZD105

NC

12

ZD104

NC

12

ZD101

NC

12

10-9-1 AV/YPbPr

Circuit Diagrams and PWB Layouts

EN 85TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-9-2 Tuner/VGA Input

19692_501.eps

Tuner/VGA Input

B02 B02

2014-07-28

715G6997

Tuner/VGA Input

VGA/UART

M_SD A 6, 8,10

RF_CTRL 6,8,10

RF_CTRLRF_CTRL

IF_AGC1 6

M_SC L 6, 8, 10

GRN_GND

GRN

GRNVGASDA

VSYNC#

VGAR_IN

VGASCL

BLUHSYNC#

RED_GND

BLU_GND

RED GRN_GND

088G353GFF1AXH

VGA_HS

VGA_VS

VGA_GP

HSYNC#

VGA_RP

C121 10UF/10V

BLU_GND

BLU

VGA_SOG

RED_GND

RED

VSYNC#

VGA_COM

VGA_BP

Sil icon Tuner

VGA

C183 100NF 16V

HS2

BKT_HOLDER

1

2

HS1

BKT_HOLDER

1

2

RF Input (Side)

X15T897320100000BL

C184

2.2uF/NC

TUN_IF_AGC

CN104

CONN

1 3 5 7 9 11 13 15 17 19

2 4 6

8 10 12 14 16 18 20

R152 0R05 1/16W

R138

47K 1/16W 5%

TUN _I F+ TUN _I F-

TU_RST 6,8,10

FAT_IN-6

FAT_IN+6

VGA_L_In

VGA_R_In

C138 1UF 10V

TUNER PO W ER +3V3

ZD108

NC

12

R118 0R05 1/16W

R119 0R05 1/16W

C113

100NF 16V

C114

100NF 16V

L101 NC/0.1UH

C125

NC

C126

NC

ZD109

NC

12

C109 NC/ 120pF 50V

ZD110

NC

12

ZD111

NC

12

VGAL_IN

IF Trace

ZD114

NC

12

C123 22UF 6. 3V

R146

12KOHM +-5% 1/16W

R129 33R 1/16W 5%

R140 100R 1/16W 5%

C133 1nF 50V

CN101

CONN

1 7 2 8 3 9 4 10 5

11 12 13 14 15

1716

6

C139 47NF 16V

DIF1_OUT1

DIF1_OUT2

C122

100NF 16V

R131

4K7 1/16W 5%

C127

100PF 50V

R149

10K 1/16W 5%

R133 68R 1/16W 5%

R128 470K

R136 33R 1/16W 5%

R135

75R 1/16W 1%

R144

10K 1/16W 5%

C182 100NF 16V

R147

12KOHM +-5% 1/16W

C137 47NF 16V

C128

100NF 16V

CN102 CONN

1

2

3

DIF1_OUT1

U101 AP1117E33L-13-77

ADJ(GND)

1

VOUT

2

VIN

3

4

DIF1_OUT2

C189 22PF 50V

R139

75R 1/16W 1%

R130

75R 1/16W 1%

C134 47NF 16V

ZD120 BAT54

13

R132

4K7 1/16W 5%

C136 47NF 16V

C118

NC

C142

3.3NF 50V

C129

NC

C143

3.3NF 50V

R142 100R 1/16W 5%

C120 10UF 10V

R134 33R 1/16W 5%

R145 10K 1/16W 5%

C132 22PF 50V

R143 10K 1/16W 5%

C117

100NF 16V

5V_SW

+3V3TUNER

+5VSB

DDCA_DA 6 DDCA_CK 6

VGA_SOG 6

VGA_VS 6

VGA_HS 6

VGA_BP 6

VGA_GP 6

VGA_RP 6

VGA_COM 6

VGA_R_In 6

VGA_L_In 6

FAT_IN-

FAT_IN+

R148 0R05 1/16W

+3V3TUNER

R137

10K 1/16W 5%

VGASCL DDCA_CK

DDCA_DAVGASDA

R141 0R05 1/16W

ZD112

NC

12

ZD113

NC

12

Circuit Diagrams and PWB Layouts

EN 86TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-9-3 HDMI Inputs

19692_502.eps

HDMI Inputs

B03 B03

2014-07-28

715G6997

HDMI Inputs

HDMID-RX1P HDMID-RX1N

HDMI_ARC

ZD518

NC

1 2

HDMI_ARC

C507 NC/ 4. 7U F 10% 10V

HDMI-CEC

HDMIB-RX2N

R558 NC / 0R 05 1/ 16W

HDMIB-CLKP HDMIB-CLKN

HDMID-CLKP HDMID-CLKN

HDMI2/MHL

HDMIB-RX0P HDMIB-RX0N

MHL_CABLE-DET 6

HDMI1/ARC

B

HDMI2/MHL

D

HDMIB-RX2P HDMIB-RX2N

HDMIB-CLKN

HDMIB-CLKP

C503

4.7PF 50V

HDMI_CEC

U502

AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U501

AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

R506

1K 1/16W 5%

R512 4K7 1/16W 5%

R507

10K 1/16W 5%

HDMID_HPDIN

HDMID_HPDIN 6

HDMID_5V

HDMID_HPD

C508 NC/ 4. 7U F 10% 10V

HDMID-RX0P HDMID-RX0N

HDMID-RX2P HDMID-RX2N

MHL_CABLE_DET

R559 NC/ 1K 1/ 16W 5%

EN_MHL_PWR

R534

NC/ 4K7 1/ 16W 5%

HDMIB_5V

+5VSB

HDMIB_5V

MHL_CABLE_DET

HDMID-RX0P HDMID-RX0N

HDMIB-RX1N

HDMIB-RX1P

CN507 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMID_SDA

HDMIB_5V

HDMIB-RX1N

HDMIB-RX2P

HDMIB-RX1P

HDMI-CEC

HDMIB-CLKP

HDMI-B-RX0P

HDMIB-CLKN

HDMI-B-RX0N

CN506 HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

HDMIB_SDA

HDMIB_SCL

HDMIB_HPD

U505

NC/APL3511CBI-TRG

VOUT

1

GND

2

OCB3EN

4

VIN

5

R515

NC

HDMIB_5V

HDMID-CLKN

HDMID-CLKP

C504

NC/1PF 50V

C502 47nF/NC

C505

NC/ 1PF 50V

HDMIB_HPDIN

HDMIB-RX1N

HDMIB-RX1P

HDMID-CLKN

HDMID-CLKP

R511 33R 1/ 16W 5%

R518 NC/300K

R533 33R 1/ 16W 5%

Q501 2N7002K

HDMID-RX2P

HDMI1/ARC

R529

47K 1/16W 5%

HDMID-RX2N

R505

NC

R508

10K 1/16W 5%

HDMID-RX1P

ZD507 LBAT54CLT1G

3

1

2

C501 1UF 10V R503

0R05 1/16W

R510 33R 1/ 16W 5%

R532 33R 1/ 16W 5%

AVDD5V_MHL

HDMID-RX1N

HDMID-RX2N

HDMID-CLKN

HDMID-RX2P HDMID-RX1P

R561 10R 1/16W 5%

HDMID-RX0P HDMID-RX0N HDMID-CLKP

R517 33R 1/16W 5%

HDMIB-CLKN

HDMIB-RX2P

HDMIB-RX0P HDMIB-CLKP

HDMIB-RX0N

R501

10K 1/16W 5%

HDMIB-RX2N HDMIB-RX1P HDMIB-RX1N

R530

47K 1/16W 5%

R514 200R 1/16W 5%

HDMID_5V

HDMIB_5V

HDMID-RX2N

HDMID-RX2P

HDMIB_5V

HDMIB_VCC

+5VSB

HDMI_CEC 6

HDMIB-RX0P HDMIB-RX0N

HDMIB_HPDIN 6

HDMID-RX2P 6

HDMID-RX0P 6

HDMID-RX1N 6

HDMID-RX1P 6

HDMID-RX2N 6

HDMID-CLKN 6

HDMID-CLKP 6

HDMID-RX0N 6

HDMID-RX1N

HDMIB-RX2P 6

HDMIB-RX0P 6

HDMIB-RX1P 6 HDMIB-RX1N 6

HDMIB-RX2N 6

HDMIB-CLKP 6 HDMIB-CLKN 6

HDMIB-RX0N 6

HDMIB_SCL 6

HDMID_SDA 6

HDMID_SCL 6

HDMIB_SDA 6

ARC_SPDIF 6

HDMIB_HPD

HDMID_SCL

HDMID-RX1N

HDMID-RX1P

ZD503

NC

1 2

HDMID_SDA

HDMID_SCL

HDMIB_SDA

HDMIB_SCL

HDMI-CEC

ARC_SPDIF

CEC/ARC

HDMID-RX0N

HDMIB-RX0N

HDMIB-RX0P

U503

AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

U504

AOZ8804DI

CH1

1

CH2

2

VN

3

CH3

4

CH45NC

6

NC

7

VN

8

NC

9

NC

10

HDMID-RX0P

HDMID_HPD

HDMIB-RX2P HDMIB-RX2N

Circuit Diagrams and PWB Layouts

EN 87TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-9-4 MSD8120PBM

19692_503.eps

MSD8120PBM

B04 B04

2014-07-28

715G6997

MSD8120PBM

HDMID-RX2P

C402 100NF 16V

C423

100NF 16V

R450

4K7 1/16W 5%

R417

4K7 1/16W 5%

HDMID_HPDIN

HDMID_SDA

HDMID_SCL

C404

100NF 16V

R422 100R 1/16W 5%

C418

100NF 16V

BL_DIMMING

OIRI

C417

100NF 16V

HDMIB-RX0P5

SPI_CSN

C427

100NF 16V

RXEC+ 7

RXE3-

C426

100NF 16V

HDMID-RX2N5

HDMID-RX1P

RXEC- 7

C429

100NF 16V

HDMID-CLKN5

+3V3SB

RXEC-

HDMID-RX2P5

HDMIB-CLKP

AVDD_DDR_DATAAVDD_DD R_CMDDDRV VCCK VDDCDDRV

AVDD_DMPLLAVDD_MOD

+3V3SB +3V3SB+3V3SB

AVDD_AU33

+3V3SB

AVDD3P3_VEDIO

X40 1

24MHZ

1

2 4

3

+3V3SB+3V3SB

HDMI_CEC5

ARC_SPDIF5

HDMIB_SDA5

HDMID_SCL5 HDMID_HPDIN5

HDMID_SDA5

HDMIB_SCL5 HDMIB_HPDIN5

RF_CTRL

PANEL_EN 7

PWR_ON 9

FAT_IN- 4

PANEL_EN

FAT_IN+ 4

HS401

SHIELD

1

2

3

4

BRIGHT_ADJ

RESET (H Reset)

4'h00

AVDD_DADC

B51_NO_EJ

{PWM1, PWM0}

CHIP_CONFIG

U403

W25Q64FVSSIG

CS#

1

SO/SIO1

2

WP#

3

GND4SI/SIO0

5

SCLK

6

HOLD#

7

VCC

8

DVDD3V3

C433

100NF 16V

+3V3SB

AVDD_DADC

RF_CTRL 7

R4020R05 OHM

M_SC L

M_SD A

BRIGHT_ADJ 9

TP1

1

R401NC/0R05 OHM

AVDD_DDR_DATA

HP_DET

ORESET#

R4040R05 OHM

AVDD_DDR_DATA

SPI_WP AUDIO_RESET

AUR0 AUL0

C422 10UF 6. 3V 20%

U401

MSD8120PBM

B_ODD[0]/LVA4+

67

SOGIN1

23

BIN1P

22

GIN1M

25

GIN1P

24

CVBS0

29

CVBS1

28

AUL0

35

GIN0P

17

XOUT54XIN53AVDD3P3_DMPLL

52

AVDD_MOD

5

RIN1P

26

G_ODD[3]/LVA0-

78

GPIO7/GPIO5164B_ODD[1]/LVA4-

68

SPI_DO

111

PWM0

110

GIN0M

18

LVSYNC

95

LHSYNC

94

LDE

93

LCK

92

R_ODD[7]/LVB0-

91

R_ODD[6]/LVB0+

90

AVDD_MOD

87

GPIO2/GPIO4660GPIO3/GPIO4761GPIO5/GPIO4962GPIO6/GPIO50

63

TCON7

99

B_ODD[4]/LVACLK+71B_ODD[5]/LVACLK-72B_ODD[6]/LVA2+73B_ODD[7]/LVA2-74G_ODD[0]/LVA1+

75

G_ODD[6]/LVB3+

81

B_ODD[3]/LVA3-

70

TCON8

98

SPI_DI

112

SPI_CZ

113

SPI_CK

114

SAR0

128

SOGIN0

16

LINEOUTR3

45

LINEOUTL0

46

VRM

43

LINEOUTL3

44

IFAGC48LINEOUTR047VIFP

49

RX1N_B

1

RX1P_B

2

RX2N_B

3

RX2P_B

4

RXCN_A

6

RXCP_A

7

RX0N_A

8

RX0P_A

9

RX1N_A

10

RX1P_A

11

RX2N_A

12

RX2P_A

13

HSYNC0

14

BIN0P

15

RIN0P

19

VSYNC0

20

AVDD3P3_ADC

21

VCOM

30

CVBS_OUT1

31

VDDC

32

AVDD_AU33

33

AUR1

36

AUL1

37

AUR2

38

AUL2

39

AUR3

40

VIFM

50

VDDC57GPIO0/GPIO4458GPIO1/GPIO4559VDDIO_CMD

56

GPIO9/GPIO5366B_ODD[2]/LVA3+

69

GPIO8/GPIO52

65

G_ODD[1]/LVA1-76G_ODD[2]/LVA0+

77

G_ODD[4]/LVB4+

79

G_ODD[7]/LVB3-

82

R_ODD[0]/LVBCLK+

83

R_ODD[1]/LVBCLK-

84

G_ODD[5]/LVB4-

80

R_ODD[3]/LVB2-

86

R_ODD[5]/LVB1-

89

R_ODD[4]/LVB1+

88

TCON2

104

TCON1

105

TCON6

100

TCON3

103

TCON5

101

TCON4

102

HOTPLUG_A

108

TCON10

96

DDCA_DA

116

TCON9

97

PWM1

109

TCON0

106

HOTPLUG_C

107

SAR1

129

VSYNC1

27

AUR0

34

VAG

42

AUL3

41

AVDD_MOD

55

R_ODD[2]/LVB2+

85

DDCA_CK

117

TEST

118

CEC

119

IRIN

120

INT

121

DM_P0

123

DP_P0

124

RESET

122

DP_P1

126

AVDD_MOD

127

DM_P1

125

VDDC

144

GND_EFUSE

143

AVDD_5V

142

HOTPLUG_B

141

DDCDB_CL

140

DDCDB_DA

139

MHL_DET

138

DDCDA_DA

137

DDCDA_CL

136

DDCDC_DA

135

DDCDC_CL

134

GPIO10/GPIO54

133

VDDIO_DATA

132

VDDC

131

SAR2

130

RX0P_B

156

RX0N_B

155

RXCP_B

154

RXCN_B

153

RX2P_D

152

RX2N_D

151

RX1P_D

150

RX1N_D

149

RX0P_D

148

RX0N_D

147

RXCP_D

146

RXCN_D

145

E-PAD

157

ARC

115

AVDD3P3_DADC

51

LED_R

AMP-AUOUTL0

M_SC L M_SD A

C410 10UF 6. 3V 20%

M_SD A 4, 8, 10

M_SC L 4,8, 10

BL_ON/OFF 9

PWM1

PWR_ON

FB402

60 OHM

1 2

AUR2

C401 100NF 16V

R494 0R05 1/16W

AUL2

C412 10UF 6. 3V 20%

C414 10UF 6. 3V 20%

PB_DET 3 HP_DET 8

LED_R 7

System XTAL

TU_RST

AMP-AUOUTR0

AMP-AUOUTL0

AU_SD AU_BCK

AMP-AUOUTR

C431 1nF 50V

C409

100NF 16V

R492

200K

XTALO

XTALI

C408 10UF/10V

AVDD_DMPLL

AU_MCK

FB401

60 OHM

1 2

XTALO

R428

1M 1/16W

R439

0R05 OHM

AUVRM

AU_WS

C407

15PF 50V

C406

15PF 50V

C432 1nF 50V

TU_RST 7

XTALI

R493

200K

AMP-AUOUTL

HDMIB_HPDI N

AU_SD 8

AU_WS 8

AU_MCK 8

AU_BCK 8

AMP-AUOUTR 8

AMP-AUOUTL 8

AUDIO_RESET 8

AUVAG

VDDC

SPI FLA SH

BL_ON/OFF

GPIO2

AMP-AUOUTR0

AUDIO_MUTE 8

AUDIO_MUTE

GPIO3

HDMIB_SCL HDMIB_HPDIN

HDMIB_SDA

C403 100NF 16V

AVDD_MOD

RXE2+ 7

RXO3+ 7

RXE1+

RXO1+ 7

RXE0- 7

RXE2-

RXE0+ 7

RXO2+

RXE2+

RXO1-

RXO2+ 7

RXO1- 7

RXO0+

RXE0RXE0+

RXO2-

RXO1+

RXO2- 7

RXO3- 7

HDMIB-RX1N5 HDMIB-RX2N5

RXO0-

RXE1-

HDMIB-RX1P HDMIB-RX2P

RXE1- 7

HDMIB-RX2P5

HDMIB-RX1P5

RXO3+

HDMIB-RX1N HDMIB-RX2N

RXE2- 7

RXO3-

RXO0- 7

RXE1+ 7

RXO0+ 7

GPIO6

C420 1UF 10V

C419 1UF 10V

C421 1UF 10V

GPIO7

C430 1UF 10V

MHL_CABLE-DET5

AVDD5V_MHL

MHL_CABLE-DET

GPIO8

PWR_ON

GPIO9

POWER

BL_DIMMING

R717 1K 1/16W 5%

C722 NC

LED_G 7

LED_G

HDMIB_SCL

HDMIB_SDA

C434 22N 25V

MHL_CABLE-DET

HDMID_SDA

HDMID_SCL

SPI_SDI

SPI_CLK

VGA_GP VGA_RP

VGA_BP

VGA_COM4

VGA_COM

VGA_SOG4

VGA_VS

VGA_BP4

VGA_HS4

SPI_SDO

VGA_HS VGA_SOG

VGA_VS4

VGA_RP4

VGA_GP4

SPI_CSN

IF_AGC1 10

IF_AGC1

RXOC+ 7

RXOC-

RXOC- 7

KEY2 7 KEY1 7

RXOC+

KEY1

KEY2

YPbPr_R_In03 YPbPr_L_In03

VGA_L_In4

VGA_R_In4

COMP_PR3

COMP_Y3

COMP_PB3

COMP_COM3

COMP_PB

COMP_PR

COMP_Y

COMP_SOY

COMP_SOY3

COMP_COM

CVBS0P3 CVBS_VCOM3

CVBS_VCOM

CVBS0P

HDMID-RX0P

HDMID-CLKP5

BL_DIMMING

HDMID-CLKP

PWM1

R419

10K 1/16W 5%

GPIO1

DVDD3V3

AVDD3P3_VEDIO

SPI_CLK

FAT_IN+ FAT_IN-

HDMID_HPDIN

HDMID-RX0N5

HDMID-RX1N

ARC_SPDIF

USB_DM 7

RXE3+

USB_DP USB_DM

USB_DP 7

HDMID-RX2N

HDMID-RX0P5

FAT_IN+

HDMIB-RX0P HDMI_CEC

ARC_SPDIF

HDMIB-CLKN5

AVDD_DDR_CM D

SPI_WP

SPI_SDI

GPIO0

C424

100NF 16V

C428

100NF 16V

HDMID-CLKN

HDMIB-CLKP5

R443

4K7 1/16W 5%

C411

100NF 16V

HDMID-RX1N5

R418

10K 1/16W 5%

DDCA_CK 4

C415

100NF 16V

AVDD_AU33

RXEC+

HDMID-RX0N

ARC_SPDIF 5

DDCA_CK

R427

100K 1/16W 5%

0603

060306030603

R449

4K7 1/16W 5%

U410 G690H2 9 3 T 7 3

GND

1

RESET

2

Vcc

3

RXE3+ 7

SPI_SDO

HDMI_CEC

R442

4K7 1/16W 5%

HDMIB-RX0N5

OIRI 7 HDMI_CEC 5

HDMID-RX1P5

DDCA_DA 4

C413

100NF 16V

RXE3- 7

FAT_IN-

HDMIB-CLKN

C425

100NF 16V

IF_AGC

HDMIB-RX0N

C416

4.7UF 6. 3V

DDCA_DA

ORESET#

Circuit Diagrams and PWB Layouts

EN 88TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-9-5 LVDS/USB/KEYPAD

19430_519_130114.eps

130114

Audio/Video IO/SPDIF

B05 B05

2012-12-15

C

715G5713

Audio/Video IO/SPDIF

Y1P

SOY0

ADCINP_DEMOD

ADCINN_DEMOD

IF BPF

VGA_R_IN

SCART1_R_IN SCART1_L_IN

GND

VGA_L_IN

AVDD33_ADAC

AOSDATA0_D

AOMCLK_D

AOBCLK_D

AR0O

AL0O

AOLRCK_D

AVDD33_HPAAVDD33_AADC

Analog Power

YPBPR0_L_IN

R1047

56R 1/16W 1%

MT5580MPOI

U401J

ADCINP_DEMOD

AD19

ADCINN_DEMOD

AE19

IF_AGC

M19

RF_AGC

M20

AVDD12_RGB

AC17

AVSS12_RGB

V13

AVDD33_DEMOD

AE18

AVSS33_DEMOD

V16

AVDD12_DEMOD

AD18

AVSS12_DEMOD

AC18

AVDD33_VIDEO

AD17

AVSS33_VDAC

V14

AVSS33_VDAC_BG

W15

AVSS33_CVBS_1

W17

AVSS33_CVBS_2

Y17

AVSS33_CPUPLL

G15

HSYNC

AC11

VSYNC

AC10

RP

AB13

GP

AE12

BP

AB12

COM

AD12

SOG

AC12

VGA_SCL

AE9

VGA_SDA

AD9

COM1

AD14

PB1P

AE14

PR1P

AC14

Y1P

AB14

SOY1

AC13

COM0

AC16

PB0P

AD16

PR0P

AE16

Y0P

AC15

SOY0

AB15

VDACX_OUT

AA14

VDACY_OUT

Y14

CVBS0P

W16

CVBS1P

AB16

CVBS2P

AA16

CVBS3P

Y16

OSCL2

M21

OSDA2

M22

CVBS_COM

AA15

C605

33pF 50V

R1043 100R 1/16W 5%

MT5580MPOI

U401C

AIN1_L_AADC

AB19

AIN1_R_AADC

AB21

AIN2_L_AADC

AB18

AIN2_R_AADC

AB22

AIN3_L_AADC

AB20

AIN3_R_AADC

AC22

AIN4_L_AADC

AC20

AIN4_R_AADC

AB23

MPXP

W14

AVDD33_AADC

AD22

AVSS33_AADC

Y18

AVDD33_ADAC

AE23

AVSS33_ADAC

W19

AVSS33_CLN

AA18

VMID_AADC

AD23

AL0_ADAC

AE24

AR0_ADAC

AD25

AL1_ADAC

AC24

AR1_ADAC

AE25

AL2_ADAC

AD24

AR2_ADAC

AC25

ALIN

AE6

ASPDIFO0

AB4

AOBCK

AC8

AOLRCK

AD7

AOMCLK

AD8

AOSDATA0

AD6

AOSDATA1

AC7

AVDD33_HPA

AE22

AVSS33_HPA

V17

R1048 100R 1/16W 5%

R1040

18R 1/16W 5%

C619 10NF 50V

C603 100NF 16V

C1034 10NF 50V

R600

240R 1/10W 5%

C1040

10UF 10V

C618

10PF 50V

R1045

56R 1/16W 1%

C620 10NF 50V

R1039 0R05 1/16W

C615 10UF 10V

C600 100NF 16V

C612 100NF 16V

R1073 75 OHM +-5% 1/16W

C601 100NF 16V

C1037

NC/10N 50V

C614 10UF 10V

C613 100NF 16V

C1036 47NF 16V

C1035

10PF 50V

C1033 1.5NF 50V

C617 10NF 50V

R1071 75 OHM +-5% 1/16W

R1050 100R 1/16W 5%

C607 1uF 10V

R1041 100R 1/16W 5%

R1042

18R 1/16W 5%

R604

51OHM 1/16W +/-5%

C606 1uF 10V

C602 100NF 16V

R1113 10R 1/16W 5%

R1088

30Kohm 1/16W +/-5%

R605 10K 1/16W 5%

R1049 100R 1/16W 5%

R601

100R 1/10W 5%

C609

10PF 50V

C622

47PF 50V

C604

100NF 16V

R603

51OHM 1/16W +/-5%

ABC

D

EF

CN112

RCA JACK

3

2

6

5

9

8

1

4

7

10

11 12

C623

47PF 50V

C611 100NF 16V

C610 100NF 16V

C1039

10UF 10V

C608 1uF 10V

C1038

NC/10N 50V

C616 10NF 50V

R1087

30Kohm 1/16W +/-5%

C621

47NF 16V

R1044

18R 1/16W 5%

YPBPR0_R_IN

R1046

56R 1/16W 1%

AVDD3V3

AVDD1V2 AVDD3V3

VGA_R_IN8 VGA_L_IN8

SCART1_L_IN8

GND2,3,4,5,7,8,9,10,11,12,13,14,15

AL0O7

SCART1_R_IN8

AR0O7

AOLRCK_D7

AOBCLK_D7 AOMCLK_D7

Y0P8

AOSDATA0_D7

PB0P8

COM08 PR0P8 VSYNC8

HSYNC8 RP8

SPDIFOUT

BP8

GP8 VGACOM8

SOG8 VGASCL8

VGASDA8 TU_FAT_IN2+14

PR1P

TU_FAT_IN2-14 OSCL212,14

CVBS3P8

OSDA212,14

IF_AGC12,14

AVDD1V2 2,9,12,13,14

SOY08

AVDD3V32,4,5,9,10,11,12,13 ARC13

Analog Power

AVDD12_DEMOD

AVDD12_RGB AVDD33_DEMOD

AVDD33_VIDEO

AVDD1V2

SPDIF_OUT

YPbPrL_INY_IN_1

YPbPrR_IN

SPDIFOUT

PB_IN_1

YPbPr & Audio IN

PR_IN_1

IF_AGC

YPbPrL_IN

---><---|>

YPBPR0_L_IN

YPBPR0_R_INYPbPrR_IN

IF_AGC

PB1P

TU_FAT_IN2+

AVDD3V3

PR_IN_1

PB_IN_1

-------><-------

YPBPR IN

PR1

PB1P

COM1

PR1P

SOY1

Y1PY1

-------><--------------><-------

PB1

Y_IN_1

CVBS1P

Video

TU_FAT_IN2-

---><---|>

SPDIF OUT

AOLRCK_D AOSDATA0_D

AOMCLK_D

AOBCLK_D

AL0O

AVSS33_HPA

AVDD33_HPA

AR0O

SPDIF_OUT

ARC

VGA_R_IN

SCART1_R_IN

SCART1_L_IN

AVDD33_AADC AVSS33_AADC

AVSS33_ADAC

AVDD33_ADAC

VGA_L_IN

VMID_AADC

AVSS33_CLN

ARC

OSDA2

OSCL2

SOG

Y0P COM0

VGASDA

CVBS_COM

PB0P

VGASCL

HSYNC

AVSS33_DEMOD

AVDD12_RGB AVSS12_RGB

VSYNC

AVSS33_VDAC_BG

AVSS33_VDAC

AVDD33_VIDEO

AVSS12_DEMOD

AVDD12_DEMOD

AVDD33_DEMOD

TU_FAT_IN2+

RP

PR0P

AVSS33_CVBS_1 AVSS33_CPUPLL

ADCINP_DEMOD ADCINN_DEMOD

TU_FAT_IN2-

GP

BP

GP

VSYNC

HSYNC

AVSS33_CVBS_2

BP

CVBS3P

VGASDA

VGASCL

VGACOM SOG

RP

VGACOM

COM0

SOY1

Y0P

PR0P

PB0P

SOY0

OSDA2

CVBS1P CVBS3P

OSCL2

Audio

COM1

19692_504.eps

LVDS/USB/KEYPAD

B05 B05

2014-07-28

715G6997

LVDS/USB/KEYPAD

SELLVDS

t

TH101

NC/PTCR

1 2

LED_RE

RXOC+

RXE2+ RXE3+

RXE1+

RXE0+RXE0+

RXEC+

RXO3+

RXO2+

RXO0+ RXO1+

C152 1UF 10V

C153

100NF 16V

+3V3SB

LED_GE

LVDS Power

IR / KEY BOARD CONN.

H PANEL O N L PANEL OFF

USB PORT

LED_G

R179 10K 1/16W 5%

LED_G6

+3V3SB

R177

10K 1/16W 5%

R180

10K 1/16W 5%

Q104 MMBT3906

+3V3SB

R117 10K 1/10W

RXEC-

RXO0-

RXE0RXE2RXE3-

RXE1-

RXOCRXO3-

RXO2-

RXO1-

USB 2.0

R441

10K 1/16W 5%

+5VSB +12V

LED_R

R172

NC

R173

0 OHM +-5% 1/8W

CN401

CONN

1 2 3 4 5 6 7 8 9

C157 22UF 16V

C150 10UF 10V

Q101

AO3407A

R154 NC/4.7K

CN402

CONN

2

4

6

8

10

12

14

16

18

20

22

24

26

28

30

1

3

5

7

9

11

13

15

17

19

21

23

25

27

29

ZD121

NC

12

C158 10UF 16V

R151 4K7 1/16W 5%

C151 1UF 10V

RXO2-6

RXO0-

R168 100R 1/ 16W 5%

Q102 MMBT3904

RXE1-

RXO2-

RXE0+

RXO0+

RXE2-

R150

100K 1/16W 5%

1234

CN103

USB CONN

1 2 3 4

6 5

RXEC+6

C155

100NF 16V

C148

100NF 16V

RXE2-6

RXE3-6

RXE0-6

R158 5R6 1/16W 5%

R162

3.9K 1%

Q103 MMBT3906

RXO1-6

C145 470NF 16V

RXOC+6

RXOC-

R155 4K7 1/16W 5%

RXO0-6

RXO2+

RXE0-

RXEC-

C154 100NF 16V

RXE1-6

RXOC+

R165 10K 1/16W 5%

R153 150K 1/16W 5%

PANEL_VCC

R159 10K 1/16W 5%

R163

10K +-1% 1/16W

RXO3-

RXE3-

RXO2+6

RXE2+6

DVDD3V3

RXO1-

RXE3+

R161

NC/10K 1/16W 5%

R156

10K 1/16W 5%

RXO3-6

RXO1+6

ZD122

NC

12

R167 10K 1/16W 5%

RXO3+6

RXEC-6

R170 1Kohm 1/16W +/-1%

R169 1Kohm 1/16W +/-1%

RXOC-6

RXE1+

C156 100PF 50V

RXE3+6

RXO0+6

RXE1+6

RXE2+

U109

APL3511CBI-TRG

VOUT

1

GND

2

OCB

3

EN

4

VIN

5

RXE0+6

RXEC+

RXO1+

R157 5R6 1/16W 5%

RXO3+

USB_DM

R164

30K OHM +-1% 1/16W

C149 NC

R160 10K 1/16W 5%

PANEL_VCC

USB_5V

5V_SW+3V3SB

+3V3SB

USB_DP6

USB_DM6

+3V3SB

PANEL_EN6

KEY26

KEY16

OIRI6

LED_R6

USB_DP

LED_RE LED_GE

KEY2_IN

KEY1_INKEY1

OIRI

KEY1: POWER KEY2: Vol+ / -, CH+ / - , Menu, Input

KEY2

Circuit Diagrams and PWB Layouts

EN 89TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-9-6 Audio Amp/Headphone Out

19692_505.eps

Audio Amp/Headphone Out

B06 B06

2014-07-28

715G6997

Audio Amp/Headphone Out

Q90T0092 1

P90T0066101

HS601

HEAT SINK

1 2

HPOUT_L HPOUT_R

C637 10UF 6. 3V 20%

C628 10UF 6. 3V 20%

C625 10UF 6. 3V 20%

FB602 0R05 1/10W

C643 100PF 50V

C646 100PF 50V

PD_MUTE

D602

SS1060FL

ROUT-

CN602

CONN

1 7 6 2 3 4 5

C644 2.2UF 10V

HP_DET6

DVDD3V3

HP_DET

C649 100PF 50V

C645 2.2UF 10V

FB604 300R

C650 100PF 50V

FB605 300R

R625 100OHM

R624

10K

C647 NC/100N16V

C648 NC/100N16V

R631 0R05 OHM

AMP-AUOUTL

R626 10K +-1% 1/16W

AMP-AUOUTR

R629 10K +-1% 1/16W

EAR_L EAR_R

R627 33K 1% R630 33K 1%

HPIN_L

HPIN_R

R628 0R05 OHM

AUDIO_MUTE

FB601

120R

12

AUDIO_MUTE6

+12V_AUD

AMP-AUOUTR AMP-AUOUTL

C623 100N16V

L601 22uH

R643

10K 1/16W 5%

C621 2.2nF 50V

AUDIO_MUTE

C617 1UF 25V

R612 33 OHM 1/16W R614 33 OHM 1/16W

M_SC L M_SD A

C640 22PF 50V

CN601

CONN

1

2

3

4

5 6

R653

1K 1/16W 5%

R646

3KOHM +-5% 1/16W

C604

0.1uF 50V

AMP_POWER

+

C603 100UF 35V

U603 AS431AN-E1

M_SC L4,6,10

M_SD A4,6,10

AUDIO_RESET6

R623

100K 1/16W

PD_MUTE

R649

30K OHM +-1% 1/16W

R620

10K

Q603 MMBT3904

L602 22uH

R622 10K

L603 22uH

AMP_3V3

L604 22uH

AMP_3V3

C624 1UF 10V

R617

18.2K OHM +-1% 1/16W

C601

0.1uF 50V

R607 470R 1/16W 1%

AUDIO_RESET

R610 33 OHM 1/16W

C619 330nF

AMP_3V3

R+

C615 330nF

R601 18R 1%

C605

330pF 50V

C630 4.7NF 50V

+

C664 100uF 35V

C629 47nF 16V

C634 22PF 50V

C610

330pF 50V

D603

1N4148WS

R602 18R 1%

AU_MCK

R645 51K 1/16W 5%

AMP-AUOUTL6

R603 18R 1%

C613

330pF 50V

R604 18R 1%

C618

330pF 50V

C638 22PF 50V

C633 4.7NF 50V

C631 47nF 16V R 608 470R 1/ 16W 1%

R606

10K

C611 330nF

ADR

AMP_PDN

C641

22PF 50V

C642 22PF 50V

R642 100R 1/16W 5%

+

C602 100UF 35V

AMP_3V3

AU_SD6

AU_SD

DVDD3V3

C636 100N16V

AMP-AUOUTR6

AU_BCK6

AU_MCK6

AU_WS6

C620 1UF 10V

R618 33 OHM 1/16W

AU_WS

AU_SD

R616 33 OHM 1/16W

C626 1UF 10V

C639 4.7UF 10% 10V

FB603

600 OHM

1 2

RESET_AMP

U601

TAS5729MD

GND

1

OUTA

2

BSTA

3

PVDD

4

PWM1

5

PWM2

6

HPIL

7

HPOL

8

HPOR

9

HPIR

10

HPVSS

11

CN

12

AVDD_REG2

37

SSTIMER

38

HP_SD

39

GVDD_REG

40

PVDD

41

BSTD

42

OUTD

43

GND

44

OUTC

45

BSTC

46

BSTB

47

OUTB

48

GND

36

GND

35

TEST

33

DVDD

34

RESET

32

NC

31

SCL

30

SDA

29

SDIN1

28

SCLK

27

LRCLK

26

PDN

25

CP

13

HPVDD

14

GND

15

FLTM

16

FTLP

17

AVDD_REG1

18

AVDD

19

ADR

20

MCLK

21

ROSC

22

GND

23

DVDD_REG

24

E-Pad

49

R619

NC/10K

R621

10K

AMP_3V3

ADR

C635 NC/ 100PF 50V

C622 100N16V

M_SCL

AU_MCK

L-

C627 100N16V

HPIN_L

LOUT+

M_SDA

L+

AU_WS

AU_BCK

C607 330nF

R-

HPOUT_L

AUDIO_RESET

HPIN_R

HPOUT_R

C608 33nF 50V

C609 33nF 50V C612 33nF 50V

C616 33nF 50V

R654

NC

L+

C665 100NF 16V

I2C A ddress

R+

ZD603

NC

12

Lo

0402

0X54

0402

ZD602

MLVG0402

12

ZD601

MLVG0402

12

088G302G7B1ACL

HeadPhone / Audio Output (Side)

+12V_AUD

+12V+12V_AUD

R-

L-

Hi 0X56

EAR_DET

LOUT-

AU_BCK

ROUT+

POP NOISE (AC OFF)

Circuit Diagrams and PWB Layouts

EN 90TPS14.2A LA 10.

2014-Sep-26

div.table

back to

10-9-7 System Power

19692_506.eps

System Power

B07 B07

2014-07-28

715G6997

System Power

R707

4K7 1/16W 5%

BRIGHT_ADJ 6

+5VSB

+3V3SB

+5VSB +3V3SB

+12V_AUD +12V

H => POWER_ON L => POWER_OFF

+12V

C704 100PF 50V

C705

0.1uF 50V

U701 AP1117E33L-13-77

ADJ(GND)

1

VOUT

2

VIN

3

4

Q704

AO3401A

Core Power 1.2V

C713 10uF 16V

FB703

300R

1 2

U702

SY8104ADC

LX

5

FB

1

EN

2

GND3IN

4

BS

6

R725

13.3K 1%

R727 100K 1%

C707

22pF 50V

L702

4.7uH

R734 62K 1/16W 1%

R735

100K 1/16W

R736 0R051/8W

C727

0.1uF 50V

3.3A

R738 0R05 1/16W

C730 22UF 20% 6. 3V

R708

4K7 1/16W 5%

DRAM Power 1.5V

R773

NC/0 OHM +-5% 1/8W

+5VSB

+12V

+3V3SB

+12V_AUD

CN701

CONN

2

4

6

8

10

12

1

3

5

7

9

11

Standby Power + 3V3SB

R733

47K

Q707 MMBT3904

R720 100K 1/16W

R724 4.7K1/16W

R723 10K 1/16W 5%

C726 100NF 16V

12V to 5V

SOT223 3.3V

C721

4.7UF 10% 10V

Q702

AO3401A

+3V3SB

R737

4K7 1/16W 5%

+3V3SB

R726 4K7 1/16W 5%

BL_ON/OFF

R1

R2

Q705 MMBT3904

C715 22uF 10V

R722

4K7 1/16W 5%

5V_SW

R743

8K2 1/16W +/-5%

BL_ON/OFF 6

PWR_ON 6

Q706 MMBT3904

R742

4K7 1/16W 5%

+3V3SB

BL_ON_OFF

BRIGHT_ADJ

DVDD3V3

C701 100PF 50V

C702 1nF 50V

+5VSB

BL_DIM

U703 SY8003ADFC

NC

5

FB

1

PG

2

IN

3

PGND

4

LX

6

EN

7

SGND

8

PGND

9

2.04A

R721 100K 1%

R1

R2

BL_ON

R711 100K 1/16W

L703

2.2uH

R739 10K

C718 22UF 6. 3V

R715 0R 05 1/ 10W

C720

22UF 6. 3V

VCCK

C731 22P 50V

R718 4K7 1%R719 100K 1%

C716 NC/1UF 16V

R728

100K1/16W

+5VSB

C723

10UF 6. 3V 20%

C743 100NF 16V

U706

AZ1084CD-ADJTRG1

VIN3VOUT

2

GND/ADJ

1

C745 10UF 10V

DDRV

5V_SW

R745

24R 1/10W 1%

R744

120R 1/10W 1%

PS_ON

R774

0 OHM +-5% 1/8W

R753 4K7 1/16W 5%

PWR_ON

C729 22uF 10V

R705 7K5 1/16W 5%

C717 22UF 6. 3V

C744 22UF 6. 3V

PWR_ON

Back Li g h t On / Off HI => POWER_OFF LO => POWER_ON

BL_DIM

BL_ON

PS_ON

5V_SW

MAIN PO WER

C711

0.1uF 50V

C728 10UF 10V

+5VSB

C706 10UF 10V

C719 100NF 16V

Q701 MMBT3904

R706

4K7 1/16W 5%

PWR_ON

C710 100PF 50V

R702 100R 1/16W 5%

R704

47K 1/16W 5%

R709 4K7 1/16W 5%

C712 1UF 10V

C708

0.1uF 50V

Q703 MMBT3904

R701 100R 1/16W 5%

Circuit Diagrams and PWB Layouts

EN 91TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-9-8 SSB layout top

19692_507.eps

A

715G6997

LAYOUT TOP

C120

C121

C158

C408

C607

C611

C615

C619

C706

C717

C728

C720

C718

C745

C730

C716

C713

C145

C410

C412

C414

C422

C507

C508

C601

C604

C605

C608

C609

C610

C612

C613

C616

C617

C618

C625

C628

C637

C639

C644

C645

C705

C708

C711

C721

C723

C727

C602

C603

C664

D603

FB401

FB602

FB603

FB604

FB605

R117

R744

R745

R715

R725

FB601

FB703

R735

R711

R728

R172

R173

R773

R774

R736

R601

R602

R603

R604

TH101

U703

X401

C150

C744

C715

C729

C123

L101

FB402

C157

C101

C102

C103

C104

C105

C107

C108

C110

C112

C117

C118

C122

C127

C128

C129

C132

C133

C134

C136

C137

C139

C142

C143

C148

C149

C151

C152

C153

C154

C155

C156

C182

C189

C402

C403

C404

C406

C407

C409

C411

C413

C415

C416

C417

C418

C419

C420

C421

C423

C424

C425

C426

C427

C428

C429

C430

C431

C432

C433

C434

C501

C503

C504

C505

C620

C621 C622

C623

C624

C626

C627

C629

C630

C631

C633

C634

C635

C636

C638

C640 C641

C642

C643

C646

C647

C648

C649 C650

C665

C701

C702

C704

C710

C712

C719

C722

C731

C743

C726

C707

CN101

CN102

CN103

CN104

CN111

CN401

CN402

CN506 CN507

CN601

CN602

CN701

D602

HS1

HS2

HS401

HS601

L601

L602

L603 L604

L702

L703

Q101

Q102

Q103

Q104

Q603

Q701

Q703

Q705

Q706

Q707

Q501

Q702

Q704

R101

R102

R103

R104

R105

R106

R107

R108

R109

R110

R111

R112

R113

R114

R115

R116

R129 R130

R131

R132

R133

R134 R135

R136 R139

R140

R142

R143

R144

R145

R146

R147

R149

R150

R151

R153

R154

R155

R156

R157

R158

R159

R160

R161

R162

R163

R164

R165

R167

R168

R169

R170

R177

R179

R180

R401

R402 R404

R417

R418

R422

R427

R428 R439

R441

R442

R443

R449

R450

R492

R493

R494

R501

R503

R505

R506

R507

R508

R510

R511

R512

R514

R515

R517

R518

R529

R530

R532

R533

R534

R558

R559

R561

R606

R607 R608

R610

R612R614

R616

R617

R618

R619

R620

R621

R622

R623

R624

R625

R626

R627R628

R629

R630R631

R642

R643

R645

R646

R649

R653

R654

R701

R702

R704

R705

R706

R707

R708

R709

R717

R722

R726

R739

R737

R742

R743

R753

R719

R734

R720

R723

R724

R733

R148

R718

R721

R727

R738

R137

R138

R152

R419

SCREW1

U1

U2

U101

U701

U109

U505

U401

U403

U410

ZD507

U501

U502

U503

U504

U601

U603

U702

U706

ZD1

ZD2

ZD3

ZD101

ZD102

ZD103

ZD104

ZD105 ZD106

ZD108

ZD109 ZD110

ZD111

ZD112

ZD113

ZD114

ZD121ZD122

ZD503

ZD518

ZD601 ZD602 ZD603

ZD120

C109

C113 C114

C125

C126

C138

C183

C184

C401

C502

R118 R119

R128

R141

TP1

Circuit Diagrams and PWB Layouts

EN 92TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-9-9 SSB layout bottom

19692_508.eps

A

715G6997

LAYOUT BOTTOM

Circuit Diagrams and PWB Layouts

EN 93TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10.10 J 715G6710 IR/LED Panel

19660_522.eps

IR/LED panel

J J

2013-11-11

C

715G6710

IR/LED panel

IR

LED_R LED_B

VCC_STB

VCC_STBY

BlueRed

Q002

BC847C

Q002

BC847C

R001

330R 1/16W 5%

R001

330R 1/16W 5%

C0202

100N 16V

C0202

100N 16V

R003

10K

R003

10K

C0205

4.7uF 10V

C0205

4.7uF 10V

R006

10K

R006

10K

Q001

BC847C

Q001

BC847C

R005

10K

R005

10K

R008

10K

R008

10K

ZD004

NC/MLVG0402

ZD004

NC/MLVG0402

12

ZD005

NC/MLVG0402

ZD005

NC/MLVG0402

12

CN0201 CONNCN0201 CONN

1 2

3

4 5

67

C0201

100N 16V

C0201

100N 16V

C0203

100N 16V

C0203

100N 16V

U001

IRM-H336M3/TR2

U001

IRM-H336M3/TR2

GND

1

VCC

2

Vout

3

GND

4

R004

47R 1/16W 5%

R004

47R 1/16W 5%

ZD003

NC/MLVG0402

ZD003

NC/MLVG0402

12

R002

330R 1/16W 5%

R002

330R 1/16W 5%

R007

10K

R007

10K

RED

BLUE

LED001

GPTD1210BRC-D

RED

BLUE

LED001

GPTD1210BRC-D

1

2 3

4

ZD006

NC/MLVG0402

ZD006

NC/MLVG0402

12

C0204

100P 50V

C0204

100P 50V

10-10-1 IR/LED Panel

Circuit Diagrams and PWB Layouts

EN 94TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-10-2 IR/LED board layout

19660_523.eps

2013-11-12

B

715G6710

IR/LED panel

layout top/bottom

C0205

C0202

C0203

C0204

LED001

Q002

R002

R003

R004

R005

R006

U001

ZD003

ZD004

ZD006

ZD1

ZD2

C0201

CN0201

Q001

R001

R008

R007

ZD005

ZD3

ZD7

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 95TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10.11 J 715G6638 IR/LED Panel

19690_519.eps

IR BOARD

J J

2014-05-10

B

715G6638

IR BOARD

Q002

BC847C

Q001

BC847C

R005

10K

R008

10K

R007

10K

R006

10K

C0202

100N 16V

C0203

100N 16V

R001

330R 1/ 16W 5%

C0201

100N 16V

C0204

100P 50V

VCC_STBY

C0205

4.7uF 10V

R003

10K

R004

47R 1/ 16W 5%

VCC_STBY

IR

R002

330R 1/ 16W 5%

VCC_STBY

LED_R

CN0201 CONN

1 2

3

4 5

67

RED

BLUE

LED001

GPTD1210BRC-D

1

2 3

4

ZD006

NC/MLVG0402

12

ZD005

NC/MLVG0402

12

LED_B VCC_STB

ZD003

NC/MLVG0402

12

ZD004

NC/MLVG0402

12

U001

IRM-H336M3/TR2

GND

1

VCC

2

Vout

3

GND

4

BlueRed

10-11-1 IR BOARD

Circuit Diagrams and PWB Layouts

EN 96TPS14.2A LA 10.

2014-Sep-26

back to

div.table

10-11-2 IR/LED board layout

19690_520.eps

B

715G6638

IR/LED panel

layout top/bottom

C0205

Q1

C0201

C0202

C0203

C0204

R001 R002

R003

R004

ZD004

ZD005 ZD006

ZD2

U001

LED001

ZD003

R005

R006

R007

R008

Q001

Q002

CN0201

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 97TPS14.2A LA 10.

2014-Sep-26

back to

div.table

Circuit Diagrams and PWB Layouts

19610_545.eps

Key

E E

2013-09-17

1

715G6316

Keyboard control panel

R03

6K8 1/10W 1%

3 4

2

1 6

5

7

8

F5

F3

F1

F4

F2

SW01

SW 6P

KEY1

Menu Right Left Down Up

R04

2K2 1/10W 1%

R01

1K2 1/10W 1%

6-5 short

2-5 short

F1

3-5 short

1-5 short 4-5 short

F2

F3

F4

F5

Direction switch

----><----|

C06

100N 50V

Joystick circuit diagram

pin1

0V

0.5V

0.81V

1.65V

2.27V

pin2

No function

pin3

3.3V

C04

NC/100N 50V

pin4

C05

NC/100N 50V

pin5 pin6

----><----|

C01

NC/100N 50V

C02

NC/100N 50V

C03

NC/100N 50V

----><----|

pUretneCDown

----><----|

R02

0R05 1/ 10W

0R

2K2

ResistanceKey function

Center

CH-

CH+ 1K2

VOL+

VOL-

Left

6K8 15K

Right

1 2

34

CN01

CONN

Voltage

R05

15K 1/10W 1%

10.12 E 715G6316 Keyboard control panel

10-12-1 Key

EN 98TPS14.2A LA 10.

2014-Sep-26

back to

div.table

Circuit Diagrams and PWB Layouts

19610_546.eps

2013-09-17

1

715G6316

Keyboard control panel

layout top/bottom

SW2

SW3

SW4

SW5

SW6

SW7

CN01

C01

C02 C03

C04

C05

C06

R01

R02

R03

R04

R05

R1

R2

SW01

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-12-2 Key board layout

EN 99TPS14.2A LA 10.

2014-Sep-26

back to

div.table

Circuit Diagrams and PWB Layouts

19740_514.eps

Tuner

TU01 TU01

715G6344

Tuner

CN1001

2 1

311GB254C20DBX

CABLE

3

Power Consumption

6

11

HIGH

AIR

LOW

1

4

RF Switch Control

8

10

5

Tuner Reset : Active LOW

2

7

9

Cable

I2C Address : 0xC0 Tuner IC : TDA18273

Air

TU101

TDSH-T070F

RF S/ W C TL

1

Reset

2

+B1

5

NC

8

TH1

12

TH2

13

TH3

14

TH4

15

SCL

3

SDA

4

NC

6

NC

7

IF_AGC

9

DIF1(P)

10

DIF2(N)

11

3V3T

RF_CTRL TU_RESET TU_SCL TU_SDA

IF_AGC DIF1 DIF2

CN1001

CONN

1 3 5 7

9 11 13 15 17 19

2 4 6 8 10 12 14 16 18 20

10.13 TU 715G6344 TunerBox Board

10-13-1 Tuner

EN 100TPS14.2A LA 10.

2014-Sep-26

back to

div.table
