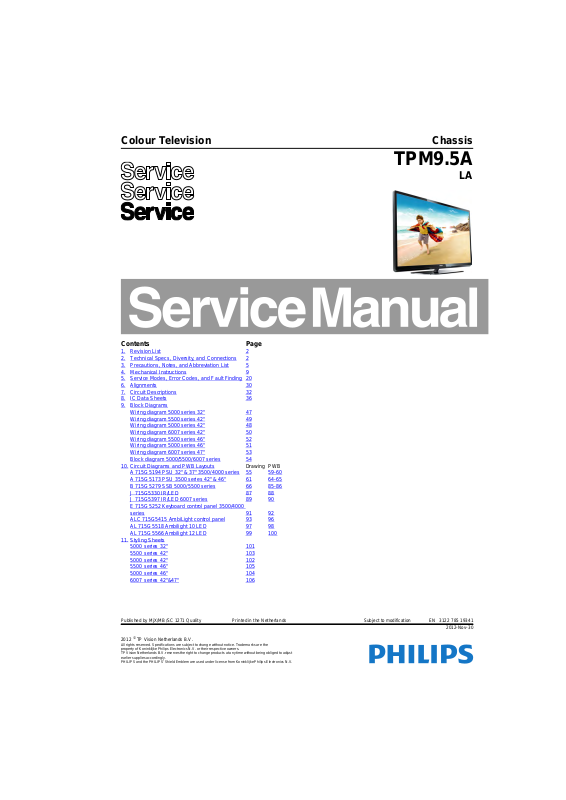

Philips TPM9.5A Schematic

Colour Television Chassis

TPM9.5A

LA

Contents Page

1. Revision List 2

2. Technical Specs, Diversity, and Connections 2

3. Precautions, Notes, and Abbreviation List 5

4. Mechanical Instructions 9

5. Service Modes, Error Codes, and Fault Finding 20

6. Alignments 30

7. Circuit Descriptions 32

8. IC Data Sheets 36

9. Block Diagrams Wiring diagram 5000 series 32" 47 Wiring diagram 5500 series 42" 49 Wiring diagram 5000 series 42" 48 Wiring diagram 6007 series 42" 50 Wiring diagram 5500 series 46" 52 Wiring diagram 5000 series 46" 51 Wiring diagram 6007 series 47" 53 Block diagram 5000/5500/6007 series 54

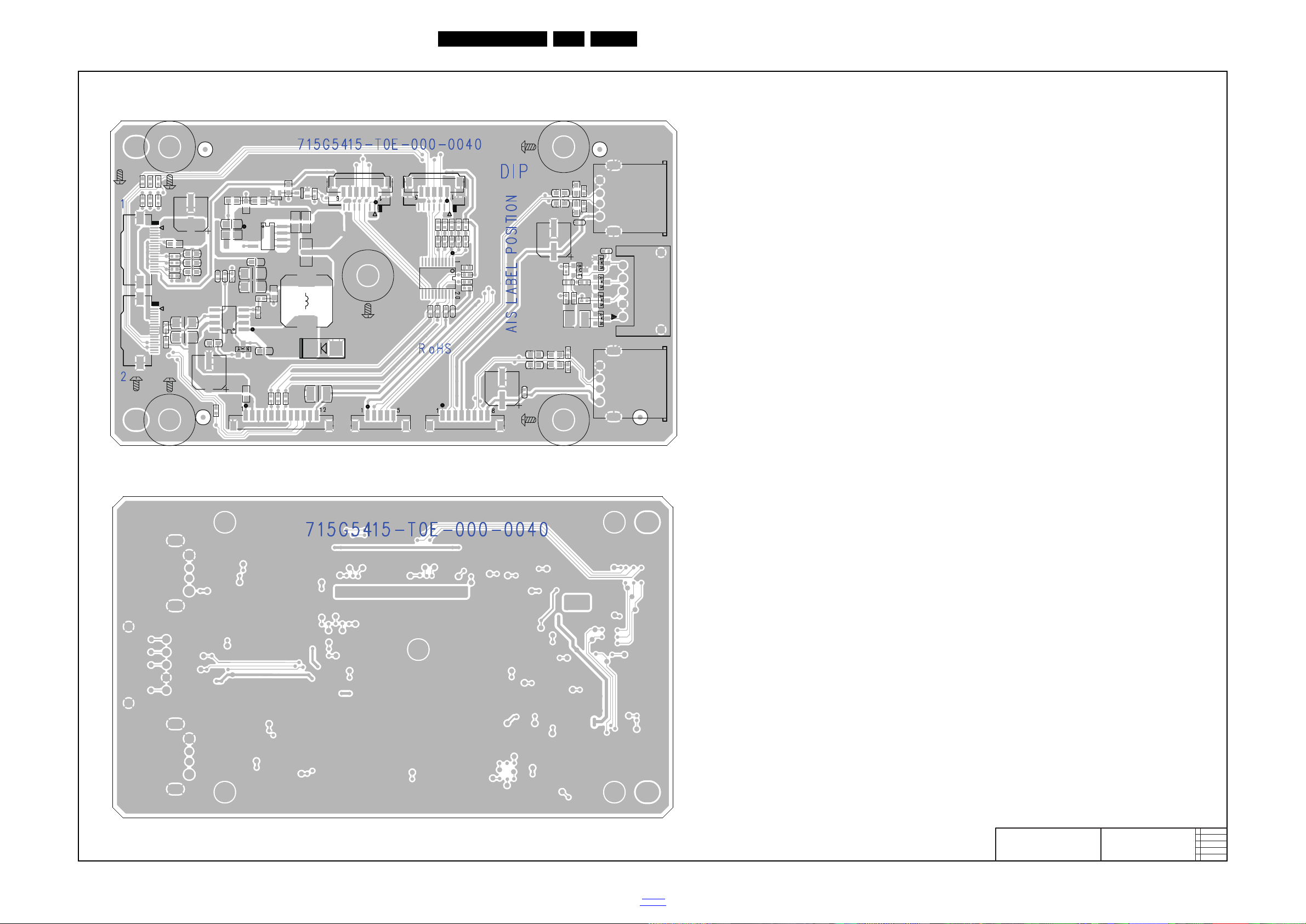

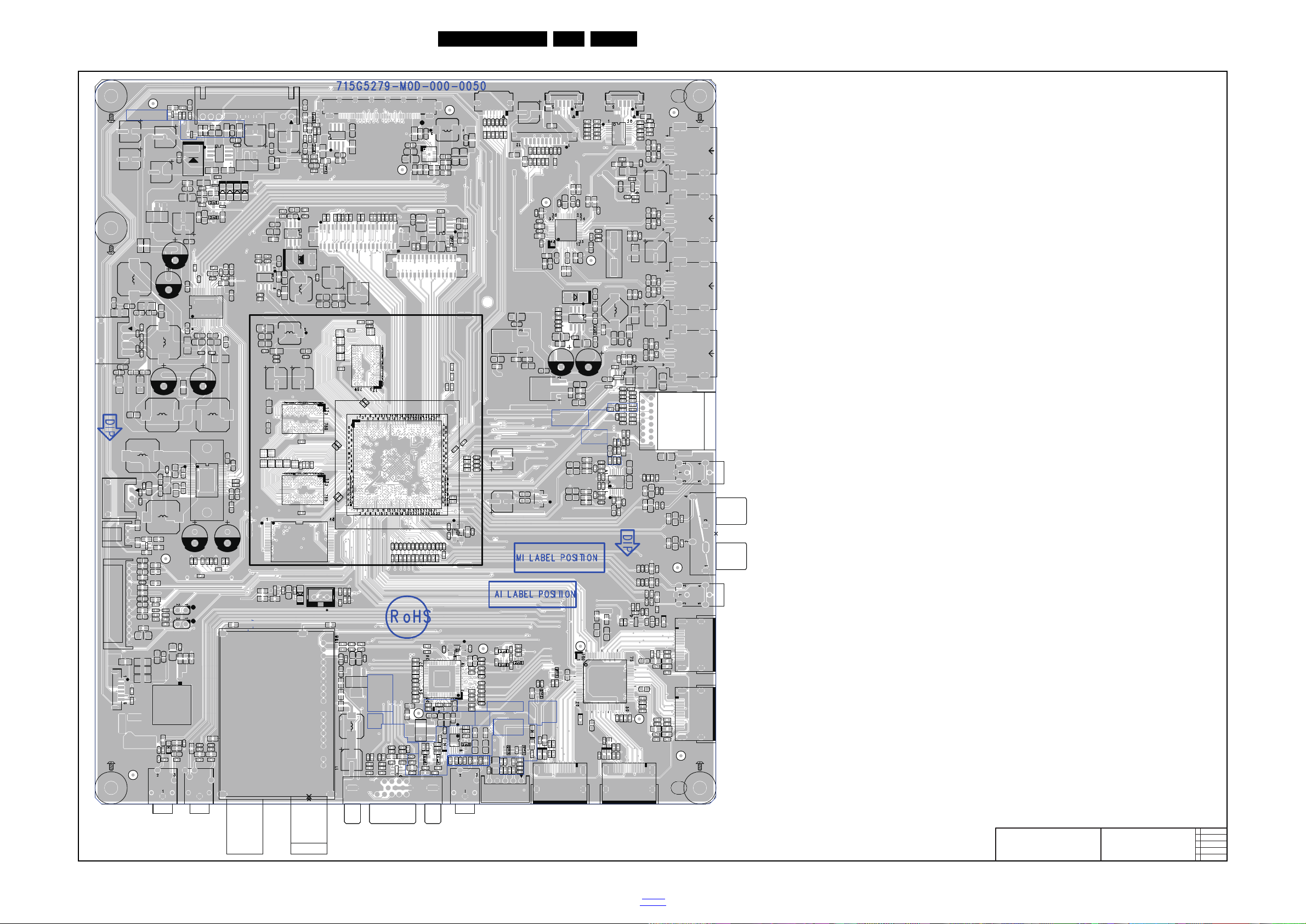

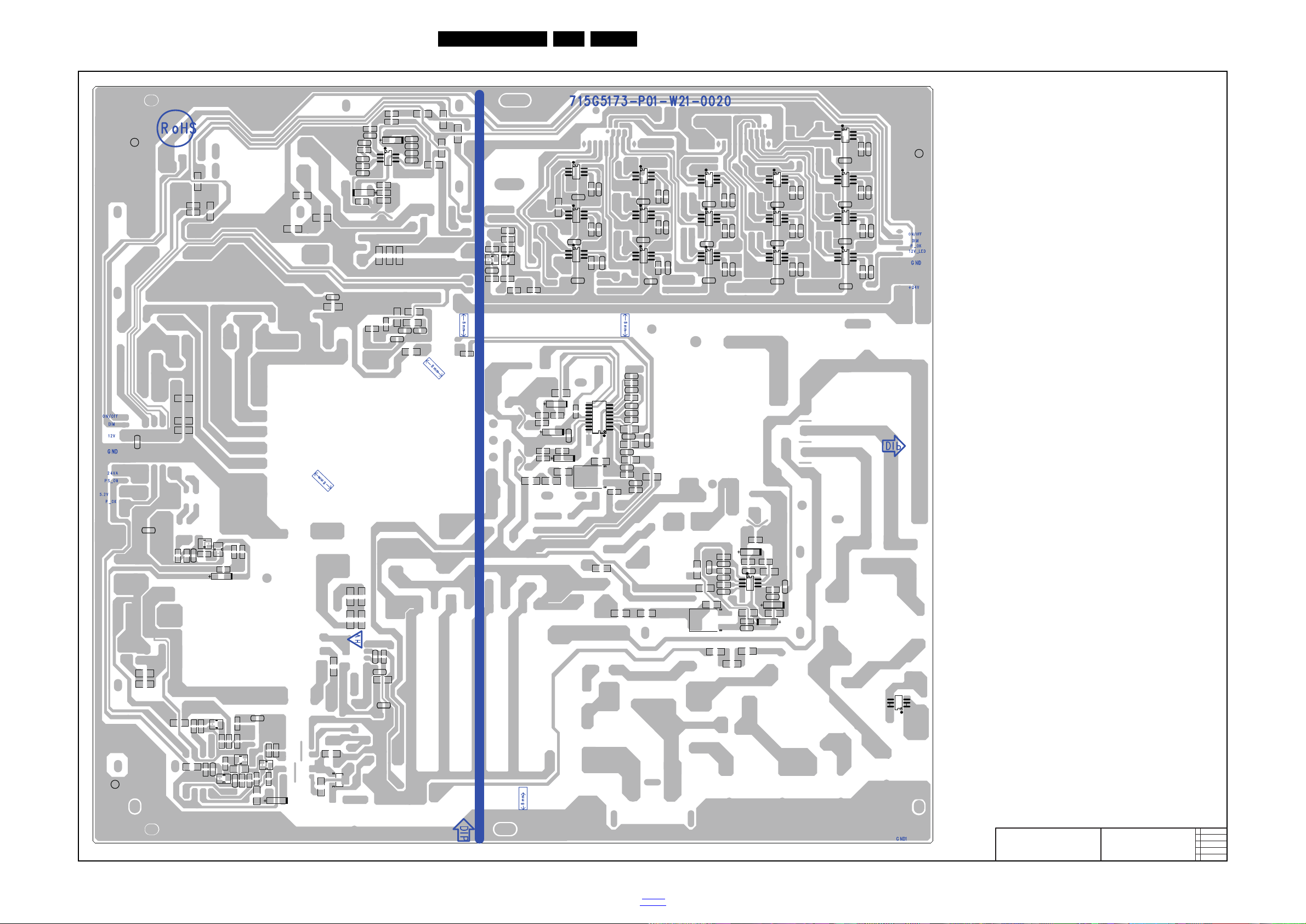

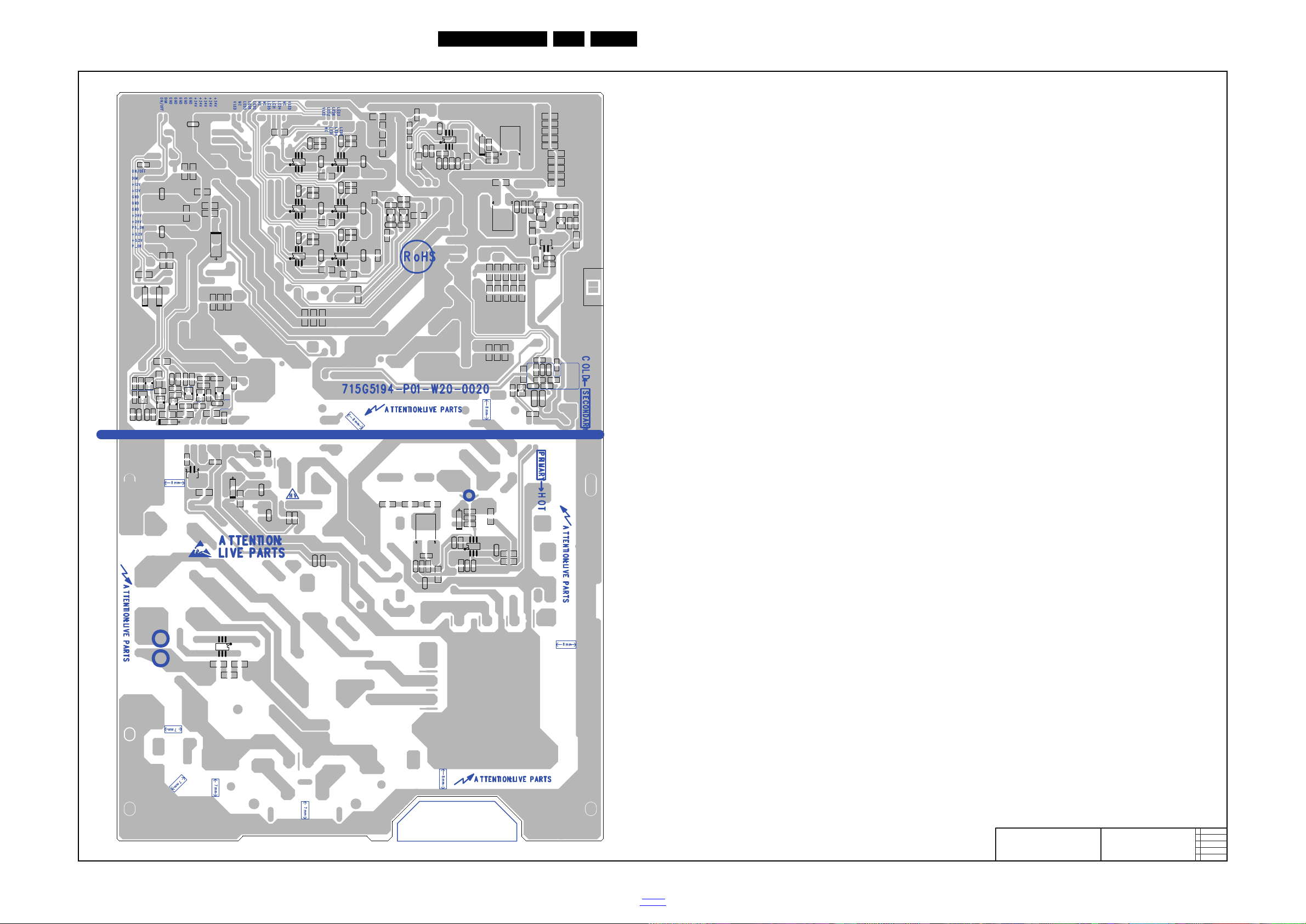

10. Circuit Diagrams and PWB Layouts Drawing PWB A 715G5194 PSU 32" & 37" 3500/4000 series A 715G5173 PSU 3500 series 42" & 46" 61 64-65 B 715G5279 SSB 5000/5500 series 66 85-86 J 715G5330 IR/LED 87 88 J 715G5397 IR/LED 6007 series 89 90 E 715G5252 Keyboard control panel 3500/4000 series 91 92 ALC 715G5415 AmbiLight control panel 93 96 AL 715G5518 Ambilight 10 LED 97 98 AL 715G5566 Ambilight 12 LED 99 100

11. Styling Sheets 5000 series 32" 101 5500 series 42" 103 5000 series 42" 102 5500 series 46" 105 5000 series 46" 104 6007 series 42"&47" 106

55 59-60

Published by MjX/MB/SC 1271 Quality Printed in the Netherlands Subject to modification EN 3122 785 19341

2012-Nov-30

2012 ©

TP Vision Netherlands B.V.

All rights reserved. Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners. TP Vision Netherlands B.V. reserves the right to change products at any time without being obliged to adjust earlier supplies accordingly. PHILIPS and the PHILIPS’ Shield Emblem are used under license from Koninklijke Phili ps Electronics N.V.

EN 2 TPM9.5A LA1.

Revision List

1. Revision List

Manual xxxx xxx xxxx.0

• First release.

Manual xxxx xxx xxxx.1

• Added the 42" and 47" sets.

2. Technical Specs, Diversity, and Connections

Index of this chapter:

Technical Specifications

2.1

2.2 Directions for Use

2.3 Connections

2.4 Chassis Overview

• Specifications are indicative (subject to change).

2.1 Technical Specifications

For on-line product support please use the links in Table 2-1. Here is product information available, as well as getting started, user manuals, frequently asked questions and software &

Notes:

drivers.

• Figures can deviate due to the different set executions.

Table 2-1 Described Model Numbers and Diversity

24 9 10 11

Mechanics Block Diagrams Schematics

CTN

32PFL5007D/30 2-1 4-1 4-8 4-9 9.1 9.8 10.1 10.3 10.4 10.6 - - 11.1 42PFL5007D/30 2-1 4-2 4-8 4-9 9.2 9.8 10.2 10.3 10.4 10.6 - - 11.2 42PFL5507D/30 2-1 4-3 4-8 4-9 9.3 9.8 10.2 10.3 10.4 10.6 - - 11.3 42PFL6007D/30 2-1 4-4 4-12 4-14 9.4 9.8 10.2 10.3 10.5 10.6 10.7 10.8 11.6 46PFL5007D/30 2-1 4-5 4-8 4-9 9.5 9.8 10.2 10.3 10.4 10.6 - - 11.4 46PFL5507D/30 2-1 4-6 4-8 4-9 9.6 9.8 10.2 10.3 10.4 10.6 - - 11.5 47PFL6007D/30 2-1 4-7 4-12 4-14 9.7 9.8 10.2 10.3 10.5 10.6 10.7 10.9 11.6

Connection Overview

Wire Dressing

Rear Cover Removal

SSB Removal

Wiring Diagram

Block Diagram

Power Supply

SSB

J (IR/LED)

E (Keyboard/Leading Edge)

ALC (AmbiLight control panel)

AL (AmbiLight panel)

Styling

2.2 Directions for Use

Directions for use can be downloaded from the following websites:

http://www.philips.com/support http://www.p4c.philips.com

2012-Nov-30

back to

div. table

2.3 Connections

19340_001_120803.eps

120820

L

R

USB 1

USB 2

USB 3

USB 4

HDMI 4

Y/Pb/Pr

CVBS

HDMI

3

AV1

(AV IN

1)

AV2

(AV IN

2)

NETWORK

HDMI 1 HDMI 2

VGA

AUDIO

CVBS/SPDIF OUT

PC IN

TV ANTENNA-CABLE

TV ANTENNA-DIGIT AL

SERV.U

1

2

3

4

5

6

7

8

9

10

11

12

131415

16

17

1

6

10

11

5

15

10000_002_090121.eps

090127

10000_017_090121.eps

090428

19

1

18 2

Technical Specs, Diversity, and Connections

EN 3TPM9.5A LA 2.

2.3.1 Side Connections

Figure 2-1 Connection overview

Note: The following connector colour abbreviations are used

(acc. to DIN/IEC 757): Bk= Black, Bu= Blue, Gn= Green, Gy= Grey, Rd= Red, Wh= White, Ye= Yellow.

1, 2, 3, 4 - USB1 2.0

Figure 2-2 USB (type A)

1-+5V k 2 -Data (-) jk 3 -Data (+) jk 4 -Ground Gnd H

5 - RJ45: Ethernet

120320

10000_025_090121.eps

Figure 2-3 Ethernet connector

1 -TD+ Transmit signal k 2 -TD- Transmit signal k 3 -RD+ Receive signal j 4 -CT Centre Tap: DC level fixation 5 -CT Centre Tap: DC level fixation 6 -RD- Receive signal j 7 -GND Gnd H

back to

div. table

8 -GND Gnd H

6 - Cinch: Video CVBS - In, Audio - In

Ye -Video CVBS 1 V Rd -Audio R 0.5 V Wh -Audio L 0.5 V

/ 75  jq

PP

/ 10 k jq

RMS

/ 10 k jq

RMS

7- Cinch: Video YPbPr - In, Audio - In

Gn -Video - Y 1 V Bu - Video - Pb 0.7 V Rd -Video - Pr 0.7 V Wh -Audio - L 0.5 V Rd -Audio - R 0.5 V

8, 9 - HDMI: Digital Video - In, Digital Audio - In/Out

Figure 2-4 HDMI (type A) connector

1 -D2+ Data channel j 2 -Shield Gnd H 3 -D2- Data channel j 4 -D1+ Data channel j 5 -Shield Gnd H 6 -D1- Data channel j 7 -D0+ Data channel j 8 -Shield Gnd H

/ 75 W jq

PP

/ 75  jq

PP

/ 75  jq

PP

/ 10 k jq

RMS

/ 10 k jq

RMS

9 -D0- Data channel j 10 - CLK+ Data channel j 11 - Shield Gnd H 12 - CLK- Data channel j 13 - Easylink/CEC Control channel jk 14 - n.c.

2012-Nov-30

EN 4 TPM9.5A LA2.

1

6

10

11

5

15

10000_002_090121.eps

090127

Technical Specs, Diversity, and Connections

15 - DDC_SCL DDC clock j 16 - DDC_SDA DDC data jk 17 - Ground Gnd H 18 - +5V j 19 - HPD Hot Plug Detect j 20 - Ground Gnd H

2.3.2 Rear Connections

10, 11 - HDMI2: Digital Video, Digital Audio - In

8, 9 - HDMI: Digital Video - In, Digital Audio - In/Out

See

12 - Service / UART

1 -Ground Gnd H 2 -UART_TX Transmit k 3 -UART_RX Receive j

13 - Audio - In: Left / Right, VGA

Gn - Audio L/R in 0.5 V

/ 10 k jq

RMS

14 - PC IN:VGA

Figure 2-5 VGA connector

1 -Video Red 0.7 V 2 -Video Green 0.7 V 3 -Video Blue 0.7 V 4-n.c.

/ 75 W j

PP

/ 75 W j

PP

/ 75 W j

PP

5 -Ground Gnd H 6 -Ground Red Gnd H 7 -Ground Green Gnd H 8 -Ground Blue Gnd H 9-+5V 10 - Ground Sync Gnd H

+5 V j

DC

11 - Ground Red Gnd H 12 - DDC_SDA DDC data j 13 - H-sync 0 - 5 V j 14 - V-sync 0 - 5 V j 15 - DDC_SCL DDC clock j

15 - TV ANTENNA - In

Signal input from an antenna, cable or satellite.

16 - Head phone (Output)

Bk -Head phone 80 - 600  / 10 mW ot

17 - Cinch: S/PDIF - Out

Bk -Coaxial 0.4 - 0.6V

/ 75  kq

PP

2.4 Chassis Overview

Refer to 9. Block Diagrams for PWB/CBA locations.

2012-Nov-30

back to

div. table

Precautions, Notes, and Abbreviation List

3. Precautions, Notes, and Abbreviation List

Index of this chapter:

Safety Instructions

3.1

3.2 Warnings

3.3 Notes

3.4 Abbreviation List

3.1 Safety Instructions

Safety regulations require the following during a repair:

• Connect the set to the Mains/AC Power via an isolation transformer (> 800 VA).

• Replace safety components, indicated by the symbol h, only by components identical to the original ones. Any other component substitution (other than original type) may increase risk of fire or electrical shock hazard.

Safety regulations require that after a repair, the set must be returned in its original condition. Pay in particular attention to the following points:

• Route the wire trees correctly and fix them with the mounted cable clamps.

• Check the insulation of the Mains/AC Power lead for external damage.

• Check the strain relief of the Mains/AC Power cord for proper function.

• Check the electrical DC resistance between the Mains/AC Power plug and the secondary side (only for sets that have a Mains/AC Power isolated power supply):

1. Unplug the Mains/AC Power cord and connect a wire

between the two pins of the Mains/AC Power plug.

2. Set the Mains/AC Power switch to the “on” position

(keep the Mains/AC Power cord unplugged!).

3. Measure the resistance value between the pins of the

Mains/AC Power plug and the metal shielding of the tuner or the aerial connection on the set. The reading should be between 4.5 M and 12 M.

4. Switch “off” the set, and remove the wire between the

two pins of the Mains/AC Power plug.

• Check the cabinet for defects, to prevent touching of any inner parts by the customer.

3.2 Warnings

• All ICs and many other semiconductors are susceptible to electrostatic discharges (ESD w). Careless handling during repair can reduce life drastically. Make sure that, during repair, you are connected with the same potential as the mass of the set by a wristband with resistance. Keep components and tools also at this same potential.

• Be careful during measurements in the high voltage section.

• Never replace modules or other components while the unit is switched “on”.

• When you align the set, use plastic rather than metal tools. This will prevent any short circuits and the danger of a circuit becoming unstable.

3.3 Notes

3.3.1 General

• Measure the voltages and waveforms with regard to the chassis (= tuner) ground (H), or hot ground (I), depending on the tested area of circuitry. The voltages and waveforms shown in the diagrams are indicative. Measure them in the Service Default Mode with a colour bar signal and stereo sound (L: 3 kHz, R: 1 kHz unless stated otherwise) and picture carrier at 475.25 MHz for PAL, or 61.25 MHz for NTSC (channel 3).

• Where necessary, measure the waveforms and voltages with (D) and without (E) aerial signal. Measure the voltages in the power supply section both in normal operation (G) and in stand-by (F). These values are indicated by means of the appropriate symbols.

3.3.2 Schematic Notes

• All resistor values are in ohms, and the value multiplier is often used to indicate the decimal point location (e.g. 2K2 indicates 2.2 k).

• Resistor values with no multiplier may be indicated with either an “E” or an “R” (e.g. 220E or 220R indicates 220 ).

• All capacitor values are given in micro-farads (10 nano-farads (n 10

• Capacitor values may also use the value multiplier as the decimal point indication (e.g. 2p2 indicates 2.2 pF).

• An “asterisk” (*) indicates component usage varies. Refer to the diversity tables for the correct values.

• The correct component values are listed on the Philips Spare Parts Web Portal.

3.3.3 Spare Parts

For the latest spare part overview, consult your Philips Spare Part web portal.

3.3.4 BGA (Ball Grid Array) ICs

Introduction

For more information on how to handle BGA devices, visit this URL: http://www.atyourservice-magazine.com “Magazine”, then go to “Repair downloads”. Here you will find Information on how to deal with BGA-ICs.

BGA Temperature Profiles

For BGA-ICs, you must use the correct temperature-profile. Where applicable and available, this profile is added to the IC Data Sheet information section in this manual.

3.3.5 Lead-free Soldering

Due to lead-free technology some rules have to be respected by the workshop during a repair:

• Use only lead-free soldering tin. If lead-free solder paste is required, please contact the manufacturer of your soldering equipment. In general, use of solder paste within workshops should be avoided because paste is not easy to store and to handle.

• Use only adequate solder tools applicable for lead-free soldering tin. The solder tool must be able: – To reach a solder-tip temperature of at least 400°C. – To stabilize the adjusted temperature at the solder-tip. – To exchange solder-tips for different applications.

• Adjust your solder tool so that a temperature of around 360°C - 380°C is reached and stabilized at the solder joint. Heating time of the solder-joint should not exceed ~ 4 sec. Avoid temperatures above 400°C, otherwise wear-out of tips will increase drastically and flux-fluid will be destroyed. To avoid wear-out of tips, switch “off” unused equipment or reduce heat.

• Mix of lead-free soldering tin/parts with leaded soldering tin/parts is possible but PHILIPS recommends strongly to avoid mixed regimes. If this cannot be avoided, carefully clear the solder-joint from old tin and re-solder with new tin.

3.3.6 Alternative BOM identification

It should be noted that on the European Service website, “Alternative BOM” is referred to as “Design variant”.

The third digit in the serial number (example: AG2B0335000001) indicates the number of the alternative B.O.M. (Bill Of Materials) that has been used for producing the specific TV set. In general, it is possible that the same TV model on the market is produced with e.g. two different types of displays, coming from two different suppliers. This will then

back to

div. table

-9

), or pico-farads (p 10

. Select

EN 5TPM9.5A LA 3.

-6

),

-12

).

2012-Nov-30

EN 6 TPM9.5A LA3.

10000_053_110228.eps

110228

Precautions, Notes, and Abbreviation List

result in sets which have the same CTN (Commercial Type Number; e.g. 28PW9515/12) but which have a different B.O.M. number. By looking at the third digit of the serial number, one can identify which B.O.M. is used for the TV set he is working with. If the third digit of the serial number contains the number “1” (example: AG1B033500001), then the TV set has been manufactured according to B.O.M. number 1. If the third digit is a “2” (example: AG2B0335000001), then the set has been produced according to B.O.M. no. 2. This is important for ordering the correct spare parts! For the third digit, the numbers 1...9 and the characters A...Z can be used, so in total: 9 plus 26= 35 different B.O.M.s can be indicated by the third digit of the serial number.

Identification: The bottom line of a type plate gives a 14-digit serial number. Digits 1 and 2 refer to the production centre (e.g. SN is Lysomice, RJ is Kobierzyce), digit 3 refers to the B.O.M. code, digit 4 refers to the Service version change code, digits 5 and 6 refer to the production year, and digits 7 and 8 refer to production week (in example below it is 2010 week 10 / 2010 week 17). The 6 last digits contain the serial number.

Figure 3-1 Serial number (example)

3.3.7 Board Level Repair (BLR) or Component Level Repair (CLR)

If a board is defective, consult your repair procedure to decide if the board has to be exchanged or if it should be repaired on component level. If your repair procedure says the board should be exchanged completely, do not solder on the defective board. Otherwise, it cannot be returned to the O.E.M. supplier for back charging!

3.3.8 Practical Service Precautions

• It makes sense to avoid exposure to electrical shock.

While some sources are expected to have a possible dangerous impact, others of quite high potential are of limited current and are sometimes held in less regard.

• Always respect voltages. While some may not be

dangerous in themselves, they can cause unexpected reactions that are best avoided. Before reaching into a powered TV set, it is best to test the high voltage insulation. It is easy to do, and is a good service precaution.

3.4 Abbreviation List

0/6/12 SCART switch control signal on A/V

board. 0 = loop through (AUX to TV),

6 = play 16 : 9 format, 12 = play 4 : 3 format

AARA Automatic Aspect Ratio Adaptation:

algorithm that adapts aspect ratio to remove horizontal black bars; keeps the original aspect ratio

ACI Automatic Channel Installation:

algorithm that installs TV channels directly from a cable network by

means of a predefined TXT page ADC Analogue to Digital Converter AFC Automatic Frequency Control: control

signal used to tune to the correct

frequency AGC Automatic Gain Control: algorithm that

controls the video input of the feature

box AM Amplitude Modulation AP Asia Pacific AR Aspect Ratio: 4 by 3 or 16 by 9 ASF Auto Screen Fit: algorithm that adapts

aspect ratio to remove horizontal black

bars without discarding video

information ATSC Advanced Television Systems

Committee, the digital TV standard in

the USA ATV See Auto TV Auto TV A hardware and software control

system that measures picture content,

and adapts image parameters in a

dynamic way AV External Audio Video AVC Audio Video Controller AVIP Audio Video Input Processor B/G Monochrome TV system. Sound

carrier distance is 5.5 MHz BDS Business Display Solutions (iTV) BLR Board-Level Repair BTSC Broadcast Television Standard

Committee. Multiplex FM stereo sound

system, originating from the USA and

used e.g. in LATAM and AP-NTSC

countries B-TXT Blue TeleteXT C Centre channel (audio) CEC Consumer Electronics Control bus:

remote control bus on HDMI

connections CL Constant Level: audio output to

connect with an external amplifier CLR Component Level Repair ComPair Computer aided rePair CP Connected Planet / Copy Protection CSM Customer Service Mode CTI Color Transient Improvement:

manipulates steepness of chroma

transients CVBS Composite Video Blanking and

Synchronization DAC Digital to Analogue Converter DBE Dynamic Bass Enhancement: extra

low frequency amplification DCM Data Communication Module. Also

referred to as System Card or

Smartcard (for iTV). DDC See “E-DDC” D/K Monochrome TV system. Sound

carrier distance is 6.5 MHz DFI Dynamic Frame Insertion DFU Directions For Use: owner's manual DMR Digital Media Reader: card reader DMSD Digital Multi Standard Decoding DNM Digital Natural Motion

2012-Nov-30

back to

div. table

Precautions, Notes, and Abbreviation List

EN 7TPM9.5A LA 3.

DNR Digital Noise Reduction: noise

reduction feature of the set DRAM Dynamic RAM DRM Digital Rights Management DSP Digital Signal Processing DST Dealer Service Tool: special remote

control designed for service

technicians DTCP Digital Transmission Content

Protection; A protocol for protecting

digital audio/video content that is

traversing a high speed serial bus,

such as IEEE-1394 DVB-C Digital Video Broadcast - Cable DVB-T Digital Video Broadcast - Terrestrial DVD Digital Versatile Disc DVI(-d) Digital Visual Interface (d= digital only) E-DDC Enhanced Display Data Channel

(VESA standard for communication

channel and display). Using E-DDC,

the video source can read the EDID

information form the display. EDID Extended Display Identification Data

(VESA standard) EEPROM Electrically Erasable and

Programmable Read Only Memory EMI Electro Magnetic Interference EPG Electronic Program Guide EPLD Erasable Programmable Logic Device EU Europe EXT EXTernal (source), entering the set by

SCART or by cinches (jacks) FDS Full Dual Screen (same as FDW) FDW Full Dual Window (same as FDS) FLASH FLASH memory FM Field Memory or Frequency

Modulation FPGA Field-Programmable Gate Array FTV Flat TeleVision Gb/s Giga bits per second G-TXT Green TeleteXT H H_sync to the module HD High Definition HDD Hard Disk Drive HDCP High-bandwidth Digital Content

Protection: A “key” encoded into the

HDMI/DVI signal that prevents video

data piracy. If a source is HDCP coded

and connected via HDMI/DVI without

the proper HDCP decoding, the

picture is put into a “snow vision” mode

or changed to a low resolution. For

normal content distribution the source

and the display device must be

enabled for HDCP “software key”

decoding. HDMI High Definition Multimedia Interface HP HeadPhone I Monochrome TV system. Sound

2

C Inter IC bus

I

2

I

D Inter IC Data bus

2

S Inter IC Sound bus

I

carrier distance is 6.0 MHz

IF Intermediate Frequency IR Infra Red IRQ Interrupt Request ITU-656 The ITU Radio communication Sector

(ITU-R) is a standards body

subcommittee of the International

Telecommunication Union relating to

radio communication. ITU-656 (a.k.a.

SDI), is a digitized video format used

for broadcast grade video.

Uncompressed digital component or

digital composite signals can be used.

back to

div. table

The SDI signal is self-synchronizing, uses 8 bit or 10 bit data words, and has a maximum data rate of 270 Mbit/s, with a minimum bandwidth of 135 MHz.

iTV Institutional TeleVision; TV sets for

hotels, hospitals etc.

LS Last Status; The settings last chosen

by the customer and read and stored in RAM or in the NVM. They are called at start-up of the set to configure it according to the customer's

preferences LATAM Latin America LCD Liquid Crystal Display LED Light Emitting Diode L/L' Monochrome TV system. Sound

carrier distance is 6.5 MHz. L' is Band

I, L is all bands except for Band I LPL LG.Philips LCD (supplier) LS Loudspeaker LVDS Low Voltage Differential Signalling Mbps Mega bits per second M/N Monochrome TV system. Sound

carrier distance is 4.5 MHz MHEG Part of a set of international standards

4. Mechanical Instructions

19340_100_120730.eps

120820

Index of this chapter:

Cable Dressing

4.1

4.2 Service Positions

4.3 Assembly/Panel Removal

4.5 Set Re-assembly

4.1 Cable Dressing

Mechanical Instructions

Notes:

• Figures below can deviate slightly from the actual situation, due to the different set executions.

EN 9TPM9.5A LA 4.

Figure 4-1 Cable dressing (32" 5000 series)

back to

div. table

2012-Nov-30

EN 10 TPM9.5A LA4.

19340_102_120730.eps

120820

19340_101_120730.eps

120820

Mechanical Instructions

Figure 4-2 Cable dressing (42" 5000 series)

2012-Nov-30

Figure 4-3 Cable dressing (42" 5500 series)

back to

div. table

Mechanical Instructions

19341_100_121116.eps

121116

19340_104_120730.eps

120820

EN 11TPM9.5A LA 4.

Figure 4-4 Cable dressing (42" 6007 series)

Figure 4-5 Cable dressing (46" 5000 series)

back to

div. table

2012-Nov-30

EN 12 TPM9.5A LA4.

19340_103_120730.eps

120820

19341_101_121119.eps

121119

Mechanical Instructions

Figure 4-6 Cable dressing (46" 5500 series)

2012-Nov-30

Figure 4-7 Cable dressing (47" 6007 series)

back to

div. table

4.2 Service Positions

For easy servicing of a TV set, the set should be put face down on a soft flat surface, foam buffers or other specific workshop tools. Ensure that a stable situation is created to perform measurements and alignments. When using foam bars take care that these always support the cabinet and never only the display. Caution: Failure to follow these guidelines can seriously damage the display! Ensure that ESD safe measures are taken.

4.3 Assembly/Panel Removal

Instructions below apply to the 46PFL5507D/30, but will be similar for other models.

Mechanical Instructions

EN 13TPM9.5A LA 4.

back to

div. table

2012-Nov-30

EN 14 TPM9.5A LA4.

19340_105_120806.eps

120820

1

M4 × 12

M3 × 10

1

2

M3 × 6

3

3 × 10

4

19340_106_120806.eps

120820

2

1

3

Mechanical Instructions

4.3.1 Rear Cover

Refer to Figure 4-8 Warning: Disconnect the mains power cord before removing the rear cover.

1. Remove fixation screws [1] that secure the base assy, pull out the base assy from the set. Then remove the fixation

for details.

screws [2], [3], [4]that secure the rear cover. Refer to

Figure 4-8

2. Gently lift the rear cover from the TV. Make sure that wires and cables are not damaged while lifting the rear cover from the set.

for details.

4.3.2 Small Signal Board (SSB)

Refer to Figure 4-9 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors!

2. Unplug all other connectors [2].

3. Remove all the fixation screws from the SSB [3].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-9

for details.

2012-Nov-30

Figure 4-8 Rear cover removal

Figure 4-9 SSB removal

back to

div. table

Mechanical Instructions

19341_102_121119.eps

121119

1

EN 15TPM9.5A LA 4.

4.3.3 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Gently unplug all connectors from the PSU.

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.3.4 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.3.5 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.3.6 Stand bracket

1. Remove all fixation screws of the bracket.

2. Lift the bracket from the set.

4.3.7 IR/LED Panel

1. Remove the stand bracket, as described earlier.

2. Unplug the connector from the IR/LED panel.

3. Gently release the clip that holds the panel and take it out from the bezel.

When defective, replace the whole unit.

4.3.8 LCD Panel

1. Remove the SSB as described earlier.

2. Remove the PSU as described earlier.

3. Remove the keyboard control panel as described earlier.

4. Remove the stand bracket as described earlier.

5. Remove the IR/LED as described earlier.

6. Remove the IR/LED as described earlier.

7. Remove the fixations screws that fix the metal clamps to the front bezel. Take out those clamps.

8. Remove all other metal parts not belonging to the panel.

9. Lift the LCD Panel from the bezel.

When defective, replace the whole unit.

4.4 Assembly/Panel Removal (for 6007 series)

Instructions below only apply to the 42&47PFL6007D/30.

4.4.1 Stand

Refer to Figure 4-10

1. Gently remove the black plastic casing [1] that covers the stand bracket, refer to Figure 4-10

2. Remove the Allen screws [1, 2] that secure the stand bracket and, pull out the stand downwards from the set, refer to Figure 4-11

and Figure 4-11 for details.

.

Figure 4-10 Stand removal[1]

back to

div. table

2012-Nov-30

EN 16 TPM9.5A LA4.

19341_103_121119.eps

1

M4 × 7

1

Mechanical Instructions

Figure 4-11 Stand removal[2]

2012-Nov-30

back to

div. table

Mechanical Instructions

19341_104_121119.eps

121119

1

M3 × 6

Q3 × 10

2

EN 17TPM9.5A LA 4.

4.4.2 Rear Cover

Refer to Figure 4-12 Warning: Disconnect the mains power cord before removing the rear cover.

for details.

1. Remove the fixation screws [1,2] that secure the rear cover.

2. Lift the rear cover from the TV. Make sure that wires and flat foils are not damaged while lifting the rear cover from the set.

Figure 4-12 Rear cover removal

back to

div. table

2012-Nov-30

EN 18 TPM9.5A LA4.

19341_105_121119.eps

121119

1

3

2

19270_105_120413.eps

120413

2

1

3

4

Mechanical Instructions

4.4.3 AmbiLight Panel

Refer to Figure 4-13

1. Gently release the clamps and unplug the two connectors [1, 2] that secure the ambilight panels. Release the clips

for details.

from the FFC connector that connect with the AmbiLight control panel [3].

2. Lift the AmbiLight panel from the rear cover. Make sure that wires and flat foils are not damaged while lifting the ambilight panel from the rear cover.

4.4.4 Small Signal Board (SSB)

Refer to Figure 4-14 Caution: it is mandatory to remount all different screws at their original position during re-assembly. Failure to do so may result in damaging the SSB.

1. Release the clips from the LVDS connector that connect with the SSB [1]. Caution: be careful, as these are very fragile connectors! T

2. Release the clamps and unplug all other connectors [2,3].

3. Remove all the fixation screws from the SSB [4].

4. The SSB can now be shifted from side connector cover, then lifted and taken out of the I/O bracket. Refer to

Figure 4-14

for details.

Figure 4-13 Rear cover removal

Figure 4-14 SSB removal

2012-Nov-30

4.4.5 Power Supply Unit (PSU)

Caution: it is mandatory to remount all different screws at their

original position during re-assembly. Failure to do so may result in damaging the PSU.

1. Unplug all connectors from the PSU.

back to

div. table

2. Remove all fixation screws from the PSU.

3. The PSU can be taken out of the set now.

4.4.6 Speakers

1. Gently release the tapes that secures the speaker cables.

2. Unplug the speaker connectors from the SSB.

3. Take the speakers out. When defective, replace the both units.

4.4.7 Keyboard Control unit

1. Unplug the connector from the keyboard control panel.

2. Gently push inwards the two clips at the PSU side of the unit. Release the unit at the PSU side and turn it away from the PSU. Now push it towards the PSU to release the catches at the other side of the unit. Take it out from the metal bracket.

When defective, replace the whole unit.

4.4.8 IR/LED Panel

1. Unplug the connector from the IR/LED panel.

2. Gently release the clip that holds the panel and take it out from the bezel.

When defective, replace the whole unit.

Mechanical Instructions

EN 19TPM9.5A LA 4.

4.4.9 AmbiLight control panel

1. Unplug the connector from the AmbiLight control panel.

2. Gently release the clip that holds the panel and take it out from the set.

When defective, replace the whole unit.

4.4.10 LCD Panel

1. Unplug the all the connector cables of the boards.

2. Lift the subframe with PSU, SSB, Keyboard control panel, IR/LED board and AmbiLight control panel from the LCD panel and put it aside.

3. Gently take all the speakers out.

Warning: Cause the panels of 6007 series are bolt-on panels so the panel could not release from bezel. When defective, replace the whole unit.

4.5 Set Re-assembl y

To re-assemble the whole set, execute all processes in reverse order.

Notes:

• While re-assembling, make sure that all cables are placed and connected in their original position. See Figure 4-4

Figure 4-7

• Pay special attention not to damage the EMC foams on the SSB shields. Ensure that EMC foams are mounted correctly.

.

and

back to

div. table

2012-Nov-30

EN 20 TPM9.5A LA5.

Service Modes, Error Codes, and Fault Finding

5. Service Modes, Error Codes, and Fault Finding

Index of this chapter:

Test Points

5.1

5.2 Service Modes

5.3 Stepwise Start-up

5.4 Service Tools

5.5 Software Upgrading

5.6 Error Codes

5.7 The Blinking LED Procedure

5.8 Fault Finding and Repair Tips

5.1 Test Points

As most signals are digital, it will be difficult to measure waveforms with a standard oscilloscope. However, several key ICs are capable of generating test patterns, which can be controlled via ComPair. In this way it is possible to determine which part is defective.

Perform measurements under the following conditions:

• Service Default Mode.

• Video: Colour bar signal.

• Audio: 3 kHz left, 1 kHz right.

5.2 Service Modes

The Service Mode feature is split into five parts:

• Service Default Mode (SDM).

• Service Alignment Mode (SAM).

• Factory Mode.

• Customer Service Mode (CSM).

• Computer Aided Repair Mode (ComPair).

Life Timer

During the life time cycle of the TV set, a timer is kept (called “Op. Hour”). It counts the normal operation hours (not the Stand-by hours). The actual value of the timer is displayed in SDM and SAM in a decimal value. Every two soft-resets increase the hour by + 1. Stand-by hours are not counted.

Software Identification, Version, and Cluster

The software ID, version, and cluster will be shown in the main menu display of SDM, SAM, and CSM. The screen will show: “AAAAB-X.YYY”, where:

• AAAA is the chassis name: 2K12HK x.yyy.

• B is the region indication: E = Europe, A = AP/China, U = NAFTA, L = LATAM.

• X is the main version number: this is updated with a major change of specification (incompatible with the previous software version). Numbering will go from 1 - 99 and AA - ZZ.

- If the main version number changes, the new version number is written in the NVM.

- If the main version number changes, the default settings are loaded.

• YYY is the sub version number: this is updated with a minor change (backwards compatible with the previous versions). Numbering will go from 000 - 999.

- If the sub version number changes, the new version number is written in the NVM.

- If the NVM is refreshed, the software identification, version, and cluster will also be written to NVM.

SDM, SAM and the Factory mode offer features, which can be used by the Service engineer to repair/align a TV set. Some features are:

• A pre-defined situation to ensure measurements can be made under uniform conditions (SDM).

• Activates the blinking LED procedure for error identification when no picture is available (SDM).

• Make alignments (e.g. White Tone), reset the error buffer (SAM and Factory Mode).

• Display information (“SDM” or “SAM” indication in upper right corner of screen, error buffer, software version, operating hours, options and option codes, sub menus).

The CSM is a Service Mode that can be enabled by the consumer. The CSM displays diagnosis information, which the customer can forward to the dealer or call centre. In CSM mode, “CSM”, is displayed in the top right corner of the screen. The information provided in CSM and the purpose of CSM is to:

• Increase the home repair hit rate.

• Decrease the number of nuisance calls.

• Solved customers’ problem without home visit.

ComPair Mode is used for communication between a computer and a TV on I engineer to quickly diagnose the TV set by reading out error codes, read and write in NVMs, communicate with ICs and the micro processor (PWM, registers, etc.), and by making use of a fault finding database. It will also be possible to up and download the software of the TV set via I ComPair. To do this, ComPair has to be connected to the TV set via the ComPair connector, which will be accessible through the rear of the set (without removing the rear cover).

Note: For the new model range, a new remote control (RC) is used with some renamed buttons. This has an impact on the activation of the Service modes. For instance the old “MENU” button is now called “HOME” (or is indicated by a “house” icon).

5.2.1 General

Next items are applicable to all Service Modes or are general.

2

C /UART level and can be used by a Service

2

C with help of

Display Option Code Selection

When after an SSB or display exchange, the display option code is not set properly, it will result in a TV with “no display”. Therefore, it is required to set this display option code after such a repair. To do so, press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 accepted and stored in NVM, the set will switch to Stand-by, to indicate that the process has been completed. During this algorithm, the NVM-content must be filtered, because several items in the NVM are TV-related and not SSB related (e.g. Model and Prod. S/N). Therefore, “Model” and “Prod. S/N” data is changed into “See Type Plate”. In case a call centre or consumer reads “See Type Plate” in CSM mode.

5.2.2 Service Default Mode (SDM)

Purpose

Set the TV in SDM mode in order to be able to create a predefined setting for measurements to be made. In this platform, a simplified SDM is introduced (without protection override and without tuning to a predefined frequency).

Specifications

• Set linear video and audio settings to 50%, but volume to 25%. Stored user settings are not affected.

• All service-unfriendly modes (if present) are disabled, since they interfere with diagnosing/repairing a set. These service unfriendly modes are: – (Sleep) timer. – Blue mute/Wall paper. – Auto switch “off” (when there is no “ident” signal). – Hotel or hospital mode. – Child lock or parental lock (manual or via V-chip). – Skipping, blanking of “Not favourite”, “Skipped” or

“Locked” presets/channels.

– Automatic storing of Personal Preset or Last Status

settings.

. When the value is

2012-Nov-30

back to

div. table

Service Modes, Error Codes, and Fault Finding

EN 21TPM9.5A LA 5.

– Automatic user menu time-out (menu switches

back/OFF automatically.

– Auto Volume levelling (AVL).

How to Activate SDM

To activate SDM, use the following methods:

• Press the following key sequence on the RC transmitter: “062596”, directly followed by the “Home” button.

After activating this mode, “SDM” will appear in the upper left corner of the screen.

On Screen Menu

After activating SDM, the following items are displayed, with SDM in the upper right corner of the screen to indicate that the television is in Service Default Mode. Menu items and explanation:

• xxxxx Operating hours (in decimal).

• AAAAB-X.YYY See

Software Identification, Version, and

Cluster for the software name definition.

• ERR Shows all errors detected since the last time the buffer was erased in format <xxx> <xxx> <xxx> <xxx> <xxx> (five errors possible).

• OP Used to read-out the option bytes. In this chassis two times eight option codes are used.

How to Navigate

As this mode is read only, there is nothing to navigate. To switch to other modes, use one of the following methods:

• Command MENU from the user remote will exit SDM.

• To prevent the OSD from interfering with measurements in SDM, use the command “Adjust” or “Options” (“STATUS” or “INFO” for NAFTA and LATAM) from the user remote. This will switch the OSD “off” while remaining in the SDM mode. The “SDM” OSD is remains visible in the upper right corner of the screen. To exit SDM switch to “Stand-by” mode.

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the OK button to switch to SAM (do not allow the display to time out between entries while keying the sequence). Remarks: new remote

controls will not have I+ button, but an “INFO” button instead.

How to Exit SDM

• Switch the set to Stand-by, by pressing the standby button on the remote control transmitter or on the television set.

• Via a standard customer RC-transmitter: key in “00”-sequence. Note: If the TV is switched “off” by a power interrupt while in SDM, the TV will show up in the last status of SDM menu as soon as the power is supplied again. The error buffer will not be cleared.

5.2.3 Service Alignment Mode (SAM)

Purpose

• To modify the NVM.

• To display/clear the error code buffer.

• To perform alignments.

Specifications

• Operation hours counter (maximum five digits displayed).

• Software version, error codes, and option settings display.

• Error buffer clearing.

• Option settings.

• Software alignments (White Tone).

• NVM Editor.

• Set screen mode to full screen (all content is visible).

How to Activate SAM

To activate SAM, use one of the following methods:

• Press the following key sequence on the remote control transmitter: “062596”, directly followed by the “INFO” button. Do not allow the display to time out between entries while keying the sequence.

• Or via ComPair.

After entering SAM, the following items are displayed, with “SAM” in the upper right corner of the screen to indicate that the television is in Service Alignment Mode.

Table 5-1 SAM mode overview

Main Menu Sub-menu 1 Sub-menu 2 Description

System Information Op Hour This represents the life timer. The timer counts normal operation hours, but does not

Main SW ID e.g. “2K12HK V1.00” See paragraph

ERR e.g. “000 000 000 000 000” Shows all errors detected since the last time the buffer was erased. Five errors

OP1 e.g. “000 007 017 000 051 000 000

OP2 e.g. “000 063 000 000 064 000 000

Clear Press [OK] to clean the Error Codes

RGB Align Warm R Gain To align the White Tone. See

NVM editor Address Select and fill the NVM address

Upload to USB Copy Channel List to USB To upload several settings from the TV to an USB stick

immediately

Normal R Gain

Cool R Gain

Store Store the RGB value

Value Select and fill the NVM value Store Store the value in the address

Copy NVM to USB Copy Readable Info to USB Copy EDID to USB

000”

G Gain B Gain

count Stand-by hours.

definition.

possible. Used to read-out the option bytes. See paragraph 6.4 Option Settings in the

Alignments section for a det ailed description. Ten codes ar e possible.

Erases the contents of the error buffer. Select this menu item and press the MENU RIGHT key on the remote control. The content of the error buffer is cleared.

paragraph 6.3

Software Identification, Version, and Cluster for the software name

Software Alignments in the Alignments section for a detailed descr iption

back to

div. table

2012-Nov-30

EN 22 TPM9.5A LA5.

Main Menu Sub-menu 1 Sub-menu 2 Description

Download from USB Copy Channel List from USB To download several settings from the USB stick to the TV

Initialize NVM Press [OK] to Initialize NVM

EDID Write Enable Press [OK] to enable EDID writable

Service Data Type Number Press [OK] use key pad edit type

Clear OAD Version Press [OK] to clean OAD Version

Copy NVM from USB Copy Readable Info from USB Copy EDID from USB

immediately

Production Number Press [OK] use key pad edit

12NC SSB Press [OK] use key pad edit SSB

12NC PSU Press [OK] use key pad edit PSU

12NC Display Press [OK] use key pad edit display

immediately

Service Modes, Error Codes, and Fault Finding

To initialize a (corrupted) NVM. Be careful, this will erase all settings.

Enable EDID for writing

Edit and display the applicable service data by using the displayed key pad.

number immediately

production number immediat ely

immediately

Clean OAD (Over Air Download, firmware update method) Version

How to Navigate

• In the SAM menu, select menu items with the UP/DOWN keys on the remote control transmitter. The selected item will be indicated. When not all menu items fit on the screen, use the UP/DOWN keys to display the next/previous menu items.

• With the “LEFT/RIGHT” keys, it is possible to: – (De) activate the selected menu item. – (De) activate the selected sub menu. – Change the value of the selected menu item.

• When you press the MENU button once while in top level SAM, the set will switch to the normal user menu (with the SAM mode still active in the background).

• Press the following key sequence on the remote control transmitter: “062596” directly followed by the “Home” button to switch to SDM (do not allow the display to time out between entries while keying the sequence).

How to Store SAM Settings

To store the settings changed in SAM mode (except the RGB Align settings), leave the top level SAM menu by using the POWER button on the remote control transmitter or the television set. The mentioned exceptions must be stored separately via the STORE button.

How to Exit SAM

Use one of the following methods:

• Switch the set to STANDBY by pressing the mains button on the remote control transmitter or the television set.

• Via a standard RC-transmitter, key in “00” sequence.

Note: When the TV is switched “off” by a power interrupt while in SAM, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.4 Contents of the Factory mode:

Purpose

• To perform extended alignments.

Specifications

• Displaying and or changing Panel ID information.

• Displaying and or changing Tuner ID information.

• Error buffer clearing.

• Various software alignment settings.

• Testpattern displaying.

• Public Broadcasting Service password Reset.

•etc.

How to Activate the Factory mode

To activate the Factory mode, use the following method:

• Press the following key sequence on the remote control transmitter: from the “Home screen” press “1999”, directly followed by the “Back” button. Do not allow the display to time out between entries while keying the sequence.

After entering the Factory mode, the following items are displayed,

Table 5-2 Factory mode overview

Item Item value

0 F/W VERSION Press OK Displays the software versions of the supplier, Flash PQ, Smart Picture, BL Dimming, Source Meter, the

1 Panel_ID See table 6-3 Display code

2 ERR Code: xxx xxx xxx xxx xxx 000 000 000 000 000 Values showing the last 5 errors during the last 50 hours of operation, according to table 5-4 Error code table 3 CLEAR ERROR BUFFER Press OK Selecting this clear all current error codes. 4 NVM ADDRESS 0 NVM address 0 to 8191, Use Item 6 to change and 7 to store the data to the correct NVM address 5 NVM VALUE various Displays the value at the NVM address of item 5 6 NVM STORE Press OK Use this option to save the data of item 6 to NVM address of item 5 7 NVM COPY TV to USB Press OK Use this to store the NVM data to the REPAIR folder of a FAT formatted USB memory stick. The TV will write

8 NVM COPY USB to TV Press OK Use this to store the NVM data from the USB memory stick to the TV. The TV will save the two files which were

2012-Nov-30

Default value

overview

Description32" 42" 46" 47"

Picture Quality checksum, the Dimming library, the Source meter library, the Flash AQ, the MTK, MCU and OAD software versions.

Displays and changes the Panel ID with the left and right cursor; be careful changing this, it can result in not correct displaying the screen!

two files in the REPAIR folder of the memory stick. It will create this folder if it does not exist. The items are “Channel list”, “Personal settings”, “Option codes”, “Display-related alignments” and “History list”. In case the download to the USB stick was not successful “Failure” will appear. In this case, check if the USB stick is connected properly. Now the settings are stored onto the USB stick an d can be used to dow nload onto another TV or other SSB. Uploading is of course only possible if the software is running and if a picture is available. This method is created to be able to save the customer’s TV settings and to store them into another SSB.

created in item 8 to the NV M of t he set. Use the se opti ons when replaci ng a SSB. When “USB to TV S uccess” is displayed remove the power and restart the TV

back to

div. table

Service Modes, Error Codes, and Fault Finding

Default value

Item Item value

9 CLR_TEMP_R 98 107 77 125 Red colour temperature setting 10 CLR_TEMP_G 125 85 83 127 Green colour temperature setting 11 CLR_TEMP_B 139 128 128 124 Red colour temperature setting 12 AUTO_COLOR Press OK PC: any pattern that has black and white, YPbPr: SMPTE bar (colour bar), any timing. 13 ADC_GAIN_R 74 77 78 77 Red ADC gain 14 ADC_GAIN_G 70 77 80 76 Green ADC gain 15 ADC_GAIN_B 69 80 80 81 Blue ADC gain 16 ADC_OFFSET_R 96 102 95 98 Red ADC offset 17 ADC_OFFSET_G 98 91 96 95 Green ADC offset 18 ADC_OFFSET_B 89 98 96 97 Blue ADC offset 19 E-Fuse On E-fuse mode 20 ORT_MODE Off ORT mode 21 RESET_PBS_PWD Press OK Use this to reset the Child Lock 22 V-COM Press OK V-COM 23 VIDEO_PWM_MEDIUM 128 128 128 150 VIDEO PWM Medium value 24 VIDEO_PWM_MINIMUN 220 178 178 178 VIDEO PWM Minimum value 25 VIDEO_PWM_MAXIMUN 0 0 0 0 VIDEO PWM Maximum value 26 PWM_RATIO_BEST_PICTURE100 100 100 100 PWM ratio best picture

27 PWM_RATIO_STD_TOP 79 79 79 80 PWM ratio standard top 28 PWM_RATIO_STD_BOTTOM 74 74 74 70 PWM ratio standard bottom 29 PWM_RATIO_BEST_POWER 80 80 80 70 PWM ratio best power 30 VIDEO_STD_TH_HIGH 97 97 97 97 VIDEO standard threshold high 31 VIDEO_STD_TH_LOW 93 93 93 93 VIDEO standard threshold low 32 YPBPR_PHASE InValid Not available for this chassis 33 AUD_LIMITER_MODE 2 0 Three modes, 0: off, 1: adaptive mode, 2: fixed mode 34 AUD_THRESHOLD_BYTE1 0 0 Limit threshold 35 AUD_THRESHOLD_BYTE2 10 0 Limit threshold 36 AUD_THRESHOLD_BYTE3 6 16 Limit threshold 37 AUD_GAIN_LINEIN 3 3 Line-in audio gain 38 AUD_GAIN_HDMI 2 2 HDMI audio gain 39 AUD_GAIN_ATV 3 9 Analogue TV audio gain 40 AUD_GAIN_DTV 2 15 Digital TV audio gain 41 AUD_GAIN_USB 2 2 USB audio gain 42 Tuner ID 135 135 Displays and changes the Tuner ID with the lef t and right cu rsor. Not to be changed when the tuner is repl aced

43 ESTICKER NVM 1 0 0 0 25 ESTICKER value 44 ESTICKER NVM 2 3 3 3 15 ESTICKER value 45 ESTICKER NVM 3 6 4 4 4 ESTICKER value 46 ESTICKER NVM 4 7 6 6 27 ESTICKER value 47 ESTICKER NVM 5 8 7 7 28 ESTICKER value 48 ESTICKER NVM 6 9 8 8 29 ESTICKER value 49 ESTICKER NVM 7 2 9 9 7 ESTICKER value 50 ESTICKER NVM 8 255 2 2 9 ESTICKER value 51 ESTICKER NVM 9 255 255 255 31 ESTICKER value 52 ESTICKER NVM 10 255 255 255 21 ESTICKER value 53 ESTICKER NVM 11 255 255 255 16 ESTICKER value 54 ESTICKER NVM 12 11 11 11 17 ESTICKER value 55 ESTICKER NVM 13 14 14 14 255 ESTICKER value 56 ESTICKER NVM 14 17 15 15 255 ESTICKER value 57 ESTICKER NVM 15 18 17 17 255 ESTICKER value 58 ESTICKER NVM 16 19 18 18 255 ESTICKER value 59 ESTICKER NVM 17 20 19 19 255 ESTICKER value 60 ESTICKER NVM 18 13 20 20 255 ESTICKER value 61 ESTICKER NVM 19 255 13 13 255 ESTICKER value 62 ESTICKER NVM 20 255 255 255 255 ESTICKER value 63 ESTICKER RESET Press OK ESTICKER reset 64 CIPLUS QUERY Press OK Shows the Validity of the CI+ key and the supplier information 65 CIPLUS UPDATE Press OK Used to enter a new CI+ code into the NVM. This can only be used when no CI+ code exists in the NVM 66 AQ_TABLE_INDEX 1 2 3 6 Audio Quality index 67 LIGHT SENSOR Press OK Light sensor 68 TEST PATTERN Press OK With the “left” and “right” keys of the remote control various test patterns can be chosen 69 EDID UPDATE FROM USB Press OK Used to enter a new EDID codes into the NVM 70 EDID LOAD DEFAULT Press OK EDID LOAD 71 EDID TOR SEC 0 0 0 0 AMBLIGHT NVM INIT 72 EDID TOR TIMES 0 0 0 0 AMBLIGHT NVM INIT 73 TCON_GAMMA_UPDATE Press OK TCON gamma update 74 AUDIO DEFAULT INIT Press OK AUDIO default init 75 AMBLIGHT TEST MODE 0 AMBLIGHT TEST MODE 76 AMBLIGHT NVM INIT Press OK AMBLIGHT NVM INIT 77 AMBLIGHT Ena ble Disable Philips AMBLIGHT Sub brightness 78 AMBLIGHT Sub brightness -20 -20 -20 -20 AMBLIGHT Sub brightness 79 AMBLIGHT L_R 240 240 240 240 AMBLIGHT value

Description32" 42" 46" 47"

with the correct service part

EN 23TPM9.5A LA 5.

back to

div. table

2012-Nov-30

EN 24 TPM9.5A LA5.

Default value

Item Item value

80 AMBLIGHT L_G 207 207 207 207 AMBLIGHT value 81 AMBLIGHT L_B 227 227 227 207 AMBLIGHT value 82 AMBLIGHT R_R 240 240 240 240 AMBLIGHT value 83 AMBLIGHT R_G 207 207 207 207 AMBLIGHT value 84 AMBLIGHT R_B 227 227 227 227 AMBLIGHT value 85 AGEING MODE Off Use this for ageing a new LCD panel 86 VIRGIN_MODE Off/On Use this to return the set to virgin mode. Depends whether the set has been used already. 87 Call HDCP CRC Press OK Call HDCP CRC 88 DUMP PQ FROM TV Press OK Saves the picture quality data to a file “pq.bin” to the ro ot of a FAT formatted USB memory stick 89 LOAD PQ to TV Press OK Loads the picture quality data from a file “pq.bin” in to the TV 90 DUMP AQ FROM TV Press OK Saves the audio quality data to a file “AQ.bin” to the root of a FAT formatted USB memory stick 91 LOAD AQ to TV Press OK Loads the audio quality data from a file “AQ.bin” in to the TV 92 EXIT_FACTORY Press OK Exits the Factory mode

Service Modes, Error Codes, and Fault Finding

Description32" 42" 46" 47"

How to Exit the Factory mode

Use one of the following methods:

• Select EXIT_FACTORY from the menu and press the “OK” button.

Note: When the TV is switched “off” by a power interrupt, or normal switch to “stand-by” while in the factory mode, the TV will show up in “normal operation mode” as soon as the power is supplied again. The error buffer will not be cleared.

5.2.5 Customer Service Mode (CSM)

Purpose

The Customer Service Mode shows error codes and information on the TVs operation settings.The call centre can instruct the customer (by telephone) to enter CSM in order to identify the status of the set.This helps the call centre to diagnose problems and failures in the TV set before making a service call. The CSM is a read-only mode; therefore, modifications are not possible in this mode.

Specifications

• Ignore “Service unfriendly modes”.

• Line number for every line (to make CSM language independent).

• Set the screen mode to full screen (all contents on screen is visible).

• After leaving the Customer Service Mode, the original settings are restored.

• Possibility to use “CH+” or “CH-” for channel surfing, or enter the specific channel number on the RC.

How to Activate CSM

To activate CSM, press the following key sequence on a standard remote control transmitter: “123654” (do not allow the display to time out between entries while keying the sequence). After entering the Customer Service Mode, the following items are displayed.

Note: Activation of the CSM is only possible if there is no (user) menu on the screen!

Contents of CSM

• 1.1 Set Type This information is very helpful for a helpdesk/workshop as reference for further diagnosis. In this way, it is not necessary for the customer to look at the rear of the TV-set. Note that if an NVM is replaced or is initialized after corruption, this set type has to be re-written to NVM.

• 1.2 Production code Displays the production code (the serial number) of the TV. Note that if an NVM is replaced or is initialized after corruption, this production code has to be re-written to NVM.

• 1.3 Installation date Indicates the date of the first installation of the TV. This date is acquired via time extraction.

• 1.4 Option Code 1 Gives the option codes of option group 1 as set in SAM.

• 1.5 Option Code 2 Gives the option codes of option group 2 as set in SAM.

• 1.6 SSB Gives an identification of the SSB as stored in NVM. Note that if an NVM is replaced or is initialized after corruption, this identification number has to be re-written to NVM. This identification number is the 12NC number of the SSB.

• 1.7 Display 12NC NVM read/write.

• 1.8 PSU 12NC NVM read/write.

• 2.1 Current Main SW Displays the built-in main software version. In case of field problems related to software, software can be upgraded. As this software is consumer upgradeable, it will also be published on the internet.

• 2.2 Standby SW Displays the built-in stand-by processor software version. Upgrading this software will be possible via USB.

• 2.3 Panel Code Displays the Display Code number.

• 2.4 NVM version Detects and displays NVM version.

• 2.5 Error C

odes Detects a

nd displays errors.

• 3.1 Signal Quality Analog/digital signal strength.

• 3.2 Child lock Not active / active. This is a combined item for locks. If any lock (channel lock, parental lock) is active, it is indicated as “active”.

• 3.3 HDCP keys Indicates the validity of the HDMI keys (or HDCP keys). In case these keys are not valid and the customer wants to make use of the HDMI functionality, the SSB has to be replaced.

• 3.4 Ethernet MAC address A Media Access Control address (MAC address) is a unique identifier assigned to network interfaces for communications on the physical network segment.

• 3.5 Wireless MAC address Wireless Media Access Control address.

How to Navigate

By means of the “CURSOR-DOWN/UP” knob (or the scroll wheel) on the RC-transmitter, can be navigated through the menus.

How to Exit CSM

To exit CSM, use one of the following methods.

• Press the MENU/HOME button on the remote control transmitter.

• Press the POWER button on the remote control transmitter.

• Press the POWER button on the television set.

2012-Nov-30

back to

div. table

5.3 Stepwise Start- up

19080_206_110323.eps

120224

Power Off

Standby Soft Mode

Power On

Semi- Standby

Standby

Switch

Off(Mains Power Plug)

Standby Soft Mode Command Received, previously in Standby

Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Digital background tasks started

Digital background tasks completed

Swith On, previously in

Standby/Semi- Standby (Mains Power Plug)

Standby Soft Mode

Command Received (Power tact

switch)

Switch Off (Mains Power Plug)

Switch Off

(Mains Power Plug)

Swith On, previously in Standby Soft Mode (Mains Power Plug)

Standby commands

Received (RC

Standby key)

Standby Soft Mode

Command Received, previously in Standby Soft Mode (Power tact switch)

TV Wakeup commands Received (TV Wakeup keys)

Switch On, previously in Power On Mode (Power tact switch)

Standby Soft Mode Command Received, (Power tact switch)

Switch Off (Mains Power Plug)

Switch On,previously in TV Operation Mode (Mains Power Plug)

Service Modes, Error Codes, and Fault Finding

EN 25TPM9.5A LA 5.

Figure 5-1 Stepwise Start-up

back to

div. table

2012-Nov-30

EN 26 TPM9.5A LA5.

Service Modes, Error Codes, and Fault Finding

5.4 Service Tools

5.4.1 ComPair

Introduction

ComPair (Computer Aided Repair) is a Service tool for Philips Consumer Electronics products. and offers the following:

1. ComPair helps to quickly get an understanding on how to repair the chassis in a short and effective way.

2. ComPair allows very detailed diagnostics and is therefore capable of accurately indicating problem areas. No knowledge on I because ComPair takes care of this.

3. ComPair speeds up the repair time since it can automatically communicate with the chassis (when the micro processor is working) and all repair information is directly available.

4. ComPair features TV software up possibilities.

Specifications

ComPair consists of a Windows based fault finding program and an interface box between PC and the (defective) product. The ComPair II interface box is connected to the PC via an USB cable. For the TV chassis, the ComPair interface box and the TV communicate via a bi-directional cable via the service connector(s). The ComPair fault finding program is able to determine the problem of the defective television, by a combination of automatic diagnostics and an interactive question/answer procedure.

How to Connect

This is described in the chassis fault finding database in ComPair.

ComPair II

RC in

Optional

Switch

2

C or UART commands is necessary,

TO TV

TO

UART SERVICE

CONNECTOR

2

I

C

RS232 /UART

ComPair II Developed by Philips Brugge

Optional power

5V DC

Power ModeLink/

Activity

HDMI

2

I

C only

UART SERVICE

CONNECTOR

RC out

TO

I2C SERVICE

CONNECTOR

Multi

function

PC

5.5 Software Upgrading

5.5.1 Description

It is possible for the user to upgrade the main software via the USB port. This allows replacement of a software image in a stand alone set. A description on how to upgrade the main software can be found in the DFU or on the Philips website.

5.5.2 Introduction

Philips continuously tries to improve its products, and it’s recommend that the TV software is updated when updates are available. Software update files can be obtained from the dealer or can be downloaded from the following websites:

http://www.philips.com/support

Preparing a portable memory for software upgrade

The following requirements have to be met:

1. A personal computer connected to the internet.

2. An archive utility that supports the ZIP-format (e.g. WinZip for Windows or Stufflt for Mac OS).

3. A FAT formatted USB memory stick (preferably empty).

Note:

1. Only FAT/DOS-formatted memory sticks are supported.

2. Only use software update files that can be found on the

http://www.philips.com/support

5.5.3 Check the current TV software version

Before starting the software upgrade procedure, it is advised to check that what the current TV software:

1. Press the “1 2 3 6 5 4” button on the remote control to enter the CSM mode.

2. Use the up/down cursor keys to select “Current Main Software”.

If the current software version of the TV is the same as the latest update file found on http://www.philips.com/support not necessary to update the TV software.

5.5.4 Download the latest software

1. Open the internet page http://www.philips.com/support

2. Find information and software related to the TV.

3. Select the latest software update file and download it to the PC.

4. Insert the USB memory stick into one of the USB ports of the PC.

5. Decompress the downloaded ZIP file and copy the “autorun.upg” to the root directory of the USB flash drive.

5.5.5 Update the TV software

web site.

, it is

.

10000_036_090121.eps

Figure 5-2 ComPair II interface connection

Caution: It is compulsory to connect the TV to the PC as

shown in the picture above (with the ComPair interface in between), as the ComPair interface acts as a level shifter. If one connects the TV directly to the PC (via UART), ICs can be blown!

How to Order

ComPair II order codes:

• ComPair II interface: 3122 785 91020.

• Software is available via the Philips Service web portal.

• ComPair UART interface cable for TPM9.5x xx. (using DB9 to 2mm pitch JST connector): 3122 785 90630.

Note: When you encounter problems, contact your local support desk.

2012-Nov-30

091118

back to

div. table

1. Turn the TV on and wait for it to boot completely.

2. Insert the USB memory stick that contains the software update files in one of the TV’s USB ports.

3. The TV will detect the USB memory stick automatically. Then a window jumps out as Figure 5-3

. Note: If the USB flash drive is not detected after power up, disconnect it and re-insert it.

4. Select [Update] and press OK. See Figure 5-3

.

5. To proceed, In next menu select [Start] and press OK to start software updates. See Figure 5-4

.

6. Upgrading will now begins and the status of the updating progress will be displayed.

7. When the TV software is updated. Remove your USB flash drive, then select [Restart] and press OK to restart the TV.See Figure 5-5

.

Service Modes, Error Codes, and Fault Finding

19080_207_110324.eps

110324

19080_208_110324.eps

110324

19080_209_110324.eps

110324

Figure 5-3 Update the TV software [1/3]

Figure 5-4 Update the TV software [2/3]

• FUS_clustername_version.zip: Contains the “autorun.upg” which is needed to upgrade the TV main software and the software download application.

• NVM_clustername_version.zip: Default NVM content. Must be programmed via ComPair.

5.5.7 How to Copy NVM Data to/from USB

When copying data to and from a USB memory stick, the folder “repair” is used. When inserting an empty USB memory stick, and downloading data to the stick, the TV will create this folder. When sending data from a USB memory stick to a TV, the intended data must be available in the “repair” folder. Note that when copying EDID data to the TV, all necessary EDID files must be in this folder. Service mode overview for your reference.

Table 5-3 Service mode overview

Service Modes Description

SAM Service alignment mode Factory Mode Used for extended alignments SDM Service default Mode CSM 3-page compact CSM pages. There will be C SM dump to

USB SW upgradeable SW-upgrading of flash mem ories MTK-chips MT5366 can

NVM-Editor in SAM NVM-editor will function as in the past: Address and Value

Service Data New Service data in SAM for CTN, Prod. no., 12NC

USB copy/paste in SAM

UART logging There will be printout available in UART. No specifications

Blind SAM RC sequence “062598” + “Menu” +

Clear Buffer RC sequence “062599” + “OK” or via SAM

USB-stick upon entering CSM-mode

be done via USB. The main SW can be upgraded via Autorun.upg

field is a decimal value via digit entry

programming with virtual keyboard Channel list, NVM data, Readable info, EDID

of the printout, per MTK provision/definition.

“Panel code”

EN 27TPM9.5A LA 5.

Figure 5-5 Update the TV software [3/3]

Note:

• Do not remove the USB flash drive during the software update.

• If a power failure occurs during the update, do not remove the USB flash drive from the TV. The TV will continue the software update as soon as the power comes up again.

• If an error occurs during the update retry the procedure or contact the dealer.

• We do not recommend downgrading to an older version.

• Once the upgrade is finished, use the PC to remove the TV software from the USB portable memory.

5.5.6 Content and Usage of the One-Zip Software File

Below you find a content explanation of the One-Zip file, and instructions on how and when to use it. Only files that are relevant for Service are mentioned here.

• EDID_clustername.zip: Contains the EDID content of the different EDID NVMs. See ComPair for further instructions.

5.6 Error Codes

5.6.1 Introduction

Error codes are required to indicate failures in the TV set. In principle a unique error code is available for every:

• Activated (SW) protection.

• Failing I

• General I The last five errors, stored in the NVM, are shown in the Service menu’s. This is called the error buffer. The error code buffer contains all errors detected since the last time the buffer was erased. The buffer is written from left to right. When an error occurs that is not yet in the error code buffer, it is displayed at the left side and all other errors shift one position to the right. An error will be added to the buffer if this error differs from any error in the buffer. The last found error is displayed on the left. An error with a designated error code never leads to a deadlock situation. It must always be diagnosable (e.g. error buffer via OSD or blinking LED or via ComPair). In case a failure identified by an error code automatically results in other error codes (cause and effect), only the error code of the MAIN failure is displayed.

5.6.2 How to Read the Error Buffer

You can read the error buffer in three ways:

• On screen via the SAM/SDM/CSM (if you have a picture).

2

C device.

2

C error.

Example: – ERROR: 000 000 000 000 000: No errors detected – ERROR: 013 000 000 000 000: Error code 13 is the

last and only detected error

back to

div. table

2012-Nov-30

EN 28 TPM9.5A LA5.

Service Modes, Error Codes, and Fault Finding

– ERROR: 034 013 000 000 000: Error code 13 was

detected first and error code 34 is the last detected (newest) error

• Via the blinking LED procedure (when you have no picture). See paragraph 5.7

The Blinking LED Procedure.

•Via ComPair.

5.6.3 Error codes

In this chassis only “layer 2” error codes are available and point to problems on the SSB. They are triggered by LED blinking when CSM is activated. Only the following layer 2 errors are defined:

Table 5-4 Error code table

Layer-2 error code Defective device

13 General I2C bus error on the SSB 16 +12 V mi ssing or low, PSU defective 27 Channel decoder error on the SSB 34 Tuner I2C bus error on the SSB 35 EEPROM I2C error on SSB, M24C64

5.6.4 How to Clear the Error Buffer

The error code buffer is cleared in the following cases:

• By using the CLEAR command in the SAM menu

• By using the CLEAR command in the Factory mode:

• By using the following key sequence on the remote control transmitter: “062599” directly followed by the OK button.

• If the contents of the error buffer have not changed for 50 hours, the error buffer resets automatically.

Note: If you exit SAM by disconnecting the mains from the television set, the error buffer is not reset.

5.7 The Blinking LED Procedure

5.7.1 Introduction

The software is capable of identifying different kinds of errors. Because it is possible that more than one error can occur over time, an error buffer is available, which is capable of storing the last five errors that occurred. This is useful if the OSD is not working properly. Errors can also be displayed by the blinking LED procedure. The method is to repeatedly let the front LED pulse with as many pulses as the error code number, followed by a period of

1.5 seconds in which the LED is “off”. Then this sequence is

repeated. Example (1): error code 4 will result in four times the sequence LED “on” for 0.25 seconds / LED “off” for 0.25 seconds. After this sequence, the LED will be “off” for 1.5 seconds. Any RC command terminates the sequence. Error code LED blinking is in red color. Example (2): the content of the error buffer is “12 9 6 0 0” After entering SDM, the following occurs.

• 1 long blink of 5 seconds to start the sequence.

• 12 short blinks followed by a pause of 1.5 seconds.

• 9 short blinks followed by a pause of 1.5 seconds.

• 6 short blinks followed by a pause of 1.5 seconds.

• 1 long blink of 1.5 seconds to finish the sequence.

• The sequence starts again with 12 short blinks.

5.7.2 Displaying the Entire Error Buffer

5.8 Fault Finding and Repair Tips

Note:

• It is assumed that the components are mounted correctly with correct values and no bad solder joints.

• Before any fault finding actions, check if the correct options are set.

5.8.1 NVM Editor

In some cases, it can be convenient if one directly can change the NVM contents. This can be done with the “NVM Editor” in SAM mode. With this option, single bytes can be changed.

Caution:

• Do not change these, without understanding the function of each setting, because incorrect NVM settings may seriously hamper the correct functioning of the TV set!

• Always write down the existing NVM settings, before changing the settings. This will enable you to return to the original settings, if the new settings turn out to be incorrect.

5.8.2 Load Default NVM Values

It is possible to upload the default values to the NVM with ComPair in case the SW is changed, the NVM is replaced with a new (empty) one, or when the NVM content is corrupted. After replacing an EEPROM (or with a defective/no EEPROM), default settings should be used to enable the set to start-up and allow the Service Default Mode and Service Alignment Mode to be accessed.

5.8.3 No Picture

When you have no picture, first make sure you have entered the correct display code. See paragraph 6.4 the instructions. See also Table 6-3

5.8.4 Unstable Picture via HDMI input

Check (via ComPair or factory mode) if HDMI EDID data is properly programmed.

5.8.5 No Picture via HDMI input

Check if HDCP key is valid. This can be done in CSM.

5.8.6 TV Will Not Start-up from Stand-by

Possible Stand-by Controller failure. Re-flash the software.

5.8.7 Audio Amplifier

The Class D-IC U606 has a powerpad for cooling. When the IC is replaced it must be ensured that the powerpad is very well pushed to the PWB while the solder is still liquid. This is needed to insure that the cooling is guaranteed, otherwise the Class D-IC could break down in short time.

5.8.8 CSM

When CSM is activated and there is a USB memory stick connected to the TV, the software will dump the complete CSM content to the USB memory stick. The file (Csm.txt) will be saved in the root of the USB memory stick.

Option Settings for

.

Additionally, the entire error buffer is displayed when Service Mode “SDM” is entered.

2012-Nov-30

5.8.9 Loudspeakers

back to

div. table

Make sure that the volume is set to minimum during disconnecting the speakers in the ON-state of the TV. The audio amplifier can be damaged by disconnecting the speakers during ON-state of the set!

Service Modes, Error Codes, and Fault Finding

5.8.10 Display option code

Attention: In case the SSB is replaced, always check the Panel Code in CSM, even when picture is available. Performance with the incorrect display option code can lead to unwanted side-effects for certain conditions.

EN 29TPM9.5A LA 5.

back to

div. table

2012-Nov-30

EN 30 TPM9.5A LA6.

6. Alignments

Index of this chapter:

General Alignment Conditions

6.1

6.2 Hardware Alignments

6.3 Software Alignments

6.4 Option Settings

6.5 Reset of Repaired SSB

6.1 General Alignment Conditions

Perform all electrical adjustments under the following conditions:

• Power supply voltage: 90 - 264 V

• Connect the set to the mains via an isolation transformer with low internal resistance.

• Allow the set to warm up for approximately 15 minutes.

• Measure voltages and waveforms in relation to correct ground (e.g. measure audio signals in relation to AUDIO_GND). Caution: It is not allowed to use heat sinks as ground.

• Test probe: R

> 10 M, Ci < 20 pF.

i

• Use an isolated trimmer/screwdriver to perform alignments.

, 50/ 60  3 Hz.

AC

Alignments

In case you have a colour analyser:

• Measure with a calibrated (phosphor- independent) color analyser (e.g. Minolta CA-210) in the centre of the screen. Consequently, the measurement needs to be done in a dark environment.

• Adjust the correct x, y coordinates (while holding one of the White point registers R, G or B on max. value) by means of decreasing the value of one or two other white points to the correct x, y coordinates (see Table 6-1

White D alignment

values). Tolerance: dx:  0.003, dy:  0.003.

• Repeat this step for the other colour Temperatures that need to be aligned.

• When finished return to the SAM root menu and press STANDBY on the RC to store the aligned values to the NVM.

Table 6-1 White D alignment values

Value Cool (12000 K) Normal (9000 K) Warm (6500 K)

x 0.276 0.287 0.313 y 0.282 0.296 0.329

6.2 Hardware Alignments

Not applicable.

6.3 Software Alignments

Put the set in SAM mode (see Chapter 5. Service Modes, Error

Codes, and Fault Finding). The SAM menu will now appear on

the screen. Select RGB Align and go to one of the sub menus. The alignments are explained below. The following items can be aligned:

• White point.

To store the data:

• Press OK on the RC before the cursor is moved to the left.

• Select “Store” and press OK on the RC.

• Switch the set to stand-by mode.

For the next alignments, supply the following test signals via a video generator to the RF input:

• EU/AP-PAL models: a PAL B/G TV-signal with a signal strength of at least 1 mV and a frequency of 475.25 MHz

• US/AP-NTSC models: an NTSC M/N TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

• LATAM models: an NTSC M TV-signal with a signal strength of at least 1 mV and a frequency of

61.25 MHz (channel 3).

6.3.1 RGB Alignment

Before alignment, set the picture as follows:

Picture Setting

Dynamic backlight Off Dynamic Contrast Off Color Enhancement Off Picture Format Unscaled Light Sensor Off Brightness 50 Color 0 Contrast 100

If you do not have a colour analyser, you can use the default values. This is the next best solution. The default values are average values coming from production (statistics).

6.3.2 Display Adjustment

You can use the default values. The default values are average values coming from production.

• Enter SAM mode.

• Select a colour temperature (e.g. COOL, NORMAL, or WARM).

• Set the RED, GREEN and BLUE default values according to the values in Table 6-2

.

• When finished press OK on the RC, then press STORE to store the aligned values to the NVM.

• Restore the initial picture settings after the alignments.

Table 6-2 White tone default settings

Picture mode Screen size

Normal (9000K) 32PFL5007D 120 128 115

42PFL5X07D 107 128 114 42PFL6007D 125 127 124 46PFL5X07D 106 128 126 47PFL6007D 128 128 121

Cool (11000K) 32PFL5007D 98 125 139

42PFL5X07D 87 117 128 42PFL6007D 111 118 128 46PFL5X07D 88 108 128 47PFL6007D 114 121 127

Warm (6500K) 32PFL5007D 138 12 8 94

42PFL5X07D 123 128 96 42PFL6007D 128 112 76 46PFL5X07D 122 128 108 47PFL6007D 128 112 73

Colour temperature

Red Green Blue

This group setting of colour temperature will be applied automatically to the TV / VGA / HDMI / AV sources.

White Tone Alignment:

• Activate SAM.

• Select “RGB Align.” and choose a color temperature.

• Use a 100% white screen as input signal and set the following values: – “Red BL Offset” and “Green BL Offset” to “7” (if

present).

– All “White point” values initial to “128”.

2012-Nov-30

back to

div. table

Alignments

EN 31TPM9.5A LA 6.

6.4 Option Settings

6.4.1 Introduction

The microprocessor communicates with a large number of I ICs in the set. To ensure good communication and to make digital diagnosis possible, the microprocessor has to know which ICs to address. The presence / absence of these MT5366 ICs is made known by the option codes.

Notes:

• After changing the option(s), save them by pressing the OK button on the RC before the cursor is moved to the left, select STORE and press OK on the RC.

• The new option setting is only active after the TV is switched “off” / “stand-by” and “on” again with the mains switch (the NVM is then read again).

6.4.2 Option Code Overview

Enter SAM mode to check the option codes. they could not be edited in the NVM.

6.4.3 Display Code Overview

Press the following key sequence on a standard RC transmitter: “062598” directly followed by MENU and “xxx”, where “xxx” is a 3 digit decimal value of the panel type: see column “Display Code” in Table 6-3 Code, restart the set immediately.

. After resetting the Display

6.5.1 SSB Identification

SSB’s of this chassis are identified by a “715” code on the SSB. 715Axxxx-Nnn-MMM-OOOO

2

C

• 715 main category, Printed Wiring Board

• Axxxx sub category, sequential coding number

• Nnn Version code

• N Development number

• nn Production number

• MMM Mounting variation code

• OOOO Optional variation code Make sure when replacing an SSB the SSB identification codes match the replacement panel.

Table 6-3 Display code overview

CTN_ALT BOM# Panel Type Display Code

32PFL5007D TPT315B5-HVN01 162 42PFL5007D TPT420H2-J1L02 163 42PFL5507D T420HVD01.3G0 165 42PFL6007D LC420EUF-FEP1 175 46PFL5007D TPT460H1-HM01 164 46PFL5507D T460HVD01.101 166 47PFL6007D LC470EUF-FEP1 175

6.5 Reset of Repaired SSB

A very important issue towards a repaired SSB from a Service repair shop (SSB repair on component level) implies the reset of the NVM on the SSB. A repaired SSB in Service should get the service Set type “00PF0000000000” and Production code “00000000000000”. Also the virgin bit is to be set. To set all this, you can use the ComPair tool or use the “NVM editor” and “Dealer options” items in SAM (do not forget to “store”).

After a repaired SSB has been mounted in the set (set repair on board level), the type number (CTN) and production code of the TV has to be set according to the type plate of the set. For this, you can use the NVM editor in SAM. The loading of the CTN and production code can also be done via ComPair (Model number programming).

In case of a display replacement, reset the “Operation hours display” to “0”, or to the operation hours of the replacement display.

back to

div. table

2012-Nov-30

EN 32 TPM9.5A LA7.

7. Circuit Descriptions

Index of this chapter:

Introduction

7.1

7.2 Power Supply

7.3 DC/DC Converters

7.4 Video and Audio Processing – MTK5325ZLHJ

Notes:

•Only new circuits (circuits that are not published recently) are described.

• Figures can deviate slightly from the actual situation, due to different set executions.

• For a good understanding of the following circuit descriptions, please use the wiring, block (see chapter

Block Diagrams) and circuit diagrams (see chapter

9.

Circuit Diagrams and PWB Layouts).Where necessary,

10.

you will find a separate drawing for clarification.

Circuit Descriptions

7.1 Introduction

The TPM9.5A LA is a new chassis is using the MT5325ZLHJ main IC, the so-called MT5325 platform. This chassis makes use of TPT LED displays.

7.1.1 Implementation

Key components of this chassis are:

• MT5325ZLHJ PBGA-655 TV Processor

• DTC86WT-17-E combined DMB-TH, analogue tuner

• TDA19998HL/C1 LQFP-100 HDMI Switch

• STA339BWTR Power SSO36 Class-D audio amplifier

7.1.2 TPM9.5A LA Architecture Overview

For details about the chassis block diagrams refer to Figure 9.8

.

2012-Nov-30

back to

div. table

7.1.3 SSB Cell Layout

19340_200_120807.eps

AUDIO CLASS-D

SPDIF

OUT

MT5325

DDR2

HDMI

NETWORK

USB

AV IN

Analog Input

TUNER

DC/DC

SERVICE CONN.

HEAD PHONE

Circuit Descriptions

EN 33TPM9.5A LA 7.

Figure 7-1 SSB layout cells (top view)

back to

div. table

2012-Nov-30

EN 34 TPM9.5A LA7.

19340_201_120809.eps

120809

Display power

Platform MTK5325

PFC

Platform power

1 power- PCB

LVDS AMP

Low stby power

Ac-input + Mains filter

BL-ON/OFF

AC IN CN901

CN903

DIM

24V

12V

5V

CN701

AMP

24V

7.2 Power Supply

Refer to figure Figure 7-2 for the power architecture of this platform.

Circuit Descriptions

7.2.1 Power Supply Unit

All power supplies are a black box for Service. When defective, a new panel must be ordered and the defective one must be returned, unless the main fuse of the panel is broken. Always replace a defective fuse with one with the correct specifications! This part is available in the regular market. Consult the Philips Service web portal for the order codes of the panels.

Important delta’s with the TPM9.5A LA platform are:

• New power architecture for LED backlight (PSL, PSLS, PSDL)

• “Boost”-signal is now a PWM-signal + continuous variable.

The control signals are:

• Stand-by

• Inverter “on/off”

• DIM (PWM) (not for PSDL)

In this manual, no detailed information is available because of design protection issues.

The output voltages to the chassis are:

• +3V3-STANDBY (Stand-by mode only)

• +12V (on-mode)

• +Vsnd (+24V) (audio power) (on-mode)

• +24V (bolt-on power) (on-mode)

• Output to the display; in case of

- IPB: High voltage to the LCD panel

- PSL and PSLS (LED-driver outputs)

- PSDL (high frequent) AC-current.

2012-Nov-30

Figure 7-2 Power Architecture H/K series

7.2.2 Diversity

The diversity in power supply units is mainly determined by the diversity in displays.

The following displays can be distinguished:

• CCFL/EEFL backlight: power panel is conventional IPB

• LED backlight:

- side-view LED without scanning: PSL power panel

- side-view LED with scanning: PSLS power panel

- direct-view LED without 2D-dimming: PSL power panel

- direct-view LED with 2D-dimming: PSDL power panel.

PSL stands for Power Supply with integrated LED-drivers.

back to

div. table

PSLS stands for a Power Supply with integrated LED-drivers with added Scanning functionality (added microcontroller). PSDL stands for a Power Supply for Direct-view LED backlight with 2D-dimming.

7.2.3 Connector overview

Table 7-1 Connector overview

Number CN409 CN8102 CN8103 CN901 CN9101 Description to panel to panel to panel Mains inlet to SSB Pin 13 2 13 2

1 Date Pin P_OK L P_OK L 2 Date Pin +5.2V N +5.2V N 3 Date Pin +5.2V - +5.2V 4 Date Pin PS_ON - PS_ON 5 GND +24V - +24V 6 GND +24V - +24V 7 Date Pin GND - GND 8 Date Pin GND - GND -

Connector

Circuit Descriptions

19340_202_120809.eps

120820

Choke

FB1303

(Buck)

FB1304

USB_Power

U7211 AOZ1242AI

U7204 G9084TU3U

(LDO)

L1306

NC/Q6101 AO4435

FB6101

Q7201 AO4435

+24V_SW

PANEL_VCC

U7203 G1117T43Uf

FB4401

(LDO)

NC/FB1503

FB7208

FB1505

U412 PCA9634

PANEL

AmbiGlow2

Ambilight

FB1502

U501 TDA19998HL HDMI switch

Ambilight

FB1501

RJ45

(HDMI SW)

FB6102

+5V_ON

FB6105

(LDO)

DV33_HDMI

U603 G903T63UE

Aud3A3Aud3V3

FB6107

U7201 G1117T43Uf

(LDO)

FB5201

DV18

TU_5V

AVDD12_PLL AV12_MEMPLLAV12

AVDD12_REC

AVDD12_COM

USB5V

FB1407

+5V_TUNER

U403 NT5CB64M16DP

(DDRIII)

DV15_DDR

U404 NT5CB64M16DP

(DDRIII)

(BUCK)

DV33

FB7106

AV33

U703 AT1529F11

(BUCK)

U702 G5173R41

FB7206

DV11

AVDD33_REG_STB

AVDD33_XTAL_STB

U411 GL852G-MNG

I VCC33 =100mA

FB7102

U602 STA515W

U601 STA339BWTR

(USB HUB)

FB6103

FB7105

+24V_AMP

FB1701

FB1702

U402 NT5CB64M16DP

(DDRIII)

3V3_P U3V3A

FB7207

AVDD12_DBMOD

AVDD12_RGB

FB1402

FB1403

U606 MAX9728AETC+

(BUCK)

U701 RT8074GSP

3.3V

U7205 G903T63UE

DV11

POWER ON

FB7108

U7210 G912T63U

(LDO)

1.2v

U7202 G903T63UF

DV33SB

(LDO)

(Reset IC)

U410 MAX809STRG

FB7110

+24V(1.5A)

+5V_SW

+12V(1.5A)

(SOC)

TU101 TDTR-T052D

U401 MT5325

+5V_STB

STB_PWR5V(2.5A)

U409 AT24C128BN

(EEPROM)

(NAND)

U405 Flash H27U2G8F2CTR

(Headphone AMP)

FB7203

FB7103

FB5204

FB7109

FB7107

DV18_HDMI

R1920

R1919

U101 ATBM8846

(DEMODULATOR)

EN 35TPM9.5A LA 7.

Connector Number CN409 CN8102 CN8103 CN901 CN9101 Description to panel to panel to panel Mains inlet to SSB Pin 13 2 13 2

9 Date Pin GND - GND 10 Date Pin +12V - +12V 11 GND +12V - +12V 12 GBD DIM - DIM 13 DATA Pin ON/OFF - ON/OFF -

7.3 DC/DC Converters

The on-board DC/DC converters at the SSB deliver the following voltages (depending on set execution):

• +5V2-STANDBY, permanent voltage for the Stand-by controller, LED/IR receiver and controls; connector CN9102 pins 2 and 3

• +12V, input from the power supply for the panel common (active mode); connector CN9102 pins 10 and 11

• +24V, input from the power supply for audio amplifier, connector CN9102 pins 5 and 6

• +1V1, core voltage supply for MT5325; has to be started up first and switched “off” last

• +1V2, supply voltage for power supply for the scaler IC MT5325

• +1V5, supply voltage for DDR3

• +1V5, supply voltage for analogue blocks inside

• NT5CB64M16DP

• +3V3, general supply voltage

• +5V, supply voltage for USB

• +5V-TUN, supply voltage for tuner

• +5V-USB, input intermediate supply voltage for USB

• +3V3 from the power supply for the scaler IC MT5325

Figures gives a graphical representation of the DC/DC converters with its current consumptions:

7.4 Video and Audio Processing – MTK5325ZLHJ

The MT5325ZLHJ is the main audio and video processor (or System-on-Chip) for this platform. It has the following features:

• Worldwide Multi-standard analog TV demodulator

• A transport demultiplexer

• A multi-standard video decoder

• An H.264 HD720p video decoder

• An AC3/MPEG2 audio decoder

• HDMI 1.4 receiver with 3D support

• Audio codec

•Tcon

• Ethernet MAC+PHY

• True 120 Hz Full HD motion judder cancellation

• Local dimming

• Four-link LVDS, mini-LVDS,V-by-one transmitters

Figure 7-3 DC/DC converters

back to

div. table

The MT5325ZLHJ family is a back end decoder and a TV controller and offers high integration for advanced applications. It combines a transport de-multiplexer, a high definition video decoder, an AC3 audio decoder, a four-link LVDS transmitter, a mini-LVDS transmitter, a V-by-One transmitter, and an NTSC/PAL/SECAM TV decoder with a 3D comb filter (NTSC/PAL).

2012-Nov-30

EN 36 TPM9.5A LA8.

19340_305_120720.eps

120820

Block diagram

Pinning information

COMP

1

2

3

4

12

11

10

9

LX

SS

16

15

14

13

RT

AGND

FB

Thermal

Pad

PG

BS

EN

VIN

VINA

VIN

GND

5

6

7

8

COMP

1

2

3

4

12

11

10

9

LX

SS

16

15

14

13

RT

AGND

FB

Thermal

Pad

PG

BS

EN

VIN

VINA

VIN

GND

5

6

7

8

G5173 TQFN3X3-16

G5173

Logic

PG

SHDN

93%

107%

Voltage

Reference

FB

Erramp

SS

Logic

COMP

OverLoad

Recovery

Maximum

Clamp

AGND

Minimum

Clamp

PWM

SHDN

∑

Slope

Compensation

Frequency

Shift

Oscillator

RT

Logic and PWM Latch

Boot

UVLO

GND

LX

BS

Buffer

Current

Sense

VIN

Boot

Charge

EN

Enable

Threshold

Enable

Comparator

UVLO

Shutdown

Logic

SHDN

Thermal

Shutdown

VINA

IC Data Sheets

8. IC Data Sheets

This chapter shows the internal block diagrams and pin configurations of ICs that are drawn as “black boxes” in the electrical diagrams (with the exception of “memory” and “logic” ICs).

8.1 Diagram 10-3-1 B01 Power-1, G5173R41D (IC U702)

2012-Nov-30

back to

div. table

Figure 8-1 Internal block diagram and pin configuration

8.2 Diagram 10-3-4 B04 Demodulator (DTMB DVB-C, PAL), ATBM8846E (IC U101)

19340_306_120720.eps

120820

Block diagram

Pinning information

ATBM8846E

73 (Exposed Pad)

GND

NC

PWM1

NC

NC NC

TESTIO20

TESTIO21

TESTIO22

Timing

recovery

ADC

AGC

Tuner

Frequency

recovery

Channel

estimaion

Equalization

Time de-

interleaver

FEC

decoding

Descrambler

Transport

Stream

IF to

baseband

SDRAM

ATBM8846E Demodulator

PLLCrystal

Frequency Translation

EqualizerMatched Filter

De-interleaver

De-mapper

Reed-Solomon

Decoder

Image and

Decimation Filters

De-scramble r

DTMB CORE

DVB- C CORE

MPEG Transport Stream Interface

Antenna

Cable

RF

AGC Control

l

IF

I/Q

Control/Status Interface

I2C BUS

IC Data Sheets

EN 37TPM9.5A LA 8.

Figure 8-2 Internal block diagram and pin configuration

back to

div. table

2012-Nov-30

EN 38 TPM9.5A LA8.

19340_300_120720.eps

120820

Block diagram

NTSC/

PAL/

SECAM

ATD

TV

Decoder

TS

Demux

ARM11

L2 Cache

BIM

VDACx4

Vide o Input

De-interlace

HDMI

Rx

JPEG/MP2/MP4/

DivX/H.264/VC-1/

RM/AVS Deco ders

Audio In

Audio

Demod

Audio

ADC

SPDIF

In

DRAM Bus

IO Bus

2D Grapihc

H.264

Encoder

LV DS/min-LVS/

V-b y-One/

OD, TCON

MJC and P ost

Processing

DDR2 DDR3

Controller

OSD

scaler

PIP Vplane

scaler

Audio DSP

Audio I/F

Audio DAC

BScan

JTAG IrDA

PCR

I2C

RTC UART SDIO

USB2.0 PWM

Ethernet

Watchdog Serial F las h

NAND Flash

Servo ADC

CKGEN

SPDIF Out, I2S

TS

In

Tuner

In

CVBS/YC

Input

Component

Analog Inp ut

HDMI

Input

Tuner

In

Audio

Input

Panel

48/32-bit

DDR2/DDR3

T8032

MT5325HLHJ

IC Data Sheets

8.3 Diagram 10-3-5 B05 MT5325 GPIO & RJ45, MT5325HLHJ (IC U401-9)

Figure 8-3 Internal block diagram

2012-Nov-30

back to

div. table

IC Data Sheets

19340_301_120720.eps

120820

Pinning Information

MT5325HLHJ

LT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A

BRA3 BRA2 BRA9 BRA12 BRBA1 BRCKE BRCLK0

BRDQS 1#

BRDQS 0#

BRDQ1 1

DVSS AO0P AO1P

B

BRBA0 BRA5 BRA7 BRA11 BRA4 BRA10

BRCLK0 #

BRDQS1BRDQS

0

BRDQ9 DVSS AO0N AO1N

C

BRODT BRCS# RVREF BRA13 BRA6 BRA1 BRBA2 BRDQ8

BRDQ14BRDQ12BRDQM0BRDQM1BRDQ1

3

DVSS AE0N

D

RVREF DVSS

REXTD N

VCC2IO BRA8 BRA0 BRWE#

BRDQ1 0

BRDQ7 BRDQ3 BRDQ1

BRDQ1 5

DVSS AE0P

E

RDQ2

2

RDQ2

0

VCC2IO

BRRESETBRCAS#BRRAS

#

BRDQ5 VCC2IO BRDQ0 BRDQ6 BRDQ4 DVSS AE1N AE1P

F

RDQM

3

RDQ1

6

RDQ1

8

VCC2IO VCC2IO DVSS DVSS BRDQ2 DVSS

G

RDQS

2#

RDQS

2

RDQM

2

RDQ2

9

RDQ2

7

VCC2IO D VSS

H

RDQS

3#

RDQS

3

VCC2IO DVSS

RDQ2

5

RDQ3

1

MEMTN DVSS

J

ARDQ19ARDQ1

7

VDD1 2_MEM PLL

MEMTP D VSS

K

ARDQ21ARDQ2

3

DVSS

VSS12 _MEMPLL

L

RCLK1

#

ARCLK1 VCC2IO

RDQ2

4

RDQ2

6

RDQ3 0

RDQ2

8

DVSS VCCK DVSS VCCK DVSS VCCK

M

ARODT

RCAS

#

ARCKE DVSS VCCK DVSS VCCK DVSS DVSS

N

ARA13 ARA3 ARA0 DVSS ARWE# ARA10 VCCK VCCK DVSS DVSS DV SS DVSS

P

ARA9

RRESE

T

ARA7 ARA2 ARBA1 ARA12 VCCK VCCK DVSS DVSS DVSS DVSS

R

ARA5 ARBA0 ARA11 DVSS DVSS DVSS DVSS DVSS DVSS

T

ARCS#

RRAS

#

ARBA2 DVSS ARA8 ARA6 VCCK DVSS DVSS DVSS DV SS DVSS

U

ARDQ4 ARDQ6 VCC2IO ARA4 ARA1 RVREF DVSS DVSS DVSS DV SS DVSS DVSS

V

ARDQ2 ARDQ0 VCCK VCCK DVSS DVSS DV SS DVSS

W

RDQM

1

VCC2IO DVSS

RDQ1

3

DVSS DVSS DVSS DVSS DVSS DVSS

Y

RDQS

0#

RDQS

0

RDQM

0

RDQ1

1

RDQ1 5

VCCK VCCK DVSS DVSS DVSS DV SS

AA

RDQ1

2

RDQ1

4

ARDQ9 VCCK VCCK DVSS DVSS VCCK DVSS

AB

RDQS

1#

RDQS

1

ARDQ1 DVSS

RDQ1

0

ARDQ8 DVSS DVSS VCCK DVSS VCCK DVSS

AC

ARDQ3 ARDQ7 ARDQ5 VCC2IO

VSS33 _USB_2 P

AVSS33 _HDMI

VSS33 _VGA_S TB

AD

DVSS DVSS DVSS

AE

RCLK0

#

ARCLK0 VCC2IO VCC3IO VCC3IO

OPCTR

L

0

AF

VCC2IO VCC2IO VCC2IO DVSS VCC3IO VCC3IO

OPCTR

L

6

OPWRS B

GA_S

CL

DVSS

AG

VCCK VCCK VCCK VCCK VCCK

VDD3

3_HDMI PWR5V

OPCTRL 1

OIRI

VGA_S DA

ADIN1_ SRV

AH

JTDO JTCK JTMS JTDI

VDD3 3_USB_ 2P

GPIO3

USB_2P _VRT

GPIO4

OPCTRL3ORESE

T#

U0TX

AVDD1 0_LDO

AJ

JTRST# POWE# PDD5 GPIO1 GPIO6

HDMI_ SCL

HDMI_ CEC

OPCTR

L

2

OPCTR

L

5

U0RX

AK

PAALE PACLE POOE# PDD4 PDD6 GPIO0 GPIO2 GPIO5

HDMI_ SDA

HDMI_ HPD

VDD1 2_HDM I

OPCTRL 4

BP SOG GP

VDD3

3_VGA_ STB

AL

POCE0 #

PDD0 PDD2 PDD7

USB_2P _DP1

USB_2P _DP0

RX_C RX_0 RX_1 RX_2 HSYNC COM SOY1

AM

PARB# PDD1 PDD3

POCE1#USB_2P

_DM1

USB_2P _DM0

RX_CB RX_0B RX_1B RX_2B VSYNC RP Y1P

LB 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A

Figure 8-4 Pin configuration [1/4]

A

EN 39TPM9.5A LA 8.

A

V

A

back to

div. table

2012-Nov-30

EN 40 TPM9.5A LA8.

19340_302_120720.eps

120820

Pinning Information

MT5325HLHJ

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 RT

AO2P AOCKP AO3P AO4P

TXPA_EPITXP0_

V

B1

TXP1_

V

B1

TXP2_

V

B1

TXP3_

V

B1

TXPB_E PI

BE0P BE1P BE2P BECKP BE3P BE4P

A

AO2N AOCKN AO3N AO4N

TXNA_EPITXN0_

V

B1

TXN1_

V

B1

TXN2_

V

B1

TXN3_

V

B1

TXNB_E PI

BE0N BE1N BE2N BECKN BE3N BE4N

B

AE2N AE3N HTPDN BO0N BO2N BO3N GPIO21 GPIO19 GPIO23 GPIO22

C

AE2P AE3P LOCKN BO0P BO2P BO3P GPIO20 GPIO18

LDM_D O

GPIO16

D

AECKN AECKP AE4N AE4P

VDD1

2_VPLL

BO1N BO1P BOCKP BOCKN BO4N BO4P GPIO15 GPIO17

LDM_

C

LK

LDM_

C

S

E

VDD3 3_LVDS A

AVSS12 _VB1A

AVSS12 _VPLL

REXT_V B1

AVDD1 2_VB1A

VDD3

3_LVDSB DVSS

FSRC_ WR

LDM_DI SOE

LDM_V SYNC

F

VSS12

_VB1B

VDD1

2_VB1B

GCLK6

GH_O

DD

POL

G

H

GCLK3

GH_E

VEN

VST

J

GCLK4 GCLK5 GPIO13 FLK GCLK1

K

VCC3IO VCC3IO DVSS GPIO14 GPIO12 SD_D2 SD_D3 GCLK2

L

VSS33

_LVDSA

DVSS

VSS33

_LVDSB

VCC3IO VCC3IO DPM SD_D1

M

DVSS DVSS DVSS DV SS VCCK VCC3IO GPIO9 GPIO10 GPIO11 SD_CLK

SD_CM D

SD_D0

N

DVSS DVSS DVSS DVSS VCCK

SPI_C

L

E

CI_INT

SPI_C

L

K1

SPI_C

L

K

SPI_D

A

TA

P

DVSS DVSS DVSS DVSS DVSS DVSS DV SS

PVR_T

S

SYNC

PVR_TS CLK

PVR_TS DATA0

PVR_TS DATA1

R

DVSS DVSS DVSS VCCK VCCK

CI_TS

V

AL

PVR_TS VAL

CI_TSD ATA0

T

DVSS DVSS DVSS DVSS DVSS VCCK

CI_TSS YNC

CI_TSC LK

DEMOD _TSDAT A0

DEMOD _RST

DEMOD _TSCLK

U

DVSS DVSS DVSS DVSS DVSS

AVSS33 _LD

ALIN

AOSDA TA0

AOSDA TA1

DEMOD _TSVAL

DEMOD _TSSYN C

TUNER _DATA

TUNER _CLK

V

DVSS DVSS DVSS DVSS DVSS

VSS33

_REC

VSS12

_COM

RF_AGC IF_AGC

W

DVSS DVSS DVSS VCCK VCCK

VSS33

_DAC1

OSD

A

TA4

OSD

A

TA3

OSD

A

TA2

OLRC

K

AOBCK

OMC

L

K

Y

VCCK DVSS VCCK DVSS DVSS

VSS33

_DAC

OPWM0 OPWM2

PHYLED 1

OSDA0 OSCL0 ASPDIF REXT

AA

VCCK VCCK VCCK DVSS DVSS

VSS33

_AADC

PHYLED 0

OSDA1 OSCL1

AB

VSS12

_RGB

VSS33

_VDAC

VSS12

_PLL

VSS33

_CVBS

VDD3

3_COM

VDD3

3_REC

VDD3

3_LD

U1TX U1RX OPWM1

AC

DVSS GPIO7 GPIO8

VDD1

2_COM

TXVN_1 TXVP_1

AD

DVSS DVSS DVSS

VDD1

2_REC

TXVN_0 TXVP_0

AE

ADIN2_ SRV

ADIN3_ SRV

ADIN5_ SRV

MPXP

VSS33 _DEMO D

VDD3

3_IFPGA DVSS DVSS DVSS DVSS

AVSS12 _REC

AVDD3 3_DAC1

TANA_0 TANA_1

AF

DIN0_

SRV

VDD1

2_PLL

MPXN

VSS33

_XTAL

DVSS DVSS

VSS33

_COM

R2_

A

DAC

L2_AD

AC

R1_

A

DAC

L1_AD

AC

AG

ADIN4_ SRV

AVDD3 3_VDAC

AVDD3 3_CVBS

VSS12 _DEMO D

VMID_ AADC

DVSS DVSS DVSS

AL3_AD AC

AH

COM1 PR1P

VDAC_ OUT1

BYPASS1BYPASS

0

CVBS1P

VDD3 3_DEMODLOUTN LOUTP

AIN4_R _AADC

AVDD3 3_DAC

VDD3 3_AAD C

AR3_A DAC

AL0_ADACAR0_A

DAC

AJ

PB1P

AVDD1 2_RGB

PR0P

VDAC_ OUT2

SC0 CVBS2P

CVBS_C OM

CVBS0P

VDD1 2_DEM OD

VDD3 3_XT AL _STB

AIN1_L _AADC

AIN3_R _AADC

AIN1_R _AADC

DVSS DVSS DVSS

AK

SOY0 COM0

FS_VDA C

SC1

DCIN

N_DEMOD XTALO

AIN3_L _AADC

AIN5_L _AADC

AIN2_L _AADC

AIN5_R _AADC

AIN2_R _AADC

AL

Y0P PB0P SY0 SY1

DCINP

_DEMOD XTALI

AIN4_L _AADC

AIN6_L _AADC

AIN0_L _AADC

AIN6_R _AADC

AIN0_R _AADC

AM

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 RB

IC Data Sheets

A

Figure 8-5 Pin configuration [2/4]

A

V

A

2012-Nov-30

back to

div. table

IC Data Sheets

19340_303_120720.eps

120820

Pinning Information

MT5325HLHJ

LT 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A

BRA12 BRA7 BRA5 BRA13 BRA2 BRODT BRCLK0

BRDQS 1#

BRDQS 0#

BRDQ1 2

DVSS AO0P AO1P

B

BRA1 BRA3 BRA9 BRA8 BRA0 BRCS#

BRCLK0 #

BRDQS1BRDQS

0

BRDQ1 1

DVSS AO0N AO1N

C

BRBA2 BRA10 RVREF BRBA0 BRA4 BRA6 BRWE#

BRDQ1

3

BRDQ8

BRDQ15BRDQM0BRDQM

1

BRDQ9 DVSS AE0N

D

RVREF DVSS

REXTD N

VCC2IO BRA11 BRBA1 BRCKE

BRDQ1 0

BRDQ2 BRDQ0 BRDQ7

BRDQ1 4

DVSS AE0P

E

RDQ1

9

RDQ2

0

VCC2IO

BRRESETBRRAS#BRCAS

#

BRDQ5 VCC2IO BRDQ6 BRDQ3 BRDQ4 DVSS AE1N AE1P

F

RDQM

3

RDQ2

2

RDQ1

7

VCC2IO VCC2IO DVSS DVSS BRDQ1 DVSS

G

RDQS

2#

RDQS

2

RDQM

2

RDQ2

7

RDQ2

8

VCC2I O D VSS

H

RDQS

3#

RDQS

3

VCC2IO DVSS

RDQ3

0

RDQ2

5

MEMTN D VSS

J

ARDQ16ARDQ2

3

VDD1 2_MEM PLL

MEMTP DVSS

K

ARDQ21ARDQ1

8

DVSS

VSS12 _MEMPLL

L

RCLK1

#

ARCLK1 VCC2IO

RDQ2

9

RDQ2

6

RDQ2

4

RDQ3

1

DVSS VCCK DVSS VCCK DVSS VCCK

M

ARA12 ARA9 ARA2 DVSS VCCK DVSS VCCK DVSS DVSS

N

ARA3 ARA5 ARA7 DVSS ARA6 ARA4 VCCK VCCK DVSS DVSS DVSS DVSS

P

ARA10

RRESE

T

ARA1 ARBA1 ARA13 ARA11 VCCK VCCK DVSS DVSS DVSS DVSS

R

ARBA0 ARA0 ARA8 DVSS DV SS DVSS DVSS DV SS DVSS

T

ARWE# ARCKE ARBA2 DVSS

RCAS

#

ARCS# VCCK DVSS DVSS DVSS DVSS DVSS

U

ARDQ4 ARDQ3 VCC2IO ARODT

RRAS

#

RVREF DVSS DVSS DVSS DVSS DVSS DVSS

V

ARDQ1 ARDQ6 VCCK VCCK DVSS DVSS DV SS DVSS

W

RDQM

1

VCC2IO DVSS

RDQ1

1

DVSS DVSS DVSS DVSS DVSS DVSS

Y

RDQS

0#

RDQS

0

RDQM

0

RDQ1

2

ARDQ9 VCCK VCCK DVSS DVSS DVSS DV SS

AA

RDQ1

5

ARDQ8

RDQ1

4

VCCK VCCK DVSS DVSS VCCK DVSS

AB

RDQS

1#

RDQS

1

ARDQ7 DVSS

RDQ1

0

RDQ1

3

DVSS DVSS VCCK DVSS VCCK DVSS

AC

ARDQ0 ARDQ2 ARDQ5 VCC2IO

VSS33 _USB_2 P

AVSS33 _HDMI

VSS33 _VGA_S TB

AD

DVSS DVSS DVSS

AE

RCLK0

#

ARCLK0 VCC2IO VCC3IO VCC3IO

OPCTR

L

0

AF

VCC2IO VCC2IO VCC2IO DVSS VCC3IO VCC3IO

OPCTR

L

6

OPWRS B

GA_S

CL

DVSS

AG

VCCK VCCK VCCK VCCK VCCK

VDD3

3_HDMI PWR5V

OPCTRL 1

OIRI

VGA_S DA

ADIN1_ SRV

AH

JTDO JTCK JTMS JTDI

VDD3 3_USB_ 2P

GPIO3

USB_2P _VRT

GPIO4

OPCTRL3ORESE

T#

U0TX

AVDD1 0_LDO

AJ

JTRST# POWE# PDD5 GPIO1 GPIO6

HDMI_ SCL

HDMI_ CEC

OPCTR

L

2

OPCTR

L

5

U0RX

AK

PAALE PACLE POOE# PDD4 PDD6 GPIO0 GPIO2 GPIO5

HDMI_ SDA

HDMI_ HPD

VDD1 2_HDM I

OPCTRL 4

BP SOG GP

VDD3

3_VGA_ STB

AL

POCE0 #

PDD0 PDD2 PDD7

USB_2P _DP1

USB_2P _DP0

RX_C RX_0 RX_1 RX_2 HSYNC COM SOY1

AM

PARB# PDD1 PDD3

POCE1#USB_2P

_DM1

USB_2P _DM0

RX_CB RX_0B RX_1B RX_2B VSYNC RP Y1P

LB 1 2 3 4 5 6 7 8 9 10 11 12 13 14 15 16

A

Figure 8-6 Pin configuration [3/4]

A

EN 41TPM9.5A LA 8.

A

V

A

back to

div. table

2012-Nov-30

EN 42 TPM9.5A LA8.

19340_304_120720.eps

120820

Pinning Information

MT5325HLHJ

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 RT

AO2P AOCKP AO3P AO4P

TXPA_EPITXP0_

V

B1

TXP1_

V

B1

TXP2_

V

B1

TXP3_

V

B1

TXPB_E PI

BE0P BE1P BE2P BECKP BE3P BE4P

A

AO2N AOCKN AO3N AO4N

TXNA_EPITXN0_

V

B1

TXN1_

V

B1

TXN2_

V

B1

TXN3_

V

B1

TXNB_E PI

BE0N BE1N BE2N BECKN BE3N BE4N

B

AE2N AE3N HTPDN BO0N BO2N BO3N GPIO21 GPIO19 GPIO23 GPIO22

C

AE2P AE3P LOCKN BO0P BO2P BO3P GPIO20 GPIO18

LDM_D O

GPIO16

D

AECKN AECKP AE4N AE4P

VDD1

2_VPLL

BO1N BO1P BOCKP BOCKN BO4N BO4P GPIO15 GPIO17

LDM_

C

LK

LDM_

C

S

E

VDD3 3_LVDS A

AVSS12 _VB1A

AVSS12 _VPLL

REXT_V B1

AVDD1 2_VB1A

VDD3

3_LVDSB DVSS

FSRC_ WR

LDM_DI SOE

LDM_V SYNC

F

VSS12

_VB1B

VDD1

2_VB1B

GCLK6

GH_O

DD

POL

G

H

GCLK3

GH_E

VEN

VST

J

GCLK4 GCLK5 GPIO13 FLK GCLK1

K

VCC3IO VCC3IO DVSS GPIO14 GPIO12 SD_D2 SD_D3 GCLK2

L

VSS33

_LVDSA

DVSS

VSS33

_LVDSB

VCC3IO VCC3IO DPM SD_D1

M

DVSS DVSS DVSS DVSS VCCK VCC3IO GPIO9 GPIO10 GPIO11 SD_CLK

SD_CM D

SD_D0

N

DVSS DVSS DVSS DVSS VCCK

SPI_C

L

E

CI_INT

SPI_C

L

K1

SPI_C

L

K

SPI_D

A

TA

P

DVSS DVSS DVSS DVSS DVSS DVSS DVSS

PVR_T

S

SYNC

PVR_TS CLK

PVR_TS DATA0

PVR_TS DATA1

R

DVSS DVSS DVSS VCCK VCCK

CI_TS

V

AL

PVR_TS VAL

CI_TSD ATA0

T

DVSS DVSS DVSS DVSS DVSS VCCK

CI_TSS YNC

CI_TSC LK

DEMOD _TSDAT A0

DEMOD _RST

DEMOD _TSCLK

U

DVSS DVSS DVSS DVSS DVSS

AVSS33 _LD

ALIN

AOSDA TA0

AOSDA TA1

DEMOD _TSVAL

DEMOD _TSSYN C

TUNER _DATA

TUNER _CLK

V

DVSS DVSS DVSS DVSS DVSS

VSS33

_REC

VSS12

_COM

RF_AGC IF_AGC

W

DVSS DVSS DVSS VCCK VCCK

VSS33

_DAC1

OSD

A

TA4

OSD

A

TA3

OSD

A

TA2

OLRC

K

AOBCK

OMC

L

K

Y

VCCK DVSS VCCK DVSS DVSS

VSS33

_DAC

OPWM0 OPWM2

PHYLED 1

OSDA0 OSCL0 ASPDIF REXT

AA

VCCK VCCK VCCK DVSS DVSS

VSS33

_AADC

PHYLED 0

OSDA1 OSCL1

AB

VSS12

_RGB

VSS33

_VDAC

VSS12

_PLL

VSS33

_CVBS

VDD3

3_COM

VDD3

3_REC

VDD3

3_LD

U1TX U1RX OPWM1

AC

DVSS GPI O7 GPIO8

VDD1

2_COM

TXVN_1 TXVP_1

AD

DVSS DVSS DVSS

VDD1

2_REC

TXVN_0 TXVP_0

AE

ADIN2_ SRV

ADIN3_ SRV

ADIN5_ SRV

MPXP

VSS33 _DEMO D

VDD3

3_IFPGA DVSS DVSS DVSS DVSS

AVSS12 _REC

AVDD3 3_DAC1

TANA_0 TANA_1

AF

DIN0_

SRV

VDD1

2_PLL

MPXN

VSS33

_XTAL

DVSS DVSS

VSS33

_COM

R2_

A

DAC

L2_AD

AC

R1_

A

DAC

L1_AD

AC

AG

ADIN4_ SRV

AVDD3 3_VDAC

AVDD3 3_CVBS

VSS12 _DEMO D

VMID_ AADC

DVSS DVSS DVSS

AL3_AD AC

AH

COM1 PR1P

VDAC_ OUT1

BYPASS1BYPASS

0

CVBS1P

VDD3 3_DEMODLOUTN LOUTP

AIN4_R _AADC

AVDD3 3_DAC

VDD3 3_AAD C

AR3_A DAC

AL0_ADACAR0_A

DAC

AJ

PB1P

AVDD1 2_RGB

PR0P

VDAC_ OUT2

SC0 CVBS2P

CVBS_C OM

CVBS0P

VDD1 2_DEM OD

VDD3 3_XT AL _STB

AIN1_L _AADC

AIN3_R _AADC

AIN1_R _AADC

DVSS DVSS DVSS

AK

SOY0 COM0

FS_VDA C

SC1

DCIN

N_DEMOD XTALO

AIN3_L _AADC

AIN5_L _AADC

AIN2_L _AADC

AIN5_R _AADC

AIN2_R _AADC

AL

Y0P PB0P SY0 SY1

DCINP

_DEMOD XTALI

AIN4_L _AADC

AIN6_L _AADC

AIN0_L _AADC

AIN6_R _AADC

AIN0_R _AADC

AM

17 18 19 20 21 22 23 24 25 26 27 28 29 30 31 32 RB

IC Data Sheets

A

2012-Nov-30

A

Figure 8-7 Pin configuration [4/4]

A

div. table

A

back to

A

V

A

8.4 Diagram 10-3-6 B06 AmbiLight & local dimming B06, PCA9634PW (IC U412)

19340_307_120720.eps

120720

Block diagram

Pinning information

V

DD

SDA SCL

A6 A5 OE LED7 LED6 LED5 LED4

A0 A1 A2 A3

A4 LED0 LED1 LED2 LED3

V

SS

PCA9634

1 2

3

4 5 6 7

8

9

10

12 11

14 13

16 15

18 17

20 19

A0 A1 A2 A3 A4 A5 A6

I2C-BUS

CONTROL

INPUT FILTER

PCA9634

POWER-ON

RESET

SCL

SDA

V

DD

V

SS

LED

STAT E

SELECT

REGISTER

PWM

REGISTER X

BRIGHTNESS

CONTROL

GRPFREQ REGISTER

GRPPWM

REGISTER

MUX/

CONTROL

OE

'0' – permanently OFF '1' – permanently ON

V

DD

LEDn

190 Hz

24.3 kHz

97 kHz

25 MHz

OSCILLATOR

IC Data Sheets

EN 43TPM9.5A LA 8.

Figure 8-8 Internal block diagram and pin configuration

back to

div. table

2012-Nov-30

EN 44 TPM9.5A LA8.

19340_309_120720.eps

120720

Block diagram

Pinning information

PSELF

AMBER2/EE_DIAVDD

GND

DM0

DP0

DM1

DP1

AVDD

DM2

DP2

GND

RREF

AVDD

GREEN2EE_DO

DVDD

AMBER3

GREEN3

PWREN3#

OVCUR3#

PWREN4#

TEST/SCL

OVCUR4#

RESET#

SEL48#

37

36

213

4

6

7

9

101112

8

5

35

34

33

32

30

29

28

272526

31

DVDD 38

PGANG 39

OVCUR2# 40

PWREN2#

41

OVCUR1# 42

PWREN1# / SDA 43

SEL27# 44

GREEN1/EE_SK 45

AMBER1/EE_CS 46

V5 47

V33 48

AMBER4

GREEN4

DP4

DM4

GND

AVDD

DP3

DM3

AVDD

X2

X1

GND

24

23

22

21

20

19

18

17

16

15

14

13

LQFP-48

GL852G

GL852G Datasheet

FRTIMER

USPORT

Transceiver

RA

M

CPU

Control/Status

Register

UTMI

USPORT

Logic

SIE

D+ D-

GPIO

REPEATER

REPEATER / TT Routing Logic

DSPORT1 Logic DSPORT2 Logic DSPORT3 Logic DSPORT

4 Logic

DSPORT

Transceiver

DSPORT DSPORT DSPORT

12/27/48

MHz

D+ D-

LED/

OVCUR/

PWRENB

D+ D-

LED/

OVCUR/

PWRENB

D+ D-

LED/

OVCUR/

PWRENB

D+ D-

LED/

OVCUR/

PWRENB

TT

(Transaction

Translator)

PLL

x40, x10

Transceiver Transceiver Transceiver

ROM

TT

(Transaction

Translator)

TT

(Transaction

Translator)

TT

(Transaction

Translator)

IC Data Sheets

8.5 Diagram 10-3-10 B10 USB 2.0 & USB hub B10, GL852G-MNG12 (IC U411)

2012-Nov-30

Figure 8-9 Internal block diagram and pin configuration

back to

div. table

8.6 Diagram 10-3-16 B16 Audio amplifier/Speaker out B16, STA339BWTR (IC U601)

19170_300_110704.eps

110704

Block diagram

Pinning information

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

36 35 34 33 32 31 30

29 28 27 26 25 24 23 22 21 20 19

VDD_DIG GND_DIG

SCL SDA

INT_LINE RESET SDI LRCKI BICKI XTI GND_PLL FILTER_PLL VDD_PLL PWRDN GND_DIG VDD_DIG

TWARN / OUT4A EAPD / OUT4B

GND_SUB

SA

TEST_MODE

VSS

VCC_REG

OUT2B

GND2

VCC2 OUT2A OUT1B

VCC1

GND1

OUT1A

GND_REG

VDD

CONFIG

OUT3B / FFX3B OUT3A / FFX3A

STA339BW

Protection

current/thermal

Logic

Regulators

Bias

Power control

FFX

PLL

Volume

control

Channel

1A

Channel

1B

Channel

2A

Channel

2B

I2S

interface

PowerDigital DSP

I2C

STA339BW

IC Data Sheets

EN 45TPM9.5A LA 8.

Figure 8-10 Internal block diagram and pin configuration

back to

div. table

2012-Nov-30

EN 46 TPM9.5A LA8.

19170_301_110704.eps

110705

Block diagram

Pinning information

GND-SUB

OUT2B OUT2B

V

CC

2B

GND1B

V

CC

1A

GND1A

OUT1A OUT1A

GND-Reg

V

DD

V

DD

CONFIG

VL

V

SS

V

SS

VCCSign

V

CC

Sign

18

16 17

15

6

5

4

3

2

21

22

31

32

33

35 34

36

20

1

19

N.C.

GND-Clean

OUT1B

V

CC

1B

OUT1B

PWRDN

FAULT TRI-STATE

9

8

7

28

29

30

OUT2A

TH_WAR

STA515W13TR

7201

GND2B

OUT2A

V

CC

2A

IN1A

IN2B

IN1B

14

12

11

23

25

26

GND2A

IN2A

4231

Logic I/F

and D ecode

LeftA

‰-Bridge

Protection

Circuitry

INL[ 1 :2]

INR[1:2]

PWRDN

OUTPL

FAULT

VL

TRI-STATE

OUTNL

OUTPR

OUTNR

TWARN

Regulators

RightA

‰-Bridge

LeftB

‰-Br idge

RightB

‰-Bridge

STA515W13TR

IC Data Sheets

8.7 Diagram 10-3-16 B16 Audio amplifier/Speaker out B16, STA515W (IC U602)

2012-Nov-30

Figure 8-11 Internal block diagram and pin configuration

back to

div. table

9. Block Diagrams

19340_400_120803.eps

120816

WIRING DIAGRAM 32" (5000 series)

Board Level Repair

Component Level Repair Only for authorized workshops

KEYBOARD CONTROL

(1057)

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

IR/LED BOARD (1056)

J

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

L

R

USB1

USB2

USB3

USB4

HDMI4

Y/Pb/Pr

CVBS

HDMI3

NETWORK

HDMI1

HDMI2

VGA

AUDIO

CVBS/SPDIF OUT

TV ANTENNA-CABLE

TV ANTENNA-DIGITAL

SERV.U

12P

CN701

SSB

(1053)

B

42P

See note in Chapter 7 about cable position numbers

L

N

L

N

CN9901

MAIN POWER SUPPLY

(1054)

A

13P

12P

CN9302

TO PANEL

CN409

CN8101

TO PANEL

CN9902

ON/OFF

CN601

6P

13P

CN401

CN016

5P

CN0201

10P

9.1 Wiring diagram 5000 series 32"

Block Diagrams

EN 47TPM9.5A LA 9.

2012-Nov-30

back to

div. table

9.2 Wiring diagram 5000 series 42"

19340_402_120731.eps

120816

WIRING DIAGRAM 42" (5000 series)

Board Level Repair

Component Level Repair Only for authorized workshops

KEYBOARD CONTROL

(1057)

MAIN POWER SUPPLY

(1054)

L

A

E

13P

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

N

CN901

CN902

IR/LED BOARD (1056)

J

CN0201

10P

CN601

6P

13P

CN401

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1185)

L

R

USB1

USB2

USB3

USB4

HDMI4

Y/Pb/Pr

CVBS

HDMI3

NETWORK

HDMI1

HDMI2

VGA

AUDIO

CVBS/SPDIF OUT

TV ANTENNA-CABLE

TV ANTENNA-DIGITAL

SERV.U

12P

CN701

LN

CN904

SSB

(1053)

B

42P

CN409

TO PANEL

12P

CN903

TO PANEL

See note in Chapter 7 about cable position numbers

CN016

5P

ON/OFF

Block Diagrams

EN 48TPM9.5A LA 9.

2012-Nov-30

back to

div. table

9.3 Wiring diagram 5500 series 42"

19340_401_120730.eps

120816

WIRING DIAGRAM 42" (5500 series)

Board Level Repair

Component Level Repair Only for authorized workshops

KEYBOARD CONTROL

(1057)

MAIN POWER SUPPLY

(1054)

L

A

E

13P

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

N

CN901

CN902

CN016

5P

IR/LED BOARD (1056)

J

CN0201

10P

CN601

6P

13P

CN401

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1185)

L

R

USB1

USB2

USB3

USB4

HDMI4

Y/Pb/Pr

CVBS

HDMI3

NETWORK

HDMI1

HDMI2

VGA

AUDIO

CVBS/SPDIF OUT

TV ANTENNA-CABLE

TV ANTENNA-DIGITAL

SERV.U

12P

CN701

12P

CN903

TO PANEL

LN

CN904

ON/OFF

SSB

(1053)

B

32P

CN410

42P

CN409

TO PANEL

See note in Chapter 7 about cable position numbers

Block Diagrams

EN 49TPM9.5A LA 9.

2012-Nov-30

back to

div. table

9.4 Wiring diagram 6007 series 42"

19341_400_121120.eps

121120

WIRING DIAGRAM 42" (6007 series)

Board Level Repair

Component Level Repair Only for authorized workshops

KEYBOARD CONTROL

(1057)

MAIN POWER SUPPLY

(1054)

L

A

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

N

CN901

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

L

R

USB1

USB2

USB3

USB4

HDMI4

Y/Pb/Pr

CVBS

HDMI3

NETWORK

HDMI1

HDMI2

VGA

AUDIO

CVBS/SPDIF OUT

TV ANTENNA-CABLE

TV ANTENNA-DIGITAL

SERV.U

8P

CN8503

8P

CN8504

TO PANEL

SSB

(1053)

B

32P

CN410

42P

CN409

TO PANEL

See note in Chapter 7 about cable position numbers

OPTION BOARD (1058)

7P

CN003

8P

CN002

O

CN417

7P

CN418

7P

13P

CN902

12P

CN701

CN602

3P

CN601

6P

IR/LED BOARD (1056)

J

CN201

8P

13P

CN401

CN016

5P

LN

CN904

ON/OFF

Block Diagrams

EN 50TPM9.5A LA 9.

2012-Nov-30

back to

div. table

9.5 Wiring diagram 5000 series 46"

19340_404_120801.eps

120816

WIRING DIAGRAM 46" (5000 series)

Board Level Repair

Component Level Repair Only for authorized workshops

KEYBOARD CONTROL

(1057)

MAIN POWER SUPPLY

(1054)

L

A

E

13P

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

N

CN901

CN902

IR/LED BOARD (1056)

J

CN0201

10P

CN601

6P

13P

CN401

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1185)

L

R

USB1

USB2

USB3

USB4

HDMI4

Y/Pb/Pr

CVBS

HDMI3

NETWORK

HDMI1

HDMI2

VGA

AUDIO

CVBS/SPDIF OUT

TV ANTENNA-CABLE

TV ANTENNA-DIGITAL

SERV.U

12P

CN701

LN

CN904

SSB

(1053)

B

42P

CN409

TO PANEL

12P

CN903

TO PANEL

See note in Chapter 7 about cable position numbers

CN016

5P

ON/OFF

Block Diagrams

EN 51TPM9.5A LA 9.

2012-Nov-30

back to

div. table

9.6 Wiring diagram 5500 series 46"

19340_403_120801.eps

120816

WIRING DIAGRAM 46" (5500 series)

Board Level Repair

Component Level Repair Only for authorized workshops

KEYBOARD CONTROL

(1057)

MAIN POWER SUPPLY

(1054)

L

A

E

13P

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

N

CN901

CN902

CN016

5P

IR/LED BOARD (1056)

J

CN0201

10P

CN601

6P

13P

CN401

LOUDSPEAKER

(1185)

LOUDSPEAKER

(1185)

L

R

USB1

USB2

USB3

USB4

HDMI4

Y/Pb/Pr

CVBS

HDMI3

NETWORK

HDMI1

HDMI2

VGA

AUDIO

CVBS/SPDIF OUT

TV ANTENNA-CABLE

TV ANTENNA-DIGITAL

SERV.U

12P

CN701

12P

CN903

TO PANEL

N

CN904

SSB

(1053)

B

32P

CN410

42P

CN409

TO PANEL

L

See note in Chapter 7 about cable position numbers

ON/OFF

Block Diagrams

EN 52TPM9.5A LA 9.

2012-Nov-30

back to

div. table

9.7 Wiring diagram 6007 series 47"

19341_401_121120.eps

121120

WIRING DIAGRAM 47" (6007 series)

Board Level Repair

Component Level Repair Only for authorized workshops

See note in Chapter 7 about cable position numbers

KEYBOARD CONTROL

(1057)

MAIN POWER SUPPLY

(1054)

L

A

E

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

N

CN901

J

8P

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

LOUDSPEAKERLOUDSPEAKER

(1185)(1185)

LOUDSPEAKER

(1185)

L

R

USB1

USB2

USB3

USB4

HDMI4

Y/Pb/Pr

CVBS

HDMI3

NETWORK

HDMI1

HDMI2

VGA

AUDIO

CVBS/SPDIF OUT

TV ANTENNA-CABLE

TV ANTENNA-DIGITAL

SERV.U

12P

CN701

SSB

(1053)

B

42P

OPTION BOARD (1058)

7P

8P

O

TO PANEL

8P

CN8503

8P

CN8504

TO PANEL

32P

CN410

CN409

13P

CN902

CN417

7P

CN418

7P

CN003CN002

CN601

6P

CN602

3P

13P

CN401

IR/LED BOARD (1056)

CN201

5P

CN016

LN

CN904

ON/OFF

Block Diagrams

EN 53TPM9.5A LA 9.

2012-Nov-30

back to

div. table

9.8 Block diagram 5000/5500 /6007 series

19340_405_120809.eps

120816

LVDS (100/120 Hz)

Analog IF+/-

HEADPHONE OUTPUT

CVBS Out

SPK

STA515W

WOOFER AMP

NC/24C02

DDC

HDMI4

DDC

I2C

DDR3 × 3

RF TUNER ATV / A+D TV

MT5325OLMJ /100Hz

NC/24C02

AUDIO AMPLIFIER

SPK

STA339BWTR

CVBS1

CVI

DDC

VGA IN

Digital Audio Output

HDMI1

RGB

YPbPr

HDMI2

NC/24C02

SPDIF

TDA19998HL

NXP

DDC

HDMI3

I2S

USB4

USB3

LC D PANEL

KEY RC UART

USB1

2.0

USB HUB GL852G

USB2

RJ45

CVBS /R /L IN

NAND FLASH 2GB

Digital IF+/-

ATV

DEMODULATOR

AUDI O R/ L ( P C)

TS (SERIAL)

AUDIO R/L (CVI/CVBS1)

WIFI/ Bluetooth

HDMI 1.4

1 Gb / 1333 MHz

ATBM8848

NVM 24C128

Block Diagrams

EN 54TPM9.5A LA 9.

2012-Nov-30

back to

div. table

Circuit Diagrams and PWB Layouts

19240_500_120213.eps

120213

AC Side

A01 A01

2012-01-09

1

715G5194

AC Side

12

34

F9902

FUSE-NC

T4.0AH/250V

R9903

220K 1/4W -N C

!

1 2

CN9901

AC SOCKET

12

FB9902

BEAD

1 2

FB9901

BEAD

R9905

220K 1/4W -N C

R9902

220K 1/4W -N C

R9906

2M2 5% 1/2W

R9904

510K-NC

RV9901

TVR14561KFAOZF

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

IC9901 CAP004DG-NC

SG9902 SPG-201M-LF

1 2

t

NR9901

NTCR

C9905

470PF 250V

!

B+

BO

SG9903 SPG-201M-LF

1

2

4

3

L9901

12MH

1

2

4

3

L9902

12MH

C9904

470PF 250V

1 2

t

NR9902

NTCR

SG9904 SPG-201M-LF

C9911

1NF 250V-N C

1 2

3

4

HS9102

HEAT SINK

1 2

3

4

HS9101

HEAT SINK

C9910

470PF 250V

!

SG9906

DA38-622MT-A21F-NC

SG9905

DA38-622MT-A21F-NC

!!

RV9902

TVR14561KFAOZF-NC

!

C9908

1NF 250V-N C

!

1 2

3

4

HS9302

HEAT SINK

!

RV9903

TVR14561KFAOZF-NC

12

FB9302

BEAD

2

1

3

4

-

+

BD9901

TS6B06G-05-X0

!

L

1

N

2

CN9902 CONN-NC

+

C9913

47UF 450V-N C

C9912

10NF

1 2

3

4

HS9901

HEAT SINK-NC

HOT

COLD

SG9901

SPG-201M-LF

C9902

220NF

!

R9901

510K-NC

1 2

3

4

HS9902

HEAT SINK-NC

1 2

3 4

F9901

FUSE

+

C9906

47UF 450V

T4.0AH/250V

C9903 47PF-NC

+

C9907

47UF 450V

+

C9909

47UF 450V

1 2

FB9906

BEAD

C9901

220NF

10. Circuit Diagrams and PWB Layouts

10.1 A 715G5194 PSU 32" & 37" 3500/4000 series

10-1-1 AC Side

EN 55TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-1-2 LED

19240_501_120213.eps

120213

LED

A02 A02

2012-01-09

1

715G5194

LED

R8123

10K OHM +-5% 1/8W

R8124

22OHM +-5% 1/8W

R8115

820K 1%

R8103

NC

R8125

2R2 +-5% 1/8W

12

D8101 SS1060FL

R8112

NC

1 2

D8102

SR510-22

1

2

L8101 25UH

R8116

0.05R

R8109

NC

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8103

PF7700S

VLED

R8118

100KOHM +-5% 1/8W

R8127

180K +-1% 1/8W

R8126

200 OHM 1/4W

FB1GM2RT3CS

4

DIM

5

GND

6

OUT7VCC

8

IC8107

PF7900S

C8120 1N 50V

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8104

PF7700S

EN

R8134

0 OHM +-5% 1/8W-NC

+12V2

COMP

R8119

0R05 1/4W

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8106

PF7700S

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8105

PF7700S

FB

Q8102 MMBT3904-NC

C8124 100N 50V

R8117

820K 1%

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8102

PF7700S

+

C8127

10UF 50V

DIM

R8120 100K

R8122 100K

R8121 100K

C8122 NC

R8131

0 OHM +-5% 1/8W

L8102

3UH

R8128

10K OHM +-5% 1/8W-NC

R8130

10K OHM +-5% 1/8W-NC

R8129

10K OHM +-5% 1/8W-NC

+12V

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8101

PF7700S

+12V

+

C8132 220UF 100V

+12V2

R8114

510K 1% 1/8W

1 2

ZD8101

MTZJ13B-NC

ON/OFF

C8126

1N 50V

R8132

9.1K OHM-NC

R8133 24K 1/8W 1%-NC

1

2

3

4

5

6

7

8

9

10

11

12

13 14

CN8101

CONN

R8106

NC

+

C8108 150UF 35V

1

2 3

Q8103

MMBT3906-NC

+12V2

C8113

100N 50V-NC

C8123

100N 50V

VLED

LED2

LED5

LED1

1

2

3

4

5

6

7

8

910

CN8102

CONN-NC

LED3

LED4

LED6

EN

VLED

C8105 1UF 16V

LED6

R8102

NC

COMP

C8101 1UF 16V

R8111

10K 1/8W 1%

DIM COMP

C8107

470NF 50V

LED2

+24V1

LED3

LED6

LED5

LED3

R8113

91KOHM +-1% 1/8W

C8109

470NF 50V

LED1

R8101

10K 1/8W 1%

C8111

470NF 50V

EN

C8119 1UF 16V

LED4

COMP

DIM

COMP

+12V2

DIM

LED1

LED4

R8110

10K 1/8W 1%

C8103 1UF 16V

LED2

COMP

VLED

EN

Q8101

AOD4126

EN

DIM

R8104

10K 1/8W 1%

COMP

C8104 1UF 16V

DIM

C8110

0.47UF 50V

EN

C8115

470NF 50V

R8107

10K 1/8W 1%

R8108

10K 1/8W 1%

EN

LED5

C8106

470NF 50V

C8102 1UF 16V

+

C8125

12UF 160V

R8105

NC

Circuit Diagrams and PWB Layouts

EN 56TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-1-3 Main Power

19240_502_120213.eps

120213

Main Power

A03 A03

2012-01-09

1

715G5194

Main Power

HOT

1 2

ZD9106

MTZJ27B

COLD

R9146

10K 1/4W-NC

HOT

R9166

10K 1/4W-NC

C9125

1N 50V-NC

R9129

0 OHM +-5% 1/8W

R9122

10K OHM +-5% 1/8W

C9136

1uF-NC

R9116

120KOHM +-1% 1/8W

C9113

470NF 50V

Q9107

AOD409-NC

R9170

5.1K 1/4W

R9172 1K OHM +-5% 1/8W

Q9111

2SD1624T-TD-E

+24V

R9102

24R 1%

R9106

24R 1%

R9163

24R 1%

R9164

24R 1%

R9107

24R 1%

R9153

24R 1%

R9182

24R 1%

R9152

24R 1%

R9154

24R 1%

R9181

24R 1%

R9137

680 OHM 1/4W-NC

R9156

680 OHM 1/4W-NC

C9123

4.7uF 25V

R9128

200 OHM 1/4W

C9110

4.7uF 25V

C9131 100N 50V

R9176

3K 1/8W +/-1%

C9117

6.8nF

R9108

0.27R

R9171 470R

C9108 10NF

+

C9109

560UF 35V

+

C9104

560UF 35V

+

C9118

4.7UF 50V-NC

R9139

10K 1/4W-NC

R9150

2K 1/8W 1%

1 2

ZD9107

P6KE27A-NC

Q9108 TK2P60D-NC

R9125

100KOHM +-5% 1/8W

R9135

27K 1/8W 1%-NC

Q9104

2N7002K

+24V2

5.2V

3

1

2

D9107

BAV99

R9140

10K 1/4W-NC

1 2

ZD9105

MTZJ15B

C9132

100N 50V-NC

R9117

1K8 +/-1% 1/8W

C9134

1uF-NC

R9127

100R 1/8W 5%

R9177

100KOHM +-5% 1/8W-NC

R9141

10K 1/4W-NC

R9147

2Mohm 1/4W +/-1%-NC

C9129

1NF 250V-NC

R9142

10K 1/4W-NC

R9133

20K +-5% 1/8W

1 2

ZD9103

MTZJ18B

R9130

10K 1/4W

R9134 10K OHM +-5% 1/8W

C9121

100N 50V-NC

R9132 100KOHM +-5% 1/8W-NC

R9136

3K 1/8W +/-1%-NC

R9131 0 OHM +-5% 1/8W

5.2V

Q9105

2N7002K-NC

R9178

10K 1/4W-NC

R9120 100KOHM +-5% 1/8W

C9116

100N 50V

Q9106 MMBT3906 PNP

1

2

3

D9103

FMXA-2202S

+24V2

R9143

10K 1/4W-NC

R9138

10 OHM 1/4W-NC

!

C9135

1uF-NC

R9123

2K 1/8W 5%

!

R9144

10K 1/4W-NC

R9173

100KOHM +-5% 1/8W-NC

!

R9126

110R

!

5.2V

C9130

470PF 250V

R9167

1K OHM +-5% 1/8W

R9169 10K OHM +-5% 1/8W

R9114

3K 1/8W +/-1%

R9148

2Mohm 1/4W +/-1%-NC

Q9110 MMBT3906

R9118

9K1 1/8W 1%

C9133

470PF 250V

R9149

2Mohm 1/4W +/-1%-NC

R9145

10K 1/4W-NC

!

1

2

3

D9102

FMEN210A

R9168

1K OHM +-5% 1/8W

C9115

470NF 50V

C9128 1N 50V

+

C9107

270UF 25V

R9151

1K OHM +-5% 1/8W-NC

C9102

1.5NF

C9126 470NF 50V-NC

Q9101 TK6A65D

VCC1

C9127 470NF 50V-NC

R9113

100KOHM +-5% 2WS

+

C9101

220UF 35V

C9120

1.5NF

B+_main

R9124

2K 1/8W 1%-NC

R9109

22OHM +-5% 1/8W

+24V1

R9101 5K1 1/8W 1%

L9102

3UH

R9103 100 OHM 1/4W

R9110 10K OHM +-5% 1/8W

C9119

100N 50V

BNO

1

COMP

2

NC

3

CS4GND

5

OUT

6

VCC

7

OVP

8

IC9103

LD7523GS

DV5

VCC

C9122

1NF 250V-NC

PS_ON

+12V

IC9105 AS431AN-E1-NC

+

C9105

470UF 35V

Q9112

MMBT3904-NC

R9104 100 OHM 1/4W

+24V

R9174 100KOHM +-5% 1/8W-NC

+24V1

1 2

ZD9104 B6V2-NC

R9159

1.5K 1/4W

R9160

1.5K 1/4W

R9158

1.5K 1/4W

R9161

1.5K 1/4W-NC

R9162

1.5K 1/4W-NC

B+_main

VCC1

1 2

D9108 SS1060FL

R9155

10K OHM +-5% 1/8W

C9112

0.47UF 50V

+24V

Q9102

MMBT3904

Protect

R9179

10K 1/4W-NC

R9115

470OHM +-5% 1/8W

12

D9106 SS1060FL

1 2

ZD9101 MTZJ18B

+12V

1

5

6

8 9

10

11

12

13

14

15 16

T9101

POWER X'FMR

R9175 1K OHM +-5% 1/8W-NC

R9121 10K OHM +-5% 1/8W

12

D9105

SS1060FL

Q9103 2SD1624T-TD-E

C9124

100N 50V-NC

VCC1

12

43

IC9104

PC123X8YFZOF

+24V1+12V

+12V1

C9103

1.5NF

1 2

FB9905

BEAD

C9111

0.47UF 50V

R9105 100 OHM 1/4W

R9165

10K 1/4W-NC

+

C9106

470UF 35V

12

D9104

SS1060FL

L9101

3UH

R9112

220 OHM 1/4W

D9101 PR1007

12

43

IC9101 PC123X8YFZOF

Protect

C9114

100N 50V

R9111 10K OHM +-5% 1/8W

IC9102

AS431AZTR-E1

R9180

10K 1/4W-NC

R9119 100KOHM +-5% 1/8W-NC

1 2

ZD9102

MTZJ30B

Circuit Diagrams and PWB Layouts

EN 57TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-1-4 Standby

19240_503_120213.eps

120213

Standby

A04 A04

2012-01-09

1

715G5194

Standby

ON/OFF

+12V

DIM

+

C9309 10UF 50V

+

C9306 100UF 50V

1 2

D9308

SR240S-NC

R9316 9K1 1/8W 1%

R9318 43K 1/8W 1%

1

2

3

4

5

6

7

8

9

10

11

12

CN9303

CONN-NC

5.2V

ON/OFF

P_OK

D9304 PR1007

D9303 PR1007

1

2

3

5

6 7

9 10

4

T9301

POWER X'FMR

DV5

+

C9303

470UF 10V

+

C9304 470UF 10V

R9308

0.75R

EN

R9301

100KOHM +-5% 2WS-NC

L9301

3UH

!

R9304 47 OHM 1/4W

PS_ON

R9311 8K2 1/8W 1%

1 2

FB9301

BEAD

R9319

47 OHM 1/4W

C9314

470PF 250V

R9314

1K OHM +-5% 1/8W

D9301 1N4007

IC9303

AS431AN-E1

R9312

1K OHM +-5% 1/8W

C9301

1.5NF

12

D9305 SS1060FL

C9307 220N 50V

C9311

100N 50V

C9308 1N 50V

C9305

0.47UF 50V

S/OCP

1

BR

2

GND

3

FB/OLP4VCC

5

D/ST

7

D/ST

8

IC9301

A6069H

Q9301

2N7002K

12

43

IC9302

PC123X8YFZOF

R9303

47 OHM 1/4W

R9302

0.1R

R9307 220R 1%

R9317 560K 1/8W 1%

R9315

4.7M 5% 1/8W

C9310

220NF

C9302

1.5NF

C9312 10NF

B+_main

1 2

ZD9316

GDZJ5.6B

5.2V

BO

R9320

10K OHM +-5% 1/8W

1

2

3

4

5

6

7

8

9

10

11

12

13

CN9304

CONN-NC

1 2

FB9304

BEAD

!

C9137

470PF 250V-NC

VCC

C9139

220PF 250V

1

2

3

D9302 FMW-2156

+

C9316 100UF 50V

R9323

10K 1/4W-NC

GND_Audio

1

2

3

4

5

6

7

8

9

10

11

12

13

CN9302

CONN

R9306

1.5M 1%

R9332

100KOHM +-5% 1/8W

COLDHOT

12

D9306

SJPW-T4VL-NC

L9302 3UH-NC

R9321

0R05 1/4W-NC

5.2V

C9317

1NF 250V-NC

!

R9309

10K 1/4W

!

1

2

3

4

5

6

7

8

9

10

11

12

CN9301

CONN-NC

R9310

1.5M 1%

R9305

2R2 +-5% 1/4W

B+

+24V

12

ZD9315

P6KE160A

+

C9313

270UF 25V

R9324 0 OHM +-5% 1/8W

P_OK

R9313

1.5M 1%

Circuit Diagrams and PWB Layouts

EN 58TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-1-5 Power layout top

19240_504_120215.eps

120215

2011-12-21

1

715G5194

Power

layout top

D9101

D9301

D9303

D9304

IC9101

IC9104

IC9302

R9108

R9302

T9301

R9308

C9309

J903

R9113

R9301

J901

J902

J930J933

J931J934

J932J935

J911

J910

J915

J907

J908

D8102

J924

J925

J928

J927

C9903

D9308

J947

J954

J953

J937

J943

J941

J938

J958

J959

J946

J936

J909

J923

J962

J904

J944

J967

J968

J920

IC9102

J964

R9171

J951

J952

J929

J918

J921

J926

J973

J917

J916

J956

J957

J922

J963

J942

J940

J950

J949

J948

J939

J912

J961

J955

J945

J965

J966

J919

J960

J969

J906

J905

J971

J913

J972

J970

J974

C9107

C9313

CN9302

F9901

FB9301

IC9301

L8101

NR9901

R8116

SG9901

SG9902

SG9904

NR9902

T9101

HS9101

HS9102

HS9302

C9120

C9302

C9102

C9301

C9306

C9101

C9303C9304

D9103

D9302

C8108

CN9301

CN9902

R9306

R9310

FB9905

CTI1

C9310

C8132

C9103

D9102

C9316

C8125

L9901

L9902

ZD9315

C9105

C9106

RV9902

F9902

R9313

CN8102

R9901

R9904

BD9901

R9906

ZD9103

ZD9104

ZD9316

RV9901

RV9903

HS9902

HS9901

C8127

C9118

CN9304

ZD9107

ZD9101

ZD9102

ZD9105

CN9303

GND3

GND10

GND7

GND2

GND8

GND1

GND6

GND9

GND11

GND4

CN9901

SG9903

FB9302

ZD9106

C9314

C9317

C9904

C9905

C9911

C9901

C9902

CN8101

C9104

C9109

SG9905

C8128

C8129

L8102

L9101

L9102

L9301

L9302

C9122

C9129

C9133

C9137

C9139

C9908

C9910

FB9901

FB9902

FB9906

C9130

C9108 C9312

C9912

FB9304

FB9303

SG9906

C9907

C9906 C9909 C9913

Q9101

GND13

GND5

GND12

Circuit Diagrams and PWB Layouts

EN 59TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-1-6 Power layout bottom

19240_505_120215.eps

120215

2011-12-21

1

715G5194

Power

layout bottom

C8101C8102

C8103

C8104 C8105

C8106 C8107

C8109 C8110

C8111

C8120

C8123

C8126

C9113

C9114

C9128

C9117

C9119

C9115

C9116

C9305

C9307

C9308

C9311

IC8107

IC9103

IC9303

R8101

R8102

R8103

R8104

R8105

R8106

R8107

R8108

R8109

R8110

R8111

R8112

R9136

R8113

R8114

R8115

R8117

R8118

R8120

R8121

R8122

R8123

R8124

R8125

R8127

R9101

R9103

R9104

R9155

R9150

R9127 R9109

R9110

R9114

R9115

R9116

R9117

R9121

R9122

R9123

R9120

R9303

R9304

R9305

R9311

R9312

R9314

R9315

R9316

R9317

R9318

R9319

C8115

C8119

R9112

R9111

R9307

C8124

R9324

C9126

C9127

R9124

C8122

C9112

IC8101

IC8104

IC8102

IC8105

IC8103

IC8106

IC9901

C9121

R9131

R9119

R9133

Q9105

R9134

C9111

R9174

C9124

C9125

R9118

R9135

R9102

R9105

R9106

R9107

R9139

R9140

R9141

R9142

R9143

R9144

R9145

R9146

R9148 R9149

C8113

R9158

R9159

R9160

R9161

R9162

IC9105

R8128

R8129

R8130

R9309

Q8102

Q8103

Q9301

Q9106

R9132

R9332

R9163

R9164

R8126

R9321

R9323

R9320

R8131

R9165 R9166

R8119

Q9104

R9902

R9903R9905

R9167

R9168

R9169

R9170

R9130

R8132

R8133

C9131 R9176

R9173

R9172

R9175

R9177

R9178

R9179

R9180

R9147

C9132

R8134

C9134

C9135

C9136

R9126

R9129

R9138

R9151

R9125

R9128

R9152

R9153

R9154

R9181

R9182

C9110

C9123

R9137

R9156

Q9102

RJ907

RJ905

RJ915

RJ902

RJ916

TEST1

D9306

RJ904

Q8101

RJ903

RJ908

RJ911

RJ913

RJ914

RJ906

RJ919

Q9110

RJ917

RJ909

Q9107

Q9112

RJ910

RJ901

Q9108

D9107

D8101

D9104

D9105

D9106

D9108

D9305

Q9103

Q9111

Circuit Diagrams and PWB Layouts

EN 60TPM9.5A LA 10.

2012-Nov-30

back to

div. table

Circuit Diagrams and PWB Layouts

19320_500_120608.eps

120608

Power circuit

A01 A01

2012-04-10

C

715G5173

Power circuit

P_OK

On/Off

C9152

10PF

R9101

150 OHM 1%

C9345

NC

D9307

FR107

D9305

FR107

R9337

8K2 1/8W 1%

EN

Q9301

NC

+

C9340

470UF 10V

C9915

220PF 250V

C9831 NC

12V

+

C9147 22UF 50V

R9904

NC

R9901

1MOHM +-5% 1/4W

R9905

NC

C9153

1uF

NC

1

D1

2

D1

3

NC4NC

5

D2

6

D2

7

NC

8

IC9901

NC

HEAT SINK(BD9901)

R9161 24K 1/8W 1%

R9163 2K 1/8W 1%

R9320

560K 1/8W 1%

R9807 75 OHM 1/4W

L9103

3UH

1 2

ZD9301

MTZJ18B

R9180 27Kohm 1/4W +/-1%

R9309 NC

R9310 NC

B1+

R9171

5.1K 1/4W

1 2

ZD9102 MTZJ15B

C9910

470NF 305V

1 2

ZD9104

BZT52-B13

R9345

0R05 1/4W

R9810 16K 1% 1/8W

1 2

ZD9303

MTZJ15B

C9820

680NF 500V

R9175

1.5K 1/4W

R9339

NC

PS-On

C9170 100N 50V

R9805 200KOHM 1/8W +/-5%

!

341

2

HS9101

HEAT SINK

R9307 10K 1% 1/4W

R9814

1MOHM +-5% 1/4W

!

1 2

3

4

HS9301

HEAT SINK (D9308)

C9907

220PF 250V

C9335

100N 50V

On/Off

R9817

100K +-1% 1/4W

SG9902

GS41-201MA

R9341

NC

R9804

NC

R9144

1.5M 1% 1/4W

R9331

47 OHM 1/4W

SG9903

GS41-201MA

12

43

IC9303 PC123X8YFZOF

FB

1

COMP

2

RT

3

VREF4CS

5

GND

6

OUT

7

VCC

8

IC9801

R2A20113ASP

SG9905 GS41-201MA

R9340

NC

!

R9317

1.5M 1% 1/4W

5.2V

24V

R9334 220R 1/6W 5%

C9151 1UF

!

C9333

0.47UF 50V

+

C9160

560UF 35V

5.2V

+C9161

560UF 35V

2

1

3

4

-

+

BD9901

TS10B06G-06-X0

C9904

470PF 250V

R9311

0 OHM 1/8W

R9158

7.5K OHM 1%

12V

R9806

56K 1/8W

C9824

22N 50V

12

ZD9106

BZT52-B3V6

C9144 100N 50V

R9151 10 OHM

F9901

FUSE

R9159 20K 1/4W

R9141

0.1R

R9329

0.47R

C9825 220N 50V

SG9904 GS41-201MA

R9318

1.5M 1% 1/4W

+

C9164

560UF 35V

C9342 100N 50V

12V

C9159

330NF 50V

R9336

1K 1/8W 1%

R9147

470 OHM 1/8W

R9140 1K 1/8W 1%

R9149

470 OHM 1/8W

1 2

ZD9105

GDZJ30B

ZD075

+

C9168

330UF 25V

+

C9163

330UF 25V

!

+

C9169

330UF 25V

1 2

3

HS9807

SHIELD

L

1

N

4

CN904

CONN

change to 150uF

D9306 1N4148

+

C9830

10UF 50V

R9172

5.1K 1/4W

+

C9801

47UF 450V

R9153 10K 1/8W 1%

R9173

5.1K 1/4W

R9174

5.1K 1/4W

D9109 1N4148

R9155

10K 1/8W 1%

!

S/OCP

1

BR

2

GND

3

FB/OLP4VCC

5

D/ST

7

D/ST

8

IC9301

A6069H

IC9304 AS431AZTR-E1

R9306

10K OHM

R9332 2R2 +-5% 1/4W

5.2V

R9808

10R 1/8W 5%

C9828 100N 50V

C9911

330NF 305V

12

t

NR9902

NTCR

R9176

1.5K 1/4W

R9820

20R 1%

R9177

1.5K 1/4W

Q9305 MMBT3906 PNP

R9335 3K3 1/8W 5%

R9160

10K OHM

R9139 100 OHM 1%

VCC1

R9816

680K OHM +-1% 1/4W

R9308 10K 1/8W 1%

VCC

C9829 100N 50V

R9815

680K OHM +-1% 1/4W

DIM

DV5

R9813

10K OHM +-5% 1/8W

C9827

1000PF 50V

R9801

0.05R

Q9801 STF24NM60N

12

D9803 RB160M

1

4

5

6

L9801

300UH

R9342

NC

24V

R9148 NC

R9304 100K 1/8W 1%

R9330

47 OHM 1/4W

24V

C9343

220N 50V

R9146

2.43K +-1% 1/4W

C9150

0.47UF 50V

12

D9113

RB160M

12

D9112

RB160M

12

43

IC9106 PC123X8YFZOF

1

2

3

D9308

FMW-2156

C9331

1NF

L9105

NC

BOX

1 2

FB9801 BEAD

Q9101 TK10A50D

D9801

FMNS-1106S

Q9102 TK10A50D

L9304

NC

VBoot

B1+

C9156

100PF1KV

D145T60P7_5-1_2-R

!

BOX

C9149 100N 50V

Q9304

NC

C9155 1N 50V

R9343

NC

C9334 1N 50V

12V

R9301 1R0

VBoot

C9157

22NF 800V

!

C9803 470PF1KV

1

2

3

D9115 FMEN-2308

C9909

470PF 250V

HEAT SINK(Q9801,D9801)

C9165 100N 50V

VCC1

C9913

680PF 250V

+

C9802

47UF 450V

VCC

Vsen

1

Vcc

2

FB

3

GND

4

Css

5

OC

6

RC

7

Reg

8

RV9COM

10

VGL

11

NC

12

NC

13

VB

14

VS

15

VGH

16

NC

17

NC

18

IC9101

SSC9512S-TL

VCC1

5.2V

Q9302 RK7002BM

R9303

20K 1/8W 1%

C9154 560P 50V

C9902

220PF 250V

Q9303 2SD1624T-TD-E

RV9901

VARI STOR 560V

C9301

100N 50V

124

3

L9901

12MH

D9110 1N4148

R9152

47OHM +-5% 1/8W

D9802

IN5408G-10

C9826

2N2 50V

12

FB9803

BEAD

IC9107 AS431AZTR-E1

124

3

L9903

12MH

R9154

47OHM +-5% 1/8W

+

C9344

330UF 25V

+

C9341

330UF 25V

C9146

100N 50V

L9106

3UH

12

43

IC9302

PC123X8YFZOF

1 2

CN901

SOCKET

D9114

UF4007

R-

C9158 NC

C9145

100N 50V

R-

HEAT SINK(D8120,Q8101)

+

C9336

22UF 50V

+

C9804

47UF 450V

C9338

1NF

RV9902 TVR14561KFAOZF

+24V

C9148

4.7UF 10V

R-

1

2

3

D9116 FMEN-2308

HEAT SINK(D9115,D9116)

1

2

3

4

5

6

7

8

9

10

11

12

13

CN902

CONN

1 2

ZD9103

GDZJ6.2B

R9338

7K5 1/8W +/-1%

C9906

220PF 250V

C9901

NC

R9325

100K

R9326

100K

R9327

100K

R9328 100K

!

C9912

470PF 250V

!

!!

2

1

6 7

8

9

10 11

12

13

14 15

T9101

POWER X'FMR

!

R9178 5K1 +-5% 1/8W

!

+

C9805

NC

1

2

3

5

6 7

9 10

4

T9301

POWER X'FMR

1 2

3

4

HS9103

HEAT SINK

!

HEAT SINK(Q9101,Q9102)

R9319

1.5M 1% 1/4W

D9304

FR107

R9305

220R 1%

+

C9302 22UF 50V

R9809

200R +-1% 1/8W

R9142

1.5M 1% 1/4W

R9150

1.5M 1% 1/4W

24V-LED

341

2

HS9804

HEAT SINK

C9172

2.2nF 630V

1

2

3

4

5

6

7

8

9

10

11

12

CN903

CON

PS-On

R9323

4.7M OHM +-5% 1/4W

24V

L9104

3UH

12

t

NR9901

NTCR

Q9103 RK7002BM

1 2

ZD9101

GDZJ30B

ZD075

DV5

DIM

On/Off

R9145

16K9 1/8W 1%

1 2

3

4

HS9801

HEAT SINK

1 2

3

4

HS9901

HEAT SINK

24V

R9102

10 OHM

R9103

10 OHM

5.2V

+

C9337 47UF 50V

10.2 A 715G5173 PSU 3500 series 42" & 46"

10-2-1 A01 Power circuit

EN 61TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-2-2 A02 2.24 V to VLED (DC/DC)

19320_501_120608.eps

120530

2.24 V to VLED (DC/DC)

A02 A02

2012-04-10

B

715G5173

2.24 V to VLED (DC/DC)

FB1GM2RT3CS

4

DIM

5

GND

6

OUT

7

VCC

8

IC8103

PF7900S

12

D8118

RB160M

C8113 1N 50V

DIM

VLED

12V

24V-LED

R9316

0 OHM +-5% 1/8W

R8153

0 OHM 1/4W

1

2

L8101

25UH

Q8101

TK25A10K3

R8148

1K 1/8W 1%

R8162

1K 1/8W 1%

R8163

300K 1/8W 5%

R8157

10K 1/8W 1%

R8144

91KOHM +-1% 1/8W

C8124

1uF

C8123

1uF

C8122

1uF

R9322 NC

12V_LED

Q9306

NC

12V

R9312 NC

R9313 NC

Q9308 NC

R9321

NC

On/Off

C9346 NC

R8176

0 OHM 1/4W

1 2

ZD8103

BZT52-B13

+

C8118

100UF 100V

R8145

220K +-1% 1/4W

R8147

12K 1/8W 1%

+

C8108

100UF 100V

R8141 20K 1% 1/8W

R8158 22 OHM 1/8W

R8161

2.2 OHM 1/8W

R8154 100K

R8155 100K

R8156 100K

LED-COMP

+

C8121 22UF 50V

C8119 NC

C8106

NC

C8111 100N 50V

1

2

3

D8120

MBRF10150CT

C8105 1N 50V

R8175

0.05R

Circuit Diagrams and PWB Layouts

EN 62TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-2-3 A03 LED Driver

19320_502_120608.eps

120608

LED Driver

A03 A03

2012-04-10

B

715G5173

LED Driver

R8511 11K 1%

C8503 NC

C8522 NC

C8504 1UF 16V

C8505 NC

C8506 1UF 16V

C8507 1UF 16V

VLED

C8508 1UF 16V

LED-4

LED-COMP

C8511 1UF 16V

LED-15

LED-11

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8514

NC

LED-13

LED-14

LED-15

C8526 100N 50V

C8527 NC

LED-16

R8514 NC

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8516

PF7700S

R8516 11K 1%

C8514 NC

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8510

PF7700S

DIM

EN

R8510

5K6 +-1% 1/8W

12V_LED

12V_LED 12V_LED

12V_LED

LED-COMP

1

2

3

4

5

6

7

8

9

10

11

12

CN8501

CONN

12V_LED

DIM

EN

12V_LED

12V_LED 12V_LED

12V_LED

C8510 1UF 16V

12V_LED

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8509

PF7700S

C8528 100N 50V

LED-16

LED-10

LED-9

C8520 100N 50V

LED-COMP

C8531 100N 50V

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8507

PF7700S

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8508

PF7700S

DIM

EN

LED-COMP

C8516 1UF 16V

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8513

NC

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8512

PF7700S

DIM DIM

R8509 11K 1%

LED-COMP

EN

LED-COMP

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8505

NC

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8502

PF7700S

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8501

NC

LED-COMP

DIM

EN

DIM

EN

R8513

NC

EN

LED-11

LED-COMP

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8503

NC

EN

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8506

PF7700S

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8504

PF7700S

LED-COMP

LED-8

1

2

3

4

5

6

7

8

9

10

11

12

CN8502

NC

EN

DIM

LED-7

LED-COMP

LED-11 LED-13

C8509 1UF 16V

LED-9 LED-10

LED-14

LED-12

VLED

R8512 11K 1%

LED-12

C8513 NC

LED-1

LED-7 LED-8

LED-2

LED-COMP

DIM

EN

LED-15 LED-16

LED-COMP

LED-3

LED-6

C8521 NC

LED-5

1 2

3

4 5 6 7

8

CN8503

NC

1 2

3

4 5 6 7

8

CN8504

NC

LED-6

LED-3

LED-2

LED-4

LED-1

VLED

LED-4

VLED

LED-5

R8501

NC

EN

DIM

C8512 1UF 16V

LED-COMP

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8515

NC

R8502

5K6 +-1% 1/8W

R8503 NC

R8504

5K6 +-1% 1/8W

R8505

NC

C8501 NC

R8506 11K 1%

R8507

5K6 +-1% 1/8W

R8508

5K6 +-1% 1/8W

C8502 1UF 16V

EN

DIM

C8532 100N 50V

LED-COMP

+

C8158

22UF 50V

R8515

NC

DIM

EN

DIM

1

EN

2

VCC

3

LED4GND

5

ISET

6

GM

7

COMP

8

IC8511

PF7700S

C8523 100N 50V

C8517 NC

C8529 NC

C8524 NC

C8530 100N 50V

C8518 100N 50V

C8525 100N 50V

C8519 100N 50V

LED-COMP

EN

DIM

LED-14

LED-12 LED-13

LED-5 LED-6

LED-3

C8515 NC

LED-1

LED-2

Circuit Diagrams and PWB Layouts

EN 63TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-2-4 Power layout top

19320_503_120608.eps

120608

2012-04-19

C

715G5173

Power Layout Top

C9147

C9156

C9830

C9803

D9305

D9306

D9307

D9802

IC9302

IC9106

IC9303

R9329

J9823

J8529

J8519

J8533 J8517

J8515

J8526

J8527

C8121

C9336

C9302

R9301

H9807

H9806

J8507

J8514

J8513

J8506

J8530

J8531

J8532

J8520

J8518J8534

J9809

J9807

J9824

J9808

J9821

J8536 J8537 J8539J8538

J8543

J8503

J8501

J8553

J8510

J8511

J8508

J8512

J8509

J8546

J8544

J8548

J8545

J8549

J8502

J8540

J8516

J8542

J8547

J8552

J8551J8550

J8504

J9305

J9304

J9301

J8107

J8106

J8554

J9306

J9827

J9825

J9802

J9114

J9110

J9106

J9312

D9109

D9110

J9822

J9116

J9117

J9308

J9307

J8555

J9310

J9311

J9309

IC9107

IC9304

J9103

J8505

J9316

J9101

J9314

J9806

J9810

J8104

J8105

J9112

J9113

J8522

J8525

J8528

C9331

C8158

J9111

J9115

J8521

J9104

C9173

J9829

J9108

J9811

J9812

J9803

J9813

J9315

J9102

J9109

J9805

J9820

J9828

T9101

T9301

J9105

J9826

J9118

J9107

J9901

J9804

J9830

H1

DR9802

DR9801

RJ2

C9901

C9157

C9910

C9911

D9308

D9801

FB902

HS9301

IC9301

Q9101

Q9102

Q9801

R9814

R9904

R9905

SG9902

SG9905

SG9904

R9801

R9141

CN8501

CN8502

D9115

L8101

R8175

D8120

CN8504

CN8503

HS9807

C9340

C9341

C9344

RV9902

Q8101

CN902

D9114

L9901

HS9804

R9321

HS9901

C9337

ZD9301

ZD9303

L9903

D9116

C9820

ZD9102

ZD9101

R9901

L9104

NR9901

NR9902

HS9801

C9166

HS9103

D9117

CN904

F9901

C9904

C9913

C9338

C9152

L9103

L9105

L9106

L9304

ZD9103

CN906

HS9101

C9163

C9168

C9169

C9906

C9907

C9915

CN903

RV9901

C9909 C9912

C9172

FB9803

FB9801

BD9901

C9802 C9804 C9805C9801

L9801

D9304

ZD9105

SG9903

FB9802

FB9804

FB9806

FB9805

H9810

CN901

H9812

H9809 GND2

H9813

H9804

GND3

Q7

H9801

H9803

H9802 H9805

GND4

H9808

H9811

C9902

C9339FB9807

FB9808

FB9903

FB9301

C8108

C8118

C9160

C9161

C9164

Circuit Diagrams and PWB Layouts

EN 64TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-2-5 Power layout bottom

19320_504_120608.eps

120608

2012-04-19

C

715G5173

Power Layout Bottom

C8105

C8106

C8111

C8119

C9144

C9145

C9146

C9149

C9150

C9151

C9153

C9154

C9155

C9158 C9159

C9165

C9170

C9333

C9334

C9335

C9342

C9343

C9301

C9824

C9825

C9826

C9827

C9829

IC9801

IC9901

Q9301

R8141

R8144

R8147

R8148

R8156

R8154

R8155

R8157

R8161

R8162

R8163

R9101

R9139

R9140

R9150

R9144

R9145

R9148

R9149

R9151

R9152R9153

R9154R9155

R9158

R9161

R9163

R9171

R9172

R9173

R9174

R9175

R9176

R9177

R9317

R9318

R9319

R9320

R9332

R9325 R9326

R9327 R9328

R9330

R9331

R9335

R9336

R9337

R9338

R9339

R9340

R9341

R9304

R9804

R9805

R9806

R9807

R9810

R9815 R9816

R9342

R9343

C8501

C8502

C8503

C8504

C8505C8506

C8507

C8508

C8509C8510

C8511

C8512

C8513

C8514

C8515

C8516

IC8103

IC8501

R8501

R8502

R8503

R8504

R8505R8506

R8507

R8508

R8509R8510

R8511

R8512

R8513R8514

R8515

R8516

C8517

C8520

C8521

C8525

C8527

C8522

C8523

C8519

C8528

C8524

C8529

C8530

C8532

C8526

C8518

C8531

IC8503

IC8505

IC8504

IC8507

IC8506

IC8508

IC8502

IC8512

IC8510

IC8509

IC8511

IC8513

IC8516

IC8514

IC8515

C9345

R9308

R9309

R9310

Q9304

MH9810

MH9808

MH9809

R9811

R8158

C9148

R9142

R9103

R9102

C9346

R9311

R9147

R9808

C9831

R9312 R9313

R9316R9322

R9813

R9809

R9306

R9323

R9146

R9178

Q9306

Q9302

Q9103

Q9305

Q9308

R9180

R9159

R9160

R9345

R8153

R9307

RJ9801

RJ9804

RJ9803

RJ9301

RJ8501

C8113

C9828

C9162

C9832

R9111

R9138

R9164

R9165

R9315

R9324

R9333

R9344

R9819

Q9106

R9302

R9334

R9303

R9817

RJ8502

R9143

RJ9802

RJ9302

RJ9805

RJ9806

R8176

R8177

RJ8101

C8122 C8123 C8124

C9171

R9818

R8145

R9305

RJ8503

R9820

D8118

D9112

D9113

D9803

Q9303

IC9101

ZD8103

ZD9104

D9301

D9302

Q9104

Q9802

ZD9106

ZD9107

Circuit Diagrams and PWB Layouts

EN 65TPM9.5A LA 10.

2012-Nov-30

back to

div. table

Circuit Diagrams and PWB Layouts

19340_500_120716.eps

120815

Power-1

B01 B01

2012-01-17

A

715G5279

Power-1

C7130 100N 50V

R7117 100K 1/10W 1%

DV33

+5V_SW

C7125

NC/22uF 10V

R7122

7K5 1/10W 5%

C7122

10nF 50V

R7115 62K

C7127

22uF 10V

TP708

C7118 NC//100N16V

C7131

NC/4.7UF 10V

C7109

10uF 10V

R7101 10K 1/10W 5%

R7104 22KOHM 1/10W

C7108

1UF16V

+5V_SW

+5V_STB

OPWRSB(+5V_SW ON/OFF): Normal: High Stand_By: Low

R7105 1K 1/16W 5%

1 2

FB7103

120R/6000mA

DV11

1 2

FB7101

120R/6000mA

INVERTER_ON_OFF 21

INVERTER_ON_OFF

R7123

22R 1/10W 1%

R1

R2

C7106

10uF 10V

R7125

2.7K 1%

R7124 10R 1/10W 5%

C7119

NC/22uF 10V

R7126 3Kohm 1/16W +/-1%

R7112 1K 1/16W 5%

C7117

1UF16V

C7135

10uF 10V

C7116

100N16V

C7115

NC//100N16V

C7114

100N16V

C7103

100N16V

DV15_DDR

1 2

FB7111

120R/6000mA

COMP

1

GND

2

EN

3

VIN4LX

5

LX

6

RT

7

FB

8

GND

9

U701

RT8074GSP

C7113

0.1uF 50V

1 2

FB7106

120R/3000mA

POWER_ON 17

POWER_ON

BRIGHT_ADJ 21

BRIGHT_ADJ

STAND_BY

STAND_BY 8

1 2

FB7104

120R/3000mA

C7121

NC/0.1uF 50V

1 2

FB7109

120R/6000mA

VIN

1

VIN

2

GND

3

GND

4

AGND

5

FB

6

COMP

7

RT

8

SS

9

LX

10

LX

11

LX

12

BS

13

PG

14

EN

15

VIN

16

E-Pad

17

U702 G5173R41D

L7102

2.2uH 30%

+5V_SW

C7126

100N 50V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q7101

AO4435

C7124

10uF 10V

DV11

1 2

D7101 NC/B540C

R7109 2Kohm 1/10W +/-1%

1 2

FB7102

120R/6000mA

DV33SB

R7120 1K 1/16W 5%

POWER_ON

C7102

NC/0.1uF 50V

L7101

1.5UH

C7136

10uF 10V

C7101

1N50V

1 2

FB7108

120R/3000mA

C7133

0.1uF 50V

+5V_STB

R7108 330K +/-5% 1/10W

C7134

100N16V

R7121 4K7 1/16W 5%

C7132

1UF16V

MT5325 - 4 LAYERS

STB_PWR5V

C7139 NC/0.1uF 50V

STAND_BY: Normal: Low Stand_by: High

INVERTER_ON_OFF: Normal: High Stand_By: Low

+

C7105

100UF 16V

C7138

10uF 10V

L7103

2.2uH 30%

1 2FB7105

120R/6000mA

R7103 1K 1/16W 5%

C7107 100N16V

INVERTER_ON_OFF

R7106 100R 1/16W 5%

+

C7137

NC/100UF 16V

R7107

NC/10K 1/8W

1 2

FB7107

120R/6000mA

+12V

STB_PWR5V

+24V

STANDBY

DV33SB DV33

+5V_STB

STAND_BY

BRIGHT_ADJ

C7110

NC/1UF16V

1 2

FB7110

120R/6000mA

STANDBY

R7111 15K 1/16W 5%

1 2

3

4 5 6 7

8

9 10 11 12

CN701

CONN

BRIGHT_ADJ: Normal:Max:+3V3, Min:0V Stand_By:0V

C7120

10uF 10V

DC POWER INPUT

STANDBY: Normal: High Stand_by: Low

+

C7112

100UF 25V

Q7103

NC/DTC114ES3

C7111

10uF 10V

R7110

820R 1/10W 1%

VCC

1

REF

2

GND

3

FB4EN

5

PGND

6

LX

7

VIN

8

E-PAD

9

U703

AT1529F11U

R7119

33K 1/10W 1%

R7127

NC/0R05 1/10W

R7102

NC/4K7 1/16W 5%

C7104

10uF 10V

1

3

2

Q7102

BC847C

R7116 100K 1/10W 5%

AV33

C7128

NC/22uF 10V

R7118 300R 1/10W 1%

C7123

3300pF 50V

C7129

100N 50V

10.3 B 715G5279 SSB 5000/5500 series

10-3-1 B01 Power-1

EN 66TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-2 B02 Power-2

19340_501_120716.eps

120815

Power-2

B02 B02

2012-02-17

A

715G5279

Power-2

Panel VCC=12V

PANEL_VCC_ON/OFF

R7218 5K1 1/10W 1%

R7217 7K5 1/10W 5%

C7217 1UF16V

R7216 10K 1/10W 5%

PANEL_VCC+12V

PANEL_VCC ON/OFF Normal:High

Stand_By:Low

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q7201

AO4435

R7219

100R 1/16W 5%

1

3

2

Q7202

BC847C

C7229

NC/2200pF 50V

R7223

NC/4R7 1/10W 5%

V3.3

VIN3VOUT

2

ADJ

1

U7204 G9084TU3U

R7220

10K 1/10W 5%

R7209 15 OHM 1/4W R7210 15 OHM 1/4W R7211 15 OHM 1/4W

R7230

51K 1%

R7231

2.4K 1%

DV18

1 2

FB7208

120R/3000mA

R7202 56R 1/10W 1%

C7203

10uF 10V

DV33

C7202

1UF16V

R7201 120R 1/10W 1%

DV33 TO DV18

C7238

1UF16V

Demodulator 3V3 Power : V3.3 Demodulator 1V2 Power : V1.2

1 2

FB7216

120R/3000mA

VI3VO

2

GND

1

4

U7210

G912T63U

VIN3VOUT

2

GND14

4

U7205

G903T63UF

C7233 NC/10U 16V

C7235 10U 16V

C7232 10U 16V

C7236 NC/10U 16V

V1.2

V3.3

DV33SB+5V_STB

C7220

10uF 10V

+5V_STB TO DV33SB

1 2

FB7206

120R/3000mA

VIN3VOUT

2

GND14

4

U7202 G903T63UF

C7219

1UF16V

+

C7216

100UF 35V

+

C7209

100UF 35V

USB_POWER=3A

+5V_SW

C7212

1uF 50V

C7213

NC/180pF 50V

R7229 10K 1%

R7228

47K 1/16W 5%

C7215 1uF 25V

LX

1

BST

2

GND

3

FB

4

COMP

5

EN

6

VIN

7

VBIAS

8

U7211 AOZ1242AI

1 2

D7201

SX34

L7201

15uH

C7211 100N 50V

C7210

1uF 50V

+24V

R7206 10K 1/16W 5%

USB Power (24V TO 5V)

1 2

FB7203

120R/3000mA

VIN3VOUT

2

ADJ(GND)

1

U7201 AP1117DG-13

C7206 22uF 10V

DV33 TO AV12

DV33

AV12

1 2

FB7207

120R/3000mA

R7221

120R 1/10W 1%

C7223

1UF16V

C7224

10uF 10V

C7225

NC/10U 10V

R7222

1R 1%

C7234

100N16V

C7231

1UF16V

R7232

47K 1/16W 5%

1 3

ZD7201 BAT54

VIN3VOUT

2

ADJ(GND)

1

U7203 AP1117DG-13

C7214

1N50V

C7222

10uF 10V

C7239

10uF 10V

PANEL_VCC_ON/OFF8

PANEL_VCC_ON/OFF

C7230

22uF 10V

USB_Power

C7240

10uF 10V

C7241

100N16V

+12V

TUNER POWER

C7204

330nF

+5V_TUNER

R7204 100R 1/10W 1%

1 2

FB7201

120R/6000mA

R1

R2

C7205

0.1uF 50V

R7207 300R 1/10W 1%

C7201

100N16V

C7218

10UF 25V

R7208

0R05 1/10W

1 2

FB7204

120R/3000mA

C7237

100N16V

Circuit Diagrams and PWB Layouts

EN 67TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-3 B03 Tuner

19340_502_120716.eps

120815

Tuner

B03 B03

2012-02-17

A

715G5279

Tuner

IF BPF ( for DTC86WT-17-E )

R1325 0R05 1/10W

FAT_5325IN+

L1303

NC/0.12UH

R1322 1K 1/10W 5%

C1325

NC/100N16V

EX_RF_AGC

TU_5V

BST_CTL_TU

TU_OSDA

RF_SWCTL

R1332 470OHM +-5% 1/10W

BST_CTL_TU

Q1302 2N7002

1 2

FB1304

120R/3000mA

C1330

10uF 10V

L1306

150uH

Q1303 2N7002

R1313 100R 1/16W 5%

R1329 NC/0R05 1/16W

R1312 100R 1/16W 5%

R1314

4K7 1/16W 5%

R1323

NC//0R05 1/16W

R1330 NC/0R05 1/16W

R1324

NC//0R05 1/16W

R1321

NC//4K7 1/16W 5%

IF_AGC_D2T

R1315

4K7 1/16W 5%

BST_CTL

IF_AGC_S2T

GND_Tuner

R1331 1K 1/16W 5%

GND_Tuner

+5V_TUNER +5V_SW

R1305 10K 1/16W 5%

DV33

R1301

NC/0R05 1/16W

IF_AGC_SW

GND_Tuner

R1304 NC/0R05 1/16W

TU_5V

R1309 10K 1/16W 5%

DV33 DV33

IFAGC_T

DV33

R1302 100K 1/16W 5%

H: IF_AGC_D2T( 8846 Cortrol) L : IF_AGC_S2T ( MT5325 Control)

( DTMB, DVB-C )

R1328 100K 1/16W 5%

SDAT_DEMOD

( PAL )

T_SDA

SCLT_DEMOD

R1333 0R05 1/16W

C1324

100N16V

TU_OSCL

TU_5V

T_SCL

IFAGC_T

R1303 4K7 1/16W 5%

TIF+

GND_Tuner

N.C

1

N.C

2

Vcc1 supply tuner

3

External RF AGC

4

N.C

5

SCL

6

SDA

7

N.C

8

N.C

9

N.C

10

N.C

11

GND

12

N.C

13

N.C

14

N.C

15

N.C

16

IF 1(N)

17

IF 1(P)

18

TH119TH220TH321TH4

22

TU102

NC/F86WT-17-E

EX_RF_AGC RF_AGC

(for DTV and ATV )

C1320

47N16V

R1327 10K 1/16W 5%

R1326 0R05 1/16W

C1314

NC/56pF 50V

1

23

Q1305

PMBS3906

For DTV (to DTMB demodulator)

R1334

0R05 1/16W

TIF-

TIF+ T2D_TIF+

T2D_TIF-

R1335

0R05 1/16W

GND_Tuner

T_SDA

TIF+

GND_Tuner

R1320

200R 1/16W 5%

C1305

10N 50V

R1338 0R05 1/10W

T_SCL

BST_CTL

T2D_TIF+

FAT_5325IN-

T2D_TIF-

FAT_5325IN+

TU_OSDA TU_OSCL

TUNER IF to SOC

IF_AGC_SW

IF_AGC_S2T

RF_SWCTL

C1302 22pF 50V

SCLT_DEMOD

SDAT_DEMOD

T2D_TIF- 7

TUNER IF to DEMODULATOR

T2D_TIF+ 7

TU_OSCL 7,18

Tuner Control

TU_OSDA 7,18

FAT_5325IN- 18

RF_AGC

FAT_5325IN+ 18

RF_SWCTL 8

I2C for DEMODULATOR (RESERVE)

IF_AGC_S2T 18 RF_AGC 18

SDAT_DEMOD 7

SCLT_DEMOD 7

IF_AGC_SW 8

BST_CTL 8

C1310

NC/100N 16V

L1301

NC/0U10 H

GND_Tuner

1 2FB1310

120R/3000mA

GND_Tuner

1 2FB1314

120R/3000mA

GND_Tuner

R1317

NC/100R 1/16W 5%

1 2FB1315

120R/3000mA

TIF-

GND_Tuner

C1304 22pF 50V

GND_Tuner

1 2FB1311

120R/3000mA

R1306 0R05 1/16W

1 2

FB1303

NC/120R/3000mA

DV33

C1315

NC/56pF 50V

TIF+

R1310 0R05 1/16W

TIF-

R1339 0R05 1/10W

R1311 0R05 1/16W

R1319

200R 1/16W 5%

GND_Tuner

1 2FB1312

120R/3000mA

IF_AGC_D2T

IF_AGC_D2T 7

1

23

Q1310

PMBS3906

R1336

4K7 1/16W 5%

+

C1327

220UF 16V

R1337

4K7 1/16W 5%

R1307 0R05 1/16W

GND_Tuner

1 2FB1316

120R/3000mA

TU_5V

GND_Tuner

R1308 0R05 1/16W

R1316 0R05 1/16W

GND_Tuner

1 2FB1317

120R/3000mA

GND_Tuner

1 2FB1313

120R/3000mA

EX_RF_AGC

1

23

Q1311

PMBS3906

L1304

NC/0.12UH

TIF-

C1306

10N 50V

C1308 NC/100P 50V

C1307 NC/220pF 50V

C1309 NC/100P 50V

C1311

10N 50V

C1312

NC/100N 16V

R1318 0R05 1/10W

GND_Tuner

C1313

NC/100N 16V

FAT_5325IN-

L1302

NC/0.22UH

1

3

2

Q1304

BC847C

1

3

2

Q1312

BC847C

RF S/W CTL

1

Bst CTL

2

Vcc1 supply tuner

3

External RF AGC

4

NC

5

SCL

6

SDA

7

NC

8

NC

9

NC

10

NC

11

GND

12

NC

13

NC

14

'broadband' IF output

15

IF AGC_EXT

16

IF1+

17

IF1-

18

TH119TH220TH321TH4

22

TU101

DTC86WT-17-E

Circuit Diagrams and PWB Layouts

EN 68TPM9.5A LA 10.

2012-Nov-30

back to

div. table

Circuit Diagrams and PWB Layouts

19340_503_120716.eps

120815

Demodulator (DTMB DVB-C, PAL)

B04 B04

2012-02-17

A

715G5279

Demodulator

(DTMB DVB-C, PAL)

C1437

NC/5PF 50V

VDD33

ASIC_3V3

VDD12

VDD_DIV

IVINP

TSSYNC

TESTIO20

C1438

NC/5PF 50V

SDAS

TS1

TS3

DIF from Demodulator

VDD33

TS4

TS5

TS2

TS6

TS7

TSCLK

TSVALID

TUNER INPUT

TESTIO20

TS3

T2D_TIFT2D_TIF+

1

24

3

X1401

30.4MHz

TS1

Demodulator I2C

TS2

VDD12

TU_OSCL

TU_OSDA

TS0

TEST LED

TUNER AGC

DEMODULATOR RESET

VDD12

VDD33

VDD12

ASIC_3V3

TS4

SDAS

IVINN

TESTIO21

SCLM

TS5

SDAM SDAM

PWM0

TS6

TESTIO23

R1402 56K 1%

R1414

0R05 1/16W

T2D_TIF-

1 2

FB1401

120R/3000mA

C1434 100N16V

C1428

10PF 50V

C1402 1UF16V

C1412 100N16V

R1401 1M 1/16W

R1417 10K +-1% 1/16W

T2D_TIF+

TS7

R1407 100K 1/16W 5%

R1406 100K 1/16W 5%

C1417 100N16V

C1415 100N16V

R1419

4.7K 1%

R1431 0R05 1/16W

D_TSSYNC D_TSVALID

DEMOD_RST

D_TSCLK

D_TSDATA0

TS6

R1416

10K +-1% 1/16W

C1418 100N16V

D_TSSYNC D_TSVALID

R1415

0R05 1/16W

1 2

FB1402

120R/3000mA

D_TSDATA0

TS5 TS4

C1420 100N16V

C1409 100N16V

C1403 100N16V

TS3

Serial TS TO 8295

TS2

R1410 100K 1/16W 5%

C1407 100N16V

TS1 TS0

C1433 100N16V

R1413

2.7K 1/16W 1%

SCLM

Parallel TS

C1422 100N16V

R1405 100K 1/16W 5%

TS7

R1408 100K 1/16W 5%

C1416 100N16V

R1412

2.7K 1/16W 1%

R1403 100K 1/16W 5%

1 2

FB1403

120R/3000mA

DEMOD_RST

C1430 1UF16V

R1409 100K 1/16W 5%

C1413 100N16V

C1406 1UF16V

R1430 0R05 1/16W

R1404 100K 1/16W 5%

R1418

4.7K 1%

C1411 100N16V

C1404 1UF16V

C1427 1UF16V

VDD33

C1405 100N16V

C1421 100N16V

R1420 10K 1/16W 5%

TESTIO23

C1410 100N16V

C1414 100N16V

ASIC_3V3

R1421 0R05 1/16W

VDD33

V3.3

V1.2V3.3

SDAT_DEMOD

VDD33

V3.3

DEMOD_RST 8

D_TSSYNC 8 D_TSVALID 8

D_TSCLK 8

D_TSDATA0 8

R1426

33R 1/16W 5%

T2D_TIF- 6 T2D_TIF+ 6

IF_AGC_D2T 6

C1401

NC/22uF 10V

C1429

10PF 50V

TSVALID

TS0

TSCLK

TSSYNC

TP4351

IVINP

TEST POINT

C1435

5PF 50V

D_TSCLK

TESTIO21

L1401

2.2uH

R1427

33R 1/16W 5%

56k~59k 5%

R1428

33R 1/16W 5%

DTMB_RESETN

R1429

33R 1/16W 5%

TESTIO24

C1436

5PF 50V

C1408

NC/22uF 10V

TESTIO25

TESTIO24

REFCLK0

TESTIO25 TESTIO26

TESTIO27

C1423 100N16V

SCLS

ASIC_3V3

C1424 100N16V

C1439

NC/22uF 10V

C1440

NC/22uF 10V

TS0

C1425 100N16V

C1432 100N16V

R1425

10K 1/16W 5%

R1424

200R 1/16W 5%

PWM0

C1426 100N16V

C1431 100N16V

IF_AGC_D2T

Close T o (U101)

TUNER I2C

IVINN

SCLT_DEMOD

SDAT_DEMOD

SDAT_DEMOD 6

I2C for DEMODULATOR(RESERVE)

SCLT_DEMOD 6

SCLT_DEMOD

DTMB_RESETN

TESTIO26

1 2

LD1401

NC/LED

R1423 NC/330R 1/16W 5%

TESTIO21 LOCK

TU_OSDA TU_OSCL

TU_OSCL 6,18

TU_OSDA 6,18

I2C for DEMODULATOR

TESTIO27

TSBSYNC

1

TSBVLD

2

TSBCLK

3

TSB7

4

TSB6

5

VDD33

6

TSB5

7

TSB4

8

TSB3

9

VDD12

10

TSB2

11

TSB1

12

TSB0

13

PWM0

14

VDD12

15

CLK_REF_OUT

16

VDD_DIV

17

REFCLKI0

18

REFCLKI1

19

VDD_OSC20DVDD_ADC

21

ADVDD_ADC

22

QVINP23QVINN24IVINP25IVINN26AVDD_REF27REF_BIAS_EXT28VDD1229NC30PWM131NC32NC33NC34NC35NC

36

NC

37

I2CINT

38

SCLM

39

SDAM

40

VDD12

41

SCLS

42

SDAS

43

DBGBUS17

44

VDD33

45

DBGBUS16

46

DBGBUS15

47

NC

48

NC

49

NC

50

VDD33

51

VDD12

52

DBGBUS14

53

DBGBUS13

54

NC

58

VDD12

57

NC55NC

56

VDD33

59

NC

60

DBGBUS1261DBGBUS11

62

NC

63

DBGBUS10

64

VDD33

65

NC66NC

67

VDD12

68

RESETN

69

TEST071TEST1

72

DBGSEL

70

GND

73

U101

ATBM8846E

VDD33

ASIC_3V3

VDD33

TESTIO22

VDD12

SCLS

VDD33

IF_AGC_D2T

VDD12 VDD33

VDD33

VDD12

TESTIO22

10-3-4 B04 Demodulator (DTMB DVB-C, PAL)

EN 69TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-5 B05 MT5325 GPIO & RJ45

19340_504_120717.eps

120815

MT5325 GPIO & RJ45

B05 B05

2012-02-17

A

715G5279

MT5325 GPIO & RJ45

LED_G

Light_Sensor

BL_ON/OFF

R1517 0R05 1/16W

R15210R05 1/16W

HP_DET#

IF_AGC_SW

BL_DIMMING

MDI_RP

RST_AL

L_DIM

L_DIM 21

C1506

NC/100N16V

R1510

NC/49.9 OHM 1/16W 1%

R1511

NC/49.9 OHM 1/16W 1%

R1512

NC/49.9 OHM 1/16W 1%

R1513

NC/49.9 OHM 1/16W 1%

C1507

NC/100N16V

R1514 24K 1%

LED_PHY_0

ARC_SW

USB_OVC_1

MT_TX1P MT_RX1N

MT_TX1N

MT_RX1P

MDI_TP

KEY_1

EDID_WEN

LED_PWR_SW

RXDMA_ACK 21

RXDMA_ACK

3DMOD_SEL

HP_MUTE

ADIN1_SRV

RF_SWCTL

OPCTRL4 OPCTRL5

STAND_BY

LED_R

LDM_CLK

MDI_RN

USB_PWR_CTL 13

KEY_2

ISP_AL

ADIN0_SRV

LED_PHY_1

D_TSVALID

D_TSSYNC

TS_DATA0

R1503 0R05 1/16W R1505 0R05 1/16W

D_TSDATA0

R1501 0R05 1/16W R1502 0R05 1/16W

TS_CLK

TS_VALID

TS_SYNC

D_TSCLK

LDM_CS 9

LDM_DO 9

LDM_VSYNC 9

LDM_CLK 9

LDM_HSYNC 9

TS_SYNC

TS_CLK TS_VALID

TS_DATA0

USB_STANDBYPW 13

USB_STANDBYPW

LDM_DO

USB_OVC

LED_PHY_0

LED_PHY_1

R1507 NC/4K7 1/16W 5%

R1506 NC/4K7 1/16W 5%

ADIN1_SRV

MT_RX1P

ARC_SW16

ARC_SW

LDM_HSYNC

MT_RX1N

MDI_RN

AVDD12_COM

AVDD33_REC

AVDD33_COM AVDD33_LD

AVDD12_REC

Local dimming

LDM_DI9

LDM_DI

LDM_CS

USB_PWR_CTL

R1555 330R 1/16W 5%

R1554 330R 1/16W 5%

LDM_VSYNC

OPCTRL0

AE14

OPCTRL1

AG12

OPCTRL2

AJ11

OPCTRL3

AH12

OPCTRL4

AK12

OPCTRL5

AJ12

ADIN0_SRV

AG17

ADIN1_SRV

AG16

ADIN2_SRV

AF17

ADIN3_SRV

AF18

ADIN4_SRV

AH17

ADIN5_SRV

AF19

OPWM0

AA26

OPWM1

AC32

OPWM2

AA27

GPIO0

AK6

GPIO1

AJ6

GPIO2

AK7

GPIO3

AH7

GPIO4

AH10

GPIO5

AK8

GPIO6

AJ8

GPIO7

AD27

GPIO8

AD28

GPIO9

N27

GPIO10

N28

GPIO11

N29

GPIO12

L29

GPIO13

K30

GPIO14

L28

GPIO15

E29

GPIO16

D32

GPIO17

E30

GPIO18

D30

GPIO19

C30

GPIO20

D29

GPIO21

C29

GPIO22

C32

GPIO23

C31

DEMOD_TSSYNC

V30

DEMOD_RST

U31

DEMOD_TSCLK

U32

DEMOD_TSDATA0

U30

DEMOD_TSVAL

V29

LDM_CS

E32

LDM_CLK

E31

LDM_VSYNC

F32

LDM_DO

D31

PVR_TSSYNC

R28

PVR_TSDATA0

R31

PVR_TSCLK

R29

PVR_TSVAL

T28

PVR_TSDATA1

R32

SD_D0

N32

SD_D1

M30

SD_D2

L30

SD_D3

L31

SD_CLK

N30

SD_CMD

N31

CI_TSDATA0

T29

CI_TSSYNC

U28

CI_TSCLK

U29

CI_TSVAL

T27

CI_INT

P29

SPI_CLE

P28

SPI_CLK

P31

SPI_DATA

P32

TXVP_0

AE32

TXVN_0

AE31

TXVP_1

AD32

TXVN_1

AD31

TANA_0

AF31

TANA_1

AF32

REXT

AA32

PHYLED0

AB28

PHYLED1

AA28

AVDD33_LD

AC29

AVSS33_LD

V22

AVDD33_REC

AC28

AVSS33_REC

W22

AVDD33_COM

AC27

AVSS33_COM

AG28

AVDD12_COM

AD30

AVSS12_COM

W23

AVDD12_REC

AE30

AVSS12_REC

AF29

OPCTRL6

AF12

SPI_CLK1

P30

LDM_DI

F30

MT5325HLHJU401-9

C1505 100N16V

R1509

0R05 1/16W

R15240R05 1/16W

R1508

0R05 1/16W

MDI_RP

VCXO

OPCTRL4 OPCTRL5

LED_G

C1502 100N16V

OPCTRL4 12 OPCTRL5 12

LED_G 12

LED_R

LED_R 12

VCXO 12

MT_TX1P

DEMOD_RST

C1501 100N16V

D_TSDATA0

C1503 100N16V

FROM Demod

D_TSCLK

D_TSSYNC

D_TSVALID

C1504 100N16V

D_TSDATA07

D_TSSYNC7

D_TSVALID7 D_TSCLK7

AVDD33_LD AVDD33_LDAV33

AV12 AVDD12_REC

LDM_DI

R15220R05 1/16W

LED_PHY_1

C1513 NC/22uF 10V

C1515 100N 25V

C1514 100N 25V

R1528 NC/1K 1/16W 5%

DV33

R1525 0R05 1/16W

RRGOUT

TCT P1

1

TD+ P2

2

TD- P3

3

RD+ P4

4

RD- P5

5

RCT P6

6

NC P7

7

NC P8

8

NC P9

9

NC P10

10

NC P11

11

Y- P12

12

G- P14

14

Y+ P13

13

G+ P15

15

TH1

16

TH2

17

CN416

RJ45 CONN+LED 15P

RST_AL 9

MT_TX1N

R1526 0R05 1/16W

C1512 NC/22uF 10V

ISP_AL 9

ISP_AL

RST_AL

R1527 NC/1K 1/16W 5%

RRGOUT

LED_PHY_0

R1520

NC/0R05 1/16W

C1510

100N 25V

C1511 10N 50V

R1518 0R05 1/16W

C1508

100N 25V

C1509

10N 50V

R1519 0R05 1/16W

R1504 10K 1/16W 5%

DV18

BST_CTL

MDI_TN

BL_DIMMING 21

BL_DIMMING

INT_HDMI

KEY_2

USB_OVC

AUDIO_AC_OFF

SP_AMP_MUTE

KEY_1

Light_Sensor

HP_DET#

GP INPUT

INT_HDMI16

KEY_212

USB_OVC13

Light_Sensor12

KEY_112

HP_DET#20

AUDIO_AC_OFF19

SP_AMP_MUTE19

L_DIM

ADIN0_SRV

VCXO

BST_CTL 6

MDI_TN

AUDIO_AC_OFF

AVSS33_REC

AVSS12_COM

AVSS12_REC AVSS33_COM AVSS33_LD

MDI_TP

3DMOD_SEL 21

3DMOD_SEL

R1523

0R05 1/16W

R1515 10K 1/16W 5%

VGA_RX_TX_EN

BST_CTL

SMD/0402SMD/0402

SMD/0402

AVDD33_COMAVDD33_LD AVDD33_REC

USB_STANDBYPW

LDM_VSYNC LDM_HSYNC

LDM_CLK

LDM_CS

LDM_DO

R1516 0R05 1/16W

RXDMA_ACK

RF_SWCTL

LED_PWR_SW

LVD SCTRL0

IF_AGC_SW

HP_MUTE

PANEL_VCC_ON/OFF

SYS_EEPROM_WP AMP_MUTE

VGA_RX_TX_EN

EDID_WEN

AMP_Reset

DEMOD_RST

STAND_BY

BL_ON/OFF

GP OUT

LED_PWR_SW19

HP_MUTE 20

RF_SWCTL 6

LVD SCTRL0 21

IF_AGC_SW6

SYS_EEPROM_WP 17 AMP_MUTE 19

PANEL_VCC_ON/OFF 5

VGA_RX_TX_EN 14

EDID_WEN 14

AMP_Reset 19

BL_ON/OFF 21

DEMOD_RST7

STAND_BY 4

SMD/0402

AVDD12_REC AVDD12_COM

AMP_Reset

USB_OVC_1

USB_OVC_113

INT_HDMI

SP_AMP_MUTE

LVD SCTRL0 AMP_MUTE

SYS_EEPROM_WP

PANEL_VCC_ON/OFF

USB_PWR_CTL

Circuit Diagrams and PWB Layouts

EN 70TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-6 B06 AmbiLight & local dimming

19340_505_120717.eps

120815

Ambilight & local dimming

B06 B06

2012-02-17

A

715G5279

AmbiLight & local dimming

A0

LDM_VSYNC LDM_DO

LDM_CS LDM_CLK

LDM_VSYNC8

LDM_DO8

LDM_CS8

LDM_CLK8

R1556 47R 1/16W 5%

+

C1525

NC/100UF 35V

R1539

4K7 1/16W 5%

LDM_DI

LDM_DI 8

A0

G B

R

A1

R1537

4K7 1/16W 5%

1 2

3

4 5 6 7

89

CN421

NC/CONN

For local dimming

A0

1

A1

2

A2

3

A3

4

A4

5

LED0

6

LED1

7

LED2

8

LED3

9

Vss10LED4

11

LED5

12

LED6

13

LED7

14

OE

15

A5

16

A6

17

SCL

18

SDA

19

VDD

20

U412

PCA9634PW

A2

DV33

R1557 47R 1/16W 5%

C1519100N16V

R1558 47R 1/16W 5%

A1

R1559 47R 1/16W 5%

R1542

10K

DV33

R1543

NC/4K7 1/16W 5%

A3

R1560 47R 1/16W 5%

SDA1 SCL1

SDA1 17

SCL1 17

U1RX U1TX

U1RX17

U1TX17

R1561 47R 1/16W 5%

C1521100N16V

C1522100N16V

C1518

100N16V

A6

C1523100N16V

R1552

10K

A2

DV33

FOR AMBILIGHT USE

R1553

NC/4K7 1/16W 5%

DV33

R1544

10K

R1545

NC/4K7 1/16W 5%

C1524100N16V

A4

LDM_HSYNC

C1520100N16V

U1TX

RST_AL ISP_AL

RST_AL8

ISP_AL8

LDM_HSYNC

LDM_HSYNC8

A3

DV33

R1546

10K

1 2

FB1505

120R/3000mA

R1547

NC/4K7 1/16W 5%

+12V

1 2

3

4 5

67

CN417

CONN

1 2

3

4 5

67

CN418

CONN

+24V_LED

RST_AL

SCL1 SDA1

R1529

4K7 1/16W 5%

+24V

R1530 4K7 1/16W 5%

ISP_AL

R1531 0R05 1/16W

1 2FB1502

120R/3000mA

C1516

100P 50V

1 2

3

4 5 6 7

8

9 10 11 12

1314

CN415

NC/CONN

A6

DV33 DV33

C1517 100P 50V

DV33

1 2FB1501

120R/3000mA

R1532 0R05 1/16W

R1533 0R05 1/16W

FOR AMBILIGHT USE

R1534 0R05 1/16W R1535 0R05 1/16W

R1536 0R05 1/16W

U1RX

1 2

FB1503

NC/120R/3000mA

1 2

3

4 5 6 7

89

CN419

NC/CONN

R1540

10K

SDA1

A4

DV33

R1548

NC/10K

R1549

4K7 1/16W 5%

1 2

3

4 5 6 7

89

CN420

NC/CONN

R1538

10K

A5

RST_AL

LDM_CLK LDM_DO

LDM_CS LDM_VSYNC LDM_DI

DV33

R1541

NC/4K7 1/16W 5%

1 2

FB1506

120R/3000mA

A5

R1550

NC/10K

DV33

R1551

4K7 1/16W 5%

SCL1

Circuit Diagrams and PWB Layouts

EN 71TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-7 B07 DDR3 × 2

19340_506_120717.eps

120815

DDR3 × 2

B07 B07

2012-02-17

A

715G5279

DDR3 × 2

R4132 0R05 1/16W

C4105 100N16V

C4126 100N16V

1 2

3

4

8

7 6 5

RP4103 0OHM 1/16W

R4127

49.9 OHM 1/16W 1%

R4103 1K 1/16W 1%

R4118 0R05 1/16W

C4117 100N16V

R4105

1K 1/16W 1%

R4121 0R05 1/16W

C4112 100N16V

C4127 100N16V

R4128

49.9 OHM 1/16W 1%

C4101 100N16V

1 2

3

4

8

7 6 5

RP4105 0OHM 1/16W

1_RREST_MEM

A_RREST_MEM

RA0

1_A10

RA5

RA2

VCC2IO

H3

VCC2IO

L3

VCC2IO

AF2

VCC2IO

AF1

VCC2IO

AC4

VCC2IO

U3

VCC2IO

W3

VCC2IO

AF3

VCC2IO

AE4

VCC2IO

F6

VCC2IO

G7

VCC2IO

F7

DVSS

AB4

DVSS

D2

DVSS

T4

DVSS

H4

DVSS

K4

DVSS

N4

DVSS

W4

MEMTP

J8

MEMTN

H8

RVREF

U7

RVREF

D1

ARCKE

M5

ARCLK1

L2

ARCLK1#

L1

ARCLK0

AE2

ARCLK0#

AE1

ARODT

M3

ARRAS#

T2

ARCAS#

M4

ARCS#

T1

ARWE#

N5

REXTDN

D3

ARBA0

R4

ARBA1

P5

ARBA2

T3

AVDD12_MEMPLL

J6

AVSS12_MEMPLL

K6

ARDQM2

G3

ARDQS2

G2

ARDQS2#

G1

ARDQ16

F2

ARDQ17

J2

ARDQ18

F3

ARDQ19

J1

ARDQ20

E4

ARDQ21

K1

ARDQ22

E3

ARDQ23

K2

ARDQM3

F1

ARDQS3

H2

ARDQS3#

H1

ARDQ24

L4

ARDQ25

H5

ARDQ26

L5

ARDQ27

G5

ARDQ28

L7

ARDQ29

G4

ARDQ30

L6

ARDQ31

H6

ARDQM0

Y3

ARDQS0

Y2

ARDQS0#

Y1

ARDQ0

V2

ARDQ1

AB3

ARDQ2

V1

ARDQ3

AC1

ARDQ4

U1

ARDQ5

AC3

ARDQ6

U2

ARDQ7

AC2

ARDQM1

W1

ARDQS1

AB2

ARDQS1#

AB1

ARDQ8

AB6

ARDQ9

AA5

ARDQ10

AB5

ARDQ11

Y4

ARDQ12

AA3

ARDQ13

W5

ARDQ14

AA4

ARDQ15

Y6

ARA0

N3

ARA1

U5

ARA2

P4

ARA3

N2

ARA4

U4

ARA5

R3

ARA6

T6

ARA7

P3

ARA8

T5

ARA9

P1

ARA10

N6

ARA11

R5

ARA12

P6

ARA13

N1

ARRESET

P2

DVSS

J14

DVSS

AD5

U401-1 MT5325HLHJ

RBA1

RA11

RCAS#

1_A13

RA12

C4118 100N16V

C4128 100N16V

RA10

RA3

RBA0

RWE#

RCKE

R4126 330R 1/16W 1%

RBA2

RA1

RA5

RA9

RRAS#

RODT

R4104 1K 1/16W 1%

R4116 0R05 1/16W

RCS#

RA2

RA12

RA7

RA11

1 2

3

4

8

7 6 5

RP4102 0OHM 1/16W

RA6 RA4

C4103 100N16V

C4109 100N16V

RCKE

1_A3RBA2

1_A9

C4129

1UF16V

C4102 100N16V

RODT

RRAS#

RBA1

RWE#

RBA0

C4122 100N16V

AD/CM Damping

RCS#

R4117 0R05 1/16W

R4115 100R 1/16W 5%

2_BA2

2_A1

2_A10

2_A3

RA13

C4106 10uF 10V

1_A6

RA3

1_A8

RA9

C4130 10uF 10V

1 2

3

4

8

7 6 5

RP4104 0OHM 1/16W

DV15_DDR

AV12_MEMPLL

RA8

DV15_DDR

2_CKE

2_BA1

RA6 1_CS#

1_BA2

A_RREST_MEM

DV15_DDR

2_A9

2_RAS#

2_ODT

2_BA0

2_WE#

DV15_DDRDV15_DDR

AV12

2_A2

2_A12

2_A7

2_A11

2_A5

DV15_DDR

2_CAS#

1_RAS#

RA1

2_A6 2_A4

2_CS#

DV15_DDR

1_A4

2_A0 2_A8 2_A13

RVREF6 11

1_CKE

1_A1

1_BA1

1_WE#

1_BA0

1_ODT

RA4

1_A0

RA0 RA8

RA13

RCAS#1_A7

1_A11 1_A12

1_A2

RA10

1_A5

RA7 1_CAS#

2_RREST_MEM

AV12_MEMPLL

C4136 100N16V

C4135 100N16V

C4107 10uF 10V

C4137 100N16V

DV15_DDR

DRAM #2 DE-CAP.

C4140 100N16V

C4139 100N16V

C4138 100N16V

C4134 100N16V

C4141 100N16V

RCLK1#

RCLK1

RCLK0_D

Differential Clock

RCLK1_D

RCLK0#_DRCLK0#

RCLK0

RCLK1#_D

R4109

60.4R 1/16W 1%

A_ZQ1

RVREF6RVREF5

A_RVREF3

MT5325 DE-CAP.

1_BA1 1_BA2

RCLK1#_D

RCLK1_D

1_ODT 1_RAS#

1_BA0

1_A3

1_A2

1_A1

1_WE#

1_CAS#

1_CS#

1_A7

1_A6

1_A5

1_A4

1_A0

1_A11

1_A10

1_A9

1_A13

1_A8

1_RREST_MEM

1_A12

2_RREST_MEM

A_ZQ2

R4129 0R05 1/16W

DDR3#1

DDR3#2

1_CKE

2_A1 2_A2 2_A3 2_A4 2_A5 2_A6 2_A7 2_A8

2_A0

2_A9 2_A10 2_A11 2_A12 2_A13

RCLK0_D

2_BA0

2_RAS# 2_WE#

2_ODT

2_CKE

2_BA1 2_BA2

2_CS# 2_CAS#

RCLK0#_D

RDQ4 RDQ5 RDQ6 RDQ7

RDQS1#

RDQS1

RDQS0#

RDQ2

RDQ1

RDQ0

RDQ3

RDQ11

RDQ8 RDQ9

RDQM0

RDQS0 RDQM1

RDQ14 RDQ15

RDQ12 RDQ13

RDQ10

RDQS3

RDQM3

RDQS2#

RDQS2

RDQM2

RDQ24

RDQ28

RDQ25 RDQ26

RDQS3#

RDQ20

RDQ23

RDQ27

RDQ31

RDQ30

RDQ29

RDQ18

RDQ22

RDQ17

RDQ21

RDQ16

RDQ19

DRAM #1 DE-CAP.

RCLK1 RCLK1#

DDR3 Interface

A_RVREF1

RVREF5 RVREF6

RVREF6

A_RREST_MEM

RDQS2

RDQS3

RDQM3

RDQM2

RDQS3# RDQ25

RDQS2#

RDQ26 RDQ28

RDQ24

RDQ29 RDQ30

RDQ27

RDQ31

RDQ23

RDQS0#

RDQS1#

RDQ20

RDQS1

RDQM1

RDQ16

RDQM0

RDQ21

RDQ17

RDQS0

RDQ22

RDQ11

RDQ18

RDQ7

RDQ9

RDQ8

RDQ19

RDQ12

RDQ4 RDQ6

RDQ10

RDQ13

RDQ3

RDQ0

RDQ15

RDQ14

RDQ5

RBA2

RDQ1 RDQ2

+

C4142

220UF 16V

RA3

RWE#

RCKE

RA10

RA5

RA12

RA1

RA7 RA9 RA11

RCAS#

RA8

RA2

RA13

RA6

RA0

RA4

RODT RRAS#

RCS#

A_RVREF4

RBA0 RBA1

RCLK0#

RCLK0

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQU6

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQU7

A3

VDDQ_1

A8

DQU1

C3

VDDQ_2

C1

VDDQ_3

C9

DQU0

D7

VDDQ_4

D2

DQU4

A7

VSSQ_3

D8

DQU3

C2

DQU2

C8

VSSQ_4

E2

DQU5

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQL6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQL7

H7

VDDQ_6

F1

DQL1

F7

VDDQ_7

H2

DQL0

E3

VDDQ_8

H9

DQL4

H3

VSSQ_8

G9

DQL3

F8

DQL2

F2

BA2

M3

DQL5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

NC

T3

NC_6

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

U403

NT5CB64M16DP-CF

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQU6

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQU7

A3

VDDQ_1

A8

DQU1

C3

VDDQ_2

C1

VDDQ_3

C9

DQU0

D7

VDDQ_4

D2

DQU4

A7

VSSQ_3

D8

DQU3

C2

DQU2

C8

VSSQ_4

E2

DQU5

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQL6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQL7

H7

VDDQ_6

F1

DQL1

F7

VDDQ_7

H2

DQL0

E3

VDDQ_8

H9

DQL4

H3

VSSQ_8

G9

DQL3

F8

DQL2

F2

BA2

M3

DQL5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

NC

T3

NC_6

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

U402

NT5CB64M16DP-CF

R4130 0R05 1/16W

A_RVREF2

R4131 0R05 1/16W

1 2

3

4

8

7 6 5

RP4108 0OHM 1/16W

C4120 100N16V

R4108 1K 1/16W 1%

C4115 10N 50V

C4108 100N16V

C4132 100N16V

1 2

3

4

8

7 6 5

RP4109 0OHM 1/16W

R4125 330R 1/16W 1%

1 2

3

4

8

7 6 5

RP4101 0OHM 1/16W

R4110

240 OHM +-1% 1/16W

R4102 100R 1/16W 5%

C4116 100N16V

C4104 100N16V

R4120 0R05 1/16W

C4133 100N16V

R4123 0R05 1/16W

1 2

3

4

8

7 6 5

RP4107 0OHM 1/16W

R4101

0R05 1/16W

R4114

NC//1K 1/16W 1%

R4106 1K 1/16W 1%

C4113 100N16V

R4124

NC//1K 1/16W 1%

C4123 100N16V

C4119 100N16V

R4119 0R05 1/16W

1 2

3

4

8

7 6 5

RP4110 0OHM 1/16W

R4122 0R05 1/16W

C4124 100N16V

C4114

1UF16V

C4110 100N16V

R4111

1K 1/16W 1%

R4113 240 OHM +-1% 1/16W

C4121 100N16V

C4125 100N16V

R4107

1K 1/16W 1%

1 2

3

4

8

7 6 5

RP4106 0OHM 1/16W

C4131 100N16V

C4111 100N16V

R4112

1K 1/16W 1%

Circuit Diagrams and PWB Layouts

EN 72TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-8 B08 DDR3 × 1 & NAND Flash

19340_507_120717.eps

120815

DDR3 × 1 & NAND Flash

B08 B08

2012-02-17

A

715G5279

DDR3 × 1 & NAND Flash

R4207

4K7 1/16W 5%

NAND FLASH

VDD_0

B2

NC_0

J1

VSS_0

A9

VSSQ_0

B1

UDQS#

B7

VDDQ_0

A1

DQU6

B8

VSSQ_1

B9

UDM

D3

UDQS

C7

VSSQ_2

D1

DQU7

A3

VDDQ_1

A8

DQU1

C3

VDDQ_2

C1

VDDQ_3

C9

DQU0

D7

VDDQ_4

D2

DQU4

A7

VSSQ_3

D8

DQU3

C2

DQU2

C8

VSSQ_4

E2

DQU5

A2

VDD_1

D9

NC_1

J9

VSS_1

B3

VSSQ_5

E8

LDQS#

G3

VDDQ_5

E9

DQL6

G2

VSSQ_6

F9

LDM

E7

LDQS

F3

VSSQ_7

G1

DQL7

H7

VDDQ_6

F1

DQL1

F7

VDDQ_7

H2

DQL0

E3

VDDQ_8

H9

DQL4

H3

VSSQ_8

G9

DQL3

F8

DQL2

F2

BA2

M3

DQL5

H8

VDD_5

N1

VREFDQ

H1

VSS_2

E1

VSS_5

J8

CK

J7

VDD_2

G7

CKE

K9

WE#

L3

RAS#

J3

CK#

K7

ODT

K1

RESET#

T2

BA0

M2

BA1

N8

CAS#

K3

CS#

L2

A10/AP

L7

A1

P7

A2

P3

A0

N3

VDD_3K2VSS_3

G8

A3

N2

A5

P2

A6

R8

A4

P8

A7

R2

A9

R3

A11

R7

A8

T8

VSS_4

J2

VDD_4

K8

A12/BC#

N7

NC_3

L9

ZQ

L8

NC_2

L1

VREFCA

M8

NC_4

M7

NC

T3

NC_6

T7

VSS_6

M1

VSS_7

M9

VSS_8

P1

VSS_9

P9

VSS_10

T1

VSS_11

T9

VDD_6

N9

VDD_7

R1

VDD_8

R9

U404

NT5CB64M16DP-CF

+

C4208

NC/100UF 16V

R4210

240 OHM +-1% 1/16W

1 2

3

4

8

7 6 5

RP4205 0OHM 1/16W

1 2

3

4

8

7 6 5

RP4203 0OHM 1/16W

1 2

3

4

8

7 6 5

RP4202 0OHM 1/16W

1 2

3

4

8

7 6 5

RP4201 0OHM 1/16W

R4214 0R05 1/16W

R4211 0R05 1/16W

1 2

3

4

8

7 6 5

RP4204 0OHM 1/16W

B_RREST_MEM

R4216 0R05 1/16W

R4215 0R05 1/16W

RCKE_B

RA9_B

RBA1_B

RBA0_B

RWE#_B

3_CAS#

3_A8

RA7_B RA5_B

RA12_B

3_A1

3_BA1

3_BA2 3_A0

RA2_B

3_A13

RODT_B

3_A10

3_CKE

3_BA0

3_WE#

C4214 100N16V

RA6_B RA8_B

3_A9

3_A3

RRAS#_B

C4213

100N16V

3_A7

RA0_B RA13_B

3_A12

RA4_B

RCAS#_B

RA10_B

RBA2_B

RA11_B

3_A5

RCS#_B

R4201 1K 1/16W 1%

3_CS# 3_ODT

3_RAS#

RA1_B

RA3_B

3_RREST_MEM

3_A2

3_A6

3_A4

3_A11

Damping for DDR#3 ADDR/CMD

R4202 1K 1/16W 1%

R4208

1K 1/16W 1%

R4209

1K 1/16W 1%

C4201

100N16V

C4215 100N16V

RVREF

C3

BRCLK0

A8

BRCLK0#

B8

BRCKE

A7

BRODT

C1

BRRAS#

E8

BRCAS#

E7

BRCS#

C2

BRBA0

B1

BRBA1

A6

BRBA2

C7

BRWE#

D7

BRA13

C4

BRA12

A4

BRA11

B4

BRA10

B7

BRA9

A3

BRA8

D5

BRA7

B3

BRA6

C5

BRA5

B2

BRA4

B6

BRA3

A1

BRA2

A2

BRA1

C6

BRA0

D6

DVSS

G14

DVSS

H14

DVSS

F14

DVSS

F10

BRDQM0

C11

BRDQS0

B11

BRDQS0#

A11

BRDQ0

E11

BRDQ1

D11

BRDQ2

F13

BRDQ3

D10

BRDQ4

E13

BRDQ5

E9

BRDQ6

E12

BRDQ7

D9

BRDQM1

C12

BRDQS1

B10

BRDQS1#

A10

BRDQ8

C8

BRDQ9

B13

BRDQ10

D8

BRDQ11

A13

BRDQ12

C10

BRDQ13

C13

BRDQ14

C9

BRDQ15

D13

BRRESET

E6

VCC2IO

E5

VCC2IO

D4

VCC2IO

E10

DVSS

F9

DVSS

A14

DVSS

B14

DVSS

C14

DVSS

D14

DVSS

E14

MT5325HLHJU401-2

DV15_DDR

DV15_DDRDV15_DDR

C4204

100N16V

R4204

4K7 1/16W 5%

C4203

100N16V

C4205

1UF16V

DV33

DV33 DV33

PDD6

PACLE

DV33

PDD7 PDD5PARB#

PDD4

PAALE

2Gb Nand Flash

Flash_WP#

PDD3

POOE#

POWE#

PDD0

PDD2 PDD1

DV33

POCE1#

R4212

NC//1K 1/16W 1%

C4216 NC//100N16V

C4217 NC//100N16V

R4213

NC//1K 1/16W 1%

DV15_DDR

RVREF_B RVREF6

DV33

PARB#17

RVREF610

RVREF6

PDD617

PAALE17

PACLE17

POWE#17

POOE#17

PDD317

PDD517

PDD217

PDD417

PDD717

POCE1#17

PAALE

PARB#

PDD117

PDD2

PACLE

PDD017

PDD3

PDD7

PDD1 PDD0

PDD5 PDD4

POCE1#

POOE#

POWE#

Nand & SPI Flash Interface

PDD6

C4210 100N16V

C4221

1UF16V

C4219 100N16V

C4209 100N16V

C4211 100N16V

C4218 100N16V

C4212 100N16V

C4220 100N16V

C4207 100N16V

C4202 10uF 10V

C4206 100N16V

DV15_DDR

DRAM #3 DE-CAP.

NC24

39

NC1

1

NC2

2

NC3

3

NC4

4

NC5

5

NC27

46

ALE

17

CLE

16

WE

18

NC17

26

NC8

11

WP

19

RY/BY1

7

NC9

14

NC10

15

NC18

27

NC19

28

NC11

20

NC12

21

NC13

22

I/O3

32

NC20

33

VSS2

36

VCC1

12

RE

8

VCC2

37

I/O2

31

I/O1

30

I/O0

29

VSS1

13

NC26

45

I/O7

44

I/O6

43

I/O5

42

I/O4

41

NC25

40

NC14

23

NC1524NC16

25

CE1

9

NC21

34

NC22

35

NC28

47

NC23

38

NC6

6

NC7

10

NC29

48

U405

H27U2G8F2CTR-BC

R4220 0R05 1/16W

RDQ6_B

RDQ2_B

RDQ13_B

RDQ1_B

RDQ4_B

RDQ0_B

RDQ5_B

RDQ11_B

RDQ7_B

RDQ3_B

RDQ15_B

RDQ12_B

RDQ8_B

RDQM1_B

RDQS0#_B

RDQ9_B

RDQ14_B

RDQ10_B

3_WE#

RDQS1#_B

RDQS1_B RDQS0_B

RDQM0_B 3_BA1

3_CAS#

3_CS#

CLK0#_B_D

CLK0_B_D

3_RAS#

3_BA2

3_ODT

3_BA0

3_RREST_MEM

B_RVREF6

DDR3#3

B_RVREF5

3_CKE

A_ZQ3

3_A0

3_A3

3_A2

3_A1

3_A6

3_A5

3_A4

3_A13

3_A11

3_A10

3_A9

3_A8

3_A7

3_A12

RDQ1_B RDQ2_BRCKE_B

RCLK0#_B

RDQ3_B

RDQ7_B

RDQ6_B

RDQ5_B

RDQ0_B

RDQ4_B

RDQ9_B

RDQ13_B

RDQ8_B

RDQ12_B

RDQ15_B

RDQ11_B

RDQ10_B

RDQ14_B

RVREF_B RDQM0_B

RDQS0_B

RDQS1_B RDQS1#_B

RDQS0#_B

RDQM1_B

RCS#_B

RRAS#_B

RODT_B

B_RREST_MEM

RBA1_B

RCLK0_B

RBA2_B

RBA0_B

RWE#_B

RA2_B

RA9_B

RCAS#_B

RA10_B

RA3_B RA1_B

RA7_B

RA4_B

RA8_B

RA12_B

RA6_B

RA0_B

RA5_B

RA11_B

RA13_B

R4203

4K7 1/16W 5%

R4218 0R05 1/16W

R4219 0R05 1/16W

R4217 100R 1/16W 5%

RCLK0#_B

RCLK0_B CLK0_B_D

Damping and T ermination for CLK

CLK0#_B_D

Circuit Diagrams and PWB Layouts

EN 73TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-9 B09 Keypad, boot strap

19340_508_120717.eps

120815

Keypad, boot strap

B09 B09

2012-02-17

A

715G5279

Keypad/Boot strap

+5V_SW

C1603

NC/10N 50V

R1604 100R 1/10W 1%

R1605 100R 1/10W 1%

LED_R

R1609

100R 1/10W 5%

LED_R: Enable(Stand_By): High Disable: Low

1 2

3

4 5 6 7

8

9 10 11 12 13

CN401

CONN

R1608

15KOHM 1/10W

LED_G: Enable: High Disable(Stand_By): Low

To IR/Keyboard control panel

R1611

15KOHM 1/10W

SYS_SDA

For audio debug

R1607

1K 1/10W 5%

For Light _LOGO

R1616

NC/0R05 1/10W

1 2

3

CN405

NC/CONN

12

FB1601 600R/200mA

C1604

0.1uF 50V

DV33

R1628

NC/4K7 1/16W 5%

R1629

NC/4K7 1/16W 5%

C1602

2.2UF 16V

+5V_STB

Key2

DV33SB

LED_G

SYS_SCL

OPCTRL5 8

OPCTRL4 M_SPDIF_Out

OPCTRL4 8 M_SPDIF_Out 16,18,20

OPCTRL5

LED_R LED_G

Boot Strap

VCXO

LED_G8

LED_R8

SYS_SDA SYS_SCL

VCXO8

SYS_SCL16,17,19

Light_Sensor

RC6

KEY_2

SYS_SDA16,17,19

KEY_1

Light_Sensor 8

RC

KEY_2 8

KEY_1 8

RC6 17

ADC

KEY_2

KEY_1

Key2

Key1

To Keyboard control panel

DV33SB

Key2

R1613

NC/4.7 OHM +-5% 1/16W

R1610

NC/4.7 OHM +-5% 1/16W

Key1

SYS_SDA

SYS_SCL

RC6

R1612

100R 1/10W 5%

C1605

NC/1uF 16V

12

FB1602

NC/600R/200mA

C1606

NC/1uF 16V

TP4337

R1601

3.3K 1%

TP4338

R1602

3.3K 1%

C1601

0.1uF 50V

Key1

R1625

NC/0R05 1/10W

OPCTRL5

OPCTRL4

LED_G: For flash function when press remote control

DV33

M_SPDIF_Out

R1626

NC/10K 1/16W 5%

R1623

10K 1/16W 5%

+5V_STB

DV33SB

R1618 10K 1/16W 5%

R1621 10K 1/16W 5%

R1620

NC/10K 1/16W 5%

R1617

NC/10K 1/16W 5%

Light_Sensor

R1614

100R 1/10W 5%

C1608

NC/22U 10V

VCXO

R1627

NC/1K 1/10W 5%

R1622

NC/680OHM +-5% 1/10W

R1624

NC/1K 1/10W 5%

R1619

NC/47R 1/10W 5%

Q1601

NC/DTC114ES3

Circuit Diagrams and PWB Layouts

EN 74TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-10 B10 USB 2.0 & USB hub

19340_509_120718.eps

120815

USB 2.0 & USB hub

B10 B10

2012-02-17

A

715G5279

USB 2.0 & USB hub

R1737 NC/4K7 1/16W 5%

R1740 NC/100K 1/16W

1 2

ZD1705

MLVG0402

+

C1715

100UF 16V

1 2

ZD1706

MLVG0402

R1717

NC/15K 1/10W

R1719 47K 1/10W 5%

R1721 22KOHM 1/10W

R1722

NC/15K 1/10W

C1717

4P7 50V

C1716

4P7 50V

AV12

C1718

100N16V

USB2

TXN0_VB1

B22

TXP0_VB1

A22

TXN1_VB1

B23

TXP1_VB1

A23

TXN2_VB1

B24

TXP2_VB1

A24

TXN3_VB1

B25

TXP3_VB1

A25

TXNA_EPI

B21

TXPA_EPI

A21

TXNB_EPI

B26

TXPB_EPI

A26

LOCKN

D21

HTPDN

C21

REXT_VB1

F21

AVDD12_VB1A

F22

AVSS12_VB1A

F19

AVDD12_VB1B

G26

AVSS12_VB1B

G24

MT5325HLHJ

U401-4

USB_OVCUR3#

AV12

R1726

NC/0R05 1/16W

R1738

NC/100K 1/16W

1 2

t

TH1704

PTCR

USB_DP3

OUT

1

GND

2

OC

3

EN

4

IN

5

U1701

NC/G5250M1T1U

R1730 NC/0R05 1/10W

AVSS12_VB1B

USB_OVCUR4#

1 2

ZD1703

MLVG0402

+

C1728

100UF 16V

1 2

ZD1707

MLVG0402

1 2

ZD1708

MLVG0402

1 2

3

4

56

78

123 4

CN106

USB CONN

R1720

NC/15K 1/10W

R1723 47K 1/10W 5%

R1727 22KOHM 1/10W

R1728

NC/15K 1/10W

C1730

4P7 50V

C1729

4P7 50V

C1735

100N16V

USB3

USB_DP2

1 2

ZD1704

MLVG0402

R1725 12K 1/10W 1%

+

C1701

100UF 16V

1 2

3

4

56

78

123 4

CN103

USB CONN

3V3_P

USB_DM3

+5V_USB

USB_OVC_1

AVDD12_VB1A

C1734 100N16V

C1733 NC//100N16V

1 2

t

TH1703

PTCR

+5V_SW

C1739

NC/1UF16V

R1731 NC/0R05 1/10W

USB_OVCUR2#

U3V3A

R1704

NC/0R05 1/10W

R1701

NC/0R05 1/16W

C1712 1UF16V

GND

2

DM0

3

DP0

4

DM1

5

DP1

6

AVDD

7

GND

8

DM2

9

DP2

10

RREF

11

AVDD

12

GND13X114X215AVDD16DM317DP318AVDD19GND20DM421DP4

22

PSELF

37

AMBER2

36

GREEN2

35

DVDD

34

PWREN4#

29

OVCUR4#

28

TEST

27

RESET#

26

AVDD

1

V33

48

V5

47

AMBER146GREEN1

45

SEL27

44

PWREN1#43PWREN2#

41

OVCUR2#

40

PGANG

39

DVDD

38

GREEN3

32

OVCUR1#

42

PWREN3#

31

OVCUR3#

30

GREEN423AMBER4

24

AMBER3

33

SEL48

25

GL852G-MNG12

U411

USB_DP4

3V3_P

R1716 680R 1/10W 1%

3V3_P

R1702 10K 1/10W 5%

U3V3A

SOC_DP0

SOC_DM0

C1714

33P50V

USB_OVCUR4#

R1718

NC/1MOHM 1/16W +/-5%

C1711 0.1uF 50V

C1705 0.1uF 50V

R1705 100K 1/10W 5%

C1706 0.1uF 50V

USB_DM4

R1709 NC/15KOHM 1/10W

USB_DP2

R1706

NC/15K 1/10W

+

C1707

100UF 16V

USB_DM3

USB_PO

AVDD12_VB1A

R1703 22KOHM 1/10W

R1708 47K 1/10W 5%

USB_DP4

USB_DM4

USB_PO_OUT

R1707

NC/15K 1/10W

C1703

4P7 50V

C1704

4P7 50V

USB1

USB_DP4

USB_DM4

C1702

100N16V

R1712 10K 1/10W 5%

R1741

NC/0R05 1/16W

C1740

NC/1UF16V

R1732

0R05 1/10W

+5V_STB

AVDD12_VB1B

C1732 100N16V

C1731 NC//100N16V

USB_PWR_CTL8

USB_PWR_CTL

1 2

t

TH1702

PTCR

SOC_DM021

SOC_DM121

SOC_DP1

USB

SOC_DP021

SOC_DP0

SOC_DM1

OUT

5

GND

2

IN

4

EN1OC

3

U7212

NC/G5250K1T1U

SOC_DP121

SOC_DM0

USB_DM2

USB_OVC 8

USB_OVC

AVDD12_VB1B

+5V_USB

R1711 33K 1/10W 5%

C1741

NC/100N 16V

AVSS12_VB1A

USB_OVCUR2#

1 2

ZD1701

MLVG0402

1 2

FB1704

120R/6000mA

USB_Power

USB_DM2

C1713

33P50V

R1715 22KOHM 1/10W

C1609

2.2UF 16V

USB_DP3

1 2

t

TH1701

PTCR

1 2

3

4

56

78

123 4

CN104

USB CONN

R1739

NC/10K+-5%1/16W

USB_PWR_CTL

For bypass USB Hub (GL852)

USB_STANDBYPW

R1710 NC/15KOHM 1/10W

SOC_DP0

SOC_DM0

USB_OVCUR3#

1 2

X403

12MHZ

1 2

3

4

56

78

123 4

CN105

USB CONN

3V3_P

C1723

100N16V

C1724

100N16V

C1726

100N16V

C1725

100N16V

C1722

100N16V

C1720

100N16V

C1727

10uF 10V

USB_OVC_18

USB_OVC_1

C1721

100N16V

12

FB1701

120R/3000mA

12

FB1702

120R/3000mA

U3V3AAV33

3V3_P

C1719

1UF16V

USB_STANDBYPW8

USB_STANDBYPW

USB4

SOC_DM1 SOC_DP1

R1714

NC/15K 1/10W

C1710

4P7 50V

C1709

4P7 50V

R1713

NC/15K 1/10W

+5V_USB_OUT

C1708

100N16V

R1724 0R05 1/16W

USB_OVC

1 2

ZD1702

MLVG0402

Circuit Diagrams and PWB Layouts

EN 75TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-11 B11 YPbPr/CVBS/VGA in

19340_510_120718.eps

120815

YPbPr/CVBS/VGA in

B11 B11

2012-02-17

A

715G5279

YPbPr/CVBS/VGA in

1 2

ZD1806

MLVG0402

1 2

ZD1802

MLVG0402

C1823

15pF 50V

R1852

NC/0R05 OHM

Y_IN_1

1 2

ZD1805

MLVG0402

1 2

ZD1801

MLVG0402

SOC_VGA_SCL

GRN_GND

C1806

15pF 50V

AV1 Input

C1825

15pF 50V

CVBS-in

VGASCL_IN 19

VGASCL_IN

EDID_WEN

RED

1

2

4

5

3

CN112

PHONE JACK

+5V_STB

SOC_VGA_SDA

SOC_VGA_SCL

SOC_VGA_SCL 18 SOC_VGA_SDA 18

U0RX

U0TX

U0TX 17

SCL_VGA SDA_VGA

VGA_PL5V

SDA_VGA 16

SCL_VGA 16

VGA_PL5V 16

U0RX 17

VGA_AudioRIN

R1846

NC/1K 1/16W 5%

C1807

15pF 50V

R1853

NC/0R05 OHM

SOC_VGA_SDA

R1822

68R 1/16W 5%

Hi --> protect Lo --> written

C1832

10N 50V

C1827

10N 50V

CVBS_COM

CVBS_IN1 CVBS1_IN

R1814

100R 1/16W 5%

C1809

47N16V

C1811

1uF 10V

AV3_CVBS_IN SIDE_CVBS_IN

C1831

47N16V

R1861 100R 1/16W 5%

C1818 NC/5PF 50V

SIDE_R_IN

R1824 NC/1K5 1/16W 5%

C1821 NC/5PF 50V

R1829 0R05 1/16W

R1827 0R05 1/16W

R1820 NC/1K5 1/16W 5%

VSYNC#

HSYNC# HSYNC

VSYNC

C1830 47pF 50V

R1816 0R05 1/16W

VGASDA_IN

VGA_RX_TX_EN

R1854

NC/4K7 1/16W 5%

DV33SB

R1855

NC/4K7 1/16W 5%

U0RX#

U0TX#

R1830

68R 1/16W 5%

1 2

ZD1809

MLVG0402

DV33SB

R1833

68R 1/16W 5%

1 2

ZD1808

MLVG0402

SIDE_L_IN

C1828

10uF 10V

C1829

10uF 10V

R1858 30K 1/10W 5%

R1857 30K 1/10W 5%

DV33

R1801

0R05 1/16W

1 2

FB1802

80R

R1806

100R 1/16W 5%

R1811 18R 1/16W 5%

R1803 18R 1/16W 5%

R1804

56R 1/16W 1%

R1807 18R 1/16W 5%

R1810

56R 1/16W 1%

C1801

1.5nF 50V

C1808

10N 50V

1 2

FB1803

80R

PB_IN_1

C1805

10N 50V

C1804

10N 50V

Y_IN_1

PR_IN_1

R1805

0R05 1/16W

C1802

10N 50V

1 2

FB1804

80R

R1809

56R 1/16W 1%

YPBPR IN

COM1

PR1P

SOY1

Y1P

PB1P

CVBS_IN1

U0RX U0TX#

R1817 0R05 1/16W

YPbPr & R/L IN CONNECT

AV3_AudioLIN

AV3_AudioRIN

R1802

68R 1/16W 5%

AV3_CVBS_IN

R1863

NC/4K7 1/16W 5%

+5V_SW

BLU

1 2

ZD1813

MLVG0402

C1813 220N 10V

R1856

NC/47K 1/16W 5%

AV3_AudioLIN

1 2

ZD1812

MLVG0402

R1859

75R 1/16W 1%

VGASDA_IN

VGASDA_IN 19

1 2

ZD1811

MLVG0402

L_IN1

R1808

68R 1/16W 5%

PB_IN_1

1 2

ZD1803

MLVG0402

1

2

3

CN102

PHONEJACK

1 2

ZD1804

MLVG0402

AV3_AudioRIN

R1812

68R 1/16W 5%

R1843 30K 1/10W 5%

RED_GND

R1845 30K 1/10W 5%

1

3

2

Q1803

NC/BC847C

1 2

ZD1817

MLVG0402

R_IN1

CVBS IN(AV2)

C1803

15pF 50V

1 2

ZD1810

MLVG0402

PR_IN_1

1

3

2

Q1802

BC847C

SIDE_L_IN 18

SIDE_R_IN

SIDE_L_IN

SIDE_CVBS_IN 18

SIDE_R_IN 18

SIDE_CVBS_IN

SIDE CVBS IN

R1862

NC/4K7 1/16W 5%

1 2

ZD1819

MLVG0402

R1831

47K

R1860 0R05 1/16W

I/O1

1

GND

2

I/O23I/O3

4

VDD

5

I/O4

6

U1802

NC/AZC099-04S.R7G

R1850 0R05 1/16W

VGA_PL5V

U0RX#

V_PLUGPWR

C1810 1UF16V

VGA_RX_TX_EN_OVGA_RX_TX_EN_O

U0RX

VGA_RX_TX_EN_O

Q1801

2N7002

U0TX

Q1804

2N7002

R1841

NC/100OHM1/16W

R1842

NC/100OHM1/16W

1 2

ZD1816

MLVG0402

For Alightment

+5V_STB

R1840 10K 1/16W 5%

R1836

NC/1K1/16W

C1819

15pF 50V

R1835 1K 1/16W 5%

R1838 1K 1/16W 5%

U0TX#

VGA_PLUGPWR

R1815 10R 1/16W 5%

DV33SB

BLU

RED GRN

A

1

K

2

D1804 BAS316

A1K

2

D1805 BAS316

R1825 0R05 1/10W

VGASDA_IN

1

2

4

5

3

CN111

PHONE JACK

BLU_GND

R1823

0R05 1/16W

HSYNC#

VGASCL_IN

VSYNC#

PC & R/L INPUT

R1813 10K 1/16W 5%

1 2

ZD1818

MLVG0402

R1851 0R05 1/16W

VGA_AudioRIN

VGA_AudioLIN

1 2

FB1807

80R

C1816

1.5nF 50V

RED

BLU

1 2

FB1801

600R/200mA

R1828

100R 1/16W 5%

C1817

10N 50V

C1822

10N 50V

C1812

10uF 10V

R1847

75R 1/16W 1%

GRN

1 2

FB1808

600R/200mA

C1824

10N 50V

1 2

FB1805

80R

R1821

0R05 1/16W

1 2

FB1806

80R

1 2

ZD1820

MLVG0402

C1826

10uF 10V

C1820

10N 50V

U0RX#

R1834

75R 1/16W 1%

R1826

0R05 1/16W

VGA IN

VGA Audio

R1848

75R 1/16W 1%

VGA_SCL

R1832 100R 1/16W 5%

SCL_VGA

VGA_PLUGPWR

R1839 100R 1/16W 5%

VGA_SCL

VGA_PLUGPWR

VGA_SDA

VGA_PLUGPWR

2 1 4

3

A

B

CN113

RCA JACK

VGASCL_IN

R1844

NC/10K 1/16W 5%

SDA_VGA

A0

1

A1

2

A2

3

GND4SDA

5

SCL

6

WP

7

VCC

8

U1801

NC/CAT24C02YI-GT3

VGA_SDA

CVBS_COM 18

VGA_L_IN VGA_R_IN

CVBS_COM

HSYNC 18

BP 18

GP 18

1 2

ZD1814

MLVG0402

SOG 18

COM 18

GP

RP

VGA

COM

VSYNC

SOG

BP

VSYNC 18

CVBS_L_IN CVBS_R_IN

HSYNC

CVBS_L_IN 18 CVBS_R_IN 18

RP 18

COM1

COM1 18 PB1P 18

PR1P SOY1

YPbPr

SOY1 18

PB1P Y1P

PR1P 18 Y1P 18

CVBS1_IN

VGA_R_IN 18

VGA_L_IN 18

CVBS1_IN 18

1 2

ZD1807

MLVG0402

1 6 2 7

3 8

4 9 5

11 12 13 14 15

10

1716

CN101

D-SUB 15P

CVBS

VGA_RX_TX_EN8

VGA_RX_TX_EN

EDID_WEN

EDID_WEN8

GRN

L_IN1

R_IN1

R1837

47K

CVBS_R_IN

CVBS_L_IN

VGA_AudioLIN

C1814

10uF 10V

C1815

10uF 10V

R1818 30K 1/10W 5%

CVBS & YPbPR AUDIO

R1819 30K 1/10W 5%

RP

COM

GP

BP

VGA_R_IN

SOG

VGA_L_IN

1 2

ZD1815

MLVG0402

Circuit Diagrams and PWB Layouts

EN 76TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-12 B12 HDMI 1, 2, 3 & 4

19340_511_120723.eps

120815

HDMI 1, 2, 3 & 4

B12 B12

2012-02-17

A

715G5279

HDMI 1, 2 3 & 4

CEC_4 16

RX3_C+ 16

CEC_4

HPD1 16

R5130

47K

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CN503

HDMI

RX3_C- 16

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CN504

HDMI

R5131

47K

HDMI1_SDA 16

R5134

NC/470K 1/16W 5%

RX3_0+ 16

HDMI1_SCL 16

R5132

47K

CEC_1

CEC_1 16

RX3_0- 16

R5133

47K

RX2_C+ 16

RX4_0- 16

RX4_0+ 16

RX4_C- 16

RX4_C+ 16

RX4_1- 16

HDMI4_SDA

HPD4

PWR5V_4

RX4_2-

RX4_2+

HDMI4_SCL

RX4_C-

RX4_C+

RX4_1+ 16

RX4_0-

RX4_0+ RX4_1+

RX4_1-

HPD4 16

RX4_2- 16

RX4_2+ 16

HDMI4_SCL 16

PWR5V_4 16 HDMI4_SDA 16

RX3_1- 16

RX2_C- 16

HDMI3_SDA

HPD3

PWR5V_3

RX3_1RX3_2-

RX3_2+

HDMI3_SCL

RX3_C-

RX3_C+

RX3_0-

RX3_0+ RX3_1+

R5127

NC/470K 1/16W 5%

RX3_1+ 16

CEC_2

CEC_2 16

RX2_0+ 16

RX3_2+ 16

HDMI2_SCL

HDMI INPUT

RX2_1+ 16

R5108 100R 1/16W 5%

C5111 1UF16V

RX1_C+ 16

R5121

100R 1/16W 5%

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CN501

HDMI

ARC_HDMI

1 2

FB5115

600R/500mA

HDMI 1.4

PWR5V1

SDA_1

SCL_1

PWR5V_1

RX3_2- 16

RX1_1+

RX1_2-

RX1_2+

RX1_C-

RX1_C+

RX1_0-

RX1_0+

RX1_1-

CEC_1

1 2

ZD5115

VPORT0603100KV05

PWR5V1

R5236

47K

HDMI 4 INPUT

PWR5V_4

C5227 1UF16V

PWR5V4

1 2

ZD5116

VPORT0603100KV05

R5229 100R 1/16W 5%

CEC_3

HDMI1_SCL

HPD1

R5230

100R 1/16W 5%

CEC_3 16

SCL_4

HDMI 1 INPUT

RX4_2-

RX4_2+

SDA_4

HDMI1_SDA

CEC_4

RX4_C-

RX4_C+

RX4_0-

RX4_0+

RX4_1-

HPD4

RX4_1+

HDMI4_SDA

HDMI4_SCL

1 2

ZD5202

VPORT0603100KV05

RX2_0- 16

1 2

ZD5203

VPORT0603100KV05

PWR5V4

R5231

NC/470K 1/16W 5%

1 2

FB5206

600R/500mA

R5237

47K

RX1_C- 16

R5128

47K

HPD3 16

RX2_1- 16

RX1_0+ 16

RX1_C+

HDMI1_SCL

HDMI1_SDA

HPD1

PWR5V_1

RX1_2+

RX1_1-

RX1_1+

RX1_0-

RX1_0+

RX1_C-

RX1_2-

HDMI3_SDA 16

RX2_2+ 16

RX1_0- 16

PWR5V_3 16

RX2_2- 16

RX1_1+ 16

R5135

NC/470K 1/16W 5%

HDMI3_SCL 16

R5129

47K

PWR5V_2 16

RX1_1- 16

R5155 100R 1/16W 5%

C5130 1UF16V

R5164

100R 1/16W 5%

HPD2 16

PWR5V_3

PWR5V2

PWR5V3

C5133 1UF16V

R5172 100R 1/16W 5%

R5173

100R 1/16W 5%

SDA_2

SCL_2

RX2_C+

RX2_1+

RX2_2-

RX1_2+ 16

SDA_3

SCL_3

RX2_0-

RX2_0+

RX2_1-

RX2_2+

RX2_C-

RX3_0-

RX3_0+

RX3_1-

RX3_2-

RX3_2+

CEC_2

CEC_3

RX3_C-

RX3_C+

HPD2

HDMI 3 INPUT

HDMI 2 INPUT

HDMI3_SCL

HPD3

HDMI2_SDA

1 2

ZD5118

VPORT0603100KV05

HDMI3_SDA

1 2

ZD5121

VPORT0603100KV05

RX3_1+

1 2

ZD5122

VPORT0603100KV05

PWR5V_2

1 2

FB5116

600R/500mA

1 2

ZD5120

VPORT0603100KV05

PWR5V3

1 2

FB5117

600R/500mA

PWR5V2

ARC_HDMI 16

ARC_HDMI

SHLD0

20

SHLD1

21

TMDSD2+

1

DSHLD0

2

TMDSD2-

3

TMDSD1+

4

DSHLD1

5

TMDSD1-

6

TMDSD0+

7

DSHLD2

8

TMDSD0-

9

TMDSC+

10

CSHLD0

11

TMDSC-

12

CEC

13

NC

14

SCL

15

SDA

16

DDC_GND

17

VCC5

18

HPD

19

SHLD2

22

SHLD3

23

CN502

HDMI

HDMI2_SDA 16

PWR5V_2

RX2_C+

RX2_1+

RX2_2-

RX2_2+

RX2_0-

HDMI2_SCL

HDMI2_SDA

RX2_0+

RX2_C-

RX2_1-

HPD2

RX1_2- 16

HDMI2_SCL 16

PWR5V_1 16

Circuit Diagrams and PWB Layouts

EN 77TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-13 B13 HDMI Switch

19340_512_120723.eps

120815

HDMI Switch

B13 B13

2012-02-17

A

715G5279

HDMI Switch

R5216

NC/10K 1/16W 5%

INT_HDMI

CEC_415

CEC_4

SYS_SCL12,17,19

SYS_SDA12,17,19

SYS_SCL

SYS_SDA

HDMI INPUT

ARC_SW8

ARC_SW

M_RX2_C

M_RX2_2B

M_RX2_1 M_RX2_1B

M_RX2_0

M_RX2_2

M_RX2_0B

PWR5V_2

SBVCC5

M_RX2_CB

SCL_VGA

1

3

2

D5201

BAT54C

C5228

10PF 50V

RXA_C+

14

RXA_C-

13

RXA_D0+

17

RXA_D0-

16

RXA_D1+

20

RXA_D1-

19

RXA_D2+

23

RXA_D2-

22

RXA_5V

10

RXA_HPD

9

RXA_DDC_DAT

11

RXA_DDC_CLK

12

RXB_5V

29

RXB_DDC_DAT

30

RXB_DDC_CLK

31

RXC_5V

59

OUT_C+

2

OUT_C-

3

OUT_D0+

99

OUT_D0-

100

OUT_D1+

96

OUT_D1-

97

OUT_D2+

93

OUT_D2-

94

I2C_SDA|SEL1

49

I2C_SCL|SEL0

50

MODE

47

PD

48

INT_MUTE

53

CEC

57

RXE_DDC_CLK

51

RXE_DDC_DAT

52

OUT_DDC_CLK

5

OUT_DDC_DAT

6

VDDC1V8_1

8

VDDH3V3_1

15

RXC_DDC_DAT

60

RXC_DDC_CLK

61

VDDH3V3_2

21

VDDO3V3

4

VDDH3V3_334VDDH3V3_4

40

VDDC1V8_245VDDH1V8_1

24

VDDC3V3_1

46

VDDSTB3V3_1

55

VDDH3V3_564VDDH3V3_670VDDH3V3_7

82

VDDH1V8_2

75

VDDH3V3_8

88

VDDC1V8_3

91

VDDO1V8

95

VSS_11VSS_27VSS_318VSS_426VSS_537VSS_643VSS_756VSS_867VSS_973VSS_1085VSS_1192VSS_12

98

RXB_C+

33

RXB_C-

32

RXB_D0+

36

RXB_D0-

35

RXB_D1+

39

RXB_D1-

38

RXB_D2+

42

RXB_D2-

41

RXC_C+

63

RXC_C-

62

RXC_D0+

66

RXC_D0-

65

RXC_D1+

69

RXC_D1-

68

RXC_D2+

72

RXC_D2-

71

TEST

27

CDEC_DDC

44

RXC_HPD

58

RXB_HPD

28

CDEC_STBY

54

R12K

74

RXD_C+

81

RXD_C-

80

RXD_D0+

84

RXD_D0-

83

RXD_D1+

87

RXD_D1-

86

RXD_D2+

90

RXD_D2-

89

RXD_5V

77

RXD_HPD

76

RXD_DDC_DAT

78

RXD_DDC_CLK

79

AUX_5V

25

SWITCH

HDMI

U501

TDA19998HL

SDA_VGA

RX2_0-

RX2_1-

RX2_C+

RX2_1+

RX2_2-

RX2_2+

CSCL

CSDA

RX2_0+

RX2_C-

HDMI2_SCL

HDMI2_SDA

VGASCL_DDC

R5201 4K7 1/16W 5%

R5207

0R 1/16W 1%

R5202

0R05 1/16W

VGA_PL5V

C5201 100N 16V

R5203 0R05 1/16W

C5202 100N 16V

VGASDA_DDC

PD

R5204 0R05 1/16W

R5208

0R 1/16W 1%

DV33_HDMI

HPD2

SYS_SCL

HDMI_SCL

HDMI_SDA

R5205 0R05 1/16W

DV18_HDMI

HDMI_CEC

RX4_C+

HDMI4_SCL

HDMI4_SDA

HPD4

PWR5V_4

RX4_1-

RX4_1+

RX4_0-

RX4_0+

RX4_C-

DV33_HDMI

RX4_2-

RX4_2+

EDID_WEN8,14

EDID_WEN

RX4_C+15

RX4_0-15

RX4_0+15

RX4_C-15

RX4_1-15

RX4_C+

HDMI4_SDA

HPD4

PWR5V_4

RX4_1RX4_2-

RX4_2+

HDMI4_SCL

RX4_C-

C5230

10PF 50V

RX4_2+15

RX4_1+15

RX4_0-

RX4_0+ RX4_1+

HDMI4_SDA15

HPD415

RX4_2-15

HDMI4_SCL15

PWR5V_415

R5206

12K 1% 1/16W

RX1_C+

HDMI1_SCL

HDMI1_SDA

HPD1

PWR5V_1

RX1_1-

RX1_1+

RX1_0-

RX1_0+

RX1_C-

RX1_2-

RX1_2+

Q5201 NC/2N7002

CSDA

R5218 0R05 1/16W

1 2

ZD5205

VPORT0603100KV05

DV33_HDMI

HDMI_SW_I2C

R5219

NC/4K7 1/16W 5%

SYS_SDA

DV33_HDMI

VGA_PL5V14

VGA_PL5V

SDA_VGA14

SCL_VGA14

SCL_VGA SDA_VGA

M_SPDIF_Out

R5212

0R05 1/16W

R5213

180ohm 1/16W +/-5%

M_SPDIF_Out 12,18,20

INT_HDMI 8

INT_HDMI M_SPDIF_Out

C5205

1UF16V

ARC_SW

R5214

82R 1%

ARC (Audio Return Channel)

ARC_HDMI

C5206 100N 16V

R5215

100K 1/16W 5%

R5217

NC/10K 1/16W 5%

OE

1

A

2

GND3Y

4

VCC

5

U5201

74LVC1G125GV

AV33

12

ZD5201

VPORT0603100KV05

R5209 0R05 1/10W

C5229 100N16V

C5203 100N16V

RX_0

AL10

RX_0B

AM10

RX_1

AL11

RX_1B

AM11

RX_2

AL12

RX_2B

AM12

RX_C

AL9

RX_CB

AM9

HDMI_CEC

AJ10

HDMI_HPD

AK10

HDMI_SCL

AJ9

HDMI_SDA

AK9

PWR5V

AG10

AVDD12_HDMI

AK11

AVDD33_HDMI

AG8

AVSS33_HDMI

AC13

MT5325HLHJU401-7

AV33

R5210 0R05 1/10W

AV12

M_RX2_2

HDMI_SW_I2C

HDMI_CEC

AVDD3V3_HDMI

AVDD1V25_HDMI

M_RX2_2B

M_RX2_0

AVDD1V25_HDMI

M_RX2_1B

M_RX2_CB

M_RX2_0B M_RX2_1

HDMI_SDA

HDMI_SCL

M_RX2_C

RX3_C+15

HDMI1_SDA15

RX3_C-15

HPD115

HDMI1_SCL15

RX3_0+15

CEC_1

RX3_1-15

RX2_C+15

RX3_0-15

CEC_115

RX2_C-15

RX3_C+

HDMI3_SDA

HPD3

PWR5V_3

RX3_1RX3_2-

RX3_2+

HDMI3_SCL

RX3_C-

RX3_1+15

CEC_2

RX3_0-

RX3_0+ RX3_1+

RX2_1+15

RX3_2+15

RX2_0+15

CEC_215 CEC_315

RX3_2-15

RX1_C+15

CEC_3

RX2_1-15

HPD315

RX1_C-15

RX2_0-15

RX1_0+15

HDMI1_SDA

HPD1

PWR5V_1

RX1_1+

RX1_0-

RX1_0+

RX1_C-

RX1_C+

HDMI1_SCL

RX2_2+15

HDMI3_SDA15

RX1_2-

RX1_2+

RX1_1-

RX1_1+15

RX2_2-15

PWR5V_315

RX1_0-15

HPD215

RX1_1-15

PWR5V_215

HDMI3_SCL15

HDMI2_SDA15

ARC_HDMI15

RX1_2+15

ARC_HDMI

RX2_1+

RX2_2-

RX2_2+

RX2_0-

PWR5V_2

HDMI2_SDA

RX2_0+

RX2_C-

RX2_1-

RX2_C+

PWR5V_115

HDMI2_SCL15

RX1_2-15

HPD2

HDMI2_SCL

HDMI_SDA

HDMI_SCL

R5222

4K7 1/16W 5%

DV33

R5211

4K7 1/16W 5%

R5226

0R05 1/16W

DV33

C5207

10uF 10V

HPD3

PWR5V_3

1 2

FB5201

120R/3000mA

RX3_2+

HDMI3_SCL

RX3_C-

RX3_C+

HDMI3_SDA

RX3_0-

RX3_0+

RX3_1+ RX3_1-

RX3_2-

C5208

100N 16V

C5210

100N 16V

C5209

100N 16V

C5211

220pF 50V

C5212

100N 16V

C5214

100N 16V

C5213

100N 16V

C5215 560PF

DV33_HDMI

C5216

100N 16V

C5217 100N16V

C5221 1uF 10V

12

FB5203 120R/3000mA

STB_PWR5V

SBVCC5

DV18_HDMI

C5218

100N 16V

1 2

FB5204

120R/3000mA

C5220

100N 16V

C5219

100N 16V

C5223

100N 16V

C5222

10uF 10V

C5224 560PF

C5225

100N 16V

DV18

C5226

10uF 10V

DV33SB

R5220

0R05 1/16W

CEC_2

R5221 27K 1/10W 5%

CEC_1

R5223

0R05 1/16W

R5224

0R05 1/16W

HDMI_CEC

CEC_4

CEC_3

R5225

0R05 1/16W

12

D5202

RB751V-40

Circuit Diagrams and PWB Layouts

EN 78TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-14 B14 MT5325, JTAG & UART

19340_513_120723.eps

120815

MT5325, JTAG & UART

B14 B14

2012-02-17

A

715G5279

MT5325, JTAG & UART

C1922 100N16V

C1911

4.7UF 10V

+5V_STB

ORESET#

R1917

NC/1K8 1/10W 1%

DV33SB

R1918 100K 1/16W 5%

Reset IC Detect DV33SB

2.93V Active

R1902

4K7 1/16W 5%

R1901

4K7 1/16W 5%

R1903

4K7 1/16W 5%

C1902

1UF16V

1 2 ZD1904

MLVG0402

SYSTEM EEPROM

STBC RESET KEY

ORESET#

SYS_EEPROM_WP

D1901 NC/LS4148

C1923 NC/10uF 16V

R1932 NC/10K 1/16W 5%

DV33

DV33SB

SYS_SDA

PACLE

PAR B #

PDD0

PDD1

PDD2

PDD3

R1910

100R 1/16W 5%

OXTALO

OXTALI

R1933

1.3K 1%

R1916 0R05 1/10W

1 2 ZD1905

MLVG0402

POCE0#

AL1

POOE#

AK3

PAR B #

AM1

PAALE

AK1

POCE1#

AM5

PACLE

AK2

POWE#

AJ4

PDD0

AL2

PDD1

AM2

PDD2

AL3

PDD3

AM3

PDD4

AK4

PDD5

AJ5

PDD6

AK5

PDD7

AL5

JTDO

AH1

JTMS

AH3

JTCK

AH2

JTDI

AH4

JTRST#

AJ3

OSCL0

AA30

OSDA0

AA29

OSDA1

AB29

OSCL1

AB30

XTALO

AL26

XTALI

AM26

U0RX

AJ13

U0TX

AH14

U1RX

AC31

U1TX

AC30

ORESET#

AH13

OPWRSB

AF13

OIRI

AG13

FSRC_WR

F29

AVDD12_PLL

AG19

AVSS12_PLL

AC20

AVDD33_XTAL_STB

AK26

AVSS33_XTAL

AG23

AVDD10_LDO

AH16

AVDD33_VGA_STB

AK16

AVSS33_VGA_STB

AC15

VCC3IO

M22

VCC3IO

AE9

VCC3IO

AE10

VCC3IO

L22

VCC3IO

L23

VCC3IO

M23

VCC3IO

N23

VCCK

AG1

VCCK

AG2

VCCK

AG3

VCCK

AG4

VCCK

AG5

VCCK

V12

VCCK

Y20

VCCK

T21

VCCK

U22

VCCK

Y21

VCCK

AB19

VCCK

P12

VCCK

M12

VCCK

N21

VCCK

AB15

VCCK

N11

VCCK

P21

VCCK

P11

VCCK

L16

VCCK

M14

VCCK

L12

VCCK

L14

VCCK

AB17

VCCK

AB18

VCCK

Y11

VCCK

AA19

VCCK

V11

VCCK

AB13

VCCK

AA12

VCCK

AA11

VCCK

N12

VCCK

AA15

VCC3IO

AF10

VCC3IO

AF9

VCCK

Y12

VCCK

T11

VCCK

AA17

VCCK

T20

MT5325HLHJU401-8

U1RX

DV33

U1RX U1TX

R1928

NC/4K7 1/16W 5%

R1943

10K 1/16W 5%

R1929

NC/4K7 1/16W 5%

JTMS

JTDO

3.3V I/O Power

SDA1 9

SYS_SDA 12,16,19

C1912

4.7UF 10V

I2C

SYS_SCL 12,16,19

SYS_SCL

SYS_SDA

U0TX

SCL1 9

DV33

SDA1 SCL1

C1915 100N16V

RC612

SYS_EEPROM_WP8

RC6

SYS_EEPROM_WP

C1914 100N16V

POWER OK

POWER_ON 4

POWER_ON

C1913 100N16V

U0RX 14

U0TX 14

U0RX

R1915

NC/820R 1/10W 1%

+5V_STB

C1908 100N16V

12

ZD1901 MLVG0402

C1910 100N16V

DV11

C1906 100N16V

C1904 100N16V

POWE#

C1903

4.7UF 10V

C1909 100N16V

R1914 4K7 1/16W 5%

C1907 100N16V

C1918 NC/1N 50V

L1901

NC/0U82

OXTALI OXTALO

C1917 27P50V

AVDD33_XTAL_STB

PAALE

U0TX

C1905 100N16V

DV11

R1931

NC/4K7 1/16W 5%

U1TX

R1934

0R05 1/16W

U0RX

Core Power

R1942

NC/100R 1/16W 5%

12

ZD1902 MLVG0402

AVDD12_PLL

R1926 100R 1/16W 5%

C1916 33P50V

POWER_ON

1 2 ZD1906

MLVG0402

C1919

10uF 6.3V

PDD6 11

PDD3 PDD2 PDD1 PDD0 PAR B # PACLE

POCE1#

POOE#

PAALE

POWE#

PDD5 11

PDD7 PDD6 PDD5 PDD4

Nand & SPI Flash INTERFACE

POOE# 11

POWE# 11

PDD4 11

POCE1# 11

PDD3 11

R1927 100R 1/16W 5%

PACLE 11

PAR B # 11

PDD2 11

PDD7 11

PAALE 11

PDD1 11 PDD0 11

R1925 4K7 1/16W 5%

R1924

4K7 1/16W 5%

DV33SB

FOR CODE DOWNLOAD, DEBUGGING, FACTORY USE

U0TX U0RX

AVDD33_REG_STB

Q1903 2N7002

JTAG Port

DV33

U1RX

SYS_SCL

1 2

3

CN403

CONN

ORESET#

SCL1

SDA1

POOE#

1

3

2

Q1901

BC847C

AVDD10_LDO

DV33SB

R1938 100R 1/16W 5%

SYS_SDA

1

24

3

X401

27MHz

RC6

123Q1902

PMBS3906

R1939 100R 1/16W 5%

U1TX

U1RX 9

U1TX

U1TX 9

U1RX

JTRST#

RC6

DV33SB

POCE1#

R1940 NC/0R05 1/16W

+5V_STB

SCL1

SDA1

DV33

R1923

4K7 1/16W 5%

R1922

4K7 1/16W 5%

SYS_SCL

R1941 NC/0R05 1/16W

FSRC_WR

GND

1

RESET

2

VCC

3

U410 MAX809STRG

12

t

TH1901 PTCR

+

C1901

NC/100UF 16V

C1924

100N16V

R1936 10K 1/16W 5%

R1935 10K 1/16W 5%

R1937

100R 1/16W 5%

RC_IR_OUT

PORT for iTV Level 1

U0TX

U0RX

1 2 ZD1903

MLVG0402

JTCK

PDD4

PDD5

PDD6

PDD7

R1930 10K 1/16W 5%

JTAG_DBGACK

JTDO

JTAG_DBGRQ

JTMS

TVTREF#1

1 2

3

4 5

CN408

CONN

JTDI JTCK

JTRST#

R1909

1K 1/16W 5%

R1905

10K 1/16W 5%

R1908

10K 1/16W 5%

R1911

33R 1/16W 5%

R1906

10K 1/16W 5%

R1904

10K 1/16W 5%

R1907

10K 1/16W 5%

E0

1

E1

2

E2

3

VSS

4

SDA

5

SCL

6

WC

7

VCC

8

U409

M24128-BRMN6TP

R1913 10K 1/16W 5%

R1912

10K 1/16W 5%

DV33

1

3

5 7

9 11 13 15 17 19

2 4 6

8

10 12 14 16 18 20

2122

CN402 NC/60947 20P 1.25MM

DV33 DV33DV33

AVDD12_PLL

Analog Power

DV33SB

AVDD33_REG_STBAVDD33_XTAL_STB

R1920

0R05 1/10W

C1921 100N16V

C1920

100N16V

AV12DV33SB

R1919

0R05 1/10W

R1921

0R05 1/10W

JTDI

Circuit Diagrams and PWB Layouts

EN 79TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-15 B15 MT5325 peripheral

19340_514_120723.eps

120815

MT5325 peripheral

B15 B15

2012-02-17

A

715G5279

MT5325 peripheral

R4327 NC/47K 1/16W 5%

RF_AGC

R4324 NC/4K3 1/16W 5%

C4321

47N16V

R4323 10K 1/16W 5%

R4325 0R05 1/16W

+5V_SW

R4326 NC/10K 1/16W 5%

Q4301

NC/PMBS3904

RF_AGC_T

R4322 NC/1K 1/16W 5%

C4316

22pF 50V

+

C4313

220UF 16V

I2C

SIDE_L_IN

SIDE_L_IN14

SIDE_R_IN14

SIDE_R_IN

C4310 100N16V

AVDD12_RGB

R4311

0R05 1/10W

AV12

C4312 100N16V

R4313

0R05 1/10W

AV12

AVDD12_DBMOD

AV33

AVDD33_CVBS

C4308 100N16V

R4309

0R05 1/10W

R4312

0R05 1/10W

R4308

0R05 1/10W

C4311 100N16V

R4310

0R05 1/10W

AVDD3V3_DEMOD

AVDD33_IFPGA

AVDD3V3_VDAC

C4309 100N16V

C4307 100N16V

AV33

TP4306

AOSDATA 2

TP4308

AOSDATA 3

TP4311

AV33

AOSDATA 4

AR3_OUT

SIDE_CVBS_IN

TU_OSCL TU_OSDA

R4315

4K7 1/16W 5%

DV33

R4316 4K7 1/16W 5%

AL3_OUT

HP_Out_L 20

HP_Out_R 20

HP_Out_L

Headphone Output

Moniter_Out20

HP_Out_R

VSYNC14

HSYNC14

CVBS_R_IN

GP14

CVBS_COM14

RP14

VGA_R_IN

CVBS1_IN14

CVBS_R_IN14

VGA_L_IN

IF Differentail

COM14

BP14

CVBS_L_IN

PR1P14

PB1P14

COM114

Y1P14

CVBS_L_IN14

SOG14

FAT_5325IN+

FAT_5325IN+6

FAT_5325IN-6

FAT_5325IN-

VGA_R_IN14

SOY114

SOG

SOY1

M_SPDIF_Out

VGA_L_IN14

VSYNC

CVBS1_IN CVBS_COM

Audio Input

M_SPDIF_Out 12,16,20

HSYNC

COM

BP

GP

PB1P

RP

COM1

I2S

Video Input

PR1P

Y1P

XTI I2SDAT A

BICKI LRCKI

Moniter_Out

Video Output

BICKI 19

RF_AGC

I2SDAT A 19

XTI 19

LRCKI 19

IF_AGC_S2T

SPDIF OUT

AGC

IF_AGC_S2T 6

RF_AGC 6

C4305 1uF 10V

C4320

47N16V

R4321

10K 1/16W 5%

IF_AGC IF_AGC_S2T

R4304 22R 1/16W 5%

TP4321

1 2

3

45

CN606

NC/CONN

For iTV Audio Output

R4307 22R 1/16W 5%

C4322 NC/10uF 6.3V

AR3_OUT AL3_OUT

C4323 NC/10uF 6.3V

TU_OSDA 6,7

TU_OSCL 6,7

TU_OSCL TU_OSDA

TP4313

AOSDATA 1

AOLRCK

AVDD33_DAC

AVDD33_AADC

LRCKI

CVBS_R_IN CVBS_L_IN

C4304 1uF 10V

AVDD33_DAC1

HP_Out_R HP_Out_L

TP4302

TP4301

M_SPDIF_Out

BICKIAOBCK

AIN0_R_AADC

AM32

AIN0_L_AADC

AM30

AIN1_R_AADC

AK29

AIN1_L_AADC

AK27

AIN2_R_AADC

AL32

AIN2_L_AADC

AL30

AIN3_R_AADC

AK28

AIN3_L_AADC

AL27

AIN4_R_AADC

AJ27

AIN4_L_AADC

AM27

AIN5_R_AADC

AL31

AIN5_L_AADC

AL29

AIN6_R_AADC

AM31

AIN6_L_AADC

AM29

AOMCLK

Y32

AOLRCK

Y30

AOBCK

Y31

AOSDATA 0

V27

AOSDATA 1

V28

AOSDATA 2

Y29

AOSDATA 3

Y28

AOSDATA 4

Y27

AR0_ADAC

AJ32

AL0_ADAC

AJ31

AR1_ADAC

AG31

AL1_ADAC

AG32

AR2_ADAC

AG29

AL2_ADAC

AG30

AR3_ADAC

AJ30

AL3_ADAC

AH30

ALIN

V26

ASPDIF

AA31

VMID_AADC

AH26

AVDD33_AADC

AJ29

AVSS33_AADC

AB22

AVDD33_DAC

AJ28

AVSS33_DAC

AA22

AVDD33_DAC1

AF30

AVSS33_DAC1

Y22

MPXP

AF20

MPXN

AG20

MT5325HLHJU401-5

I2SDATA

R4305 22R 1/16W 5%

TP4303

AOMCLK XTI

TP4304

AOSDATA 0

C4317

22pF 50V

SIDE_CVBS_IN14

C4319

22pF 50V

SOC_VGA_SDA

SOC_VGA_SCL

SOC_VGA_SCL 14 SOC_VGA_SDA 14

SIDE CVBS IN

FAT_5325IN+ FAT_5325IN-

SIDE_CVBS_IN

R4303 22R 1/16W 5%

VGA_R_IN VGA_L_IN

TP4316

SOG

AVDD33_CVBS

AVDD12_DBMOD

AVDD33_IFPGA

AVDD12_RGB

TP4317

Moniter_Out

ADCINP_DEMOD

AM24

ADCINN_DEMOD

AL24

IF_AGC

W30

RF_AGC

W29

TUNER_CLK

V32

TUNER_DATA

V31

AVDD33_DEMOD

AJ24

AVSS33_DEMOD

AF22

AVDD33_IFPGA

AF23

AVDD12_DEMOD

AK25

AVSS12_DEMOD

AH24

SC0

AK21

SC1

AL22

SY0

AM21

SY1

AM22

CVBS2P

AK22

CVBS1P

AJ23

CVBS0P

AK24

CVBS_COM

AK23

AVDD33_CVBS

AH23

AVSS33_CVBS

AC21

HSYNC

AL13

VSYNC

AM13

RP

AM15

GP

AK15

BP

AK13

COM

AL15

SOG

AK14

VGA_SCL

AF14

VGA_SDA

AG14

COM1

AJ17

PB1P

AK17

PR1P

AJ18

Y1P

AM16

SOY1

AL16

COM0

AL19

PB0P

AM19

PR0P

AK19

Y0P

AM18

SOY0

AL18

VDAC_OUT1

AJ20

VDAC_OUT2

AK20

FS_VDAC

AL21

BYPASS0

AJ22

BYPASS1

AJ21

AVDD12_RGB

AK18

AVSS12_RGB

AC17

AVDD33_VDAC

AH20

AVSS33_VDAC

AC19

LOUTN

AJ25

LOUTP

AJ26

MT5325HLHJU401-6

HSYNC

RF_AGC_T

TU_OSCL

IF_AGC

TP4318

AVDD3V3_VDAC

CVBS1_IN

VSYNC

SOY1

PR1P

RP

COM1

TU_OSDA

PB1P Y1P

SOC_VGA_SDA

CVBS_COM

TP4312

TP4310

BP

SOC_VGA_SCL

R4314 560R 1/10W 1%

TP4314

PR0P SOY0

COM0

Y0P

AVDD3V3_DEMOD GP

PB0P

TP4315

COM

C4318

22pF 50V

+

C4302

220UF 16V

R4306 47R 1/10W 1%

R4302 47R 1/10W 1%

AVDD33_DAC

C4301 100N16V

C4303 100N16V

C4306 100N16V

AVDD33_AADC

AV33

AVDD33_DAC1

R4301

0R05 1/10W

SIDE_R_IN SIDE_L_IN

Circuit Diagrams and PWB Layouts

EN 80TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-16 B16 Audio amplifier/Speaker out

19340_515_120724.eps

120815

Audio amplifier/Speaker out

B16 B16

2012-02-17

A

715G5279

Audio amplifier/

Speaker out

OUT1A

C6134

1N50V

+5V_SW

OUT2B

OUT2A OUT1B

DDX3B DDX3A

TW

GND-SUB

1

OUT2B

2

OUT2B

3

VCC2B

4

GND2B

5

GND2A

6

VCC2A

7

OUT2A

8

OUT2A

9

OUT1B

10

OUT1B

11

VCC1B

12

GND1B

13

GND1A

14

VCC1A

15

OUT1A

16

OUT1A

17

NC

18

GND-CLEAN

19

GND-REG

20

VDD

21

VDD

22

VL

23

CONFIG

24

PWRDN

25

TRI-STATE

26

FAULT

27

TH_WAR

28

IN1A

29

IN1B

30

IN2A

31

IN2B

32

VSS

33

VSS

34

VCCSIGN

35

VCCSIGN

36

GND

37

U602

STA515W

12

FB6107

120R/3000mA

C6176

0.1uF 50V

EAPD

Q6104

DTC114ES3

OUTA

L6101

22uH

C6114

1N50V

C6111

1N50V

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q6101

AO4435

Aud3V3

ROUT-

C6116

1N50V

R6133 10K 1/16W 5%

C6165

0.1uF 50V

+24V_AMP

1 2

FB6106

120R/6000mA

PWDN

PLL_FILT

R6132 10K 1/16W 5%

LRCKI

I2SDATA

Aud3V3

AMP_Reset

BICKI XTI

R6123

2R2 1/16W 5%

TP6101

Aud3V3

TW

R6122 0R05 1/16W

LOUT-

EAPD

1 2

FB6102

120R/6000mA

C6132

1N50V

C6162

1N50V

C6159

1N50V

C6177

0.1uF 50V

C6169

1N50V

C6137

1N50V

+24V_AMP

C6175

0.47uF 50V

C6108

1uF

C6120

1uF

R6121

6.2 OHM 1/4W

OUT2A

R6117

6.2 OHM 1/4W

OUT2B

R6134

6.2 OHM 1/4W

C6109

120pF 50V

GND_SUB

1

SA

2

TEST_MODE

3

VSS

4

VCC_REG

5

OUT2B

6

GND2

7

VCC2

8

OUT2A

9

OUT1B

10

VCC1

11

GND1

12

OUT1A

13

GND_REG

14

VDD

15

CONFIG

16

OUT3B

17

OUT3A

18

EAPD/OUT4B

19

TWARN/OUT4A

20

VDD_DIG

21

GND_DIG

22

PWRDN

23

VDD_PLL

24

FILTER_PLL

25

GND_PLL

26

XTI

27

BICKI

28

LRCKI

29

SDI

30

RESET

31

INT_LINE

32

SDA

33

SCL

34

GND_DIG

35

VDD_DIG

36

Thermal Pad

37

U601

STA339BWTR

R6126

6.2 OHM 1/4W

C6178

0.1uF 50V

C6135

120pF 50V

C6133 100N 50V

C6128

0.1uF 50V

R6130

1.8KOHM 1/10W

R6120

62R 1%

Aud3V3

PLL_FILT

SYS_SDA 12,16,17

SYS_SCL

SYS_SDA

SYS_SCL 12,16,17

VGASDA_IN14

R6124

62R 1%

Aud3A3

AUD_SDA

R6135

22 OHM 1/4W

SYS_SCL

VGASCL_IN

C6163 100N 50V

VGASDA_IN

8x7mm

+

C6101

100UF 35V

+

C6121

100UF 35V

+

C6103

100UF 35V

C6174

0.1uF 50V

+24V_SW

A1K

2

D6102

S3B

+24V_AMP

1 2

FB6103

120R/6000mA

+

C6102

100UF 35V

R6111

10K 1/8W

8x7mm

+24V

1 2

3

4

56

CN601

CONN

R6136

0R05 1/16W

C6112

0.1uF 50V

R6113 4K7 1/16W 5%

Q6105

DTC114ES3

C6143

0.1uF 50V

C6145

0.1uF 50V

C6144

0.1uF 50V

VIN3VOUT

2

GND14

4

U603 G903T63UF

+5V_ON

Aud3A3Aud3V3

1 2

FB6105

120R/3000mA

SYS_SDA

VGASDA_IN

R6103

100R 1/10W 5%

C6140

4.7nF 50V

C6139

680pF 50V

Connection to PLL filter

R6128 2K2 +-1% 1/16W

C6164

0.1uF 50V

AUD_SCL

C6117

0.1uF 50V

LED_PWR_SW

DDX3A

R6112

470OHM +-5% 1/10W

1

2

CN607

NC/CONN

C6141

1N50V

+

C6122

100UF 35V

R6127 10K 1/16W 5%

Reset (pull-up)

Aud3V3

AMP_Reset

1

2

CN604

NC/CONN

C6142

22uF 10V

VGASCL_IN14

VGASCL_IN

C6118

0.1uF 50V

+

C6123

100UF 35V

I2S

BICKI18

XTI18

I2SDAT A18

LRCKI18

I2SDAT A

XTI

BICKI

LRCKI

DDX3B

1

3

2

Q6103

BC847C

+

C6124

100UF 35V

L6102

22uH

C6149 1uF

+

C6125

100UF 35V

C6130

0.1uF 50V

L6103

22uH

C6171

0.1uF 50V

R6108 470K1/10W

+24V

R6101 56K 1/10W

R6110 18K 1/10W

C6148

0.1uF 50V

R6107 10K 1/16W 5%

R6105 10K 1/16W 5%

AUDIO_AC_OFF

C6172

0.1uF 50V

L6104

22uH

D6101

LL4148

D6103

LL4148

+5V_ON

R6106

1.8KOHM 1/10W R6109

100R 1/10W 1%

1 3

ZD6101

BZX84C3V6

R6104

1.8KOHM 1/10W

C6106

0.1uF 50V

C6104

10uF 10V

C6147

0.1uF 50V

C6119

0.1uF 50V

L6105

22uH

R6114

0R05 1/16W

POP_MUTE

C6129

0.1uF 50V

L6106

22uH

+

C6146

100UF 16V

AMP_MUTE

C6110

0.1uF 50V

C6131

0.1uF 50V

LOUT+

C6150

0.1uF 50V

OUTB

1

2

3

CN602

CONN

C6115

0.1uF 50V

SP_AMP_MUTE

D6104 LL4148

D6105 LL4148

Aud3V3

PWDN

C6136

0.1uF 50V

Power down (pull-up)

POP_MUTE

C6173

0.1uF 50V

PLL_GND

Q6102

DTC114ES3

PLL_GND

+

C6152

100UF 35V

C6138

0.1uF 50V

1 2

FB6104

120R/6000mA

C6166 1uF

AUDIO_AC_OFF

AUDIO_AC_OFF 8

+

C6153

100UF 35V

C6161

22uF 10V

AMP_Reset8

LED_PWR_SW8

AMP_Reset

SP_AMP_MUTE8

SP_AMP_MUTE

AMP_MUTE

LED_PWR_SW

AMP_MUTE8

C6170

0.1uF 50V

C6113 100N 50V

C6105

0.1uF 50V

R6125

6.2 OHM 1/4W

C6107

0.1uF 50V

R6131

6.2 OHM 1/4W

OUTA

OUTB

C6158

330pF 50V

+24V_LED

ROUT+

OUT1A

OUT1B

R6137

0R05 1/16W

1 2

FB6101

NC/120R/6000mA

AUD_SCL AUD_SDA

Circuit Diagrams and PWB Layouts

EN 81TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-17 B17 Headphone/CVBS output

19340_516_120724.eps

120815

Headphone/CVBS output

B17 B17

2012-02-17

A

715G5279

Headphone/CVBS

output

DV33

R6259

3K3 1/16W 1%

Line_in_R

DVSS

AA14

DVSS

AD3

DVSS

AD4

DVSS

R11

DVSS

U11

DVSS

AA16

DVSS

AA20

DVSS

T12

DVSS

AA18

DVSS

AB12

DVSS

N13

DVSS

P13

DVSS

R13

DVSS

T13

DVSS

U13

DVSS

V13

DVSS

W13

DVSS

Y13

DVSS

AA13

DVSS

N14

DVSS

P14

DVSS

R14

DVSS

T14

DVSS

U14

DVSS

V14

DVSS

W14

DVSS

Y14

DVSS

U12

DVSS

N15

DVSS

P15

DVSS

R15

DVSS

T15

DVSS

U15

DVSS

V15

DVSS

W15

DVSS

Y15

DVSS

M16

DVSS

N16

DVSS

P16

DVSS

R16

DVSS

T16

DVSS

U16

DVSS

V16

DVSS

W16

DVSS

Y16

DVSS

AB16

DVSS

N17

DVSS

P17

DVSS

R17

DVSS

T17

DVSS

U17

DVSS

V17

DVSS

W17

DVSS

Y17

DVSS

N18

DVSS

AA21

DVSS

W21

DVSS

R21

DVSS

M15

DVSS

AB20

DVSS

M13

DVSS

W20

DVSS

V20

DVSS

U20

DVSS

N20

DVSS

AB21

DVSS

Y19

DVSS

W19

DVSS

V19

DVSS

U19

DVSS

T19

DVSS

R19

DVSS

P19

DVSS

N19

DVSS

V21

DVSS

Y18

DVSS

W18

DVSS

V18

DVSS

U18

DVSS

T18

DVSS

R18

DVSS

P18

DVSS

L13

DVSS

R27

DVSS

R26

DVSS

W12

DVSS

AF26

DVSS

AF27

DVSS

AF28

DVSS

AF25

DVSS

AG27

DVSS

AK30

DVSS

AK31

DVSS

AK32

DVSS

M19

DVSS

AE26

DVSS

AE27

DVSS

AH28

DVSS

AF16

DVSS

F28

DVSS

L27

DVSS

AG26

DVSS

AD26

DVSS

AE25

DVSS

AH27

DVSS

AB11

DVSS

AB14

DVSS

AF8

DVSS

L11

DVSS

M11

DVSS

P20

DVSS

R12

DVSS

U21

DVSS

W11

DVSS

R20

DVSS

AH29

DVSS

L15

MT5325HLHJ

U401-10

+5V_SW

R6216

33R 1/16W 5%

DV33

R6257

NC/0R05 OHM

HPLOUT

HP_Out_R18

HP_Out_L

HP_Out_R

Moniter_Out18

HP_DET#8

HP_Out_L18

HP_DET#

HP_MUTE 8

Moniter_Out HP_MUTE

R6218 10K 1/16W 5%

1 2

ZD6201

NC/MLVG0402

R6219 0R05 1/16W

1 2

ZD6202

NC/MLVG0402

R6255

51K 1%

1 2

ZD6203

NC/MLVG0402

HP_MUTE

HP_LOUT

1 2

ZD6204

NC/MLVG0402

088G302C3O1ACL

M_CVBS_OUT

SPDIF_OUT

1

2

3

CN605

PHONE JACK

HP_DET#

R6206

0R05 1/16W

M_SPDIF_Out 12,16,18

R6265

30K

R6260

0R05 OHM

HP_Out_L

CVBS OUT

M_CVBS_OUTMoniter_Out

C6201 47pF 50V

C6202 NC/47pF 50V

R6202 75R 1/16W 1%

C6203 NC/47pF 50V

R6201 0R05 1/16W

R6261

1Kohm 1/16W +/-1%

1 2

FB6207

120R/3000mA

C6248

2.2UF

C6249

1UF 6.3V

C6210

180pF 50V

C6211

180pF 50V

DV33

3P3

Line_in_L

3P3

HP_LOUT

HP_ROUT

R6240

47K

R6212 47K

R6215

33R 1/16W 5%

R6251

47K

R6254

30K

R6223

47K

C6251

4.7uF 10V

R6256

24KOHM 1/10W

R6258

24KOHM 1/10W

C6252

10uF 10V

R6211 51K 1/16W 5%

C6253

1UF 6.3V

R6222

51K 1/16W 5%

R6262

24KOHM 1/10W

C6254

47pF 50V

R6263

24KOHM 1/10W

C6222

1000pF 50V

M_SPDIF_Out

C6214

47pF 50V

C6221

1000pF 50V

R6224

100K 1/10W

C6215

47pF 50V

C6259

2.2UF

C6260

47pF 50V

C6261

2.2UF

C6262

2.2UF

+INR1-INR2OUTR3SGND4Mute5PVSS6CN

7

CP

8

PVDD

9

PGND

10

UVP

11

OUTL

12

-INL

13

+INL

14

U606

TPA6138A2PW

HPROUT

L6201

1U8 10%

HP_Out_R

C6218 150pF 50V

R6205

0R05 1/16W

HP_ROUT

C6204

47N16V

Head Phone Out_Side Direction

1 2FB6201

600R/200mA

R6204

NC/1KOHM +-5% 1/16W

12FB6202

600R/200mA

R6203

NC/1KOHM +-5% 1/16W

1 2FB6203

600R/200mA

C6205

47N16V

EARPDET

1

2

3

5

4

CN603

PHONE JACK 5P

SPDIF_OUT

+5V_SW

M_SPDIF_Out

SPDIF OUTPUT

A

1

K

2

D6201

NC/BAS316

R6220 240R 1/10W 1%

C6219

100N16V

R6221 100R 1/10W 5%

Circuit Diagrams and PWB Layouts

EN 82TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-18 B18 LVDS output Tx

19340_517_120724.eps

120815

LVDS output Tx

B18 B18

2012-02-17

A

715G5279

LVDS output Tx

BIT_SEL

R4438

NC/0R05 1/16W

DV33

C4406 NC/2.2UF 16V

DV33

INVERTER_ON_OFF

R4416 1K 1/16W 5%

INVERTER ON/OFF

BL_ON/OFF

R4407 0R05 1/16W

R4428 NC/0R05 1/16W

R4418

NC/4K7 1/16W 5%

DV33

L_DIM_E

R4413

NC/4K7 1/16W 5%

R4435

NC/4.7K1/16W

R4409 4K7 1/16W 5%

1

3

2

Q4401

BC847C

+5V_SW

DV33SB

TX_AE3P

AVDD33_USB_2P

LVDS TX

3D_EN

SOC_DP0

3D shutter control

1 2

3

4 5 6

78

CN423

CONN

L/R_O

L/R_SYNC

DV33

1

3

2

Q4402

BC847C

L/R_SYNC

L_DIM8

L_DIM

C4404

0.1uF 50V

DV33

3DMOD_SEL

R4430 NC/0R05 1/16W

R4431 NC/4.7K 1/16W

3D_EN

R4419 0R05 OHM

SOC_DM0

2 4 6

8

10 12 14 16 18 20 22 24 26 28 30

1

3

5 7

9 11 13 15 17 19 21 23 25 27 29

31 32

CN410

CONN

TX_AO4P 22

TX_AO4N 22

TX_AO4P

TX_AO4N

1 2

FB4401

120R/6000mA

+5V_SW

TX_AE3N

TX_AE1N

LVD S_SEL

TX_AE3N22

TX_AE1N 22

TX_AOCKP

TX_AOCKN

TX_AE3P

TX_AOCKP 22

TX_AOCKN 22

TX_AE3P22

TX_AO0N

TX_AE1P

TX_AE1P 22

TX_AE2N

TX_AE0N

TX_AO0P

TX_AE2N 22

TX_AO0P 22

TX_AO0N 22

TX_AO1N

TX_AE2P

TX_AO1N 22

TX_AE2P 22

TX_AO3P

TX_AO3N

TX_AO1P

LVD S_SEL 22

TX_AO3P22

TX_AO3N22

TX_AO1P 22

TX_AE0N 22

TX_AECKP

TX_AECKN

TX_AE0P

TX_AECKP 22

TX_AECKN 22

TX_AE0P 22

TX_AO2P

TX_AO2N

TX_AO2P 22

TX_AO2N 22

RXDMA_ACK 8

RXDMA_ACK

PANEL_VCC

R4433 0R05 1/16W

2 4 6

8

10 12 14 16 18 20 22 24 26 28

30 32 34 36 38

40

1

3

5 7 9 11 13 15 17 19 21 23 25 27 29

31 33 35 37 39

4142

CN409

CONN

R4406 0R05 1/10W

C4407 100N16V

Analog Power

CLOSE U401

3DMOD_SEL 8

AV33

AVDD33_USB_2P

C4405

NC//1UF16V

AVDD33_LVDSTX

R4408

NC/47K 1/16W 5%

C4409 100N16V

C4408 NC/100N16V

C4410 100N16V

AV12 AV33

C4402

NC//1UF16V

R4427 NC/0R05 1/16W

AVDD33_LVDSTX

R4415 47K 1/16W 5%

AVDD12_VPLL

+5V_SW

DV33

R4414 1K 1/10W 5%

C4401 NC/2.2UF 16V

BL_DIMMING

R4417 1K 1/16W 5%

BRIGHT ADJUST

BRIGHT_ADJ

R4411

NC/4.7K1/16W

R4412 100R 1/10W 5%

R4410 4K7 1/16W 5%

TX_AO4N

TX_AO1N TX_AO1P

TX_AO3P

TX_AOCKP

TX_AO4P

TX_AOCKN

TX_AO2P

TX_AO2N

TX_AO0P

TX_AO0N

TX_AE4P

TX_AE4N

TX_AE3N

LVDS PORT A

TX_AO3N

PANEL_VCC

TX_AE0N TX_AE0P

TX_BO3N TX_BO3P TX_BO4N TX_BO4P

TX_BO1P TX_BO2N

TX_BO2P TX_BOCKN

TX_BOCKP

TX_BO0N TX_BO0P TX_BO1N

TX_BE4P

TX_BE4N

TX_BE3P

TX_BE3N

TX_BE2P

TX_BE2N

TX_BE1P

TX_BECKP

TX_BECKN

LVDS PORT B

TX_BE0N TX_BE1N

TX_BE0P

LVD SCTRL0

R4422

0R05 1/16W

R4426 0R05 1/16W

DV33

R4425

NC/4.7K1/16W

RXDMA_ACK

LVD S_SEL

R4404

5.1K 1%

R4437

0R05 1/16W

3DMOD_SEL

R4402

NC/0R05 1/16W

TX_AO4P

TX_AE0P

TX_AE1N

TX_AE1P

TX_BE0N

TX_AO2P

TX_AOCKP

TX_AOCKN

TX_AO3N

TX_AO3P

TX_AO4N

TX_AO0N

TX_AO0P

TX_AO1N

TX_AO1P

TX_AO2N

TX_AE3N

TX_AE3P

TX_AE4N

TX_AE0N

TX_AE4P

TX_BE1N

TX_BE1P

TX_AE2N

TX_AE2P

TX_AECKN

TX_AECKP

TX_BO3N

TX_BO3P

TX_BO4N

TX_BO4P

TX_BE0P

TX_BO1P

TX_BO2N

TX_BO2P

TX_BOCKP

TX_BOCKN

TX_BE3P

TX_BE4N

TX_BE4P

TX_BO0N

TX_BO0P

TX_BO1N

TX_BE2N

TX_BE2P

TX_BECKN

TX_BECKP

TX_BE3N

LVD S_SEL

R4405

2K2 1/16W 5%

R4401

NC/0R05 1/16W

TX_AE1P

TX_AE1N

3DMOD_SEL

BIT_SEL

LVD SCTRL0

LVD SCTRL0 8 L_DIM 8

L_DIM

USB_VRT

R4432

NC/4.7K1/16W

DV33

R4429

NC/4.7K1/16W

SOC_DP1

TX_AE2P

TX_AE2N

R4434 0R05 1/16W

L/R_O

R4436

NC/4.7K1/16W

C4403

10UF 25V

R4403

NC/0R05 1/16W

LVD S_SEL

AO0N

B15

AO0P

A15

AO1N

B16

AO1P

A16

AO2N

B17

AO2P

A17

AOCKN

B18

AOCKP

A18

AO3N

B19

AO3P

A19

AO4N

B20

AO4P

A20

AE0N

C15

AE0P

D15

AE1N

E15

AE1P

E16

AE2N

C17

AE2P

D17

AECKN

E17

AECKP

E18

AE3N

C19

AE3P

D19

AE4N

E19

AE4P

E20

BO0N

C23

BO0P

D23

BO1N

E23

BO1P

E24

BO2N

C25

BO2P

D25

BOCKN

E26

BOCKP

E25

BO4N

E27

BO4P

E28

BO3N

C27

BO3P

D27

BE0N

B27

BE0P

A27

BE1N

B28

BE1P

A28

BE2N

B29

BE2P

A29

BECKN

B30

BECKP

A30

BE3N

B31

BE3P

A31

BE4N

B32

BE4P

A32

AVDD33_LVDSA

F18

AVSS33_LVDSA

M17

AVDD33_LVDSB

F23

AVSS33_LVDSB

M20

USB_2P_DP0

AL7

USB_2P_DM0

AM7

USB_2P_DP1

AL6

USB_2P_DM1

AM6

USB_2P_VRT

AH8

AVDD33_USB_2P

AH6

AVSS33_USB_2P

AC12

AVDD12_VPLL

E22

AVSS12_VPLL

F20

DPM

M28

FLK

K31

SOE

F31

POL

G32

VST

J32

VGH_EVEN

J31

VGH_ODD

G31

GCLK6

G30

GCLK5

K29

GCLK4

K28

GCLK3

J30

GCLK2

L32

GCLK1

K32

MT5325HLHJ

U401-3

AVDD12_VPLL

L_DIM_E

L_DIM

SOC_DM1

TX_AE4N 22

TX_AE4P

TX_AE4N

TX_AE4P 22

3DMOD_SEL 8

TX_AECKN TX_AECKP

SOC_DM113

BL_ON/OFF8

BL_DIMMING BL_ON/OFF

SOC_DM013 SOC_DP113

SOC_DP0

BL_DIMMING8

SOC_DP013

SOC_DP1

SOC_DM1

USB

BL&LVDS CONTROL

SOC_DM0

BRIGHT_ADJ 4

LVD SCTRL08

INVERTER_ON_OFF

BRIGHT_ADJ

LVD SCTRL0

INVERTER_ON_OFF 4

Circuit Diagrams and PWB Layouts

EN 83TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-19 B19 Flat foil connector

19340_518_120724.eps

120815

Flat foil connector

B19 B19

2012-02-17

A

715G5279

Flat foil connector

1

2

3

4

5

6

7

8

9

10

11

12

13

14

15

16

17

18

19

20

21

22

23

24

25

26

27

28

29

30

31

32

33

34

35

36

37

38

39

40

41

42

43

44

45

46

47

48

49

50

52

51

53

54

55

56

57

58

59

60 61

CN411

NC/CONN

R4460 NC/0R05 1/16W

R4452 NC/0R05 1/16W

R4443 NC/0R05 1/16W

R4461 NC/0R05 1/16W

R4453 NC/0R05 1/16W

R4444 NC/0R05 1/16W

ERX4+

ERX4-

R4462 NC/0R05 1/16W

R4454 NC/0R05 1/16W

R4445 NC/0R05 1/16W

TX_AE4P 21

TX_AO4P 21

TX_AO4N 21

TX_AE4N 21

TX_AECKP 21

LVDS_SEL 21

TX_AE0N 21

TX_AO1P 21 TX_AO2P 21

TX_AOCKP 21

TX_AO0P 21 TX_AO1N 21

TX_AO2N 21

TX_AE1N 21

TX_AE0P 21

TX_AE2N 21

TX_AE1P 21

TX_AO3N21

TX_AECKN 21

TX_AOCKN 21

TX_AE3N21 TX_AE3P21

TX_AO3P21

TX_AO0N 21

TX_AE2P 21

R4446 NC/0R05 1/16W

R4463 NC/0R05 1/16W

R4439 NC/0R05 1/16W

R4440 NC/0R05 1/16W

R4447 NC/0R05 1/16W

R4441 NC/0R05 1/16W

R4455 NC/0R05 1/16W

R4448 NC/0R05 1/16W

R4456 NC/0R05 1/16W R4457 NC/0R05 1/16W

R4449 NC/0R05 1/16W R4450 NC/0R05 1/16W

R4442 NC/0R05 1/16W

R4458 NC/0R05 1/16W R4459 NC/0R05 1/16W

R4451 NC/0R05 1/16W

ORX2+

OCLK+

ORX4-

ECLK+

ORX4+

ORX1+ ORX2-

ORX0+ ORX1-

ERX0-

ECLK-

OCLK-

ERX0+ ERX1ERX1+ ERX2ERX2+

ERX3+

ERX3-

ORX3ORX3+

SELLVDS

ORX0-

1 2

FB4402

NC/120R/6000mA

PANEL_VCC

Circuit Diagrams and PWB Layouts

EN 84TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-20 SSB layout top

19340_519_120713.eps

120815

2012-02-17

A

715G5279

SSB layout top

C1601

C4401C4406

C6107

C6110

C6119

C6131

C6145

C6174

C7113

C7129

C7131

C1923

C7109

C7111C7120

C7138

C7203

C4130

C7204

C7119

C7125

C7127

C7206

R1722

R1608

R1707

R1915 R1916

C1602

C1604 C1605

C1606

C1739

C1703C1704

C1705

C1706

C1709C1710

C1711

C1712

C1719

C4129

C4221

C6105

C6106C6112

C6115

C6117

C6118

C6128

C6129

C6130

C6136C6138

C6140

C6143

C6144

C6147

C6148

C6150 C6165

C6170

C6171

C6172 C6178

C6218

C7102

C7108

C7110

C7117

C7122

C7130

C7126

C7132

C7133

C7202

C7205

C7211

C7217

C7219

C7223

C5207

C5226

C1812

C1814 C1815

C1826

C6104

C6108

C6113

C6120

C6149

C6166

C6175

C7135

C7136

C7220

C7222

C7224

C7225

C1608

L7101

FB1802

FB1803 FB1804

FB1805FB1806

FB1807

R7115

R1604

R1605

R1607

R1609 R1611

R1612

R1614

R1627

R1624

R1625

R1702

R1703

R1704

R1705

R1706

R1708

R1709

R1710

R1711

R1712

R1713R1714

R1715

R1716

R1721

R1723

R1727

R1818 R1819

R1825

R1843

R1845

R1917

R4412

R4414

R5221

R6101

R6103

R6104

R6106

R6108

R6109

R6110

R6112

R6130

R6220 R6221

R7101 R7104

R7116

R7117

R7118

R7119

R7124

R7201

R7202

R7204

R7207

R7208

R7216

R7217

R7218

R7221 R7222

R7107

R6117

R6121

R6125

R6126

D1804

D5202

D6201

R7209 R7210 R7211

C7239

C7104

C7240

C7106

X1401

R6111

C6253

C6214

C6252

C6254

R5132

C6133

C6163

C1512

C1513

C7231

C4404

C1431

C1438

C1436

C7218

C7124

C7128

R1616

R1622

R1619

TH1702

C1427

C1430

C7123

C7238

C1828

C1829

C7232

C7233

C7235

C7236

R1857 R1858

R7122

R7231

TH1701

X401

C7212

C7213

C7210

C7215

L7201

C1305

R7127

C6221

C6222

C1727

R1926 R1927

C1609

R1730

R1731

C4322

R1732

C1701

C4208

C6142

C6146

C7230

C1327

C4142

C4302 C4313

C7105

C7137

C7112

C4323

L6201

R6120

R6124

R6135

TH1703TH1704

C4403

FB4401

R1527

C6122

C6123

C6124

C6125

C6152

C6153

C7139

C1715C1728

C1901

C1707

C7229R7223

C5111

C5130

C5133

C1506 C1507

C1515

C1516

C1517

R1551

C1716C1717C1729C1730

C5205

C5227

R1717

R1719

R1720R1728

R7220

C6210

C6249

R6215

R6216

C6173

C6248

C6251

C6259

C6261

C6262

R6224

R6254

R6256

R6258

R6262

R6263

R6265

TU101

R1741

C1740

CN411

R6255

TH1901

L7102

C1741

C1525

C6101

C6102

C6103

C6121

C7209

C7216

TP4301TP4302

TP4303

TP4304

TP4310

TP4312

TP4314

TP4315

TP4316

TP4318

TP4351

TS7

TS6

TS5

TS4

TS3

TS2TS1

TS0

H8

C1435

C1437

C1510

C1508

C1509

C1511

C1718

C5201

C1603

C1708

C1803

C1806

C1811

C1813

C1818

C1819C1823

C1825

C1916

C1917

RP4105

RP4106

CN401

FB6106

R1302

R1425

R5204

R5217

R1328

R1803R1804

R1820

R4102

R1842

R1932

R1913

R1854

R1855

R4211

R4214

R4215

R4216

R4217

R4408

R1547

R5133

U603

U410

U402

D1901

D6101

D6103

D6104

D6105

U703

CN102

CN605

CN501 CN502

CN503

CN416

C1415

C1434

C1421

C1428

C1429

C5221

C1735

C5206

C1702

C1713

C1714

C1801

C1802

C1804

C1805

C1807

C1808

C1809

C1816

C1817

C1820

C1821

C1822

C1824

C1918

C4124C4125

C4127

C5217

C6109

C6111 C6116C6132

C6135

C6137

C6139

C6141

C6158

C6159

C6162C6169

C6201

C6202

C6203

C6204 C6205

C6219

C7101

C7103

C7107

C7114

C7115

C7116C7118

C7134

C7201

RP4101

RP4107

RP4108

RP4109

RP4110

RP4201

RP4202

RP4203

RP4204

RP4205

CN405

FB1304

FB1310

FB1312

FB1402

FB1403

FB5204

FB1503

FB1601

FB1701

FB1702

FB1801

FB1808

FB5201

FB5203

FB6105

FB6201

FB6202 FB6203

FB7104

FB7106

FB7108

FB7206

FB7207

FB7208

L1901

FB6101

FB6102

FB6103

FB7101

FB7102

FB7103

FB7105

FB7107

FB7110

L6101

L6102

L6103L6104

L6105

L6106

L1306

U411

U401

R1301R1304

R1305

R1303

R1309

R1403R1404

R1405

R1431 R1430

R1408

R1409

R1410

R1414

R1415

R1416

R1417

R1418

R1419

R1420

R1423 R1421

R5216

R5212

R5201

R1501

R1502

R1503

R1505

R1601

R1602

R1737

R1610

R1613

R1623

R1626

R1628 R1629

R1701

R1718

R1724

R1801

R1802

R1805

R1806

R1807

R1808

R1809 R1810

R1811

R1812

R1814

R1821

R1822

R1823

R1824

R1826

R1827

R1828

R1829

R1830

R1831

R1833

R1834

R1835

R1836

R1837

R1841

R1844

R1846

R1847 R1848

R1850

R1851

R1904

R1905

R1906

R1907

R1908

R1909

R1911

R1912

R1918

R1922

R1923

R1924

R1925

R1928

R1929

R1930

R1523 R1524

R1522

R1521

R1518

R1519R1520

R4115

R4116

R4117

R4118

R4119

R4129

R4130

R4131

R4132

R4218

R4219

R4303

R4304

R4305 R4307

R4403

R4405

R4407

R4409

R4410

R4411

R4413

R4415

R4416

R4417

R4418

R4425

R4429

R5108 R5128

R1549

R1539

R5155

R5164

R1542

R5220

R5224

R5130 R5131

R5172 R5173

R5219

R5218

R6105

R6107

R6113

R6114

R6122

R6123

R6127

R6128

R6132 R6133

R6136

R6137

R6201

R6202

R6203 R6204

R6211

R6219

R6222

R1552

R7102

R7103

R7105

R7106

R7111

R7112

R7120 R7121

R7125 R7126

R7206

R7219

R7228

R7229

R7230

D6102

D7101

Q6101

Q7101

U7202

U1802

ZD6101

Q1801

Q1804

Q5201

Q6105

Q7103

U601

U602

U7201

U7203

U7204

U405

U1801

U403

U404

X403

CN603

HS6

FB1704

R1427

Q6104

ZD5115

ZD5120

ZD5121

ZD5116

Q6102

ZD5205

ZD5118

ZD5122

R1428

R1426

R1429

U7205

HS3

C1722

C1723

C1724

C1725

C1726

C1720

C1721

C7241

C4316

C4317

C4318 C4319

ZD1701 ZD1702

ZD1703 ZD1704

HS2

R1528

Q7201

R1525

R1526

C6114C6134

C6260

C6215

R1548

R6205 R6206

FB7109

D7201

U701

L1401

Q1601

C1831

C1432

C1433

C1830

C1924

C4320

C7234

C7237

FB1303

FB1501

FB6107

FB1502

FB7216

LD1401

U702

R1861

R1334

R1335

R1336

R1337

R1406

R1407

R1424

R1856

R1859

R1860

R1935

R1936

R1937

R1938

R1939

R1940

R1941

R1511

R1510

R1513

R1512

R4321

U7210

Q1310

Q1311

Q1902

R1534

R1536

R1532

FB7203

C7214

FB1316

U7211

FB5116

FB5117

R5205

R7232

ZD7201

R1516

R1517

R1531

R1533

R1535

R1529

R1530

CN606

R1942

CN410

CN415

U101

TU102

CN101

C1514

R1726

R1862

R1863

R6261

H1

MH2MH1

MH3 MH4

H2

CN113

CN112

CN111

CN403

CN418 CN417

CN701

CN408

U501

CN504

ZD1705 ZD1706ZD1707 ZD1708

ZD5201

ZD5202

ZD5203

FB5115

FB5206

R1550

R1543

R5129R5121

R5127

R5202

R5203

R5207 R5208

R5213 R5214

R5215

R5223

R5225

R5229 R5230

R5231

R5236

R5237

U5201

D5201

CN103

CN104

CN105

CN106

FB1505

C1518

R1537

R1538

R1540 R1541

R1544 R1545 R1546

R1553

R5134

R5135

R5226

U412

FB7111

U606

C6211

FB6207

FB7204

R6212

R6223

R6240

R6251

R6257

FB7201

L7103

CN419CN420

FD21

FD19

FD29

FD24

FD25

FD23

FD26

FD22

FD20

FD27

FD11

FD28

FD2

FD16

CN421

C1519

C1520

C1521

C1522

C1523

C1524

FB1602

FB4402

CN423

R1739

R1740

R4419

R4430

R4431

R4432

R4436

R4437R4438

ZD1801 ZD1802

ZD1803

ZD1804

ZD1805

ZD1806 ZD1807

ZD1811

ZD1812ZD1813

ZD1814 ZD1815

ZD1816

ZD1817

ZD1818

ZD1819ZD1820

Q1312

Q1803

Q4401

Q4402

Q6103

Q7102

Q7202

R4452

R4453

R4454

R4455

R4456

R4457

R4458

R4459

R4460

R4461

R4462

R4463

R1556

R1557

R1558

R1559

R1561

R1560

CN604 CN607

ZD1901 ZD1902

ZD6201 ZD6202 ZD6203ZD6204

ZD1903

ZD1904

ZD1905

ZD1906

R6259

R6260

Q1903

FB6104

R1554

R1555

R1738

U1701

U7212

CN601

C1827

C1832

MH5

CN409

CN602

FB1506

Circuit Diagrams and PWB Layouts

EN 85TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-3-21 SSB layout bottom

19340_520_120713.eps

120815

2012-02-17

A

715G5279

SSB layout bottom

C1810

C1911

C1919

C6176

C4205

C4106

C4202

C4107

R1725

C1306

C1902

C1903

C1912

C4114

C4402

C4405

C6164 C6177

C7121

C1330

C5222

R1919

R1920

R1921

R4301

R4302

R4306

R4308

R4309

R4310

R4311

R4312

R4313

R4314

R4406 R5209

R5210

R7109

R7110

R6131

R6134

D1805

R1322

R1332

C6161

R7123

C1402

C1404

C1406

C1409

R1318

R7108

C1311 R1325

C1401

C1408

C1439

C1440

R1338

R1339

C1501

C5230

TP4306

TP4308

TP4311

TP4313

TP4317

TP4321

TP6101

TP708

TP4337TP4338

C1312

C1407

C1410

C1412

C1413

C1416

C1913

C1325

C1502

C1503

C1504

C1304

C5202

C1320

C1505

C5224

C1732

C4101

C1733

C4105

C1734

C1914

C1915

C4102

C4103

C1904 C1905

C1906

C1907

C1908

C1909

C1910

C1920

C1921

C1922

C5228

C4201

C4108

C4109

C4110

C4112

C4113

C4115

C4117

C4128

C4132

RP4102

RP4103

RP4104

CN402

FB1311

R1506

R1306

R1319

R1320

R1323

R1326

R1327

R4101

R4103

R4104

R4105

R4106

R4107

R4108

R4110

R4111

R4112

R4113

R1914

R4201

R4203

R4204

R4207

R4208 R4209

R4212

R4220

R4404

C1302

C1308C1309

C1310

C1313

C1314

C1315

C1426

C1324

C1403

C1405

C1411

C1414

C1418

C1420

C1422

C1423

C1424

C1425

C5203

C5208

C5209

C5210

C5211

C5212

C1731

C4104

C4111

C4116

C4118

C4119

C4120

C4121

C4122

C4123

C4126

C4131

C4133

C4134

C4135C4136

C4137

C4138

C4139

C4140

C4141

C4203

C4204

C4206

C4207

C4209

C4210

C4211

C4212

C4213

C4214

C4215

C4216

C4217

C4218

C4219

C4220

C4301

C4303

C4304

C4305

C4306

C4307

C4308

C4309

C4310

C4311

C4312

C4407

C4408

C4409

C4410

C5229

FB1401

L1302

L1303

L1304

R1308

R1310

R1311

R1312

R1313

R1314

R1315

R1307

R1321

R1324

R1329

R1330

R1331

R1401

R1402

R1412

R1508

R1514

R1515

R1507

R1509

R1617

R1618R1620

R1621

R1813

R1815

R1816

R1817

R1832

R1838

R1839

R1840

R1852

R1853

R1901

R1902

R1903

R1910

R4109

R4114

R4120

R4121

R4122

R4123

R4124

R4125

R4126

R4127

R4128

R4202

R4210

R4213

R4315 R4316

R4401

R4402

R4426R4427

R6218

Q1302

Q1303

R1931

Q1305

R1333

R1504

R1933

R1934

Q4301

C1307

C1417

C4321

FB1313

R1316

R1317

R1413

R5211

R4322

R4323

R4324

R4325 R4326

R4327

R4428

R4435

R5222

FB1314

FB1315

FB1317

R4422

L1301

U409

C5213

C5214

C5215

C5216

C5218

C5219

C5220

C5223

C5225

R5206

R1943

FD1

FD9

FD5

Q1304

R4433

R4434

ZD1808

ZD1809

ZD1810

Q1802

Q1901

R4439

R4440

R4441

R4442

R4443

R4444

R4445

R4446

R4447

R4448

R4449

R4450

R4451

Circuit Diagrams and PWB Layouts

EN 86TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10.4 J 715G5330 IR/LED

19340_521_120723.eps

120816

IR/LED panel

J J

2011-10-05

B

715G5330

IR/LED panel

R0205

10K 1/16W 5%

R0201

1K5 1/16W 5%

BR

Q0203

BC847C

C207

NC/4.7UF 10V

C0202

1UF 10V

C208

NC/1UF16V

Q0202

BC847C

C0203

100N 16V

C0204

100N 16V

C0205

100N 16V

VCC_STBY

R0207

4K7 1/16W 5%

C0206

100P 50V

R0202

1K5 1/16W 5%

R0206

10K 1/16W 5%

GND

3

OUT

1

VCC

2

GND

4

U202

NC/ALS-PDIC17-55C-TR8

R0208

2K7 1/16W 5%

R215

NC/18K 1/16W

C213

NC/100P 50V

1 2

3

4 5 6 7

8

910

CN0201

CONN

R216

NC/15K 1/16W 5%

+5V_SW

R213

NC/100K 1/16W 5%

LIGHT SENSOR

R217

NC/22K 1/16W 5%

C214

NC/100P 50V

R211

NC/100K 1/16W 5%

C209

NC/1UF16V

1OUT

1

1IN-

2

1IN+

3

GND42IN+

5

2IN-

6

2OUT

7

VCC

8

U205

NC/LM358APWR

C212

NC/100P 50V

Light_sensor

1 2

ZD202 NC/UDZSNP3.3B

R203

NC/100R 1/16W 5%

R210

NC/470R 1/16W 5%

R214

NC/100K 1/16W 5%

+5V_SW

RC6

1

2 3

4

Blue

Red

LED0201

15-22/R6BHC-B30/2T

LED2_STBY

GND

1

OUT

3

GND

2

VCC

4

U203

IRM-H936M3/TR2

LED_ON

R0212 NC/0R05 OHM

R0209

220R 1%

1 3

ZD0201

BZX84-C5V1

Light_sensor

R218

NC/0R05 1/16W

R219

NC/0R05 1/16W

VCC_STBY

+5V_SW

R0204

4K7 1/16W 5%

10-4-1 IR/LED panel

Circuit Diagrams and PWB Layouts

EN 87TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-4-2 IR/LED Board layout

19340_522_120713.eps

120816

2012-02-09

B

715G5330

IR/LED panel

layout top/bottom

C207

C208

C213

C0202

R0201R0202

R0208

R0209

R0212

U203

ZD1

ZD3

LED0201

U202

C214

R213

R214

R215

R216

R218R219

U205

C209

ZD202

C0203

C0204

C0205

C0206

Q0202 Q0203

R0204

R0205

R0206

R0207

ZD0201

ZD2

ZD4

C212

CN0201

R203

R210

R211

R217

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 88TPM9.5A LA 10.

2012-Nov-30

back to

div. table

Circuit Diagrams and PWB Layouts

19341_508_121119.eps

121129

IR/LED panel

J J

2012-07-19

E

715G5397

IR/LED panel

R236 4K3 1/16W 5%

TP2 TP3

TP1

TP5

VPP

TP4

ICSPCLK

ICSPDAT

3V3

VPP

L/R_O

WIRELESS_L/R

3V3

L/R_RSV

ICSPCLK

ICSPDAT

U211

PIC12F615-I/SN

VDD

1

GP5/T1CKI/P1A*/OSC1/CLKIN

2

GP4/AN3/CIN1-/T1G/P1B*/OSC2/CLKOUT

3

GP3/T1G*/MCLR/VPP

4

GP2/AN2/T0CKI/INT/COUT/CCP1/P1A

5

GP1/AN1/CIN0-/VREF/ICSPCLK

6

GP0/AN0/CIN+/P1B/ICSPDAT

7

VSS

8

R241 4K7 1/16W 5%

R242 220R

R243 220R

ICSPDAT

WIRELESS_L/R

Q204

AO3414

12V

LED206

HIR19-21C/L289/TR8

12

C216

4U7 25V

12V

CN202

CONN

1 2

3

4 5

67

12V

3V3

L/R_O

L/R_RSV

SSB to SHUTTER

CN201

CONN

1 2

3

4 5 6 7

8

910

RC6

LED_R

LIGHT_SENSOR

C210

10uF 10V

3V3SB

+5V_SW

SSB to IR

R226

300R 1/8W 5%

LED_B

ZD204

MLVG0402

1 2

U202

TSOP75436W

GND

1

Vs

2

OUT

3

GND

4

C208

1uF 10V

RC6

R223

100R

C207

100P 50V

R222

2K7 1/16W 5%

3V3SB

IR

R244 0R05 1/16W

R228

4K3 1/16W 5%

Q201 BC847C

R225

2.2K 1/16W

3V3SB

LED_R

Blue

Red

LED201

15-22/R6BHC-B30/2T

1

2 3

4

LED_B

R238

2M OHM 1/16W 5%

R220 1K

ZD202

MLVG0402

1 2

R221 1K

C209

1uF 10V

R227

22K

R229

100K

C214

100P 50V

U205

LM358APWR

1OUT

1

1IN-

2

1IN+

3

GND42IN+

5

2IN-

6

2OUT

7

VCC

8

C212

100P 50V

Light_sensor

ZD201 UDZSNP3.3B

1 2

R234 100R

Light Sensor

R230 470R

R240

0R05 1/16W

R239

0R05 1/16W

LED207

HIR19-21C/L289/TR8

12

R233

39K 1/16W 5%

U203

ALS-PDIC17-55C-TR8

GND

3

OUT

1

VCC

2

GND

4

R231

15K 1/16W

C211

4.7UF 10V

R224

15K 1/16W 5%

C213

100P 50V

R232

18K 1/16W

+5V_SW

LED204

HIR19-21C/L289/TR8

12

LED light

ZD203

MLVG0402

1 2

LED205

HIR19-21C/L289/TR8

12

Q202

BC847C

C215

1uF 10V

3V3

3D SHUTTER EMITTER

R235

49.9 OHM 1% 1/16W

10.5 J 715G5397 IR/LED 6007 series

10-5-1 Power Circuit

EN 89TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-5-2 IR/LED Board layout

19361_509_121119.eps

121119

2012-07-20

E

715G5330

IR/LED panel

layout top/bottom

ZD13

ZD14

C210

Q201

Q204

U202

U203

ZD201

C211

R226

C216

Q202

LED204 LED205LED206 LED207

LED201

U205

U211

C207

C208

C209

C212

C213

C214

C215

ZD202

ZD203

ZD204

R220

R221

R222

R223

R224

R225

R227

R228

R229

R230

R231R232

R233

R234

R235R236

R238

R239

R240

R241

R242

R243

R244

TP1

TP2

TP3

TP4

TP5

ZD15

ZD16

CN201

CN202

Layout IR/LED panel (top side)

Layout IR/LED panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 90TPM9.5A LA 10.

2012-Nov-30

back to

div. table

Circuit Diagrams and PWB Layouts

19240_513_120215.eps

120629

Keyboard control panel

E E

2011-10-05

1

715G5252

Keyboard control panel

KEY2 KEY1

SOURCE VOL- VOL+

CH- CH+POWER

----><----|

----><----|----><----|

----><----|

----><----| ----><----|

SW020

TACT SW FWRD H1.5MM

R020

470R 1/8W 1%

R017

2K2 1/8W 1%

SW022

TACT SW FWRD H1.5MM

R022

5K6 +-1% 1/8W

C019

NC/100N 50V

C023

100N 50V

C016

NC/100N 50V

CN016 CONN

1 2

3

45

R018

5K6 +-1% 1/8W

R024

NC/0R05 1/10W

SW016

TACT SW FWRD H1.5MM

SW021

TACT SW FWRD H1.5MM

SW017

TACT SW FWRD H1.5MM

C020

NC/100N 50V

C017

NC/100N 50V

SW019

TACT SW FWRD H1.5MM

C024 100N 50V

R016

470R 1/8W 1%

R021

2K2 1/8W 1%

R025

NC/1K 1/10W 1%

C021

NC/100N 50V

R023

0R05 1/10W

C018

NC/100N 50V

10.6 E 715G5252 Keyboard control panel 3500/4000 series

10-6-1 Keyboard

EN 91TPM9.5A LA 10.

2012-Nov-30

back to

div. table

Circuit Diagrams and PWB Layouts

19240_514_120215.eps

120629

2012-01-09

1

715G5252

Keyboard control panel

layout top/bottom

CN016

SW016

SW017

SW019

SW020

SW021

SW022

C016

C017

C018

C019

C020

C021

C023

C024

R023 R024

R025

R016

R017

R018

R020

R021

R022

Layout Keyboard control panel (top side)

Layout Keyboard control panel (bottom side)

10-6-2 Key board layout

EN 92TPM9.5A LA 10.

2012-Nov-30

back to

div. table

Circuit Diagrams and PWB Layouts

19341_502_121119.eps

121129

AmbiLight bypass

ALC01 ALC01

2012-10-12

A

715G5415

AmbiLight bypass

SCKI

I2C_DATA

I2C_CLK

AMBI-TEMP

SDI

RST_AL

R033 10R

C012 NC\10UF 25V

R024 10R R026 10R

CN001

CONN

1 2

3

4 5 6 7

8

9 10 11 12

1314

24V

3V3

R032 100R

RST_AL 3

Signals of CN001 come from SSB

I2C_DATA 3

I2C_CLK 3

AMBI-TEMP G1

R1

SDI

SCKI

B1

C024 100PF

R028

0R05 1/16W

C023 100PF

CN011

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

1920

R034 10R

FB003

120R/3000mA

1 2

R031 10R

C025 100PF

R035 10R

Signals of CN011 link to the AmbiLight units

3V3

CN012

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

1920

+

C013

47U 25V

VLED_12V24V

G2

R2

ZD001 BAT54

1 3

R004

47K 1/16W 5%

C007

180pF 50V

C010 100N 50V

C001 1uF 25V

C002 100N 50V R002

51K 1%

C009

10uF 25V

R006

10K 1/16W 5%

R003

91K

R001

47K 1/16W 5%

R005

10K 1%

C006

1uF 50V

L001

15uH

C003

1N 50V

C008

10uF 25V

D001

SX34

1 2

U001

AOZ1242AI

LX

1

BST

2

GND

3

FB

4

COMP

5

EN

6

VIN

7

VBIAS

8

FB001

120R/3000mA

1 2

C004

1uF 50V

24V

AmbiLight Power (24 V TO 12 V)

G2 3

+24V

+

C005

22UF 35V

R2 3

B1 3

G1 3

R1 3

B2 3

B1

G1

R1

B2

VLED_12V24V

G2

VLED_12V24V

R2 B2

10.7 ALC 715G5415 AmbiLight control panel

10-7-1 AmbiLight bypass

EN 93TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-7-2 AmbiLight control

19341_503_121119.eps

121129

AmbiLight control

ALC02 ALC02

2012-10-12

A

715G5415

AmbiLight control

G2 B2

R2

VLED_Ctrl

FB004

30R

1 2

R_L G_L B_L

G_R

R_R B_R

VLED_12V24V

A1A0

3V3

A6A2

R013

10K

3V3

R015

10K

+24V_LED

3V3

R012

4K7 1/16W 5%

A3

R019

10K

R018

4K7 1/16W 5%

A4, A5 pull high

3V3

R014

4K7 1/16W 5%

A4

R017

10K

3V3

R016

4K7 1/16W 5%

CN002 CONN

1 2

3

4 5 6

78

U412 address is “60”

A5

R011

10K

3V3

R021

10K

3V3

R023

10K

R020

4K7 1/16W 5%

R022

4K7 1/16W 5%

R010

4K7 1/16W 5%

A2

A1

A0

A4

A3

R008

4K7 1/16W 5%

R B

G

R007

4K7 1/16W 5%

3V3

R_R

U002

PCA9634PW

A0

1

A1

2

A2

3

A3

4

A4

5

LED0

6

LED1

7

LED2

8

LED3

9

Vss10LED4

11

LED5

12

LED6

13

LED7

14

OE

15

A5

16

A6

17

SCL

18

SDA

19

VDD

20

G_R B_R

C015

100P 50V

R_L

A6

I2C_DATA

CN003

CONN

1 2

3

4 5

67

G_L

A5

CN004

CONN

1 2

3

4 5 6 7

89

RST_AL

CN005

CONN

1 2

3

4 5 6 7

89

B_L

R009

10K

I2C_CLK

FB005

120R/6000mA

1 2

+24V

C028

470N

Q003

DTC114ES3

Q004

AO4435

S

1

S

2

S

3

G

4

D

8

D

7

D

6

D

5

Q002

DTC114ES3

R046 470K

3V3

R043

47K

R045

56K

R042

0R05 1/16W

FB002

120R/6000mA

1 2

R044

18K

FB006

120R/6000mA

1 2

+24V_LED

RST_AL

I2C_CLK

I2C_DATA

RST_AL 2

I2C_CLK 2

I2C_DATA 2

R047 10R R049 10R

R048 10R

R051 10R

R050 10R R052 10R

VLED_Ctrl

G1 2

R1 2 B1 2

Circuit Diagrams and PWB Layouts

EN 94TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-7-3 USB and iTV bypass

19341_504_121119.eps

121129

USB an iTV bypass

ALC03 ALC03

2012-10-12

A

715G5415

USB and iTV bypass

USB2_DP

CN006

CONN

1 2

3

4 5 6 7

8

910

USB2_5V

USB2_DM

USB1_DM

USB1_DP USB1_5V

ZD003

MLVG0402

1 2

ZD002

MLVG0402

1 2

R025

15K 1/10W

R027

15K 1/10W

C019

4P7 50V

C017

100N16V

C018

4P7 50V

USB bypass SSB

USB1_5V USB1_DM USB1_DP

ZD004

MLVG0402

1 2

ZD005

MLVG0402

1 2

R030

15K 1/10W

R029

15K 1/10W

C014

4P7 50V

C022

4P7 50V

C021

100N16V

USB2_5V USB2_DM USB2_DP

ITV_VDD

BUH_TXD

BUH_RXD

RC6

CN007

CONN

1 2

3

4 5

67

R036

10K1/16W

ZD008

BZX84B6V8

1 3

ZD006

BZX84-C5V6

1 3

R037 100OHM1/16W

ZD009

BZX84-C5V6

1 3

R038 0R05OHM1/16W

R039 0R05OHM1/16W

C026

100N 16V

t

TH001 8V 0R4

12

Q001 2N3906S-RTK/PS

1

23

R040 0R05OHM1/16W

R041

10K1/16W

ITV_VDD

RC_IR_OUT

RC6

ZD007

BZX84B6V8

1 3

123 4

CN010

USB CONN

1 2

3

4

6 5

+

C016

100UF 16V

+

C020

100UF 16V

CN008

CONN

1

2

3

4

5

6 7

123 4

CN009

USB CONN

1 2

3

4

6 5

Circuit Diagrams and PWB Layouts

EN 95TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-7-4 AmbiLight control layout top/bottom

19341_505_121119.eps

121129

2012-10-19

A

715G5415

AmbiLight control layout top/bottom

C001

C010

C002

C018

C019

C004

C006

R027

R030

R025

R029

C022

C023

C008

C009

C014

C025

C012

C024

C028

R045

C016

C020

C005

C013

FB004

R002

R003

R006

R007

R011

R021

R032

R044

R052

R008

R020

R015

R023

R040

R041

R042

R043

R046

R047

D001

FB001

U001

ZD001

M6M5

CN001

CN007

CN006

L001

CN004 CN005

FB003

CN003

U002

FB002

TH001

Q004

ZD006 ZD007

ZD008 ZD009

Q001

Q002

Q003

M1

Q1

Q2

CN011

CN012

CN002

C003

C021

C017

C007

C015

C026

ZD002 ZD003

ZD004ZD005

M3

CN1

M10

M2

M9

FB005

FB006

R001

R004

R005

R009

R010

R012

R013

R014

R016

R017

R018

R019

R022

R024

R026

R028

R031

R033

R034

R035

R036

R037

R038

R039

R048

R049

R050

R051

CN010

CN009

CN008

M4

Layout AmbiLight control (top side)

Layout

AmbiLight control

(bottom side)

Circuit Diagrams and PWB Layouts

EN 96TPM9.5A LA 10.

2012-Nov-30

back to

div. table

Circuit Diagrams and PWB Layouts

19341_500_121119.eps

121129

AmbiLight RGB - 10 LED

AL01 AL01

2012-07-19

1

715G5518

AmbiLight RGB - 10 LED

R015

75 OHM +-1% 1/10W

C002 1N 50V

C006 1N 50V

Q006

BC847C

R058

47K 1/16W 5%

R059 100OHM1/16W

In

C005 1N 50V

R002

75 OHM +-1% 1/10W

Q005

BC847C

R073

75 OHM +-1% 1/10W

R054

47K 1/16W 5%

12V

R055 100OHM1/16W

CN002

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

1920

R023

100 OHM 1%

R006

75 OHM +-1% 1/10W

R074

75 OHM +-1% 1/10W

R077

75 OHM +-1% 1/10W

PWM_G

RedBlue Green

D009

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

RedBlue Green

D010

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

R081

75 OHM +-1% 1/10W

R064

30R

R076

75 OHM +-1% 1/10W

R075

30R

RedBlue Green

D011

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

R080

75 OHM +-1% 1/10W

R060

75 OHM +-1% 1/10W

R040

75 OHM +-1% 1/10W

R082

75 OHM +-1% 1/10W

R043

75 OHM +-1% 1/10W

R085

75 OHM +-1% 1/10W

PWM_R

R041

75 OHM +-1% 1/10W

R078

75 OHM +-1% 1/10W

R046

75 OHM +-1% 1/10W

RedBlue Green

D015

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

RedBlue Green

D016

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

R079

75 OHM +-1% 1/10W

R042

75 OHM +-1% 1/10W

R047

75 OHM +-1% 1/10W

RedBlue Green

D002

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

FB001

120R/3000mA

12

R030

47K 1/16W 5%

Q001

BC847C

R036 100OHM1/16W C001 1N 50V

In

R011

75 OHM +-1% 1/10W

R008

82 OHM

FB002

120R/3000mA

12

PWM_B

PWM_G PWM_R

CN001

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

1920

12V

R083

75 OHM +-1% 1/10W

R084

75 OHM +-1% 1/10W

C003 1N 50V

R021

75 OHM +-1% 1/10W

Q003

BC847C

R038

47K 1/16W 5%

R039 100OHM1/16W

RedBlue Green

D001

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

R052

75 OHM +-1% 1/10W

R062

75 OHM +-1% 1/10W

R003

75 OHM +-1% 1/10W

C004 1N 50V

R063

100 OHM 1%

Q004

BC847C

R050

47K 1/16W 5%

R051 100OHM1/16W

R020

82 OHM

Q002

BC847C

R035

47K 1/16W 5%

R034 100OHM1/16W

R032

75 OHM +-1% 1/10W

R007

75 OHM +-1% 1/10W

RedBlue Green

D004

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

RedBlue Green

D005

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

RedBlue Green

D003

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

PWM_B

R044

75 OHM +-1% 1/10W

CN3

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

1920

CN004

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

1920

10.8 AL 715G5518 Ambilight 10 LED

10-8-1 AmbiLight RGB - 10 LED

EN 97TPM9.5A LA 10.

2012-Nov-30

back to

div. table

10-8-2 AmbiLight board layout

19341_501_121119.eps

121129

2012-07-16

1

715G5518

AmbiLight RGB - 10 LED

layout top/bottom

D001 D002 D003 D004 D005 D009 D010D011 D015D016

R3

R4

R002

R003

R006

R007

R011

R021

R032

R044

R052

R060

R064

R073

R074

R075

R008

R020

R015

R062

R023

R040

R041

R042

R043

R046

R047

R063

R076

R077

R078

R079

R080

R081

R082

R083

R084

R085

CN001

FB001

Q001

Q002

Q003

Q004

Q005

Q006

CN002

FB002

R1

R2

C001

C002

C003

C004

C005

C006

R030

R034

R035

R036

R038

R039

R051

R050

R054

R055

R059

R058

CN004

CN3

Layout AmiLight panel (top side)

Layout

AmbiLight

panel (bottom side)

Circuit Diagrams and PWB Layouts

EN 98TPM9.5A LA 10.

2012-Nov-30

back to

div. table

Circuit Diagrams and PWB Layouts

19341_506_121119.eps

121129

AmbiLight RGB - 12 LED

AL01 AL01

2012-07-19

1

715G5566

AmbiLight RGB - 12 LED

C002 1N 50V

C006 1N 50V

Q006

BC847C

R058

47K 1/16W 5%

R059 100OHM1/16W

C005 1N 50V

R002

75 OHM +-1% 1/10W

12V

Q005

BC847C

R073

75 OHM +-1% 1/10W

R054

47K 1/16W 5%

R055 100OHM1/16W

R006

75 OHM +-1% 1/10W

R074

75 OHM +-1% 1/10W

RedBlue Green

D009

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

RedBlue Green

D010

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

R064

30R

R075

30R

RedBlue Green

D011

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

FB002

120R/3000mA

12

R070

75 OHM +-1% 1/10W

RedBlue Green

D012

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

RedBlue Green

D013

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

RedBlue Green

D014

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

R071

75 OHM +-1% 1/10W

R066

75 OHM +-1% 1/10W

R072

30R

R026

75 OHM +-1% 1/10W

R056

75 OHM +-1% 1/10W

R030

47K 1/16W 5%

Q001

BC847C

R036 100OHM1/16W C001 1N 50V

R024

82 OHM

In

R012

75 OHM +-1% 1/10W

R011

75 OHM +-1% 1/10W

R008

82 OHM

PWM_B

PWM_G PWM_R

R019

75 OHM +-1% 1/10W

CN002

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

1920

CN001

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

1920

12V

FB001

120R/3000mA

12

PWM_G

R029

75 OHM +-1% 1/10W

C003 1N 50V

Q003

BC847C

R021

75 OHM +-1% 1/10W

R038

47K 1/16W 5%

R039 100OHM1/16W

PWM_R

R052

75 OHM +-1% 1/10W

R018

82 OHM

R003

75 OHM +-1% 1/10W

PWM_B

R067

75 OHM +-1% 1/10W

C004 1N 50V

Q004

BC847C

R050

47K 1/16W 5%

R051 100OHM1/16W

R020

82 OHM

Q002

BC847C

R035

47K 1/16W 5%

R034 100OHM1/16W

R068

75 OHM +-1% 1/10W

R007

75 OHM +-1% 1/10W

RedBlue Green

D004

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

RedBlue Green

D005

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

R069

30R

RedBlue Green

D003

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

RedBlue Green

D006

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

RedBlue Green

D007

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

R044

75 OHM +-1% 1/10W

RedBlue Green

D008

P5018/RSGBB7C-A01/2D

1

2

3

4

5

6

CN003

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

1920

CN004

CONN

1 2

3

4 5 6 7

8

9 10 11 12 13 14 15 16 17 18

1920

10.9 AL 715G5566 Ambilight 12 LED

10-9-1 AmbiLight RGB - 12 LED

EN 99TPM9.5A LA 10.

2012-Nov-30

back to

div. table

Circuit Diagrams and PWB Layouts

19341_507_121119.eps

121129

2012-10-19

1

715G5566

AmbiLight RGB - 12 LED

layout top/bottom

D003 D004 D005 D006 D007D008 D009 D010D011 D012 D013D014

R052

R018

R024

C001

C002

C004

C006

R030

R029

C005

R002

R003

R006

R007

R011

R021

R044

R008

R020

CN001

CN002

R012

R019

R026

R056

R064

R066

R067

R068

R069

R070

R071

R072

R073

R074

R075

FB001

FB002

Q001

Q002

Q003

Q004

Q005

Q006

C003

R034

R035

R036

R038

R039

R051

R050

R054

R055

R059

R058

CN003

CN004

Layout AmbiLight panel (top side)

Layout

AmbiLight

panel (bottom side)

EN 100TPM9.5A LA 10.

10-9-2 AmbiLight panel layout

2012-Nov-30

back to

div. table
