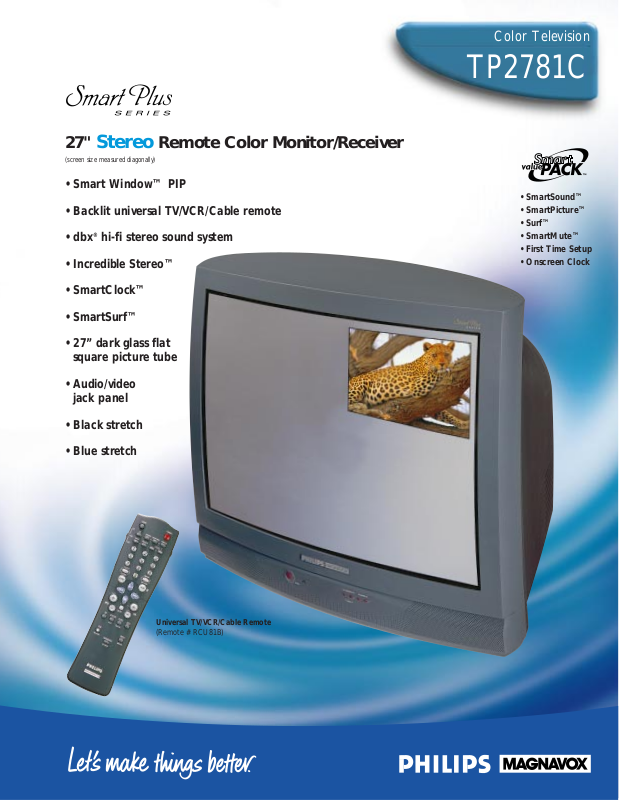

Philips TP2781C User Manual

27" Stereo Remote Color Monitor/Receiver

(screen size measured diagonally)

• Smart Window™ PIP

• Backlit universal TV/VCR/Cable remote

• dbx

hi-fi stereo sound system

• Incredible Stereo™

• SmartClock™

• SmartSurf™

• 27” dark glass flat square picture tube

• Audio/video jack panel

• Black stretch

• Blue stretch

Color Television

TP2781C

• SmartSound™

• SmartPicture™

• Surf™

• SmartMute™

• First Time Setup

• Onscreen Clock

Universal TV/VCR/Cable Remote

(Remote # RCU81B)

Color Television

TP2781C


Smart Window™ (PIP)

Used in conjunction with a second video source such as a VCR, DVD Video player, or Web browser, picture-in-picture allows you to monitor one TV channel while watching another, monitor videotape or videodisc playback while playing a game, or monitor a TV channel while surfing the Internet. You can swap the main and secondary pictures, or position the PIP window in any screen corner. In all cases, the main picture is provided with its corresponding audio.

Improved Image Definition (IID™)

Get greater picture resolution for sharper, clearer, more detail-perfect color picture reproduction. Capable of delivering 800 lines of horizontal resolution

, this set exceeds the maximum clarity of 330 lines of horizontal resolution delivered by broadcast television and easily supports the demands of DVD Video, Web browsers, and other advanced high-resolution video media (through the S-video inputs).

Green Stretch

Advanced chroma processing circuitry takes automatic flesh-tone correction to a new level making flesh-tones more true-to-life for eye-popping realism in your TV picture.

SmartPicture™ 27'' Dark Glass Flat Square Picture Tube Black Stretch Blue Stretch

Remote Control

Backlit LED Remote Control

Makes it easy to use select remote TV functions even in low light conditions. No more fumbling with tiny buttons; just press the button and the 4-way cursor, VOLUME , CHANNEL , MENU, and SURF buttons light up.

Universal TV/VCR/Cable Remote

Controls all features and functions of this monitor/receiver with direct menu access, including Smart Window™ PIP with On/Off, Position, Freeze, Swap, Source, and PIP CHANNEL ; Multimedia Mode, Incredible Stereo™, Surf™, and the dual A/V input/tuner switch. It also activates the exclusive SmartSound™, SmartClock™, and SmartPicture™ options. In addition, this remote controls all important operating features and functions of virtually all infrared VCRs, most brands of DVD Video players, virtually all brands of DBS receivers, and on/off as well as CHANNEL functions on most cable converter/decoders. (Remote # RCU81B)

Convenience

Multimedia Mode

Simply press the MULTIMEDIA button on the remote control and sequentially scroll through the various inputs. The SmartPicture™ option is automatically set to MULTIMEDIA for optimal adjustment of customer controls. The third time the MULTIMEDIA button is pressed, the TV returns to the original tuner source and all settings revert to their previous condition…automatically!

SmartSurf™

Eliminates the frustration of trying to remember what channels had programs of interest while channel surfing. After establishing the SmartSurf™ configuration with the user-friendly menu, store up to ten stations in the SmartSurf™ memory and then surf only those channels at the touch of a button. The versatility of this feature is enhanced by the availability of an onscreen list of the channels stored and offers the option of adding or deleting channels in the list by remote control.

UP DN

SmartClock™

Finally, an accurate digital clock that’s always right! By monitoring the vertical blanking interval of PBS broadcasts, Philips Magnavox TVs equipped with SmartClock™ can automatically set the right time of day and maintain it through brown-outs, power failures, and even daylight savings time adjustments.

SmartMute™ Easy First Time Setup Alternate Channel Onscreen Clock with Sleep Timer and Alarm Timer Parental Control Trilingual Onscreen Display Auto Programming Closed Caption Onscreen Volume Bar

Sound

SmartSound™

When activated, SmartSound™ keeps volume levels constant between programs and commercials, and from one channel to another. SmartSound™ constantly monitors the audio signal, reducing a signal that’s too loud and increasing a signal that’s too weak.

dbx®Hi-Fi Stereo Sound System Incredible Stereo™ Tone Controls

Audio/Video Jack Panel

Audio/Video Jack Panel (J810)

The A/V jack panel on the back of this set includes dual audio/video inputs for connection of a VCR, DVD Video player, Web browser, or other accessory equipment; variable audio outputs which allow sound from TV or accessories to be routed through a home audio system; standard video output for connection to a VCR; and an S-video input for connection of a highresolution video accessory.

Additional Features Include:

• Channel edit

• Total remote menu format tuning with multicolor onscreen graphics

• 181-channel capability

• 4-way cursor control

• Random channel access

• Programmable scan tuning

• Status recall

• Mono/stereo/SAP select

• Cable/normal select

• Two 5" oval, full-range speakers with menu-selectable speaker switch

UPC: 037849865194 Product dimensions: 25.8"W x 22.9"H x 19.8"D Product weight: 80 lbs. Carton dimensions: 29.7"W x 26.8"H x 22.9"D Carton weight: 84 lbs. Master pack: 1

Carton Contains: 27" Stereo Remote Color Monitor/Receiver, Universal TV/VCR/CBL Lighted Remote Control w/Batteries, Operating Instructions, Warranty Information

Lines per picture width. 600 based on EIA measurement procedures.

Subject to modification without notice.

* Smart Window, SmartSound, SmartPicture, SmartClock, SmartMute,

SmartSurf, Surf, IID, and Incredible Stereo are trademarks of Philips Consumer Electronics Company. dbx is a registered trademark of dbx, Inc. Sunnyvale, CA.
