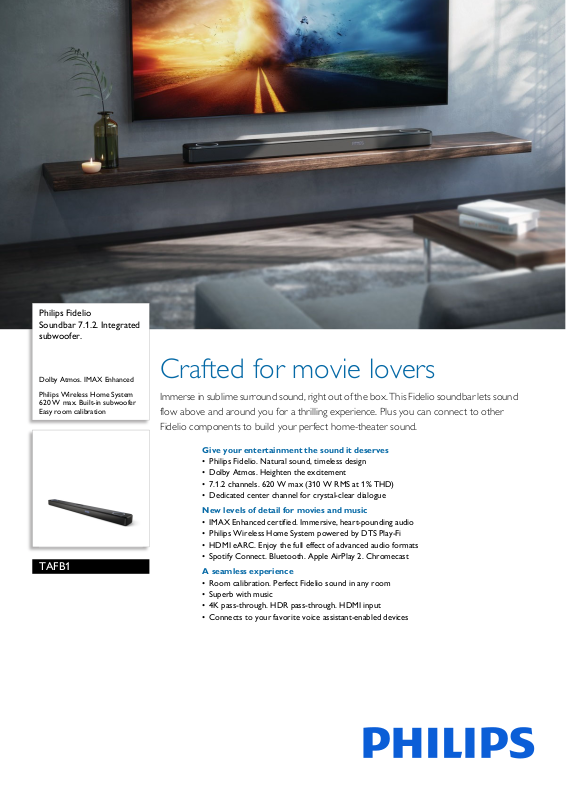

Philips Fidelio Soundbar 7.1.2. Integrated subwoofer.

Dolby Atmos. IMAX Enhanced

Philips Wireless Home System 620 W max. Built-in subwoofer Easy room calibration

TAFB1

Crafted for movie lovers

Immerse in sublime surround sound, right out of the box. This Fidelio soundbar lets sound flow above and around you for a thrilling experience. Plus you can connect to other Fidelio components to build your perfect home-theater sound.

Give your entertainment the sound it deserves

• Philips Fidelio. Natural sound, timeless design

• Dolby Atmos. Heighten the excitement

• 7.1.2 channels. 620 W max (310 W RMS at 1% THD)

• Dedicated center channel for crystal-clear dialogue

New levels of detail for movies and music

• IMAX Enhanced certified. Immersive, heart-pounding audio

• Philips Wireless Home System powered by DTS Play-Fi

• HDMI eARC. Enjoy the full effect of advanced audio formats

• Spotify Connect. Bluetooth. Apple AirPlay 2. Chromecast

A seamless experience

• Room calibration. Perfect Fidelio sound in any room

• Superb with music

• 4K pass-through. HDR pass-through. HDMI input

• Connects to your favorite voice assistant-enabled devices

Page 2

TAFB1/37

Soundbar 7.1.2. Integrated subwoofer.

Dolby Atmos. IMAX Enhanced Philips Wireless Home System, 620 W max. Built-in subwoofer, Easy room calibration

Highlights

Fidelio sound and design

This Fidelio soundbar with integrated s

ubwoofer fills any room with dramatic effects, rich soundtracks, and crystal-clear dialogue. The soundbar looks beautiful, too—with anthracite Muirhead leather trim offsetting the fine metal mesh on the top and front.

7.1.2 channels. 620 W max

Custom-built Fidelio speakers—including two up

-firing speakers—let sound flow above and around you. The built-in subwoofer adds real weight. Front left, front right, and center channels all boast tweeters placed between two midrange woofers for crystal-clear speech, vocals, and surround sound.

Philips Wireless Home System

This Play-Fi-compatible Fidelio soundbar lets you b

uild your perfect home-theater sound. Connect the soundbar to an external Fidelio subwoofer in seconds to add even more depth to the sound of movies and music. For extra immersion, add paired wireless speakers to create a true surround-sound setup.

Room calibration

No matter what shape or size your roo

m—always get perfect Fidelio sound.

Simply connect the included mic, then place the mic where you sit to watch TV. The soundbar measures how sound travels in the room, intelligently adjusting each channel's output to guarantee sublime surround sound.

IMAX Enhanced certified

Your Fidelio soundbar is certified IMAX En

hanced, which means it's capable of delivering an audio experience that truly matches IMAX's extraordinary sense of scale. From pulse-quickening explosions to heartstopping whispers—feel every moment of movies originally made to play in IMAX theaters.

Dolby Atmos

You get the full Dolby Atmos experience from th

is soundbar's dedicated up-firing speakers. Your favorite movies and shows will sound breathtakingly realistic as sound flows above and around you. When watching non-Atmos content, the soundbar adjusts to give you the richest possible sound.

HDMI eARC

Lose nothing from the mix when you're i

mmersed in the drama. This soundbar is

compatible with HDMI eARC, a high-speed

connection that lets you experience the full effect of advanced audio formats like Dolby Atmos and DTS:X.

Superb with music

Let the songs you love come alive, as natural Fideli

o sound makes the most of the music you stream. Warm, perfectly timed, with rich bass and lush detail in mids and highs. Whether it's Spotify Connect—or playlists streamed via streaming services like Amazon, Spotify, Deezer, or Tidal.

Connect with voice assistants

Ask Alexa-enabled devices, or any speaker that works with the Google Assistant, to play music through the soundbar. Prefer Siri? This soundbar works with Apple AirPlay 2, so you can ask her too. Turn the music up. Skip tracks. All completely hands-free.

Page 3

TAFB1/37

Soundbar 7.1.2. Integrated subwoofer.

Dolby Atmos. IMAX Enhanced Philips Wireless Home System, 620 W max. Built-in subwoofer, Easy room calibration

Specifications

Loudspeakers

• Number of sound channels: 7.1.2

• Center drivers: 2 full range (L+R), 1 tweeter

• Front drivers: 4 full range (L+R),

• Up-firing drivers: 2 full range (L+R)

• Side-firing drivers: 2 full range (L+R)

• Subwoofer type: Integrated subwoofer

• Subwoofer drivers: 2 x 3.5" woofers

• Soundbar freq range: 50 - 20K Hz

• SPL (Max volume): 96 dB

2 tweeters (L+R)

Sound

•Sound System: Dolby Atmos, DTS:X, IMAX Enhanced

• Surround mode: UPMIX, Standard, AI

• Equalizer settings: Movie, Music Custom

• Auto room calibration

• Auto lip-sync delay: via HDMI EDID

• Manual lip-sync delay: 0 to 200 ms

• Speaker system output power: 620W MAX /

0W RMS

• Total harmonic distortion: 1%

, Voice, Stadium,

Video

• HDR pass-through: Dolby Vision, HDR10, HDR10+, HLG

• 4K pass-through: Up to 4k/60P/YUV4:4:4

•3D pass-through: No

Connectivity

•HDMI IN x 1

• HDMI Out (eARC/ARC) x 1

• EasyLink (HDMI-CEC)

• HDMI content protection: HDCP 1.4/2.3

• Multiple speaker connection

• Multiple speaker technology: DTS Play-Fi Multi-

om, DTS Play-Fi Home theatre

• Smart Home: Built-in Chromecast, Spotify

nnect, Works with Alexa, Works with Apple

Co AirPlay 2, Works with OK Google

• Bluetooth: Receiver

• Bluetooth version: 5.0

• Bluetooth profiles: A2DP, AVRCP, Streaming

ormat: SBC, Multipoint (Multipair) support

• WiFi: 2.4GHz/5GHz, IEEE 802.11 a/b/g/n/ac

• Optical input x 1

• Aux in: 3.5mm

• USB playback

• Mic input x 1: for auto room calibration

• IR port: IR repeater

•DLNA Standard: No

• Wireless speaker connection: None

•Subwoofer out: No

Supported Audio Formats

• HDMI IN1: Dolby Atmos, Dolby Digital, Dolby Digital plus, Dolby TrueHD, Dolby Digital EX, DTS, DTS 96/24, DTS Digital Surround (5.1-ch), DTS:X, DTS-ES, DTS-HD Master Audio, DTS-HD High Resolution Audio

• HDMI ARC/eARC: Dolby Atmos, Dolby Digital, Dolby Digita TrueHD, DTS, DTS 96/24, DTS Digital Surround

l EX, Dolby Digital plus, Dolby

(5.1-ch), DTS:X, DTS-ES, DTS-HD High Resolution Audio, DTS-HD Master Audio

• Optical: Dolby Digital, LPCM 2ch

• Bluetooth: SBC, AAC, A2DP, AVRCP

•USB: MP3, WAV, FLAC

• Play-Fi: AIFF, FLAC, MP3, MPEG4 AAC, MPEG4 M4A, WAV

Compatibility

• Smartphone/tablet controllable

Convenience

• Display type: 5-digit 14-segment LED display

•Night mode: No

•Remote Control

Design

• Wall mountable

• Color: Black

Power

•Auto standby

• Main unit power supply: 100-240V AC, 50/60 Hz

• Eco standby (Wi-fi off)

• Main unit standby power: < 0.5 W

•Power LED indicator

Accessories

• Included accessories: Remote Control (with battery), Power cord, Quick start guide, World Wide Warranty leaflet

Dimensions

• Main Unit (W x H x D): 1200 x 73 x 125 mm

• Main Unit Weight: 7.2 kg

Packaging dimensions

• Packaging type: Carton

• Number of products included: 1

• Type of shelf placement: Laying

• Packaging dimensions (W x H x D):

5 x 17.5 x 20.5 cm

• Packaging dimensions (W x H x D):

.1 x 6.9 x 8.1 inch

•Gross weight: 8.5 kg

• Nett weight: 7.1 kg

• Tare weight: 1.4 kg

• Gross weight: 18.739 lb

• Nett weight: 15.653 lb

• Tare weight: 3.086 lb

• UPC: 8 40063 20257 3

Outer Carton

• Number of consumer packagings: 2

•Outer carton (L x W x H): 137 x 22 x 38 cm

•Outer carton (L x W x H): 53.9 x 8.7 x 15.0 inch

• Gross weight: 18.5 kg

• Nett weight: 14.2 kg

• Tare weight: 4.3 kg

• Gross weight: 40.785 lb

• Nett weight: 31.305 lb

• Tare weight: 9.480 lb

• GTIN: 1 08 40063 20257 0

•

Issue date 2022-04-13

Version: 1.0.1

12 NC: 8670 001 84138 UPC: 8 40063 20257 3

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips N.V. or their respective owners.
