Philips Multimedia Projectors

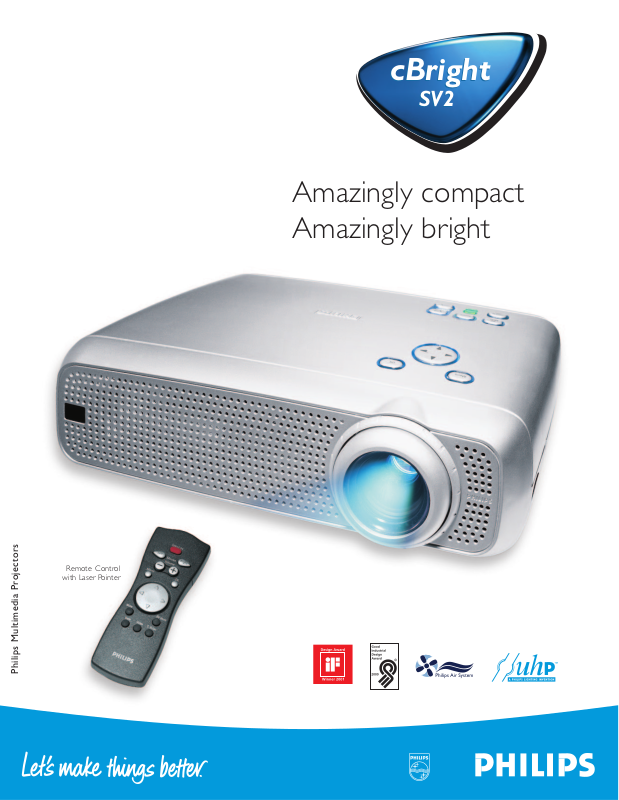

cBright
cBright
SV2
SV2
Amazingly compact
Amazingly bright
Remote Control
with Laser Pointer
1500 ANSI lumens
SVGA resolution
Lightweight (7.9 lbs)
SmartSet™ (Auto-image for trouble-free
operation and optimal image quality)
SmartSave™ (Auto standby mode to increase
effective lamp usage)
YourLogo™ (customisable start-up screen)
ProjectorMax Software (Projector control from PC)
• Digital Features: Zoom, Keystone correction,
and Freeze
• 200W long-lasting UHP™ lamp for uniform
images, rich colours and brightness over time
• 37dB Philips Air System™ for silent operation
• USB (hot plug&play mouse control and USB audio)
•Kensington™ lock socket
• Ceiling mountable
• ColourTracking™:To influence the color tuning
of the projector
First Choice Warranty
• 3 years parts and labor, excluding lamp**
• Toll-free technical support
• 1 year, 48-hour roadside assistance
SV2
LCD 3x 0.9" high-temperature poly-silicon active matrix LCDs
Micro-lens array No
Resolution SVGA (800x600)
Number of pixels 1,440.000
Brightness 1500 ANSI lumens
Contrast 350:1
Lamp UHP™-compact 200W, end user replaceable
Average lifetime 1500 hours of use
Lens F/2.0 - 2.2 ; f = 36.5 - 46 mm
1.3x Manual Zoom; Manual Focus
Projection distance 1,1 - 12 m (image diagonal 20" - 300")
Input compatibility
Video NTSC 3.58, 4.43 ; PAL N, M, B/G ;SECAM
S-video/S-VHS (Y/C)
Component video input (RGB-Y,YUV/YCbCr,YPbPr)
HDTV video input (480p, 720p, 1080i)
Computer PC and MAC compatible, Multi scan VGA-SXGA
Horizontal scan rate: 50 - 108 kHz
Ver tical refresh rate: 50 - 120 Hz
Bandwidth: 140 MHz
Plug and play Display Data Channel DDC 1/2B
Compatibility Microsoft® Windows®, 98/ME, IMAC & IMAC DV compatible
Input connectors
Video 1x CVBS Video (RCA)
1x S-Video (Y/C DIN)
Computer 1x Data in (15p D-sub)
Audio
Video 1x Stereo Audio (3.5 mm stereo jack)
Data 1x Stereo Audio (3.5 mm stereo jack)
1x Digital Audio (via USB)
Speaker
3 watts mono
Mouse USB type A
Output connectors
Data 1x Monitor-Out (15p D-sub)
Audio 1x Stereo Audio (3.5 mm stereo jack)
Features SmartSet automatic image quality optimisation
SmartSave auto-standby mode to increase effective lamp usage
YourLogo - express your corporate identity via the projector’s screen
ProjectorMax projector control software
Digital Keystone correction
Digital Zoom and Freeze
Connect an external monitor via the Monitor-Out connector
37dB Philips Air System for silent operation
Distinctive silver-look product styling
Dimensions 4.0" x 12.9" x 8.9" (102 x 328 x 226 mm) (HxWxD)
Net weight 7.9 lbs / 3.6 kg
Power consumption
Operating voltage 100 - 240V, 50/60 Hz
Operation 250W
Standby 5W
Temperature range
Operational +41 to +95 °F (+5 to +35 °C)
Storage -13 to +158 °F (-25 to +70 °C)
FCC rating Class A
Package cBright SV2
Laser pointer remote control, Power cord
Combined VGA-USB cable (2m),Audio/Video cable (2m), S-video cable (2m)
Audio-Out converter plug (3.5mm stereo jack to 2x RCA), Soft carrying bag,
Lenscap, CD-ROM User Guide (UK, D,F, E, PT, NL I)
Quick Setup Card (UK, D, F, E,PT, NL, I)
Optional accessories UHP™ 200W replacement lamp (LCA3111)
RCA/VGA Component video cable (LCA5311)
RS-232 Mouse Receiver (LCA4119)
Ergonomic trackerball remote control (LCA4117)
Ceiling mount (LCA2210)
VGA extension cable, 15 metres (LCA5300)
Mouse extension cable, 15 metres (LCA5314)
Composite video extension cable, 15 metres (LCA5313)
EzyPad cable organiser (LCA9000)
Model Number LC4431
cBright
cBright
SV2
SV2
Design and specifications are subject to change without notice.
* Available in the US,Western Europe. Check with your dealer for similar coverage in other regions.
**Warranty is for 3 years or 2500 hours,whic hever comes first.Time kept by internal clock.
All trademarks are property of their respective owners.
Literature # LC4431
features:
www.philips.com
More Information
Technical Support toll free 888-873-4672 (USA)
Sales Information 1-888-327-3636
Projection Chart
Values are estimates
Audio out
USB
Video audio in Data audio in Video S-Video Data in Data out
Input/Output Panel
Image diagonal size
[
][
inch
meters
40
1.0
60
1.5
70
1.8
80
2.0
100
2.5
150
3.8
200
5.1
250
6.4
][
Projection distance
Tele zoom Wide zoom
][
][
inch
120
140
160
201
302
403
504
meters
79
2.0
3.0
3.6
4.1
5.1
7.7
10.2
12.8
][
inch
61
92
108
123
154
232
310
388
meters
1.6
2.3
2.7
3.1
3.9
5.9
7.9
9.8
]
