Philips SCF393/62 user manual

Download

Single/Double Electric Breast Pump Tire-lait Électrique Simple/Double

Simple/Doubl

Advanced/Avancé

SCF393/62 SCF393/52 SCF391/62

www.philips.com/mybreastpump

D1 D3 D5

D4 D6

C3 C4

English

Contents

Introduction _____________________________________________________________________________ 5 General description _______________________________________________________________________ 6 Indications for use ________________________________________________________________________ 6 Important safety information _______________________________________________________________ 7 Before first use ___________________________________________________________________________ 11 Cleaning and disinfecting __________________________________________________________________ 11 Using the breast pump ____________________________________________________________________ 15 Using the breast pump when you have symptoms of engorgement______________________________ 19 After use ________________________________________________________________________________ 19 Feeding breast milk with the bottle__________________________________________________________ 21 Compatibility _____________________________________________________________________________ 23 Ordering accessories ______________________________________________________________________ 23 Disposal _________________________________________________________________________________ 23 Full Two-Year Warranty____________________________________________________________________ 23 Troubleshooting __________________________________________________________________________ 24 Undesirable side effects____________________________________________________________________ 25 Storage conditions ________________________________________________________________________ 26 Electromagnetic fields (EMF) _______________________________________________________________ 26 Technical information _____________________________________________________________________ 26 Explanation of symbols ____________________________________________________________________ 29

English

Introduction

Congratulations on your purchase and welcome to Philips Avent! To fully benefit from the support that Philips Avent offers, register your breast pump at www.philips.com/mybreastpump.

The Philips Avent single/double electric breast pump Advanced is inspired by babies and their natural suction movement. The soft silicone flange stimulates the nipple with gentle massaging movements, helping you to express milk comfortably and effectively. The combination of suction and nipple stimulation triggers fast milk flow. The no-lean-forward design enables you to sit in a relaxed, upright position while expressing.

To breastfeed longer, you can express and store your milk so that your baby can still enjoy the benefits of it, even if you cannot be there to provide it yourself. As the pump is compact, quiet and discrete to use, you can take it with you anywhere, allowing you to express milk at your own convenience and to maintain your milk supply.

If breastfeeding goes well, it is advisable (unless recommended otherwise by your healthcare professional) to wait until your milk supply and breastfeeding schedule are established (normally at least 2 to 4 weeks after giving birth) before you start expressing.

English

General description

Note: The numbers mentioned below refer to the numbers in the figure on the front foldout page of this

user manual.

Note: The single breast pump (SCF391/62) includes one set and the double breast pump (SCF393/62)

includes two sets of the breast pump kit and Philips Avent Natural bottle shown in Figures B and C.

Product description (Fig. A)

A1 Motor unit A2 Breast pump kit A3 Bottle A4 Adapter*

Breast pump kit (Fig. B)

B1 Silicone tube and cap B2 Silicone diaphragm B3 Pump body

Philips Avent Natural bottle (Fig. C)

C1 Bottle cap C2 Screw ring C3 Feeding nipple

A5 Double breast pump * The adapter supplied may vary for different

countries.

B4 Cover B5 Flange B6 White valve

C4 Sealing disc C5 Bottle

Motor unit part description (Fig. D)

D1 USB power inlet D2 On/off button with pause/play function D3 Mode selection button D4 'Level down' button

D5 'Level up' button D6 Indicator lights for modes and levels D7 Tubing port for single breast pump D8 Tubing ports for double breast pump

Accessories

There are multiple versions of this breast pump package, which all come with a different combination of the following Philips Avent accessories:

Breast pads

Travel bag

Insulation pouch

Cleaning brush

* For these accessories, a separate user manual is provided.

Storage cups with adapter*

Breast milk storage bags*

Natural bottles

Indications for use

The Philips Avent single/double electric breast pump Advanced is intended to express and collect milk from the breast of a lactating woman, and to alleviate engorgement of the breast. Thedevice is intended for a single user.

English

Important safety information

Read this user manual carefully before you use the breast pump and save it for future reference. This user manual can also be found online on the Philips Avent website: www.philips.com/avent. This product is operated by the lactating woman herself. You can use this breast pump in an everyday environment.

Contraindications

- Never use the breast pump while you are pregnant, as pumping can induce labor.

Warnings

Warnings to avoid choking, strangulation and injury:

- Do not allow children or pets to play with the motor unit, the adapter, packaging materials or accessories.

- Always unplug the breast pump after use. Store the breast pump when not in use.

English

This breast pump is not intended for use by persons (including children) with reduced physical, sensory or mental capabilities, or lack of experience and knowledge. Such persons can only use this breast pump if they are supervised by or have received proper instruction concerning use of the appliance by a person responsible for their safety.

Warning to prevent transmitting infectious diseases:

If you are a mother who is infected with Hepatitis B, Hepatitis C or Human Immunodeficiency Virus (HIV), expressing breast milk will not reduce or remove the risk of transmitting the virus to your baby through your breast milk.

Warnings to avoid electric shock:

Inspect the breast pump, including the adapter, for signs of damage before each use. Do not use the breast pump if the adapter or plug is damaged, if it does not work properly or if it has been dropped or submerged in water.

English

If the power adapter outer casings become loose or are separating, contact the device manufacturer immediately. Separation of the casing can result in electric shock.

Only use the adapter (S009AHz050yyyy) provided with this breast pump.

Always ensure that it is easy to disconnect the device from the mains in case of malfunction. The adapter is considered the disconnection device.

Warnings to avoid contamination and to ensure hygiene:

For hygienic reasons, the breast pump is only intended for repeated use by a single user.

Clean and disinfect all parts before first use and after each use.

Do not use antibacterial or abrasive cleaning agents to clean the breast pump parts as this may cause damage.

Wash your hands thoroughly with soap and water before you touch breast pump parts and breasts to prevent contamination. Avoid touching the inside of containers or lids.

Warnings to avoid breast and nipple problems including pain:

Do not use the breast pump if the silicone diaphragm appears to be damaged or broken. See chapter ‘Ordering accessories’ for information on how to obtain replacement parts.

Only use accessories and parts recommended by Philips Avent.

There are no user serviceable parts inside the motor unit of the breast pump.

No modification of the breast pump is allowed. If you do so, your warranty becomes invalid.

Never use the breast pump while you are sleepy or drowsy to avoid lack of attention during use.

Always switch off the breast pump before you remove the pump body from your breast, in order to release the vacuum.

If the vacuum is uncomfortable or causes pain, switch off and remove the breast pump from your breast.

English

Do not continue pumping for more than five minutes at a time if you do not succeed in expressing any milk. Try to express at another time during the day.

If the process becomes very uncomfortable or painful, stop using the pump and consult your healthcare professional.

Warnings to prevent damage and malfunction of the breast pump:

Portable radio frequency (RF) communications equipment (including mobile phones and peripherals such as antenna cables and external antennas) should not be used closer than 30cm (12in) to any part of the breast pump, including adapter. This could have a negative effect on the performance of the breast pump.

Use of this equipment adjacent to or stacked with other equipment should be avoided because it could result in improper operation.

Warnings to avoid increased electromagnetic emissions or decreased electromagnetic immunity of this device, resulting in improper operation:

Do not use any other adapter or charging cable than supplied with the device.

Use of accessories, transducers and cables other than those specified or provided by the manufacturer of this equipment could result in increased electromagnetic emissions or decreased electromagnetic immunity of this equipment and result in improper operation.

English

Cautions

Cautions to prevent damage to and malfunctioning of the breast pump:

Prevent the adapter and motor unit from coming into contact with water.

English

Never put the motor unit or the adapter in water or in a dishwasher, as this causes permanent damage to these parts.

Keep the adapter and the silicone tubes away from heated surfaces to avoid overheating and deformation of these parts.

SAVE THESE INSTRUCTIONS.

English



Before first use

Disassemble, clean and disinfect all parts that come into contact with breast milk before you use the breast pump for the first time and after every use.

Cleaning and disinfecting

Overview

Clean and disinfect the parts that come into contact with the breast and breast milk as described below:

When How

Clean and disinfect before first use and after every use.*

Disassemble all parts and then clean them as described in chapter 'Cleaning' and disinfect them as described in chapter 'Disinfecting'.

English

* Note: Disinfecting is especially important if your baby is less than 3months old, was born prematurely, or has a weakened immune system due to illness or medical treatment. To ensure hygiene, perform the disinfecting step at least once a day.

The following parts do not come into contact with the breast and breast milk; clean them as described below:

When How

Clean when needed. Wipe with a clean, damp cloth with

water and mild detergent. Wipe the motor unit with a clean, soft

cloth moistened with low-level disinfectant such as ethyl or isopropyl alcohol (70-90%).

Do not disinfect the tube.

English

Caution: Inspect the tubing. If you find condensation in the air tube, wash and dry it immediately or replace the tubing. If you see breast milk inside the tubing or tubing connector, do not attempt to wash, clean or disinfect the tubing or tubing connector. Instead, contact the manufacturer.

Step 1: Disassembling

Disassemble the breast pump, bottle and storage cup completely. Also remove the white valve from the breast pump.

Step 2: Cleaning

The parts that come in contact with milk can be cleaned manually or in the dishwasher.

Warning: Do not use antibacterial or abrasive cleaning agents to clean the breast pump

parts as this may cause damage.

Caution: Never put the motor unit or the adapter in water or in a dishwasher, as this

causes permanent damage to these parts.

Caution: Be careful when you remove and clean the white valve. If it gets damaged, your breast pump does not function properly. To remove the white valve, gently pull at the ribbed tab on the side of the valve. To clean the white valve, rub it gently between your fingers in warm water with some dishwashing liquid. Do not insert objects into the white valve, as this may cause damage.

Step 2A: Manual cleaning

5 min.

Supplies needed:

Mild dishwashing liquid

Drinking-quality water

Soft, clean brush used only for infant feeding items

English

Clean tea towel or drying rack

Clean bowl used only for infant feeding items

English

1. Rinse all parts under a running tap with lukewarm water. Do not place the parts in a sink to rinse.

5. Leave all parts to airdry on a clean, unused tea towel or drying rack in an area protected from dirt and dust. Do not use a tea towel to rub or to pat the items dry.

2. Soak all parts for 5minutes in warm water with some mild dishwashing liquid.

3. Clean all parts with a cleaning brush. Clean the feeding nipple with a brush as carefully as possible, to avoid damage.

4. Thoroughly rinse all parts under a running tap with cold clear water by holding them. Clean the bowl and the brush. Rinse them well and allow them to air-dry after each use. Wash them by hand or in a dishwasher at least every few days.

English

Step 2B: Cleaning in the dishwasher

Supplies needed:

Mild dishwashing liquid or a dishwashing tablet

Drinking-quality water

Note: Food colorings may discolor parts.

1. Place all parts on the top rack of the dishwasher.

2. Put dishwashing liquid or a tablet in the machine. Run a standard program using hot water and a heated drying cycle (or sanitizing setting).

3. Remove the parts from dishwasher with clean hands. If items are not completely dry, place items on a clean, unused tea towel or paper towel to air-dry thoroughly before storing. Do not use a tea towel to rub or pat the items dry.

Step 3: Disinfecting

Supplies needed:

A household pot

Drinking-quality water

Caution: During disinfection with boiling water, prevent the bottle or other parts from touching the side of the pot. This can cause irreversible product deformation or damage that Philips cannot be held liable for.

English

5 min.

English

1. Fill a household pot with enough water to cover all parts and place all parts in the pot. Let the water boil for 5minutes. Make sure the parts do not touch the side of the pot.

2. Allow the water to cool down.

3. Gently remove the parts from the water. Place the parts on a clean surface/tea towel or drying rack to air-dry.

4. Store the dry items safely until needed. Ensure the clean pump parts, bottle brushes and wash bowls have airdried thoroughly before storing. Items must be completely dry to help prevent germs and mold from growing. Store the dry items in a clean, protected area.

Using the breast pump

Flange size

The Philips Avent single/double electric breast pump Advanced has a soft, active flange. There is only one flange size. It gently stimulates your nipple to trigger milk flow. The flange is made of flexible silicone, fitting nipple sizes up to 30mm/1.18 in.

Assembling the breast pump

Make sure you have cleaned and disinfected the parts of the breast pump that come into contact with milk.

Warning: Be careful, when you have disinfected the breast pump parts by boiling them, they can be very hot. To prevent burns, only start assembling the breast pump when disinfected parts have cooled down.

Warning: Wash your hands thoroughly with soap and water before you touch breast pump parts and breasts to prevent contamination. Avoid touching the inside of containers or lids.

Caution: Before each use, visually inspect the individual components for cracks, chips, tears, discoloration or deterioration. In the event that damage to the device is observed, discontinue use until the parts have been replaced.

English

Note: Correct placement of the flange, silicone diaphragm and silicone tube is essential for the breast pump to form a proper vacuum.

1. Wash your hands thoroughly with soap and water.

5. Place the silicone diaphragm in the pump body.

9. Insert the adapter into the power outlet and insert the small plug at the other end into the motor unit.

2. Push the white valve in the pump body as far as possible.

6. Make sure that the silicone diaphragm fits securely around the rim by pressing it down with your thumbs.

10. The breast pump is now ready for use.

3. Screw the pump body onto the bottle.

7. Attach the silicone tube and cap onto the diaphragm. Push down the cap until it is securely in place.

Note: You can place the cover over the flange to keep the breast pump clean when you take it with you and while you prepare for expressing.

4. Screw the flange onto the pump body.

8. Connect the tube(s) to the motor unit.

Motor unit part description

1 3 5

4 6

1 USB power inlet 2 On/off button with

pause/play function 3 Mode selection button 4 'Level down' button 5 'Level up' button 6 Indicator lights for modes

and levels 7 Tubing port for single breast

pump 8 Tubing ports for double

breast pump

Mode indicator lights

The breast pump has two modes. Below you find an explanation of these modes.

Indicator lights

Mode Explanation No. of suction levels

Stimulation mode

Mode to stimulate the breast to start up the milk flow.

8 suction levels

English

Expression mode

Note: When you change the suction level, the display shows the selected suction level for a few seconds

and then shows the selected mode again.

Mode for efficient milk removal after milk has started flowing. After 90 sec. of stimulation, the device automatically switches to the expression mode.

16 suction levels

Suction level indicator lights

Suction level 1: Bottom light flashes

Note: Every time the level increases, the next light starts flashing or the flashing light becomes solid.

Suction level 2: Bottom light steady on

Suction level 3: Bottom light steady on + next light flashes

Suction level 4: 2 lights steady on.

Suction level 5: 2 lights steady on + next light flashes.

Suction level 16: all lights are on

3 sec.

90 sec.

English

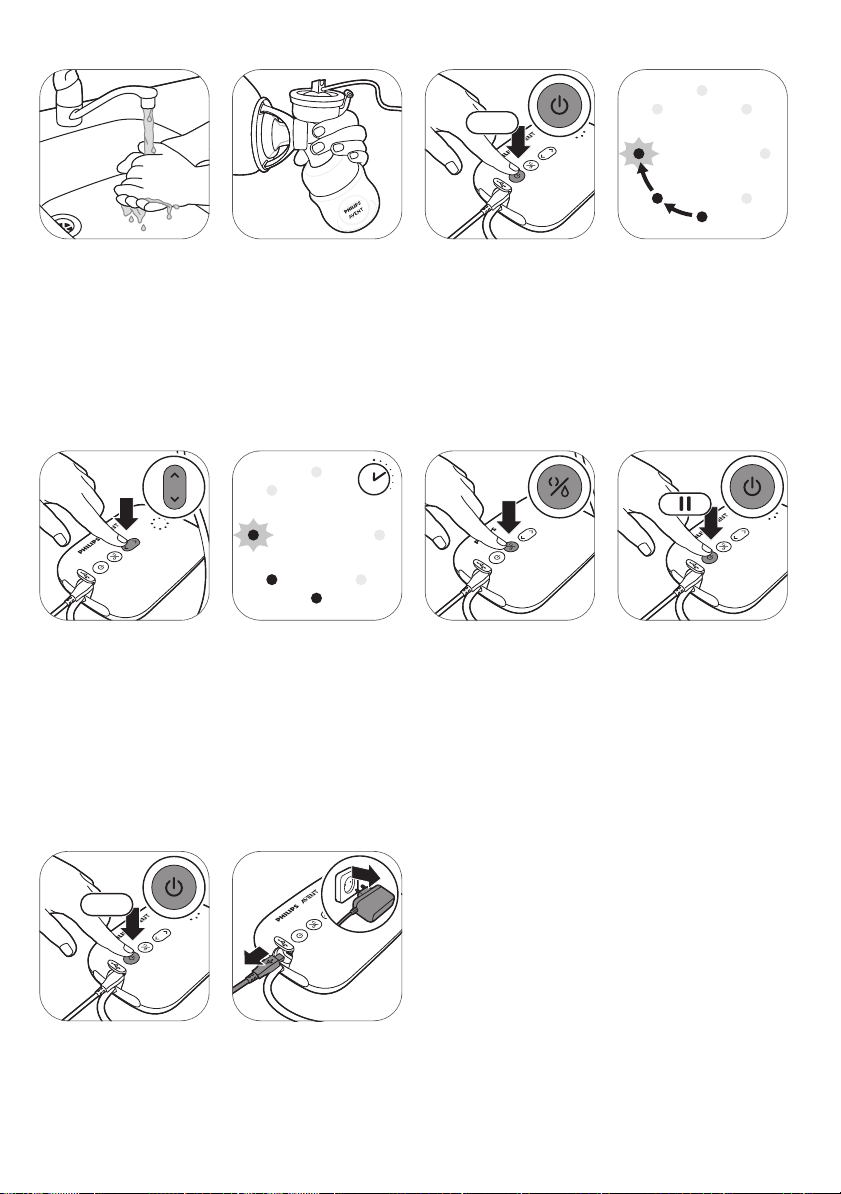

Pumping instructions

Warning: Before you remove the pump body from your breast, always switch off the

breast pump to release the vacuum.

Warning: Do not continue pumping for more than 5 minutes at a time if you do not

succeed in expressing any milk. Try to express at another time during the day.

Warning: If the process becomes very uncomfortable or painful, stop using the pump

and consult your healthcare professional.

Caution: If discomfort is felt, then suction can be broken by inserting a finger between the breast

and the flange.

Note: If you regularly express more than 125ml/4floz per session, you can purchase and use a

260ml/9floz Philips Avent Natural bottle to prevent overfilling and spillage.

1. Wash your hands thoroughly with soap and water and make sure that your breast is clean.

5. Use the 'level up' and 'level down' buttons to change the suction level to your preference.

2. Place the breast pump kit onto your breast. Make sure that you center your nipple.

6. After 90 seconds the breast pump will switch smoothly to expression mode and slowly increase its vacuum to the last used expression suction level (or level 11 when used for the first time).

3. Press and hold the on/off button until the device switches on. The indicator lights go on to indicate that the device is in stimulation mode.

7. If your milk starts flowing earlier or if you want to switch from expression to stimulation mode, you can switch modes with the mode selection button.

4. The breast pump starts in stimulation mode and slowly increases its vacuum to the last used stimulation suction level (or level 5 when used for the first time).

8. Briefly press the on/off button if you want to pause. To continue, briefly press the on/off button again.

English

3 sec.

English

9. Press and hold the on/off button to switch off.

Tip: For optimal expression, choose the highest setting that still feels comfortable. This setting may differ

across different sessions.

Tip: You can use the double breast pump as a single breast pump by connecting only the tube of one

pump kit to the motor unit. 

10. Unplug the adapter from the power outlet and pull the small plug out of the motor unit.

Using the breast pump when you have symptoms of engorgement

Breast engorgement means your breasts are overfilled with milk. This is a painful and unpleasant condition. Frequent extraction of milk and completely emptying the breasts of milk can reduce engorgement. When you have symptoms of engorgement, make sure you use a lower vacuum level to minimize stretching of breast tissue.

Note: When symptoms of engorgement are present, make sure you empty your breasts completely

during each expression session.

After use

1. Unscrew the bottle. 2A. To store the breast milk: close the bottle with the sealing disc and screw ring.

2B. To prepare the bottle for feeding your baby: place a nipple in a screw ring and screw the assembled screw ring onto the bottle. Seal the nipple with the bottle cap (see 'Assembling the bottle').

3. Remove the silicone tube and cap from the breast pump kit.

English

4. Disassemble and clean

all parts that have been in contact with breast milk as soon as possible after pumping (see 'Cleaning and disinfecting').

5. Clean the motor unit with disinfection wipes. For easy storage, wrap the silicone tube around the motor unit and clip the cap onto the tube.

Warning: Refrigerate or freeze expressed breast milk immediately, label with date and time, or keep it at a room temperature of up to 77°F (25°C) for a maximum of 4hours before you feed your baby.

Note: For more information about the breast pump and tips for expressing milk, visit

www.philips.com/avent.

Instructions for storing breast milk

Write the date on the storage container. Include your child's name if you are giving the milk to a child care provider.

Gently swirl the container to mix the cream part of the breast milk that may rise to the top back into the rest of the milk. Do not shake the milk. This can make some of the milk’s valuable parts break down.

Refrigerate or chill milk right after it is pumped, if possible. You can put it in the refrigerator, place it in a cooler or insulated cooler pack, or freeze it in small (2 to 4ounce) batches for later feedings. Pumped milk at room temperature is fine without being refrigerated for up to 4hours after pumping.

Below you find guidelines for storing breast milk:

Storage location and temperaturesType of breast milk

Countertop 77°F (25°C) or colder (room

temperature)

Refrigerator 40°F (4°C) Freezer 0°F (-18°C) or

colder

Freshly expressed or pumped

Thawed, previously frozen

Leftover from a feeding (baby did not finish the bottle)

Source: https://www.cdc.gov/breastfeeding/recommendations/handling_breastmilk.htm

Up to 4hours Up to 4 days Within 6 months is best

Up to 12 months is acceptable

1–2hours Up to 1 day (24 hours) NEVER refreeze human

milk after it has been thawed

Use within 2hours after the baby is finished feeding

English

Warning: Never refreeze thawed breast milk to avoid a decrease in milk quality.

Warning: Never add fresh breast milk to frozen breast milk to avoid a decrease in milk quality and unintended thawing of the frozen milk.

Feeding breast milk with the bottle

Warning: For your child's safety and health

Always use this bottle with adult supervision.

Never use feeding nipples as a pacifier, to prevent choking hazard.

Continuous and prolonged sucking of fluids will cause tooth decay.

Always check the food temperature before you feed your baby.

Keep all components not in use out of the reach of children.

Keep the bottle cap away from children to avoid suffocation.

Do not allow children to play with small parts or walk/run while using bottles.

Inspect all parts before use and pull the feeding nipple in all directions. Throw away any part at the first signs of damage or weakness.

Always discard any breast milk that is left over at the end of a feed.

Caution: To avoid damage to the bottle

English

Do not place in a heated oven, plastic can melt.

Plastic material properties may be affected by disinfection and high temperatures. This can affect the fit of the bottle cap.

Do not leave a feeding nipple in direct sunlight or heat, or leave in disinfectant for longer than recommended because this may damage the product.

Before using the bottle

Inspect the bottle and feeding nipple before each use and pull the feeding nipple in all directions to prevent a choking hazard. Throw away at the first signs of damage or weakness.

Clean and disinfect the bottle before first use and after every use (see 'Cleaning and disinfecting').

English

Assembling the bottle

1. The nipple is easier to assemble if you move it back-and-forth while pulling it upwards instead of pulling it up in a straight line.

5. To remove the cap, place your hand over the cap and your thumb in the dent of the cap.

2. Make sure you pull the nipple through until its lower part is aligned with the screw ring.

3. Make sure you place the cap vertically onto the bottle so that the nipple sits upright.

4. Screw the screw ring with nipple and cap on the bottle.

Instructions for safe thawing and heating of breast milk

If you use frozen breast milk, let it defrost completely before you heat it.

Always thaw the oldest breast milk first. Remember first in, first out. Over time, the quality of breast milk can decrease.

There are several ways to thaw your breast milk:

In the refrigerator overnight.

Set in a container of warm or lukewarm water.

Under lukewarm running water.

Never thaw or heat breast milk in a microwave. Microwaving can destroy nutrients in breast milk and create hot spots, which can burn a baby’s mouth.

Use breast milk within 24hours of thawing in the refrigerator (this means from the time it is no longer frozen or completely thawed, not from the time when you took it out of the freezer).

Once breast milk is brought to room temperature or warmed after storing in the refrigerator or freezer, it should be used within 2hours.

Never refreeze breast milk once it has been thawed.

Heat the bottle with defrosted or refrigerated breast milk in a bowl of hot water or in a bottle warmer. Remove the screw ring and sealing disc from the bottle.

Always stir heated breast milk to ensure even heat distribution and test the temperature before serving.

English

Choosing the right nipple for your baby

Philips Avent Natural feeding nipples are available with different flow rates. The breast pump comes with nipple number 1. This is a 0m+ nipple, ideal for newborn and breastfed babies of all ages.

Use a lower flow rate if your baby chokes often, if milk drips out of its mouth during feeding or if it has trouble adjusting to the drinking speed. Use a higher flow rate if your baby falls asleep during feeding, gets frustrated or if feeding takes very long.

Philips Avent Natural feeding nipples are clearly numbered on the side, to indicate flow rate. For more information, see www.philips.com/avent.

Storing the bottles

Store all parts in a dry, clean and covered container.

Do not leave a feeding nipple in direct sunlight or heat, or leave in disinfectant for longer than recommended because this may damage the product.

For hygiene reasons, we recommend replacing the feeding nipples after 3 months.

Compatibility

The Philips Avent single/double electric breast pump Advanced is compatible with all baby bottles in the Philips Avent Natural range and Philips Avent Storage cups with adapter. We do not recommend using the Philips Avent Natural Glass bottles with the breast pump.

English

Ordering accessories

To buy accessories or spare parts, visit www.philips.com/support or go to your Philips dealer. You can also contact the Philips Consumer Care Center in your country.

When you order spare feeding nipples, make sure that you use a nipple with the correct flow rate for your baby (see 'Choosing the right nipple for your baby') and do not mix Philips Avent Anti-colic bottle parts and nipples with parts of the Philips Avent Natural bottles. They do not fit and could cause leakage or other issues.

Disposal

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused. For recycling information, please contact your local waste management facilities or visit

www.recycle.philips.com.

Full Two-Year Warranty

Philips North America LLC (USA) and Philips Electronics Ltd. (Canada) warrant this product against defects in materials or workmanship for a period of two years from the date of purchase, and agree to repair or replace any defective product without charge.

Important: This warranty does not cover damage resulting from accident, misuse or abuse, lack of reasonable care, the affixing of any attachment not provided with the product or loss of parts or subjecting the product to any but the specified voltage or batteries.

English

No responsibility is assumed for any special, incidental or consequential damages. In order to obtain

warranty service, simply call toll-free 1-800-54-AVENT (1-800-542-8368). Your appliance has been designed and developed with the greatest possible care and has an expected

service life of 500hours.

Troubleshooting

This chapter summarizes the most common problems you could encounter with the breast pump. If you are unable to solve the problem with the information below, visit www.philips.com/support for a list of frequently asked questions or contact the Consumer Care Center in your country.

Problem Solution

I experience pain when I use the breast pump.

- Choose a suction level that is comfortable for you.

- Check if the silicone diaphragm is not damaged (does not have small

cracks, holes etc.).

- Make sure that your nipple is placed in the center of the flange.

- If the pain persists, stop using the breast pump and consult your

healthcare professional.

The breast pump does not switch on (indicator lights do not go on).

All indicator lights on the motor unit are flashing and device shuts off automatically.

I do not feel any suction/the suction level is too low.

- Check if you are using the adapter that was supplied with the device and

that the adapter is connected correctly to the motor unit and power outlet.

- Connect the adapter to another power outlet. Then press and hold the

on/off button to check if the breast pump can be switched on.

- If the problem persists, contact the Consumer Care Center via

www.philips.com/support.

- Try to switch on the motor unit again.

- Check if you are using the adapter that was supplied with the device.

- If the problem persists, contact the Consumer Care Center via

www.philips.com/support.

- If possible, try a higher suction level.

- Check if the silicone diaphragm is assembled correctly (see 'Assembling

the breast pump').

- Check if the white valve is not damaged and assembled correctly (see

'Assembling the breast pump').

- Check if the other parts of breast pump are intact and assembled correctly

(see 'Assembling the breast pump').

- Make sure that the pump is positioned correctly on the breast to allow a

seal between breast pump and breast.

- If you still do not feel any suction, please contact the Consumer Care

Center via www.philips.com/support.

Problem Solution

The suction of the breast pump is too strong.

- If possible, try a lower suction level. When you express for the first time,

start with the default suction level (level 5 in stimulation mode, level 11 in expression mode) and increase/decrease the level when needed. During different expression sessions, different levels may feel most comfortable for you.

- Make sure that you only use the breast pump parts provided with this

breast pump.

- Check if the silicone diaphragm is not damaged (does not have small

cracks, holes etc.).

- If the problem persists, contact the Consumer Care Center via

www.philips.com/support.

English

I express little/no milk when I use my breast pump.

When I switch on the breast pump after storage, it does not start working immediately.

- If you do not feel enough suction, please check Troubleshooting item 'I do

not feel any suction/the suction level is too low'.

- If you are using the Philips Avent breast pump for the first time, you may

need some practice before you are able to express any milk. More expressing tips can be found on the Philips website

www.philips.com/mybreastpump.

- Perhaps you stored the breast pump at a temperature below the

minimum storage temperature or above the maximum storage temperature. Let the breast pump acclimatize in a room of 20°C/68°F for 30minutes to adjust its temperature to the operating range (5°C/41°F to 40°C/104°F).

Undesirable side effects

When using the breast pump, the below undesirable side effects may occur. If you experience any of these symptoms, contact a healthcare professional or breastfeeding specialist.

Undesirable side effect

Pain sensation Pain felt on the breast or nipple, or felt as a response to the suction being

Sore nipples Persistent pain in the nipples at the beginning of the pumping session, or that

Erythema (redness) Redness of the skin of the breast.

Bruise, thrombus A reddish-purple discoloration that does not fade when pressed. When a

Description

above a comfortable level.

lasts throughout the entire pumping session, or pain between sessions.

bruise fades, it may become green and brown.

Injured tissue on nipple (nipple trauma)

- Fissures or cracked nipples.

- Skin tissue peeling off the nipple. Normally occurs in combination with

cracked nipples and/or blisters.

- Nipple tear.

- Blister. Looks like small bubbles on the surface of the skin.

- Bleeding. Cracked or torn nipples can lead to bleeding of the affected

area.

English

Storage conditions

Keep the breast pump out of direct sunlight as prolonged exposure may cause discoloration. Store the breast pump and its accessories in a safe, clean and dry place.

If the device has been stored in a hot or cold environment, place it in an environment with a temperature of 20°C (68°F) for 30 minutes to let it reach a temperature within the usage conditions (5°C to 40°C/41°F to 104°F) before you use it.

Electromagnetic fields (EMF)

This Philips device complies with all applicable standards and regulations regarding exposure to electromagnetic fields.

Technical information

Single electric breast pump Double electric breast pump

Vacuum level

Stimulation: -60 to -200 mbar (-45 to -150mmHg) Expression: -60 to -360 mbar (-45 to -270mmHg) Adjustable in steps of 20 mbar Intermittent vacuum

Cycle speed

Motor unit rated input 5 V d.c. / 1.1 A 5 V d.c. / 1.8 A

Mains adapter rated input

Mains adapter rated output 5 V d.c. / 1.1 A 5 V d.c. / 1.8 A

Adapter type number

Power port

Operating conditions

Storage and transportation conditions

Operating pressure 700-1060hPa (<3000m/9842 ft. altitude)

Net weight 230g 310g

External dimensions

Stimulation: 105-120 cycles/min, depending on vacuum level Expression: 53-85 cycles/min, depending on vacuum level

External mains adapter 100-240 V a.c. 50/60 Hz 400 mA

S009AHz050yyyy The letters "yyyy" represent the output current from 0100 (1000mA) to 0180 (1800mA), increments in steps of 100mA. The letter "z" denotes type of plug, it can be: U, V, B, S, C, A, D, K, T, I, E, F.

Micro-USB

Temperature: 5°C to 40°C (41°F to 104°F) Relative humidity: 15 to 90% (non-condensing)

Temperature: -25°C to 70°C (-13°F to 158°F) Relative humidity: up to 90% (non-condensing)

Motor unit: 145 mm x 95 mm x 45 mm (LxWxH)

Device classification

English

Single electric breast pump Double electric breast pump

Applicable classifications: Degree of protection against electric shock;

- Class II ME equipment

- Type BF applied part The breast pump and the adapter are specified as medical electrical system

according to IEC 60601-1.

English

Materials

Service life 500hours

Mode of operation Continuous operation

Ingress protection IP22 (motor unit), IP20 (adapter)

ABS, silicone (motor unit) Polypropylene, PBT, silicone (other parts)

Electromagnetic compatibility - compliance information

This device has been tested and found to comply with IEC 60601-1-2:2014 Ed 4.0 for electromagnetic compatibility (EMC) as Class B according to CISPR 11:2009. Tests levels are listed in the accompanying tables. Only use this Philips Avent single/double electric breast pump Advanced in combination with the adapter supplied.

Emissions Compliance Electromagnetic environment –

RF emissions CISPR 11

Harmonic emissions IEC 61000-3-2

Voltage fluctuations / flicker emissions

IEC 61000-3-3

Group 1 The device does not use RF energy for its

Class B

Complies Class A Category

Complies

guidance

intended function. Therefore, its RF emissions are very low and are not likely to cause any interference in nearby electronic equipment.

The device is suitable for use in locations in residential environments and in establishments directly connected to a low voltage power supply network which supplies buildings used for domestic purposes.

Guidance and manufacturer's declaration – electromagnetic immunity

The Philips Avent single/double electric breast pump Advanced is intended for use in the electromagnetic environment specified below. The customer or the user of the breast pump should assure that it is used in such an environment. The essential performance functions are the accuracy of the vacuum pressure and the backflow protection to withstand milk leakage into the motor unit. The Philips Avent single/double electric breast pump Advanced was tested for immunity to electromagnetic disturbances and passed using the criteria of no change in modes, vacuum accuracy (±20%), backflow protection and operation of the breast pump.

+ 63 hidden pages

Philips SCF393/62 user manual

Specifications and Main Features

Frequently Asked Questions

User Manual
