Introduction
Congratulations on your purchase and welcome to Philips Avent! To fully
benefit from the support that Philips Avent offers, register your product at
www.philips.com/welcome.
The Philips Avent video babymonitor provides you with round-the-clock
support and it allows you to see your baby day and night from anywhere in
the house. The latest digital technology guarantees clear sound and the
clearest image of your baby. This gives you an additional sense of security
without entering your baby’s room and disturbing its sleep.
General description
1 Parent unit
2 Display
3 ECO light
4 Battery status light
5 Link light
6 Speaker
7 Control button (menu navigation/volume/brightness)
8 Sensitivity button
9 Lullaby button
10 Talk-back button
11 Socket for small plug
12 Mode button
13 On/off button
14 Antenna
15 Belt clip
16 Baby unit
17 Camera
18 Lullaby on/off button
19 On/off slide
20 Antenna
21 Speaker
22 Socket for small plug
23 Wall mounting holes
24 Adapter(2x)
25 Screws
Important safety information
Read this important information carefully before you use the appliance and
save it for future reference.
IMPORTANT
This baby monitor is intended as an aid. It is not a substitute for
responsible and proper adult supervision and should not be used as such.
Never leave your baby alone in your home. Always make sure there is
someone present to look after the baby and take care of its needs.
Disclaimer
English
English
Please note that you use this baby monitor at your own risk. Koninklijke
Philips N.V. and its subsidiary companies are not responsible for the
operation of this baby monitor or your use of it and therefore do not accept
any liability in connection with your use of this baby monitor.
Danger
-
Never immerse any part of the baby monitor in water or any other liquid.
Do not place the appliance where water or any other liquid can drip or
splash onto it. Never use the baby monitor in moist places or close to
water.
-
Never put any object on top of the baby monitor and do not cover it. Do
not block any ventilation openings. Install according to the
manufacturer’s instructions.
-
Cords present a potential strangulation hazard. Keep cords out of the
reach of children (more than 1 meter/3.5 feet away). Never place the baby
monitor inside the baby’s bed or playpen.
Warning
-
Check if the voltage indicated on the adapter corresponds to the local
mains voltage before you connect the appliance.
-
Do not modify or cut off any part of the adapter and its cord, as this
causes a hazardous situation.
-
Only use the adapter supplied.
-
If the adapter is damaged, always have it replaced with one of the
original type in order to avoid a hazard.
-
This appliance can be used by children aged from 8 years and above and
persons with reduced physical, sensory or mental capabilities or lack of
experience and knowledge if they have been given supervision or
instruction concerning use of the appliance in a safe way and understand
the hazards involved. Children shall not play with the appliance. Cleaning
and user maintenance shall not be made by children without supervision.
-
Protect the mains cord from being walked on or pinched particularly at
plugs, convenience receptacles, and the point where they exit from the
appliance.
-
Make sure that you place the baby monitor in such a way that its cord
does not obstruct a doorway or passage. If you place the baby monitor
on a table or low cabinet, do not let the mains cord hang over the edge
of the table or cabinet. Make sure the cord does not lie on the floor
where it presents a tripping hazard.
-
Keep the packaging materials (plastic bags, cardboard buffers, etc.) out of
the reach of children, as they are not a toy.
-
To prevent electric shock, do not open the housing of the baby unit or
parent unit.
7
Caution
-
Use the appliance at a temperature between 0°C (32°F) and 40°C (104°F).
-
Do not install the appliance near any heat sources such as radiators, heat
registers, stoves or other apparatus (including amplifiers) that produce
heat.
-
Make sure that your hands are dry when you handle adapters, plugs and
the mains cord.
8
English
-
All required markings on the baby unit, parent unitand power adapter
are located on the bottom of the baby unit, parent unit and power
adapter.
Compliance with standards
-
This product complies with the radio interference requirements of the
European Community.
-
Philips Consumer Lifestyle hereby declares that this baby monitor is in
compliance with the essential requirements and other relevant provisions
of Directive 2014/53/EU (DECT: frequency band 1880-1900 MHz,
maximum radio-frequency power: 250 mW). A copy of the EC Declaration
of Conformity (DoC) is available online at www.philips.com/support.
Electromagnetic fields (EMF)
-
This Philips appliance complies with all applicable standards and
regulations regarding exposure to electromagnetic fields.
Preparing for use
Baby unit
Put the power adapter in the baby unit and the adapter in the wall socket.
Parent unit
The parent unit runs ona built-in rechargeable Li-ion battery.
Follow the below steps to charge the parent unit:
1 Put the power adapter in the parent unit and put the adapter in the wall
socket.
-
The battery status light turns orange to indicate that the appliance is
charging.
20°CEco
1
10 hrs=3 hrs
20°CEco
1
English
-
When the battery is fully charged, thebattery statusindicator lights up
green continuously.
-
When you charge the parent unit for 3 hours, it can be used cordlessly for
approx. 10 hours.
-
If the parent unit is switched on during charging, charging takes
approximately twice as long.
-
When the rechargeable battery of the parent unit is almost empty, the
battery status light turnsred and the parent unit beeps.
-
If the battery is completely empty and the parent unit it not connected to
the mains, the parent unit automatically switches off and loses contact
with the baby unit.
Note: The built in rechargeable battery cannot be removed from the
product.
Note: The battery gradually and very slowly discharges, even when the
parent unit is switched off.
Tip: To save battery, switch off the parent unit when you do not use it.
Note: We advise you to keep the parent unit connected to the mains during
the whole night. If the battery of the parent unit runs low during the night,
the parent unit beeps and this may wake you up.
9
Using the baby monitor
Linking parent unit and baby unit
1 Push the on/off slide on the baby unit upwards to the ON position.
>2 .5m/8.2ft
20°CEco
1
20°CEco
1
10
English
2 When the baby unit is on, the power-on light on the baby unit lights up
green.
Note: The power-on light on the baby unit always lights up green, even
when there is no connection with the parent unit.
3 Make sure that the parent unit and the baby unit are at least 2.5 meters/
8.2 feet away from each otherto avoid acoustic feedback.
4 Press the on/off button on the parent unit to switch on the parent unit.
-
The display goes on, the linking image appears on the display and the
link light lights up red. The parent unit starts to search for the baby
unit.
-
When the parent unit and baby unit are linked, the link light lights up
green on the parent unit and one or more bars appear on the display.
20°CEco
1
Note: It takes less than 10 seconds to establish the link between the
>1-1.5m/3.5-5ft
>2 .5m/8.2ft
parent unit and the baby unit.
When thebaby unit is turned off, the parent unit will show the out of
range image. Make sure that the baby unit is switched on.
-
If no connection has been established, the link light turns red, the
parent unit beeps three short beeps every 20 seconds and the out-ofrange image appears on the display.
Positioning the baby monitor
Warning: The cord of the baby unit presents a
potential strangulation hazard. Make sure that
the baby unit and its cord are at least 1 meter /
3.5 feet away from your baby. Never place the
baby monitor inside the baby’s bed or playpen.
1 For optimal sound detection, make sure that the baby unit is no further
than 1.5 meter/ 5 feet away from the baby. Make sure that the baby unit
is at least 1 meter/ 3.5 feet away from the baby because of potential
strangulation hazard.
English
11
2 Place the parent unit within the operating range of the baby unit. Make
sure it is at least 2.5 meters / 8.2 feet away from the baby unit to avoid
acoustic feedback.
Note: If you use a cordless phone, wireless video, Wi-Fi network,
microwave oven or Bluetooth on 2.4GHz and you experience interference
on either the parent unit or baby unit, move the parent unit until there is
no more interference.I
3 There are two ways to position the baby unit
a Place the baby unit on a stable, level and horizontal surface.
b Mount the baby unit to the wall with the screws supplied.
<300m/985ft
<50m/165ft
12
English
Tip: The wall mount template (see 'Wall mount') to mount the baby unit
to the wall can be found at the end of this user manual.
Tip: Use the provided template to mark the exact location of the screw
holes on the wall.
Tip: Position the baby unit at a higher level to get a good overview of the
baby’s bed or playpen.
4 Adjust the baby unit in a way that ensures the best visibility of your baby.
The baby unit can be rotated to position it in the desired way.
Operating range
The operating range is up to 50 meters/ 165 feet indoors and 300
meters/985 feet outdoors. The operating range of the baby monitor varies
depending on the surroundings and factors that cause interference. Wet
and moist materials cause so much interference that the range loss is up to
100%.
Dry materials Material
Loss of range
thickness
Wood, plaster, cardboard, glass (without metal,
wires or lead)
Brick, plywood < 30cm (12in) 5-35%
Reinforced concrete < 30cm (12in) 30-100%
Metal grilles or bars < 1cm (0.4in) 90-100%
Metal or aluminium sheets < 1cm (0.4in) 100%
< 30cm (12in) 0-10%
Features and settings
Volume
You can adjust the speaker volume of the parent unit to the level you prefer.
20°C
1
Brightness
20°C
1
English
1 Press the top or bottom part of the control button to adjust the volume.
Tip: Make sure that the volume is adapted to the current conditions.
Under noisy conditions, the vibration alert can be turned on as well.
The volume bar appears on the display to show the selected volume.
Note: If the volume is set to a high level, the parent unit consumes more
power.
Note: When the volume bar is at its minimum, the volume is muted. The
parent unit shows a mute icon in the status bar and you will only receive
alerts and video from the parent unit.
You can adjust the display brightness of the parent unit to the level you
prefer.
1 Press the left or right part of the control button to adjust the brightness
of the display of the parent unit.
13
Modes
The brightness bar appears on the display to show the selected display
brightness.
Note: If the brightness is set to a high level, the parent unit consumes more
power.
This baby monitor has four different modes that allows you to choose how
you want to look after your baby: VIDEO, AUDIO, VOX and ECO.
VIDEO
VIDEO
20°C
1
VIDEO
20°C
1
VIDEO
AUDIO
AUDIO
14
English
With the baby monitor on, you can switch between these 4 different modes
by pressing the mode button on the side of the parent unit.
The display shows the selected mode. The selected mode is also indicated
in the status bar. When turning on the device, the mode that was last used
will be active.

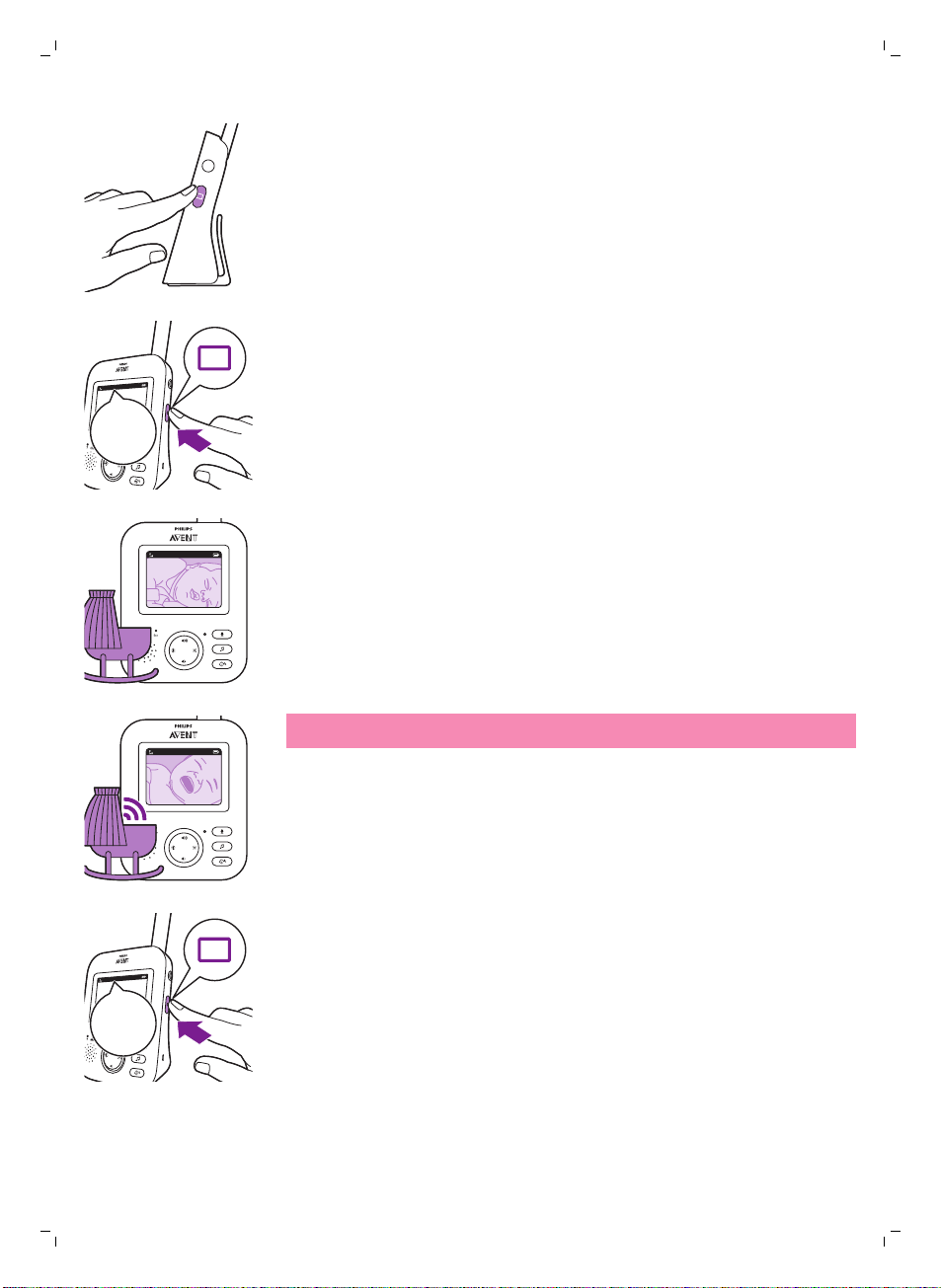

VIDEO mode
Press the mode button on the side of the parent unit to select theVIDEO
mode.
When the VIDEO mode is activated, the screen is always on, so you can see
your baby. All sounds are directly transmitted to the parent unit.
Note: Set the sensitivity level to 'very high' to have continuous sound on the
parent unit. Please see the Sensitivity level chapter for more information.
AUDIO mode
1 Press the mode button on the side of the parent unit to switch to AUDIO
mode.
20°C
1
AUDIO
20°C
1
VOX
VOX
VOX
20°C
1
AUDIO
20°C
1
ECO
English
When the AUDIO mode is activated, the display of the parent unit switches
off. After 3 seconds the display will completely turn off and the status bar
will disappear.
Note: The status bar is not visible when the display is off.
Note: The link light shows that the parent unit is still on and connected to
the baby unit.
Note: Set the sensitivity level to 'very high' to have continuous sound on the
parent unit. Please see the Sensitivity level chapter for more information.
All sounds are constantly transmitted to the parent unit. If your baby cries,
the display of the parent unit is still off, but the sounds detected by
thebaby unitare transmitted to the parent unit.
VOX mode
1 Press the mode button on the side of the parent unit to switch to VOX
mode.
Note: When the display is on, the selected mode is shown in the status bar.
The status baris not visible when the display is off.
15
When the VOX mode is activated, the display and sound of the parent unit
switch off, if there is no sound detected for 20 seconds.
Whensound is picked up by the baby unit, the displayand sound of the
parent unit switch on immediately.The sounds are transmitted to the parent
unit.
Note: The minimum sound level to activate sound and display is defined by
the sensitivity setting.
ECO mode
ECO
ECO
20°C
1
ECO
ECO
20°C
1
ECO
16
English
1 Press the mode button on the side of the parent unit to switch to ECO
mode.
Note: When the display is on, the selected mode will be visible in the status
bar. The status bar is not visible when the display is off.
When the ECO mode is activated the display and sound of the parent unit
switch off when no sound is detected for 20 seconds. TheECO light lights up
green to indicate that the ECO mode is activated. During ECO mode the
display and sound transmissions are turned off.
Whensound is picked up by the baby unit, the displayand sound of the
parent unit switch on immediately.The sounds are transmitted to the parent
unit.
Note: The minimum sound level to activate sound and display is defined by
the sensitivity setting.
Lullabies
You can activate the lullaby feature either from the parent unit or from the
baby unit.
To activate the lullaby feature from the parent unit, follow the instructions
below:
Lullaby selection
1 Press the lullaby button on the parent unit to open the menu for
lullabies.
Note: Pressing the lullaby button while the lullaby menu is already open,
will close the menu.
Lullaby Songs
1 Rock-a-Bye Baby
2 Twinkle, Twinkle
3 Hush, Little Baby
4 Brahm’s Lullaby
5 Golden Slumbers
Lullaby Songs
1 Rock-a-Bye Baby
2 Twinkle, Twinkle
3 Hush, Little Baby
4 Brahm’s Lullaby
5 Golden Slumbers
15 min
Lullaby Songs
1 Rock-a-Bye Baby
2 Twinkle, Twinkle
3 Hush, Little Baby
4 Brahm’s Lullaby
5 Golden Slumbers
English
2 Press the right part of the control button to enter the list of lullabies.
3 Press the top or bottom part of the control button to scroll through the
list of lullabies.
4 Press the right part of the control button to play a specific lullaby.
If you want to pause the lullaby, press the right side of the control button
again.
5 The status barof the parent unit shows the number of lullabies thatare
being played and repeated.
17
The lullaby starts to play on the baby unit and it is repeated continuously
for approximately 15 minutes.
Tip: To repeat all songs that are available, select the last option in the list.
6 To select another lullaby, scroll up or down with thecontrol button to
select another song from the list.Press the right part of the control
button to start the selected song.
7 To stop the lullaby, press the lullaby button on the parent unit and pause
the song that is currently playing by pressing the right part of the control
button one more time.
Lullaby volume
20°C
1
15 min
18
English
1 Press the lullaby button on the parent unit to open the menu for
lullabies. Press the left part of the control button and then press the
bottom of the control button to select the volume options of thelullaby
menu. Press the right part of the control button to access the lullaby
volume levels.
2 Press the top or bottom part of the control button to adjust the volume.
3 To stop the lullaby, press the lullaby button on the parent unit and pause
the song that is currently playing by pressing the right part of the control
button one more time.
To activate the lullaby feature from the baby unit, press the lullaby on/off
button on the baby unit.
Talk-back
The latest lullaby selected on the parent unit starts to play on the baby unit
and is repeated continuously for approximately 15 minutes.
To stop the lullaby on the baby unit, press the lullaby on/off button on the
baby unit.
You can use the talk-back button on the parent unit to talk to your baby.
1 Press and hold the talk-back button on the parent unit.
2 Talk clearly into the microphoneat the front of the parent unit from a
distance between 15-30cm /0.5-1ft.
As long as the talk-back button is pressed, there is an open sound
connection to the baby unit. The display of the parent unit shows the
talk-back icon, indicating the active connection.
Sensitivity
20°C
1
20°C
1
English
3 Release the talk-back button when you have finished talking.
Note: As long as the talk-back button is pressed, theparent unitcannot
process sounds coming from the baby unit.
The sensitivity level of the baby unit defines what you hear through the
parent unit. When the level is set high, you will hear many sounds, including
soft background sounds. When the sensitivity level is set low, you will hear
only the louder sounds.
1 Press the sensitivity button to access the sensitivity levels.
Note: When pressing the sensitivity button again, you will leave the menu.
19
2 Press the top or bottom part of the control button to select the desired
sensitivity level.
If your baby only makes soft sounds, the sensitivity of the baby unit needs
to be set to a high sensitivitylevel on the parent unit.
20°C
1
20
English
The louder your baby sounds, the lower the sensitivity can be set on the
parent unit.
Note: In AUDIO and VIDEO mode, you will have continuous sound when the
sensitivity level is on 'very high'. Otherwise, low sounds will be muted.
Tip: The sensitivity level can be adjusted so you will always hear your baby
without the disruption of other sounds. When there is a lot of background
noise, turn the sensitivity lower so you will not hear these sounds through
the parent unit.
Belt clip
You can take the parent unit with you inside and outside the house by
attaching the parent unit to your belt or waistband with the belt clip. This
allows you to monitor your baby while you are moving around.
Note: The display is now turned upside down, which allows you to see your
baby on the screen by simply lifting up the parent unit.
Cleaning and maintenance
Warning: Do not immerse the parent unit, baby
unit and power adapters in water and do not
clean them under the tap.
Warning: Do not use cleaning sprays or liquid
cleaners.
English
1 Switch off the baby unit, remove the power adapter from the baby unit
and remove the power adapter from the wall socket.
2 Clean the baby unit with a dry cloth.
Note: Fingerprints or dirt on the lens of the baby unit may affect the
camera’s performance. Avoid touching the lens with your fingers.
3 Switch off the parent unit, remove the power adapter from the parent
unit and remove the power adapter from the wall socket.
21
4 Clean the parent unit with a dry cloth.
5 Clean the adapters with a dry cloth.
22
English
Storage
When you are not going to use the baby monitor fora long time, store the
parent unit, the baby unit and the adapters in a cool and dry place.
Ordering accessories
To buy accessories or spare parts, visit www.shop.philips.com/service or go
to your Philips dealer. You can also contact the Philips Consumer Care
Center in your country (see the international warranty leaflet for contact
details).
Recycling
-
This symbol means that this product shall not be disposed of with normal
household waste (2012/19/EU).
-
This symbol means that this product contains a built-in rechargeable
battery which shall not be disposed of with normal household waste
(2006/66/EC). We strongly advise you to take your product to an official
collection point or a Philips service center to have a professional remove
the rechargeable battery.
-
Follow your country’s rules for the separate collection of electrical and
electronic products and rechargeable batteries. Correct disposal helps
prevent negative consequences for the environment and human health.
Removing the rechargeable battery
Note: We strongly advise you to have a professional remove the
rechargeable battery.
Only remove the rechargeable battery when you discard the appliance.
Make sure the battery is completely empty when you remove it. Only the
parent unit includes a battery.
Procedure:
1 Remove the 2 rubber feet at the bottom of the parent unit.
2 Remove the 2 screws that are now visible at the bottom of the parent
unit.
3 Put the antenna in upward position and remove the screw in the back
housing that is now visible.
4 Remove the back housing from the front housing by forcing a screwdriver
in between them.
5 Disconnect the battery connector cable (black-white-red cable).
6 Remove the 4 screws from the battery holder.
7 Remove the battery.
Warranty and support
If you need information or support, please visit www.philips.com/support or
read the international warranty leaflet.
Frequently asked questions
This chapter summarizes the most common problems you could encounter
with the appliance. If you are unable to solve the problem with the
information below, visit www.philips.com/support for a list of frequently
asked questions or contact the Consumer Care Center in your country.
HOW TO USE / CONNECTING THE UNITS
Question Answer
English
23
Why does the power-on
light of the baby unit
not go on when I switch
on the unit?
Why doesn't the parent
unit charge when I plug
it in?
Why doesn’t the baby
unit charge when I plug
it in?
Why can’t I establish a
connection?
Why is the connection
lost every now and
then?
Why are there sound
interruptions?
What happens during a
power failure?
Perhaps the baby unit is not connected to the mains. Connect the baby unit
to the mains. Then set the on/off switch of the baby unit upwards to the ON
position to establish connection with the parent unit.
Perhaps the adapter is not plugged in properly. Make sure the adapter is
plugged into the wall socket properly.
The parent unit may already be fully charged. The battery status light will be
green when the battery is fully charged and the device is connected to the
mains power.
The baby unit does not have a charging function. The baby unit only works
when it isconnected to themains.
The baby unit and the parent unit are probably close to the outer limits of
the operating range or there is interference from other 2.4 GHz wireless
devices. Try a different location, decrease the distance between the units or
switch off other 2.4 GHz wireless devices (laptops, mobile phones,
microwaves, etc) . It can take up to 10 seconds before the connection
between the units is reestablished.
If the signal is lost, then the parent unit will make a beeping sound (3 quick
beeps every 20 seconds).
The baby and parent unit might be too close to each other, keep them at
least 1.5 meters/ 5 feet away from each other to prevent interference.
As the parent unit works on a rechargeable battery, the parent unit
continues to work if the battery is sufficiently charged. However, the baby
unit stops working because it has no rechargeable battery and only works
on a mains power. The parent unit will give a beeping sound to indicate that
the link with the baby unit is lost.
When mains power is restored, the connection between the parent unit and
the baby unit will automatically be established.
Loading...
