ENGLISH 6
DEUTSCH 36
FRANÇAIS 68
ITALIANO 98
S91XX, S90XX
12
ENGLISH
Table of contents
Introduction 13
Important 14
General description 17
The display 18
Charging 18
Battery fully charged 19
Battery low 19
Remaining battery capacity 19
Cleaning reminder 20
Travel lock 20
Replacing shaving heads 21
Exclamation mark 22
Charging 23
Charging with the adapter 23
Charging in the SmartClean system
(S9111/31, S9161/31 only) 23
Using the shaver 24
Shaving 24
Using the click-on attachments 27
Cleaning and maintenance 30
Cleaning the shaver in the SmartClean system
(S9161/31, S9111/31 only) 30
Cleaning the shaver under the tap 35
Thorough cleaning method 37
Cleaning the click-on attachments 40
ENGLISH 13
Storage 41
Replacement 41
Replacing the shaving heads 41
Ordering accessories 44
Recycling 45
Removing the rechargeable shaver battery 46
Guarantee and support 46
Guarantee restrictions 47
Troubleshooting 47
Introduction
Congratulations on your purchase and welcome to
Philips! To fully benet from the support that Philips offers,
register your product at www.philips.com/welcome.
Please read this user manual, as it contains information
about the features of this shaver as well as some tips to
make shaving easier and more enjoyable.
ENGLISH14
Important
Read this user manual carefully
before you use the shaver and
the SmartClean system. Save this user
manual for future reference.
Danger
- Keep the adapter dry.
Warning
- The adapter contains a transformer.
Do not cut off the adapter to
replace it with another plug, as
this causes a hazardous situation.
- This appliance can be used by
children aged from 8 years and
above and persons with reduced
physical, sensory or mental
capabilities or lack of experience
and knowledge if they have been
given supervision or instruction
concerning use of the appliance
in a safe way and understand the
hazards involved. Children shall not
play with the appliance. Cleaning
and user maintenance shall not
be made by children without
supervision.
- Always unplug the shaver before
you clean it under the tap.
ENGLISH 15
Caution

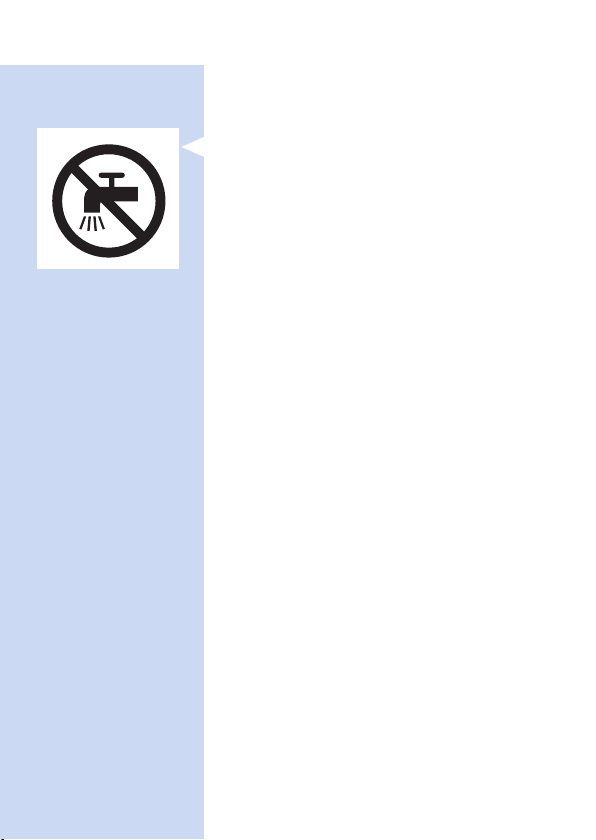

- Never immerse the SmartClean
system in water nor rinse it under
the tap.
- Never use water hotter than 80°C
to rinse the shaver.
- Do not use the shaver, SmartClean
system, adapter or any other part if it
is damaged, as this may cause injury.
Always replace a damaged adapter or
part with one of the original type.
- Only use the SmartClean system
with the original cleaning cartridge.
- Always place the SmartClean system
on a stable, level and horizontal
surface to prevent leakage.
- Always make sure that the cartridge
compartment is closed before you
use the SmartClean system to clean
or charge the shaver.
- When the SmartClean system is
ready for use, do not move it to
prevent leakage of cleaning uid.
- The SmartClean system thoroughly
cleans but does not disinfect your
shaver, therefore do not share the
shaver with others.
- Never use compressed air, scouring
pads, abrasive cleaning agents or
aggressive liquids such as petrol or
acetone to clean the appliance.
ENGLISH16
- Water may leak from the socket
at the bottom of the shaver when
you rinse it. This is normal and not
dangerous because all electronics
are enclosed in a sealed power unit
inside the shaver.
Compliance with standards

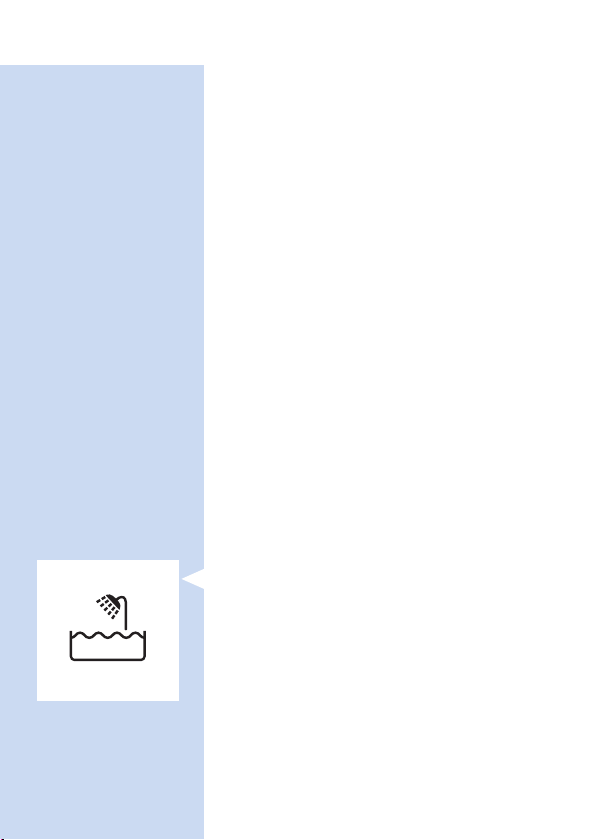

- This shaver is waterproof and
complies with the internationally
approved safety regulations. It is
suitable for use in the bath or
shower and for cleaning under
the tap. For safety reasons, the
shaver can therefore only be used
cordlessly.
- The shaver and the SmartClean
system comply with all applicable
standards and regulations regarding
exposure to electromagnetic elds.
General
- The adapter is equipped with an
automatic voltage selector and is
suitable for mains voltages ranging
from 100 to 240 volts.
- The adapter transforms
100-240 volts to a safe low voltage
of less than 24 volts.
- Maximum noise level: Lc = 69dB(A)
ENGLISH 17
General description (Fig. 3)
1 Comb for beard styler attachment
(S9161/31, S9111/41, S9111/31 only)
2 Click-on beard styler attachment
(S9161/31, S9111/41, S9111/31 only)
3 Click-on trimmer attachment
(S9041/12, S9031/12 only)
4 Click-on shaving unit
5 On/off button
6 Socket for small plug
7 Exclamation mark
8 Replacement reminder
9 Battery charge indicator
10 Travel lock symbol
11 Cleaning reminder
12 Replacement symbol
13 SmartClean system (S9161/31,
S9111/31 only)
14 Cap of SmartClean system
15 On/off button
16 Cleaning symbol
17 Drying symbol
18 Ready symbol
19 Charge symbol
20 Cleaning cartridge for SmartClean
system
21 Adapter
22 Small plug
23 Retaining ring holder
24 Cleaning brush
25 Pouch
ENGLISH18
The display
Note: Before you use the shaver for the
rst time, remove the protective foil
from the display.
- S91XX/S90XX
Charging
- Charging takes approx. 1 hour.
Note: This appliance can only be used
cordlessly.
- Quick charge: When you connect
the appliance to the mains, it
produces a sound. Then the lights
of the battery charge indicator light
up one after the other continuously.
When the shaver contains enough
energy for one shave, the bottom
light of the battery charge indicator
starts to ash slowly.
- If you leave the appliance connected
to the mains, the charging process
continues. To indicate that the
appliance is charging, rst the
bottom light ashes white and then
lights up white continuously. Then
the second light ashes and then
lights up continuously, and so on
until the shaver is fully charged.
ENGLISH 19
Battery fully charged
Note: This appliance can only be used
cordlessly.
Note: When the battery is full, the
display switches off automatically after
30 minutes. When you press the on/
off button during or after charging, you
hear a sound to indicate that the shaver
is still connected to the mains.
- When the battery is fully charged,
all lights of the battery charge
indicator light up white continuously.
Battery low
- When the battery is almost empty,
the bottom light ashes orange and
you hear a sound.
Remaining battery capacity
- The remaining battery capacity is
indicated by the lights of the battery
charge indicator that light up
continuously.
ENGLISH20
Cleaning reminder
For optimal shaving performance, we
advise you to clean the shaver after
every use.
- When you switch off the shaver, the
cleaning reminder ashes to remind
you to clean the shaver.
Travel lock
You can lock the shaver when you
are going to travel. The travel lock
prevents the shaver from being
switched on by accident.
Activating the travel lock
1 Press the on/off button for
3 seconds to enter the travel lock
mode.
, While you activate the travel lock,
the travel lock symbol lights up
white continuously. When the
travel lock is activated, the shaver
produces a sound and the travel
lock symbol ashes.
ENGLISH 21
Deactivating the travel lock
1 Press the on/off button for
3 seconds.
, The travel lock symbol ashes and
then lights up continuously.
The shaver is now ready for use again.
Note: You can also deactivate the travel
lock by connecting the appliance to the
mains.
Replacing shaving heads
For maximum shaving performance,
we advise you to replace the shaving
heads every two years.
- The appliance is equipped with
a replacement reminder which
reminds you to replace the shaving
heads. The replacement reminder
lights up white continuously and the
arrows ash white. You hear a beep
to indicate you have to replace the
shaving heads.
Note: After replacing the shaving heads,
you need to reset the shaver by pressing
the on/off button for 7 seconds.
ENGLISH22
Exclamation mark
Blocked shaving heads
- If the shaving heads are blocked, the
exclamation mark lights up orange
continuously. The replacement
reminder and the cleaning reminder
ash white alternately and you hear
a sound. In this case, the motor
cannot run because the shaving
heads are soiled or damaged.
- When this happens, you have to
clean the shaving heads or replace
them.
Overheating
- If the appliance overheats during
charging, the exclamation mark
ashes orange.
- When this happens, the shaver
automatically switches off. Charging
continues once the appliance is back
to the normal temperature.
ENGLISH 23
Charging
Charging takes approx. 1 hour.
A fully charged shaver has a shaving
time of up to 50 minutes.
Note: You cannot use the appliance
while charging.
Charge the shaver before you use it
for the rst time and when the display
indicates that the battery is almost empty.
Charging with the adapter
1 Make sure the appliance is
switched off.
2 Insert the small plug into the
appliance (1) and put the adapter
in the wall socket (2).
Charging in the SmartClean
system (S9111/31, S9161/31 only)
1 Put the small plug in the
SmartClean system.
2 Put the adapter in the wall socket.
3 Press the top cap to be able to
place the shaver in the holder
(‘click’).
ENGLISH24
4 Hold the shaver upside down
above the holder. Make sure the
front of the shaver points towards
the SmartClean system.
5 Place the shaver in the holder
(1), tilt the shaver backwards (2)
and press down the top cap to
connect the shaver (‘click’) (3).
Note: The battery symbol ashes slowly
to indicate the appliance is charging.
Using the shaver
Shaving
Skin adaptation period
Your rst shaves may not bring you
the result you expect and your skin
may even become slightly irritated.
This is normal. Your skin and beard
need time to adapt to any new
shaving system.
We advise you to shave regularly
(at least 3 times a week) with this
shaver for a period of 3 weeks to allow
your skin to adapt to the new shaver.
ENGLISH 25
Tip: To ensure the best result, we advise
you to pre-trim your beard if you have
not shaved for 3 days or longer.
Note: This appliance can only be used
cordlessly.
1 Press the on/off button once to
switch on the shaver.
, The display lights up for a few
seconds.
2 Move the shaving heads over your
skin in circular movements.
- Do not make straight movements.
3 Press the on/off button once to
switch off the shaver.
, The display lights up for a few
seconds and then shows the
remaining battery charge.
Wet shaving
You can also use this shaver on a wet
face with shaving foam or shaving gel.
To shave with shaving foam or shaving
gel, follow the steps below:
1 Apply some water to your skin.
ENGLISH26
2 Apply shaving foam or shaving gel
to your skin.
3 Rinse the shaving unit under the
tap to ensure that the shaving unit
glides smoothly over your skin.
4 Press the on/off button once to
switch on the shaver.
5 Move the shaving heads over your
skin in circular movements.
Note: Rinse the shaver under the tap
regularly to ensure that it continues to
glide smoothly over your skin.
6 Dry your face and thoroughly
clean the shaver after use
(see chapter ‘Cleaning and
maintenance’).
Note: Make sure you rinse all foam or
shaving gel off the shaver.
ENGLISH 27
Using the click-on attachments
Using the trimmer attachment
(S9041/12/ S9031/12 only)
You can use the trimmer attachment
to groom your sideburns and
moustache.
1 Pull the shaving unit straight off
the appliance.
Note: Do not twist the shaving unit while
you pull it off the appliance.
2 Insert the lug of the trimmer
attachment into the slot in the
top of the shaver. Then press
down the trimmer attachment to
attach it to the appliance (‘click’).
3 Press the on/off button once to
switch on the appliance.
, The display lights up for a few
seconds.
4 You can now start trimming.
5 Press the on/off button once to
switch off the appliance.
, The display lights up for a few
seconds to show the remaining
battery charge.
ENGLISH28
6 Pull the trimmer attachment
straight off the appliance.
Note: Do not twist the trimmer
attachment while you pull it off the
appliance.
7 Insert the lug of the shaving
unit into the slot in the top of the
appliance. Then press down the
shaving unit to attach it to the
appliance (‘click’).
Attaching the beard styler
attachment (S9161/31, S9111/41,
S9111/31 only)
1 Make sure the appliance is
switched off.
2 Pull the shaving unit straight off
the appliance.
Note: Do not twist the shaving unit while
you pull it off the appliance.
3 Insert the lug of the beard styler
attachment into the slot in the
top of the appliance. Then press
down the beard styler attachment
to attach it to the appliance
(‘click’).
ENGLISH 29
Using the beard styler
attachment with comb
You can use the beard styler
attachment with the comb attached to
style your beard at one xed setting,
but also at different length settings.
The hair length settings on the beard
styler attachment correspond to the
remaining hair length after cutting and
range from 1 to 5mm.
1 Slide the comb straight into the
guiding grooves on both sides
of the beard styler attachment
(‘click’).
2 Press the length selector and
then push it to the left or right
to select the desired hair length
setting.
3 Press the on/off button once to
switch on the appliance.
4 You can now start styling your
beard.
Using the beard styler
attachment without comb
You can use the beard styler
attachment without the comb to
contour your beard, moustache,
sideburns or neckline.
ENGLISH30
1 Pull the comb off the beard styler
attachment.
Note: Grab the comb in the centre to
pull it off the beard styler attachment.
Do not pull at the sides of the comb.
2 Press the on/off button once to
switch on the appliance.
3 You can now start contouring
your beard, moustache, sideburns
or neckline.
Cleaning and maintenance
Cleaning the shaver in the
SmartClean system (S9161/31,
S9111/31 only)
- SmartClean system Plus has two
phases: the rinsing phase and the
drying phase.
Loading...
