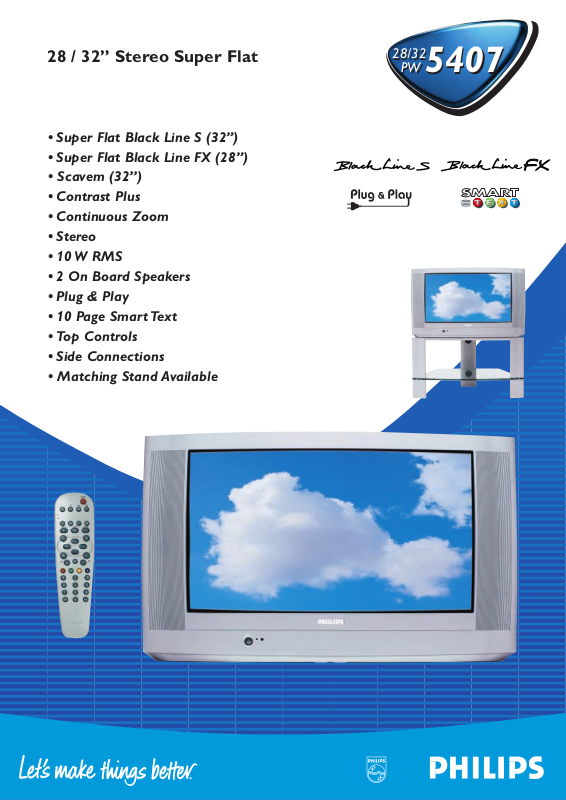

28 / 32” Stereo Super Flat
• Super Flat Black Line S (32”)
• Super Flat Black Line FX (28”)
• Scavem (32’’)
• Contrast Plus
• Continuous Zoom
• Stereo
• 10 W RMS
• 2 On Board Speakers
• Plug & Play
• 10 Page Smart Text
• Top Controls
• Side Connections
• Matching Stand Available
28/32
PW 5407
28/32
PW 5407
Product Information
• Screen Size: 28” (70 cm)
32” (82 cm)
• Visible screen size: 66 cm (28”)
76 cm (32”)
• Picture Tube : Black Line S (32”)
Black Line FX (28”)
• Scan Velocity Modulation (32”)
• Contrast Plus
• Sharpness Control
• Noise reduction
• Colour Temperature
Sound
• Sound Power: 10 W RMS
20 W Music Power
• 2 On Board Speakers
• Ultra Bass
Ease of Use Installation
• 100 Preset channels
• Autostore
• Fine Tuning
• Sorting
• Smart ATS and ACI
Ease of Use Utilisation
• Top Controls
•
Remote Control: RCLE014 (suitable for VCR/DVD)
• Smart Picture Control: Soft, Natural, Rich,
Multimedia, Personal
• Smart Sound Control : Movie, Speech
Music, Personal
•
6 Wide screen modes : 4:3, Zoom 14:9, Zoom 16:9
Subtitle zoom, Super zoom,
Wide screen
• Subtitle and Heading shift
• Continuous Zoom
• WSSB
• Dual I-II
• Sleep Timer
• Picture Tilt Control (32” only)
28 / 32” Stereo Super Flat
Connection
Side
• CVBS Video in
• Audio L/R (cinch/RCA) in
• Headphone Jack 3,5 mm out
Back
• Euro A/V connector Ext1 (RGB in, CVBS in/out)
• Euro A/V connector Ext2 (S-Video in, CVBS in/out)
• Stereo Audio out (cinch) Constant level
Information
• 10 Page Smart Text
• 4 Favourite Pages
• Program Information Line
Reception
• Tuning System : PLL digital tuning
• Tuner :VHF, UHF, S-Channel, Hyperband
• Aerial Input : 75 ohm Coaxial
• TV System : See table
• Stereo System: See table
• Video Playback: NTSC 4.43/3.58
Miscellaneous
• Mains : AC 220-240V +/- 10%
•
Power Consumption: 28” – 62 W Normal Operation
32” – 73 W Normal Operation
<1 W Stand by
• Set Weight: 28” - 32 kg
32” – 44 kg
• Weight Incl. Packaging: 28” – 42kg
32” – 54 kg
•
Set Dimension (WxHxD): 28” - 808x501x518 mm
32” - 914x570x561 mm
• Box Dimension (WxHxD) : 28” - 958x627x683 mm
32” - 1029x712x704 mm
• TV Colour : Red Silver (10896)
Features and specifications subject to change without notice
Product Highlights
Super Flat Black Line S (32”)
Philips TV picture tube with invar mask gives less deformation and therefore can provide 80% more contrast than
conventional picture tubes for brilliant colours and minimal
reflections, even when viewing in daylight.This super Flat
tube gives a flatter surface for an improved TV design.
Super Flat Black Line FX (28")
The Black Line FX Tube as Highly Pigmented Phosphors
that give a better contrast, especially in daylight viewing.
Scavem (32"only)
An innovative circuit design to enhance edge details by
varying the speed of the electron beam, providing a
sharp and crisp picture.
Contrast Plus
A special circuitry has been incorporated into this
receiver to enhance the darker portions of the picture
for added realism and overall picture quality.
Continuous Zoom
Able to expand the picture from 4:3 to 16:9 in many
steps so the user can select the best aspect ratio for
the material being viewed.
Plug & Play
Having connected the tv , it automatically searches for
all channels and installs them.
10 Page Smart Text
Fast access to your own programmed favourite text
pages.
Top Controls
Volume and channel change controls on top of the tv to
enable easy adjustment without the remote control
Side Connections
Connections for headphone and other inputs such as
camcorder, side entry for ease of use.
Predecessor : 28/32PW5406
Chassis : L01 LS
Introduction :Year 2001
28/32
PW 5407
28/32
PW 5407
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
version
stereo
system
transmission
system
28/32PW5407 /01
•••• •••••••
28/32PW5407 /05
••• • ••
28/32PW5407 /58
•••• •• ••
05/01
