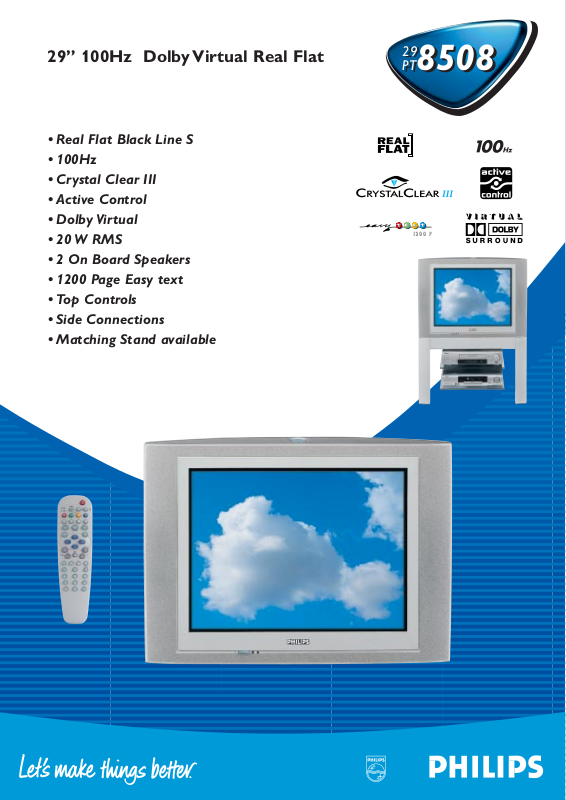

Philips PT850829, PT8508 User Manual

29” 100Hz Dolby Virtual Real Flat
• Real Flat Black Line S
• 100Hz
•Crystal Clear III
• Active Control
• Dolby Virtual
• 20 W RMS
• 1200 Page Easy text
•Top Controls
• Side Connections
• Matching Stand available
29
PT8508
29
PT8508
Technical specifications
Screen Size: 29” (72 cm)
Visible screen size: 68 cm (29”)
Picture Tube: Real Flat Black Line S
100 Hz
Crystal Clear III
Active Control
• Color Transient Improvement (CTI)
• Black stretch and blue stretch
Picture Freeze
Sound
Sound Power: 20 W RMS 40 W Music Power
Dolby Virtual
2 On Board Speakers
Digital Signal Processing
Ease of Use Installation
100 Preset channels
Autostore
Fine Tuning
Sorting
Smart ATS and ACI
Ease of Use Utilisation
Top Controls
RC 19002 (suitable for VCR/DVD/SAT)
Program List
Smart Picture Control: Soft, Natural, Rich,
Multimedia, Personal
Smart Sound Control: Movie, Speech
Music, Personal
AVL
Dual I-II
16:9 Compress
Smart Clock
Sleep Timer
Child Lock
Product highlights
Real Flat Black Line S
Philips TV picture tube provides non–distorted picture quality, while offering a wider viewing angle without light reflections.Thanks to the highly pigmented phosphors, the brightness and contrast performance are consider­ably improved compared to conventional picture tubes.
100 Hz
Conventional Televisions show a picture by scanning 50 times per second (50 Hertz).This frequency can be detected by the human eye in the form of a field flicker­ing picture. 100 Hertz sets show a picture by scanning 100 times per second eliminating the field flickering.
Scavem
Scan VElocity Modulation - the speed at which the picture lines are "wriiten"on the screen is varied to ensure that all objects have the most crisp definition and sharpest edges.
Active Control
Active Control automatically analyses, 50 times per sec­ond, the incoming signal and adjusts the key picture set­tings on Sharpness, Digital Noise Reduction and Picture Format.Active Control thus offers the best possible pic­ture settings any time, any source.
Dolby Virtual
Dolby processing circuitry for an enhanced cinema sur­round sound effect without the need for rear speakers.
1200 Page Easytext
Almost instant access to frequently used teletext pages (Habitwatch) and the ability to scroll through subpages without waiting.
Top Controls
Volume and channel change controls on top of the tv to enable easy adjustment without the remote control.
Side Connections
Connections for headphone and other inputs such as camcorder, side entry for ease of use.
29” 100Hz Dolby Virtual Real Flat
Connections
Side
S-Video (Y/C) in
CVBS Video in
Audio L/R (cinch/RCA) in
Headphone Jack 3,5 mm out
Back
Euro A/V connector Ext1 (RGB in, CVBS in/out)
Euro A/V connector Ext2 (S-Video in/out, CVBS
in/out)
Stereo Audio out (cinch) Constant level
Information
1200 Page Text Level 2,5 with Habit Watch
Program Information Line
Reception
Tuning System : PLL digital tuning
Tuner :VHF, UHF, S-Channel, Hyperband
Aerial Input: 75 ohm Coaxial
TV System: See table
Stereo System: See table
Video Playback: NTSC 4.43/3.58
Miscellaneous
Mains:AC 220-240V +/- 10%
Power Consumption :TBC Normal Operation
TBC Stand by
• Set Weight : 45 kg
•Weight Incl. Packaging : 55 kg
• Set Dimension (WxHxD): 755x590x502 mm
•Box Dimension (WxHxD) : 973x804x726 mm
• TV Colour: Silver Frost (11027)
Predecessor : 29PT8507 Chassis : EMG Introduction : Year 2003
Features and specifications subject to change without notice
29
PT8508
29
PT8508
2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM
DK DK BG BG I LL’ BG DK I BG DK LL’
version
stereo
system
transmission
system
29PT8508 /12
••••• ••• •• ••
04/2002
This Real Flat conventional TV brings top picture quality into a beautiful package. 100Hz Crystal Clear pro­cessing technology ensures that films and sports are truly represented and relaxing for the eyes. 1200 page teletext memory allows instant access to any Teletext page. All in a stylish yet affordable package.
