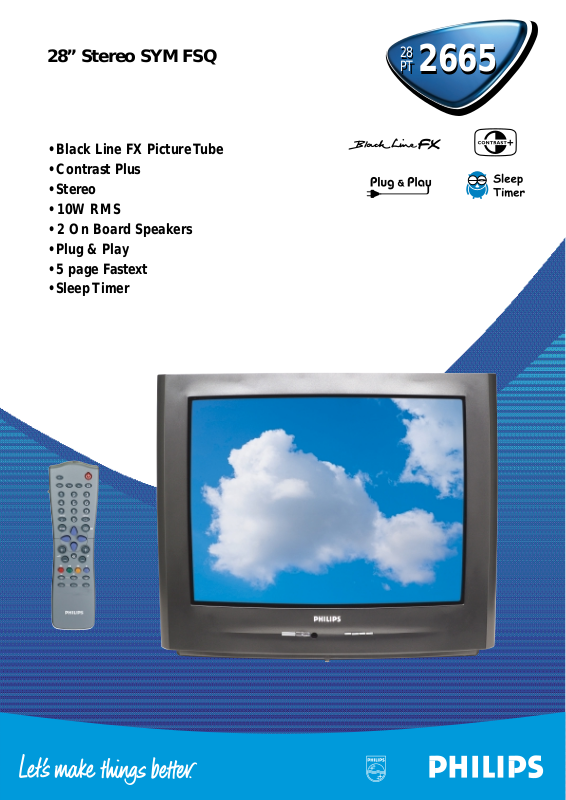

Philips PT 266528 User Manual

28” Stereo SYM FSQ

• Black Line FX Picture Tube

• Contrast Plus

• Stereo

• 10W RMS

• 2 On Board Speakers

• Plug & Play

• 5 page Fastext

• Sleep Timer

PT 2665

Product Information Picture

•

Screen Size :28” (70 cm)

• Visible screen size :67 cm

• Picture Tube : Black Line FX

• Contrast Plus

• Sharpness Control

• Noise Reduction

• Colour T emperature

Sound

• Sound Power:10W RMS 20 Music Power

• Ultra Bass

• 2 On Board Speakers

Ease of Use Installation

• Plug & Play

• 100 Preset channels

• Autostore

• Fine T uning Sorting

• Smart ATS/A CI

Ease of Use Utilisation

• RC2543 (suitable for VCR)

• Smart Picture Control :Soft,Natural, Rich,

Personal

• Smart Sound Control :Movie,Speech

Music, Personal

• Dual I-II

• Sleep Timer

• 16:9 Compress

• 4:3 Expand (formatter)

28” Stereo SYM FSQ

Connections

Front

• Headphone Jack 3,5 mm out

Back

• Euro A/V connector Ext1 (RGB in,CVBS in/out)

• Euro A/V connector Ext2 (S-Video in,CVBS in/out)

Information

• 5 Page TOP/FLOF Teletext

• Program Information Line

Reception

• Tuning System : PLL digital tuning

• Tuner :VHF, UHF,S-Channel,Hyperband

• Aerial Input : 75 ohm Coaxial

• TV System : See table

• Stereo System :See table

• Video Playback:NTSC 4.43/3.58

Miscellaneous

• Mains :AC 220-240V, 50/60 Hz (stroke /01,/05) AC 90-276V, 50/60 Hz (stroke /58)

• Power Consumption:tbc Normal Operation

< 3W Stand by

• Set W eight : 32 kg

• Weight Incl. Packaging :36 kg

• Set Dimension (WxHxD) : 694x470x579 mm

• Box Dimension (WxHxD) :792x576x711 mm

• TV Colour : Metallic Antracite (10897)

Predecessor :28PT4404 Chassis :L9 LS Introduction :Year 2001

Features and specifications subject to change without notice

Product Highlights

Black Line FX

A new Philips picture tube with dark glass for better contrast and highly pigmented phosphors giving brighter and more natural colours.

Contrast Plus

A special electronic circuit has been incorporated into this television to enhance the darker portions of the picture for added realism and improved picture quality.

Stereo

Two channel sound signal able to deliver different sound from left and right channels

RMS

The standard professional measure of sound output power.All our Tv's aremeasured in RMS with 10% Distortion. There are other terms than RMSwhich often show higher numbers but are not comparable.

Plug & Play

Having connected the tv ,it automatically searches for all channels and installs them.

5 page Teletext

Teletext information available.

Sleeptimer

The Television can be programmed to go into standby mode at a time defined by the user.

PT 2665

2CS NICAM 2CS NICAM NICAM NICAM PAL PAL PAL SECAM SECAM SECAM

DK DK BG BG I LL’ BG DK I BG DK LL’

version

stereo

system

transmission

system

28PT2665 /01

•••••••••••

28PT2665 /05

•••••••••••

28PT2665 /58

••••• •• ••
