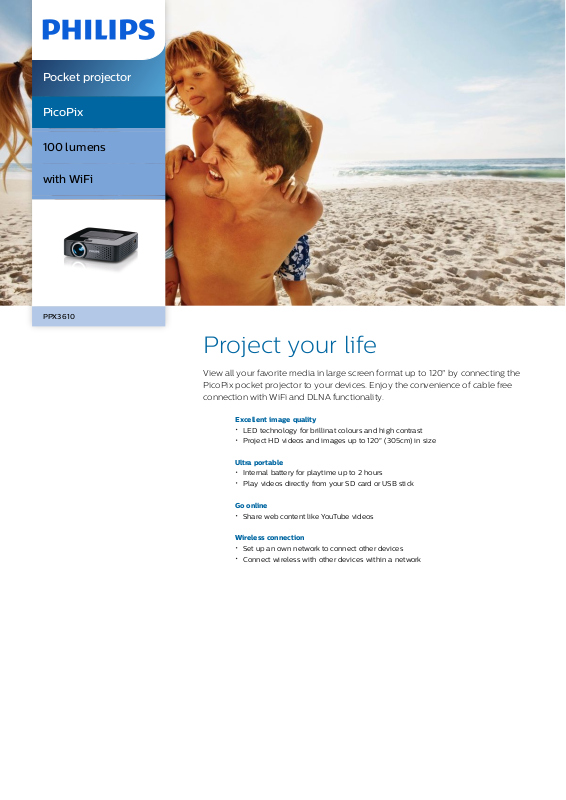

Page 1
Pocket projector
PicoPix
100 lumens
with WiFi
PPX3610
Project your life
View all your favorite media in large screen format up to 120" by connecting the
PicoPix pocket projector to your devices. Enjoy the convenience of cable free
connection with WiFi and DLNA functionality.
Excellent image quality
LED technology for brillinat colours and high contrast
Project HD videos and i mages up to 120" (305cm) in size
Ultra portable
Internal battery for playtime up to 2 hours
Play videos directly from your SD card or USB stick
Go online
Share web content like YouTube videos
Wireless connection
Set up an own network to connect other devices
Connect wireless with other devices within a network
Page 2
Pocket projector
PPX3610/F7
Highlights
Integrated Media player
The integrated MP4 player supports all
common video and audio formats.This makes
the PicoPix pocket projector a standalone
device, retrieving i ts content from the internal 2
GB memory, USB stick or one of various
different types of memory cards.
Internal battery
The PicoPix comes with a compact built-in
rechargeable battery for long-lasting power. Up
to 2 hours of continuous movie, photo and
music playback enjoyment can be achieved on
a si ngle charge. This makes the PicoPix your
perfect pocket companion.
LED-Technology
Your pictures and videos deserve the best
quality when it comes to sharing them with
those around you. This is why the PicoPix
pocket projector uses high quality LE D
technology to project your pictures and videos
in brillinat colours and breathtaking contrast.
Page 3
Pocket projector
PPX3610/F7
Specifications
Technology/ optical
Display technology: DLP
Light source: RGB L ED
LED light source lasts over: 30.000 hours
Native resolution: 854 x 480 pixels
Contrast ratio: 1000:1
Screen size (diagonal): 12" - 120"
Screen distance: 0.5m - 5.0m
Internal memory: 2 GB
Brightness with AC: up to 100 lumens
Brightness with battery: up to 60 lumens
Integrated MP4 player
Integrated Office / PDF viewer
Integrated Touchpad
Operating system: Android 2.3.1
Supported video standards
PAL
SECAM
NTSC
480i/p
576i/p
720i/p
1080i/p
Sound
Internal 1W sound bar
Connection
Input audio & video: HDMI with HDCP; VGA;
Component YPbPr (up to 1080); Composite
(CVBS) & Audio;
Output audio: 3.5 mm audio out jack
DC-IN: D C j ack
External Memory: SD/SDHC
USB: Connect to mass storage devices
Mini USB: connect to pc, connect to mass
storage device, charging
Internal media player
Supported video formats: .avi: MPEG4, Xvid,
H.264; .mov: MPEG4, Xvid, H.263, H.264; .mp4:
MPEG4, Xvid, H.263, H.264; .mkv: MPEG4,
Xvid, H.264; .flv: Sorenson spark; .3gp: MJPEG,
MPEG4, Xvid, H.263, H.264; .webm: VP8
Supported audio formats: MP3, WAV, OGG,
FLAC
Supported photo formats: JPEG, BMP, PNG,
GIF, TIFF
Supported file formats: pdf, ppt/pptx, xls/xlsx,
doc/docs
Power Supply
Power adapter: 110-240V AC, 50-60Hz,
12V@2A for EU and UK
Internal battery: 7.4V @ 2300mAh
Battery life: Standard mode: 2 hours; Bright
mode: 1.5 hours; LE D indicator: battery charge
Dimensions
packed (WxDxH): 7.48 x 7.48 x 3.15 inch
unpacked (WxDxH): 4.13 x 4.13 x 1.24 inch
Weight
packed: 30.76 oz
unpacked: 10.23 oz
Temperature range
Operation: 41 - 104°F
Storage packed: -13 - 140°F
Storage unpacked: 32 - 113°F
Relative humidity
Operation: 15 ~ 85% RH
Storage packed: 5 ~ 93% RH
Storage unpacked: 15 ~ 85% RH
Standard package includes
User guide: on internal memory, internet
Warranty card
Carrying case
AC-adapter
Remote control
Quick start guide
HDMI cable
PPX3610
Standard mini USB cable
Accessories
Component cable: not included
Composite audio/video adapter: not included
iPhone cable: not included
MHL to HDMI + Mini USB cable: not included
PicoPix Sound station: not included
PicoPix TV station: not included
VGA cable: not included
Wireless connections
PC screen projection: via Wi Fi streaming
WiFi IEEE 802.11 b/g/n
Wireless media player: to connect to other
devices via WiFi
© 20 19 Koninklijke Philips N.V.
All Right s reser ved.
Specifications are subject to change
without notice. Trademarks are the
property of Koninklijke Philips N.V. or
their respective owners .
Issue date 2019‑10 ‑24
Version: 3.0.2
12 NC: 8670 001 03 293
UPC: 6 09585 233 92 8
