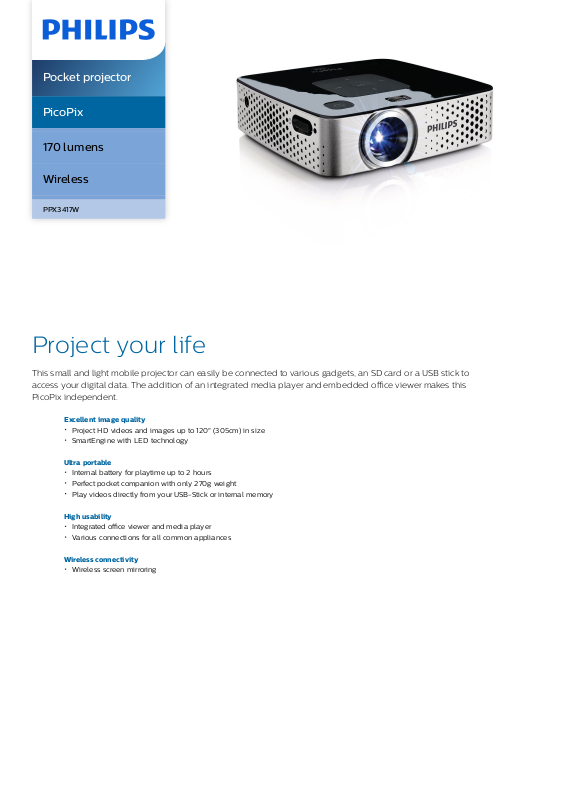

Philips PPX3417W/US Leaflet
Pocket projector
PicoPix
170 lumens
Wireless
PPX3417W
Project your life
This small and light mobile projector can easily be connected to various gadgets, an SD card or a USB stick to
access your digital data. The addition of an integrated media player and embedded office viewer makes this
PicoPix independent.
Excellent image quality
Project HD videos and images up to 120" (305cm) in size
SmartEngine with LED technology
Ultra portable
Internal battery for playtime up to 2 hours
Perfect pocket companion with only 270g weight
Play videos directly from your USB-Stick or internal memory
High usability
Integrated office viewer and media player
Various connections for all common appliances
Wireless connectivity
Wireless screen mirroring
Pocket projector
PPX3417W/US
Specifications Highlights
Technology/ optical
Display technology: DLP
Light source: RGB LED
LED light source lasts over: 30.000 hours
Native resolution: 854 x 480 pixels
Contrast ratio: 1000:1
Screen size (diagonal): 12" - 120"
Screen distance: 0.5m - 5.0m
Internal memory: 4 GB
Integrated MP4 player
Integrated Office / PDF viewer
Brightness: up to 170 lumens
Supported video standards
PAL
SECAM
NTSC
480i/p
576i/p
720i/p
1080i/p
Sound
Internal 1W sound bar
Connection
Input audio & video: mini HDMI with HDCP;
VGA (custom plug with adapter; Component
YPbPr (up to 1080i ); Composite (CVBS) &
Audio;
Output audio: 3.5 mm audio out jack
DC-IN: DC jack
External Memory: SD/SDHC/SDXC
USB: Connect to mass storage devices
Mini USB: connect to pc, connect to mass
storage device, charging
Wi-Fi: via dongle
Internal media player
Supported video formats: .avi, .mov, .mp4,
.mkv; codec's: MJPEG, H263, MPEG4, H264
Supported audio formats: MP3, AC3
Supported photo formats: JPEG, BMP, PN G,
GIF
Supported file formats: pdf, ppt/pptx, xls/xlsx,
doc/docs
Power Supply
Battery life: Standard mode: 2 hours; Bright
mode: 1.5 hours
Internal battery: 7.4V @ 1800mAh
Power adapter: 110-240V AC, 50-60Hz,
12V@2A for EU and UK
Dimensions
packed (WxDxH): 7.48 x 7.48 x 3.15 inch
unpacked (WxDxH): 4.13 x 4.13 x 1.24 inch
Weight
Packed: 37.39 oz
Unpacked (without accessories): 9.52 oz kg
Temperature range
Operation: 5 ~ 40° C
Storage packed: -25 ~ 60° C
Storage unpacked: 0 ~ 45° C
Relative humidity
Operation: 15 ~ 85% RH
Storage packed: 5 ~ 93% RH
Storage unpacked: 15 ~ 85% RH
Standard package includes
Remote control
User guide: on internal memory, internet
Quick start guide
Warranty card
AC-adapter
Carrying case
HDMI cable
Wi-Fi dongle
Accessories
Component cable: not included
VGA cable: not included
Composite audio/video adapter: not included
MHL to HDMI + Mini USB cable: not included
Wireless screen mirroring
Wireless screen mirroring with iOS, Android
and Windows devices via Wi-Fi dongle
120" (305cm) image size
Enjoy the biggest mobile screen you ever had
and share your HD media content wherever
you want. With your PicoPix you are carrying
a personal cinema in your pocket.
Internal battery
The PicoPix comes with a compact built-in
rechargeable battery for long-lasting power.
Up to 2 hours of continuous movie, photo and
music playback enjoyment can be achieved
on a single charge. This makes the PicoPix
your perfect pocket companion.
Office viewer
The integrated MP4 Media player supports all
common video and audio formats.This makes
the PicoPix pocket projector a standalone
device. The office viewer allows you also to
share all common office files and pdf files.
Pocket companion
With a weight of only 270g and the slim
design your PicoPix pocket projector becomes
your lightweight companion for business and
private use.
Connections
The PicoPix pocket projector is offering quite a
number of connections for your appliances.
USB, HDMI, VGA, Component, Composite,
SD/SDH C slot and a 3.5 mm Audio output are
at your desposal for unlimited entertainment.
SmartEngine
Your pictures and videos deserve the best
quality when it comes to sharing them with
those around you. This is why the PicoPix
pocket projector uses high quality
SmartEngine
LED technology to project your pictures and
videos in brilli nat colours and breathtaking
contrast.
© 20 19 Koninklijke Philips N.V.
All Right s reserved.
Specifications are subject to change
without notice. Trademarks are the
property of Koninklijke Philips N.V. or
their respective owners.
Issue date 2019‑10 ‑24
Version: 1.0.2
12 NC: 8670 001 3 7256
UPC: 6 09585 24930 1
