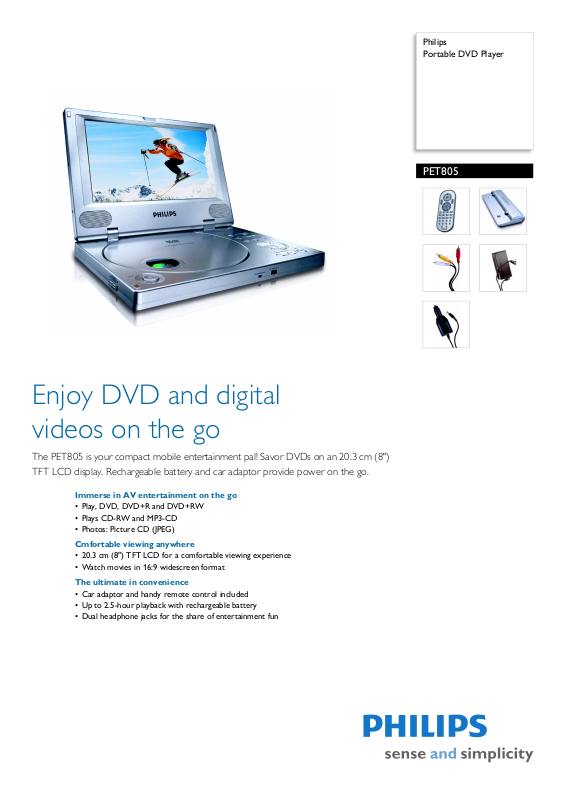

Philips Portable DVD Player

PET805

Enjoy DVD and digital videos on the go

The PET805 is your compact mobile entertainment pal! Savor DVDs on an 20.3 cm (8") TFT LCD display. Rechargeable battery and car adaptor provide power on the go.

Immerse in AV entertainment on the go

• Play, DVD, DVD+R and DVD+RW

• Plays CD-RW and MP3-CD

• Photos: Picture CD (JPEG)

Cmfortable viewing anywhere

• 20.3 cm (8") TFT LCD for a comfortable viewing experience

• Watch movies in 16:9 widescreen format

The ultimate in convenience

• Car adaptor and handy remote control included

• Up to 2.5-hour playback with rechargeable battery

• Dual headphone jacks for the share of entertainment fun

Portable DVD Player

PET805/37

Specifications

Picture/Display

• Display screen type: LCD TFT

• LCD panel type: Anti

• Diagonal screen size (inch): 8 inch

• Resolution: 480(w)x234(H)x3(RGB)

• Brightness: 400 cd/m²

• Contrast ratio (typical): 250:1

• Effective viewing area: 176.4X99.2mm

• Pixel pitch: 0.1225(w)x0.424(H)mm

• Response time (typical): 30 ms

Sound

• Output Power: 250mW RMS(built-in speakers)

• Output power (RMS): 10mW RMS(earphone)

• Signal to noise ratio: >80dB(earphone), dB(built-in speakers)

>62

Video Playback

• Playback Media: DVD, DVD+RW, DVD+R, Picture

CD, SVCD, Video CD

• Disc Playback Modes: OSD, A-B Repeat, Angle,

c Menu, Fast Backward, Fast Forward, Repeat,

Dis Shuffle Play, Slow Backward, Slow Forward, Zoom

• Video disc playback system: NTSC, PAL

Audio Playback

• Compression format: Dolby Digital, MP3

• Playback Media: CD, CD-R, CD-RW, MP3-CD

• File systems supported: ISO-9660, Jolliet

• MP3 bit rates: 32 - 320 kbps

-glare polarizer

Connectivity

• Audio Output - Analog: Audio L/R (cinch)

• Audio Output - Digital: Coaxial (cinch)

• Video Output - Analog: Video (3.5mm jack) 1x

• Connector: 2 x 3.5 mm Headphones

• DC in: 9V

• Power: 30W

• AV output: Composite (CVBS) x1, 3.5 mm jack (L/ 1

R) x

Convenience

•Shock proof

• Battery charging indication

Accessories

• Battery pack: DV 7.4V, Li-ion rechargeable

batteries

• AC/DC Adaptor: ADPV18A(110-120v, 50/60Hz)

• Car kit: cigarette outlet adaptor, 12vDC

• Remote control: RC810(credi

• Cables: Audio Cable x1 , Video Cable x1

• User Manual: Eng, Spa, Fre

t card style, 38 keys)

Dimensions

• Master carton dimensions: 450 x 335 x 195 mm

• Master carton quantity: 2

• Packaging dimensions (W x H x D):

0 x 310 x 88 mm

• Product dimensions (W x H x D):

0 x 29 x 155 mm

• Product weight: 0.9 kg

• Packaging type: D-box, Clamshell

•

Highlights

Picture CD (JPEG)

Multi-format playability allows you to view images in the comfort of your living room and play most disc formats for maximum disc compatibility and viewing pleasure.

Issue date 2013-01-31

Version: 2.0.4

12 NC: 9073 101 02221

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.

www.philips.com

* Rechargeable batteries have a limited number of charge cycles and

may eventually need to be replaced. Battery life and number of charge cycles vary by use and settings.
