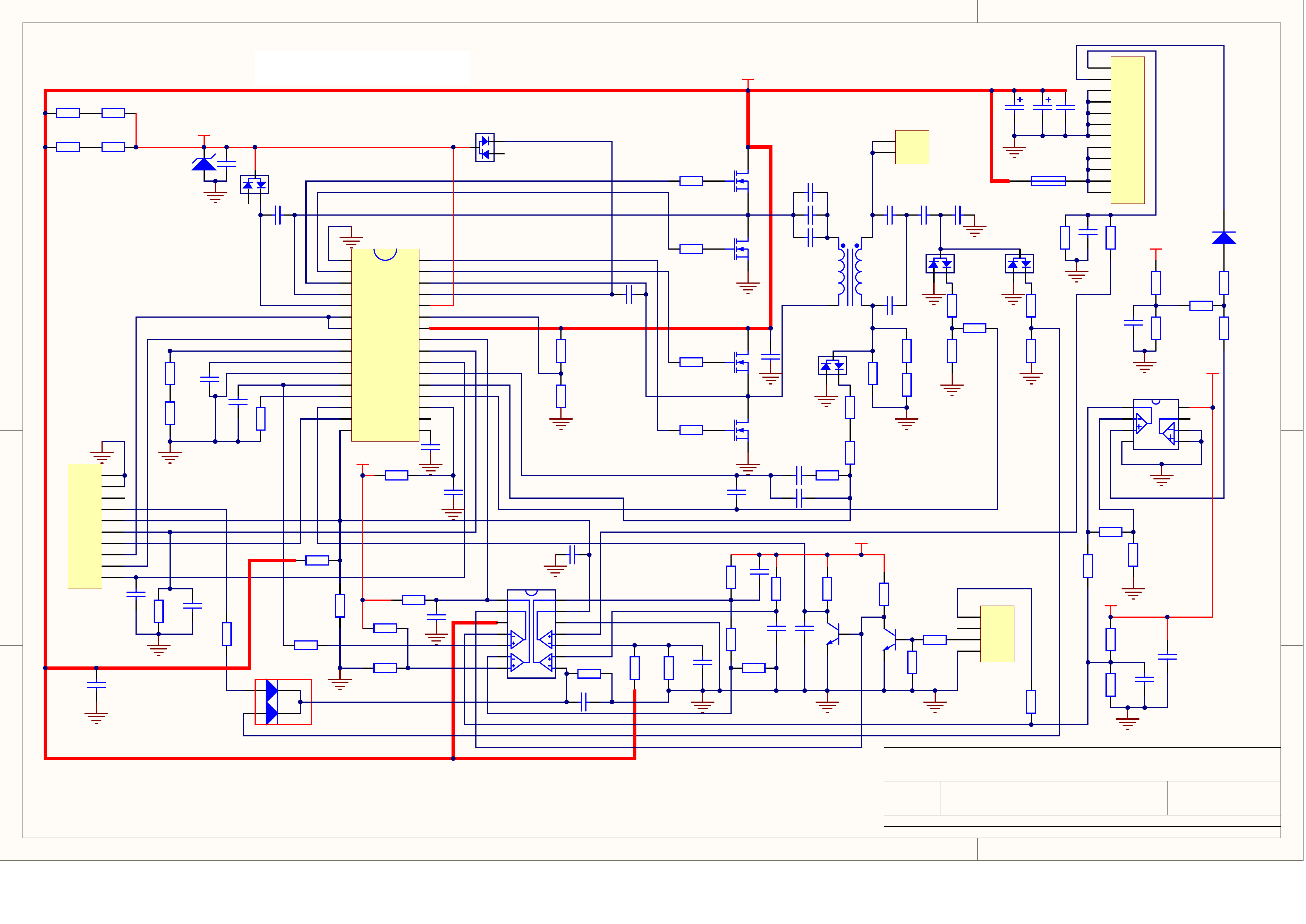

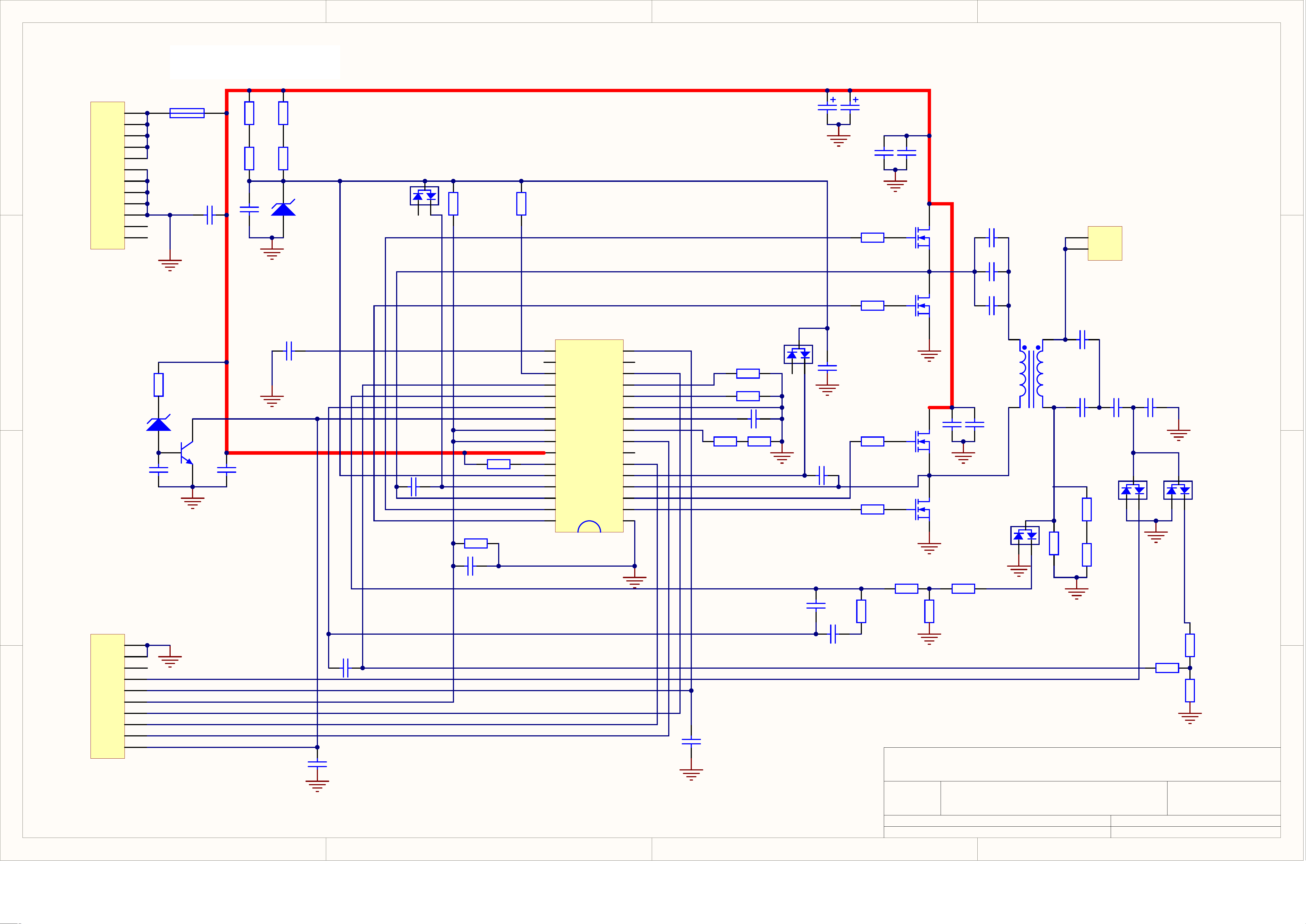

Philips PNEL-T707A(MASTER), PNEL-T708A(SLAVE) Schematic
LG inverter modification “II”
Ref. nr. SCC_73709
Doc. version 1.2
October 30, 2009
SCC_73709

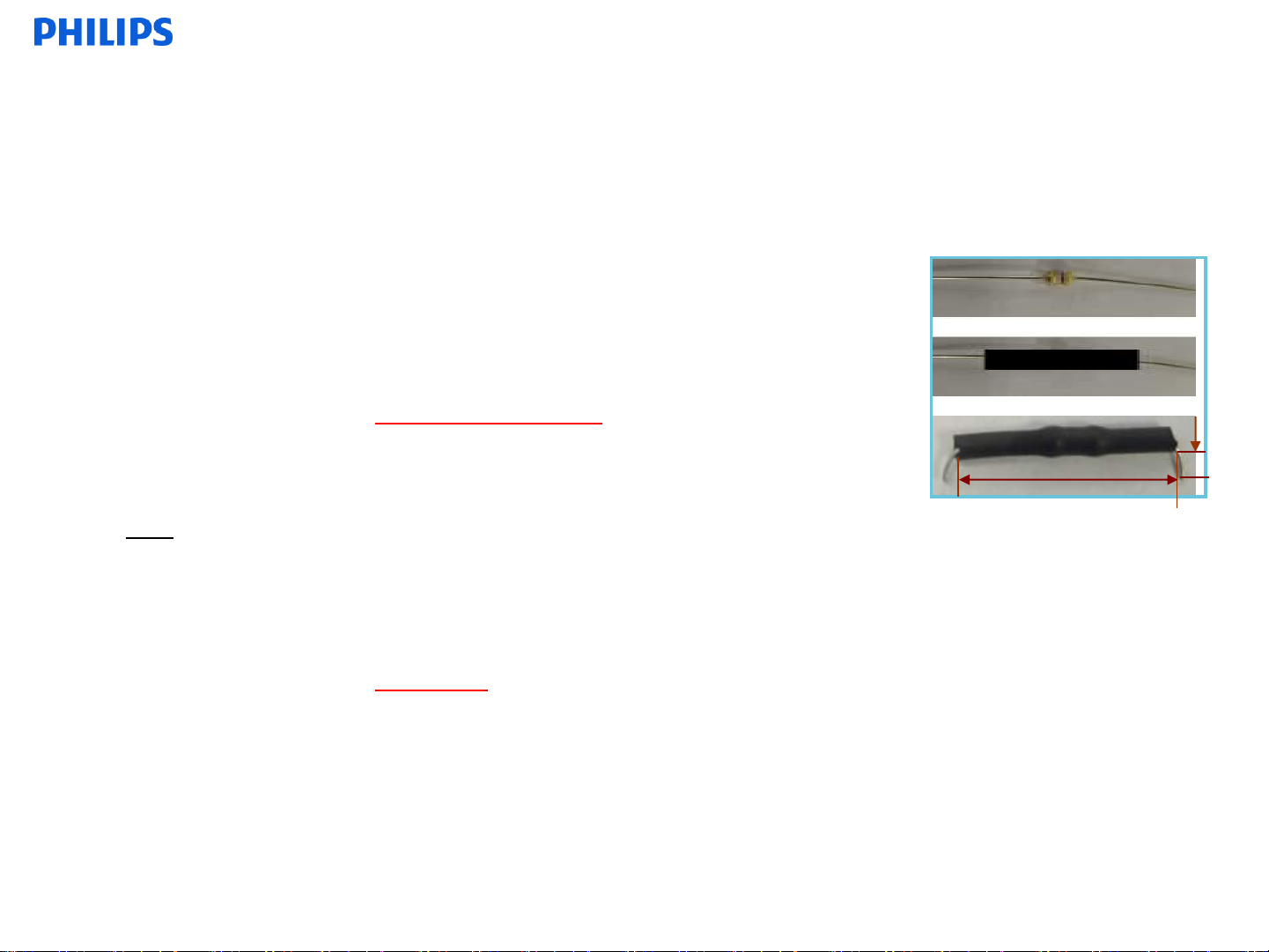

COMPONENT KIT (996500095005)
The Component Kit includes the following components (for Master & Slave) :
• TVS zener diode (33 V) x 2
• MLCC capacitor (100 pF) x 2
• Resistor (DIP type or SMD) 4.7 Ω x 4
2
SCC_73709

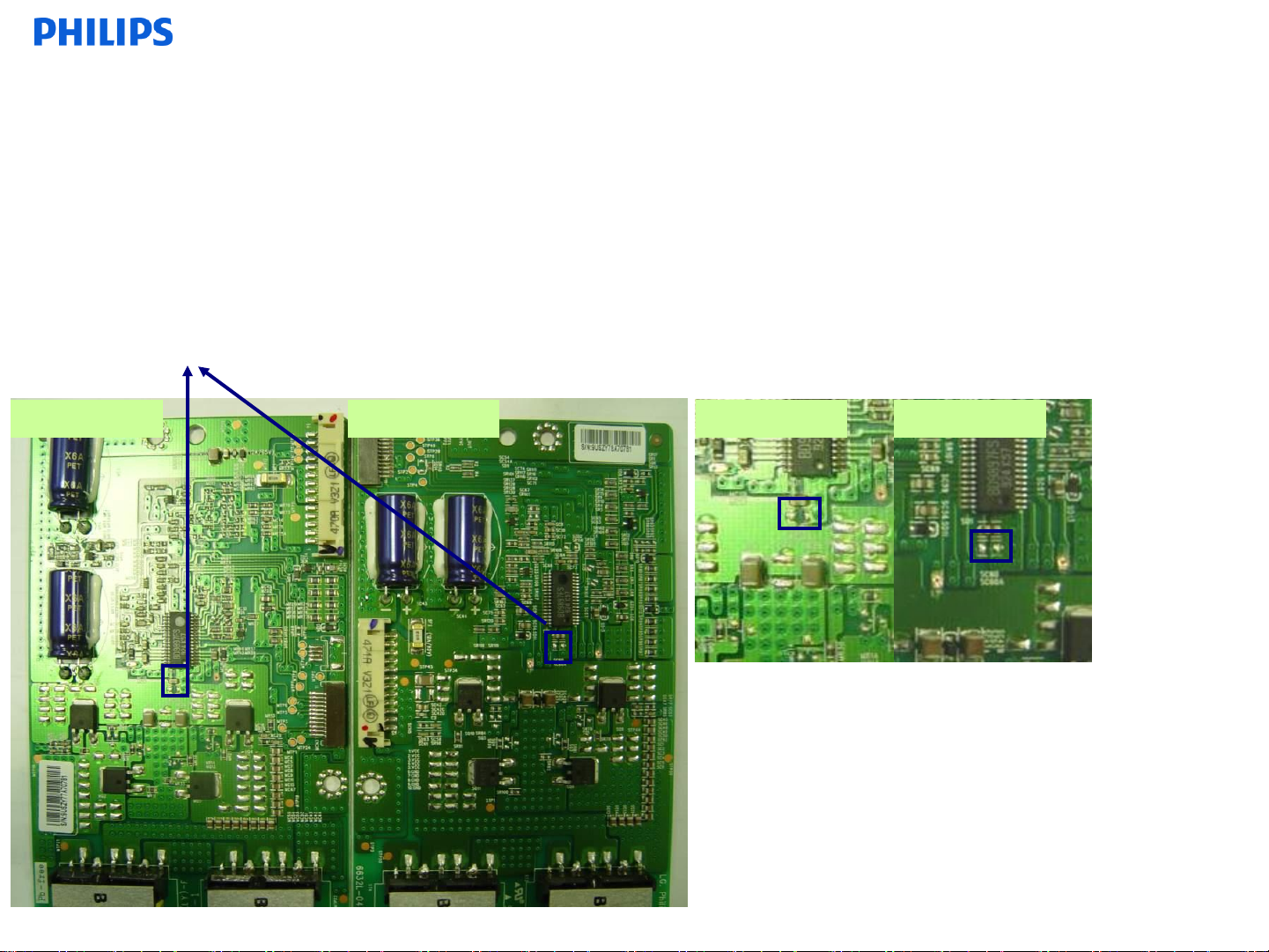

STEP 1

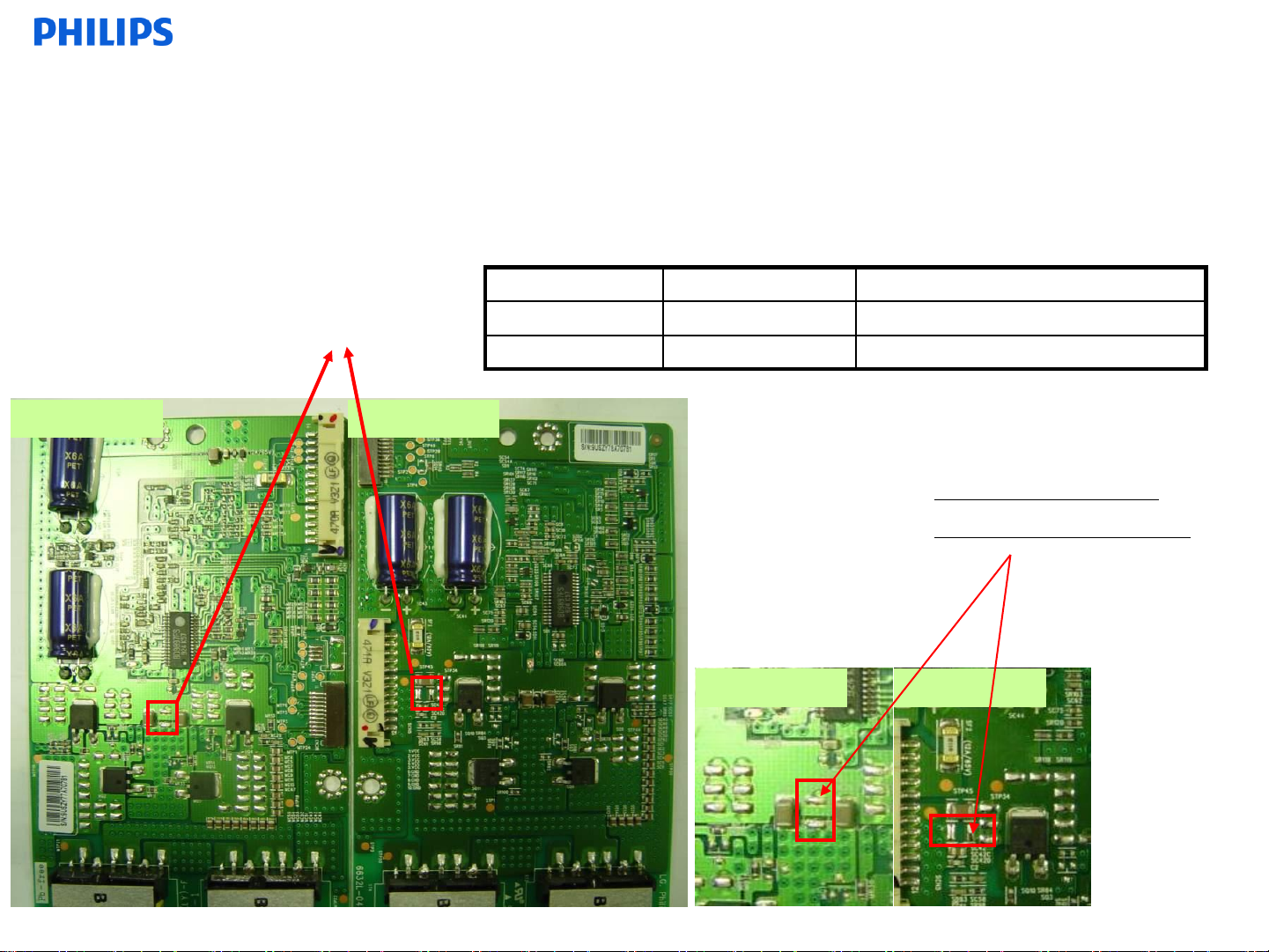

Confirm Inverter model name:
•PNEL-T707A(MASTER),
•PNEL-T708A(SLAVE).
REMARK 1
• It does not matter if the zener diode (modification “I”) exists or not for
inverter modification “II”.
3
SCC_73709

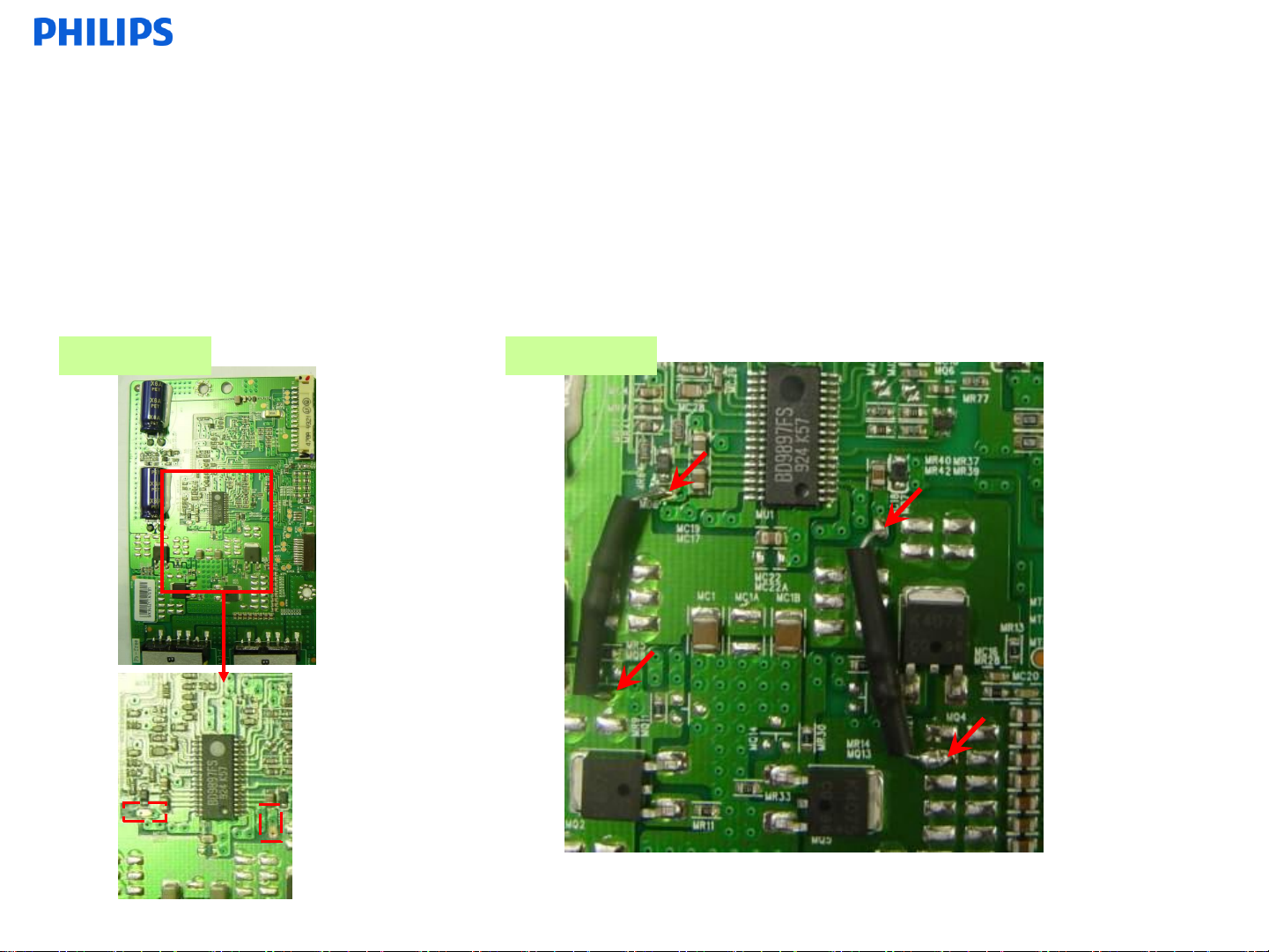

STEP 2.1

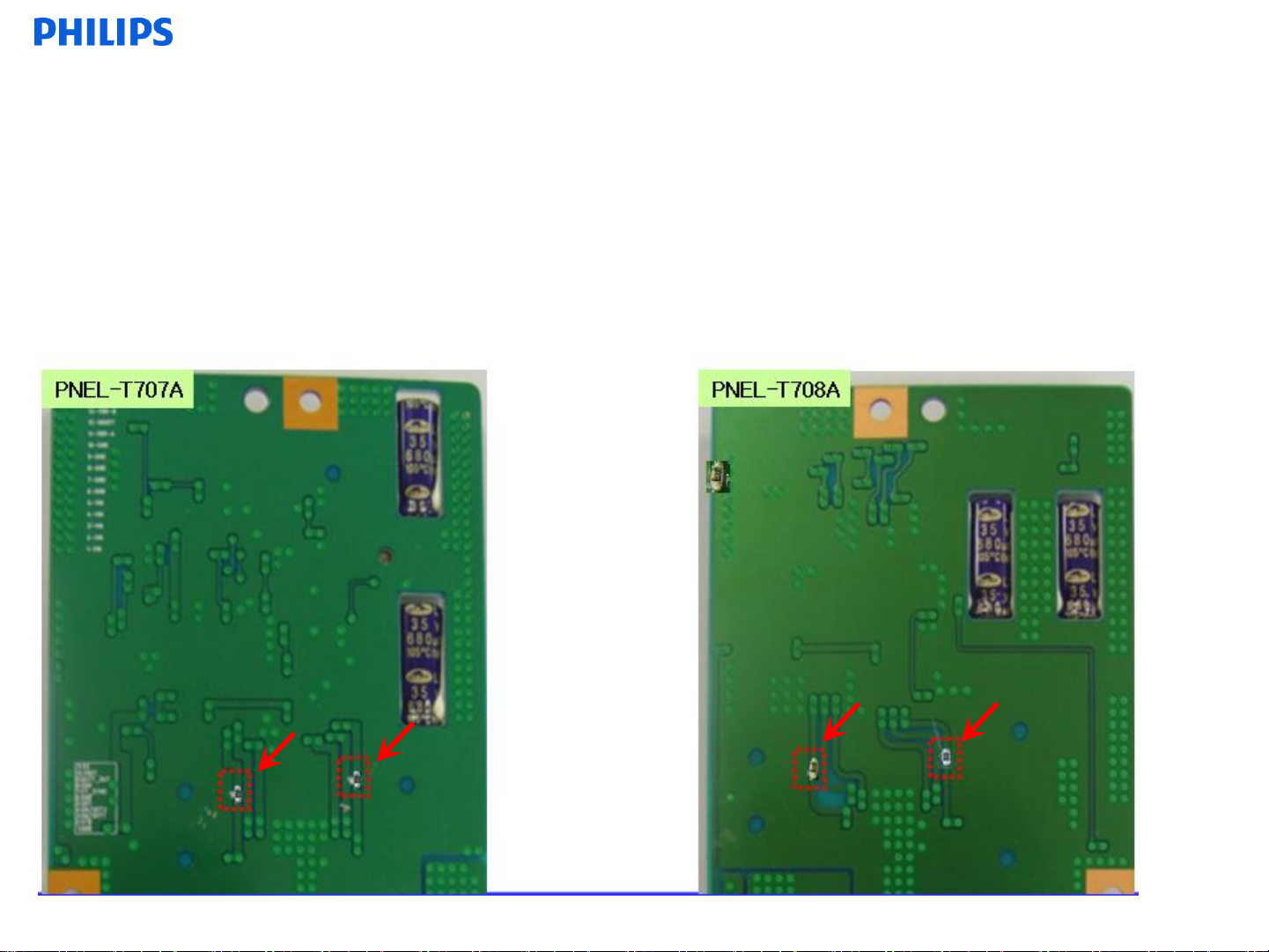

Cut tracks:
- Cut the SW1 & SW2 tracks on both inverters.
- Confirm that there are no short circuits with metal
pieces of tracks, and there is no damage to other tracks !
PNEL-T707A
PNEL-T708A
4
SCC_73709

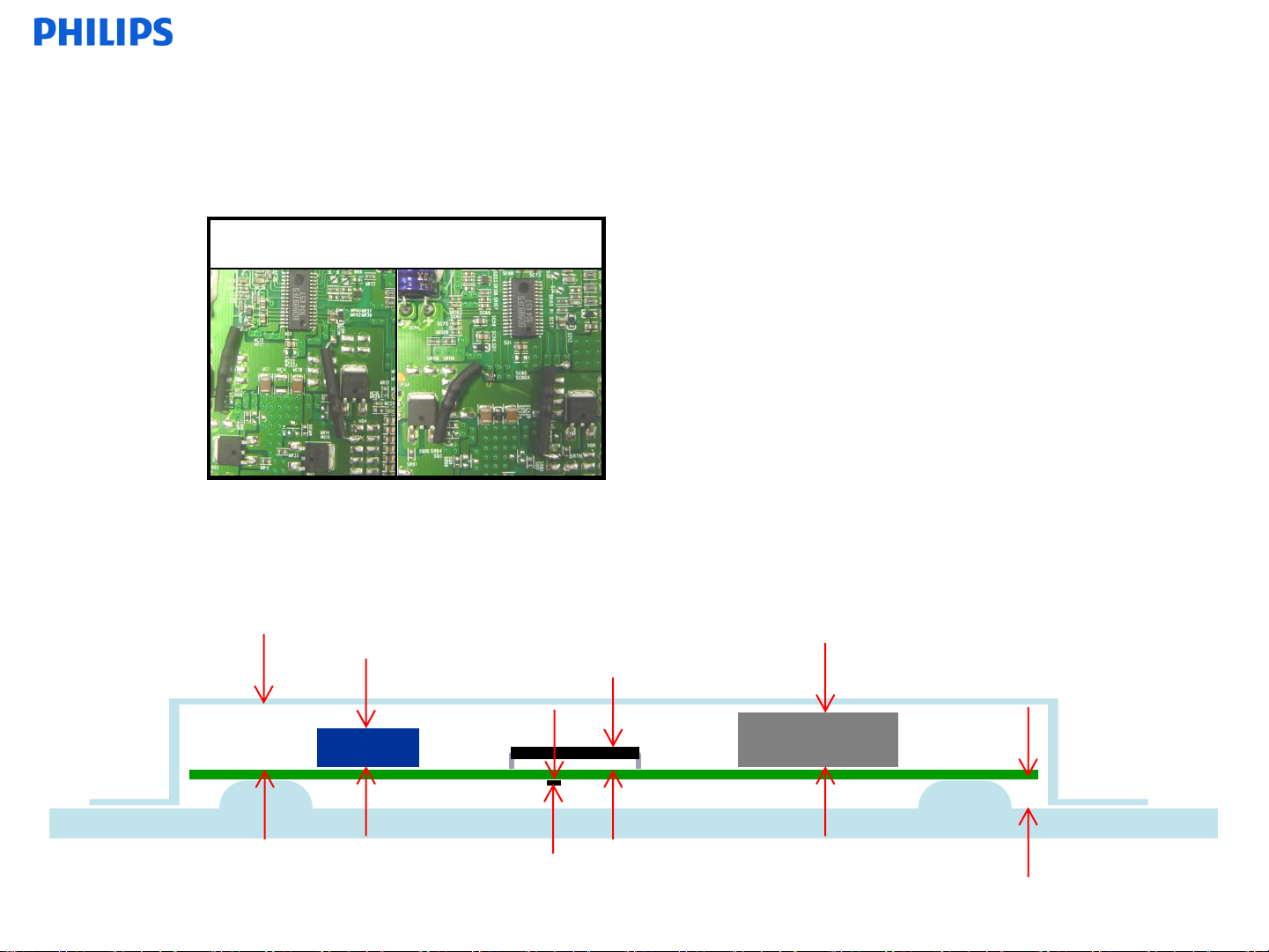

STEP 2.2

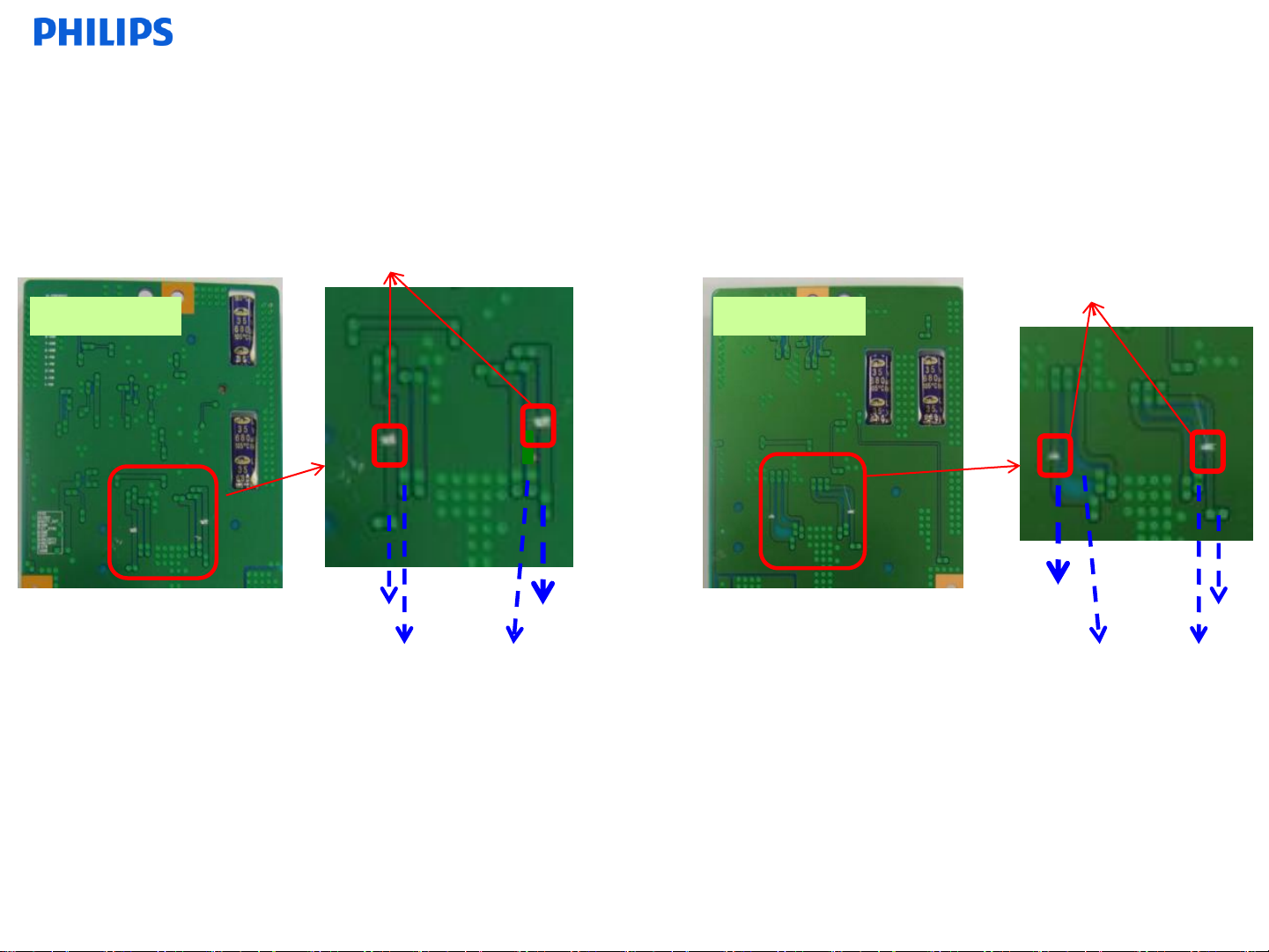

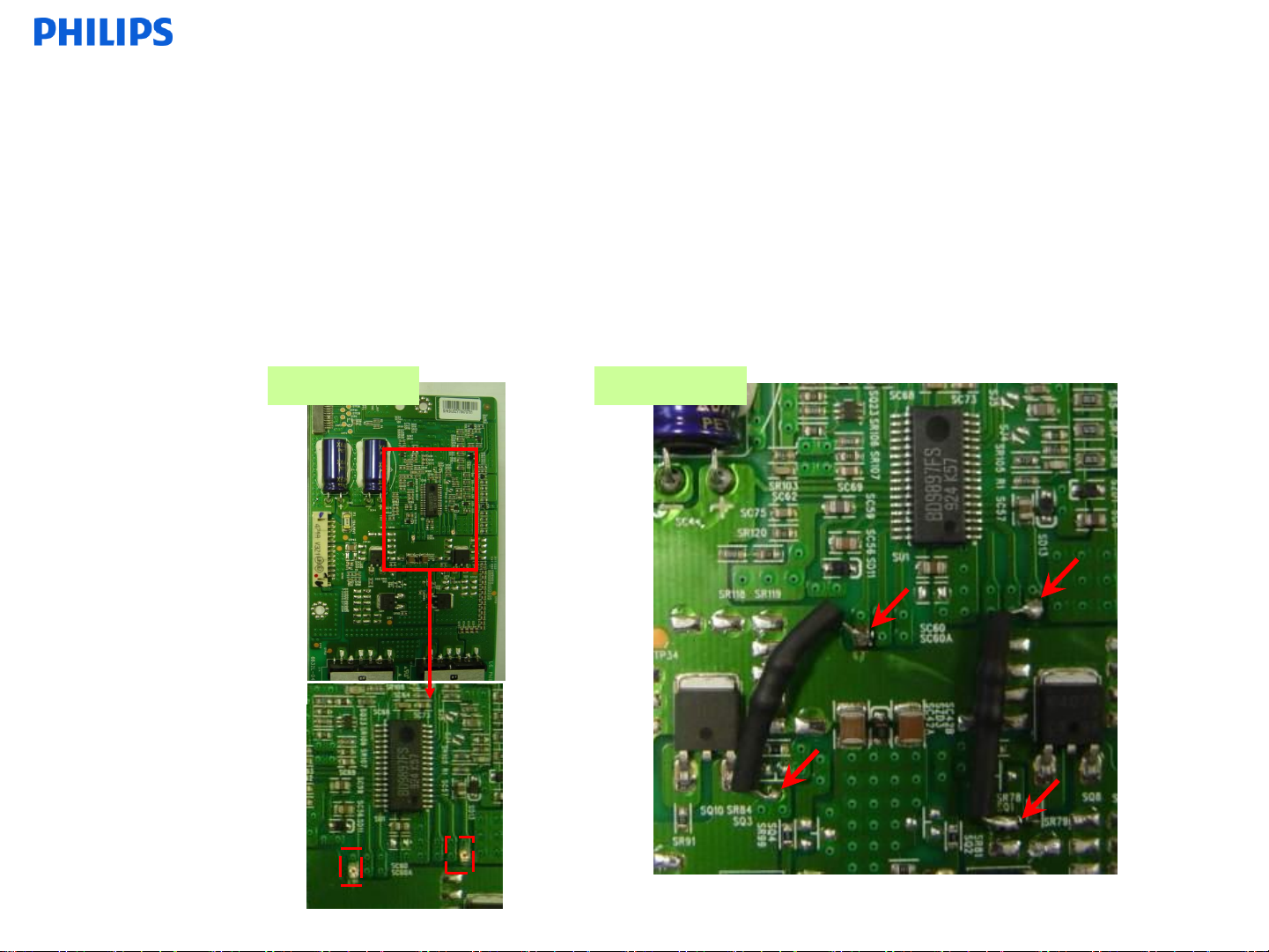

1. Check the secure cut line (SW1 & SW2) by visual inspection first:
Visual inspection to verify if cut well and not damaged.
2. Check the resistance between two ‘via’ holes of the cut SW line:
Measure the resistance of the cutted SW1 & SW2 line through „via‟ holes
with a DVM (Digital Volt Meter).
Measure Point (Master) Measure Point (Slave)
Case 1 > Several tens of kΩ: Line cut well.
Case 2 > under 1 Ω: Line short.
※ After attaching the resistor, the resistance should be 4.2 ~ 5.2 Ω.
Cut Mark
5
