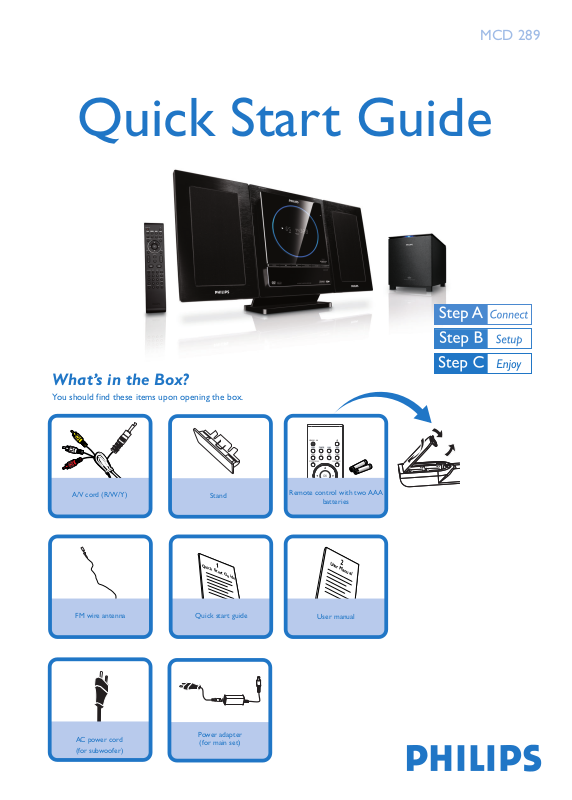

Quick Start Guide
What’s in the Box?
You should find these items upon opening the box.
MCD 289
A/V cord (R/W/Y)
FM wire antenna
AC power cord
(for subwoofer)
Stand
Quick Start Guide
1
Quick start guide
Power adapter
(for main set)
Remote control with two AAA
batteries
2
User Manual
User manual
SLOW
ANGLE
DISPLAY
MUTE
STANDBY-ON
1
Connect the speaker cables.
Tips
– See the User Manual for other TV
connection options.
–For connecting to a Progressive Scan
TV, refer to the user manual for proper
connections and detailed setup.
– In case of wireless connection failure
between the main set and subwoofer, see
the User Manual for manual pairing
(“Installation - Step 1: Connecting
speakers - Connecting the wireless
subwoofer”).
4
AC power
5
Speaker
(right)
2
Connect the FM antenna.
3
Connect the A/V cord to a TV.
4
Connect the power cords of the system and TV.
5
Power on both the main set and subwoofer.
➜ Wireless connection will set up automatically.
S-VIDEO
IN
AUDIO
TV IN
IN
VIDEO IN
S-VIDEO
IN
AUDIO
TV IN
IN
VIDEO IN
3
Speaker
(left)
4
AC power
2
FM antenna
Red
Setting up the TV
1
Press SOURCE (DISC on the remote control) to select disc source.
2
Turn on the TV and set it to the correct Video In channel.
White
1
