Philips PCVC680K User Manual

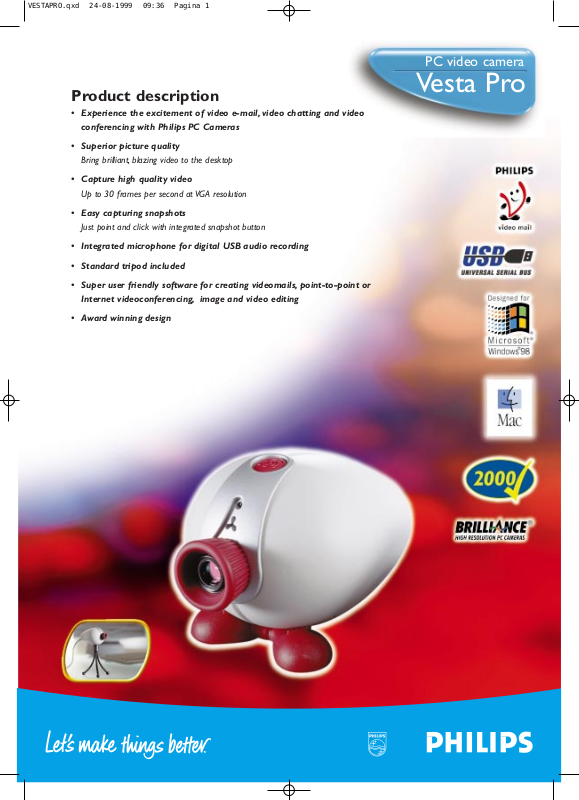

Product description

• Experience the excitement of video e-mail, video chatting and video conferencing with Philips PC Cameras

• Superior picture quality

Bring brilliant, blazing video to the desktop

• Capture high quality video

Up to 30 frames per second at VGA resolution

• Easy capturing snapshots

Just point and click with integrated snapshot button

• Integrated microphone for digital USB audio recording

• Standard tripod included

• Super user friendly software for creating videomails, point-to-point or Internet videoconferencing, image and video editing

• Award winning design

PC video camera

Vesta Pro

Technical specifications

PC video camera

Vesta Pro

Optical

• Sensor

• Pixels 640 (H) x 480 (V)

• Min. Illumination < 1 lux

• Integrated lens 4.8 mm, F3.0

Resolution and framerate

Format Resolution Frame rate

VGA 640 x 480 30 CIF 352 x 288 30 SIF 320 x 240 30 SSIF 240 x 180 30 QCIF 176 x 144 30 QSIF 160 x 120 30 SQCIF 128 x 96 30

Audio

• Integrated microphone

• Digital output via USB

• Supported audio formats: mono, 16 bit, 8 / 11.025 / 22.05 / 44 kHz

Plug and play compatibility

• Designed for Windows98

• Plugs directly into any free USB port

• MacOS 8.5x compatible

Camera controls

• Framerate / Image resolution

• Contrast

• Brightness

• Backlight compensation

• Color on/off

• White-balance

• Exposure control

/4” CCD

Pixels (H) x (V) (Frames per second)

Applications

Philips PC Cameras come with a set of full featured Windows applications, all the necessary installation software and a TWAIN compatible interface.

• Create your own video Email

Easily create and send videomail (video email) and digital images with Philips Videomail software, featuring up to 100x file compression. All you need to add is the Internet. Any Windows PC can easily receive and view Philips Videomail. Just click and play.

• Videoconferencing

Smith Micro VideoLInk lets you set-up videoconferencing point to point (H.324) or via Internet (H.323).

• Photo editing

Ulead Photo Express provides the perfect balance of professionally designed templates and easy to use editing tools for editing your photos and images.

• Video editing

With Ulead MediaStudio Pro VE superior intuitive interface, you don't need to know how to edit videos before starting. Let Ulead MediaStudio Pro VE guide you through its unique step workflow process so you can get up and sharing videos with friends and family around the world in no time at all.

• Microsoft NetMeeting

NetMeeting lets you communicate with family and friends over the Internet. NetMeeting's video, audio, and data conferencing are all based on industry standards.

Models

System requirements

Minimum Recommended

• Processor Pentium 166 MHz Pentium II Imac 233 MHz

• Memory (RAM) 16MB 32MB

• Free hard disk space 10MB *) 200MB **)

• # colors display 64k 16M

• Operating System Window98, MacOS 8.5x ***)

• 1 free USB port

• CD-ROM or DVD-ROM drive

• Sound playback capability

*) Excluding applications **) Including all bundled applications ***) Macintosch drivers included

http://www.pcstuff.philips.com

Vesta Pro

Max. resolution VGA Framerate at max. resolution 30fps Tripod O

Included applications

Video editing O Videomail O Video chatting O Video conferencing O Image editing O Twain driver O

Physical specifications

• Mounting possibility Standard tripod

• Power Supplied via USB cable

• Dimensions 72 x 60 x 100 mm (W x H x D)

• Temperature 0 - 45ºC

All data subject to change without notice.

3122 321 83082
