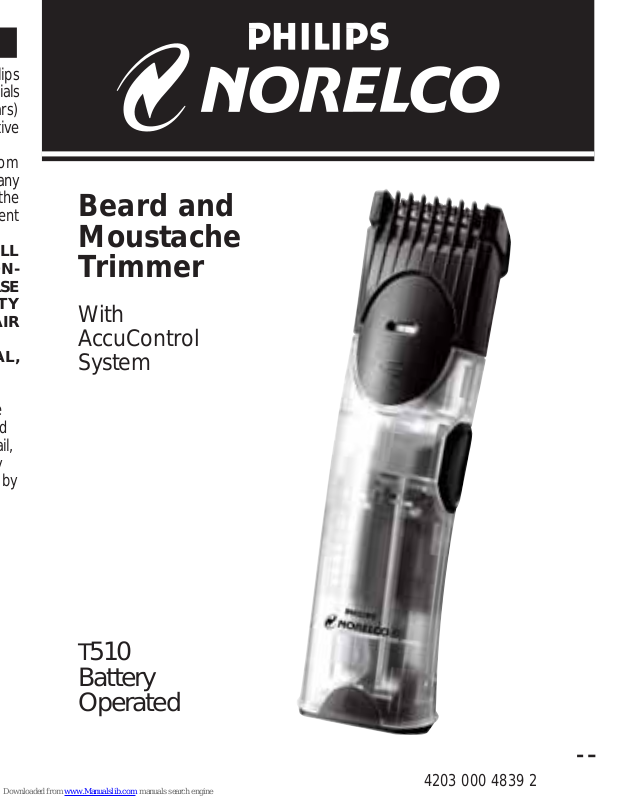

Philips Norelco T510, T510/10 User Manual

T51 0

Battery
Operated

Beard and
Moustache
Trimmer

With
AccuControl
System

4203 000 4839 2

Inserting The Batteries

◗ Your new Trimmer requires 2 “AA” 1.5 V

alkaline or carbon zinc batteries.

To Insert Batteries

1 Be certain Trimmer is in the OFF position.
2 Hold Trimmer horizontally and press the

release tabs located at base of Trimmer.
Gently slide battery compartment out of
Trimmer housing until it stops (fig.1).

NOTE:Battery compar tment is not removable.

3 Insert the batteries as shown making sure the

(+) and (-) markings on the batteries match
thoseon insidecompartment ofTrimmer(fig.2).

4 Slide the battery compartment back into

Trimmer housing (fig.3).

NOTE: Trimmer will not operate if batter ies are
inserted incor rectly.If you do not intend to use
the appliance for a long time, remove the
batteries. Leaking batteries can cause damage to
the product.

To Remove Batteries

1 Follow steps 1-2 above.Push the batteries

out of the holder as shown (fig.4).

Trimming

◗ Use this Trimmer for its intended household

use as described in this manual.

◗ Always comb the beard and/or moustache with

a fine comb before you start trimming.

◗ If you are trimming for the first time,be

careful.Do not move the Trimmer too fast.
Make smooth and gentle movements.

Trimming with AccuControl
Guide Comb Attachment

◗ Guide Comb Attachment must be on Trimmer

in order to use the Hair Length Selector.

1 Slide the Hair Length Selector to the desired

trimming length setting (seetable).Thesetting
will appear in the window in the center of the
Guide Comb attachment (fig.5).

◗ Ifyouare trimming forthefirsttime,start by

usingthemaximum trimming length setting (#4)
topreventaccidentally trimminghairstooshort.
Asyoubecome familiar with the settings,adjust
HairLengthSelectorto desired trimming length.
Selectorwill“click” into positionateach setting.

2 Switch the Trimmer ON.
3 To trim in the most effective way, move the

Trimmer against the direction of hair growth.
Make sure the surface of the Guide Comb
always stays in contact with the skin (fig. 6).

NO

TE: Since all hairs do not grow in the
same direction, you may want to try different
trimming positions (i.e., upwards, downwards, or
across).

Practice is best f

or optimum results.

4 If cut hairs have accumulated in the

Guide Comb,turn Trimmer off,remove the

CombAttachment by adjusting it to setting #4

and then pull it off the Trimmer (fig.7).

5 Blow and/or shake the hair out of the comb

(fig.8).Replace the Guide Comb on Trimmer

and adjust comb to the chosen setting.

Features

A Patented AccuControl System with

Removable Guide Comb Attachment
B Selected Hair Length Setting Window
C 4 Length Settings
D 3-Dimensional Rounded Chromium Steel

Cutter Blades
E On/Off Switch
F Cleaning Brush

Full T wo-Year Warranty

60-Day Money-Back Guarantee

Trimming Length Settings Table

Trimming For “Stubble” Look

1 Be certain Guide Comb is on Trimmer

and use setting #1 to result in a “stubble”

look.(fig.9).

T rimming Without Guide Comb

Attachment

Remove Guide Comb Attachment if you are:

◗ Defining hair lines
◗ Trimming nape of neck
◗ Removing single,unwanted hairs

1 Be certain Trimmer is in the OFF position.
2 Remove the Guide Comb Attachment by

adjusting it to setting #4 and then pulling it

off the Trimmer (fig.10).

Nev

er pull off the Guide Comb Attachment

b

y grasping the flexible top por tion. Always

pull off by the bottom part of attachment.

3 Switch the Trimmer ON.
4 Make well-controlled movements.Touch the

hair lightly with the Trimmer (fig.11).

Replacing Guide Comb Attachment

On T rimmer

1 Be certain Trimmer is in OFF position.
2 Replace Guide Comb Attachment until

it “clicks” into position and adjust comb to

the chosen setting.The Guide Comb

Attachment can be placed on Trimmer only

one way.If it does not fit properly,reverse it.

Cleaning

◗ Always switch Trimmer OFF before cleaning.
◗ Do not use abrasives,scourers or liquids such

as alcohol,benzene, bleach or acetone to clean
the T rimmer .

◗ Never clean,remove or replace Guide

Comb Attachment with motor ON.

◗ Do not apply pressure to cutters.
◗ Do not touch cutters with hard objects as this

may damage them.

◗ Do not use while bathing,showering or

immerse the Trimmer in water or other liquids
as damage to Trimmer may occur.

During Use:

◗ If cut hairs have accumulated in the Guide

Comb area,turn Trimmer off,remove the
Guide Comb Attachment by adjusting it to
setting #4 and then pull it off Trimmer.
Remove hairs by shaking and/or blowing.

Once A W eek:

1 Make sure the Trimmer is switched OFF.
2 Remove the Guide Comb Attachment.
3 Open the cutting unit by pushing it

backwards (fig.12 #1).

ENGLISH

IMPORTANT
SAFETY
INSTRUCTIONS

When using a battery-operated appliance, basic
safety precautions should always be followed,
including the following:

Read all instructions before using this
appliance.

WARNING

To reduce the risk of burns, fire, or injury
to persons:

1. Close supervision is necessary when this
appliance is used by, on, or near children or
invalids.

2. Use this Trimmer for its intended household
use as described in this manual.Do not use
attachments not recommended by Philips
Electronics North America Corporation.

3. Never operate this Trimmer if it is not
working properly,if it has been dropped,
damaged,or dropped into water.Return the
Trimmer to the Philips Norelco Service
Location for examination and repair.

4. Keep the Trimmer away from heated surfaces.

5. Never drop or insert any object into any
opening.Keep air openings free of lint, hair,etc.

6. Do not operate Trimmer outdoors or where
aerosol (spray) products are being used or
where oxygen is being administered.

7. Do not use this Trimmer with a damaged or
broken cutter, as facial injur y may occur.

8. If Trimmer will not be used on a regular
basis,remove the battery to prevent possible
damage due to chemical leakage. If battery
does leak,remove it carefully. Do not allow
bare skin to touch leaking fluid.

9. Dispose of battery properly.Do not incinerate.
Battery may explode if overheated.Do not
wrap in metal or aluminum foil.Wrap in news­paper before discarding.It is suggested that
you contact your local town or city to
detemine proper battery redemption site(s) in
your area.

10. Never putTrimmerin direct sunlight or store
at a temperature above 140˚F.

11. This Trimmer is for use on human facial hair
only. Do not use this Trimmer for any other
purpose.

12. Do not attempt to recharge alkaline,
heavy-duty or regular batteries in a
nickel-cadmium battery charger.

SAVE THESE
INSTRUCTIONS

Put It T o The T est

Like many new products,your Philips Norelco
Trimmer may take a little getting used to. If you
are using a Trimmer for the first time, or if you’ve
been using a different brand, take the time to
acquaint yourself with your new Trimmer.

Your Trimmer features the Patented AccuControl
System combined with adjustable length settings
to make trimming facial hairs goof-proof.

Throw your scissors away and put your new
Trimmer to the test.We guarantee precise,
professional results or Philips Norelco will refund
you the full purchase price, guaranteed!

AccuControl System

The Patented Philips Norelco AccuControl System
puts you in complete control while trimming your
facial hairs with no prior exper ience needed. The
flexing Guide Comb adjusts automatically to hug
the contours of your face for a trim that is both
even and accurate.And, it’s easy to maneuver over
those hard-to-reach areas such as the throat and

chin. The Hair Length Selector allows you to

choose among 4 preset hair lengths and locks into
position so you can control the exact hair length
you desire or vary the length of your facial hair.
The Philips Norelco AccuControl System with
Hair Length Selector for professional,goof-proof
results every time or your money back.

Settings Resulting beard length

#1 “Stubble” Setting .06 in./1.5 mm
#2 Short .12 in./3 mm
#3 Medium .2 in./5 mm
#4 Long .28 in./7 mm

4 Push the cutting unit back onto the Trimmer

until you hear a ‘click’ (fig.14 #2).

This

Trimmer has no other user-serviceable

par

ts.

Any other service should be performed by

the Philips Norelco Service Location.

Storage

◗ Be sure Trimmer is turned off before storing in

a safe, dry location where it will not be
crushed,banged,or subject to damage.

◗ Do not place or store Trimmer where it can

fall or be pulled into a tub or sink,water or
other liquid.

Assistance

For assistance, call toll free:

1-800-243-3050
or visit our website:
www.philips.com/norelco

Information is available 24 hours a day, 7 days a
week.

C

D

B

Features

CLICK

1

4

7

10

13

ENGLISH

IMPORTANT
SAFETY
INSTRUCTIONS

When using a battery-operated appliance, basic
safety precautions should always be followed,
including the following:

Read all instructions before using this
appliance.

Inserting The Batteries

◗ Your new Trimmer requires 2 “AA” 1.5 V

alkaline or carbon zinc batteries.

To Insert Batteries

1 Be cer tain Trimmer is in the OFF position.
2 Hold Trimmer horizontally and press the

release tabs located at base of Trimmer.
Gently slide battery compartment out of
Trimmer housing until it stops (fig. 1).

NOTE: Battery compartment is not removable.

Features

A Patented AccuControl System with

Removable Guide Comb Attachment
B Selected Hair Length Setting Window
C 4 Length Settings
D 3-Dimensional Rounded Chromium Steel

Cutter Blades
E On/Off Switch
F Cleaning Brush

Full T wo-Year Warranty

60-Day Money-Back Guarantee

Trimming Length Settings Table

WARNING

To reduce the risk of burns, fire, or injur y
to persons:

1. Close supervision is necessar y when this
appliance is used by,on, or near children or
invalids.

2. Use this Trimmer for its intended household
use as described in this manual.Do not use
attachments not recommended by Philips
Electronics North America Corporation.

3. Never operate this Trimmer if it is not
working properly, if it has been dropped,
damaged,or dropped into water.Return the
Trimmer to the Philips Norelco Ser vice
Location for examination and repair.

4. Keep the Trimmer away from heated surfaces.

5. Never drop or insert any object into any
opening.Keep air openings free of lint, hair,etc.

6. Do not operate Trimmer outdoors or where
aerosol (spray) products are being used or
where oxygen is being administered.

7. Do not use this Trimmer with a damaged or
broken cutter, as facial injur y may occur.

8. If Trimmer will not be used on a regular
basis,remove the battery to prevent possible
damage due to chemical leakage. If battery
does leak,remove it carefully. Do not allow
bare skin to touch leaking fluid.

9. Dispose of battery properly.Do not incinerate.
Battery may explode if overheated.Do not
wrap in metal or aluminum foil.Wrap in news­paper before discarding.It is suggested that
you contact your local town or city to
detemine proper battery redemption site(s) in
your area.

10. Never putTrimmer in direct sunlight or store
at a temperature above 140˚F.

11. This Trimmer is for use on human facial hair
only. Do not use this Trimmer for any other
purpose.

12. Do not attempt to recharge alkaline,
heavy-duty or regular batteries in a
nickel-cadmium battery charger.

SAVE THESE
INSTRUCTIONS

Put It T o The Test

Like many new products,your Philips Norelco
Trimmer may take a little getting used to.If you
are using a Trimmer for the first time, or if you’ve
been using a different brand, take the time to
acquaint yourself with your new Trimmer.

Your Trimmer features the Patented AccuControl
System combined with adjustable length settings
to make trimming facial hairs goof-proof.

Throw your scissors away and put your new
Trimmer to the test.We guarantee precise,
professional results or Philips Norelco will refund
you the full purchase price, guaranteed!

AccuControl System

The Patented Philips Norelco AccuControl System
puts you in complete control while trimming your

3 Insert the batteries as shown making sure the

(+) and (-) markings on the batteries match
thoseon inside compartment ofTrimmer(fig.2).

4 Slide the batter y compar tment back into

Trimmer housing (fig. 3).

NOTE: Trimmer will not operate if batteries are
inser ted incor rectly.If you do not intend to use
the appliance for a long time, remove the
batteries. Leaking batter ies can cause damage to
the product.

To Remove Batteries

1 Follow steps 1-2 above. Push the batteries

out of the holder as shown (fig.4).

Trimming

◗ Use this Trimmer for its intended household

use as described in this manual.

◗ Always comb the beard and/or moustache with

a fine comb before you start trimming.

◗ If you are trimming for the first time,be

careful.Do not move the Trimmer too fast.
Make smooth and gentle movements.

Trimming with AccuControl
Guide Comb Attachment

◗ Guide Comb Attachment must be on Trimmer

in order to use the Hair Length Selector.

1 Slide the Hair Length Selector to the desired

trimming length setting (see table).The setting
will appear in the window in the center of the
Guide Comb attachment (fig.5).

◗ Ifyou are trimming for the first time,start by

usingthemaximumtrimming length setting (#4)
topreventaccidentally trimming hairstooshort.
Asyoubecomefamiliarwith the settings,adjust
HairLengthSelector to desired trimming length.
Selectorwill“click”intopositionateach setting.

2 Switch the Trimmer ON.
3 To trim in the most effective way, move the

Trimmer against the direction of hair growth.
Make sure the surface of the Guide Comb
always stays in contact with the skin (fig. 6).

NO

TE: Since all hairs do not grow in the
same direction, you may want to try different
trimming positions (i.e., upwards, downwards, or

Practice is best f

across).

4 If cut hairs have accumulated in the

Guide Comb,turn Trimmer off, remove the

CombAttachment by adjusting it to setting #4

and then pull it off the Trimmer (fig.7).

5 Blow and/or shake the hair out of the comb

(fig.8).Replace the Guide Comb on Trimmer

and adjust comb to the chosen setting.

or optimum results.

Settings Resulting beard length

#1 “Stubble” Setting .06 in./1.5 mm
#2 Short .12 in./3 mm
#3 Medium .2 in./5 mm
#4 Long .28 in./7 mm

Trimming For “Stubble” Look

1 Be cer tain Guide Comb is on Trimmer

and use setting #1 to result in a “stubble”
look.(fig. 9).

T rimming Without Guide Comb
Attachment

Remove Guide Comb Attachment if you are:

◗ Defining hair lines
◗ Trimming nape of neck
◗ Removing single, unwanted hairs

1 Be cer tain Trimmer is in the OFF position.
2 Remove the Guide Comb Attachment by

adjusting it to setting #4 and then pulling it
off the Trimmer (fig.10).

Nev

er pull off the Guide Comb Attachment

y grasping the flexible top por tion. Always

b
pull off by the bottom part of attachment.

3 Switch the Trimmer ON.
4 Make well-controlled movements.Touch the

hair lightly with the Trimmer (fig.11).

Replacing Guide Comb Attachment
On T rimmer

1 Be cer tain Trimmer is in OFF position.
2 Replace Guide Comb Attachment until

it “clicks” into position and adjust comb to
the chosen setting. The Guide Comb
Attachment can be placed on Trimmer only
one way.If it does not fit properly,reverse it.

Cleaning

◗ Always switch Trimmer OFF before cleaning.
◗ Do not use abrasives,scourers or liquids such

as alcohol,benzene, bleach or acetone to clean
the T rimmer .

◗ Never clean,remove or replace Guide

Comb Attachment with motor ON.

◗ Do not apply pressure to cutters.
◗ Do not touch cutters with hard objects as this

may damage them.

◗ Do not use while bathing,showering or

immerse the Trimmer in water or other liquids
as damage to Trimmer may occur.

During Use:

◗ If cut hairs have accumulated in the Guide

Comb area,turn Trimmer off,remove the
