Surround sound receiver

FR740
FR760

MX740

Important notes for users in the U.K.

Mains plug

This apparatus is fitted with an approved 13 Amp plug.
To change a fuse in this type of plug proceed as follows:

1 Remove fuse cover and fuse.
2

Fix new fuse which should be a
BS1362

5 Amp, A.S.T.A. or BSI approved type.

3 Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it

should be cut off and an appropriate plug fitted in its place.
If the mains plug contains a fuse, this should have a value
of 5 Amp. If a plug without a fuse is used, the fuse at the
distribution board should not be greater than 5 Amp.

Note: The severed plug must be disposed of to avoid a
possible shock hazard should it be inserted into a 13 Amp
socket elsewhere.

How to connect a plug

The wires in the mains lead are coloured with the following
code: blue = neutral (N), brown = live (L).
As these colours may not correspond with the colour
mark

ings identifying the terminals in your plug, proceed as

follows:

• Connect the blue wire to the terminal marked N or
coloured black.

• Connect the brown wire to the terminal marked L or
coloured red.

•

Do not connect either wire to the earth terminal in the
plug,

marked E (or e) or coloured green (or green and

yellow).

Before replacing the plug cover, make certain that the cord
grip is clamped over the sheath of the lead - not simply over
the two wires.

Copyright in the U.K.

Recording and playback of material may require consent.
See

Copyright Act 1956 and The Performer’s Protection Acts

1958 to 1972.

Typeskilt finnes på apparatens bakside.

Observer: Nettbryteren er sekundert innkoplet. Den
innebygde netdelen er derfor ikke frakoplet nettet så lenge
apparatet er tilsluttet nettkontakten.

For å redusere faren for brann eller elektrisk støt, skal
apparatet ikke utsettes for regn eller fuktighet.

Norge

DICHIARAZIONE DI CONFORMITA’

Si dichiara che gli apparecchi FR 740, FR 760 e MX 740
Philips rispondono alle prescrizioni dell’art. 2 comma 1 del
D. M. 28 Agosto 1995 n. 548.

Fatto a Eindhoven, il 01/02/2000 (FR 740, MX 740)
Fatto a Eindhoven, il 01/03/2000 (FR 760)

Philips Consumer Electronics

Philips, Glaslaan 2

5616 JB Eindhoven, The Netherlands

Italia

2

Addendum FR740, FR760/00, MX740/22

English

Remote Control / Remote Control Buttons Page 7

The following should be read instead of the original text on page 7:

H MUTE .....................Mutes the sound of the receiver in all modes, except TV.

Mutes the sound of your Philips TV set if your remote control is in TV mode.

2 ................................Switches the source selected on your remote control (e.g. VCR, TV) to standby.

When pressed longer than 2 seconds, the receiver switches to standby.

Français

Télécommande / Touches de la télécommande Page 27

Il convient de lire ce qui suit en lieu et place du texte original de la page 27:

H MUTE .....................Coupe le son du récepteur dans tous les modes, sauf en mode TV.

Coupe le son de votre téléviseur Philips si votre télécommande est en mode TV.

2 ................................Fait passer la source sélectionnée sur votre télécommande (par ex. VCR, TV) en veille.

Le récepteur passe en veille lorsque l’on appuie sur cette touche pendant plus de 2 secondes.

Español

Mando a distancia / Botones del mando a distancia Página 47

Lo siguiente se debería leer en lugar del texto original de la página 47:

H MUTE .....................Anula el sonido del receptor en todos los modos, excepto el de TV.

Anula el sonido del equipo de TV Philips, si el mando a distancia está en modo TV.

2 ................................Cambia el origen seleccionado en el mando a distancia (p. ej., VCR o TV) al modo de espera.

Cuando se pulsa durante más de 2 segundos, el receptor cambia al modo de espera.

Deutsch

Fernbedienung / Tasten der Fernbedienung Seite 67

Anstatt des originalen Textes auf Seite 67 soll das Folgende gelesen werden:

H MUTE .....................Schaltet den Ton des Receivers in allen Modi ab, außer TV.

Schaltet den Ton Ihres Philips TV ab, wenn die Fernbedienung in TV Modus ist.

2 ................................Schaltet das auf der Fernbedienung gewählte Ausgangsgerät (z.B. VCR, TV) auf Bereitschaft.

Wenn die Taste länger als 2 Sekunden gedrückt wird, schaltet der Receiver auf Bereitschaft.

Nederlands

Afstandsbediening / Afstandsbedieningsknoppen Pagina 87

De volgende informatie dient te worden gelezen in plaats van de originele tekst op pagina 87:

H MUTE .....................Dempt het geluid van de receiver in alle standen, behalve TV.

Dempt het geluid van uw Philips TV-toestel als uw afstandsbediening op TV-stand is ingesteld.

2 ................................Schakelt de op uw afstandsbediening geselecteerde bron om (bijv. videorecorder, TV) op standby.

Als deze toets langer dan 2 seconden wordt ingedrukt, schakelt de receiver over op standby.

Italiano

Telecomando / Tasti del telecomando Pagina 107

Il testo che segue sostituisce l’originale a pagina 107:

H MUTE .....................Disattiva l’audio del ricevitore in tutte le modalità, tranne TV.

Disattiva l’audio del televisore Philips se il telecomando è in modalità TV.

2 ................................Mette in standby la sorgente selezionata sul telecomando (ad es. VCR, TV).

Se premuto per più di 2 secondi, il ricevitore passa in standby.

3

English ....................................................4

Français.................................................24

Español .................................................44

Deutsch.................................................64

Nederlands ...........................................84

EnglishFrançaisEspañolDeutschNederlands

Italiano

Italiano................................................104

GENERAL INFORMATION

4

This receiver is supplied including:
– a remote control
– 2 batteries for the remote control, size AA
– a system bus cable for the CINEMA LINK connection
– a loop antenna
– a wire antenna
– 5 loudspeakers including 5 speaker cables (MX 740 only)
– a quick installation card (MX 740 only)
– this instruction booklet

Clean the receiver with a soft,
slightly dampened, lint-free cloth.
Do not use any cleaning agents as
they may have a corrosive effect.

Do not expose the receiver to
humidity, rain, sand or excessive heat
(caused by heating equipment or
direct sunlight).

If you have stacked the components of your system, the
receiver must be on top. Place the receiver on a flat,
hard, stabile surface. Do not cover any vents and leave
50 cm above and 10 cm left and right of the receiver
free for ventilation.

For good reception the loop antenna should not be placed on
top of, or beneath VCRs, CD recorders, DVD players, TVs and
other radiation sources.

All redundant packing material has been omitted. We have
done our utmost to make the packaging easily separable into
three mono materials: cardboard (box), polystyrene foam
(buffer) and polyethylene (bags, protective foam sheet).

Your set consists of materials which can be recycled if
disassembled by a specialized company. Please observe the
local regulations regarding the disposal of packing materials,
exhausted batteries and old equipment.

“DOLBY”, “DOLBY DIGITAL”, “PRO LOGIC” and the
double-D symbol 2 are trademarks of Dolby Laboratories.

Trademark acknowledgment

Environmental information

Setup

Maintenance

Scope of supply

English

General information

Scope of supply..................................................................................4

Maintenance ......................................................................................4

Setup ..................................................................................................4

Environmental information.................................................................4

Trademark acknowledgment..............................................................4

Controls .................................................................................................5

Remote control

Remote control usage........................................................................6

Remote control buttons .....................................................................7

Connectors............................................................................................8

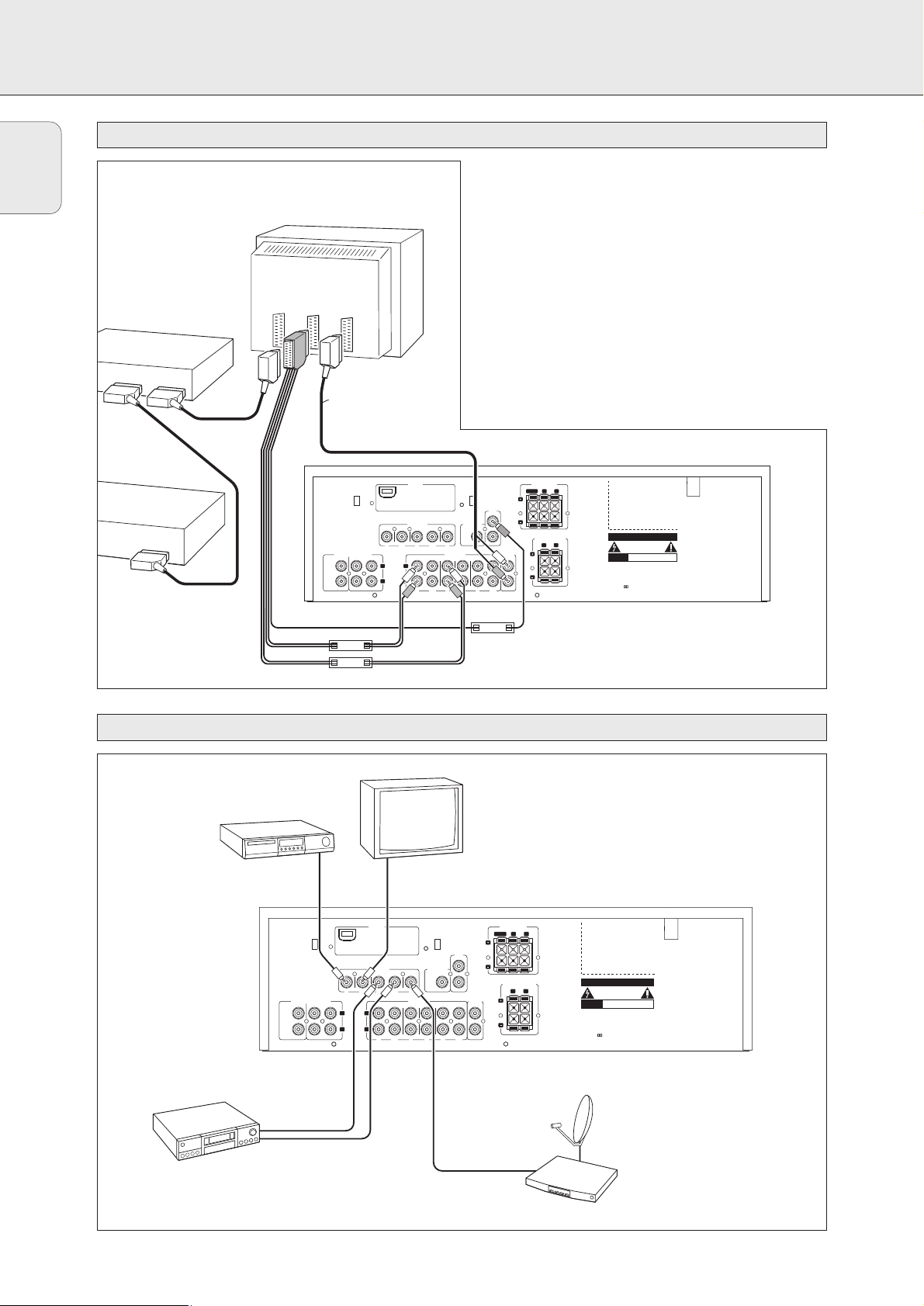

Connections

Audio connections..............................................................................9

System control bus, CINEMA LINK .................................................10

Video connections (FR 760 only)......................................................10

Mains ...............................................................................................11

Speaker connections........................................................................11

TV as the center speaker.................................................................11

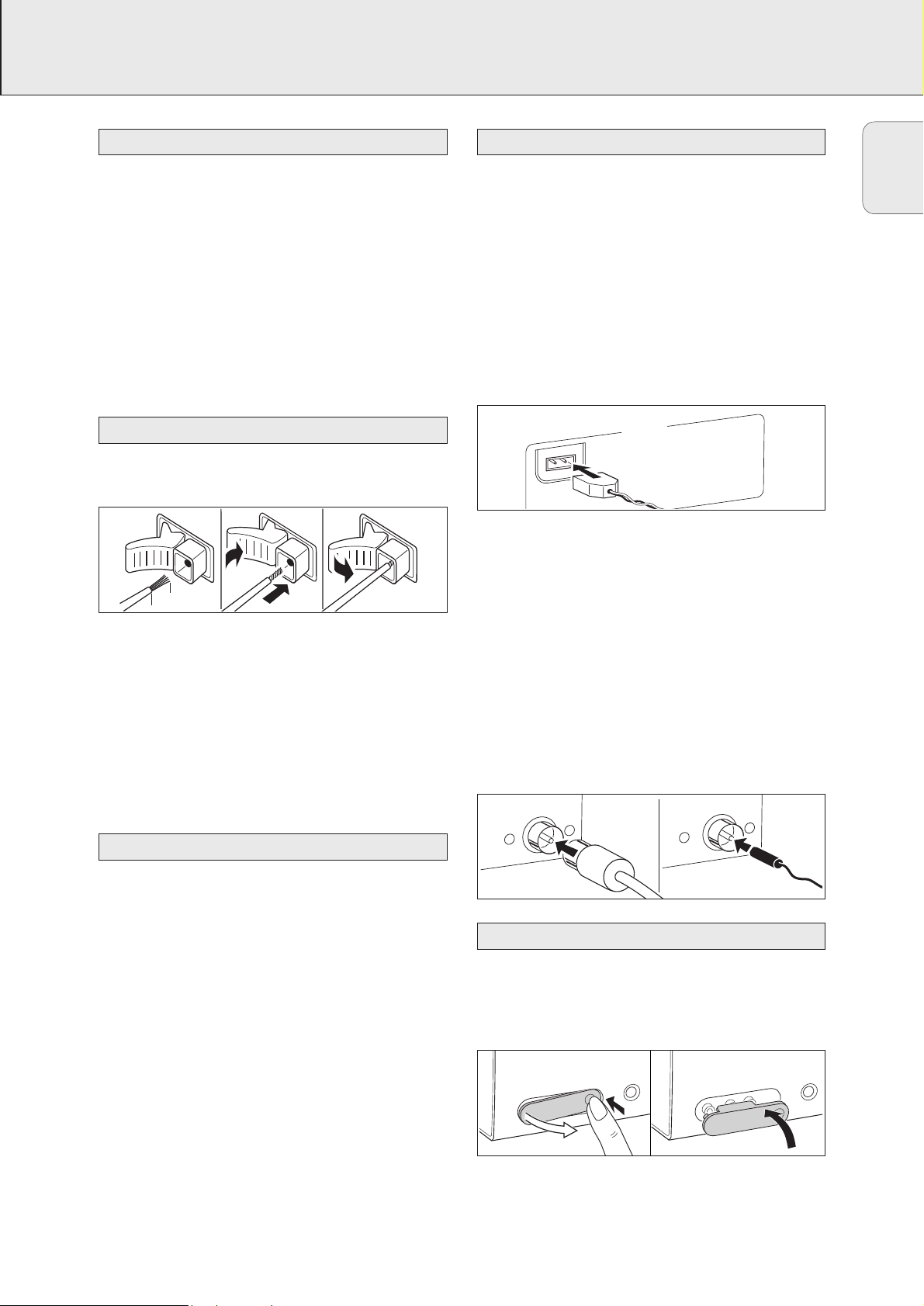

Antenna connections .......................................................................11

FRONT AV /GAME cap (FR 760 only)..............................................11

System setup

Positioning of the speakers .............................................................12

Speaker setup and testing...............................................................12

Power handling ................................................................................12

Headphones .....................................................................................12

Display.................................................................................................13

Menus

Receiver menu..................................................................................14

TV menu ...........................................................................................15

Source selection

SOURCE SELECTOR..........................................................................16

About 6 CHANNEL / DVD INPUT.....................................................16

Playback, recording

Playing a source...............................................................................17

Adjusting the sound.........................................................................17

Recording from a source..................................................................17

Surround sound

About surround sound......................................................................18

Switching surround sound ...............................................................18

Surround sound settings..................................................................18

Tuner

Tuning to radio stations...................................................................19

Switching FM sensitivity .................................................................19

Storing radio stations ......................................................................19

Tuning to stored radio stations........................................................20

Resorting stored radio station.........................................................20

Naming radio stations .....................................................................20

Clearing station names....................................................................20

RDS R..............................................................................................21

RDS News and Traffic Announcement............................................21

Technical data

Receiver............................................................................................22

Speakers (supplied with MX 740 only)............................................22

Troubleshooting

Warning............................................................................................23

Troubleshooting................................................................................23

This product complies with the radio interference
requirements of the European Community.

As an ENERGY STAR®partner, Philips has determined that
this product meets the ENERGY STAR

®

guidelines for energy efficiency.

CONTROLS

5

1 POWER / STANDBY.......Switches the receiver on and off.

2 CINEMA LINK ................Switches the system control bus

between the receiver and the TV
on and off.

3 ..........................................Sensor for the infrared remote

control.

4 ..........................................Display

5 SOURCE SELECTOR ......Selects the different audio and

video connectors.

6 VOLUME..........................Increases and decreases the

volume level.

7 FRONT AV.......................Selects the FRONT AV / GAME

input (FR 760 only).

8 TREBLE............................Adjusts the treble when used in

combination with VOLUME.

9 BASS ...............................Adjusts the bass when used in

combination with VOLUME.

0 LOUDNESS .....................Switches LOUDNESS on and off.

! NEXT 2 ...........................TUNER: searches radio stations.

MENU: switches to the next
menu level.

@ ENTER / OK.....................Confirms selected menu values.

# TUNER PRESET X MENU NAVIGATOR

TUNER: switches to the next and
previous stored radio station.
MENU: moves upwards and
downwards.

$ 1 PREV. / EXIT ...............TUNER: searches radio stations.

MENU: switches to the previous
menu level.

% SETUP MENU ................Switches the menu on and off.

^ SENS. ..............................Switches between low and high

tuner sensitivity.

& NEWS/TA........................Switches the RDS news and

RDS traffic announcement on
and off.

* TUNER AM/FM ..............Switches the wavebands of the

tuner.

( RADIO TEXT ...................Scrolls through the different RDS

information.

) SURR. MODE..................Switches through the different

speaker configurations.

¡ HALL ................................Switches HALL on and off.

™ SURROUND ON/OFF .....Switches between the last

selected surround mode and
stereo.

English

1 23 4 5

CINEMA SOUND CENTER

SENS.

TUNER AM/FM

NEWS/TA

RADIO TEXT

PREV. / EXIT

SETUP MENU

MENU

TUNER

NAVIGATOR

PRESET

TER / OK

POWER / STANDBY

FRONT AV / GAME

CINEMA LINK

PHONES

SURROUND

SURR. MODE

HALL

ON/OFF

SOURCE SELECTOR

6CH/DVD

AV

LOUDNESS

BASS

NEXT

VOLUME

6

TREBLE

7

8

9

0!@#$%^&*()¡™

REMOTE CONTROL

6

Open the battery compartment
of the remote control and insert
2 alkaline batteries, type AA
(R06, UM-3).

Remove batteries if they are flat
or if the remote control is not
going to be used for a long time.

Batteries contain chemical substances, so they should
be disposed of properly.

The buttons on the remote control work the same way as the
corresponding ones on the receiver.

Additional appliances can only be controlled if they are
working with the RC-5 and the RC-6 code system.

Important!

You have to press a source button for longer than 1 second to
switch the sound source on the receiver. Pressing a source
button for less than 1 second will only switch the remote
control to use the commands for the selected product.

The remote control remains tuned to the selected source until
another source button on the remote control is pressed.
This enables you to operate additional sources (i. e. winding
a tape) without changing the source on the receiver.

Remote control usage

English

TUNER

CD CDR/TAPE VCR TV

1
4

7

CINEMA LINK

2
5

8
0

GUIDE

MENU

2

3
6
9

DVD/6CH

OK

É

AA

H

Ç

CHANNEL/TRACK

íëÅ

b

REAR

±

+

-

CHANNEL

FR.D/INDEXPAUSE

SURR. ON/OFFDISPLAY/T-C NEWS/TA

SURR. MODESMART SOUND

TEST TONELOUDNESS

TV

DISC

REMOTE CONTROL

7

English

2 ................................Switches the receiver to standby.

TUNER, CD, CDR/TAPE,

TV, VCR, DVD/6CH........Switches the remote control to the

commands of the different products.
Selects the sources if pressed longer
than 1 second.

1–0................................Keys in numbers for tracks, stations or

frequencies. Numbers consisting of
two figures must be keyed in within
2 seconds.

CINEMA LINK...............Switches the connection between the

receiver and the TV on and off.

MENU GUIDE ..............TUNER: Switches the receiver menu

on and off.
DVD, TV: Switches the DVD/TV menu
on and off.

OK.................................Confirms menu options.

Arrow buttons ..............TUNER: Moves in the menus.

Right/left arrows are tuning up/down.
CD, CDR: Left/right arrows are
searching backwards/forwards,
up/down arrows are selecting the
next/previous track.

+A...........................Increases the receiver volume.

-A...........................Decreases the receiver volume.

H ................................Mutes the sound of the receiver.

ÉATV ......................Increases the TV volume.

CD, CDR, VCR, DVD: Starts playback.

ÇATV ......................Decreases the TV volume.

CD, CDR, VCR, DVD: Stops playback.

í

CHANNEL/TRACK

...Selects the previous preset tuner

station.

VCR: Rewinds the tape.
CD, CDR, DVD: Selects the previous

track.
TV: Selects the previous channel.

ë

CHANNEL/TRACK

...Selects the next preset tuner station.

VCR: Fast forwards the tape.
CD, CDR, DVD: Selects the next

track.
TV: Selects the next channel.

Å PAUSE...................CD, CDR, VCR, DVD: Pauses

playback.

DISC FR.D./INDEX ........CD-, CDR-, DVD-Changers:

Switches to the next disc.
TUNER: Switches to FREQUENCY
DIRECT.
VCR: Switches the index search on
and off.

b DISPLAY/T-C...........TUNER: Switches between station

name, frequency and radio text.
CD, CDR: Switches between the
different time displays.

TV: Switches teletext on and off.
DVD: Switches between title and

chapter.

NEWS/TA.....................Switches the functions NEWS and

TRAFFIC ANNOUNCEMENT on and off.

SURR. ON/OFF..............Switches SURROUND SOUND on and

off.

±SMART SOUND ......Scrolls through the different smart

sounds.

+/- REAR ...............Increases/decreases the volume of the

rear speakers. While test tone is on,
the volume of the speakers you are
hearing can be increased/decreased
with these buttons.

SURR. MODE................Scrolls through the different surround

modes.

LOUDNESS ...................Switches LOUDNESS on and off.

TEST TONE ...................Switches the test tone on and off.

While test tone is on, the volume of

the speakers you are hearing can be

increased/decreased with

+/- REAR.

Remote control buttons
