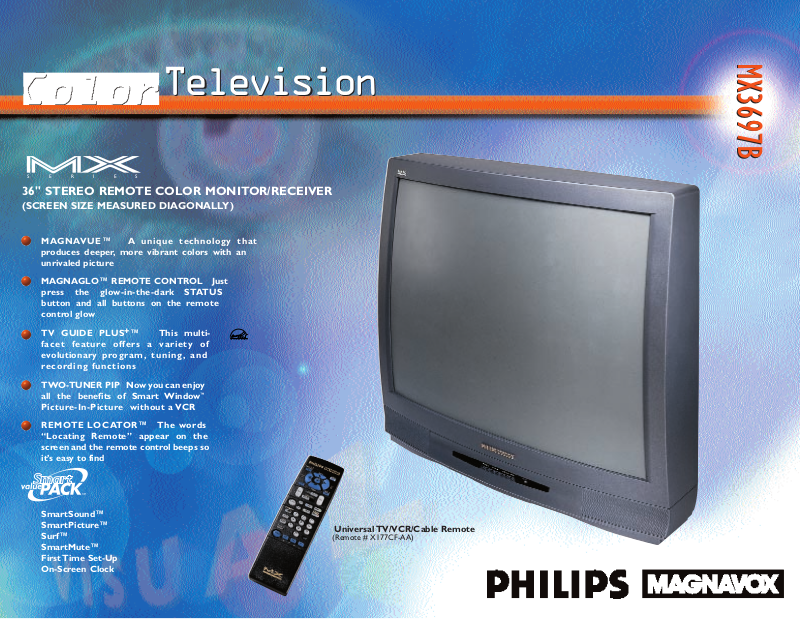

36" STEREO REMOTE COLOR MONITOR/RECEIVER

(SCREEN SIZE MEASURED DIAGONALLY)

MAGNAVUE™ A unique technology that
produces deeper, more vibrant colors with an
unrivaled picture

MAGNAGLO™ REMOTE CONTROL Just
press the glow-in-the-dark STATUS
button and all buttons on the remote
control glow

TV GUIDE PLUS+™ This multi­facet feature offers a variety of
evolutionary program, tuning, and
recording functions

TWO-TUNER PIP Now you can enjoy
all the benefits of Smart Window

™

Picture-In-Picture without a VCR

REMOTE LOCATOR™ The words
“Locating Remote” appear on the
screen and the remote control beeps so
it’s easy to find

SmartSound™
SmartPicture™
Surf™
SmartMute™
First Time Set-Up
On-Screen Clock

Television

Television

SERIES

Universal TV/VCR/Cable Remote

(Remote # X177CF-AA)

EPA POLLUTION PREVENTER

SURROUND SOUND JACKS The gateway to greater listening

pleasure, surround sound jacks make this model surround
sound ready. Simply connect two standard 8 ohm speakers.All
the necessary surround sound technology is built-in the TV!

AUDIO/VIDEO JACK PANEL (J717) The A/V jack panel on

the back of this set includes audio/video inputs for connection
of a VCR, DVD player, web browser or other accessory
equipment; both fixed and variable audio outputs which allow
sound from TV or accessories to be routed through a home
audio system; S-Video input for connection of a high-resolution
video accessory; Ghost Cancellation and Ghost Video
input/output jacks for connection to an optional, external
ghost cancellation device; and a menu-selectable speaker
switch for choosing internal or external sound systems.

• Channel edit

• Total remote menu format tuning with multi-color
on-screen graphics

• 181 channel capability

• 4-Way cursor control

• Random channel access

• Programmable scan tuning

• Status recall

• Mono/Stereo/SAP select

• Cable/Normal select

• Two 5" oval full-range speakers with menu-selectable
speaker switch

TV GUIDE PLUS+™ This multi-facet feature

captures and automatically downloads advanced
programming information including on-screen all
channel review, program summaries, sorting by
category, (sports, movies, etc.), and revolutionary
point & tune and point & record functions (microchip
storage capacity and channel availability determine
volume of downloaded data).

INSTANT REPLAY™ In standard mode, one

out of every ten frames is captured to produce a full
color window one-ninth the size of the full screen.
This PIP window plays a continuous loop of the last

8.2 seconds of video immediately preceding the
replay command.To activate replay,simply press the
REPLAY button on the remote control. Press the
SLO button to change the replay window to slow
motion. Press the CLEAR button to restore the main
picture and clear the replay memory.

SMARTSURF™ Eliminates the frustration of

trying to remember what channels had programs of
interest while channel surfing.After establishing the
SmartSurf™ configuration with the user-friendly menu,
the viewer can store up to ten stations in the
SmartSurf™ memory and then surf only those
channels at the touch of a button.The versatility
of this feature is enhanced by the availability of an
on-screen list of the channels stored and offers the
option of adding or deleting channels in the list by
remote control.

SMARTCLOCK™ Finally, an accurate digital clock

that’s always right! By monitoring the vertical blanking
interval of PBS broadcasts, Philips Magnavox TVs
equipped with SmartClock can automatically set the right
time of day and maintain it through brown-outs, power
failures, and even daylight savings time adjustments.

SMARTMUTE™ An audio mute advancement that

automatically activates closed captioning when the
mute button is pressed. Now dialogue and narratives
(on Closed Caption telecasts) can be displayed on
screen whenever the mute button is pressed, without
the aid of an optional, external decoding device.

EASY FIRST TIME SET-UP This friendly, useful,

smart, and easy feature is available the first time this
TV is turned on with a signal connected. SETUP is
highlighted in the main on-screen menu offering
language selection (English, Spanish, or French), auto

INTERNET ADDRESS: http://www.philipsmagnavox.com

convenience:

36" Stereo Remote Color Monitor/Receiver

MX3697B

UPC: 037849849583
Product dimensions: 33"W x 29"H x 24.2"D
Product weight: 181 lbs.
Carton dimensions: 37.5""W x 34.5"H x 27.1"D
Carton weight: 185 lbs.
Master pack: 1

Carton Contains: 36" Stereo Remote Color Monitor/Receiver,
MagnaGlo Universal TV/VCR/CBL Locator Remote Control
w/Batteries, Operating Instructions,Warranty Information

Printed in U.S.A.
©1997 Philips Consumer Electronics Co.
A Division of Philips Electronics North America Corp.
Specifications subject to change without notice.
Visual Communications, Philips Consumer Electronics Co.

MagnaVue, MagnaGlo, Instant Replay, Remote Locator, Incredible Surround,
SmartSound, SmartPicture, SmartClock, SmartMute,and SmartSurf are trademarks
of Philips Consumer Electronics Company.
