Micro Hi-Fi System

MCM720

Page 2

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Page 3

ECO POWER

STANDBY-ON

OPEN CLOSE

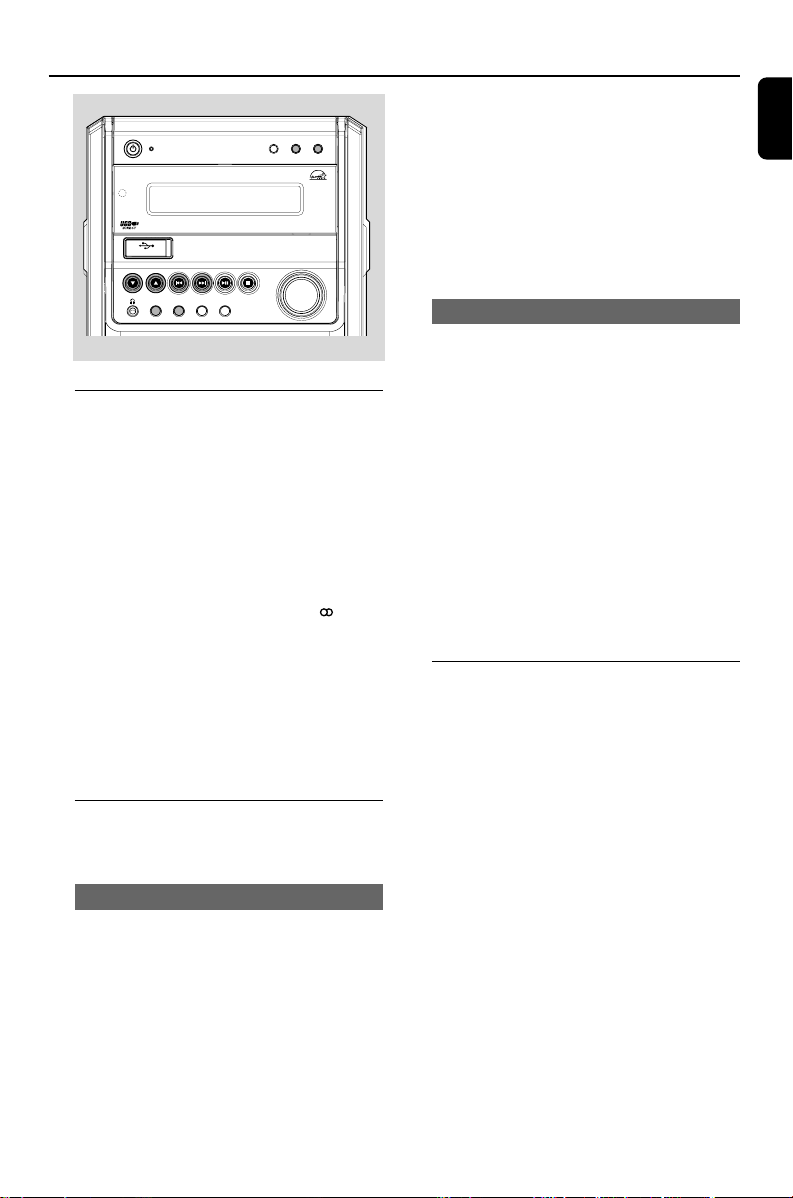

MCM720 MICRO SYSTEM

™

# @

RECORD DISPLAY

∞ ≤

BAND

CLOCK SET

& 2

) 7

( % 4 #

USB DIRECT

ALBUM

PRESET

TIMER SET

SOURCE

PROGRAM

TUNING

DBBDSC

INCREDIBLE SURROUND

WMA-MP3-CD/CD-R/CD-RW COMPATIBLE

VOLUME

OPEN/ CLOSE

9 8

Page 4

Page 5

Index

English ------------------------------------------------ 6

-------------------------------------------------------- 24

English

Page 6

Contents

English

General Information

Supplied accessories ............................................ 7

Environmental information ................................ 7

Safety information ................................................ 7

About MP3 disc .................................................... 7

Preparations

Rear connections ............................................. 8–9

Optional connection ........................................... 9

Inserting batteries into the remote control. 10

Controls

Controls on the system and remote

control .................................................................. 11

Power Antennas connection Speakers connection

Connecting a USB device or memory card Connecting a non-USB device

Ta pe Operation/Recording

Ta pe playback ...................................................... 16

Rewinding / Fast forwarding ............................ 16

General information on recording ................. 16

Preparation for recording ................................ 17

Synchro start CD recording ............................ 17

One touch recording......................................... 17

Recording timer .................................................. 17

External Sources

Using a non-USB device.................................... 18

Using a USB mass storage device ............. 18-19

Clock/Timer

Clock setting ....................................................... 20

Timer setting ....................................................... 20

Activating and deactivating timer

Sleep timer setting ............................................. 20

Basic Functions

Switching the system on ................................... 12

Switching the system to Eco Power standby

mode ..................................................................... 12

Power-saving automatic standby ..................... 12

Volume control ................................................... 12

Sound control ..................................................... 12

CD / MP3-CD Operations

Discs for playback .............................................. 13

Playing a disc ........................................................ 13

Text display .......................................................... 13

Selecting a different track ................................. 13

Finding a passage within a track ...................... 14

Selecting a desired Album/Track

(MP3 disc only) ................................................... 14

Different play modes: SHUFFLE

and REPEAT ......................................................... 14

Programming the disc tracks ........................... 14

Reviewing the programme ............................... 14

Erasing the programme ..................................... 14

Radio Reception

Tuning to radio stations .................................... 15

Programming radio stations ............................. 15

Automatic programming Manual programming

Tuning to preset radio stations ....................... 15

Specifications ........................................... 21

Maintenance.............................................. 22

Tr oubleshooting ............................. 22–23

Page 7

General Information

This product complies with the radio interference requirements of the European Community.

Supplied accessories

–2 speaker boxes – remote control – MW loop antenna – FM wire antenna

Environmental Information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Safety Information

● Before operating the system, check that the

operating voltage indicated on the typeplate (or the voltage indication beside the voltage selector) of your system is identical with the voltage of your local power supply. If not, please consult your dealer.

● Place the system on a flat, hard and stable

surface.

● Place the system in a location with adequate

ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.

● The ventilation should not be impeded by

covering the ventilation openings with items, such as newspapers, table-cloths, curtains, etc.

● Do not expose the system, batteries or discs to

excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.

● No naked flame sources, such as lighted candles,

should be placed on the apparatus.

● No objects filled with liquids, such as vases, shall

be placed on the apparatus.

● If the system is brought directly from a cold to a

warm location, or is placed in a very damp room, moisture may condense on the lens of the disc unit inside the system. Should this occur, the CD player would not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.

● The mechanical par ts of the set contain self-

lubricating bearings and must not be oiled or lubricated.

● Install this unit near the AC outlet and where the

AC power plug can be reached easily.

● When the system is switched to Standby

mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.

About MP3 disc

Supported formats

– ISO9660, Joliet, Multisession – Max. tr ack number plus album is 500 – Max. nested directory is 8 levels – The max. album number is 99 – The max. MP3 programme track number is

20 – Suppor ted VBR bit-rate – Supported sampling frequencies for MP3 disc

are: 32 kHz, 44.1 kHz, 48 kHz – Supported Bit-rates of MP3 disc are: 32, 64,

96, 128, 192, 256 (kbps)

Sound Quality

Ta ke note that MP3-CD compilations should best contain only MP3 tracks (.mp3). To

achieve a good MP3 quality, a bit rate of 128 kbps is recommended.

English

Page 8

Preparations



MW ANTENNA

English

Speaker

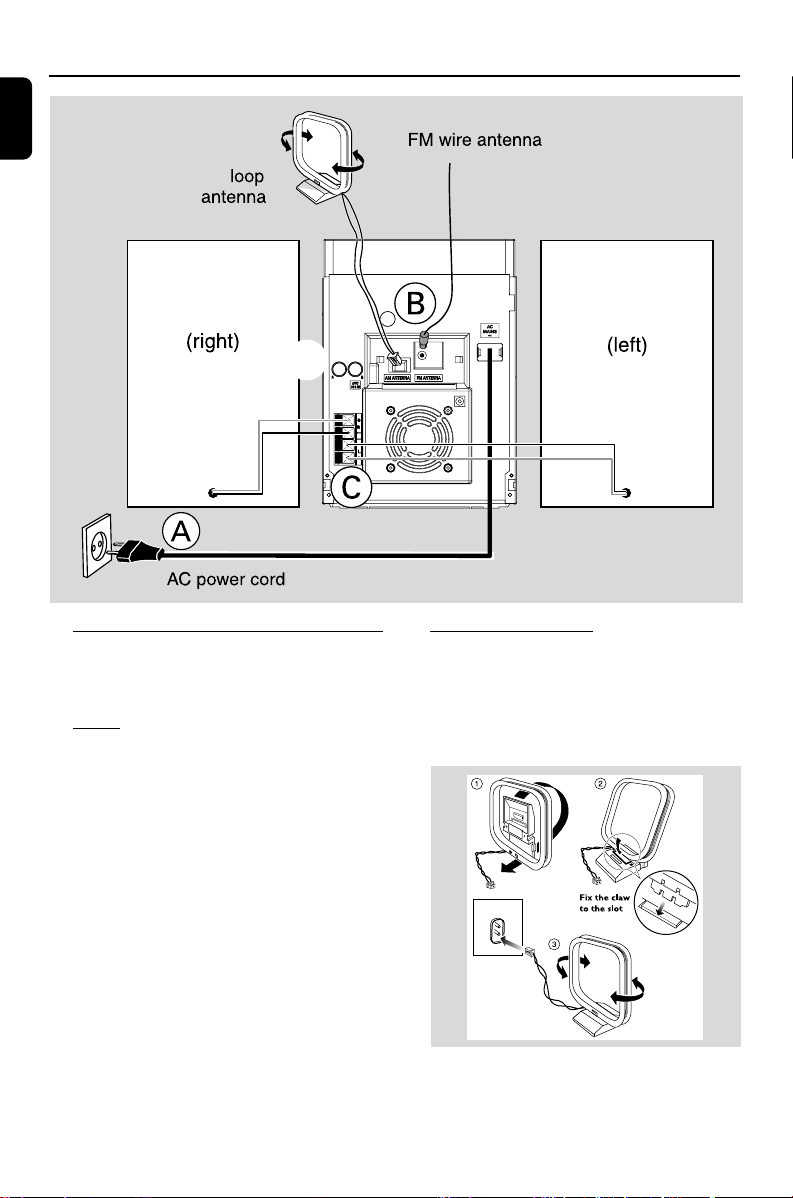

Rear connections

The type plate is located at the rear of the system.

A Power

Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made.

WARNING! –For optimal performance, use only the original power cable. –Never make or change connections with the power switched on.

Speaker

B Antennas Connection

Connect the supplied MW loop antenna and FM antenna to the respective terminals. Adjust the position of the antenna for optimal reception.

MW Antenna

To avoid overheating of the system, a safety circuit has been built in. Therefore, your system may switch to Standby mode automatically under extreme conditions. If this happens, let the system cool down before reusing it (not available for all versions).

● Position the antenna as far as possible from a TV,

VCR or other radiation source.

Page 9

Preparations

FM Antenna

● For better FM stereo reception, connect an

outdoor FM antenna to the FM AERIAL (FM ANTENNA) terminal.

C Speakers Connection

Front Speakers

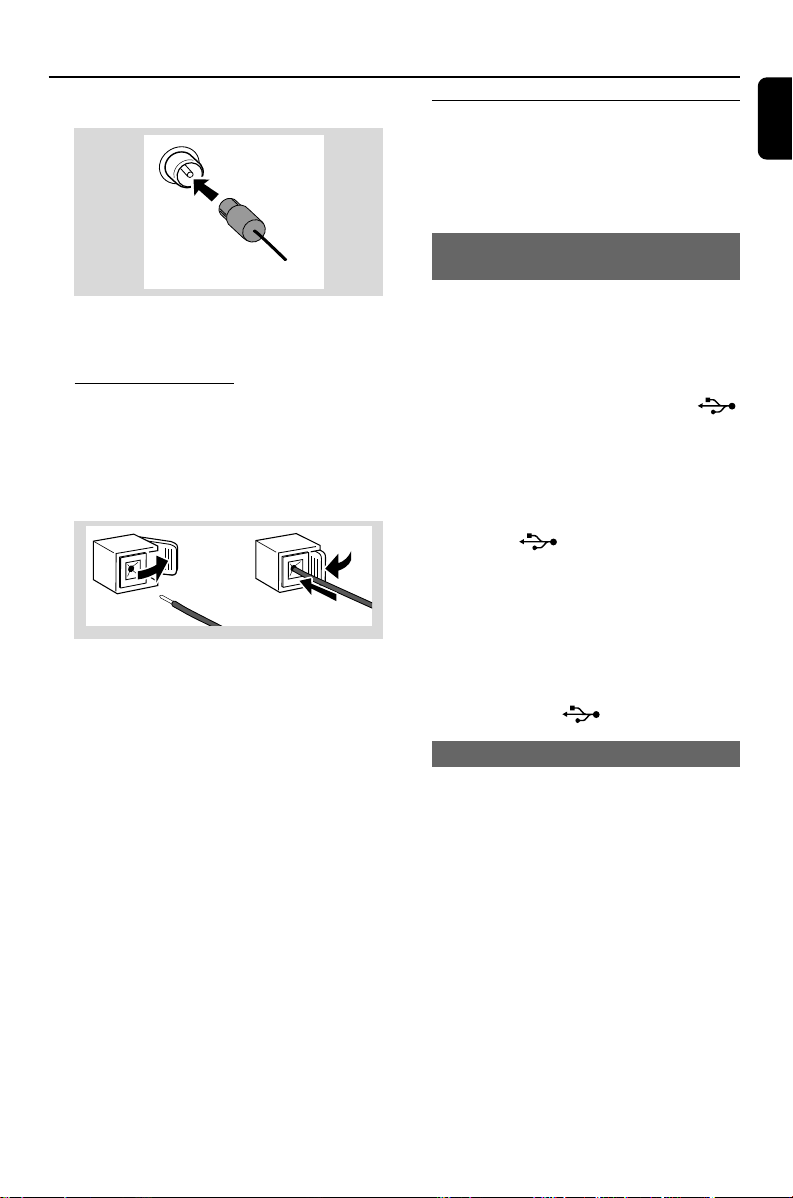

Connect the speaker wires to the SPEAKERS terminals, right speaker to "R" and left speaker to "L", coloured (marked) wire to "+" and black (unmarked) wire to "-".

● Fully inser t the stripped por tion of the speaker

wire into the terminal as shown.

Notes: –For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker terminals. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.

Optional connection

The optional equipment and connecting cords are not supplied. Refer to the operating instructions of the connected equipment for details.

Connecting a USB device or memory card

By connecting a USB mass storage device (including USB flash memory, USB flash players or memory cards) to the Hi-Fi system, you can enjoy the device's stored music through the powerful speakers of Hi-Fi system.

● Insert the USB device's USB plug into the

socket on the set.

for the devices with USB cables:

1 Insert one plug of the USB cable (not supplied)

to the socket on the set.

2 Insert the other plug of the USB cable to the

USB output terminal of the USB device.

for the memory card:

1 Insert the memory card into a card reader (not

supplied).

2 Use a USB cable (not supplied) to connect the

card reader into the socket on the set.

Connecting a non-USB device

Use a cinch cable to connect AUX IN to the analogue audio out terminals of an external equipment (TV, VCR, Laser Disc player, DVD player or CD Recorder).

Note: – If you are connecting equipment with a mono output (a single audio out terminal), connect it to the AUX IN left terminal. Alternatively, you can use a “single to double” cinch cable (the output sound still remain mono).

English

Page 10

Preparations

English

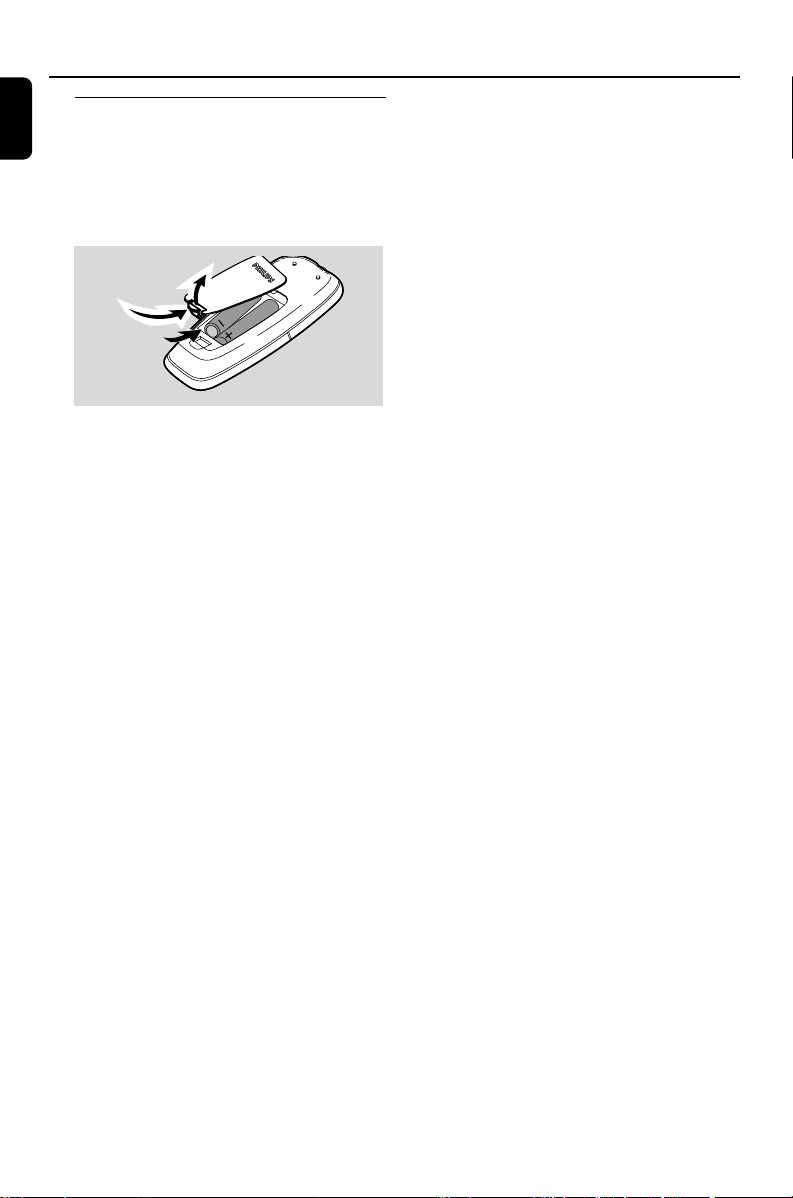

Inserting batteries into the remote control

Insert two batteries (type R03 or AAA) into the remote control with the correct polarity as indicated by the "+" and "-" symbols inside the battery compar tment.

CAUTION! – Remove batteries if they are exhausted or will not be used for a long time. – Do not use old and new or different types of batteries in combination. – Batteries contain chemical substances, so they should be disposed of properly.

Page 11

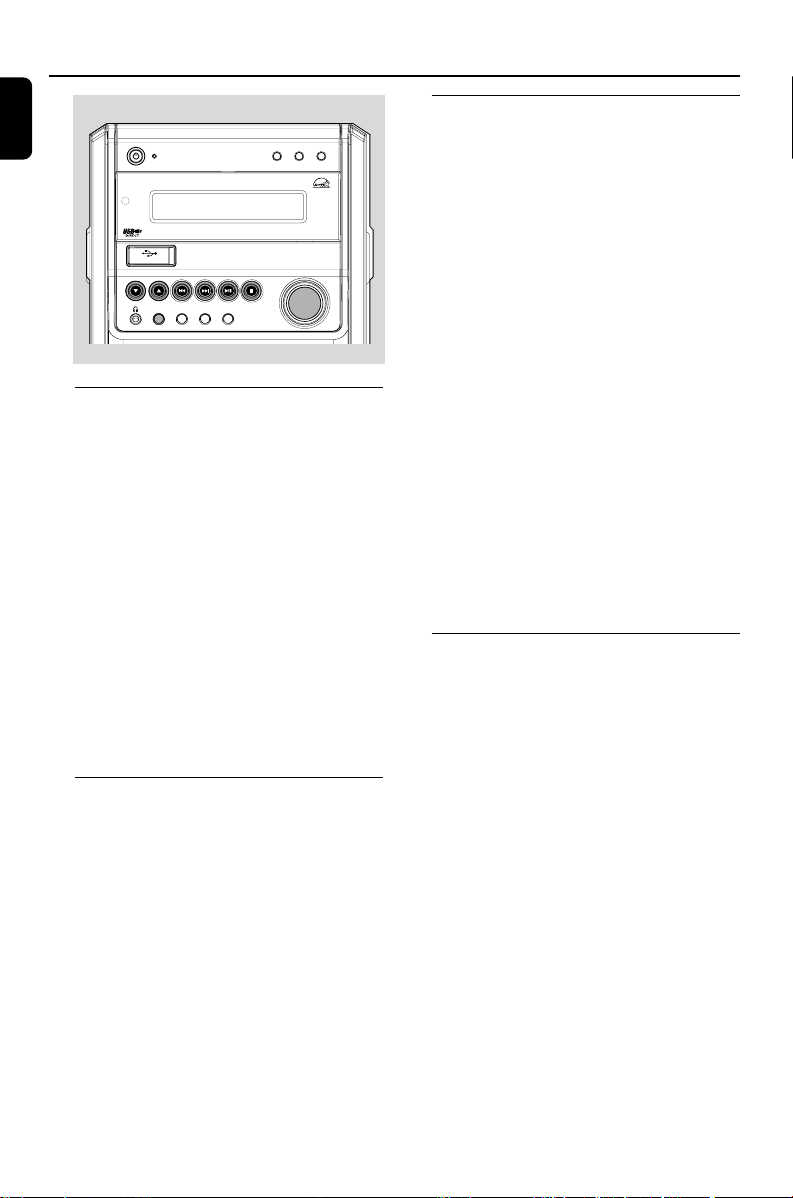

Controls (illustrations on page 3)

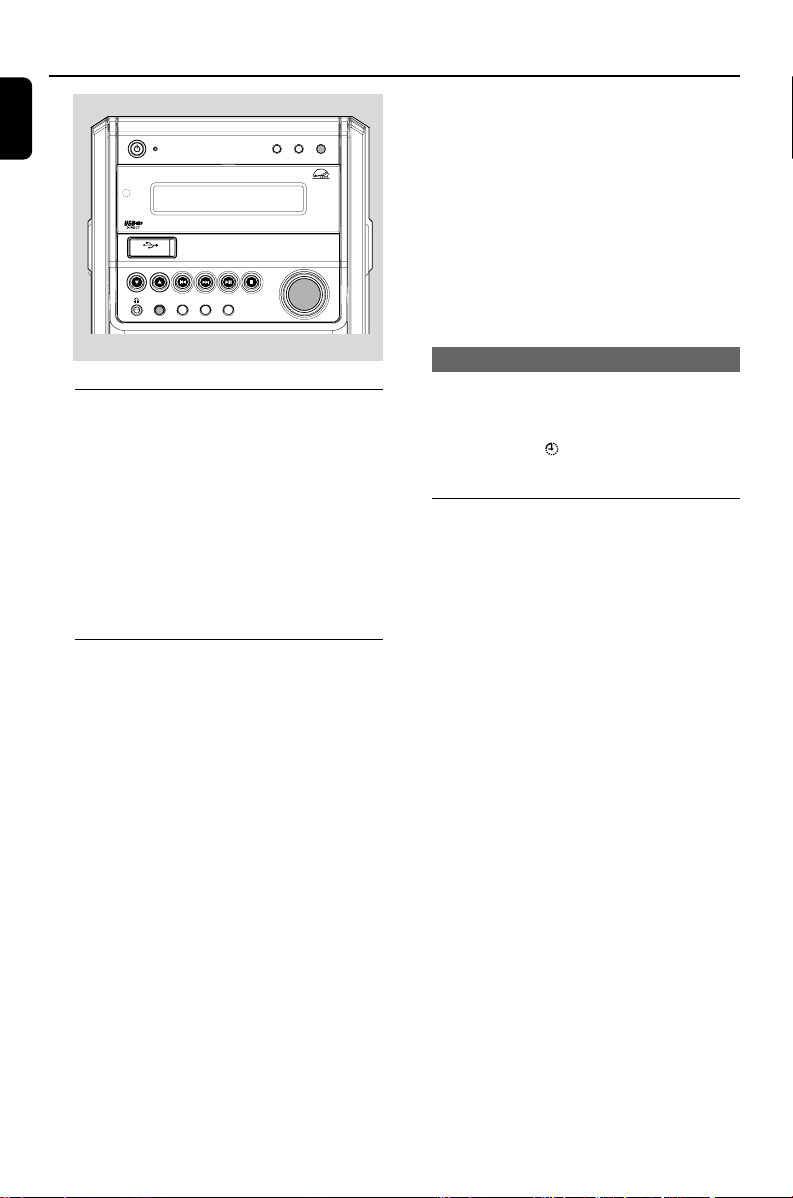

Controls on the system and remote control

1 Eco Power/STANDBY ON y

– to switch the system on or to Eco Power

standby/normal standby with clock display.

2 Display screen

– to view the current status of the system.

3 BAND/DISPLAY

for Tuner ............. to select waveband : FM, MW or

LW.

for CD/MP3-CD…to select disc information

display mode.

4 PROGRAM

for CD/MP3-CD…to programme disc tracks.

for Tuner ............. to programme preset radio

stations.

5 CLOCK SET

for Clock ............ (on the system only) to set the

clock function.

6 TUNING S/T ( 5/6)

for CD ................. to fast reverse/forward the disc.

for CD/MP3 CD…(on the system only) to select

a desired track.

for Tuner ............. to tune to a lower or higher

radio frequency.

for Tape ............... to rewind or fast forward.

7 ALBUM/PRESET/TIMER SET 4/3

for MP3-CD .....to select previous/next album.

for Tuner ............. to select a preset radio station.

for Timer Set (3) (on the system only) to set the

timer function.

8 STOP 9

for CD/MP3-CD…to stop playback or to clear a

programme.

for Tape ............... to stop playback or recording.

9 PLAY/PAUSE ÉÅ

for CD/MP3 CD…to start or interr upt playback.

for Tape ............... to start playback.

0 Ta pe deck ! OPEN/CLOSE ç

– to open tape compartment.

@ DBB/INCREDIBLE SURROUND (IS)

– to create a super-enhanced stereo effect. – to enhance the bass.

# DSC (Digital Sound Control)

– to select the desired sound effect : OPTIMAL/

ROCK/JAZZ/POP.

$ VOLUME (VOL + / -)

– to increase or decrease the volume. – (on the system only) to adjust the hours and

minutes for the clock/timer functions.

% SOURCE

– to select the respective sound source : USB/CD,

TUNER, TAPE or AUX.

^ RECORD

– to start recording.

& iR sensor

– infrared sensor for remote control.

* OPEN•CLOSE ç

– to open or close the disc tray.

( n Headphone

– Plugs in the headphones jack. The speakers

output will be cancelled.

) USB DIRECT

– jack for the external USB mass storage device.

¡ MODE

– to shuffle and repeat a track/disc.

™ ¡ / ™

– to select a desired track.

£ MUTE

– interrupts and resumes sound reproduction.

≤ TIMER

– to activate/deactivate the timer function.

∞ SLEEP

– to activate/deactivate or set the sleep timer.

§ B

– to switch the system to standby mode.

Notes for remote control: – First select the source you wish to control by pressing one of the source select keys on the remote control (for example CD, TUNER). – Then select the desired function (for example ÉÅ,

English

Page 12

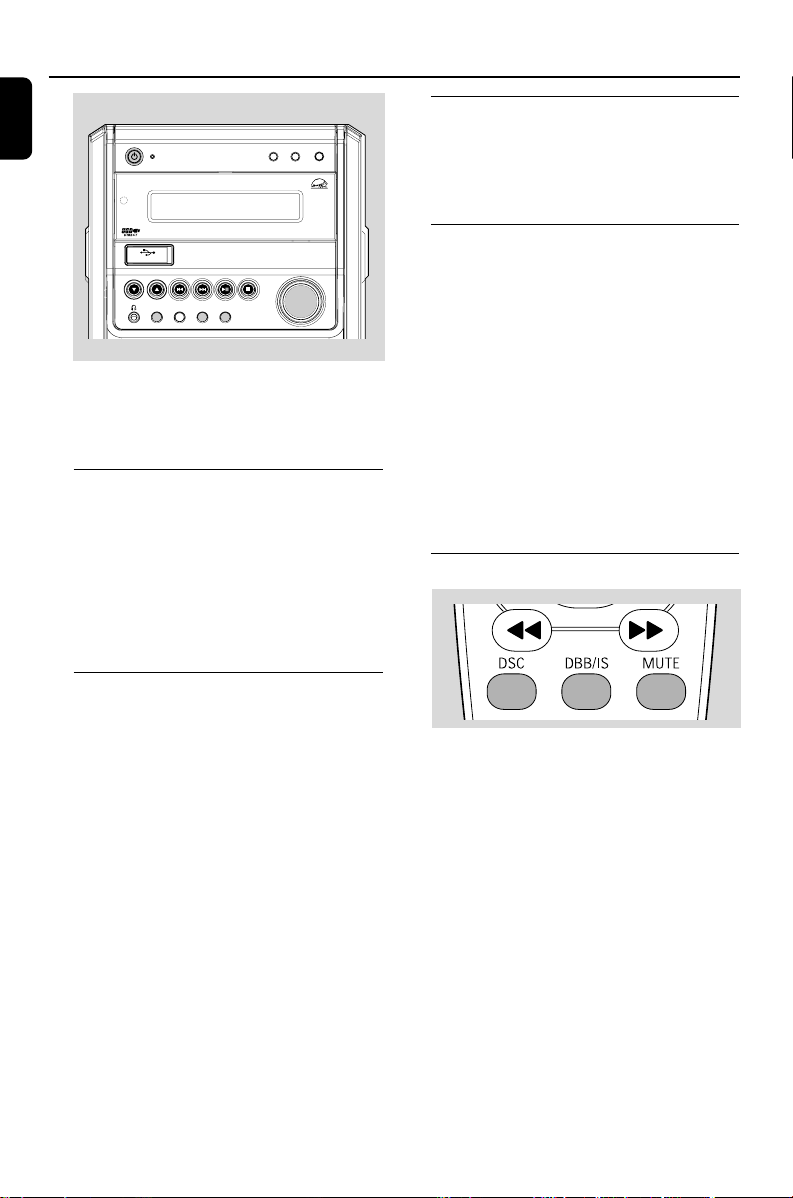

Basic Functions

English

ECO POWER

STANDBY-ON

MCM720 MICRO SYSTEM

RECORD DISPLAY

Power-saving automatic standby

BAND

CLOCK SET

As a power-saving feature, the system will automatically switch to Standby mode if you do not press any buttons within 15 minutes after a disc or tape has stopped playing.

USB DIRECT

ALBUM

PRESET

TIMER SET

SOURCE

PROGRAM

TUNING

DBBDSC

INCREDIBLE SURROUND

VOLUME

IMPORTANT! Before you operate the system, complete the preparation procedures.

Switching the system on

● Press ECO POWER/STANDBY ON 2 or

SOURCE.

➜ The system will switch to the last selected

source.

● Press CD/USB, TUNER, TAPE or AUX on

the remote control.

➜ The system will switch to the selected source.

Switching the system to Eco Power Standby mode

● Press ECO POWER/STANDBY-ON 2 in

the active mode.

➜ The backlight of clock display is dim in

standby.

● The volume level, interactive sound settings, last

selected mode, source and tuner presets will be retained in the player's memory.

● To view the clock time in Standby mode, press

and hold ECO POWER/STANDBY-ON 2 for 3 seconds or more.

➜ The system enters the normal standby mode

with clock display.

➜ If the clock has not been set, "--:--" is

displayed.

● Press and hold ECO POWER/STANDBY-

ON 2 for 3 seconds or more to go back to

Eco Power Standby mode.

Volume control

Adjust VOLUME (VOL + / -) to increase or decrease the volume level.

➜ Display shows the volume level "VOL" and a

number from 1-31. “MIN” denotes the minimum volume level and “MAX” denotes the maximum volume level.

To switch off the volume temporarily

● Press MUTE on the remote control. ➜ Playback will continue without sound and

"MUTE" is displayed.

● To restore the volume, press MUTE again or

increase/decrease the volume level.

Sound control

● Press DSC repeatedly to select the desired

sound effect : OPTIMAL, ROCK, JAZZ or POP.

● Press DBB/INCREDIBLE SURROUND to

switch on or off the surround sound effect or bass enhancement.

➜ The sequences are as follows :

DBB ™ INCREDIBLE SURROUND. ™ DBB+INCREDIBLE SURROUND™ DBB OFF

➜ If the DBB is activated, DBB is shown briefly. ➜ If the IS is activated, INCREDIBLE SURROUND

scrolls.

➜ If both the DBB and IS are activated, DBB

INCREDIBLE SURROUND scrolls.

Note: – The effect of INCREDIBLE SURROUND may vary with different types of music.

Page 13

CD/MP3-CD Operations

To interrupt playback

ECO POWER

STANDBY-ON

MCM720 MICRO SYSTEM

RECORD DISPLAY

BAND

CLOCK SET

● To resume playback, press ÉÅ again.

To stop playback

● Press Ç.

● Press ÉÅ.

English

USB DIRECT

ALBUM

PRESET

TIMER SET

SOURCE

PROGRAM

TUNING

DBBDSC

INCREDIBLE SURROUND

VOLUME

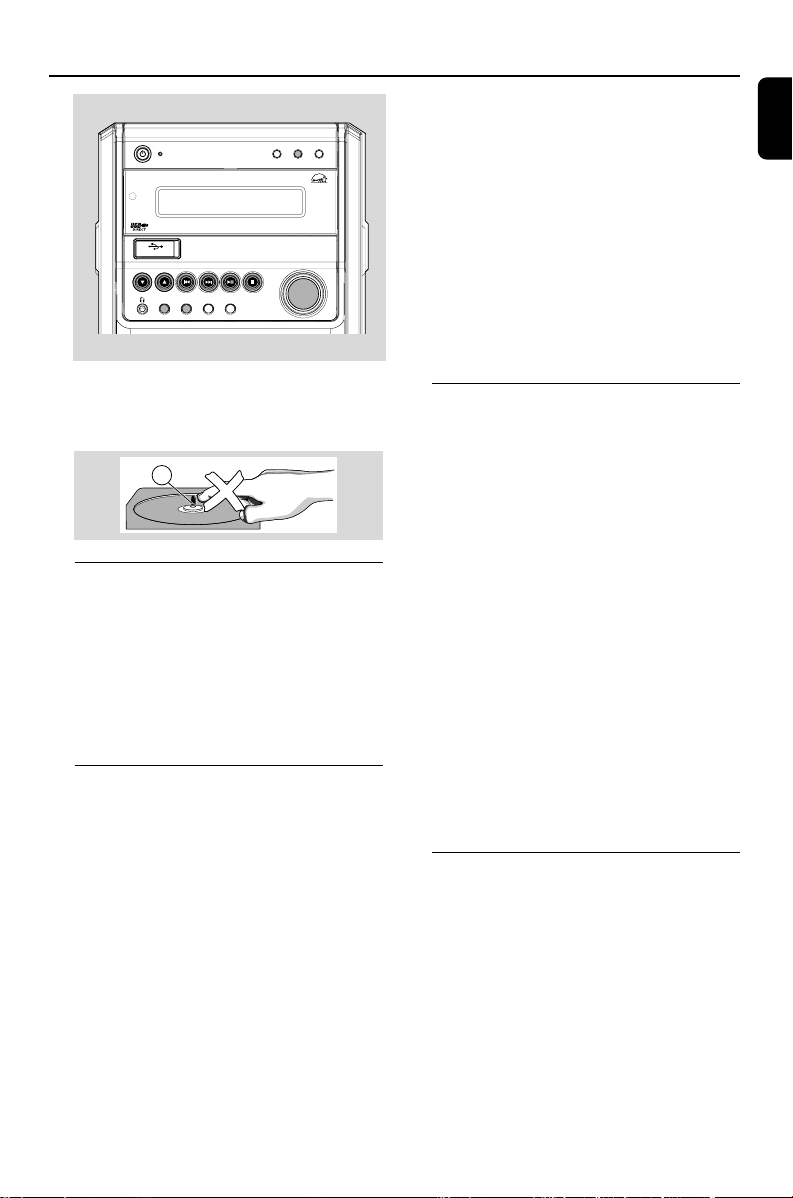

IMPORTANT! The lens of the CD player should never be touched.

Discs for playback

This system is able to play : – All pre-recorded audio CDs – All finalised audio CDR and audio

CDRW discs

– MP3-CDs (CD-ROMs with MP3 tracks)

● CD-ROM, CD-I, CDV, VCD, DVD or computer

CDs, however, are not possible.

Playing a disc

1 Select CD source. 2 Press OPEN•CLOSEç on the top of the

system to open the CD compartment.

➜ “CD OPEN” is displayed.

3 Insert a disc with the printed side facing up and

press OPEN•CLOSEç to close the CD door.

➜ “READING” is displayed as the CD player

scans the contents of a disc, and then the total

number of tracks and album are shown.

4 Press ÉÅ to start playback.

Notes: – Disc play will also stop when you select another source or the disc has reached the end. –For MP3 disc, the disc reading time may exceed 10 seconds due to the large number of songs compiled into one disc.

Te xt display

In CD mode

● Press BAND/DISPLAY repeatedly to see the

following information.

➜ Track number and elapsed play time of

current track.

➜ Remaining play time of current track. ➜ Total number of tracks played and total

elapsed time.

➜ Total remaining number of tracks and total

remaining play time.

In MP3-CD mode

● Press BAND/DISPLAY repeatedly to select

four display modes : Number, Track, Album and ID3. Number ➜ The current album and track numbers are displyed briefly.

Track ➜ The current track name scrolls twice. Album ➜ The current album name scrolls twice. ID-3 ➜ The ID-3 tag scrolls twice.

Selecting a different track

● Press TUNING S/T (¡/™) repeatedly

until the desired track number appears in the display.

● If playback is stopped, pressÉÅ to star t

playback.

Page 14

CD/MP3-CD Operations

English

Finding a passage within a track

1 Press and hold down on TUNING S/T

( à/á on the remote control).

➜ The disc is played at high speed.

2 When you recognize the passage you want,

release TUNING S/T ( à/á on the

remote control).

➜ Normal playback continues.

Selecting a desired album/track

To select a desired album (MP3 disc only)

● Press ALBUM/PRESET 4/3 repeatedly.

To select a desired track

● Press TUNING S/T (¡/™) repeatedly.

Different play modes: SHUFFLE

and REPEAT

You can select and change the various play

modes before or during playback.

1 Press MODE on the remote control to select :

➜ SHUFFLE – tracks of the entire disc/

programme are played in random order.

➜ SHUFFLE and REP ALL– to repeat the

entire disc/ programme continuously in random

order.

➜ REP ALL – to repeat the entire disc/

programme.

➜ REPEAT – to repeat the current track.

2 To return to normal playback, press MODE until

the various SHUFFLE/ REPEAT modes are no

longer displayed.

● You can also press 9 to cancel your play mode.

Note:

– If Shuffle is activated on a MP3-CD, all titles

stored in the disc will be played in random order.

Programming the disc tracks

Programming tracks is possible when playback is stopped. Up to 20 tracks can be stored in the memory in any order.

1 Press PROGRAM to enter the programming

mode.

➜ A track number is shown and PROG flashes.

2 Press TUNING S/T (¡/™) repeatedly

to select your desired track number.

● For MP3 disc, press ALBUM/PRESET 4/3

and TUNING S/T (¡/™) to select the desired album and track for programming.

3 Press PROGRAM to confirm the track number

to be stored.

4 Repeat steps 2-3 to select and store all desired

tracks.

5 To start playback of your disc programme, press

Ç followed byÉÅ.

➜ PROG -- -- OK is displayed briefly.

● If you attempt to programme more than

20 tracks, “FULL” will appear on the display. In this case :

➜ The system will exit programming mode

automatically.

➜ Pressing Ç button will erase all the

programmed tracks.

➜ Pressing ÉÅ button will start playback of

the programmed tracks.

Reviewing the programme

In stop mode, press and hold PROGRAM until the display shows all your stored track numbers in sequence.

Erasing the programme

● Press Ç once when playback is stopped or

twice during playback.

➜ PROG disappears and “CLEAR” is displayed.

Page 15

ECO POWER

STANDBY-ON

USB DIRECT

ALBUM

PRESET

TIMER SET

SOURCE

TUNING

PROGRAM

MCM720 MICRO SYSTEM

DBBDSC

INCREDIBLE SURROUND

RECORD DISPLAY

BAND

CLOCK SET

VOLUME

Tuning to radio stations

1 Select TUNER source.

➜ “TUNER” is displayed briefly.

2 Press BAND/DISPLAY to select the desired

waveband : FM, MW or LW.

3 Press down on TUNING S/T ( à/á

on the remote control) and release the button.

➜ The display will show "SEARCH" until a radio

station with sufficient signal strength is found.

➜ If a FM station is received in stereo, is

shown.

4 Repeat step 3 if necessary until you find the

desired station.

● To tune to a weak station, press TUNING

S/T ( ¡/™ on the remote control) briefly and repeatedly until you have found optimal reception.

Radio Reception

1 Press ALBUM/PRESET 4/3 to select the

preset number where programming should start.

Note: – If no preset number is selected, default is preset (1) and all your presets will be overridden.

2 Press PROGRAM for more than two seconds

to activate programming.

➜ All available stations are progr ammed.

Manual programming

1 Tune to your desired station (refer to “Tuning to

radio stations”).

2 Press PROGRAM to activate programming.

➜ PROG flashes in the display.

3 Press ALBUM/PRESET 4/3 to allocate a

number from 1 to 40 to this station.

4 Press PROGRAM again to confirm the setting.

➜ PROG disappears, the preset number and

the frequency of the preset station are shown.

5 Repeat the above four steps to store other

stations.

● You can override a preset station by storing

another frequency in its place.

Tuning to preset radio stations

● Press ALBUM/PRESET 4/3 until the desired

preset station is displayed.

English

Programming radio stations

You can store up to a total of 40 radio stations in the memory for each band.

Automatic programming

Automatic programming will start with a chosen preset number. From this preset number upwards, former programmed radio stations will be overridden.

Page 16

Ta pe Operation / Recording

English

ECO POWER

STANDBY-ON

MCM720 MICRO SYSTEM

USB DIRECT

ALBUM

PRESET

TUNING

TIMER SET

PROGRAM

SOURCE

DBBDSC

Ta pe playback

1 Select TAPE source.

➜ The display shows “

tape counter 000 is displayed.

TAPETAPE

TAPE” briefly, and the

TAPETAPE

2 Press OPEN/CLOSE ç to open the tape

door.

3 Insert a recorded tape and close the tape door.

● Load the tape with the open side downward and

the full spool to the left.

4 Press ÉÅ to star t playback.

To stop playback

● Press Ç.

To reset the tape counter display

● In stop mode, press Ç once.

Rewinding / Fast forwarding

1 Press TUNING S/T (à/á on the

remote control).

➜ The tape will stop automatically at the end of

rewinding or fast forwarding.

➜ During fast winding, you can monitor the tape

message with the tape counter.

2 Press Ç to stop rewinding or fast forwarding.

INCREDIBLE SURROUND

RECORD DISPLAY

BAND

CLOCK SET

General information on recording

● For recording, use only NORMAL (IEC type I)

tapes on which the tabs have not yet been broken. This deck is not suited for recording on METAL (IEC IV) type tapes.

● The best recording level is set automatically.

VOLUME

Altering the VOLUME, INCREDIBLE SURROUND or DBB will not affect the recording in progress.

● At the very beginning and end of the tape, no

recording will take place during the 7 seconds when the leader tape passes the recorder heads.

● To protect a tape from accidental erasure, have

the tape in front of you and break out the left tab. Recording on this side is no longer possible. If, however, you wish to record over this side again, cover the tabs with a piece of adhesive tape.

IMPORTANT! Recording is permissible if copyright or other rights of third parties are not infringed upon.

Preparation for recording

1 Select TAPE source. 2 Load a recordable tape into tape deck with full

spool to the left.

3 Prepare the source to be recorded.

CD – load the disc. TUNER – tune to the desired radio station. AUX – connect external equipment.

When recording is in progress

➜ REC flashes.

● To stop recording, press 9.

● It is not possible to listen to another source.

● It is not possible to activate the timer function.

Page 17

Ta pe Operation / Recording

Synchro start CD recording

1 Select CD source.

● Press TUNING S/T (¡/™ on the

remote control) to select the desired track to start recording.

● You can progr amme the tracks in the order you

want them to be recorded (refer to “CD/MP3CD Operations - Programming the disc tracks”).

2 Press RECORD to start recording.

➜ Playing of the CD programme star ts

automatically from the beginning of the CD. It is not necessary to star t the CD player separately.

One touch recording

1 Select CD, TUNER or AUX source. 2 If necessary, start playback of the selected

source.

3 Press RECORD to start recording.

Recording timer

To record from the radio, you will need to use a preset radio station and to set a start (ON) and finish (OFF) time.

1 Select the preset radio station to record from

(refer to “Radio Reception - Tuning to preset radio stations”).

2 In standby mode, press TIMER SET 3 for more

than two seconds.

➜ The current selected source is displayed.

3 Press SOURCE repeatedly until “REC TUN”

source is displayed.

4 Press TIMER SET 3 to confirm the source.

➜ “SET ON TIME” is displayed and the clock

digits for the hours flash.

5 Adjust VOLUME on the front pannel to set the

hours.

6 Press TIMER SET 3 again.

➜ The clock digits for the minutes flash.

7 Adjust VOLUME on the front pannel to set the

minutes.

8 Press TIMER SET 3 to confirm the recording

start time.

➜ “SET OFF TIME” is displayed and the clock

digits for the hours flash.

9 Repeat steps 5-7 to set the finish time. 0 Press TIMER SET 3 to confirm the timer

settings.

➜ is shown and the recording timer is now

set.

Note: – The recording timer will not be activated if the system is in tape play mode.

ORIGINAL COPYRIGHT NOTICE

The making of unauthorized copies of copyprotected material, including computer programmes, files, broadcasts and sound recordings, may be an infringement of copyrights and constitute a criminal offence. This equipment should not be used for such purposes.

English

Page 18

External Sources

English

Using a non-USB device

1 Connect the audio out terminals of the external

equipment (TV, VCR, Laser Disc player, DVD player or CD Recorder) to the AUX IN terminals of your system.

2 Press AUX to select external equipment.

Note: – All the sound control features (DSC or DBB, for example) are available for selection. – Refer to the operating instructions for the connected equipment for details.

Supported formats:

– USB or memory file format FAT12, FAT16,

FAT32 (sector size: 512 - 65,536 bytes)

– MP3 bit rate (data rate): 32-320 Kbps and

variable bit rate – WMA v9 or earlier – Directory nesting up to a maximum of 8

levels – Number of albums/ folders: maximum 99 – Number of tracks/titles: maximum 500 – ID3 tag v2.0 or later – File name in Unicode UTF8 (maximum length:

128 bytes)

For Recording, please refer to “Tape Operation/Recording”.

Using a USB mass storage device

By connecting a USB mass storage device to the Hi-Fi system, you can enjoy the device's stored music through the powerful speakers of Hi-Fi system.

Playing a USB mass storage device Compatible USB mass storage devices

With the Hi-Fi system, you can use: – USB flash memory (USB 2.0 or USB1.1) – USB flash players (USB 2.0 or USB1.1) – memory cards (requires an additional card

reader to work with this Hi-Fi system)

Note: – In some USB flash players (or memory devices), the stored contents are recorded using copyright protection technology. Such protected contents will be unplayable on any other devices (such as this Hi-Fi system).

The system will not play or support the following:

– Empty albums: an empty album is an album

that does not contain MP3/WMA files, and

will not be shown in the display. – Non-supported file formats are skipped. This

means that e.g.: Word documents .doc or

MP3 files with extension .dlf are ignored and

will not be played. –AAC, WAV, PCM audio files – DRM protected WMA files – WMA files in Lossless format

How to transfer music files from PC to a USB mass storage device

By dragging and dropping music files, you can easily transfer your favorite music from PC to a USB mass storage device. For the flash player, you can also use its music management software for the music transfer.

However, those WMA files may be unplayable for compatibility reasons.

Page 19

External Sources

How to organize your MP3/WMA files on the USB mass storage device

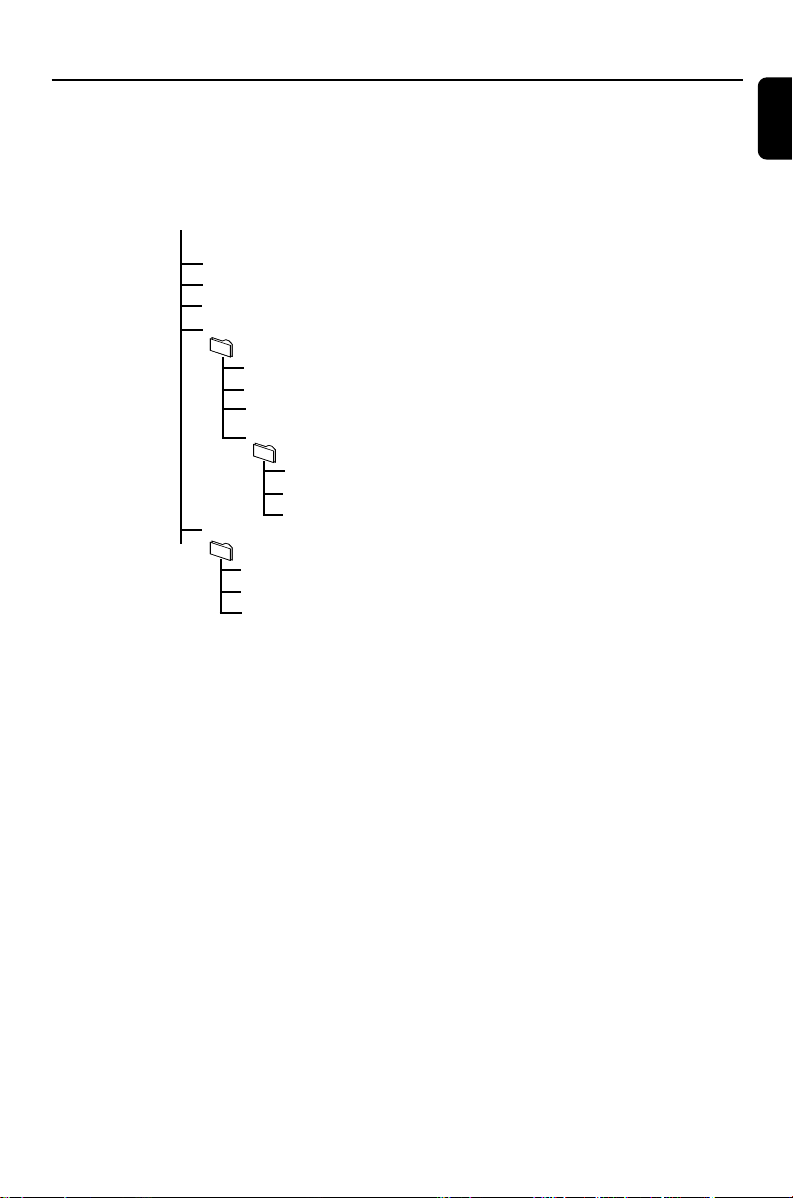

This Hi-Fi system will browse the MP3/WMA files in the folders/sub-folders/titles order. Example:

Root

Title 001 Title 002

Title 003

Album 01

Title 001 Title 002

Title 003

Album 02

Title 001 Title 002 Title 003 Album 03

Title 001 Title 002 Title 003

Organize your MP3/WMA files in different folders or subfolders as required.

3 Play the USB's audio files as you do with the

albums/tracks on a CD (See CD/MP3 Operations).

Notes: –For compatibility reasons, the album/track information may differ from what it is displayed through flash players' music management software. – File names or ID3 tags will be displayed as --- if they are not in English.

English

Notes: – If you have not organized MP3/WMA files into any albums on your disc, an album "01" will be automatically assigned for all those files. – Make sure that the file names of MP3 files end with .mp3. and the file names of WMA files end with .wma. –For DRM protected WMA files, use Windows Media Player 10 (or later) for conversion. Visit www.microsoft.com for details about Windows Media Player and WM DRM (Windows Media Digital Rights Management).

1 Check the USB device has been properly

connected. (See Installation: Connecting an additional appliance).

2 Press SOURCE (CD/USB on the remote)

once or more to select USB.

-NO TRACK appears if no audio file is found in the USB device.

Page 20

Clock/Timer

English

ECO POWER

STANDBY-ON

MCM720 MICRO SYSTEM

USB DIRECT

ALBUM

PRESET

TUNING

TIMER SET

SOURCE

PROGRAM

Clock setting

1 In standby mode, press and hold CLOCK SET.

➜ SET CLOCK is displayed briefly. Then, clock

digits for the hours flash.

2 Adjust VOLUME to set the hours. 3 Press CLOCK SET again.

➜ The clock digits for the minutes flash.

4 Adjust VOLUME to set the minutes. 5 Press CLOCK SET to confirm the time.

Timer setting

● The system can be used as an alarm clock,

whereby the CD, TUNER or TAPE is switched on at a set time (one time operation). The clock time needs to be set first before the timer can be used.

● You can also use it to record a favourite tuner

programme at a set period (refer to “Recording timer”)

● During setting, if no button is pressed within 90

seconds, the system will exit timer setting mode automatically.

RECORD DISPLAY

DBBDSC

INCREDIBLE SURROUND

3 Press TIMER SET 3 to confirm your desired

BAND

CLOCK SET

mode.

➜ “SET ON TIME” is displayed and the clock

digits for the hours flash.

4 Adjust VOLUME to set the hours. 5 Press TIMER SET 3 again.

➜ The clock digits for the minutes flash.

VOLUME

6 Adjust VOLUME to set the minutes. 7 Press TIMER SET 3 to confirm the time.

➜ The timer is now set and activated.

Activating and deactivating timer

● In standby or during playback, press TIMER

SET 3 (TIMER on the remote control) once.

➜ Display shows if activated, and disappears if

deactivated.

Sleep timer setting

The sleep timer enables the system to switch off by itself after a set period of time.

1 Press SLEEP on the remote control repeatedly

to select a preset time.

➜ The selections are as follows (time in

minutes):

6060

4545

3030

1515

60 ™

6060

45 ™

4545

30 ™

3030

15 ™

1515

0 ™

6060

60 …

6060

➜ "SLEEP XX" or "0" is displayed. "XX" is the

time in minutes.

2 When you reach the desired length of time, stop

pressing the SLEEP button.

To deactivate the sleep timer

● Press SLEEP repeatedly until "0" is displayed, or

press Eco Power/STANDBY ON y.

1 In standby mode, press TIMER SET 3 for more

than two seconds.

2 Press SOURCE repeatedly to select the sound

source.

➜ “SET TIME” and “SELECT SOURCE” are

displayed.

Page 21

Specifications

AMPLIFIER

Output power .................................... 2 x 50 W RMS*

...................................................................... 1800 W PMPO

Signal-to-noise ratio .......................... ≥ 62 dBA (IEC)

Frequency response ......... 40 – 15000 Hz, ± 3 dB

Impedance loudspeakers ......................................... 6 Ω

Impedance headphones ........................................ 32 Ω

* (4 Ω, 1 kHz, 10% THD)

CD/MP3-CD PLAYER

Number of programmable tracks ......................... 20

Frequency range .................................. 20 – 20000 Hz

Signal-to-noise ratio ............................................ 75 dBA

Channel separation ..........................≥ 60 dB (1 kHz)

Total harmonic distor tion ........................... < 0.003%

MPEG 1 Layer 3 (MP3-CD) .......... MPEG AUDIO

MP3-CD bit rate ....................................... 32-256 kbps

(128 kbps advised)

Sampling frequencies ....................... 32, 44.1, 48 kHz

USB PLAYER

USB ................................................................... 12Mb/s, V1.1

......................................... support MP3 and WMA files

Number of albums/folders ................. maximum 99

Number of tracks/titles ...................... maximum 500

TUNER

FM wave range ...................................87.5 – 108 MHz

LW wave range ..................................... 153 – 279 kHz

MW wave range ................................ 531 – 1602 kHz

Sensitivity at 75 Ω

– mono, 26 dB signal-to-noise ratio ............ 2.8 µV

– stereo, 46 dB signal-to-noise ratio ........ 61.4 µV

Selectivity ................................................................. ≥ 28 dB

Total harmonic distor tion ..................................... ≤ 5%

Frequency response ..... 63 – 12500 Hz (± 3 dB)

Signal-to-noise-ratio ...................................... ≥ 50 dBA

TAPE DECK

Frequency response

Normal tape (type I) ...... 80 – 12500 Hz (8 dB)

Signal-to-noise ratio

Normal tape (type I) .................................... 50 dBA

Wow and flutter ......................................... ≤ 0.4% DIN

SPEAKERS

2-way Bass reflex system Dimensions (w x h x d) . 170 x 252 x 214 (mm)

GENERAL INFORMATION

AC Power .................................................... 220V / 50 Hz

Dimensions (w x h x d) .. 175 x 252 x 305 (mm) Weight (with/without speaker s)

......................................................... approx. 8.96 / 4.84 kg

Eco Power Standby ............................................... < 1 W

Specifications and external appearance are subject to change without notice.

English

Page 22

A A B C

Maintenance

English

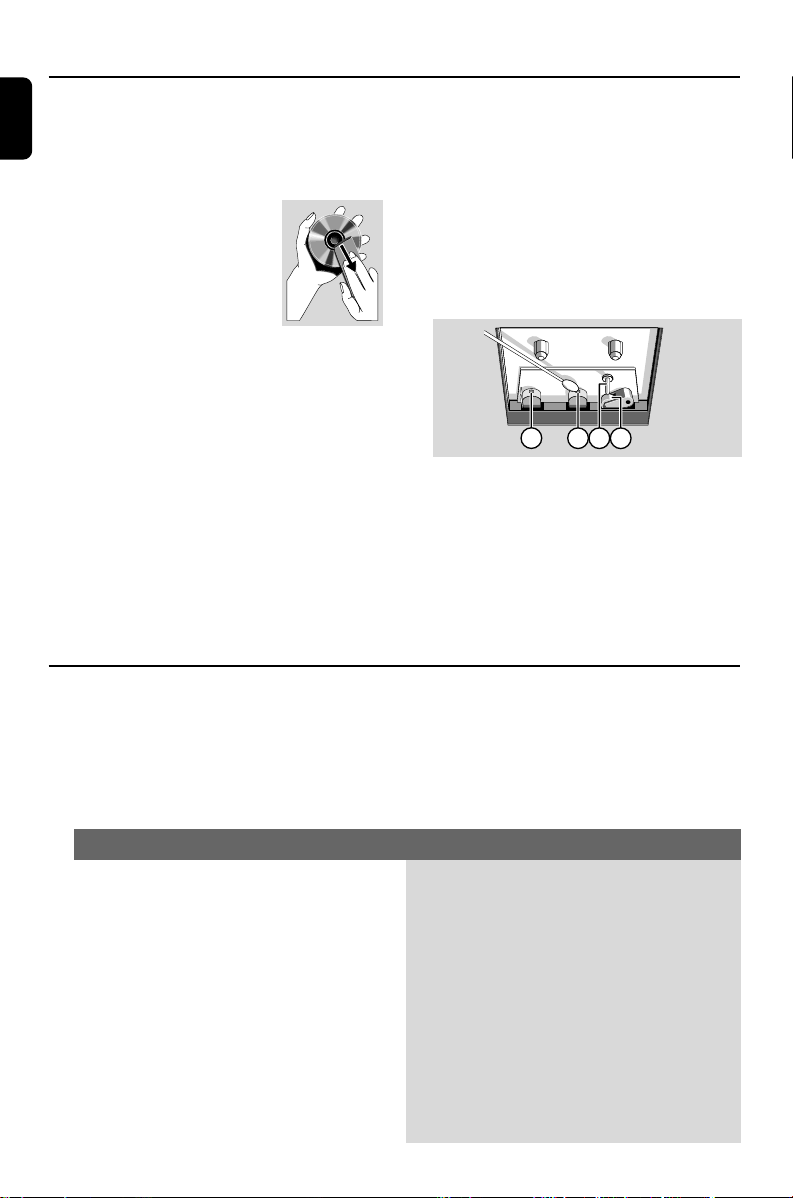

Cleaning the Cabinet

● Use a soft cloth slightly moistened with a mild

detergent solution. Do not use a solution containing alcohol, spirits, ammonia or abrasives.

Cleaning Discs

● When a disc becomes dir ty,

clean it with a cleaning cloth. Wipe the disc from the centre out.

● Do not use solvents such as

benzene, thinner, commercially available cleaners, or antistatic spray intended for analogue records.

Cleaning the disc lens

● After prolonged use, dirt or dust may

accumulate at the disc lens. To ensure good playback quality, clean the disc lens with Philips CD Lens Cleaner or any commercially available cleaner. Follow the instructions supplied with cleaner.

Cleaning the Heads and the Tape Paths

● To ensure good recording and playback quality,

clean the heads A, the capstan(s) B, and pressure roller(s) C after every 50 hours of tape operation.

Caution: Do not rotate the heads during cleaning.

● Use a cotton swab slightly moistened with

cleaning fluid or alcohol.

● You can also clean the heads by playing a

cleaning tape once.

Demagnetizing the heads

● Use a demagnetizing tape available at your

dealer.

Tr oubleshooting

WARNING Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs, first check the points listed below before taking the system for repair. If you are unable to remedy a problem by following these hints, consult your dealer or Philips for help.

“NO DISC” is displayed.

Radio reception is poor.

Problem

✔ Insert a disc. ✔ Check if the disc is inserted upside down. ✔ Wait until the moisture condensation at the lens

has cleared.

✔ Replace or clean the disc, see “Maintenance”. ✔ Use a finalised CD-RW or CD-R.

✔ If the signal is too weak, adjust the antenna or

connect an external antenna for better reception.

✔ Increase the distance between the Micro HiFi

System and your TV or VCR.

Solution

Page 23

Tr oubleshooting

Problem

Recording or playback cannot be made.

“CHK TAPE” is displayed.

The tape deck door cannot open.

The system does not react when buttons are pressed.

Sound cannot be heard or is of poor quality.

The left and right sound outputs are reversed.

The remote control does not function properly.

The timer is not working.

Solution

✔ Clean deck parts, see “Maintenance”. ✔ Use only normal (IEC I) tape for recording.

✔ Apply a piece of adhesive tape over the missing

tab space.

✔ Remove and reconnect the AC power plug and

switch on the system again.

✔ Remove and reconnect the AC power plug and

switch on the system again.

✔ Adjust the volume. ✔ Disconnect the headphones. ✔ Check that the speakers are connected correctly. ✔ Check if the stripped speaker wire is clamped. ✔ Make sure the MP3-CD was recorded within

32-256 kbps bit rate with sampling frequencies at 48 kHz, 44.1 kHz or 32 kHz.

✔ Check the speaker connections and location.

✔ Select the source (CD or TUNER, for example)

before pressing the function button (ÉÅ,í,ë).

✔ Reduce the distance between the remote

control and the system.

✔ Insert the batteries with their polarities

(+/– signs) aligned as indicated.

✔ Replace the batteries. ✔ Point the remote control directly toward

IR sensor on the front of the system.

✔ Set the clock correctly. ✔ Press TIMER SET 3 (TIMER on the remote

control) to switch on the timer.

✔ If a recording is in progress, stop the recording.

English

The Clock/Timer setting is erased.

Some files on the USB device are not displayed.

“DEVICE NOT SUPPORTED” scrolls on the display.

✔ Power has been interrupted or the power cord

has been disconnected. Reset the clock/timer.

✔ Check if the number of folders exceeds 99 or

the number of titles exceeds 500.

✔ Remove the USB mass storage device or select

another source..
