Philips MCM239D 05 User Manual

Micro Hi-Fi System
Register your product and get support at
www.philips.com/welcome
User manual
MCM239D
Mains plug
This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:
1 Remove fuse cover and fuse. 2 Fix new fuse which should be a BS1362 3 Amp, A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 3 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 3 Amp.
Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).
As these colour s may not correspond with the colour markings identifying the terminals in your plug,
proceed as follows: – Connect the blue wire to the terminal marked N or coloured black. – Connect the brown wire to the terminal marked L or coloured red. – Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).
Before replacing the plug cover, make certain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.
2
7
1
2
8 9
0 ! @
#
3
4
5
6
3
CAUTION
Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.
4
Index
English ------------------------------------------------ 6
English
5
Contents
English
General Information
Supplied accessories ............................................ 7
Environmental information ................................ 7
Safety information ................................................ 8
Controls
Controls on the set ............................................. 9
Remote control ............................................ 10-11
Tuner
Tuning to radio stations .................................... 20
Programming radio stations ............................. 20
Autostore: Automatic programming Manual programming To listen to a preset station
RDS (Radio Data System) ................................ 21
Switching through RDS information
Setting the RDS clock
Installation
Placing MCM239D ............................................. 11
Mounting stand onto the set

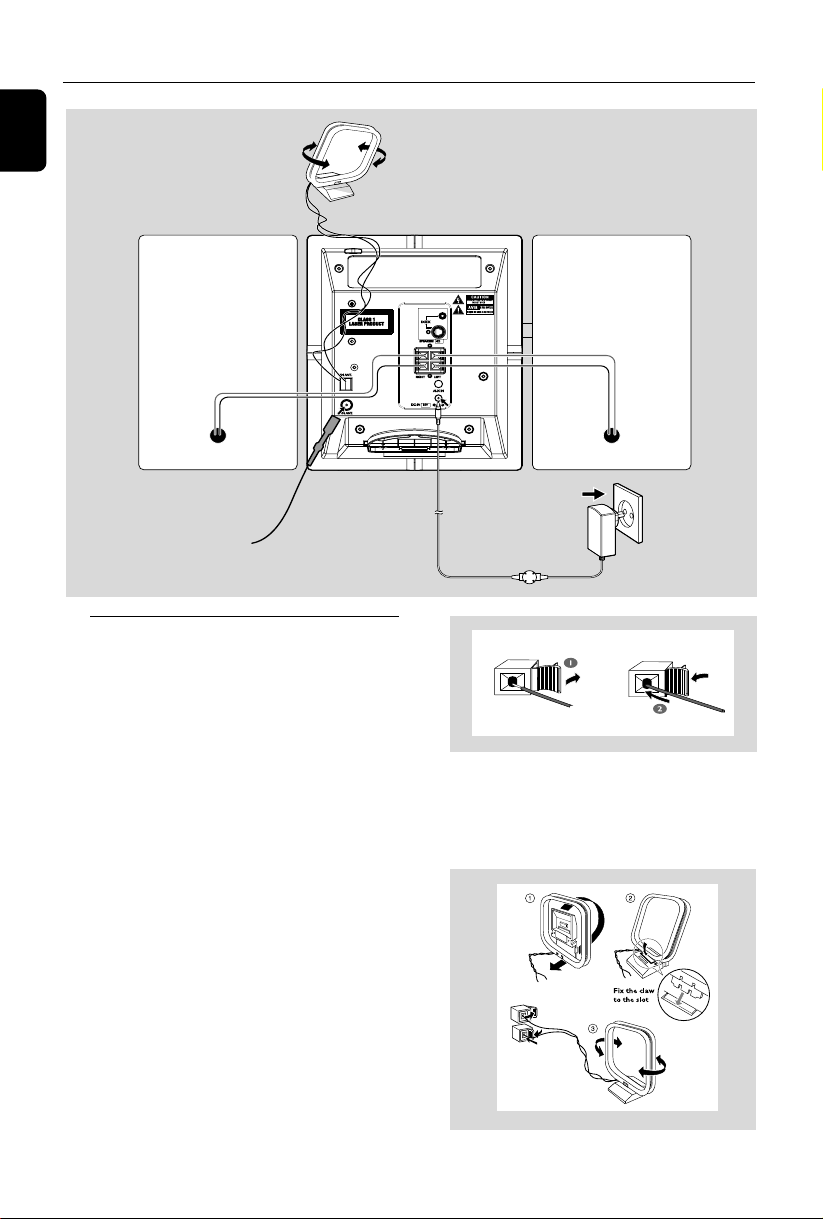

Rear connections ......................................... 12-13
Speaker connections
Antenna connections
Connecting an additional appliance .......... 13-14
Connecting a USB device
Connecting a non-USB device
Using AC power ................................................. 14
Preparations

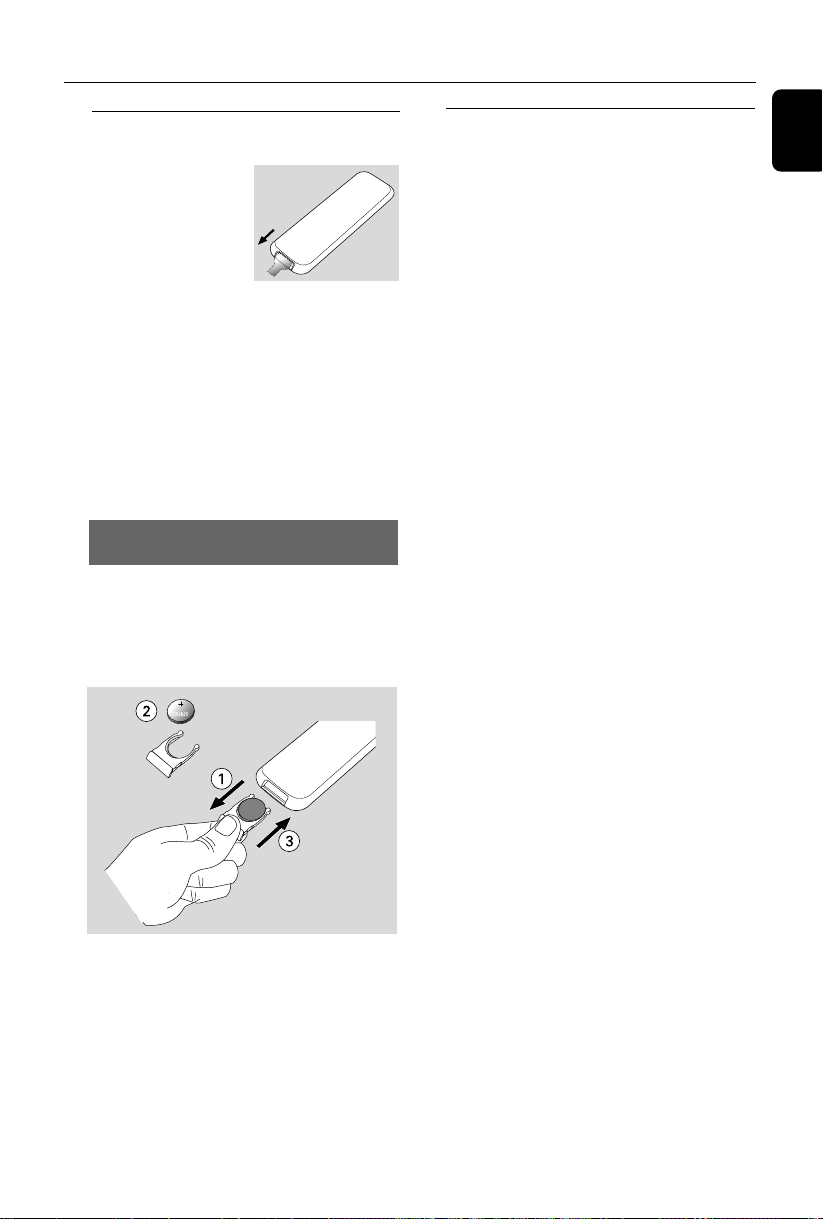

Using the remote control ................................ 15
Setting the clock ................................................. 15
Basic Functions
Switching on/off the set and
selecting functions .............................................. 16
Switching between Standby and
ECO POWER mode.......................................... 16
Auto-standby ....................................................... 16
Volume control ................................................... 16
Volume adjustment
MUTE
Sound control ..................................................... 16
DSC
DBB
Displaying the clock ........................................... 16
CD

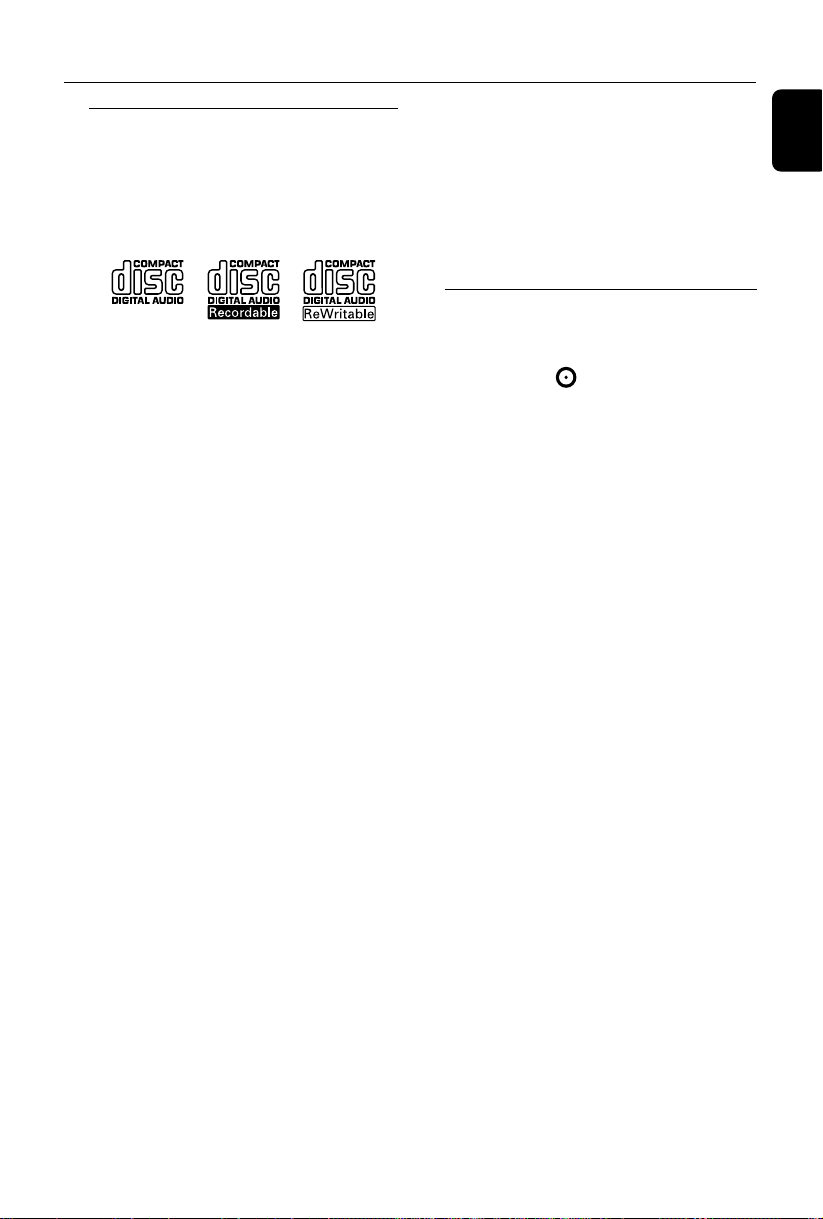

Discs for playback .............................................. 17
Playing discs ......................................................... 17
Selecting and searching ..................................... 18
Selecting a different track
Finding a passage within a track during playback
Programming tracks ........................................... 18
Reviewing the program Erasing the program
Different play modes: REPEAT, SHUFFLE...... 19
Display track information
(MP3/WMA only) ............................................... 19
USB
Using a USB mass storage device ............. 22-23
Playing a USB mass storage device
AUX
AUX (Listening to an external source) ......... 23
iPod
Playing iPod using the dock ........................ 24-25
Compatible portable player
Dock
Dock adaptor Selecting the correct dock adaptor Installing the dock adaptor Removing the dock adaptor
Playing iPod
Charging iPod battery using the dock
Timer
Setting the timer ................................................. 26
Activating and deactivating TIMER ................. 26
SLEEP
................................................................................ 26
Specifications ........................................... 27
Maintenance .............................................. 27
Tr oubleshooting .............................. 28-29
6
General Information
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register your product at www.philips.com/welcome.
Supplied accessories
–1 X certified power adapter
(Input: 100-240V ~50/60Hz 0.7A,
Output: 15V 1.2A) –2 speaker boxes including 2 speaker cables – remote control (with 1 x CR2025 battery) – MW loop antenna – FM wire antenna – stand – Docking kit
- 1 dock used for Apple iPod
- Dock adaptors (8 adaptors for different iPod types)
Environmental Information
All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
Your system consists of materials which can be recycled and reused if disassembled by a specialized company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Disposal of your old product
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC
Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.
Safety Information
Place the system on a flat, hard and stable
surface.
Where the MAINS plug or an appliance coupler
is used as the disconnet device, the disconnet device shall remain readily operable.
Install the unit near the AC outlet and where the
AC power plug can be easily reached.
The apparatus shall not be exposed to
dripping or splashing.
Place the system in a location with adequate
ventilation to prevent internal heat build-up in your system. Allow at least 10 cm (4 inches) clearance from the rear and the top of the unit and 5 cm (2 inches) from each side.
The ventilation should not be impeded by
covering the ventilation openings with items, such as newspapers, table-cloths, cur tains, etc.
Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources caused by heating equipment or direct sunlight.
No naked flame sources, such as lighted candles,
should be placed on the apparatus.
No objects filled with liquids, such as vases, shall
be placed on the apparatus.
If the system is brought directly from a cold to a
warm location, or is placed in a very damp room, moisture may condense on the lens of the disc unit inside the system. Should this occur, the CD player would not operate normally. Leave the power on for about one hour with no disc in the system until normal playback is possible.
The mechanical par ts of the set contain self-
lubricating bearings and must not be oiled or lubricated.
When the system is switched to Standby
mode, it is still consuming some power. To disconnect the system from the power supply completely, remove the AC power plug from the wall socket.
English
7
General Information
English
Hearing Safety
Listen at a moderate volume.
Using headphones at a high volume can impair
your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss.
Sound can be deceiving. Over time your hearing
"comfort level" adapts to higher volumes of sound. So after prolonged listening, what sounds "normal" can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.
Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at nor mally
"safe" levels, can also cause hearing loss.
Be sure to use your equipment reasonably and
take appropriate breaks.
Be sure to observe the following guidelines when using your headphones.
Listen at reasonable volumes for reasonable
periods of time.
Be careful not to adjust the volume as your
hearing adapts.
Do not turn up the volume so high that you
can't hear what's around you.
You should use caution or temporarily
discontinue use in potentially hazardous situations.
Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic hazard and is illegal in many areas.
8
Controls

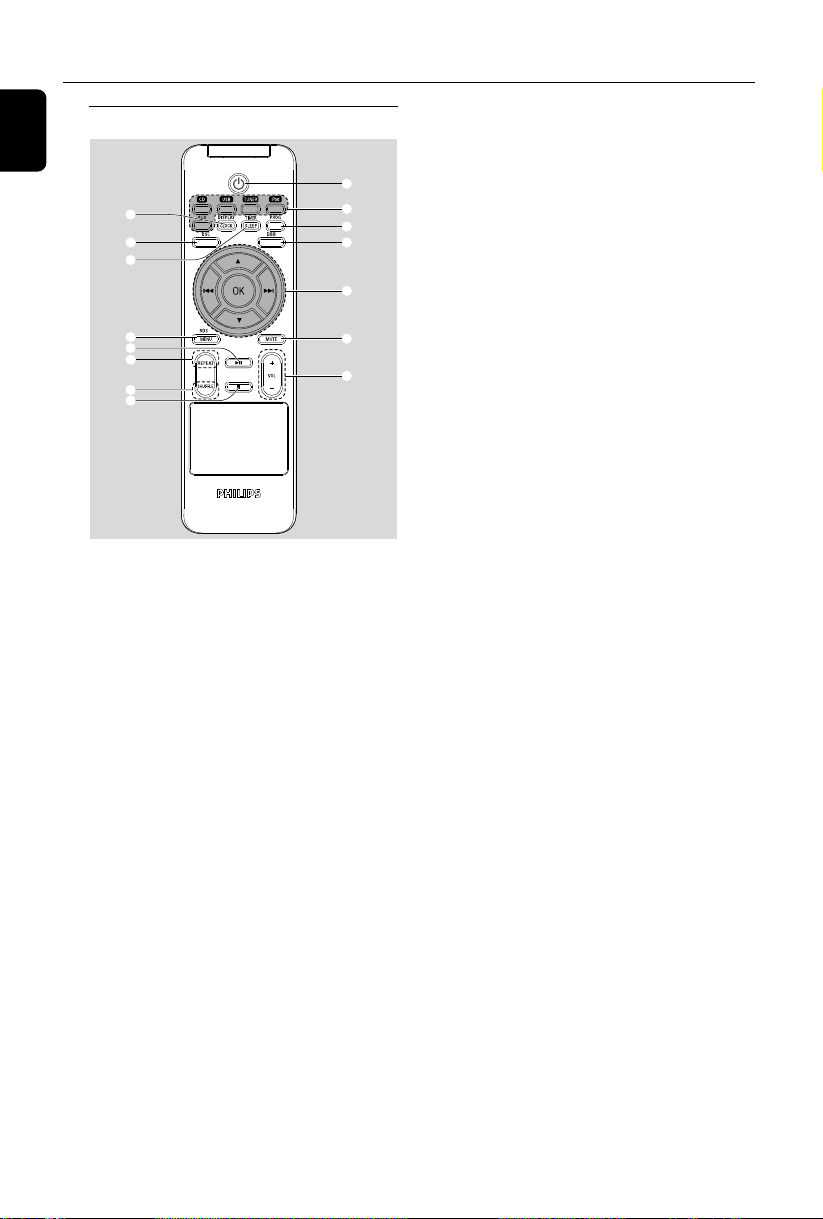

Controls on the set (illustrations
on page 3)
1 DOOR OPEN
– press to open the CD door.
2
– jack for the external USB mass storage device
3 PROGRAM
CD/USB: programs tracksTuner: programs preset radio stations
4 VOLUME
– adjusts the volume level – Clock/Timer: adjusts the hours and minutes
5 DISPLAY/CLOCK
Clock:
- displays the set time
- In standby mode: enters the clock setting mode (press and hold for more than 2 seconds)
TUNER/Audio CD/iPod/AUX: switches
between clock display and playback display
MP3/WMA files: displays disc information
during playback
6 ALBUM/ PRESET + /-
CD/USB: selects albums (for MP3/WMA only)TUNER: selects a preset radio station
4 / ¢
CD/USB/iPod: skips or searches CD tracks/titles
backwards/forwards
Tuner: tunes to radio stations
ÉÅ
CD/USB/iPod: starts or pauses playback
7 IR
– sensor for the infrared remote control Helpful hints: Always point the remote control
towards this sensor.
8 DSC (Digital Sound Control)
– selects predefined sound settings: ROCK,
JAZZ, POP, CLASSIC, OPTIMAL
9 STANDBY-ON/ ECO POWER
– press briefly to switch the set on or off (standby/
ECO POWER);
In standby or Eco Power mode: press and
hold to toggle between Standby and ECO POWER mode (power-saving mode)
Red indicator: lights up red when the set is
switched to ECO POWER mode
0 MUTE
– switches the sound off temporarily
! DBB (Dynamic Bass Boost)
– turns the bass enhancement on/off
@ SOURCE
– selects sound source CD, USB, TUNER, iPod
or AUX
In standby or Eco Power mode: switches the
set on and selects sound source CD, USB, TUNER, iPod or AUX
# STOP
CD/USB: stops playback; erase a program
English
9
