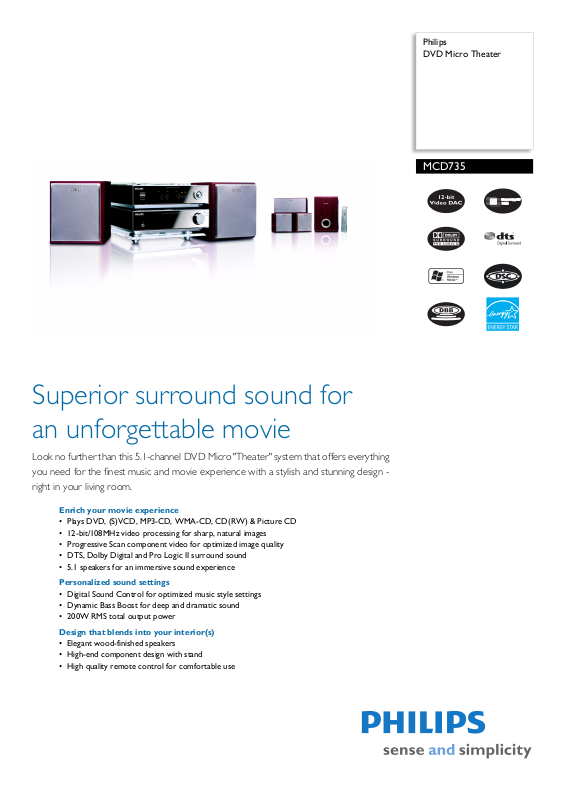

Philips MCD735/37 Leaflet

Philips DVD Micro Theater

MCD735

Superior surround sound for an unforgettable movie

Look no further than this 5.1-channel DVD Micro "Theater" system that offers everything you need for the finest music and movie experience with a stylish and stunning design right in your living room.

Enrich your movie experience

• Plays DVD, (S)VCD, MP3-CD, WMA-CD, CD(RW) & Picture CD

• 12-bit/108MHz video processing for sharp, natural images

• Progressive Scan component video for optimized image quality

• DTS, Dolby Digital and Pro Logic II surround sound

• 5.1 speakers for an immersive sound experience

Personalized sound settings

• Digital Sound Control for optimized music style settings

• Dynamic Bass Boost for deep and dramatic sound

• 200W RMS total output power

Design that blends into your interior(s)

• Elegant wood-finished speakers

• High-end component design with stand

• High quality remote control for comfortable use

DVD Micro Theater

MCD735/37

Specifications Product highlights

Sound

• Output Power: Total 200W

• Sound Enhancement: Digital Sound Control 4 modes, Dynamic Bass Boost

• Sound System: Dolby Prologic II, DTS

Loudspeakers

• Main Speaker: Bass Reflex Speaker System

Video Playback

• Playback Media: DVD+RW, DVD-Video, Picture CD, Video CD/SVCD

• Disc Playback Modes: A-B Repeat, Angle, PBC, Slow Motion, Zoom, Parental control, Dynamic Range Compression

• DVD Region: 1

• Video Enhancement: Progressive Scan

Audio Playback

• Playback Media: WMA-CD, MP3-CD, CD, CD-R, CD-RW

• Disc Playback Modes: 20-Track Programmable, Repeat/one/all/program, Shuffle Play

• Loader Type: Motorised, Top

Tuner/Reception/Transmission

• Tuner Bands: FM Stereo, AM

• Auto digital tuning

• Station presets: 40

Connectivity

• Video Output - Analog: Component Y Pb Pr (cinch), Composite CVBS (yellow cinch), S-Video

(on Hosiden)

• Aux in: 2x(L/R)/ RCA

• Other connections: Digital audio coaxial out, Digital optical out, FM Antenna, Line out, AM Antenna, AV out, Easy-Fit speaker connectors

• Headphone: 3.5 mm

Convenience

• Alarms: CD Alarm, Sleep timer

• Clock: On main display

• Display Type: White FTD

• OSD Languages: English, French, Spanish

Accessories

• Included Accessories: Control cable, AM/FM Antenna, Audio/Video cable, Quick Use Guide, Guarantee booklet

• Remote control: 49-key with 2xAAA batteries

• IFU / User Manual: English, French, Spanish

Dimensions

• Set dimensions (W x H x D): 210

x 135 x 255 mm

• Surround Speaker dimensions (W x H x D): 130

x 155 x 155 mm

• Center speaker dimensions (W x H x D): 285

x 135 x 155 mm

• Subwoofer dimensions (W x H x D): 180

x 270 x 330 mm

• Packaging dimensions (W x H x D): 794

x 314 x 377 mm

• Weight incl. Packaging: 18.9 kg

•

12-bit/108MHz video DAC

12-bit Video DAC is a superior Digital-to-AnalogueConverter that preserves every detail of the authentic picture quality. It shows subtle shades and smoother graduation of colors, resulting in a more vibrant and natural picture. The limitation of the usual 10bit DAC become in particular apparent while using large screens and projectors.

Progressive Scan

Progressive Scan doubles the vertical resolution of the image resulting in a noticeably sharper picture. Instead of se nd ing a field compris in g t he od d l ines to the screen firs t, followed by the field with the even lines, both fields are written at one time. A full image is created instantaneously, using the maximum resolution. At such a speed, your eye perceives a sharper picture with no line structure.

DTS, DolbyDigital, ProLogic ll

A built-in DTS and Dolby Digital decoder eliminates the need for an external decoder by processing all six channels of audio information to provide a surround sound experience and an astoundingly natural sense of ambience and dynamic realism. Dolby Pro Logic II provides five channels of surround processing from any stereo source.

Digital Sound Control

Digital Sound Control offers you a c hoice of pre-set Jazz, Rock, Pop and Classic controls you can use to optimise the frequency ranges for different musical styles. Each mode uses graphic equalizing technology to automatically adjust the sound balance and enhance the most important sound frequencies in your chosen music style. Ultimately, Digital Sound Control makes it easy for you get the most out of your music by precisely adjusting the sound balance to match the type of music you are playing.

Dynamic Bass Boost

Dynamic Bass Boost maximizes your music enjoyment by emphasizing the bass content of the music throughout the range of volume settings - from low to high – at the touch of a button! Bottom-end bass frequencies usually get lost when the volume is set at a low level. To counteract this, Dynamic Bass Boost can be switched on to boost bass levels, so you can enjoy consistent sound even when you turn down the volume.

High-end component design

The component-designed DVD micro system comes with a stand that features four triangular feet. It can prevent any audio frequency distortion due to vibration, overheating and electromagnetic interference generated from the amplifier and DVD loader. The result is smooth and excellent and sound reproduction.

Issue date 2009-02-12

Version: 1.0.5

12 NC: 8670 000 25022 UPC: 6 09585 12132 4

Specifications are subject to change without notice. Trademarks are the property of Koninklijke Philips Electronics N.V. or their respective owners.
