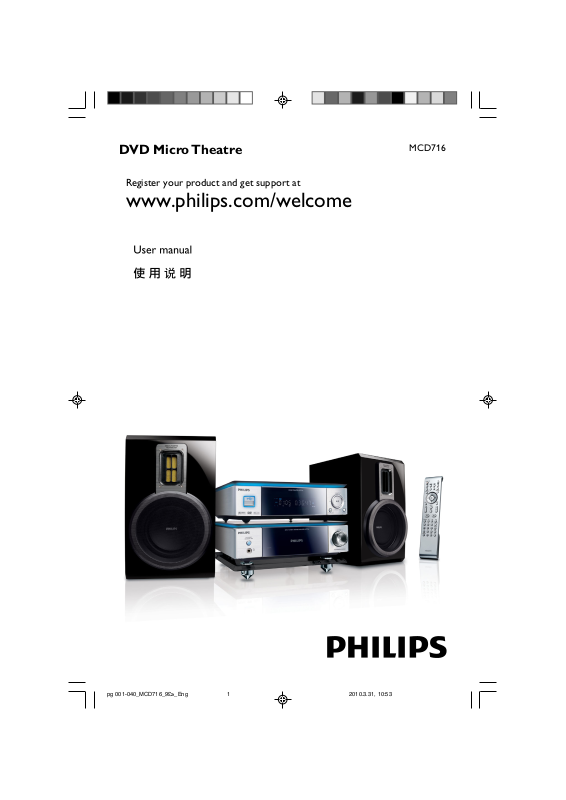

DVD Micro Theatre
Register your product and get support at
www.philips.com/welcome
MCD716
Manufactured under license from Dolby
Laboratories.
"Dolby", "Pro-logic", “Pro-logic II” and the doubleD symbol are trademarks of Dolby Laboratories.
MANUFACTURED UNDER LICENSE FROM
DIGITAL THEATER SYSTEMS, INC. US PAT. NO
5,451,942,5,956,674, 5,974,380, 5,978,762 AND
OTHER WORLDWIDE
This product incorporates copyright protection
technology that is protected by method claims of
certain U.S. patents and other intellectual
property rights owned by Macrovision
Corporation and other rights owners. Use of this
copyright protection technology must be
authorized by Macrovision Corporation, and is
intended for home and other limited viewing
uses only unless otherwise authorized by
Macrovision Corporation. Reserve engineering
or disassembly is prohibited.
DivX, DivX Certified, and associated
logos are trademarks of DivXNetworks,
Inc and are used under license.
Windows Media is a
trademark of Microsoft
Corporation.
2
CAUTION
Use of controls or adjustments or
performance of procedures other
than herein may result in hazardous
radiation exposure or other unsafe
operation.
Index
English ------------------------------------------------ 7
-------------------------------------------------------- 41
English
3
Contents
English
General Information
Features .................................................................. 6
Supplied accessories ............................................ 6
Environment information ................................... 6
Installation .............................................................. 6
Maintenance .......................................................... 7
Hearing Safety ....................................................... 7
Connections
Step 1: Placing speakers ...................................... 8
Step 2: Connecting speakers .............................. 9
Step 3: Connecting the control cable .............. 9
Step 4: Connecting TV .................................. 9~11
Step 5: Connecting FM antenna ..................... 11
Step 6: Connecting the power cord............... 12
Additional: Connecting additional equipment ...
................................................................................ 12
Additional connection: Connecting a USB
device or memory card .................................... 13
Functional Overview
DVD player and power amplifier .................... 14
Remote control ........................................... 15~16
Getting Started
Step 1: Inserting batteries into the Remote
Control ................................................................. 17
Step 2: Setting up the TV ........................... 17~18
Step 3: Setting language preference ................ 19
Basic Functions
Switching the system on/off ............................. 20
Volume control ................................................... 20
Sound control ..................................................... 20
Dimming the display screen ............................. 20
Demonstration mode ........................................ 20
Using the Remote Control to operate the Player
Setting up Progressive Scan feature
To deactivate Progressive manually
DBB (Dynamic Bass Boost)
DSC (Digital Sound Control)
LOUDNESS
Disc Operations
Playable Discs ...................................................... 21
Region Codes ...................................................... 21
Playing discs ......................................................... 21
Using the Disc Menu ......................................... 22
Basic playback controls .............................. 22~24
Pausing playback (DVD/VCD/CD/MP3/DivX/
WMA)
Selecting a track/chapter/title (DVD/VCD/DivX/
CD)
Resuming playback from the last stopped point
(DVD/VCD/CD)
Zoom (DVD/VCD/DivX/JPEG)
Repeat (DVD/VCD/CD/MP3/DivX/WMA)
Repeat A-B (DVD/VCD/CD/MP3/DivX/WMA)
Slow Motion (DVD/VCD)
Program (not for Picture CD)
Forward/Reverse Searching (DVD/VCD/DivX/CD/
MP3/WMA)
Time search & search by chapter/track number
(DVD/VCD/CD/MP3/WMA)
Information display during playback (not for
Picture CD)
Special disc features ........................................... 24
Playing a Title (DVD)
Camera Angle (DVD)
Changing the Audio Language (for DVD recorded
with multiple languages)
Changing the Audio Channel (for VCD/DivX only)
Subtitles (DVD)
Playing MP3/WMA/JPEG Picture disc ............ 24
Playing MP3/WMA disc ..................................... 24
General operation
Playback selection
Playing JPEG Picture CD................................... 25
General operation
Playback selection
Special JPEG features .................................. 25~26
Preview function (JPEG)
Zoom picture (JPEG)
Slide show playback modes (JPEG)
Playback with multi-angles (JPEG)
Playing a DivX disc ............................................. 26
4
System Menu Options
Basic Operations ................................................ 27
GENERAL SETUP PAGE ........................... 27~28
TV DISPLAY
OSD LANGUAGE
SCREEN SAVER
DIVX(R) VOD
AUDIO SETUP PAGE ................................ 28~29
SPDIF SETUP
DOLBY DIGITAL SETUP
3D PROCESSING
HDCD
NIGHT MODE
VIDEO SETUP PAGE ................................. 29~30
COMPONENT
TV MODE
QUALITY
PREFERENCE PAGE.................................... 30-31
PARENTAL
DEFAULT
PASSWORD SETUP
Other Functions
Radio reception .................................................. 32
Tuning to radio stations
Presetting radio stations
Listening to preset radio stations
Setting the clock ................................................. 32
Setting sleep/wake-up timer ..................... 32~33
Sleep timer setting
Wak e-up timer setting
Contents
English
External Sources
Using a non-USB device.................................... 34
Using a USB mass storage device ............ 34~35
Specifications ........................................... 36
Tr oubleshooting ............................. 37~39
Glossary ......................................................... 40
5
General Information
English
Congratulations on your purchase and welcome
to Philips!
To fully benefit from the support that Philips
offers, register your product at www.philips.com/
welcome.
Features
Your DVD Micro Theatre with 2.0 channel full
digital amplifier creates the same dynamic sound
qualities that you find in full-fledged cinemas and
incorporates some of the best features in home
theater technology.
Other features include:
Built-in Dolby Digital decoder, supporting and
DSC sound setting.
Additional Component Connections
Lets you connect other audio and audio/visual
components to the DVD micro theatre.
Night mode
Lets you compress the dynamic range, reducing
the difference in loudness between different
sounds in Dolby Digital mode.
Supplied accessories
– Remote control with two AAA batteries
– FM wire antenna
– Composite video (yellow) cable
– Control cable
– Stand for the DVD player and power
amplifier
– This instruction booklet and a Quick Star t
Guide
If any item is damaged or missing, contact
your retailer or Philips.
Environmental information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialised company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old
equipment.
Parental Control (Rating Level)
Lets you set a ratings level so that your children
cannot watch a DVD that has a rating higher
than you set.
Sleep/Wake-up Timer
Enables the system to switch on/off automatically
at a preset time.
Progressive Scan
Provides high quality flicker-free images for film
based sources. When a picture refreshes, its
ver tical resolution can double to 525 lines.
Note:
To fully enjoy the progressive scan feature, you
need a progressive scan TV.
6
Installation
● Place the player on a flat, hard, and stable surface.
● In a cabinet, allow about 10cm (4 inches) of free
space all around the player for adequate
ventilation.
● Do not expose your player to extreme
temperatures or humidity.
● The apparatus shall not be exposed to dripping
or splashing.
● No objects filled with liquids, such as vases, shall
be placed on the apparatus.
● No naked flame sources, such as lighted candles,
shall be placed on the apparatus.
● Install this unit near the AC outlet and where the
AC power plug can be reached easily.
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newpapers, table-cloths, curtains, etc.
General Information
Maintenance
● When a disc becomes dirty,
clean it with a cleaning cloth.
Wipe the disc from the center
out, in a straight line.
● Do not expose the player,
batteries or discs to humidity,
rain, sand or excessive heat
(caused by heating equipment or direct sunlight).
Always keep the disc tray closed to avoid dust
on the lens.
● Do not use solvents such as benzene, thinner,
commercially available cleaners, or anti-static
spray intended for colour discs.
● The lens may cloud over when the player is
suddenly moved from cold to warm
surroundings, making it impossible to play a disc.
Leave the player in the warm environment until
the moisture evaporates.
Hearing Safety
Listen at a moderate volume.
● Using headphones at a high volume can impair
your hearing. This product can produce sounds
in decibel ranges that may cause hearing loss for
a normal person, even for exposure less than a
minute. The higher decibel ranges are offered
for those that may have already experienced
some hearing loss.
● Sound can be deceiving. Over time your hearing
"comfort level" adapts to higher volumes of
sound. So after prolonged listening, what sounds
"normal" can actually be loud and harmful to
your hearing. To guard against this, set your
volume to a safe level before your hearing
adapts and leave it there.
To establish a safe volume level:
● Set your volume control at a low setting.
● Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Listen for reasonable periods of time:
● Prolonged exposure to sound, even at normally
"safe" levels, can also cause hearing loss.
● Be sure to use your equipment reasonably and
take appropriate breaks.
English
Be sure to observe the following
guidelines when using your headphones.
● Listen at reasonable volumes for reasonable
periods of time.
● Be careful not to adjust the volume as your
hearing adapts.
● Do not turn up the volume so high that you
can't hear what's around you.
● You should use caution or temporarily
discontinue use in potentially hazardous
situations.
● Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it
may create a traffic hazard and is illegal in many
areas.
7
Connections
Front
speaker
( left )
Front
speaker
( right )
VIEWING AREA
English
AC power
FM antenna
Speaker
(right)
IMPORTANT!
– The type plate is located at the
bottom of the system.
– Before connecting the AC power cord
to the wall outlet, ensure that all
other connections have been made.
–Never make or change any
connections with the power switched on.
Speaker
(left)
Step 1: Placing speakers
Place the front left and right speakers at equal
distances from the TV set and at an angle of
approximately 45 degrees from the listening
position.
8
Notes:
–To avoid magnetic interference, do not position
the front speakers too close to your TV set.
– Allow adequate ventilation around the DVD
System.
Connections
Step 2: Connecting speakers
Connect the speaker wires to the SPEAKERS
terminals, right speaker to “R” and left speaker to
“L”, coloured (marked) wire to “+” and black
(unmarked) wire to “–”. Fully insert the stripped
portion of the speaker wire into the terminal as
shown.
1
Notes:
– Ensure that the speaker cables are correctly
connected. Improper connections may damage the
system due to short-circuit.
–For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker jacks.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
2
Step 3: Connecting the control
cable
● Connect the serial port marked “CONTROL
CABLE” at the rear of the DVD player to the
same port at the rear of the power amplifier
with the supplied flat control cable.
Step 4: Connecting TV
IMPORTANT!
–You only need to make one video
connection from the following options,
depending on the capabilities of your TV.
– Connect the DVD system directly to
the TV.
Using Composite Video jack
2
1
1 Use the supplied composite video cable (yellow)
to connect the DVD system's VIDEO OUT
jack to the video input jack (or labeled as A/ V In,
CVBS, Composite or Baseband) on the TV.
2 To hear the TV channels through this DVD
system, use the audio cables (white/red) to
connect AUX IN jacks to the corresponding
AUDIO OUT jacks on the TV.
English
9
Connections
English
Using Component Video jacks (Y Pb Pr)
IMPORTANT!
– The progressive scan video quality is
only possible when using Y Pb Pr, and a
progressive scan TV is required.
2
1
1 Use component video cables (red/blue/green -
not supplied) to connect the DVD system's Y Pb
Pr jacks to the corresponding Component video
input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV)
on the TV.
2 To hear the TV channels through this DVD
system, use the audio cables (white/red) to
connect AUX IN jacks to the corresponding
AUDIO OUT jacks on the TV.
3 If you are using a Progressive Scan TV (TV must
indicate Progressive Scan or ProScan capability),
to activate TV Progressive Scan, please refer to
your TV user manual. For DVD system
Progressive Scan function, see “Getting StartedSetting up Progressive Scan feature”.
Using S-Video jack
IMPORTANT!
– If S-Video is used for DVD playback
connection, the system’s VIDEO OUT
setting will need to be changed
accordingly.
2
1
1 Use an S-Video cable (not supplied) to connect
the DVD system’s S-VIDEO jack to the S-Video
input jack (or labeled as Y/C or S-VHS) on the
TV.
2 To hear the TV channels through this DVD
system, use the audio cables (white/red) to
connect AUX IN jacks to the corresponding
AUDIO OUT jacks on the TV.
Note:
– If your TV does not support Progressive Scan,
you will not be able to view the picture.
Press SYSTEM MENU on the remote to exit the
system menu and then DISC and “1” to exit
progressive scan.
10
C
Connections
Using an accessory RF modulator
IMPORTANT!
– If your TV only has a single Antenna In
jack (labeled as 75 ohm or RF In), you
will need an RF modulator in order to
view DVD playback on the TV. See your
electronics retailer or contact Philips for
details on RF modulator availability and
operations.
ANT IN
RF coaxial cable to TV
2
AUDIO IN
TO TVINT IN
VIDEO
IN
R L
CH3
3
1
1 Use the composite video cable (yellow) to
connect the DVD system’s VIDEO OUT jack to
the video input jack on the RF modulator.
2 Use an RF coaxial cable (not supplied) to
connect ANTENNA OUT or TO TV jack on the
RF modulator to the Antenna IN jack on the TV.
3 Connect the Antenna or Cable TV service signal
to the ANTENNA IN or RF IN jack on the RF
modulator. (It may have been connected to your
TV previously. Disconnect it from the TV.)
Step 5: Connecting FM
antenna
FM
antenna
● Connect the supplied FM antenna to the FM (75
Ω) jack. Extend the FM antenna and fix its end to
the wall.
For better FM stereo reception, connect an
external FM antenna (not supplied).
Note:
– Adjust the position of the antenna for optimal
reception.
–Position the antennas as far as possible from
your TV, VCR or other radiation source to prevent
unwanted interference.
English
11
Connections
English
Step 6: Connecting the power
cord
After everything is conec ted properly,
plug in the AC power cord to the power
outlet.
Never make or change any connection with the
power switched on.
Additional: Connecting
additional equipment
IMPORTANT!
– Some discs are copy-protected. You
cannot record the disc through a VCR or
digital recording device.
–When making connections, make sure
the colour of cables matches the colour
of jacks.
–Always refer to the owner’s manual of
the other equipment for complete
connection and usage details.
VCR
(for example)
VIDEO IN
AUDIO IN
L
R
B
C
CD Recorder
(for example)
Viewing and listening to the playback of
other equipment A
● Connect the system's AUX IN jacks to the
AUDIO OUT jacks on the other audio/visual
device (such as a TV, VCR, Laser Disc player or
cassette deck).
Before starting operation, press SOURCE on
the front panel to select AUX or press AUX on
the remote in order to activate the input source.
Using the VCR for recording DVDs B
● Connect one of the system's VIDEO OUT
jacks to the corresponding VIDEO IN jack and
LINE OUT (R/L) jacks to the AUDIO IN jacks
on the VCR. This will allow you to make analogue
stereo (two channel, right and left) recordings.
Recording (digital) C
● Connect the system's COAXIAL jack to the
DIGITAL IN jack on a digital recording device.
Before starting operation, set the DIGITAL OUT
according to the audio connection. (See
"DIGITAL OUT".)
12
TV
(for example)
A
AUDIO OUT
L
R
Connections
Additional connection:
Connecting a USB device or
memory card
By connecting a USB mass storage device
(including USB flash memory, USB flash players
or memory cards) to the Hi-Fi system, you can
enjoy the device's stored music through the
powerful speakers of Hi-Fi system.
● Inser t the USB device's USB plug into the
socket on the set.
for the devices with USB cables:
1 Inser t one plug of the USB cable (not supplied)
to the socket on the set.
2 Inser t the other plug of the USB cable to the
USB output terminal of the USB device.
for the memory card:
1 Inser t the memory card into a card reader (not
supplied).
2 Use a USB cable (not supplied) to connect the
card reader into the socket on the set.
English
13
Functional Overview
English
8 2 43
1 0 !
@
DVD player and power amplifier
1 STANDBY-ON y
– switches the system on or to standby mode.
2 Display
– shows the current status of the DVD player.
3 ÉÅ
– starts or interrupts disc playback.
4 PRESET +
– in tuner mode, selects a preset radio station
forward.
5 PRESET-/9
– stops disc playback or erases a program.
– in tuner mode, selects a preset radio station
backward.
– in Demo mode (on the system only), activates/
deactivates the demonstration.
6 ¡/™
Disc:
– skips to the previous/next chapter/title/track.
Tuner:
– tunes to a higher/lower radio frequency.
6 6
957
– press and hold, then release the key to
start automatic search for a radio frequency
downward/upward.
7 OPEN•CLOSE ç
– opens or closes the disc tray.
8 USB DIRECT
– is the jack for the external USB mass storage
device.
9 SOURCE
– to select the respective sound source : TUNER,
DISC, USB or AUX.
– switches the system on.
0 IR SENSOR
– point the remote control towards this sensor.
! VOLUME -/+
– adjusts the volume upward/downward.
– adjusts the hours and minutes in clock/timer
setting mode.
– switches the set timer ON or OFF.
@ n
– connects a headphone.
14
Functional Overview
Remote control
1 STANDBY-ON y
– switches the system on or to standby mode.
2 Numeric Keypad (0-9)
– inputs a track/title/chapter number of the disc.
1
4
™
$
5
8
7
8
∞
0
@
&
*
2
3
3 PROGRAM
–DVD/VCD/CD/MP3-CD/USB: enters the
program menu.
– Picture CD: during playback, to select a slide
show mode.
–Tuner: programs preset radio stations.
4 SOURCE
– to select the respective sound source : TUNER,
DISC, USB or AUX.
5 SYSTEM MENU (disc mode only)
– to enter or exit the system menu bar.
6 DISC MENU (disc mode only)
–DVD/VCD: enters or exits the disc contents
menu.
– VCD2.0: switches the playback control mode on
ª
or off .
7 2/3
¡
£
6
7
9
º
)
#
⁄
!
•
(
^
%
≤
§
≥
Tuner
– press to tune to a lower/higher radio frequency
gradually.
– press and hold, then release the key to star t
automatic search for a radio frequency
downward/upward.
Disc/USB
– searches fast backward/forward.
– In DISC mode, to select a movement direction
in the disc menu or system menu bar.
8 3/4
– In DISC mode, to select a movement direction
in the disc menu or system menu bar.
9 OK
– to exit or confirm the selection.
0 í/ë
– Disc: skips to the previous/next chapter/title/
track.
–Tuner: selects a preset radio station.
! 9
– In DISC/USB mode, to stop playback or clear a
program.
@ 2;
– In DISC/USB mode, to start or interrupt
playback.
English
15
Functional Overview
English
# VOL +/-
– adjusts the volume upward/downward.
– adjusts the hours and minutes in clock/timer
setting mode.
– selects a source in timer setting mode.
$ MODE
– selects various repeat modes or the shuffle play
mode for a disc.
% SUBTITLE
– selects a subtitle language.
^ SLEEP/TIMER
Standby mode
– sets time for switching on the system
automatically.
Power-on mode
– sets the sleep timer function (auto off).
& LOUDNESS
– enables or disables automatic loudness
adjustment.
* DSC
– selects different types of preset sound equalizer
settings (CLASSIC, JAZZ, ROCK, POP or FLAT).
( DBB
– enables or disables bass enhancement.
) DISPLAY
– displays information on TV screen during
playback.
¡ SLOW
– selects different slow playback modes for a VCD/
SVCD/DVD.
™ A-B
–for VCD/CD/USB: to repeat a specific section
within the same track.
–for DVD: to repeat a specific section in a disc.
£ DIM
– selects different levels of brightness for the
display screen.
≤ AUDIO
for VCD
– sets Stereo, Mono-Left or Mono-Right sound
mode.
for DVD
– selects an audio language.
∞ ZOOM
–DVD/VCD/Picture CD: enlarges or reduces a
picture or active image on the TV screen.
§ RDS (unavailable for this version)
≥ GOTO
– In DISC mode, to fast search in a disc by
entering a time, title, chapter or track.
• CLOCK
Standby mode
*– sets the system clock.
Playback mode
– displays the system clock.
ª 0
– opens or closes the disc tray.
º ANGLE
– selects a DVD camera angle.
⁄ MUTE
– to interrupt or resume sound reproduction.
Notes for remote control:
– First, select the source you wish to
control by pressing one of the source select
keys on the remote control (DISC or
TUNER, for example).
– Then select the desired function ( 2;, í,
ë for example).
16
Getting Started
Step 1: Inserting batteries into
the Remote Control
3
1
2
1 Open the battery compar tment.
2 Insert two AAA batteries following the
indications (+/-) inside the compartment.
3 Close the cover.
Using the Remote Control to operate
the Player
1 Aim the Remote Control
directly at the remote sensor
(IR) on the front panel.
2 Do not put any objects
between the Remote Control
and the DVD Player while
operating the DVD Player.
CAUTION!
– Remove batteries if
they are exhausted or if the Remote
Control is not being used for a long time.
– Do not use old and new or different
types of batteries in combination.
– Batteries contain chemical substances,
so they should be disposed of properly.
Step 2: Setting up the TV
IMPORTANT!
Make sure you have completed all the
necessary connections. (See
“Connecting TV”).
1 Switch the DVD system on and then select DISC
source. (See “Switching the system on/off ”).
2 Turn on the TV and set to the correct video-in
channel. You should see the blue Philips DVD
background screen on the TV.
➜ Usually these channels are between the
lowest and highest channels and may be called
FRONT, A/V IN, or VIDEO. See your TV manual
for more details.
➜ Or, you may go to channel 1 on your TV, then
press the Channel down button repeatedly until
you see the Video In channel.
➜ Or, the TV Remote Control may have a
button or switch that chooses different video
modes.
➜ Or, set the TV to channel 3 or 4 if you are
using an RF modulator.
Setting up Progressive Scan feature (for
Progressive Scan TV only)
The progressive scan display twice the number
of frames per seconds than interlaced scanning
(ordinary normal TV system). With nearly double
the number of lines, progressive scan offers
higher picture resolution and quality.
IMPORTANT!
Before enabling the progressive scan
feature, you must ensure:
1) Your TV can accept progressive signals, a
progressive scan TV is required.
2) You have connected the DVD player to your
TV using Y Pb Pr (see “Connections-Step 4:
Connecting TV- Using Component Video jacks”.)
1 Tu rn on your TV.
2 Tu rn off your TV progressive scan mode or turn
on interlaced mode (refer to your TV user
manual).
3 Press STANDBY-ON y to turn on the DVD
player.
4 Select the correct Video Input channel.
➜ The DVD background screen appears on the
TV.
5 Press SYSTEM MENU.
English
17
Getting Started
English
6 Press 1 2 repeatedly to select "VIDEO SETUP
PAGE".
7 Select "TV MODE" to "PROGRESSIVE", then
OK to confirm.
➜ The instruction menu appears on the TV.
8 Press 1 2 to highlight OK in the menu and
press OK to confirm.
There will be a distorted picture on your
TV at this state until you turn on the
progressive scan mode on your TV.
9 Tu rn on your TV progressive scan mode (refer
to your TV user manual).
➜ The below menu appears on the TV.
1 Tu rn off your TV progressive scan mode or turn
on to interlaced mode (refer to your TV user
manual).
2 Press SYSTEM MENU on the remote to exit
the system menu and then DISC and “1” to exit
progressive scan.
➜ The DVD blue background screen will appear
on the TV.
Note:
– During normal playback in the progressive scan
mode, pressing DISC button and “1” will exit the
progressive scan mode.
0 Press 1 2 to highlight OK in the menu and
press OK to confirm.
➜ The setup is complete now and you can start
enjoy the high quality picture.
To deactivate Progressive manually
● When the distorted sign still appears on
the TV, it may be due to the connected TV
does not accept progressive signals, and
progressive is set by mistake. You must reset the
unit to interlace format.
18
Getting Started
FRENCH
SPANISH
CHINESE
JAPANESE
KOREAN
RUSSIAN
THAI
Step 3: Setting language
preference
You can select your own preferred language
settings. This DVD system will automatically
switch to the selected language whenever you
load a disc. If the language selected is not
available on the disc, the disc’s default language
will be used instead. The OSD language in the
system menu will remain once selected.
Setting the OSD Language
DIVX (R) VOD
1 Press SYSTEM MENU.
2 Press 1 2 to select “GENERAL SETUP PAGE”.
3 Use 1 2 3 4 on the remote to navigate in the
menu.
Move to “OSD LANGUAGE” and press 2.
4 Select a language and press OK.
Setting the Audio, Subtitle and Disc
Menu language
1 Press SYSTEM MENU in stop mode.
2 Press 1 2 to select “PREFERENCE PAGE”.
3 Press 3 4 to highlight the following in the
Preference Page.
–“AUDIO” (disc’s soundtrack)
–“SUBTITLE” (disc’s subtitles)
–“DISC MENU” (disc’s menu)
4 Enter its submenu by pressing 2.
5 Select a language and press OK.
6 Repeat steps 3~5 for other language settings.
To exit from the menu
● Press SYSTEM MENU again.
English
To exit from the menu
● Press SYSTEM MENU again.
19
Basic Functions
English
Switching the system on/off
● Press STANDBY-ONB.
● Press DISC, TUNER, USB or AUX on the
remote control.
➜ The system will switch to the selected source.
DSC (Digital Sound Control)
DSC provides a different type of preset sound
equalizer setting.
● Press DSC on the remote control repeatedly to
select: FLAT, POPS, JAZZ, CLASSIC or ROCK.
To switch the system to standby mode
● Press STANDBY-ONB.
● The interactive sound settings, last selected
source and tuner presets will be retained in the
player’s memory.
Volume control
Tu r n VOLUME (-/+) clockwise or anticlockwise
(or press VOL +/- on the remote) to increase
or decrease the volume level.
➜ ”VOL XX” is displayed on the display panel.
“XX” denotes the volume level.
To switch off the volume temporarily
● Press MUTE on the remote.
➜ Playback will continue without sound and
“MUTING” flashes.
● To activate sound reproduction, you can:
– press MUTE again;
– adjust the volume controls;
– change source.
Sound control
DBB, DSC and LOUDNESS sound features
cannot be activated at the same time.
DBB (Dynamic Bass Boost)
DBB enhances the bass response.
● Press DBB on the remote control to enable/
disable DBB feature.
➜ Some discs might be recorded in high
modulation, which causes a distortion at high
volume. If this occurs, switch off DBB or reduce
the volume.
LOUDNESS
LOUDNESS feature enables the system to
automatically increase the treble and bass sound
effect at low volume (the higher the volume, the
lower the treble and bass increase).
● Press LOUDNESS on the remote to enable
or disable LOUDNESS feature.
➜ icon appears/disappears after this feature
is enabled/disabled.
Dimming the display screen
● Press DIM repeatedly to select different levels
of brightness for the display screen.
Demonstration mode
The system has a demonstration mode that
shows the various features offered by the
system.
To activate the demonstration
● In standby mode, press PRESET-/9 on the
system to activate the demo mode.
➜ Demonstration will begin.
To deactivate the demonstration
● Press PRESET-/9 on the system again.
➜ “DEMO OFF” is displayed.
Note:
– Even if you remove the AC power cord and
reconnect it to the wall socket, the demonstration
will remain off until you activate it again.
20
Disc Operations
ALL
3
IMPORTANT!
– Depending on the DVD or VIDEO CD,
some operations may be different or
restricted.
– Do not push on the disc tray or put
any objects other than disc on the disc
tray. Doing so may cause the disc player
malfunction.
– If the inhibit icon (ø) appears on the
TV screen when a button is pressed, it
means the function is not available on
the current disc or at the current time.
Playable Discs
Your DVD Player will play:
– Digital Video Discs (DVDs)
– Video CDs (VCDs)
– Super Video CDs (SVCDs)
– Digital Video Discs + Rewritable (DVD+RW)
– Compact Discs (CDs)
– Picture (Kodak, JPEG) files on CDR(W)
– DivX(R) disc on CD-R(W):
– DivX 3.11, 4.x and 5.x
– DivX Ulta
– WMA
– Supported MP3-CD format.
• ISO 9660 / UDF format
• Max. title/album name –12 characters
Max. title number plus album is 255.
• Max. nested directory is 8 levels.
• The max. album number is 32.
• The max. MP3 track number is 999.
• Supported sampling frequencies for MP3 disc:
32 kHz, 44.1 kHz, 48 kHz.
• Supported Bit-rates of MP3 disc are: 32, 64,
96, 128, 192, 256 (kbps).
– Following formats can’t be supported
• The files like *.VMA, *.AAC, *.DLF, *.M3U,
*.PLS, *.WAV
• Non-English Album/Title name
• The discs recorded under Joliet format
• MP3 Pro and MP3 with ID3 tag
Region Codes
DVDs must be labeled as shown below in order
to play on this DVD system. You cannot play
discs that are labeled for other regions.
Note:
– If you are having trouble playing a certain disc ,
remove the disc and try a different one. Improper
formatted disc will not play on this DVD Player.
Playing discs
1 Connect the power cords of the system and TV
(or any optional stereo or AV receiver) to a
power outlet.
2 Tu rn on the TV power and set to the correct
Video In channel. (See “Setting up the TV”).
3 Press STANDBY-ON y on the DVD Player
front panel or B on the remote.
➜ You should see the blue Philips DVD
background screen on the TV.
4 Press OPEN•CLOSE 0 to open the disc tray
and load in a disc, then press the same button
again to close the disc tray.
➜ Make sure the label side is facing up.
5 Playback will star t automatically (depending on
the disc type).
➜ If a disc menu appears on the TV, see “Using
the Disc Menu”.
➜ If the disc is locked by parental control, you
must enter your four-digit password. (See
“PASSWORD SETUP PAGE”).
6 At any time, simply press PRESET-/9 (9 on the
remote control) to stop playback.
English
21
Disc Operations
English
Using the Disc Menu
Depending on the disc, a menu may appear on
the TV screen once you load the disc.
To select a playback feature or item
● Use 1 2 3 4 and OK or Numeric Keypad
(0-9) on the remote.
➜ Playback will start automatically.
Resuming playback from the last
stopped point (DVD/VCD/CD)
● In stop mode and when a disc has not been
removed, press ÉÅ.
To cancel resume mode
● In stop mode, press PRESET-/9 (9 on the
remote) again.
To access or exit from the menu
● Press DISC MENU on the remote.
For VCD with Playback Control (PBC)
feature (version 2.0 only)
PBC playback allows you to play Video CDs
interactively, following the menu on the display.
● During playback, press DISC MENU.
➜ If PBC was ON, it will switch to OFF and
continue playback.
➜ If PBC was OFF, it will switch to ON and
return to menu screen.
Basic playback controls
Pausing playback (DVD/VCD/CD/MP3/
DivX/WMA)
1 During playback, press ÉÅ .
➜ Playback will pause and sound will be muted.
2 Press ÉÅ again to resume.
Selecting a track/chapter/title (DVD/
VCD/DivX/CD)
1 Press ™ during playback to go to the next
chapter/track
2 Press ¡ to go to the previous chapter/track.
3 To go directly to any chapter/track/title, enter the
chapter/track/title number using the Numeric
Keypad (0-9).
Zoom (DVD/VCD/DivX/JPEG)
Zooming allows you to enlarge or reduce the
video image during playback.
1 Press ZOOM repeatedly to enlarge or reduce
the playback video image.
2 Press 1 2 3 4 to pan across the TV screen.
Repeat (DVD/VCD/CD/MP3/DivX/
WMA)
For DVD/VCD/CD
● Press MODE repeatedly to choose a repeat
mode during playback.
CHAPTER (DVD)
– to repeat playback of the current chapter.
TRACK (CD/VCD)/TITLE (DVD)
– to repeat playback of the current track (CD/
SVCD/VCD)/title (DVD).
ALL
– to repeat playback of all the disc.
SHUFFLE
– to repeat playback at random order.
For MP3/WMA/DivX
● Press MODE continuously to access different
repeat modes.
➜ Shuffle: play all files in the selected folder in
random order.
➜ Repeat One: play an MP3/WMA file
repeatedly.
➜ Repeat All: play all files repeatedly.
➜ Off: switches off the shuffle or repeat mode.
22
Disc Operations
Repeat A-B (DVD/VCD/CD/MP3/DivX/
WMA)
1 Press A-B at your chosen starting point.
2 Press A-B again at your chosen end point.
➜ The section A and B can be set only within
the same chapter/track.
➜ The section will now repeat continuously.
3 To exit the sequence, press A-B again.
Slow Motion (DVD/VCD)
1 Press SLOW on the remote control during
playback to select the required speed: 1/2, 1/4, 1/
8 or 1/16 (backward or forward).
➜ Sound will be muted.
2 To return to normal speed, press ÉÅ.
Note:
– Slow backward is not possible on VCDs.
Program (not for Picture CD)
To select favourite tracks/chapters for playback in
preferred sequence.
For DVD/VCD/CD
PROGRAM:
For MP3/WMA
1 In Stop mode, press DISC MENU to switch
the menu between Album and Filelist.
2 When Filelist is on the screen, press 3 4 to
select the files and press PROGRAM to add
the files to the program list.
3 Press DISC MENU to display the program list.
4 Press PROGRAM to delete unwanted files
from the program list.
Forward/Reverse Searching (DVD/VCD/
DivX/CD/MP3/WMA)
1 Press 2/3 on the remote control during
playback to select the required speed: 2X, 4X,
8X, 16X or 32X (backward or forward).
2 To return to normal speed, press ÉÅ.
Time search & search by chapter/track
number (DVD/VCD/CD/MP3/WMA)
1 Press GOTO until the time or chapter/track
edit box appears.
2 Enter hours, minutes and seconds from left to
right in the time edit box using remote control
numerical keypad.
OR
Enter your desired chapter/track number in the
chapter/track edit box using remote control
numerical keypad.
English
(DVD program for example)
1 Press PROGRAM on the remote to enter the
program mode.
2 Use the Numerical Keypad (0-9) to directly
input the tracks or chapters (single track number
with digit “0” in front, for example “05”).
3 Move the cursor by pressing 1 2 3 4 to
select START.
4 Press OK to start playback.
Information display during playback
(not for Picture CD)
● During playback, press DISPLAY to show disc
information on the TV screen.
For DVD
➜ Title/Chapter Elapsed: displays the
elapsed time of the current title/chapter.
➜ Title/Chapter Remain: displays the remaining
time of the current title/chapter.
➜ Display Off: switches time display off.
23
Disc Operations
English
For Super VCD/VCD/DivX/CD
➜ Single/Total Elapsed: displays the elapsed
time of the current single/total track.
➜ Single/Total Remain: displays the
remaining time of the current single/total track.
➜ Display Off: switches time display off.
Special disc features
Playing a Title (DVD)
1 Press DISC MENU.
➜ The disc title menu appears on the TV screen.
2 Use 1 2 3 4 or Numeric Keypad (0-9) to
select a play option.
3 Press OK to confirm.
Camera Angle (DVD)
● Press ANGLE repeatedly to select different
desired angle.
Changing the Audio Language (for
DVD recorded with multiple languages)
● Press AUDIO repeatedly to select different
audio languages.
Playing MP3/WMA disc
IMPORTANT!
For DRM protected WMA files, use
Windows Media Player 10 (or later) for
CD burning/conversion. Visit
www.microsoft.com for details about
Windows Media Player and WM DRM
(Windows Media Digital Rights
Management).
General operation
1 Load an MP3/WMA disc.
➜ The data disc menu appears on the TV
screen.
2 Use 3 4 to select an album and press OK to
open the album.
Changing the Audio Channel (for VCD
/DivX only)
● Press AUDIO to select the available audio
channels provided by the disc (Mono Left, Mono
Right or Stereo).
Subtitles (DVD)
● Press SUBTITLE repeatedly to select different
subtitle languages.
Playing MP3/WMA/JPEG Picture
CD
IMPORTANT!
You have to turn on your TV and set to
the correct Video In channel. (See
“Setting up the TV”).
24
3 Press 3 4 or use the Numeric Keypad (0-9)
to highlight a track.
4 Press OK to confirm.
➜ The playback will start from the selected
track to the end of the album.
Note:
– The disc reading time may exceed 10 seconds
due to large number of songs compiled onto the
disc.
Playback selection
During playback, you can:
● Press ¡ / ™ to select another track in the
current album.
● Press ÉÅ repeatedly to pause/resume
playback.
● Press DISC MENU on the remote to switch
between Album and Filelist.
Disc Operations
Playing JPEG Picture CD
General operation
1 Load a JPEG Picture CD.
➜ The data disc menu appears on the TV
screen.
2 Use 3 4 to select a folder and press OK to
open the folder.
3 Press 3 4 or use the Numeric Keypad (0-9)
to highlight a picture file.
4 Press OK to confirm.
➜ The playback will start from the selected
picture to the end of the folder.
Playback selection
During playback, you can:
● Press ¡ / ™ to select another file in the
current folder.
● Use 1 2 3 4 on the remote to rotate/flip the
picture files.
● Press ÉÅ repeatedly to pause/resume
playback.
● Press DISC MENU on the remote to switch
between Folder and Filelist.
Special JPEG features
Preview function (JPEG)
This function shows the content of the current
folder or the whole disc.
1 Press PRESET-/9 (9 on the remote) during
playback.
➜ Thumbnails of 12 pictures appears on the TV
screen.
2 Use 1 2 3 4 to highlight “Menu” and press
OK.
To display the other pictures on the
previous/next page
● Press ¡ / ™ .
2 Use 1 2 3 4 to highlight “Prev” or “Next” and
press OK.
Zoom picture (JPEG)
● During playback, press ZOOM repeatedly to
display the picture with different scales.
2 Use 1 2 3 4 to view the zoomed picture.
Slide show playback modes (JPEG)
● During playback, press PROGRAM on the
remote control repeatedly to select different
slide-show playback modes:
Mode 0: None
Mode 1: Wipe Top
Mode 2: Wipe Bottom
Mode 3: Wipe Left
Mode 4: Wipe Right
Mode 5: Diagonal Wipe Left Top
Mode 6: Diagonal Wipe Right Top
Mode 7: Diagonal Wipe Left Bottom
Mode 8: Diagonal Wipe Right Bottom
Mode 9: Extend From Center H
Mode 10: Extend From Center V
Mode 11: Compress To Center H
Mode 12: Compress To Center V
Mode 13: Window H
Mode 14: Window V
Mode 15: Wipe From Edge To Center
Mode 16: Move In From Top
English
2 Use 1 2 3 4 to highlight one of the pictures/
”Slide Show” and press OK to start playback/
slide show.
To enter the remote key function menu
25
Disc Operations
English
Playback with multi-angles (JPEG)
● During playback, press 1 2 3 4 to rotate the
picture on the TV screen.
3: flip the picture vertically.
4: flip the picture horizontally.
1: rotate the picture anti-clockwise.
2: rotate the picture clockwise.
Playing a DivX disc
This DVD player supports the DivX movie
playback that you download from your
computer onto a CD-R/RW (see “System Menu
Options-DIVX(R) VOD registration code” for
more information).
1 Load a DivX disc.
➜ Playback will start automatically. If not press
ÉÅ.
2 If the DivX movie contains external subtitles, the
subtitle menu will appear on the TV screen for
your selection.
● In this case, pressing SUBTITLE on the remote
control will turn on or off the subtitle.
● If multilingual subtitles are embedded on the
DivX disc, pressing SUBTITLE will change the
subtitle language during playback.
Note:
– Subtitle files with the following filename
extensions (.srt, .smi, .sub, .ssa, .ass) are supported
but do not appear on the file navigation menu.
– The subtitle filename have to be the same as
the filename of the movie.
26
System Menu Options
DIVX (R) VOD
Basic operations
1 Press SYSTEM MENU to enter the Setup
Menu.
2 Press 1 2 to select a page to be set.
3 Press 3 4 to highlight an option.
4 Enter its submenu by pressing 2 or OK.
5 Move the cursor by pressing 3 4 to highlight
the selected item.
➜ In cases of value setting, press 1 2 to adjust
values.
6 Press OK to confirm.
To return to the upper-level menu
● Press 1 or OK (in cases of value adjustment).
To exit from the menu
● Press SYSTEM MENU again.
➜ The settings will be stored in the player’s
memory even if the player is switched off.
Note:
– Some of the features in the System Menu
Options are described in “Getting Started”.
GENERAL SETUP PAGE
The options included in General Setup page are:
“TV DISPLAY”, “OSD LANGUAGE”, “SCREEN
SAVER”and “DIVX(R) VOD”.
English
➜ NORMAL/LB: If you have a normal TV. In
this case, a wide picture with black bands on the
upper and lower portions of the TV screen will
be displayed.
➜ WIDE: If you have a wide-screen TV.
OSD LANGUAGE
See “Getting Started-Step 3: Setting language
preference”.
SCREEN SAVER
This function is used to turn the screen saver on
or off.
DIVX (R) VOD
TV DISPLAY
Set the aspect ratio of the DVD Player according
to the TV you have connected.
➜ NORMAL/PS: If you have a normal TV and
want both sides of the picture to be trimmed or
formatted to fit your TV screen.
➜ ON: In STOP, PAUSE or No DISC mode, if
no actions are performed about 3 minutes, the
screen saver will be activated.
➜ OFF: Screen saver is disabled.
27
System Menu Options
English
DIVX(R) VOD
Philips provides you the DivX® VOD (Video On
Demand) registration code that allows you to
rent and purchase videos using the DivX® VOD
service.
For more information, visit us at www.divx.com/
vod.
1 In ‘GENERAL SETUP PAGE’, press 3 4 to
highlight DIVX(R) VOD, then press 2 or OK to
ener its submenu and press OK again to
confirm.
➜ The registration code will appear.
984CXMVD
2 Press OK to exit.
3 Use the registr ation code to purchase or rent
the videos from DivX® VOD service at
www.divx.com/vod. Follow the instructions and
download the video onto a CD-R for playback
on this DVD player.
Notes:
– All the downloaded videos from DivX® V OD can
only be played back on this DVD player.
– Time search feature is not available during
DivX movie playback.
AUDIO SETUP PAGE
The options included in AUDIO SETUP PAGE
are: “SPDIF SETUP”, “DOLBY DIGITAL SETUP”,
“3D PROCESSING”, “HDCD” and “NIGHT
MODE”.
SPDIF SETUP
3D PROCESSING
SPDIF SETUP
The options included in SPDIF SETUP page are:
“OFF”, “SPDIF/RAW” and “SPDIF/PCM”.
SPDIF
SPDIF OUTPUT
➜ OFF: Tur ns off the SPDIF output.
➜ SPDIF/RAW: If you have connected your
DIGITAL OUT (COAXIAL or OPTICAL) to a
multi-channel decoder/receiver.
➜ SPDIF/PCM: Only if your receiver is not
capable of decoding multi-channel audio.
DOLBY DIGITAL SETUP
The option included in Dolby Digital Setup is:
“DUAL MONO”.
DUAL MONO
Select the setting that matches the number of
speakers you have connected.
➜ STEREO: Left mono sound will send output
signals to Left speaker and Right mono sound will
send output signals to Right speaker.
➜ L-MONO: Left mono sound will send output
signals to Left speaker and Right speaker.
➜ R-MONO: Right mono sound will send
output signals to Left speaker and Right speaker.
28
System Menu Options
QUALITY
3D PROCESSING
The option included in 3D PROCESSING page
is: “REVERB MODE”.
REVERB MODE
Reverb mode provides a virtual surround sound
experience using just two speakers.
➜ OFF, CONCERT, LIVING ROOM,
HALL, BATHROOM, CAVE, ARENA and
CHURCH.
HDCD
The option included in HDCD (High Definition
Compatible Digital) is: “FILTER”.
FILTER
Sets the audio output cutoff frequency point
when playing an HDCD disc.
➜ OFF, 44.1K and 88.2K.
NIGHT MODE
In this mode, the high volume outputs are
softened and low volume outputs are brought
upward to an audible level. It is useful for
watching your favourite action movie without
disturbing others at night.
➜ ON: Select this to level out the volume. This
feature is only available for movies with Dolby
Digital mode.
➜ OFF: Select this when you want to enjoy the
surround sound with its full dynamic range.
VIDEO SETUP PAGE
The options included in VIDEO SETUP PAGE
are: “COMPONENT”, “TV MODE” and
“QUALITY”.
COMPONENT
Sets the video output according to your video
connection. This setting is not required if you are
using the VIDEO jack (yellow) to connect the
DVD micro system to your TV.
➜ S-VIDEO: Select this if you have connected
the DVD micro system to your TV using S-Video
jack.
➜ Pr/Cr Pb/Cb Y: Select this if you have
connected the DVD micro system to your TV
using Component video jacks.
TV MODE
Selects interlace or P-SCAN video output mode
when Pr/Cr Pb/Cb Y is selected.
➜ PROGRESSIVE and INTERLACE.
In the progressive scan mode, you can enjoy the
high quality picture with less flickers. It only
works when you have connected the DVD
player's Y Pb Pr jacks to your TV that suppor ts
the progressive video input. Otherwise, a
distorted picture will appear on the TV. For
proper progressive scan set up, see “Getting
started-Setting up Progressive Scan feature”.
English
29
System Menu Options
English
QUALITY
This menu helps you to set the video quality.
1 Press 3 4 to highlight “QUALITY”.
2 Press 2 or OK to enter “QUALITY”.
The options included in QUALITY page are:
“SHARPNESS”, “BRIGHTNESS”, “CONTRAST”,
“GAMMA”, “HUE”, “SATURATION” and “LUMA
DELAY”.
PICTURE SETTING
PREFERENCE PAGE
The options included in Preference page are: “TV
Type”, “AUDIO”, “SUBTITLE”, “DISC MENU”,
“PARENTAL”, “DEFAULT” and “PASSWORD
SETUP”.
Note:
–Preference features can be selected only during
“No Disc” condition or full STOP mode.
SHARPNESS
Adjusts the sharpness level.
➜ HIGH, MEDIUM and LOW.
BRIGHTNESS
Adjusts the brightness level. Range: -20-+20.
CONTRAST
Adjusts the contrast level. Range: -16-+16.
GAMMA
Adjusts the gamma level.
➜ HIGH, MEDIUM, LOW and NONE.
HUE
Adjusts the hue level. Range: -9-+9.
SATURATION
Adjusts the saturation level. Range: -9-+9.
LUMA DELAY
Adjusts the luma delay.
➜ 0 T and 1 T.
PARENTAL
Some DVDs may have a parental level assigned
to the complete disc or to certain scenes on the
disc. This feature lets you set a playback limitation
level.
The rating levels are from 1 to 8 and are country
dependent. You can prohibit the playing of
certain discs that are not suitable for your
children or have certain discs played with
alternative scenes.
● VCD, SVCD and CD have no level indication, so
parental control function has no effect on those
kinds of discs. This applies to most illegal DVD
discs.
1 Press 3 4 to highlight “PARENTAL”.
2 Enter its submenu by pressing 2.
3 Use 3 4 to highlight a rating level for the disc
inserted.
➜ DVDs that are rated above the level you
selected will not play unless you enter your fourdigit password and choose a higher level rating.
30
System Menu Options
Note:
– Some DVDs are not encoded with a rating
though the movie rating may be printed on the
Disc cover. The rating level feature does not work
for such Discs.
Rating explanations
1 KID SAF
– Kids material; recommended especially for
children and viewers of all ages.
2 G
– General Audience; recommended as
acceptable for viewers of all ages.
3 PG
–Parental Guidance suggested.
4 PG 13
– Material is unsuitable for children under age
13.
5-6 PGR, R
–Parental Guidance - Restricted;
recommended that parents restrict children
under 17 from viewing or allow to view only
when supervised by a parent or adult guardian.
7 NC-17
– No children under age 17; not recommended
viewing for children under age 17.
8 Adult
– Mature materials; should be viewed only by
adults due to graphic sexual material, violence or
language.
PASSWORD SETUP
The options included in Password Setup page
are: “PASSWORD MODE” and “PASSWORD”.
PASSWORD MODE
This feature is used to enable/disable password
by selecting “ON”/”OFF”.
PASSWORD
Enter your four digit password when a hint is
displayed on the screen. The default password is
1234.
1 Press 3 4 to highlight “PASSWORD”.
2 Enter its submenu by pressing 2.
3 Press OK to open the page for inputting a new
password.
English
DEFAULT
Setting the “DEFAULT” function will reset all
options and your personal settings to the factory
defaults and all your personal settings will be
erased.
Caution!
– When this function is activated, all
settings will be reset to factory defaults.
4 Enter the existing 4-digit code.
5 Enter the new 4-digit code.
6 Enter the new 4-digit code a second time to
confirm.
➜ The new 4-digit code will take effect.
7 Press OK to exit.
Notes:
– If the password has been changed, the parental
and disc lock code will also be changed.
– The default password (1234) is always active
even the password has been changed.
31
Other Functions
English
Radio Reception
Tuning to radio stations
1 Press STANDBY-ON y to switch on the last
selected source.
2 Press SOURCE (TUNER on the remote
control) to select TUNER (FM) mode.
3 Press and hold ¡ / ™ (or 2/3 on the remote
control) until the frequency indication starts to
change, then release.
➜ The system automatically tunes to the next
strong radio station.
● To tune to a weak station, press ¡ / ™ (or 2/3
on the remote control) briefly and repeatedly
until an optimal reception is found.
4 Repeat Step 3 if necessar y until you find the
desired radio station.
Presetting radio stations
You can preset up to 40 stations regardless of
the reception.
Automatic progamming
● Press PROGRAM on the remote for more
than two seconds to activate programming.
➜ All available stations are programmed.
Manual progamming
1 Tune to your desired radio station (refer to
“Tuning to radio stations”).
2 Press PROGRAM on the remote.
➜ ”PROG” icon flashes.
3 Press PRESET+ or PRESET-/9 (or ¡ / ™ on
the remote control) to select the desired preset
number.
➜ If “PROG” icon goes off before you select the
desired preset number, press PROGRAM on
the remote.
4 Press PROGRAM on the remote again to
store the radio station.
● Repeat steps 1-4 to store other radio stations.
Listening to preset radio stations
● In tuner mode, press PRESET+ or PRESET-/
9 (or ¡ / ™ on the remote control) to select
the desired preset number.
➜ The preset number, radio frequency, and
waveband are displayed.
Setting the clock
1 In Standby mode, press and hold CLOCK on
the remote until the time flashes on the display.
➜ ”CLOCK SET” is displayed briefly. Then, the
hour digits flash on the display screen.
2 Tu r n VOLUME -/+ clockwise or anticlockwise
or press VOL +/- on the remote to set the
hours.
3 Press CLOCK to confirm.
➜ The minute digits flash on the display screen.
4 Tu r n VOLUME -/+ clockwise or anticlockwise
or press VOL +/- on the remote to set the
minutes.
5 Press CLOCK again to confirm the clock
setting.
Notes:
– This system only supports 24-hour mode.
– The clock setting will be erased when the
system is disconnected from the power supply.
– The system will exit clock setting mode if no
button is pressed within 30 seconds.
Setting sleep/wake-up timer
Sleep timer setting
In power-on mode, the sleep setting enables
the system to switch to standby mode
automatically at a preset time.
1 In power-on mode, press SLEEP/TIMER on
the remote repeatedly to select a preset time.
➜ The selections are as follows (time in
minutes):
00 ➜ 10 ➜ 20 ➜ 30 ➜ 40 ➜ 50 ➜ 60 ➜ 70
➜ 80 ➜ 90 ➜ 00
2 When you reach the desired length of time, stop
pressing SLEEP/TIMER.
➜ ”SLEEP” appears.
32
Other Functions
To deactivate the sleep timer
● Press SLEEP/TIMER repeatedly until “00” is
displayed, or press STANDBY-ON y.
In standby mode, the timer setting enables the
system to switch on automatically at a set time.
Wake-up timer setting
IMPORTANT!
– Before setting the timer, ensure that
the clock is set correctly.
1 Press and hold SLEEP/TIMER until the time
flashes on the display.
➜ ”TIME SET” scrolls. Then, the hour digits
flash on the display screen.
2 Tu rn VOLUME -/+ clockwise or anticlockwise
or press VOL +/- on the remote to set the
hours.
3 Press SLEEP/TIMER to confirm.
➜ The minute digits flash on the display screen.
4 Tu rn VOLUME -/+ clockwise or anticlockwise
or press VOL +/- on the remote to set the
minutes.
5 Press SLEEP/TIMER to confirm the time
setting.
➜ ”OFF” flashes on the display screen.
6 Tu r n VOLUME -/+ clockwise or anticlockwise
or press VOL +/- on the remote to select
“ON”.
➜ icon appears on the display screen.
English
To deactivate the timer
● Select “OFF” at Step 6.
33
External Sources
English
Using a non-USB device
1 Connect the system's AUX IN jacks to the
AUDIO OUT jacks on another audio/visual
device (such as a VCR, Laser Disc player or
cassette desk) using the audio cables (white/
red).
2 Press AUX to select external equipment.
➜ "AUX" is displayed.
Note:
– All the sound control features (DSC or DBB, for
example) are available for selection.
– Refer to the operating instructions for the
connected equipment for details.
Using a USB mass storage
device
By connecting a USB mass storage device to the
Hi-Fi system, you can enjoy the device's stored
music through the powerful speakers of Hi-Fi
system.
Playing a USB mass storage device
Compatible USB mass storage devices
With the Hi-Fi system, you can use:
– USB flash memor y (USB 2.0 or USB1.1)
– USB flash players (USB 2.0 or USB1.1)
–memory cards (requires an additional card
reader to work with this Hi-Fi system)
Notes:
– In some USB flash players (or memory devices),
the stored contents are recorded using copyright
protection technology. Such protected contents will
be unplayable on any other devices (such as this
Hi-Fi system).
– Compatibility of the USB connection on this
product:
a) This product supports most USB Mass storage
devices (MSD) that are compliant to the USB
MSD standards.
i) Most common Mass storage class devices are
flash drives, memory sticks, jump drives and
etc.
ii) If you see a "Disc Drive" show up on your
computer after you plugged the mass storage
device into your computer, most likely it is MSD
compliant and it will work with this product.
b) If your Mass storage device required a battery/
power source. Please make sure you have a fresh
battery in it or charge the USB device first and
then plug it into the product again.
– Supported Music type:
a) This device only supports unprotected music
with the following file extension:
.mp3
.wma
b) Music bought from on-line music stores are not
supported because they are secured by Digital
Rights Management protection (DRM).
c) File name extensions that end with the
following are not supported:
.wav; .m4a; .m4p; mp4; .aac and etc.
– No Direct connection can be made from
Computer USB port to the product even you have
either or both mp3 or wma files in your computer.
Supported formats:
– USB or memory file format FAT12, FAT16,
FAT32 (sector size: 512 bytes)
– MP3 bit rate (data rate): 32-320 Kbps and
variable bit rate
– WMA v9 or earlier
– Directory nesting up to a maximum of 8
levels
– Number of albums/ folders: maximum 99
– Number of tracks/titles: maximum 999
– ID3 tag v2.0 or later
– File name in Unicode UTF8 (maximum length:
128 bytes)
The system will not play or support the
following:
– Empty albums: an empty album is an album
that does not contain MP3/WMA files, and
will not be shown in the display.
– Non-supported file formats are skipped. This
means that e.g.: Word documents .doc or
MP3 files with extension .dlf are ignored and
will not be played.
–AAC, WAV, PCM audio files
– DRM protected WMA files
– WMA files in Lossless format
34
External Sources
How to transfer music files from PC to a
USB mass storage device
By dragging and dropping music files, you can
easily transfer your favorite music from PC to a
USB mass storage device.
For the flash player, you can also use its music
management software for the music transfer.
However, those WMA files may be
unplayable for compatibility reasons.
How to organize your MP3/WMA files on
the USB mass storage device
This Hi-Fi system will browse the MP3/WMA
files in the folders/sub-folders/titles order.
Example:
Root
Title 001
Title 002
Title 003
Album 01
Title 001
Title 002
Title 003
Album 02
Title 001
Title 002
Title 003
Album 03
Notes:
– If you have not organized MP3/WMA files into
any albums on your disc, an album "01" will be
automatically assigned for all those files.
– Make sure that the file names of MP3 files end
with .mp3. and the file names of WMA files end
with .wma.
–For DRM protected WMA files, use Windows
Media Player 10 (or later) for conversion. Visit
www.microsoft.com for details about Windows
Media Player and WM DRM (Windows Media
Digital Rights Management).
1 Check the USB device has been properly
connected. (See Installation: Connecting an
additional appliance).
2 Press SOURCE (USB on the remote) once or
more to select USB.
– NO FILE appears if no audio file is found in
the USB device.
3 Play the USB's audio files as you do with the
albums/tracks on a CD (See Disc Operations).
Notes:
–For compatibility reasons, the album/track
information may differ from what it is displayed
through flash players' music management
software.
– File names or ID3 tags will be displayed as --- if
they are not in English.
English
Title 001
Title 002
Title 003
Organize your MP3/WMA files in different
folders or subfolders as required.
35
Specifications
English
Amplifier
Rated output power ........................... 2 x 50W RMS
Frequency response ............... 20 - 20000Hz, - 3dB
Signal to noise ratio ............................................ > 65dB
Aux input ............................................. 1V RMS 20kohm
Speakers
Speaker impedance .............................................. 4 ohm
Speaker driver, base ........................................................ 5”
Speaker driver, tweeter ............................................. 0.2”
Frequency response ........................... 60 - 20000 Hz
Disc
Laser type ................................................ Semiconductor
Disc diameter .................................................. 12cm/8cm
Video decoding .............MPEG-1 / MPEG-2 / Divx
Video DAC ................................................................. 12Bits
Signal system ............................................... PAL / NTSC
Video format .................................................... 4:3 / 16:9
Video S/N............................................................... > 48dB
Audio DAC ............................................ 24Bits / 96kHz
Total harmonic distor tion ............... < 0.1% (1kHz)
Frequency response ........ 4Hz - 20kHz (44.1kHz)
......................................................... 4Hz - 22kHz (48kHz)
......................................................... 4Hz - 24kHz (96kHz)
S/N ratio ............................................................... > 65dBA
Tuner
FM tuning range .................................. 87.5 - 108MHz
Sensitivity
– Mono, 26dB S/N ratio ........................................ 50uV
– Stereo, 46dB S/N ratio ................................... 100uV
Selectivity .................................................................. > 28dB
Image rejection ...................................................... > 25dB
Total harmonic distor tion ................................... < 3%
Signal to noise ratio ........................................ > 55dBA
General information
Total output power .............................. 2 x 75W RMS
AC power ...................................................... 220 V/50 Hz
Operation power consumption ....................... 55W
Standby power consumption ........................... < 7W
Composite video output ............... 1.0Vp-p, 75ohm
Coaxial output ................ 0.5Vpp ± 0.1Vpp 75ohm
Headphone output ...................2 X 15mW, 32ohm
USB direct ........................................................ Version 1.1
Dimensions
– Main unit (W x H x D) .................................................
....................................................... 232 x 147 x 223.5mm
– Speaker box (W x H x D)..........................................
........................................................... 160 x 270 x 220mm
Weight
– With packing ........................................................12.5kg
– Main unit .................................................................... 3.3kg
– Speaker box........................................................... 2X3kg
Specifications subject to change without
prior notice
36
Tr oubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will
invalidate the warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or Philips for
help.
English
No power.
No picture.
Problem
Solution
✔ Check if the AC power cord is properly
connected.
✔ Press STANDBY-ON B to turn on the
power.
✔ Check if the TV is switched on.
✔ Check the video connection.
✔ Press SOURCE on the top of the DVD player
repeatedly to select “DVD” or press DISC on
the remote.
✔ Set your TV to the correct Video In channel. This
channel is usually near channel 00. Or, you may
have a button on the TV remote control that
selects Auxiliary or A/V IN channel. See your TV
owner’s manual for details. Or, change channels
at the TV until you see DVD screen on the TV.
✔ If the progressive scan feature is activated but
the connected TV does not suppor t progressive
signals or the cables are not connected
accordingly, see “Getting star ted-Setting up
Progressive Scan feature” for proper progressive
scan setup or deactivate the progressive scan
feature as below:
1) Turn off your TV progressive scan mode or
turn on to interlaced mode.
2) Press SYSTEM MENU on the remote control
to exit the system menu and then DISC and “1”
to exit progressive scan.
Distorted or poor picture.
Completely distorted picture or black/
white picture.
✔ Sometimes a small amount of picture distortion
may appear. This is not a malfunction.
✔ Clean the disc.
✔ TV has a colour system standard. If the disc’s or
DVD system’s colour system is different than
your TV’s colour system, the picture may be
distorted or colour less.
37
Troubleshooting
English
The aspect ratio of the screen cannot be
changed even though you have set the TV
shape.
✔ The aspect ratio is fixed on the DVD disc.
✔ Depending on the TV, it may not be possible to
change the aspect ratio.
No sound or distorted sound.
The micro DVD player does not start
playback.
The DVD micro system does not
respond when the buttons are pressed.
Cannot activate some features, such as
Angles, Subtitles, or multi-language
Audio.
✔ Adjust the volume.
✔ Check that the speakers are connected
correctly.
✔ Replace the speaker cables.
✔ Disconnect the headphones.
✔ The system is in pause, slow motion or fast
forward/reverse mode, press ÉÅ to resume
normal play mode.
✔ Insert a readable disc with the playback side
facing down.
✔ Check the disc type, colour system and regional
code. Check for any scratches or smudges on
the disc.
✔ Press SYSTEM MENU to turn off the setup
menu screen.
✔ Cancel the parental control rating function or
change the rating level.
✔ Moisture has condensed inside the system.
Remove the disc and leave the system turned
on for about an hour.
✔ Disconnect the power plug from the outlet and
insert again.
✔ Multi-language sound or subtitle is not
recorded on the DVD.
✔ Changing the language for the sound or subtitle
is prohibited on the DVD.
✔ The features may not be available on the disc.
Considerable noise in radio broadcasts.
38
✔ Tune in to the correct frequency.
✔ Connect the antennas.
✔ Fully extend the FM wire antenna. Position for
best reception and secure to a wall.
✔ Connect an outdoor FM antenna.
✔ Adjust the direction and position for best
reception.
✔ Place the antenna farther away from any
equipment that may be causing the noise.
✔ Increase the distance between the system and
your TV or other equipment.
Tr oubleshooting
The remote control does not function.
The display is dark.
Low hum or buzz sound.
Low bass response.
Unable to select Progressive Scan
Some files on the USB device are not
displayed.
“DEVICE NOT SUPPORTED” scrolls on the
display.
✔ Select the correct source (DISC or TUNER, for
example) before pressing the function button.
✔ Point the remote control at the remote sensor
of the unit.
✔ Reduce the distance to the player.
✔ Remove any possible obstacles.
✔ Replace the batteries with new ones.
✔ Check that the batteries are loaded correctly.
✔ Press DIM again.
✔ Place the DVD micro system as far away as
possible from electrical devices that may be
causing interference.
✔ Check all speakers for correct polarity.
✔ Check that the output of the video signal is
switched to 'Pr/Cr Pb/Cb Y'.
✔ Check if the number of folders exceeds 99 or
the number of titles exceeds 999.
✔ Remove the USB mass storage device or select
another source.
English
39
Glossary
English
Analog: Sound that has not been turned into
numbers. Analog sound varies, while digital sound
has specific numerical values. These jacks send
audio through two channels, the left and right.
Aspect ratio: The ratio of vertical and
horizontal sizes of a displayed image. The
horizontal vs. vertical ratio of conventional TVs. is
4:3, and that of wide-screens is 16:9.
AUDIO OUT Jacks: Jacks on the back of the
DVD System that send audio to another system
(TV set, Stereo, etc.).
Bit Rate: The amount of data used to hold a
given length of music; measured in kilobits per
second, or kbps. Or, the speed at which you
record. Generally, the higher the bit rate the
better the sound quality. However, higher bit
rates use more space on a Disc.
Chapter: Sections of a picture or a music
piece on a DVD that are smaller than titles. A
title is composed of several chapters. Each
chapter is assigned a chapter number enabling
you to locate the chapter you want.
Component Video Out Jacks: Jacks on the
back of the DVD System that send high-quality
video to a TV set that has Component Video In
jacks (R/G/B, Y/Pb/Pr, etc.).
Disc menu: A screen display prepared for the
selection of images, sound, subtitles, multi-angles,
etc recorded on a DVD.
Digital: Sound that has been converted into
numerical values. Digital sound is available when
you use the DIGITAL AUDIO OUT COAXIAL
or OPTICAL jacks. These jacks send audio
through multiple channels, instead of just two
channels as analog does.
Dolby Digital: A surround sound system
developed by Dolby Laboratories containing up
to six channels of digital audio (front left and
right, surround left and right and center).
JPEG: A still-picture data compression system
proposed by the Joint Photographic Expert
Group, which features small decrease in image
quality in spite of its high compression ratio.
MP3: A file format with a sound data
compression system, “MPE” is the abbreviation of
Motion Picture Experts Group 1 (or MPEG-1)
Audio Layer 3. Through the MP3 format, one
CD-R or CD-RW can contain about 10 times as
much data volume as a regular CD can.
Multichannel: DVD is specified to have all
sound tracks constitute one sound field.
Multichannel refers to a structure of sound
tracks having three or more channels.
Parental control: A function of the DVD to
limit playback of the disc by the age of the users
according to the limitation level in each country.
The limitation varies from disc to disc; when it is
activated, playback will be prohibited if the
software’s level is higher than the user-set level.
PCM (Pulse Code Modulation): A system
for converting analog sound signal to digital
signal for later processing without data
compression.
Playback control (PBC): Refers to the signal
recorded on video CDs or SVCDs for
reproduction control. By using screen menus
recorded on a Video CD or SVCD that suppor ts
PBC, you can enjoy interactive-type software as
well as software having a search function.
Progressive Scan (P-Scan): It displays all the
horizontal lines of a picture at one time, as a
signal frame. This system can convert inter laced
video from DVD into progressive format for
connection to a progressive display. It
dramatically increases the vertical resolution. A
progressive scan TV set is needed to receive
progressive scan output from the system.
Region code: A system allowing discs to be
played only in preset regions. This unit will only
play discs that have compatible region codes. You
can find the region code of your unit from the
product label. Some discs are compatible with
more than one region (or ALL regions).
S-Video: Produces a clear picture by sending
separate signals for luminance and the color. You
can use S-Video only if your TV set has S-Video
In jack.
Sampling Frequency: Frequency of data
sampling when analog data is converted to
digital data. Sampling frequency numerically
represents how many times the original analog
signal is sampled per second.
Surround: A system for users to create
realistic three-dimensional sound fields full of
realism by arranging multiple speakers around
the listener.
Title: The longest section of a picture or music
feature on DVD, music, etc., in video software, or
the entire album in audio software. Each title is
assigned a title number enabling you to locate
the title you want.
VIDEO OUT jack: Jack on the back of the
DVD System that sends video to TV.
40
78
English
Meet Philips at the Internet
http://www.philips.com
MCD716
CLASS 1
LASER PRODUCT
© 2010 Koninklijke Philips Electronics N.V.
All rights reserved.
Printed in China MCD716_93_UM_V2.0
