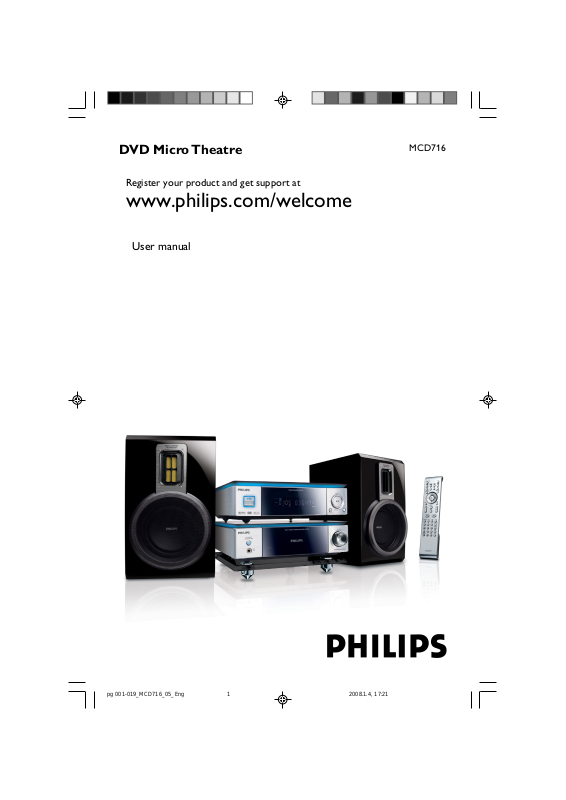

Philips MCD716 05 User Manual

DVD Micro Theatre
Register your product and get support at
www.philips.com/welcome
User manual
MCD716
Manufactured under license from Dolby Laboratories.
"Dolby", "Pro-logic", “Pro-logic II” and the double­D symbol are trademarks of Dolby Laboratories.
MANUFACTURED UNDER LICENSE FROM DIGITAL THEATER SYSTEMS, INC. US PAT. NO 5,451,942,5,956,674, 5,974,380, 5,978,762 AND OTHER WORLDWIDE
This product incorporates copyright protection technology that is protected by method claims of certain U.S. patents and other intellectual property rights owned by Macrovision Corporation and other rights owners. Use of this copyright protection technology must be authorized by Macrovision Corporation, and is intended for home and other limited viewing uses only unless otherwise authorized by Macrovision Corporation. Reserve engineering or disassembly is prohibited.
DivX, DivX Certified, and associated logos are trademarks of DivXNetworks, Inc and are used under license.
Windows Media is a trademark of Microsoft Corporation.
CAUTION
Important notes for users in the U.K.
Mains plug
This apparatus is fitted with an approved 13 Amp plug. To change a fuse in this type of plug proceed as follows:
1 Remove fuse cover and fuse.
2 Fix new fuse which should be a BS1362 3 Amp,
A.S.T.A. or BSI approved type.
3 Refit the fuse cover.
If the fitted plug is not suitable for your socket outlets, it should be cut off and an appropriate plug fitted in its place. If the mains plug contains a fuse, this should have a value of 3 Amp. If a plug without a fuse is used, the fuse at the distribution board should not be greater than 3 Amp.
Note: The severed plug must be disposed of to avoid a possible shock hazard should it be inserted into a 13 Amp socket elsewhere.
How to connect a plug
The wires in the mains lead are coloured with the following code: blue = neutral (N), brown = live (L).
As these colours may not correspond with the
colour markings identifying the terminals in your plug, proceed as follows: – Connect the blue wire to the terminal marked N or coloured black. – Connect the brown wire to the terminal marked L or coloured red. – Do not connect either wire to the earth terminal in the plug, marked E (or e) or coloured green (or green and yellow).
Before replacing the plug cover, make cer tain that the cord grip is clamped over the sheath of the lead - not simply over the two wires.
Copyright in the U.K.
Recording and playback of material may require consent. See Copyright Act 1956 and The Performer’s Protection Acts 1958 to 1972.
2
Contents
General Information
Features .................................................................. 5
Supplied accessories ............................................ 5
Environment information ................................... 5
Installation .............................................................. 5
Maintenance .......................................................... 6
Hearing Safety ....................................................... 6
Connections
Step 1: Placing speakers ...................................... 7
Step 2: Connecting speakers .............................. 8
Step 3: Connecting the control cable .............. 8
Step 4: Connecting TV .................................. 8~10
Step 5: Connecting FM antenna ..................... 11
Step 6: Connecting the power cord............... 11
Additional: Connecting additional equipment ...
......................................................................... 11~12
Additional connection: Connecting a USB
device or memory card .................................... 12
Functional Overview
DVD player and power amplifier .................... 13
Remote control ........................................... 14~15
Getting Started
Step 1: Inserting batteries into the Remote
Control ................................................................. 16
Using the Remote Control to operate the Player
Step 2: Setting up the TV ........................... 16~17
Setting up Progressive Scan feature To deactivate Progressive manually
Step 3: Setting language preference ................ 18
Basic Functions
Switching the system on/off ............................. 19
Switching the system to Eco Power Standby
mode ..................................................................... 19
Volume control ................................................... 19
Sound control ..................................................... 19
DBB (Dynamic Bass Boost) DSC (Digital Sound Control) LOUDNESS
Dimming the display screen ............................. 19
Demonstration mode ........................................ 19
Disc Operations
Playable Discs ...................................................... 20
Playing discs ......................................................... 20
Using the Disc Menu ......................................... 21
Basic playback controls .............................. 21~23
Pausing playback (DVD/VCD/CD/MP3/DivX/ WMA) Selecting a track/chapter/title (DVD/VCD/DivX/ CD) Resuming playback from the last stopped point (DVD/VCD/CD) Zoom (DVD/VCD/DivX/JPEG) Repeat (DVD/VCD/CD/MP3/DivX/WMA) Repeat A-B (DVD/VCD/CD/MP3/DivX/WMA) Slow Motion (DVD/VCD) Program (not for Picture CD) Forward/Reverse Searching (DVD/VCD/DivX/CD/ MP3/WMA) Time search & search by chapter/track number (DVD/VCD/CD/MP3/WMA) Information display during playback (not for Picture CD)
Special disc features ........................................... 23
Playing a Title (DVD) Camera Angle (DVD) Changing the Audio Language (for DVD recorded with multiple languages) Changing the Audio Channel (for VCD/DivX only) Subtitles (DVD)
Playing MP3/WMA/JPEG Picture disc ............ 23
Playing MP3/WMA disc ..................................... 23
General operation Playback selection
Playing JPEG Picture CD................................... 24
General operation Playback selection
Special JPEG features .................................. 24~25
Preview function (JPEG) Zoom picture (JPEG) Slide show playback modes (JPEG) Playback with multi-angles (JPEG)
Playing a DivX disc ............................................. 25
English
3
Contents
English
System Menu Options
Basic Operations ................................................ 26
GENERAL SETUP PAGE ........................... 26~27
AUDIO SETUP PAGE ................................ 27~28
VIDEO SETUP PAGE ................................. 28~29
PREFERENCE PAGE.................................... 29-30
Other Functions
Radio reception .................................................. 31
RDS ....................................................................... 31
Setting the RDS clock ....................................... 31
Setting the clock ................................................. 32
Setting sleep/wake-up timer ............................ 32
TV DISPLAY OSD LANGUAGE SCREEN SAVER DIVX(R) VOD
SPDIF SETUP DOLBY DIGITAL SETUP 3D PROCESSING HDCD NIGHT MODE
COMPONENT TV MODE QUALITY
PARENTAL DEFAULT PASSWORD SETUP
Tuning to radio stations Presetting radio stations Listening to preset radio stations
Sleep timer setting Wak e-up timer setting
External Sources
Using a non-USB device.................................... 33
Using a USB mass storage device ............ 33~34
Specifications ........................................... 35
Tr oubleshooting ............................. 36~38
Glossary ......................................................... 39
4
Disposal of your old product
Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.
When this crossed-out wheeled bin symbol is attached to a product it means the product is covered by the European Directive 2002/96/EC
Please inform yourself about the local separate collection system for electrical and electronic products.
Please act according to your local rules and do not dispose of your old products with your normal household waste. The correct disposal of your old product will help prevent potential negative consequences for the environment and human health.
General Information
Congratulations on your purchase and welcome to Philips!
To fully benefit from the support that Philips offers, register your product at www.philips.com/ welcome.
Features
Your DVD Micro Theatre with 2.0 channel full digital amplifier creates the same dynamic sound qualities that you find in full-fledged cinemas and incorporates some of the best features in home theater technology.
Other features include:
Built-in Dolby Digital decoder, supporting and DSC sound setting.
Additional Component Connections
Lets you connect other audio and audio/visual components to the DVD micro theatre.
Night mode
Lets you compress the dynamic range, reducing the difference in loudness between different sounds in Dolby Digital mode.
Parental Control (Rating Level)
Lets you set a ratings level so that your children cannot watch a DVD that has a rating higher than you set.
Sleep/Wake-up Timer
Enables the system to switch on/off automatically at a preset time.
Progressive Scan
Provides high quality flicker-free images for film based sources. When a picture refreshes, its ver tical resolution can double to 525 lines.
Note:
To fully enjoy the progressive scan feature, you
need a progressive scan TV.
Supplied accessories
– Remote control with two AAA batteries – FM wire antenna – Composite video (yellow) cable – Control cable – Stand for the DVD player and power
amplifier
– This instruction booklet and a Quick Start
Guide
If any item is damaged or missing, contact your retailer or Philips.
Environmental information
All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).
Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.
Installation
Place the player on a flat, hard, and stable surface.
In a cabinet, allow about 10cm (4 inches) of free
space all around the player for adequate ventilation.
Do not expose your player to extreme
temperatures or humidity.
The apparatus shall not be exposed to dripping
or splashing.
No objects filled with liquids, such as vases, shall
be placed on the apparatus.
No naked flame sources, such as lighted candles,
shall be placed on the apparatus.
Install this unit near the AC outlet and where the
AC power plug can be reached easily.
The ventilation should not be impeded by
covering the ventilation openings with items, such as newpapers, table-cloths, curtains, etc.
English
5
General Information
English
Maintenance
When a disc becomes dirty,
clean it with a cleaning cloth. Wipe the disc from the center out, in a straight line.
Do not expose the player,
batteries or discs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight). Always keep the disc tray closed to avoid dust on the lens.
Do not use solvents such as benzene, thinner,
commercially available cleaners, or anti-static spray intended for colour discs.
The lens may cloud over when the player is
suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.
Hearing Safety
Listen at a moderate volume.
Using headphones at a high volume can impair
your hearing. This product can produce sounds in decibel ranges that may cause hearing loss for a normal person, even for exposure less than a minute. The higher decibel ranges are offered for those that may have already experienced some hearing loss.
Sound can be deceiving. Over time your hearing
"comfort level" adapts to higher volumes of sound. So after prolonged listening, what sounds "normal" can actually be loud and harmful to your hearing. To guard against this, set your volume to a safe level before your hearing adapts and leave it there.
To establish a safe volume level:
Set your volume control at a low setting.
Slowly increase the sound until you can hear it
comfortably and clearly, without distortion.
Listen for reasonable periods of time:
Prolonged exposure to sound, even at normally
"safe" levels, can also cause hearing loss.
Be sure to use your equipment reasonably and
take appropriate breaks.
Be sure to observe the following guidelines when using your headphones.
Listen at reasonable volumes for reasonable
periods of time.
Be careful not to adjust the volume as your
hearing adapts.
Do not turn up the volume so high that you
can't hear what's around you.
You should use caution or temporarily
discontinue use in potentially hazardous situations.
Do not use headphones while operating a
motorized vehicle, cycling, skateboarding, etc.; it may create a traffic hazard and is illegal in many areas.
6
FM antenna
Front
speaker
( left )
Front speaker ( right )
VIEWING AREA
Connections
English
AC power
Speaker
(right)
IMPORTANT! – The type plate is located at the bottom of the system. –For users in the U.K.: please follow the instructions on page 2. – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. –Never make or change any connections with the power switched on.
Speaker
(left)
Step 1: Placing speakers
Place the front left and right speakers at equal distances from the TV set and at an angle of approximately 45 degrees from the listening position.
Notes: –To avoid magnetic interference, do not position the front speakers too close to your TV set. – Allow adequate ventilation around the DVD System.
7
Connections
AUDIO IN
S-VIDEO IN
VIDEO IN
TV IN
AUDIO
IN
S-VIDEO
IN
VIDEO IN
TV IN
English
Step 2: Connecting speakers
Connect the speaker wires to the SPEAKERS terminals, right speaker to “R” and left speaker to “L”, coloured (marked) wire to “+” and black (unmarked) wire to “–”. Fully insert the stripped portion of the speaker wire into the terminal as shown.
Notes: – Ensure that the speaker cables are correctly connected. Improper connections may damage the system due to short-circuit. –For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker jacks. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.
Step 3: Connecting the control
1
cable
Step 4: Connecting TV
IMPORTANT! –You only need to make one video connection from the following options, depending on the capabilities of your TV. – Connect the DVD system directly to the TV. –A SCART connection allows you to
2
use features both Audio and Video features on the DVD Player.
Using SCART jack
Connect the serial port marked “CONTROL
CABLE” at the rear of the DVD player to the
same port at the rear of the power amplifier with the supplied flat control cable.
8
Use the SCART cable (black) to connect the
DVD Player’s SCART jack to the corresponding Scart input jacks on the TV (cable not supplied).
Note: – Ensure that the “TV” indication on SCART cable is connected to the TV set and “DVD” indication on SCART cable is connected to the DVD Player.
Connections
Using Composite Video jack
2
1
1 Use the supplied composite video cable (yellow)
to connect the DVD system's VIDEO OUT jack to the video input jack (or labeled as A/ V In, CVBS, Composite or Baseband) on the TV.
2 To hear the TV channels through this DVD
system, use the audio connectors (white/ red) of the supplied audio and composite video cables (2-in1) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV.
Using Component Video jacks (Y Pb Pr)
IMPORTANT! – The progressive scan video quality is only possible when using Y Pb Pr, and a progressive scan TV is required.
2
1
1 Use component video cables (red/blue/green -
not supplied) to connect the DVD system's Y Pb Pr jacks to the corresponding Component video input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV) on the TV.
2 To hear the TV channels through this DVD
system, use the audio cables (white/red) to connect AUX IN jacks to the corresponding AUDIO OUT jacks on the TV.
3 If you are using a Progressive Scan TV (TV must
indicate Progressive Scan or ProScan capability), to activate TV Progressive Scan, please refer to your TV user manual. For DVD system Progressive Scan function, see “Getting Started­Setting up Progressive Scan feature”.
English
Note: – If your TV does not support Progressive Scan, you will not be able to view the picture. Press SYSTEM MENU on the remote to exit the system menu and then DISC and “1” to exit progressive scan.
9
Connections
C
English
Using S-Video jack
IMPORTANT! – If S-Video is used for DVD playback connection, the system’s VIDEO OUT setting will need to be changed accordingly.
2
1
1 Use an S-Video cable (not supplied) to connect
the DVD system’s S-VIDEO jack to the S-Video input jack (or labeled as Y/C or S-VHS) on the TV.
2 To hear the TV channels through this DVD
system, use the audio cables (white/red) to connect AUX IN (R/L) jacks to the corresponding AUDIO OUT jacks on the TV.
Using an accessory RF modulator
IMPORTANT! – If your TV only has a single Antenna In jack (labeled as 75 ohm or RF In), you will need an RF modulator in order to view DVD playback on the TV. See your electronics retailer or contact Philips for details on RF modulator availability and operations.
ANT IN
RF coaxial cable to TV
2
AUDIO IN
TO TVINT IN
VIDEO
IN
R L
CH3
3
1
1 Use the composite video cable (yellow) to
connect the DVD system’s VIDEO OUT jack to the video input jack on the RF modulator.
2 Use an RF coaxial cable (not supplied) to
connect ANTENNA OUT or TO TV jack on the RF modulator to the Antenna IN jack on the TV.
3 Connect the Antenna or Cable TV service signal
to the ANTENNA IN or RF IN jack on the RF modulator. (It may have been connected to your TV previously. Disconnect it from the TV.)
10
Connections
Step 5: Connecting FM antenna
FM
antenna
Connect the supplied FM antenna to the FM (75
) jack. Extend the FM antenna and fix its end to the wall. For better FM stereo reception, connect an external FM antenna (not supplied).
Note: – Adjust the position of the antenna for optimal reception. –Position the antennas as far as possible from your TV, VCR or other radiation source to prevent unwanted interference.
Step 6: Connecting the power
cord
After everything is conec ted properly, plug in the AC power cord to the power outlet.
Never make or change any connection with the power switched on.
Additional: Connecting additional equipment
IMPORTANT! – Some discs are copy-protected. You cannot record the disc through a VCR or digital recording device. – When making connections, make sure the colour of cables matches the colour of jacks. –Always refer to the owner’s manual of the other equipment for complete connection and usage details.
VCR
(for example)
AUDIO OUT
L
R
VIDEO IN
AUDIO IN
L R
B
C
CD Recorder (for example)
(for example)
A
TV
English
11
Connections
English
Viewing and listening to the playback of other equipment A
Connect the system's AUX IN (R/L) jacks to
the AUDIO OUT jacks on the other audio/visual device (such as a TV, VCR, Laser Disc player or cassette deck). Before starting operation, press SOURCE on the front panel to select AUX or press AUX on the remote in order to activate the input source.
Using the VCR for recording DVDs B
Connect one of the system's VIDEO OUT
jacks to the corresponding VIDEO IN jack and LINE OUT (R/L) jacks to the AUDIO IN jacks on the VCR. This will allow you to make analogue stereo (two channel, right and left) recordings.
Recording (digital) C
Connect the system's COAXIAL jack to the
DIGITAL IN jack on a digital recording device.
Before starting operation, set the DIGITAL OUT
according to the audio connection. (See "DIGITAL OUT".)
Additional connection: Connecting a USB device or memory card
By connecting a USB mass storage device (including USB flash memory, USB flash players or memory cards) to the Hi-Fi system, you can enjoy the device's stored music through the powerful speakers of Hi-Fi system.
Insert the USB device's USB plug into the
socket on the set.
for the devices with USB cables:
1 Inser t one plug of the USB cable (not supplied)
to the socket on the set.
2 Inser t the other plug of the USB cable to the
USB output terminal of the USB device.
for the memory card:
1 Inser t the memory card into a card reader (not
supplied).
2 Use a USB cable (not supplied) to connect the
card reader into the socket on the set.
12
Loading...
+ 28 hidden pages
