MCD 709

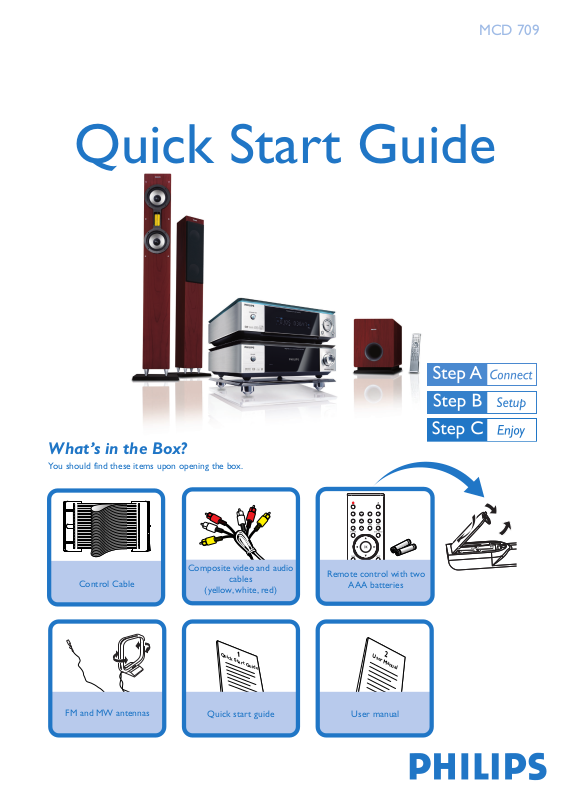

Quick Start Guide
What’s in the Box?
You should find these items upon opening the box.
Composite video and audio
Control Cable
FM and MW antennas
cables
(yellow, white, red)
Quick Start Guide
Quick start guide
Remote control with two
AAA batteries
1
User manual
2
User Manual
Tips
– See the User Manual for other TV
connection options.
–For connecting to a Progressive Scan
TV, refer to the user manual for proper
connections and detailed setup.
AC power
1
Connect the speaker cables.
2
Connect the MW and FM antennas.
3
Connect the control cable.
4
Connect the composite video and audio cables to a TV.
5
Connect the power cords of the system and TV.
5
Speaker
(right)
1
4
3
FM antenna
2
MW antenna
Speaker
(left)
5
AC power
Setting up the TV
1
Press SOURCE (DISC on the remote) to select disc source.
2
Turn on the TV and set it to the correct Video In channel.
