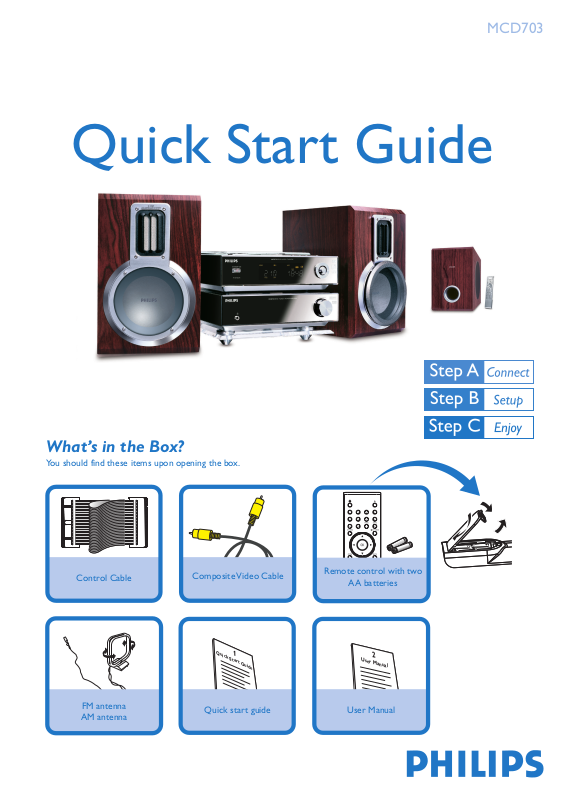

Quick Start Guide
MCD703
What’s in the Box?
You should find these items upon opening the box.
Control Cable
FM antenna
AM antenna
Composite Video Cable
Q
1
ciu
k
Quick start guide
Remote control with two
Remote control with two
AAA batteries
AA batteries
atS
r
t
ediuG
2
sU
e
r
aM
laun
User Manual
Tip
– See the User Manual for other TV
connection options.
– For connecting to a Progressive
Scan TV, refer to the user manual for
proper connections and detailed
setup.
1
Connect the speaker cables.
2
Connect the AM and FM antennas.
3
Connect the control cable.
4
Connect the composite video cable to a TV.
5
Connect the power cords of the system and TV.
5
5
Speaker
(right)
AC power
1
AC power cord
4
FM antenna
2
AM antenna
3
1
Speaker
(left)
1
Setting up the TV
1
Press SOURCE (DISC on the remote) to select disc source.
2
Turn on the TV and set it to the correct Video In channel.
Setting the clock
1
In standby mode, press and hold CLOCK on the remote.
2
When the hour digits flash, turn VOLUME +/- on the system or press VOLUME +/- on
the remote to set the hours.
3
Press CLOCK again and the minute digits flash. Then turn VOLUME +/- on the system or
press VOLUME +/- on the remote to set the minutes.
4
Press CLOCK again to confirm the time setting.
Setting DVD menu options
IMPORTANT!
If the progressive scan feature is activated but the connected TV does not support
progressive signals or the cables are not connected accordingly, see the user manual for
proper progressive scan setup or deactivate the progressive scan feature as below:
1) Turn off your TV progressive scan mode or turn on to interlaced mode.
2) Press SYSTEM on the remote to exit the system menu and then DISC to exit
progressive scan.
Night Mode
Tip
See chapters "Getting Started" and "System Menu Options" in the
User Manual for detailed descriptions.
Playing a disc
1
Press OPEN•CLOSE (0 on the remote) to open the disc tray and load in a disc, then
press the same button again to close the disc tray.
➜ Make sure the label side of the disc is facing up.
2
Playback will start automatically. If not press PLAY/PAUSEÉÅ.
3
To stop playback, press BAND/9 (9 on the remote).
Tip
– Detailed playback features and additional
functions are described in the accompany
owner's manual.
Notes for remote control:
– First, select the source you wish to control
by pressing one of the source select keys on
the remote control (DISC or TUNER, for
example).
- Then select the desired function (
ë
, for example).
2005 C Koninklijie Philips Electronics
N.V. All rights reserved.
http://www.philips.com
ÉÅ, í
,
PDCC-JS/JW-0607
GB
