Philips MCD700 User Manual

DVD Micro System

MCD700

MCD700 MCL707

MCL707

México

Es necesario que lea cuidadosamente su instructivo de manejo.

PRECAUCIÓN - ADVERTENCIA

No abrir, riesgo de choque eléctrico

Verifique que el voltaje de alimentación

sea el requerido para su aparato

Para evitar el riesgo de choque eléctrico, no quite la tapa.

En caso de requerir servicio, dirijase al personal calificado.

Descripción: Minisistema de Audio Modelo : MCD700/ 55 MCL707/55 Alimentación: 110–127 / 220–240 V; ~50/60 Hz Consumo: 32 W Importador: Philips Mexicana, S.A. de C.V. Domicilio: Av. La Palma No.6

Localidad y Tel: Edo. de México C.P. 52784

Exportador: Philips Electronics HK, Ltd. País de Origen: China Nº de Serie: ______________________________

ATENCIÓN

Col. San Fernando La Herradura Huixquilucan

Tel.52 69 90 00

LEA CUIDADOSAMENTE ESTE INSTRUCTIVO

ANTES DE USAR SU APARATO.

AVISO IMPORTANTE

Philips Mexicana, S.A. de C.V. no se hace

responsable por daños o desperfectos causados por:

– Maltrato, descuido o mal uso, presencia de

insectos o roedores (cucarachas, ratones etc.).

– Cuando el aparato no haya sido operarado

de acuerdo con el instructivo del uso, fuera de los valores nominales y tolerancias de las tensiones (voltaje), frecuencia (ciclaje) de alimentación eléctrica y las características que deben reunir las instalaciones auxiliares.

– Por fenómenos naturales tales como:

temblores, inundaciones, incendios, descargas eléctricas, rayos etc. o delitos causados por terceros (choques asaltos, riñas

, etc.).

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

Manufactured under license from Dolby Laboratories.

“Dolby”, “Pro-logic” and the double-D symbol are trade-

marks of dolby Laboratories.

Index

English ------------------------------------------------ 4

English

Français -------------------------------------------- 32

Français

Español --------------------------------------------- 61

Español

-------------------------------------------------------- 90

MANUFACTURED UNDER LICENSE FROM DIGITAL

THEATER SYSTEMS, INC . US PAT. NO 5,451,942,

5,956,674, 5,974,380, 5,978,762 AND OTHER WORLD-

WIDE PATENTS ISSUED AND PENDING. “DTS” AND “DTS

DIGITAL SURROUND” ARE RESISTERED TRADEMARKS

2000 DIGITAL THEATER SYSTEMS, INC. ALL RIGHTS

RESERVED.

This product incorporates copyright protection technology

that is protected by method claims of certain U.S. patents

and other intellectual property rights owned by Macrovision

Corporation and other rights owners. Use of this copyright

protection technology must be authorized by Macrovision

Corporation, and is intended for home and other limited

viewing uses only unless otherwise authorized by

Macrovision Corporation. Reserve engineering or disassem-

bly is prohibited.

Contents

English

General Information

Features .................................................................. 6

Supplied accessories ............................................ 6

Environment information ................................... 6

Installation .............................................................. 6

Maintenance .......................................................... 6

Connections

Connecting the speakers .................................... 7

Connecting antennas ........................................... 8

Connecting the control cable............................ 8

Connecting a TV ................................................... 8

Connecting the power cord .............................. 8

Connecting additional equipment .................... 9

Functional Overview

DVD player and power amplifier ............. 10~11

Remote control ........................................... 11~12

Getting Started

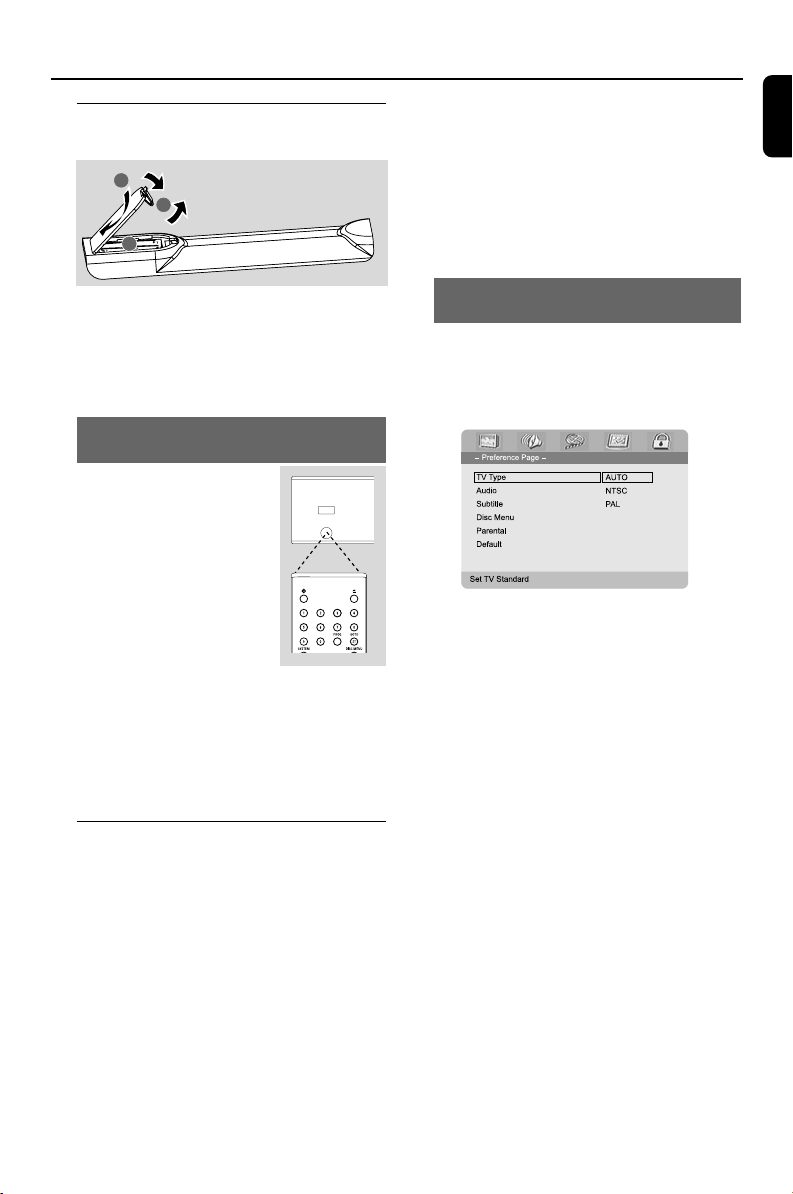

Step 1: Inserting batteries into the Remote

Control ................................................................. 13

Using the Remote Control to operate the Player

Step 2: Setting up the TV .................................. 13

Selecting the colour system that corresponds to your TV

Step 3: Setting language preference ................ 14

Setting the OSD Language Setting the Audio, Subtitle and Disc Menu language

Basic Functions

Switching on/off the system ............................. 15

Volume control ................................................... 15

Sound Control .................................................... 15

DBB (Dynamic Bass Boost) DSC (Digital Sound Control) LOUDNESS

Dimming the display screen ............................. 15

Disc Operations

Playable Discs ...................................................... 16

Playing discs ......................................................... 16

Using the Disc Menu .................................. 16~17

Basic playback controls .............................. 17~18

Pausing playback (DVD/VCD/CD/MP3/WMA) Selecting a track/chapter/title (DVD/VCD/ CD/MP3/WMA) Resuming playback from the last stopped point (DVD/VCD/CD/MP3/WMA) Zoom (DVD/VCD/JPEG) Repeat (DVD/VCD/CD/MP3/WMA) Repeat A-B (DVD/VCD/CD/MP3/WMA) Slow Motion (DVD/VCD) Program (not for Picture CD) Forward/Reverse Searching (DVD/VCD/CD/ MP3/WMA) Time search & search by chapter/track number (DVD/VCD/CD/MP3/WMA) Information display during playback (not for Picture CD)

Special disc features .................................... 18~19

Playing a Title (DVD) Camera Angle (DVD) Changing the Audio Language (for DVD recorded with multiple languages) Changing the Audio Channel (for VCD only)

Subtitles (DVD)

Playing MP3/WMA/JPEG Picture disc ............ 19

Playing MP3/WMA disc ..................................... 19

General operation

Playback selection

Playing JPEG Picture CD............................ 19~20

General operation

Playback selection

Special JPEG features ......................................... 20

Preview function (JPEG)

Zoom picture (JPEG)

Slide show playback modes (JPEG)

Playback with multi-angles (JPEG)

System Menu Options

Basic Operations ................................................ 21

General Setup Page ............................................ 21

TV Display OSD Lang Screen Saver

Audio Setup Page ........................................ 22~23

SPDIF Setup Dolby Digital Setup 3D Processing HDCD Post DRC

Video Setup Page................................................ 23

Component TV Mode Quality

Preference Page .................................................. 24

Parental Default

Password Setup Page ......................................... 25

Password mode Password

Other Functions

Radio reception .................................................. 26

Tuning to radio stations Presetting radio stations

Listening to preset radio stations

Changing tuning grid .......................................... 26

Setting the clock ................................................. 26

Setting sleep/wake-up timer ............................ 27

Sleep timer setting

Wake-up timer setting

Contents

English

Specifications ........................................... 28

Tr oubleshooting ............................. 29~30

Glossary ......................................................... 31

General Information

English

Features

Built-in DTS and DolbyR Digital decoder, 2.0channel amplifier

Additional Component Connections

Lets you connect other audio and audio/visual components to the DVD micro system.

Night Mode

Lets you compress the dynamic range, reducing the difference in loudness between different sounds in Dolby Digital mode.

Parental Control (Rating Level)

Lets you set a ratings level so that your children cannot watch a DVD that has a rating higher than you set.

Sleep/Wake-up Timer

Enables the system to switch on/off automatically at a preset time.

Installation

● Place the player on a flat, hard, and stable

surface.

● In a cabinet, allow about 10cm (4 inches) of

free space all around the player for adequate ventilation.

● Do not expose your player to extreme

temperatures or humidity.

● The apparatus shall not be exposed to dripping

or splashing and that no objects filled with liquid such as vase shall be placed on the apparatus.

● No naked flame sources, such as lighted candles,

shall be placed on the apparatus.

● The ventilation should not be impeded by

covering the ventilation openings with items, such as newspapers, table-cloths, cur tains, etc.

Supplied accessories

– Remote control with two AAA batteries – MW loop antenna –2 loudspeaker boxes including 2 speaker

cables – Composite video cable (yellow) – Control cable – Stand

If any item is damaged or missing, contact your retailer or Philips.

Environmental information

All unnecessary packaging has been omitted. We have tried to make the packaging easy to separate into three materials: cardboard (box), polystyrene foam (buffer) and polyethylene (bags, protective foam sheet).

Your system consists of materials which can be recycled and reused if disassembled by a specialised company. Please observe the local regulations regarding the disposal of packaging materials, exhausted batteries and old equipment.

Maintenance

● When a disc becomes dirty,

clean it with a cleaning cloth. Wipe the disc from the center out, in a straight line.

● Do not expose the player,

batteries or discs to humidity, rain, sand or excessive heat (caused by heating equipment or direct sunlight). Always keep the disc tray closed to avoid dust on the lens.

● Do not use solvents such as benzene, thinner,

commercially available cleaners, or anti-static spray intended for colour discs.

● The lens may cloud over when the player is

suddenly moved from cold to warm surroundings, making it impossible to play a disc. Leave the player in the warm environment until the moisture evaporates.

Connections

Speaker

(right)

AC power cord

IMPORTANT! – The type plate is located at the bottom of the system. – The voltage selector located at the bottom of this system is preset at 220V-240V from the factory. For countries that operate at 110V-127V, please adjust to 110V-127V before you switch on the system. – Before connecting the AC power cord to the wall outlet, ensure that all other connections have been made. –Never make or change any connections with the power switched on.

Connecting the speakers

Connect the speakers to the SPEAKERS (8Ω) terminals with two speaker cables. Right speaker to “R” and left speaker to “L”, red wire to “+” and silver wire to “-”. Fully insert the stripped portion of the speaker wire into the terminal as shown.

antenna

Speaker

(left)

MW antenna

Notes: – Ensure that the speaker cables are correctly connected. Improper connections may damage the system due to short-circuit. –For optimal sound performance, use the supplied speakers. – Do not connect more than one speaker to any one pair of +/- speaker jacks. – Do not connect speakers with an impedance lower than the speakers supplied. Please refer to the SPECIFICATIONS section of this manual.

For MCD700

For MCL707

English

Connections

English

Connecting antennas

MW Indoor Loop Antenna

Connect the supplied MW loop antenna’s wires to AM AERIAL jack. Place the antenna on a shelf or attach it to a stand or wall.

FM Indoor Antenna

It is unnecessary to connect the FM pigtail antenna since it is fixed to the main unit. Extend the FM antenna and fix its ends to the wall.

Notes: – Adjust the position of the antennas for optimal reception. –Position the antennas as far as possible from your TV, VCR or other radiation source to prevent unwanted interference.

● Connect the VIDEO OUTPUT jack to the

video input jack on the TV using a video cable (yellow).

Option 1

Connect the S-VIDEO output jack to the S-

Video input jack on the TV using an S-Video cable (not supplied).

Option 2

Use the component video cables (red/blue/

green) to connect the DVD micro system’s COMPONENT video output jacks to the corresponding component video input jacks (or labeled as Pr/Cr Pb/Cb Y or YUV) on the TV.

Option 1

Connecting the control cable

Connect the serial port marked “CONTROL CABLE” at the rear of the DVD player to the

same port at the rear of the power amplifier with the supplied flat control cable.

Connecting a TV

You must connect a TV to your DVD micro system in order to view the DVD/VCD playback.

IMPORTANT! – There are various ways to connect the system to a TV. You only need to make one of the best connections, depending on the capabilities of your TV system. – If COMPOMENT video output jacks or S-Video jack is used for video connection, the system’s Component setting will need to be set accordingly. Details are shown under “Video Setup Page”.

Option 2

Note: –To avoid magnetic interference, do not position the front speakers too close to your TV.

Connecting the power cord

After everything is connected properly,

plug in the AC power cord to the power outlet.

Never make or change any connection with the

power switched on.

Connections

Connecting additional equipment

IMPORTANT! – Some discs are copy-protected. You cannot record the disc through a VCR or digital recording device. –When making connections, make sure the colour of cables matches the colour of jacks. –Always refer to the owner’s manual of the other equipment for complete connection and usage details.

Digital amplifier

(for example)

DIGITAL IN

CD Recorder (for example)

VCR

(for example)

DIGITAL IN

OPTICAL

AUDIO IN

L    R

Active subwoofer

(for example)

AUDIO INPUT

Recording (digital)

● Connect the system’s DIGITAL OUT

(COAXIAL or OPTICAL) jack to the

DIGITAL IN jack on a digital recording device (such as DTS-Digital Theatre compatible, with Dolby Digital decoder).

Before starting operation, set SPDIF

according to the audio connection. (See “SPDIF

Setup”).

Connecting a digital amplifier

● Connect the DIGITAL OUT (COAXIAL or

OPTICAL) port to the coaxial/optical input

jack of a digital amplifier with a coaxial/optical cable (not supplied) for superior digital sound effect.

English

Viewing and listening to the playback of other equipment

● Connect the system’s AUX IN (R/L) jacks to

the AUDIO OUT jacks on the other audio/ visual device (such as a TV, VCR, Laser Disc player or cassette deck). Before starting operation, press AUX on the remote repeatedly in order to activate the input source (AUX1 or AUX2).

Connecting an active subwoofer

● Connect the DVD micro system’s WOOFER

OUT jack to the AUDIO INPUT jack on an

active woofer (not supplied).

Functional Overview

English

HI-RESOLUTION TFT DISPLAY

MCL

DVD player and power amplifier

1 STANDBY ON B

– switches the system on or to standby mode.

2 IR SENSOR

– point the remote control towards this sensor.

3 Control knob

4 / ¢

Disc ....................... press the control knob to the

left/right to skip to the previous/ next chapter/title/track.

Tuner .................... press the control knob to the

left/right to tune to a higher/ lower radio frequency.

................................. press and hold, then release the

key to start automatic search for a radio frequency downward/ upward.

PROGRAM

DVD/VCD/CDpress the control knob upward

MP3/WMA-CD

................................. press the control knob upward

to enter the program menu.

to add/delete a programmed track to/from the program list.

5 6 7 8

Picture CD ........ during playback, press the

control knob upward to select a slide show mode.

Tuner .................... press the control knob upward

to program preset radio stations.

REPEAT•STEREO

Disc ....................... press the control knob

downward to repeat a track or disc.

FM .......................... press the control knob

downward to set stereo or mono sound mode.

4 Display

– shows the current status of the DVD player.

5 SOURCE

– selects the respective sound source: DVD/

AUX1/AUX2/TUNER.

– switches the system on.

6 PRESET/ÉÅ

– Disc: star ts or interrupts disc playback – TUNER: selects a preset radio station

+ 21 hidden pages
