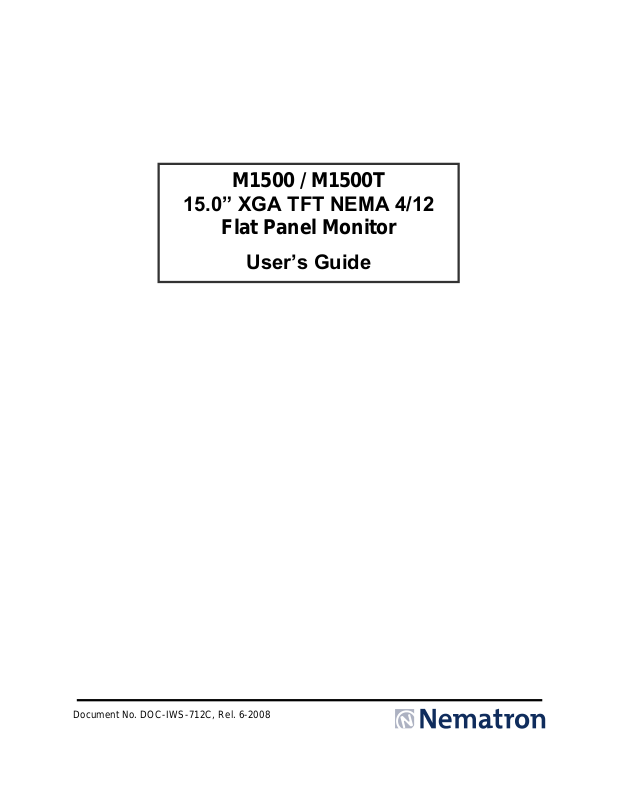

M1500 / M1500T
15.0” XGA TFT NEMA 4/12 Flat Panel Monitor
User’s Guide
Document No. DOC-IWS-712C, Rel. 6-2008
2
Revision Number
Description of Change
Release Date
A
Initial Release
9-2006
B
Added Windows Vista driver to list of supported drivers, Added notes to driver list, Changed Logo, Corrected H X W Reversals on page 5
4-2007 C
Added DVI functionality, UL Hazardous Locations Notes and Warnings
6-2008
Nematron reserves the right to make changes in specifications described herein at any time without notice in order to improve design and reliability. Nematron does not assume any responsibility for the use of any circuitry described; no circuit patent licenses are implied. Nematron assumes no responsibility for damage caused by misuse or improper use of its products.
Revision List
WARRANTY
Nematron warrants to Customer that the Products will be free from defects in material and workmanship under normal use and service for a period of two years from date of invoice. Customer’s exclusive remedy for breach of this warranty is that Nematron will either (i) repair or replace, at its option, any Product which fails during the warranty period because of such defect (if Customer promptly reported the failure to Nematron in writing) or, (ii) if Nematron is unable to repair or replace, Nematron will refund the purchase price of the Product upon its return to Nematron. This warranty does not apply to any Product which has been subjected to misuse, abnormal service or handling, or which has been altered or modified in design or construction, or which has been serviced by anyone other than Nematron. The warranty set forth herein is in lieu of, and exclusive of, all other warranties, express or implied.
Document No. DOC-IWS-712B M1500 / M1500T User Manual Released 6-2008
3
Table of Contents
WARRANTY .............................................................................................................................................. 2
Table of Contents ...................................................................................................................................... 3
Chapter 1 - Introduction ................................................................................................................................ 4
Features..................................................................................................................................................... 4
Supported PC Video Modes ...................................................................................................................... 4
Specifications ............................................................................................................................................ 5
DISPLAY ................................................................................................................................................ 5
TOUCH SCREEN (Optional) ................................................................................................................. 5
PHYSICAL ............................................................................................................................................. 5
ELECTRICAL ......................................................................................................................................... 5
ENVIROMENTAL ................................................................................................................................... 6
AGENCY ................................................................................................................................................ 6
Front and Side Views of Monitor ............................................................................................................... 7
Chapter 2 - Installation of Monitor ................................................................................................................. 8
Cutout Pattern for M1500 / M1500T Monitor ............................................................................................. 8
Mounting Clip Installation .......................................................................................................................... 9
Connecting Power ................................................................................................................................... 10
Connection of VGA and Touch Screen Cables ....................................................................................... 11
Turning on the Computer and Monitor .................................................................................................... 11
Selection of PC Video Settings ............................................................................................................... 12
Installing the Touch Screen Driver Software ........................................................................................... 12
Chapter 3. - Monitor OSD and Settings ...................................................................................................... 13
On Screen Display (OSD) Controls ......................................................................................................... 13
Button and LED Functions....................................................................................................................... 14
OSD Menus and Settings ........................................................................................................................ 15
MAIN MENU ........................................................................................................................................ 15
BRIGHTNESS/CONTRAST ................................................................................................................. 15
COLOR ................................................................................................................................................ 17
POSITION ............................................................................................................................................ 18
SETUP ................................................................................................................................................. 20
OSD Message Displays ........................................................................................................................... 22
OUT OF FREQUENCY ........................................................................................................................ 23
NO SIGNAL ......................................................................................................................................... 23
POWER SAVER MODE ...................................................................................................................... 23
PROCESSING AUTO CONFIGURATION........................................................................................... 24
Appendix ..................................................................................................................................................... 25
VGA Pin Assignment ............................................................................................................................... 25
DVD-D…………………………………………………………………………………………………………..25
Analog 15- Pin D-Sub .......................................................................................................................... 26
Touch Screen Pin Assignment ................................................................................................................ 27
Serial RS-232 ....................................................................................................................................... 27
USB ...................................................................................................................................................... 27
4
Chapter 1 - Introduction
Mode
Dot Clock
(MHz)
Horizontal Freq
(KHZ)
Vertical Freq (Hz)
H Sync
Polarity
V Sync
Polarity
640 x 350 @ 70Hz
25.144
31.430
70.000
P N 640 x 400 @ 70Hz
28.287
31.430
70.000
N
P
720 x 400 @ 70Hz
28.287
31.430
70.000
N P 640 x 480 @ 60Hz
25.175
31.469
59.940
N
N
640 x 480 @ 72Hz
31.500
37.861
72.809
N N 640 x 480 @ 75Hz
31.500
37.500
75.000
N
N
800 x 600 @ 56HZ
36.000
35.156
56.250
P P 800 x 600 @ 60Hz
40.000
37.879
60.317
P
P
800 x 600 @ 72Hz
50.000
48.077
72.188
P
P
800 x 600 @ 75Hz
49.500
46.875
75.000
P
P
1024 x 768 @ 60Hz
65.000
48.363
60.005
N
N
1024 x 768 @ 70Hz
75.000
56.476
70.070
N
P
1024 x 768 @ 75Hz
78.750
60.023
75.030
P
P
1280 x1024 @ 60Hz
108.000
63.981
60.020
P P 1280 x 1024 @ 75Hz
135.000
79.976
75.035
P
P
The M1500 is a high performance 15” color TFT flat panel monitor specifically designed for harsh industrial environments including Class I & II, Division 2 Hazardous Locations. The M1500 accepts standard analog VGA input and can display all VESA video modes up to 1280 x 1024 at 75Hz with 16 million colors. An optional 5-wire analog touch screen is available that offers both RS-232 and USB interface capability. The monitor is housed in a heavy duty steel chassis with a powder coated machined aluminum bezel. The monitor is certified to NEMA 4/4X/12 standards, is UL/CUL listed, meets CE requirements and is RoHS compliant. Panel mounting is simplified using convenient mounting clips instead of conventional studs. Options include: a 5-wire analog resistive touch screen, a 304 stainless steel bezel and 24 volt DC input power. All monitors are shipped with a power input wiring receptacle, VGA cable, touch screen cable (if equipped), mounting hardware, manual and driver software.
Features
UL 508 and UL 1604 listed for Hazardous Locations: Class I, Division 2, Groups A, B, C, D and
Class II, Division 2, Groups F and G
NEMA 4/4X/12 front bezel  2-Year warranty  RoHS Compliant  Integral 100 -240 VAC power supply  Simplified installation with no studs  Thin design – Only 2.4” behind bezel Accepts analog 15-pin Video input  VESA compliant – all modes up to SXGA, 75Hz  Optional 5-wire resistive touch screen with both RS-232 and USB interface  Optional 304 stainless steel front bezel  Optional 24 VDC input power
Supported PC Video Modes
Note: The above highlighted PC display modes produce the best image quality on the M1500.
5
Specifications
Touch Screen Technology
5- Wire Analog Resistive
Interface
USB 1.1 and Serial RS-232
Resolution
4096 x 4096
Positional Accuracy (Maximum Error)
.18”
Positional Accuracy (Standard Deviation of Error)
<.08”
Expected Life
>35,000,000 Activations
Over All Monitor Dimensions (H x W x D)
12.80” x 15.80” x 2.65”
Cutout Dimensions (H x W)
12.00” x 15.00”
Weight
12.5 lbs
Shipping Weight
15 lbs
AC Input Voltage
100 – 240 VAC, 50/60 Hz
AC Input Current
.5A Maximum
DC Input Voltage (Optional)
18 – 36 VDC
DC Input Current (Optional)
.75 A Max @ 24VDC
Input Power
≤20W
Display Size (Active Area H x V)
11.97” x 8.98”
Native Resolution
XGA, 1024 x 768
VESA Modes Supported
Up to 1280 x 1024 @75Hz
Displayable Colors
16M
Brightness, Typical
250 Nit
Contrast Ratio, Typical
550:1
Horizon/Vertical View Angle, CR>5, Typical
160/140
Backlight Life
40,000 hrs, Minimum
Display Input Signal
Analog 15-Pin D-Sub
DISPLAY
TOUCH SCREEN (Optional)
PHYSICAL
ELECTRICAL
6
ENVIROMENTAL
Operating Temperature
0C to 50C
Operating Humidity
20% to 80% RH, noncondensing
Operating Shock
15g peak acceleration, 11msec
Operating Vibration 5-2000 Hz
0.006” peak to peak, 1g max
Operating Altitude
Sea level – 10,000 feet
Front Panel NEMA Rating
NEMA 4/4X/12, IP65
FCC
47 CFR, Part 15, Class A
EU CE Marking Compliance
CE, EN 55022: Class A,
EN 61000-3-2: Class A,
EN 61000-3-3, EN 61000-6-2,
Safety Agency Approvals
UL 508 Listed, UL 1604 Listed*, cUL
Listed CSA C22.2, #142, CSA
C22.2, #143*
WARNING EXPLOSION HAZARD – SUBSTITUTION OF COMPONENTS MAY IMPAIR SUITABILITY FOR CLASS I, DIVISION 2
NOTE: SUITABLE FOR USE IN CLASS I, DIVISION 2, GROUPS A, B, C AND D HAZARDOUS LOCATIONS, OR NONHAZARDOUS LOCATIONS ONLY
AGENCY
* Class I Division 2, Groups A, B, C, D; Class II, Division 2, Groups F and G
7
123
15.80"
2.40"
2.65"
12.80"
1.17"
3.95"
Front and Side Views of Monitor
8
15.0" ±.02"
12.0" ±.02"
Chapter 2 - Installation of Monitor
This monitor is intended to be mounted in and used where NEMA 4 and NEMA 12 type enclosures are employed. Enclosures made of heavier gauge metal work better because they won’t deform or bend as easily when the monitor’s sealing gasket is compressed. The monitor meets NEMA 4/12 sealing specifications when properly installed in an approved NEMA enclosure constructed from 14­gauge or heavier steel. The monitor uses “U”-shaped clips and a special gasket to achieve the proper seal.
When selecting an enclosure remember to allow adequate space around the rear of the monitor for good air flow. Do not block air flow from below or above the monitor. If possible mount the monitor in a vertical orientation. The monitor is designed to work in environments up to 50 degrees Centigrade. Remember to account for heat dissipated from other equipment that may be inside the same enclosure.
To install the monitor, make a cutout according to the diagram below in one of the walls of your NEMA enclosure. Next hold the monitor in place while you install the mounting clips. Tighten the clips
to the point were the back of the monitor’s front bezel just begins to contact the front of the NEMA
enclosure. The use of an adjustable torque driver is recommended. The screws should be tightened to 8 inch-pounds. Tighten the clips in a cross pattern. This will help to develop an even pressure on the sealing gasket. DO NOT OVER TIGHTEN AS DAMAGE CAN RESULT IN THE MONITOR CAUSING LOSS OF SEALING INTEGRITY.
Cutout Pattern for M1500 / M1500T Monitor
9
UPMENU DOWNSELECT POWER
FRONT PANEL
OF NEMA
ENCLOSURE
TIGHTEN TO 8
INCH-POUNDS
COMPRESSABLE NEMA
SEALING GASKET
.25" THICK MONITOR
FRONT BEZEL
MAXIMUN ALLOWABLE
PANEL THICKNESS
CUT AWAY
.325"
FRONT PANEL OF
NEMA ENCLOSURE
MOUNTING CLIP
WITH 10x32 SCREW
Mounting Clip Installation
REAR VIEW OF PANEL
MOUNTED MONITOR
