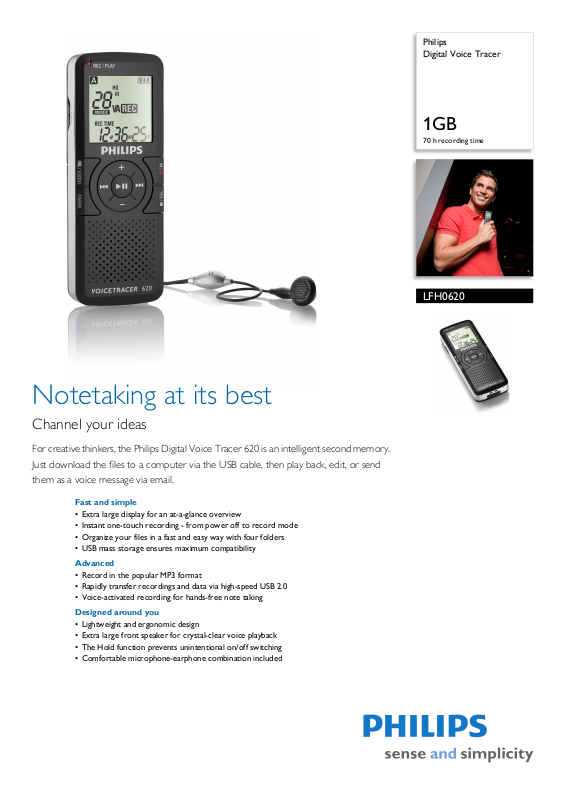

Philips LFH0620-00 User Manual
Philips
Digital Voice Tracer
1GB
70 h recording time
LFH0620
Notetaking at its best
Channel your ideas
For creative thinkers, the Philips Digital Voice Tracer 620 is an intelligent second memory.
Just download the files to a computer via the USB cable, then play back, edit, or send
them as a voice message via email.
Fast and simple
• Extra large display for an at-a-glance overview
• Instant one-touch recording - from power off to record mode
• Organize your files in a fast and easy way with four folders
• USB mass storage ensures maximum compatibility
Advanced
• Record in the popular MP3 format
• Rapidly transfer recordings and data via high-speed USB 2.0
• Voice-activated recording for hands-free note taking
Designed around you
• Lightweight and ergonomic design
• Extra large front speaker for crystal-clear voice playback
• The Hold function prevents unintentional on/off switching
• Comfortable microphone-earphone combination included
Digital Voice Tracer
1GB 70 h recording time
LFH0620/00
Specifications
Connectivity
• Headphone: 3.5 mm
• Microphone: Built-in microphone, Microphone
cket
so
•USB: High-speed USB 2.0
Picture/Display
•Type: LCD
• Diagonal screen size: 3.5 cm / 1.5 inch
Storage Media
• Built-in memory capacity: 1 GB
• Built-in memory type: NAND Flash
• Mass storage class compliant
Audio Recording
• Recording formats: MPEG1 layer 3 (MP3)
• Recording modes: HQ (MP3/mono), SP (MP3/
mono), LP (MP3/mono)
• Bit rate: 64 kbps (HQ mode), 48 kbps (SP mode),
kbps (LP mode)
32
• Recording Time: 69.5 hours (LP mode), 46.5 hours
(SP mode
• Sample Rate: 22 kHz (HQ mode), 16 kHz (SP/LP
mod
Speaker
• Built-in speaker: 30 mm
), 35 hours (HQ mode)
e)
• Speaker Type: Round dynamic speaker
• Output Power: 110 mW
Power
•Batteries included
• Battery type: AAA / LR03 Alkaline
• Battery lifetime: 45 hours (LP mode)
System Requirements
• PC OS: Windows 2000 / XP / Vista, Mac OS X,
Linux
• USB: Free USB port
Green Specifications
• Lead-free soldered product
Accessories
• Included accessories: Microphone-earphonecombi, USB cable, wrist strap, batteries, user
manual
• Optional accessories: Plug-in Microphone
FH9171, Tie Clip Microphone LFH9173, Stereo
L
Headphones LFH2236
Product dimensions
• Product dimensions (W x H x D):
4 x 11.8 x 1.8 cm
• Weight: 0.06 kg
•
Highlights
Voice-activated recording
Voice-activated recording is a convenience feature
for hands-free recording. When enabled, recording
will start automatically when you start speaking.
Recordings stop automatically after you stop
speaking and restart automatically when you start
speaking again.
Extra large display
The large graphical display lets you view all important
file information at a glance.
Instant one-touch recording
Press and hold the record button for a moment to
switch the Digital Voice Tracer on and start
recording instantly.
Easy file organization
The VoiceTracer digital recorder supports up to 99
recordings in each of four available folders to
organize your files in a fast and easy way.
Lightweight design
Small and lightweight, you'll hardly notice it's with
you. Pop it in your pocket or bag and take it
anywhere. The durable casing and attractive,
ergonomic design will make you want to carry it
everywhere you go.
USB mass storage device
As a USB mass storage device, the Voice Tracer
offers a convenient way to save, back up and move
files. The Voice Tracer connects to a computer using
a USB connection and does not require special
software to be installed. The Voice Tracer is
automatically displayed as a removable drive,
allowing you to simply drag and drop files to and
from the unit.
Issue date 2010-05-21
Version: 2.2.1
12 NC: 8735 062 00011
UPC: 0 37849 98355 3
© 2010 Koninklijke Philips Electronics N.V.
All Rights reserved.
Specifications are subject to change without notice.
Trademarks are the property of Koninklijke Philips
Electronics N.V. or their respective owners.
www.philips.com
