Philips ISYSTEM LPC2138 User Manual

_ V1.4

User’s Guide

Philips LPC2138 Target Board

 iSYSTEM, December 2005 1/16

Ordering code ITLPC2138
Dimensions 100 x 96 mm

Figure 1: ITLPC2138 Target Board

Contents

Contents.............................................................................................................................. 2

Introduction......................................................................................................................... 3

Description..........................................................................................................................3

View of the ITLPC2138...................................................................................................................................3

Block Diagram ................................................................................................................................................4

Components List..............................................................................................................................................5

Power Supply................................................................................................................................................... 6

Jumper & Connector Descriptions..................................................................................................................6

Connectors.......................................................................................................................................................7

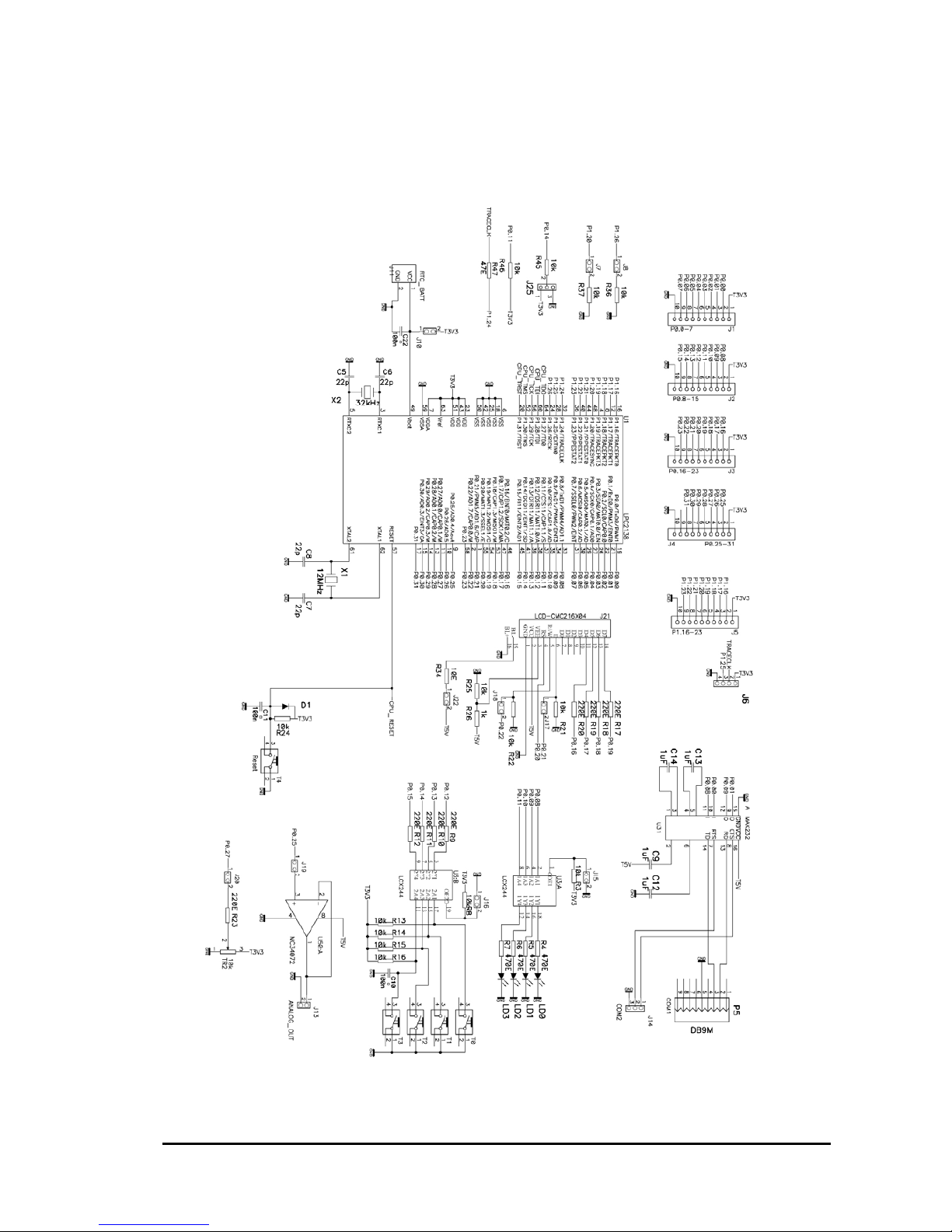

Schematic ......................................................................................................................... 10

Licensing the on-board integrated debugger .................................................................... 11

Use of the on-board integrated debugger......................................................................... 12

Use of an external debugger............................................................................................. 13

Troubleshooting................................................................................................................ 14

 iSYSTEM, December 2005 2/16

Introduction

Philips LPC2138 Target Board is an evaluation and a development system for Philips ARM7TDMI-S based
LPC2138 microcontroller. The ITLPC2138 package consists of a USB cable and a target board populated with
Philips LPC2138 CPU, minimum peripherals, JTAG debug connector, ETM trace connector and an on-board
integrated iSYSTEM debugger.

The user can write and debug the application using the on-board integrated iSYSTEM debugger, which connects
to the PC through the USB connection. The board requires no external power supply since it’s powered from the
PC USB port.

An external ARM7TDMI-S debugger (including e.g. ETM support) can be used for debugging as an alternative
to the on-board integrated debugger.

Description

View of the ITLPC2138

Figure 2: Top View of the ITLPC2138

 iSYSTEM, December 2005 3/16

Block Diagram

Figure 3: ITLPC2138 Block diagram

Notes

1. The board provides 16-pin connector for the optional LCD display (type CMC216x04), which is not

included in the package.

 iSYSTEM, December 2005 4/16

Components List

Name Description

P1 Connector for manufacturing purpose
P2 ETM Trace connector
P3 JTAG debug connector
P4 USB connector (integrated debugger)
P5 DB9 connector, serial port (UART1)
J1 Expansion connector GPIO pins P0.0 – P0.7
J2 Expansion connector GPIO pins P0.8 – P0.15
J3 Expansion connector GPIO pins P0.16 – P0.23
J4 Expansion connector GPIO pins P0.25 – P0.31
J5 Expansion connector GPIO pins P1.16 – P1.23
J6 Expansion connector GPIO pins P1.24 and P1.25

J7 - J10, J15 –
J20, J22,J25

Jumpers

J11 RTC power supply input (3.3V)
J12 Connector for manufacturing purpose
J13 DA converter output
J14 Serial port (UART0)
J21 16-pin LCD connector
LD0 – LD3 User LEDs
LD11 Power LED 5V
LD12 Power LED 3,3V
T0 – T3 Push buttons
Reset Reset button
TRIM-PT Trimmer potentiometer

 iSYSTEM, December 2005 5/16
