Philips HTS6500/61, HTS6500/98 user manual

Download

DVD HOME THEATRE SYSTEM

HTS6500

User Manual 6

Buku Pandan Pengguna 106

English

LASER

Type Semiconductor laser GaAIAs Wave length 650 - 660 nm (DVD) 784 - 796 nm (CD) Output Power 7 mW (DVD) 10 mW (VCD/CD) Beam divergence 60 degrees

‘CONSUMERS SHOULD NOTE THAT NOT ALL HIGH DEFINITION TELEVISION SETS ARE FULLY COMPATIBLE WITH THIS PRODUCT AND MAY C AUSE ARTIFACTS TO BE DISPLAYED IN THE PICTURE. IN CASE OF 525 OR 625 PROGRESSIVE SCAN PICTURE PROBLEMS, IT IS RECOMMENDED THAT THE USER SWITCH THE CONNECTION TO THE ‘STANDARD DEFINITION’ OUTPUT. IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY WITH THIS MODEL 525p AND 625p DVD PLAYER, PLEASE CONTACT OUR CUSTOMER SERVICE CENTER.’

CAUTION

Use of controls or adjustments or performance of procedures other than herein may result in hazardous radiation exposure or other unsafe operation.

ATTENTION!

For Customer Use:

Read carefully the information located at the bottom or rear of your DVD Home Theatre System and enter below the Serial No. Retain this information for future reference.

Model No. HTS6500

Serial No. _______________

Manufactured under license from Dolby Laboratories, “Dolby”, “Pro Logic” and the double-D symbol are trademarks of Dolby Laboratories.

Windows Media and the Windows logo are trademarks, or registered trademarks of Microsoft Corporation in the United States and/or other countries.

English

Manufactured under license from Digital Theater Systems, Inc. U.S. Pat. Noís. 5,451,942; 5,956,674; 5,974,380; 5,978,762; 6,226,616; 6,487,535 and other U.S. and world-wide patents issued and pending. “DTS” and “DTS Digital Surround” are registered trademarks of Digital Theater Systems, Inc. Copyright 1996, 2003 Digital Inc. All Rights Reserved.

DivX Ultra Certi ed products: “DivX, DivX Ultra Certi ed, and associated logos are trademarks of DivX, Inc. and are used under license.

HDMI (High De nition Multimedia Interface) is a digital interface that allows pure HD digital video transmission without the loss of image quality. The integrated control bus allows system control between the TV set and connected devices like a digital set top box.

Language Code

Index

English ------------------------------------ 6

----------------------------56

Bahasa Melayu ------------------------ 106

English

Bahasa Melayu

Table of contents

English

General

General Information ........................................................................................................8

Setup precautions ................................................................................................................................................. 8

Accessories supplied ...........................................................................................................................................8

Cleaning discs ........................................................................................................................................................8

About recycling ..................................................................................................................................................... 8

Product Overview

Main Unit ........................................................................................................................... 9

Remote Control .........................................................................................................10-12

Using the remote control ................................................................................................................................12

Connections

Basic Connections .....................................................................................................13-17

Step 1 : Placing the speakers ...........................................................................................................................13

Step 2 : Connecting the SonoWave speakers and subwoofer ..............................................................14

Step 3 : Connecting to TV ...............................................................................................................................15

Option 1: Using the Video (CVBS) jack (good picture quality) .....................................................15

Option 2: Using the S-Video jack (excellent picture quality) .........................................................15

Option 3: Connecting to a Progressive Scan TV or component video input ............................16

Option 4: Connecting to a HDMI-compatible TV ............................................................................16

Step 4 : Connecting the FM/MW antennas ................................................................................................. 17

Step 5 : Connecting the power cord ............................................................................................................17

Optional Connections ...............................................................................................18-19

Connecting audio from TV .............................................................................................................................18

Connecting audio from an audio/video device ...........................................................................................18

Mounting the speakers on the wall ..............................................................................................................19

Basic Setup

Getting Started ....................................................................................................... 20-25

Step 1: Turning on the DVD system ............................................................................................................ 20

Turning off to Eco Power standby mode ............................................................................................. 20

Step 2: Finding the correct viewing channel .............................................................................................. 20

Step 3: Setting language preferences ............................................................................................................21

On-screen display (OSD) language ........................................................................................................21

Audio, Subtitle and Menu language for DVD playback ...............................................................21-22

Step 4: Setting the TV ...................................................................................................................................... 22

Selecting the matching colour system ..........................................................................................22-23

Setting the T V Display .............................................................................................................................. 23

Step 5: Setting up Progressive Scan feature ................................................................................................24

Step 6: Setting the SonoWave speakers .................................................................................................... 25

Disc Playback

Disc Operations ........................................................................................................ 26-33

Playable discs ...................................................................................................................................................... 26

Playing a disc ....................................................................................................................................................... 26

Basic playback controls .....................................................................................................................................27

Selecting various repeat/shuf  e functions ..................................................................................................27

Programming disc tracks ................................................................................................................................. 28

Other playback features for video discs ( DVD/ VCD/ SVCD) ............................................................. 28

Using the Disc Menu ................................................................................................................................. 28

Viewing playback information ..................................................................................................................29

Table of contents

Resuming playback from the last stopped point ................................................................................29

Zooming in ....................................................................................................................................................29

Changing subtitle language (DVD only) ................................................................................................29

Changing sound track language .............................................................................................................. 30

Playback Control (VCD only) ................................................................................................................. 30

Preview function (VCD/SVCD only) .................................................................................................... 30

Playing an MP3/ JPEG/Window Media Audio disc ...................................................................................31

Playing a JPEG image  le (slide show) ..........................................................................................................32

Preview function ..........................................................................................................................................32

Zoom picture ..............................................................................................................................................32

Rotating/ ipping the picture ....................................................................................................................32

Playing MP3 music and JPEG pictures simult aneously .............................................................................33

Playing a DivX disc .............................................................................................................................................33

Playing a Karaoke disc ...................................................................................................................................... 34

Microphone setting .................................................................................................................................. 34

USB / MP3 Direct

USB Operations ..............................................................................................................35

Playing from USB  ash drive or USB memory card reader .................................................................. 35

MP3 Direct Operations .................................................................................................. 36

Playing from a portable audio or HDD player .......................................................................................... 36

Setup Options

DVD Setup Menu Options ...................................................................................... 37-43

Accessing the DVD setup menu .....................................................................................................................37

General Setup Page ........................................................................................................................................... 38

Audio Setup Page ................................................................................................................................................39

Video Setup Page .........................................................................................................................................40-41

Preference Setup Page ...............................................................................................................................42-43

English

Radio Tuning

Tuner Operations ..................................................................................................... 44-45

Tuning to radio stations ................................................................................................................................... 44

Preset ting radio stations ................................................................................................................................. 44

Using auto install ........................................................................................................................................ 44

Using automatic preset ............................................................................................................................. 45

Using manual preset .................................................................................................................................. 45

Selecting a preset radio station ..................................................................................................................... 45

Deleting a preset radio station ...................................................................................................................... 45

Changing tuning grid ......................................................................................................................................... 45

Others

Sound and Volume Controls .........................................................................................46

Selecting surround sound ................................................................................................................................46

Selecting digital sound effects ........................................................................................................................ 46

Volume control .................................................................................................................................................. 46

Other Features ...............................................................................................................47

Software upgrades .............................................................................................................................................47

Troublesho oting ........................................................................................................ 48 -5 0

Speci cations .................................................................................................................. 51

Glossary .................................................................................................................... 52-53

Frequently Asked Questions (USB) ............................................................................54

General Information

English

CAUTION! The machine does not contain any user-serviceable parts. Please leave all maintenance work to quali ed personnel.

Setup precautions

Finding a suitable location

– Place the set on a  at, hard and stable surface. Do not place the set on a carpet. – Do not position the set on top of other equipment that might heat it up (e.g., receiver or ampli er). – Do not put anything under the set (e.g., CDs, magazines). – Install this unit near the AC outlet where the AC power plug can be easily reached.

Space for ventilation

– Place the apparatus in a location with adequate ventilation to prevent internal heat build up. Allow at least 10 cm (4”) clearance from the rear and the top of the set and 5cm (2”) from the left and right to prevent overheating.

Accessories supplied

– 1 subwoofer – 2 SonoWave speakers – 2 sets of wall mounting brackets – 1 remote control with batteries – 1 composite video cable (yellow) – 1 FM wire antenna – 1 MW loop antenna – 1 MP3 direct white cable (for connecting portable audio player) – Quick Start Guide

Cleaning discs

To clean a disc, use a micro  ber cleaning cloth and wipe the disc from the center to the edge in a straight line.

CAUTION!

Do not use solvents such as benzene, thinner, commercially available cleaners, or anti-static sprays intended for discs.

About recycling

Avoid high temperatures, moisture, water and dust

– Apparatus must not be exposed to dripping or splashing. – Do not place any sources of danger on the apparatus (e.g., liquid  lled objects, lighted candles).

These operating instructions have been printed on non-polluting paper. The electronic equipment contains a large number of materials that can be recycled. If you are disposing of an old machine, please take it to a recycling center. Please observe the local regulations regarding disposal of packaging materials, exhausted batteries and old equipment.

Main Unit

Top view

Front view

3 42 5 6

a STANDBY ON 2

– Turns on the system or turns off to Eco

Power standby mode.

b PLAY PAUSE u

– DISC: starts/pauses playback. – TUNER: starts auto tuner installation for

 rst time setup. STOP Ç

– Exits an operation. – DISC: stops playback. – TUNER: press and hold this button to

erase the current preset radio station.

PREV . / NEXT >

– DISC: selects a track or press and hold

this button to search backward/forward.

– TUNER: selects a preset radio station.

c SOURCE

– Selects the relevant active source mode:

DISC, MP3 DIRECT, TUNER (FM/MW), TV or AUX/DI.

d EJECT ç

– Ejects the disc from the disc slot.

e VOLUME

– Adjusts the volume level.

f SonoWave

– Turns on the SonoWave speakers to

multi-channel mode or turns off to stereo mode. While in multi-channel mode, the light will be on.

g MIC LEVEL

– Activates microphone level mode and use

the VOLUME control to set the microphone volume level.

h USB port

– Input for USB  ash drive or USB memory

card reader.

i MP3 Direct

– Phono input for connecting to the

headphone out jack on your portable audio or HDD player.

j MIC

– For connecting the microphone socket.

k Disc slot

English

Remote Control

English

c ZOOM

– Enlarges a picture on the TV.

d AUDIO

– Selects an audio language (DVD) or an audio channel (CD).

e SETUP

– Enters or exits the system setup menu.

f DISPLAY

– Displays the current status or disc

information.

g PLAY É

– DISC: starts playback.

h STOP Ç

– Exits an operation. – DISC: stops playback. – DISC: press and hold this button to eject

the disc.

– TUNER: press and hold this button to

erase the current preset radio station.

i TV VOL +-

– Adjusts TV volume (Philips TV only).

j Numeric keypad (0-9)

– Enters a track/title number of the disc. – Enters a number of a preset radio station.

a 2

– Turns off to Eco Power standby mode.

b Source buttons

– DISC/USB: switches to DISC or USB

mode.

TUNER: toggles between FM and MW

band.

TV: switches to TV mode. The sound

from the TV will output through the connected speakers system.

AUX/DI: toggles between AUX and

DIGITAL IN external source mode.

k REPEAT

– Selects various repeat modes; turns off

repeat mode.

l VOCAL

– Toggles between various audio mode

options.

KARAOKE

– Enters microphone setup menu.

m MP3-DIRECT

– Switches to MP3 mode for the source

connected through the MP3 Direct socket at the front panel.

Remote Control (continued)

English

n SUBTITLE

– Selects a DVD subtitle language.

o DISC MENU

– For DVD, enter or exit disc contents

menu.

– For VCD/SVCD, enter digest menu.

p W X S T

– DISC: selects movement direction in the

menu.

– TUNER: press up or down to tune the

radio frequency up/down.

– TUNER: press left or right to start auto

search.

q OK

– Con rms a selection.

r RETURN/TITLE

– For DVD, go back to the previous menu. – For VCD version 2.0 only; During playback, display the disc title

menu or return to the main menu.

s . >

– DISC: press and hold this button for fast

forward and backward search.

– TUNER: selects a preset radio station.

t PAUSE Å

– DISC: pauses playback.

u VOL +-

– Adjusts the volume level.

v MUTE

– Mutes or restores the volume.

w PROGRAM

– DISC: starts programming. – TUNER: press and hold this button to

start automatic/ manual preset programming.

x SURR.

– Selects multi-channel surround or stereo mode.

y SOUND

– Selects a prede ned sound effect. – Press and hold this button to enter

SonoWave speaker settings mode.

Remote Control (continued)

English

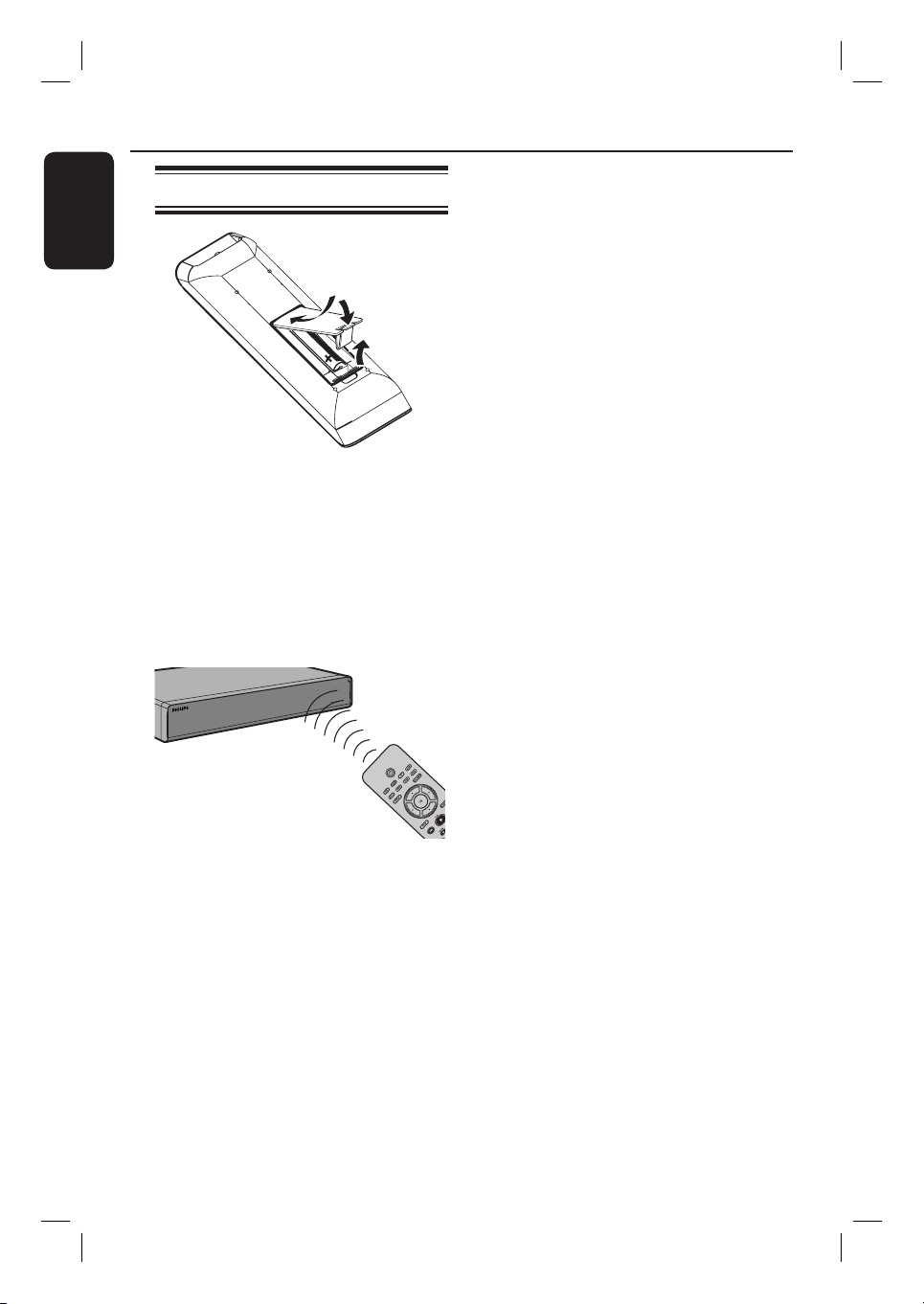

Using the remote control

A Open the battery compartment.

B Insert two batteries type R03 or AAA,

following the indications (+-) inside the compartment.

C Close the cover.

D Point the remote control directly at the

remote sensor (iR) on the front panel.

CAUTION! – Remove batteries if they are exhausted or if the remote control is not to be used for a long time. – Do not mix batteries (old and new or carbon and alkaline, etc.). – Batteries contain chemical substances, so they should be disposed of properly.

E Select the source you wish to control by

pressing the DISC, TUNER, TV, AUX/DI or MP3 DIRECT button on the remote control.

F Then select the desired function (for

example ., >).

Basic Connections

English

Step 1: Placing the speakers

The Philips Home Theater System is simple to install. However, proper system placement is critical to ensure an optimum sound experience.

Before you start ...

If you wish to mount the SonoWave speakers on the wall, see section ‘Optional Connections - Mounting the SonoWave speakers on the wall.’

A Place the SonoWave speakers at the

normal listening ear level, equal distance from the TV and face straight ahead towards the listening area.

B Place the subwoofer at the corner of the

room. Keep at least one meter away from the TV.

Helpful Hints: – The placement diagram shown here is only a guideline that will provide great system performance. You may  nd other placement choices that are more suitable for your room layout and provide the sound experience you enjoy. – To avoid magnetic interference, do not position the front speakers too close to your TV. – Do not place the SonoWave speakers at an angle as it would reduce the system performance. – For SonoWave speakers setting, see ‘Getting Started - Step 6: Setting the SonoWave speakers.’

Basic Connections (continued)

English

SUBWOOFER

SUB-

FRONT

WOOFER

HDMI OUT

RIGHT

LEFT

Step 2: Connecting the SonoWave speakers and subwoofer

FRONT

RIGHT

MAINS

Ensure this portion is fully

inserted into the jack.

FRONT

LEFT

FM/MW ANTENNA

FM 75

Connect the SonoWave speakers to the



matching speaker jacks at the rear of the DVD system.

Helpful Hints: – To prevent unwanted noise, do not place the SonoWave speakers too close to the DVD system, AC power adapter, TV or any other radiation sources. – To disconnect the SonoWave speakers, press down the catch before pulling out the cable.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected

from the power outlet.

Basic Connections (continued)

English

Option 1

SUB-

FRONT

WOOFER

LEFT

RIGHT

HDMI OUT

Step 3: Connecting to TV

This connection enables you to view the playback from this DVD system. You only need to choose one of the options below to make the video connection. – For a standard TV, follow option 1 or

2. – For a progressive scan TV, follow option 3. – For a HDMI TV, follow option 4.

IMPORTANT! Connect the DVD system directly to the TV.

Option 2

MAINS

FM/MW ANTENNA

FM 75

Option 1: Using the Video (CVBS) jack (good picture quality)

Use the supplied composite video cable



(yellow) to connect the CVBS jack on the DVD system to the video input jack (or labeled as A/V In, Video In, Composite or Baseband) on the TV.

Option 2: Using the S-Video jack (excellent picture quality)

Use an S-video cable (not supplied) to



connect the S-VIDEO (Y/C) jack on the DVD system to the S-Video input jack (or labeled as Y/C or S-VHS) on the TV.

Helpful Hint: – To hear the TV channels through this DVD system, connect the AUDIO IN - TV IN jacks to the corresponding AUDIO output jacks on the TV using an audio cable. Press TV on the remote control when watching the TV programs.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected

from the power outlet.

Basic Connections (continued)

English

Option 3

FM/MW ANTENNA

MAINS

FM 75

Option 3: Connecting to a Progressive Scan TV or component video input

The progressive scan video quality is only available when using Y Pb Pr connection and a progressive scan TV is required. It provides superior picture quality when watching DVD movies.

A Follow option 1 to make the basic video

connection.

B Use the component video cables (red/

blue/green - not supplied) to connect the Y Pb Pr jacks on the DVD system to the corresponding component video input jacks (or labeled as Y Pb/Cb Pr/Cr or YUV) on the TV.

C If your TV accepts progressive signals,

proceed to ‘Getting Started - Step 5: Setting up Progressive Scan feature’ for detailed progressive feature setup.

Option 4

SUB-

FRONT

WOOFER

LEFT

RIGHT

HDMI OUT

Option 4: Connecting to a HDMIcompatible TV

HDMI (High De nition Multimedia Interface) is a digital interface that allows pure digital video transmission without the loss of image quality.

A Use an HDMI cable (not supplied) to

connect the HDMI OUT on this DVD system to the HDMI IN on a HDMIcompatible device (e.g. HDMI TV, HDCP compliant DVI TV).

B When you have completed the necessary

connections, installation and set-up, see ‘Audio Setup Page and Video Setup Page’ for optimum HDMI audio and video settings.

Helpful Hints: – The HDMI is backward compatible with some DVI devices using an appropriate adaptor plug. – If a DVI device is connected, an additional audio cable is required for audio transmission. – Most of the older DVI enable devices are not HDCP compliant and playback is not possible.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected

from the power outlet.

 x the claw into the slot

FM antenna

Basic Connections (continued)

FM/MW ANTENNA

MAINS

SUB-

FRONT

WOOFER

LEFT

RIGHT

HDMI OUT

FM 75

English

antenna

FM/MW ANTENNA

MAINS

FM 75

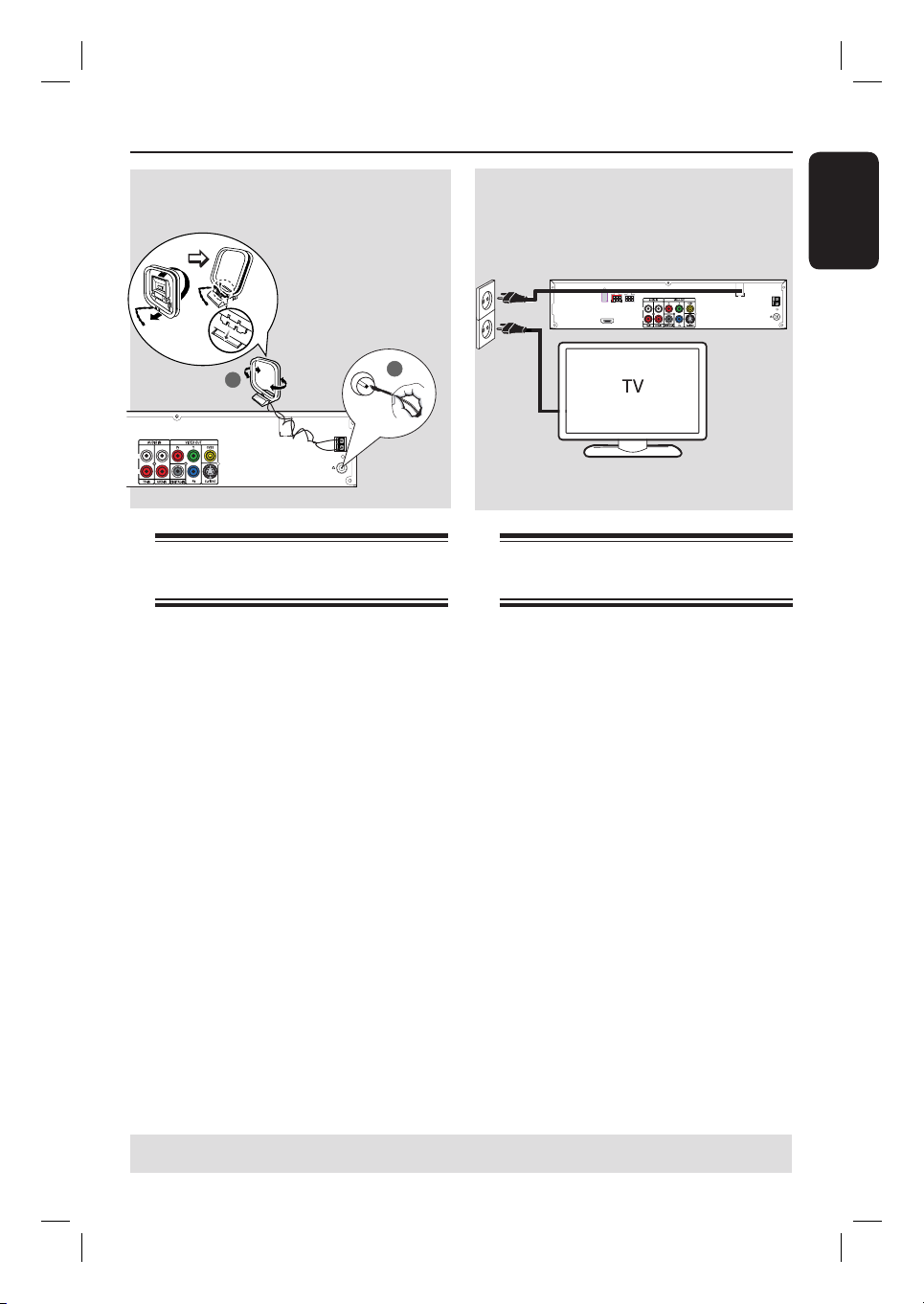

Step 4: Connecting the FM/ MW antennas

A Connect the supplied MW loop antenna

to the MW jack. Place the MW loop antenna on a shelf, or attach it to a stand or wall.

B Connect the supplied FM antenna to the

FM jack. Extend the FM antenna and  x its ends to the wall.

For better FM stereo reception, connect an external FM antenna (not supplied).

Helpful Hints: – Adjust the position of the antennas for optimal reception. – Position the antennas as far away as possible from your TV, VCR or other radiation source to prevent any unwanted interference.

Step 5: Connecting the power cord

After everything is connected properly, plug the AC power cord into the power outlet.

The Eco Power LED on the DVD system will light up. Never make or change any connections with the power turned on.

Helpful Hint: – Refer to the type plate at the rear or bottom of the product for identi cation and supply ratings.

TIPS: Before making or changing any connections, make sure that all the devices are disconnected

from the power outlet.

Optional Connections

English

DIGITAL OUT

SUB-

FRONT

WOOFER

RIGHT

HDMI OUT

Connecting audio from TV

When connecting the audio output from your TV to this Home Theater Audio System, you will have the sound of the TV output on all the speakers. It will enable you to enjoy the multi-channel surround sound capabilities.

Use an audio cable (red/white - not



supplied) to connect the TV IN jacks on this DVD system to the AUDIO OUT jacks on the TV.

To listen to the sound, press TV on the remote control as the sound source that you want to play.

FRONT

LEFT

MAINS

FM/MW ANTENNA

FM 75

Connecting audio from an audio/video device

This DVD system provides analog and digital audio connection. You can connect the audio output from an audio/video device (e.g. VCR, Cable/Satellite Box) to this Home Theater Audio System in order to enjoy the multi-channel surround sound capabilities.

Use an audio cable (red/white - not



supplied) to connect the AUX IN jacks on this DVD system to the AUDIO OUT jacks on the connected device.

To listen to the sound, press AUX/DI to select “AUX” as the sound source that you want to play.

Use a coaxial cable (not supplied) to



connect the DIGITAL IN jack on this DVD system to the DIGITAL OUT jack on the connected device.

To listen to the sound, press AUX/DI to select “DI” as the sound source that you want to play.

TIPS: Refer to the respective connected device’s user manual for other possible connections.

Optional Connections (continued)

English

Mounting the speakers on the wall

You can choose to wall mount the speakers on the wall.

CAUTION! You should get a quali ed person to drill and insert the mounting screws (not supplied) on the wall. DO NOT do it yourself in order to avoid any unexpected damage to the equipment or injury to personnel.

Helpful Hint: – Philips accepts absolutely no liability for any accidents or damage resulting from inadequate assembly or mounting, misuse or abuse, or natural disasters.

A Loosen the screws at the bottom of the

speakers and remove the base covers. See the above illustrations.

B Attach the supplied brackets to the rear

of the speakers and use the screws to secure the connections at the bottom of the speakers.

C Drill holes on the wall where the

speakers are to be hung. Mount the rubber wall plugs and screws (not supplied) to the wall.

D Hook the speakers  rmly onto the

screws, by ensuring that they  t into the brackets at the rear of the speakers.

TIPS: Refer to the respective connected device’s user manual for other possible connections.

Getting Started

English



Step 1: Turning on the DVD system

Press the SOURCE button on the front panel repeatedly to select : DISC ¤ MP3 DIRECT ¤ FM ¤ MW ¤

TV ¤ AUX ¤ DI ¤ DISC ....

Press DISC/USB, TUNER, TV, AUX/DI or MP3 DIRECT on the remote control.

 If the USB is detected, pressing the

DISC/USB will toggle between DISC and USB mode.

 Press TUNER to toggle between FM

and MW band.

 Press AUX/DI to toggle between

analog audio input and digital audio input.

 Press MP3 DIRECT to playback the

audio tracks from your portable audio/ HDD player which is connected to this DVD system.

Step 2: Finding the correct viewing channel

Before you start ...

Make sure you have completed all the necessary connections before proceeding.

A Press SOURCE button until “DISC”

appears on the display panel.

B Turn on the TV and set it to the correct

video-in channel. You should see the blue DVD background screen on the TV.

 You may go to Channel 1 on your TV,

then press the Channel Down button on your TV’s remote control until you see the Video In channel.

 You may press ° button repeatedly

on your TV’s remote control.

 Usually this channel is between the

lowest and highest channels and may be called FRONT, A/V IN, VIDEO. See your TV manual for more details.

Turning off to Eco Power standby mode

Press STANDBY ON (2).



 The display screen will turn off.

Getting Started (continued)

Step 3: Setting language preferences

The language options are different depending on your country or region. It may not correspond to the illustrations shown on the user manual.

On-screen display (OSD) language

The OSD (On-Screen Display) language for this DVD system will remain as you have set it, regardless of the changes made to the DVD disc language.

A In ‘DISC’ mode, press SETUP on the

remote control.

 { General Setup Page } appears.

B Use ST keys to highlight { OSD

Language }, then press X.

General Setup Page

Disc Lock

Display Dim

Program

OSD Language

Screen Saver

DivX(R) VOD Code

C Use ST keys to select a language and

press OK to con rm.

English Dansk Deutsch Espanõl

Audio, Subtitle and Menu language for DVD playback

You can select your preferred language settings for DVD playback. If the selected language is recorded on the DVD disc, the DVD system will automatically play the disc in that language. Otherwise, the disc’s default language will be used instead.

A Press Ç twice to stop playback (if any),

then press SETUP.

B Press X repeatedly to select

{ Preference Page }.

C Use ST keys to highlight one of the

options below, then press X.

Preference Page

Audio Subtitle Disc Menu PBC MP3/JPEG Nav Password DivX Subtitle Default

{ Audio } Selects the preferred audio language for DVD playback.

{ Subtitle } Selects the preferred subtitle language for DVD playback.

English

{ Disc Menu } Selects the preferred disc menu language for DVD playback.

D Use ST keys to select a language and

press OK to con rm.

TIPS: Press W to go back to the previous menu item. Press SETUP to exit the menu.

Getting Started (continued)

English

If the language you want is not available in the list, select { Others. }

Use the numeric keypad (0-9) on the remote control to enter the 4-digit language code ‘XXXX’ (see page 4) and press OK to con rm.

E Repeat steps C ~ D for other settings.

Helpful Hints: – During DVD playback, you can switch the audio and subtitle languages by pressing the AUDIO and SUBTITLE buttons on the remote control. However, this does not change the default settings you have made here. – For some DVDs, the subtitle/audio/menu language can only be changed via the DVD disc menu.

Step 4: Setting the TV

Selecting the matching color system

The color system of the DVD system, DVD and TV should match. Only then will it be possible to play a DVD on this system. Before changing the TV system, determine the color system of your TV.

A In ‘DISC’ mode, press SETUP on the

remote control.

B Press X repeatedly to select { Video

Setup Page }.

C Press T to highlight { TV Type }, then

press X.

Video Setup Page

TV Type TV Display Progressive Picture Setting HDMI Setup

{ PAL } Select this if the connected TV has the PAL color system. It will change the video signal of an NTSC disc and output it to PAL format.

NTSC PAL Multi

{ NTSC } Select this if the connected TV has the NTSC color system. It will change the video signal of a PAL disc and output it to NTSC format.

{ Multi } Select this if the connected TV is compatible with both NTSC and PAL (multi-system). The output format will be in accordance with the video signal of the disc.

TIPS: The underlined option is the factory default setting. Press W to go back to the previous menu item. Press SETUP to exit the menu.

Getting Started (continued)

D Select one of the options and press OK

to con rm.

 Follow the instructions shown on the

TV to con rm the selection (if any).

 If a blank/distorted TV screen appears,

wait for 15 seconds for the auto recovery.

Setting the TV Display

Set the aspect ratio of the DVD system according to the TV type you have connected. The format you select must be available on the disc. If it is not, the setting for TV display will not affect the picture during playback.

A In ‘DISC’ mode, press SETUP on the

remote control.

B Press X repeatedly to select { Video

Setup Page }.

C Press T to highlight { TV Display },

then press X.

Video Setup Page

TV Type TV Display Progressive Picture Setting HDMI Setup

{ 4:3 Pan Scan } Select this if you have a conventional TV and want both sides of the picture to be trimmed or formatted to  t your TV.

4:3 Pan Scan 4:3 Letter Box 16:9 Wide Screen

English

{ 4:3 Letter Box } Select this if you have a conventional TV. In this case, a wide picture with black bands on the upper and lower portions of the TV will be displayed.

{ 16:9 Wide Screen } Select this if you have a wide-screen TV.

D Select one of the options and press OK

to con rm.

TIPS: The underlined option is the factory default setting. Press W to go back to the previous menu item. Press SETUP to exit the menu.

Getting Started (continued)

English

Step 5: Setting up Progressive Scan feature

(for Progressive Scan TV only) The progressive scan displays twice the number of frames per second than interlaced scanning (ordinary normal TV system). With nearly double the number of lines, progressive scan offers higher picture resolution and quality.

Before you start...

Ensure that you have connected this DVD system to a progressive scan TV using the Y Pb Pr connection (see ‘Option 3: Connecting to a Progressive Scan TV or component video input’).

A Turn off your TV progressive scan mode

or turn on to the interlaced mode (refer to your TV’s user manual).

B Turn on the DVD system and press

SOURCE button until “DISC” appears on the display panel.

C Turn on the TV and set it to the correct

video-in channel.

 The blue DVD background screen will

appear on the TV.

D Press SETUP on the remote control.

E Press X repeatedly to select { Video

Setup Page }.

F Select { Progressive } > { On, } then

press OK to con rm.

G Read the noti cation message on the TV

and con rm your action by selecting the

in the menu and press OK.

 If a blank/distorted screen appears, wait

for 15 seconds for the auto recovery.

Otherwise, select { Cancel } and press



OK to go back to the previous menu.

There will be no picture on your TV

at this state until you have turned on the progressive scan mode on your TV.

H Turn on your TV progressive scan mode

(refer to your TV’s user manual).

 A message appears on the TV.

I Con rm your action by selecting the

in the menu and press OK.

 The setup is now completed and you

can start to enjoy the high quality picture.

If no picture is displayed:

A Press EJECT ç.

B Press W on the remote control.

C Press MUTE on the remote control.

Helpful Hint: – There are some progressive scan TVs and High-De nition TVs that are not fully compatible with this unit, resulting in an unnatural picture when playing back a DVD VIDEO disc in the progressive scan mode. In this case, turn off the progressive scan feature on both the DVD system and your TV.

Video Setup Page

TV Type TV Display Progressive Picture Setting HDMI Setup

TIPS: Press W to go back to the previous menu item. Press SETUP to exit the menu.

On Off

Getting Started (continued)

Step 6: Setting the SonoWave speakers

There are three parameters to adjust the SonoWave speakers: Room Acoustics, Speaker Distance and Listening Position. You can adjust the SonoWave speaker settings according to your room environment and setup for optimum performance.

A Press and hold SOUND on the

remote control to enter SonoWave speaker settings mode.

B Use W X keys to select { ROOM

ACOUSTICS } and press OK.

To return to the main SonoWave



speaker settings selection, press S or T key.

C Use W X keys to select the condition of

the room and press OK to con rm.

 { HARD } for concrete/glass walls.  { SOFT } for wooden walls.

D Use W X keys to select { SPEAKER

DISTANCE } and press OK.

FRONT RFRONT L

F Use W X keys to select { LISTENING

POSITION } and press OK.

FRONT RFRONT L

G Use W X keys to select the distance

between the listening position and the SonoWave speakers and press OK to con rm.

 { NEAR } for distance less than 1.5

meters (4’ 7”).

 { DEFAULT } for distance between 1.5

meters (4’ 7”) to 2.5 meters (7’ 7”).

 { FAR } for distance more than 2.5

meters (7’ 7”).

H The SonoWave speaker settings are now

completed and the system will exit the setting automatically.

English

SPEAKER DISTANCE

E Use W X keys to select the distance

between the two SonoWave speakers and press OK to con rm.

 { NEAR } for distance less than 1

meter (3’ 5”).

 { DEFAULT } for distance between 1

meter (3’ 5”) to 2.5 meters (7’ 7”).

 { FAR } for distance more than 2.5

meters (7’ 7”).

TIPS: The underlined option is the factory default setting. Press W to go back to the previous menu item. Press SETUP to exit the menu.

Disc Operations

English

Playable discs

Your DVD home theater system will play:

– Digital Versatile Discs (DVDs) – Video CDs (VCDs) – Super Video CDs (SVCDs) – Finalized DVD Recordable (DVD±R), DVD Rewritable (DVD±RW) – Audio Compact Discs (CDs) – MP3/ Windows Media™ Audio discs, picture (Kodak, JPEG)  les on CD-R(W)

– ISO 9660/UDF format

– JPEG resolution support up to 3072 x 2048 – Supported sampling frequencies : 32 kHz, 44.1 kHz, 48 kHz – Supported Bit-rates : 32~256 (kbps), variable bit rates (average 128 kbps)

– DivX  les on CD-R(W)/DVD+R(W):

– DivX 3/4/5/6, DivX Ultra

– Supports QPEL (Quarter Pixel).

Region Codes for DVD discs

DVD discs and players are designed with regional restrictions. Before playing a disc, make sure the disc is for the same region as your player. The regional code for this DVD system is indicated at the rear panel.

IMPORTANT! – If the inhibit icon (ø or X) appears on the TV screen when a button is pressed, it means the function is not available on the current disc or at the current time. – Do not put any objects other than discs on the disc tray. Doing so may cause the disc player to malfunction.

Playing a disc

A Press SOURCE repeatedly until “DISC”

appears on the display panel (or press DISC/USB on the remote control).

B Turn on the TV to the Video In channel

for the DVD system (e.g. ‘EXT’, ‘0’, ‘AV’).

 You should see the blue DVD

background screen on the TV.

C Insert a disc into the disc slot.

 Make sure the disc label is facing up.

For double-sided discs, load the side which you want to play facing up.

 When loading an 8cm (3”) disc, slot

into the middle of the disc loader.

D Playback will start automatically.

 See the following pages for more

playback options and features.

E To remove the disc, stop playback and

press EJECT ç.

You can also press and hold the STOP



button on the remote control to eject



the disc.

Helpful Hint: – If you are having trouble playing a certain disc, remove the disc and try a different one. Improperly formatted discs will not play on this DVD system.

TIPS: Some discs cannot be played on this player due to the con guration and characteristics of the

disc, or due to the condition of recording and authoring software that was used.

Disc Operations (continued)

Basic playback controls

Pausing playback

 During playback, press u (or Å on

the remote control).

 While in pause mode, you can press

Å repeatedly to view the next still picture (for video playback only.)

 To resume playback, press u (or

PLAY X on the remote control).

Selecting another track/chapter

Press ./ > or use the numeric



keypad (0-9) to key in a track/chapter number.

 If the repeat track mode is active, press

. again to replay the same track/ chapter.

Searching backward/forward

Press and hold ./ >.



 While searching, press ./ >

repeatedly to decrease/increase the search speed.

 To resume normal playback, press

u (or PLAY X on the remote control).

Stopping playback

Press Ç.



Selecting various repeat/ shuf e functions

While playing a disc, press REPEAT on



the remote control repeatedly to choose a repeat play mode.

DVD  RPT ONE (repeat chapter)  RPT TT (repeat title)  SHUFFLE (random play)  RPT SHF (repeat random play)  RPT OFF (exit repeat mode)

VCD/SVCD/CD  RPT ONE (repeat track)  RPT ALL (repeat disc)  SHUFFLE (random play)  RPT SHF (repeat random play)  RPT OFF (exit repeat mode)

MP3/DivX/Windows Media™ Audio  RPT ONE (repeat track)  RPT ALL/FLD (repeat folder)  SHUFFLE (random play)  RPT OFF (exit repeat mode)

Helpful Hint: – Repeat playback is not possible on VCDs when the PBC mode is turned on.

English

Helpful Hint: – This is a power-saving feature, the system will automatically switch to Eco Power standby mode if you do not press any buttons within 30 minutes after a disc has stopped playing.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Disc Operations (continued)

English

Programming disc tracks

(not for Picture CD/MP3) You can play the contents of the disc in the order you want by programming the playing order of the tracks.

A Press PROGRAM on the remote

control.

 The programming menu appears.

B Use the numeric keypad (0-9) to

enter a valid track/chapter number.

C Use WXST keys to move the cursor to

the next position.

If there are more than ten total program



tracks, select { Next } on the screen and press OK (or press > on the remote control) to access the next programming page.

To remove the track/chapter from the



programming menu, select the track/ chapter and press OK.

D Once complete, select { Start } on the

screen and press OK to start playback.

 Playback will start from the selected

track under the programmed sequence.

Exit Start Next

Other playback features for video discs (DVD/VCD/ SVCD)

Using the Disc Menu

Depending on the disc format, a menu may appear on the TV screen once you load the disc.

To select a playback feature or item

Use WXST keys or numeric keypad



(0-9) on the remote control, then press OK to start playback.

To access or remove the menu

Press DISC MENU on the remote



control.

E To exit the program menu, select

{ Exit } in the menu and press OK.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Disc Operations (continued)

Viewing playback information

This DVD system can display the disc playback information (for example, title or chapter number, elapsed playing time, audio/subtitle language) and a number of operations can be done without interrupting disc playback.

A During playback, press DISPLAY.

 A list of available disc information

appears on the TV.

DVD

VCD/SVCD

B Use ST keys to view the information

and press OK to access.

C Use the numeric keypad (0-9) to input

the number/time or use ST keys to make the selection, then press OK to con rm.

 Playback will change according to the

chosen time or to the selected title/ chapter/track.

Resuming playback from the last stopped point

This DVD system is able to resume disc playback from its last stopped point (only possible for the last 10 discs that were recorded without a menu).

A Load one of the last 10 discs played.

B While “LOADING” appears on the

display panel, press PLAY X (or u) to start playback from the last stop point.

To cancel the resume mode

Press Ç twice.



Zooming in

This option allows you to enlarge the picture on the TV screen and to pan through the enlarged picture.

A During playback, press ZOOM on the

remote control repeatedly to select a different zoom factor.

 Use WXST keys to move through

the zoomed image.

 Playback will continue.

B Press ZOOM repeatedly to return to

the original size.

Changing subtitle language (DVD only)

This operation works only on DVDs with multiple subtitle languages. You can change the language you want while playing a DVD.

Press SUBTITLE repeatedly to select



different subtitle languages.

English

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Disc Operations (continued)

English

Changing sound track language

This operation works only on DVDs with multiple soundtrack languages, you can change the language you want while playing a DVD.

Press AUDIO repeatedly to select the



available audio languages.

For VCD – changing the audio channel

Press AUDIO repeatedly to select the



available audio channels provided by the disc (STEREO, MONO LEFT, MONO RIGHT or MIX MONO.)

Playback Control (VCD only)

Playback Control (PBC) playback allows you to play Video CDs interactively, following the menu on the display. This function can also be accessed via the ‘Preference Page’ menu.

For VCDs with Playback Control (PBC) feature (version 2.0 only)

During playback, press RETURN/



TITLE to return to the disc title menu or main menu.

Preview function (VCD/SVCD only)

This function allows you to preview the contents of a VCD/SVCD.

Press DISC MENU.

Select Digest Type:

Track Digest

Disc Interval

Track Interval

B Use ST keys to select one of the

following options and press OK.

{ Track Digest }

View six different tracks on one screen each time. It allows you to have a quick glance at all the tracks on the disc.

{ Disc Interval }

View the whole disc in six thumbnail pictures. It divides a disc into six portions at regular intervals and displays them on one screen.

{ Track Interval }

View the content of a single track in six thumbnail pictures. It divides a single track into six portions at regular intervals and displays them on one screen. This option is only available during playback mode.

01 02 03

04 05 06

Exit Menu

To go to the previous or next page, press



./ >.

To return to the main menu, select



{ Menu } on the screen and press OK.

Press OK on the selected thumbnail



picture to start playback from there.

C To exit the preview menu, select

{ Exit } on the screen and press OK.

TIPS: The operating features described here might not be possible for certain discs. Always refer to the instructions supplied with the discs.

Disc Operations (continued)

Playing an MP3/ JPEG/ Windows Media

This DVD system can playback most of the MP3, JPEG and Windows Media™ Audio  les recorded on a CD-R/RW disc or commercial CD.

Before you start ...

Turn on your TV to the correct Video In channel. See the section on “Finding the correct viewing channel”.

A Insert a disc.

 The disc reading time may exceed 30

seconds due to the complexity of the directory/ le con guration.

 The disc menu appears on the TV.

00:19 04:39 001/003

\MP3_files_128kbs

Picture 1

Picture 2

MP3 Music 1

MP3 Music 2

050 003 000

™ Audio disc

USB

During playback, you can;

Press ./ > to playback another



track/ le in the current folder.

Press and hold ./ > to fast



reverse/forward search for a music track.

To select another folder from the



current disc, press S to return to the root menu. Use ST keys to make your selection and press OK to con rm.

Press REPEAT repeatedly to access



various play modes.

D To stop playback, press Ç.

Helpful Hint: – To skip the folders menu when you load a MP3/JPEG disc, set the MP3/JPEG NAV setting in the Preference Setup Page to { Without Menu }.

English

B If the disc main menu contains various

folders, use ST keys to select a desired folder and press OK to open the folder.

C Use ST keys to select a track/ le and

press OK to start playback.

 Playback will start from the selected

 le and continue through to the end of the folder.

TIPS: Some discs cannot be played on this player due to the con guration and characteristics of the

disc, or due to the condition of recording and authoring software that was used.

Disc Operations (continued)

English

Playing a JPEG image  le (slide show)

Before you start ...

Turn on your TV to the correct Video In channel. See the section on “Finding the correct viewing channel”.

Insert a Picture disc (Kodak Picture CD,



JPEG).

 For a Kodak disc, the slide show will

begin automatically.

 For a JPEG disc, the picture menu will

appear on the TV. Press PLAY X (or u) to start the slide-show playback.

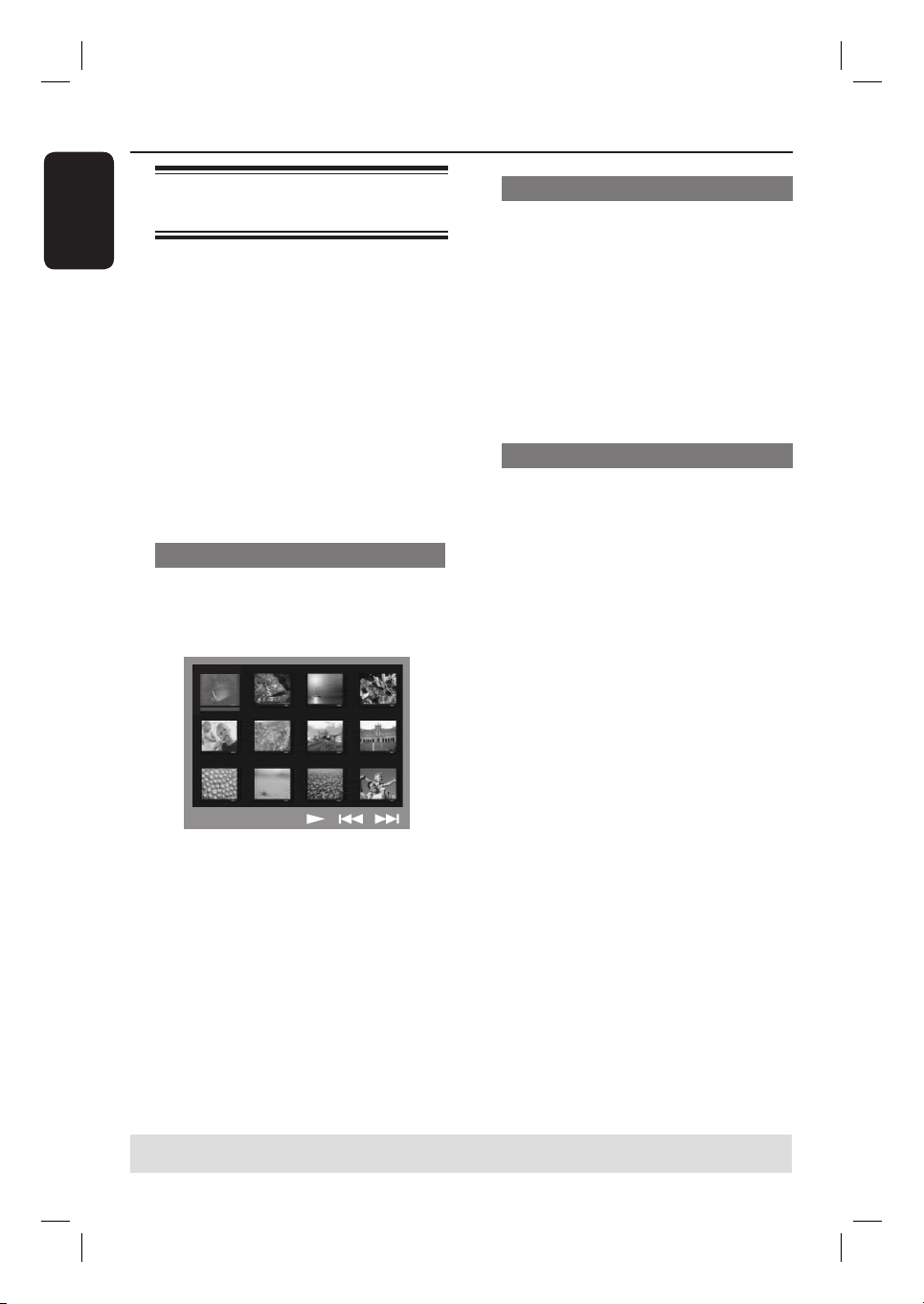

Preview function

A During playback, press Ç.

 12 thumbnail pictures will be displayed

on the TV.

B Press ./ > to display the other

pictures on the previous/next page.

C Use WXST keys to highlight one of the

pictures and press OK to start playback.

D Press DISC MENU to return to Picture

CD menu.

Zoom picture

A During playback, press ZOOM

repeatedly to select a different zoom factor.

B Use WXST keys to pan through the

zoomed image.

Helpful Hint: – This feature is not applicable for DivX disc.

Rotating/ ipping the picture

During playback, use WXST keys to



rotate/ ip the picture on the TV.

S :  ip the picture vertically T :  ip the picture horizontally W : rotate the picture counter-clockwise X : rotate the picture clockwise

Supported  le format:

– The  le extension has to be ‘*.JPG’ and not ‘*.JPEG’. – It can only display DCF-standard still pictures or JPEG pictures e.g. TIFF. It cannot play back moving pictures, Motion JPEG and other formats, or pictures in formats other than JPEG, or pictures associated with sound. – It may require longer time for the DVD system to display the disc content on the TV due to the large number of songs/pictures compiled into one disc. – Progressive JPEG  les will take a longer time to display compared to baseline JPEGs.

TIPS: Some discs cannot be played on this player due to the con guration and characteristics of the

disc, or due to the condition of recording and authoring software that was used.

Disc Operations (continued)

Playing MP3 music and JPEG pictures simultaneously

You can create a musical slide show if the disc contains both the MP3 music and JPEG picture  les.

A Insert an MP3 disc that contains music

and pictures.

B Select an MP3 track in the menu and

press PLAY X (or u) to start playback.

C During MP3 music playback, use WXST

keys to select a picture folder from the disc menu and press PLAY X (or u).

 The picture  les will be played back

through to the end of the folder.

D To stop simultaneous playback, press

DISC MENU and followed by Ç.

Helpful Hints: – It is normal to experience an occasional “skip” while listening to your MP3 disc. – It is normal to experience an occasional pixelation during MP3/DivX playback due to poor clarity of digital contents during internet downloading. – Only the  rst session of a multi-session CD will be played back.

Playing a DivX disc

This DVD system supports the playback of DivX movies which you can copy from your computer onto a CD-R/RW, DVD+R/+RW disc (see ‘General Setup Page - { DivX(R) VOD code }).

A Insert a DivX disc.

B Press PLAY X (or u) to start

playback.

During playback, you can;

If multilingual subtitles are embedded on



the DivX disc, you can press SUBTITLE to change the subtitle language while playing.

Use W / X keys on the remote control



to perform fast reverse/forward search.

Press DISPLAY repeatedly until the



Time Search menu appears, key in the time where playback should start and press OK to con rm.

 Playback skips to the time entered.

Helpful Hints: – Subtitle  les with the following  le name extensions (.srt, .smi, .sub, .ssa, .ass) are supported but do not appear on the  le navigation menu. – The subtitle  le name has to be the same as the  le name of the movie. – The subtitle can only be displayed up to an average of 45 characters.

English

TIPS: Some discs cannot be played on this player due to the con guration and characteristics of the

disc, or due to the condition of recording and authoring software that was used.

Mic

Disc Operations (continued)

English

Playing a Karaoke disc

Before you start ...

Turn on your TV to the correct Video In channel. See the section on ‘Finding the correct viewing channel’.

A Connect a microphone (not supplied) to

the MIC socket on the front panel of the DVD main unit (as shown below).

B Insert a karaoke disc.

 If the disc menu appears, use ST

keys to make your selection and press OK to start playback.

C To turn off the vocal or change the

sound channel of a karaoke disc, press VOCAL on the remote control repeatedly to toggle between various audio modes.

D Start enjoying the karaoke.

While singing, you can set the



microphone volume level by pressing the MIC LEVEL on the top panel followed by adjusting the Volume control.

Microphone setting

A Press KARAOKE on the remote

control to access ‘Microphone Setup’ page.

Off

B In ‘Microphone Setup’ page, use ST

keys to select the option for microphone settings and press OK to con rm.

{ Mic } – Use ST keys to turn on or off the karaoke microphone.

{ Mic Volume } – Use ST keys to set the microphone volume level (00 ~ +20). Select ‘00’ for minimum microphone volume setting.

{ Echo Level } – Use ST keys to set the Echo Level (00 ~ +20). Select ‘00’ for minimum echo level setting.

{ Key } – Use ST keys to set the pitch level (-10~ +10) that matching your voice. Select ‘-10’ for lowest possible tone and ‘+10’ for highest tone. To return to original tone, select ‘00’.

USB Operations

Playing from USB  ash drive or USB memory card reader

This DVD system is able to access and view the data  les (JPEG, MP3 or Windows Media™ Audio) in the USB  ash drive or USB memory card reader. Editing and copying the data are not possible.

A Insert a USB  ash drive or USB memory

card reader into the USB port on the front panel.

B A message will appear on the TV for 5

( ve) seconds when the device is detected.

D Before removing the USB device,

pressÇ to stop playback or press

DISC/USB to switch to disc mode.

English

Helpful Hint: – If the USB device does not  t into the USB port, a USB extension cable is required.

Compatibility of the USB device

– The USB port does not support the connection of other USB devices except USB  ash drive or USB memory card readers. – It is not possible to record/copy the data from the USB port to this DVD system. – Copy-protected contents are not playable.

Press DISC/USB to select device

C Press DISC/USB on the remote control

to access the data in the drive.

 The device numbers may vary from

different card readers.

 For the card reader, only one of the

connected device can be accessed.

During playback, you can press



DISC/USB to return to the disc mode.

MP3 Direct Operations

English

Playing from a portable audio or HDD player

This DVD system is able to playback audio tracks from your portable audio or HDD player.

A Use the supplied MP3 direct cable to

connect between the ‘headphone’ output jack on your portable audio or HDD player and the MP3 DIRECT jack on the front panel of this DVD system.

 The white cable is for the portable

audio player.

B Press MP3 DIRECT on the remote

control.

C Start playback on your portable audio or

HDD player.

D To stop playback, press the STOP button

on the portable audio or HDD player.

Helpful Hints: – If you change the input source by pressing any of the source button (e.g. DISC/USB, TUNER,) the playback from the MP3 or HDD player will not stop automatically. . – No copying of tracks on portable HDD to the USB drive.

Accessing the DVD setup menu

This DVD system setup is carried out via the TV, enabling you to customise the DVD system to suit your particular requirements.

DVD Setup Menu Options

General Setup Page

Disc Lock Display Dim Program OSD Language Screen Saver DivX(R) VOD Code

see page 38

English

SETUP

A In ‘DISC’ mode, press SETUP on the

remote control.

 The setup menu appears.

B Use W X keys to select one of the setup

menu options and press OK.

If you are not able to access the



{ Preference Page }, press SETUP to exit the menu. Then, press STOP (Ç) twice before you press the SETUP again.

C Use S T keys to select a setup option

and press X to access

D Select the setting you wish to change and

press OK to con rm and go back to the previously selected item.

 Instructions and explanations of the

options are provided in the following pages.

 If the option in the menu is grayed

out, that means the setting is not available or cannot be changed in the current state.

Audio Setup Page

HDMI Audio Night Mode Lip Sync

Video Setup Page

TV Type TV Display Progressive Picture Setting HDMI Setup

Preference Page

Audio Subtitle Disc Menu PBC MP3/JPEG Nav Password DivX Subtitle Default

see page 39

see pages 40~41

see pages 42~43

E To exit, press SETUP.

DVD Setup Menu Options (continued)

English

General Setup Page (underlined options are the factory default settings)

Disc Lock Not all discs are rated or coded by the disc maker. You can

prevent a speci c disc from playing by locking the disc. Up to 40 discs can be locked. { Lock } – Selects this to block the playback of the

current disc. Subsequent access to a locked disc requires a six-digit password. The default password is ‘136900’ (see ‘Preference Setup Page - { Password }).

{ Unlock } – All discs can be played.

Display Dim Selects the brightness of the DVD system display panel.

{ 100% } – Full brightness. { 70% } – Medium brightness. { 40% } – Dimmest display.

Program Access the track programming menu. See ‘Programming disc

tracks’ chapter.

OSD language Selects the preferred language for the DVD system on-screen

display menu.

Screen Saver The screen saver prevents damage to the TV screen by avoiding

exposure to a static image for too long. { On } – Switches to TV screen saver mode when

playback has been stopped or paused for more than 15 minutes.

{ Off } – Turns off the screen saver function.

DivX(R) VOD code Philips provides you with the DivX¨ VOD (Video On Demand)

registration code that allows you to rent and purchase videos using the DivX¨ VOD service. Press X to see the registration code and press OK to exit.

Use the registration code to purchase or rent the videos from

DivX¨ VOD service at www.divx.com/vod. Follow the instructions and copy the video from your computer onto a CD-R/RW disc for playback on this DVD system.

Note: All the downloaded videos from DivX® VOD can only be played back on this DVD system. For more information, visit us at www.divx. com/vod.

DVD Setup Menu Options (continued)

Audio Setup Page (underlined options are the factory default settings)

HDMI Audio This setting is only required if you are using the DVD system’s

HDMI OUT jack to connect your TV or other display device (see ‘Option4: Connecting to a HDMI-compatible TV’).

Note: It may take a while for the DVD system and the input

device to communicate and initialize.

{ Off } – Select this if the playback audio format is not

supported by HDMI connection (e.g. projector, SACD). It will turn off the HDMI audio output.

{ PCM } – Select this to downmix the audio signals to

linear-PCM (2-channel).

{ All } – Select this to enjoy the multi-channel audio

output through the HDMI connection.

Note: It is not possible to listen to SACDs or copy-controlled DVDAudio CPPM (Content Protection for Playable Media) sources using the HDMI connection.

Night Mode This mode optimizes playback of sound at low volume. High

volume outputs will be softened and low volume outputs will be enhanced to an audible level. This feature is only applicable for DVD video discs with Dolby Digital mode. { On } – Turns on night mode. { Off } – Turns off night mode feature. Selects this to

enjoy the surround sound with its full dynamic range.

Lip Sync This feature allows you to adjust the audio delay times if the

video playback is slower than the audio output streams, hence resulting in lip-sync.

Access the lip sync setup menu. Use W X keys to set the delay

times (0 ~ 200 ms) for the audio output.

English

DVD Setup Menu Options (continued)

English

Video Setup Page (underlined options are the factory default settings)

TV Type Selects the colour system that matches the connected TV. It will

enable playback of a different type of disc (PAL or NTSC disc) on this DVD system. { PAL } – For PAL-system TV. { NTSC } – For NTSC-system TV. { Multi } – For TV that is compatible with both PAL and

NTSC.

TV Display The picture shape can be adjusted to  t your TV.

{ 4:3 Letter Box } – For a ‘wide-screen’ display

with black bars on the top and bottom.

{ 4:3 Pan Scan } – For a full-height picture with the

sides trimmed.

{ 16:9 Wide Screen } – For wide-screen TV

(frame ratio 16:9).

Progressive Before enabling the progressive scan feature, you must ensure that

your TV can accept progressive signals (a progressive scan TV is required) and that you have connected this DVD system to your TV using the Y Pb Pr (see ‘Option 3: Connecting to a Progressive Scan TV or component video input’). { On } – Turns on progressive scan mode. Read the instructions on the TV and con rm

your action by pressing OK on the remote control.

{ Off } – Disables the progressive scan mode.

Note: If no picture appears, wait for 15 seconds for auto recovery. Otherwise, turn off the progressive scan as below:

1) Press EJECT.

2) Press W on the remote control.

3) Press MUTE on the remote control.

Picture Setting This DVD system provides three prede ned sets of picture color

settings and one personal setting which you can de ne yourself.

{ Standard } – Original color setting. { Bright } – Vibrant color setting. { Soft } – Warm color setting. { Personal } – Selects this to personalize the picture color

Personal Picture Setup

Brightness

Contrast Tint Color

setting. Use W X keys to adjust to the setting that best suits your personal preference and press OK to con rm. For an average setting, select { 0 }.

DVD Setup Menu Options (continued)

Video Setup Page (underlined options are the factory default settings)

HDMI Setup It provides the picture settings to enhance the appearance and

picture quality for disc playback. This feature is only applicable if you have connected this DVD system to a HDMI-compatible TV/ device.

{ HDMI Video }– Selects a suitable video resolution depending

on the capability of the connected TV/device to further enhance the HDMI video output.

{ 480p } Progressive output in 480 lines for NTSC TV. { 576p } Progressive output in 576 lines for PAL TV. { 720p } - (if a HDMI TV is connected) Progressive output upscale to 720 lines. { 1080i } - (if a HDMI TV is connected) Interlaced output upscale to 1080 lines. { Auto } The video output will automatically follow the display’s supported resolution.

Note: If no display appears on the TV due to unsupported resolution, use the composite video cable to connect the DVD system and your TV. Turn on your TV to the correct input channel for the composite video and adjust the resolution setting to 480p/576p.

{ Wide Screen Format } – Selects a suitable screen display.

This feature is only available if you have selected { TV Display - 16:9 Wide Screen }.

{ Superwide } Selects this to display the 4:3 picture disc on the wide-screen TV with non-linear stretching (center position of the screen is stretched less than the side). { 4:3 Pillar Box } Selects this to display 4:3 picture disc on the widescreen TV without stretching. Black bars will be shown on the both sides of the TV screen. { Off } No aspect ratio adjustment is made when this option is selected.

Note: The { Wide Screen Format } feature will be disabled if your HDMI TV has been preset to { 480p } or { 576p } settings.

English

DVD Setup Menu Options (continued)

English

Preference Setup Page (underlined options are the factory default settings)

Audio Selects the preferred audio language for DVD playback.

Subtitle Selects the preferred subtitle language for DVD playback.

Disc Menu Selects the preferred disc menu language for DVD playback.

Note: If the selected audio/subtitle/disc menu language is not available

on the DVD, the disc’s default language will be used instead.

PBC Play Back Control feature is applicable for VCD/SVCD only. It

allows you to play Video CDs (2.0) interactively, following the menu on the display. { On } – The index menu (if available) will appear on

the TV when you load a VCD/SVCD.

{ Off } – The VCD/SVCD will skip the index menu and

playback directly from the beginning.

MP3/JPEG Nav MP3/JPEG Navigator can only be set if the disc is recorded with a

menu. It allows you to select different display menus for easy navigation. { Without Menu} – Displays all the  les contained in the MP3/

Picture disc.

{ With Menu } – Displays the folder menu of the MP3/Picture

disc.

Note: This DVD system can only display 650  les/folder in the directory.

Password The password is used for the Disc Lock. Enter your six-digit

password to play a locked disc or when prompted for a password. The default password is ‘136900’. To change the password:

1) Press OK to access the change password menu.

2) Use the numeric keypad 0-9 on the remote control to enter your existing six-digit password at { Old Password }.

Note: When doing this for the  rst time or if you forget your existing password, key in ‘136900’.

3) Enter the new six-digit password at { New Password }.

4) Enter the new six-digit password again at { Con rm PWD }.

5) Press OK to con rm and exit the menu.

DVD Setup Menu Options (continued)

Preference Setup Page (underlined options are the factory default settings)

DivX Subtitle Selects the font type that supports the recorded DivX subtitle.

{ Standard } – Displays a standard list of Roman subtitle

fonts provided by this DVD system. { Central Europe } – Displays Central Europe fonts. { Cyrillic } – Displays Cyrillic fonts. { Greek } – Displays Greek subtitle fonts. { Chinese (Simp) } – Displays Simpli ed Chinese fonts. { Korean } – Displays Korean fonts.

Default This feature enables you to reset all the setup menu options and

your personal settings to the factory defaults, except your password for the Disc Lock. Press OK to con rm the default reset.

English

Tun e r Operat i ons

English

IMPORTANT! Make sure the FM and MW antennas are connected.

Tuning to radio stations

A Press SOURCE repeatedly until “FM”

appears on the display panel (or press TUNER on the remote control).

B Press W / X brie y on the remote

control to start tuning.

 “SEARCH > or <” will appear on the

display panel until a radio station with suf cient signal strength is found.

C Repeat step B if necessary until you  nd

the desired radio station.

D To  ne-tune the reception of a weak

station, press S / T brie y and repeatedly until optimal reception is found.

Presetting radio stations

You can store up to 40 FM and 20 MW preset radio stations in the memory. There are three different ways to program the radio stations: – Using auto install (for  rst time setup only) – Using automatic preset – Using manual preset

Using auto install

This feature is only applicable for  rst time radio station programming. You will be prompted to install the radio stations when you access the tuner mode. With one touch of button, all the available radio stations will be stored automatically.

display panel

A Press TUNER.

 “AUTO INSTALL PRESS PLAY”

appears.

B Press PLAY X until “START ...” appears

on the display panel.

 The system will start searching from

the FM band followed by the MW band.

 All the available radio stations with

strong signal will be stored automatically.

 Once complete, the last tuned radio

station will be played back.

Helpful Hints: – The system will exit presetting mode if no button is pressed within 20 seconds. – If no stereo signal is detected or less than 5 ( ve) stations are detected during tuner installation, “PLEASE CHECK ANTENNA” appears.

Tuner Operations (continued)

Using automatic preset

Use automatic presetting to store or reinstall all the preset radio stations.

A Press TUNER to select “FM” or “MW’

band.

B Press and hold PROGRAM until

“START ...” appears on the display panel.

 All previously stored radio stations

will be replaced.

Using manual preset

Use manual presetting to store your favorite radio stations.

A Tune to your desired radio station (see

“Tuning to radio stations”).

B Press PROGRAM.

C Use ./ > keys to select a preset

number that you want to store the current radio station.

D Press PROGRAM to store.

Selecting a preset radio station

A Press TUNER to select “FM” or “MW’

band.

B Use ./ > keys to select a preset

number (or use the numeric keypad on the remote control.)

 The waveband, preset number

followed by the radio frequency will appear on the display panel.

Deleting a preset radio station

English

A In tuner mode, use ./ > keys to

select a preset radio station.

B Press and hold Ç until “FM/MW X

DELETED” appears.

 “X” is the preset number.  The radio station continues to play

but has been deleted from the preset list.

 The rest of the preset radio stations

remain unchanged.

Changing tuning grid

(not available for all versions) In some countries, the frequency step between adjacent channels in the MW/FM band is 9 kHz/ 50 kHz (10 kHz/ 100 kHz in some areas).

IMPORTANT! Changing the tuning grid will erase all previously stored preset radio stations.

A Press SOURCE to select “FM” or

“MW”.

B Press STANDBY ON to switch the

DVD system to standby mode.

C Press STANDBY ON again to power

up the DVD system, followed by . key on the front panel.

 The display will show “GRID 9” or

“GRID 10”.

Helpful Hint: – GRID 9 and GRID 10 indicate that the tuning grid is in step of 9 kHz and 10 kHz respectively.

Sound and Volume Controls

English

SURR.

Selecting surround sound

Press SURR. to select : DOLBY+PL II



(multi-channel) or STEREO.

 The availability of the various

surround sound modes depends on the sound available on the disc.

 The available output modes for Multi-

channel include: Dolby Digital, DTS (Digital Theater Systems) Surround and Dolby Pro Logic II.

 Stereo broadcasts or recordings will

produce some surround channel effects when played in a surround mode.

Helpful Hint: – You are not able to select the surround sound mode if the system setup menu is turned on.

MUTE

SOUND

Selecting digital sound effects

Select a preset digital sound effect that matches your disc’s content or that optimizes the sound of the musical style you are playing.

Press SOUND to select the available



sound effect.

When playing movie discs or in TV mode, you can select : CONCERT, DRAMA, ACTION or SCI-FI.

When playing music discs or while in TUNER or AUX/DI mode, you can select : CLASSIC, JAZZ, ROCK or DIGITAL.

Helpful Hint: – For  at sound output, select CONCERT or CLASSIC.

Volume control

Press VOL +/- on the remote



control to increase or decrease the volume level.

 “VOL MIN” is the minimum volume

level and “VOL MAX” is the maximum volume level.

To turn off the volume temporarily

Press MUTE on the remote control.



 Playback will continue without sound

and “MUTE” appears.

 To restore the volume, press MUTE

again, or increase the volume level.

Software upgrades

Other Features

Periodically Philips will issue software upgrades to enhance your user experience.

Before you start ...

Check the current software version of this DVD system:

1) Press EJECT

2) Press DISPLAY on the remote control.

ç.

A Visit the Philips website ‘www.philips.

com/support’ to check the availability of the latest software upgrade. Download the software to a CD-R.

B Insert the CD-R to the disc slot.

 The software will start to install on

the recorder automatically.

IMPORTANT!

Power supply must not be interrupted during upgrade!

English

Tro uble s hoo t ing

English

WARNING

Under no circumstances should you try to repair the system yourself, as this will invalidate the warranty. Do not open the system as there is a risk of electric shock.

If a fault occurs,  rst check the points listed below before taking the system for repair. If you are unable to solve a problem by following these instructions, consult your dealer or Philips for help.

Problem (General) Solution

No power.

No picture.

Completely distorted picture or black/white picture.

– Check if the AC power cord is properly connected. – Press the 2(STANDBY ON) on the front of the

DVD system to turn on the power.

– Refer to your TV’s manual for correct Video In

channel selection. Change the TV channel until you

see the DVD screen. – Press the DISC/USB button to select disc mode. – If this happens when you are turning on the progressive

scan feature, wait for 15 seconds for the auto recovery

or turn off the progressive scan as below:

1) Press EJECT.

2) Press W on the remote control.

3) Press MUTE on the remote control.

– If this happens when you are changing the setting of the

‘TV TYPE’, wait for 15 seconds for the auto recovery. – Check the video connection. – Sometimes a small amount of picture distortion may

appear. This is not a malfunction. – Clean the disc.

No sound or distorted sound.

No surround sound effect from the speakers.

The remote control does not function properly.

– Adjust the volume. – Check the speaker connections and settings. – Make sure that the audio cables are connected and

press the SOURCE button to select the correct input

source (for example, TV or AUX/DI) to choose the

device that you want to hear through the DVD system.

– Press the SURR. button to select a correct surround

sound setting. – Make sure that the source you are playing is recorded or

broadcast in surround sound (DTS, Dolby Digital, etc.).

– Select the source you want to play (for example, DISC/

USB or TUNER) before pressing the function button

(X, ./ >). – Reduce the distance between the remote control and

the system. – Replace the batteries with new ones. – Point the remote control directly toward the IR sensor. – Check that the batteries are loaded correctly.

Tro uble s hoo t ing (continued)

Problem (Playback) Solution

The DVD system does not start playback.

The aspect ratio of the screen cannot be changed even though you have set the TV display.

Cannot activate some features such as Angles, Subtitles, or multi-language Audio.

Not able to select some items in the setup/system menu.

– Insert a readable disc with the playback side facing

down. The DVD+R/CD-R must be  nalized. – Check the disc type, color system (PAL or NTSC)

and region code. – Check for any scratches or smudges on the disc. – Press SETUP to turn off the system setup menu

screen. – You may need to enter the password in order to

change the parental control rating level or to unlock

the disc for playback. – Moisture may have condensed inside the system.

Remove the disc and leave the system turned on for

about an hour.

– The aspect ratio is  xed on the DVD disc. – Depending on the TV, it may not be possible to

change the aspect ratio.

– The features may not be available on the DVD. – Changing the language for the sound or subtitle is

prohibited on this DVD.

– Press STOP button twice before selecting the system

setup menu. – Depending on the disc availability, some menu items

cannot be selected.

English

Unable to play DivX movies.

Radio reception is poor.

The DVD system does not work.

The disc in the disc slot cannot be ejected.

– Check that the DivX  le is encoded in ‘Home

Theater’ mode with DivX certi ed encoder.

– If the signal is too weak, adjust the antenna or

connect an external antenna for better reception. – Increase the distance between the system and your

TV or VCR. – Tune in to the correct frequency. – Place the antenna further away from any equipment

that may be causing the interference.

– Disconnect the power cord from the power outlet

for a few minutes. Reconnect the power cord and try

to operate again as usual.

– Press and hold the STOP button on the remote

control followed by pressing the digit keys ‘2’, ‘5’ and

‘9.’

Tro uble s hoo t ing (continued)

English

Problem (USB/HDMI/MP3 Direct) Solution

The contents of the USB  ash drive cannot be read.

Slow operation of the USB  ash drive.

No HDMI audio output.

No HDMI video output.

– The USB  ash drive format is not compatible with the

system. – Drive is formatted with a different  le system which is

not supported by this DVD system (e.g. NTFS).

– Large  le size or high memory USB  ash drive takes

longer time to read and display on the TV.

– You will not hear any sound from the HDMI output if

the source device is only DVI/HDCP (High-

bandwidth Digital Content Protection)-compatible. – It is not possible to output SACD or copy-controlled

DVD-Audio sources from the HDMI connection.

– HDMI connection can only be made to HDMI-

equipped devices with HDCP (High Bandwidth Digital

Content Protection). If you wish to connect to a DVI

connector (equipped with HDCP,) you will need a

separate adaptor (DVI to HDMI). – Make sure the resolution of this DVD system matches

the device you have connected using the HDMI. See

HDMI setting.

Speci cations

AMPLIFIER

Output power: 500 W / 6000 W PMPO Frequency Response: 20 Hz – 20 kHz / –3 dB Signal-to-Noise Ratio: > 65 dB (CCIR) Input Sensitivity

- AUX In : 1000 mV

- TV In: 500 mV

- Digital In: 500 mV

TUNER

Tuning Range: FM 87.5–108 MHz (50kHz) MW 531–1602 kHz (9kHz) MW 530–1700 kHz (10kHz) 26 dB Quieting Sensitivity: FM 20 dB, MW 4μV/m Image Rejection Radio:FM 25 dB, MW 28 dB IF Rejection Ratio: FM 60 dB, MW 45 dB Signal-to-Noise Ratio: FM 60 dB, MW 40 dB AM Suppression Ratio: FM 30 dB Harmonic Distortion: FM Mono 3% FM Stereo 3% MW 5% Frequency Response FM 180 Hz–10 kHz / ±6 dB Stereo Separation FM 26 dB (1 kHz) Stereo Threshold FM 23.5 dB

DISC SECTION

Laser Type Semiconductor Disc Diametre 12cm / 8cm Video Decoding MPEG-1 / MPEG-2 / / DivX 3/4/5/6, Ultra Video DAC 12 Bits Signal System PAL / NTSC Video Format 4:3 / 16:9 Video S/N 60 dB Composite Video Output 1.0 Vp-p, 75Ω S-Video Output Y - 1.0 Vp-p, 75Ω C - 0.286 Vp-p, 75Ω Audio DAC 24 Bits / 192 kHz Frequency Response 4 Hz–20 kHz (44.1 kHz) 4 Hz–22 kHz (48 kHz) 4 Hz–44 kHz (96 kHz) PCM IEC 60958 Dolby Digital IEC 60958, IEC 61937 DTS IEC 60958, IEC 61937

MAIN UNIT

Power Supply Rating: 110~127 V / 220~240 V 50/60 Hz switchable Power Consumption: 100 W Eco Standby power: < 1 W Dimensions: 340 x 70 x 330 (mm) (w x h x d) Weight: 3.5 kg

SonoWave SPEAKERS

System: Full range satellite closed box system Impedance: 8 Ω Speaker drivers: 3” full range speaker Frequency response: 120 Hz – 20 kHz Dimensions: 305 x 122 x 96 (mm) (w x h x d) Weight: 2 kg/each

SUBWOOFER Impedance: 4 Ω Speaker drivers: 203 mm (8”) woofer Frequency response: 30 Hz – 120 Hz Dimensions: 220 x 370 x 470 (mm) (w x h x d) Weight: 7 kg

Speci cations subject to change without prior notice.

English

Glossary

English

Analog: Sound that has not been turned

into numbers. Analog sound varies, while digital sound has speci c numerical values. These jacks send audio through two channels, the left and right.

Aspect ratio: The ratio of vertical and horizontal sizes of a displayed image. The horizontal vs. vertical ratio of conventional TVs is 4:3, and that of wide-screens is 16:9.

AUDIO OUT jacks: Red and white jacks on the back of the unit that send audio to another system (TV, Stereo, etc.).

Bit Rate: The amount of data used to hold a given length of music; measured in kilobits per second, or kbps. Or, the speed at which you record. Generally, the higher the bit rate, or the higher the recording speed, the better the sound quality. However, higher bit rates use more space on a disc.

Chapter: Sections of a picture or a music piece on a DVD that are smaller than titles. A title is composed of several chapters. Each chapter is assigned a chapter number enabling you to locate the chapter you want.

Disc menu: A screen display prepared for allowing a selection of images, sounds, subtitles, multi-angles, etc to be recorded on a DVD.

DivX: The DivX code is a patent-pending, MPEG-4 based video compression technology, developed by DivXNetworks, Inc., that can shrink digital video to sizes small enough to be transported over the internet, while maintaining high visual quality.

Dolby Digital: A surround sound system developed by Dolby Laboratories containing up to six channels of digital audio (front left and right, surround left and right, center and subwoofer).

Dolby Surround Pro Logic II: It is an improved matrix decoding technology that provides better spatiality and directionality on Dolby Surround program material, provides a convincing three dimensional sound  eld on conventional stereo music recordings and is ideally suited to bring the surround experience to automotive sound. While conventional surround programming is fully compatible with Dolby Surround Pro Logic II decoders, soundtracks will be able to be encoded speci cally to take full advantage of Pro Logic II playback, including separate left and right surround channels. (Such material is also compatible with conventional Pro Logic decoders).

DTS: Digital Theater Systems. This is a surround sound system, but it is different from the Dolby Digital. The formats were developed by different companies.

HDMI: High-De nition Multimedia Interface (HDMI) is a high-speed digital interface that can transmit uncompressed high de nition video and digital multi-channel audio. It delivers perfect picture and sound quality, completely free from noise. HDMI is fully backward-compatible with DVI. As required by the HDMI standard, connecting to HDMI or DVI products without HDCP (High-bandwidth Digital Content Protection) will result in no Video or Audio output.

HDCP (High-bandwidth Digital Content Protection) is a speci cation that provides a secure transmission of digital contents between different devices (to prevent unauthorized copyright).

JPEG: A very common digital still picture format. A still picture data compression system proposed by the Joint Photographic Expert Group, which features a small decrease in image quality in spite of its high compression ratio.

Glossary (continued)

MP3: A  le format with a sound data

compression system. “MP3” is the abbreviation of Motion Picture Experts Group 1 (or MPEG-1) Audio Layer3. By using the MP3 format, one CD-R or CD-RW can contain about 10 times more data than a regular CD.

Multichannel: DVDs are formatted to have each sound track constitute one sound  eld. Multichannel refers to a structure of sound tracks having three or more channels.

Parental control: Limits Disc play according to the age of the users or the limitation level in each country. The limitation varies from disc to disc; when it is activated, playback will be prohibited if the software’s level is higher than the user-set level.

Playback control (PBC): Refers to the signal recorded on video CDs or SVCDs for controlling playback. By using menu screens recorded on a Video CD or SVCD that supports PBC, you can enjoy interactive playback and searching.

Progressive Scan: The progressive scan displays twice the number of frames per second than in an ordinary TV system. It offers higher picture resolution and quality.

Region code: A system allowing discs to be played only in the region designated. This unit will only play discs that have compatible region codes. You can  nd the region code of your unit by looking at the product label. Some discs are compatible with more than one region (or ALL regions).

Surround: A system for creating realistic three dimensional sound  elds full of realism by arranging multiple speakers around the listener.

Title: The longest section of a movie or music feature on DVD. Each title is assigned a title number, enabling you to locate the title you want.

VIDEO OUT jack: Yellow jack on the back of the DVD system that sends the DVD picture video to a TV.

English

Frequently Asked Questions (USB)

English

Why does it take so long to display the contents on my USB device?

– This could be due to the large numbers

of  les (>500  les/folders) or size of the  les (>1MB).

– There could be other non-supported  les

in the device that the system is trying to read/display.

What if un-supported devices (e.g. USB mouse, keyboards) are plugged into the system?

– The device may cause the system to be

unstable. Remove the unsupported device and unplug the mains cord. Wait for a few minutes before reconnecting the mains cord and power on the system again.

What happens when I plug in a USB HDD?

– HDD is not supported as the large

storage capacity makes navigation very dif cult. Transfer the music  les (mp3) and photos (jpg) into a  ash drive.

Why does the system fail to detect my USB portable music player?

– The portable music player may require

propriety software that is bundled with our system in order to access the contents (eg. playlist).

What types of  le does the system support?

– We support only FAT16 and FAT32, not

NTFS.

Why does the  le name appear to be different from what was displayed on my computer (e.g. from “Good Bye. jpg” to “Good_B~1.jpg”)?

– The length of the  le name is restricted

by the  le system of the device (FAT16), which only supports eight (8) characters.

– The computer may be able to display the

full  le name as the operating system can convert the  le system.

Is simultaneous USB and Disc playback possible?

– Not possible due to memory limitation.

In addition, a different user interface will be needed in order to function and in order to be simple enough to use.

Why can’t I rotate the pictures in my device?

– In order to rotate the pictures in the

USB device, a “special”  le in the jpeg picture called EXIF must be embedded. This EXIF information may have not been created by the USB device or removed when you edit or copy the picture from other devices using editing programs.

Why can’t the system play some of my music  les, photos or movies?

– The music  les may not be playable

because of different formats and encoding bit-rates. Similarly, the photos may be of low resolution or too high resolution for the system to support.

English

Philips HTS6500/61, HTS6500/98 user manual

Specifications and Main Features

Frequently Asked Questions

User Manual
