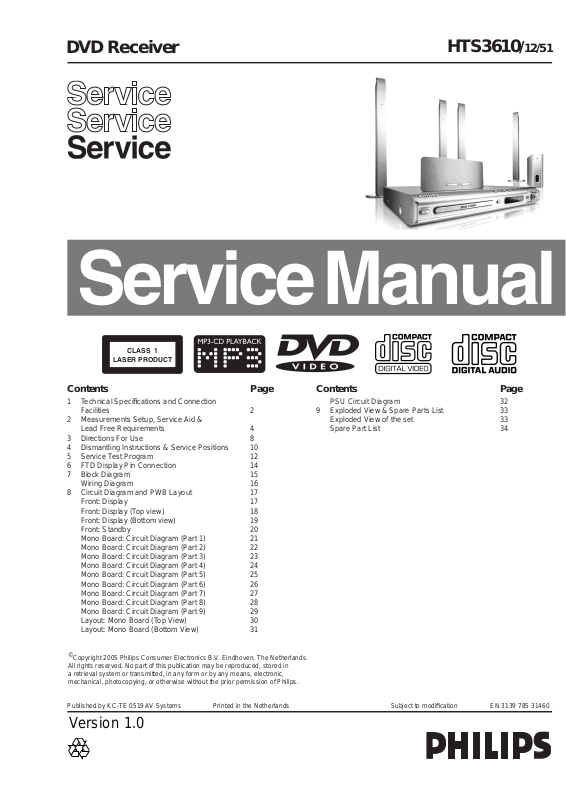

Philips HTS3610 Schematic

DVD Receiver

HTS3610/12/51

CLASS 1

LASER PRODUCT

1 Technical Speciﬁ cations and Connection Facilities 2 2 Measurements Setup, Service Aid & Lead Free Requirements 4 3 Directions For Use 8 4 Dismantling Instructions & Service Positions 10 5 Service Test Program 12 6 FTD Display Pin Connection 14 7 Block Diagram 15 Wiring Diagram 16 8 Circuit Diagram and PWB Layout 17 Front: Display 17 Front: Display (Top view) 18 Front: Display (Bottom view) 19 Front: Standby 20 Mono Board: Circuit Diagram (Part 1) 21 Mono Board: Circuit Diagram (Part 2) 22 Mono Board: Circuit Diagram (Part 3) 23 Mono Board: Circuit Diagram (Part 4) 24 Mono Board: Circuit Diagram (Part 5) 25 Mono Board: Circuit Diagram (Part 6) 26 Mono Board: Circuit Diagram (Part 7) 27 Mono Board: Circuit Diagram (Part 8) 28 Mono Board: Circuit Diagram (Part 9) 29 Layout: Mono Board (Top View) 30 Layout: Mono Board (Bottom View) 31

Contents PageContents Page

PSU Circuit Diagram 32 9 Exploded View & Spare Parts List 33 Exploded View of the set 33 Spare Part List 34

Copyright 2005 Philips Consumer Electronics B.V. Eindhoven, The Netherlands. All rights reserved. No part of this publication may be reproduced, stored in a retrieval system or transmitted, in any form or by any means, electronic, mechanical, photocopying, or otherwise without the prior permission of Philips.

Published by KC-TE 0519 AV Systems Printed in the Netherlands Subject to modiﬁ cation EN 3139 785 31460

Version 1.0

EN 2

3139 785 314601.

LOCATION OF PC BOARDS

Technical Speciﬁ cations and Connection Facilities

VERSION VARIATIONS:

Video (Yellow, Cinch)

Component Video, (Y/Pb/Pr) -P-scan

SCART (CVBS/RGB)

Digital In - Coaxial

TV In (Left/Right)

Auxiliary (Left/Right)

Line out (Audio)

HTS3610

HTS3610/12 HTS3610/51

Technical Speciﬁ cations and Connection Facilities

1. Speciﬁ cations

3139 785 31460

EN 3

1.1 General:

Mains voltage : 230V for /05, /12, /51 120V/230V for /55 /93

/98

Mains frequency : 50/60Hz for /98, /55,

/93, 50Hz for /12, /05,

/51 Power consumption : 70W < 0.5W Eco standby

power < 70W at 1/8 P (For main unit)

rated

Dimension main unit : 360 x 54 x 324mm

1.2 Tuner FM

Tuning range : 87.5-108MHz Grid : 50kHz for /12, /05, /51 100kHz for /98, /55, /93 IF frequency : 10.7MHz ± 25kHz Aerial input : 75Ω coaxial Sensitivity at 26dB S/N : < 7μV Selectivity at 600kHz bandwidth : > 25dB IF rejection : > 60dB Image rejection : > 25dB Distortion at RF=1mV, dev. 75kHz : < 3%

-3dB Limiting point : 8μV Crosstalk at RF=1mV, dev. 67.5kHz : > 28dB Crosstalk at RF=1mV, dev. 40kHz : > 18dB

1.3 AMPLIFIER:

Output power Front : 100W RMS / channel

Rear : 75W RMS / channel Center : 100W RMS

Subwoofer : 150W RMS

Frequency response ±0.5dB : 20Hz-20kHz Hum (Volume Minimum) : 200nW Residual noise (Volume Minimum) : 40nW

Input sensitivity Aux In : 1V ± 3dB at 22kΩ Scart In : 1V ± 3dB at 22kΩ Output sensitivity Line Out (Left/Right) : 1V ± 2dB at 10kΩ Scart Out (Left/Right) : 1V ± 2dB at 10kΩ

1.4 COMPACT DISC/VCD/DVD:

Video Decoding : MPEG-1/MPEG-2/

MPEG-4/DivX 3.11,

4.x & 5.x Video DAC : 12 Bits Signal System : PAL / NTSC Video Format : 4:3 / 16:9

CVBS Out CVBS level : 1.0 ± 0.1V Luminance S/N : >= 60dB

p-p

Tuning range : 531-1602kHz for /12,

/05, /51, /98, /93, /55 530-1700kHz for /98,

/55, /93 Grid : 9kHz for /12, /05, /51,

/98, /93, /55 10kHz for /98, /55, /93 IF frequency : 450kHz ± 1kHz Aerial input : Frame aerial Sensitivity at 26dB S/N : < 4.0mV/M Selectivity at 18kHz bandwidth : > 20dB IF rejection : > 45dB Image rejection : > 28dB Distortion at RF=50mV, m=80% : < 5%

S-Video Out Y level : 1.0 ± 0.1V

p-p

Y S/N : >= 60dB C level (burst) : 286mV pp +1/-4 dB

RGB/YUV Out Amplitude : 0.7 ± 0.1V S/N : >= 60dB

Output terminals to be terminated with 75Ω

p-p

www.p4c.philips.com

Connect

Setup

Enjoy

EN 8

3. Directions For Use

The following except of the Quick Use Guide serves as an introduction to the set.

The Complete Direction for the Use can be downloaded in different languages from the internet site of Philips Customer care Center:

Play DVD

1 Press OPEN/CLOSE on the front of

the DVD system to open the disc tray.

2 Place DVD in tray with the label facing up.

3 Press OPEN/CLOSE again.

4 Press UP , DOWN , RIGHT or

LEFT to scroll through the options in the DVD menu.

5 Press PLAY on the option you want.

6 To stop press STOP .

Tip Press PLAY to resume from where you stopped or press STOP and PLAY

to start from the beginning of the title.

7 Press DISC MENU to go back to the

DVD menu.

DVD Player (front)

Listen to Radio

1 Press TUNER .

2 Press and hold PLA Y until ‘START’ appears.

Tip This feature is only available for first time setup, refer to user manual if you wish to program radio stations again or for manual programming.

3 Once completed you can use NEXT or

PREVIOUS to select a radio station.

Front display

Experience Surround Sound

1 Press SURR to switch between Stereo and

Multi-channel.

2 Press SOUND for either Concert, Drama,

Action or Sci-fi preset digital sound effects.

Troubleshooting

For more troubleshooting tips, see the user manual.

Problem Tip

No power • Check if the AC power cord is properly connected.

No picture • Press DISC on remote control.

No sound or • Adjust the volume. distorted sound • Check the speaker connections and settings.

Remote control • Check that the batteries are loaded correctly or replace the batteries with new ones. does not work • Select the source (DISC or TUNER, for example) before pressing the function button.

• Press the STANDBY-ON on the front of the DVD system to turn on the power.

• Check connection to TV and ensure the plugs are firmly in place.

• Check audio connections and press SOURCE button to select the correct input source.

• Reduce the distance between the remote control and the system.

• Point the remote control directly toward the IR sensor.

Home Theatre System

Quick Start Guide

What’s in the Box

DVD system

Quick start guideCentre speaker

Scart cable

(black plug)

loop antenna

HTS 5310S

3139 785 31460

Directions For Use

AM/MW

Need help?

User Manual

For more product information refer to the user manual of the home theatre system.

Online

Go to www.philips.com/support

Front speakers

(left & right)

Rear speakers

(left & right)

Subwoofer

Remote control

and 2 batteries

FM wire antenna

User manual

VIDEOOUT

(CVBS)

Connect

Setup

Position Speakers & Subwoofer

1 Place centre speaker on or close to the TV.

2 Place subwoofer on the floor.

3 Place front speakers equal distance from the

TV and angle them 45 degree to the listener.

4 Place rear speakers facing the listener, equal

distance on the left and right.

Fix Antennas

1 Connect the FM antenna to the FM socket,

extend the antenna and fix it on the wall.

DVD System (back)

2 Unfold the AM/ MW loop antenna and fix the

claw into the slot.

3 Push back tab and insert each wire into slot.

DVD System (back)

MW loop

antenna

Connect Speakers & Subwoofer to DVD System

Connect the various coloured plugs from the speakers and subwoofer to the same colour socket on the rear of DVD system.

Front

Speaker

(right)

Rear

Speaker

(right)

Sub-Woofer

Centre

Speaker

DVD System (back)

Front

Speaker

(left)

Rear

Speaker

(left)

Connect DVD system to TV

1 Use the supplied black Scart cable to connect

the SCART socket on the rear of the DVD system and the SCART input socket at the rear of the TV.

2 Plug in the power cable of the DVD system

to an AC outlet.

Tip To connect other devices to the DVD system, refer to the use manual.

SCART

SCARTIN

Television (back)

SCART

To antenna or set-top box

SCART IN

DVD System (back)

Connect Audio from TV to DVD System (Optional)

Use the red & white audio cables to connect the red & white TV-IN sockets on the rear of the DVD system and the red & white AUDIO OUT sockets on the TV.

Television (back)

AUDIOOUT

VIDEOOUT

(CVBS)

AUDIOIN

DVD System (back)

Tip SomeTVs may not have an AUDIO OUT jack.

Insert Batteries in Remote Control

1 Remove batteries compartment cover.

2 Insert the provided batteries in the remote

control.Take note of where the positive and negative ends should go.

3 Replace the batteries compartment cover.

Remote Control (back)

Find Correct Viewing Channel

1 Press STANDBY-ON on the DVD

system’s remote control.

2 Press DISC on the

remote control repeatedly until ‘DISC’ appears on the front panel.

3 Press SETUP .

4 Switch on theTV.

5 Press ‘0’ on theTV’s remote

control, then repeatedly press the Channel Down button until you see the General Setup Page .This is the correct viewing channel for the home theatre system.

Tip In some TVs,to find the correct viewing channel, you can keep pressing the AV or the SELECT buttons. If still unable to find the correct viewing channel, check the connections again or check your TV’s user manual.

6 Press SETUP to finish.

Tip To make changes to any of the options in

the Setup menus, refer to the user manual.

Directions For Use

3139 785 31460

EN 9

EN 10

3139 785 314604.

Dismantling Instructions & Service Positions

4. Dismantling Instructions

4.1 Dismantling of the DVD Loader

1) The tray can be manually open by inserting a minus screw drive and push the lever in the direction as shown in Figure 3-1 to unlock the tray before sliding it out.

Figure 4-1

2) Slide out the tray and remove the Cover Tray (pos 110) as shown in Figure 3-2.

4.2 Dismantling of the Tuner Module, MONO Board, Front Board, PSU Module

1) Loosen 1 screw A (see Figure 3-3) to remove the Tuner Module (pos 1040).

2) Loosen 9 screws B (see Figure 3-3) and 4 screws (see Figure 3-4) to remove MONO Board.

3) Release 4 snap hooks to remove Front Board.

- 1 snap hook each on the left & right side (pos 161).

- 2 snap hooks on the bottom side (pos 161).

4) Loosen 4 screws E (see Figure 3-4) to remove the PSU Module.

B B

Figure 4-3

Figure 4-2

3) Loosen 5 screws to remove the Front Top.(pos 240)

- 1 screw each on the left & right side (pos 272)

- 3 screws behind

4) Loosen 4 screws C (see Figure 3-4) to remove the DVD Loader.

Figure 4-4

Dismantling Instructions & Service Positions

4.3 Service Positions

Front Board

3139 785 31460

EN 11

Mono Board

Thick Insulation Sheet

PSU Board

DVD Loader

Thick Insulation Sheet

EN 12

3139 785 314605.

5. Service Test Program

Service Test Program

To start service test program open the tray with remote control or front panel key, while plugging in the mains cord press 2, 5 8 on remote control, the tray will close

by itself and the set will display

shown “S-Vxx-yy”

Display shows

“SERVICE”

followed by ROM version

“S-Vxx-yy”

Main Menu

Display Test

key

"DisplayTest"

triggered?

ctivate and display

"Pattern1"

S refers to Service Mode V refers to Version xx refers to Software version number of BEA (counting up from 01 to 99) yy refers to Software version number of Front uP (counting up from 01 to 99)

5.1 Display Test

Purpose: This test is used to check the driving circuits, the display and whether there are any short-circuits, open-circuits or any other defects.

Player:

Following display patterns are used to test the display and its connections to μP. Pattern 1:

- to check the open-circuits

Pattern 2: Alternate display control pins are on (Test Pattern: 0x55)

- to check the short-circuits on Data port

Default: All display control pins are ON

key

"DisplayTest"

triggered?

ctivate and display

"Pattern2"

key

" "

triggered?

Receiver:

Following display patterns are used to test the display and its connections to μP. Pattern 1:

Default: All display control pins are ON

- to check the open-circuits

Pattern 2: Alternate display control pins are on (Test Pattern: 0x55)

- to check the short-circuits on Data port

TEST Activated with ACTION

EEPROM FORMAT TEST

to Exit

Load default data. Display shows “NEW”. Caution! All presets from the customer will be lost!!

ROTARY ENCODER TEST

Volume

Knob

Display shows value for 2 seconds. Volume values increases or decreases in steps of 1 until 0 (VOL MIN) or 40 (VOL MAX) is reached.

LEAVE SERVICE TEST PROGRAM

Disconnect mains cord

LX8300SA & LX8320SA & LX8500W_Service Test Program_dd wk0429

Service Test Program

3139 785 31460

EN 13

5.1.1 Reprogramming of DVD version Matrix

After repair, the customer setting and region code may be lost. Reprogramming will put the set back in the state in which it has left the factory, ie. with the default setting and the allowed region code.

Model Region Region Code TV Type

HTS 3610/12 Europe 2 PAL HTS 3610/51 Russia 5 PAL

To reprogram do as follows:

1) Power up the set and select DISC source.

2) Open tray by press “OPEN/CLOSE” button on the set or press and hold “STOP” button on the RC.

3) Press the following buttons on the Remote Control:

<9> <9> <9> <9> <ZOOM> <6> ......... for HTS 3610/12

<9> <9> <9> <9> <ZOOM> <7> ......... for HTS 3610/51

4) The display shows ‘YYYY-ZZ’ and the tray will close. YYYY = model number (eg. 8300, 8500, etc.) ZZ = slash stroke version (eg. 01, 69, etc.)

5.1.2 Procedure for check Software version

1) Power up the set and select DISC source.

2) Open tray by press “OPEN/CLOSE” button on the set or press and hold “STOP” button on the RC.

3) Press “DISPLAY” button on the Remote control.

4) The TV screen will shows:

5.1.5 Procedure to check the ﬁ rmware version to conﬁ rm upgrading

1. Power up the set and open tray.

2. Press the <Menu Display> button on the Remote Control.

3. The ﬁ rmware version will be displayed on the top left hand corner of the OSD.

5.1.6 Trade Mode

Trade mode is a feature that will block all set keys when enabled. It is for dealers to prevent customers fromremoving disc, changing source etc using the set keys.Rotary and Remote Control (RC) keys are still allowed inTrade mode.

To activate Trade Mode:

1) Power up the set and select DISC source.

2) Open tray by press “OPEN/CLOSE” button on the set or press and hold “STOP” button on the RC.

3) Then press buttons <2> <5> <9> on the RC.

4) The display shows ‘TRA ON’ and the tray will close. Trade Mode is now enabled.

To deactivate Trade Mode:

1) Power up the set and select DISC source.

2) Open tray by press and hold “STOP”button on the RC.

3) Then press buttons <2> <5> <9> on the RC.

4) The display shows ‘TRA OFF’ and the tray will close. Trade Mode is now disabled.

PPPP-Vxx YYYY-ZZ SERVO: GGGGGGGG REG:DD

PPPP : LX1S, LX1D, or LX2W xx : version number YYYYY = model # - 3000S / 2000D / 5000W ZZ = stroke version (/12, /51) DD = region code GGGGGGGG = version for servo code

5.1.3 Burning of ﬁ rmware

1. Unzip the zip-archive attached with this service information.

2. Start the CD burning software and create a new CD Project (Data disc) with the following settings: a. File System: ISO9660 b. Format: MODE 2/XA c. Recording format: Single Session (Track at once), Finalized CD

3. Place the content of the zip-archive into the root directory of the new CD project.

4. Burn the data onto a blank CDR or CDRW.

Note: ISO9660 is mandatory, UDF discs are not supported! The ﬁ nal CDROM must not contain any other data except the ﬁ le from the zip-archive.

5.1.4 Procedure to upgrade the ﬁ rmware

1. Power up the set and open tray.

2. Insert the prepared Upgrade CDROM and close the tray.

3. The set will display: LOAD -> MULTICH ->…………. ->UPG END.

The whole process takes less than 2 minutes.

Note: Do not press any button or interrupt the main supply upgrading process,Otherwise the set may become defective.

4. When the upgrade is completed, the tray will close automatic.

5. The tray will close and the set will go to Standby mode automatically when the upgrade process is completed.

+ 18 hidden pages
