2 Important

Read and understand all instructions before you use your home theater. If damage is caused by failure to follow instructions, the warranty does not apply.

En glish

HDMI, and HDMI logo and High-Denition

Multimedia Interface are trademarks or registered trademarks of HDMI licensing LLC.

Safety

Risk of electric shock or re!

• Never expose the product and accessories to rain or water. Never place liquid containers, such as vases, near the product. If liquids are spilt on or into the product, disconnect it from the power outlet immediately. Contact Philips Consumer Care to have the produc t checked before use.

• Never place the product and accessories

near naked ames or other heat sources,

including direct sunlight.

• Never inser t objects into the ventilation slots or other openings on the product.

• Where the mains plug or an appliance coupler is used as the disconnect device, the disconnect device shall remain readily operable.

• Disconnect the product from the power outlet before lightning storms.

• When you disconnect the power cord, always pull the plug, never the cable.

Risk of short circuit or re!

• Before you connect the product to the power outlet, ensure that the power voltage matches the value printed on the back or bottom of the product. Never connect the product to the power outlet if the voltage is different.

Risk of injury or damage to the home theater!

• For wall-mountable products, use only the supplied wall mount bracket. Secure the wall mount to a wall that can support the combined weight of the product and the wall mount. Koninklijke Philips Electronics N.V. bears no responsibility for improper wall mounting that results in accident, injury or damage.

• For speakers with stands, use only the supplied stands. Secure the stands to the speakers tightly. Place the assembled stands

on at, level surfaces that can suppor t the

combined weight of the speaker and stand.

• Never place the product or any objects on power cords or on other electrical equipment.

• If the product is transported in temperatures below 5°C, unpack the product and wait until its temperature matches room temperature before connecting it to the power outlet.

• Visible and invisible laser radiation when open. Avoid exposure to beam.

• Do not touch the disc optical lens inside the disc compartment.

Risk of overheating!

• Never install this product in a conned space. Always leave a space of at least four inches around the product for ventilation. Ensure curtains or other objects never cover the ventilation slots on the product.

Risk of contamination!

• Do not mix batteries (old and new or carbon and alkaline, etc.).

• Remove batteries if they are exhausted or if the remote control is not to be used for a long time.

• Batteries contain chemical substances, they should be disposed of properly.

Product care

• Do not insert any objects other than discs into the disc compartment.

• Do not insert warped or cracked discs into the disc compar tment.

• Remove discs from the disc compartment if you are not using the product for an extended period of time.

• Only use microber cloth to clean the product.

Health warning

If you or your family has a history of epilepsy or photosensitive seizures, consult a medical

professional before exposing yourself to ashing

light sources, rapid image sequences or 3D viewing.

To avoid discomfort such as dizziness, headache or disorientation, we recommend not watching 3D for extended periods of time. If you experience any discomfort, stop watching 3D and do not immediately engage in any potentially hazardous activity (for example driving a car) until your symptoms have disappeared. If symptoms persist, do not resume watching 3D without consulting a

medical professional rst.

Parents should monitor their children during 3D viewing and ensure they do not experience any discomfort as mentioned above. Watching 3D is not recommended for children under six years of age as their visual system is not fully developed yet.

Disposal of your old product and batteries

Your product is designed and manufactured with high quality materials and components, which can be recycled and reused.

When this crossed-out wheeled bin symbol is attached to a product it means that the product is covered by the European Directive 2002/96/ EC. Please inform yourself about the local separate collection system for electrical and electronic products.

Please act according to your local rules and do not dispose of your old products with your normal household waste.

Correct disposal of your old product helps to prevent potential negative consequences for the environment and human health.

Your product contains batteries covered by the European Directive 2006/66/EC, which cannot be disposed with normal household waste.

Please inform yourself about the local rules on separate collection of batteries because correct disposal helps to prevent negative consequences for the environmental and human health.

3 Your home theater

Remote control

Congratulations on your purchase, and welcome

to Philips! To fully benet from the support that

Philips offers, register your home theater at www.philips.com/welcome.

Main unit

a Disc compartment b (Open/Close)

Opens or closes the disc compar tment.

c (Play/Pause)

Star ts, pauses or resumes play.

d (Stop)

• Stops play.

• In radio mode, erases the current

preset radio station.

e (Standby-On)

Switches the home theater on or to standby.

f SOURCE

Selects an audio/video source for the home theater.

g /

• Skips to the previous or nex t track,

chapter or le.

• In radio mode, selects a preset radio

station.

h Display panel i Volume control wheel

En glish

a (Standby-On)

• Switches the home theater on or to

standby.

• When EasyLink is enabled, press

and hold for at least three seconds to switch all connected HDMI CEC compliant devices to standby.

b (Home)

Accesses the home menu.

c TOP MENU

Accesses the main menu of a video disc.

d (Options)

• Accesses more play options during

playback.

• In radio mode, programs radio stations.

e Navigation buttons

• Navigates menus.

• In radio mode, press left or right to

start auto search.

f OK

Conrms an entry or selection.

g / (Previous/Next)

• Skips to the previous or nex t track,

chapter or le.

• In radio mode, selects a preset radio

station.

h (Play)

Star ts or resumes play.

i (Pause)

Pauses play.

j / (Fast Backward / Fast Forward)

Fast backwards or fast forwards. Press repeatedly to change the search speed.

k (Mute)

Mutes or restores volume.

l AUDIO

In video mode, toggle between audio languages. In radio mode, toggle between stereo and mono.

m Numeric buttons

Selects an item to play.

n SUBTITLE

Selects subtitle language for video.

o Color buttons

Blu-ray discs only: Select a task or option.

p REPEAT

Selects or turns off repeat mode.

q (Sound options)

Accesses or exits various sound options.

r +/- (Volume)

Increases or decreases volume.

s (Stop)

• Stops play.

• Press and hold to eject the disc or

open the disc compar tment.

• In radio mode, erases the current

preset radio station.

t (Back)

Returns to a previous menu screen.

u Source buttons

• DISC / POP-UP MENU: Switch to disc

source. Access the disc menu of a DVD disc or the pop-up menu of a Blu-ray disc.

• RADIO : Switches to FM radio.

• AUDIO SOURCE : Selects an audio

input source.

4 Connect your home

Side connectors

theater

This section helps you connect your home theater to a TV and other devices. The basic connections of the home theater with its accessories are provided in the Quick Start. For a comprehensive interactive guide, see www.connectivityguide.philips.com.

Note

• Refer to the type plate at the back or bottom

of the product for identication and supply

ratings.

• Before you make or change any connections,

ensure that all devices are disconnected from the power outlet.

Connectors

Back connectors

a AC MAINS~

Connects to the power supply.

b SPEAKERS

Connects to the supplied speakers and subwoofer.

c LAN

Connects to the LAN input on a broadband modem or router.

d HDMI OUT

Connects to the HDMI input on the TV.

e VIDEO OUT

Connects to the composite video input on the TV.

f FM ANTENNA

Connects the FM antenna for radio reception.

g AUDIO IN

Connects to the analog audio output on the TV or an analog device.

En glish

a (USB)

Audio, video or picture input from a USB storage device.

b MP3 LINK

Audio input from an MP3 player.

Connect to the TV

Connect your home theater directly to a T V through one of the following connectors (from highest to basic quality video):

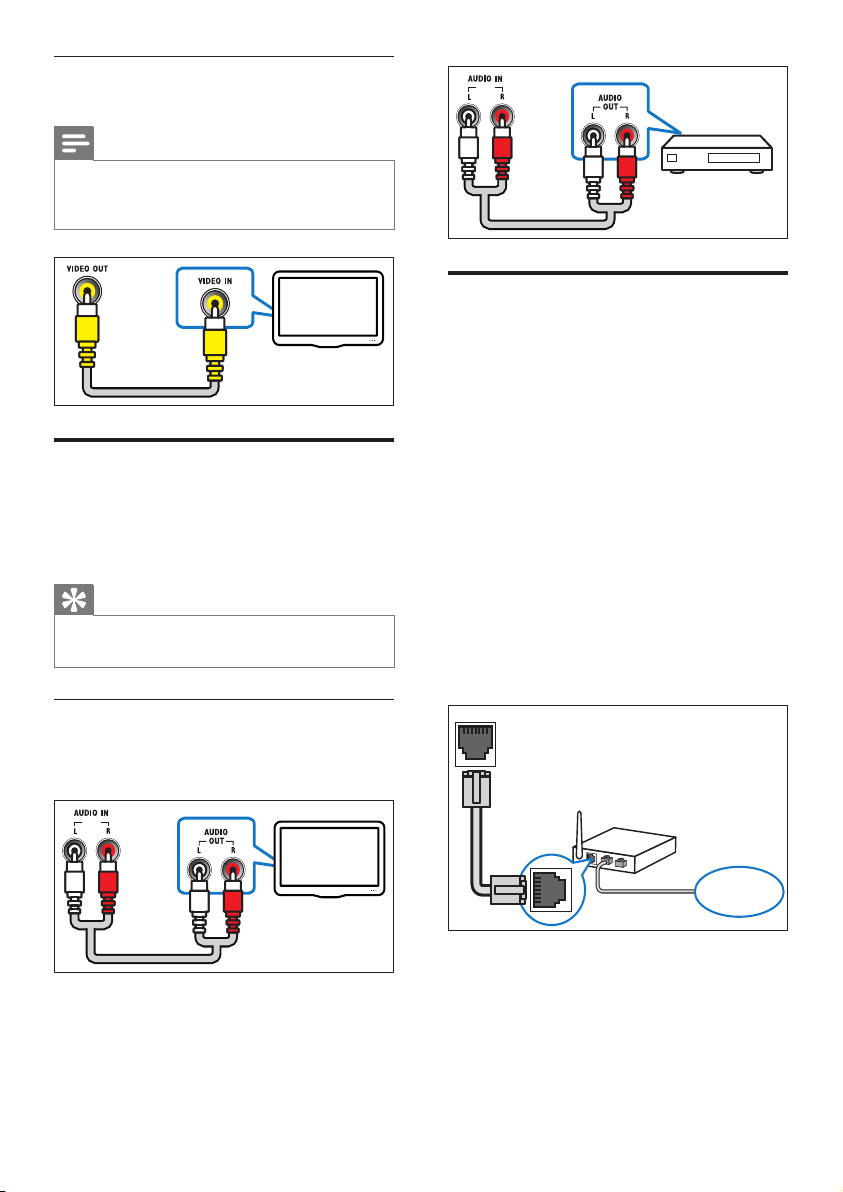

a HDMI b Composite video

Option 1: Connect to the TV through HDMI

Note

• If the HDTV has a DVI connector, connect

using an HDMI/DVI adapter.

• If the TV supports EasyLink HDMI CEC,

control the home theater and TV with one remote control (see ‘Use Philips EasyLink’ on page 14).

LAN

www

Option 2: Connect to the TV through

composite video (CVBS)

Note

• The composite video cable or connec tor might

be labeled AV IN, VIDEO IN, COMPOSITE or

BASEBAND.

Connect audio from TV or other devices

Use your home theater to play audio from the TV or other device such as a cable box.

Tip

• Press AUDIO SOURCE to select the audio

output of your connec tion.

Connect to the internet

Connect the home theater to the internet network and enjoy:

• BD-Live applications : access to some exclusive ser vices from the BD-Live enabled Blu-ray discs (see ‘Access BD-Live on Bluray’ on page 11).

• Software update : update the software of the home theater through the network (see ‘Update sof tware from the network ’ on page 17).

What you need:

• A network router (with DHCP enabled).

• A network cable (RJ45 straight cable).

• For BD-Live application and software update, make sure that the network router

has access to the Internet and the rewall is

disabled.

(Cable not supplied)

Option 1: Connect audio through analog audio cables

(Cable not supplied)

Set up network

1 Connect the home theater to a broadband

modem or router (see ‘Connect to the internet’ on page 8).

2 Turn on your TV and switch to the correct

source for the home theater.

3 Press (Home). 4 Select [Setup], then press OK. 5 Select [Network] > [Network Installation],

then press OK.

6 Select [Wired (Ethernet)], then press OK. 7 Select [Auto (recommended)] or [Manual

(advanced)], then press OK.

8 Follow the instructions on the TV to

complete the setup.

» The home theater connects to the

internet. If connection fails, select [Retry], then press OK.

9 Select [Finish], then press OK to exit.

Caution

• Familiarize yourself with the network router,

media server software and networking principles before attempting to connect the home theater to a computer networ k. If necessary, read documentation accompanying network components. Philips is not responsible for lost, damaged or corrupt data.

5 Use your home

theater

En glish

This section helps you use the home theater to play media from a wide range of sources.

Before you start

Check that you:

• Make the necessary connec tions and complete the setup as described in the Quick Star t.

• Switch the TV to the correct source for the home theater.

Access the home menu

The home menu gives you easy access to connected devices, audio and video settings, and other features.

1 Press (Home).

» The home menu appears.

2 Press the Navigation buttons and OK to

select the following:

• [play Disc] : Starts disc play.

• [browse USB] : Accesses the content

browser of the connected USB storage device.

• [Setup] : Accesses menus to change

picture, sound and other settings.

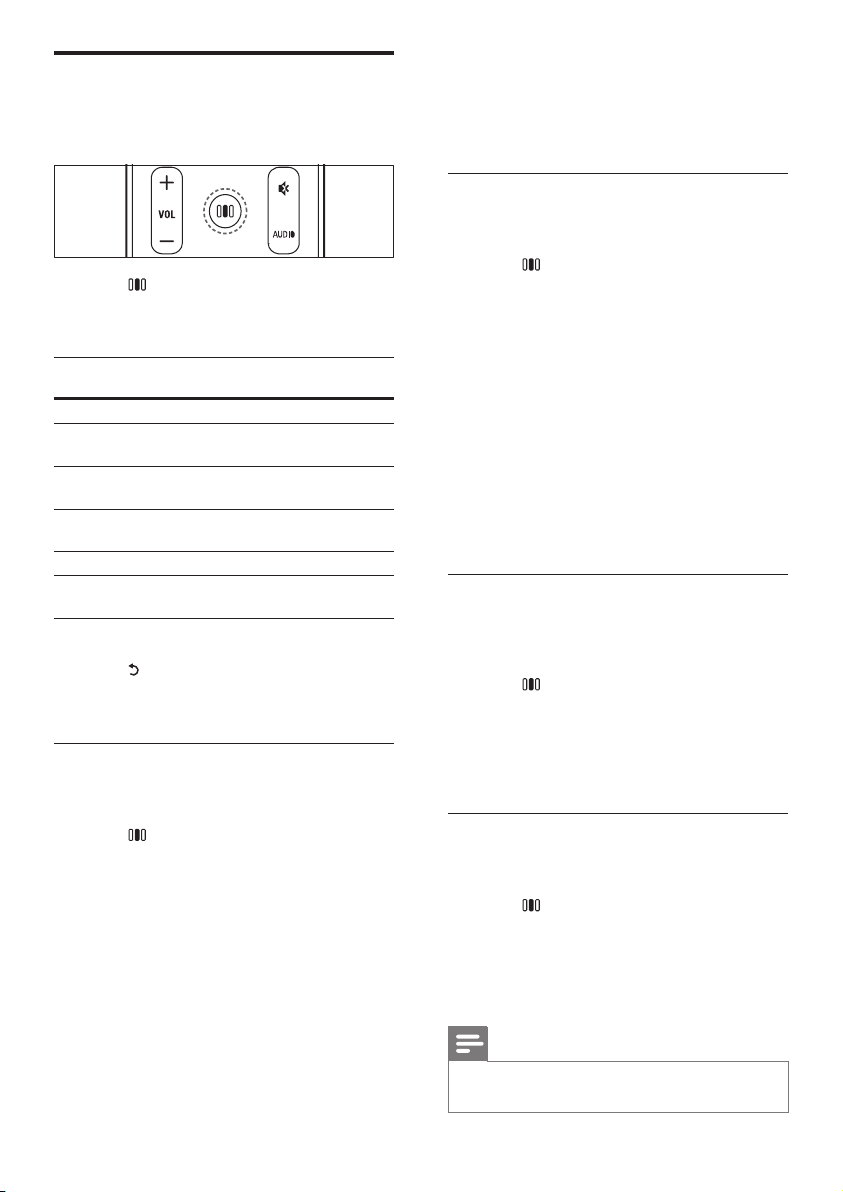

Choose your sound

This section helps you choose the ideal sound for your video or music.

1 Press (Sound options). 2 Press the Navigation buttons (left/right) to

access the sound options.

Sound experience

SOUND Selects a sound mode. SURROUND Selects a surround sound or

TREBLE Adjusts the high frequency

MID Adjusts the middle frequency

BASS Adjusts the low frequency output. AUDIO SYNC Delays the audio to match the

3 Select an option, then press OK. 4 Press (Back) to exit.

If you do not press a button within ve

seconds, it automatically exits the menu.

Change sound mode

Select predened sound modes to suit your

video or music.

1 Press (Sound options). 2 Select SOUND, then press OK. 3 Press the Navigation buttons (up/down) to

select the following settings:

• ACTION/ROCK : Enhanced low and

• DRAMA/JAZZ : Clear mid and high-

• CONCERT/CLASSIC: Neutral sound.

Description

stereo sound.

output.

video.

high-range. Ideal for action movies and rock or pop music.

range. Ideal for drama movies and jazz music.

Ideal for live concerts and classical music.

• SPORTS : Moderate mid-range and

surround effects for clear vocals and the atmosphere of a live spor t venue.

4 Press OK to conrm your choice.

Change surround sound mode

Experience an immersive audio experience with surround sound modes.

1 Press (Sound options). 2 Select SURROUND, then press OK. 3 Press the Navigation buttons (up/down) to

select the following settings:

• 5CH STEREO : Enhances the stereo

channel output by duplicating the sound output to the center and rear speakers. Ideal for par ty music.

• MULTI-CHANNEL/Dolby PLII :

Immersive multi-channel sound for an enhanced movie experience.

• STEREO : Two-channel stereo sound.

Ideal for listening to music.

4 Press OK to conrm your choice.

Change treble, mid and bass

Change the high frequency (treble), mid frequency (mid) and low frequency (bass) settings of the home theater to suit your video or music.

1 Press (Sound options). 2 Select TREBLE, MID or BASS, then press OK. 3 Press the Navigation buttons (up/down) to

adjust the frequency level.

4 Press OK to conrm.

Synchronize audio with video

If the audio and video are not synchronized, you can delay the audio to match the video.

1 Press (Sound options). 2 Select AUDIO SYNC, then press OK. 3 Press the Navigation buttons (up/down) to

sync the audio with the video.

4 Press OK to conrm.

Note

• Audio Lip Sync is only available when you play

a video.

Play a disc

The home theater can play a wide variety of discs, including video, audio and mixed media (for example, a CD-R that contains JPEG pictures and MP3 music).

1 Inser t a disc into the home theater. 2 Press DISC, or select [play Disc] in the

home menu and press OK .

» The disc plays or the disc main menu

appears.

3 Press the following buttons to control play:

Button Action

Navigation buttons

OK Conrms an entry or selection.

(Play)

Navigation buttons (up/

down)

SUBTITLE Selects subtitle language for video. DISC Accesses or exits the disc menu.

(Options)

Navigate menus.

Star ts or resumes play. Pauses play. Stops play. Skips to the previous or nex t

track, chapter or le.

Fast backwards or fast forwards. Press repeatedly to change the search speed.

Rotates the picture counterclockwise or clockwise.

Accesses more play options during playback.

Use Bonus View on Blu-ray

Blu-ray discs that support the Bonus View feature (also known as Picture-In-Picture) allow you to view special content such as a director’s commentary while watching the main feature.

1 If necessary, enable BonusView (or Picture-

In-Picture) in the Blu-ray disc menu.

2 During playback of the main feature, press

(Options).

» The options menu is displayed.

3 Select [PIP Selection] > [PIP], then press OK.

» PIP options [1]/[2] depend on the video

contents.

» The picture-in-picture video appears in a

small window.

4 Select [2nd Audio Language] or [2nd

Subtitle Language], then press OK.

5 Select the language to play, then press OK.

Note

• To turn off the Bonus View (Picture-in-

Picture), press (Options), select [PIP

Selection] > [Off], then press OK.

Access BD-Live on Blu-ray

BD-Live enabled Blu-ray discs include exclusive services such as movies and other online bonuses.

1 Prepare the internet connection and set up

the network (see ‘Connect to the internet’ on page 8).

2 Connect the USB storage device to the

home theater.

3 Select the BD-Live icon in the disc menu,

then press OK.

» BD-Live starts to load. The loading time

depends on the disc and your internet connection.

4 Press the Navigation buttons to navigate

BD-Live.

5 Press OK to select an item.

Note

• The range of BD-Live services depends on

the disc.

• When you use BD-Live, data on the disc and

home theater are accessed by the content provider.

• Use a USB s torage device with at least 1GB of

free space to store the downloaded les.

• If there is insufcient memor y to download

BD- Live content, clear memory space.

En glish

Play 3D video

Note

Your home theater can play 3D videos on 3D TVs.

Before you start, make sure that:

• your TV is a 3D TV, and is connected to your home theater through HDMI,

• your disc is a Blu-ray 3D disc, and

• you have 3D glasses that are compatible with your 3D TV.

To play 3D video

1 Inser t a Blu-ray 3D disc into your home

theater.

» Your TV switches to the correct HDMI

source, and the disc plays automatically.

2 If the disc does not play automatically, press

DISC or select [play Disc] in the home menu, and then press OK.

3 Press the play buttons to control play.

When you search forward or backward, and in some other play modes, the video displays in 2D. It returns to 3D when you play normally again.

4 Put on the 3D glasses to enjoy the 3D effects.

Play 3D discs in 2D

1 Press (Home). 2 Select [Setup] > [Video] > [Blu-ray 3D

video] > [Off].

3 Press OK. 4 Play your Blu-ray 3D disc.

» The 3D video is displayed in 2D.

Play from a USB storage device

The home theater is tted with a USB connector

that allows you to view pictures, listen to music or watch movies stored on a USB storage device.

1 Connect the USB storage device to the

home theater.

2 Press (Home).

» The home menu appears.

3 Select [browse USB], then press OK.

» A content browser appears.

4 Select a le, then press OK. 5 Press the playback buttons to control play

(see ‘Play a disc’ on page 11).

• If the USB storage device does not t into the

connector, use a USB extension cable.

• The home theater does not support digital

cameras that need a computer program to display photos.

• The USB stor age device must be Mass Stor age

Class compliant, and formatted to FAT, DOS

or NTFS le system.

More play features for disc or USB

Several advanced features are available for video or picture playback from a disc or USB storage device.

Use video options

Access several useful features while viewing video.

Note

• Available video options depend on the video

source.

1 Press (Options).

» The video options menu appears.

2 Press the Navigation buttons and OK to

select and adjust:

• [Audio Language] : Selects audio

language for video.

• [Subtitle Language] : Selects subtitle

language for video.

• [Subtitle Shift] : Adjusts the subtitle

position on the screen.

• [Info] : Displays information about

what is playing.

• [Character Set] : Selects a character

set that supports the DivX subtitle.

• [Time Search] : Skips to a specic part

of the video by entering the time of the scene.

• [2nd Audio Language] : Selects the

second audio language to play.

• [2nd Subtitle Language] : Selects the

second subtitle language to play.

• [Titles] : Selects a specic title.

• [Chapters] : Selects a specic chapter.

• [Angle List] : Selects a different camera

angle.

• [Menus] : Displays the disc menu.

• [PIP Selection] : Displays Picture-in-

Picture window.

• [Zoom] : Zooms into a video scene or

picture. Press the Navigation buttons (left/right) to select a zoom factor.

• [Repeat] : Repeats a chapter or title.

• [Repeat A-B] : Marks two points

within a chapter or track for repeat play, or turns off repeat mode.

• [Picture Settings] : Selects a

predened color set ting.

Use picture options

Access several useful features while viewing pictures.

1 Press (Options).

» The pictures options menu appears.

2 Press the Navigation buttons and OK to

select and adjust:

• [Rotate +90] : Rotates the picture 90

degree clock wise.

• [Rotate -90] : Rotates the picture 90

degree counter-clockwise.

• [Zoom] : Zooms into a video scene or

picture. Press the Navigation buttons (left/right) to select a zoom factor.

• [Info] : Displays pic ture information.

• [Duration per slide] : Sets the display

speed for each picture in a slide show.

• [Slide Animation] : Selects animation

for the slide show.

• [Picture Settings] : Selects a

predened color set ting.

• [Repeat] : Repeats a selected folder.

Use audio options

Access several useful features while audio is played.

1 Press (Options) repeatedly to cycle

through the following functions:

• REPEAT TRACK : Repeats the current

track.

• REPEAT DISC : Repeats all the tracks

on the disc or folder.

• REPEAT RANDOM : Plays audio

tracks in random order.

• REPEAT OFF : Turns off repeat mode.

Play a musical slideshow

Play music and pictures simultaneously to create a musical slideshow.

1 Select a music track , then press OK. 2 Press (Back) and go to the picture folder. 3 Select a picture, then press OK to start

slideshow.

4 Press to stop slideshow. 5 Press again to stop music.

Play from radio

The home theater can store up to 40 radio stations.

1 Check that the FM antenna is connected. 2 Press RADIO.

» “AUTO INSTALL...PRESS PLAY’ appears

on the display panel if you have not installed any radio stations. Press (Play).

3 Press the following buttons to control play:

Button Action

Navigation buttons

(left/right)

Navigation buttons

(up/down)

(Options)

AUDIO Toggles between stereo and mono

• AM and digital radio are not supported.

• If no stereo signal is detec ted, or if fewer than

ve stations are found, you are prompted to

install the radio stations again.

• For the best reception, place the antenna away

from the TV or other sources of radiation.

Selects a preset radio station. Searches for a radio station.

Fine tunes a radio frequency.

Press and hold to erase the preset radio station. Press to stop the installation of radio stations.

Manual: Press once to access program mode, and press again to store the radio station.

Automatic: Press and hold for ve

seconds to reinstall radio stations.

sound.

Note

En glish

Change tuning grid

In some countries, you can switch the FM tuning grid between 50 kHz and 100 kHz. Changing the tuning grid erases all preset radio stations.

1 Press RADIO. 2 Press (Stop). 3 Press and hold (Play) to toggle between

100 kHz and 50 kHz frequency.

Play audio from TV or other devices

Press AUDIO SOURCE repeatedly to select the audio output of the connected device.

Play from an MP3 player

Connect and play audio les from an MP3 player

or other external audio devices.

1 Connect the MP3 player to the home

theater.

2 Press AUDIO SOURCE repeatedly until

‘MP3 LINK’ appears on the display panel.

3 Press the buttons on the MP3 player to

select and play audio les.

Use Philips EasyLink

The home theater supports Philips EasyLink, which uses the HDMI CEC (Consumer Electronics Control) protocol. EasyLinkcompliant devices that are connected through HDMI connectors can be controlled by a single remote control.

Note

• Philips does not guarantee 100%

interoper ability with all HDMI CEC devices.

1 Switch on the HDMI CEC operations on

the TV and other connected devices. See the manual of the TV or other devices for details.

2 Press (Home). 3 Select [Setup], then press OK. 4 Select [EasyLink] > [EasyLink], then press

OK.

5 Select [On], then press OK. 6 You can now enjoy the following Philips

EasyLink controls.

One-touch play

When you play a disc, the TV automatically switches to the correct channel.

One-touch standby

When you press and hold (Standby) on the remote control, the home theater and all the connected HDMI CEC devices (if they support one-touch standby) switch to standby mode simultaneously.

System Audio Control

When you play a device that has its audio output routed to the home theater, the home theater switches to the corresponding audio source automatically. To use one-touch audio, enable this feature and follow the instructions on the T V to map the connected devices correctly to the audio input jacks of the home theater.

Audio Input Mapping

Updates audio input mapping if there are new devices connected.

6 Change settings

This section helps you to change the settings of your home theater.

Caution

• Most of the settings are already congured

with the best value for the home theater.

Unless you have a specic reason to change a

setting, it is bes t to leave it at the default value.

Access the setup menu

1 Press (Home). 2 Select [Setup], then press OK.

» The setup menu appears.

3 Select a setup menu, then press OK.

See the following sections for information about how to change the settings of your home theater.

4 Press (Back) to return to the previous

menu, or press to exit.

Note

• You cannot change a set ting that is grayed out.

Change video settings

1 Press (Home). 2 Select [Setup], then press OK. 3 Select [Video], then press OK. 4 Select and adjust the following settings:

• [TV Display] : Selects a picture display

format to t the TV screen.

• [HDMI Video] : Selects the HDMI

video resolution.

• [HDMI Deep Color] : Displays colors

with more shades and hues when the video content is recorded in Deep Color and the TV supports this feature.

• [Blu-ray 3D video] : Selects the

3-dimensional video output when you play a 3D video on your home theater. The home theater must be connected to a 3D TV through HDMI.

• [Picture Settings] : Selects a

predened color set ting.

5 Press OK to conrm your choice.

Note

• The bes t set ting is automatically selected for

the TV. If you need to change the set ting, ensure that the TV supports the new setting.

• For settings related to HDMI, the TV must be

connected through HDMI.

Change audio settings

1 Press (Home). 2 Select [Setup], then press OK. 3 Select [Audio], then press OK. 4 Select and adjust the following settings:

• [Night Mode] : Selects quiet or full

dynamic sound. Night mode decreases the volume of loud sounds and increases the volume of soft sounds such as speech.

• [HDMI Audio] : Selects HDMI audio

format or disables HDMI audio output for the T V.

• [Speaker Setup] : Sets the volume level

and distance of each speaker to obtain the best possible surround sound based on your room setup.

5 Press OK to conrm your choice.

Note

• For settings related to HDMI, the TV must be

connected through HDMI.

• Night mode is available for Dolby encoded

DVD and Blu-ray discs (for models support Blu-ray playback).

En glish

Set up network

Change preference settings

1 Press (Home). 2 Select [Setup], then press OK. 3 Select [Network], then press OK. 4 Select and adjust the following settings:

• [Network Installation] : Starts

wired (Ethernet) setup. Follow the instructions to set up the network connection.

• [View Network Settings] : Displays

the current network settings.

5 Press OK to conrm your choice.

Set up EasyLink

1 Press (Home). 2 Select [Setup], then press OK. 3 Select [EasyLink], then press OK. 4 Select and adjust the following settings:

• [EasyLink] : Enables or disables EasyLink.

• [One Touch Play] : Enables or disables

One Touch Play. If enabled, you can use the remote

control to start disc play in the home theater and the T V switches automatically to the correct channel.

• [One Touch Standby] : Enables or

disables One Touch Standby. If enabled, the home theater can

be switched off to standby by a remote control from the TV or other connected HDMI CEC devices.

• [System Audio Control] : Enables or

disables System audio control. If enabled, follow the instructions on

the TV to map the connected devices correctly to the audio connectors of the home theater. The home theater switches automatically to the audio source of the connected device.

• [Audio Input Mapping] : Updates audio

input mapping if there are new devices connected.

5 Press OK to conrm your choice.

1 Press (Home). 2 Select [Setup], then press OK. 3 Select [Preference], then press OK. 4 Select and adjust the following settings:

• [Menu language] : Selects the on-

screen display menu language.

• [Audio] : Selects audio language for

video.

• [Subtitle] : Selects subtitle language for

video.

• [Disc Menu] : Selects menu language

for video disc.

• [Parental Control] : Restricts access to

discs that are recorded with ratings. To play all discs irrespective of the rating, select level ‘8’.

• [Screen Saver] : Enables or disables

screen saver mode. If enabled, the screen enters idle mode af ter 10 minutes of inactivity (for example, in pause or stop mode).

• [Auto Subtitle Shift] : Enables or

disables shift subtitle. If enabled, it adjusts the subtitle position

automatically to t the TV screen.

• [Change Password] : Sets or changes

a PIN code to play a restricted disc. Enter ‘0000’ if you do not have a PIN or if you have forgotten your PIN.

• [Display Panel] : Changes the

brightness of the display panel.

• [Auto Standby] : Enables or disables

auto standby. If enabled, the home theater switches to standby after 30 minutes of inactivity (for example, in pause or stop mode).

• [VCD PBC] : Displays or skips the

content menu for VCD and SVCD discs.

• [Sleep Timer] : Sets a sleep timer to

switch the home theater to standby

after a specic time.

5 Press OK to conrm your choice.

Note

• The connected devices must be connected

through HDMI and switched on.

Note

7 Update software

• If your preferred disc language is not available,

you can select [Other] from the list and enter the 4-digit language code which can be found at the back of this manual.

• If you select a language that is not available

on a disc, the home theater uses the default language of the disc.

Change advanced settings

1 Press (Home). 2 Select [Setup], then press OK. 3 Select [Advanced], then press OK. 4 Select and adjust the following settings:

• [BD-Live Security] : Restricts or allows

access to BD-Live.

• [Enhanced Audio] : Enables or disables

the audio post processing at the speaker output.

• [Software Update] : Selects to update

software from the network or from USB storage device.

• [Clear memory] : Clears local memory,

delete the BD-Live les that you

previously downloaded. If using an USB storage device, the local storage folder is ‘BUDA’.

• [DivX® VOD Code] : Displays the

DivX VOD registration code for the home theater.

• [Version Info.] : Displays the software

version for the home theater.

• [Restore default settings] : Resets the

home theater to the default settings programmed at the factory.

5 Press OK to conrm your choice.

Note

To check for new updates, compare the current software version of your home theater with the latest software version (if available) on the Philips web site.

Check software version

1 Press (Home). 2 Select [Setup], then press OK. 3 Select [Advanced] > [Version Info.], then

press OK.

» The software version is displayed.

Update software from the network

1 Prepare the internet connection (see

‘Connect to the internet’ on page 8).

2 Press (Home) and select [Setup]. 3 Select [Advanced] > [Software Update] >

[Network].

» If an upgrade media is detected, you are

prompted to start or cancel the update.

4 Follow the instruction on the TV to conrm

the update.

» When complete, the home theater

automatically switches off and on again.

• If not, disconnect the power cord for a

few seconds and then reconnect it.

Note

• If the home theater is unable to connect to the

Philips server, press (Home), select [Setup] > [Network] > [Network Installation] to set up the network.

En glish

• You cannot restrict internet access on

commercial Blu-ray discs.

• Before you purchase DivX videos and play

them on the home theater, register the home theater on www.divx.com using the DivX VOD code.

• You cannot reset parental control setting to its

default value.

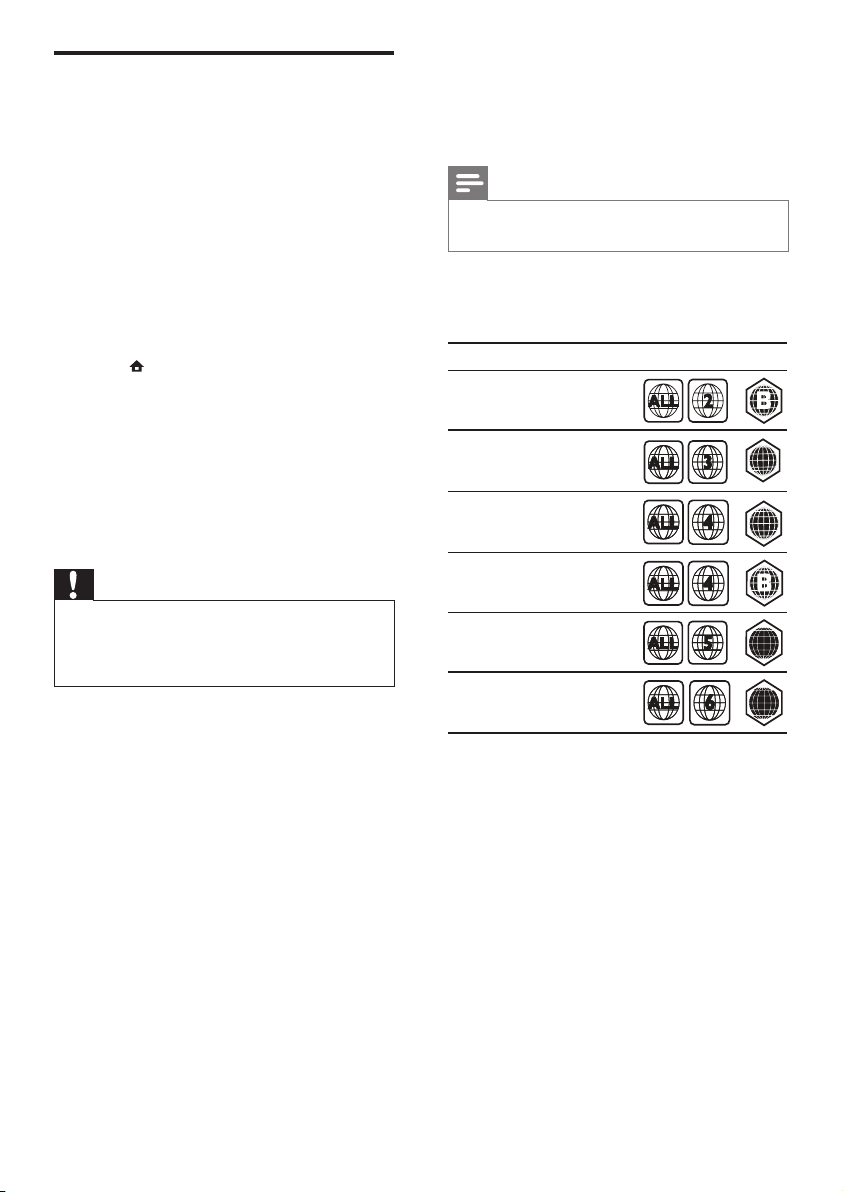

Country

DVD BD

Europe, United Kingdom

Korea

Latin America

Australia, New Zealand

Russia, India

China

Asia Pacific, Taiwan,

Update software from a USB

8 Product

1 Check for the latest software version on

www.philips.com/support.

• Search for your model and click on

‘software and drivers’.

2 Create a folder named ‘UPG’ in the root

director y of your USB storage device.

3 Download the software into the ‘\UPG’

folder of the USB storage device.

4 Unzip the software in the ‘\UPG’ folder. 5 Connect the USB storage device to the

home theater.

6 Press (Home) and select [Setup]. 7 Select [Advanced] > [Software Update] >

[USB].

8 Follow the instructions on the TV to

conrm the update.

» When complete, the home theater

automatically switches off and restarts.

• If not, disconnect the power cord for a

few seconds and then reconnect it.

Caution

• Do not tur n off the power or remove the USB

stor age device when the software update is in progress because you might damage the home theater.

specifications

Note

• Specication and design are subject to change

without notice.

Region code

The type plate on the back or bottom of the home theater shows which regions it supports

Playback media

• BD-Video, DVD-Video, DVD+R /+RW, DVD-R/-RW, DVD+R/-R DL, CD-R/CDRW, Audio CD, Video CD/SVCD, Picture CD, MP3-CD, WMA-CD, DivX (Ultra)-CD,

USB ash drive.

File Format

• Audio: .mp3, .wma

• Video: .avi, .divx, .mkv, .wmv

• Picture: .jpg, .gif, .png

Amplier

• Total output power : 1000 W RMS (30% THD) / 800 W RMS (10% THD)

• Frequency response: 20 Hz-20 kHz / ±3dB

• Signal-to-noise ratio: > 65 dB (CCIR) / (A-weighted)

• Input sensitivity:

• AUX: 500 mV

• MP3 LINK: 250 mV

Video

• Signal system: PAL / NTSC

• HDMI output: 480i/576i, 480p/576p, 720p, 1080i, 1080p

Audio

• Sampling frequency:

• MP3: 32 kHz, 44.1 kHz, 48 kHz

• WMA: 44.1 kHz, 48 kHz

• Constant bit rate:

• MP3: 112 kbps - 320 kbps

• WMA: 48 kbps - 192 kbps

Radio

• Tuning range: FM 87.5-108 MHz (50 kHz)

• Signal-to-noise ratio: FM 55 dB

• Frequency response: FM 180 Hz-12.5 kHz / ±3dB

USB

• Compatibility: Hi-Speed USB (2.0)

• Class suppor t: UMS (USB Mass Storage Class)

• File system: FAT16, FAT32, NTFS

• Maximum memory support: < 160GB

Main Unit

• Power supply:

• India and Russia: 220-240V; ~50 Hz

• Asia Pacic and Latin America: 110-

127V/ 220-240V; ~50-60 Hz

• Power consumption: 100 W

• Standby power consumption: ≤ 0.9 W

• Dimensions ( WxHxD): 360 x 58 x 351 (mm)

• Weight: 3.22 kg

Subwoofer

• Impedance: 4 ohm

• Speaker drivers: 165 mm (6.5”) woofer

• Frequency response: 40 Hz-150 Hz

• Dimensions ( WxHxD): 123 x 309 x 369 (mm)

• Weight: 3.81 kg

• Cable length: 4 m

Speakers

• System: full range satellite

• Speaker impedance: 4 ohm (center), 4 ohm (Front/Rear)

• Speaker drivers: 1 x 3” full range

• Frequency response: 150 Hz-20 kHz

• Dimensions ( WxHxD):

• Center: 161 x 92 x 95 (mm)

• Speaker : 95 x 161 x 87 (mm)

• Tall speaker (For HTS3580 only): 254 x

1001 x 254 (mm)

• Weight:

• Center: 0.77 kg

• Speaker: 0.56 kg/each

• Tall speaker (For HTS3580 only): 3.38

kg/each

• Cable length:

• Center: 3 m

• Front: 4 m

• Rear: 10 m

Laser Specication

• Laser Type (Diode): InGaN/AIGaN (BD), InGaAIP (DVD), A IGaAs (CD)

• Wave length: 405 +5nm/-5nm (BD), 650 +13nm/-10nm (DVD), 790 +15nm/-15nm (CD)

• Output power (Max. ratings): 20mW (BD), 7mW (DVD/CD)

En glish

9 Troubleshooting

Warning

• Risk of electric shock. Never remove the

casing of the product.

To keep the warranty valid, never try to repair the product yourself.

If you have problems using this product, check the following points before you request service. If you still have a problem, register your product and get support at www.philips.com/welcome.

If you contact Philips, you will be asked for the model and serial number of your product. The model number and serial number are on the back or bottom of your product. Write the numbers here:

Model No. __________________________ Serial No. ___________________________

Main unit

The buttons on this home theater do not work.

• Disconnect the home theater from the power outlet for a few minutes, then reconnect.


No picture.

• Ensure that the TV is switched to the correct source for the home theater.

No picture on HDMI connection.

• Change the HDMI video setting or wait for 15 seconds for auto recover.

• Check if the HDMI cable is faulty. Replace with a new HDMI cable.

No high-denition video signal on the TV.

• Ensure that the disc contains high-denition video.

• Ensure that the TV suppor ts high-denition video.

Sound

No sound.

• Ensure that the audio cables are connected and select the correct input source (for example, AUDIO SOURCE) for the device you want to play.

No sound on HDMI connection.

• You might not hear any sound if the connected device is not HDCP (Highbandwidth Digital Content Protection) compliant or only DVI compatible. Use an analog or digital audio connection.

• Ensure that the [HDMI Audio] is enabled.

No sound from TV program.

• Connect an audio cable from the audio input on the home theater to the audio output on the TV, then press AUDIO SOURCE repeatedly to select the correct audio source.

Distorted sound or echo.

• Ensure that the TV volume is muted or set to minimum if you are playing audio through the home theater.

Audio and video are not synchronized.

• 1) Press (Sound options) . 2) Press the Navigation buttons (left/right) repeatedly until AUDIO SYNC is displayed, then press OK. 3) Press the Navigation buttons (up/

down) to sync the audio with the video.

Play

Disc cannot be played.

• Clean the disc.

• Ensure that the home theater supports the

disc (see ‘Product specications’ on page

18).

• Ensure that the home theater supports the region code of the disc.

• For DVD±RW or DVD±R, ensure that the

disc is nalized.

DivX video les cannot be played.

• Ensure that the DivX le is encoded according to the ‘Home Theater Prole’

with the DivX encoder.

• Ensure that the DivX video le is complete.

DivX subtitles do not display correctly.

• Ensure that the subtitle le name is the same as the movie le name.

• Select the correct character set: 1) Press (Options). 2) Select [Character Set].

3) Select the suppor ted character set.

4) Press OK.

The contents of a USB storage device cannot be read.

• Ensure that the format of the USB storage device is compatible with the home theater

(see ‘Product specications’ on page 18).

• Ensure that the USB storage device

is formatted with a le system that is

supported by the home theater.

‘No entry’ or ‘x’ sign appears on the TV.

• The operation is not possible.

EasyLink feature does not work.

• Ensure that the home theater is connected to a Philips brand EasyLink TV and that EasyLink is on.

I do not want my home theater to be switched on when I switch on my TV.

• This is the correct behavior for Philips EasyLink (HDMI-CEC). To make the home theater work independently, switch off EasyLink.

I cannot access BD-Live features.

• Check the network connection or ensure that the network has been set (see ‘Set up network ’ on page 9)up.

• Clear memor y storage. (see ‘Change advanced settings’ on page 17)

• Ensure that the Blu-ray disc supports BD- Live feature.

My 3D video plays in 2D mode.

• Ensure that your home theater is connected to your 3D T V through HDMI.

• Ensure that your disc is a Blu-ray 3D disc.

• Ensure that the [Blu-ray 3D video] setting is turned on (see ‘Change video settings’ on page 999).

I see black video on my TV screen.

• Ensure that your home theater is connected to the TV through HDMI.

• Switch to the correct HDMI source on your TV.

10 Index

3D video 12

amplier 18

audio

connection 8 language 16 settings 15 synchronize with video 10

audio input mapping 14, 16

BD-Live

access 11 set up 9

Bonus View 11

care 4 change settings 15 chapter 12 connect

audio from TV 8, 14 guide 7 other devices 8 TV 7

connectors 7 contact us 20

disc

play 11 supported discs 18

disposal of your product 4 DivX

character set 12

En glish

EasyLink

settings 14, 16

le formats 18

HDMI CEC (see Easylink) 14

Internet

BD-Live 11

language

audio 12, 16 disc menu 16 on-screen display 16 subtitle 12, 16

MP3

play 14

network

set up 9

one-touch play 14, 16 one-touch standby 14, 16 overview

connectors 7 main unit 5 remote control 5

password (PIN code) 16 picture

options 13 rotate 13 slide show 13, 13 troubleshooting 20

picture-in-picture

2nd audio language 11 2nd subtitle language 11 enable 11

play

2D video 12 3D video 12 disc 11 MP3 player 14 options 11 radio 13 troubleshooting 20

USB storage device 12 product care 4 product specications 18

program 13 tune 13

recycle 4 region code 18 remote control 5 repeat 12, 11 rotate pictures 13

safety 3 settings

audio 15 EasyLink 16 parental control 16 preferences 16

slideshow

animation 13 duration 13 play musical slideshow 13

software

update 17 version 17

sound

mode 10 surround 10 treble and bass 10 troubleshooting 20

subtitle

language 12, 16

subtitle shift 12, 16 system audio control 14

time search video 12 title 12 troubleshooting 20 TV

audio from TV 8, 14 connect 7

USB

play 12 software update 18

video

options 12 synchronize with audio 10

radio

play 13

wireless

WARRANTY

This Philips Home Theatre System is covered under warranty against any defect arising out of faulty or defective material or workmanship for a period of 12 Months from the date of purchase.

Should a defect develop during the period of warranty, Philips Electronics India Limited undertakes to repair the apparatus free of charge through an Authorised Philips service centre. If the purchaser shifts his residence to other town, the warranty will be valid at the nearest Authorised Philips service center.

The Warranty is not valid in case:

• Proof of purchase is not accompanied with this warranty form

• This warranty form is not completed immediately after purchase

• The Apparatus is not used according to this manual

• Defects are caused by improper or reckless use

• Any repair work are done by person other than Authorised Philips service center

• Any modification or alteration of any nature are made in the apparatus

• The serial number is tampered

• Defects due to causes beyond control like lightning, abnormal voltage, Acts of God or

Maintenance Tips for your Home Theatre System:

• Always keep a Disc loaded in your Home Theatre System tray.

• Keep the home theatre away from the dusty areas. Keep it covered with a dust cover.

• Clean your Home Theatre System Lens after every 20 Discs played.

• Clean the CDs / VCD / DVD / MP3 CD before inserting in your Home Theatre System

while in transit to the purchaser’s residence

o Use the 2 brush Philips DVD Lens Cleaner SVC2520 for best results.

Philips Electronics India Limited,

For Any Sales & Service Enquiry:

Email us at customercare.india@philips.com

Call us on Tel No. 1800 102 2929 * 1860 180 1111 *

*Standard Call rates apply for the calls made to above telephone lines

Pls fill the following for your reference and warranty validity:-

Registered Office: 7, Justice Chandra Madhab Road, Kolkata – 700 020

0124- 429 1111*

• Serial No:_______________________________

• Bill No. & Date of Purchase:________________

• Purchaser’s Name:________________________

• Location & Tel No.:_______________________

• Dealer’s Name:___________________________

• Location & Tel No:________________________

• Dealer’s Stamp & Sign:_____________________

Language Code

Abkhazian 6566 Afar 6565 Afrikaans 6570 Amharic 6577 Arabic 6582 Armenian 7289 Assamese 6583 Avestan 6569 Aymara 6589 Azerhaijani 6590 Bahasa Melayu 7783 Bashkir 6665 Belarusian 6669 Bengali 6678 Bihari 6672 Bislama 6673 Bokmål, Norwegian 7866 Bosanski 6683 Brezhoneg 6682 Bulgarian 6671 Burmese 7789 Castellano, Español 6983 Catalán 6765 Chamorro 6772 Chechen 6769 Chewa; Chichewa; Nyanja 7889 9072

中文

Chuang; Zhuang 9065 Church Slavic; Slavonic 6785 Chuvash 6786 Corsican 6779

esky 6783 Dansk 6865 Deutsch 6869 Dzongkha 6890 English 6978 Esperanto 6979 Estonian 6984 Euskara 6985

6976 Faroese 7079 Français 7082 Frysk 7089 Fijian 7074 Gaelic; Scottish Gaelic 7168 Gallegan 7176 Georgian 7565 Gikuyu; Kikuyu 7573 Guarani 7178 Gujarati 7185 Hausa 7265 Herero 7290 Hindi 7273 Hiri Motu 7279 Hrwatski 6779 Ido 7379 Interlingua (International)7365 Interlingue 7365 Inuktitut 7385

Inupiaq 7375 Irish 7165 Íslenska 7383 Italiano 7384 Ivrit 7269 Japanese 7465 Javanese 7486 Kalaallisut 7576 Kannada 7578 Kashmiri 7583 Kazakh 7575 Kernewek 7587 Khmer 7577 Kinyarwanda 8287 Kirghiz 7589 Komi 7586 Korean 7579 Kuanyama; Kwanyama 7574 Kurdish 7585 Lao 7679 Latina 7665 Latvian 7686 Letzeburgesch; 7666 Limburgan; Limburger 7673 Lingala 7678 Lithuanian 7684 Luxembourgish; 7666 Macedonian 7775 Malagasy 7771 Magyar 7285 Malayalam 7776 Maltese 7784 Manx 7186 Maori 7773 Marathi 7782 Marshallese 7772 Moldavian 7779 Mongolian 7778 Nauru 7865 Navaho; Navajo 7886 Ndebele, North 7868 Ndebele, South 7882 Ndonga 7871 Nederlands 7876 Nepali 7869 Norsk 7879 Northern Sami 8369 North Ndebele 7868 Norwegian Nynorsk; 7878 Occitan; Provencal 7967 Old Bulgarian; Old Slavonic 6785 Oriya 7982 Oromo 7977 Ossetian; Ossetic 7983 Pali 8073 Panjabi 8065 Persian 7065 Polski 8076 Português 8084

Pushto 8083 Russian 8285 Quechua 8185 Raeto-Romance 8277 Romanian 8279 Rundi 8278 Samoan 8377 Sango 8371 Sanskrit 8365 Sardinian 8367 Serbian 8382 Shona 8378 Shqip 8381 Sindhi 8368 Sinhalese 8373 Slovensky 8373 Slovenian 8376 Somali 8379 Sotho; Southern 8384 South Ndebele 7882 Sundanese 8385 Suomi 7073 Swahili 8387 Swati 8383 Svenska 8386 Tagalog 8476 Tahitian 8489 Tajik 8471 Tamil 8465 Tatar 8484 Telugu 8469 Thai 8472 Tibetan 6679 Tigrinya 8473 Tonga (Tonga Islands) 8479 Tsonga 8483 Tswana 8478 Türkçe 8482 Turkmen 8475 Twi 8487 Uighur 8571 Ukrainian 8575 Urdu 8582 Uzbek 8590 Vietnamese 8673 Volapuk 8679 Walloon 8765 Welsh 6789 Wolof 8779 Xhosa 8872 Yiddish 8973 Yoruba 8979 Zulu 9085

sgpam_1037/51_v2

Philips HTS3560/51 User guide

Specifications and Main Features

Frequently Asked Questions

User Manual
