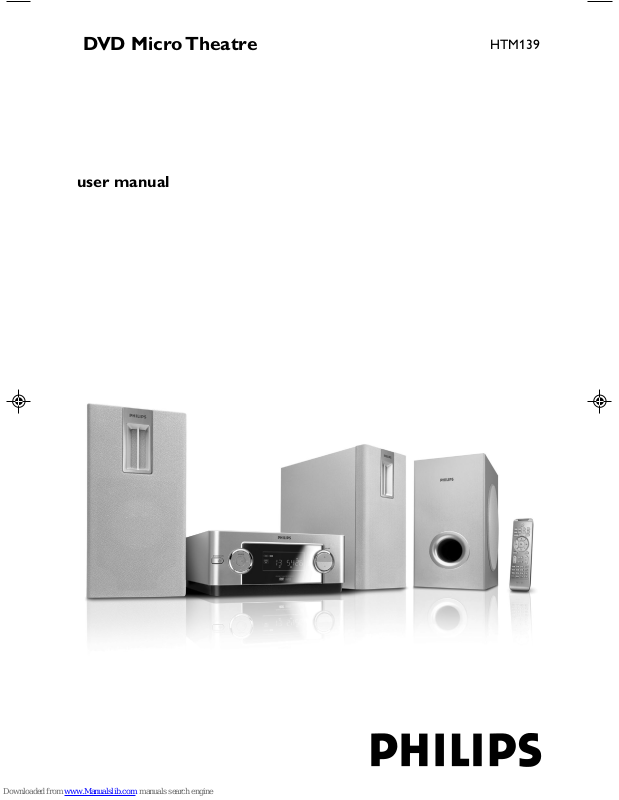

DVD Micro Theatre
user manual
HTM139
Manufactured under license from Dolby
Laboratories.
"Dolby", "Pro-logic" and the double-D symbol are
trademarks of Dolby Laboratories.
MANUFACTURED UNDER LICENSE FROM
DIGITAL THEATER SYSTEMS, INC. US PAT. NO
5,451,942,5,956,674, 5,974,380, 5,978,762 AND
OTHER WORLDWIDE
PATENTS ISSUED AND PENDING. "DTS" AND
"DTS DIGITAL SURROUND" ARE RESISTERED
TRADEMARKS OF DIGITAL THEATER
SYSTEMS, INC. COPYRIGHT 1996, 2000
DIGITAL THEATER SYSTEMS, INC . ALL RIGHTS
RESERVED.
CONSUMERS SHOULD NOTE THAT
NOT ALL HIGH DEFINITION
TELEVSION SETS ARE FULLY
COMPATIBLE WITH THIS PRODUCT
AND MAY CAUSE ARTIFACTS TO BE
DISPLAYED IN THE PICTURE. IN
CASE OF 525 OR 625 PROGRESSIVE
SCAN PICTURE PROBLEMS, IT IS
RECOMMENDED THAT THE USER
SWITCH THE CONNECTIN TO THE
‘STANDARD DEFINITION’ OUTPUT.
IF THERE ARE QUESTIONS REGARDING OUR TV SET COMPATIBILITY
WITH THIS MODEL 525p AND 625p
DVD PLAYER, PLEASE CONTACT
OUR CUSTOMER SERVICE CENTER.
2
This product incorporates copyright protection technology that is
protected by method claims of
certain U.S. patents and other
intellectual property rights owned
by Macrovision Corporation and
other rights owners. Use of this
copyright protection technology
must be authorized by Macrovision
Corporation, and is intended for
home and other limited viewing
uses only unless otherwise authorized by Macrovision Corporation.
Reserve engineering or disassembly
is prohibited.
Index
English
Español
Português Español
CAUTION
Use of controls or adjustments or
performance of procedures other
than herein may result in hazardous
radiation exposure or other unsafe
operation.
ATTENTION
L'utilisation des commandes ou
réglages ou le non-respect des
procédures ci-incluses peuvent se
traduire par une exposition
dangereuse à l'irradiation.
ATENCIÓN
El uso de mando o ajustes o la
ejecucción de métodos que no sean
los aquí descritos puede ocasionar
peligro de exposición a radiación.
3
Contents
English
General Information
Features .................................................................. 6
Supplied accessories ............................................ 6
Environment information ................................... 6
Safety information ................................................ 7
Maintenance .......................................................... 7
Connections
Step1: Placing speakers and subwoofer ............8
Step2: Connecting speakers and subwoofer.....8
Step3: Connecting TV set ............................ 9~10
Using Video in jack (CVBS)
Using Componet Video in jack (Pr Pb Y)
Using S-Video in jack
Using an accessory RF modulator
Step4: Connecting the FM antenna ................ 11
Step5: Connecting the power cord ................ 11
Step6: Connecting a VCR or cable/satellite
box......................................................................... .11
Step7: Connecting digital audio equipment....12
Functional Overview
Controls on the system .................................... 13
Remote control ........................................... 14~15
Getting Started
Step 1: Using Remote Control ........................ 16
Step 2: Setting up the TV ........................... 16~18
Selecting the color system that matches
your TV set
Setting up Progressive Scan feature
To deactivate Progressive manually
Step 3: Setting language preference ................ 18
Setting the OSD Language
Setting the Audio, Subtitle and Disc Menu
language
Basic Functions
Switching the system on/off ............................. 19
Power saving automatic standby ..................... 19
Volume control ................................................... 19
Sound Control .................................................... 19
DBB (Dynamic Bass Boost)
DSC (Digital Sound Control)
Disc Operations
Playable Discs ...................................................... 20
Region Codes ...................................................... 20
Playing discs ......................................................... 21
Using the Disc Menu.......................................... 21
Using PBC feature (available for 2.0-version
VCD only)
Resuming playback...............................................21
Selecting and searching .............................. 21~22
Selecting a different track/chapter
Fast forwarding/reversing
GOTO
Different play modes:
REPEAT, SHUFFLE and REPEAT A-B .............. 22
REPEAT
SHUFFLE
REPEAT A-B
Programming favourite tracks ......................... 23
Display information............................................ 23
ZOOM .................................................................. 24
AUDIO ................................................................. 24
SUBTITLE ............................................................. 24
Playing a title ........................................................ 24
Playing MP3/WMA/JPEG disc .......................... 24
Playing MP3 music and JPEG picture
simultaneously.....................................................25
Playing Kodak Picture disc ................................ 25
DVD MENU Operations
Using the menu bar ........................................... 26
Using setup menu (user preference settings)
........... .............................................................. 27~29
TV Display
Screen Saver
Night Mode
Test Tone
Changing the password
Restricting playback by setting parental level
Rating explanations
OSD language (menu lanuage)
Default
4
Tuner
Tuning to radio stations.......................................30
Storing preset radio stations..............................30
Manual programming.......................................30
Automatic programming.................................30
Listening to preset radio stations......................30
Deleting a preset radio station..........................30
Clock/Timer
Viewing clock.........................................................31
Setting clock...........................................................31
Setting wake-up timer..........................................31
Setting sleep timer................................................31
Specifications ........................................... 32
Tr oubleshooting ............................. 33~35
Contents
English
Glossary ......................................................... 36
5
General Information
English
IMPORTANT!
PLEASE NOTE THAT THE VOLTAGE
SELECTOR LOCATED AT THE REAR OF
THIS SYSTEM IS PRESET AT 220V FROM
THE FACTORY. FOR COUNTRIES THAT
OPERATE AT 110V-127V, PLEASE ADJUST
TO 110V-127V BEFORE YOU SWITCH ON
THE SYSTEM.
Features
Your DVD MICRO THEATRE System with 2.1channel full analog amplifier creates the same
dynamic sound qualities that you find in full
fledged cinemas and incorporates some of the
best features in home theater technology.
Other features include:
Built-in Dolby Digital decoder, suppor ting
Incredible Surround and DSC sound setting.
Additional Component Connections
Lets you connect other audio and audio/visual
components to the DVD micro system.
Night Mode
Lets you compress the dynamic range, reducing
the difference in loudness between different
sounds in Dolby Digital mode.
Supplied accessories
– Remote control with one CR2025 battery
–Two speakers and one subwoofer
–AC power cord
– DIN cable
– Composite video cable (yellow)
– FM wire antenna
– User Manual and Quick Start Guide
If any item is damaged or missing, contact
your retailer or Philips.
Environmental information
All unnecessary packaging has been omitted. We
have tried to make the packaging easy to
separate into three materials: cardboard (box),
polystyrene foam (buffer) and polyethylene (bags,
protective foam sheet).
Your system consists of materials which can be
recycled and reused if disassembled by a
specialised company. Please observe the local
regulations regarding the disposal of packaging
materials, exhausted batteries and old equipment.
Parental Control (Rating Level)
Lets you set a ratings level so that your children
cannot watch a DVD that has a rating higher
than you set.
Sleep/Wake-up Timer
Enables the system to switch on/off automatically
at a preset time.
Progressive Scan
Provides high quality flicker-free images for film
based sources. When a picture refreshes, its
vertical resolution can double to 525 lines.
Note:
–To fully enjoy the progressive scan feature, you
need a progressive scan TV.
6
General Information
Safety information
● Before operating the system, check that the
operating voltage indicated on the typeplate (or
the voltage indication beside the voltage
selector) of your system is identical with the
voltage of your local power supply. If not, please
consult your dealer.
● Place the system on a flat, hard and stable
surface.
● Place the system in a location with adequate
ventilation to prevent internal heat build-up in
your system. Allow at least 10 cm (4 inches)
clearance from the rear and the top of the unit
and 5 cm (2 inches) from each side.
● The ventilation should not be impeded by
covering the ventilation openings with items,
such as newspapers, table-cloths, curtains, etc.
● Do not expose the system, batteries or discs to
excessive moisture, rain, sand or heat sources
caused by heating equipment or direct sunlight.
● No naked flame sources, such as lighted candles,
should be placed on the apparatus.
● No objects filled with liquids, such as vases, shall
be placed on the apparatus.
● If the system is brought directly from a cold to a
warm location, or is placed in a ver y damp room,
moisture may condense on the lens of the disc
unit inside the system. Should this occur, the CD
player would not operate normally. Leave the
power on for about one hour with no disc in the
system until normal playback is possible.
● The mechanical parts of the set contain self-
lubricating bearings and must not be oiled or
lubricated.
● When the system is switched to Standby
mode, it is still consuming some power.
To disconnect the system from the
power supply completely, remove the AC
power plug from the wall socket.
Maintenance
● When a disc becomes dirty,
clean it with a cleaning cloth.
Wipe the disc from the center
out, in a straight line.
● Do not expose the player,
batteries or discs to humidity,
rain, sand or excessive heat
(caused by heating equipment or direct sunlight).
Always keep the disc tray closed to avoid dust
on the lens.
● Do not use solvents such as benzene, thinner,
commercially available cleaners, or anti-static
spray intended for colour discs.
● The lens may cloud over when the player is
suddenly moved from cold to warm
surroundings, making it impossible to play a disc.
Leave the player in the warm environment until
the moisture evaporates.
English
7
Connections
English
Step 1: Placing speakers and
subwoofer
For best possible surround sound, locate your
speakers and subwoofer as follows:
● Place the left and right speakers at equal
distances from the TV set and at an angle of
approximately 45 degrees from the listening
position.
● Place the subwoofer on the floor.
Step 2: Connecting speakers
and subwoofer
ANTENNA
FM
(75Ω)
● Connect the supplied DIN cable to DVD player’s
DIN jack and the left speaker’s DIN jack.
● Connect the supplied speaker wires of the right
speaker to SPEAKER RIGHT on the left speaker,
red wire to red jack ( “+” ), black wire to black
jack ( “-“ ). Fully insert the stripped portion of
the speaker wire into the terminal as shown.
Notes:
–To avoid magnetic interference, position the
speakers, subwoofer as far as possible from the
main unit, TV set or other radiation source.
– Allow adequate ventilation around the DVD
System.
IMPORTANT!
The type plate is located on the bottom
of the system.
To avoid overheating of the system, a
safety circuit has been built in. Therefore,
your system may switch to Standby
mode automatically under extreme
conditions. If this happens, let the system
cool down before reusing it.
● Connect the supplied speaker wire of the
subwoofer to SUBWOOFER OUT on the left
speaker, green wire to green jack ( “+” ), white
wire to white jack ( “-” ).
Notes:
–For optimal sound performance, use the
supplied speakers.
– Do not connect more than one speaker to any
one pair of +/- speaker terminals.
– Do not connect speakers with an impedance
lower than the speakers supplied. Please refer to
the SPECIFICATIONS section of this manual.
8
Connections
Step 3: Connecting TV set
IMPORTANT!
–You only need to make one video
connection from the following options,
according to the capabilities of your TV
system.
– S-Video or Component Video
connection provides higher picture
quality. These options must be available
on your TV set.
– Connect the system directly to the TV
set.
Using Video In jack (CVBS)
Using component Video In jack (Pr Pb Y)
● Use the component video cables (red/blue/
green, not supplied) to connect the system’s PR/
PB/ Y jacks to the corresponding Component
video input jacks (or labeled as Pr/Cr Pb/Cb Y or
YUV) on the TV set.
● To listen to TV channels through this system, use
the audio cables (white/red, not supplied) to
connect AUX IN (L/R) jacks to the
corresponding AUDIO OUT jacks on the TV set.
Or, to listen to disc playback of the system
through your TV, use the audio cables (white/red,
not supplied) to connect LINE OUT (L/R)
jacks to the corresponding AUDIO IN jacks on
the TV set.
English
ANTENNA
FM
(75Ω)
● Use the supplied composite video cable (yellow)
to connect the system’s COMPOSITE
VIDEO jack to the video input jack (or labeled
as A/V In, Video In, Composite or Baseband) on
the TV set.
● To listen to TV channels through this system, use
the audio cables (white/red, not supplied) to
connect AUX IN (L/R) jacks to the
corresponding AUDIO OUT jacks on the TV set.
Or, to listen to disc playback of the system
through your TV, use the audio cables (white/red,
not supplied) to connect LINE OUT (L/R)
jacks to the corresponding AUDIO IN jacks on
the TV set.
ANTENNA
FM
(75Ω)
Notes for progressive scan video:
– The progressive scan video quality is only
possible when using Y Pb Pr, and a progressive scan
TV is required.
– If you are using a Progressive Scan TV (TV must
indicate Progressive Scan or ProScan capability), to
activate TV Progressive Scan, please refer to your TV
user manual. For DVD system’s Progressive Scan
function, see “Getting Started - Setting up
Progressive Scan feature’’.
– If your TV does not support Progressive Scan, you
will not be able to view the picture. Turn off
progressive scan in PROGRESSIVE menu of the
system setup menu.
9
ANTENNA
FM
(75Ω)
Connections
English
Using S-Video In jack
ANTENNA
FM
(75Ω)
● Use the S-Video cable (not supplied) to connect
the system’s S-VIDEO jack to the S-Video
input jack (or labeled as Y/C or S-VHS) on the
TV set.
● To listen to TV channels through this system, use
the audio cables (white/red, not supplied) to
connect AUX IN (L/R) jacks to the
corresponding AUDIO OUT jacks on the TV set.
Or, to listen to disc playback of the system
through the TV, use the audio cables (white/red,
not supplied) to connect LINE OUT (L/R)
jacks to the corresponding AUDIO IN jacks on
the TV set.
Using an accessory RF modulator
IMPORTANT!
– If your TV set only has a single
Antenna In jack (or labeled as 75 ohm or
RF In), you will need a RF modulator in
order to view the DVD playback via TV.
See your electronics retailer or contact
Philips for details on RF modulator
availability and operations.
● Use the supplied composite cable (yellow) to
connect the system’s COMPOSITE VIDEO
jack to the video input jack on the RF modulator.
● Use the RF coaxial cable (not supplied) to
connect the RF modulator to your TV’s RF jack.
10
Connections
Step 4: Connecting the FM
antenna
● Connect the supplied FM antenna to the FM (75
Ω) jack at the back of the main unit. Extend the
FM antenna and fix its end to the wall.
Step 5: Connecting the power
cord
IMPORTANT!
– Never make or change any
connection with the power switched on.
ANTENNA
FM
(75Ω)
● After everything is connected properly, plug in
the AC power cord to the power socket.
Step 6: Connecting a VCR or
cable/satellite box
Viewing and listening to playback
ANTENNA
FM
(75Ω)
1 Connect the VCR or Cable/Satellite Box to the
TV system as shown.
2 Using the audio cables (red/white, not supplied)
Connect the system’s AUX IN (L/R) jacks to
the AUDIO OUT jacks on the VCR or Cable/
Satellite box.
Before starting operation, press AUX on the
remote control to select “AUX” in order to
activate the input source.
English
Using the VCR for recording DVDs
Some DVDs are copyright-protected. You cannot
record or dub protected discs using a VCR.
3 Connect the system’s COMPOSITE VIDEO
jack to the VIDEO IN jack on the VCR.
4 Connect the system’s LINE OUT (R/L) jacks
to the AUDIO IN jacks on the VCR. This will
allow you to make analog stereo (two channel,
right and left) recording.
To view DVD playback while recording
You must connect the system to your TV system
using the S-VIDEO (as shown above) or the
COMPONENT VIDEO OUT (Pr Pb Y)
video connection.
11
Connections
English

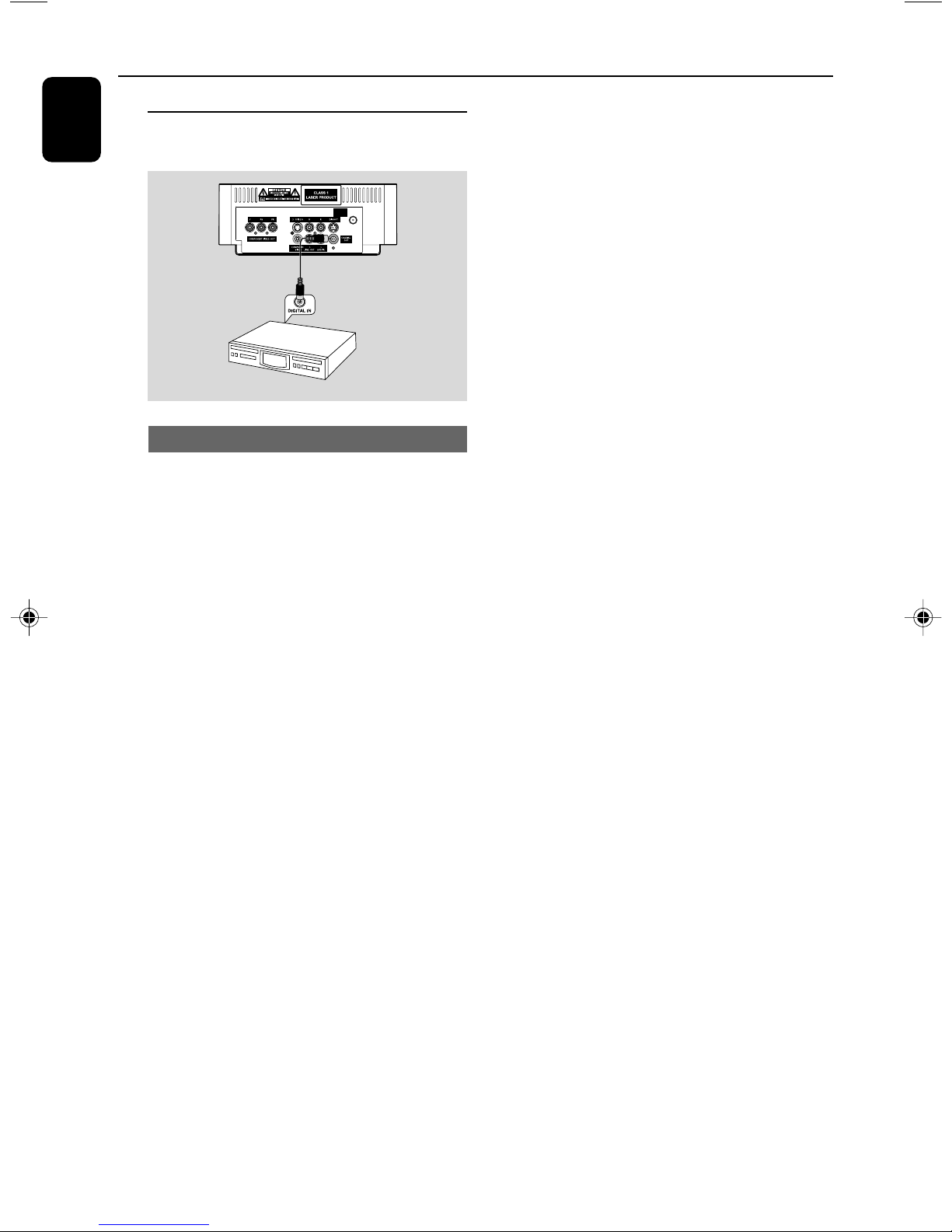

Step 7: Connecting digital audio
Digital audio recorder
Recording (digital)
Connect the system’s COAXIAL OUT (digital
out) jack to the DIGITAL IN jack on a digital
recording device (DTS-Digital Theater System
compatible, with a Dolby Digital decoder, for
example).
equipment
ANTENNA
FM
(75Ω)
DVD player
Before operation, set COAXIAL OUTPUT
according to the audio connection.
12
Functional Overview
English
1
2
3
S
T
A
N
D
N
B
O
Y
4
5
6
-

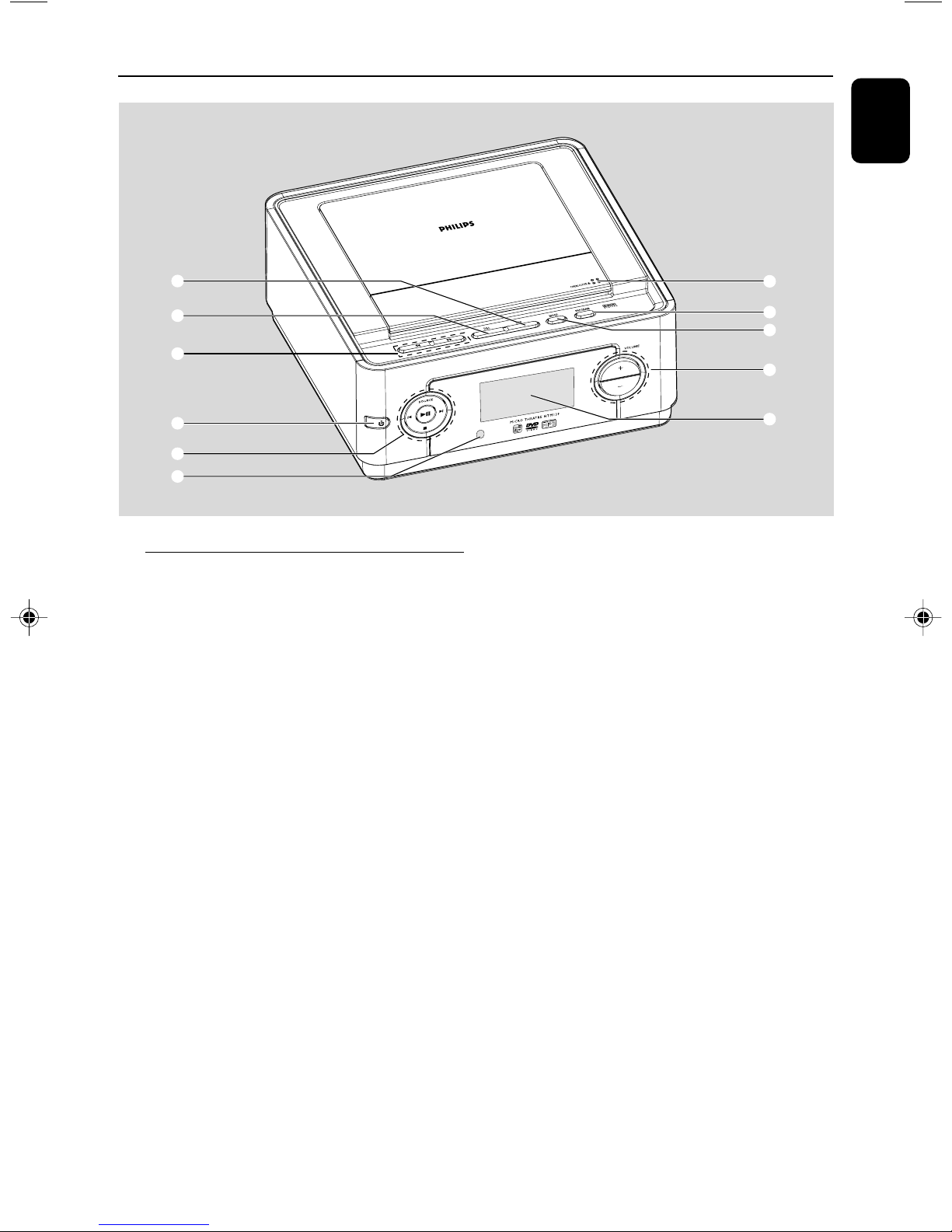

Controls on the system
1 DBB
– enables or disables bass enhancement.
2 DSC
– selects different types of preset sound equalizer
settings (CLASSIC, ROCK, JAZZ or POP).
3 TUNING à / á
Tuner...............tunes to a radio station
Disc................ fast searches backward/forward in
a disc at different speeds.
Clock.............sets the minutes
4 STANDBY-ON B
– switches the system on or to standby mode.
7
8
9
0
!
6 iR Sensor
– point the remote control towards this sensor.
7 OPEN/CLOSE
– opens or closes the disc door.
8 PROGRAM
– For VCD/CD only: program the favourite tracks
9 MODE
– selects various repeat play modes (For VCD
with PBC feature, PBC must be turned off.)
0 VOLUME +/-
– adjusts the volume upward/downward.
! Display
– shows the current status of the DVD player.
5 ÉÅ
– starts or interrupts disc playback
SOURCE
– selects the respective sound source: DVD, FM or
AUX.
¡ / ™
Disc................press to skip to the previous/next
chapter/title/track.
Tuner..............selects a preset radio station
Clock..............sets the hours
9
– stops disc playback or erases a program.
13
Functional Overview
English

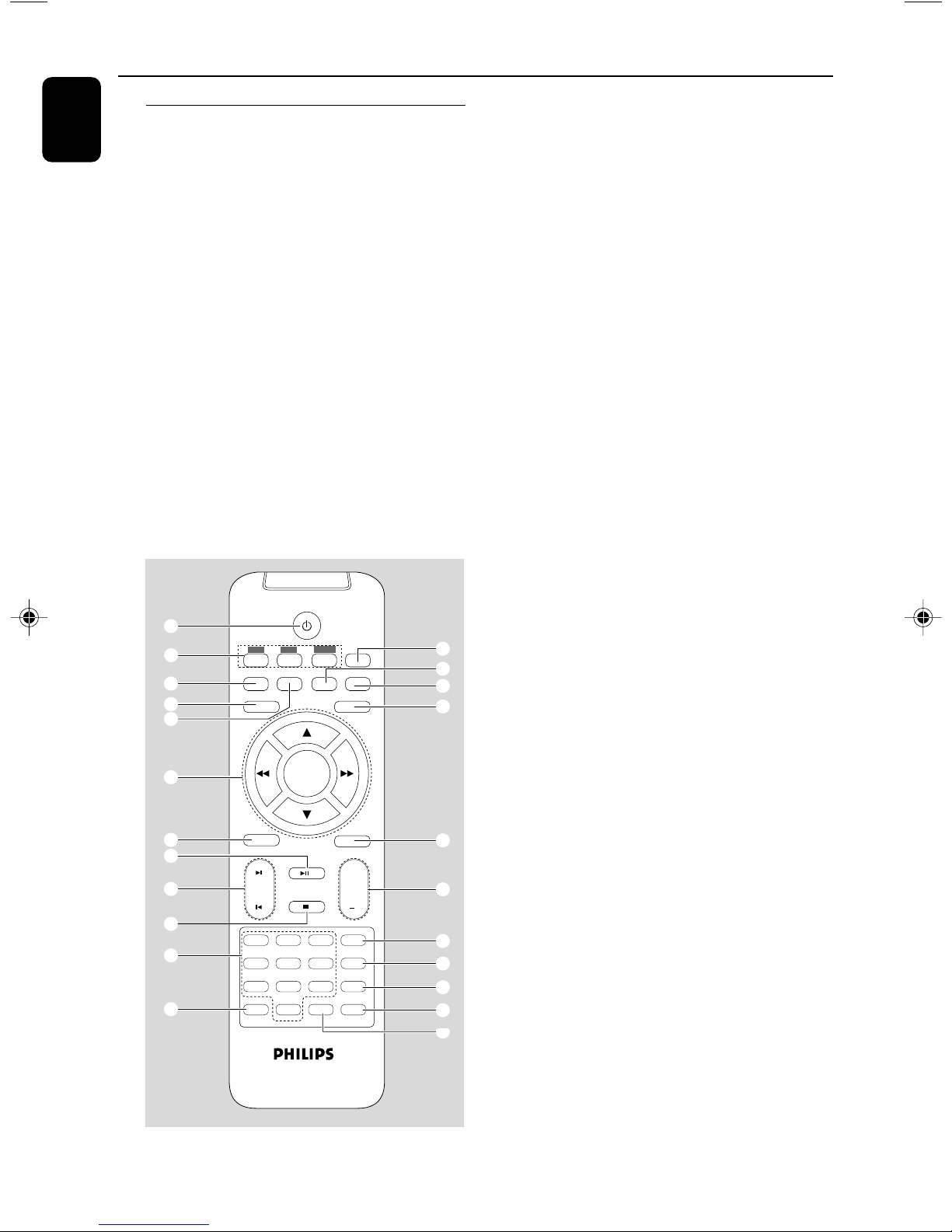

Remote control
1 B
– switches the system to standby mode.
2 SOURCE (DISC/AUX/TUNER)
– switches on the system
– selects the respective sound source for disc/FM/
AUX
3 A-B
– repeats playback of a specific section within a
chapter of DVD or a track of VCD/CD.
4 SYSTEM MENU
– enters or exits the system menu.
5 MODE
– selects variations of continuous playback (For
VCD with PBC feature, PBC must be turned off.)
– For VCD/CD only: selects to playback in random
order (For VCD with PBC feature, PBC must be
turned off.)
1
TUNER
2
3
4
5
6
7
8
9
0
!
@
DISC AUX
MODE
CLOCKA-B
SYSTEM MENU
OK
AUDIO MUTE
1
2
3
4
5
6
7
8
9
PROG
SUBTITLE
0
DISPLAY
OSD
SLEEP/TIMER
DISC MENU
+
VOL
GOTO
ZOOM
DSC
DBB
#
$
%
^
&
*
(
)
¡
™
£
6 OK
– confirms a selection.
4 / 3 / 5 / 6
– selects an item in a menu.
–moves an enlarged picture up/down/left/right.
5 / 6
Disc................ fast searches backward/forward in
a disc at different speeds.
Tuner...............tunes to a radio station
Clock...............sets the minutes
7 AUDIO
for VCD
– sets Left vocal, Right vocal, Mono left, Mono right
or Stereo sound mode.
for DVD
– selects an audio language.
8 ÉÅ
– starts or interrupts disc playback.
9 ¡ / ™
Tuner...............selects a preset radio station
Disc.................skips to the previous/next chapter/
title/track
Clock..............sets the hours
– For JPEG: selects different zooming rates
0 9
– stops disc playback or erases a program.
! Numeric Keypad (0-9)
– inputs a track/title/chapter number of the disc.
@ PROG
– For VCD/CD only: program the favourite tracks
# DISPLAY (OSD)
– displays disc playback time during playback
$ CLOCK
– sets and views the clock
% SLEEP/TIMER
– activates/deactivates or selects the sleep timer
– activates/deactivates or sets the wake-up timer
^ DISC MENU
–DVD/VCD: enters or exits the disc contents
menu (For VCD with PBC feature, PBC must be
turned on.)
– MP3/WMA/JPEG: switches on or off the album/
picture menu.
14
& MUTE
– disables or enables sound output.
* VOL +/-
– adjusts the volume upward/downward.
( GOTO
– fast searches in a disc by entering a time, title or
chapter (For VCD with PBC feature, PBC must
be turned off.)
) ZOOM
–DVD/VCD/JPEG: enlarges a picture or active
image on the TV screen.
– For JPEG: turns on/off the zooming feature
¡ DSC
– selects different types of preset sound equalizer
settings (CLASSIC, ROCK, JAZZ or POP).
™ DBB
– enables or disables bass enhancement.
Functional Overview
English
£ SUBTITLE
– selects a subtitle language.
Notes for remote control:
– First select the source you wish to control
by pressing one of the source select keys on
the remote control (for example CD ,
TUNER).
– Then select the desired function (for
exampleÉ,
í
,
ë
).
15

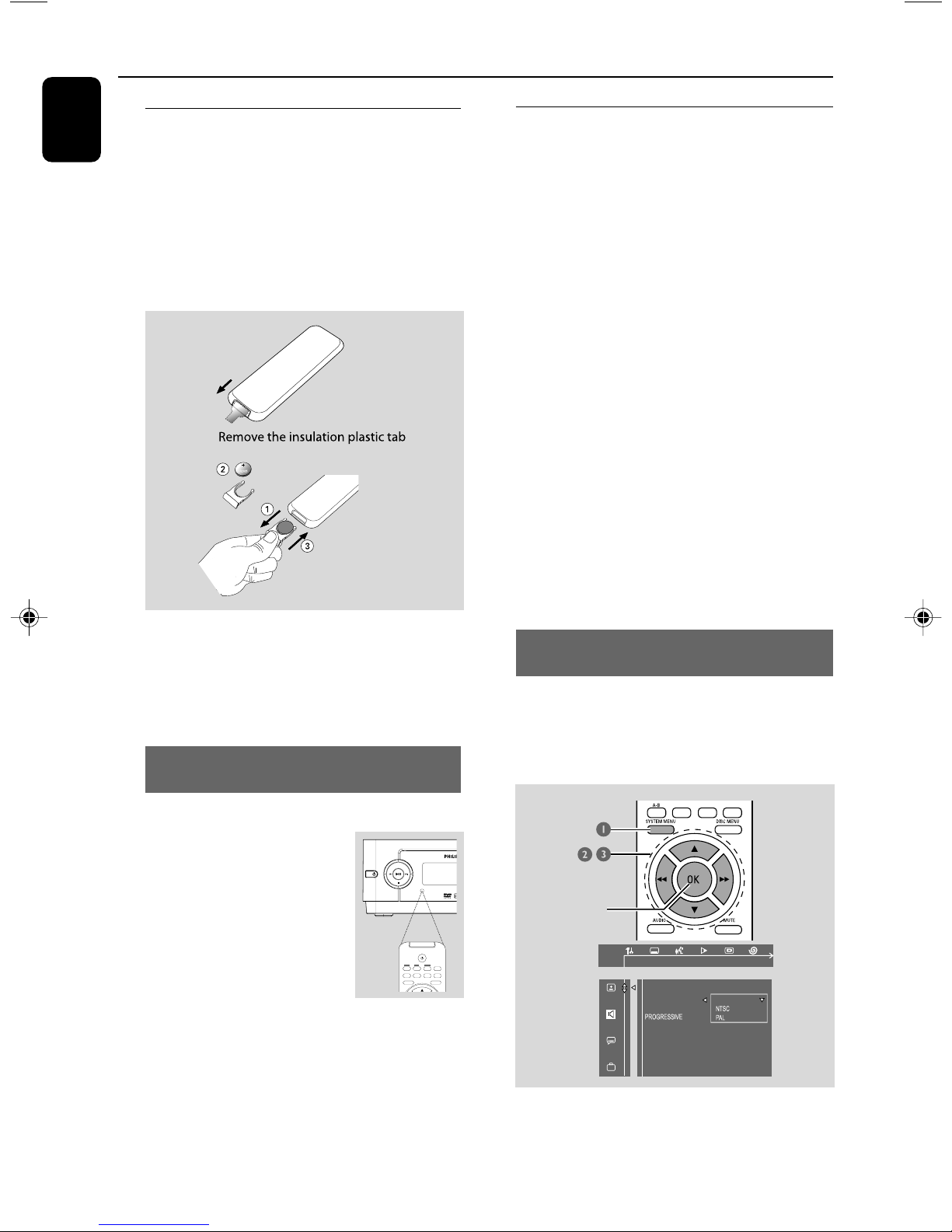

Getting Started
E
English
Step 1: Using Remote Control
IMPORTANT!
– Before using the remote control,
remove the insulation plastic tab as
shown in the picture below.
– If the remote control does not
function correctly or the operating range
is reduced, replace the battery with a
new (CR2025) battery.
Step 2: Setting up the TV
IMPORTANT!
Make sure you have completed all the
necessary connections. (See
“Connecting TV”).
1 Switch the DVD system on and then select
DISC source. (See “Switching the system
on/off”).
2 Turn on the TV and set to the correct video-in
channel. You should see the blue Philips DVD
background screen on the TV.
➜ Usually these channels are between the
lowest and highest channels and may be called
FRONT, A/V IN, or VIDEO. See your TV manual
for more details.
➜ Or, you may go to channel 1 on your TV, then
press the Channel up button repeatedly until
you see the Video In channel.
➜ Or, the TV Remote Control may have a
button or switch that chooses different video
modes.
➜ Or, set the TV to channel 3 or 4 if you are
using an RF modulator.
1 Push to open the battery tray.
2 Replace a new battery according to the
indicated polarity.
3 Push the battery tray back to close it.
Using the Remote Control to operate
the Player
1 Aim the Remote Control directly at the remote
sensor (IR) on the front panel.
O
2 Select the source you wish to
S
STANDBY-ON
control by pressing one of the
source select buttons on the
remote.
3 Then select the desired
function (for example,
ÉÅ, ¡ or ™).
CAUTION!
– Remove the battery if it is exhausted
or if the Remote Control is not being
used for a long time.
– Batteries contain chemical
substances, so they should be disposed of
properly.
Selecting the color system that matches
your TV set
This DVD system is compatible with both NTSC
and PAL. For the playback of a DVD disc on this
DVD system, the color systems of the DVD, TV
set and DVD System should match.
MODE
SLEEP/TIMER
CLOCK
E
C
R
U
TR
MICRO THEA
4
TUNER
DISPLAY
DISC AUX
OSD
MODE
SLEEP/TIMER
CLOCKA-B
SYSTEM MENU
DISC MENU
TV DISPLAY
TV TYPE
SCREEN SAVER
SET TO MULTI
MULTI
16

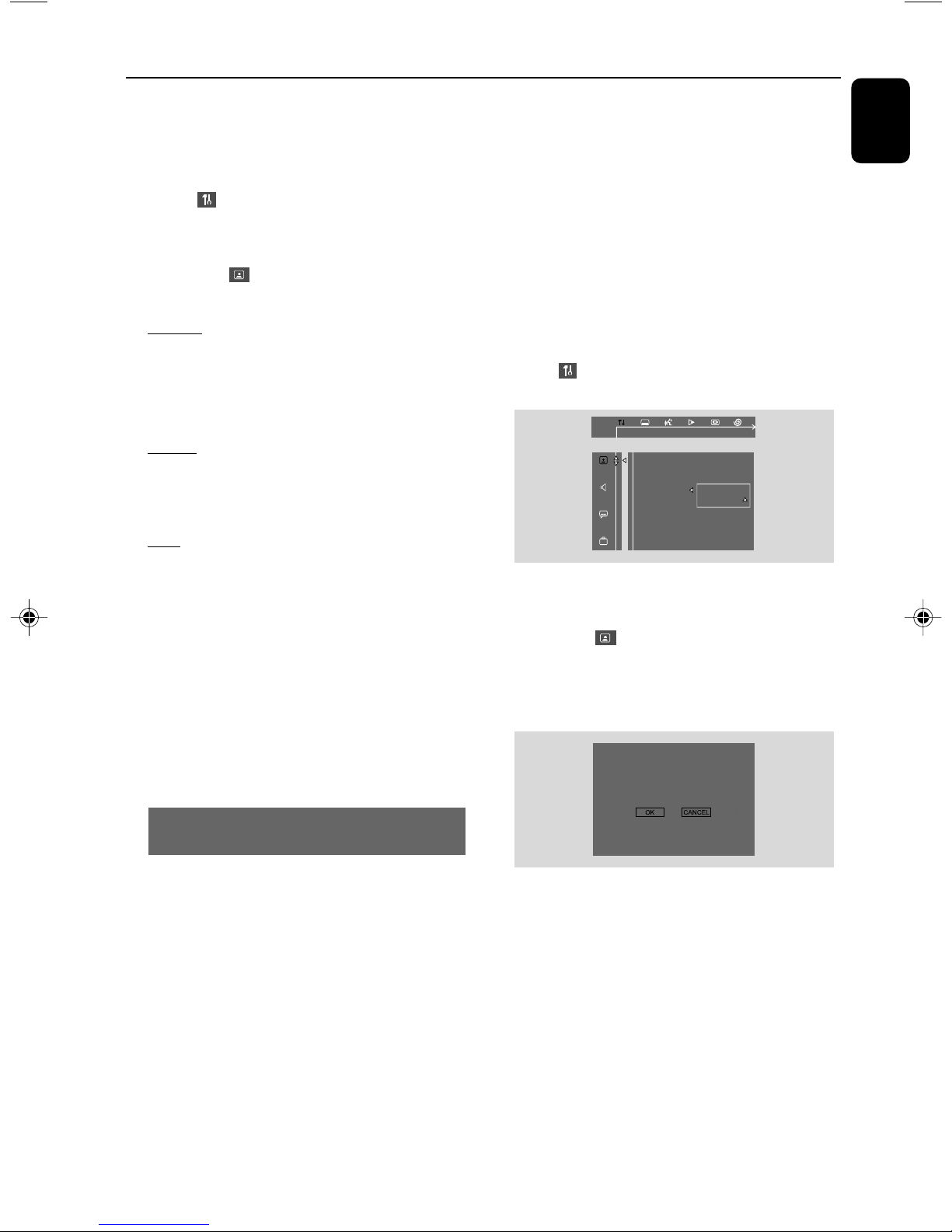

Getting Started
1 In disc mode, stop playback then press
SYSTEM MENU.
➜ The menu bar will appear across the top of
the TV screen.
2 Select icon and press 4.
3 Press à / á / 4 / 3 keys on the remote
control to navigate in the menu.
➜ Move to , and press á.
➜ Move to “TV TYPE” , and press á.
MULTI
– Select this if the connected TV set is
compatible with both NTSC and PAL (multi
system). The output format will be consistent wit
the video signal of the disc.
NTSC
– Select this if the connected TV set is NTSC
system. It will change the video signal of a PAL
video disc and output to NTSC system.
PAL
– Select this if the connected TV set is PAL
system. It will change the video signal of an
NTSC disc and output to PAL format.
4 Select an item and press OK.
➜ The screen messages for fur ther setting
confirmation may appear. Follow the on-screen
instructions to proceed to confirm the setting or
not.
1 Tu rn on your TV.
2 Tu rn off your TV progressive scan mode or turn
on interlaced mode (refer to your TV user
manual).
3 Press STANDBY-ON B to turn on the
DVD player.
4 Select the correct Video Input channel.
5 Press SYSTEM MENU on the remote control.
➜ The menu bar will appear across the top of
the TV screen.
6 Select icon and press 4.
➜ Playback will pause.
TV DISPLAY
TV TYPE
PROGRESSIVE
SCREEN SAVER
PROGRESSIVE NOW ON
OFF
ON
7 Press à / á / 4 / 3 keys on the remote
control to navigate in the menu.
➜ Move to , and press á.
➜ Move to “PROGRESSIVE” , and press á.
➜ Move to “ON”, and press OK.
➜ The screen message below appears on the
TV.
English
To remove the menu
Press SYSTEM MENU.
Setting up Progressive Scan feature (for
Progressive Scan TV only)
The progressive scan display twice the number
of frames per seconds than interlaced scanning
(ordinary normal TV system). With nearly double
the number of lines, progressive scan offers
higher picture resolution and quality.
IMPORTANT!
Before enabling the progressive scan
feature, you must ensure:
1) Your TV can accept progressive signals, a
progressive scan TV is required.
2) You have connected the DVD player to your
TV using Y Pb Pr (see “Connecting TV set”)
ACTIVATING PROGRESSIVE SCAN
1. ENSURE YOUR TV HAS PROGRESSIVE SCAN.
2. CONNECT USING YPRPB(RGB) VIDEO CABLES
3. IF THERE IS A BLANK SCREEN, WAIT FOR 15
SECONDS FOR AUTO RECOVER.
<>-MOVE OK-SELECT
8 Press à / á to highlight OK in the menu and
press OK on the remote to confirm.
➜ The screen message for fur ther progressive
scan setting confirmation will appear.
There will be a distorted picture on your
TV at this state until you turn on the
progressive scan mode on your TV.
9 Tu rn on your TV progressive scan mode (refer to
your TV user manual).
0 In the confirmation menu, press à / á to
highlight OK in the menu and press OK on the
remote to confirm.
17

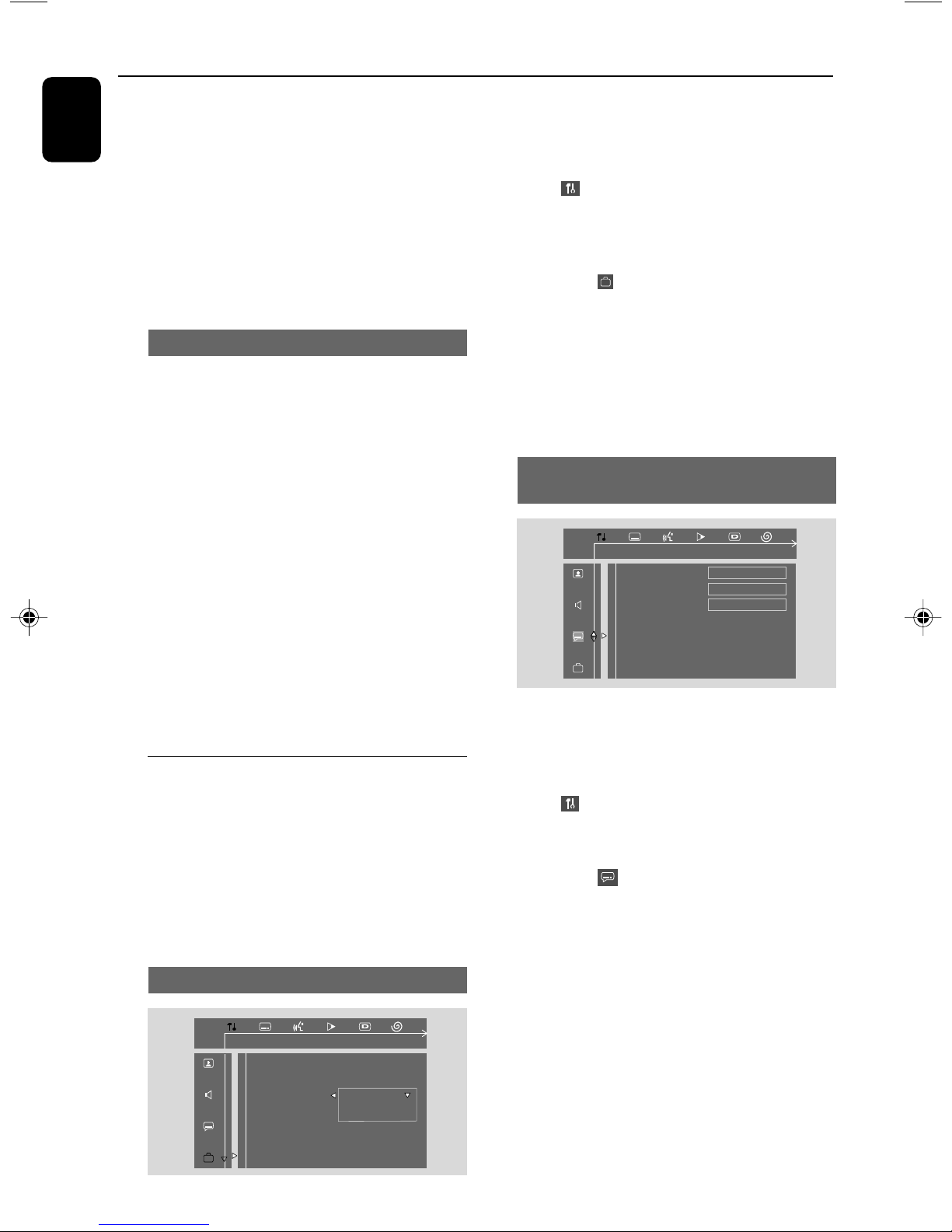

Getting Started
ENGLISH
ENGLISH
ENGLISH
AUDIO
SUBTITLE
DISC MENU
GOTO LANGUAGE SETUP PAGE
English
➜ Progressive scan is now set on. TV screen
comes to the system menu.
➜ If distored picture still appears, it indicates
that your TV doesn’t suppor t progressive scan. In
this case, turn off progressive scan as described
in “To deactivate Progressive manually”.
1 Press SYSTEM MENU on the remote control.
➜ The menu bar will appear across the top of
the TV screen.
2 Select icon and press 4.
➜ Playback will pause.
! Press SYSTEM MENU on the remote to exit
the system menu.
➜ The setup is complete now and you can start
enjoying the high quality picture.
To deactivate Progressive manually
● When the distorted sign still appears on
the TV, it may be because the connected TV
does not accept progressive signals, and
progressive is set by mistake. You must reset the
unit to interlace format.
1 Tu rn off your TV progressive scan mode or turn
on to interlaced mode (refer to your TV user
manual).
2 Tu rn off progressive scan by selecting “OFF”
under PROGRESSIVE menu, then press
SYSTEM MENU on the remote to exit the
system menu.
● To turn off progressive scan, you may also first
open the disc door, then hold down ™ on the
front panel, and press numeric key “1” on the
remote.
➜ Progressive scan is turned off.
Step 3: Setting language
preference
You can select your own preferred language
settings. This DVD system will automatically
switch to the selected language whenever you
load a disc. If the language selected is not
available on the disc, the disc’s default language
will be used instead. The OSD language in the
system menu will remain once selected.
Setting the OSD Language
3 Press à / á / 4 / 3 keys on the remote
control to navigate in the menu.
➜ Move to , and press á.
➜ Move to “OSD LANG” , and press á.
4 Select your desired language and press OK.
To remove the menu
● Press SYSTEM MENU on the remote control
again.
Setting the Audio, Subtitle and Disc
Menu language
1 In disc mode, stop playback then press
SYSTEM MENU.
➜ The menu bar will appear across the top of
the TV screen.
2 Select icon and press 4.
3 Press à / á /4 / 3 keys on the remote
control to navigate in the menu.
➜ Move to , and press á.
➜ Move to one of the following and press á.
– “Audio” (disc’s soundtrack)
– “Subtitle” (disc’s subtitles)
– “Disc Menu” (disc’s menu)
4 Press 4 / 3 to select a language and
press OK.
PARENTAL
PASSWORD
OSD LANG
DEFAULTS
OSD LANGUAGE SET TO ENGLISH
18
ENGLISH
SPANISH
PORTUGUESE
To remove the menu
Press SYSTEM MENU.
Basic Operations
IMPORTANT!
– Before you operate the system,
complete the connection procedures.
– When the system is switched to Standby
mode, it is still consuming power.To
disconnect the system from the power
supply completely, reomve the AC power
plug from the wall socket.
Switching the system on/off
● In standby, press STANDBY ONB/
SOURCE on the set, or DISC/TUNER/
AUX on the remote to switch on the system.
➜ “POWER ON” is displayed briefly.
➜ The system will switch to the selected or last
selected source.
To switch the system to standby mode
● In power-on mode, press and hold STANDBY
ONB (B on the remote).
➜ The clock time will be displayed. Or "--: --"
will be displayed if clock time is not set.
Volume control
Press VOLUME (+/-) (or VOL +/- on the
remote) to increase or decrease the volume
level.
➜ The display briefly shows ”VOL” and a volume
value from “01” to “39” ( “MIN” or “MAX” i s
displayed when adjusted to the lowest or highest
volume level).
To switch off the volume temporarily
● Press MUTE on the remote.
➜ Playback will continue without sound and
“MUTE” is displayed briefly.
● To activate sound reproduction, you can:
– press MUTE again;
– adjust the volume controls;
– change source.
Sound Control
DBB (Dynamic Bass Boost)
DBB enhances the bass response.
English
Power saving automatic standby
As a power-saving feature, the system will
automatically switch to Standby mode if you
don’t press any button within 30 minutes in the
stop mode.
● Press DBB to enable or disable DBB feature.
➜ If DBB is activated, “DBB” will be shown.
Helpful hints:
– Some discs might be recorded in high
modulation, which causes a distortion at high
volume. If this occurs, switch off DBB or reduce the
volume.
DSC (Digital Sound Control)
DSC provides a different type of preset sound
equalizer setting.
● Press DSC on the remote (or on the system)
repeatedly to select:
CLASSIC, ROCK, JAZZ or POP
➜ The display shows the selected sound setting.
19
Disc Operations
English
IMPORTANT!
– Depending on the DVD or VIDEO CD,
some operations may be different or
restricted.
– Do not push on the disc tray or put
any objects other than disc on the disc
tray. Doing so may cause the disc player
malfunction.
– If the inhibit icon appears on the TV
screen when a button is pressed, it
means the function is not available on
the current disc or at the current time.

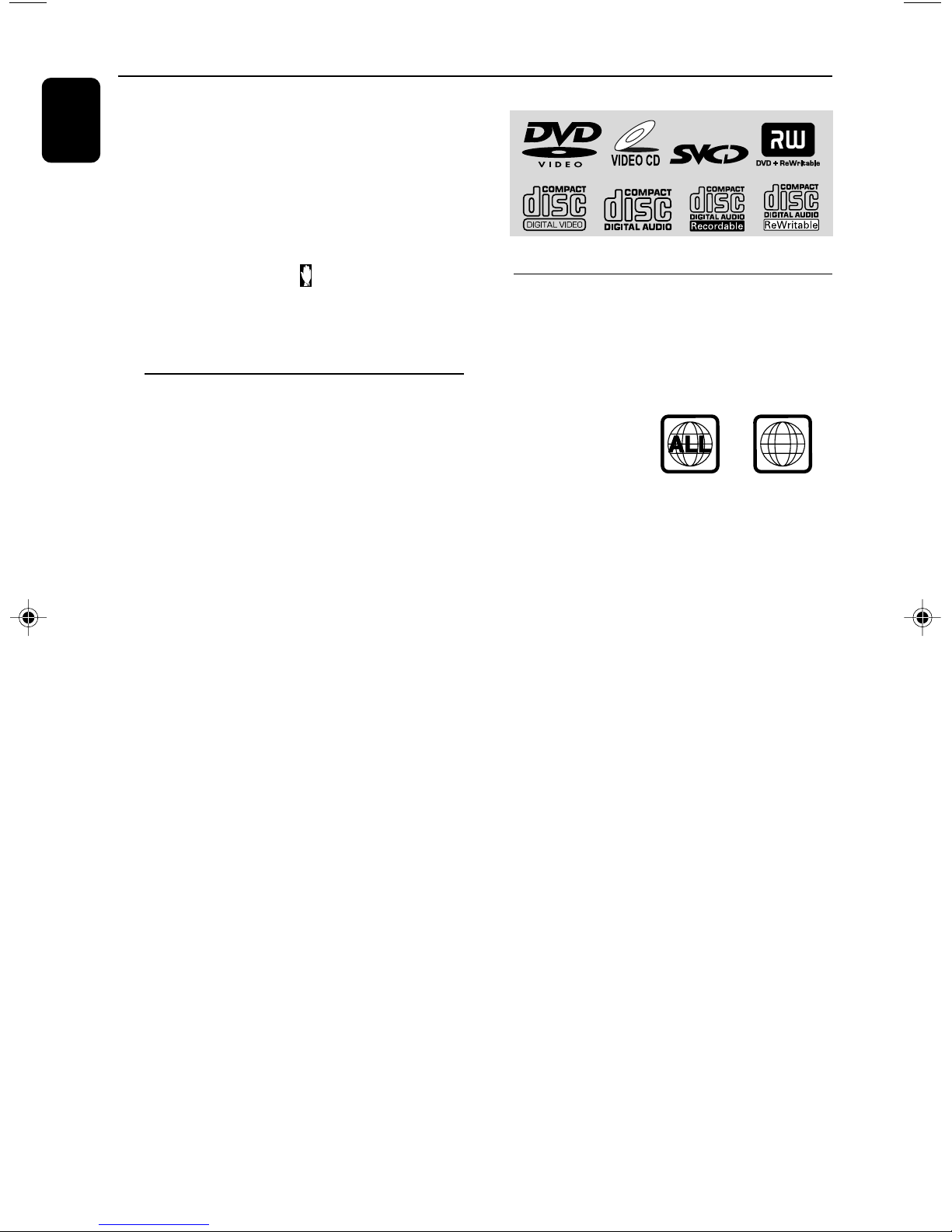

Playable Discs
Your DVD Player will play:
– Digital Versatile Discs (DVDs)
– Video CDs (VCDs)
–Super Video CDs (SVCDs)
– Digital Versatile Discs + Recordable
(DVD+R)
– Digital Versatile Discs + Rewritable
(DVD+RW)
– Compact Discs (CDs)
– MP3 disc on CD-R(W):
– Suppor ted sampling frequencies: 32kHz,
44.1kHz, 48kHz.
– Suppor ted Bit-rates : 32, 64, 96, 128, 192,
256(kbps)
– WMA-CDs (CD-ROMs with WMA tracks)
– Picture (JPEG) files on CD-R(W)
Region Codes
DVDs must be labeled for ALL regions or Region
4 in order to play on this DVD system. You
cannot play discs that are labeled for other
regions.
4
Note:
– If you are having trouble playing a certain disc,
remove the disc and try a different one. Improper
formatted disc will not play on this DVD Player.
20
Disc Operations
Playing discs
1 For DVDs and VCDs, make sure that the system
is properly connected to your TV (See
Connecting a TV), and your TV is turned on
and set to video-in channel (See Setting up
the TV).
2 Press SOURCE on the system once or more
to select DVD mode ( or DISC on the remote
control).
➜ You should see the blue Philips DVD
background screen on the TV.
3 Push OPEN/CLOSE on the top of the system
to open the disc tray.
4 Insert a disc with the print side facing up and
close the disc tray.
5 Playback will start automatically (depending on
the disc type).
➜ If a disc menu appears on the TV, see “Using
the Disc Menu”.
➜ If the disc is locked by parental control, you
must enter your four-digit password. (See
“Restricting playback by setting parental
level”).
To switch PBC on or off
1 In disc mode, press SYSTEM MENU.
➜ The menu bar will appear across the top of
the TV screen.
2 Press à / á /4 / 3 keys on the remote
control to navigate in the menu.
➜ Press à / á to move to PBC ON/OFF
option, and press 4.
➜ If PBC was ON, it will switch to OFF and
start playback from the beginning of the disc.
➜ If PBC was OFF, it will switch to ON and
return to menu screen.
➜ When PBC is ON, pressing DISC MENU
will return to menu screen.
Resuming playback
● During playback, press 9 once to stop the
playback in resume mode, then pressÉÅ to
start playback from where you have stopped.
To cancel the resume mode
● In the stop position, press 9 again to fully stop
the playback. Or open the disc door, or switch
the system to standby mode.
English
To interrupt playback
● PressÉÅ.
➜ “PAUSE” is displayed briefly on the TV screen.
● To resume playback, press ÉÅ again.
To stop playback
● Press 9.
Using the Disc Menu
Depending on the disc, a menu may appear on
the TV screen once you load the disc.
To select a playback feature or item
● Use à / á / 4 / 3 and OK or Numeric
Keypad (0-9) on the remote control, then
pressÉÅ to start playback.
Using PBC feature (available for
2.0-version VCD only)
PBC playback allows you to play Video CDs
interactively, following the menu on the display,
such as allowing you to select favourite songs.
Selecting and searching
Selecting a different track/chapter
For DVD/VCD/CD/MP3:
● During playback, briefly press ¡ / ™ once or
more until your desired track/chapter number
appears.
Or,
use the Numeric Keypad (0-9) (only for VCD
(PBC OFF), CD and MP3) on the remote
control to directly input your track/chapter
number.
➜ After selecting, playback will automatically
start from the beginning of the selected chapter/
track.
Helpful hints:
– Some VCDs have a single track, so track
selecting or an invalid input value for the current
disc will be ingored.
– If the player has been set to repeat chapter
(track), pressing this button will replay the same
chapter (track) from its beginning.
21
Disc Operations
English
Fast forwarding/reversing
For DVD/VCD/CD/MP3:
1 During playback, press á / à repeatedly to
select fast search speed in forward (FF) or
reverse (FR) playback.
➜ The disc plays at a high speed with no sound.
2 To resume to normal playback, pressÉÅ.
Or, press à / á repeatedly until “PLAY” is
displayed on the TV screen.
Helpful hints:
– For VCD/CD/MP3, fast searching forward/
backward is available only within the same track.

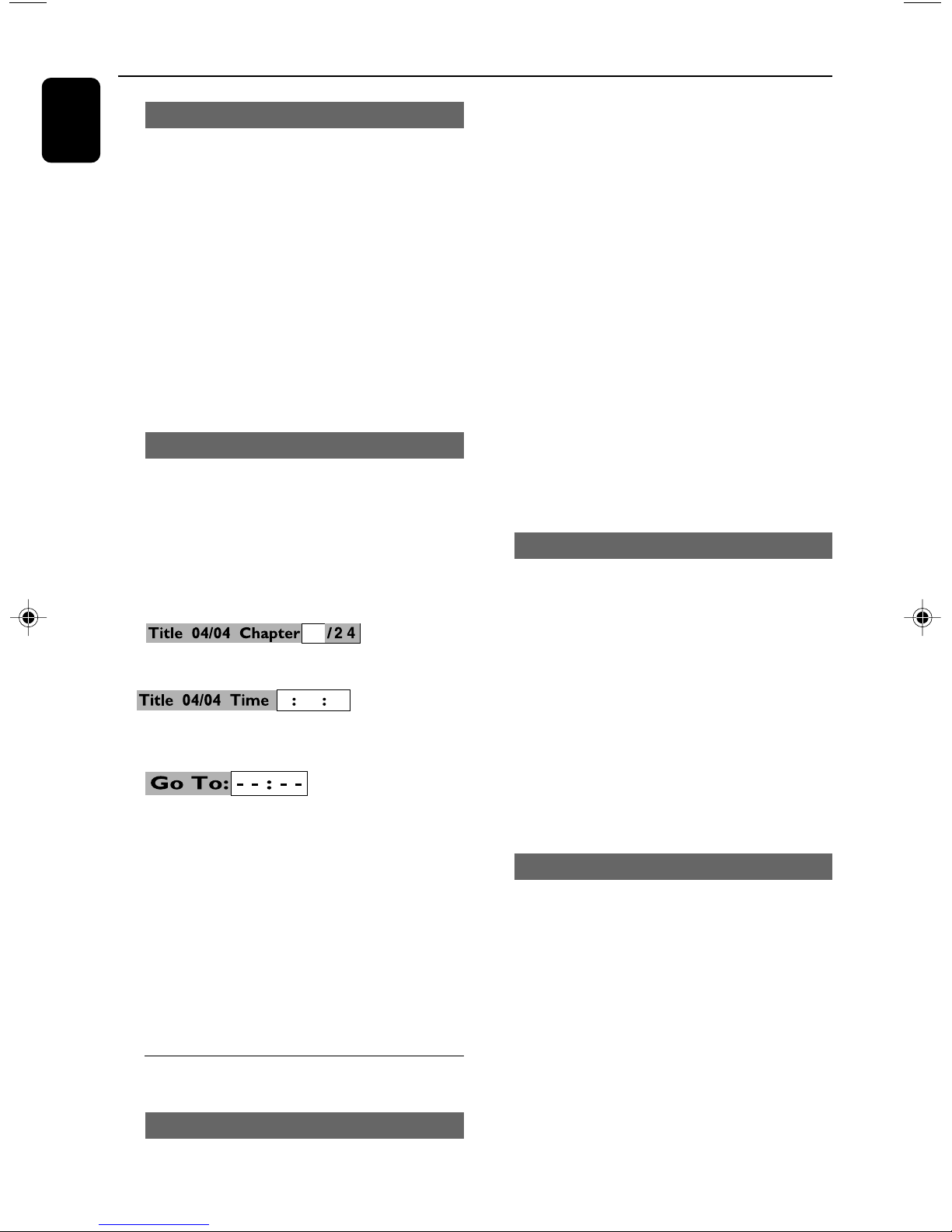

GOTO
1 During playback, press GOTO once or more on
the remote control.
➜ For VCD with PBC feature, PBC must be
turned off first.
➜ TV screen shows various search bars in the
sequence as follows:
For DVDs:
(used to select chapter number, or title field by
using à / á on the remote control)
(used to select playtime within the current title)
For VCDs/CDs:
(used to select playtime within the entire disc)
2 Use the Numeric Keypad (0-9) on the remote
control to input your title/chapter number or
playtime.
3 Press OK on the remote to start playback from
where you have selected.
● During playback, press repeatedly MODE on the
system to choose desired repeat play modes.
➜ For VCD with PBC feature, PBC must be
turned off first.
➜ TV screen shows the play modes in the
sequence as follows:
For DVDs
CHAPTER REPEAT ON: Repeats the current
chapter
TITLE REPEAT ON: Repeats the current title
REPEAT OFF: Switchs off play mode
For VCDs/CDs/MP3
REPEAT TRACK: Repeats the current track
REPEAT ALL: Plays all the tracks repeatedly
REPEAT OFF: Switchs off play mode
REPEAT ALBUM (for MP3 only):
Repeats the current album
● To return to normal playback, press MODE
repeatedly until “OFF” is displayed.
SHUFFLE
In this mode, all tracks will be played in random
order.
For VCD/CD
1 During playback, press 9 twice to fully stop the
playback.
2 Press MODE on the remote.
➜ SHUFFLE ON is displayed.
3 PressÉÅ to start shuffle play.
4 To switch off shuffle play, press 9 once.
Helpful hints:
– Selection of shuffle play is not available for
DVD and MP3.
Repeat A-B
For DVD/VCD/CD/:
1 Press A-B on the remote at your chosen
starting point.
Helpful hints:
– An invalid input value for the current disc will
be ingored.
Different play modes: REPEAT,
SHUFFLE and REPEAT A-B
REPEAT
For DVDs/VCD/CD/MP3
22
2 Press A-B on the remote again at your chosen
end point.
➜ The section will now repeat continuously.
➜ A-B play is available within a chapter of DVD
or a track.
3 To exit the sequence, press A-B on the remote
again.
➜ “A TO B CANCELLED” is displayed briefly on
the TV screen.
Disc Operations
Programming favourite tracks
For VCDs/CDs
You can select and program up to
tracks for playback in the desired sequence. If
you like, store any track/chapter/title more than
once.
99 desired
1 During playback, press 9 twice to fully stop the
playback.
2 Press PROGRAM to activate programming
mode.
➜ On the TV screen, “PROGRAM” and
“P 00:00” are displayed.
➜ On the system’s display, “PROG” flashes, and
P00: 00 is displayed.
3 Use the Numeric Keypad (0-9) on the
remote control to enter your desired track
number.
4 Press OK on the remote to store the track.
➜ P00 is changed to P01 , indicating the first
programmed track is stored and the next
program sequence is available.
5 Repeat steps 3-4 to store other tracks.
➜ If you attempt to program more than 99
tracks, FULL is displayed, and no track can be
stored.
6 PressÉÅ to playback the program.
➜ “PROG” is displayed during playback.
Display information
During playback, press DISPLAY on the
remote control repeatedly to display various disc
playback time on the TV screen ( and the
system’s display).
For DVDs:
TITLE ELAPSED - elapsed playback time of
current title
TITLE REMAIN - remaining time of current
title
CHAPTER ELAPSED - elapsed playback
time of current chapter
CHAPTER REMAIN - remaining time of
current chapter
OFF - turns off the display information
For VCDs/CDs
➜ For VCD with PBC feature, PBC must be
turned off first.
SINGLE ELAPSED - elapsed playback time
of current track
SINGLE REMAIN - remaining time of current
track
TOTAL ELAPSED - elapsed playback time of
disc.
TOTAL REMAIN - remaining playback time of
disc
OFF - turns off the display information
English
To Erase program
You can erase program by doing one of the
following:
● During program playback, press 9 two times.
● Open the disc door.
➜ “PROG” disappears from the display.
Helpful hints:
– Programming is not available for DVD and
MP3 disc.
23
Disc Operations
English
ZOOM
For DVDs/VCDs/JPEG
Zooming allows you to enlarge the video/ JPEG
image during playback.
● Press ZOOM repeatedly to zoom in on the
playback video image.
➜ For JPEP picture disc, press ZOOM to
display “ZOOM ON”, then press ¡/ ™ to select
different enlarging rates.
➜ Image size enlarges at different rates.
● To return to normal playback, press ZOOM
repeatedly until “ZOOM OFF “ is displayed.
Helpful hints:
– When zooming in, you may use à / á/4/3
on the remote control to pan a picture across your
TV screen in pause position or during playback.
AUDIO
For DVDs
● On the remote control, press AUDIO
repeatedly to select the desired language for
sound track.
➜ The feature is disc dependant.
For VCDs
● Press AUDIO repeatedly to select the audio
channel for sound output displayed on the TV
screen.
LEFT VOCAL, RIGHT VOCAL, MONO
LEFT, MONO RIGHT and STEREO
SUBTITLE (DVD only)
● Press repeatedly SUBTITLE on the remote
control to select different subtitle languages.
➜ The feature is disc dependant.
Playing a Title (DVD only)
1 During playback, press DISC MENU on the
remote control.
➜ The disc title menu appears on the TV screen.
2 Use à / á/4/3 or Numeric Keypad (0-9)
to select a play option.
3 Press OK to confirm.

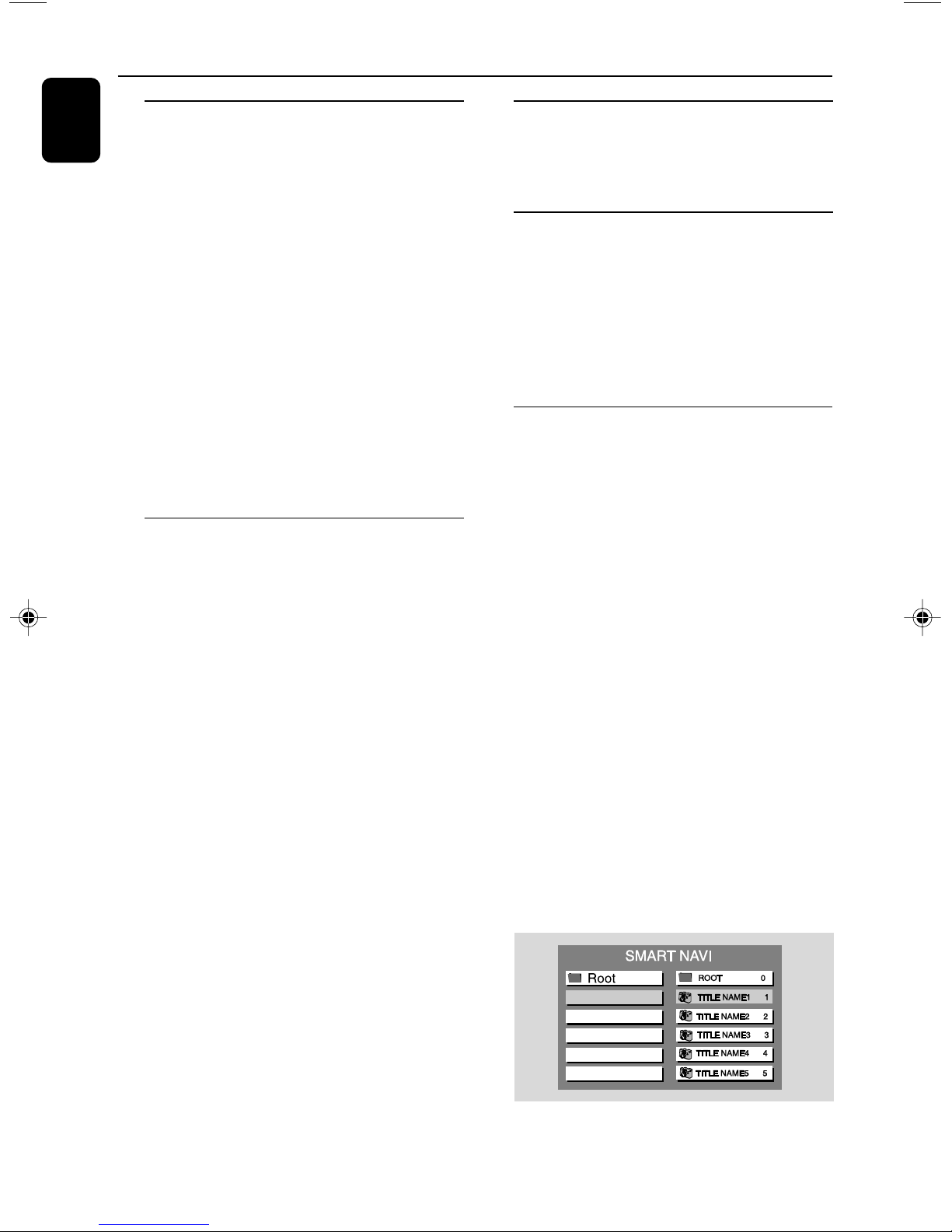

Playing MP3/WMA/JPEG picture
disc
IMPORTANT!
– Make sure that the system is properly
connected to your TV (see Connecting a
TV ), and your TV is turned on and set to
video-in channel (Setting up the TV).
–For DRM-protected WMA files, use
windows Media Player 10 (or later) for
CD burning/conversion. Visit
www.microsoft.com for details about
Windows Media Player and WM DRM
(Windows Media Digital Rights
Management).
1 Load a MP3/WMA/Picture (JPEG) disc.
➜ The disc reading time may exceed 30
seconds due to complexity of the directory/file
configuration.
24
2 Playback will start automatically.
➜ The album/picture menu will appear on the
TV screen. If not, press DISC MENU on the
remote control.
Disc Operations
1
4
7
2
5
8
3
6
9
3 In the stop position, press à / á / 3 / 4 to
select a desired album, then select a desired title
in the album.
4 Press OK or 2; to start playback.
● You can also use the numeric keys (0-9) to
enter your choice.
● During playback, you may press ¡ / ™ to select
the previous/next title.
5 To stop playback, press 9.
If the MP3-CD menu is switched off
● You can only play the current title by pressing
2;. While in playback mode, press ¡ / ™ to
select the previous/next title.
➜ The title number will appear.
6 During JPEG or Kodak Picture disc playback,
press PROG repeatedly to select different
slideshow view options. There are 12 options for
selection. The selected option will be displayed
on the TV screen.
Playing MP3 music and JPEG
pictures simultaneously
You can create a musical slide show if the disc
contains both the MP3 music and JPEG picture
files.
1 Insert a MP3 disc that contains music and
pictures.
● Press DISC MENU to display the menu if the
menu is not displayed.
2 In the stop mode, select a MP3 track in the
menu and press AUDIO.
➜ “MP3 is selected” appears on the TV.
3 Use 3 / 4 keys to select a picture file, then
press OK.
4 To stop simultaneous playback, press 9.
➜ The picture and MP3 music playback will
stop.
Playing Kodak picture disc
1 Load a Kodak picture disc.
➜ The disc reading time may exceed 30
seconds due to complexity of the directory/file
configuration.
2 Playback will start automatically.
3 Press 9.
➜ 9 thumbnail pictures will appear on the TV
screen.
(example for the Kodak disc menu)
4 Press ¡ / ™ to view the previous/next page (if
available).
5 Press à / á/ 3 / 4 to move within the
menu and press OK to select the desired
picture to play.
During playback, you can:
● Press ¡ / ™ to select another title/picture in the
current folder.
● Press à / á/ 3 / 4 on the remote control
to rotate or flip the picture files.
● Press 2; to pause/resume playback.
Notes:
– Due to the recording nature of Digital Audio
MP3 (DAM), only digital audio music will play.
– It is normal to experience an occasional “skip”
while you are listening to your MP3 discs.
–For multi-session discs with different formats,
only the first session can be read and played.
– DISC MENU does not function during Kodak
Picture disc playback.
English
25
DVD Menu Operations
English

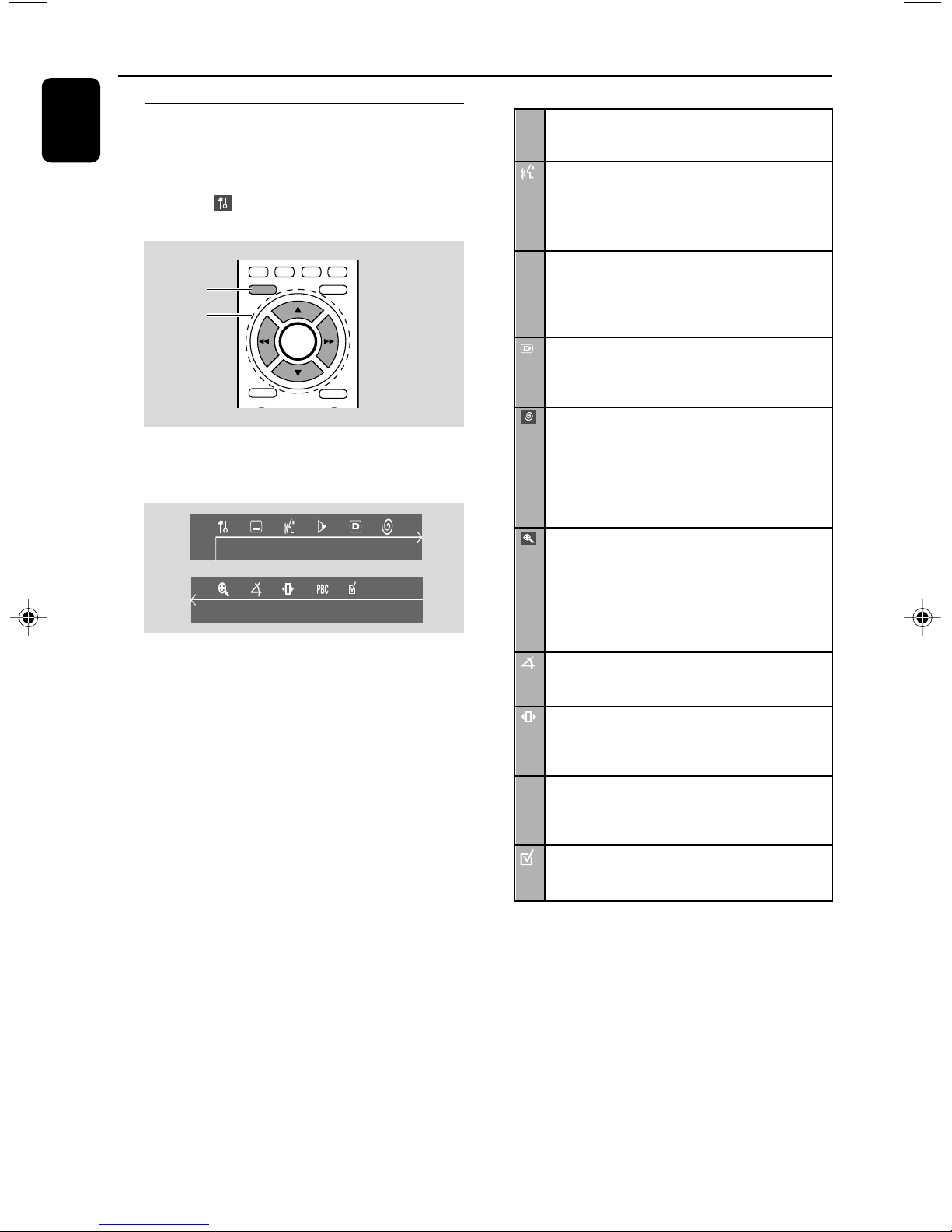

Using the menu bar
You can continue some operations directly via
the multiple menu bars on the TV screen
without interrupting the disc playback. But when
you enter (SETUP MENU), the playback will
pause.
MODE
SLEEP/TIMER
CLOCK
DISC MENU
OK
1
2
A-B
SYSTEM MENU
AUDIO MUTE
1 In disc mode, press SYSTEM MENU.
➜ The menu bar will appear across the top of
the TV set screen.
2 Press à/ á/4/3 on the remote control to
navigate in the menu.
➜ Press à/ á to move through the menu bar.
➜ Press 4 to enter the selection.
To remove the menu
Press SYSTEM MENU or OK.
IMPORTANT!
– Some operations may be different or
restricted according to the disc format.
Refer to the jacket or care of the disc you
are playing.
–You can change the Subtitle Language
and Audio Language from the menu bar
only on the current disc. But this
operation cannot change the default
preset.
Subtitle
i
Press 4 to select a desired language in DVD
mode.
Audio
Press 4 to select a desired audio language on
the SVCD, VCD:
Left Vocal p Right Vocal p Mono Left p
Mono Right p Stereo
x Slow
The slow motion speed will display. Press 4
repeatedly to select a reverse or forward
slow motion speed.
To cancel the slow function, press 2;.
STATUS
In DISC mode, select this icon and press 4 to
view the time, title or chapter information of
the playing disc.
Time Search
A time edit box appears on the display. Use
the numeric keys (0-9) to enter the time
(hours : minutes : seconds) at which you want
to start playback, then press OK to start playback. (This function is not available in the PBC
ON mode.
ZOOM
Press 4 repeatedly to select an enlarged picture ratio: 1.5, 2 or 4. You can press
à/ á/
3 / 4 to move within the enlarged picture
on the TV set.
To resume normal playback, repeat the above
step to select ZOOM OFF.
ANGLE
Press 4 to view the same scene from different
angles if the DVD is recorded with multi-angles.
STEP
Press 4 repeatedly to play forward the disc
step by step (one frame every step). To cancel
the step function, press 2;.
PBC
PBC ON/OFF
Press 4 to select PBC ON or OFF, and will return to the beginning of the disc (This function
is only available for VCD with PBC feature. ).
PROGRAM
See “Programming favourite tracks”, Using the
menu bar to program.
26
PROGRESSIVE
SCREEN SAVER
ON
OFF
SCREEN SAVER NOW ON
TV DISPLAY
TV TYPE
DVD Menu Operations

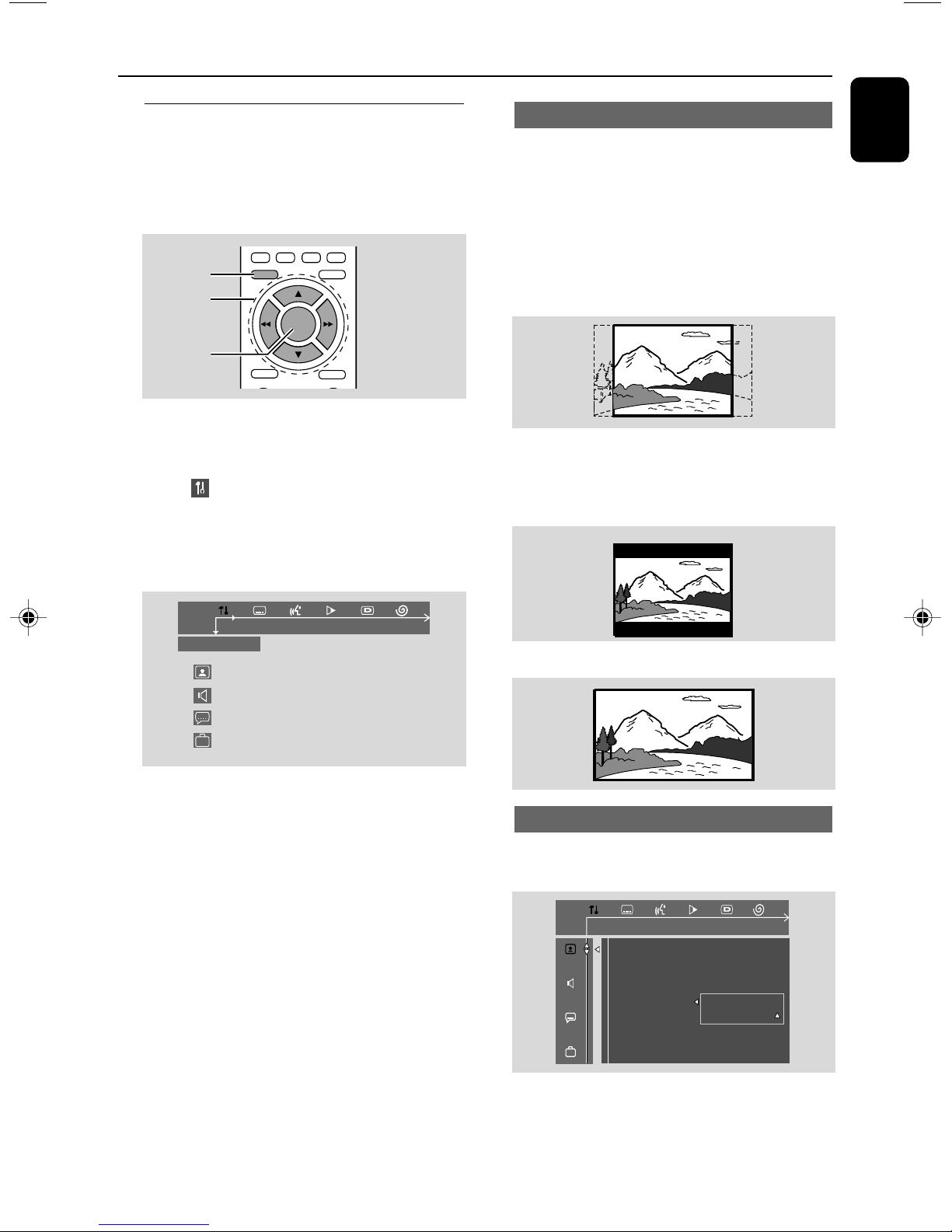

Using the setup menu (user
preference settings)
This DVD setup is carried out via your TV set,
enabling you to customize the DVD System to
suit your particular requirements
MODE
SLEEP/TIMER
CLOCK
DISC MENU
OK
1
32
4
A-B
SYSTEM MENU
AUDIO MUTE
1 In disc mode, press SYSTEM MENU.
➜ The menu bar will appear across the top of
the TV screen.
2 Select icon and press 4 to enter the setup
menu. Then press 3 4 to select one of the
setup menu options and press á to enter the
submenu.
➜ Playback will pause.
TV Display (default: Normal/PS)
IMPORTANT!
– This menu is accessible only in the
stop postion.
Set the aspect ratio of the DVD Player according
to the TV you have connected.
➜ Normal/PS (panscan): If you have a normal
TV and want both sides of the picture to be
trimmed or formatted to fit your TV screen.
➜ Normal/LB (letterbox): If you have a
normal TV. In this case, a wide picture with black
bands on the upper and lower portions of the
TV screen will be displayed.
English
SETUP MENU
Picture Setup
Sound Setup
Language Setup
Feature Setup
3 Press à / á/4/3 on the remote control to
navigate in the menu.
4 Press OK to confirm your setting.
To return to the upper-level menu
● Press à or OK (in cases of value adjustment).
To remove the menu
● Press SYSTEM MENU to exit the menu.
➜ Playback will resume and begin automatically.
Note:
– Some of the features in the System Menu
Options are described in “Getting Started”.
➜ Wide: If you have a wide-screen TV.
Screen Saver (default: On)
This function is used to turn the screen saver on
or off.
➜ ON: In STOP, PAUSE or No DISC mode, if
no actions are performed about 5 minutes, the
screen saver will be activated.
➜ OFF: Screen saver is disabled.
27
DVD Menu Operations
ENTER CODE
PLEASE ENTER NEW PASSWORD
OSD LANG
ENTER CODE
PLEASE ENTER OLD PASSWORD
OSD LANG
English

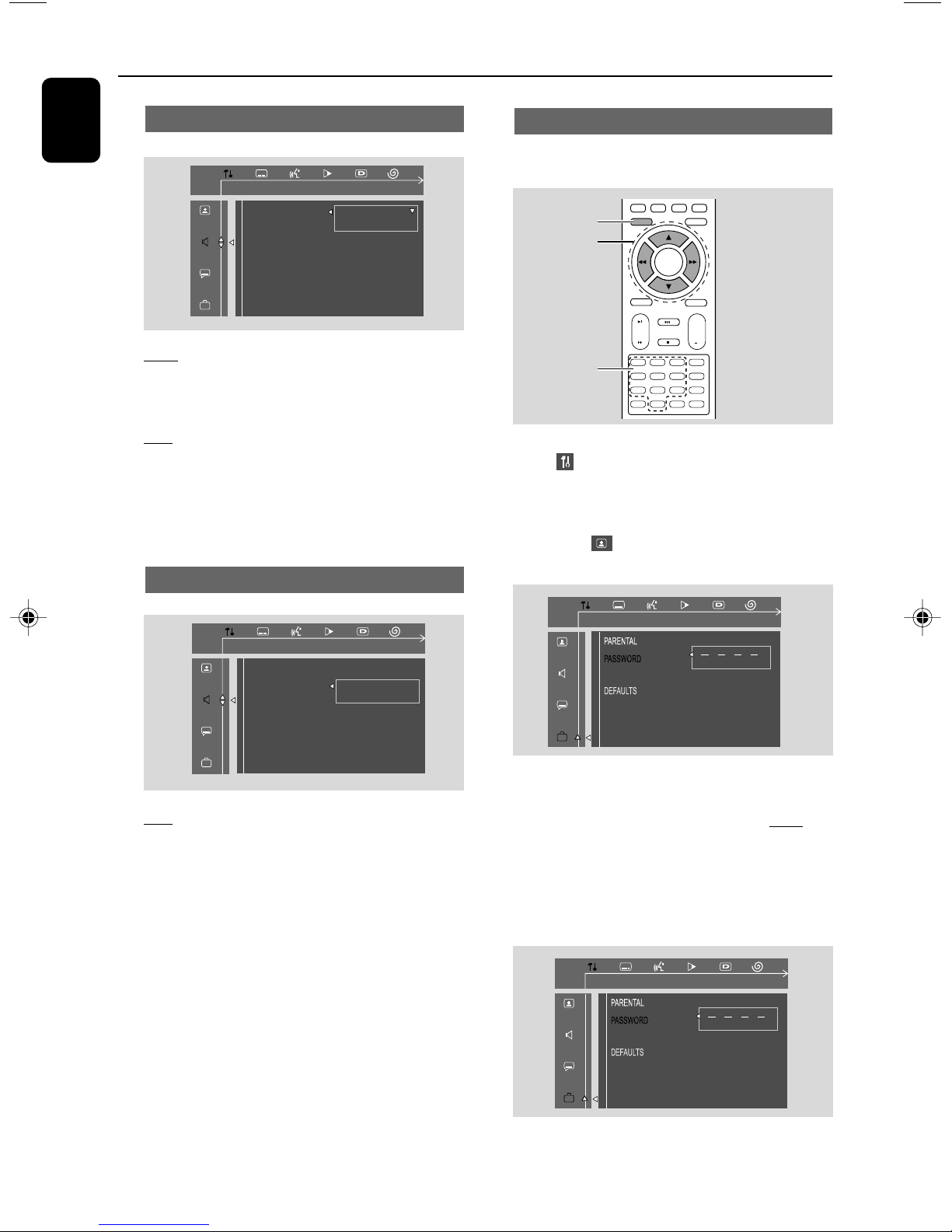

Night Mode
NIGHT MODE
TEST TONE
NIGHT MODE SET TO OFF
OFF
ON
OFF
Select this when you want to enjoy the surround
sound with its full dynamic range.
ON
Select this to level out the volume. High volume
output will be softened and low volume output
will be brought upward to an audio level. This
feature is only available for movies with Dolby
Digital mode.
Test Tone
Changing the password
You can change the four-digit code used as
Password.
A-B
1
SYSTEM MENU
5
32
AUDIO MUTE
4
1
4
7
PROG
SLEEP/TIMER
CLOCK
MODE
DISC MENU
OK
+
VOL
GOTO
2
3
ZOOM
5
6
DSC
8
9
SUBTITLE
DBB
0
1 In disc mode, press SYSTEM MENU.
2 Select icon and press 4.
➜ Playback will pause.
3 Press à / á/4/3 on the remote control to
navigate in the menu.
➜ Move to , and press á.
➜ Move to “PASSWORD” and press á.
NIGHT MODE
TEST TONE
LEFT.
OFF
ON
ON
After selecting this item, the system will star t
testing the speaker from left, right, subwoofer
cyclically until you exit tone test.
- You can adjust speakers level when you are
testing the speaker.
- The availability of the various channels test
depend on the number of speakers connected.
Note:
–You can press à to exit test tone mode at any
time.
4 Use the numeric keys (0-9) to enter your
current four-digit code.
➜ The password supplied by default is 1234.
➜ If you forget the four-digit code, press 9 four
times, the system will change back to the default
password.
5 Then enter your new code. Press the same code
again to confirm.
28
6 Press SYSTEM MENU again to remove the
menu.
DVD Menu Operations
5

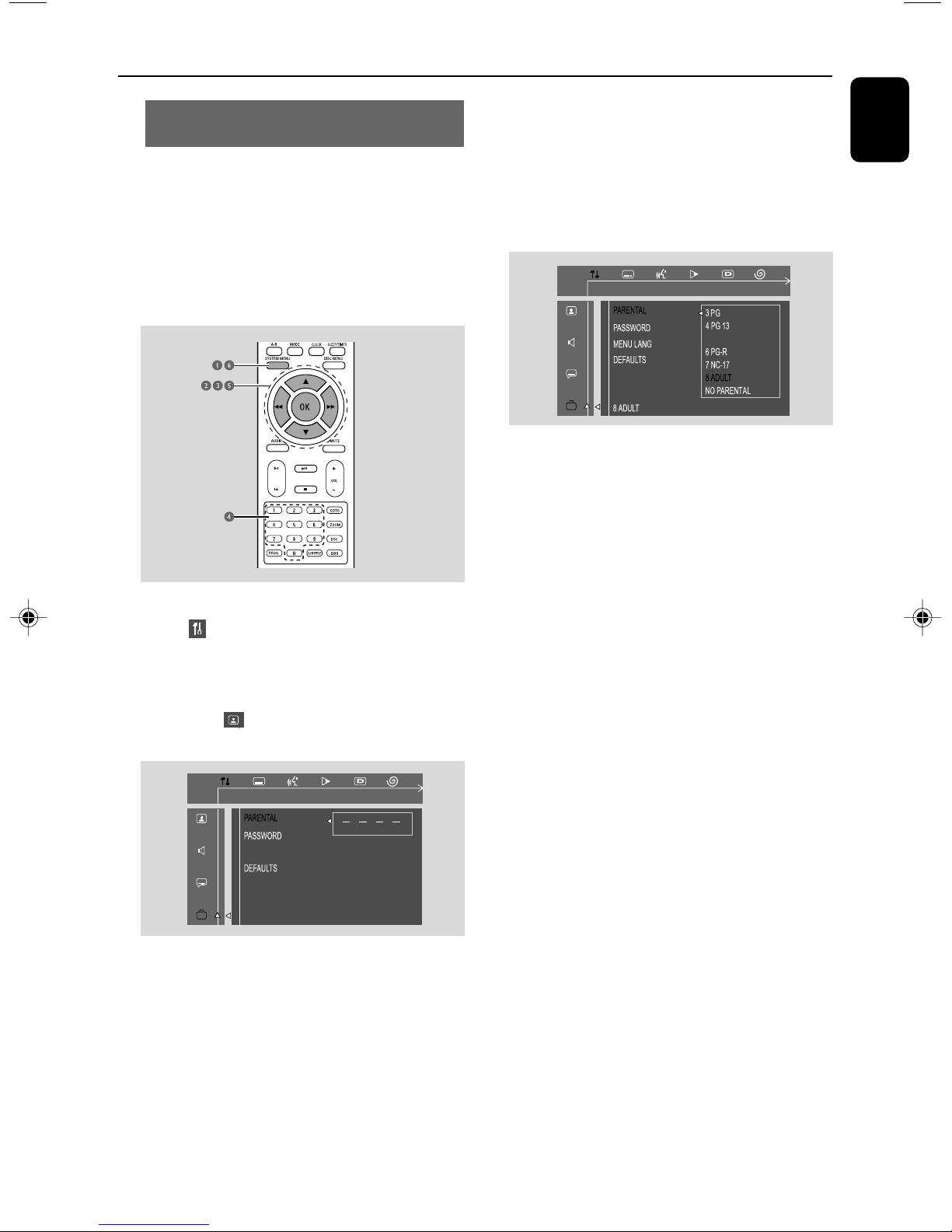

Restricting playback by setting parental
level
Some DVDs may have a parental level assigned
to the complete disc or to certain scenes on the
disc. This feature lets you set a playback limitation
level. The rating levels are from 1 to 8 and are
country specific. You can prohibit the playing of
certain discs that are not suitable for your
children or have certain discs played with
alternative scenes.
1 In disc mode, press SYSTEM MENU.
2 Select icon and press 4.
➜ Playback will pause.
3 Press à / á/4/3 on the remote control to
navigate in the menu.
➜ Move to , and press á.
➜ Move to “PARENTAL” and press á.
ENTER CODE
OSD LANG
5 Press 4/3 to select a rating level between 1-8
and press OK.
➜ DVDs rated above the level you select will
not play unless you enter your four-digit
password or choose a higher level rating. Select
“No Parental” to deactivate Parental level and
have all discs play.
6 Press SYSTEM MENU again to remove the
menu.
Rating explanations
NO PARENTAL - It will play all discs.
8 ADULT - material for adults only; riewed only
by adults due to graphic sexual scenes, violence,
or language.
7 NC-17 - No children under 17; not
recommended for children under 17.
6 PG-R - Parental Guidance - Restricted;
recommended that parents restrict children
under 17 from viewing or allow them to view
only when supervised by a parent or adult
guardian.
4 PG-13 - Material is unsuitable for children
under age 13.
3 PG - Parental Guidance suggested.
1 PG - General Audience; recommended as
acceptable for viewers of all ages.
English
PLEASE ENTER PASSWORD
4 Use the numeric keys (0-9) to enter the
four-digit code.
- OSD LANG (menu language)
To set the screen display language. The default
setting is English.
- Default
If RESET is selected, all the items in the setup
menu will be reset to default setting, except
Parental Setting and Password.
29
Tuner
English
Tuning to radio stations
1
Press STANDBY-ON y on the set to switch
on the last selected source.
2 Press repeatedly SOURCE (or TUNER on the
remote) until FM is displayed.
3 Press and hold TUNING à / á on the set
until the frequency in the display starts changing.
➜ Display shows SEARCH during automatic
tuning.
➜ After the system tunes to a station of
sufficient reception, display shows its frequency .
● To tune to a weak station, press briefly and
repeatedly TUNING à / á (or à / á on
the remote) until an optimal reception is found.
4 Repeat Step 3 if necessary until you find the
desired radio station.
Storing preset radio stations
You can preset up to 40 FM stations regardless
of the reception.
Manual programming
1 Tune to your desired radio station (refer to
“Tuning to radio stations”).
2 Press briefly PROGRAM.
➜ ”P0O” and “PRG” are displayed.
3 Press ¡ / ™ (or Numberic keys on the
remote) to select the desired preset number.
4 Press again PROGRAM to store the radio
station.
➜ “PRG” disappears on the display.
Autostore: automatic programming
Autostore automatically starts programming
radio stations from preset 1. Any previous
presets e.g. manually programmed will be erased.
● In tuner mode, press and hold PROGRAM on
the set until AUTOPROG appears.
➜ During automatic programming, display shows
AUTOPROG.
➜ Available stations are programmed (40 FM).
➜ After all stations are stored, the first autostore
preset station automatically plays.
Listening to preset radio stations
● In tuner mode, press ¡ / ™ (or Numberic
keys on the remote) to select the desired
preset number.
➜ The preset number, radio frequency, and
waveband are displayed.
Deleting a preset radio station
1 In tuner mode, press ¡ / ™ (or Numberic
keys on the remote) to select the desired
preset number.
➜ The preset number, radio frequency, and
waveband are displayed.
2 Press and holdÇuntil “DELETED” appears.
➜ The current preset radio station will be
deleted.
➜ All other preset radio stations with higher
numbers are decreased by one.
● Repeat steps 1-4 to store other radio stations.
Helpful hints:
–You can erase a preset station by storing
another frequency in its place.
30
Clock/Timer
Viewing clock
The clock (if it is set) will be shown in standby
mode.
To view the clock in any source mode
(DISC or TUNER for example)
● Press briefly CLOCK on the remote.
● You may press MODE on the set to toggle
between 12-hour and 24-hour display.
➜ The clock is displayed for a few seconds.
➜ If the clock has not been set, "--:--" is
displayed.
Setting clock
1 In standby or power on mode, press and hold
CLOCK on the remote.
➜ The clock digits flash on the display panel.
➜ If the clock has not been set, "--:--" flashes
2 Press ¡ / ™ repeatedly to set the hour.
3 Press à / á repeatedly to set the minute.
4 Press CLOCK agian to store the setting.
➜ The clock star ts working.
Notes:
– The clock setting will be erased when the system
is disconnected from the power supply.
– The system will exit clock setting mode if no
button is pressed within 15 seconds.
Setting wake-up timer
The system can switch on to DISC or TUNER
mode automatically at a preset time, ser ving as
an alarm to wake you up.
IMPORTANT!
– Before setting the timer, ensure that the
clock is set correctly.
–To set a new timer, you need to
deactivate the previously set timer.
2 Press DISC or TUNER to select the desired
source.
● Before setting timer, make sure the music source
has been prepared.
DISC – load the disc.
TUNER – tune to the desired radio station.
3 Press ¡ / ™ repeatedly to set the hour.
4 Press à / á repeatedly to set the minute.
5 Press SLEEP/TIMER to store the time.
➜
remains on the display.
● At the preset time, the selected source will play.
To deactivate the wake-up timer
● In standby mode, press and hold SLEEP/
TIMER until “TIMER OFF “ is displayed.
Notes:
– The system will exit timer setting mode if no
button is pressed within 15 seconds.
– Display shows if activated, and disappears if
deactivated.
Setting sleep timer
The sleep timer enables the system to switch off
by itself after a set period of time.
1 Press SLEEP/TIMER on the remote control
repeatedly to select a preset time.
➜ The selections are as follows (time in
minutes):
15 ™ 30 ™ 45 ™ 60 ™ 90 ™120 ™ OFF
2 Press SLEEP/TIMER until you reach the
desired length of time.
To deactivate the sleep timer
● Press SLEEP/TIMER repeatedly until "OFF" is
displayed, or press the STANDBY ON y
button.
English
1 In standby mode, press and hold SLEEP/
TIMER on the remote for more than five
seconds to enter timer setting mode.
➜ The current source and timer digits flash on
the display panel.
➜ “ NO TIMER “ will be displayed briefly if
wake-up timer is not set.
31
Specifications
English
AMPLIFIER
Outpurt power
L/R speakers ..................... 25 W /channel RMS
Subwoofer ............................................ 50 W RMS
Speaker channel
Frequency Response .......................................................
............................................ 200 Hz - 18 kHz / ± 3 dB
Signal-to-Noise Ratio ....... > 60dB (A-weighted)
Input Sensitivity
AUX In ............................................................. 500 mV
Output Sensitivity
Line Out(1KHZ 0dB) ............................. 2 + 0.2V
TUNER
Tuning Range............................FM 87.5 – 108 MHz
Signal-to-Noise Ratio ......................... FM ≥ 50 dB
DVD
Laser Type ........................................... Semiconductor
Disc Diameter .......................................... 12cm / 8cm
Video Decoding ....................... MPEG-2 / MPEG-1
Video DAC .......................................................... 12 Bits
Signal System ........................................... PAL / NTSC
Video Format ................................................ 4:3 / 16:9
Video S/N ...................................... 56 dB (minimum)
Composite Video Output ............. 1.0 Vp-p, 75 Ω
S-Video Output ..................... Y - 0.714 Vp-p, 75 Ω
...................................................... C - 0.286 Vp-p, 75 Ω
Audio DAC ..................................... 24 Bits / 96 kHz
MAIN UNIT
Pow er Supply Rating .......................110-127V 60Hz
/220-240V 50Hz, switchable
Power Consumption
Active ..................................................................... 30 W
standby ..................................................................<3 W
Dimensions (w x h x d)....218 x 90 x 222 (mm)
Weight........................................................................1.24kg
Package Dimension (w x h x d).............................
...................................................550 x 314 x 330 (mm)
Gross weight.............................................................9.7kg
SPEAKERS
System ..............................................1-way, Bass reflex
Impedance .................................................................. 8 Ω
Speaker drivers ......................................... 3’’ fullrange
Frequency response ..................... 80 Hz – 20 kHz
Package Dimension (w x h x d)................................
...................................................125 x 250 x 232 (mm)
Weight ............................................ 2.4 kg/left speaker
....................................................... 1.76 kg/right speaker
SUBWOOOFER
Impedance................................................................... 6 Ω
Speaker driver ................................ 5.25” subwoofer
Frequency response.........................60HZ—1K HZ
Dimensions(w x h x d )................................................
......................................................147 x 250 x 232(mm)
Weight .........................................................................2.4kg
32
Specifications and external appearance are
subject to change without notice.
Tr oubleshooting
WARNING
Under no circumstances should you try to repair the system yourself, as this will invalidate the
warranty. Do not open the system as there is a risk of electric shock.
If a fault occurs, first check the points listed below before taking the system for repair. If you
are unable to remedy a problem by following these hints, consult your dealer or Philips for
help.
English
No power.
No picture.
Problem
Solution
✔ Check if the AC power cord is properly
connected.
✔ Press STANDBY ONB on the DVD System or
B on the remote to turn on the power.
✔ Check if the TV is switched on.
✔ Check the video connection.
✔ Press SOURCE on the DVD player repeatedly
to select “DVD” or press DISC on the remote.
✔ Set your TV to the correct Video In channel. This
channel is usually near channel 00. Or, you may
have a button on the TV remote control that
selects Auxiliary or A/V IN channel. See your TV
owner’s manual for details. Or, change channels
at the TV until you see DVD screen on the TV.
✔ If the progressive scan feature is activated but
the connected TV does not support progressive
signals or the cables are not connected
accordingly, see page 18-19 for proper
progressive scan setup or deactivate the
progressive scan feature as below:
1) Turn off your TV progressive scan mode or
turn on to interlaced mode.
2) Select “OFF” in PROGRESSIVE menu of
system setup menu to turn off progressive, then
press SYSTEM MENU to exit the menu.
Distorted or poor picture.
Completely distorted picture or black/
white picture.
✔ Sometimes a small amount of picture distor tion
may appear. This is not a malfunction.
✔ Clean the disc.
✔ TV has a colour system standard. If the disc’s or
DVD system’s colour system is different than
your TV’s colour system, the picture may be
distorted or colourless.
33
Troubleshooting
English
The aspect ratio of the screen cannot be
changed even though you have set the TV
shape.
✔ The aspect ratio is fixed on the DVD disc.
✔ Depending on the TV, it may not be possible to
change the aspect ratio.
No sound or distorted sound.
The micro DVD player does not start
playback.
✔ Adjust the volume.
✔ Check that the speakers are connected
correctly.
✔ Replace the speaker cables.
✔ Disconnect the headphones.
✔ The system is in pause, slow motion or fast
forward/reverse mode, press ÉÅ (or ÉÅ
on the remote) to resume normal play mode.
✔ Insert a readable disc with the playback side
facing down.
✔ Check the disc type, colour system and regional
code. Check for any scratches or smudges on
the disc.
✔ Press SYSTEM MENU to turn off the setup
menu screen.
✔ Cancel the parental control rating function or
change the rating level.
✔ Moisture has condensed inside the system.
Remove the disc and leave the system turned
on for about an hour.
The DVD micro system does not
respond when the buttons are pressed.
Cannot activate some features, such as
Subtitles, or multi-language Audio.
Radio reception is poor.
✔ Disconnect the power plug from the outlet and
insert again.
✔ Multi-language sound or subtitle is not
recorded on the DVD.
✔ Changing the language for the sound or subtitle
is prohibited on the DVD.
✔ The features may not be available on the disc.
✔ If the signal is too weak, adjust the antenna or
connect an external antenna for better
reception.
✔ Increase the distance between the Mini HiFi
System and your TV or VCR.
34
Tr oubleshooting
The timer is not working.
The Clock/Timer setting is erased.
The remote control does not function.
Low hum or buzz sound.
✔ Set the clock correctly.
English
✔ Power has been interrupted or the power cord
has been disconnected. Reset the clock/timer.
✔ Select the correct source (DISC or AUX for
example) before pressing the function button.
✔ Point the remote control at the remote sensor
of the unit.
✔ Reduce the distance to the player.
✔ Remove any possible obstacles.
✔ Replace the batter y with new one.
✔ Check that the batter y is loaded correctly.
✔ Place the DVD micro system as far away as
possible from electrical devices (such as
speakers, TV) that may be causing interference.
Low bass response.
Unable to select Progressive Scan
✔ Check all speakers for correct polarity.
✔ Check that the output of the video signal is
switched to 'Ypbpr'.
35
English
Português
Русский
Deutsch
Nederlands
Meet Philips at the Internet
http://www.philips.com
Italiano
Svenska
Dansk
Suomi
Português
Polski
HTM139
CLASS 1
LASER PRODUCT
Printed in China
PDCC-JH-0634
Loading...
