Philips HS9380 User Manual [de]
Register your product and get support at
www.philips.com/welcome
HD9385, 9384, 9380
1
2 3 4 5
6
10 11 12 13
14
7 8 9
4222.005.0381.1
ENGLISH
Introduction
Congratulations on your purchase and welcome to Philips!
To fully benet from the support that Philips offers, register
your product at www.philips.com/welcome.

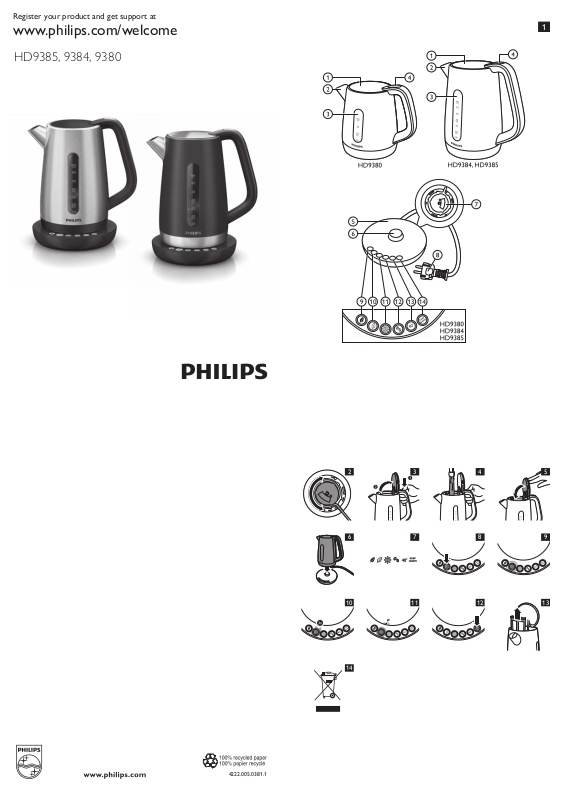

General description (Fig. 1)
1 Lid
2 Spout
3 Water level indicator
4 Lid release button
5 Base
6 Base connector
7 Cord storage facility
8 Mains plug
9 Black tea button
10 Green tea button
11 Herbal/fruit tea button
12 Instant coffee button
13 40ºC button
14 KEEP WARM button
Important
Read this user manual carefully before you use the appliance and save it for
future reference.
Danger
- Do not immerse the kettle or the base in water or any other liquid.
Warning
- Check if the voltage indicated on the appliance corresponds to the local
mains voltage before you connect the appliance.
- Do not use the appliance if the plug, the mains cord, the base or the
appliance itself is damaged.
- If the mains cord is damaged, you must have it replaced by Philips, a
service centre authorised by Philips or similarly qualied persons in
order to avoid a hazard.
- This appliance is not intended for use by persons (including children)
with reduced physical, sensory or mental capabilities, or lack of
experience and knowledge, unless they have been given supervision or
instruction concerning use of the appliance by a person responsible for
their safety.
- Children should be supervised to ensure that they do not play with the
appliance.
- Keep the mains cord out of the reach of children. Do not let the
mains cord hang over the edge of the table or worktop on which the
appliance stands. Excess cord can be stored in or around the base of
the appliance.
- Do not place the appliance on an enclosed surface (e.g. a serving tray),
as this could cause water to accumulate under the appliance, resulting in
a hazardous situation.
- Hot water can cause serious burns. Be careful when the kettle contains
hot water.
- Do not touch the body of the kettle during and some time after use, as
it gets very hot. Always lift the kettle by its handle.
- Never ll the kettle beyond the maximum level indication. If the kettle
has been overlled, boiling water may be ejected from the spout and
cause scalding.
- Do not remove the lid while the water is heating up. Be careful when
you remove the lid immediately after the water has boiled: the steam
that comes out of the kettle is very hot.
- Only use the kettle in combination with its original base.
Caution
- Only connect the appliance to an earthed wall socket.
- Always place the base and the kettle on a dry, at and stable surface.
- The kettle is only intended for heating up and boiling water. Do not use
it to heat up soup or other liquids or jarred, bottled or tinned food.
- When you select a temperature below 100ºC, the water is not boiled
(sterilised) rst, but is heated up directly to the temperature of the
selected preset button.
- Always make sure you ll the kettle at least up to the 1-cup indication
(0.25l) to prevent the kettle from boiling dry.
- Depending on the hardness of the water in your area, small spots or
stains may appear on the heating element of your kettle when you
use it. This phenomenon is the result of scale build-up on the heating
element and on the inside of the kettle over time. The harder the water,
the faster scale builds up. Scale can occur in different colours. Although
scale is harmless, too much scale can inuence the performance and
durability of your kettle. Descale your kettle regularly by following the
instructions given in chapter ‘Cleaning and descaling’.
- Some condensation may appear on the base of the kettle. This is
perfectly normal and does not mean that the kettle has any defects.
- This appliance is intended to be used in household and similar
applications such as:
1 staff kitchen areas in shops, ofces and other working environments;
2 farm houses;
3 by clients in hotels, motels and other residential type environments;
4 bed and breakfast type environments.
Boil-dry protection
This kettle is equipped with boil-dry protection. The boil-dry
protection automatically switches off the kettle if it is accidentally switched
on when there is no water or not enough water in it. Fill the kettle with
approx. 1 litre of water. Leave the kettle off the base for 1 minute and then
place it on the base. The kettle is now ready for use again.
Electromagnetic elds (EMF)
This Philips appliance complies with all standards regarding electromagnetic
elds (EMF). If handled properly and according to the instructions in this
user manual, the appliance is safe to use based on scientic evidence
available today.
Before first use
1 Remove stickers, if any, from the base or the kettle.
2 Placethebaseonadry,stableandatsurface.
3 To adjust the length of the cord, wind part of it around the cord
storage facility in the bottom of the base (Fig. 2).
4 Rinse the kettle with water.
5 Fill the kettle with water up to the MAX indication and let the water
boil once (see chapter ‘Using the appliance’).
6 Pour out the hot water and rinse the kettle once more.
Using the appliance
1 Press the lid release button (1). The lid opens automatically (2) (Fig. 3).
2 Fill the kettle with the desired amount of water (Fig. 4).
Note: You can also ll the kettle through the spout.
3 Close the lid (Fig. 5).
4 Place the kettle on its base and put the plug in the wall socket (Fig. 6).
The appliance is now ready for use.
Heating up water with preset buttons
Different hot drinks require different temperatures to taste their best. With
the preset buttons on the base, you can choose the right temperature for
your favourite hot drink.
To make sure the appliance accurately* heats up the water to the set
temperature, ll the kettle with at least 0.25l water.
* This kettle has been designed to achieve maximum temperature accuracy.
However, the actual temperature of the water may deviate slightly from the
indicated temperature.
- There are 4 buttons that represent different hot drinks: black tea
(100ºC), green tea (80ºC), herbal/fruit tea (100ºC) and instant coffee
(90ºC). There is also a 40ºC button and a KEEP WARM button. (Fig. 7)
1 Press one of the preset buttons (Fig. 8).
, The water starts heating to the temperature of the selected preset
button.
, While the water is heated, the light ring around the selected
button slowly pulsates until the water has reached the desired
temperature (Fig. 9).
, If the current temperature of the water in the kettle is higher than
the temperature of the selected preset button, the light ring does
notpulsate,butashes3timestoindicatethatthisbuttoncannotbe
operated (Fig. 10).
Note: You can deactivate the appliance by pressing the button again or by
removing the kettle from the base.
2 The kettle heats the water to the temperature of the selected preset
button.
, When the water has reached the set temperature, you hear an
audible signal. The light ring around the selected button stops
pulsating and lights up continuously (Fig. 11).
Note: The audible signal is repeated as a reminder after 2 minutes.
Note: You can select a different type of hot drink by pressing a different preset
button while the kettle is operating. This is only possible if the temperature of
the water is still below the temperature of the newly pressed button.
Keeping water warm
You can use the keep-warm function to keep water warm for 30 minutes
at the temperatures of the different preset buttons (40°C, 80°C, 90°C or
100°C).
Note: Only use the keep-warm function in combination with a preset button.
Only use the keep-warm function when there is at least 0.25l water in
the kettle. If there is too little water in the kettle, the kettle may switch
off before the 30 minutes have elapsed to protect the heating element.
Keeping water warm at a desired temperature
1 Press a preset button to set the desired temperature (see section
‘Heating up water with preset buttons’ in this chapter).
2 Press the KEEP WARM button (Fig. 12).
, When the kettle heats up the water to keep it at the selected
temperature, the light ring around the KEEP WARM button lights up
continuously.
, When the water has reached the selected temperature, the light ring
around the KEEP WARM button slowly pulsates until the keep-warm
function is cancelled or switches off automatically after 30 minutes.
Note: If you press the KEEP WARM button before you press a preset button,
nothing happens. If you have just prepared hot water, you can press the same
preset button again and then press the KEEP WARM button.
3 The kettle keeps the water warm for 30 minutes.
, After 30 minutes, you hear an audible signal and the appliance
switches off automatically.
Note: You can stop the keep-warm process at any time. To do so, press the KEEP
WARM button again, press the selected preset button or remove the kettle
from the base.
Note: If you remove the kettle from the base, the set keep-warm temperature
is lost.
Note: If you press another preset button while the keep-warm function is
activated, the keep-warm function switches off and the kettle starts heating up
the water to the temperature of the preset button.
Note: If the keep-warm function has not been activated, the appliance switches
off automatically after 5 minutes of inactivity.
Cleaning and descaling
Always unplug the base before you clean it
Always remove the kettle from the base before you clean the kettle.
Never immerse the kettle or its base in water.
Never use scouring pads, abrasive cleaning agents or aggressive liquids
such as petrol or acetone to clean the appliance.
Cleaning the kettle and the base
Descaling the kettle
Regular descaling prolongs the lifetime of the kettle.
In case of normal use (up to 5 times a day), the following descaling
frequency is recommended:
- Once every 6 months for areas with low water hardness.
- Once every 3 months for areas with average water hardness.
- Once every month for areas with high water hardness.
1 Fill the kettle with white vinegar (8% acetic acid) up to one quarter of
the MAX indication.
2 Add water to the MAX indication.
3 Press the green tea button to heat up the water to 80ºC and then
press the KEEP WARM button.
4 Empty the kettle after 30 minutes and rinse the inside thoroughly.
5 Repeat the descaling procedure if there is still some scale in the
kettle.
Note: You can also use an appropriate descaler. In that case, follow the
instructions on the package of the descaler.
Note: If you take the kettle off the base before the descaling process is nished,
the appliance switches off automatically. You can also deactivate the descaling
process by pressing any of the preset buttons.
Storage
- To store the cord, wind it around the cord storage facility in the bottom
of the base (Fig. 2).
Ordering accessories
To purchase accessories for this appliance, please visit our online shop at
www.shop.philips.com/service. If the online shop is not available in
your country, go to your Philips dealer or a Philips service centre. If you have
any difculties obtaining accessories for your appliance, please contact the
Philips Consumer Care Centre in your country. You nd its contact details in
the worldwide guarantee leaet.
Environment
- Do not throw away the appliance with the normal household waste
at the end of its life, but hand it in at an ofcial collection point for
recycling. By doing this, you help to preserve the environment (Fig. 14).
Guarantee and service
If you need service or information or if you have a problem, please visit
the Philips website at www.philips.com/support or contact the Philips
Consumer Care Centre in your country. You nd its phone number in the
worldwide guarantee leaet. If there is no Consumer Care Centre in your
country, go to your local Philips dealer.
Troubleshooting
This chapter summarises the most common problems you could encounter
with the appliance. If you are unable to solve the problem with the
information below, visit www.philips.com/support for a list of frequently
asked questions or contact the Consumer Care Centre in your country.
1 Clean the outside of the kettle and the base with a soft cloth
moistened with warm water and some mild cleaning agent.
Caution: Do not let the moist cloth come into contact with the cord, the
plug and the connector of the base.
Cleaning the lter
Scale is not harmful to your health but it may give your drink a powdery
taste. The anti-scale lter prevents scale particles from ending up in your
drink.
Clean the single-action lter regularly in the following way:
1 Takethelteroutofthekettle(Fig.13).
2 Gentlycleanthelterwithasoftnylonbrush.
3 Slidethelterbackintothekettle.
Note: HD9385 only: The lter at the bottom of the kettle cannot be removed.
You can clean this lter by descaling the kettle, see section ‘Descaling the kettle’
below.
Signal Meaning/solution
The light ring around one
preset button lights up while
the other light rings are off.
The light ring of the preset
button I pressed ashes 3
times.
After the water has reached the set
temperature, the light of the selected
preset button stays on for 5 minutes.
The temperature of the water is higher
than the temperature of the selected
preset button.
The kettle beeps. The water has reached the set
temperature.
Problem Possible solution
I cannot set
the desired
temperature.
The current temperature of the water in the kettle
is probably higher than the temperature you want to
set. You can add cold water to the kettle. If you wish
to reheat the water immediately, you can only select
100ºC.
I try to switch
on the kettle but
it switches off
automatically.
When there is no water in the kettle, the boildry protection trips and the kettle switches off
automatically. You may need to put more water in
the kettle (at least 0.25 litres).
The kettle is not placed on its base correctly.
Remove the kettle from the base and correctly place
it on the base again.
The kettle
switches off
automatically
when the keep-
The kettle keeps the water warm for 30 minutes and
then switches off automatically. To keep the water
warm longer, press the KEEP WARM button again
after it has nished.
warm function is
active.
DEUTSCH
Einführung
Herzlichen Glückwunsch zu Ihrem Kauf und willkommen bei Philips! Um das
Kundendienstangebot von Philips vollständig nutzen zu können, sollten Sie
Ihr Produkt unter www.philips.com/welcome registrieren.
Allgemeine Beschreibung (Abb. 1)
1 Deckel
2 Ausgießer
3 Wasserstandsanzeige
4 Deckelentriegelungstaste
5 Aufheizsockel
6 Aufheizsockel-Anschluss
7 Kabelaufwicklung
8 Netzstecker
9 Taste für schwarzen Tee
10 Taste für grünen Tee
11 Taste für Kräuter-/Früchtetee
12 Taste für Instant-Kaffee
13 40 ºC-Taste
14 KEEP WARM-Taste
Wichtig
Lesen Sie diese Bedienungsanleitung vor dem Gebrauch des Geräts
aufmerksam durch, und bewahren Sie sie für eine spätere Verwendung auf.
Gefahr
- Tauchen Sie den Wasserkocher und den Aufheizsockel niemals in
Wasser oder andere Flüssigkeiten.
Warnhinweis
- Prüfen Sie, bevor Sie das Gerät in Betrieb nehmen, ob die
Spannungsangabe auf dem Gerät mit der örtlichen Netzspannung
übereinstimmt.
- Benutzen Sie das Gerät nicht, wenn der Stecker, das Netzkabel, der
Aufheizsockel oder das Gerät selbst beschädigt ist.
- Um Gefährdungen zu vermeiden, darf ein defektes Netzkabel nur von
einem Philips Service-Center, einer von Philips autorisierten Werkstatt
oder einer ähnlich qualizierten Person durch ein Original-Ersatzkabel
ersetzt werden.
- Dieses Gerät ist für Benutzer (einschl. Kinder) mit eingeschränkten
physischen, sensorischen oder psychischen Fähigkeiten bzw. ohne
jegliche Erfahrung oder Vorwissen nur dann geeignet, wenn eine
angemessene Aufsicht oder ausführliche Anleitung zur Benutzung des
Geräts durch eine verantwortliche Person sichergestellt ist.
- Achten Sie darauf, dass Kinder nicht mit dem Gerät spielen.
- Halten Sie das Netzkabel außer Reichweite von Kindern. Lassen Sie
das Netzkabel nicht über die Kante der Arbeitsäche hinunter hängen,
auf der das Gerät steht. Überschüssiges Kabel kann im Aufheizsockel
verstaut werden.
- Stellen Sie das Gerät nicht auf versiegelte Unterlagen (z. B. ein
Servier tablett), da sich Wasser unter dem Gerät sammeln könnte, was
zu Gefährdungen führen würde.
- Heißes Wasser kann Verbrühungen verursachen. Gehen Sie vorsichtig
mit dem Gerät um, wenn es heißes Wasser enthält.
- Vermeiden Sie während und einige Zeit nach der Verwendung jede
Berührung mit der Außenwand des Wasserkochers, da sie sehr heiß
wird. Heben Sie das Gerät nur am Handgriff an.
- Füllen Sie den Wasserkocher nicht über die Höchstmarkierung
hinaus. Ist der Wasserkocher zu voll, kann kochendes Wasser aus dem
Ausgießer spritzen und zu Verbrühungen führen.
- Nehmen Sie den Deckel nicht ab, während das Wasser erhitzt wird.
Seien Sie vorsichtig beim Abnehmen des Deckels unmittelbar nach dem
Kochen des Wassers. Der austretende Dampf ist sehr heiß.
- Benutzen Sie den Wasserkocher nur mit dem dazu gehörigen
Aufheizsockel.
Achtung
- Schließen Sie das Gerät nur an eine geerdete Steckdose an.
- Stellen Sie den Aufheizsockel und den Wasserkocher immer auf eine
trockene, ebene und stabile Unterlage.
- Der Wasserkocher ist nur zum Erhitzen und Kochen von Wasser
vorgesehen. Er eignet sich nicht zum Erwärmen von Suppen und
anderen Flüssigkeiten oder von Nahrungsmitteln in Gläsern, Flaschen
oder Dosen.
- Wenn Sie eine Temperatur unter 100 ºC auswählen, wird das Wasser
nicht erst gekocht (sterilisier t), sondern direkt auf die voreingestellte
Temperatur erhitzt.
- Achten Sie stets darauf, dass Sie den Wasserkocher mindestens bis zur
Anzeige für 1 Tasse (0,25 l) füllen, damit er nicht trocken kocht.
- Abhängig vom Härtegrad des Wassers in Ihrer Region können sich im
Laufe der Zeit kleine Flecken oder Verfärbungen auf dem Heizelement
Ihres Wasserkochers bilden. Es handelt sich dabei um Kalkablagerungen
auf dem Heizelement und an der Innenwand des Wasserkochers. Je
härter das Wasser, desto schneller bilden sich diese Kalkrückstände,
die in unterschiedlichen Farben auftreten können. Kalkablagerungen
sind zwar unschädlich, können jedoch mit der Zeit die Leistung und
Lebensdauer Ihres Wasserkochers beeinträchtigen. Entkalken Sie Ihren
Wasserkocher regelmäßig gemäß den Anleitungen im Kapitel “Reinigen
und Entkalken”.
- Hinweis: Am Boden des Geräts kann sich etwas Kondenswasser
niederschlagen. Das ist völlig normal und kein Zeichen für einen Defekt.
- Dieses Gerät ist für die Verwendung im Haushalt und in folgenden
Bereichen vorgesehen:
1 Küchen in Geschäften, Büros oder anderen Arbeitsumgebungen;
2 Landwirtschaftlichen Betrieben;
3 Hotels, Motels oder anderen Unterkünften;
4 Unterkünften mit Frühstücksangebot.
Trockengehschutz
Dieser Wasserkocher ist mit einer Abschaltautomatik ausgestattet, die
aktiviert wird, wenn Sie das Gerät ohne Wasser oder bei zu geringem
Wasserstand einschalten. Füllen Sie den Wasserkocher mit ungefähr 1 Liter
Wasser. Nehmen Sie den Wasserkocher etwa eine Minute lang vom
Aufheizsockel, und stellen Sie ihn anschließend wieder auf den Sockel.
Danach kann das Gerät wieder wie gewohnt benutzt werden.
Elektromagnetische Felder
Dieses Philips Gerät erfüllt sämtliche Normen bezüglich elektromagnetischer
Felder (EMF). Nach aktuellen wissenschaftlichen Erkenntnissen ist das Gerät
sicher im Gebrauch, sofern es ordnungsgemäß und entsprechend den
Anweisungen in dieser Bedienungsanleitung gehandhabt wird.
Vor dem ersten Gebrauch
1 Entfernen Sie ggf. alle Aufkleber vom Aufheizsockel und vom
Wasserkocher.
2 Stellen Sie den Aufheizsockel auf eine trockene, stabile und ebene
Unterlage.
3 Legen Sie überschüssiges Kabel um die Kabelaufwicklung im Boden
des Aufheizsockels (Abb. 2).
4 Spülen Sie den Wasserkocher mit Wasser aus.
5 Füllen Sie den Wasserkocher bis zur MAX-Markierung mit Wasser,
und lassen Sie es einmal aufkochen (siehe Kapitel “Das Gerät
benutzen”).
6 Gießen Sie das heiße Wasser aus, und spülen Sie den Wasserkocher
nochmals aus.
Loading...
