Philips HR3756, HR3752 User Manual
1
3
2 4
e
h
<40°C
1
i
1000
MAX
MAX 1800
ml
MAX 1.8L
<1L
ON
4 5
2-2
2-3
32
OFF
8
7
MIN · · · · · · · · · MAX
4
5
ON
6
c
d
a
b
9
10
11
2-1
2-4
MIN · · · · · · MAX
3-1
g
f
j
k
HR3752
HR3756
3000 002 84853
EN User manual 7
SC 用户手册 14
TC 使用手冊 21
© 2018 Koninklijke Philips N.V.
All rights reserved.
发布日期：2018-06-29
保留备用
产品： 飞利浦高速真空破壁机
型号：
HR3752, HR3756
额定电压：
220 V
～
额定频率：
50 Hz
额定输入功率：
1400 W
生产日期： 请见产品底部
产地： 中国广东东莞
飞利浦（中国）投资有限公司
上海市静安区灵石路
718号A1
幢
全国顾客服务热线：
4008 800 008
本产品根据国标
GB4706.1-2005,
GB4706.30-2008
制造
3
2 4
<40°C
1
1000
MAX
MAX 1800
ml
MAX 1.8L
<1L
21
3
ON
4 5
2-2
2-3
32
OFF
8
7
MIN · · · · · · · · · MAX
4
5
ON
6
9
10
11
2-1
2-4
MIN · · · · · · MAX
3-1
5
<40 °C
3
1
21
3
ON
4 5
32
OFF
8
7
MIN · · · · · · · · · MAX
4
5
ON
6
9
10
11
MIN · · · · · · MAX
3-1
5
(MAX)
(MAX)
1000 ml
MAX
1800 ml
60 sec
1800 ml
60 sec
35-45 sec
8 x
60 sec
<40 °C
5
(MAX)
(MAX)
1000 ml
MAX
1800 ml
60 sec
1800 ml
60 sec
35-45 sec
8 x
60 sec
<40 °C
4
21
3
ON
4 5
5
(MAX)
(MAX)
1000 ml
MAX
1800 ml
60 sec
1800 ml
60 sec
35-45 sec
8 x
60 sec
<40 °C
7
English
EN
•
Assembling,
disassembling or
cleaning it.
•
It is left unattended.
•
Do not immerse the
motor unit or vacuum
lid in water or any other
liquid.
•
Check if the voltage
indicated on the
appliance corresponds to
the local mains voltage
before you connect the
appliance.
•
Do not use the appliance
if the plug or the mains
cord is damaged or has
visible cracks. If the mains
cord is damaged, you
must have it replaced by
Philips, a service centre
authorised by Philips or
similarly qualied persons
in order to avoid a hazard.
•
Make sure the blade
unit is securely fastened
and the lid is properly
assembled to the blender
jar before you use the
appliance.
•
This appliance shall not
be used by children. Keep
the appliance and its cord
out of reach of children.
1 Important
Read this user manual carefully before
you use the appliance and save it for
future reference.
Warning
•
Do not misuse the
appliance to avoid
potential injury.
•
Do not pour hot liquid
into the blender as it
can be ejected out of
the appliance due to a
sudden steaming.
•
Do not touch the
sharp blades when the
appliance is plugged in.
If the blades get stuck,
unplug the appliance
before you remove the
ingredients. Be careful
when handling the sharp
cutting blades, emptying
the jar and during
cleaning.
•
Switch o and unplug the
appliance from the power
supply before:
•
Removing the jar from
the base, changing
accessories or
approaching parts that
move in use.
8
EN
Caution
•
In order to avoid a hazard
due to inadvertent
resetting of the thermal
cut-out, this appliance
must not be powered
through an external
switching device, such as
a timer, or connected to
a circuit that is regularly
switched on and o by
the utility.
•
Never use any
accessories or parts from
other manufacturers or
that Philips does not
specically recommend. If
you use such accessories
or parts, your guarantee
becomes invalid.
•
Do not exceed the
maximum volume
indication on the blender
jar.
•
Do not exceed the
maximum quantities
and processing times
indicated in the relevant
table.
•
If food sticks to the wall of
the blender jar, switch o
the appliance and unplug
•
This appliance can be
used by persons with
reduced physical, sensory
or mental capabilities or
lack of experience and
knowledge if they have
been given supervision
or instruction concerning
use of the appliance in
a safe way and if they
understand the hazards
involved.
•
Children should be
supervised to ensure that
they do not play with the
appliance.
•
Never assemble or
disassemble the blender
jar to the motor base
while the power is on.
Switch o the appliance
and unplug it rst.
•
This appliance is for
household use only.
•
Read the cleaning
procedure from section 7
“Cleaning” before use.
•
Do not operate the
blender for more than
30 seconds without any
ingredient(s). It may lead
to overheating.
9
English
EN
before you switch on the
appliance.
Built-in safety lock
This feature ensures that you can
only switch on the appliance if the
blender jar is assembled on the motor
unit properly. If the blender jar is not
correctly assembled, the built-in safety
lock will be locked.
Safety Feature
This blender is tted with a safety feature
which safeguards against excessive
loads. In case of overloading, the blender
automatically activates the protection
and operation will stop and the
overloading symbol will light up on the
control panel. If this occurs, set the rotary
knob to OFF, unplug the appliance and
allow it to cool down for 15 minutes.
Remove the ingredients and clean up
the blender jar before starting operation.
Electromagnetic elds
(EMF)
This Philips appliance complies with all
applicable standards and regulations
regarding exposure to electromagnetic
elds.
Recycling
Do not throw away the product with the
normal household waste at the end of its
life, but hand it in at an ocial collection
point for recycling. By doing this, you help
to preserve the environment.
it. Then use a spatula
(not supplied with the
product) to remove the
food from the wall.
Blender
Warning
•
Never reach into the
blender jar with your
ngers or an object while
the appliance is running.
Caution
•
To prevent spillage, do
not put more than 1.8
litres of liquid in the
blender jar, especially
when you process at a
high speed. Do not put
more than 1 litre in the
blender jar when you
process ingredients that
tend to foam.
•
Do not let the appliance
run for more than
3 minutes at a time. Let
the appliance cool down
to room temperature
before you continue
blending.
•
Always make sure the lid
is properly closed and
assembled on the jar
10
EN
3 Before first time
use
Before you use the appliance and
accessories for the rst time, thoroughly
clean the parts that come into contact
with food. You can follow the cleaning
procedure from section 7 “Cleaning”.
For more recipes, go to
www.kitchen.philips.com.
Note
• If you want to prepare a larger quantity, let the
appliance cool down to room temperature
before you process the next batch of
ingredients.
4 Important notes
Stop and unplug the appliance if there
is a pungent appliance smell or smoke.
Let it cool down for 15 minutes.
Do not add heavy ingredients such as
bread dough or mash potatoes - the
ingredient mixture will become too thick
or too heavy to process.
To avoid overloading the appliance,
you can
•
Add more liquid ingredient
•
Process in several small batches
•
Use a higher speed setting
5 Safety protection
The blender has a safety protection
system. When the blender runs over
3 minutes continuously, it will stop
processing automatically. If you have
not nished processing after 3 minutes,
switch o the appliance and let it cool
Follow your country’s rules for the
separate collection of electrical and
electronic products. Correct disposal
helps prevent negative consequences for
the environment and human health.

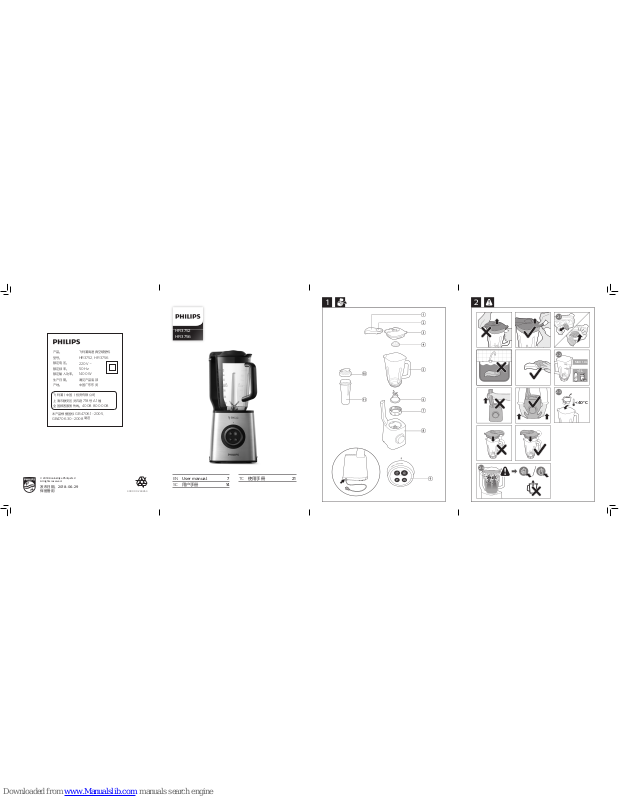

2 Overview (Fig. 1)
a Vacuum module
b Air release button
c Vacuum lid
d Filter
e Blender jar
f Blade unit
g Collar
h Motor unit
i Rotary knob and preset buttons:
- MIN/MAX/ON
To turn on the blender and select
a blending speed setting.
- OFF
To turn o the blender.
- Vacuum button
To vacuum the blender jar.
- Vacuum and blending preset
button
To vacuum the blender jar and
process the ingredients as
programmed.
- Ice crushing button
To crush ice.
- Pulse button
To blend briey and for easy
cleaning.
j Lid of on-the-go bottle (HR3756
only)
k On-the-go bottle (HR3756 only)
11
English
EN
Ingredients Solution
Powdered
ingredients,
(powdered sugar,
cocoa powder,
roasted soybean
our, protein, etc.)
Blend them briey
with liquid or
dissolve them
completely in
a separated
container before
using.
Ingredients with
steam
Cool them down
below 40 °C
before using.
Mixed ingredients
with air bubbles or
foam formation
Pour them to
the blending jar
carefully to avoid
any formation of
air bubble or foam.
Do not exceed the
maximum volume
indication on the
blender jar.
Do not mix
ingredients by
shaking as this may
cause a failure due
to the suction of
bubbles produced
during shaking.
Vacuum blending allows you to prepare
drinks and smoothies using fruits,
vegetables and water or other liquids
that do not oxidise.
Preset vacuum and blending mode
1
Prepare your blender (step 1 to step
6 in g. 3).
2
Press the vacuum and blending
button .
» The blender automatically prepares
a vacuum connection to the vacuum
module. It then starts to vacuum
the jar and the LED ring lights up to
indicate the vacuum progress.
down to room temperature. Never use
over 3 minutes consecutively without
allowing to cool to room temperature rst.
When assembling the blender jar to
the motor unit (8), make sure the rotary
knob is in the OFF position rst.
6 Using your
blender
Vacuum blending
(Fig. 3)
Warning
• Do not blend dry ingredients (for example
pepper, beans, corn or star anise) without
liquid.
• The blender jar cannot be used for vacuum
storage.
• Make sure the vacuum lid is completely dry
before use.
Caution
• Make sure the lter is securely attached to the
vacuum lid before using (Fig. 2-1).
• For the ingredients that are easy to froth, such
as milk and soymilk, the maximum volume is
1000 ml. Do not exceed the maximum volume
indication on the blender jar (Fig. 2-2).
• Never ll the blender jar with ingredients hotter
than 40 °C (Fig. 2-3).
• If bubbles / foam expand beyond the MAX
1800 ml indication, stop the vacuum operation
at once (Fig. 2-4).
Note
• Precut food into pieces of approx. 2 x 2 x 2 cm.
To avoid the device failure, refer to the
solutions in the table below to prepare
ingredients.
