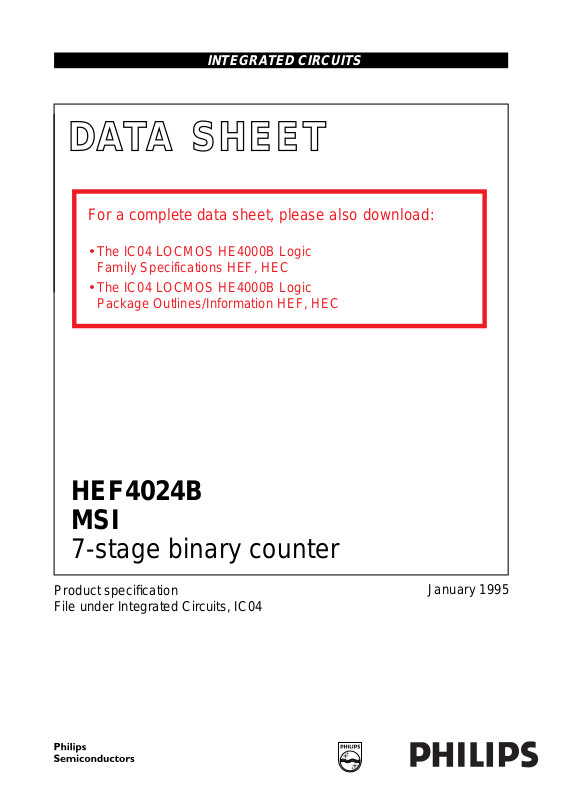

INTEGRATED CIRCUITS
DATA SH EET
For a complete data sheet, please also download:
•The IC04 LOCMOS HE4000B Logic
Family Specifications HEF, HEC
•The IC04 LOCMOS HE4000B Logic
Package Outlines/Information HEF, HEC
HEF4024B
MSI
7-stage binary counter
Product specification
File under Integrated Circuits, IC04
January 1995
Philips Semiconductors Product specification
7-stage binary counter
DESCRIPTION
The HEF4024B is a 7-stage binary ripple counter with a
clock input (CP), and overriding asynchronous master
reset input (MR) and seven fully buffered parallel outputs
(O0to O6). The counter advances on the HIGH to LOW
transition of CP. A HIGH on MR clears all counter stages
and forces all outputs LOW, independent of CP. Each
counter stage is a static toggle flip-flop.
HEF4024B
MSI
Fig.1 Functional diagram.
Fig.2 Pinning diagram.
HEF4024BP(N): 14-lead DIL; plastic
(SOT27-1)
HEF4024BD(F): 14-lead DIL; ceramic (cerdip)
(SOT73)
HEF4024BT(D): 14-lead SO; plastic
(SOT108-1)
( ): Package Designator North America
PINNING
CP clock input (HIGH to LOW triggered)
MR master reset input
O
to O
0
6
APPLICATION INFORMATION
Some examples of applications for the HEF4024B are:
• Frequency dividers
• Time delay circuits
FAMILY DATA, I
See Family Specifications
buffered parallel outputs
LIMITS category MSI
DD
January 1995 2
This text is here in white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here in
_white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader.This text is here inThis text is here in
white to force landscape pages to be rotated correctly when browsing through the pdf in the Acrobat reader. white to force landscape pages to be ...
January 1995 3
Fig.3 Logic diagram.
Philips Semiconductors Product specification
7-stage binary counter
HEF4024B
MSI
Philips Semiconductors Product specification
7-stage binary counter
HEF4024B
MSI
AC CHARACTERISTICS
V
= 0 V; T
SS
Propagation delays
CP → O
HIGH to LOW 10 t
LOW to HIGH 10 t
On→ On+ 1 5 60 120 ns 33 ns + (0,55 ns/pF) C
HIGH to LOW 10 t
LOW to HIGH 10 t
MR → O
HIGH to LOW 10 t
Output transition times 5 60 120 ns 10 ns + (1,0 ns/pF) C
HIGH to LOW 10 t
LOW to HIGH 10 t
Minimum clock 5 60 30 ns
pulse width; HIGH 10 t
Minimum MR 5 80 40 ns
pulse width; HIGH 10 t
Recovery time 5 20 10 ns
for MR 10 t
Maximum clock 5 5 10 MHz
pulse frequency 10 f
=25°C; CL= 50 pF; input transition times ≤ 20 ns; see also waveforms Fig.4
amb
V
DD
V SYMBOL MIN. TYP. MAX.
0
5 100 200 ns 73 ns + (0,55 ns/pF) C
PHL
40 75 ns 29 ns + (0,23 ns/pF) C
15 25 50 ns 17 ns + (0,16 ns/pF) C
5 105 210 ns 78 ns + (0,55 ns/pF) C
PLH
45 85 ns 34 ns + (0,23 ns/pF) C
15 30 60 ns 22 ns + (0,16 ns/pF) C
PHL
25 50 ns 14 ns + (0,23 ns/pF) C
15 20 40 ns 12 ns + (0,16 ns/pF) C
5 50 100 ns 23 ns + (0,55 ns/pF) C
PLH
20 40 ns 9 ns + (0,23 ns/pF) C
15 15 30 ns 7 ns + (0,16 ns/pF) C
n
5 120 240 ns 93 ns + (0,55 ns/pF) C
PHL
45 90 ns 34 ns + (0,23 ns/pF) C
15 30 60 ns 22 ns + (0,16 ns/pF) C
THL
30 60 ns 9 ns + (0,42 ns/pF) C
15 20 40 ns 6 ns + (0,28 ns/pF) C
5 60 120 ns 10 ns + (1,0 ns/pF) C
TLH
30 60 ns 9 ns + (0,42 ns/pF) C
15 20 40 ns 6 ns + (0,28 ns/pF) C
WCPH
30 15 ns
15 20 10 ns
WMRH
35 20 ns
15 25 15 ns
RMR
15 5 ns
15 15 5 ns
max
13 25 MHz
15 18 35 MHz
TYPICAL
EXTRAPOLATION
FORMULA
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
L
January 1995 4
Philips Semiconductors Product specification
7-stage binary counter
V
DD
V
Dynamic power 5 500 f
dissipation per 10 2100 f
package (P) 15 5200 f
TYPICAL FORMULA FOR P (µW)
+∑(foCL) × V
i
+∑(foCL) × V
i
+∑(foCL) × V
i
DD
DD
DD
HEF4024B
MSI
2
2
2
where
fi= input freq. (MHz)
fo= output freq. (MHz)
C
= load cap. (pF)
L
∑ (f
) = sum of outputs
oCL
= supply voltage (V)
V
DD
Fig.4 Waveforms showing propagation delays for MR to Onand CP to O0, minimum MR andCP pulse widths
and recovery time for MR.
January 1995 5
